Axon Server went RAFTing

RAFT protocol is a well-known protocol for consensus in Distributed Systems. Want to learn how consensus is achieved in a system with a large amount of data such as Axon Server’s Event Store? Join this talk to hear about all specifics regarding data replication in highly available Event Store!

Axon is a free and open source Java framework for writing Java applications following DDD, event sourcing, and CQRS principles. While especially useful in a microservices context, Axon provides great value in building structured monoliths that can be broken down into microservices when needed.

Axon Server is a messaging platform specifically built to support distributed Axon applications. One of its key benefits is storing events published by Axon applications. In not so rare cases, the number of these events is over millions, even billions. Availability of Axon Server plays a significant role in the product portfolio. To keep event replication reliable we chose RAFT protocol for consensus implementation of our clustering features.

In short, consensus involves multiple servers agreeing on values. Once they reach a decision on a value, that decision is final. Typical consensus algorithms make progress when any majority of their servers is available; for example, a cluster of 5 servers can continue to operate even if 2 servers fail. If more servers fail, they stop making progress (but will never return an incorrect result).

Join this talk to learn why we chose RAFT; what were our findings during the design, the implementation, and testing phase; and what does it mean to replicate an event store holding billions of events!

Transcript

1. Axon Server went RAFTing
2. Milan Savić Software Engineer @ AxonIQ milan@axoniq.io @MilanSavic14 m1l4n54v1c @MilanSavic14
3. @MilanSavic14

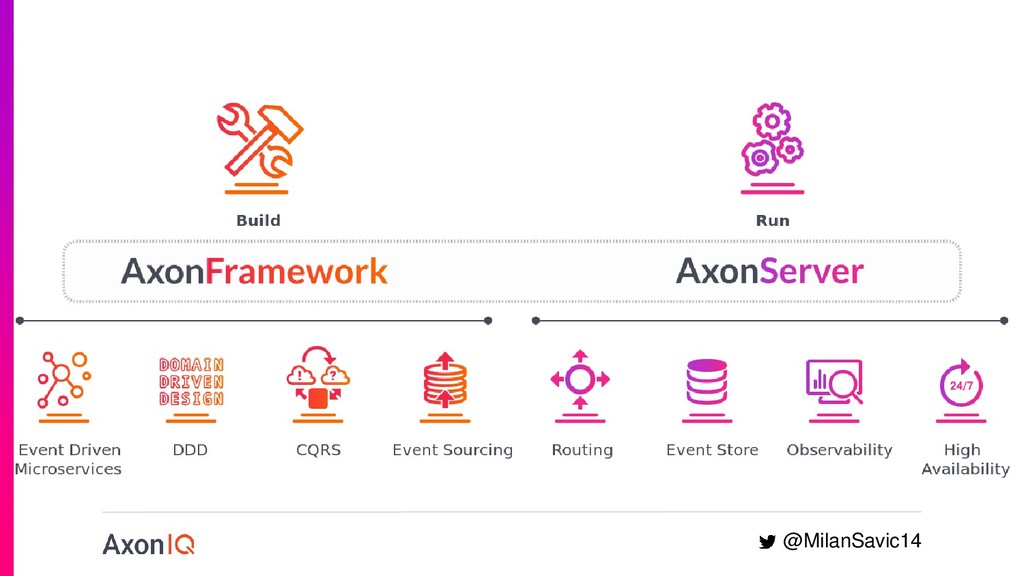

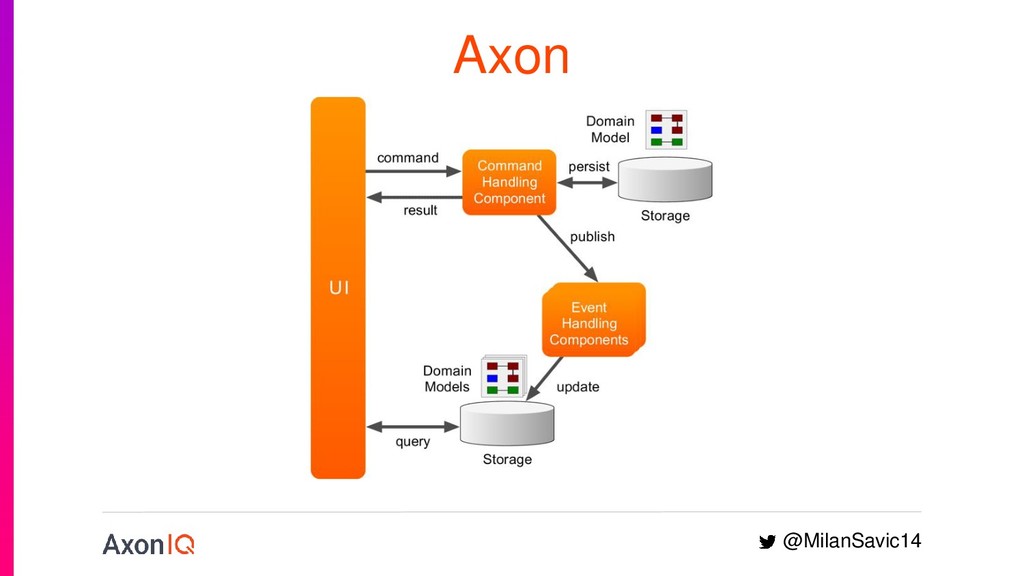

4. Axon @MilanSavic14
5. @MilanSavic14

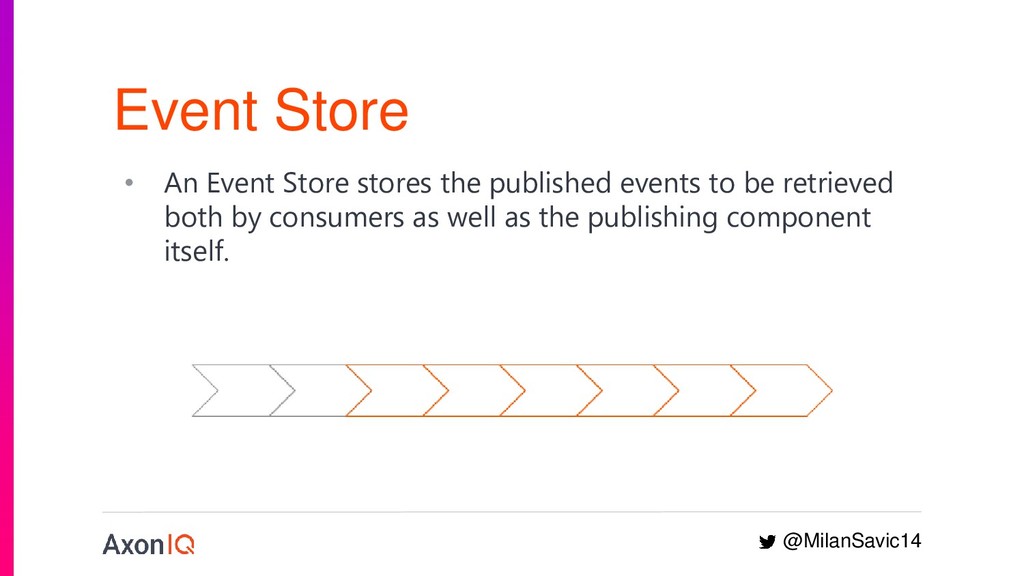

6. Event Store • An Event Store stores the published events to be retrieved both by consumers as well as the publishing component itself. @MilanSavic14

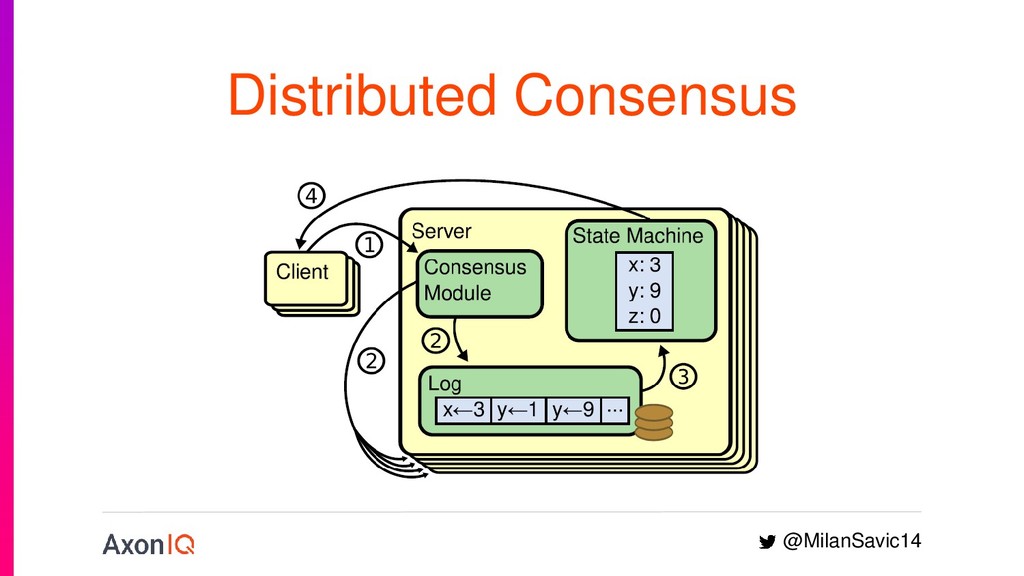

7. Distributed Consensus @MilanSavic14
8. RAFT @MilanSavic14

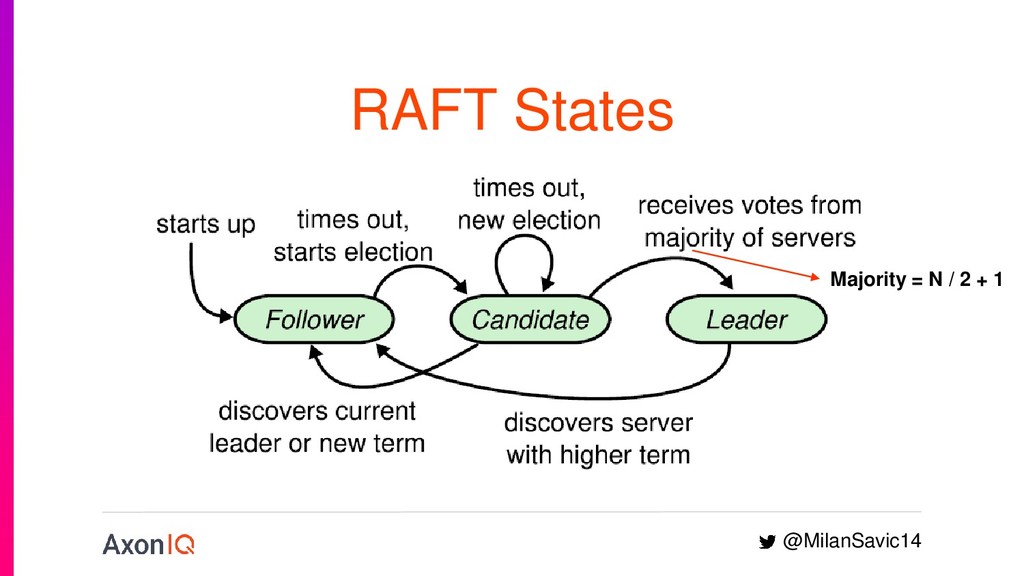

9. RAFT States @MilanSavic14 Majority = N / 2 + 1

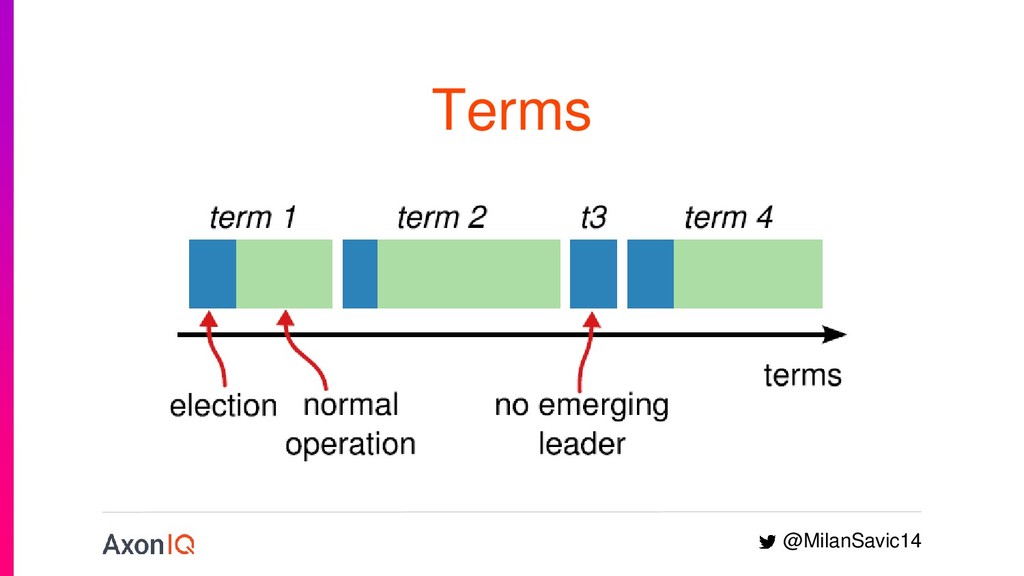

10. Terms @MilanSavic14

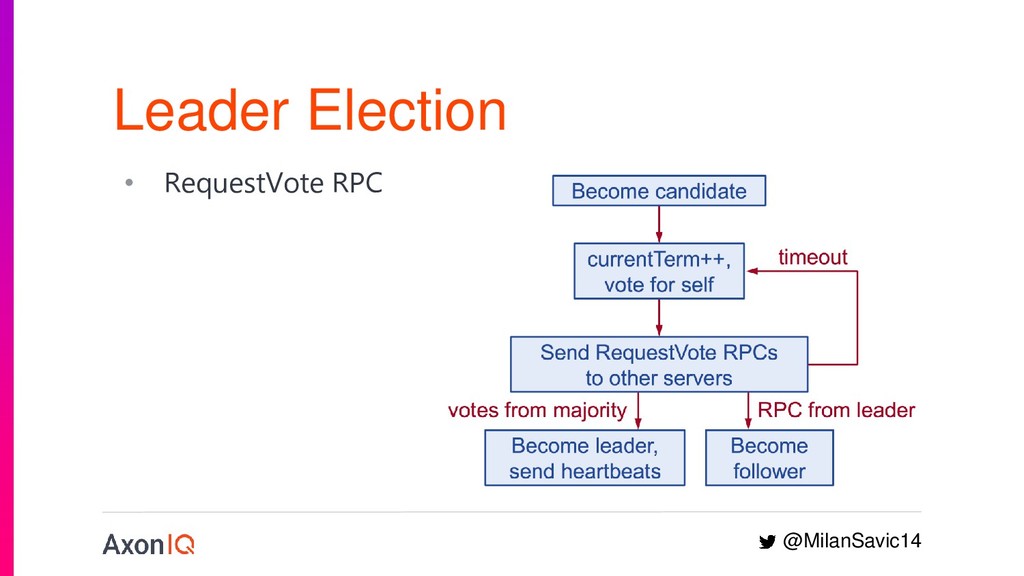

11. Leader Election @MilanSavic14 • RequestVote RPC

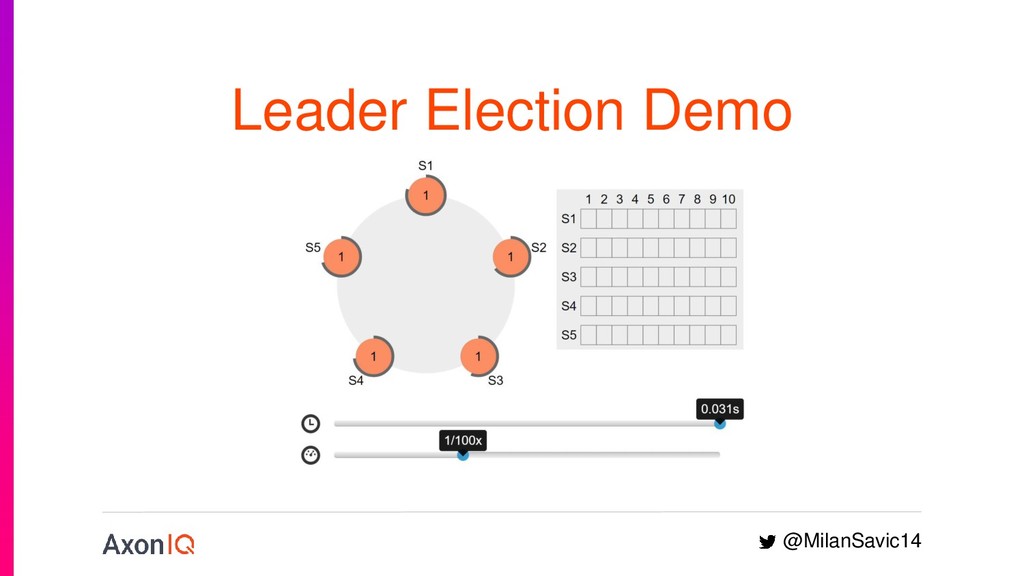

12. Leader Election Demo @MilanSavic14

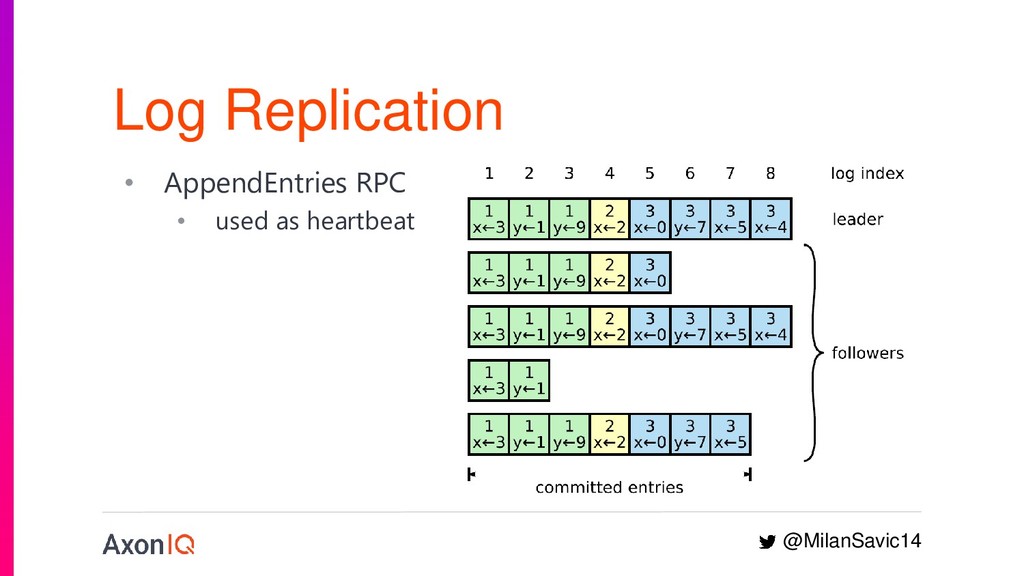

13. Log Replication • AppendEntries RPC • used as heartbeat @MilanSavic14

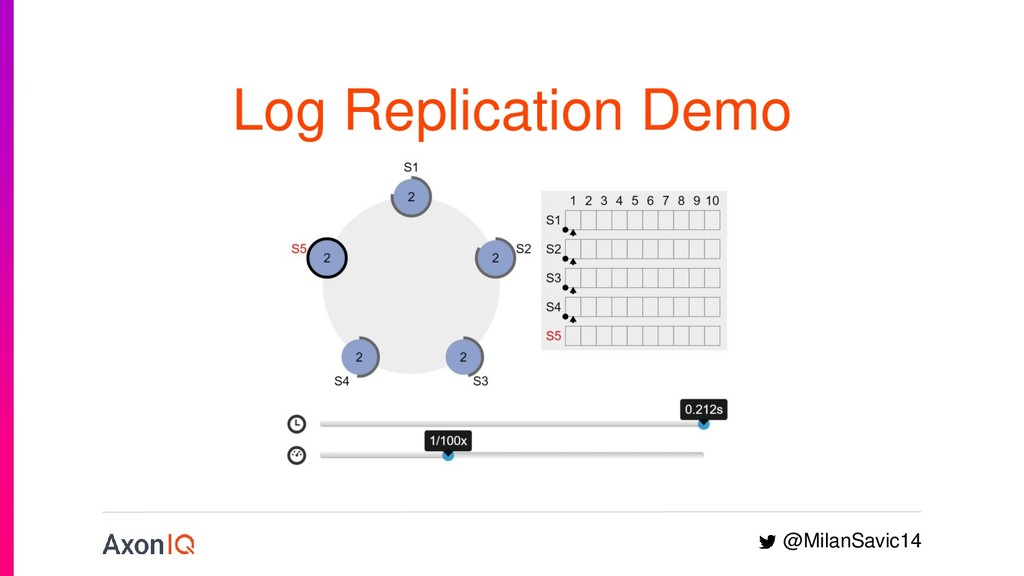

14. Log Replication Demo @MilanSavic14

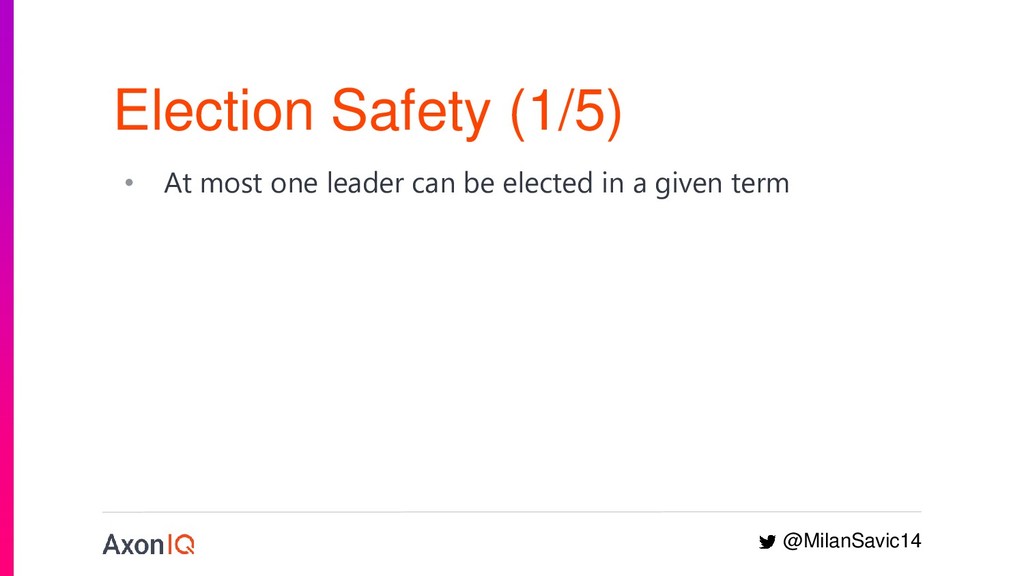

15. Election Safety (1/5) • At most one leader can be elected in a given term @MilanSavic14

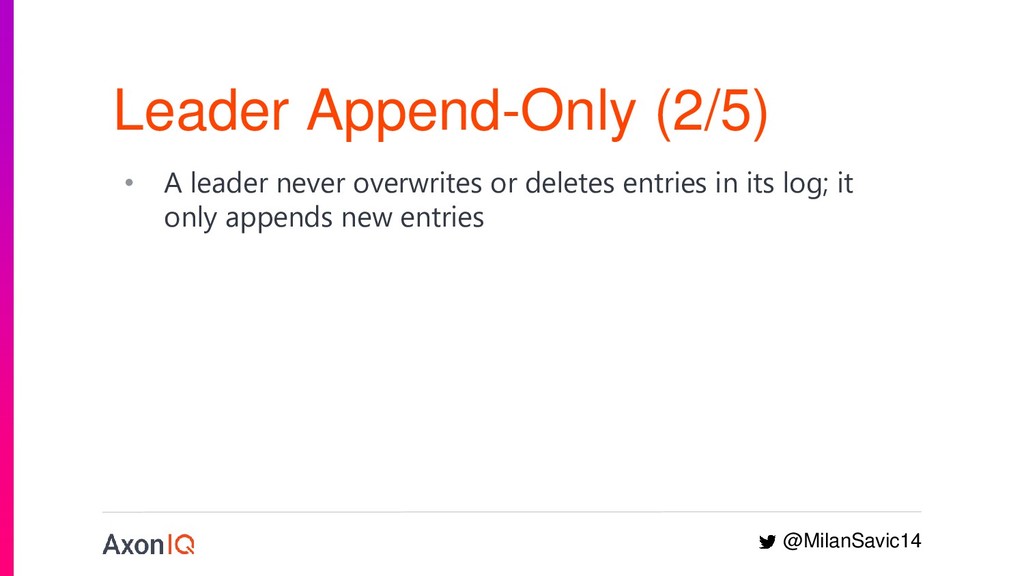

16. Leader Append-Only (2/5) • A leader never overwrites or deletes entries in its log; it only appends new entries @MilanSavic14

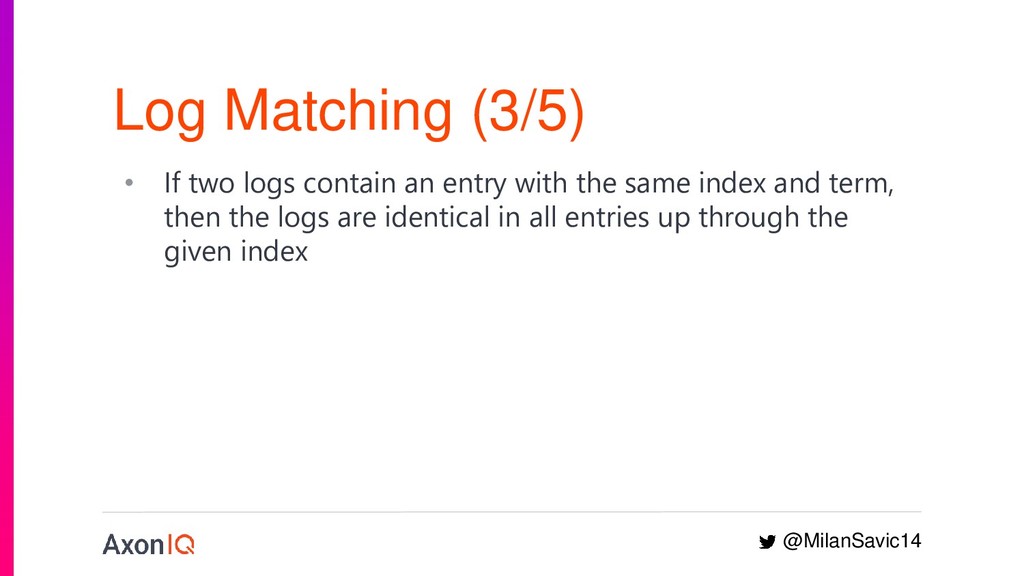

17. Log Matching (3/5) • If two logs contain an entry with the same index and term, then the logs are identical in all entries up through the given index @MilanSavic14

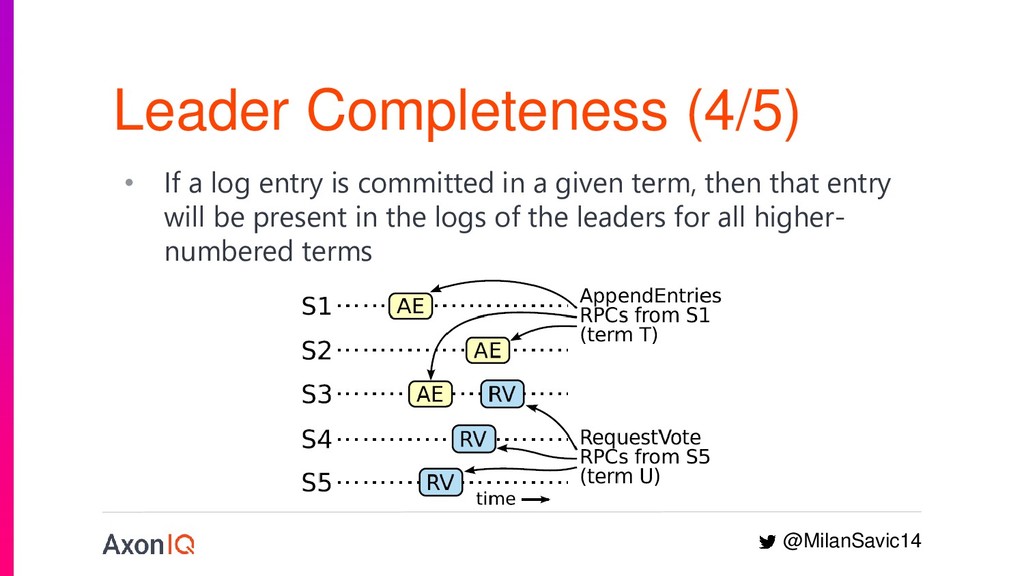

18. Leader Completeness (4/5) • If a log entry is committed in a given term, then that entry will be present in the logs of the leaders for all higher- numbered terms @MilanSavic14

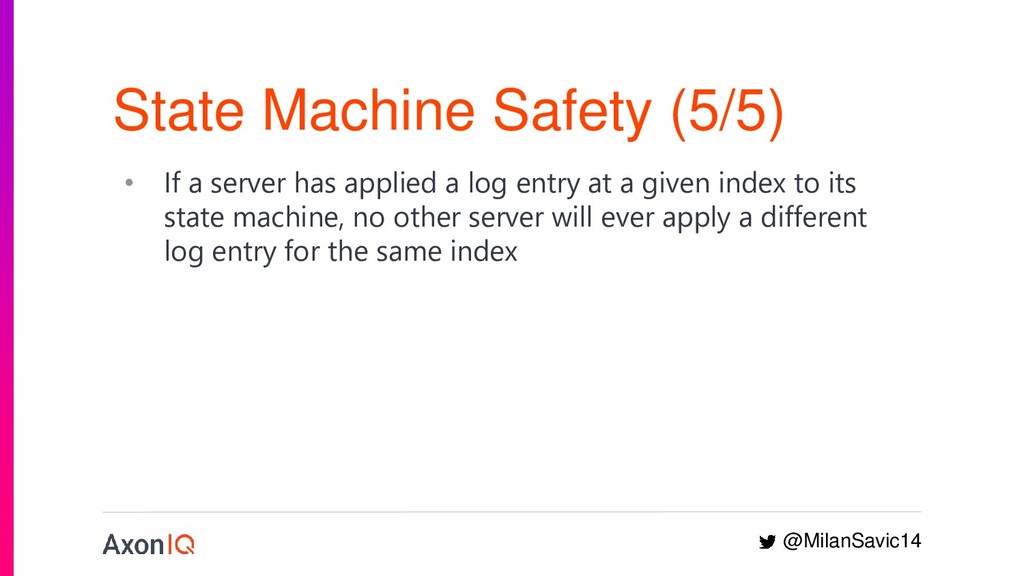

19. State Machine Safety (5/5) • If a server has applied a log entry at a given index to its state machine, no other server will ever apply a different log entry for the same index @MilanSavic14

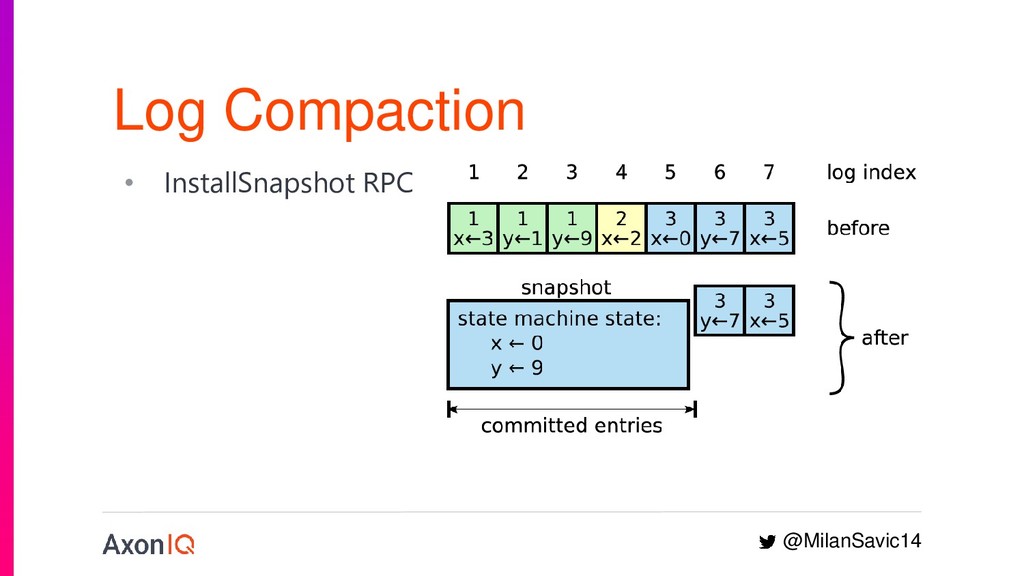

20. Log Compaction • InstallSnapshot RPC @MilanSavic14
21. Cluster membership changes • Add Node • Remove Node @MilanSavic14

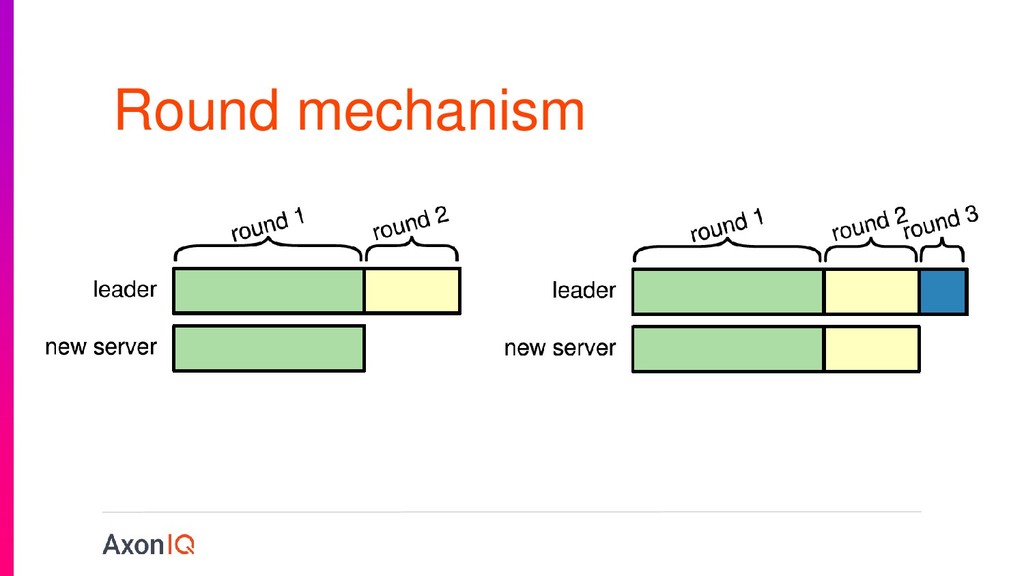

22. Round mechanism

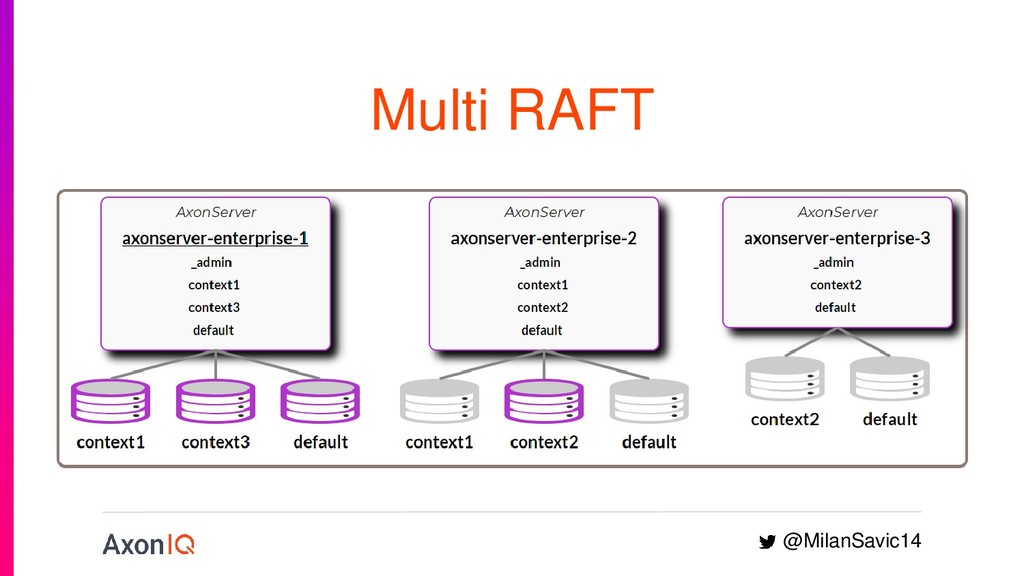

23. Multi RAFT @MilanSavic14
24. Testing • Development environment • Build environment • Cloud environment @MilanSavic14 • Unit Tests • Integration Tests • E2E Tests • Performance Tests • Chaos experiments Test Types Environments
25. Lessons Learned • Start as simple as possible • Don’t deviate from RAFT paper • Timing is important • Large state makes Install Snapshot more difficult • Test, test, test @MilanSavic14

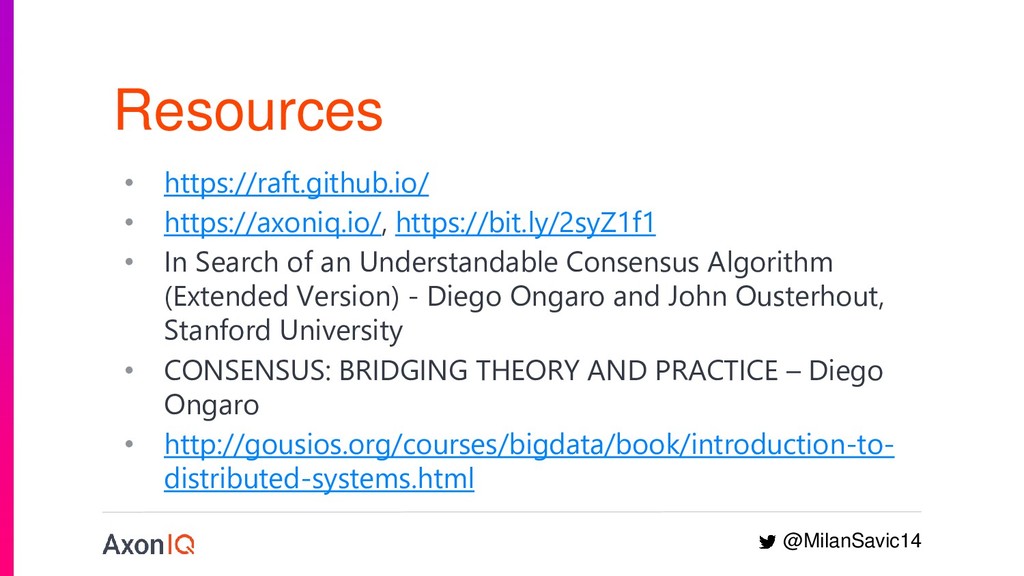

26. Resources • https://raft.github.io/ • https://axoniq.io/, https://bit.ly/2syZ1f1 • In Search of an Understandable Consensus Algorithm (Extended Version) - Diego Ongaro and John Ousterhout, Stanford University • CONSENSUS: BRIDGING THEORY AND PRACTICE – Diego Ongaro • http://gousios.org/courses/bigdata/book/introduction-to- distributed-systems.html @MilanSavic14
27. https://register.gotowebinar.com/register/6461535565554796301 @MilanSavic14
28. Gracias! @MilanSavic14 Thank you! Hvala!
29. @MilanSavic14
