Business Archetypes patterns with Rails

An introduction into business archetypes patterns: a great pill of knowledge on how to implement universal concepts occurring in business and business software systems. A complex theory explained with various Rails examples and practical recipes

Transcript

1. MICHAŁ
 ŁĘCICKI m.lecicki@visuality.pl @mlecicki https://maikhel.github.io
2. BUSINESS ARCHETYPES PATTERNS WITH RAILS
3. How to help the feeling that somebody already solved your problems BUSINESS ARCHETYPES PATTERNS WITH RAILS
4. CREDITS Enterprise Patterns and MDA : Building Better Software with Archetype Patterns and UML Jim Arlow, Ila Neustadt https://www.amazon.pl/Enterprise-Patterns-MDA-Building-Archetype/dp/032111230X
5. A primordial thing or circumstance that recurs consistently and is thought to be a universal concept or situation Archetype
6. Hero archetype generated by DALL·E 3
7. BUSINESS ARCHETYPE
8. PARTY INVENTORY CRM PRODUCT ORDER RULE BUSINESS ARCHETYPE
9. BUSINESS ARCHETYPE PATTERN
10. HOW TO FIND ARCHETYPE PATTERNS Literature Experts Business domain
11. PLEOMORPHISM Adaptation of an archetype pattern to a specific business context by a modification of its form such that its essential semantics remain unchanged generated by DALL·E 3
12. How to apply archetype patterns? 0. Know archetype patterns 1. Understand stakeholder requirements 2. Select pleomorph 3. Perform translation/mapping 4. Extend archetype pattern for domain
13. ARCHETYPE
 PARTY
14. Identifable, addresable unit that may have a legal status and that normally has autonomous control over its actions PARTY

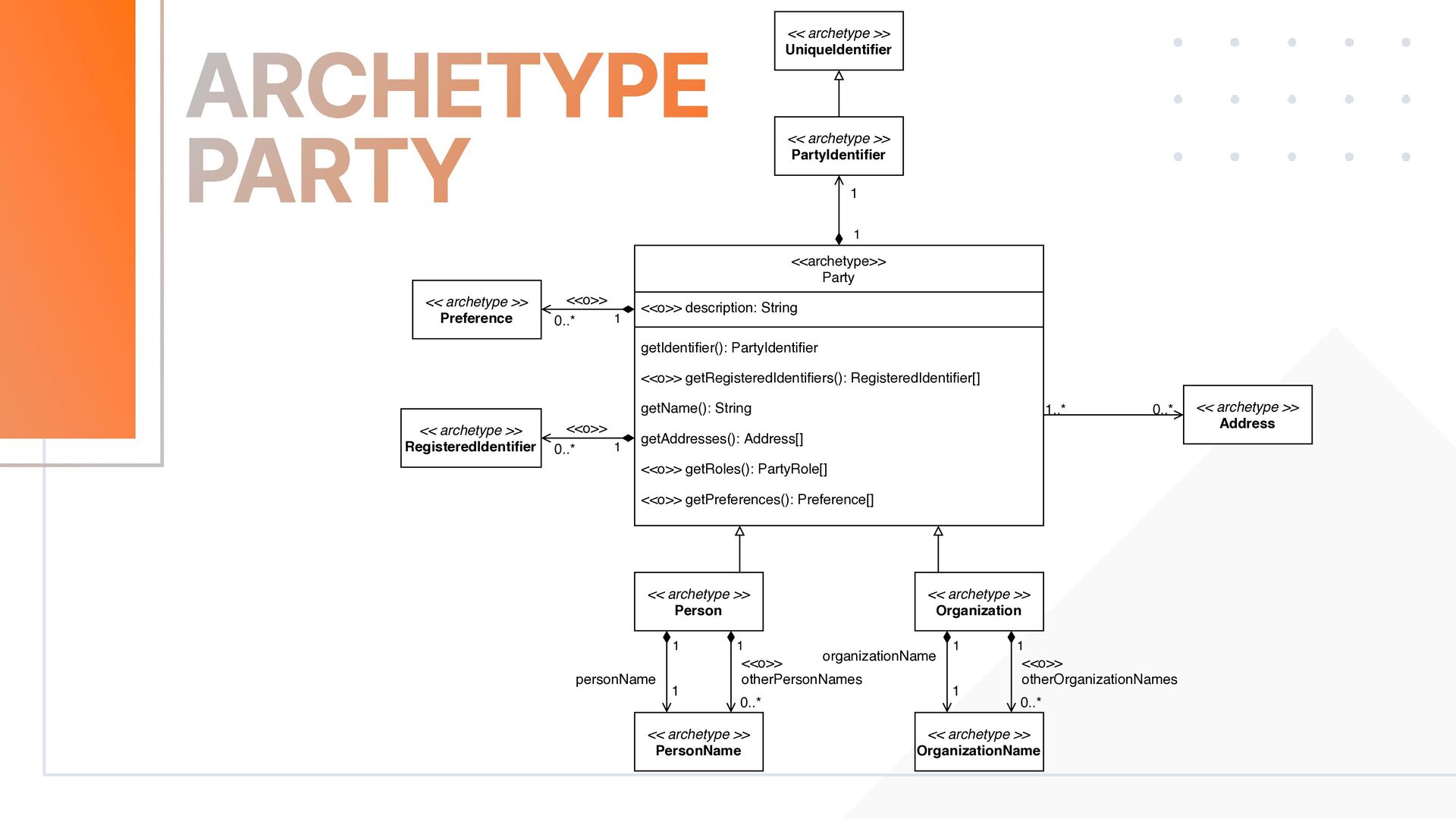

15. <<archetype>> Party <<o>> description: String getIdentifier(): PartyIdentifier <<o>> getRegisteredIdentifiers(): RegisteredIdentifier[] getName(): String getAddresses(): Address[] <<o>> getRoles(): PartyRole[] <<o>> getPreferences(): Preference[] 1..* 0..* << archetype >> Address << archetype >> Person << archetype >> PersonName << archetype >> PartyIdentifier << archetype >> UniqueIdentifier << archetype >> Preference << archetype >> RegisteredIdentifier 1 1 0..* 1 personName <<o>> otherPersonNames << archetype >> Organization << archetype >> OrganizationName 1 1 0..* 1 organizationName <<o>> otherOrganizationNames 1 1 1 <<o>> 1 0..* 0..* <<o>> ARCHETYPE PARTY
16. ARCHETYPE
 PARTY Person Organisation
17. ARCHETYPE

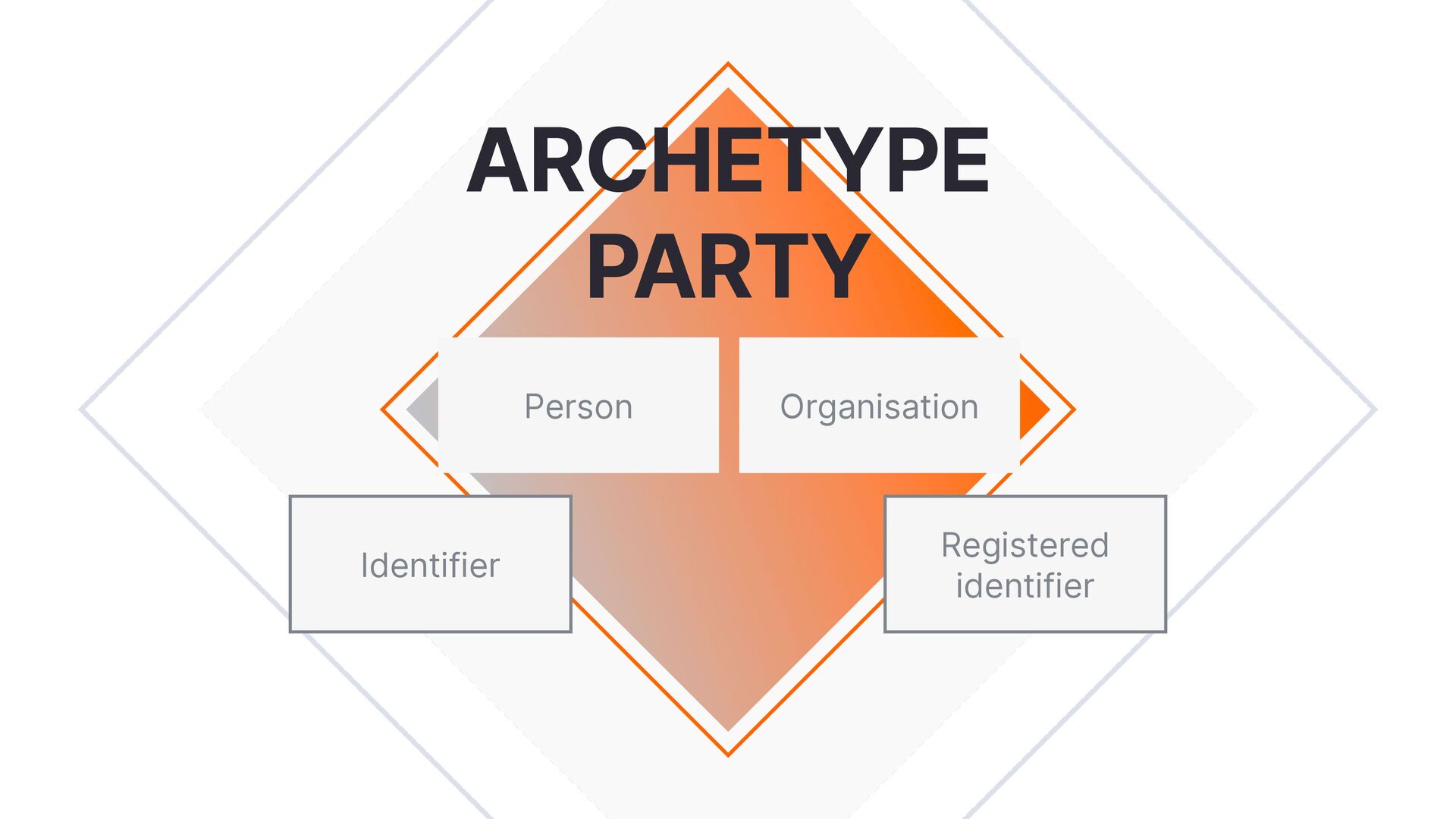

 PARTY Person Organisation Identifier Registered identifier
18. Party Signature ARCHETYPE
 PARTY Person Organisation Identifier Registered identifier
19. Party Signature ARCHETYPE

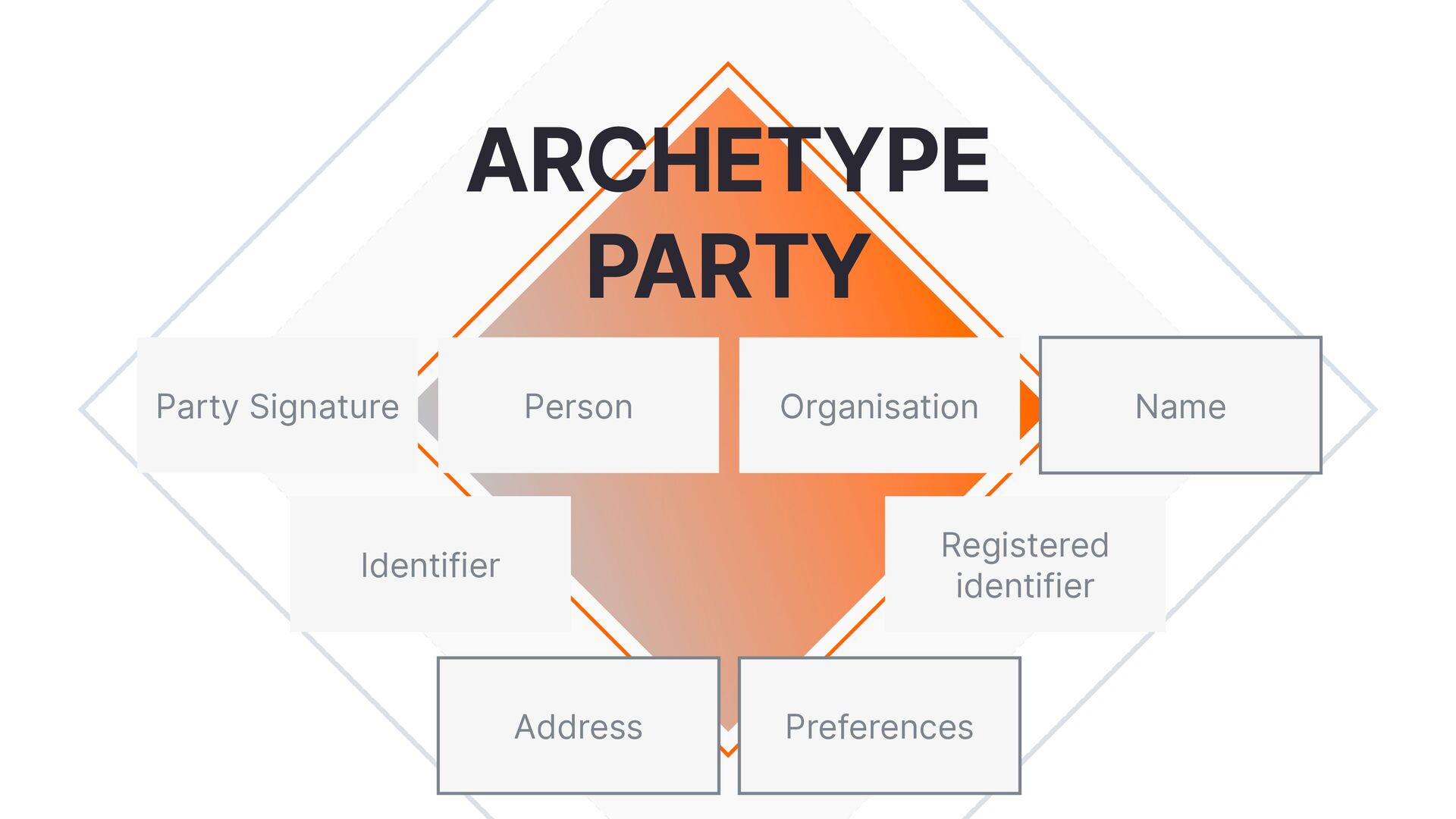

 PARTY Person Organisation Name Identifier Registered identifier Address Preferences
20. Party Signature ARCHETYPE

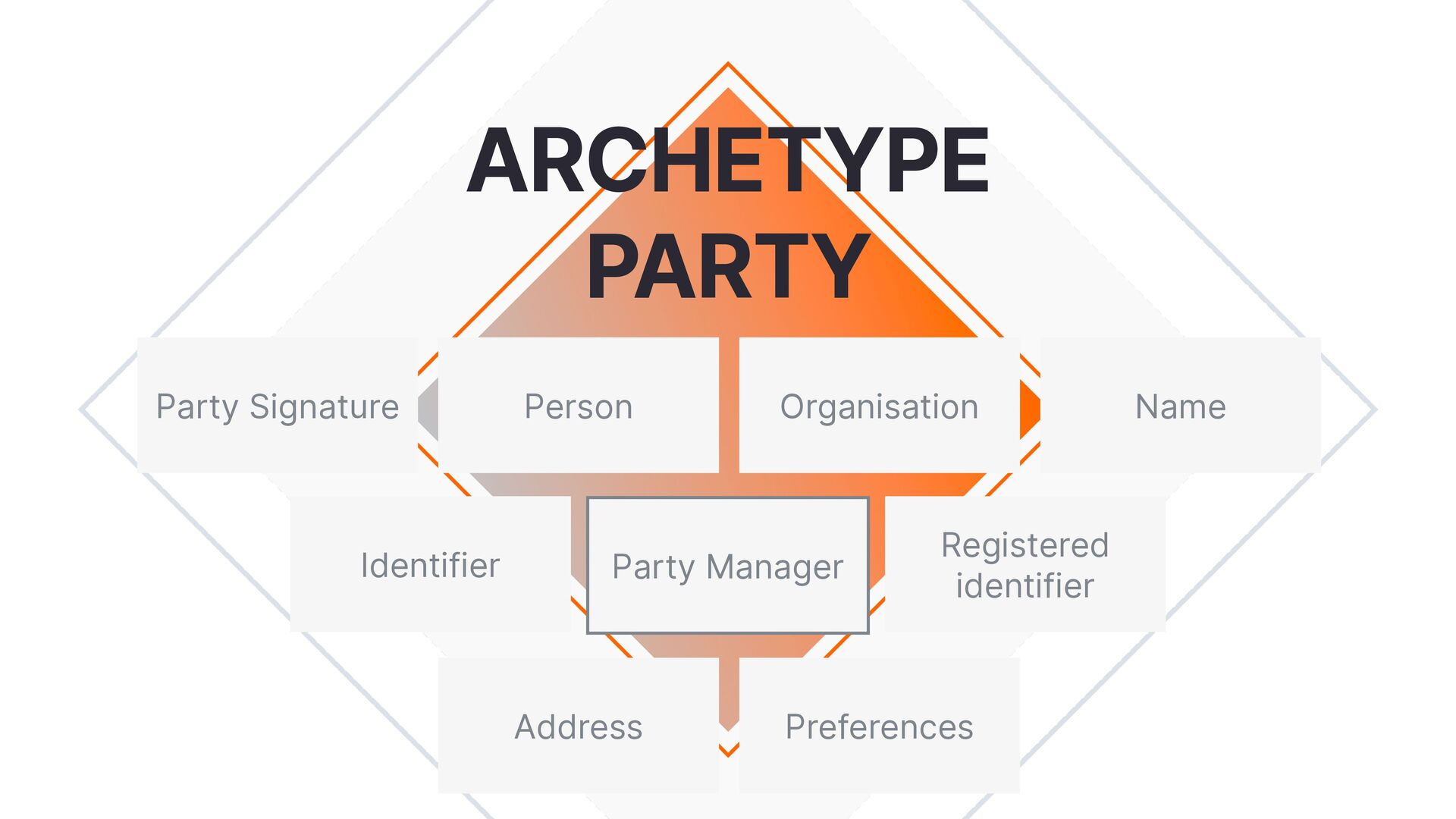

 PARTY Person Organisation Name Identifier Registered identifier Address Preferences Party Manager
21. ARCHETYPE
 PARTY RELATIONSHIP
22. Family Relationship Parent Child Parent Son Father Son Family Level of abstraction Symmetry generated by DALL·E 3
23. Party Role Party Relationship Party Role Party Leia Sister Siblings Brother Luke Asymmetrical relationship Party
24. ARCHETYPE
 PARTY RELATIONSHIP Party Role Party Relationship
25. ARCHETYPE PARTY RELATIONSHIP <<archetype>> PartyRole <<o>> name: String <<o>> description: String getParty(): Party getIdentifier(): PartyRoleIdentifier <<o>> getName(): String <<o>> getDescription(): String <<o>> getRoleType(): PartyRoleType <<o>> getResponsibility( name ) <<o>> assignResponsibility( responsibility: Responsibility) <<o>> removeResponsibility( name ) << archetype >> Party 0..* client 0..1 0..* 1 <<archetype>> UniqueIdentifier getIdentifier(): String <<archetype>> PartyRoleIdentifier identifier: String <<archetype>> PartyRelationship <<o>> name: String <<o>> description: String getClientPartyRole(): PartyRole getSupplierPartyRole(): PartyRole <<o>> getDescription(): String <<o>> getRelationshipType(): PartyRelationshipType <<o>> getName(): String supplier 0..* 1 1 1
26. Party Role Type ARCHETYPE
 PARTY RELATIONSHIP Party Role Party Relationship Party Relationship Type
27. <<archetype>> PartyRole <<o>> name: String <<o>> description: String getParty(): Party getIdentifier(): PartyRoleIdentifier <<o>> getName(): String <<o>> getDescription(): String <<o>> getRoleType(): PartyRoleType ... << archetype >> Party 0..* 0..* 1 <<archetype>> PartyRoleType name: String description: String canPlayRole (party: Party): Boolean <<o>> canPlayRole (party: Party, context: RuleContext): Boolean <<o>> getConstraints(): PartyRoleConstraint[] ... supplier 0..* 1 <<archetype>> PartyRelationship <<o>> name: String <<o>> description: String getClientPartyRole(): PartyRole getSupplierPartyRole(): PartyRole <<o>> getName(): String <<o>> getDescription(): String <<o>> getRelationshipType(): PartyRelationshipType <<archetype>> PartyRelationshipType name: String description: String canFormRelationship (client: PartyRole, supplier: PartyRole): Boolean <<o>> canFormRelationship (client: PartyRole, supplier: PartyRole, context: RuleContext): Boolean <<o>> getConstraints(): PartyRelationshipConstraint client 1 1 0..* roleType <<o>> 0..* 1 relationshipType <<o>> << archetype >> PartyRoleConstraint <<o>> 1 1..* validTypesOfParty << archetype >> PartyRelationshipConstraint 1..* 1 <<o>> validRolePairs
28. Party Role Type ARCHETYPE
 PARTY RELATIONSHIP Party Role Party Relationship Party Relationship Type Party Role Constraint Party Relationship Constraint
29. Party Role Type ARCHETYPE
 PARTY RELATIONSHIP Party Role Party Relationship Party Relationship Type Party Role Constraint Party Relationship Constraint Responsibilities Capabilities
30. Party Role Type ARCHETYPE
 PARTY RELATIONSHIP Party Role Party Relationship Party Relationship Type Party Role Constraint Party Relationship Constraint Responsibilities Capabilities Party Summary
31. Recipe for a great party 1. Identify the types of Parties in the system 2. List different types of relationships between them - create Party Relationships 3. Check that party relationships meet identifable business needs 4. Work out what roles different types of parties play in Party Relationships - Party Roles 5. Formulate rules - Party Role Constraints, Party Relationships Constraints
32. ARCHETYPE PARTY What relationships are worth to capture? At what level of abstraction? Who can be connected with whom? Questions you should ask yourself
34. github.com/maikhel/business-archetypes
35. My insights Capture characteristic or just existence of relationship? ActiveRecord vs archetype approach Problems with searching Modeling Rules of relationships
36. ARCHETYPE
 PRODUCT
37. Goods or services your business sell PRODUCT
38. Unique product Product types Identical product Identifable product
39. ARCHETYPE
 PRODUCT Product Type Product Instance
40. <<archetype>> ProductIdentifier productIdentifier: String getIdentifier(): String 0..* << archetype >> ProductInstance 1 1 1 << archetype >> Product Type <<archetype>> UniqueIdentifier getIdentifier(): String <<archetype>> SerialNumber serialNumber: String getIdentifier(): String 0..1 << o >> 1
41. ARCHETYPE
 PRODUCT Product Type Product Instance Product Batch
42. ARCHETYPE
 PRODUCT Product Type Product Instance Product Batch Product Specification
43. ARCHETYPE
 PRODUCT Product Type Product Instance Product Batch Product Specification Product Catalog Catalog Entry
44. ARCHETYPE
 PRODUCT Product Type Product Instance Product Batch Product Specification Product Catalog Catalog Entry Package Type Package Instance Package
45. ARCHETYPE
 PRODUCT Product Type Product Instance Product Batch Product Specification Product Catalog Catalog Entry Package Type Package Instance Package Product Relationship
46. ARCHETYPE
 PRODUCT Product Type Product Instance Product Batch Product Specification Product Catalog Catalog Entry Package Type Package Instance Package Pricing Product Relationship
47. ARCHETYPE PRODUCT Questions you should ask yourself What is a good identifier for the product? Handling serial numbers Searching in product catalog Handling package specification Pricing
48. github.com/maikhel/business-archetypes
49. My insights Optimize the system/models structure for proper product type Don’t confuse Products with Catalog Entries Have a separate model for Price
50. ARCHETYPE
 INVENTORY
51. ARCHETYPE
 ORDER
52. ARCHETYPE
 RULE
53. ARCHETYPE
 CRM
54. Use only elements you need generated by DALL·E 3
55. MORE RESOURCES Enterprise Patterns and MDA : Building Better Software with Archetype Patterns and UML Jim Arlow, Ila Neustadt Analysis Patterns: Reusable Object Models,
 Martin Fowler Data Model Patterns
 David C. Hay https://www.amazon.pl/Enterprise-Patterns-MDA-Building-Archetype/dp/032111230X https://www.amazon.com/Data-Model-Patterns-David-Hay/dp/0932633749 https://www.amazon.com/Analysis-Patterns-Reusable-Object-paperback/dp/0134186052
56. Thank you!
57. Questions? https://maikhel.github.io
