Business Archetype Patterns: Archetype Party

Introduction into the business archetype patterns and description of the Party and Party Relationship archetype patterns. Practical example of archetype Party implementation in Ruby on Rails app.

Transcript

1. Revealing Party
   archetype pattern
   HOW TO PARTY


   AND MAKE
   RELATIONSHIPS


   View Slide

2. A primordial thing or circumstance
   that recurs consistently and is
   thought to be a universal concept or
   situation
   Archetype


   View Slide

3. Hero archetype


   View Slide

4. BUSINESS


   ARCHETYPE


   View Slide

5. Business archetype
   UNIVERSAL
   PERSVASIVE
   DEEP HISTORY
   SELF
   -
   EVIDENT


   View Slide

6. BUSINESS


   ARCHETYPE


   PATTERN


   View Slide

7. BUSINESS


   ARCHETYPE


   PATTERN
   PARTY INVENTORY
   COMPANY PRODUCT
   ORDER
   RULE


   View Slide

8. HOW TO FIND


   ARCHETYPE PATTERNS
   Literature Experts
   Business domain


   View Slide

9. PLEOMORPHISM
   Adaptation of an archetype
   pattern to a specific business
   context by a modification of its
   form such that its essential
   semantics remain unchanged


   View Slide

10. Adaptation of an archetype
    pattern to a specific business
    context by a modification of its
    form such that its essential
    semantics remain unchanged
    PLEOMORPHISM


    View Slide

11. How to apply archetype patterns?
    0. Know archetype patterns


    1. Understand stakeholder requirements


    2. Select pleomorph


    3. Perform translation/mapping


    4. Extend archetype pattern for domain


    View Slide

12. ARCHETYPE


    PARTY


    👪


    View Slide

13. ARCHETYPE


    PARTY
    Best image I coud find..


    View Slide

14. Identifable, addresable unit that
    may have a legal status and that
    normally has autonomous control
    over its actions
    PARTY 👪


    View Slide

15. <>
    Party
    <> description: String
    getIdentifier(): PartyIdentifier
    <> getRegisteredIdentifiers(): RegisteredIdentifier[]
    getName(): String
    getAddresses(): Address[]
    <> getRoles(): PartyRole[]
    <> getPreferences(): Preference[]
    1..* 0..* << archetype >>
    Address
    << archetype >>
    Person
    << archetype >>
    PersonName
    << archetype >>
    PartyIdentifier
    << archetype >>
    UniqueIdentifier
    << archetype >>
    Preference
    << archetype >>
    RegisteredIdentifier
    1 1
    0..*
    1
    personName
    <>
    otherPersonNames
    << archetype >>
    Organization
    << archetype >>
    OrganizationName
    1 1
    0..*
    1
    organizationName <>
    otherOrganizationNames
    1
    1
    1
    <>
    1
    0..*
    0..*
    <>
    ARCHETYPE


    PARTY


    View Slide

16. Person Organisation
    ARCHETYPE PARTY


    View Slide

17. Person Organisation
    Identifier
    ARCHETYPE PARTY


    View Slide

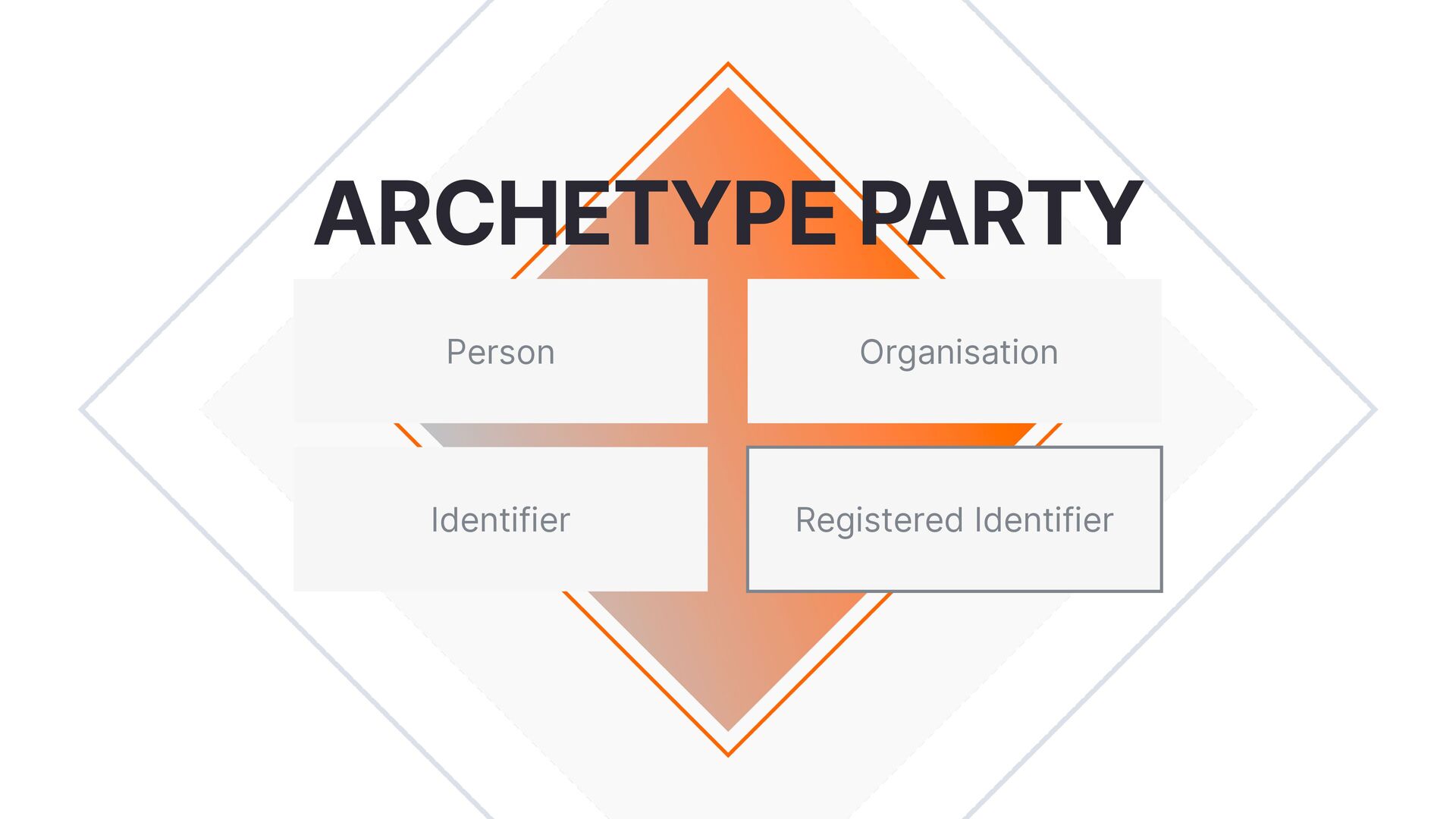

18. Person Organisation
    Identifier Registered Identifier
    ARCHETYPE PARTY


    View Slide

19. Person Organisation
    Identifier Registered Identifier
    ARCHETYPE PARTY
    Address Name Preferences


    View Slide

20. ARCHETYPE


    PARTY


    RELATIONSHIP


    👯


    View Slide

21. Family Relationship


    Parent Child


    Parent Son


    Father Son
    Family
    Level of abstraction
    Symmetry


    View Slide

22. ARCHETYPE


    PARTY RELATIONSHIP
    Party Role
    Party
    Relationship


    View Slide

23. ARCHETYPE


    PARTY RELATIONSHIP
    <>
    PartyRole
    <> name: String
    <> description: String
    getParty(): Party
    getIdentifier(): PartyRoleIdentifier
    <> getName(): String
    <> getDescription(): String
    <> getRoleType(): PartyRoleType
    <> getResponsibility( name )
    <> assignResponsibility( responsibility: Responsibility)
    <> removeResponsibility( name )
    << archetype >>
    Party
    0..*
    client
    0..1
    0..*
    1
    <>
    UniqueIdentifier
    getIdentifier(): String
    <>
    PartyRoleIdentifier
    identifier: String
    <>
    PartyRelationship
    <> name: String
    <> description: String
    getClientPartyRole(): PartyRole
    getSupplierPartyRole(): PartyRole
    <> getDescription(): String
    <> getRelationshipType(): PartyRelationshipType
    <> getName(): String
    supplier
    0..*
    1
    1
    1


    View Slide

24. SYMMETRY


    View Slide

25. Symmetrical relationship
    << archetype >>
    PartyRole
    << archetype >>
    Party
    << archetype >>
    PartyRelationship
    1
    0..*
    0..*
    1
    1
    1


    View Slide

26. Symmetrical relationship
    Party
    Party
    Relationship
    Party
    Alice
    Sister-Sister
    Erica
    Sister Party Role


    View Slide

27. Asymmetrical relationship
    << archetype >>
    Party
    << archetype >>
    PartyRelationship
    << archetype >>
    PartyRole
    0..*
    1
    1
    1
    0..*
    0..*
    client
    supplier


    View Slide

28. Party
    Party Role
    Party
    Relationship
    Party Role
    Party
    Anakin
    Father
    Father
    -
    Son
    Son
    Luke
    Asymmetrical


    relationship


    View Slide

29. Party Role Type
    ARCHETYPE


    PARTY RELATIONSHIP
    Party Role
    Party
    Relationship
    Party
    Relationship
    Type


    View Slide

30. <>
    PartyRole
    <> name: String
    <> description: String
    getParty(): Party
    getIdentifier(): PartyRoleIdentifier
    <> getName(): String
    <> getDescription(): String
    <> getRoleType(): PartyRoleType
    ...
    << archetype >>
    Party
    0..*
    0..*
    1
    <>
    PartyRoleType
    name: String
    description: String
    canPlayRole (party: Party): Boolean
    <> canPlayRole (party: Party, context: RuleContext): Boolean
    <> getConstraints(): PartyRoleConstraint[]
    ...
    supplier
    0..* 1
    <>
    PartyRelationship
    <> name: String
    <> description: String
    getClientPartyRole(): PartyRole
    getSupplierPartyRole(): PartyRole
    <> getName(): String
    <> getDescription(): String
    <> getRelationshipType(): PartyRelationshipType
    <>
    PartyRelationshipType
    name: String
    description: String
    canFormRelationship (client: PartyRole, supplier: PartyRole): Boolean
    <> canFormRelationship (client: PartyRole, supplier: PartyRole, context: RuleContext): Boolean
    <> getConstraints(): PartyRelationshipConstraint
    client 1 1
    0..*
    roleType
    <>
    0..* 1
    relationshipType
    <>
    << archetype >>
    PartyRoleConstraint
    <>
    1
    1..*
    validTypesOfParty
    << archetype >>
    PartyRelationshipConstraint
    1..*
    1
    <>
    validRolePairs


    View Slide

31. PARTY MANAGEMENT
    Which things can be connected together
    and which things can’t?


    View Slide

32. Party Role Type
    ARCHETYPE


    PARTY RELATIONSHIP
    Party Role
    Party
    Relationship
    Party
    Relationship
    Type
    Party Role
    Constraint
    Party
    Relationship
    Constraint


    View Slide

33. << archetype >>
    Party
    0..*
    0..*
    1
    <>
    PartyRoleType
    canPlayRole (party: Party): Boolean
    <> canPlayRole (party: Party, context: RuleContext): Boolean
    <> getConstraints(): PartyRoleConstraint[]
    ...
    supplier
    0..* 1
    <>
    PartyRelationshipType
    canFormRelationship (client: PartyRole, supplier: PartyRole): Boolean
    <> canFormRelationship (client: PartyRole, supplier: PartyRole,
    context: RuleContext): Boolean
    <> getConstraints(): PartyRelationshipConstraint
    client
    1 1
    0..*
    roleType
    <>
    0..* 1
    relationshipType
    <>
    <>
    1 1..*
    validTypesOfParty
    1..*
    1
    <>
    validRolePairs
    << archetype >>
    PartyRole
    << archetype >>
    PartyRelationship
    << archetype >>
    RuleSet
    <>
    PartyRoleConstraint
    typeOfParty: String
    canPlayRole (party: Party): Boolean
    <>
    PartyRelationshipConstraint
    clientRoleName: String
    supplierRoleName: String
    canFormRelationship (partyRoleA: PartyRole,
    partyRoleB: PartyRole): Boolean
    <>
    <>
    1
    1
    1
    1
    requirementsForRole
    requirementsForRelationship


    View Slide

34. View Slide

35. Scrum team example
    https://github.com/maikhel/business-archetypes


    View Slide

36. Scrum team example
    People
    first_name: String
    last_name: String
    Roles
    name: String
    description: String
    Projects
    name: String
    start_at: DateTime
    end_at: DateTime
    RoleInProjects
    FK person_id
    FK role_id
    FK project_id
    Supervisions
    FK subordinate_id
    FK supervisor_id
    FK project_id


    View Slide

37. Scrum team example
    code
    https://github.com/maikhel/business-archetypes/tree/v1.0-no-archetypes


    View Slide

38. Scrum team example
    https://github.com/maikhel/business-archetypes/tree/v1.0-no-archetypes


    View Slide

39. Scrum team example


    View Slide

40. Scrum team example


    View Slide

41. Scrum team example
    People
    first_name: String
    last_name: String
    Roles
    name: String
    description: String
    Projects
    name: String
    start_at: DateTime
    end_at: DateTime
    RoleInProjects
    FK person_id
    FK role_id
    FK project_id
    Supervisions
    FK subordinate_id
    FK supervisor_id
    FK project_id


    View Slide

42. Scrum team example


    View Slide

43. Scrum team example
    People
    first_name: String
    last_name: String
    Roles
    FK party_id
    description: String
    name: String
    Projects
    name: String
    start_at: DateTime
    end_at: DateTime
    Relationships
    FK supplier_role_id
    FK client_role_id
    name: String
    description: String


    View Slide

44. Scrum team example
    https://github.com/maikhel/business-archetypes/tree/v1.1-relationship-archetype


    View Slide

45. Scrum team example
    https://github.com/maikhel/business-archetypes/tree/v1.1-relationship-archetype


    View Slide

46. Scrum team example


    View Slide

47. Scrum team example


    View Slide

48. Scrum team example


    View Slide

49. Was it worth it?
    github.com/maikhel/business-archetypes


    View Slide

50. Party Role Type
    ARCHETYPE


    PARTY RELATIONSHIP
    Party Role
    Party
    Relationship
    Party
    Relationship
    Type
    Party Role
    Constraint
    Party
    Relationship
    Constraint
    Responsibilities Capabilities


    View Slide

51. Party Role Type
    ARCHETYPE


    PARTY RELATIONSHIP
    Party Role
    Party
    Relationship
    Party
    Relationship
    Type
    Party Role
    Constraint
    Party
    Relationship
    Constraint
    Responsibilities Capabilities
    Party Summary


    View Slide

52. Use only
    elements


    you need


    View Slide

53. Recipe for a great party 👪
    1. Identify the types of Parties in the system


    2. List different types of relationships between them - create Party Relationships


    3. Check that party relationships meet identifable business needs


    4. Work out what roles different types of parties play in Party Relationships
    -
    Party
    Roles


    5. Formulate rules
    -
    Party Role Constraints, Party Relationships Constraints


    View Slide

54. CREDITS
    Enterprise Patterns and MDA
    :
    Building Better Software with
    Archetype Patterns and UML


    Jim Arlow, Ila Neustadt
    https://www.amazon.pl/Enterprise-Patterns-MDA-Building-Archetype/dp/032111230X


    View Slide

55. Thank you!


    View Slide

56. MICHAŁ


    ŁĘCICKI
    m.lecicki@visuality.pl @mlecicki https://maikhel.github.io
