@ManfredSteyer Advancing into new areas with Angular Elements and Ivy
Manfred Steyer SOFTWAREarchitekt.at ManfredSteyer
@ManfredSteyer
@ManfredSteyer [Igor Minar, Angular Connect 2018 Keynote]
@ManfredSteyer
@ManfredSteyer Angular Elements
@ManfredSteyer Web Components: Framework independent components
@ManfredSteyer Custom Elements: Framework independent components
@ManfredSteyer Possibilities Component Libraries Enriching existing Apps CMS- Integration Dynamic
Loading
@ManfredSteyer Contents 1) Basics 2) Lazy loading elements 3) External
elements 4) Dealing with dependencies 5) Angular Ivy

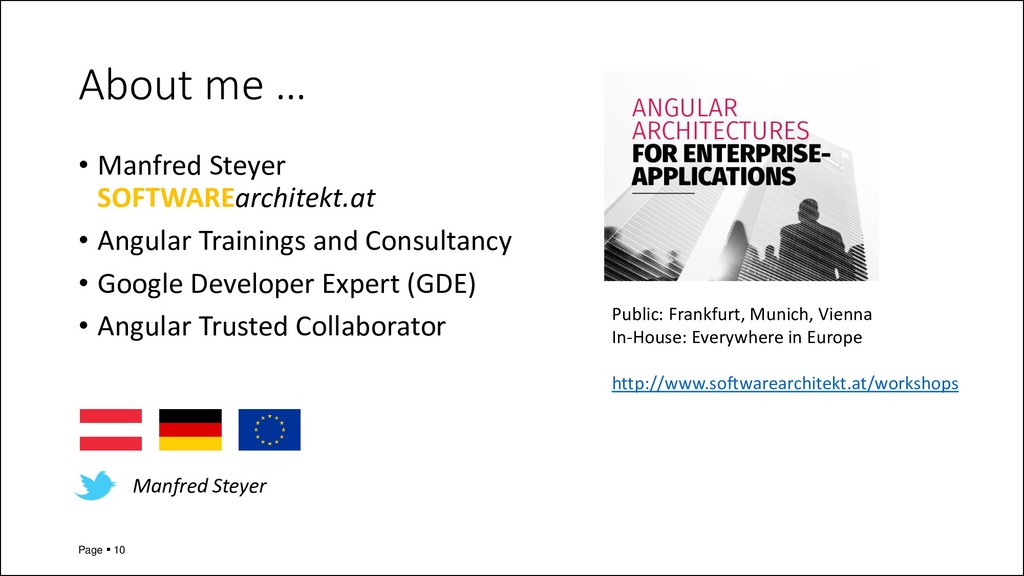

@ManfredSteyer About me … • Manfred Steyer SOFTWAREarchitekt.at • Angular
Trainings and Consultancy • Google Developer Expert (GDE) • Angular Trusted Collaborator Page ▪ 10 Manfred Steyer Public: Frankfurt, Munich, Vienna In-House: Everywhere in Europe http://www.softwarearchitekt.at/workshops
@ManfredSteyer 1) Basics
@ManfredSteyer Angular Elements Wrap Angular Components Expose Custom Elements
@ManfredSteyer Angular Elements @NgModule({ imports: [BrowserModule], declarations: [DateComponent], entryComponents: [DateComponent]
}) export class AppModule { }
@ManfredSteyer Angular Elements @NgModule({ imports: [BrowserModule], declarations: [DateComponent], entryComponents: [DateComponent]
}) export class AppModule { }
@ManfredSteyer Angular Elements @NgModule({ imports: [BrowserModule], declarations: [DateComponent], entryComponents: [DateComponent]
}) export class AppModule { constructor(private injector: Injector) { } }
@ManfredSteyer Angular Elements @NgModule({ imports: [BrowserModule], declarations: [DateComponent], entryComponents: [DateComponent]
}) export class AppModule { constructor(private injector: Injector) { const DateElement = createCustomElement( DateComponent, { injector: this.injector }); customElements.define('date-picker', DateElement); } }
@ManfredSteyer Calling a Custom Element <date-picker></date-picker>
@ManfredSteyer Can be polyfilled down to IE11
@ManfredSteyer
@ManfredSteyer DEMO
@ManfredSteyer 2) Lazy Elements
@ManfredSteyer Lazy Loading Register module in angular.json Load with with
NgModuleFactoryLoader
@ManfredSteyer Register in angular.json "lazyModules": [ "[…]/lazy-dashboard-tile.module.ts" ],
@ManfredSteyer Lazy Loading @Injectable({ providedIn: 'root' }) export class LazyDashboardTileService
{ }
@ManfredSteyer Lazy Loading @Injectable({ providedIn: 'root' }) export class LazyDashboardTileService
{ constructor( private loader: NgModuleFactoryLoader, private injector: Injector ) {} }
@ManfredSteyer Lazy Loading @Injectable({ providedIn: 'root' }) export class LazyDashboardTileService
{ constructor( private loader: NgModuleFactoryLoader, private injector: Injector ) {} load(): Promise<void> { const path = '[…]lazy-dashboard-tile.module#LazyDashboardTileModule'; } }
@ManfredSteyer Lazy Loading @Injectable({ providedIn: 'root' }) export class LazyDashboardTileService
{ constructor( private loader: NgModuleFactoryLoader, private injector: Injector ) {} load(): Promise<void> { const path = '[…]lazy-dashboard-tile.module#LazyDashboardTileModule'; return this.loader.load(path).then(moduleFactory => { }); } }

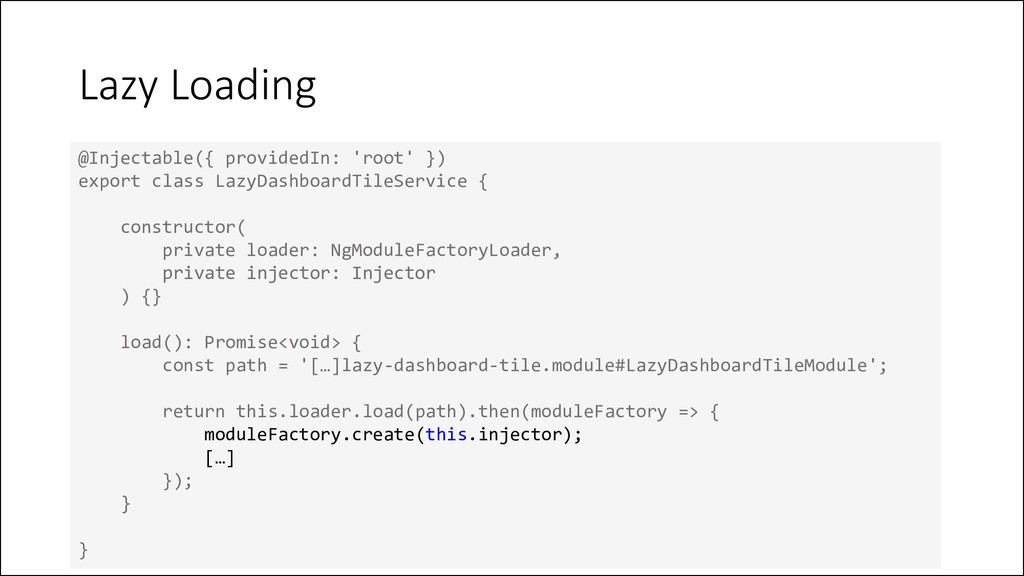

@ManfredSteyer Lazy Loading @Injectable({ providedIn: 'root' }) export class LazyDashboardTileService
{ constructor( private loader: NgModuleFactoryLoader, private injector: Injector ) {} load(): Promise<void> { const path = '[…]lazy-dashboard-tile.module#LazyDashboardTileModule'; return this.loader.load(path).then(moduleFactory => { moduleFactory.create(this.injector); […] }); } }
@ManfredSteyer DEMO
@ManfredSteyer 3) External Elements aka Standalone Elements
@ManfredSteyer Project A Custom Element Custom Element Bundle Project B
@ManfredSteyer Register Custom Element when bootstrapping Compile application to self
contained bundle Load bundle into consumer 3 Steps
@ManfredSteyer Load into consumer const script = document.createElement('script'); script.src =
'assets/external-dashboard-tile.bundle.js'; document.body.appendChild(script);
@ManfredSteyer DEMO
@ManfredSteyer 6) Dealing with Dependencies
@ManfredSteyer Bundles Custom Element 1 Custom Element 2 Custom Element
3 Libraries: Angular, RxJS, … Libraries: Angular, RxJS, …
@ManfredSteyer Tree Shaking + Ivy (Angular 9.x) Custom Element 1
Custom Element 2 Custom Element 3
@BASTAcon & @ManfredSteyer [Brad Green, ngconf 2019 Keynote]
@ManfredSteyer DEMO
@ManfredSteyer Roadmap (details can change) • Ivy behind a flag
Angular 8 (Spring 2019) • Ivy by default • No breaking changes Angular 9 (Fall 2019)
@ManfredSteyer
@ManfredSteyer
@ManfredSteyer Where Ivy can help ✓ Widgets based on @angular/core,
@angular/common Libs like @angular/forms or @angular/router
@ManfredSteyer Sharing Libs Custom Element 1 Custom Element 2 Custom
Element 3 Libraries: Angular, RxJS, … UMD Drawbacks: Complexity, no isolation
@ManfredSteyer DEMO

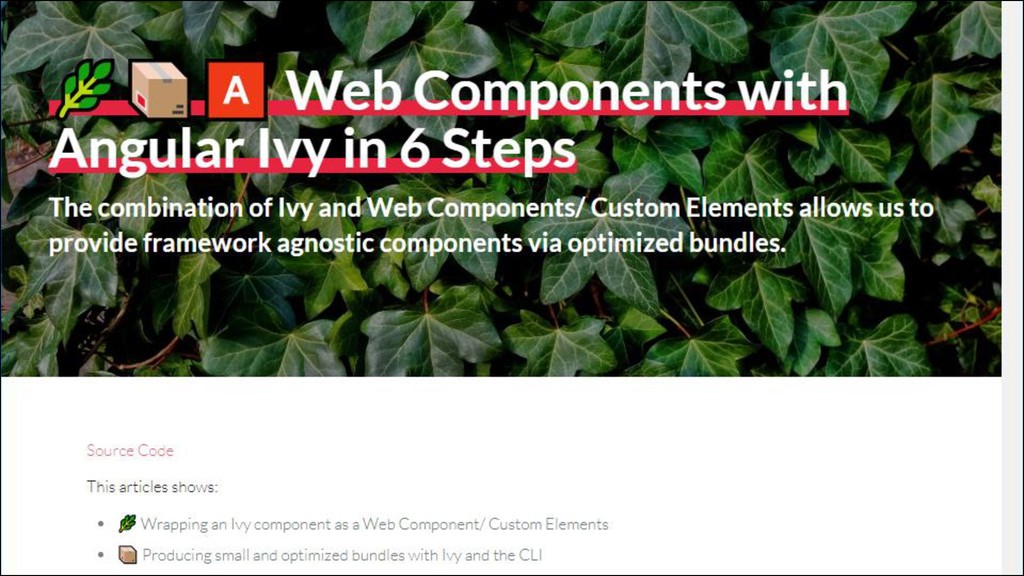

@ManfredSteyer More on SOFTWAREarchitekt.at • Angular Elements (5 Parts) •
Web Components with Angular Ivy in 6 Steps • Architecture with Ivy (2 Parts so far) • A possible future without NgModules • Higher Order and Dynamic Components
@ManfredSteyer Summary Dynamically Adding External Elements Enhancing Existing Apps (e.
g. ASP.NET) Migration Path Ivy for UI-based Code ngx-build-plus: Sharing Dependencies
@ManfredSteyer Contact and Downloads [mail]
[email protected]
[web] SOFTWAREarchitekt.at [twitter] ManfredSteyer
d http://softwarearchitekt.at/workshops Slides & Examples
