  1. @ManfredSteyer About me… Manfred Steyer, ANGULARarchitects.io (Remote) Angular Workshops and

    Consulting Google Developer Expert for Angular Trusted Collaborator in the Angular Team Manfred Steyer
  2. @ManfredSteyer Idea const Component = import('http://other-app/xyz') Does not work with

    webpack/ Angular CLI Even lazy parts must be known at compile time!
  3. @ManfredSteyer Webpack 5 Module Federation Shell (Host) Microfrontend (Remote) //

    Maps Urls in // webpack config remotes: { mfe1: "mfe1" } // Expose files in // webpack config exposes: { Cmp: './my.cmp.ts' } import('mfe1/Cmp')
  4. @ManfredSteyer How to Get the Microfrontend's URL? Shell (Host) Microfrontend

    (Remote) RemoteEntrypoint.js <script src="…"></script>
  5. @ManfredSteyer How to Share Libs? Shell (Host) Microfrontend (Remote) shared:

    [ "@angular/core", "…" ] shared: [ "@angular/core", "…" ]

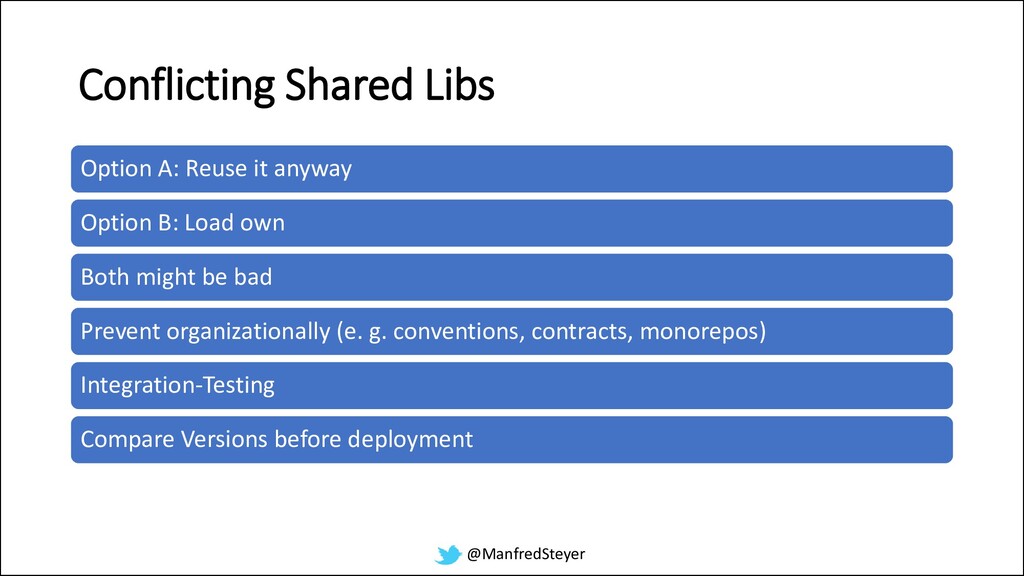

  6. @ManfredSteyer Conflicting Shared Libs Option A: Reuse it anyway Option

    B: Load own Both might be bad Prevent organizationally (e. g. conventions, contracts, monorepos) Integration-Testing Compare Versions before deployment
  7. @ManfredSteyer Dynamic Module Federation Shell (Host) Microfrontend (Remote) remotes: {

    mfe1: "mfe1" } exposes: { Cmp: './my.cmp.ts' } import('mfe1/Cmp')
  8. @ManfredSteyer Dynamic Module Federation Shell (Host) Microfrontend (Remote) remotes: {

    } exposes: { Cmp: './my.cmp.ts' } loadRemoteModule({ remoteEntry: 'http://…', remoteName: 'mfe1', exposedModule: './Cmp' })
  9. @ManfredSteyer Dynamic Module Federation Shell (Host) Microfrontend (Remote) remotes: {

    } exposes: { Cmp: './my.cmp.ts' } loadRemoteModule({ remoteEntry: 'http://…', remoteName: 'mfe1', exposedModule: './Cmp' }) Helper Function using the Webpack API
  10. @ManfredSteyer Well … Webpack 5 is currently beta Shown examples:

    PoC w/ custom webpack conf + patched CLI lib CLI: Not before version 11 (fall 2020) Squeeze federation config into CLI's webpack config Custom Builder (e. g. ngx-build-plus)
  11. @ManfredSteyer Be like Bonnie and think first! Evaluate whether you

    need µFrontends No: Majestic Monolith Yes: Consider Module Federation
