1. Getting Started with CNN @manthan_ladva

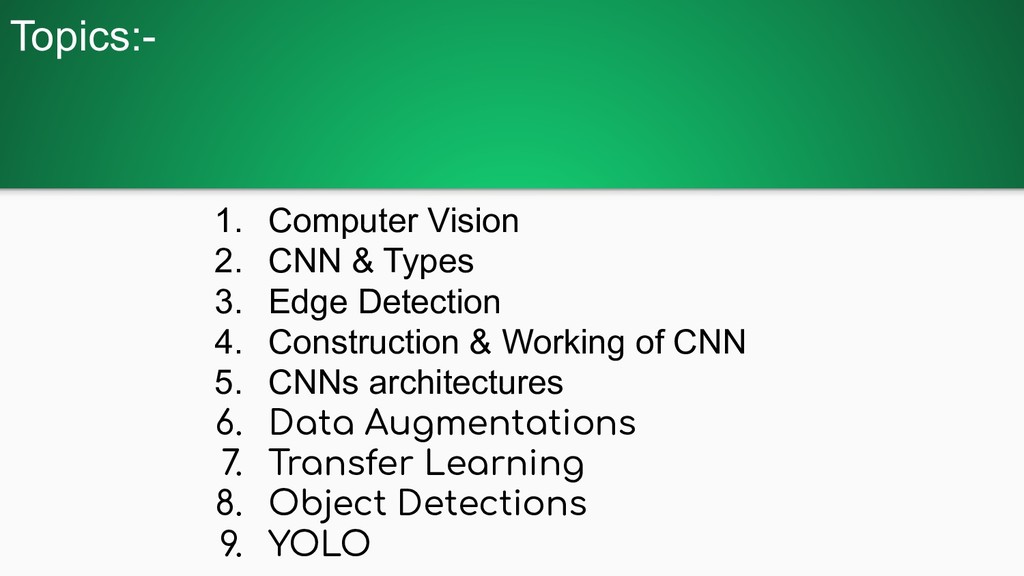

3. Topics:- 1. Computer Vision 2. CNN & Types 3. Edge Detection 4. Construction & Working of CNN 5. CNNs architectures 6. Data Augmentations 7. Transfer Learning 8. Object Detections 9. YOLO

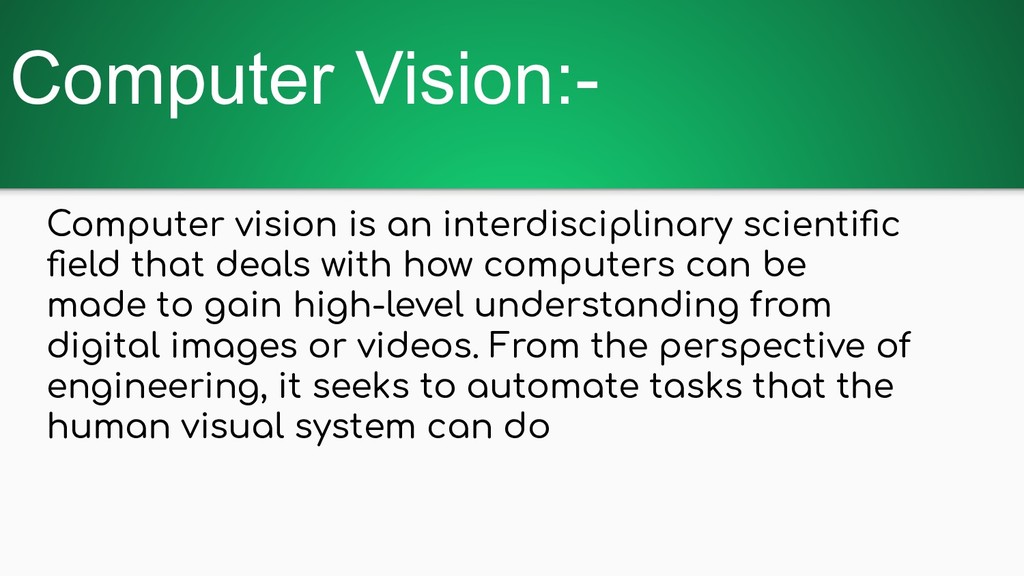

4. Computer Vision:- Computer vision is an interdisciplinary scientific field that deals with how computers can be made to gain high-level understanding from digital images or videos. From the perspective of engineering, it seeks to automate tasks that the human visual system can do

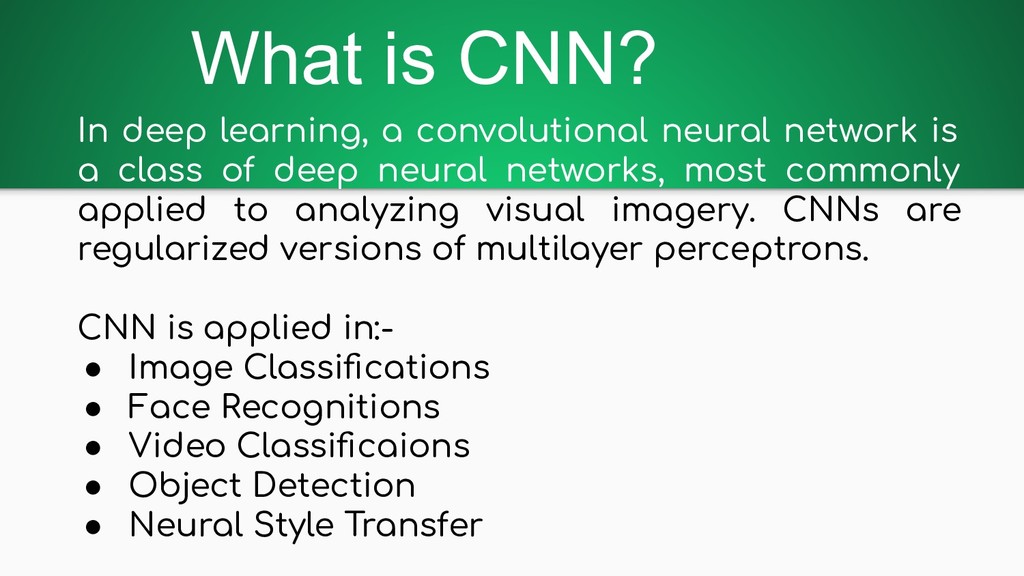

5. What is CNN? In deep learning, a convolutional neural network is a class of deep neural networks, most commonly applied to analyzing visual imagery. CNNs are regularized versions of multilayer perceptrons. CNN is applied in:- • Image Classifications • Face Recognitions • Video Classificaions • Object Detection • Neural Style Transfer

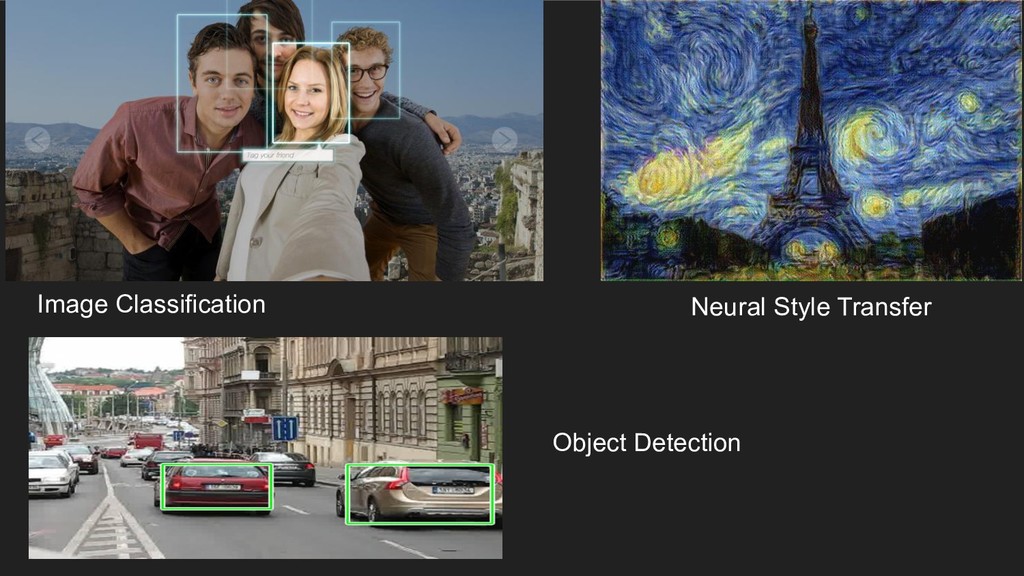

6. Image Classification Neural Style Transfer Object Detection

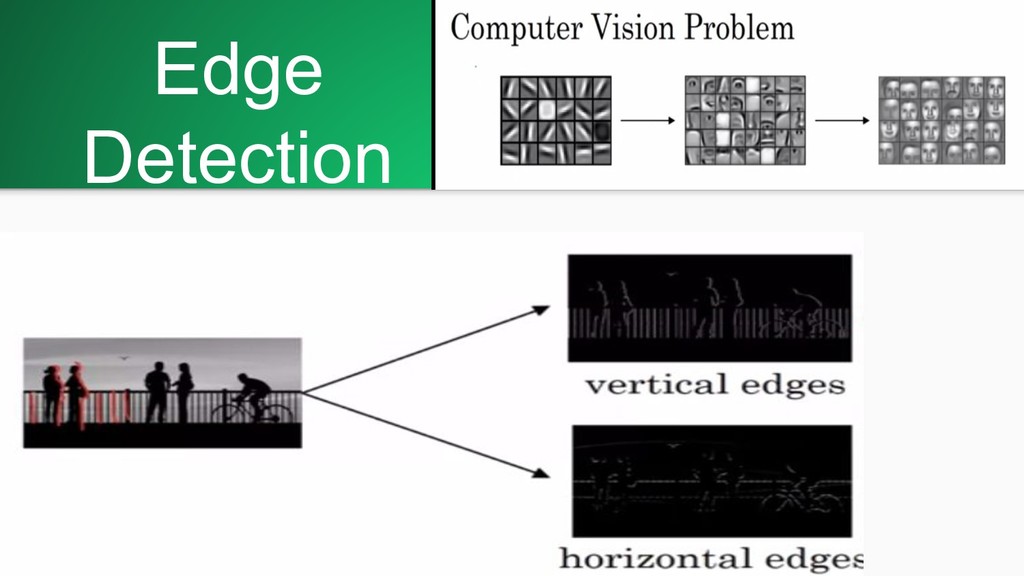

7. Edge Detection

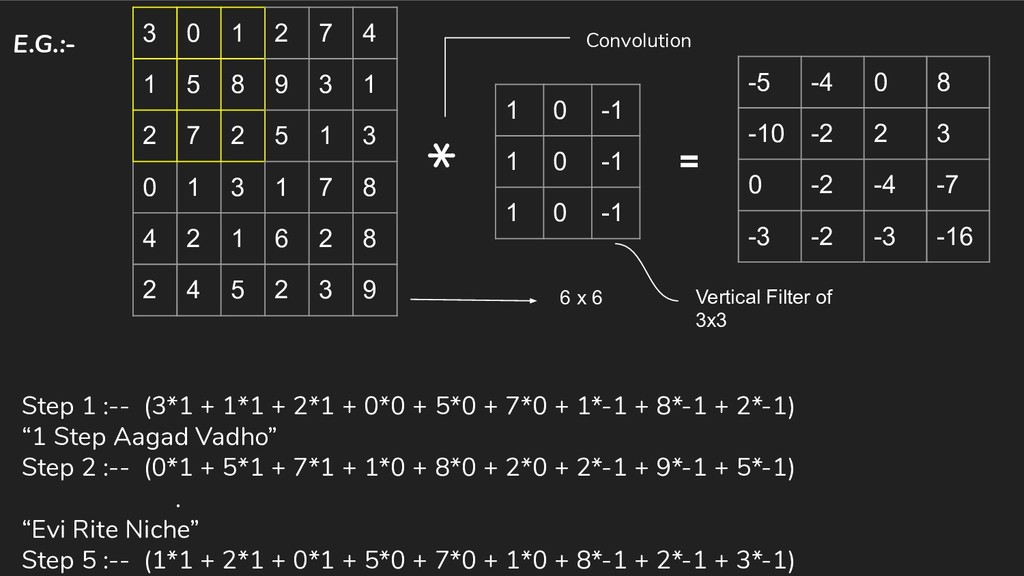

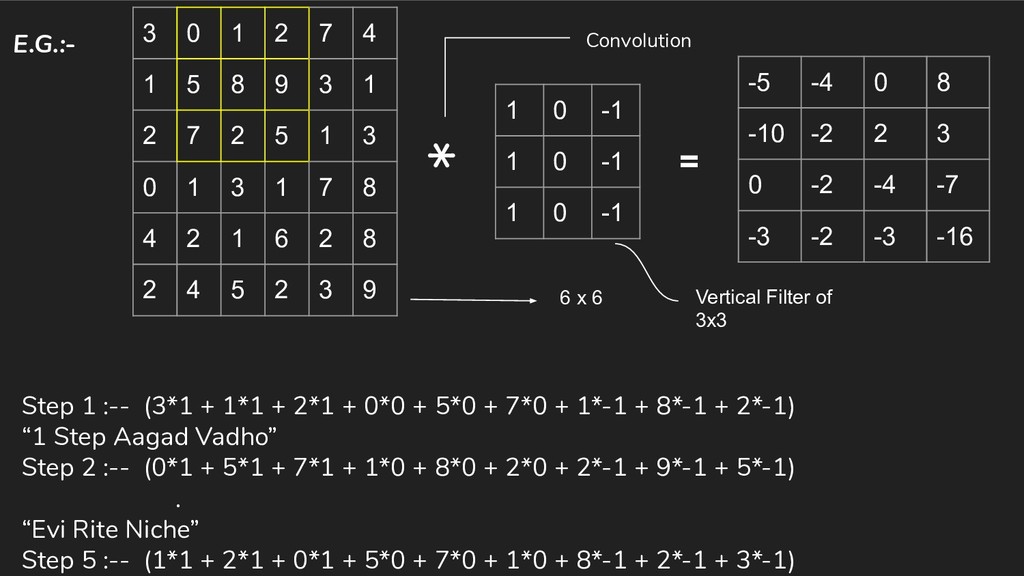

8. 3 0 1 2 7 4 1 5 8 9 3 1 2 7 2 5 1 3 0 1 3 1 7 8 4 2 1 6 2 8 2 4 5 2 3 9 E.G.:- * 1 0 -1 1 0 -1 1 0 -1 Convolution Step 1 :-- (3*1 + 1*1 + 2*1 + 0*0 + 5*0 + 7*0 + 1*-1 + 8*-1 + 2*-1) “1 Step Aagad Vadho” Step 2 :-- (0*1 + 5*1 + 7*1 + 1*0 + 8*0 + 2*0 + 2*-1 + 9*-1 + 5*-1) . “Evi Rite Niche” Step 5 :-- (1*1 + 2*1 + 0*1 + 5*0 + 7*0 + 1*0 + 8*-1 + 2*-1 + 3*-1) -5 -4 0 8 -10 -2 2 3 0 -2 -4 -7 -3 -2 -3 -16 6 x 6 Vertical Filter of 3x3 =

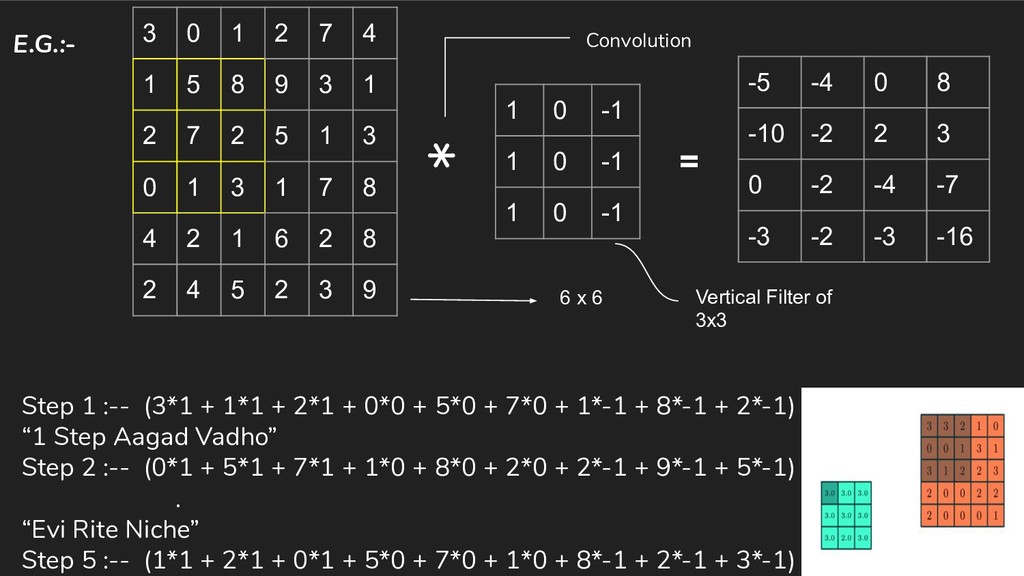

9. 3 0 1 2 7 4 1 5 8 9 3 1 2 7 2 5 1 3 0 1 3 1 7 8 4 2 1 6 2 8 2 4 5 2 3 9 E.G.:- * 1 0 -1 1 0 -1 1 0 -1 Convolution Step 1 :-- (3*1 + 1*1 + 2*1 + 0*0 + 5*0 + 7*0 + 1*-1 + 8*-1 + 2*-1) “1 Step Aagad Vadho” Step 2 :-- (0*1 + 5*1 + 7*1 + 1*0 + 8*0 + 2*0 + 2*-1 + 9*-1 + 5*-1) . “Evi Rite Niche” Step 5 :-- (1*1 + 2*1 + 0*1 + 5*0 + 7*0 + 1*0 + 8*-1 + 2*-1 + 3*-1) -5 -4 0 8 -10 -2 2 3 0 -2 -4 -7 -3 -2 -3 -16 6 x 6 Vertical Filter of 3x3 =
10. 3 0 1 2 7 4 1 5 8 9 3 1 2 7 2 5 1 3 0 1 3 1 7 8 4 2 1 6 2 8 2 4 5 2 3 9 E.G.:- * 1 0 -1 1 0 -1 1 0 -1 Convolution Step 1 :-- (3*1 + 1*1 + 2*1 + 0*0 + 5*0 + 7*0 + 1*-1 + 8*-1 + 2*-1) “1 Step Aagad Vadho” Step 2 :-- (0*1 + 5*1 + 7*1 + 1*0 + 8*0 + 2*0 + 2*-1 + 9*-1 + 5*-1) . “Evi Rite Niche” Step 5 :-- (1*1 + 2*1 + 0*1 + 5*0 + 7*0 + 1*0 + 8*-1 + 2*-1 + 3*-1) -5 -4 0 8 -10 -2 2 3 0 -2 -4 -7 -3 -2 -3 -16 6 x 6 Vertical Filter of 3x3 =

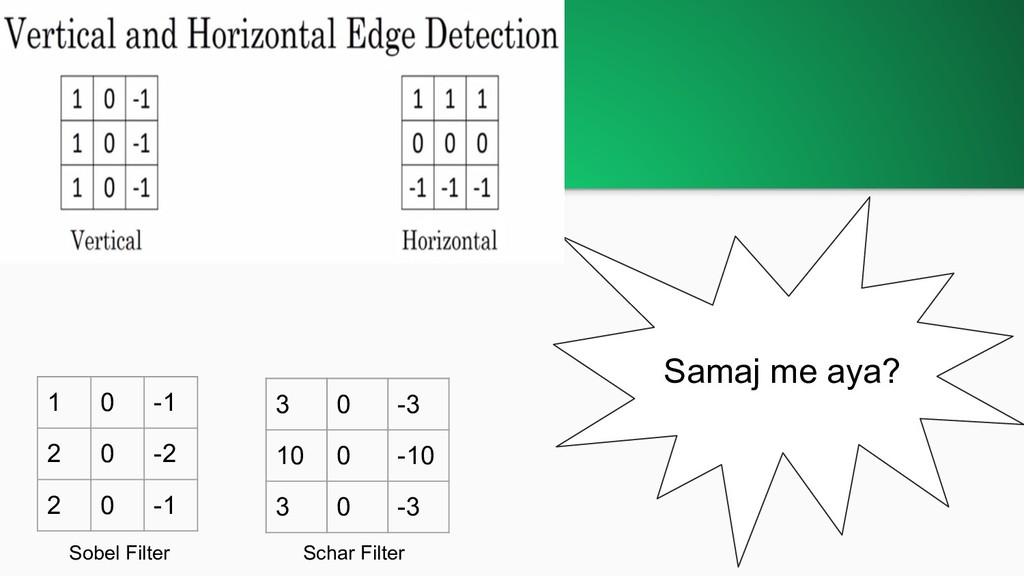

11. Samaj me aya? 1 0 -1 2 0 -2 2 0 -1 3 0 -3 10 0 -10 3 0 -3 Sobel Filter Schar Filter

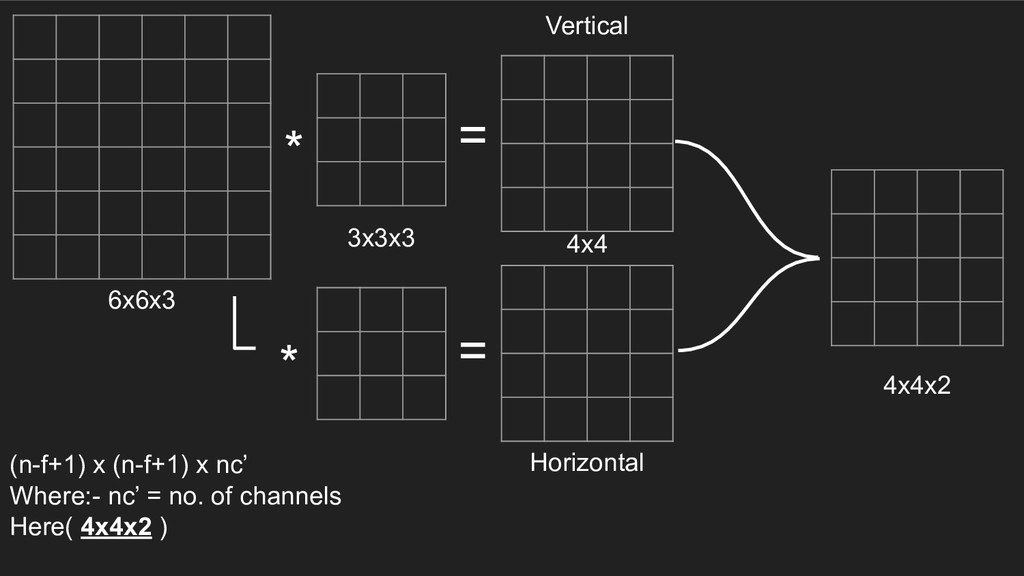

13. * * = = 6x6x3 3x3x3 4x4 Horizontal Vertical 4x4x2 (n-f+1) x (n-f+1) x nc’ Where:- nc’ = no. of channels Here( 4x4x2 )

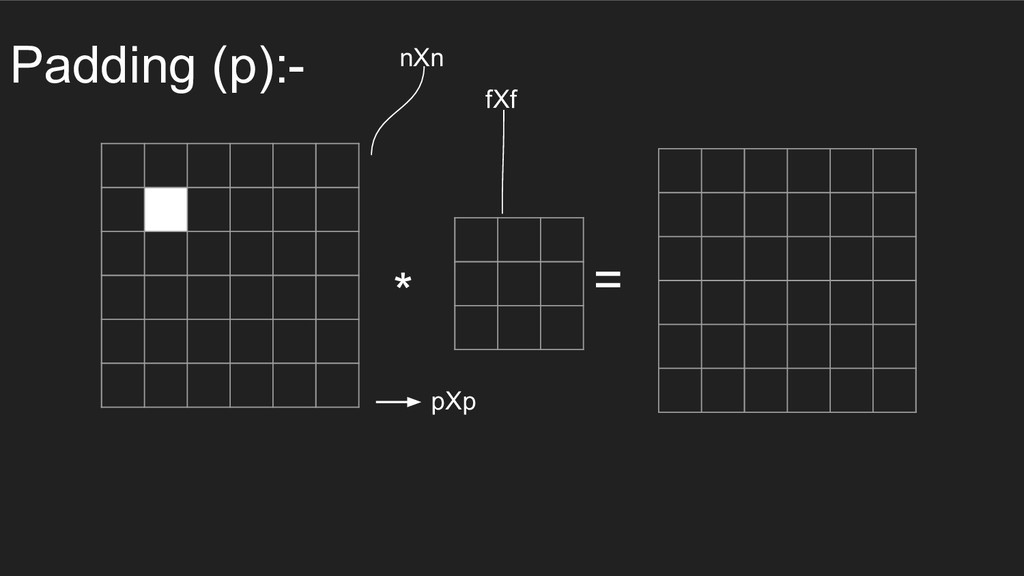

14. Padding (p):- * = nXn fXf pXp

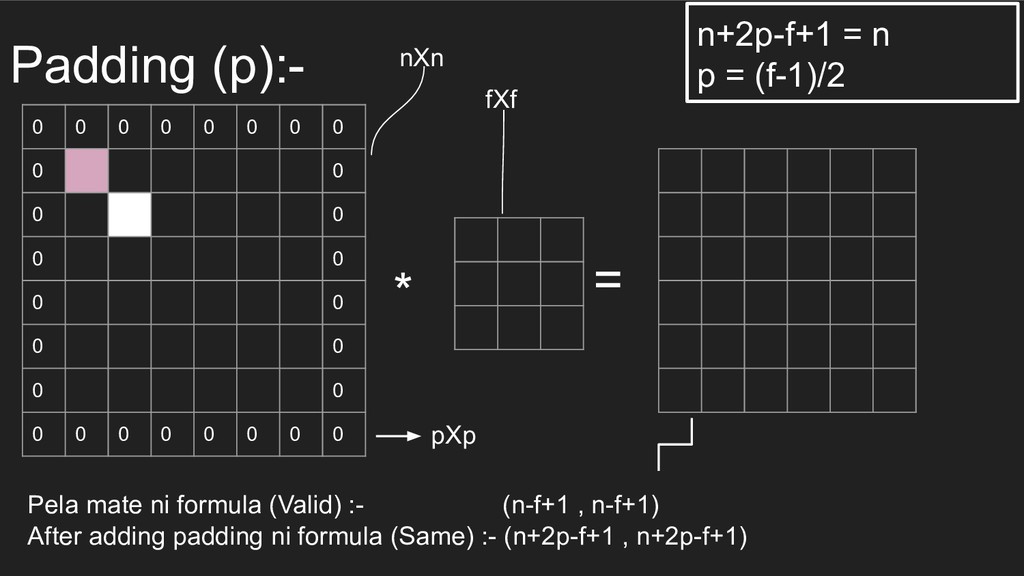

15. Padding (p):- 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 * = Pela mate ni formula (Valid) :- (n-f+1 , n-f+1) After adding padding ni formula (Same) :- (n+2p-f+1 , n+2p-f+1) nXn fXf pXp n+2p-f+1 = n p = (f-1)/2

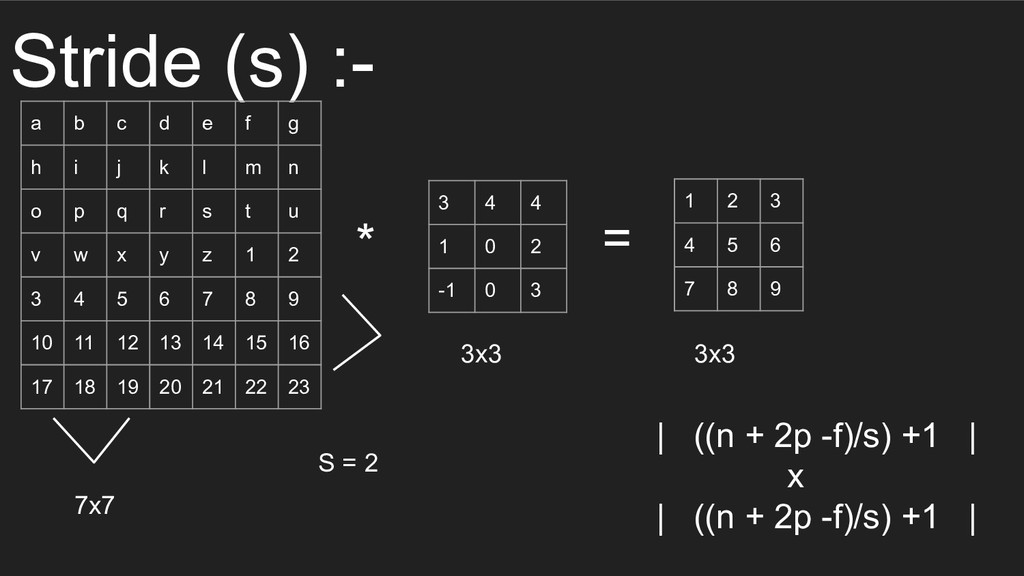

16. Stride (s) :- a b c d e f g h i j k l m n o p q r s t u v w x y z 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 3 4 4 1 0 2 -1 0 3 1 2 3 4 5 6 7 8 9 * = | ((n + 2p -f)/s) +1 | x | ((n + 2p -f)/s) +1 | 7x7 3x3 3x3 S = 2

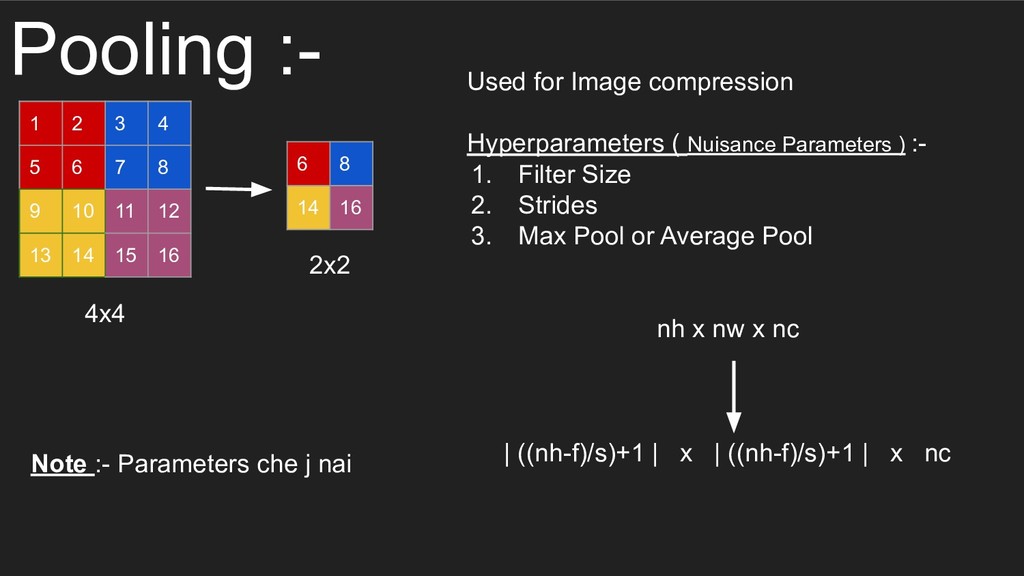

17. Pooling :- 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 6 8 14 16 4x4 2x2 Used for Image compression Hyperparameters ( Nuisance Parameters ) :- 1. Filter Size 2. Strides 3. Max Pool or Average Pool nh x nw x nc | ((nh-f)/s)+1 | x | ((nh-f)/s)+1 | x nc Note :- Parameters che j nai

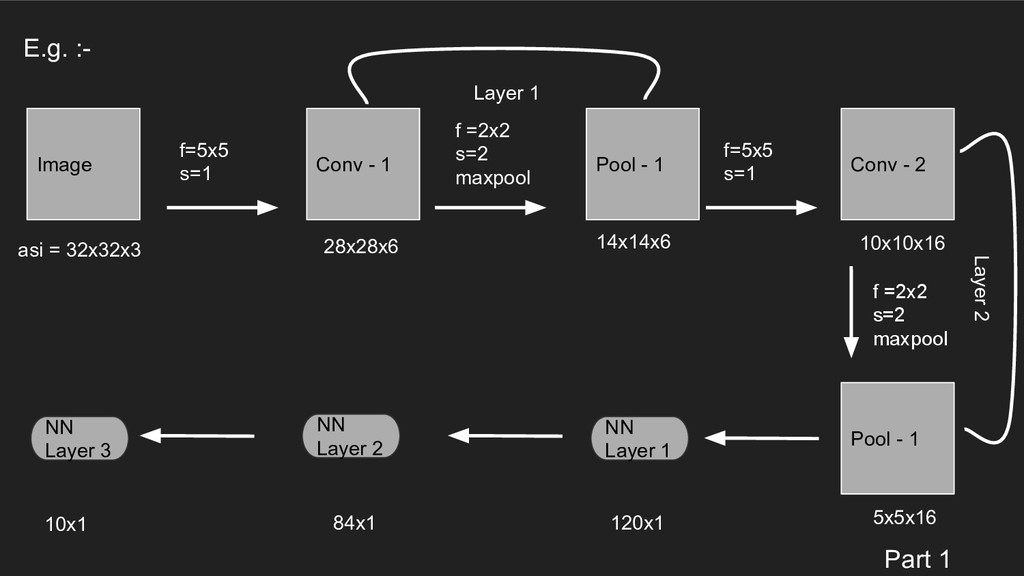

18. Image Conv - 1 Pool - 1 Conv - 2 Pool - 1 asi = 32x32x3 f=5x5 s=1 28x28x6 14x14x6 10x10x16 5x5x16 NN Layer 1 NN Layer 2 NN Layer 3 120x1 84x1 10x1 E.g. :- Layer 1 Layer 2 f =2x2 s=2 maxpool f=5x5 s=1 f =2x2 s=2 maxpool Part 1

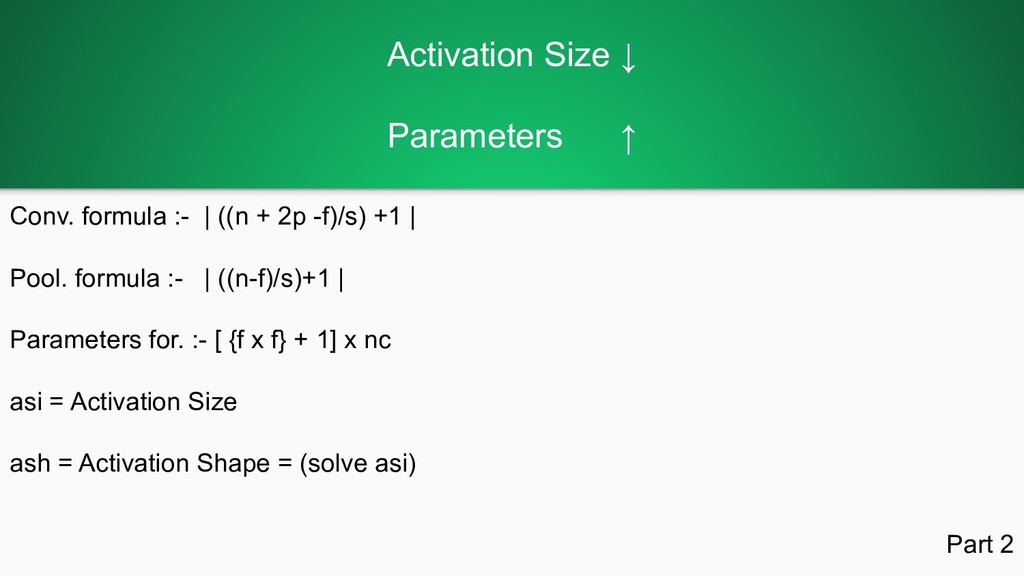

19. Activation Size ↓ Parameters ↑ Conv. formula :- | ((n + 2p -f)/s) +1 | Pool. formula :- | ((n-f)/s)+1 | Parameters for. :- [ {f x f} + 1] x nc asi = Activation Size ash = Activation Shape = (solve asi) Part 2

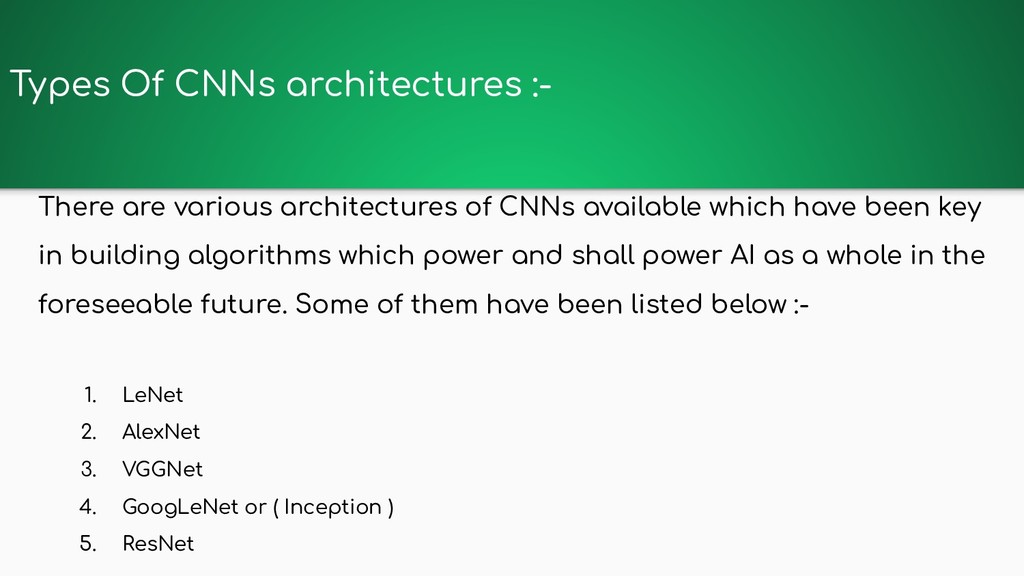

21. There are various architectures of CNNs available which have been key in building algorithms which power and shall power AI as a whole in the foreseeable future. Some of them have been listed below :- 1. LeNet 2. AlexNet 3. VGGNet 4. GoogLeNet or ( Inception ) 5. ResNet Types Of CNNs architectures :-

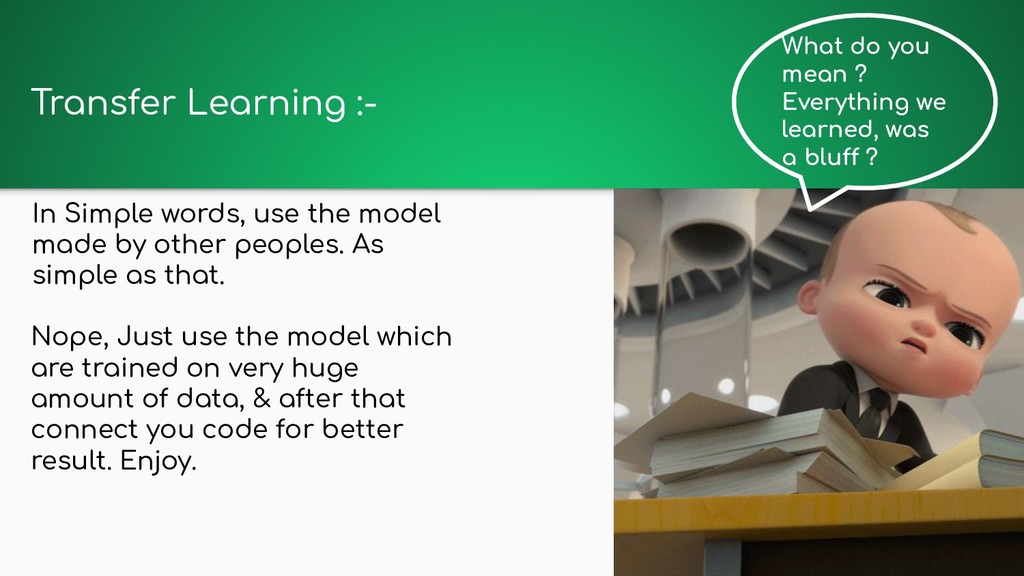

22. Transfer Learning :- In Simple words, use the model made by other peoples. As simple as that. What do you mean ? Everything we learned, was a bluff ? Nope, Just use the model which are trained on very huge amount of data, & after that connect you code for better result. Enjoy.
23. List of Transfer Learning models for C.V. :- • VGG-16 • VGG-19 • Inception V3 • XCeption • ResNet-50 • MobileNet V2 • Image Net
24. Data Augmentations :- Mirroring Image Radom Crop

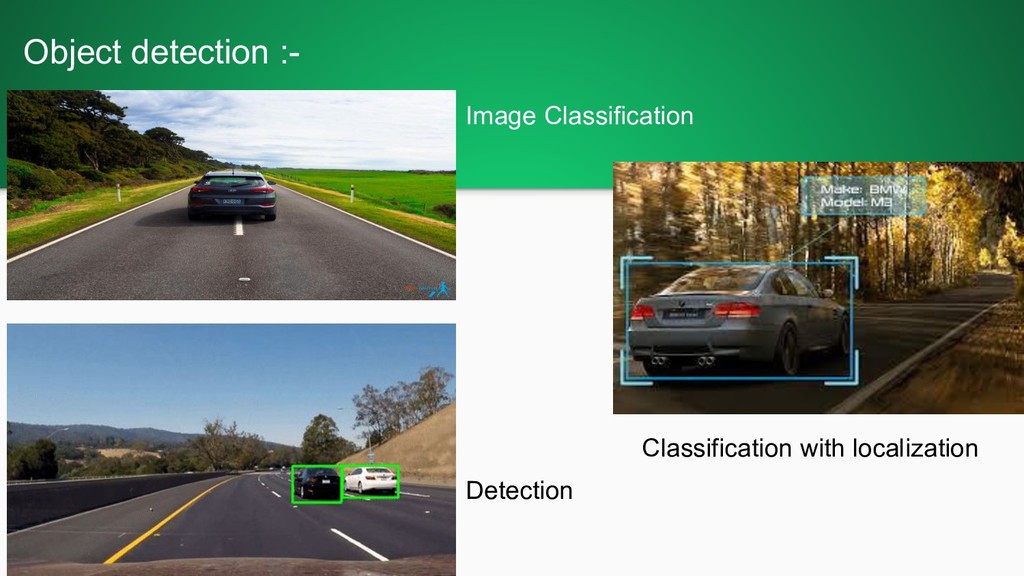

25. Object detection :- Image Classification Classification with localization Detection

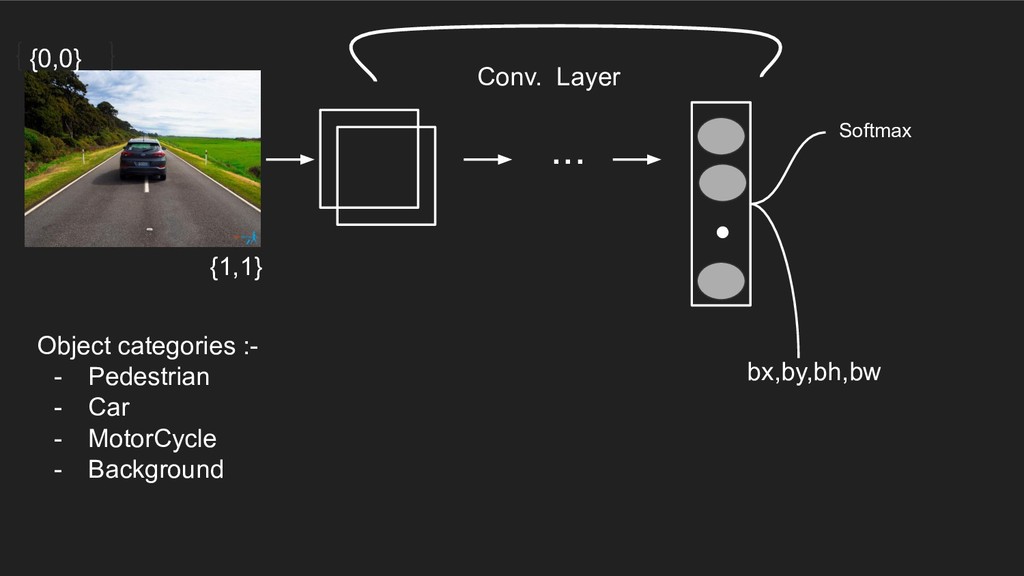

26. ... Conv. Layer Softmax Object categories :- - Pedestrian - Car - MotorCycle - Background {0,0} {1,1} bx,by,bh,bw .

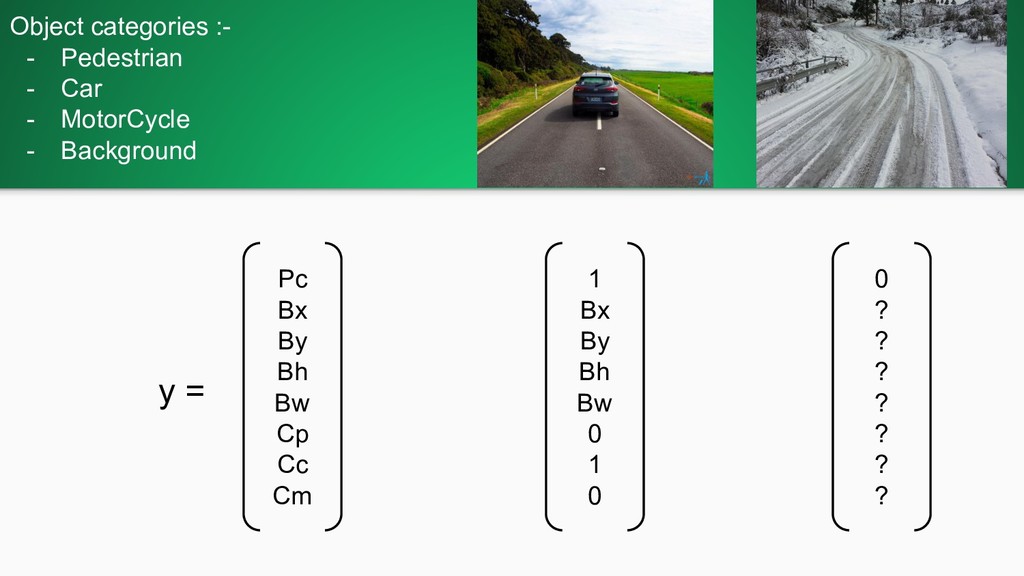

27. Object categories :- - Pedestrian - Car - MotorCycle - Background Pc Bx By Bh Bw Cp Cc Cm 0 ? ? ? ? ? ? ? 1 Bx By Bh Bw 0 1 0 y =

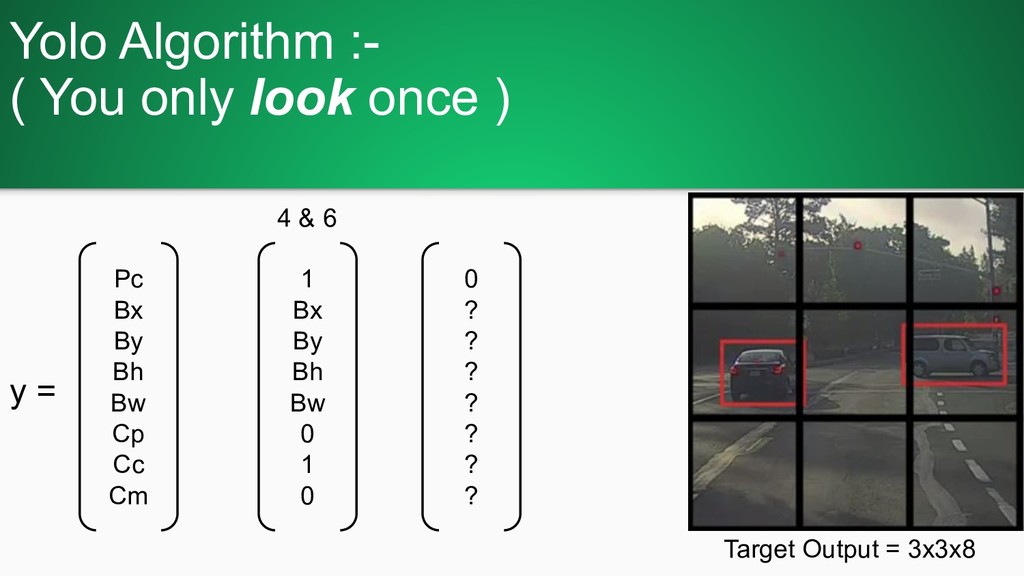

28. Yolo Algorithm :- Pc Bx By Bh Bw Cp Cc Cm y = 1 Bx By Bh Bw 0 1 0 0 ? ? ? ? ? ? ? Target Output = 3x3x8 4 & 6 ( You only look once )

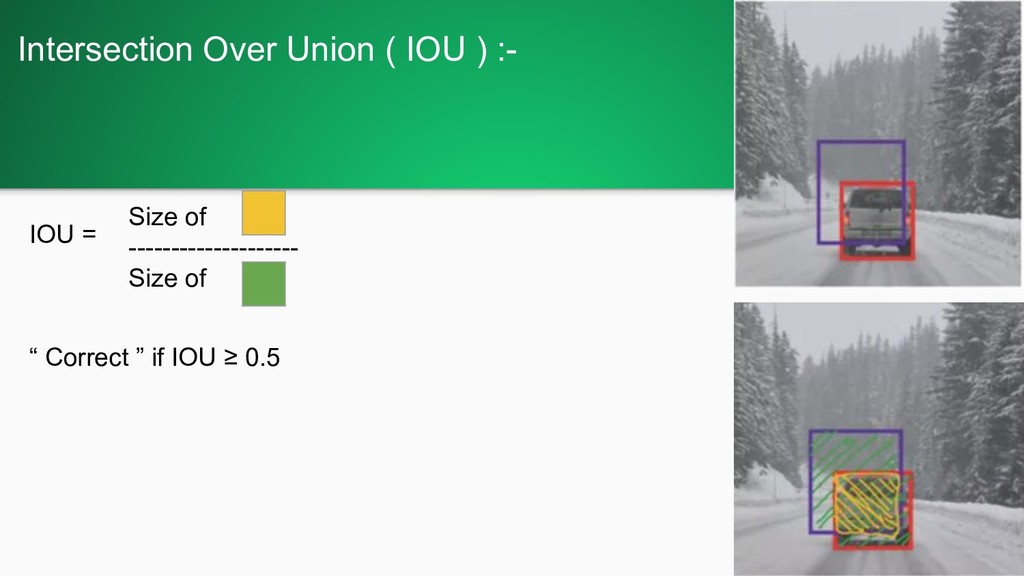

30. Intersection Over Union ( IOU ) :- IOU = Size of -------------------- Size of “ Correct ” if IOU ≥ 0.5

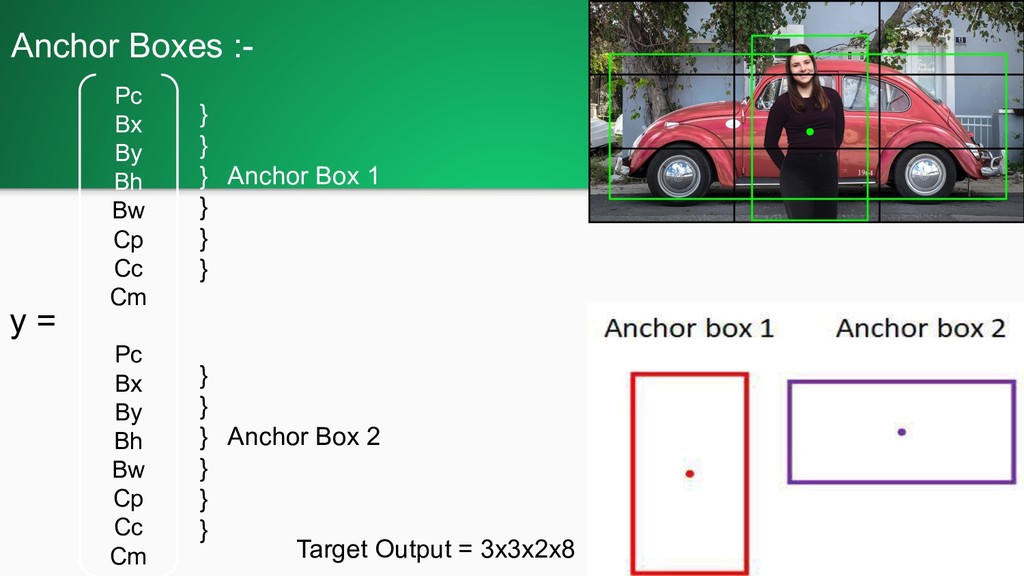

31. Anchor Boxes :- Pc Bx By Bh Bw Cp Cc Cm Pc Bx By Bh Bw Cp Cc Cm y = } } } Anchor Box 1 } } } } } } Anchor Box 2 } } } Target Output = 3x3x2x8
33. Questions ?
34. I am Done...
35. Thanks for your valuable time... LinkedIn :- https://www.linkedin.com/in/manthan-ladva-506a04116/ Twitter :- https://twitter.com/manthan_ladva Github :- https://github.com/manthan-ladva
36. … Manthan Mitaben Ladva Signing Off...
