Empowering Developers with HTML-Aware ERB Tooling @ Ruby on Rails Switzerland Meetup, June 2025, Zurich

ERB tooling has lagged behind modern web development needs, especially with the rise of Hotwire and HTML-over-the-wire. Discover a new HTML-aware ERB parser that unlocks advanced developer tools like formatters, linters, and LSP integrations, transforming how we build and ship HTML in our Ruby applications.

Avatar for Marco Roth

Marco Roth

June 18, 2025
Tweet

More Decks by Marco Roth

Other Decks in Programming

Transcript

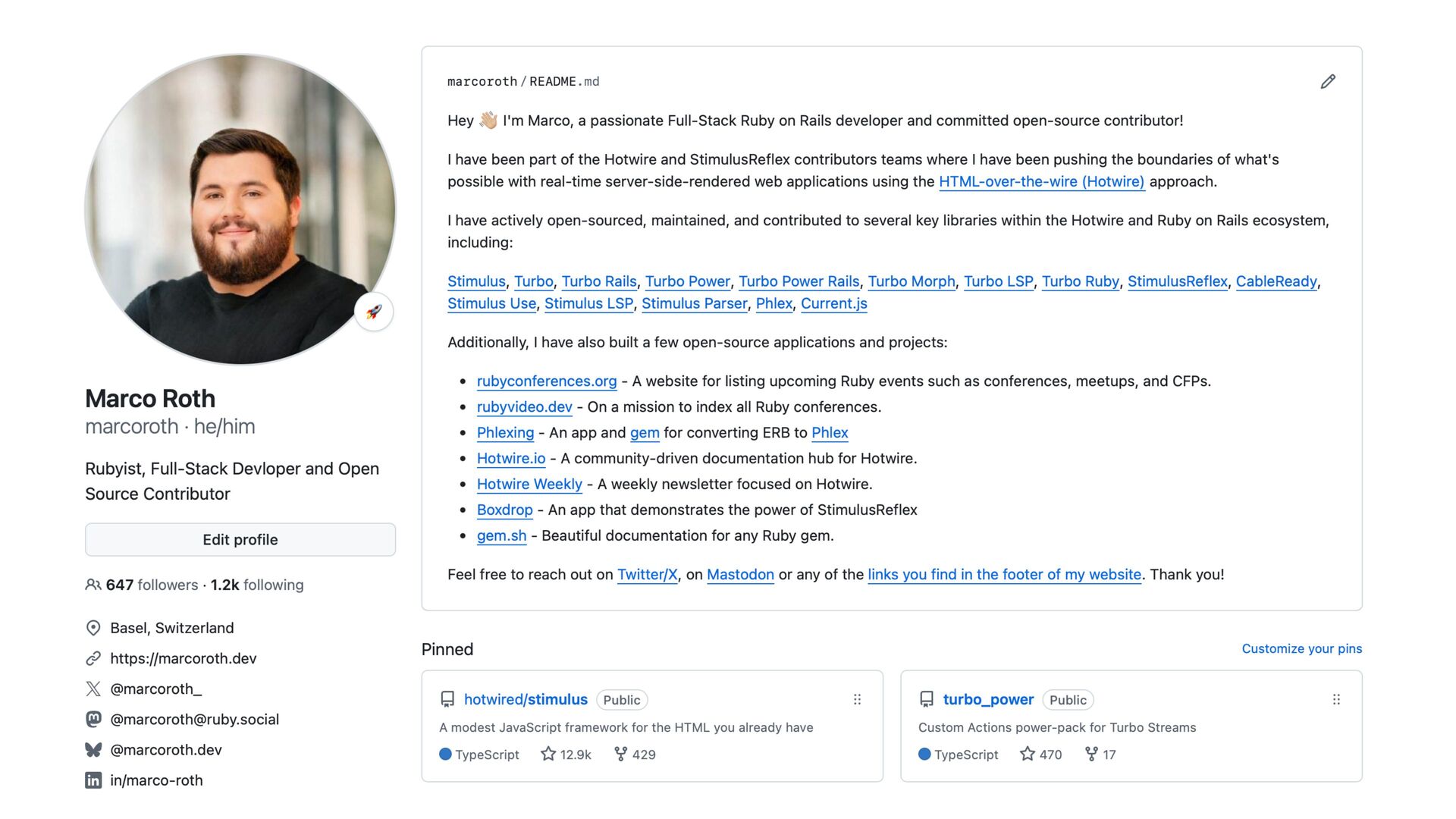

  1. Marco Roth 👋 t @marcoroth_ M @[email protected] g marcoroth.dev g

    @marcoroth Full-Stack Developer & Open Source Contributor b @marcoroth.dev
  2. a

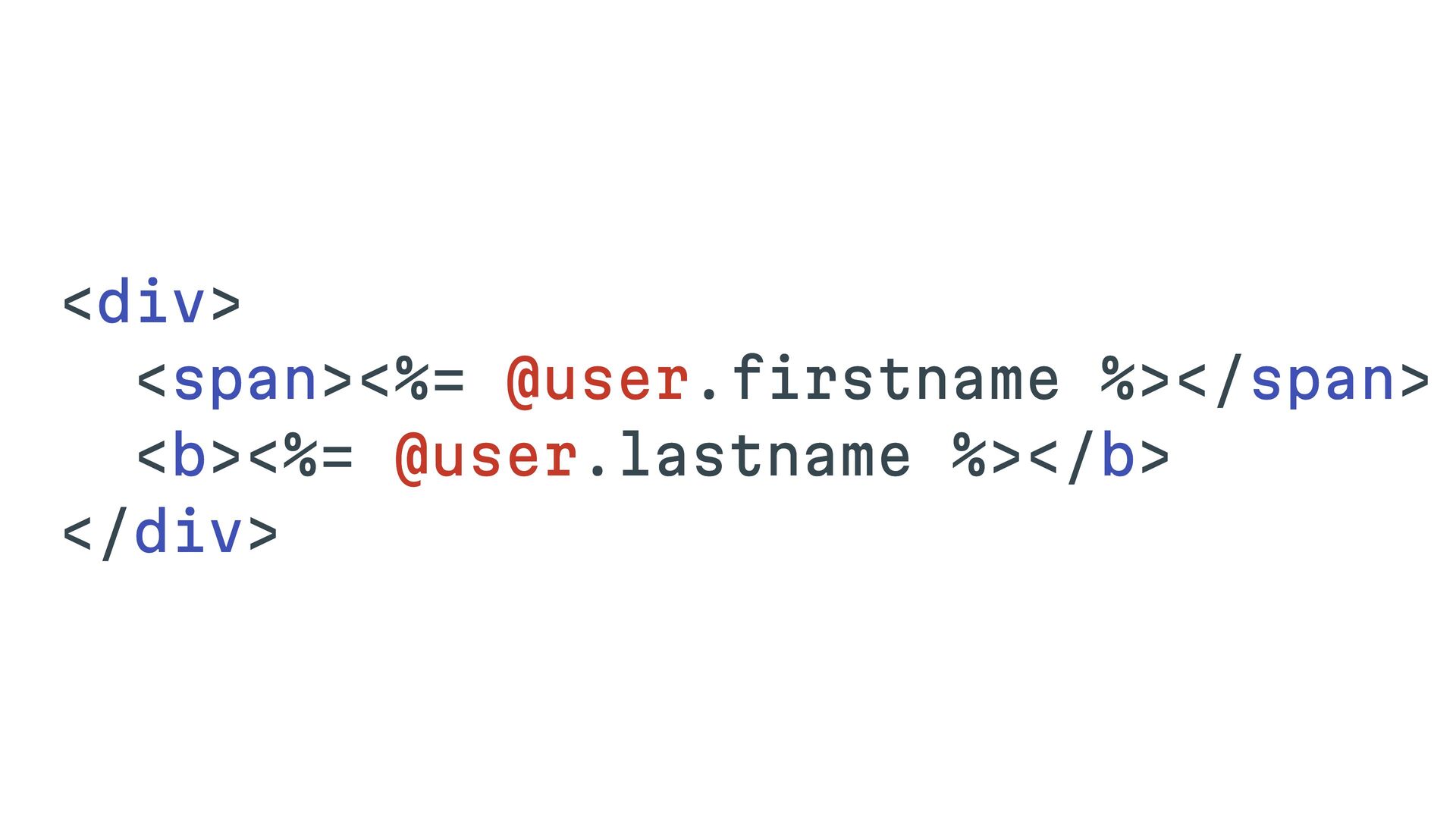

  3. <div> <span><%= @user.firstname %></span> <b><%= @user.lastname %></b> </div> <div> <span><%=

    @user.firstname %></span> <b><%= @user.lastname %></b> </div>

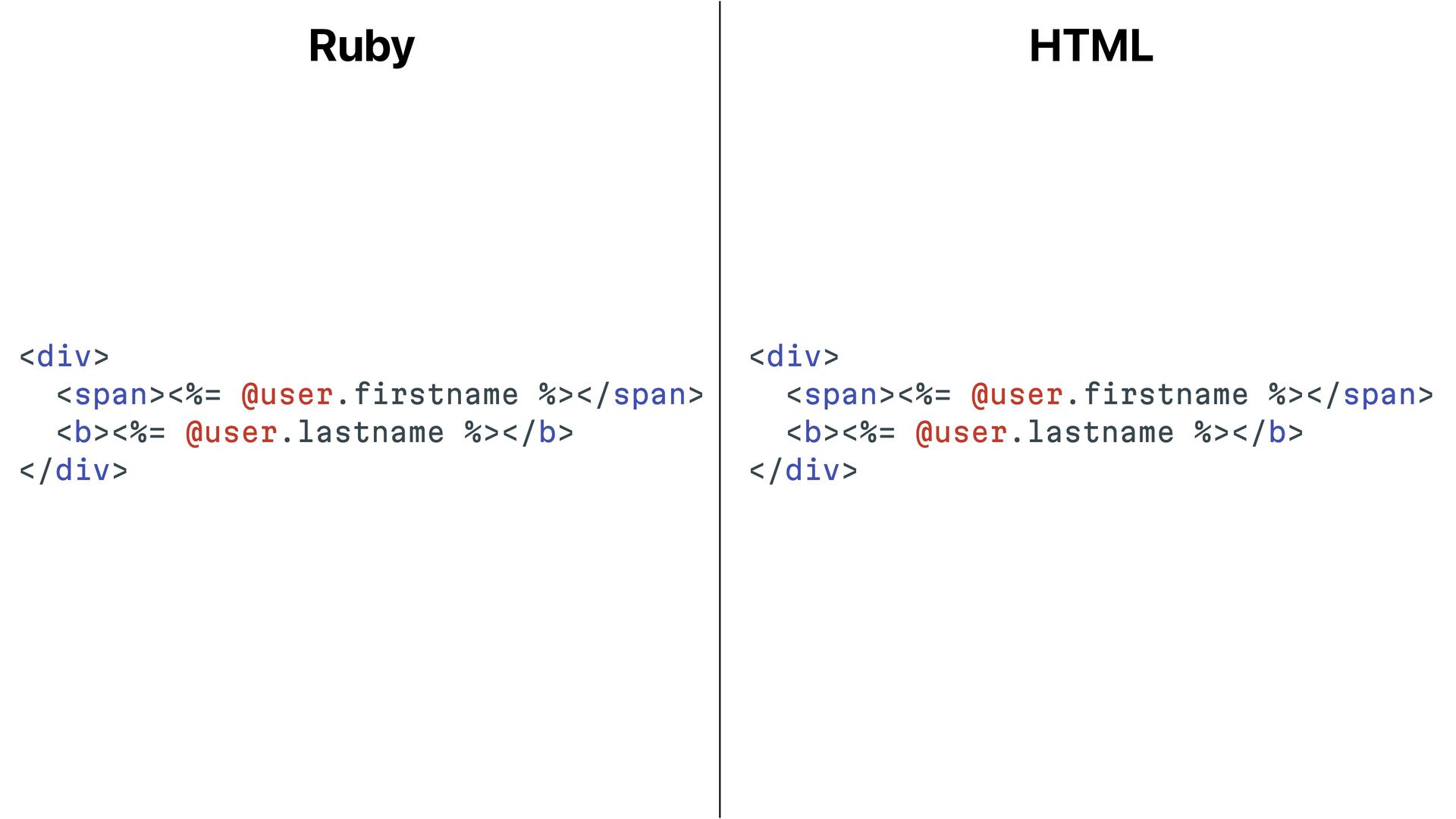

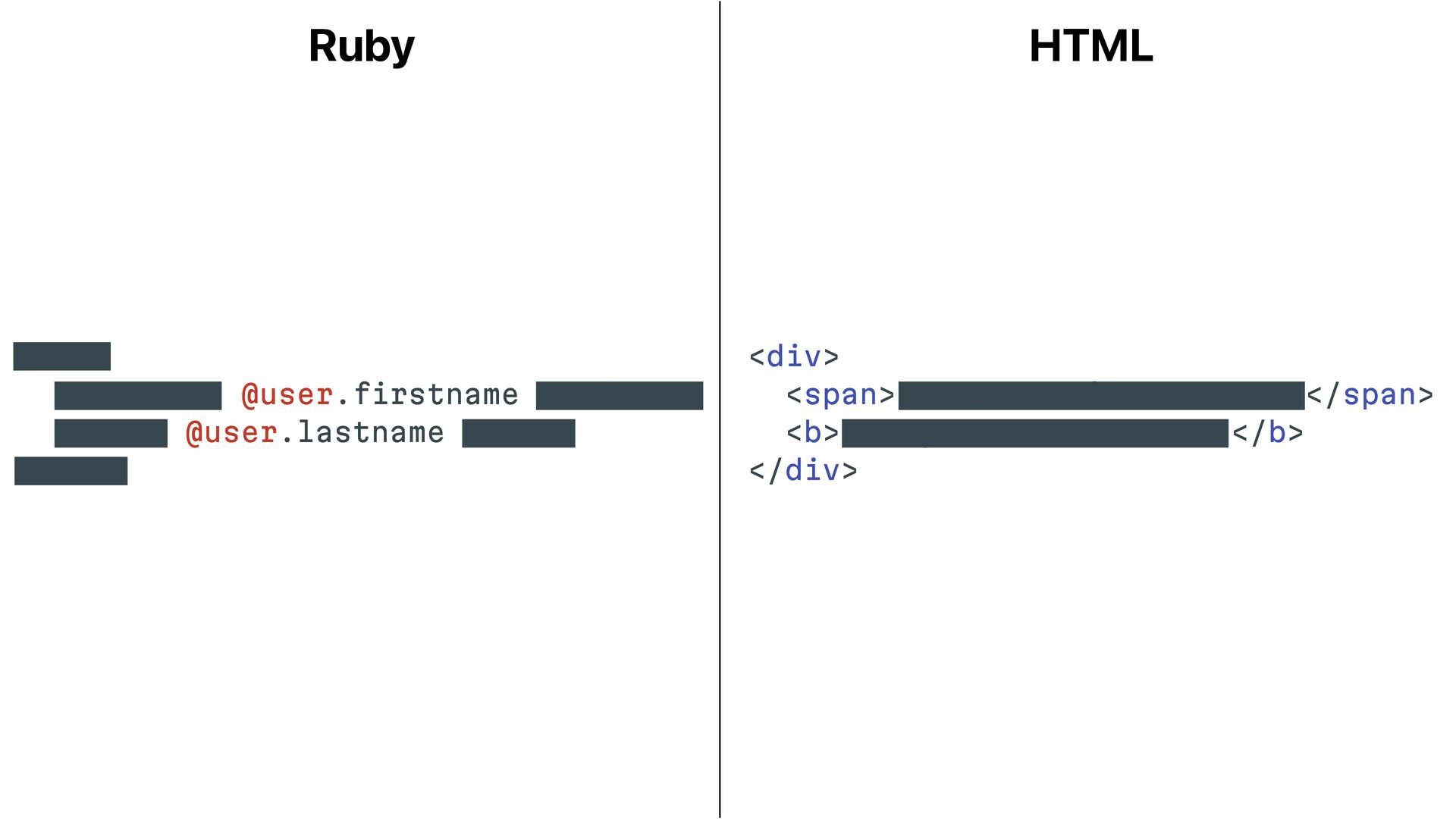

  4. Ruby HTML <div> <span><%= @user.firstname %></span> <b><%= @user.lastname %></b> </div>

    <div> <span><%= @user.firstname %></span> <b><%= @user.lastname %></b> </div>
  5. Ruby HTML <div> <span><%= @user.firstname %></span> <b><%= @user.lastname %></b> </div>

    <div> <span><%= @user.firstname %></span> <b><%= @user.lastname %></b> </div>

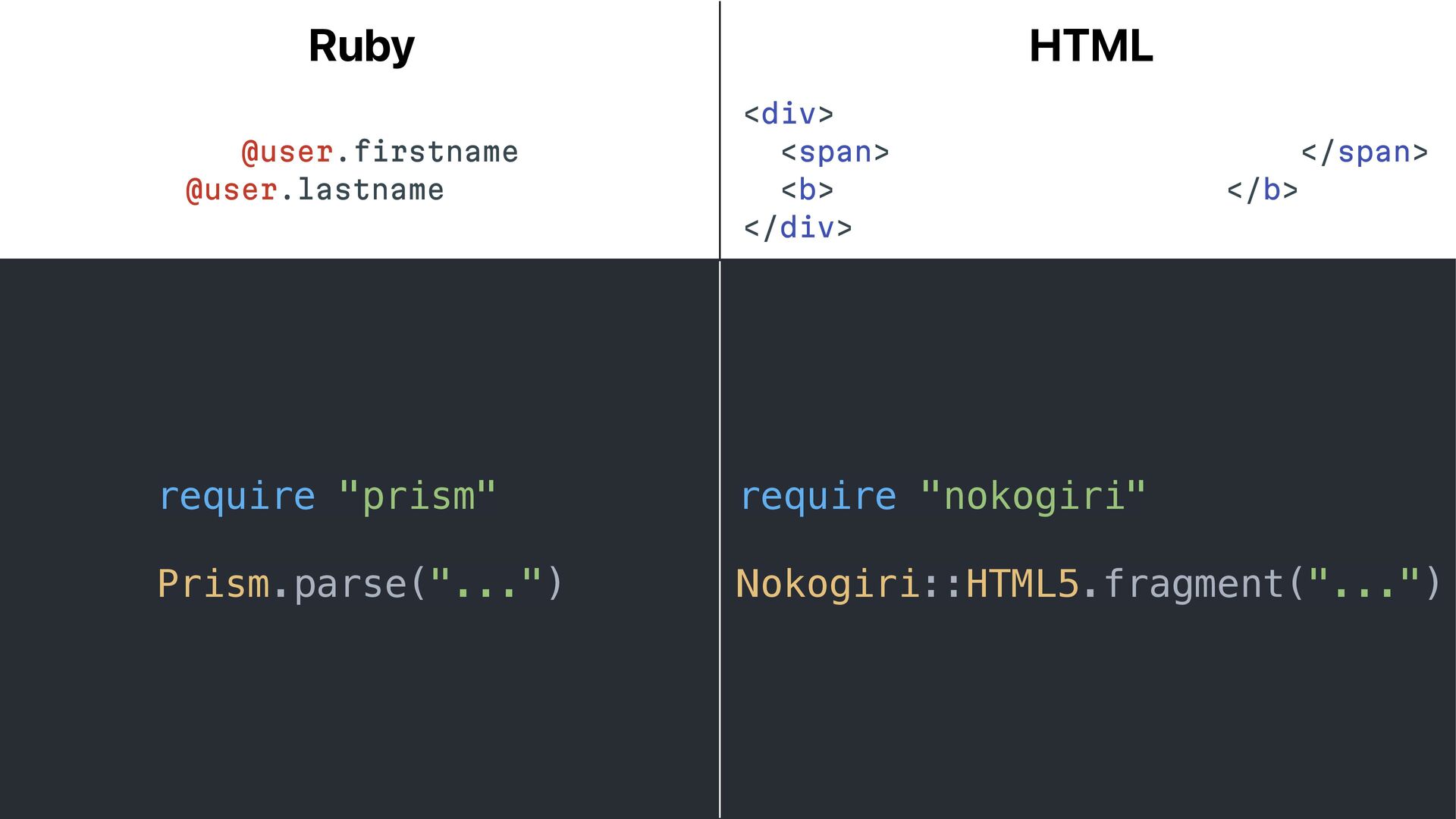

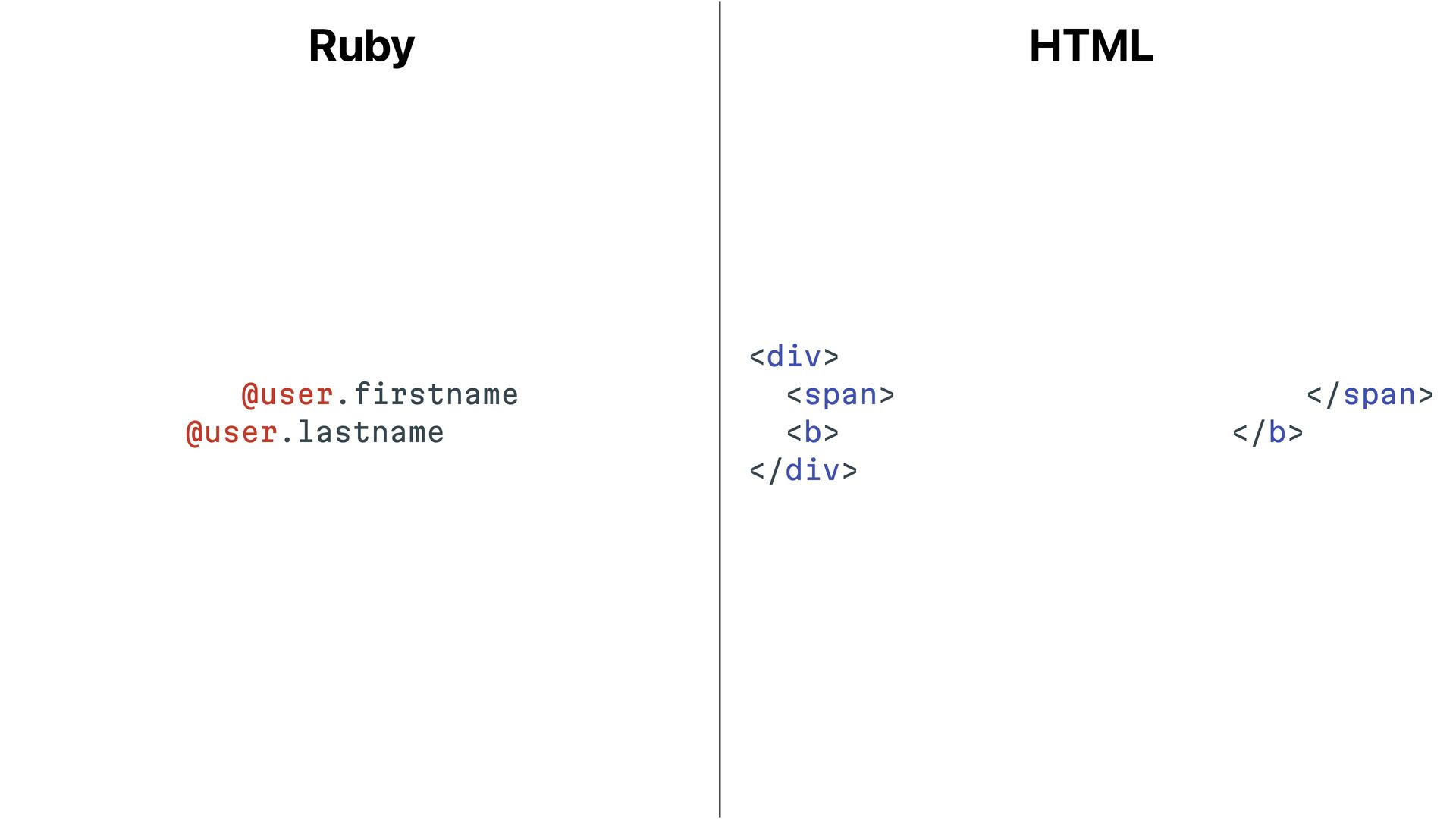

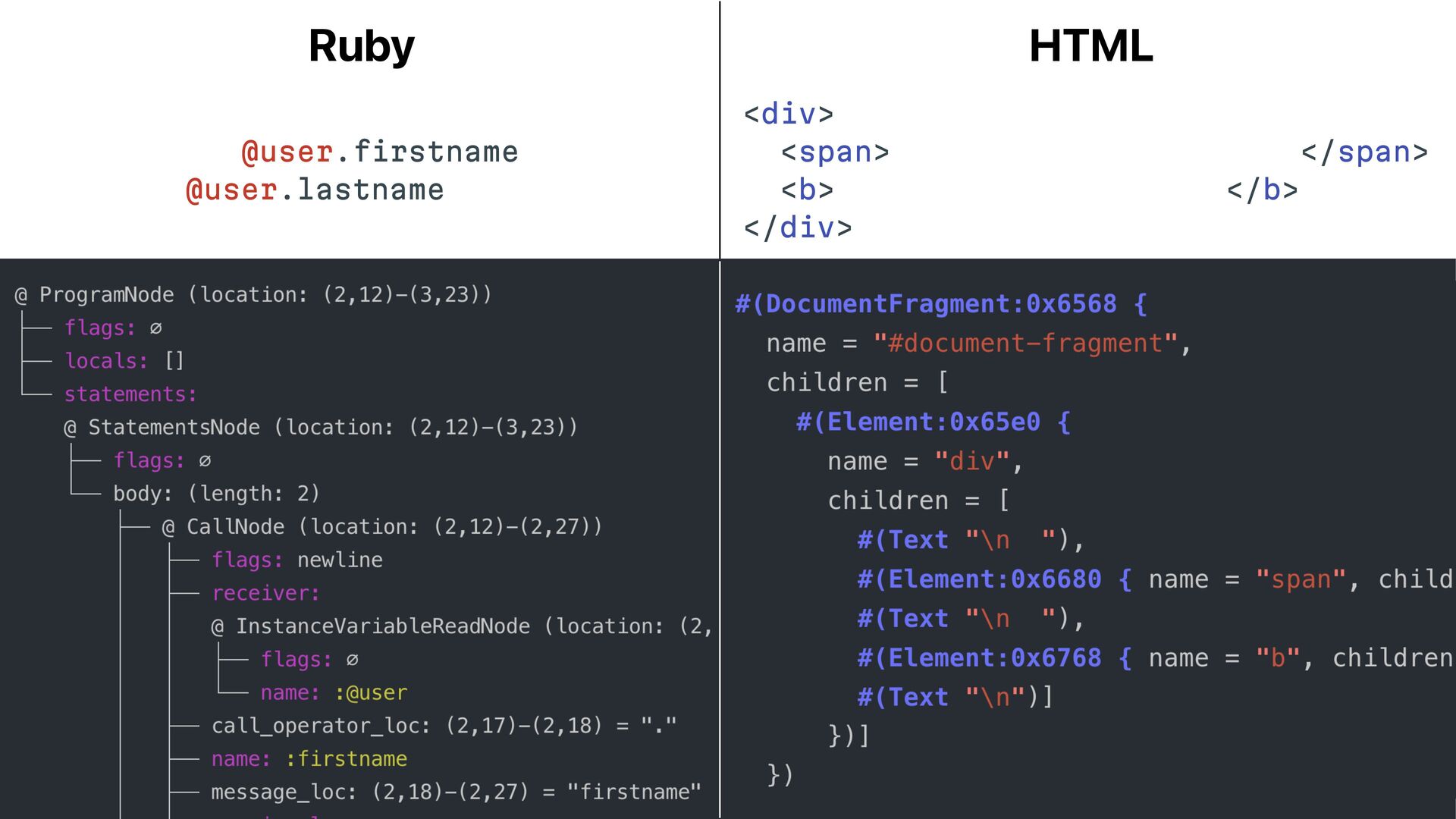

  6. Ruby HTML @user.firstname @user.lastname <div> <span> </span> <b> </b> </div>

    t require "prism" Prism.parse("...") require "nokogiri" Nokogiri::HTML5.fragment("...")

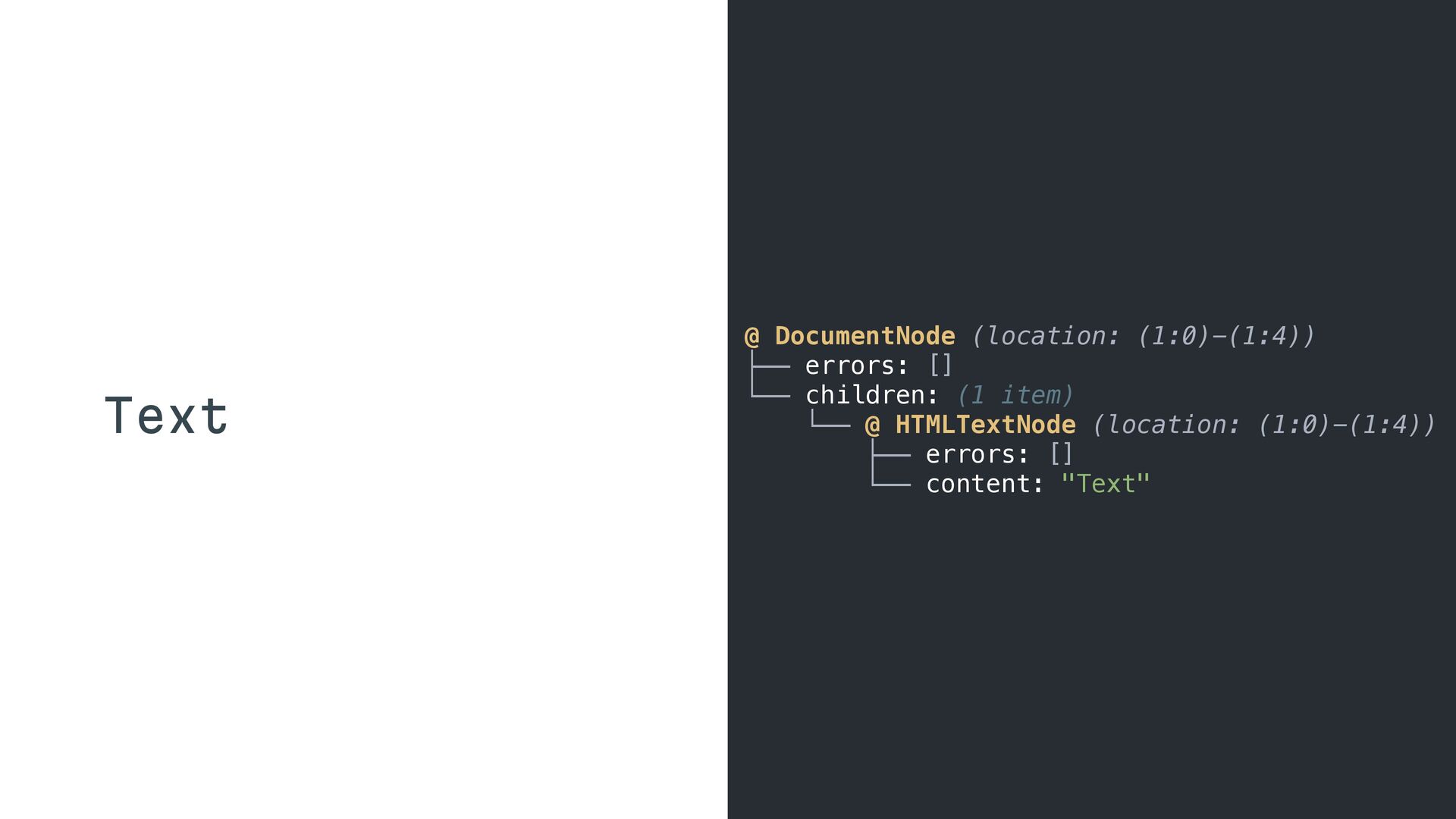

  7. Text @ DocumentNode (location: (1:0)-(1:4)) ├── errors: [] └── children:

    (1 item) └── @ HTMLTextNode (location: (1:0)-(1:4)) ├── errors: [] └── content: "Text"

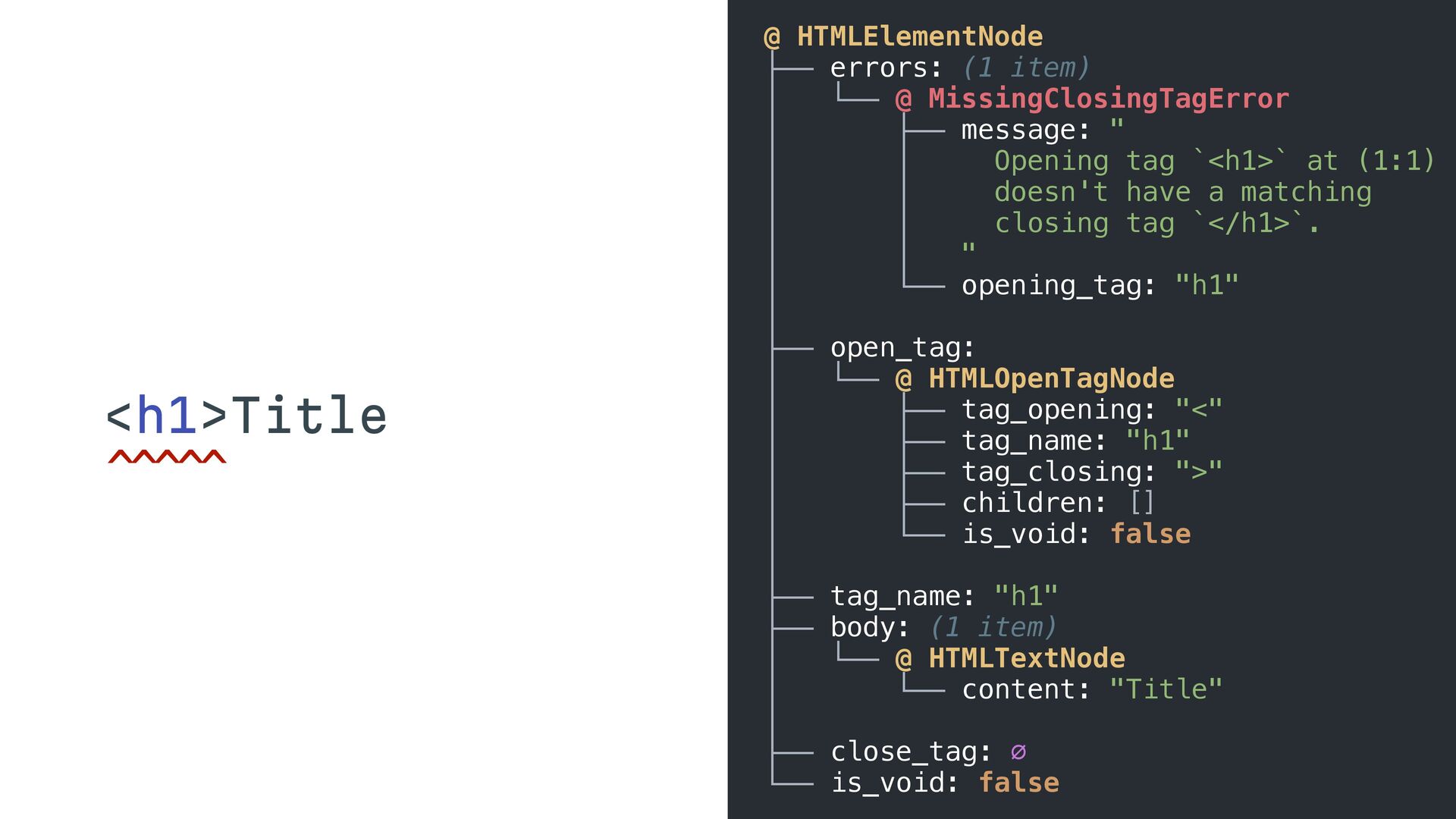

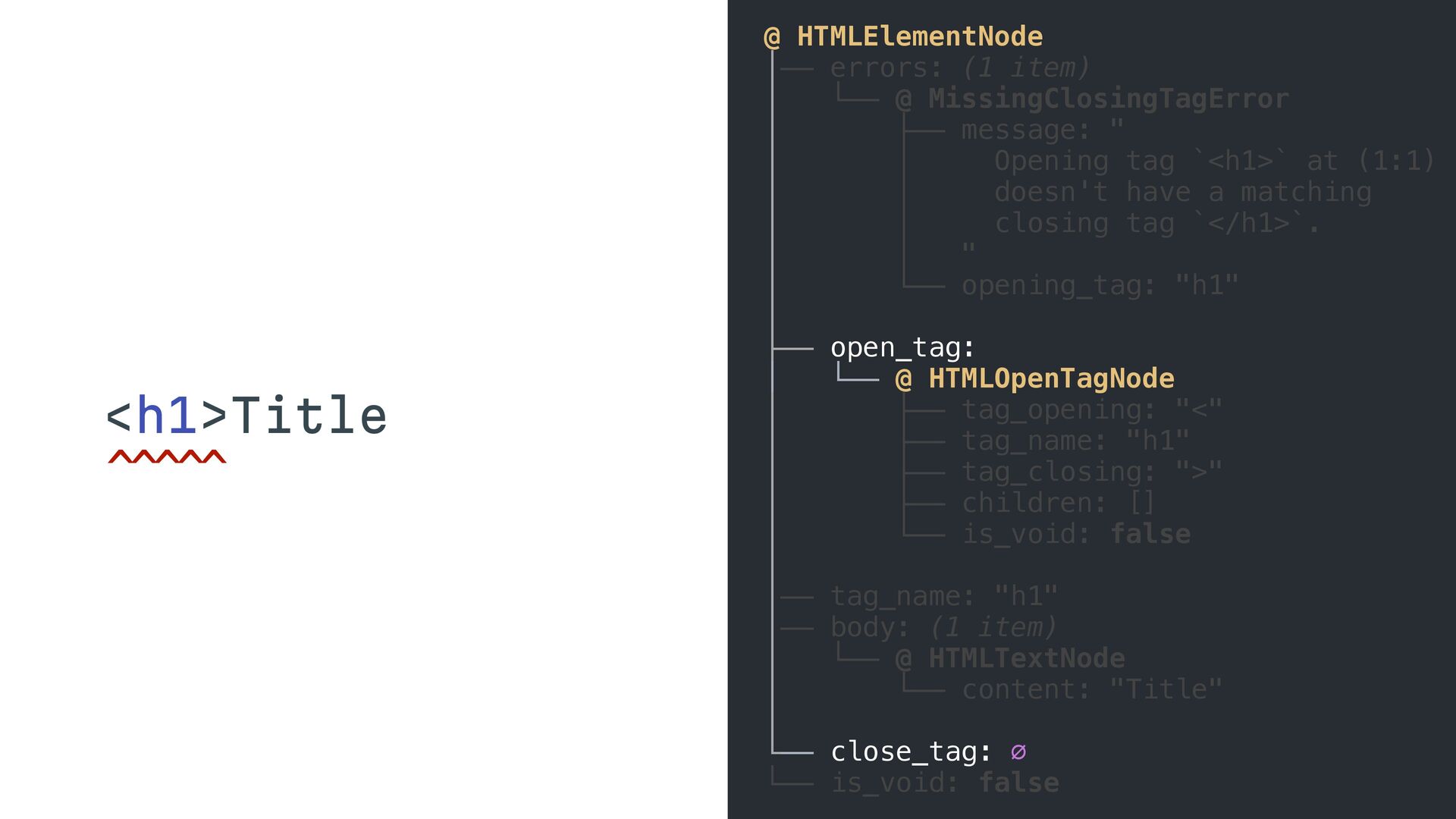

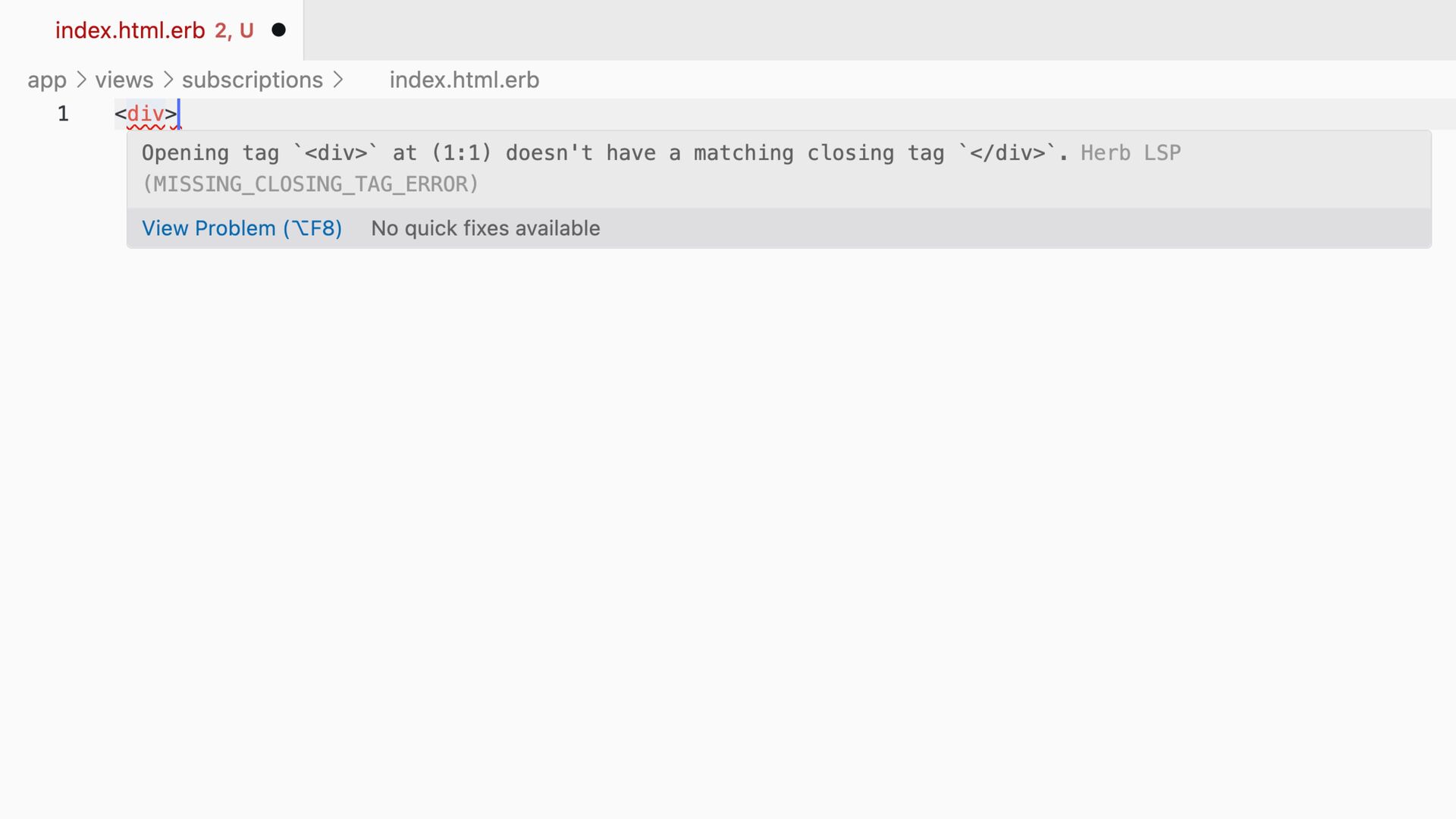

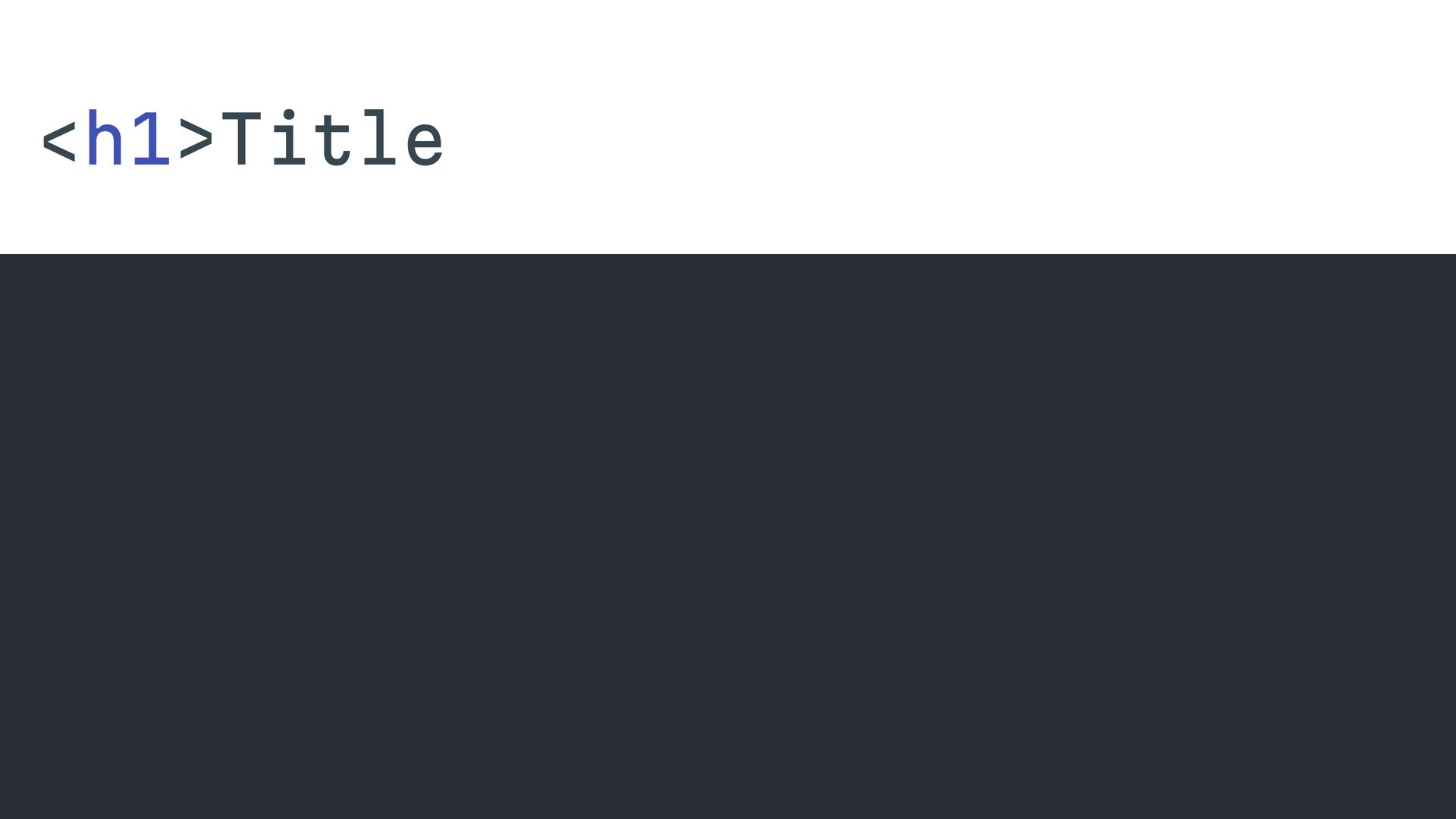

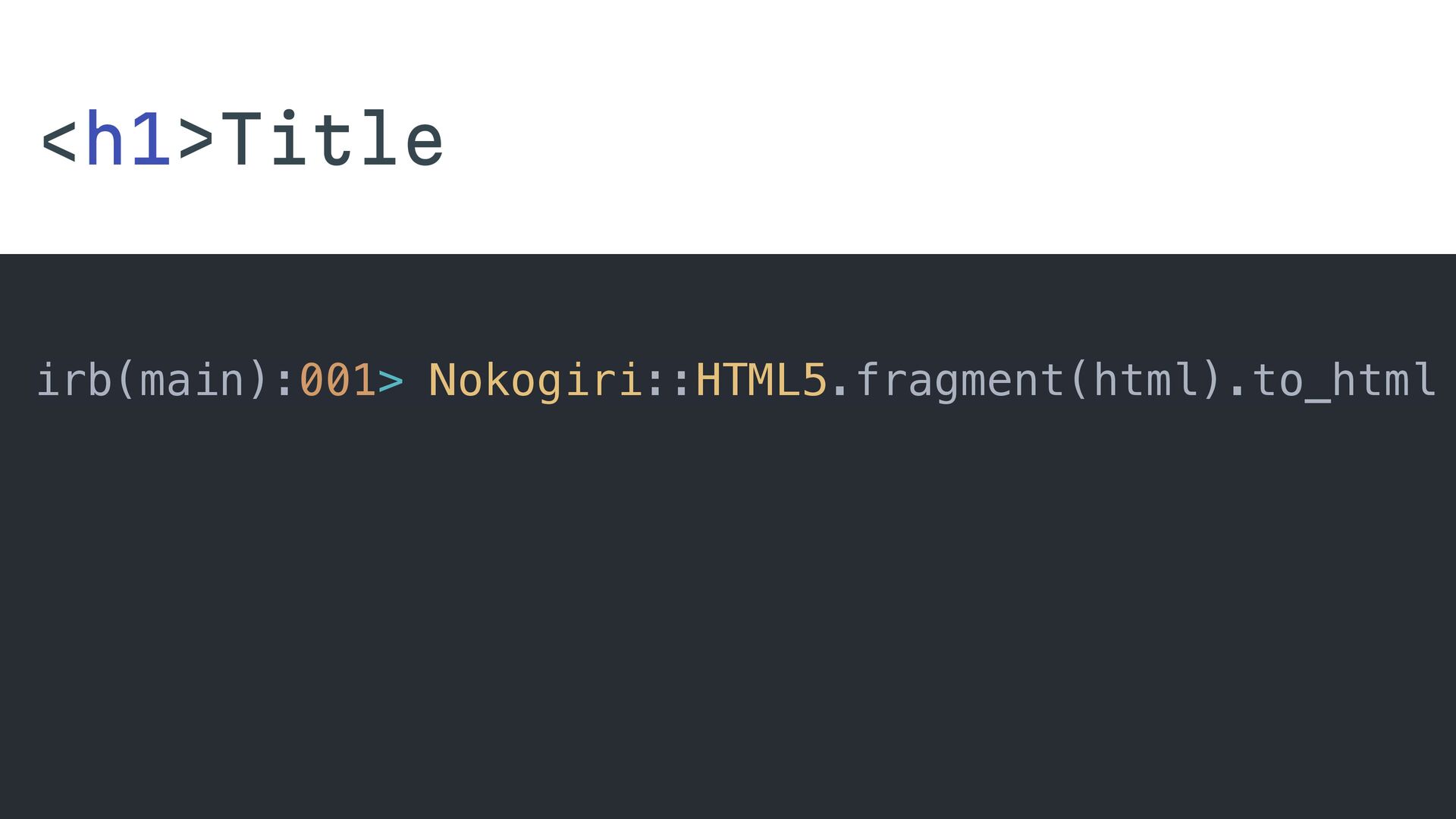

  8. <h1 > Title @ HTMLElementNode ├── errors: (1 item) │

    └── @ MissingClosingTagError │ ├── message: " │ │ Opening tag `<h1>` at (1:1) │ │ doesn't have a matching │ │ closing tag `</h1>`. │ │ " │ └── opening_tag: "h1" │ ├── open_tag: │ └── @ HTMLOpenTagNode │ ├── tag_opening: "<" │ ├── tag_name: "h1" │ ├── tag_closing: ">" │ ├── children: [] │ └── is_void: false │ ├── tag_name: "h1" ├── body: (1 item) │ └── @ HTMLTextNode │ └── content: "Title" │ ├── close_tag: ∅ └── is_void: false ^^^^^
  9. <h1 > Title @ HTMLElementNode │── errors: (1 item) │

    └── @ MissingClosingTagError │ ├── message: " │ │ Opening tag `<h1>` at (1:1) │ │ doesn't have a matching │ │ closing tag `</h1>`. │ │ " │ └── opening_tag: "h1" │ ├── open_tag: │ └── @ HTMLOpenTagNode │ ├── tag_opening: "<" │ ├── tag_name: "h1" │ ├── tag_closing: ">" │ ├── children: [] │ └── is_void: false │ │── tag_name: "h1" │── body: (1 item) │ └── @ HTMLTextNode │ └── content: "Title" │ └── close_tag: ∅ └── is_void: false ^^^^^

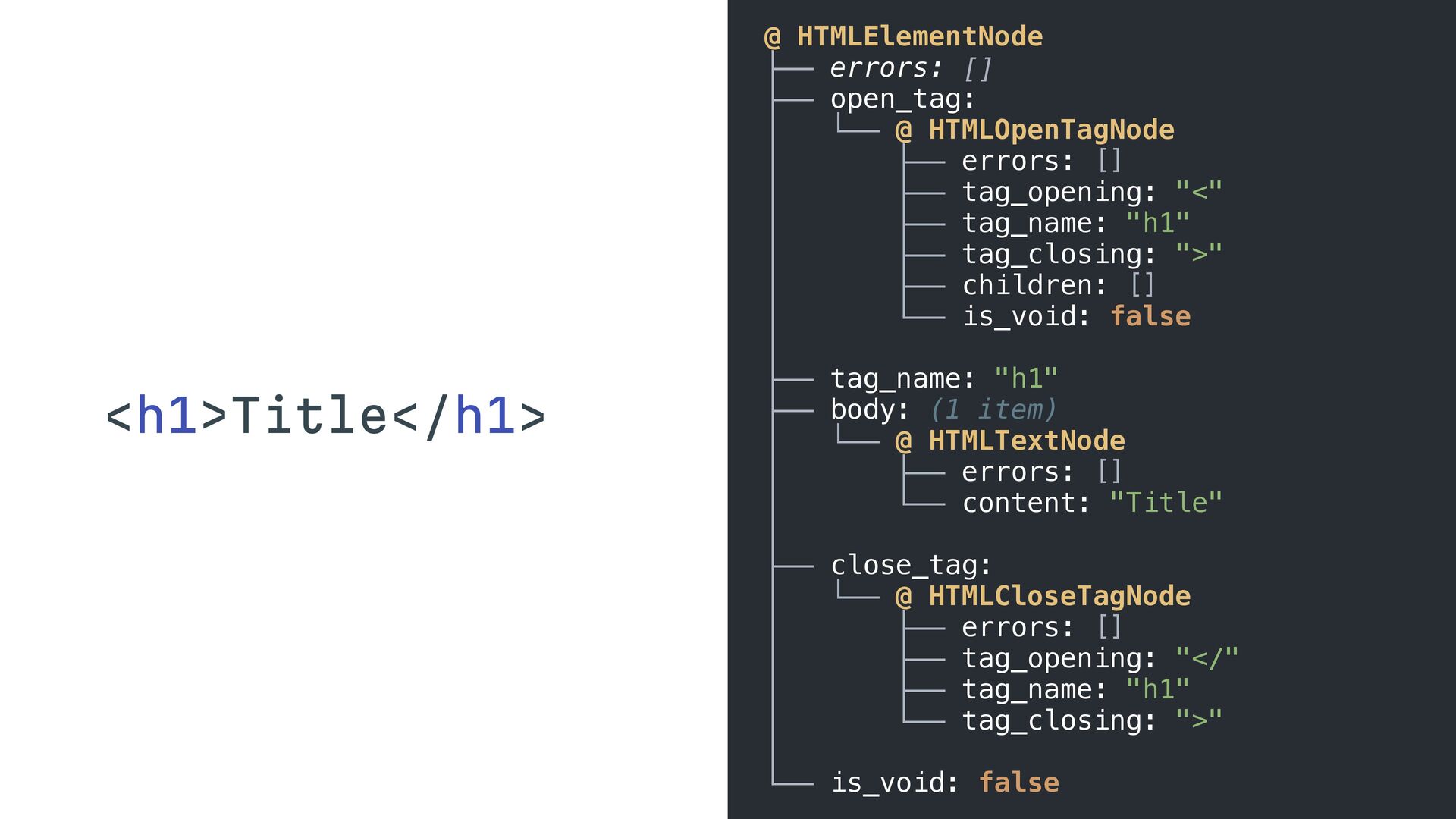

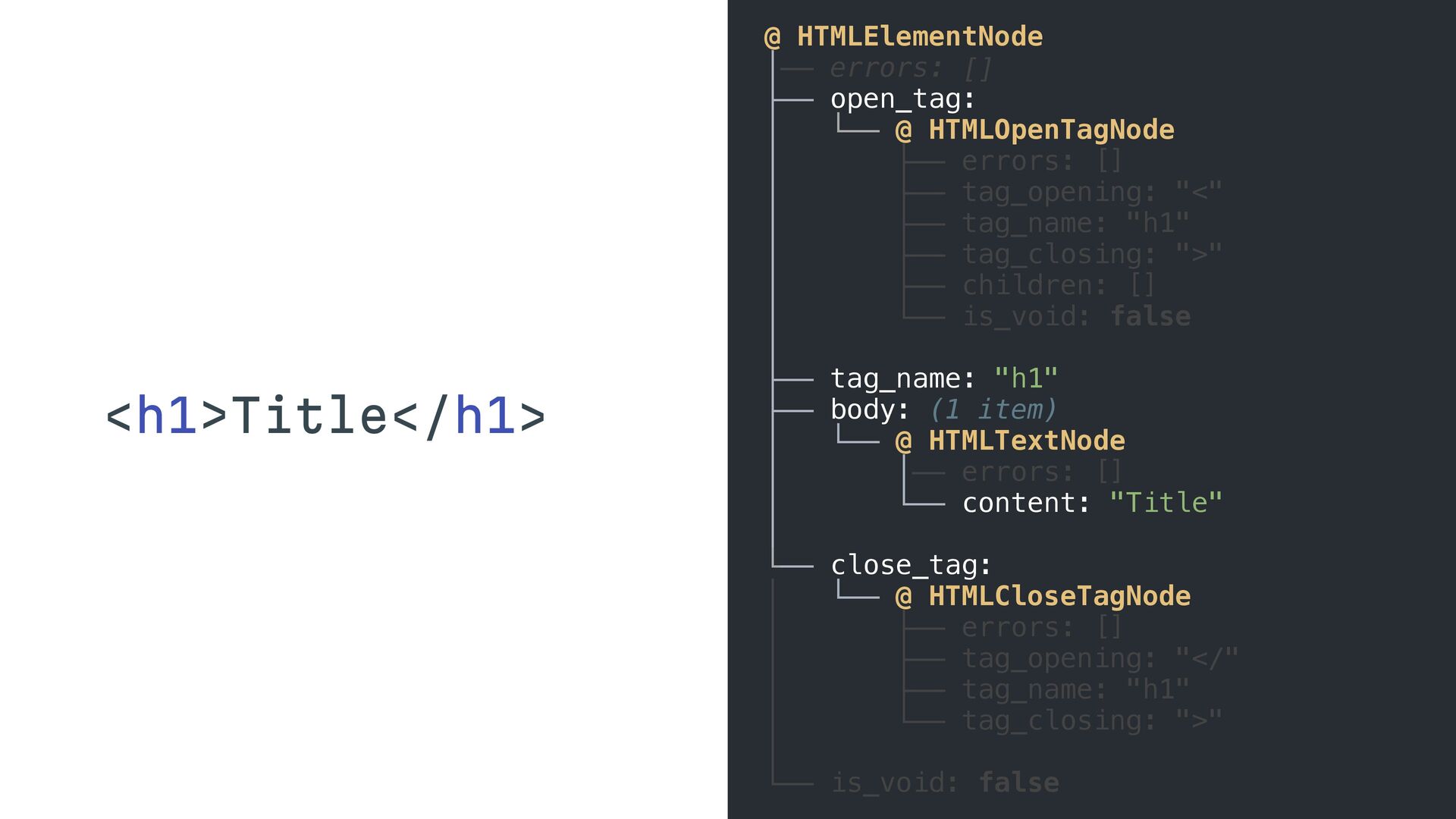

  10. <h1 > Title</h1> @ HTMLElementNode ├── errors: [] ├── open_tag:

    │ └── @ HTMLOpenTagNode │ ├── errors: [] │ ├── tag_opening: "<" │ ├── tag_name: "h1" │ ├── tag_closing: ">" │ ├── children: [] │ └── is_void: false │ ├── tag_name: "h1" ├── body: (1 item) │ └── @ HTMLTextNode │ ├── errors: [] │ └── content: "Title" │ ├── close_tag: │ └── @ HTMLCloseTagNode │ ├── errors: [] │ ├── tag_opening: "</" │ ├── tag_name: "h1" │ └── tag_closing: ">" │ └── is_void: false
  11. <h1 > Title</h1> @ HTMLElementNode │── errors: [] ├── open_tag:

    │ └── @ HTMLOpenTagNode │ ├── errors: [] │ ├── tag_opening: "<" │ ├── tag_name: "h1" │ ├── tag_closing: ">" │ ├── children: [] │ └── is_void: false │ ├── tag_name: "h1" ├── body: (1 item) │ └── @ HTMLTextNode │ │── errors: [] │ └── content: "Title" │ └── close_tag: │ └── @ HTMLCloseTagNode │ ├── errors: [] │ ├── tag_opening: "</" │ ├── tag_name: "h1" │ └── tag_closing: ">" │ └── is_void: false

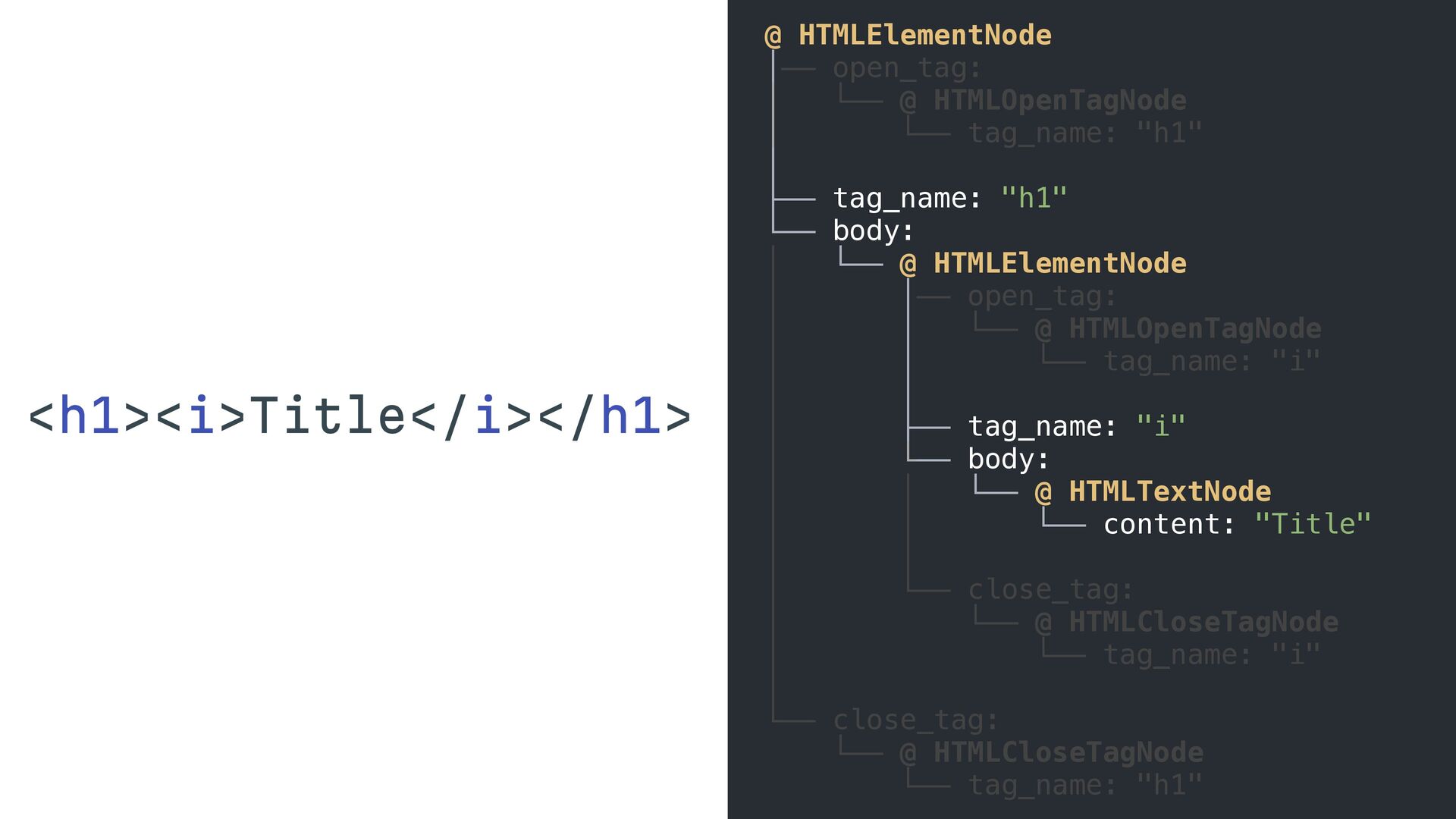

  12. <h1><i>Title</i></h1> @ HTMLElementNode ├── open_tag: │ └── @ HTMLOpenTagNode │

    └── tag_name: "h1" │ ├── tag_name: "h1" ├── body: │ └── @ HTMLElementNode │ ├── open_tag: │ │ └── @ HTMLOpenTagNode │ │ └── tag_name: "i" │ │ │ ├── tag_name: "i" │ ├── body: │ │ └── @ HTMLTextNode │ │ └── content: "Title" │ │ │ └── close_tag: │ └── @ HTMLCloseTagNode │ └── tag_name: "i" │ └── close_tag: └── @ HTMLCloseTagNode └── tag_name: "h1"
  13. <h1><i>Title</i></h1> @ HTMLElementNode │── open_tag: │ └── @ HTMLOpenTagNode │

    └── tag_name: "h1" │ ├── tag_name: "h1" └── body: │ └── @ HTMLElementNode │ │── open_tag: │ │ └── @ HTMLOpenTagNode │ │ └── tag_name: "i" │ │ │ ├── tag_name: "i" │ └── body: │ │ └── @ HTMLTextNode │ │ └── content: "Title" │ │ │ └── close_tag: │ └── @ HTMLCloseTagNode │ └── tag_name: "i" │ └── close_tag: └── @ HTMLCloseTagNode └── tag_name: "h1"

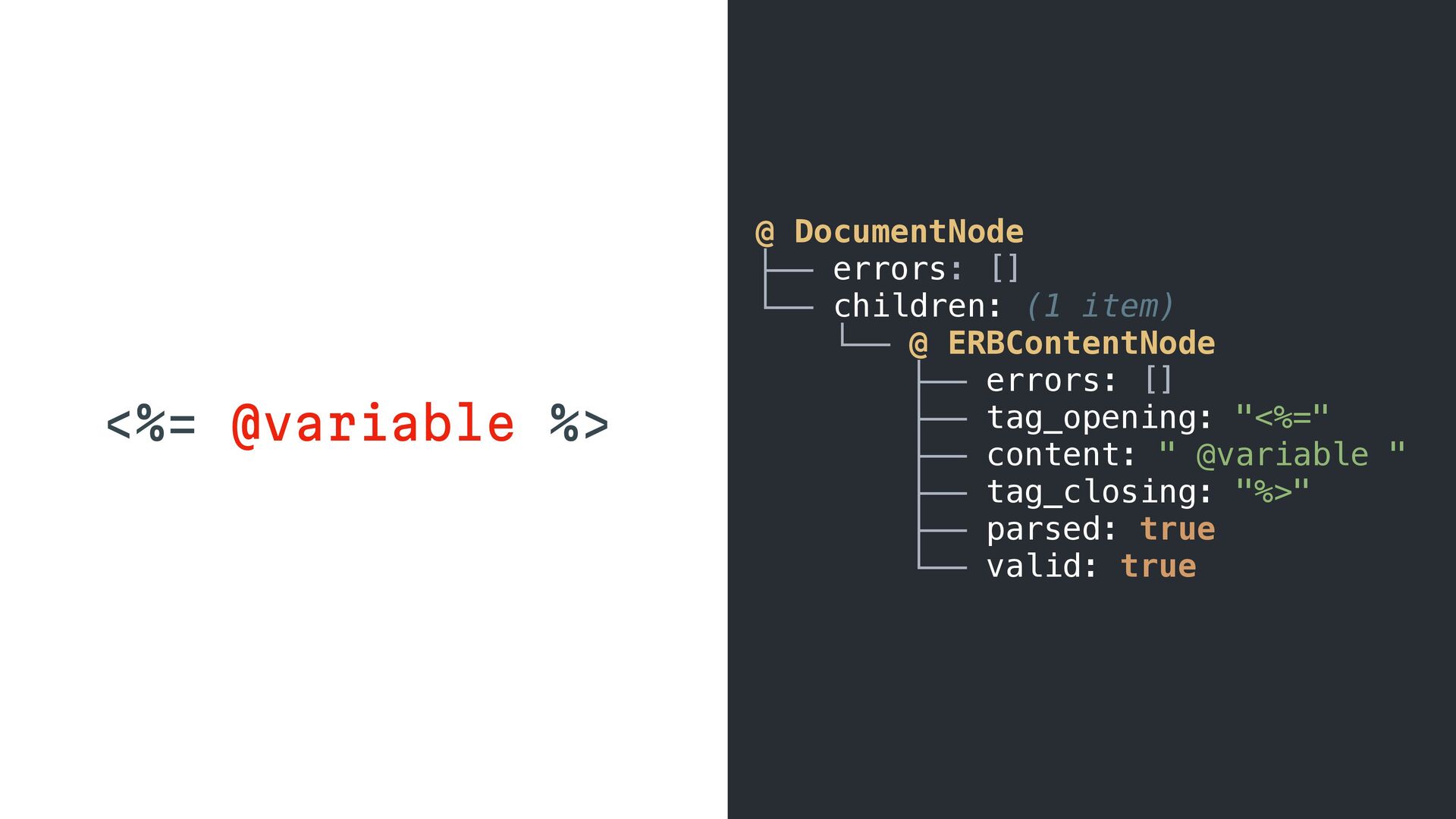

  14. <%= @variable %> @ DocumentNode ├── errors: [] └── children:

    (1 item) └── @ ERBContentNode ├── errors: [] ├── tag_opening: "<%=" ├── content: " @variable " ├── tag_closing: "%>" ├── parsed: true └── valid: true

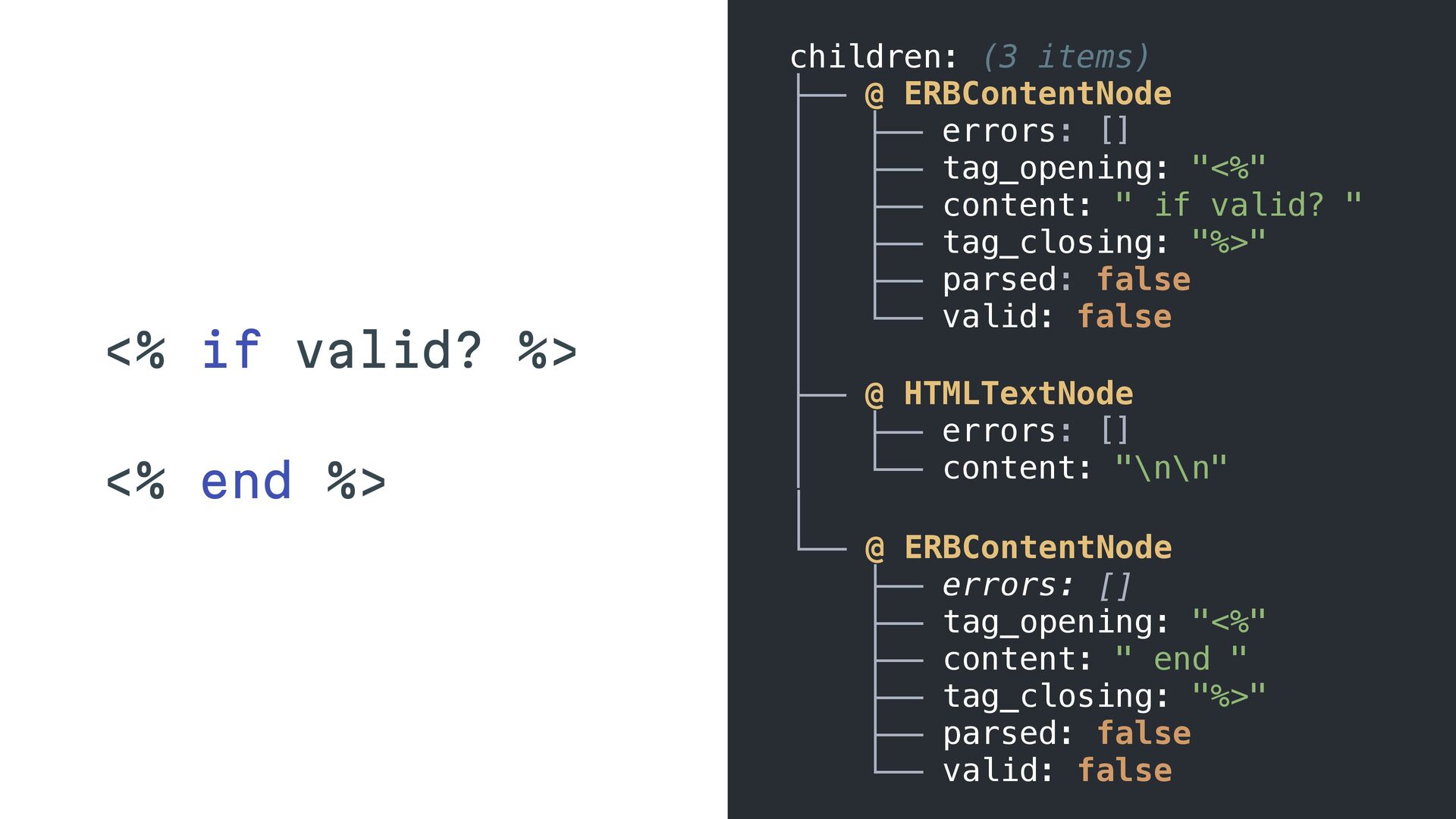

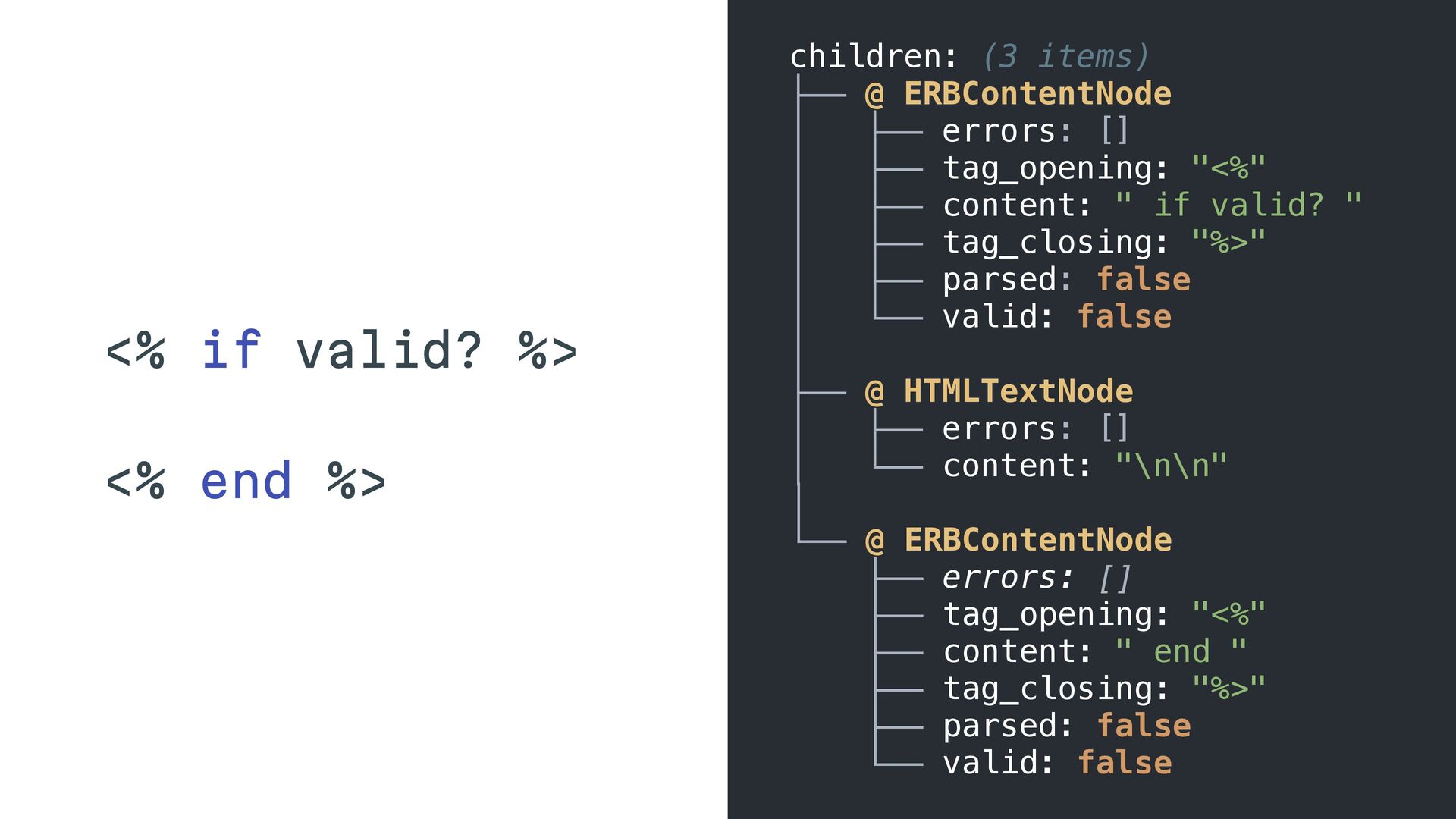

  15. <% if valid? %> <% end %> children: (3 items)

    ├── @ ERBContentNode │ ├── errors: [] │ ├── tag_opening: "<%" │ ├── content: " if valid? " │ ├── tag_closing: "%>" │ ├── parsed: false │ └── valid: false │ │ └── @ ERBContentNode ├── errors: [] ├── tag_opening: "<%" ├── content: " end " ├── tag_closing: "%>" ├── parsed: false └── valid: false ├── @ HTMLTextNode │ ├── errors: [] │ └── content: "\n\n"
  16. <% if valid? %> <% end %> ├── @ ERBContentNode

    │ ├── errors: [] │ ├── tag_opening: "<%" │ ├── content: " if valid? " │ ├── tag_closing: "%>" │ ├── parsed: false │ └── valid: false │ │ └── @ ERBContentNode ├── errors: [] ├── tag_opening: "<%" ├── content: " end " ├── tag_closing: "%>" ├── parsed: false └── valid: false ├── @ HTMLTextNode │ ├── errors: [] │ └── content: "\n\n" children: (3 items)

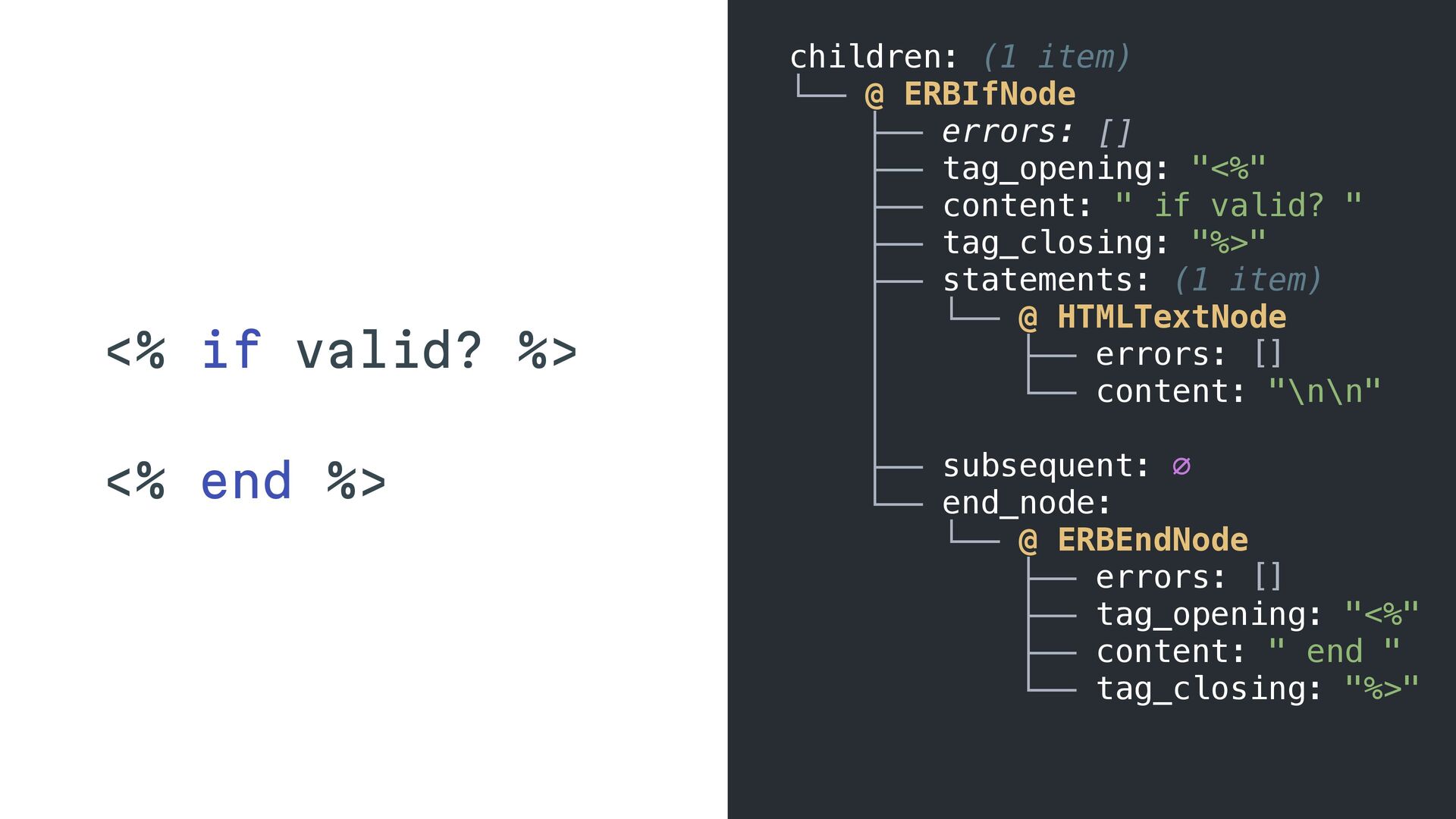

  17. <% if valid? %> <% end %> children: (1 item)

    └── @ ERBIfNode ├── errors: [] ├── tag_opening: "<%" ├── content: " if valid? " ├── tag_closing: "%>" ├── statements: (1 item) │ └── @ HTMLTextNode │ ├── errors: [] │ └── content: "\n\n" │ ├── subsequent: ∅ └── end_node: └── @ ERBEndNode ├── errors: [] ├── tag_opening: "<%" ├── content: " end " └── tag_closing: "%>"

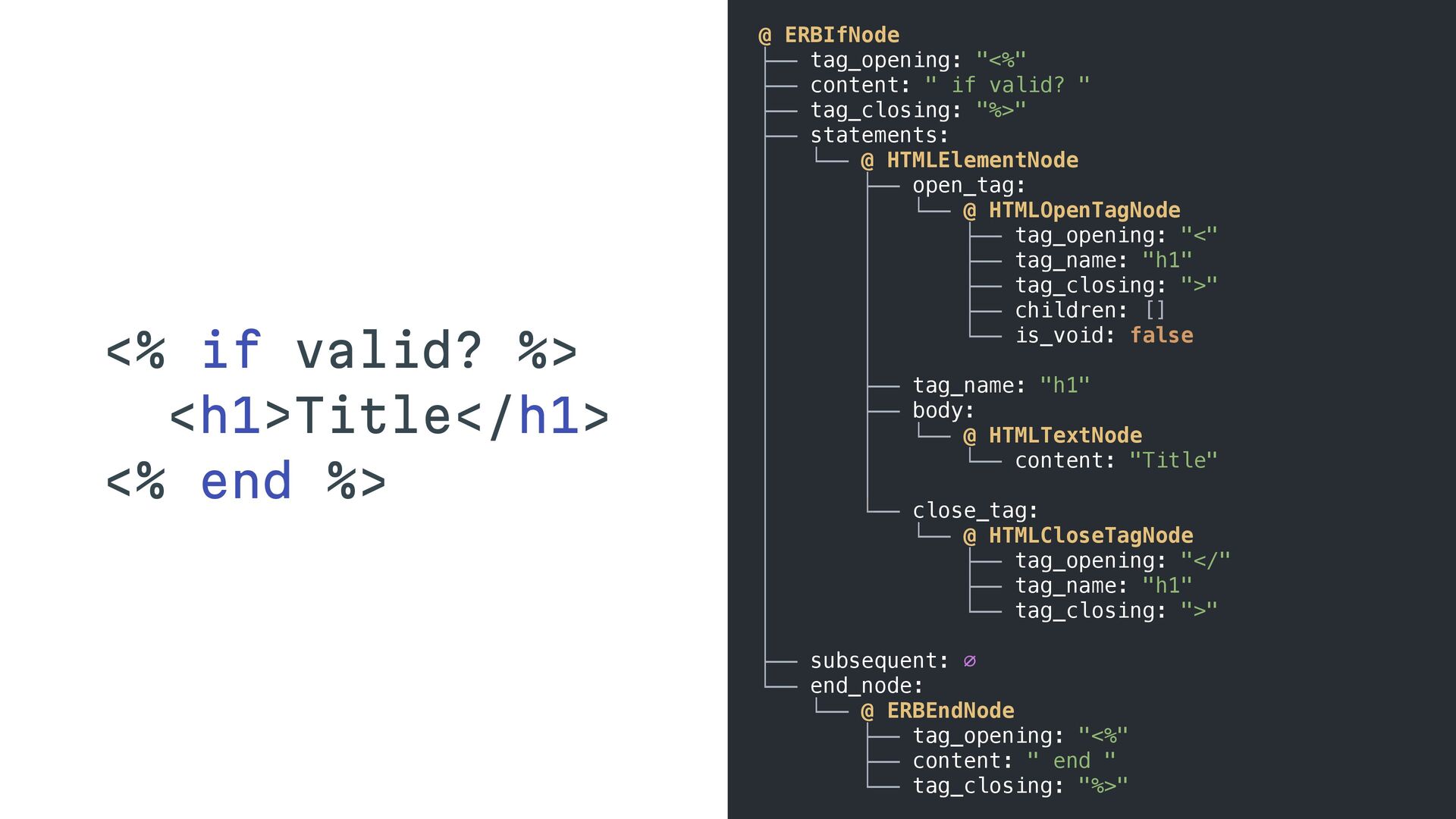

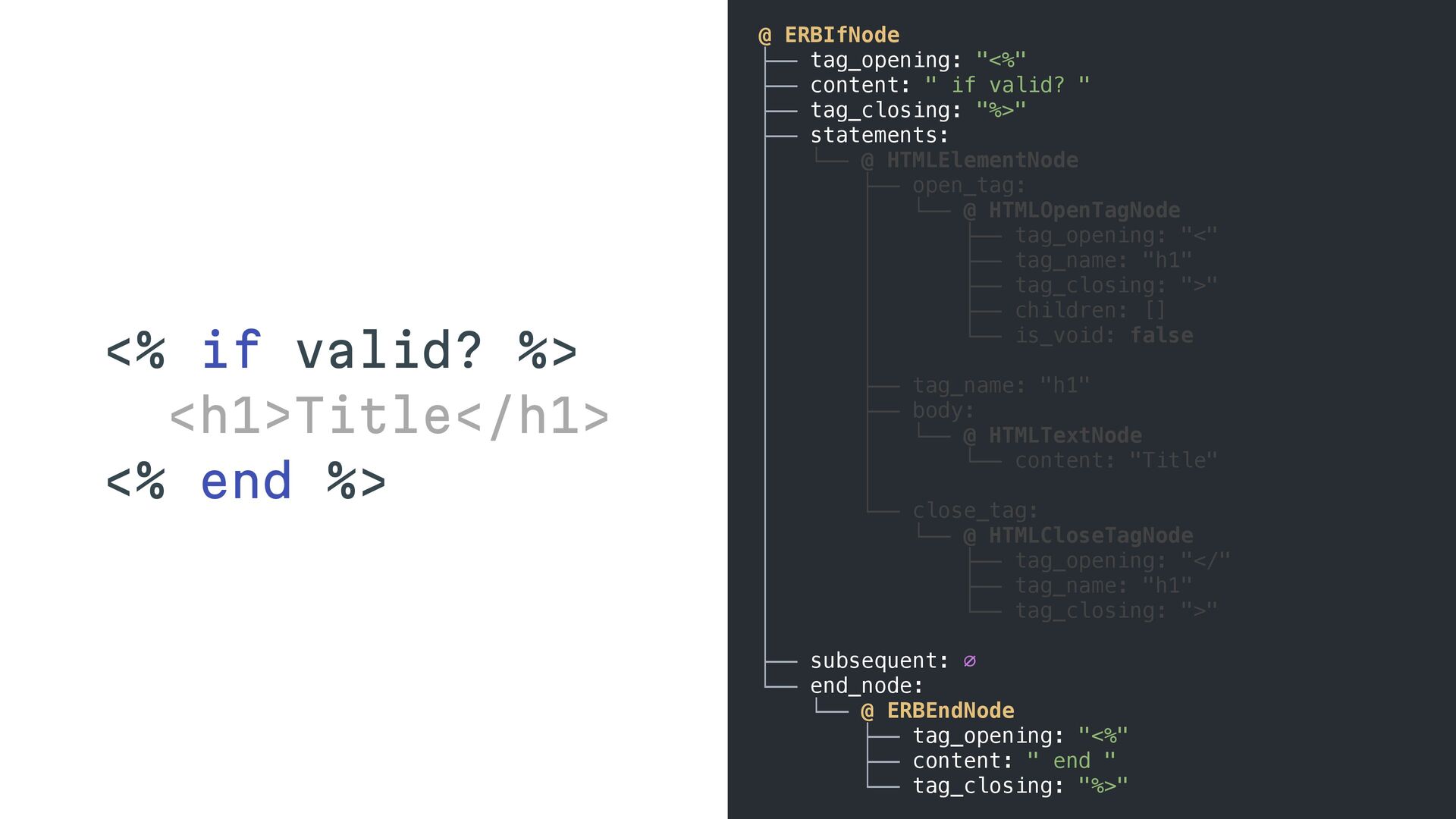

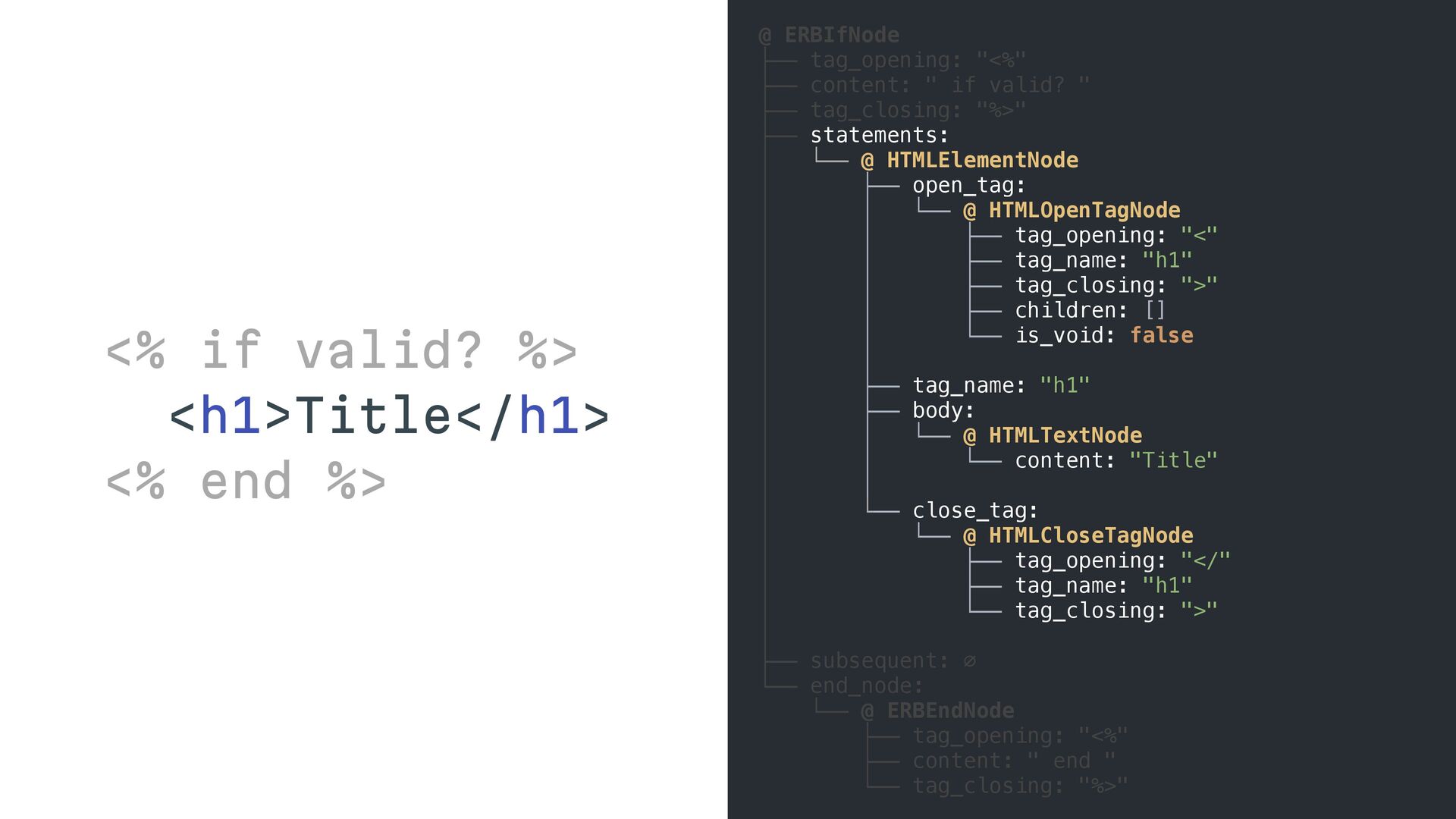

  18. <% if valid? %> <h1 > Title</h1> <% end %>

    @ ERBIfNode ├── tag_opening: "<%" ├── content: " if valid? " ├── tag_closing: "%>" ├── statements: │ └── @ HTMLElementNode │ ├── open_tag: │ │ └── @ HTMLOpenTagNode │ │ ├── tag_opening: "<" │ │ ├── tag_name: "h1" │ │ ├── tag_closing: ">" │ │ ├── children: [] │ │ └── is_void: false │ │ │ ├── tag_name: "h1" │ ├── body: │ │ └── @ HTMLTextNode │ │ └── content: "Title" │ │ │ └── close_tag: │ └── @ HTMLCloseTagNode │ ├── tag_opening: "</" │ ├── tag_name: "h1" │ └── tag_closing: ">" │ ├── subsequent: ∅ └── end_node: └── @ ERBEndNode ├── tag_opening: "<%" ├── content: " end " └── tag_closing: "%>"
  19. <% if valid? %> <h1 > Title</h1> <% end %>

    @ ERBIfNode ├── tag_opening: "<%" ├── content: " if valid? " ├── tag_closing: "%>" ├── statements: │ └── @ HTMLElementNode │ ├── open_tag: │ │ └── @ HTMLOpenTagNode │ │ ├── tag_opening: "<" │ │ ├── tag_name: "h1" │ │ ├── tag_closing: ">" │ │ ├── children: [] │ │ └── is_void: false │ │ │ ├── tag_name: "h1" │ ├── body: │ │ └── @ HTMLTextNode │ │ └── content: "Title" │ │ │ └── close_tag: │ └── @ HTMLCloseTagNode │ ├── tag_opening: "</" │ ├── tag_name: "h1" │ └── tag_closing: ">" │ ├── subsequent: ∅ └── end_node: └── @ ERBEndNode ├── tag_opening: "<%" ├── content: " end " └── tag_closing: "%>"
  20. <% if valid? %> <h1 > Title</h1> <% end %>

    @ ERBIfNode ├── tag_opening: "<%" ├── content: " if valid? " ├── tag_closing: "%>" ├── statements: │ └── @ HTMLElementNode │ ├── open_tag: │ │ └── @ HTMLOpenTagNode │ │ ├── tag_opening: "<" │ │ ├── tag_name: "h1" │ │ ├── tag_closing: ">" │ │ ├── children: [] │ │ └── is_void: false │ │ │ ├── tag_name: "h1" │ ├── body: │ │ └── @ HTMLTextNode │ │ └── content: "Title" │ │ │ └── close_tag: │ └── @ HTMLCloseTagNode │ ├── tag_opening: "</" │ ├── tag_name: "h1" │ └── tag_closing: ">" │ ├── subsequent: ∅ └── end_node: └── @ ERBEndNode ├── tag_opening: "<%" ├── content: " end " └── tag_closing: "%>"
  21. <% if valid? %> <h1 > Title</h1> <% end %>

    @ ERBIfNode ├── tag_opening: "<%" ├── content: " if valid? " ├── tag_closing: "%>" ├── statements: │ └── @ HTMLElementNode │ ├── open_tag: │ │ └── @ HTMLOpenTagNode │ │ ├── tag_opening: "<" │ │ ├── tag_name: "h1" │ │ ├── tag_closing: ">" │ │ ├── children: [] │ │ └── is_void: false │ │ │ ├── tag_name: "h1" │ ├── body: │ │ └── @ HTMLTextNode │ │ └── content: "Title" │ │ │ └── close_tag: │ └── @ HTMLCloseTagNode │ ├── tag_opening: "</" │ ├── tag_name: "h1" │ └── tag_closing: ">" │ ├── subsequent: ∅ └── end_node: └── @ ERBEndNode ├── tag_opening: "<%" ├── content: " end " └── tag_closing: "%>"
  22. <% if valid? %> <h1 > Title</h1> <% end %>

    @ ERBIfNode ├── tag_opening: "<%" ├── content: " if valid? " ├── tag_closing: "%>" ├── statements: │ └── @ HTMLElementNode │ ├── open_tag: │ │ └── @ HTMLOpenTagNode │ │ ├── tag_opening: "<" │ │ ├── tag_name: "h1" │ │ ├── tag_closing: ">" │ │ ├── children: [] │ │ └── is_void: false │ │ │ ├── tag_name: "h1" │ ├── body: │ │ └── @ HTMLTextNode │ │ └── content: "Title" │ │ │ └── close_tag: │ └── @ HTMLCloseTagNode │ ├── tag_opening: "</" │ ├── tag_name: "h1" │ └── tag_closing: ">" │ ├── subsequent: ∅ └── end_node: └── @ ERBEndNode ├── tag_opening: "<%" ├── content: " end " └── tag_closing: "%>"
  23. <% if valid? %> <h1 > Title</h1> <% end %>

    @ ERBIfNode ├── tag_opening: "<%" ├── content: " if valid? " ├── tag_closing: "%>" ├── statements: │ └── @ HTMLElementNode │ ├── open_tag: │ │ └── @ HTMLOpenTagNode │ │ ├── tag_opening: "<" │ │ ├── tag_name: "h1" │ │ ├── tag_closing: ">" │ │ ├── children: [] │ │ └── is_void: false │ │ │ ├── tag_name: "h1" │ ├── body: │ │ └── @ HTMLTextNode │ │ └── content: "Title" │ │ │ └── close_tag: │ └── @ HTMLCloseTagNode │ ├── tag_opening: "</" │ ├── tag_name: "h1" │ └── tag_closing: ">" │ ├── subsequent: ∅ └── end_node: └── @ ERBEndNode ├── tag_opening: "<%" ├── content: " end " └── tag_closing: "%>"
  24. I invite you to give it a shot to see

    what you can build with it.

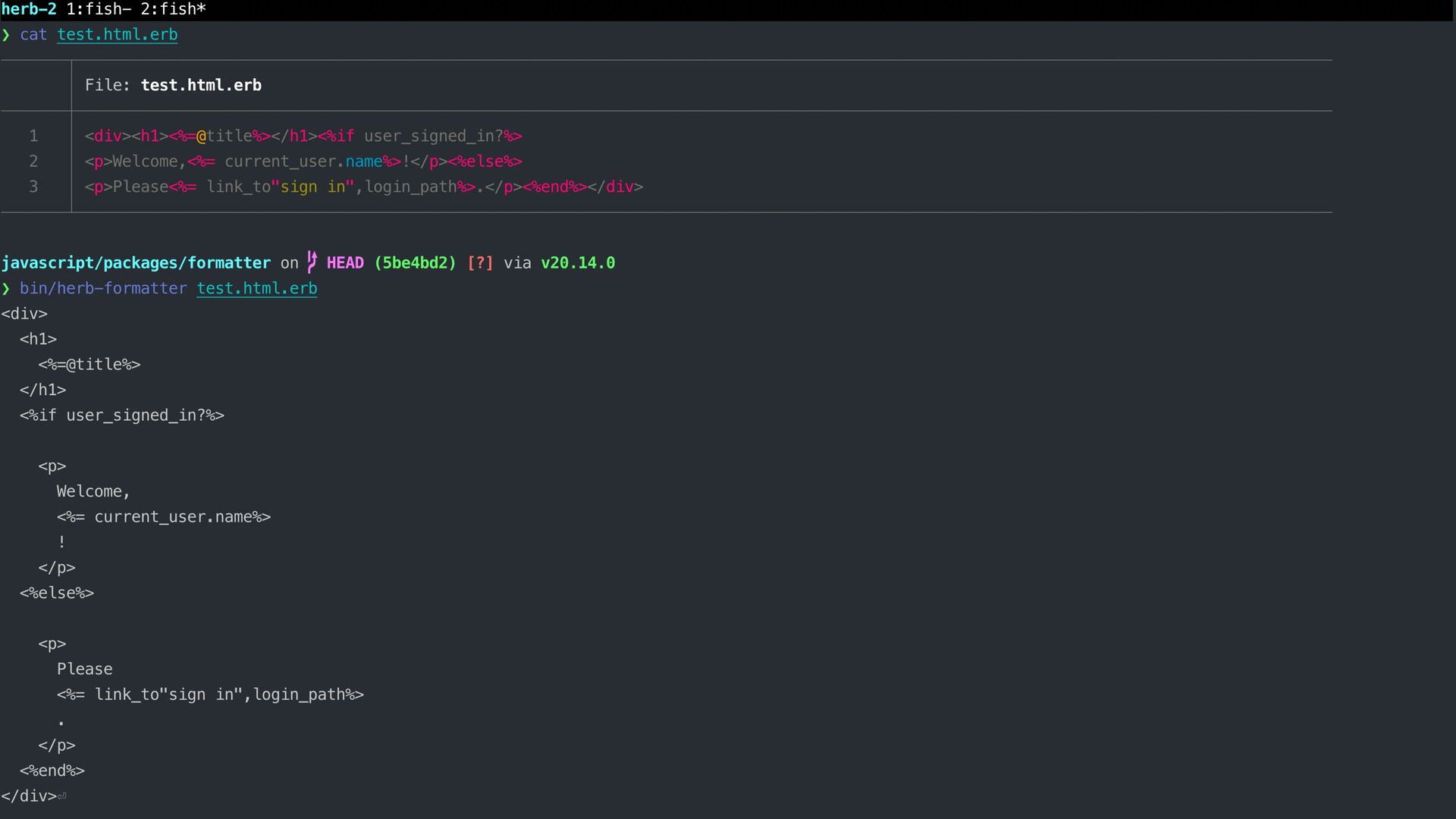

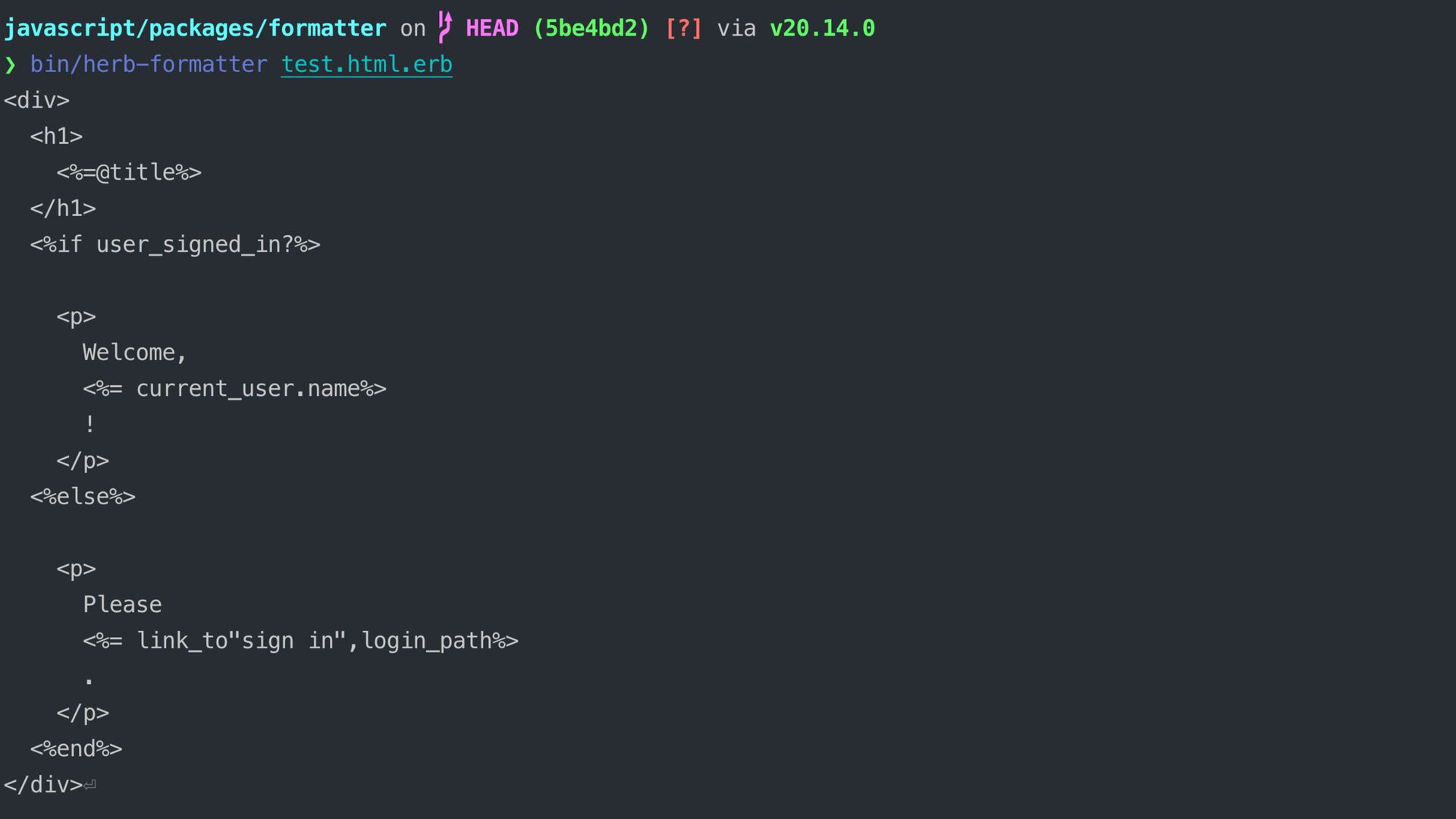

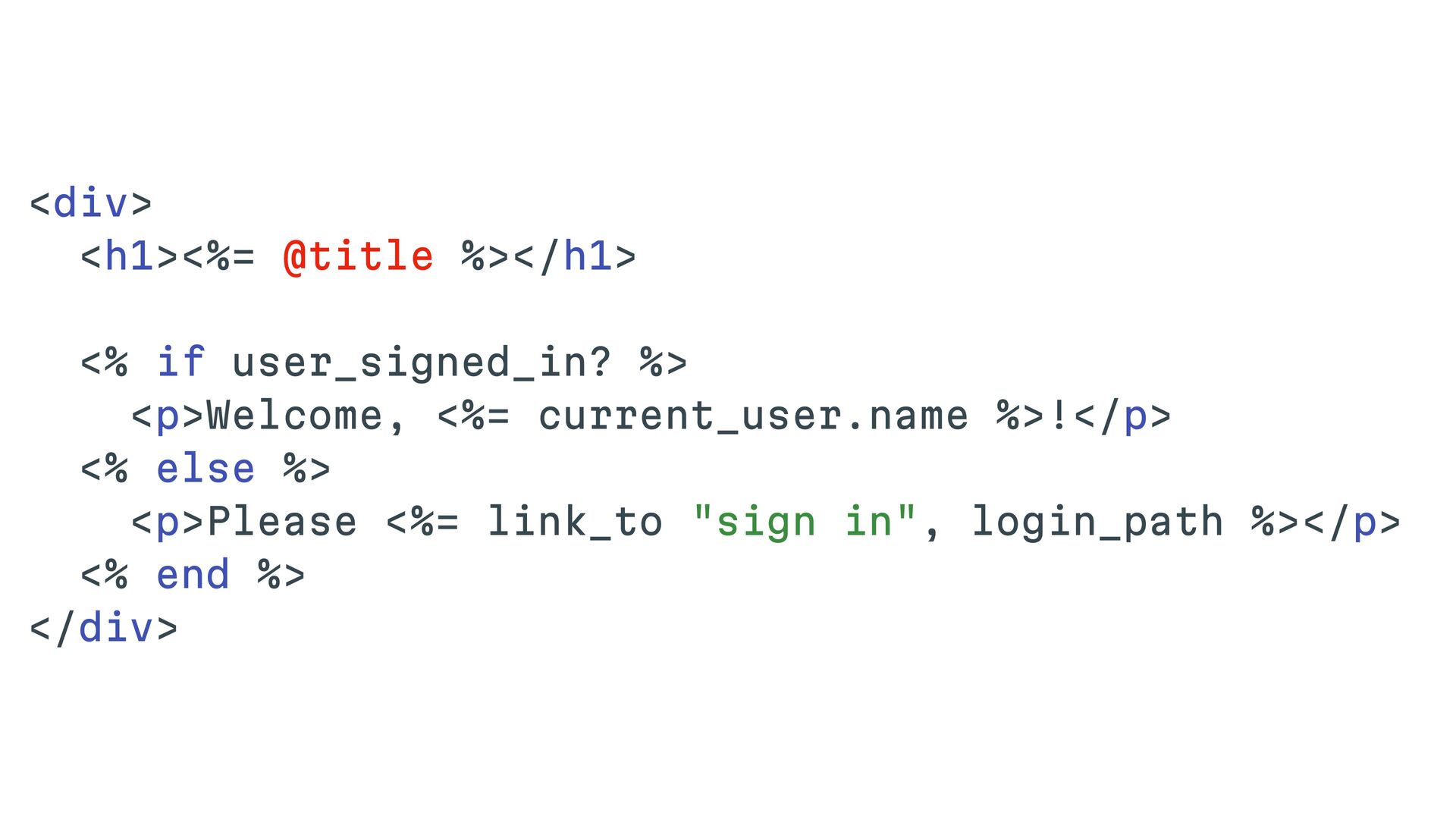

  25. <div> <h1><%= @title %></h1> <% if user_signed_in? %> <p>Welcome, <%=

    current_user.name %>!</p> <% else %> <p>Please <%= link_to "sign in", login_path %></p> <% end %> </div>

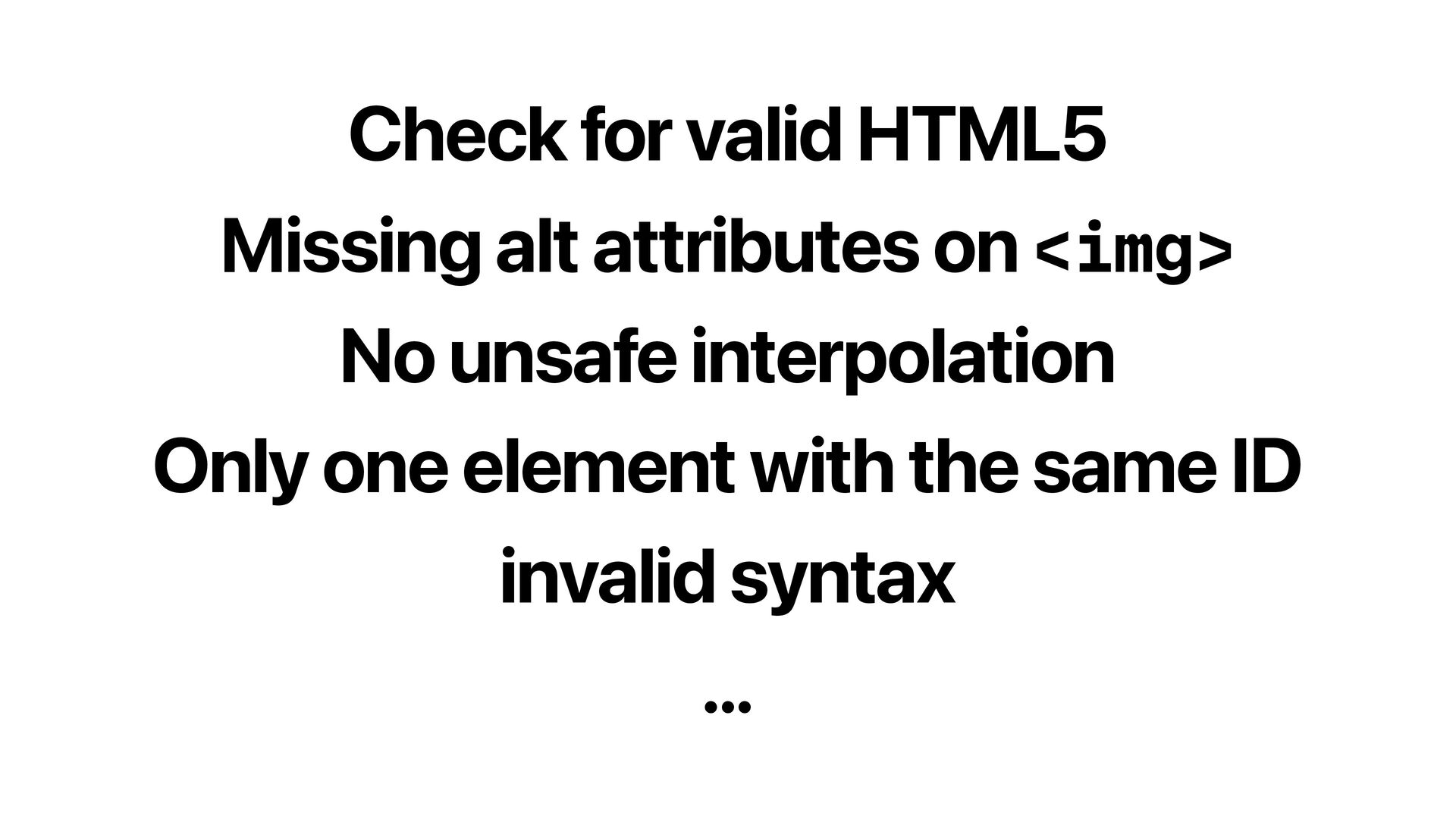

  26. Check for valid HTML5 Missing alt attributes on <img> No

    unsafe interpolation Only one element with the same ID invalid syntax ...
  27. <ul> <% @items do |item| %> <li><%= item %></li> <%

    end %> </ul> @items = [1, 2, 3] <ul> <li>1</li> <li>2</li> <li>3</li> </ul> State View Template Rendered View Log Initial view rendered

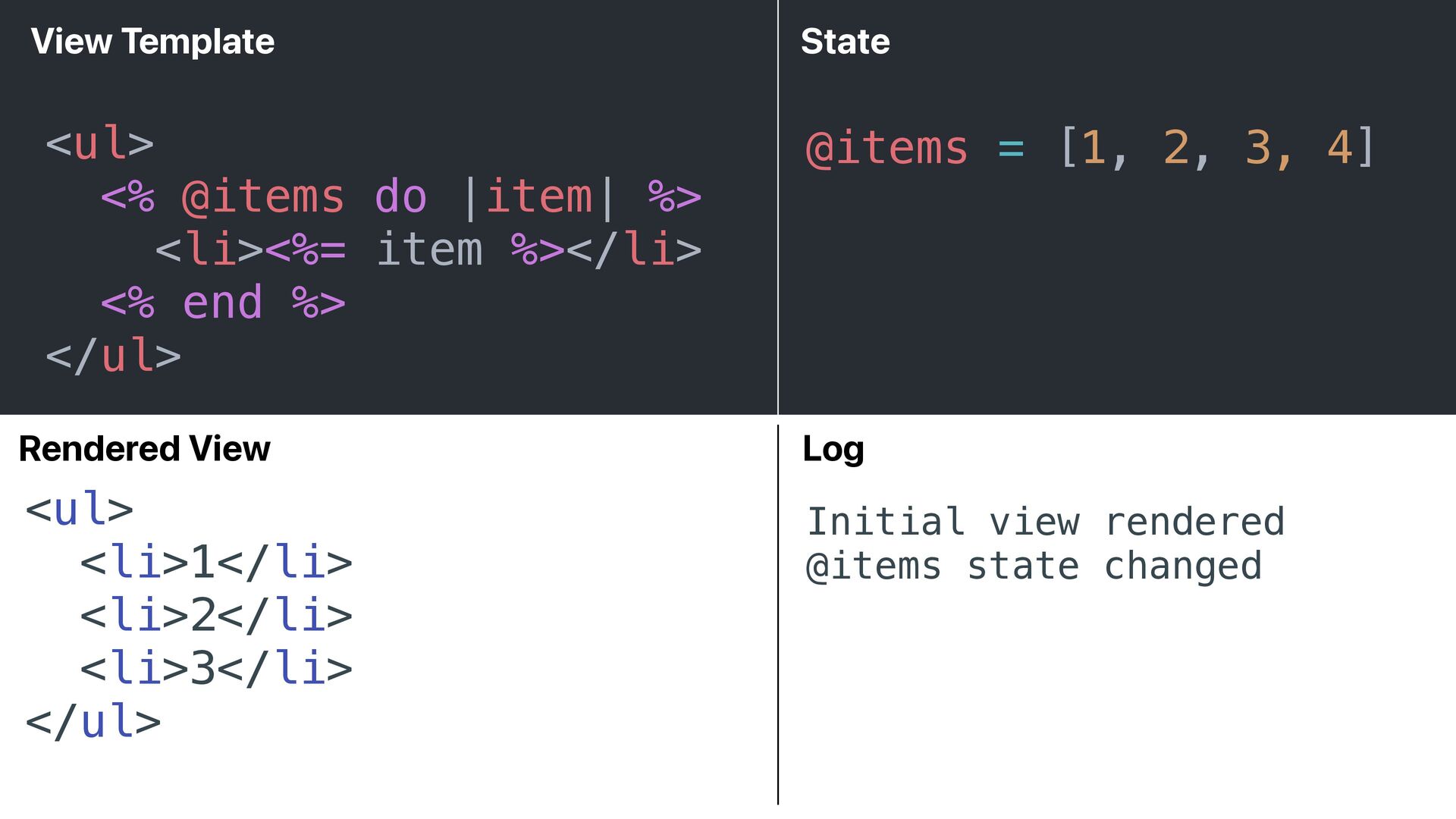

  28. <ul> <% @items do |item| %> <li><%= item %></li> <%

    end %> </ul> @items = [1, 2, 3, 4] <ul> <li>1</li> <li>2</li> <li>3</li> </ul> State View Template Rendered View Log Initial view rendered @items state changed

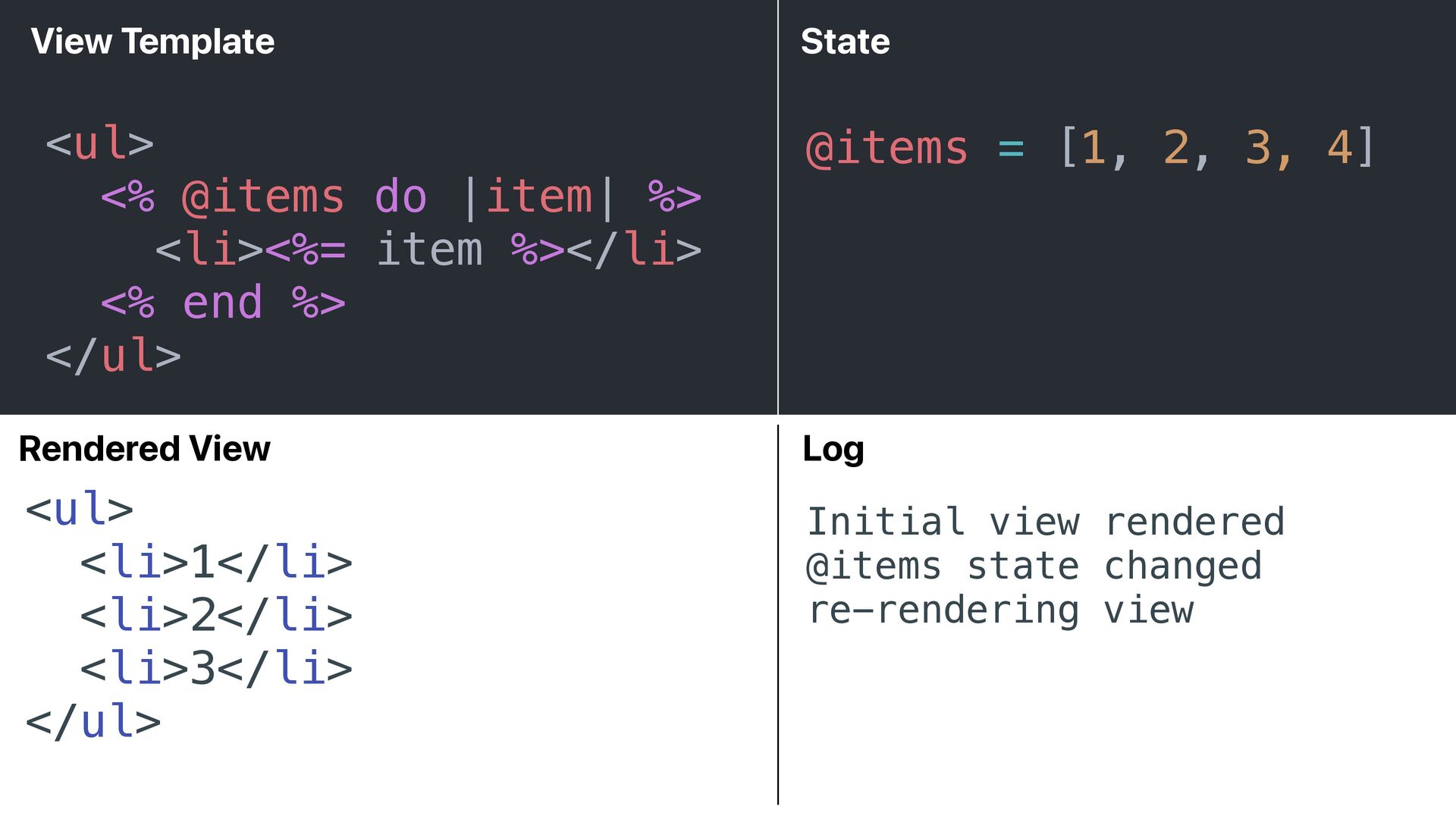

  29. <ul> <% @items do |item| %> <li><%= item %></li> <%

    end %> </ul> @items = [1, 2, 3, 4] <ul> <li>1</li> <li>2</li> <li>3</li> </ul> State View Template Rendered View Log Initial view rendered @items state changed re-rendering view

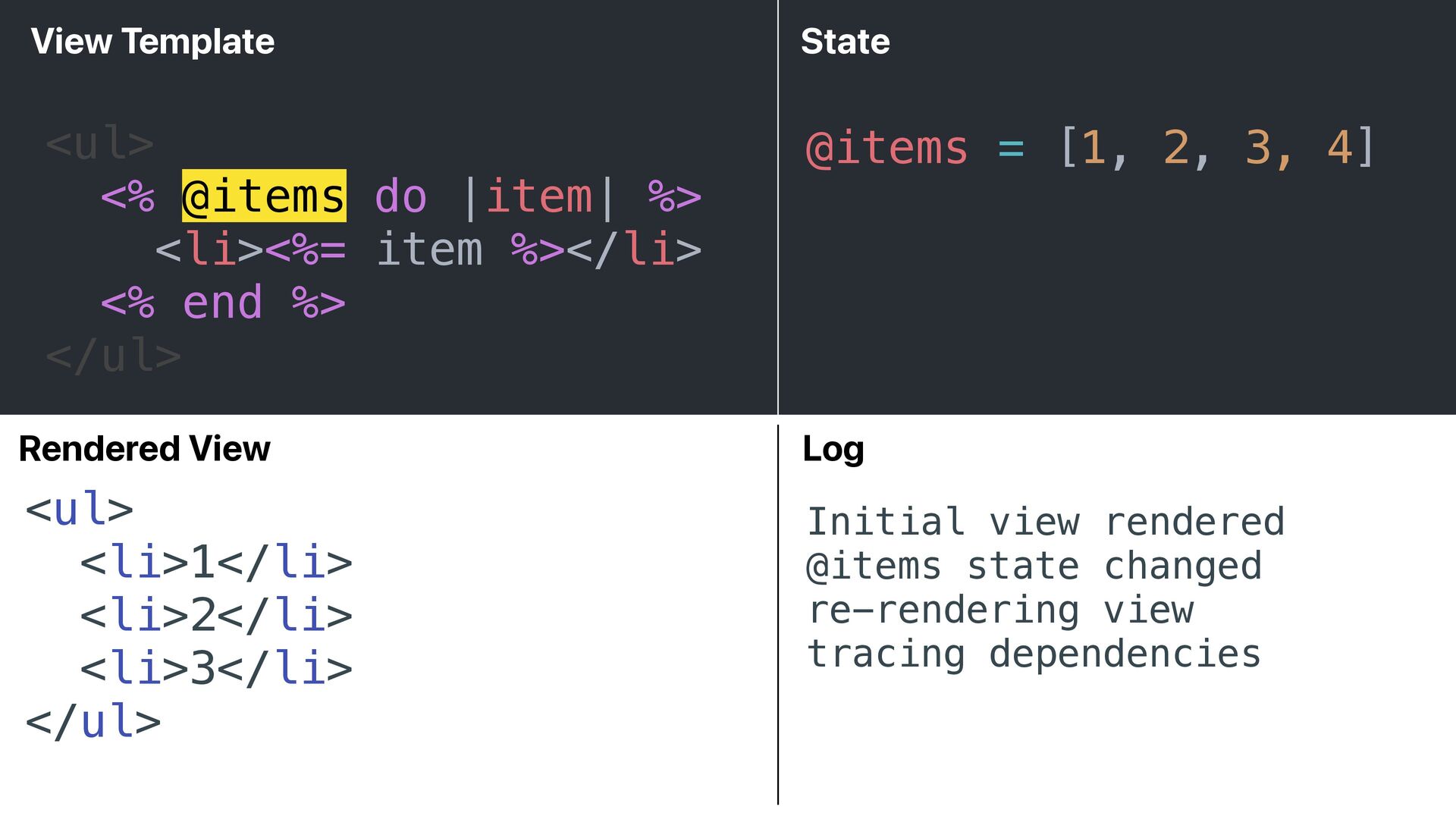

  30. <ul> <% @items do |item| %> <li><%= item %></li> <%

    end %> </ul> @items = [1, 2, 3, 4] <ul> <li>1</li> <li>2</li> <li>3</li> </ul> State View Template Rendered View Log Initial view rendered @items state changed re-rendering view tracing dependencies

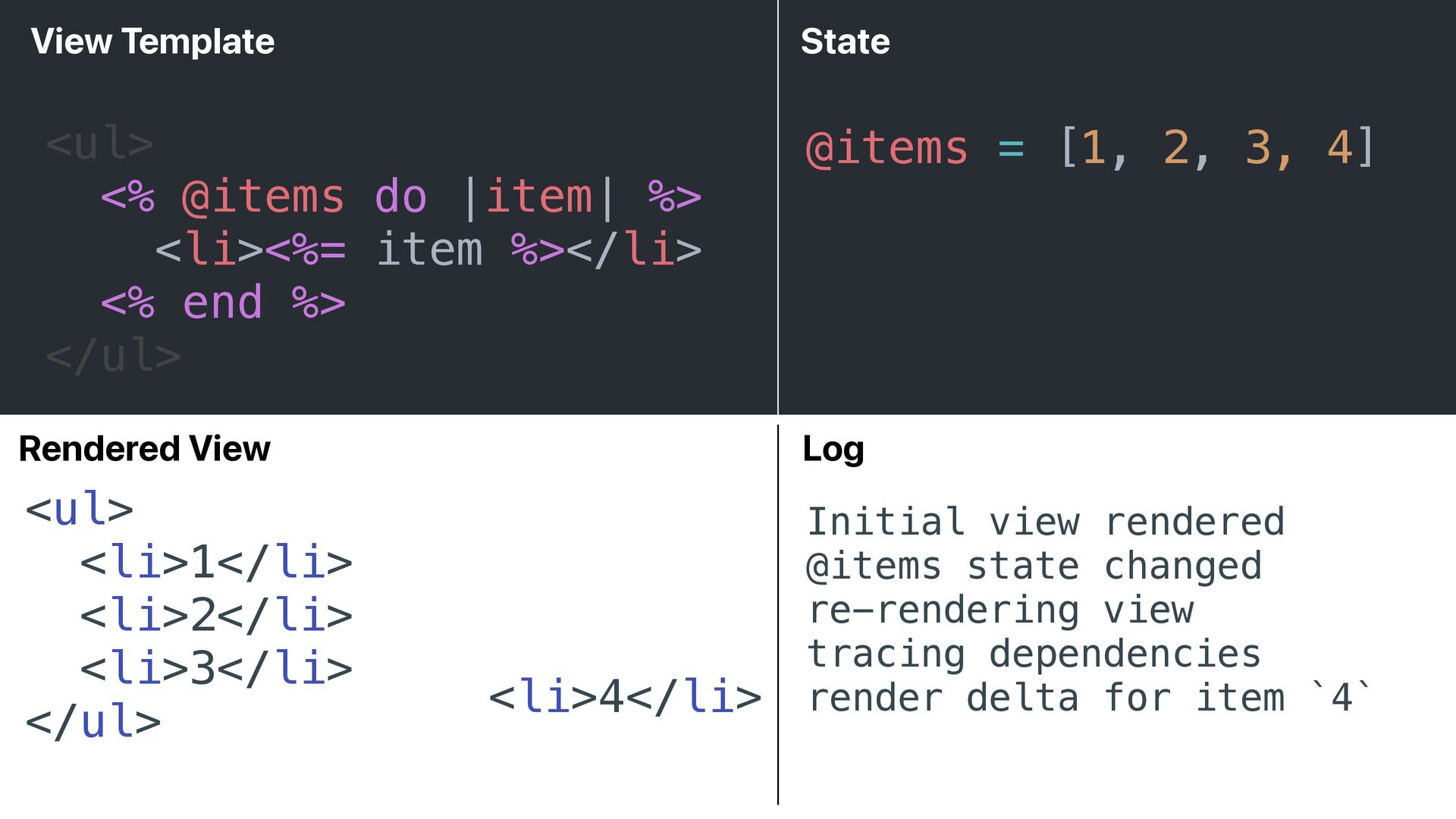

  31. <ul> <% @items do |item| %> <li><%= item %></li> <%

    end %> </ul> @items = [1, 2, 3, 4] <ul> <li>1</li> <li>2</li> <li>3</li> </ul> State View Template Rendered View Log Initial view rendered @items state changed re-rendering view tracing dependencies render delta for item `4`
  32. <ul> <% @items do |item| %> <li><%= item %></li> <%

    end %> </ul> @items = [1, 2, 3, 4] <ul> <li>1</li> <li>2</li> <li>3</li> </ul> State View Template Rendered View Log Initial view rendered @items state changed re-rendering view tracing dependencies render delta for item `4` <li>4</li>
  33. <ul> <% @items do |item| %> <li><%= item %></li> <%

    end %> </ul> @items = [1, 2, 3, 4] <ul> <li>1</li> <li>2</li> <li>3</li> </ul> State View Template Rendered View Log Initial view rendered @items state changed re-rendering view tracing dependencies render delta for item `4` <li>4</li>
  34. <ul> <% @items do |item| %> <li><%= item %></li> <%

    end %> </ul> @items = [1, 2, 3, 4] <ul> <li>1</li> <li>2</li> <li>3</li> </ul> State View Template Rendered View Log Initial view rendered @items state changed re-rendering view tracing dependencies render delta for item `4` apply delta to view <li>4</li>

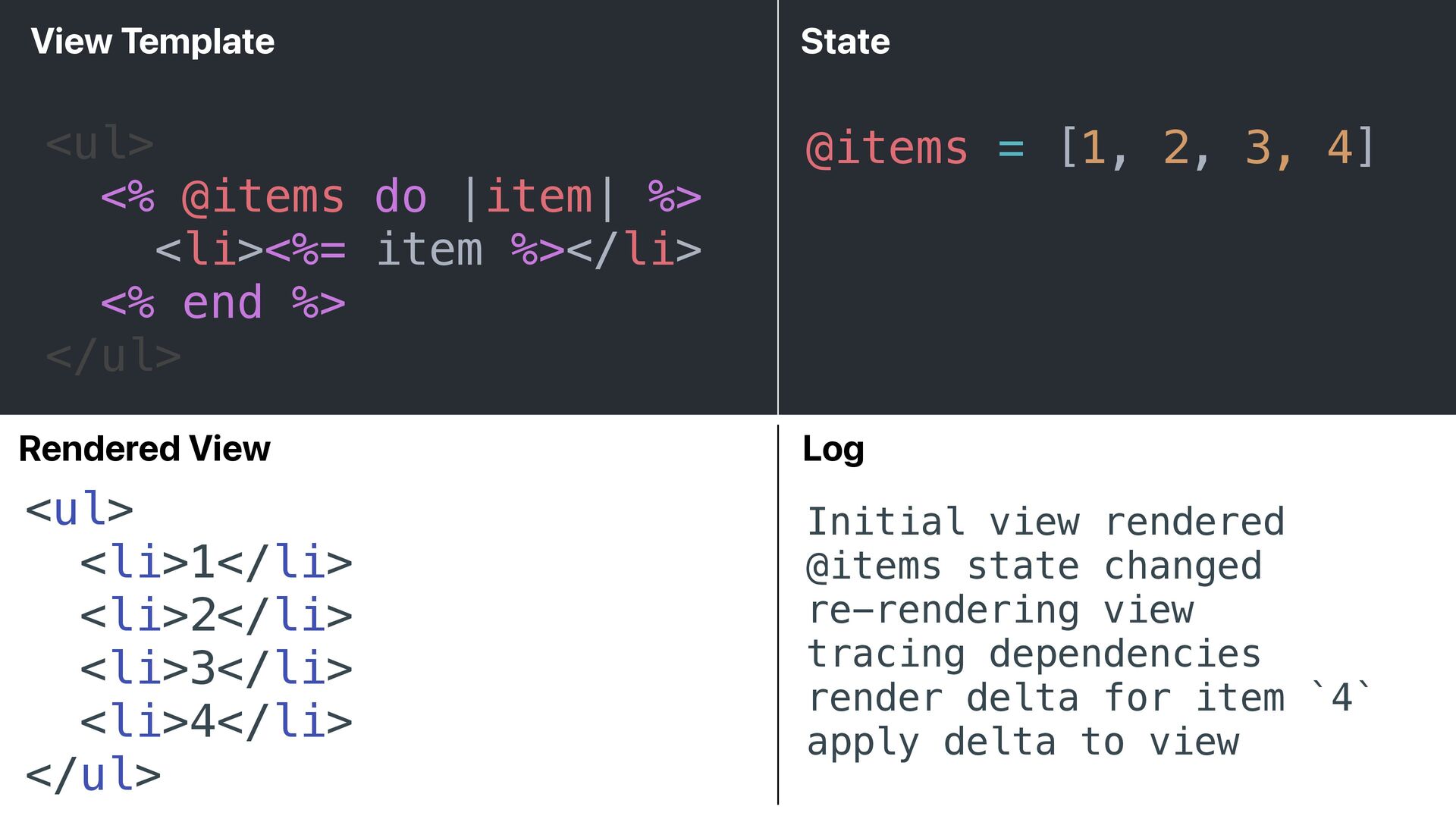

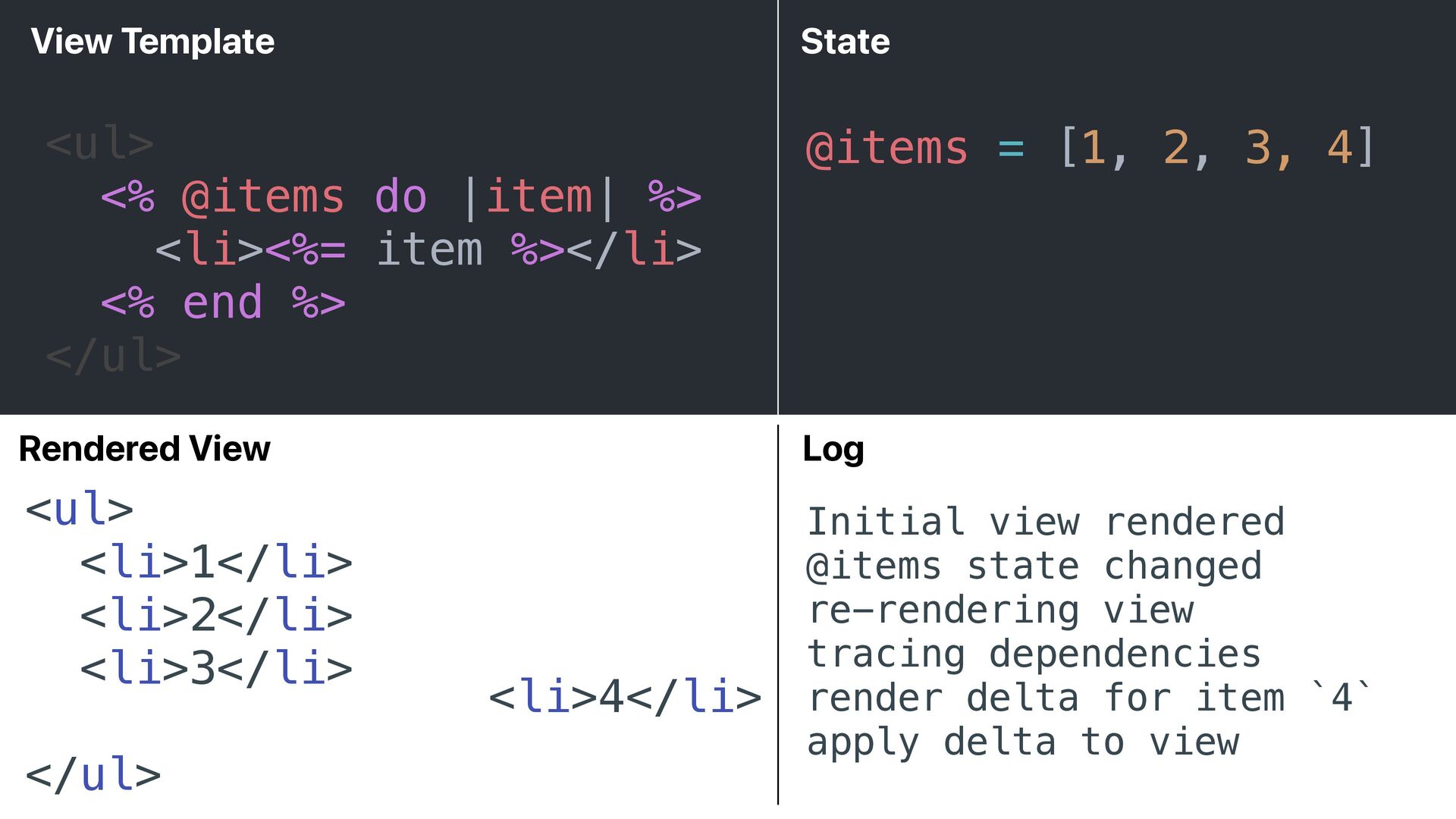

  35. <ul> <% @items do |item| %> <li><%= item %></li> <%

    end %> </ul> @items = [1, 2, 3, 4] <ul> <li>1</li> <li>2</li> <li>3</li> <li>4</li> </ul> State View Template Rendered View Log Initial view rendered @items state changed re-rendering view tracing dependencies render delta for item `4` apply delta to view

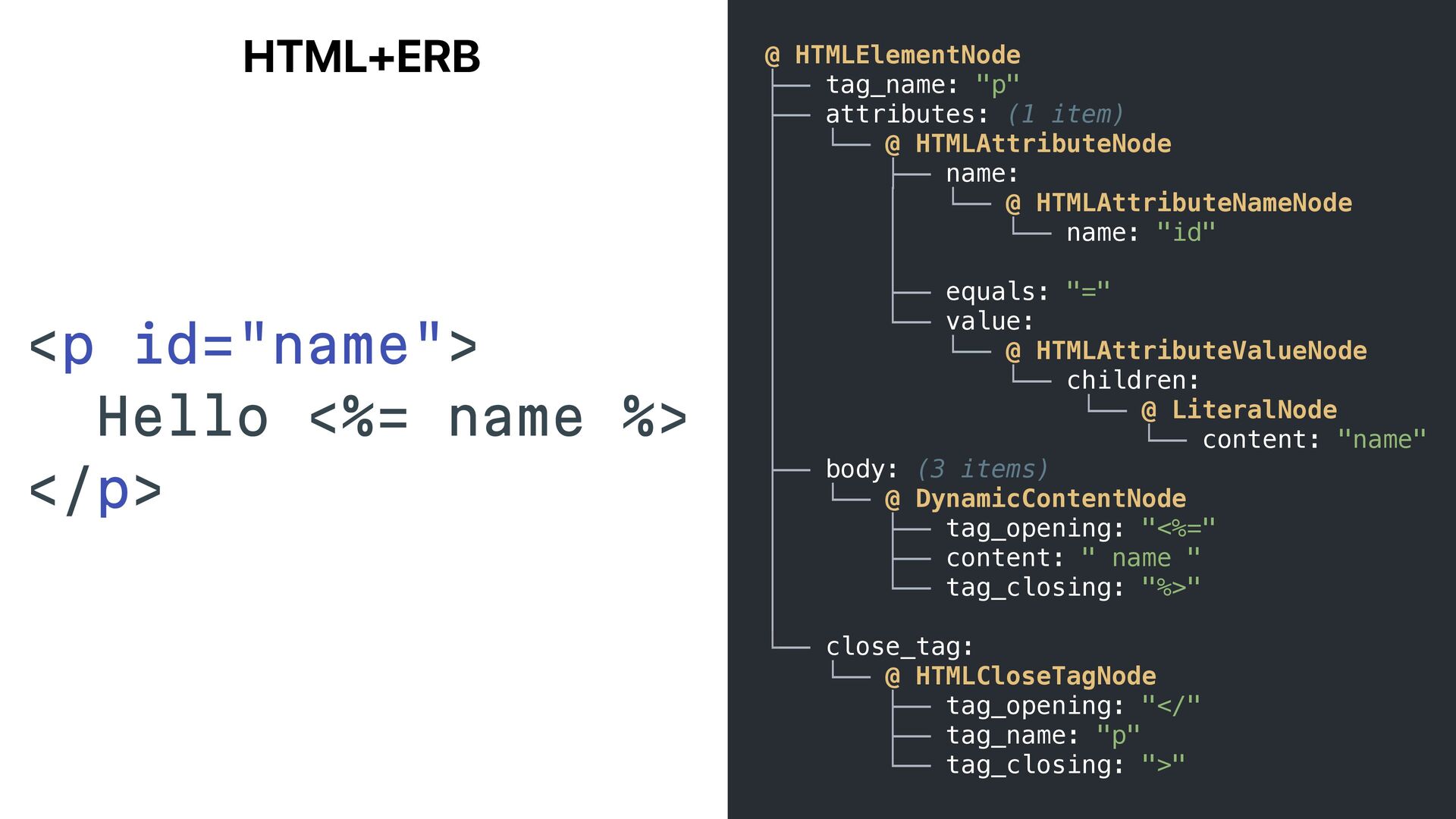

  36. tHTML+ERB <p id="name"> Hello <%= name %> </p> @ HTMLElementNode

    ├── tag_name: "p" ├── attributes: (1 item) │ └── @ HTMLAttributeNode │ ├── name: │ │ └── @ HTMLAttributeNameNode │ │ └── name: "id" │ │ │ ├── equals: "=" │ └── value: │ └── @ HTMLAttributeValueNode │ └── children: │ └── @ LiteralNode │ └── content: "name" ├── body: (3 items) │ └── @ DynamicContentNode │ ├── tag_opening: "<%=" │ ├── content: " name " │ └── tag_closing: "%>" │ └── close_tag: └── @ HTMLCloseTagNode ├── tag_opening: "</" ├── tag_name: "p" └── tag_closing: ">" HTML+ERB

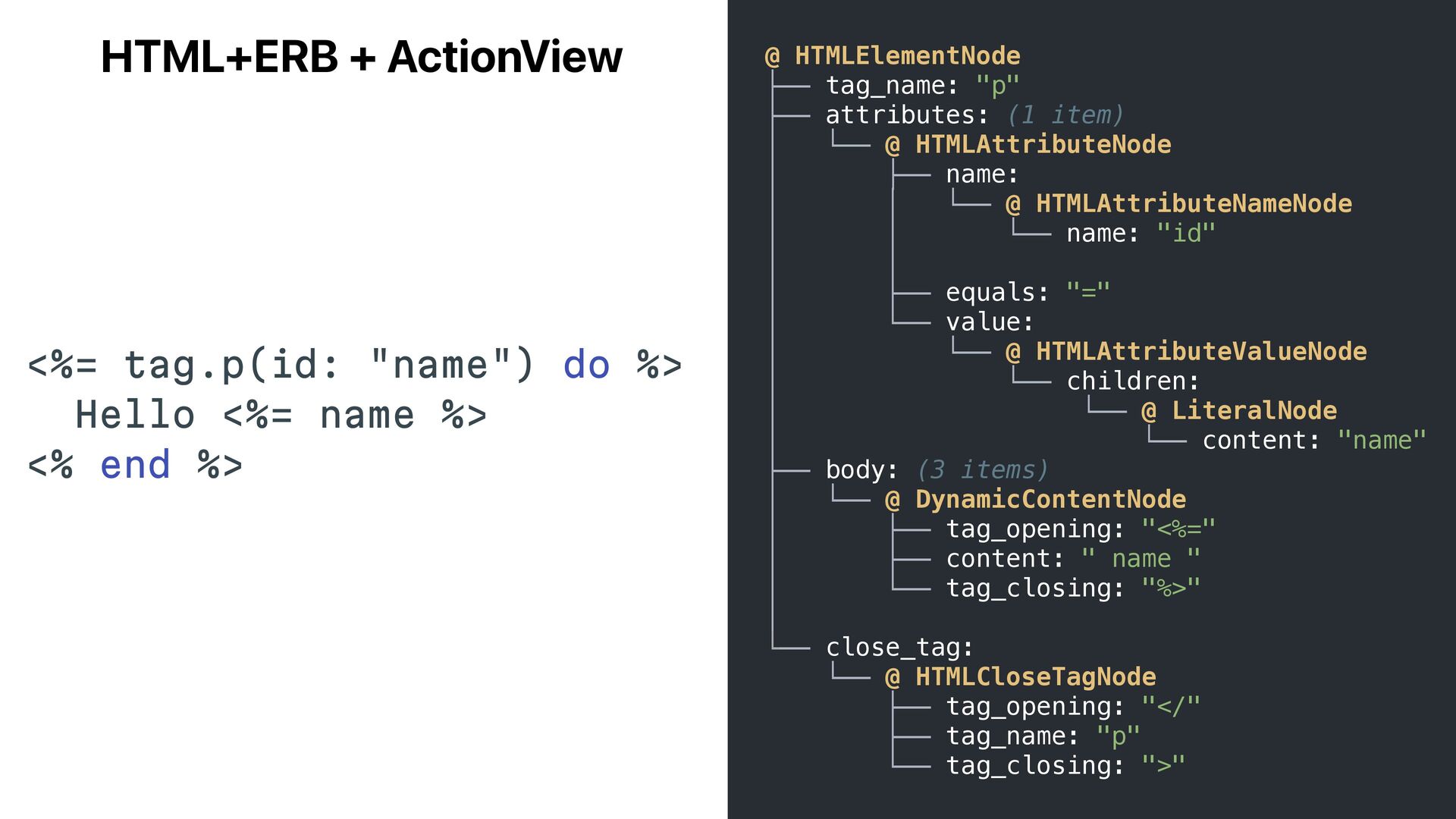

  37. <%= tag.p(id: "name") do %> Hello <%= name %> <%

    end %> @ HTMLElementNode ├── tag_name: "p" ├── attributes: (1 item) │ └── @ HTMLAttributeNode │ ├── name: │ │ └── @ HTMLAttributeNameNode │ │ └── name: "id" │ │ │ ├── equals: "=" │ └── value: │ └── @ HTMLAttributeValueNode │ └── children: │ └── @ LiteralNode │ └── content: "name" ├── body: (3 items) │ └── @ DynamicContentNode │ ├── tag_opening: "<%=" │ ├── content: " name " │ └── tag_closing: "%>" │ └── close_tag: └── @ HTMLCloseTagNode ├── tag_opening: "</" ├── tag_name: "p" └── tag_closing: ">" HTML+ERB + ActionView
  38. %p#element Hello = name @ HTMLElementNode ├── tag_name: "p" ├──

    attributes: (1 item) │ └── @ HTMLAttributeNode │ ├── name: │ │ └── @ HTMLAttributeNameNode │ │ └── name: "id" │ │ │ ├── equals: "=" │ └── value: │ └── @ HTMLAttributeValueNode │ └── children: │ └── @ LiteralNode │ └── content: "name" ├── body: (3 items) │ └── @ DynamicContentNode │ ├── tag_opening: "=" │ ├── content: " name " │ └── tag_closing: ∅ │ └── close_tag: ∅ Haml

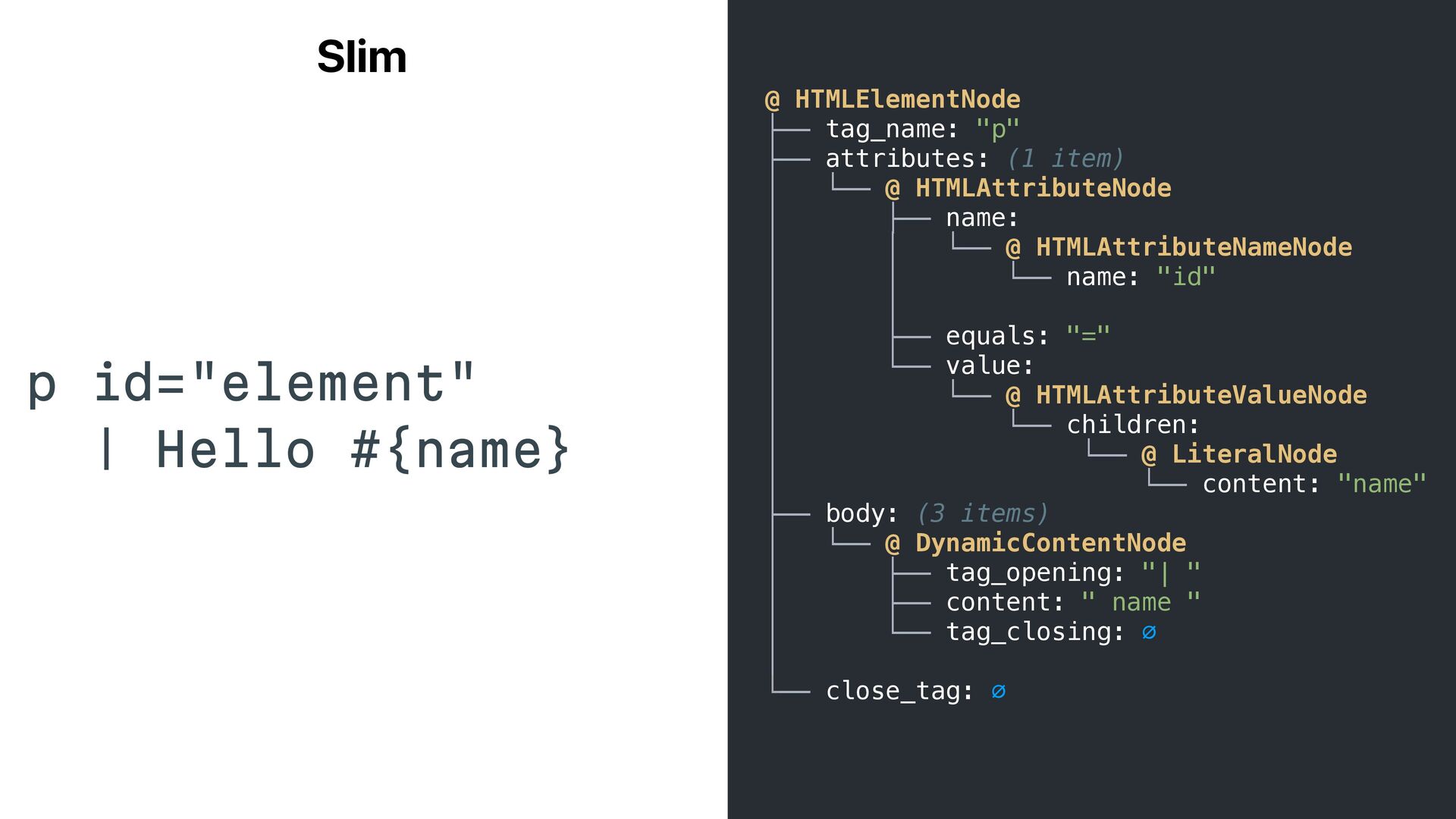

  39. p id="element" | Hello #{name} @ HTMLElementNode ├── tag_name: "p"

    ├── attributes: (1 item) │ └── @ HTMLAttributeNode │ ├── name: │ │ └── @ HTMLAttributeNameNode │ │ └── name: "id" │ │ │ ├── equals: "=" │ └── value: │ └── @ HTMLAttributeValueNode │ └── children: │ └── @ LiteralNode │ └── content: "name" ├── body: (3 items) │ └── @ DynamicContentNode │ ├── tag_opening: "| " │ ├── content: " name " │ └── tag_closing: ∅ │ └── close_tag: ∅ Slim

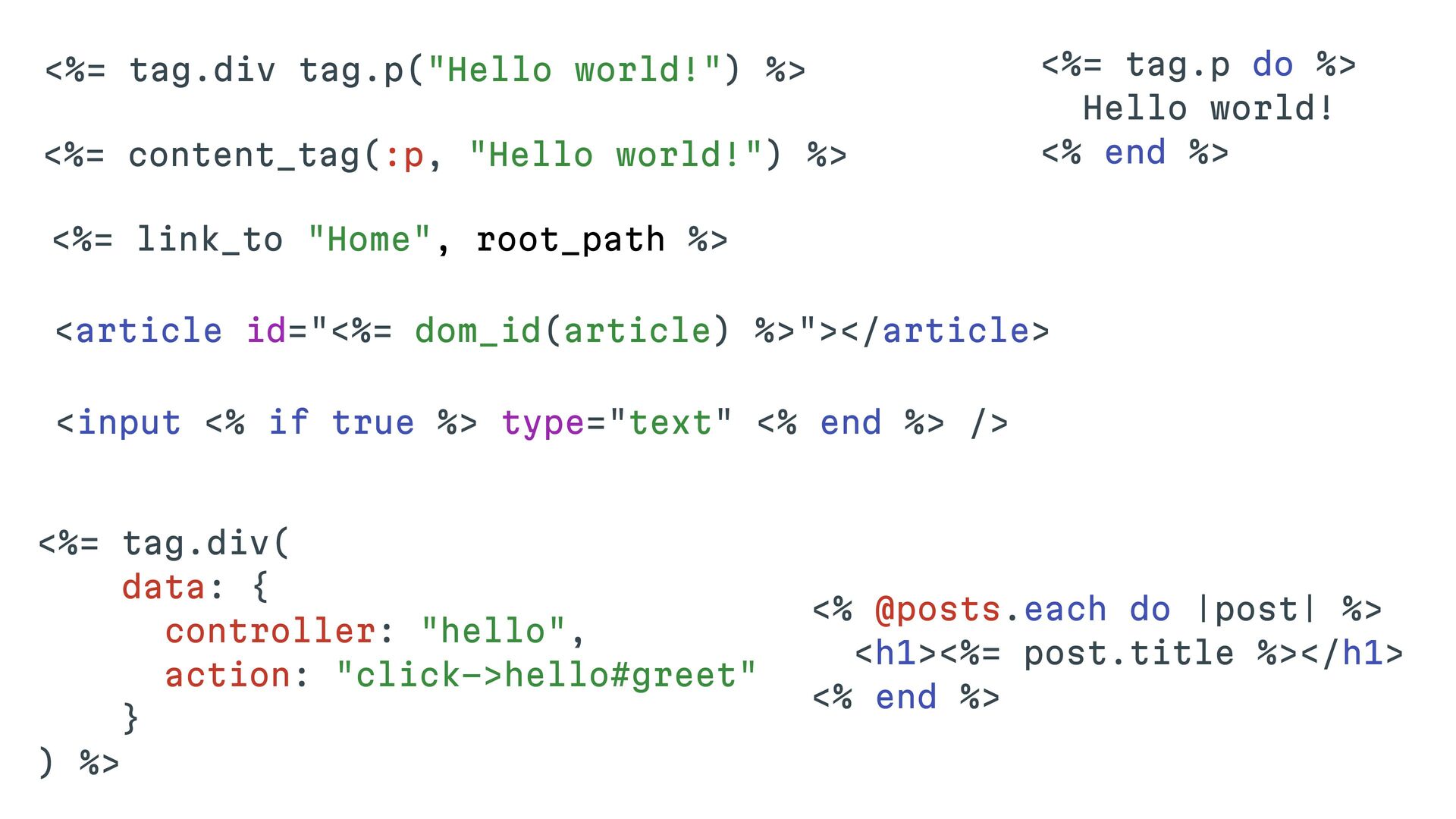

  40. <article id="<%= dom_id(article) %>"></article> <input <% if true %> type="text"

    <% end %> /> <% @posts.each do |post| %> <h1><%= post.title %></h1> <% end %> <%= content_tag(:p, "Hello world!") %> <%= tag.div tag.p("Hello world!") %> <%= tag.p do %> Hello world! <% end %> <%= tag.div( data: { controller: "hello", action: "click->hello#greet" } ) %> <%= link_to "Home", root_path %>

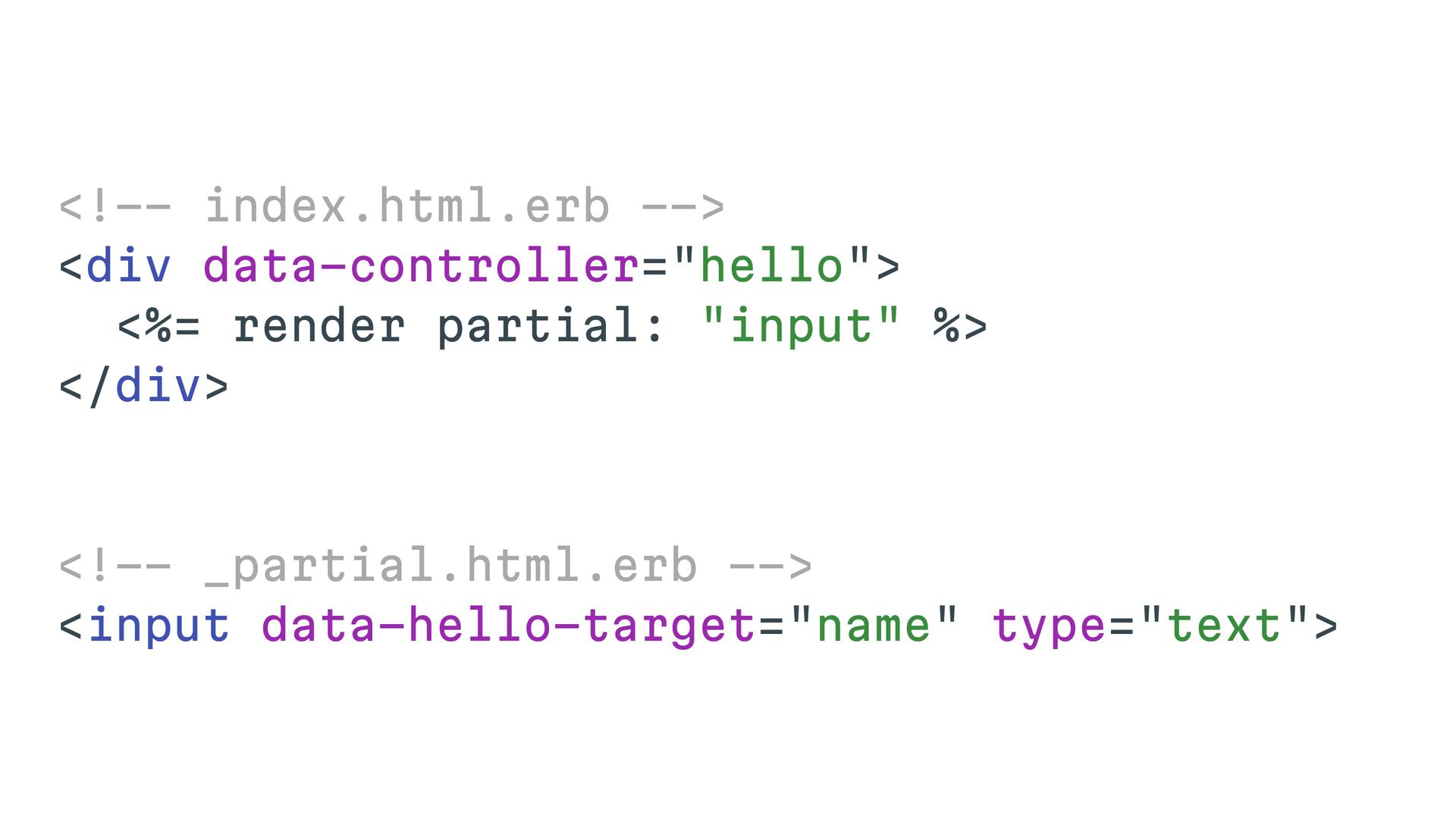

  41. <!-- index.html.erb --> <div data-controller="hello"> <%= render partial: "input" %>

    </div> <!-- _partial.html.erb --> <input data-hello-target="name" type="text">
  42. Come find my after the talk, I'd love to hear

    your ideas, questions and opinions.
  43. Thank you 🙏 t @marcoroth_ M @[email protected] g marcoroth.dev g

    @marcoroth b @marcoroth.dev l /in/marco-roth
