Computer Vision Model Deployment & Production

Module 4 talk - "E2E Deep Learning for CV" workshop organized by AI Camp:
https://learn.xnextcon.com/course/coursedetails/B19061509

• Intro to TensorFlow 2.0, tf.Keras, tools (Colab, TensorBoard)
• Deploy models with TensorFlow serving
• Model training and deployment in the browser with TensorFlow JS
• On-device ML: train a model from scratch, convert to TFLite and deploy to mobile and IoT
• Demo of TFLite models on microcontroller and Coral Edge TPU

Transcript

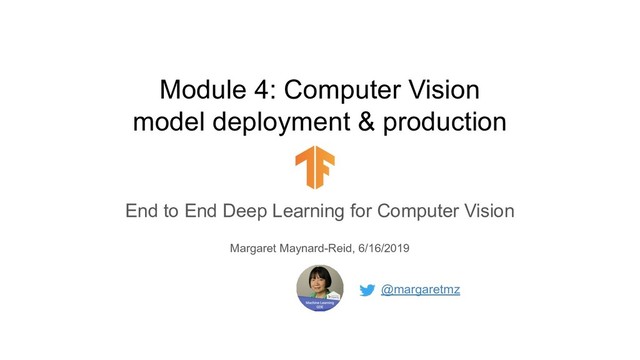

1. @margaretmz Module 4: Computer Vision model deployment & production End to End Deep Learning for Computer Vision Margaret Maynard-Reid, 6/16/2019
2. @margaretmz | #MachineLearning #GDE Slides Slides for this talk are posted on speakerdeck: https://speakerdeck.com/margaretmz/computer-vision-model-deployment-and-production Click on download PDF to access the links in downloaded file 2
3. @margaretmz | #MachineLearning #GDE Topics • Intro to TensorFlow 2.0, tf.Keras, tools (Colab, TensorBoard) • Deploy models with TensorFlow serving • Model training and deployment in the browser with TensorFlow JS • On-device ML: ◦ train a model from scratch ◦ convert to TFLite ◦ deploy to mobile and IoT • TFLite models on microcontroller & Coral Edge TPU 3
4. Intro AI, ML, Deep Learning Computer Vision TensorFlow, Keras 4
5. @margaretmz | #MachineLearning #GDE AI vs. ML vs. Deep Learning Artificial Intelligence Machine Learning Deep Learning: 5 5 - Computer Vision - NLP ….
6. @margaretmz | #MachineLearning #GDE Examples of computer vision 6 Generative Adversarial Networks (GANs) Generating new images Image classification Is this a cat? Object detection Drawing bounding boxes around the objects Dance Like @I/O Segmentation, pose, GPU on-device Other examples: - Photos enhancement - Style transfer - OCR - Face keypoints
7. @margaretmz | #MachineLearning #GDE Deep Learning - getting started • Deep learning Frameworks: ◦ TensorFlow (>129k stars on Github) ← most popular! ◦ PyTorch ◦ Caffe (1 & 2) ◦ Theano… • Languages: Python, Swift, Javascript etc. • IDE - Colab • Popular neural networks: ◦ CNN (Convolutional Neural Networks) ◦ RNN (Recurrent Neural Networks) ◦ GAN (Generative Adversarial Networks) ◦ ... 7
8. @margaretmz | #MachineLearning #GDE TensorFlow model building APIs TensorFlow is a deep learning framework for both research & production Write TensorFlow code in C++, Python, Java, R, Go, SWIFT, JavaScript Deploy to CPU, GPU, TPU, Mobile, Android Things, Raspberry Pi tf.* tf.layers tf.keras Custom Estimator Premade Estimator ← Low level ← Mid level (moving to tf.keras in TF 2.0) ← High level ← Model in a box ← Distributed execution, tf serving 8 TensorFlow 2.0 Beta just got announced!
9. @margaretmz | #MachineLearning #GDE tf.Keras vs Keras No 1:1 mapping between tf.Keras and Keras 9 tf.keras - part of the TensorFlow core APIs import tensorflow as tf # import TensorFlow from tensorflow import keras # import Keras Keras remains an independent open-source project, with backend: • TensorFlow (Protip: use tf.keras, instead of Keras + TF as backend) • Theano • CNTK...
10. @margaretmz | #MachineLearning #GDE tf.Keras model building APIs • Sequential - the easiest way • Functional - more flexibility • Model subclassing - extend a Model class Learn more in Josh Gordon’s blog: What are Symbolic and Imperative APIs in TensorFlow 2.0? 10
11. @margaretmz | #MachineLearning #GDE Blog.tensorflow.org TensorFlow and ML learning resources Tensorflow.org Deep learning with Python by Francois Chollet TensorFlow on Youtube TensorFlow on Twitter #AskTensorFlow #TensorFlowMeets Collection of interactive ML examples (blogpost | website) 11 Interested in learning about TensorFlow 2.0 and try it out? Read My Notes on TensorFlow 2.0 TensorFlow Dev Summit 2019
12. @margaretmz | #MachineLearning #GDE Computer Vision - Idiomatic Programmer 12 Andrew Ferlitsch https://github.com/GoogleCloudPlatform/keras-idiomatic-programmer
13. Tools 13
14. @margaretmz | #MachineLearning #GDE Anaconda, TensorFlow & Keras Why use a virtual environment? Ease of upgrade/downgrade of tensorflow • Download anaconda here • Create a new virtual environment $ conda create -n [my-env-name] • Activate the virtual environment you created $ conda activate [my-env-name] • Install TensorFlow beta $ pip install tensorflow==2.0.0-beta1 My blog post Anaconda, Jupyter Notebook, TensorFlow, Keras 14
15. @margaretmz | #MachineLearning #GDE Google Colab What is Google Colab? • Jupyter Notebook ◦ stored on Google Drive ◦ running on Google’s VM in the cloud • Free GPU and TPU! • TensorFlow is already installed • Save and share from your Drive • Save directly to GitHub 15 Check out these learning resources • My blog on Colab • TF team’s blog on Colab • Laurence’ Video Build a deep neural network in 4 mins with TensorFlow in Colab • Paige’s video How to take advantage of GPUs & TPUs for your ML project • Sam’s blog Keras on TPUs in Colab Launch Colab from colab.research.google.com/
16. @margaretmz | #MachineLearning #GDE TensorBoard in Colab TensorBoard Now integrated in Colab! • Debug • Monitor • Visualize Lab - https://www.tensorflow.org/tensorboard/r2/tensorboard_in_notebooks 16
17. Serving models 17
18. @margaretmz | #MachineLearning #GDE End to end: model training to serving 18 • tf.Keras (TensorFlow) • Python libraries: Numpy, Matplotlib etc SavedModel • Cloud • Web • Mobile • IoT • Micro controllers • Edge TPU Training Serving
19. @margaretmz | #MachineLearning #GDE TensorFlow Serving (Part of TFX) Lab - https://www.tensorflow.org/tfx/serving/tutorials/Serving_REST_simple 19 Data Ingestion Data Analysis + Validation TensorFlow Transform Estimator or Keras Model TensorFlow Model Analysis TensorFlow Serving Logging Shared Utilities for Garbage Collection, Data Access Controls Pipeline Storage Tuner Shared Configuration Framework and Job Orchestration Integrated Frontend for Job Management, Monitoring, Debugging, Data/Model/Evaluation Visualizationz
20. TensorFlow JS 20
21. @margaretmz | #MachineLearning #GDE TensorFlow Javascript A library for training and deploying ML models in the browser: • Pretrained models — Image, Audio and Text classifications (NPM or hosted scripts) • Convert existing python models: with a command line tool or through SavedModel, TFHub or Keras. • Train in the browser and Node.js — with Layers API • Deploy on Platform 21
22. @margaretmz | #MachineLearning #GDE TensorFlow JS Demos https://www.tensorflow.org/js/demos 22
23. TensorFlow on Android What are your options? 23
24. @margaretmz | #MachineLearning #GDE TensorFlow for mobile apps 24 2015 TF open sourced 2016 TF mobile 2017 TF Lite developer preview 2018 ML Kit 2019 TF Lite exits dev preview TF Mobile deprecated ML Kit improves
25. @margaretmz | #MachineLearning #GDE Android ML with TensorFlow Your options: • With ML Kit ◦ (Out of the box) Base APIs ◦ Custom model • Direct deploy to Android ◦ Custom model 25 Custom Models • Download pre trained models • Retrain model • Train your own from scratch ◦ data ◦ train ◦ convert ◦ inference Note: you can use AutoML to train but no easy implementation on mobile until recently
26. @margaretmz | #MachineLearning #GDE ML Kit 26 Brings Google’s ML expertise to mobile developers in a powerful and easy-to-use package. Powered by TF Lite, hosted on Firebase For custom models, ML kits offers • Dynamic model downloads • A/B testing (via Firebase remote Configuration) • Model compression & conversion (from TensorFlow to TF Lite) Base APIs: Learn more about ML Kit here Image labelling OCR Face detection Barcode scanning Landmark detection Smart reply (coming soon) Object detection & Tracking Translation (56 languages) AutoML
27. ML Process for mobile An overview Datasets Train model Convert to TFLite Deploy for inference 27
28. @margaretmz | #MachineLearning #GDE Machine Learning process Process: Data, train, convert model, validate converted model, deploy for inference Training vs inference: Example of image classification (supervised ML, computer vision): • Training - feed in labelled data and find a mathematical model that describes the data. • Inference - use the model to predict the label on a new image 28
29. @margaretmz | #MachineLearning #GDE Data • Existing datasets ◦ Part of the deep learning framework: ▪ MNIST, CIFAR10, FASHION_MNIST, IMDB movie reviews etc ◦ Open datasets: ▪ MNIST, MS-COCO, IMAGENet, CelebA etc ◦ Kaggle datasets: https://www.kaggle.com/datasets ◦ Google Dataset search tool: https://toolbox.google.com/datasetsearch ◦ TF 2.0: TFDS • Collect your own data 29
30. @margaretmz | #MachineLearning #GDE ML models Your options of getting a model for your mobile app: • Download a pre-trained model (here): Inception-v3, mobilenet etc. • Transfer learning with a pre-trained model ◦ Feature extraction or fine tuning on pre-trained model ◦ TensorFlow hub (https://www.tensorflow.org/hub/) • Train your own model from scratch (example in this talk) 30
31. @margaretmz | #MachineLearning #GDE Convert, validate & deploy for inference • Convert the model to tflite format • Validate the converted model before deploy • Deploy for inference 31
32. Train a neural network with tf.Keras 32
33. @margaretmz | #MachineLearning #GDE MNIST dataset • 60,000 train set and 10,000 test set • 28x28x1 grayscale images • 10 classes: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9 • Popular for computer vision ◦ “hello world” tutorial or ◦ benchmarking ML algorithms 33
34. @margaretmz | #MachineLearning #GDE Training the model in Colab Launch sample code on Colab → mnist_tfkeras_to_tflite.ipynb 1. Import data 2. Define a model 3. Train a model 4. Save a Keras model & convert to tflite 34
35. @margaretmz | #MachineLearning #GDE A typical CNN model architecture MNIST example: • Convolutional layer (definition) • Pooling layer (definition) • Dense (fully-connected layer) definition 35 input conv pool conv pool conv pool Dense 0 1 2 3 4 5 6 7 8 9
36. @margaretmz | #MachineLearning #GDE Inspect the model - in python code In python code, after defining the model architecture, use model.summary() to show the model architecture 36
37. @margaretmz | #MachineLearning #GDE Virtualize model Use a visualization tool: • TensorBoard • Netron (https://github.com/lutzroeder/Netron) Drop the .tflite model into Netron and see the model visually 37
38. Convert to tflite model 38
39. @margaretmz | #MachineLearning #GDE TensorFlow Lite • Exits developer preview soon • Works with Inception & MobileNet • May not support all operations • Supports ◦ Mobile: Android & IOS ◦ Android Things ◦ Raspberry Pi ◦ Edge TPU ◦ Microcontroller 39
40. @margaretmz | #MachineLearning #GDE TensorFlow Lite Converter Convert Keras model → a tflite model with the tflite converter There are two options: 1. Command line 2. Python API Note: • you can convert from SavedModel as well, • GraphDef and tf.Session are no longer supported in 2.0 for TFLite conversion. Read details on tflite converter on TF documentation here 40
41. @margaretmz | #MachineLearning #GDE Tflite convert through command line To convert a tf.keras model to a tflite model: $ tflite_convert \ $--output_file=mymodel.tflite \ $ --keras_model_file=mymodel.h5 41
42. @margaretmz | #MachineLearning #GDE Tflite convert through Python code Note: converter API is different between TF 1.13, 1.14, 2.0 Alpha & nightly # Create a converter converter = tf.contrib.lite.TFLiteConverter.from_keras_model_file(keras_model) # Set quantize to true converter.post_training_quantize=True # Convert the model tflite_model = converter.convert() # Create the tflite model file tflite_model_name = "mymodel.tflite" open(tflite_model_name, "wb").write(tflite_model) 42
43. @margaretmz | #MachineLearning #GDE Validate the tflite model Protip: validate the converted tflite model in python before deploying it to Android # Load TFLite model and allocate tensors. interpreter = tf.contrib.lite.Interpreter(model_path="converted_model.tflite") interpreter.allocate_tensors() # Get input and output tensors. input_details = interpreter.get_input_details() output_details = interpreter.get_output_details() # Test model on random input data. input_shape = input_details[0]['shape'] input_data = np.array(np.random.random_sample(input_shape), dtype=np.float32) interpreter.set_tensor(input_details[0]['index'], input_data) interpreter.invoke() output_data = interpreter.get_tensor(output_details[0]['index']) print(output_data) 43
44. Run tflite on Android 44
45. @margaretmz | #MachineLearning #GDE Tflite on Android Android sample code DigitRecognizer, step by step: • Place tf.lite model under assets folder • Update build.gradle • Input an image • Data preprocessing • Classify with the model • Post processing • Display result in UI 45
46. @margaretmz | #MachineLearning #GDE Dependencies Update build.gradle to include tensorflow lite android { // Make sure model doesn't get compressed when app is compiled aaptOptions { noCompress "tflite" } } dependencies { …. // Add dependency for TensorFlow Lite compile 'org.tensorflow:tensorflow-lite:[version-number]’ } Place the mnist.tflite model file under /assets folder 46
47. @margaretmz | #MachineLearning #GDE Input - image data Input to the classifier is an image, your options: • Draw on canvas from custom View • Get image from Gallery or a 3rd party camera • Live frames from Camera2 API Make sure the image dimensions (shape) matches what your classifier expects • 28x28x1- MNIST or FASHION_MNIST gray scale image • 299x299x3 - Inception V3 • 256x256x3 - MobileNet 47
48. @margaretmz | #MachineLearning #GDE Image preprocessing • Convert Bitmap to ByteBuffer • Normalize pixel values to be a certain range • Convert from color to grayscale, if needed 48
49. @margaretmz | #MachineLearning #GDE Run inference Load the model file located under the assets folder Use the TensorFlow Lite interpreter to run inference on the input image 49
50. @margaretmz | #MachineLearning #GDE Post processing The output is an array of probabilities, each correspond to a category Find the category with the highest probability and output result to UI 50
51. @margaretmz | #MachineLearning #GDE Summary • Training with tf.Keras is easy • Model conversion to TFLite is easier • Android implementation is still challenging & error-prone: (Hopefully this gets improved in the future!) ◦ Validate tflite model before deploy to Android ◦ Image pre-processing ◦ Input tensor shape? ◦ Color or grayscale? ◦ Post processing 51
52. @margaretmz | #MachineLearning #GDE TFLite demo app Check out Demo app in TensorFlow repo Clone tensorflow project from github git clone https://www.github.com/tensorflow/tensorflow Then open the tflite Android demo from Android Studio /tensorflow/contrib/lite/java/demo Note: TensorFlow Lite moved out contrib as of 10/31/2018 52
53. @margaretmz | #MachineLearning #GDE Inference with GPU TensorFlow Lite Now Faster with Mobile GPUs (Developer Preview) 53
54. @margaretmz | #MachineLearning #GDE More TFLite examples 54
55. @margaretmz | #MachineLearning #GDE TFLite on microcontroller • Tiny models on tiny computers • Consumes much less power than CPUs - days on a coin battery • Tiny RAM and Flash available • Opens up voice interface to devs More info here - • Doc - https://www.tensorflow.org/lite/guide/microcontroller • Code lab - https://g.co/codelabs/sparkfunTF • Purchase - https://www.sparkfun.com/products/15170 55
56. @margaretmz | #MachineLearning #GDE Coral edge TPU (beta) - hardware for on-device ML acceleration Link to codelab: https://codelabs.developers.google.com/codelabs/edgetpu-classifier/index.html#0 • Dev board (+ camera module) • USB Accelerator (+ camera module + Raspberry Pi) Coral Edge TPU 56
57. @margaretmz | #MachineLearning #GDE Coral Edge TPU MobileNet SSD model running on TPU Inference time: < ~20 ms > ~60 fps 57
58. @margaretmz | #MachineLearning #GDE Coral Edge TPU demo MobileNet SSD model running on CPU Inference time > ~390ms ~ 3fps 58
59. @margaretmz | #MachineLearning #GDE Future trends • Why the future of machine learning is tiny? - Pete Warden • End to end ML pipeline TFX • Deploying to mobile and IoT will get much easier • TFLite will have many more features • Federated learning • On device training 59
60. @margaretmz | #MachineLearning #GDE Thank you! 60 Follow me on Twitter, Medium or GitHub to learn more about Deep learning, TensorFlow and on-device ML @margaretmz @margaretmz margaretmz
