Optimizing Muffle Furnace Parameters for Accurate LOI Measurements in Cement, Soil, and Rocks

Achieve precise LOI (Loss on Ignition) results by optimizing muffle furnace parameters for cement, soil, and rock analysis. This presentation covers ideal heating rates, temperature stability, crucible handling, and error-reduction practices to ensure consistent and accurate LOI measurements.

Transcript

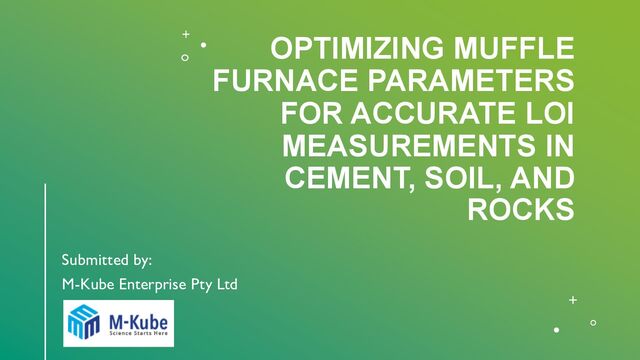

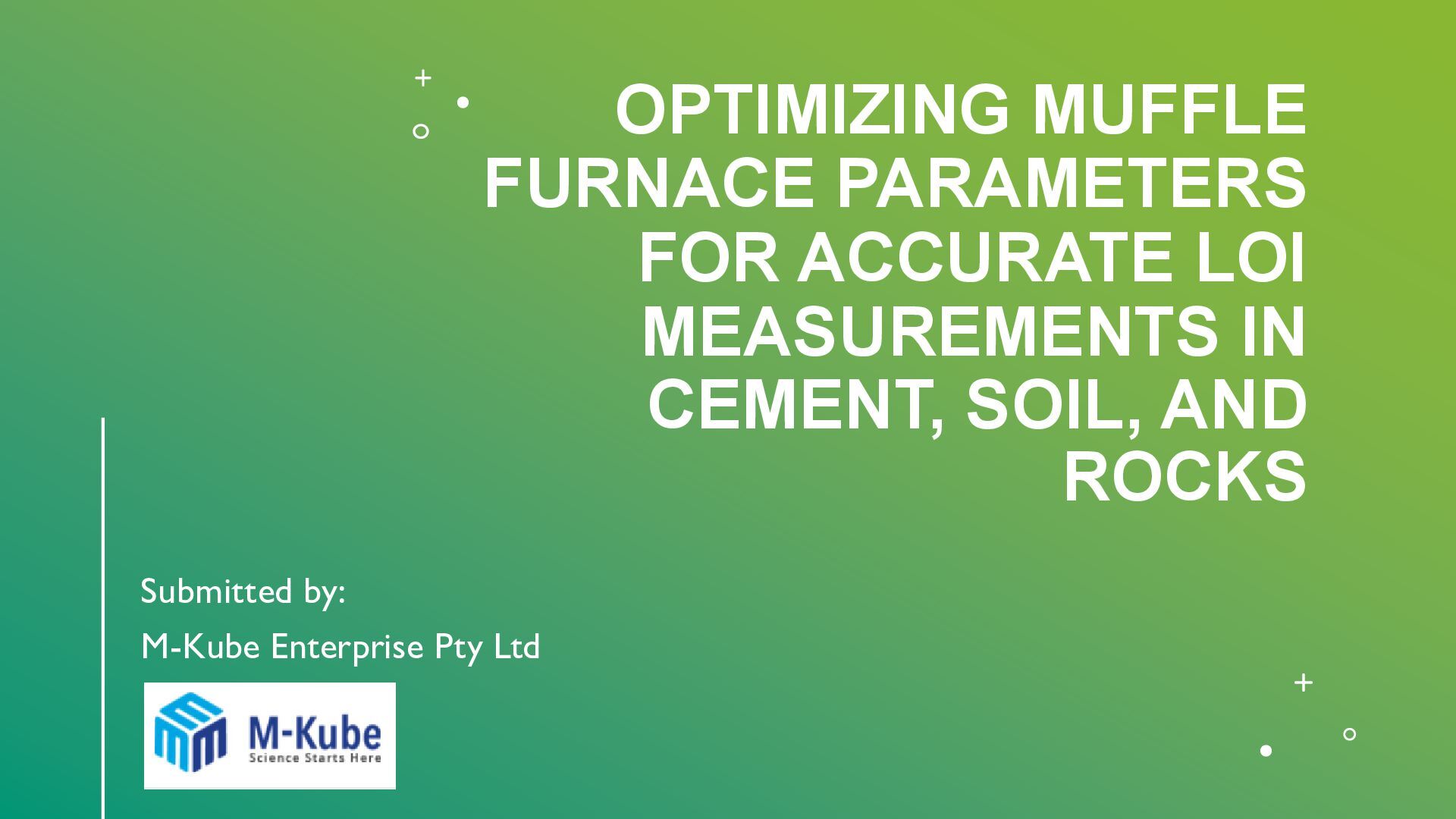

1. OPTIMIZING MUFFLE FURNACE PARAMETERS FOR ACCURATE LOI MEASUREMENTS IN CEMENT, SOIL, AND ROCKS Submitted by: M-Kube Enterprise Pty Ltd

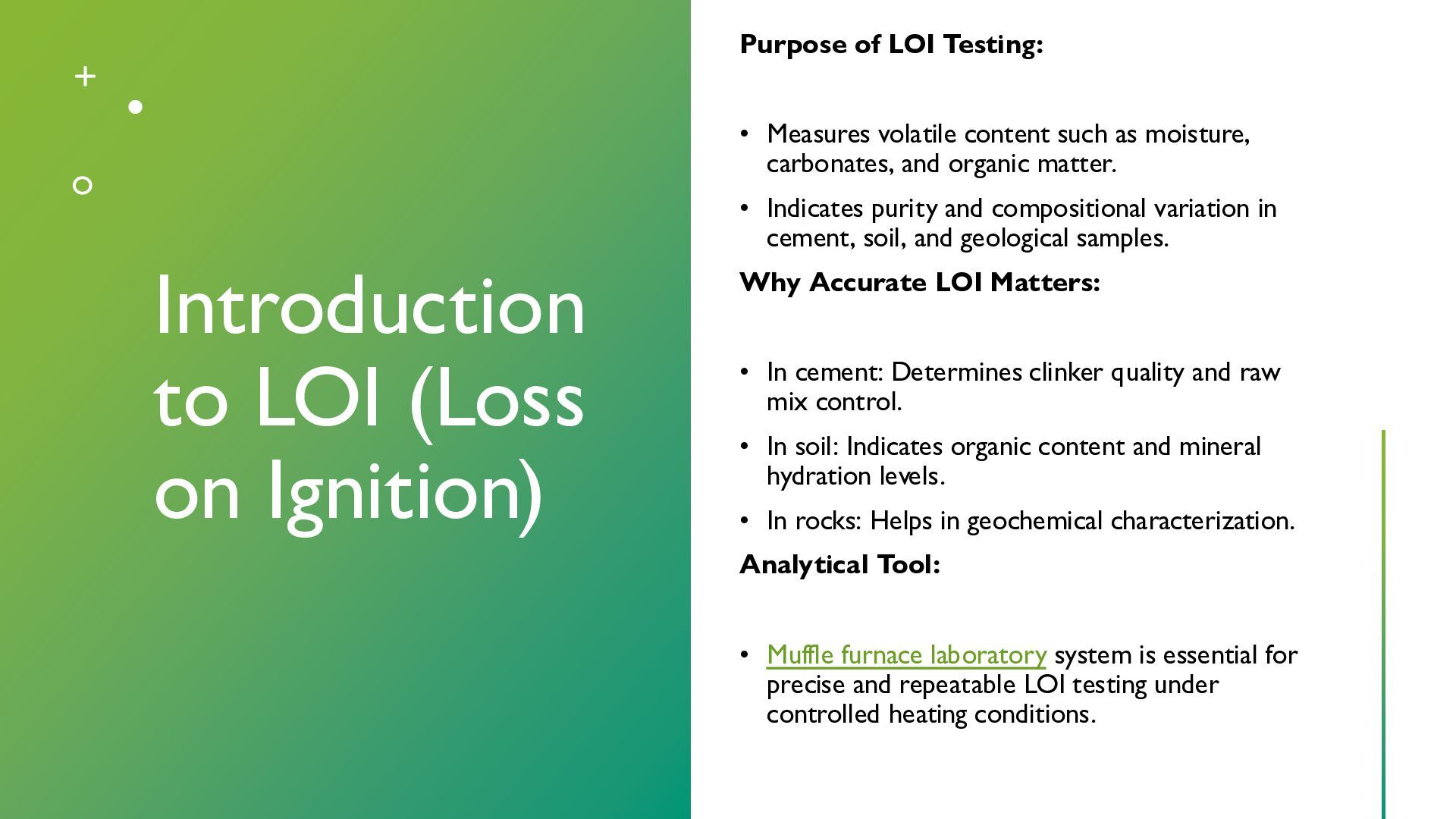

2. Introduction to LOI (Loss on Ignition) Purpose of LOI Testing: • Measures volatile content such as moisture, carbonates, and organic matter. • Indicates purity and compositional variation in cement, soil, and geological samples. Why Accurate LOI Matters: • In cement: Determines clinker quality and raw mix control. • In soil: Indicates organic content and mineral hydration levels. • In rocks: Helps in geochemical characterization. Analytical Tool: • Muffle furnace laboratory system is essential for precise and repeatable LOI testing under controlled heating conditions.

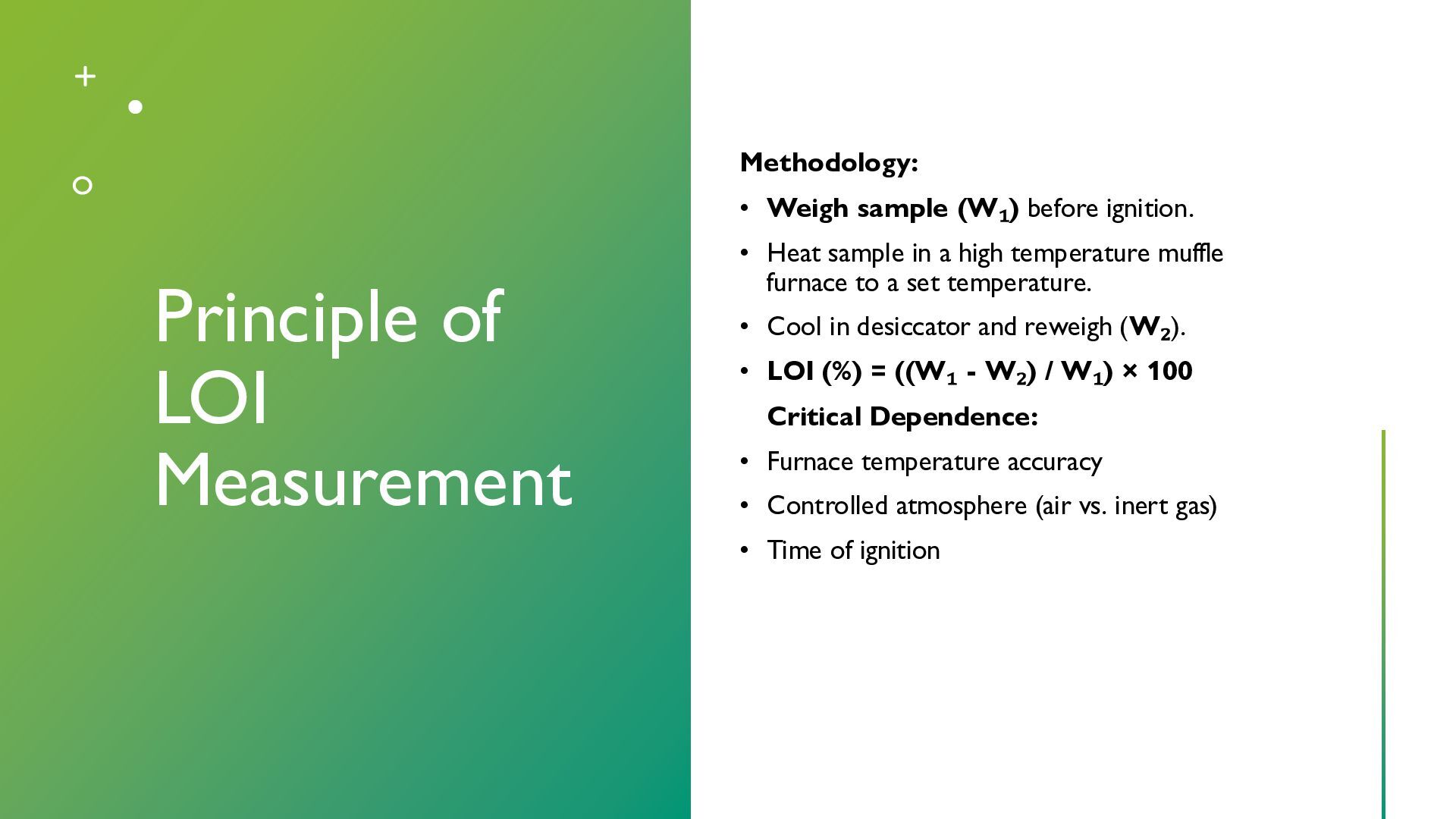

3. Principle of LOI Measurement Methodology: • Weigh sample (W₁) before ignition. • Heat sample in a high temperature muffle furnace to a set temperature. • Cool in desiccator and reweigh (W₂). • LOI (%) = ((W₁ - W₂) / W₁) × 100 Critical Dependence: • Furnace temperature accuracy • Controlled atmosphere (air vs. inert gas) • Time of ignition

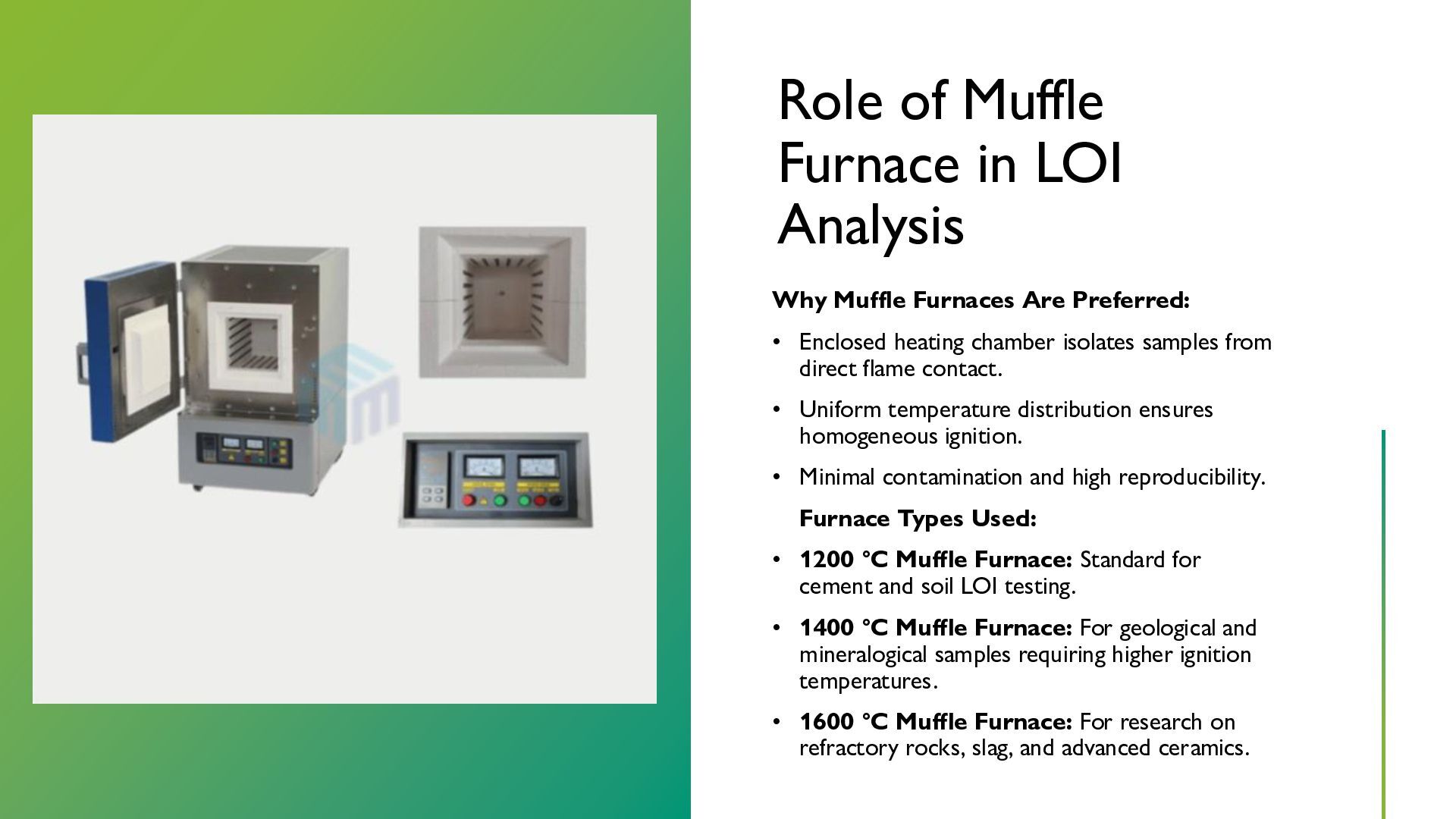

4. Role of Muffle Furnace in LOI Analysis Why Muffle Furnaces Are Preferred: • Enclosed heating chamber isolates samples from direct flame contact. • Uniform temperature distribution ensures homogeneous ignition. • Minimal contamination and high reproducibility. Furnace Types Used: • 1200 °C Muffle Furnace: Standard for cement and soil LOI testing. • 1400 °C Muffle Furnace: For geological and mineralogical samples requiring higher ignition temperatures. • 1600 °C Muffle Furnace: For research on refractory rocks, slag, and advanced ceramics.

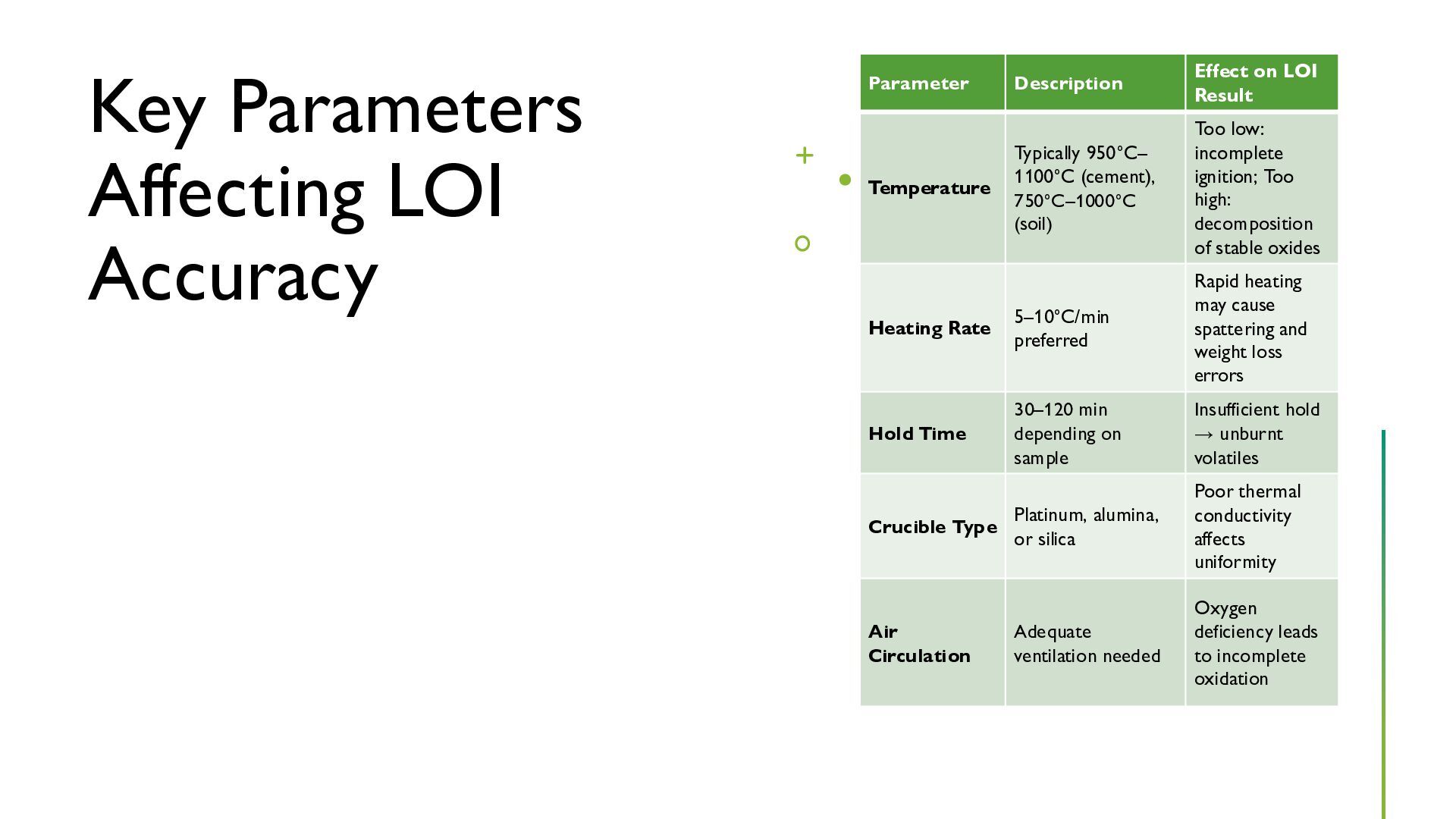

5. Key Parameters Affecting LOI Accuracy Parameter Description Effect on LOI Result Temperature Typically 950°C– 1100°C (cement), 750°C–1000°C (soil) Too low: incomplete ignition; Too high: decomposition of stable oxides Heating Rate 5–10°C/min preferred Rapid heating may cause spattering and weight loss errors Hold Time 30–120 min depending on sample Insufficient hold → unburnt volatiles Crucible Type Platinum, alumina, or silica Poor thermal conductivity affects uniformity Air Circulation Adequate ventilation needed Oxygen deficiency leads to incomplete oxidation

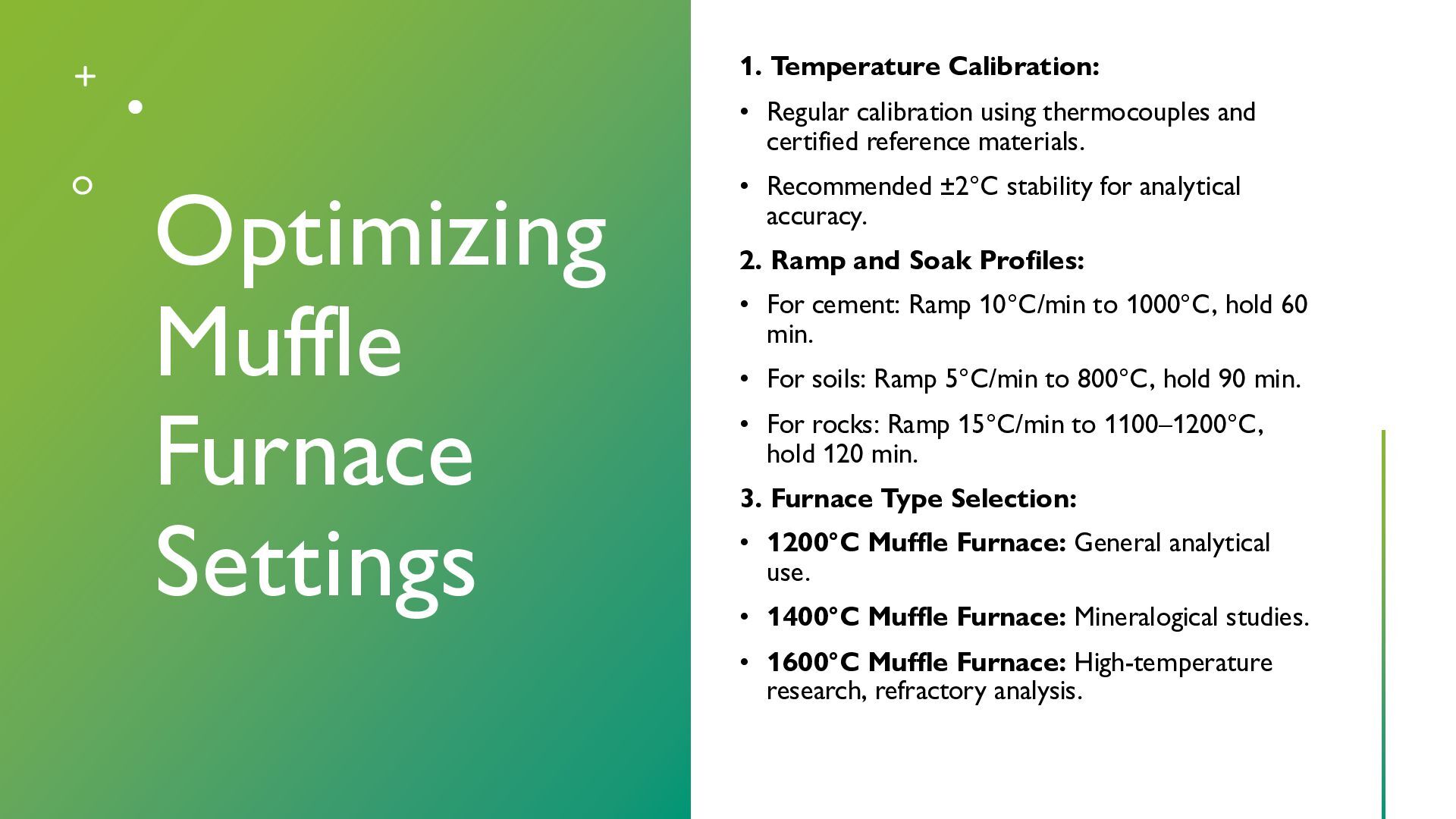

6. Optimizing Muffle Furnace Settings 1. Temperature Calibration: • Regular calibration using thermocouples and certified reference materials. • Recommended ±2°C stability for analytical accuracy. 2. Ramp and Soak Profiles: • For cement: Ramp 10°C/min to 1000°C, hold 60 min. • For soils: Ramp 5°C/min to 800°C, hold 90 min. • For rocks: Ramp 15°C/min to 1100–1200°C, hold 120 min. 3. Furnace Type Selection: • 1200°C Muffle Furnace: General analytical use. • 1400°C Muffle Furnace: Mineralogical studies. • 1600°C Muffle Furnace: High-temperature research, refractory analysis.

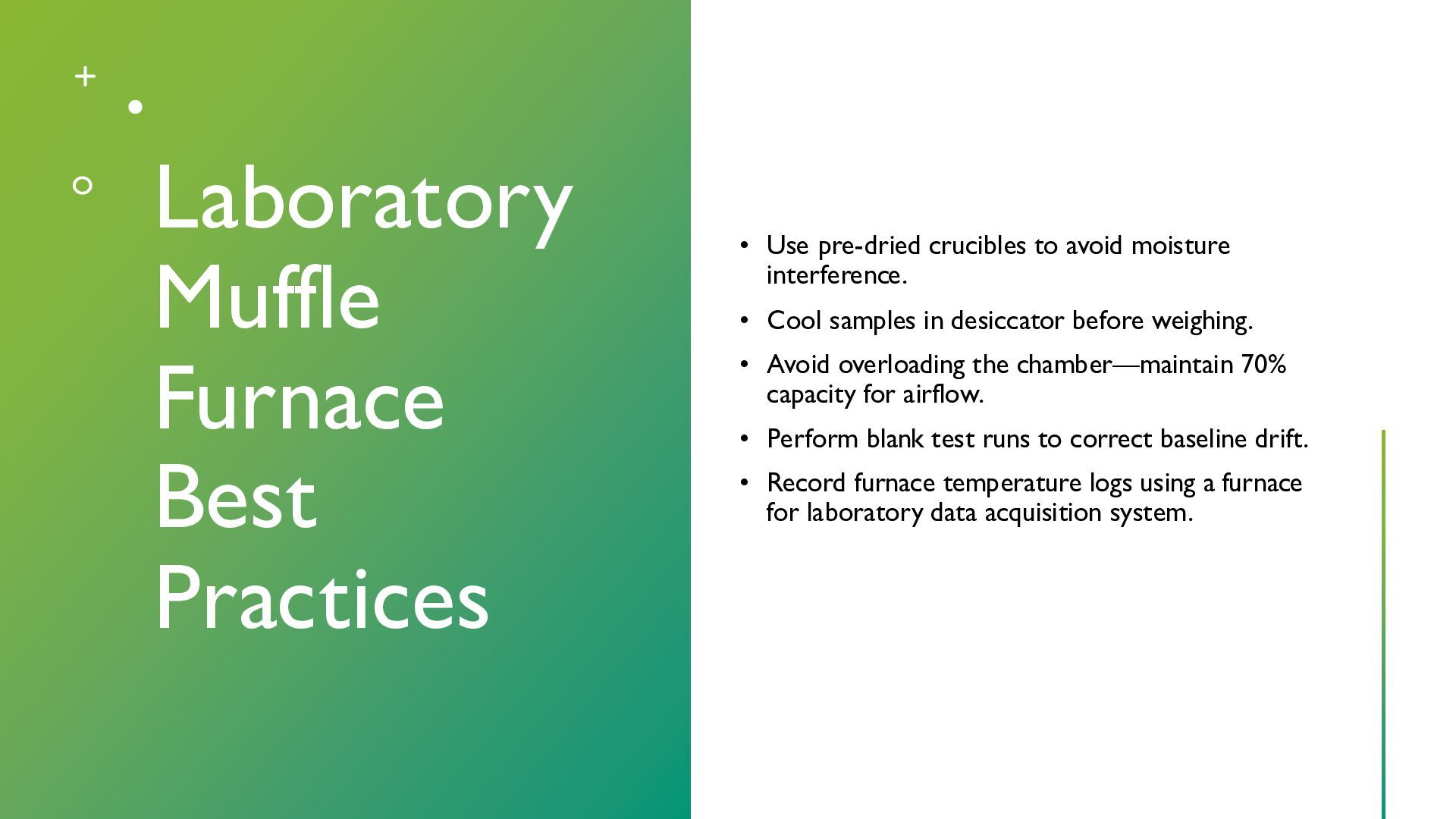

7. Laboratory Muffle Furnace Best Practices • Use pre-dried crucibles to avoid moisture interference. • Cool samples in desiccator before weighing. • Avoid overloading the chamber—maintain 70% capacity for airflow. • Perform blank test runs to correct baseline drift. • Record furnace temperature logs using a furnace for laboratory data acquisition system.

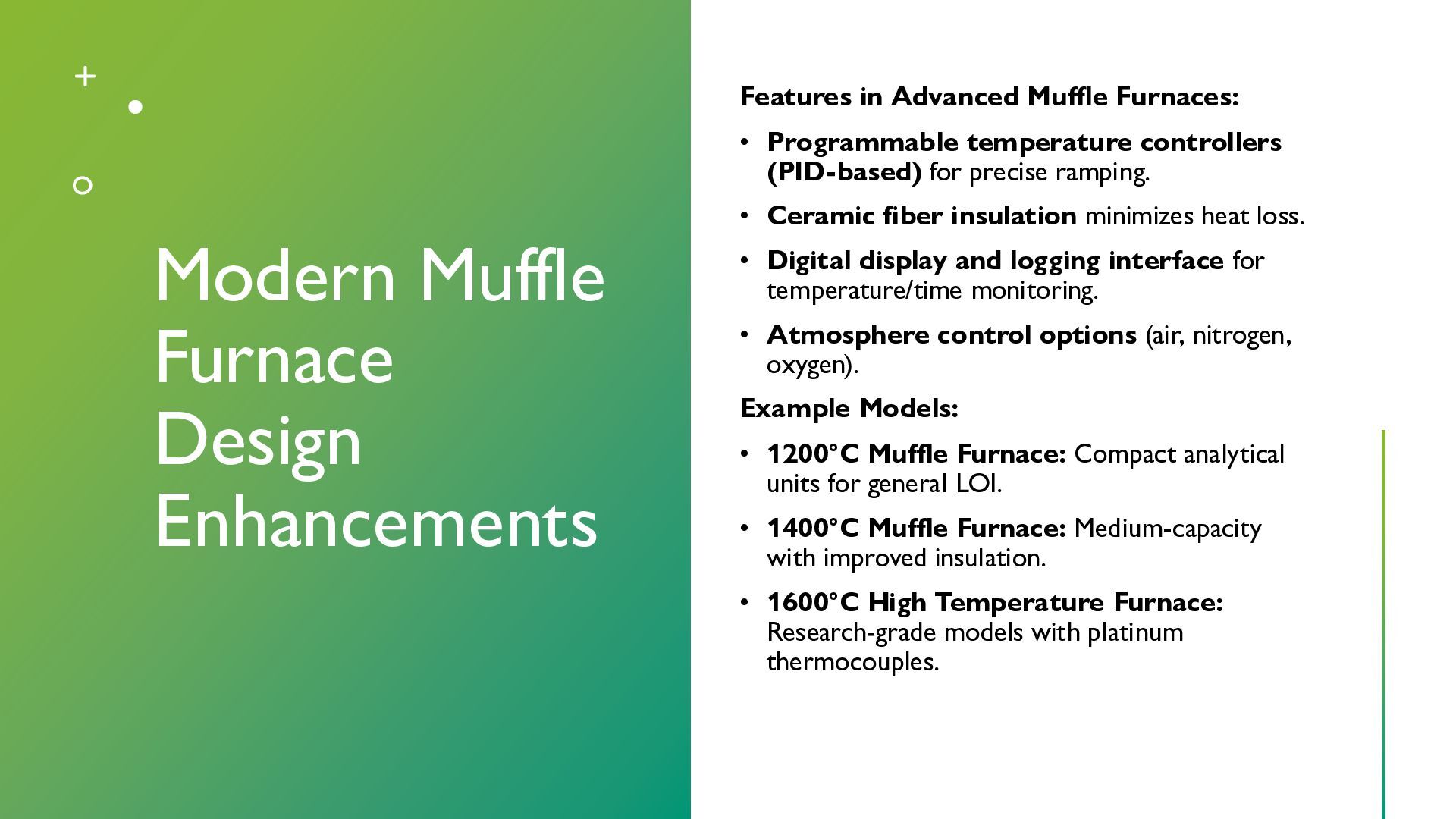

8. Modern Muffle Furnace Design Enhancements Features in Advanced Muffle Furnaces: • Programmable temperature controllers (PID-based) for precise ramping. • Ceramic fiber insulation minimizes heat loss. • Digital display and logging interface for temperature/time monitoring. • Atmosphere control options (air, nitrogen, oxygen). Example Models: • 1200°C Muffle Furnace: Compact analytical units for general LOI. • 1400°C Muffle Furnace: Medium-capacity with improved insulation. • 1600°C High Temperature Furnace: Research-grade models with platinum thermocouples.

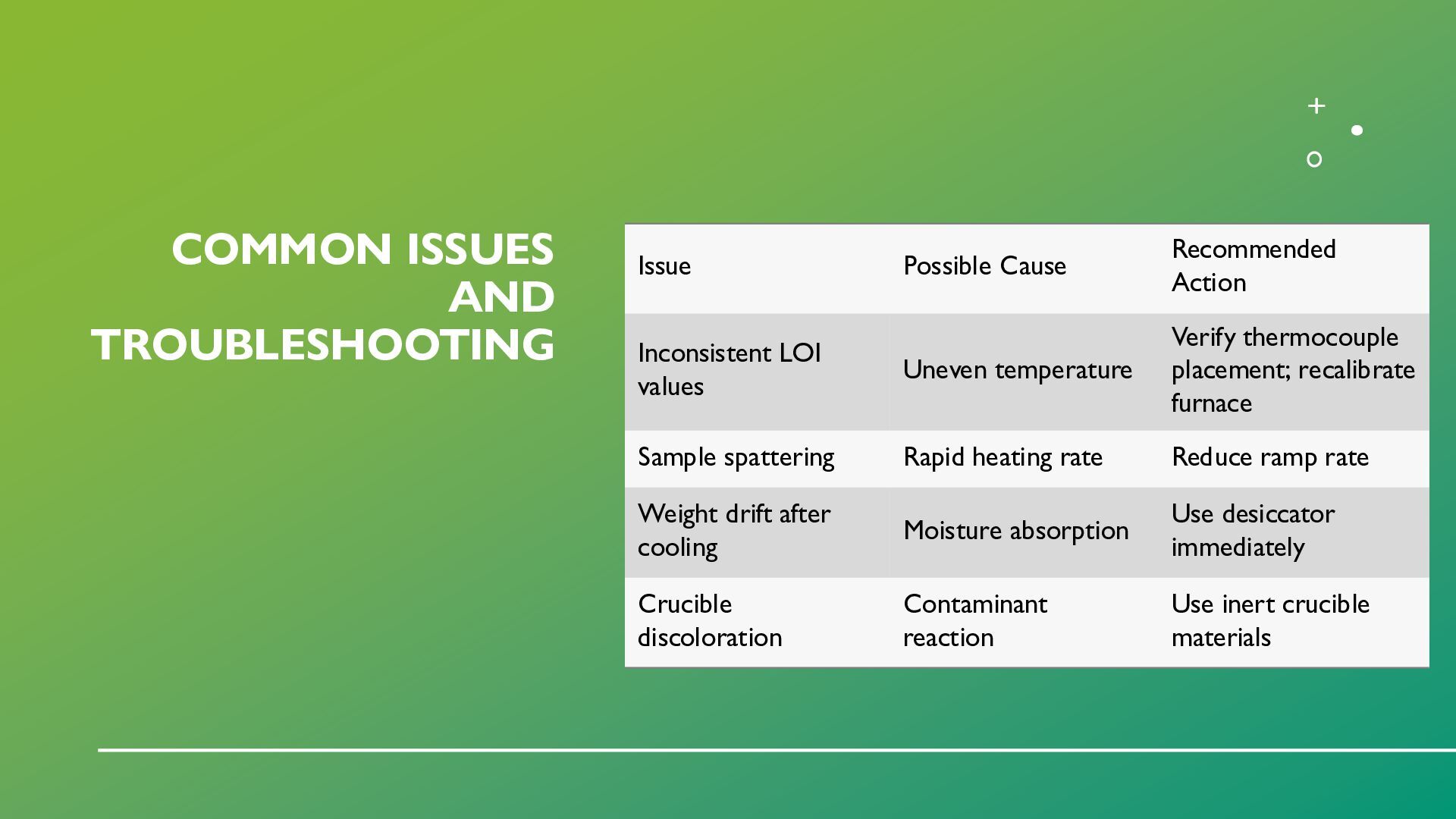

9. COMMON ISSUES AND TROUBLESHOOTING Issue Possible Cause Recommended Action Inconsistent LOI values Uneven temperature Verify thermocouple placement; recalibrate furnace Sample spattering Rapid heating rate Reduce ramp rate Weight drift after cooling Moisture absorption Use desiccator immediately Crucible discoloration Contaminant reaction Use inert crucible materials

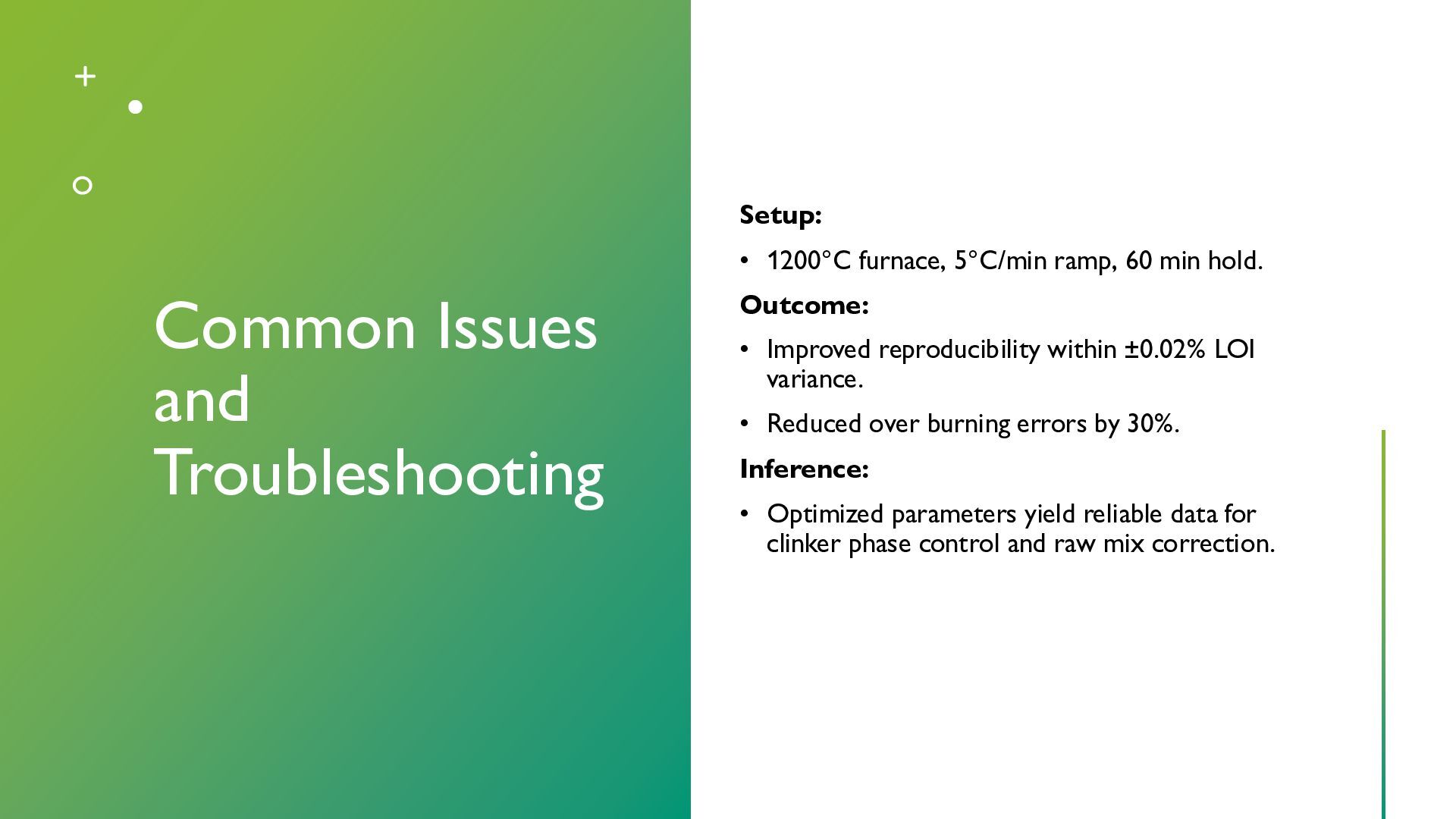

10. Common Issues and Troubleshooting Setup: • 1200°C furnace, 5°C/min ramp, 60 min hold. Outcome: • Improved reproducibility within ±0.02% LOI variance. • Reduced over burning errors by 30%. Inference: • Optimized parameters yield reliable data for clinker phase control and raw mix correction.

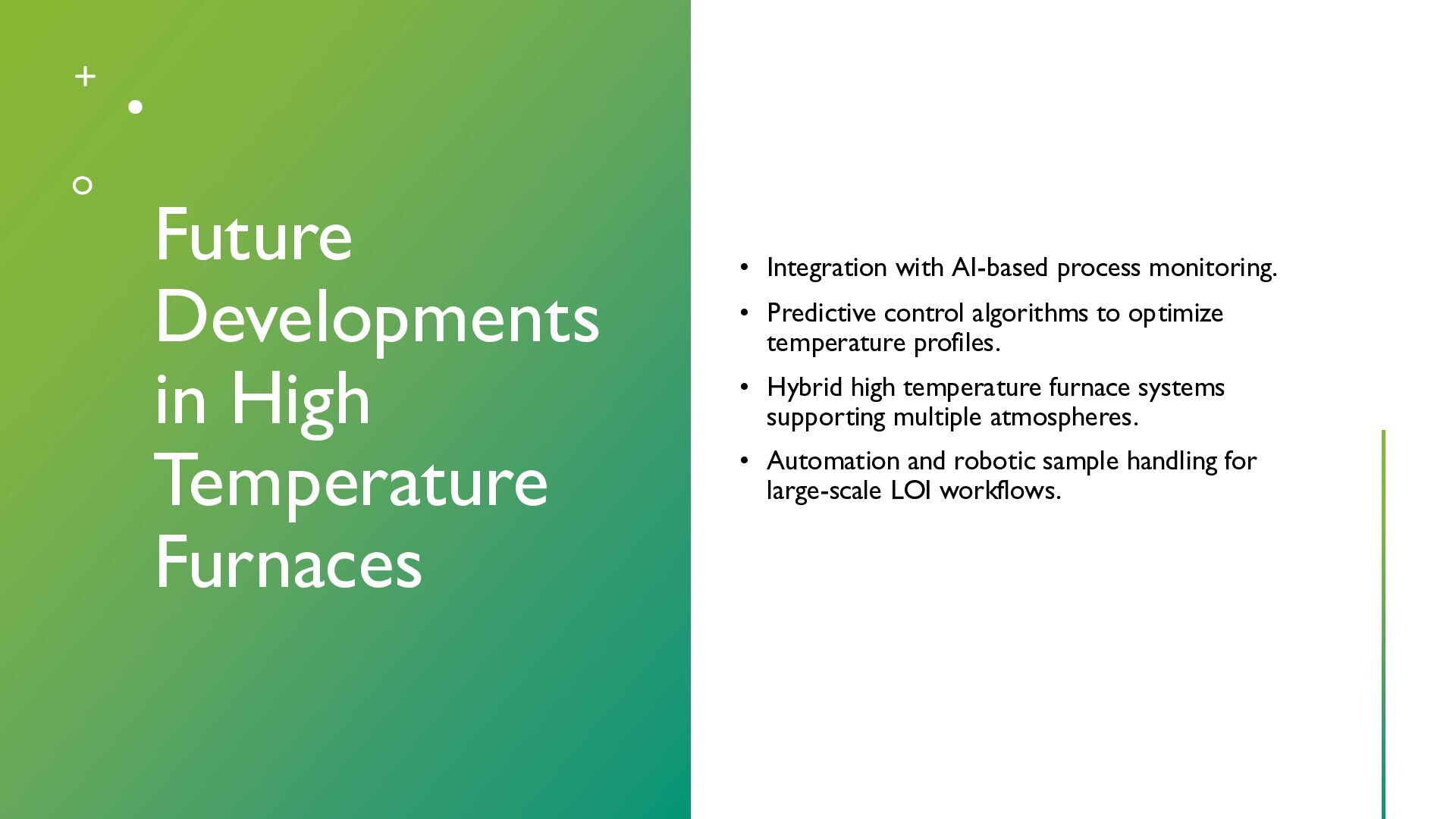

11. Future Developments in High Temperature Furnaces • Integration with AI-based process monitoring. • Predictive control algorithms to optimize temperature profiles. • Hybrid high temperature furnace systems supporting multiple atmospheres. • Automation and robotic sample handling for large-scale LOI workflows.

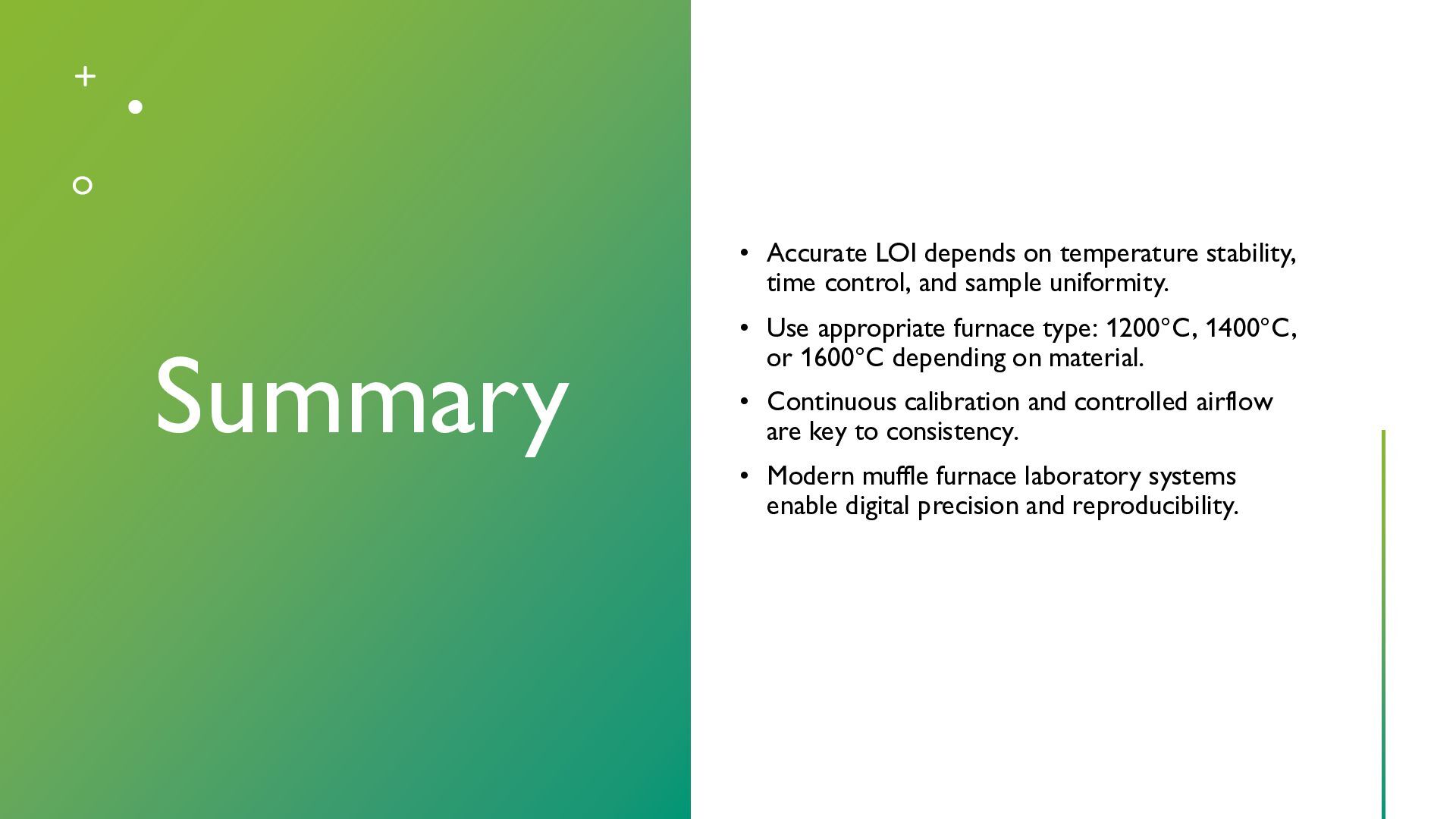

12. Summary • Accurate LOI depends on temperature stability, time control, and sample uniformity. • Use appropriate furnace type: 1200°C, 1400°C, or 1600°C depending on material. • Continuous calibration and controlled airflow are key to consistency. • Modern muffle furnace laboratory systems enable digital precision and reproducibility.
