Failure Modes in Platinum Crucibles: Creep, Contamination, and Oxidation Mechanisms

This presentation investigates the failure modes in platinum crucibles, focusing on creep deformation, contamination, and oxidation mechanisms. It explains how thermal stress, reactive atmospheres, and alloy impurities affect crucible lifespan, and outlines preventive measures for high-purity melting and analytical applications.

Transcript

1. Failure Modes in Platinum Crucibles: Creep, Contamination, and Oxidation Mechanisms Submitted By: M-Kube Enterprise Pty Ltd

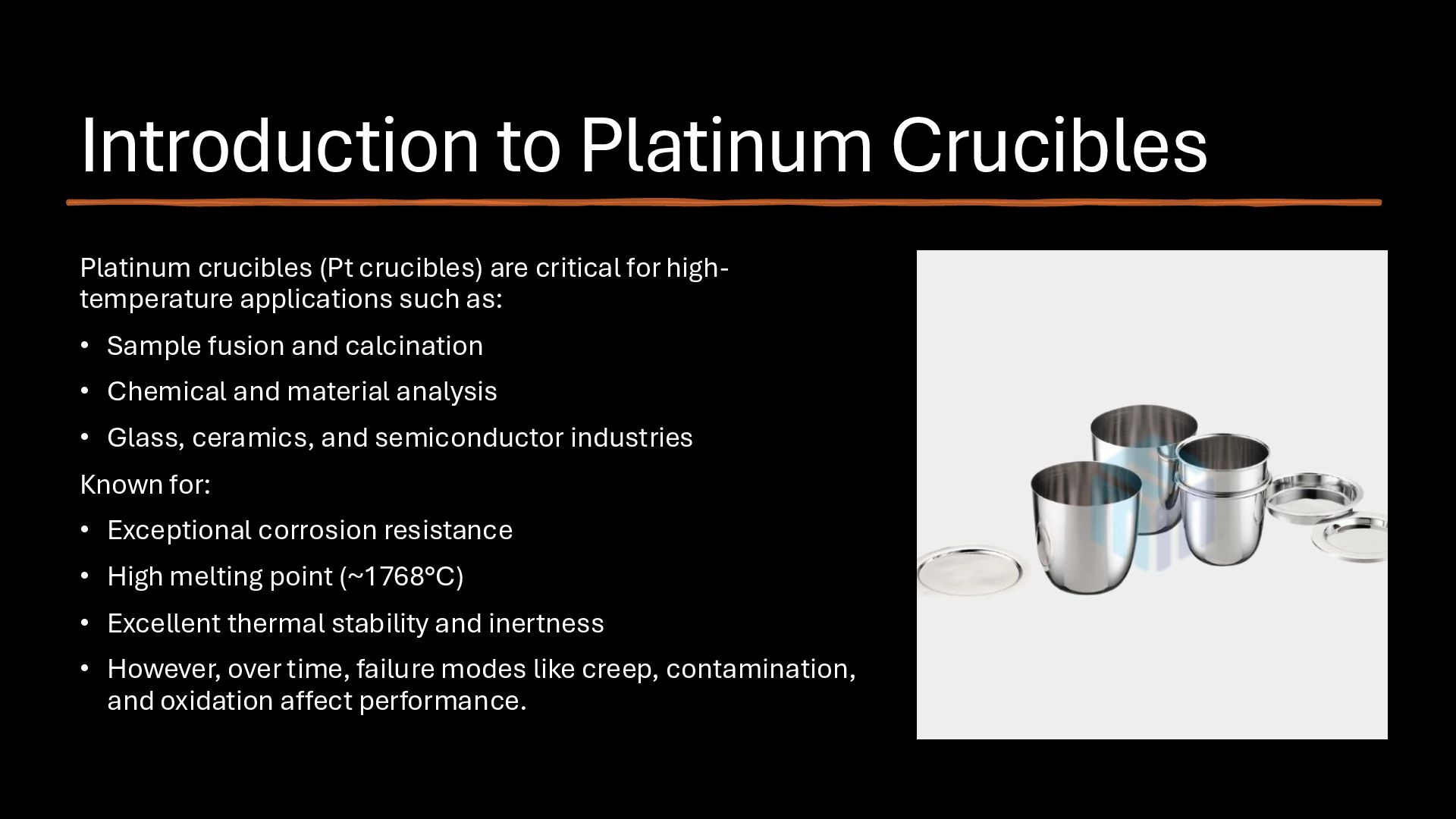

2. Introduction to Platinum Crucibles Platinum crucibles (Pt crucibles) are critical for high- temperature applications such as: • Sample fusion and calcination • Chemical and material analysis • Glass, ceramics, and semiconductor industries Known for: • Exceptional corrosion resistance • High melting point (~1768°C) • Excellent thermal stability and inertness • However, over time, failure modes like creep, contamination, and oxidation affect performance.

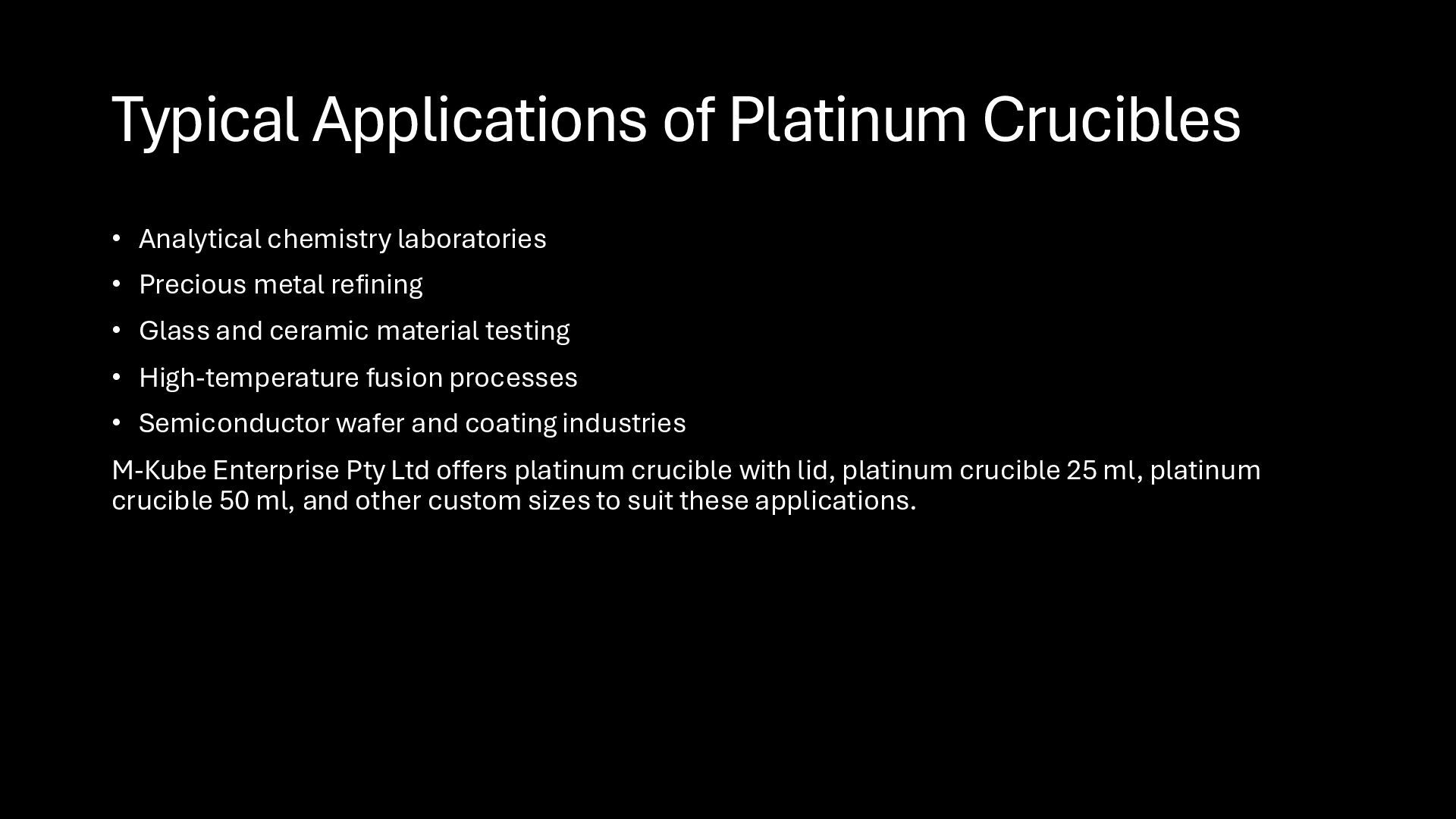

3. Typical Applications of Platinum Crucibles • Analytical chemistry laboratories • Precious metal refining • Glass and ceramic material testing • High-temperature fusion processes • Semiconductor wafer and coating industries M-Kube Enterprise Pty Ltd offers platinum crucible with lid, platinum crucible 25 ml, platinum crucible 50 ml, and other custom sizes to suit these applications.

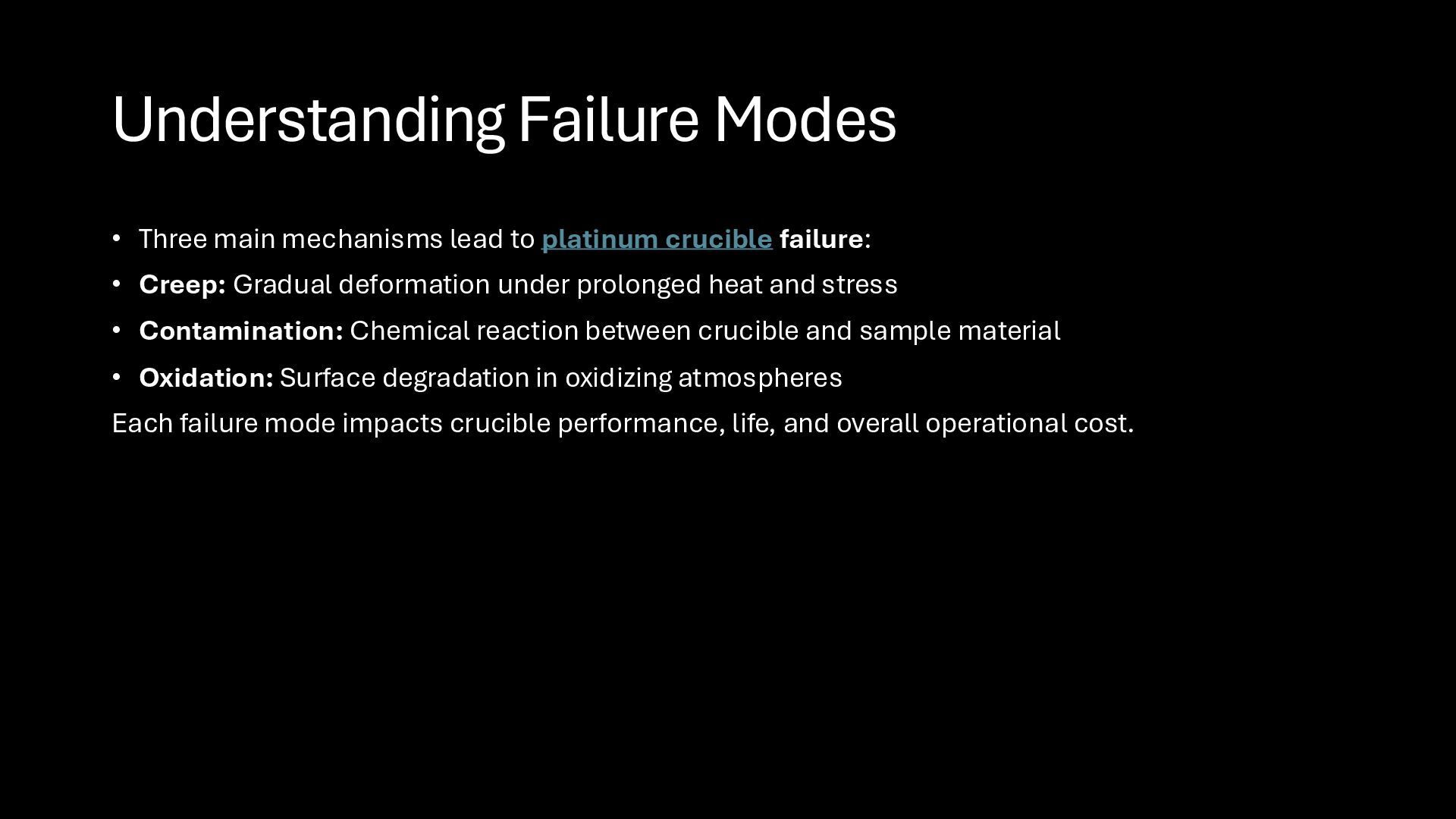

4. Understanding Failure Modes • Three main mechanisms lead to platinum crucible failure: • Creep: Gradual deformation under prolonged heat and stress • Contamination: Chemical reaction between crucible and sample material • Oxidation: Surface degradation in oxidizing atmospheres Each failure mode impacts crucible performance, life, and overall operational cost.

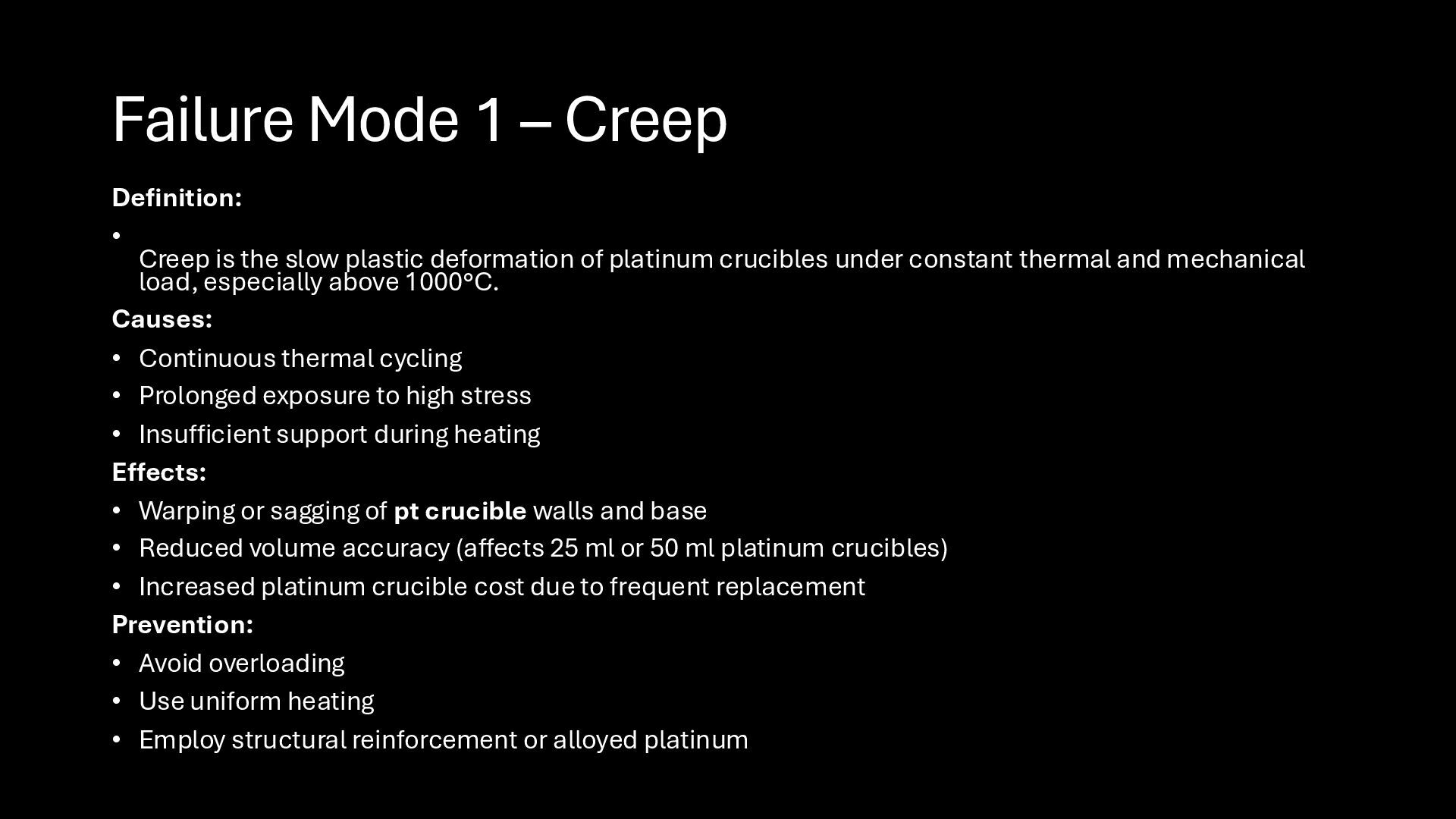

5. Failure Mode 1 – Creep Definition: • Creep is the slow plastic deformation of platinum crucibles under constant thermal and mechanical load, especially above 1000°C. Causes: • Continuous thermal cycling • Prolonged exposure to high stress • Insufficient support during heating Effects: • Warping or sagging of pt crucible walls and base • Reduced volume accuracy (affects 25 ml or 50 ml platinum crucibles) • Increased platinum crucible cost due to frequent replacement Prevention: • Avoid overloading • Use uniform heating • Employ structural reinforcement or alloyed platinum

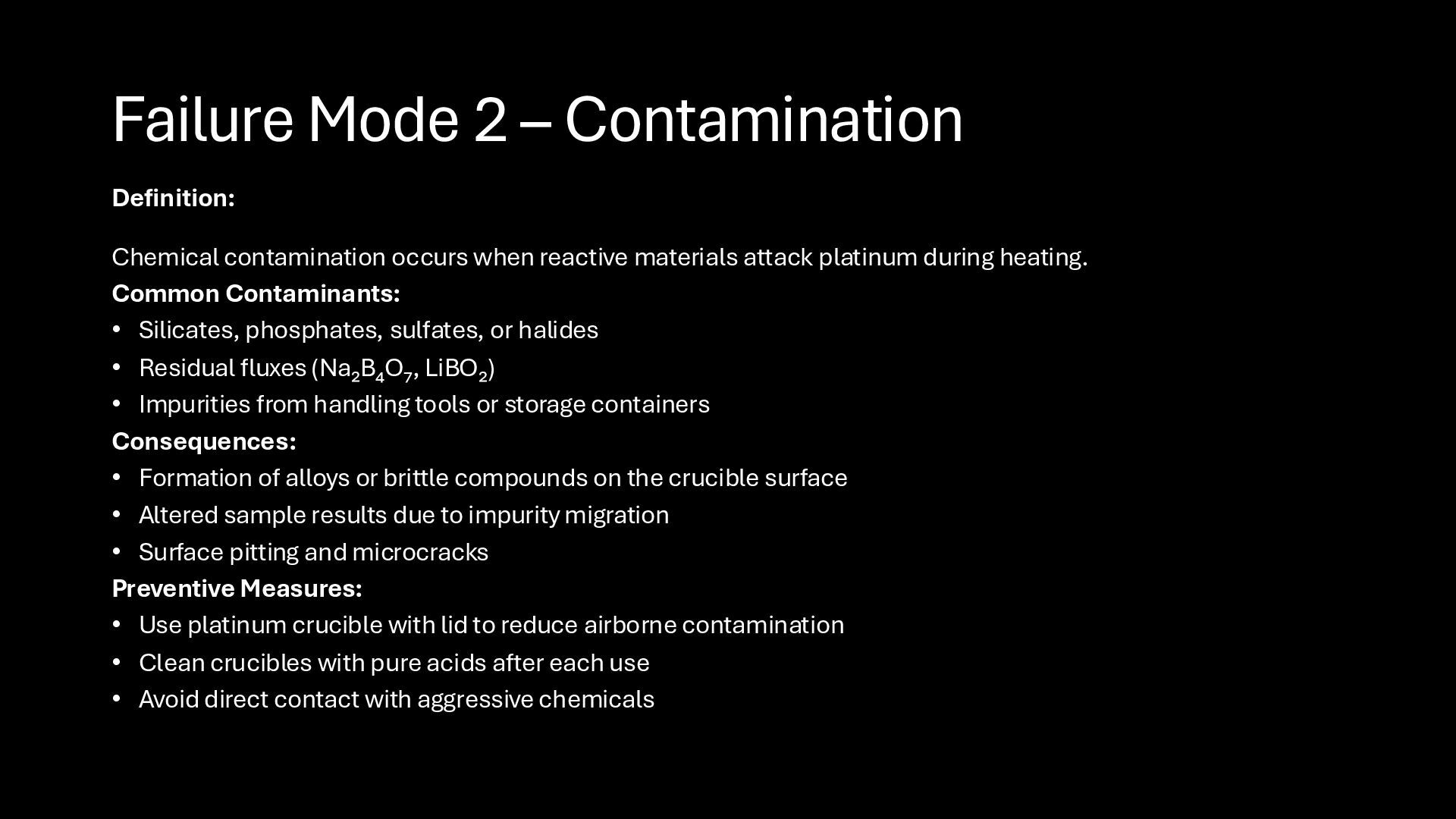

6. Failure Mode 2 – Contamination Definition: Chemical contamination occurs when reactive materials attack platinum during heating. Common Contaminants: • Silicates, phosphates, sulfates, or halides • Residual fluxes (Na₂B₄O₇, LiBO₂) • Impurities from handling tools or storage containers Consequences: • Formation of alloys or brittle compounds on the crucible surface • Altered sample results due to impurity migration • Surface pitting and microcracks Preventive Measures: • Use platinum crucible with lid to reduce airborne contamination • Clean crucibles with pure acids after each use • Avoid direct contact with aggressive chemicals

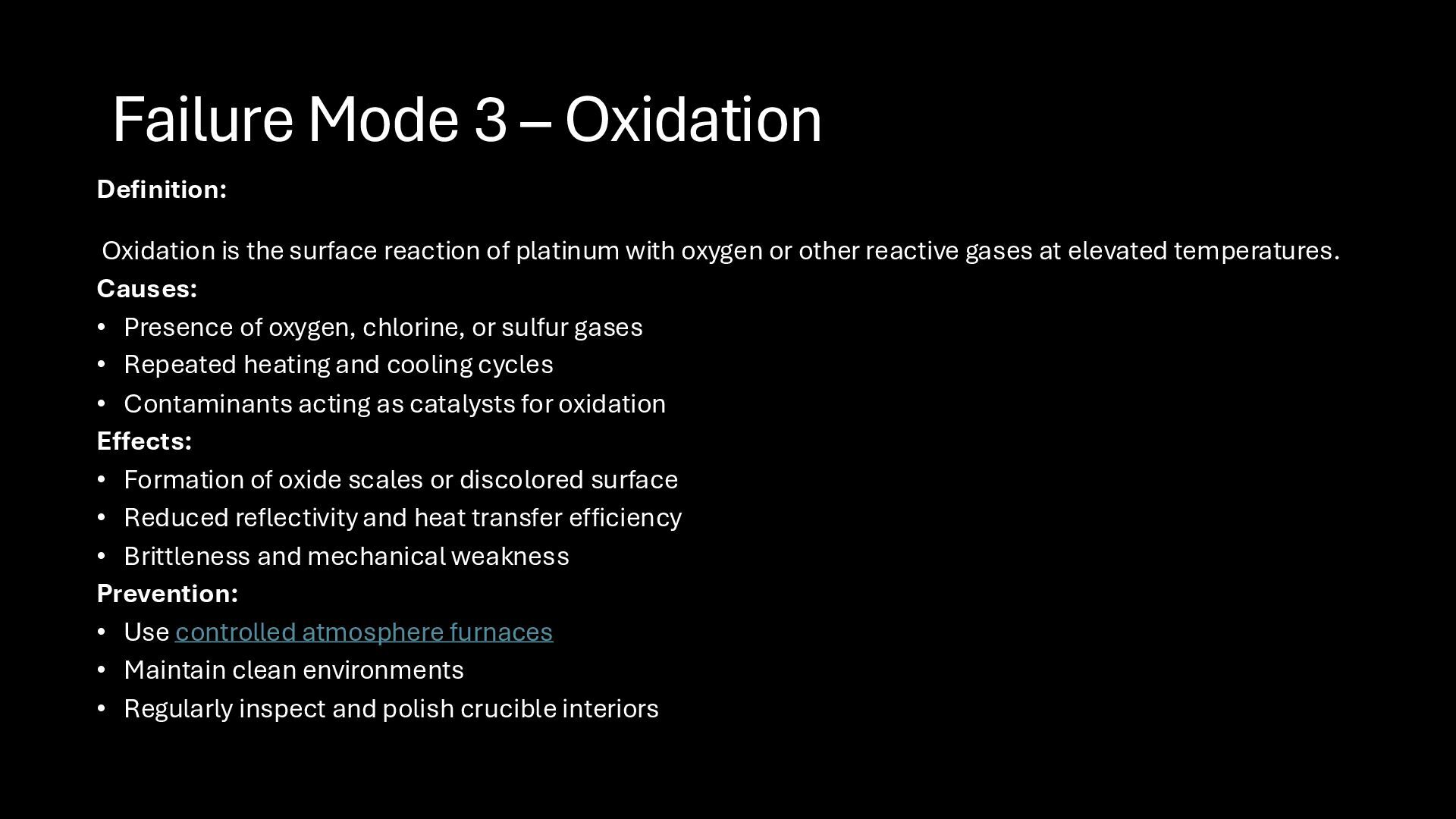

7. Failure Mode 3 – Oxidation Definition: Oxidation is the surface reaction of platinum with oxygen or other reactive gases at elevated temperatures. Causes: • Presence of oxygen, chlorine, or sulfur gases • Repeated heating and cooling cycles • Contaminants acting as catalysts for oxidation Effects: • Formation of oxide scales or discolored surface • Reduced reflectivity and heat transfer efficiency • Brittleness and mechanical weakness Prevention: • Use controlled atmosphere furnaces • Maintain clean environments • Regularly inspect and polish crucible interiors

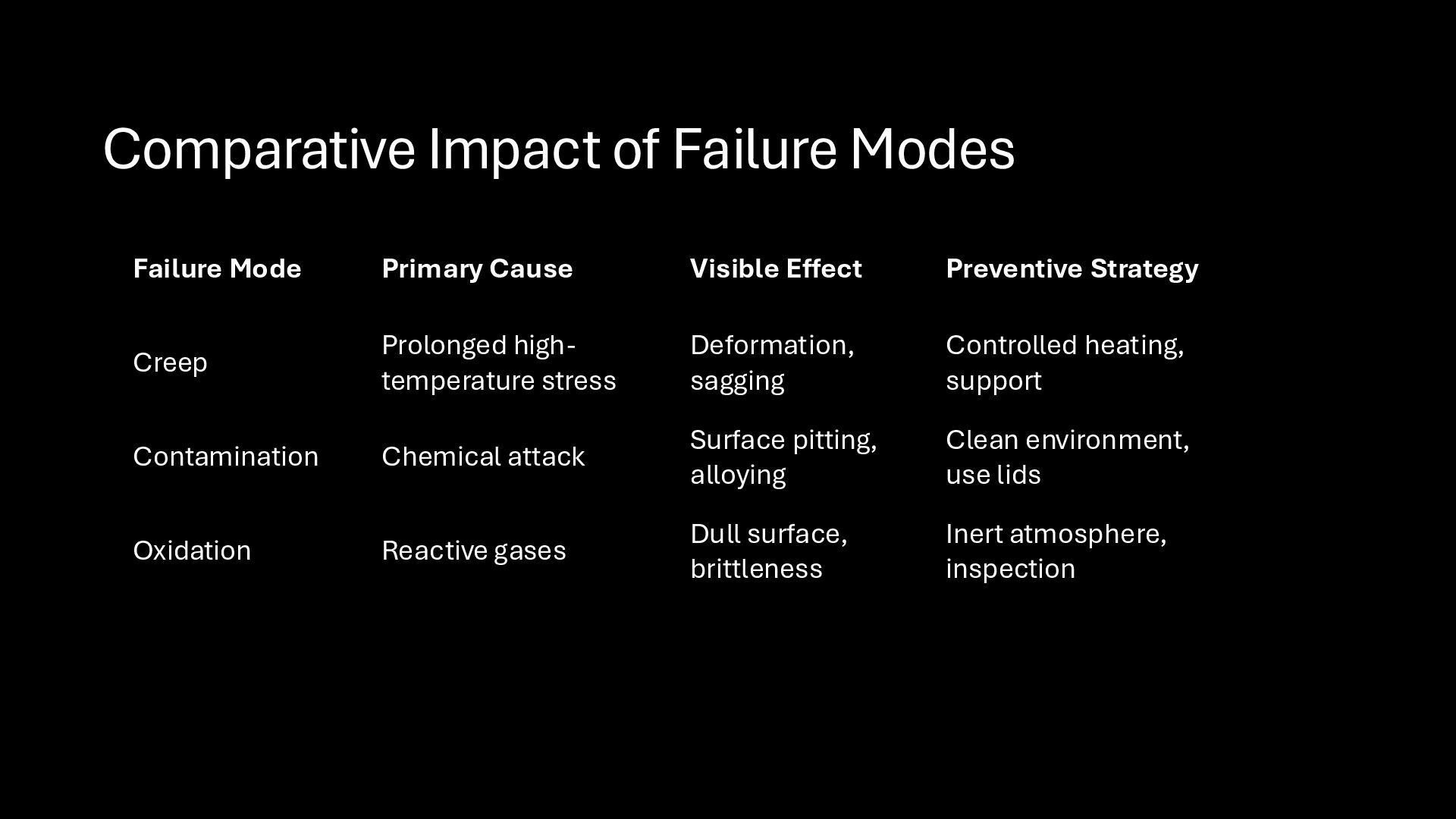

8. Comparative Impact of Failure Modes Failure Mode Primary Cause Visible Effect Preventive Strategy Creep Prolonged high- temperature stress Deformation, sagging Controlled heating, support Contamination Chemical attack Surface pitting, alloying Clean environment, use lids Oxidation Reactive gases Dull surface, brittleness Inert atmosphere, inspection

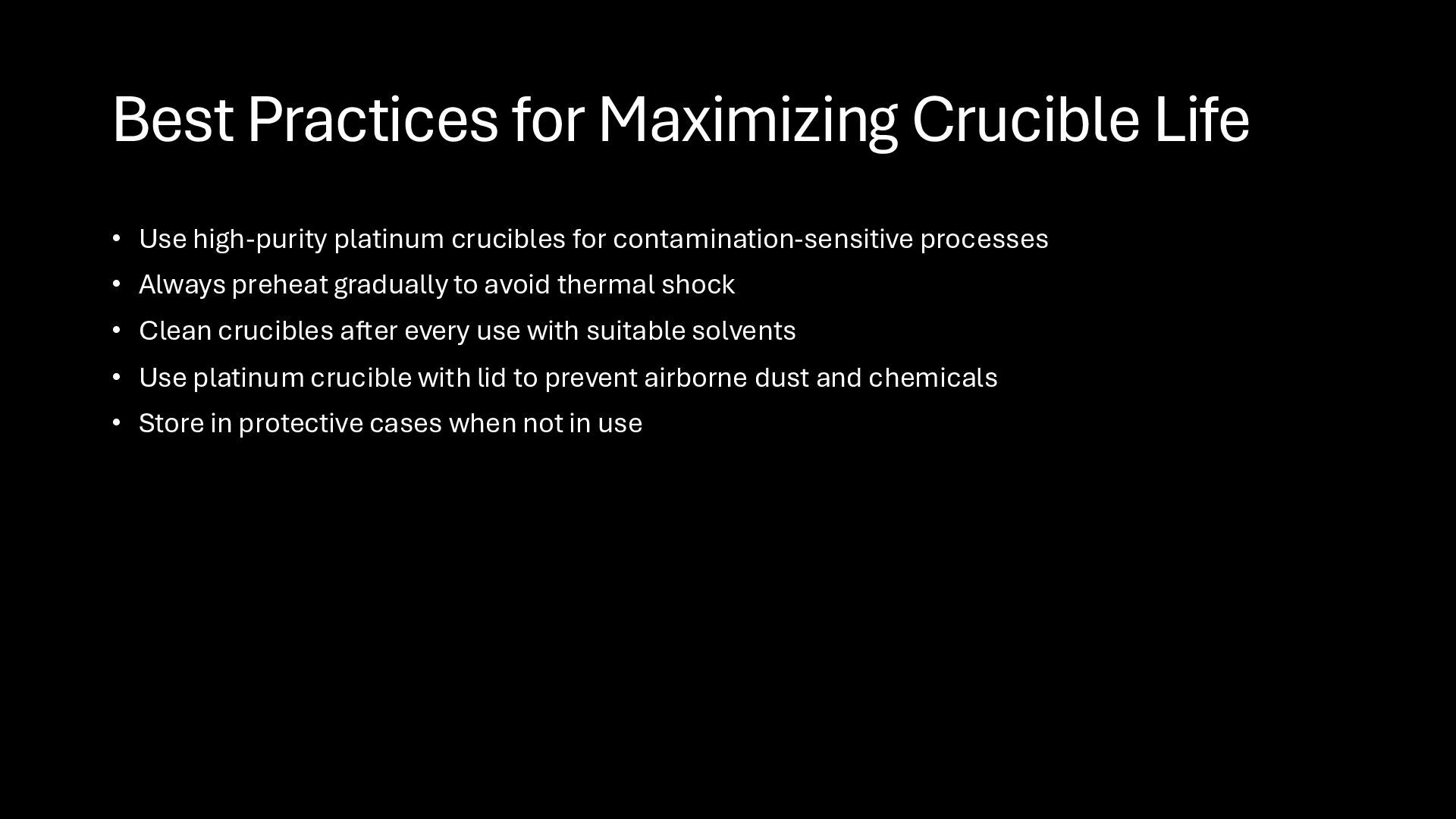

9. Best Practices for Maximizing Crucible Life • Use high-purity platinum crucibles for contamination-sensitive processes • Always preheat gradually to avoid thermal shock • Clean crucibles after every use with suitable solvents • Use platinum crucible with lid to prevent airborne dust and chemicals • Store in protective cases when not in use

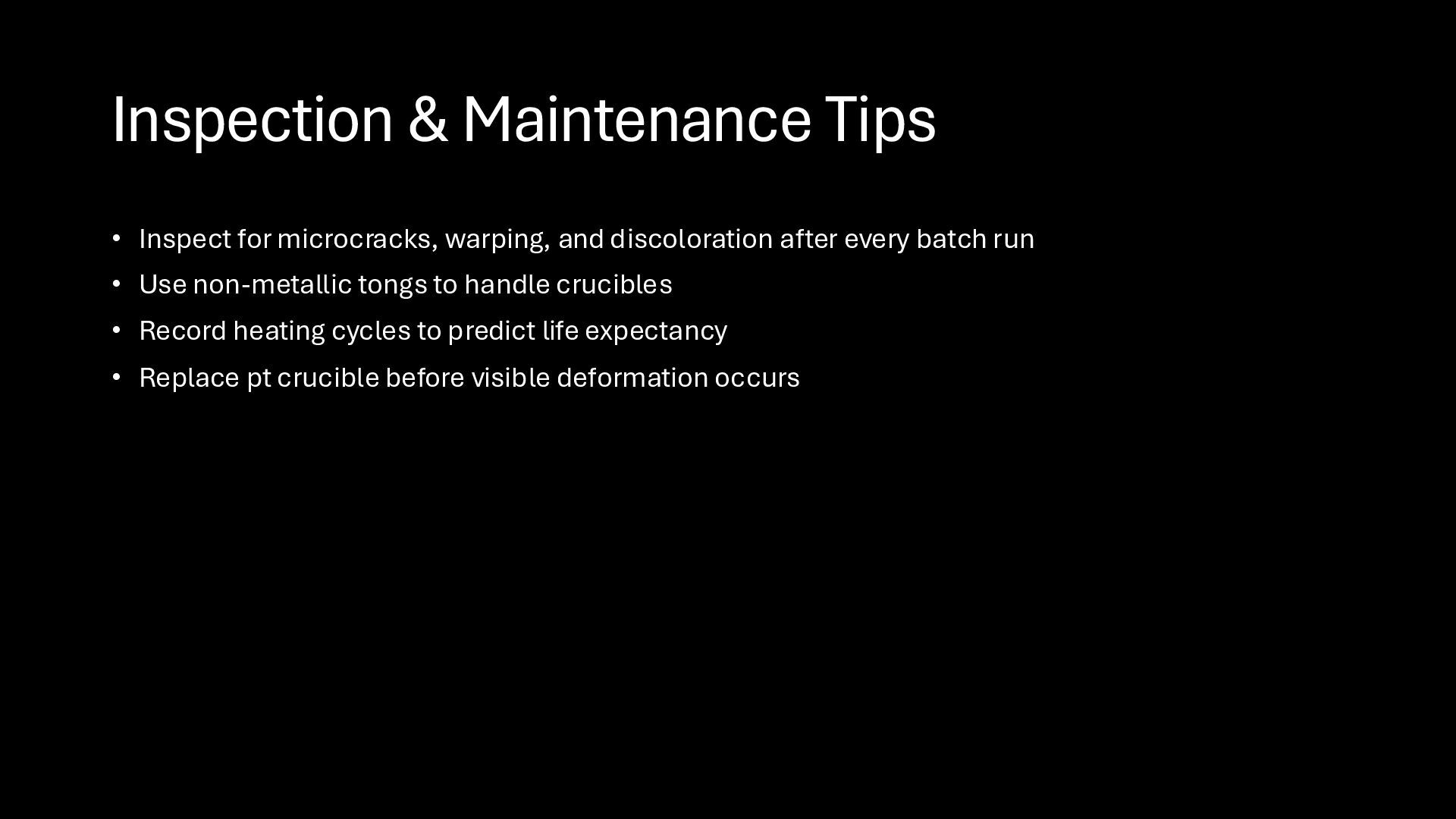

10. Inspection & Maintenance Tips • Inspect for microcracks, warping, and discoloration after every batch run • Use non-metallic tongs to handle crucibles • Record heating cycles to predict life expectancy • Replace pt crucible before visible deformation occurs

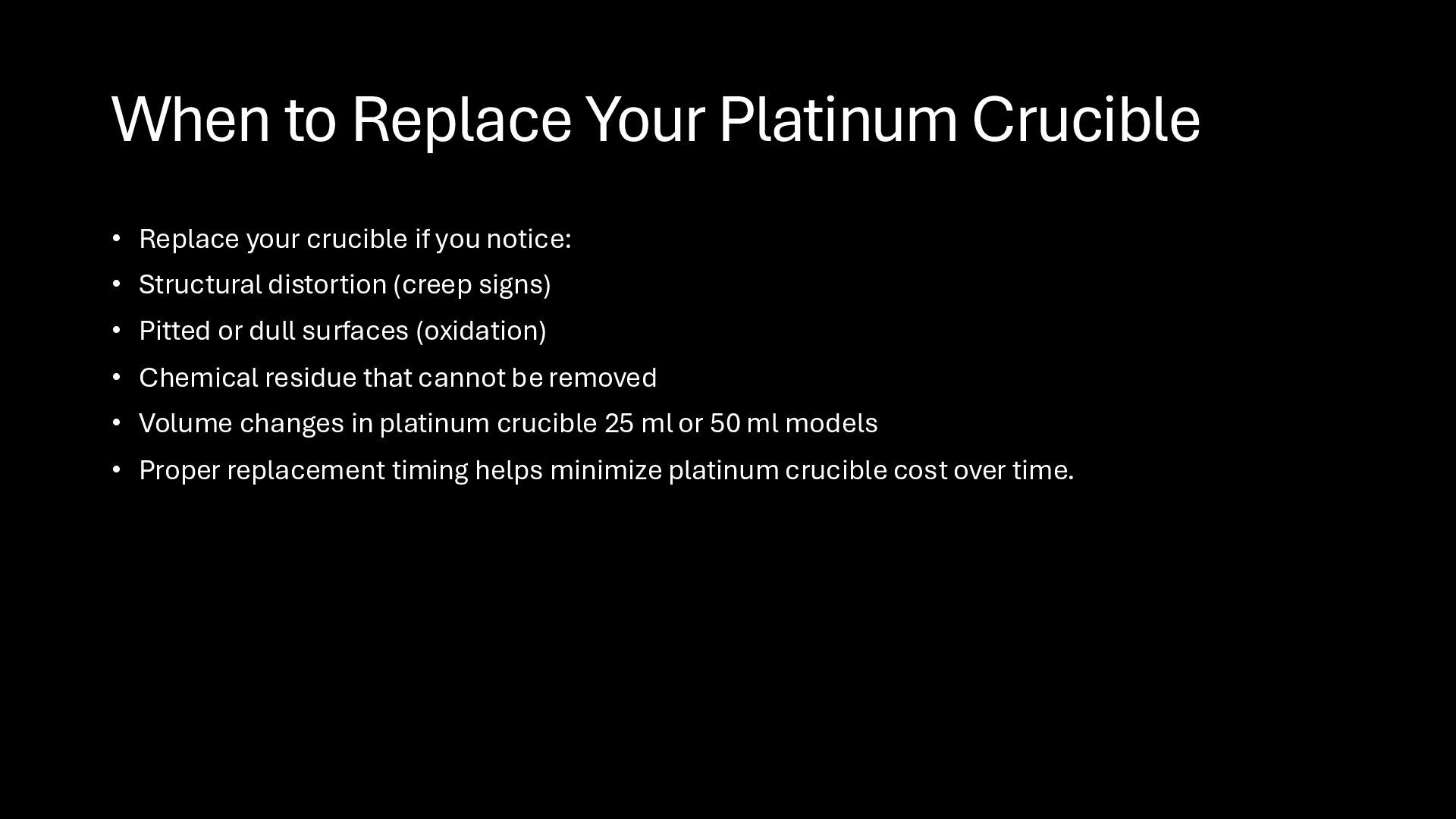

11. When to Replace Your Platinum Crucible • Replace your crucible if you notice: • Structural distortion (creep signs) • Pitted or dull surfaces (oxidation) • Chemical residue that cannot be removed • Volume changes in platinum crucible 25 ml or 50 ml models • Proper replacement timing helps minimize platinum crucible cost over time.

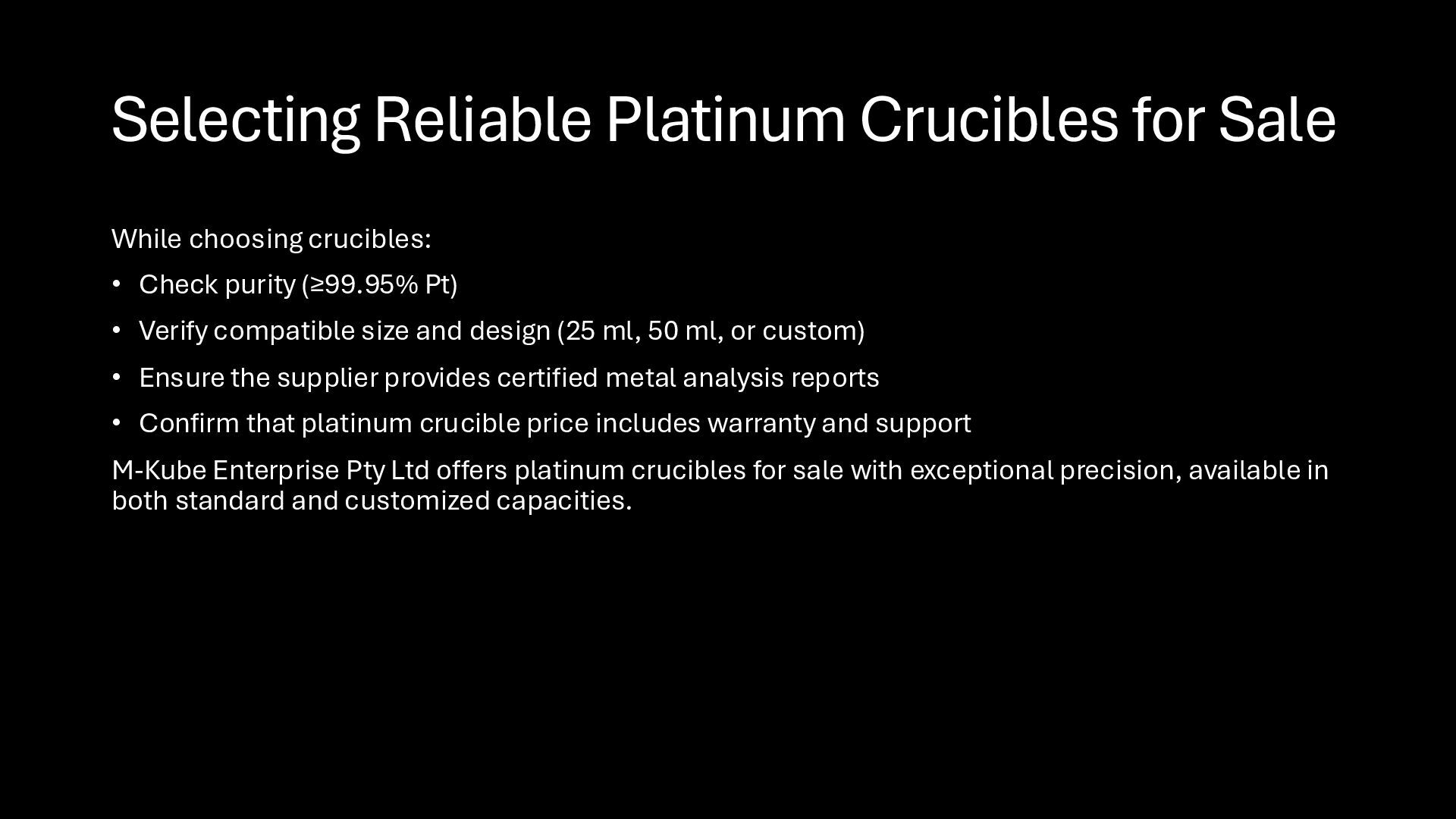

12. Selecting Reliable Platinum Crucibles for Sale While choosing crucibles: • Check purity (≥99.95% Pt) • Verify compatible size and design (25 ml, 50 ml, or custom) • Ensure the supplier provides certified metal analysis reports • Confirm that platinum crucible price includes warranty and support M-Kube Enterprise Pty Ltd offers platinum crucibles for sale with exceptional precision, available in both standard and customized capacities.

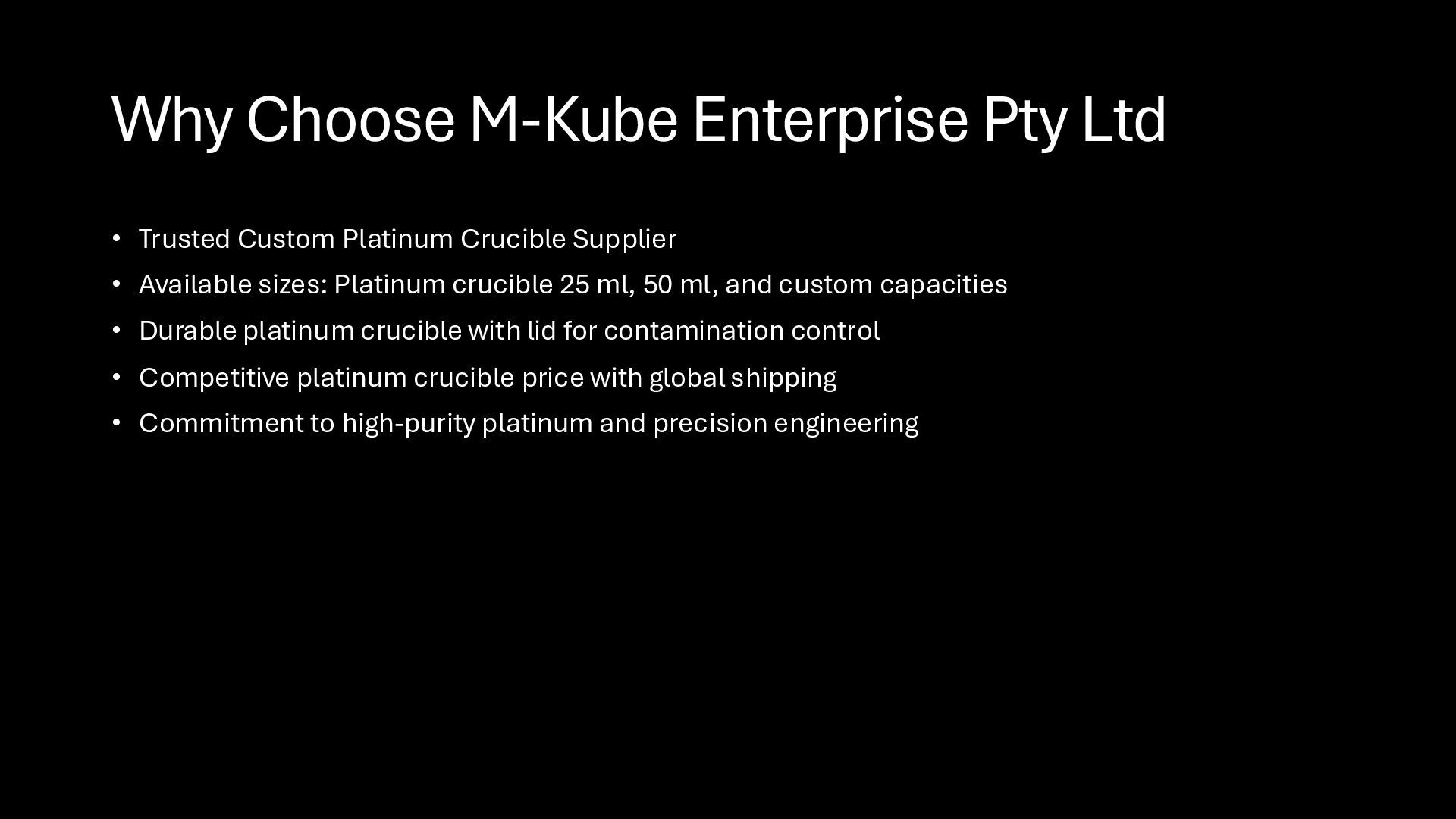

13. Why Choose M-Kube Enterprise Pty Ltd • Trusted Custom Platinum Crucible Supplier • Available sizes: Platinum crucible 25 ml, 50 ml, and custom capacities • Durable platinum crucible with lid for contamination control • Competitive platinum crucible price with global shipping • Commitment to high-purity platinum and precision engineering

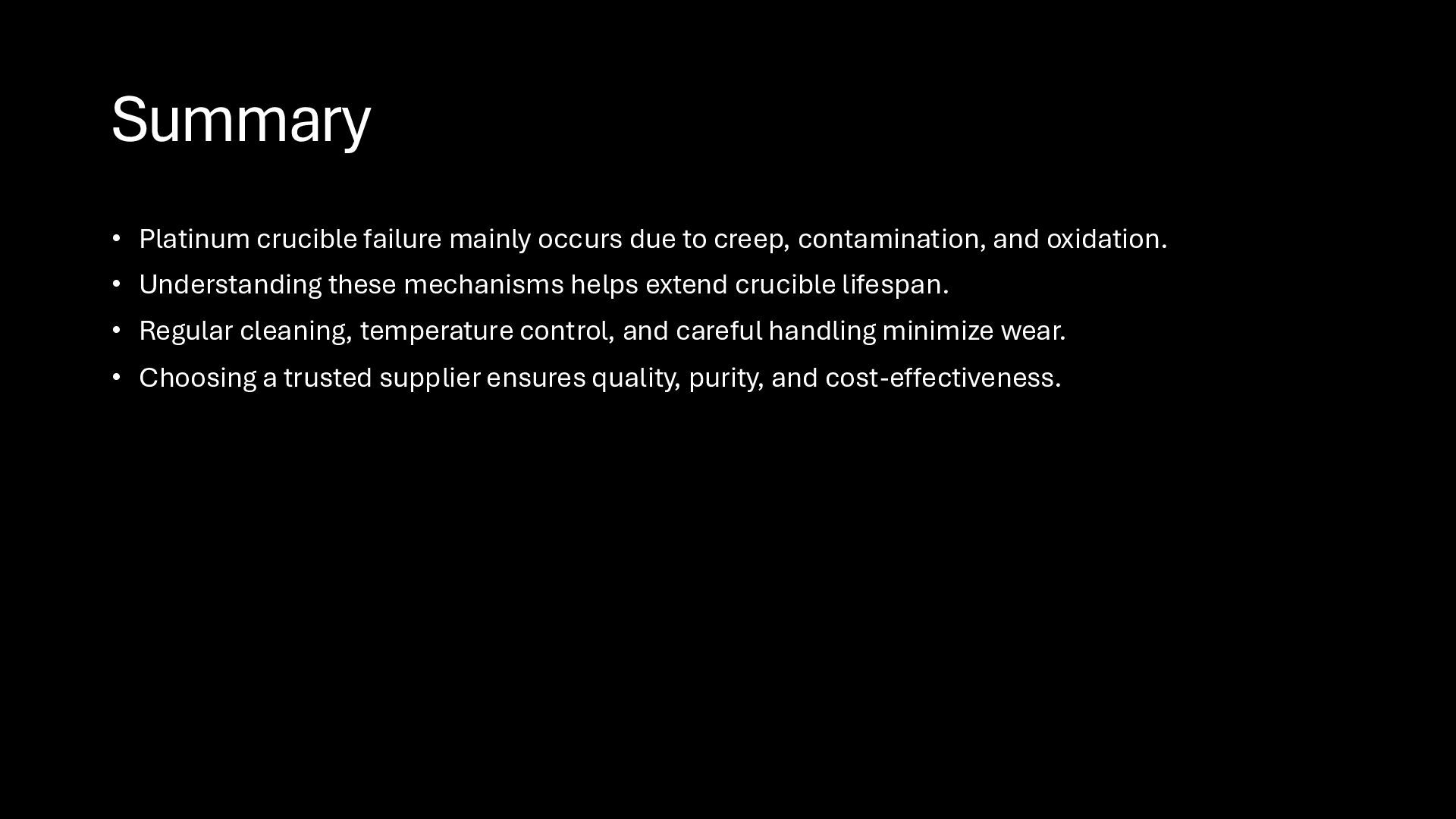

14. Summary • Platinum crucible failure mainly occurs due to creep, contamination, and oxidation. • Understanding these mechanisms helps extend crucible lifespan. • Regular cleaning, temperature control, and careful handling minimize wear. • Choosing a trusted supplier ensures quality, purity, and cost-effectiveness.

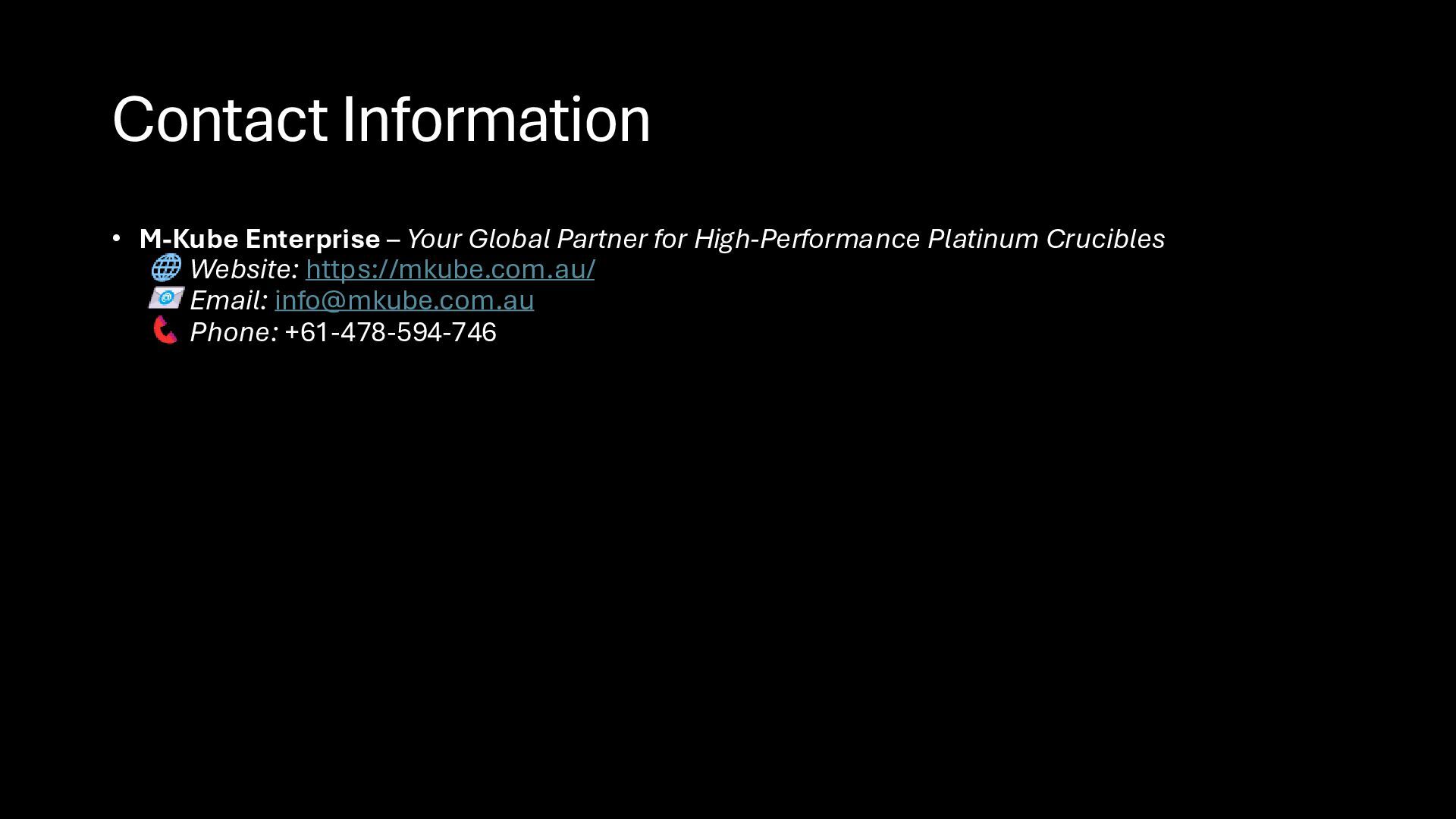

15. Contact Information • M-Kube Enterprise – Your Global Partner for High-Performance Platinum Crucibles Website: https://mkube.com.au/ Email: info@mkube.com.au Phone: +61-478-594-746
