Surface Modification of Titanium Rods for Enhanced Bone Integration

Learn how advanced surface modification techniques on titanium rods improve bone integration in orthopedic implants. This presentation covers micro-texturing, coatings, and bioactive layers that boost osseointegration, stability, and long-term implant performance.

Transcript

1. Surface Modification of Titanium Rods for Enhanced Bone Integration Submitted by: M-Kube Enterprise Pty Ltd

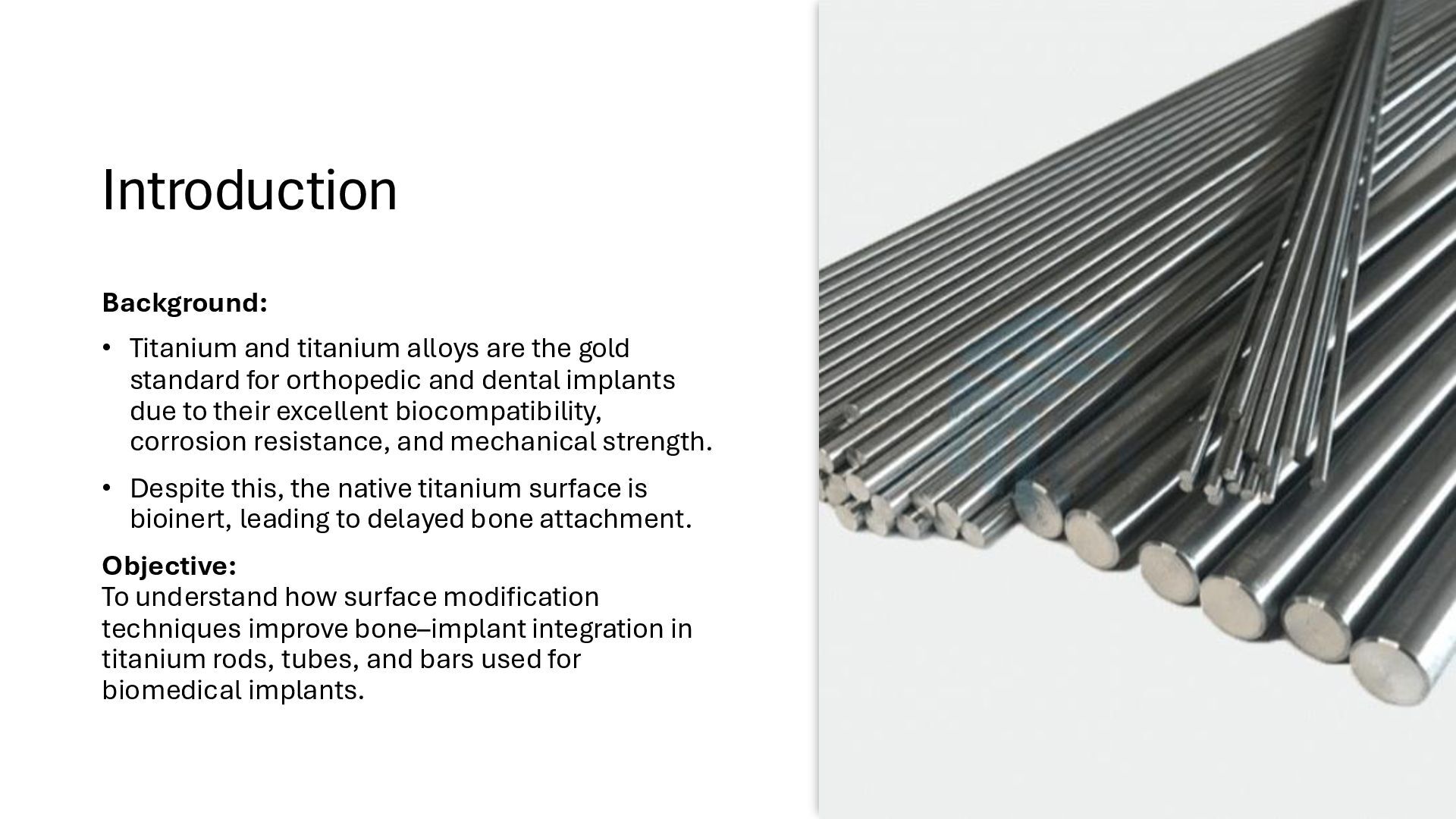

2. Introduction Background: • Titanium and titanium alloys are the gold standard for orthopedic and dental implants due to their excellent biocompatibility, corrosion resistance, and mechanical strength. • Despite this, the native titanium surface is bioinert, leading to delayed bone attachment. Objective: To understand how surface modification techniques improve bone–implant integration in titanium rods, tubes, and bars used for biomedical implants.

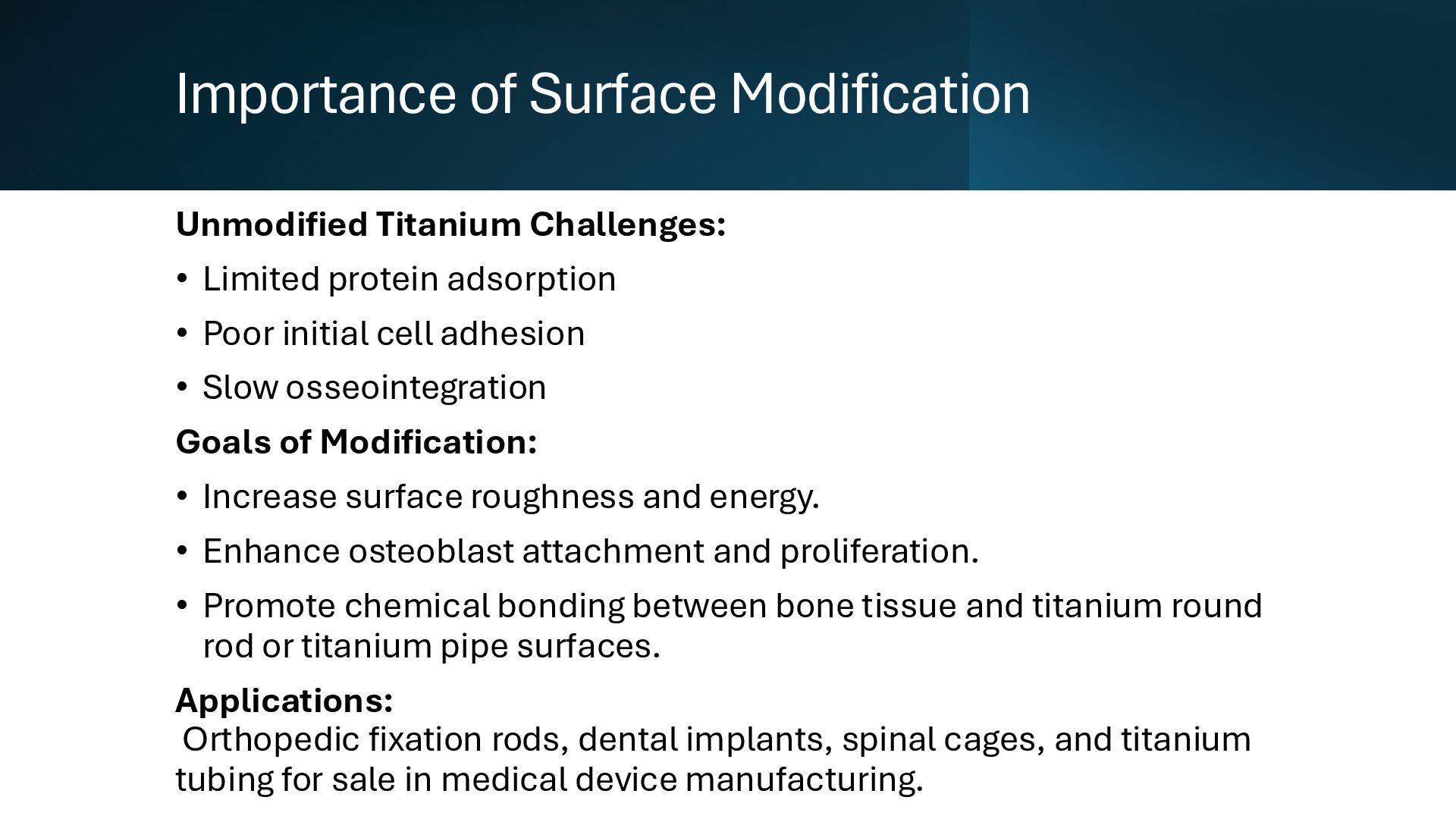

3. Importance of Surface Modification Unmodified Titanium Challenges: • Limited protein adsorption • Poor initial cell adhesion • Slow osseointegration Goals of Modification: • Increase surface roughness and energy. • Enhance osteoblast attachment and proliferation. • Promote chemical bonding between bone tissue and titanium round rod or titanium pipe surfaces. Applications: Orthopedic fixation rods, dental implants, spinal cages, and titanium tubing for sale in medical device manufacturing.

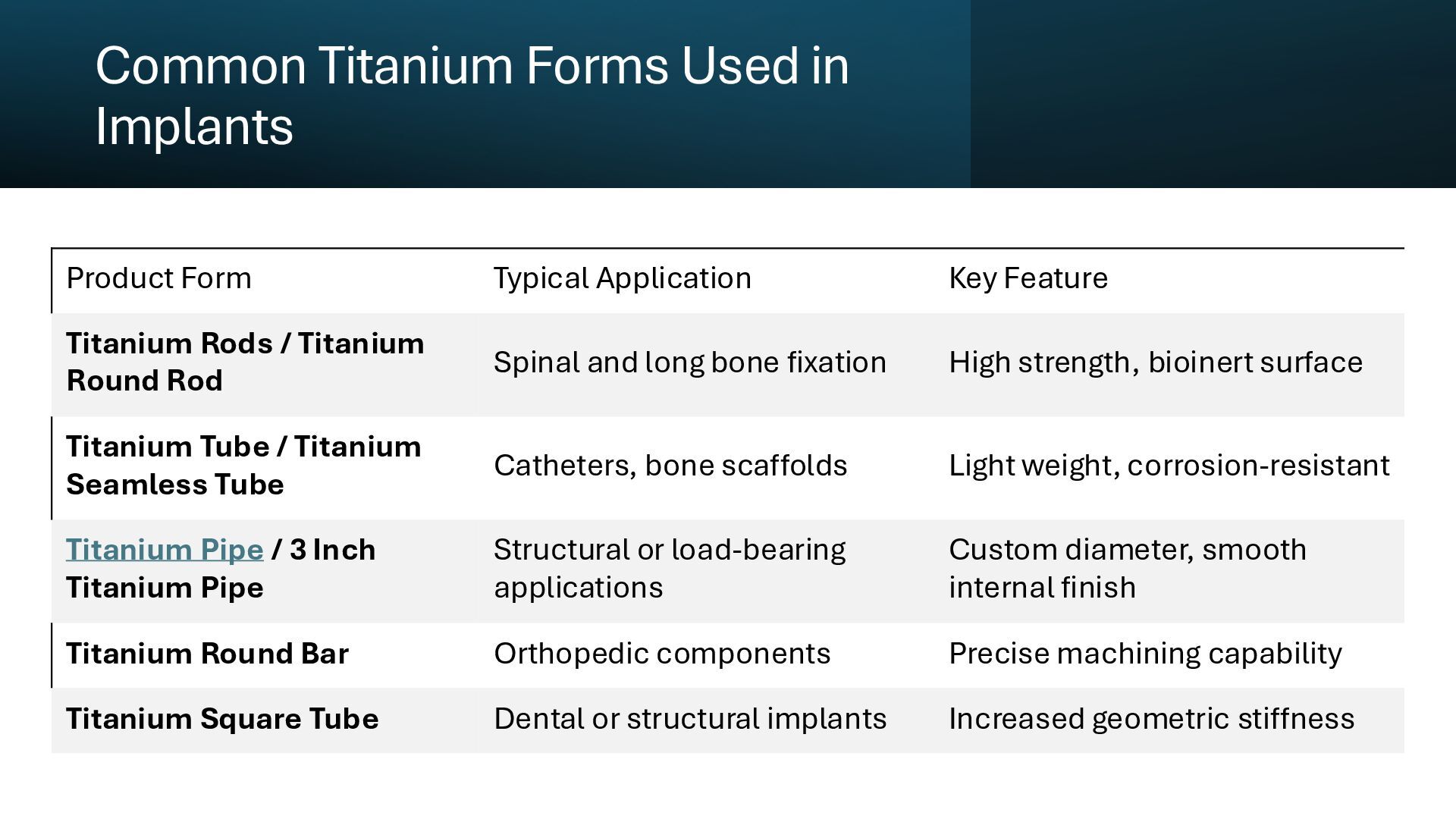

4. Common Titanium Forms Used in Implants Product Form Typical Application Key Feature Titanium Rods / Titanium Round Rod Spinal and long bone fixation High strength, bioinert surface Titanium Tube / Titanium Seamless Tube Catheters, bone scaffolds Light weight, corrosion-resistant Titanium Pipe / 3 Inch Titanium Pipe Structural or load-bearing applications Custom diameter, smooth internal finish Titanium Round Bar Orthopedic components Precise machining capability Titanium Square Tube Dental or structural implants Increased geometric stiffness

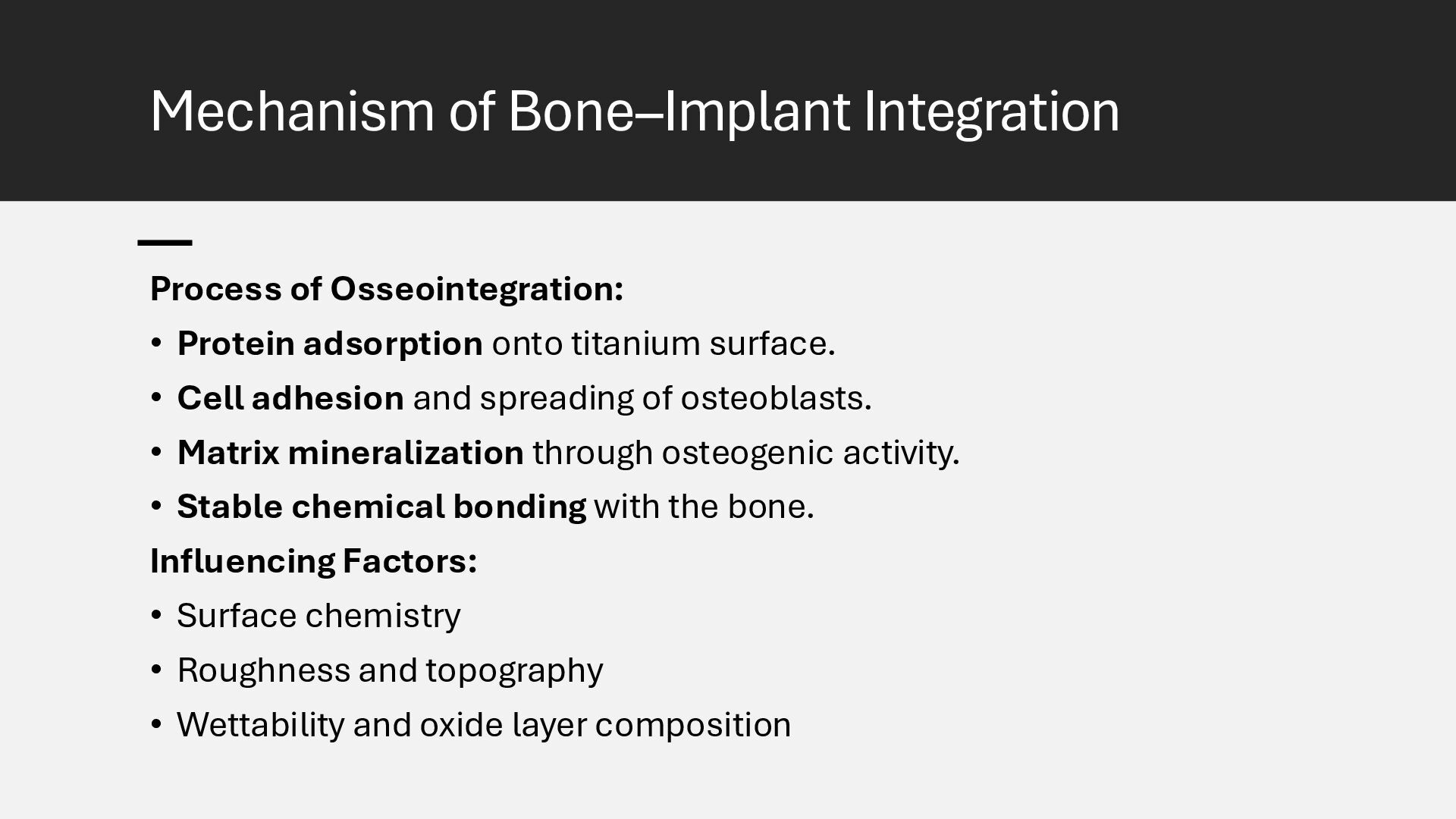

5. Mechanism of Bone–Implant Integration Process of Osseointegration: • Protein adsorption onto titanium surface. • Cell adhesion and spreading of osteoblasts. • Matrix mineralization through osteogenic activity. • Stable chemical bonding with the bone. Influencing Factors: • Surface chemistry • Roughness and topography • Wettability and oxide layer composition

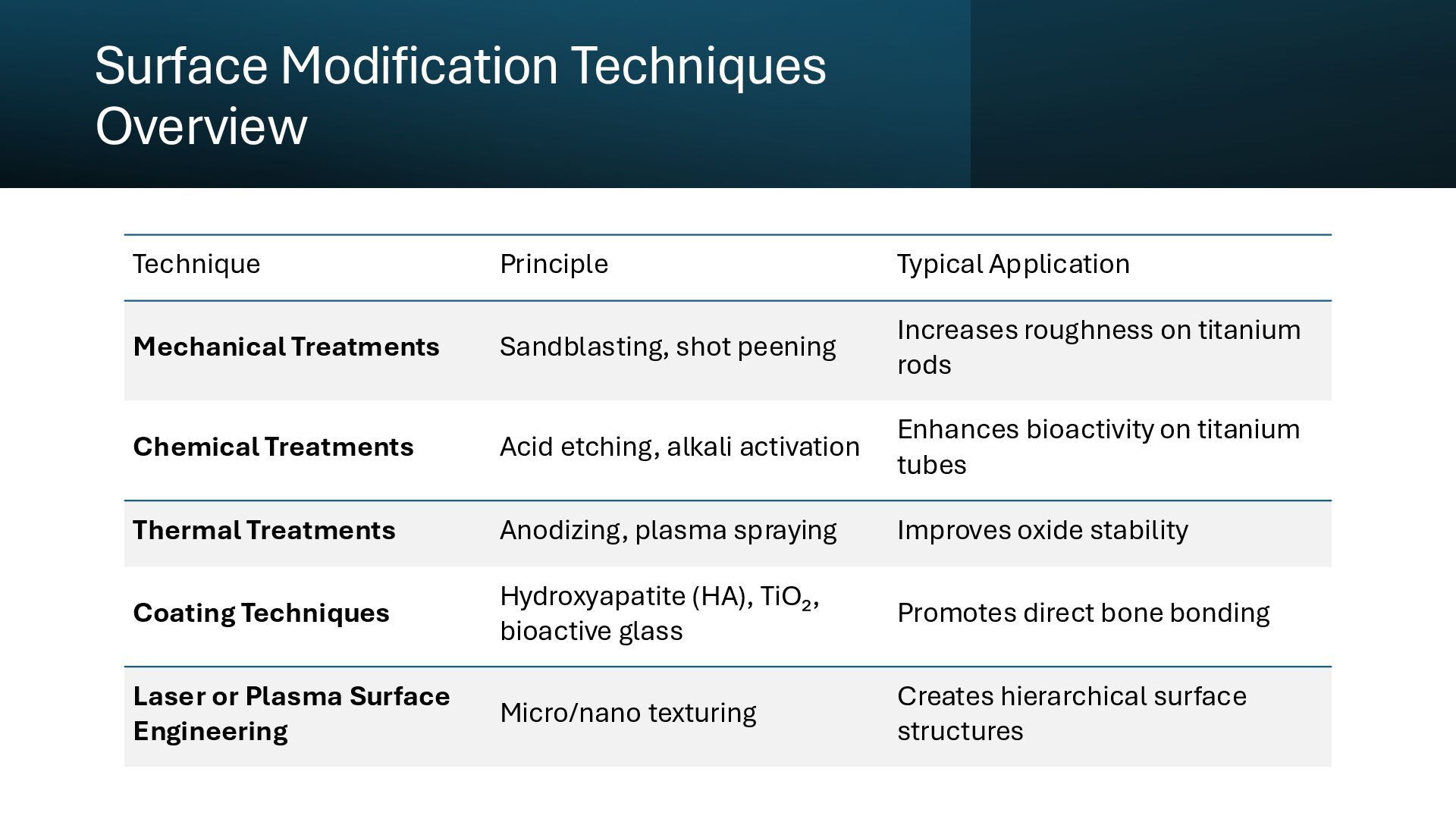

6. Surface Modification Techniques Overview Technique Principle Typical Application Mechanical Treatments Sandblasting, shot peening Increases roughness on titanium rods Chemical Treatments Acid etching, alkali activation Enhances bioactivity on titanium tubes Thermal Treatments Anodizing, plasma spraying Improves oxide stability Coating Techniques Hydroxyapatite (HA), TiO₂, bioactive glass Promotes direct bone bonding Laser or Plasma Surface Engineering Micro/nano texturing Creates hierarchical surface structures

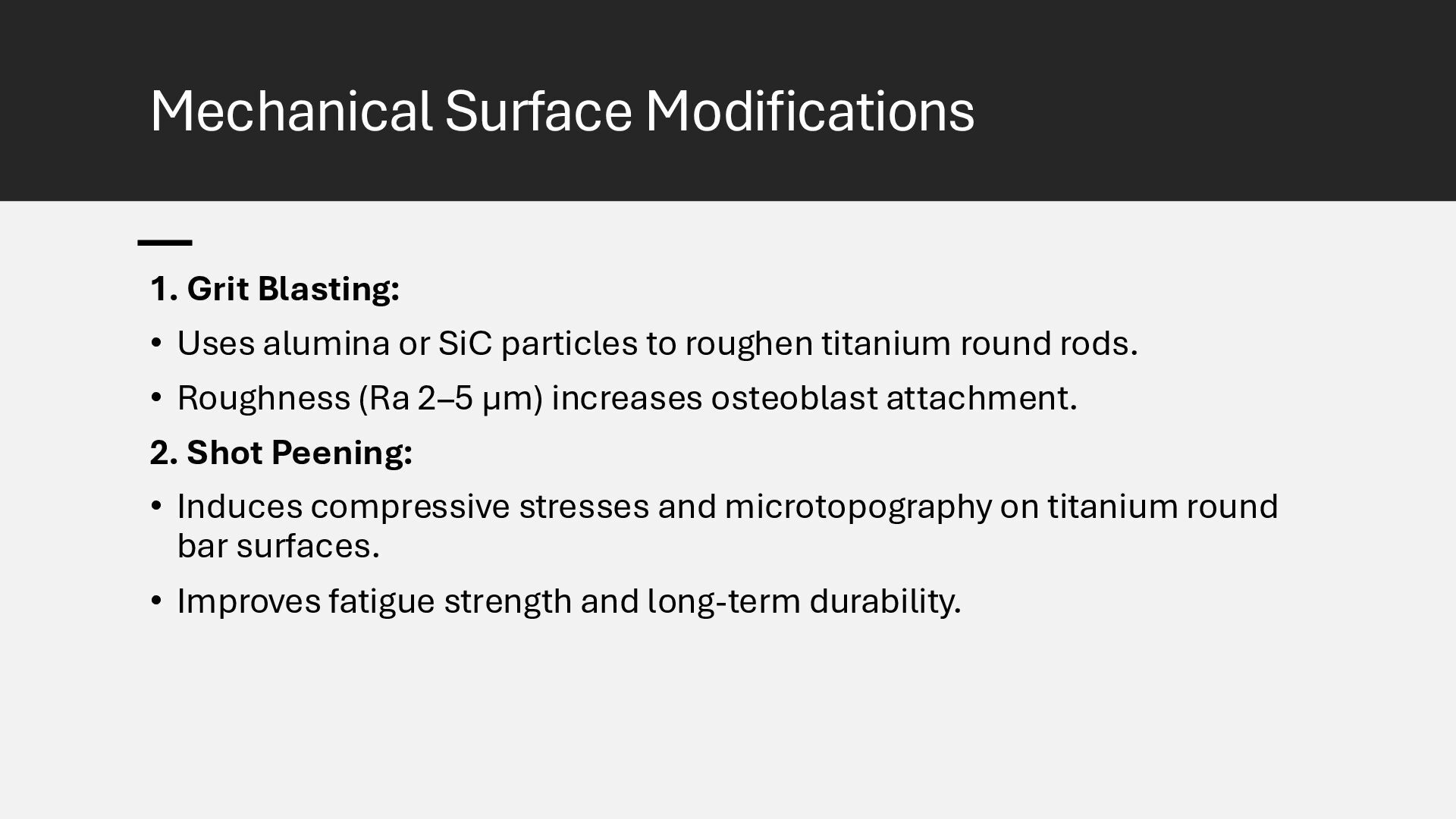

7. Mechanical Surface Modifications 1. Grit Blasting: • Uses alumina or SiC particles to roughen titanium round rods. • Roughness (Ra 2–5 µm) increases osteoblast attachment. 2. Shot Peening: • Induces compressive stresses and microtopography on titanium round bar surfaces. • Improves fatigue strength and long-term durability.

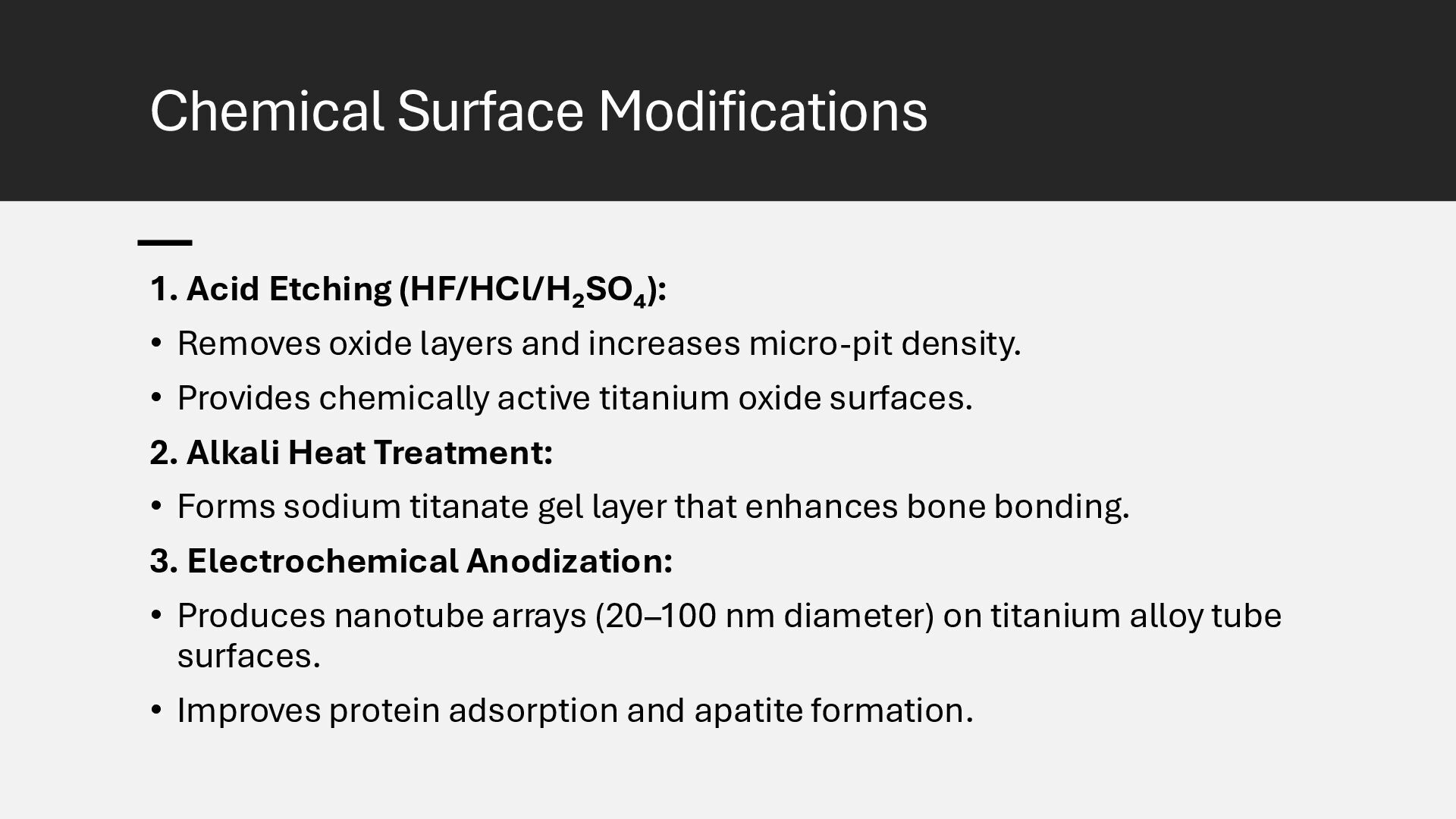

8. Chemical Surface Modifications 1. Acid Etching (HF/HCl/H₂SO₄): • Removes oxide layers and increases micro-pit density. • Provides chemically active titanium oxide surfaces. 2. Alkali Heat Treatment: • Forms sodium titanate gel layer that enhances bone bonding. 3. Electrochemical Anodization: • Produces nanotube arrays (20–100 nm diameter) on titanium alloy tube surfaces. • Improves protein adsorption and apatite formation.

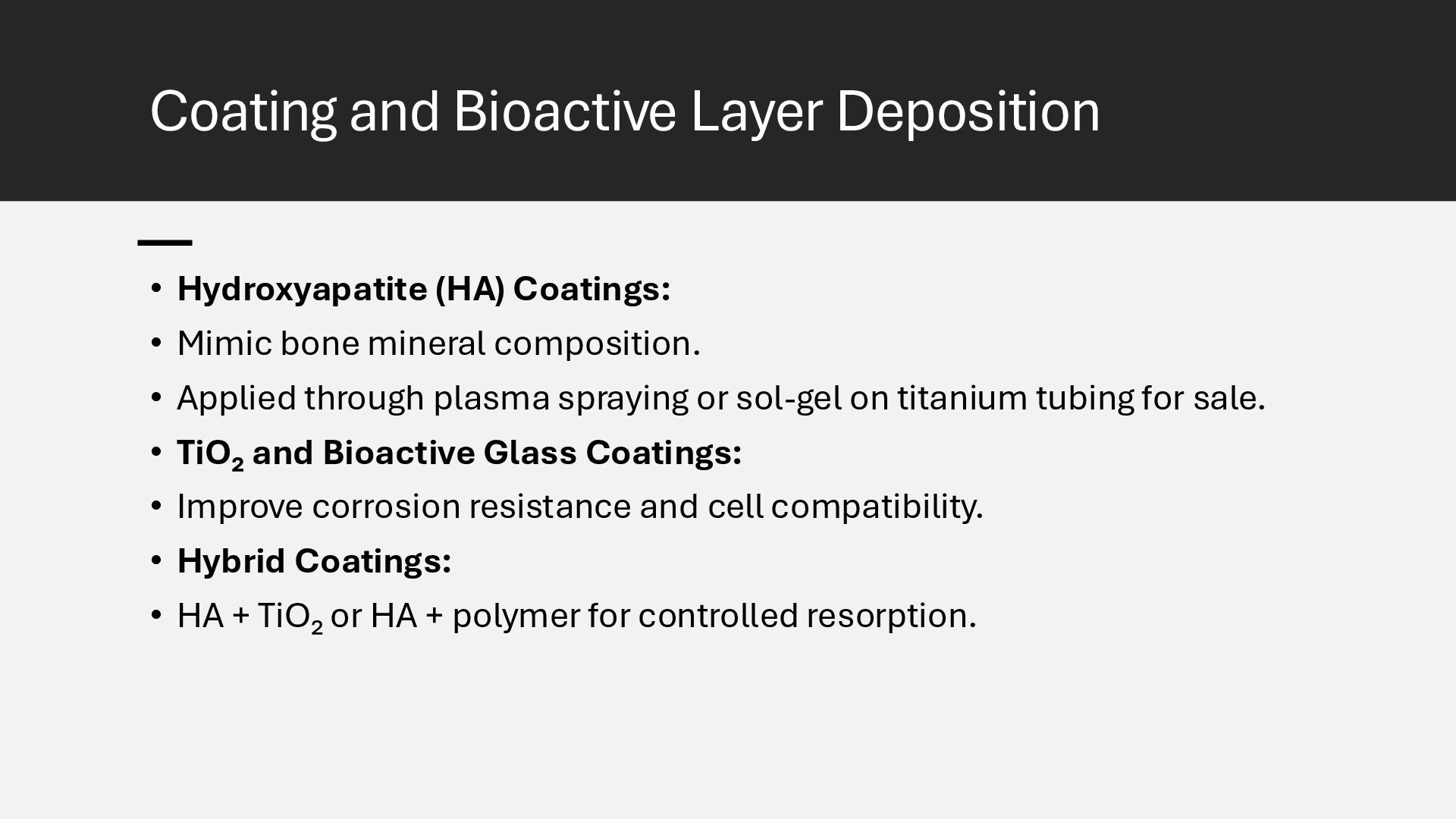

9. Coating and Bioactive Layer Deposition • Hydroxyapatite (HA) Coatings: • Mimic bone mineral composition. • Applied through plasma spraying or sol-gel on titanium tubing for sale. • TiO₂ and Bioactive Glass Coatings: • Improve corrosion resistance and cell compatibility. • Hybrid Coatings: • HA + TiO₂ or HA + polymer for controlled resorption.

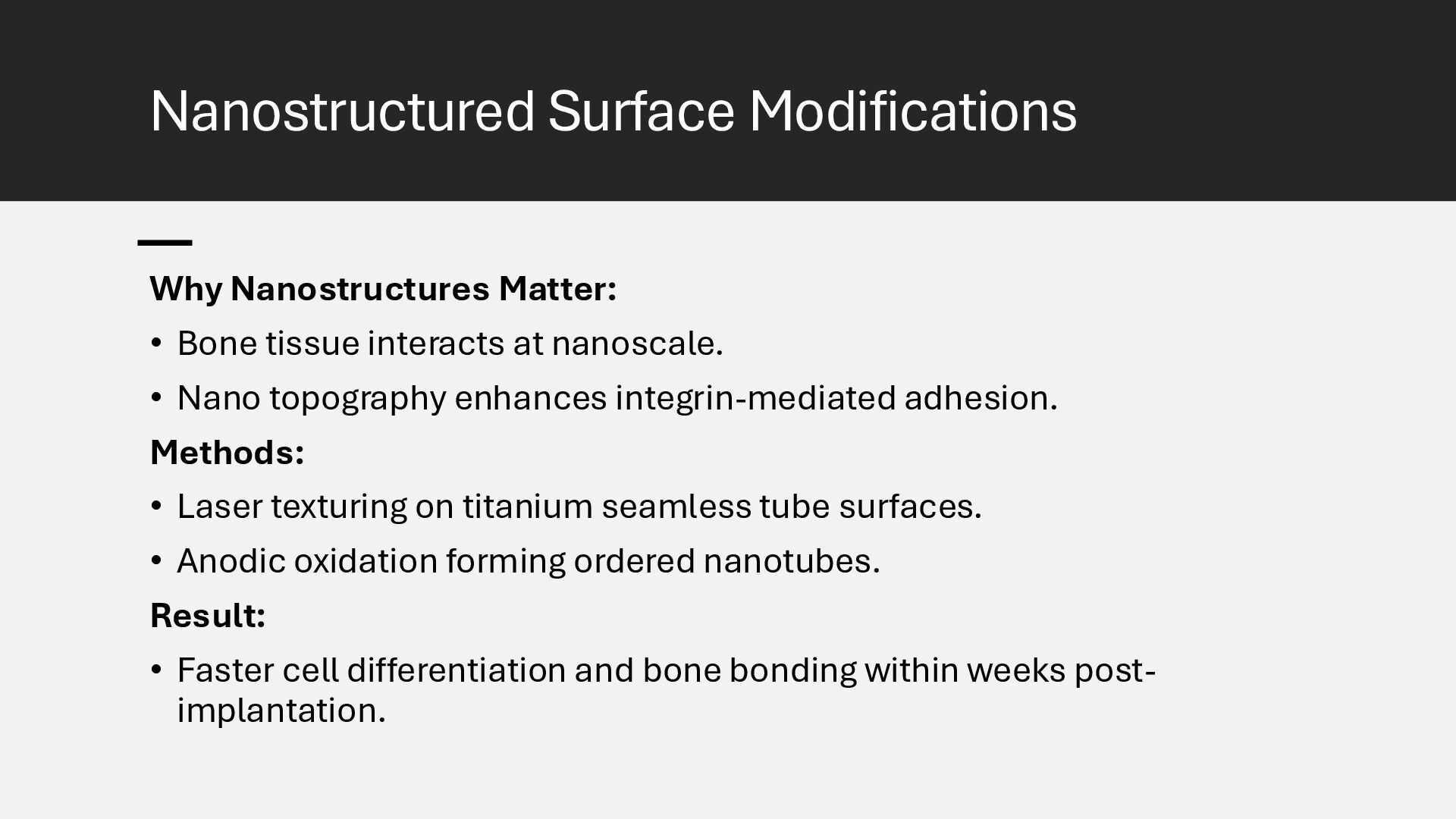

10. Nanostructured Surface Modifications Why Nanostructures Matter: • Bone tissue interacts at nanoscale. • Nano topography enhances integrin-mediated adhesion. Methods: • Laser texturing on titanium seamless tube surfaces. • Anodic oxidation forming ordered nanotubes. Result: • Faster cell differentiation and bone bonding within weeks post- implantation.

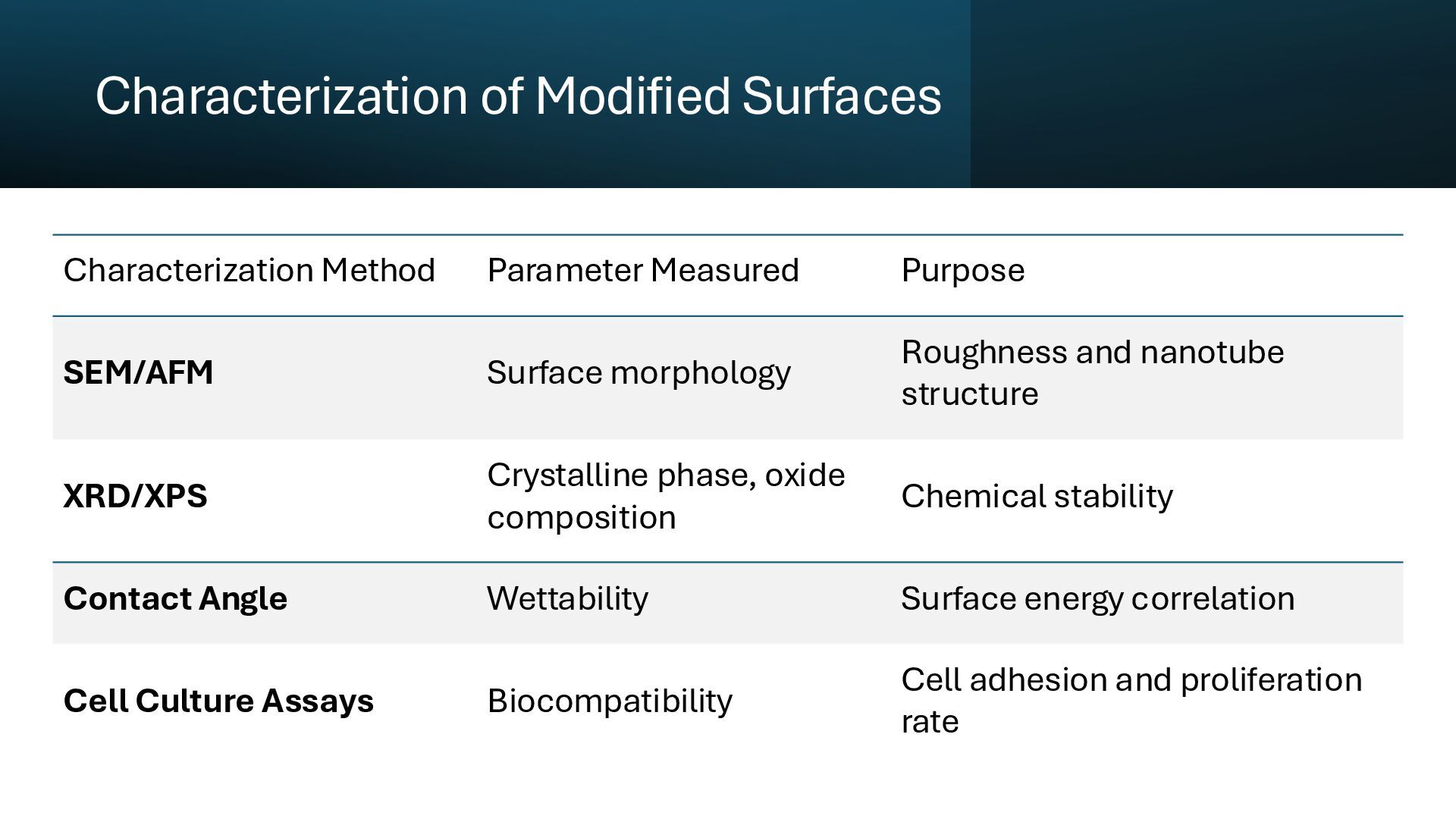

11. Characterization of Modified Surfaces Characterization Method Parameter Measured Purpose SEM/AFM Surface morphology Roughness and nanotube structure XRD/XPS Crystalline phase, oxide composition Chemical stability Contact Angle Wettability Surface energy correlation Cell Culture Assays Biocompatibility Cell adhesion and proliferation rate

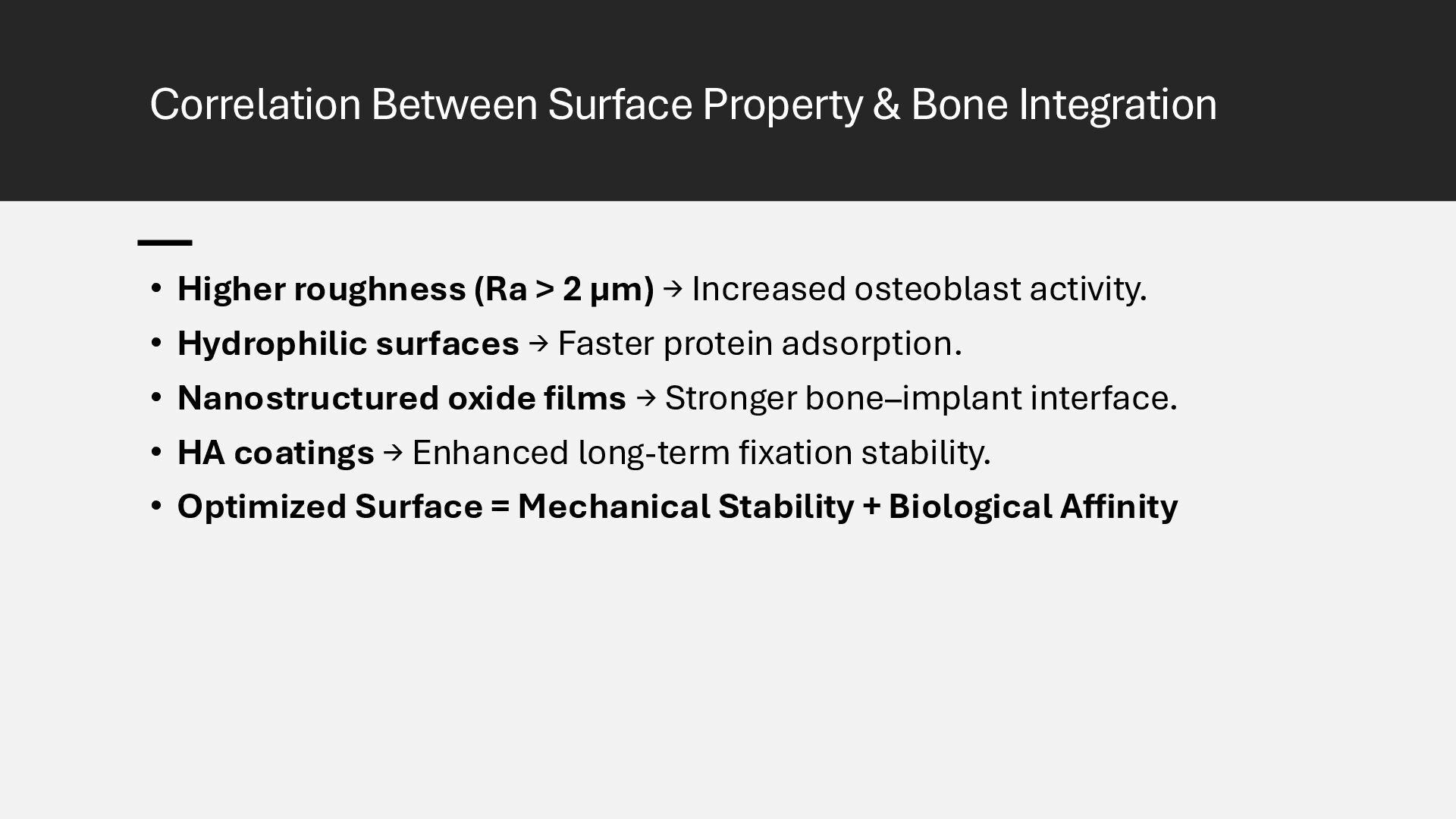

12. Correlation Between Surface Property & Bone Integration • Higher roughness (Ra > 2 µm) → Increased osteoblast activity. • Hydrophilic surfaces → Faster protein adsorption. • Nanostructured oxide films → Stronger bone–implant interface. • HA coatings → Enhanced long-term fixation stability. • Optimized Surface = Mechanical Stability + Biological Affinity

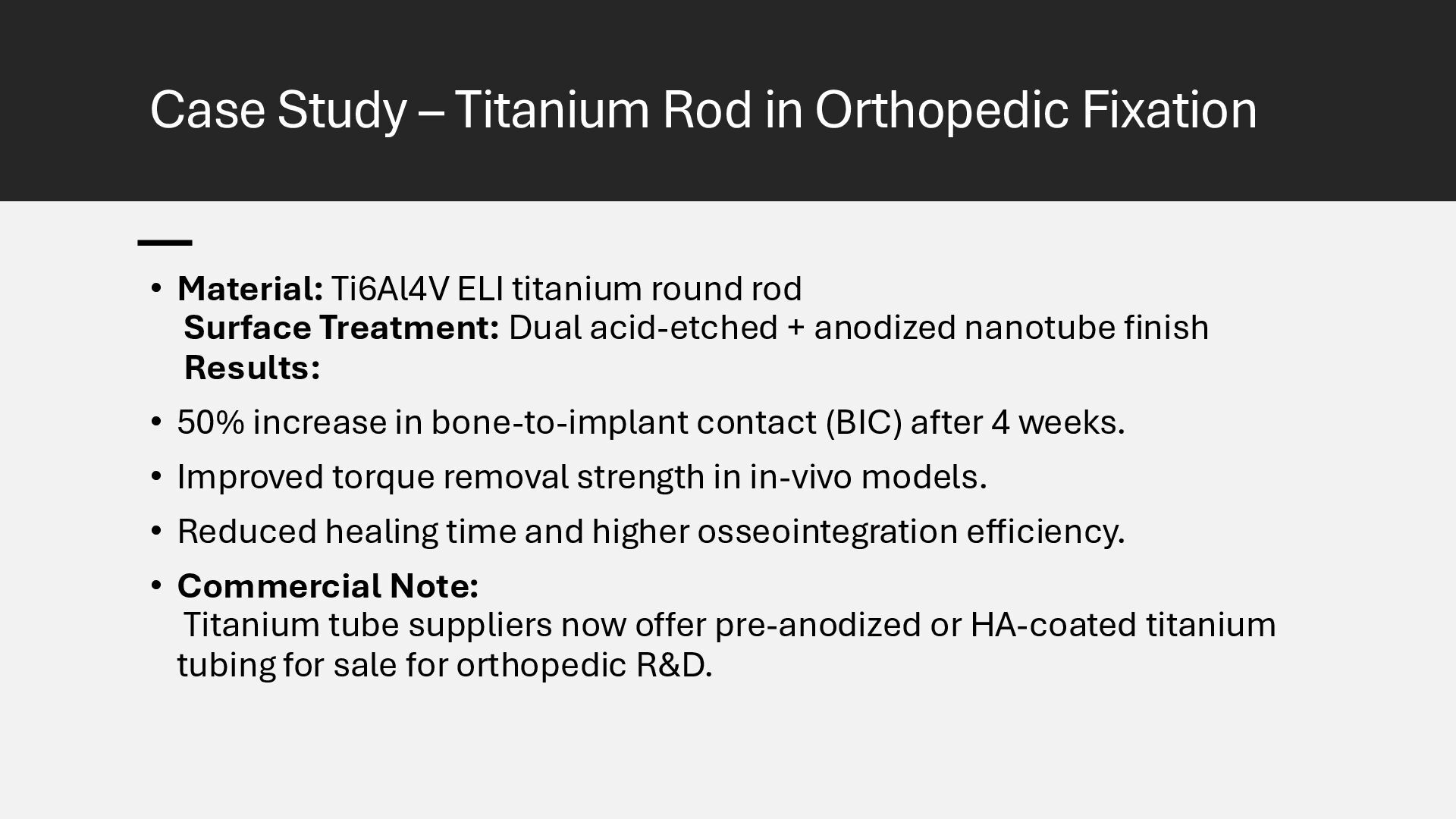

13. Case Study – Titanium Rod in Orthopedic Fixation • Material: Ti6Al4V ELI titanium round rod Surface Treatment: Dual acid-etched + anodized nanotube finish Results: • 50% increase in bone-to-implant contact (BIC) after 4 weeks. • Improved torque removal strength in in-vivo models. • Reduced healing time and higher osseointegration efficiency. • Commercial Note: Titanium tube suppliers now offer pre-anodized or HA-coated titanium tubing for sale for orthopedic R&D.

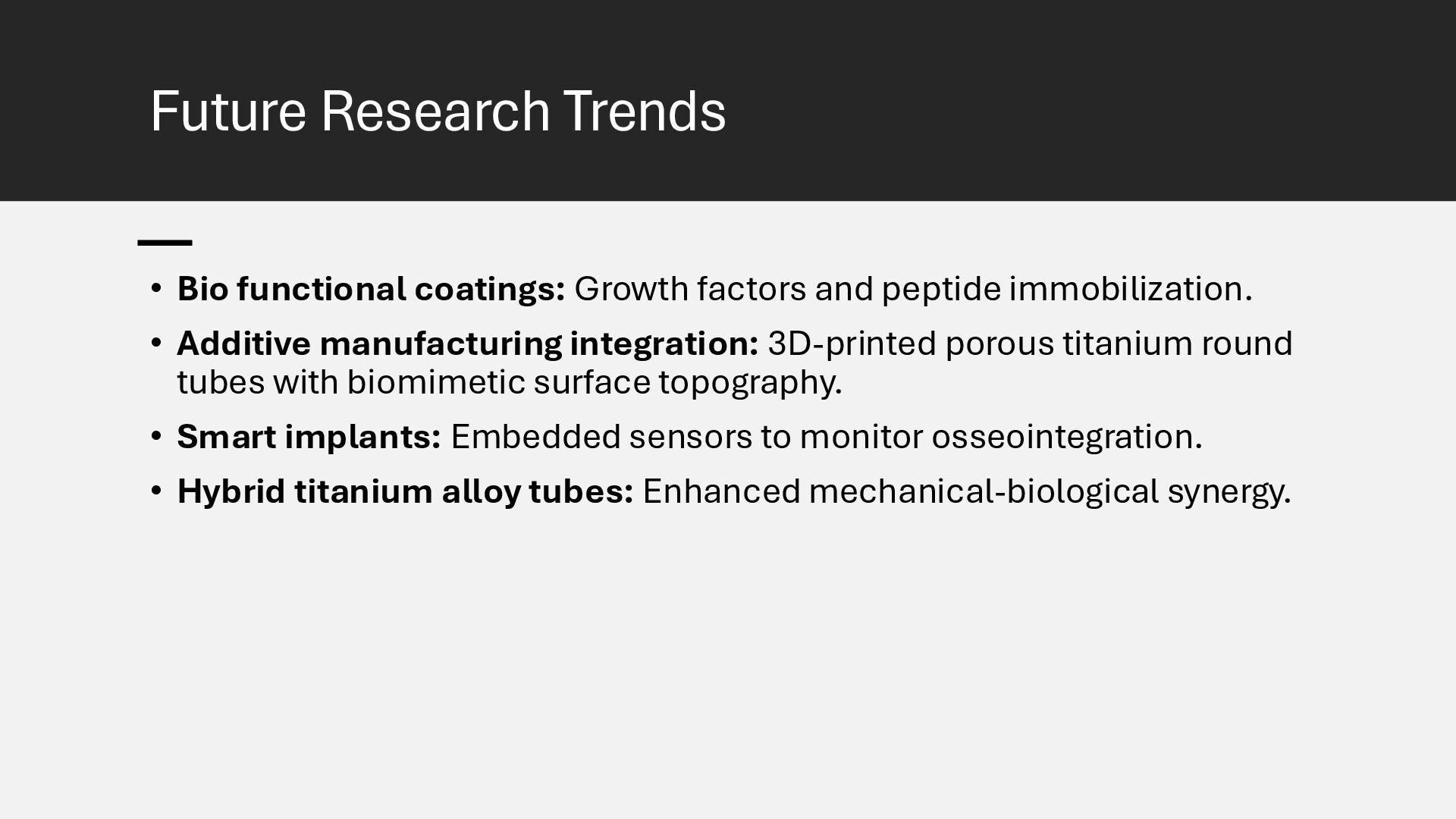

14. Future Research Trends • Bio functional coatings: Growth factors and peptide immobilization. • Additive manufacturing integration: 3D-printed porous titanium round tubes with biomimetic surface topography. • Smart implants: Embedded sensors to monitor osseointegration. • Hybrid titanium alloy tubes: Enhanced mechanical-biological synergy.

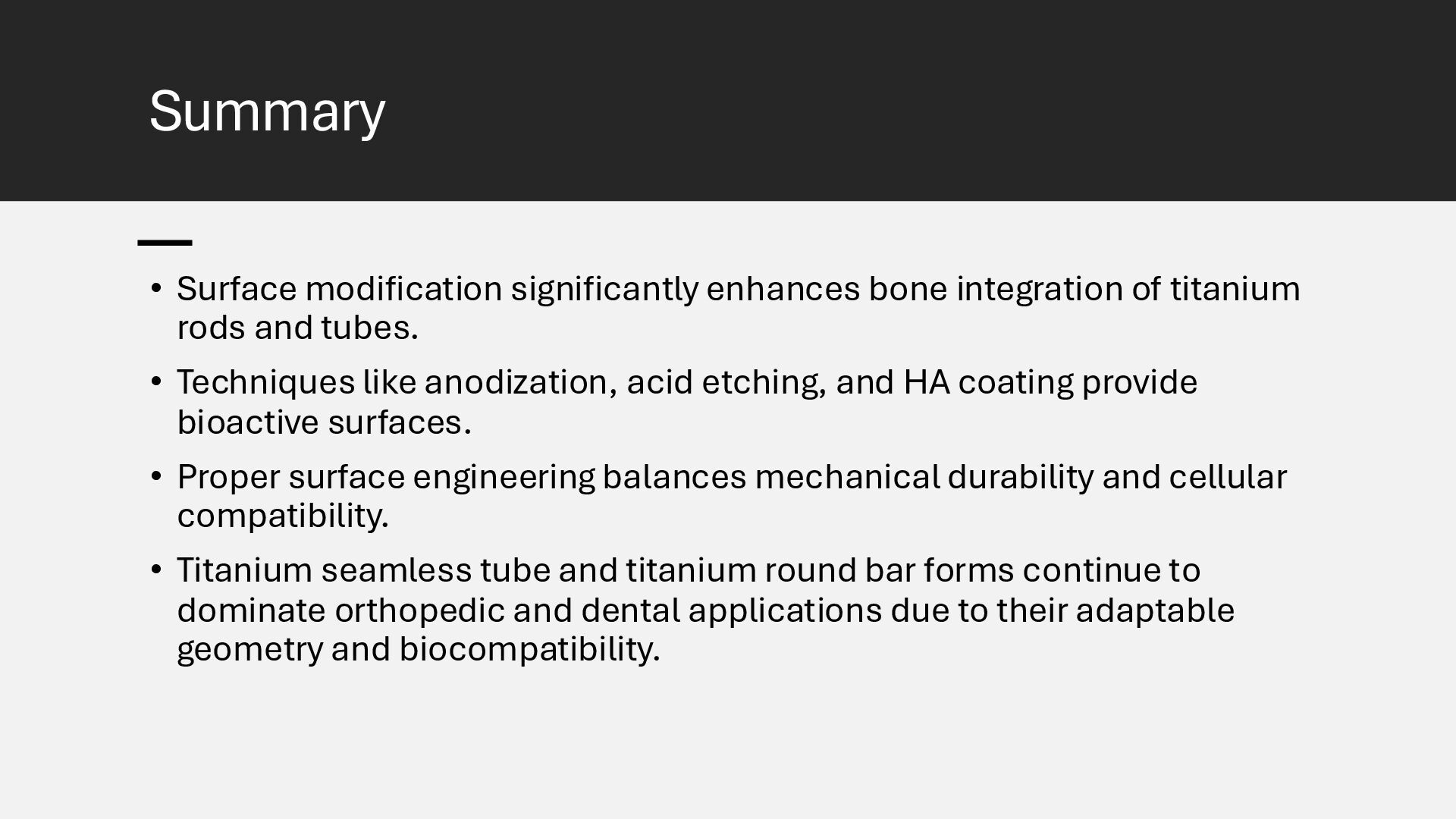

15. Summary • Surface modification significantly enhances bone integration of titanium rods and tubes. • Techniques like anodization, acid etching, and HA coating provide bioactive surfaces. • Proper surface engineering balances mechanical durability and cellular compatibility. • Titanium seamless tube and titanium round bar forms continue to dominate orthopedic and dental applications due to their adaptable geometry and biocompatibility.

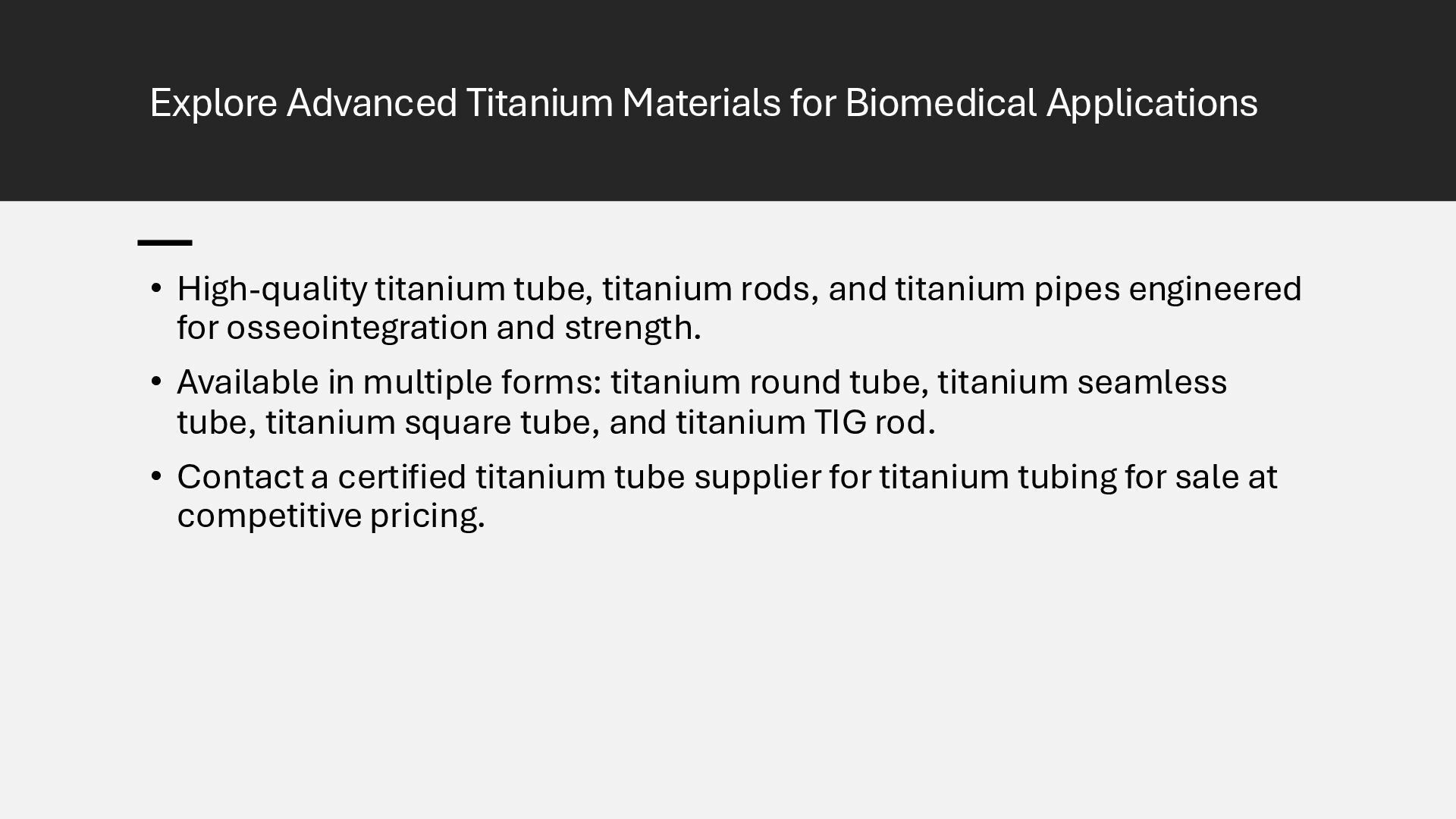

16. Explore Advanced Titanium Materials for Biomedical Applications • High-quality titanium tube, titanium rods, and titanium pipes engineered for osseointegration and strength. • Available in multiple forms: titanium round tube, titanium seamless tube, titanium square tube, and titanium TIG rod. • Contact a certified titanium tube supplier for titanium tubing for sale at competitive pricing.
