Access Control Management With Swift

Leverage the power of Swift to make your app better by controlling which resources can users access and what actions can they perform

Transcript

1. ACCESS CONTROL MANAGEMENT WITH SWIFT @mmabdellateef
2. USERS HAVE DIFFERENT SCOPES

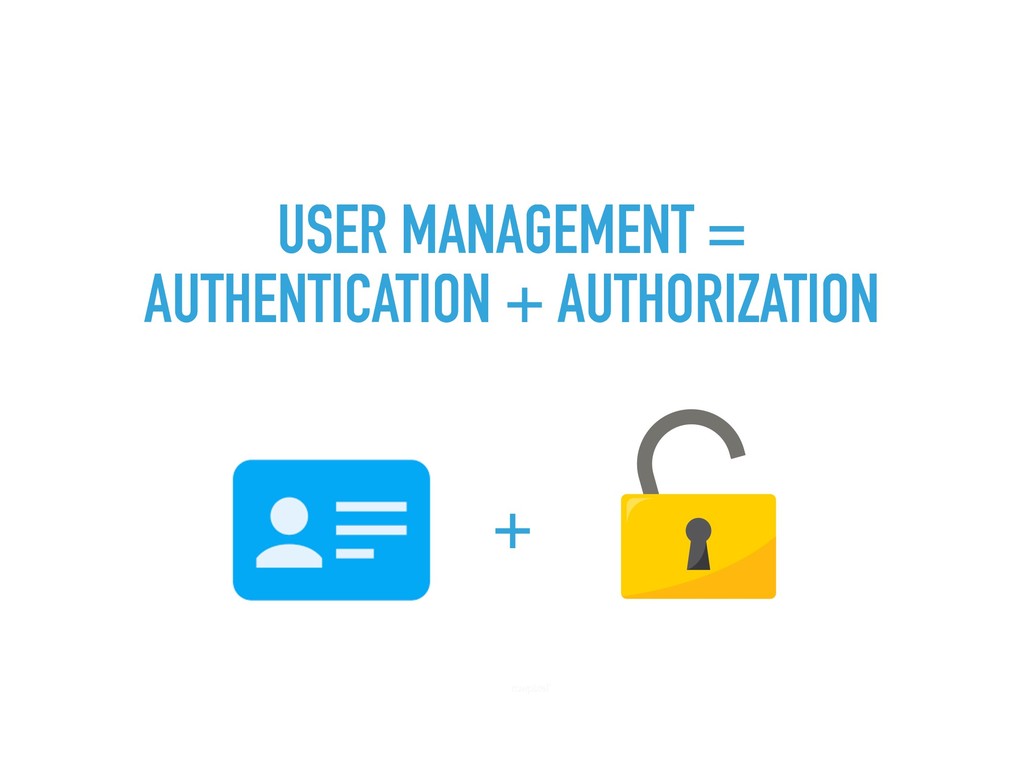

3. AUTHENTICATION + AUTHORIZATION + USER MANAGEMENT =

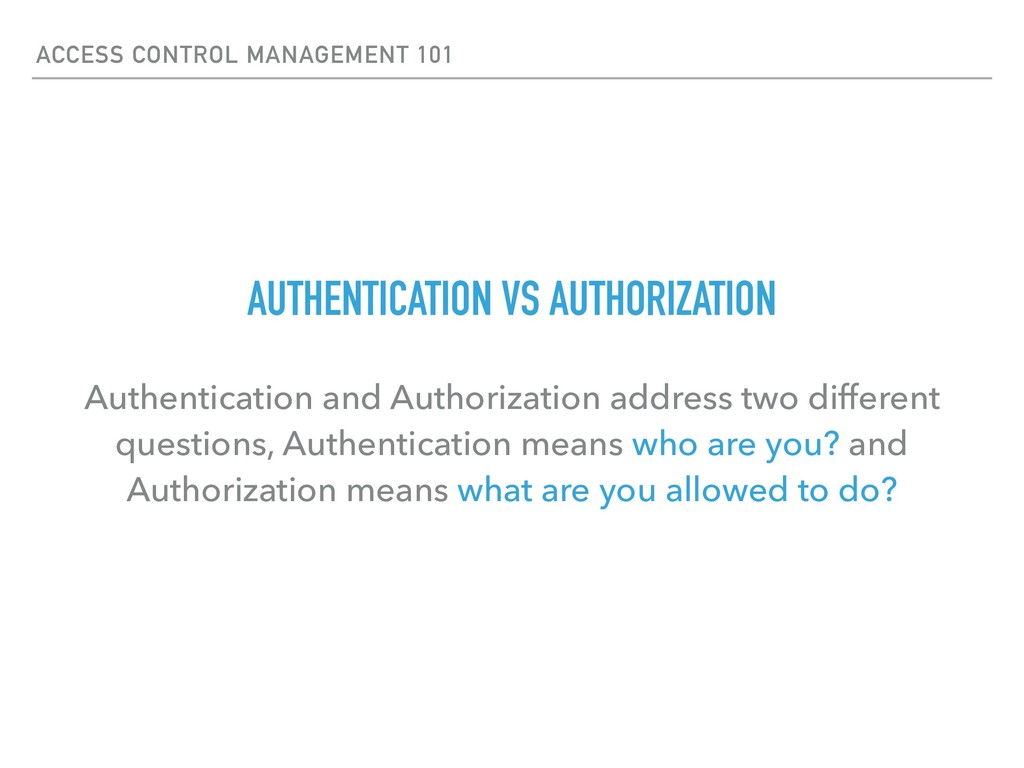

4. ACCESS CONTROL MANAGEMENT 101 AUTHENTICATION VS AUTHORIZATION Authentication and Authorization address two different questions, Authentication means who are you? and Authorization means what are you allowed to do?
5. LET’S BUILD AN IMAGINARY NEWS APP

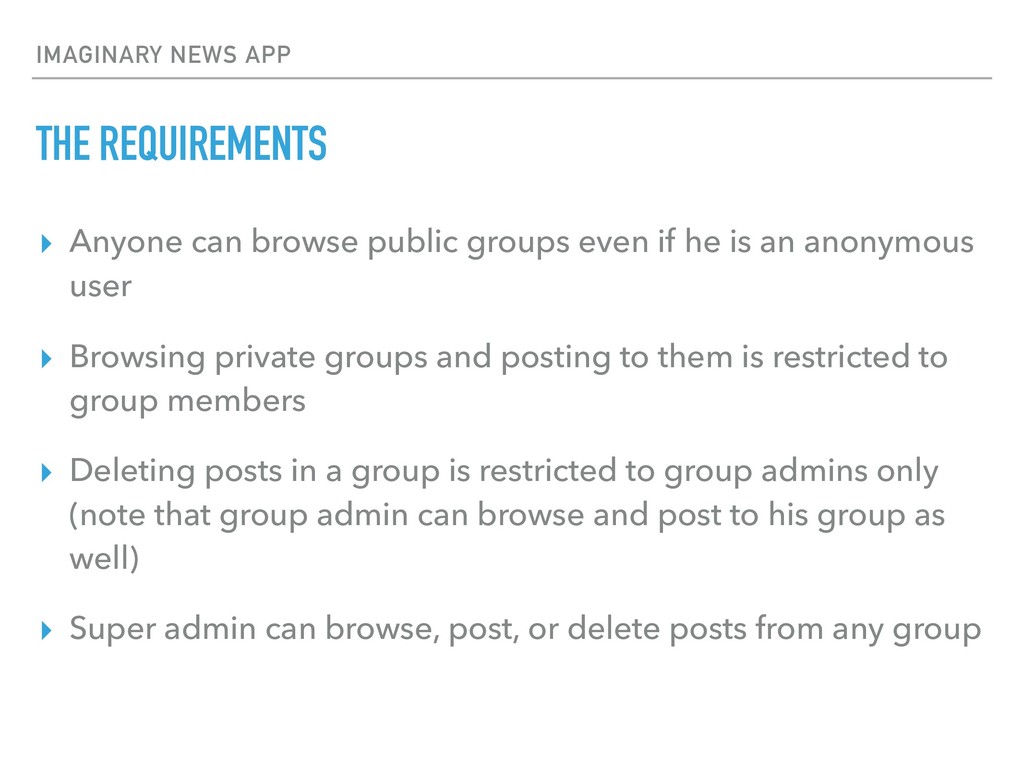

6. IMAGINARY NEWS APP THE REQUIREMENTS ▸ Anyone can browse public groups even if he is an anonymous user ▸ Browsing private groups and posting to them is restricted to group members ▸ Deleting posts in a group is restricted to group admins only (note that group admin can browse and post to his group as well) ▸ Super admin can browse, post, or delete posts from any group

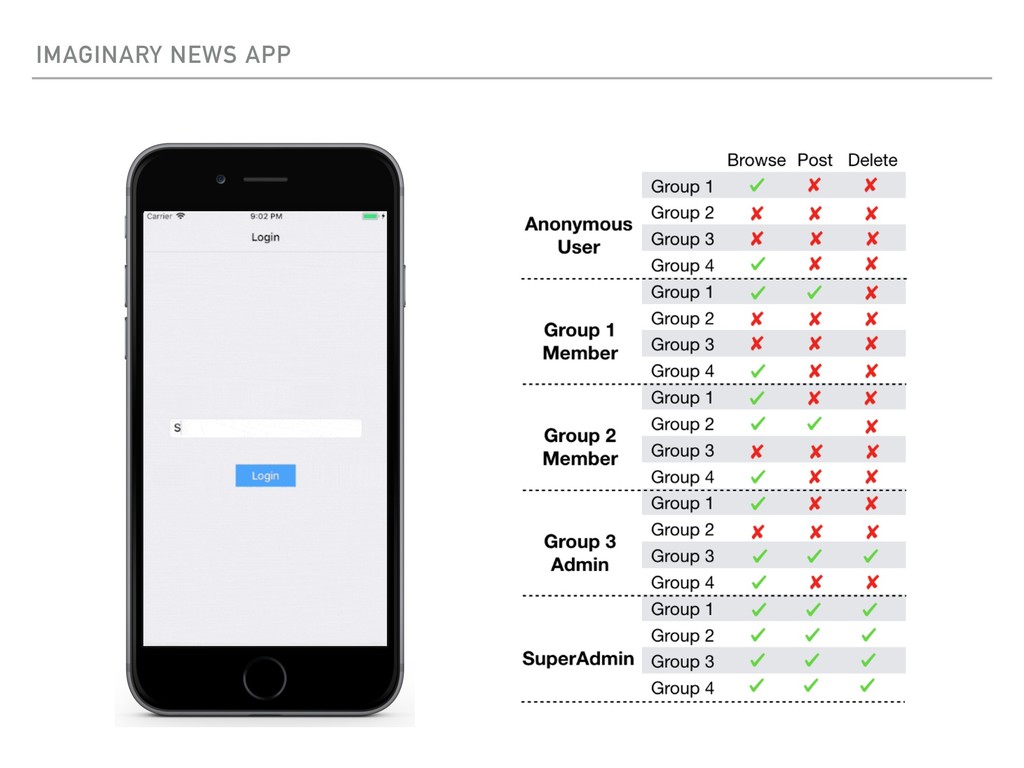

7. IMAGINARY NEWS APP

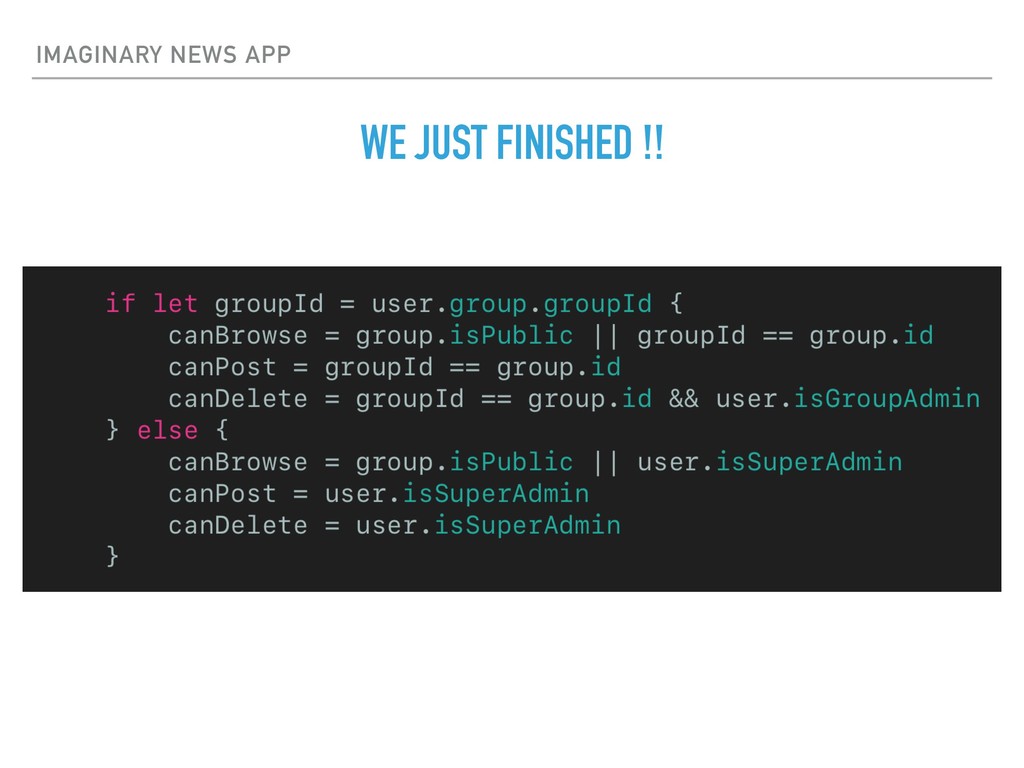

8. IMAGINARY NEWS APP WE JUST FINISHED !!
9. GREAT !! WE NEED TO ADD MORE RULES TO THE SYSTEM —World’s Best Boss
10. DESIGNING FOR CHANGE –Open/Closed Principle “software entities should be open for extension, but closed for modification”

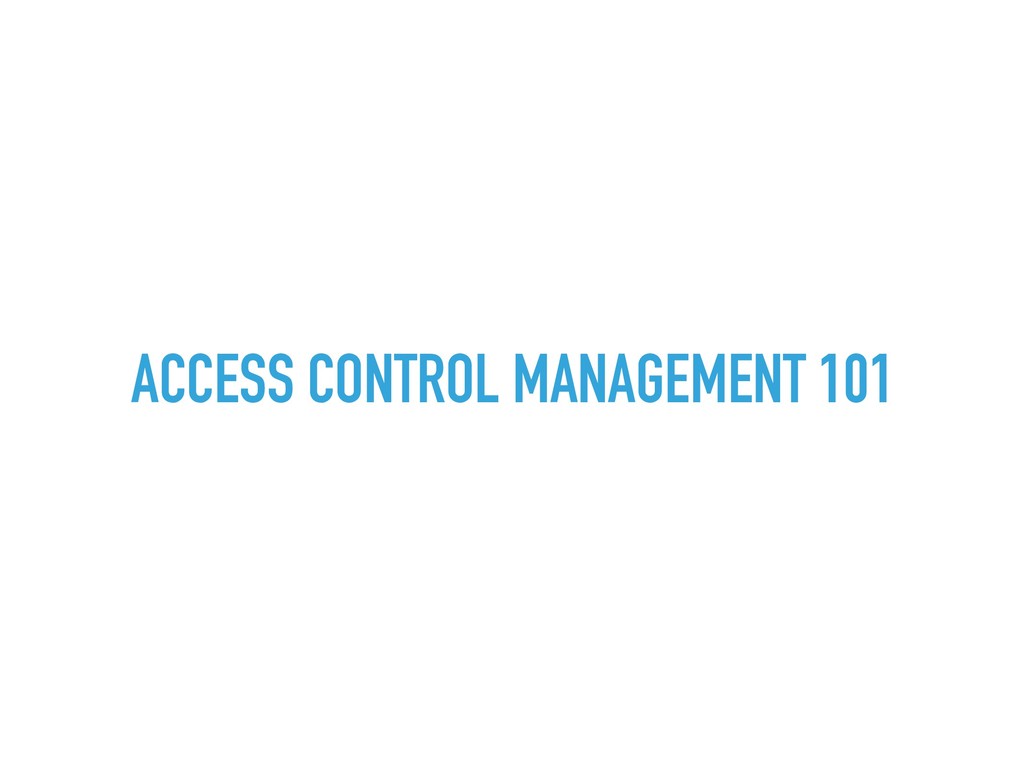

11. ACCESS CONTROL MANAGEMENT 101

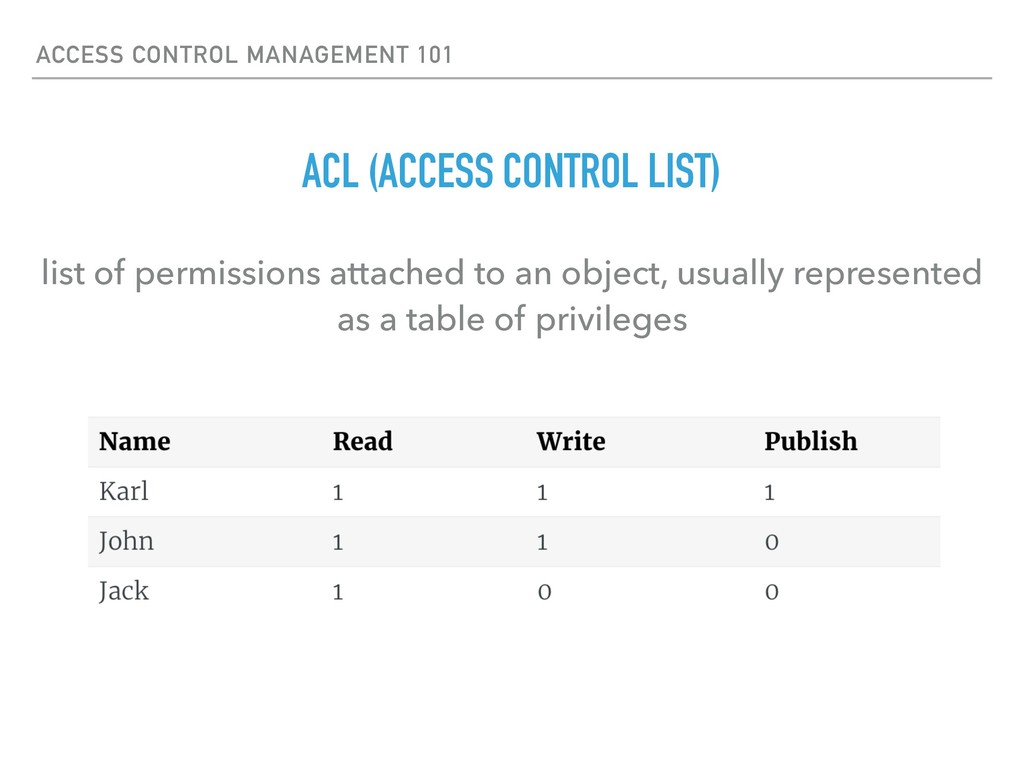

12. ACCESS CONTROL MANAGEMENT 101 ACL (ACCESS CONTROL LIST) list of permissions attached to an object, usually represented as a table of privileges

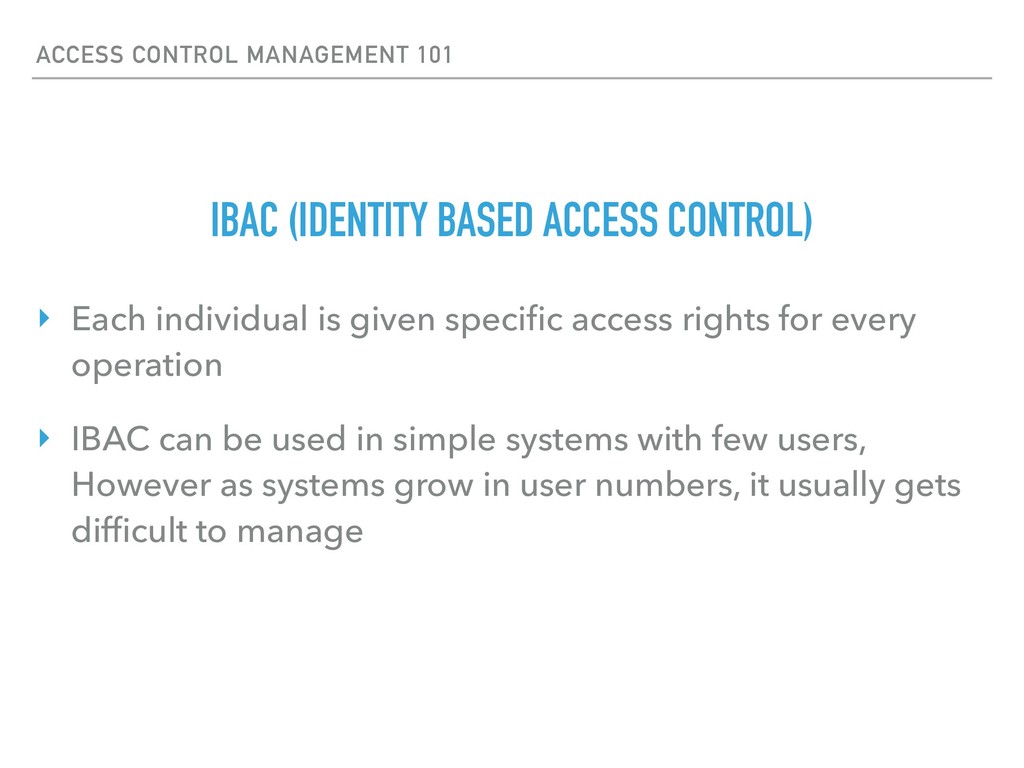

13. ACCESS CONTROL MANAGEMENT 101 IBAC (IDENTITY BASED ACCESS CONTROL) ‣ Each individual is given specific access rights for every operation ‣ IBAC can be used in simple systems with few users, However as systems grow in user numbers, it usually gets difficult to manage

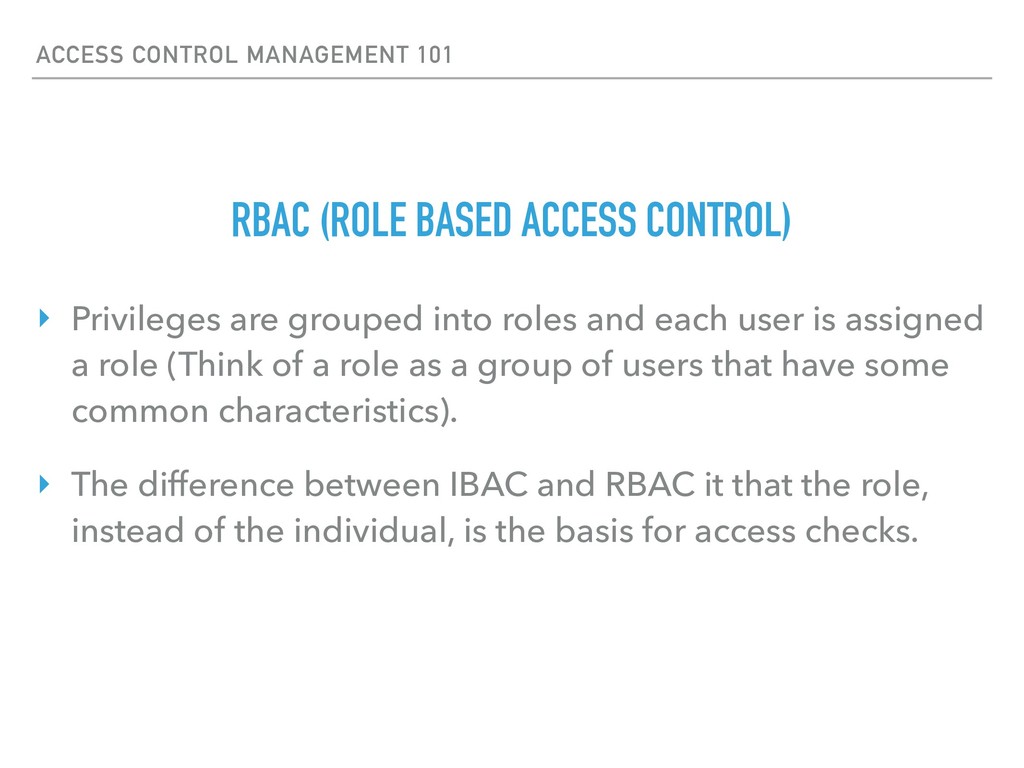

14. ACCESS CONTROL MANAGEMENT 101 RBAC (ROLE BASED ACCESS CONTROL) ‣ Privileges are grouped into roles and each user is assigned a role (Think of a role as a group of users that have some common characteristics). ‣ The difference between IBAC and RBAC it that the role, instead of the individual, is the basis for access checks.

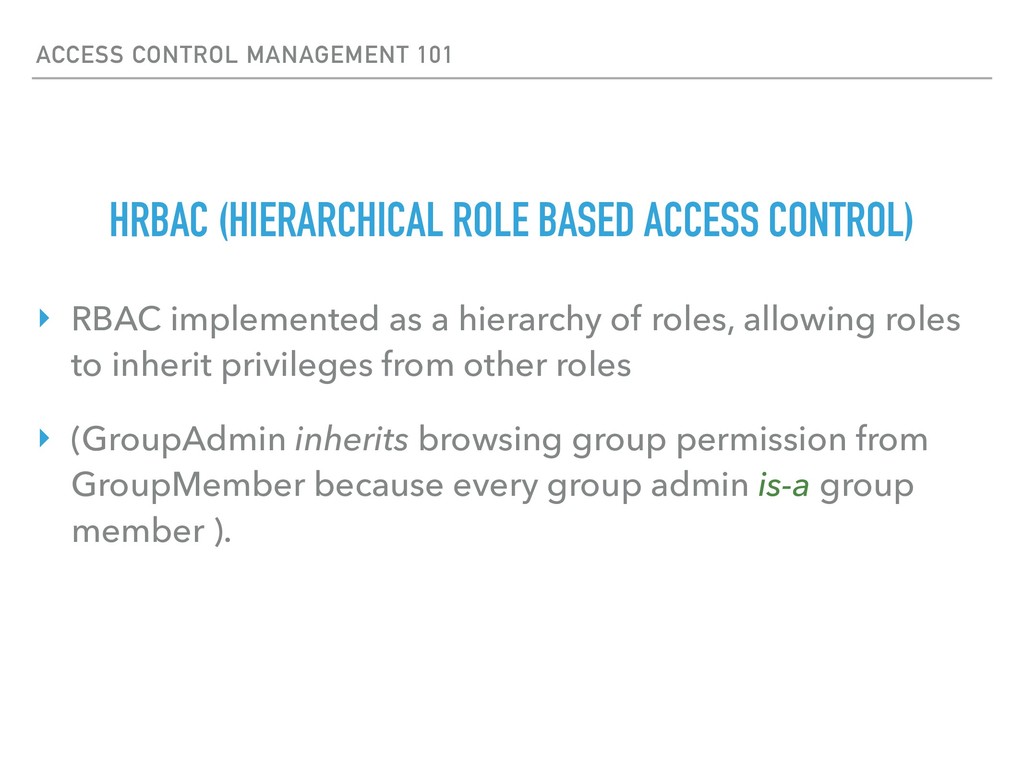

15. ACCESS CONTROL MANAGEMENT 101 HRBAC (HIERARCHICAL ROLE BASED ACCESS CONTROL) ‣ RBAC implemented as a hierarchy of roles, allowing roles to inherit privileges from other roles ‣ (GroupAdmin inherits browsing group permission from GroupMember because every group admin is-a group member ).

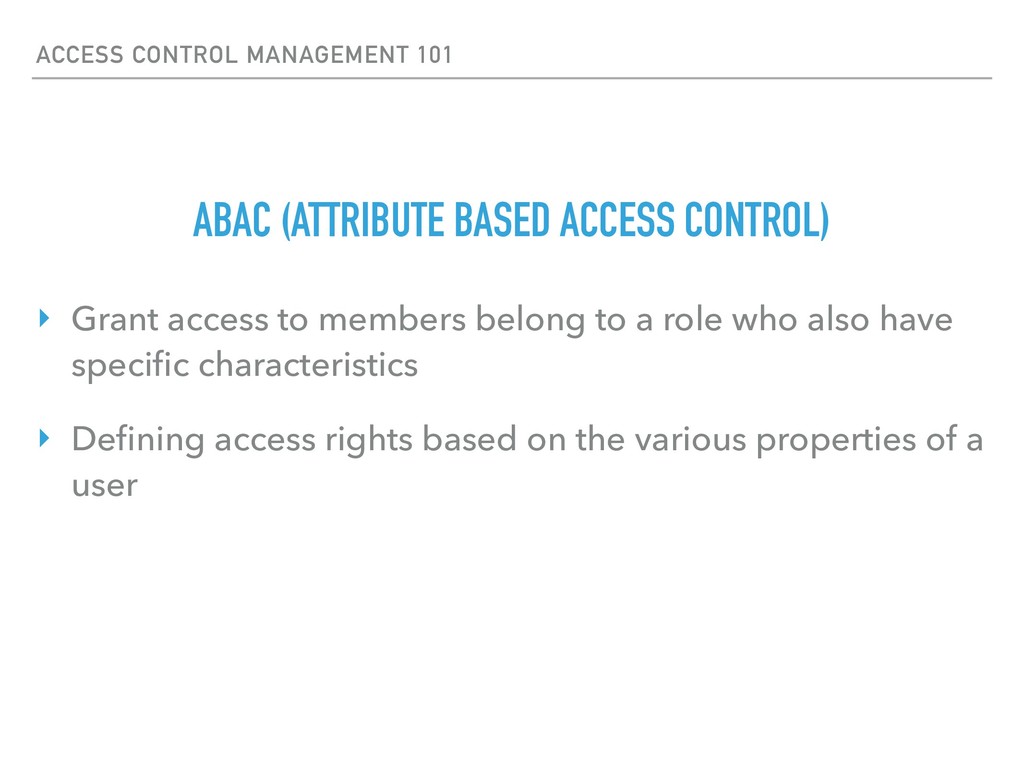

16. ACCESS CONTROL MANAGEMENT 101 ABAC (ATTRIBUTE BASED ACCESS CONTROL) ‣ Grant access to members belong to a role who also have specific characteristics ‣ Defining access rights based on the various properties of a user
17. THE PLAN

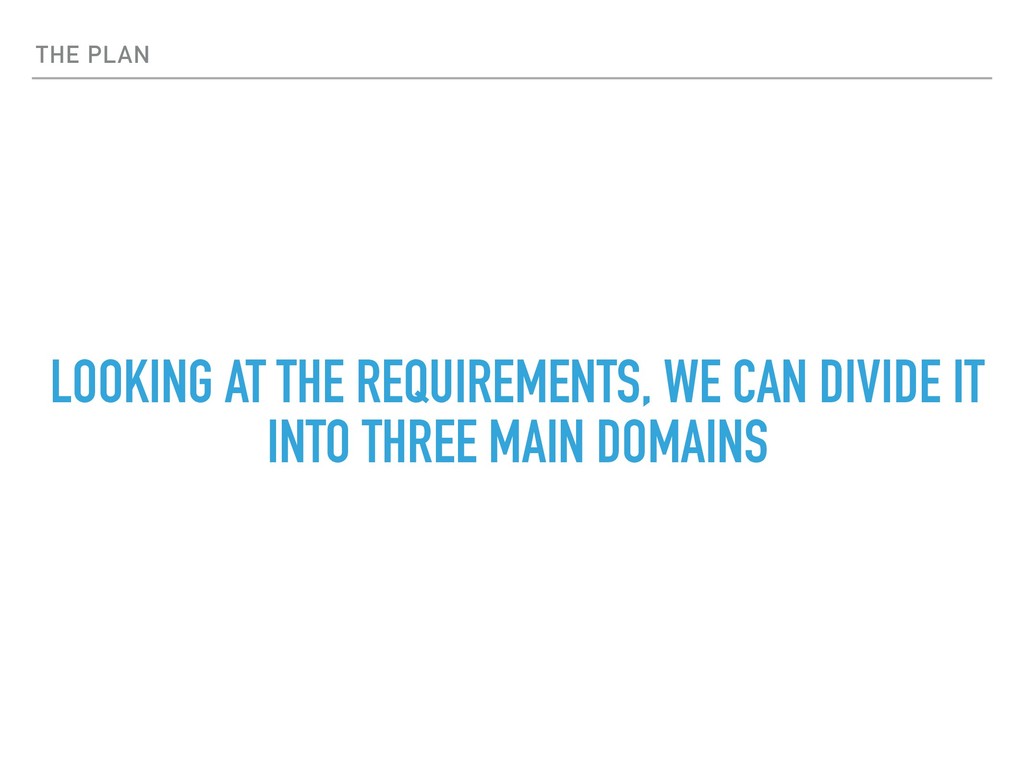

18. THE PLAN LOOKING AT THE REQUIREMENTS, WE CAN DIVIDE IT INTO THREE MAIN DOMAINS

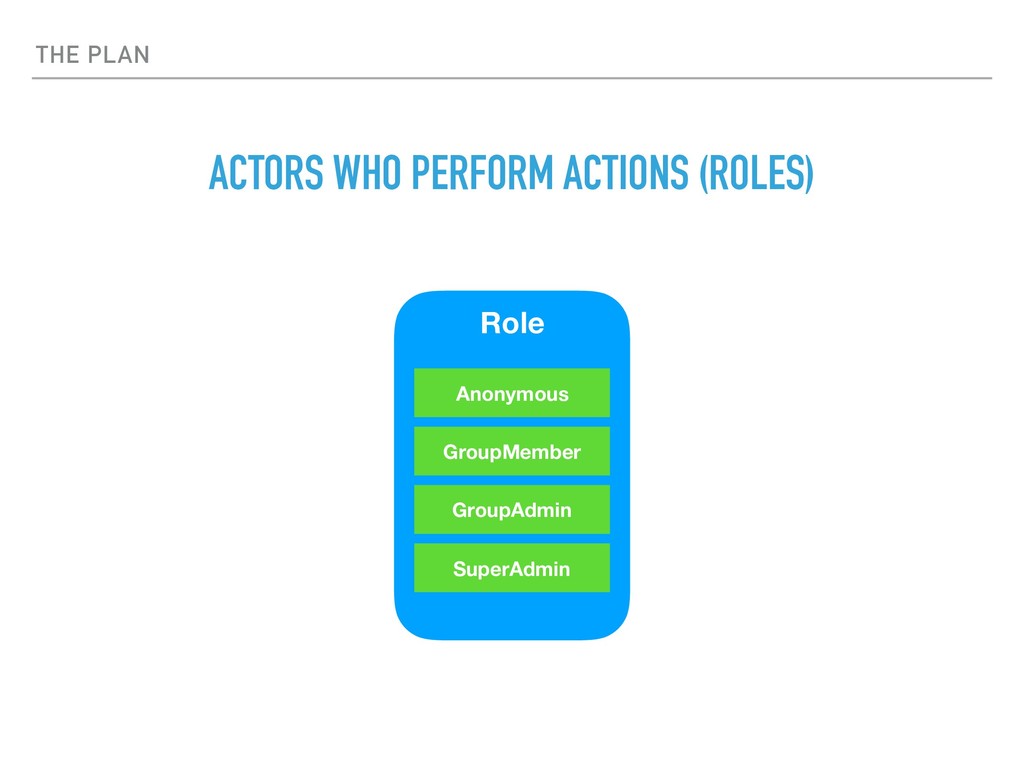

19. THE PLAN ACTORS WHO PERFORM ACTIONS (ROLES) Role Anonymous GroupMember GroupAdmin SuperAdmin

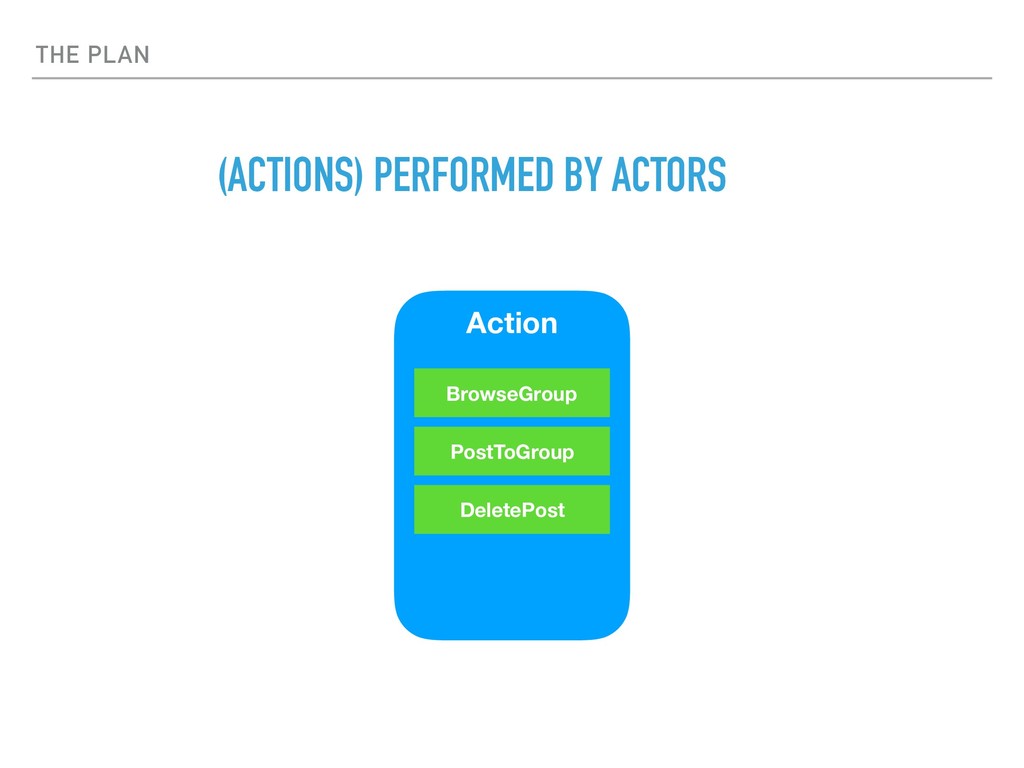

20. THE PLAN (ACTIONS) PERFORMED BY ACTORS Action BrowseGroup PostToGroup DeletePost

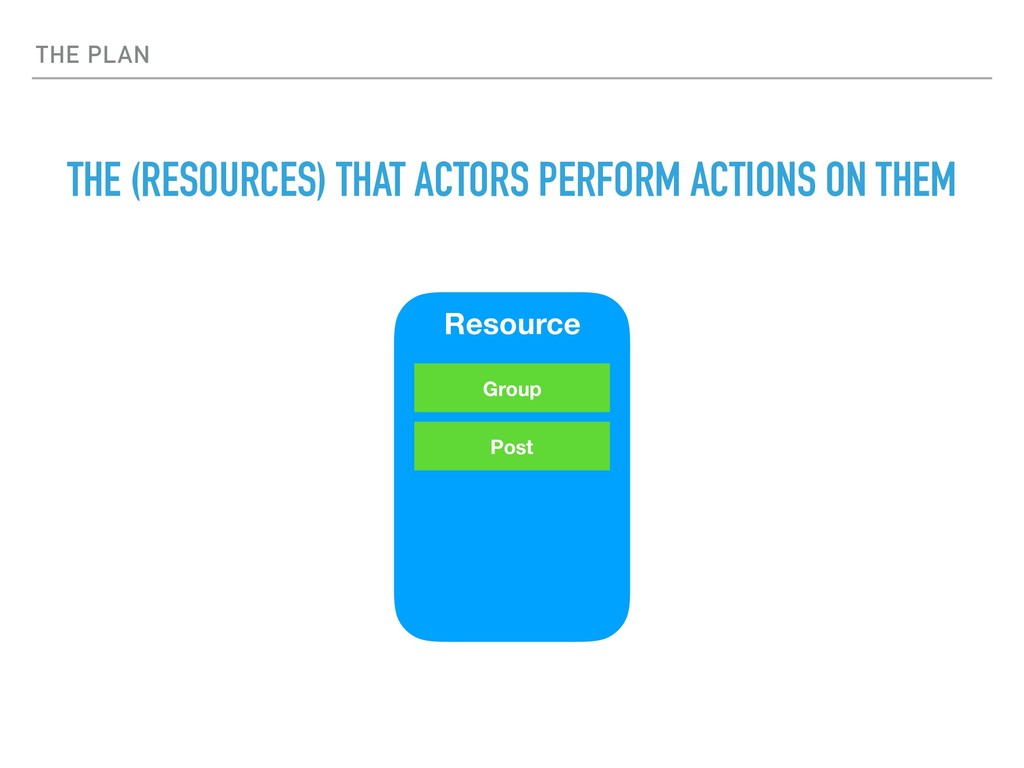

21. THE PLAN THE (RESOURCES) THAT ACTORS PERFORM ACTIONS ON THEM Resource Group Post

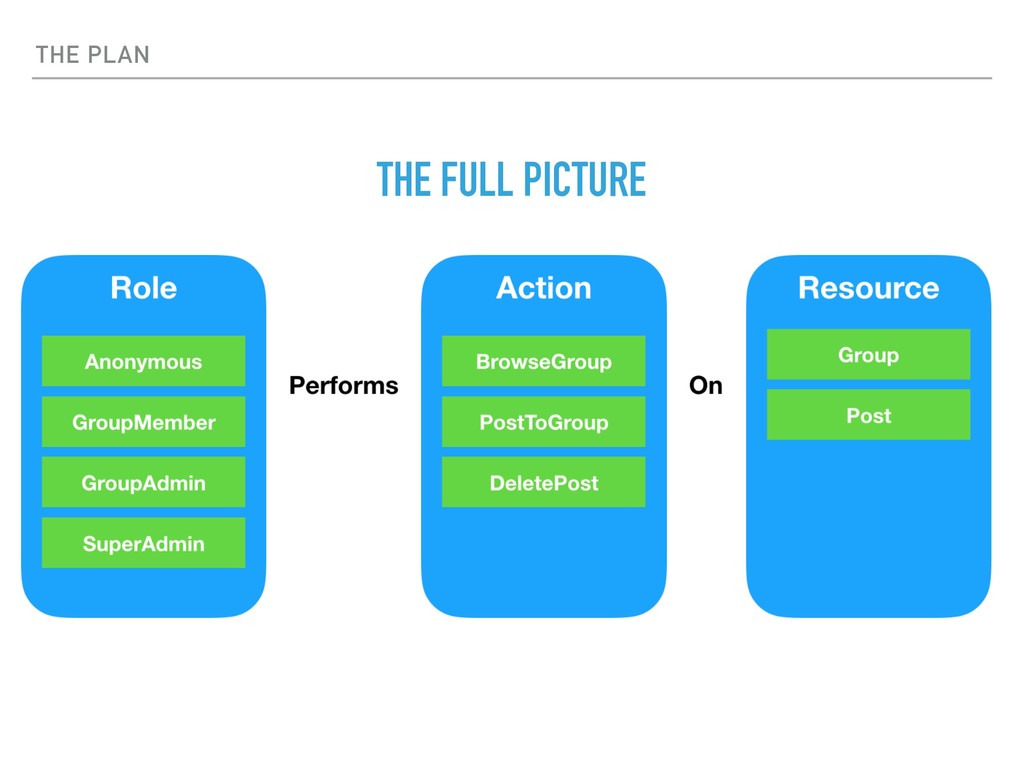

22. THE PLAN THE FULL PICTURE

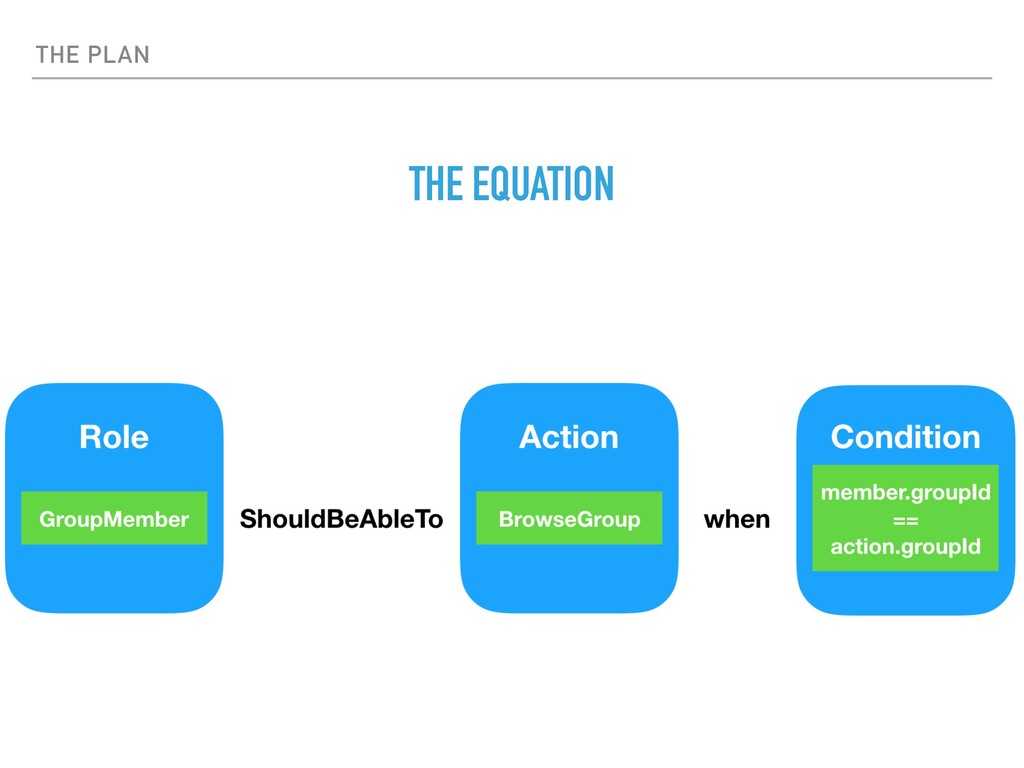

23. THE PLAN THE EQUATION

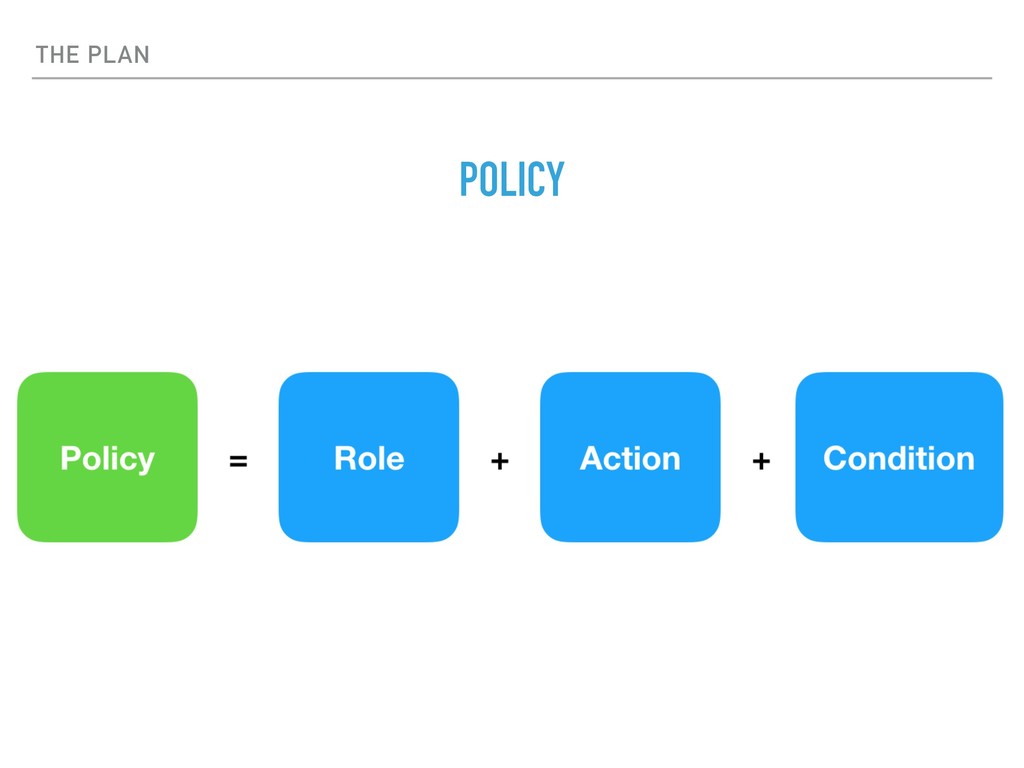

24. THE PLAN POLICY
25. THE EXECUTION

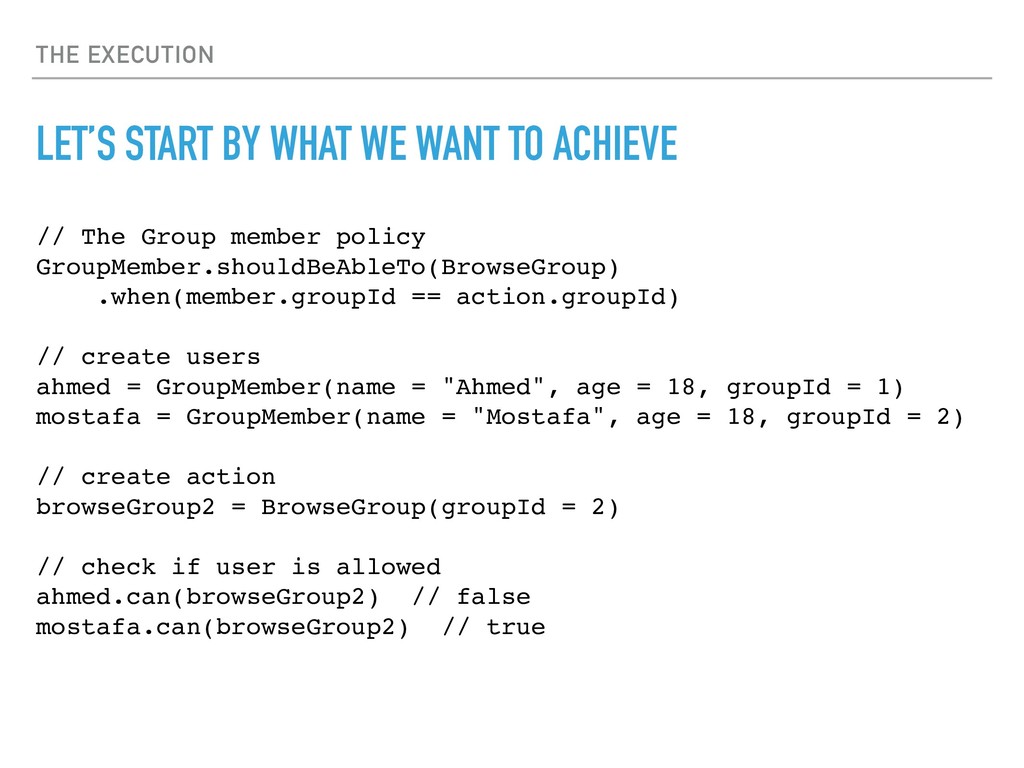

26. THE EXECUTION LET’S START BY WHAT WE WANT TO ACHIEVE // The Group member policy GroupMember.shouldBeAbleTo(BrowseGroup) .when(member.groupId == action.groupId) // create users ahmed = GroupMember(name = "Ahmed", age = 18, groupId = 1) mostafa = GroupMember(name = "Mostafa", age = 18, groupId = 2) // create action browseGroup2 = BrowseGroup(groupId = 2) // check if user is allowed ahmed.can(browseGroup2) // false mostafa.can(browseGroup2) // true

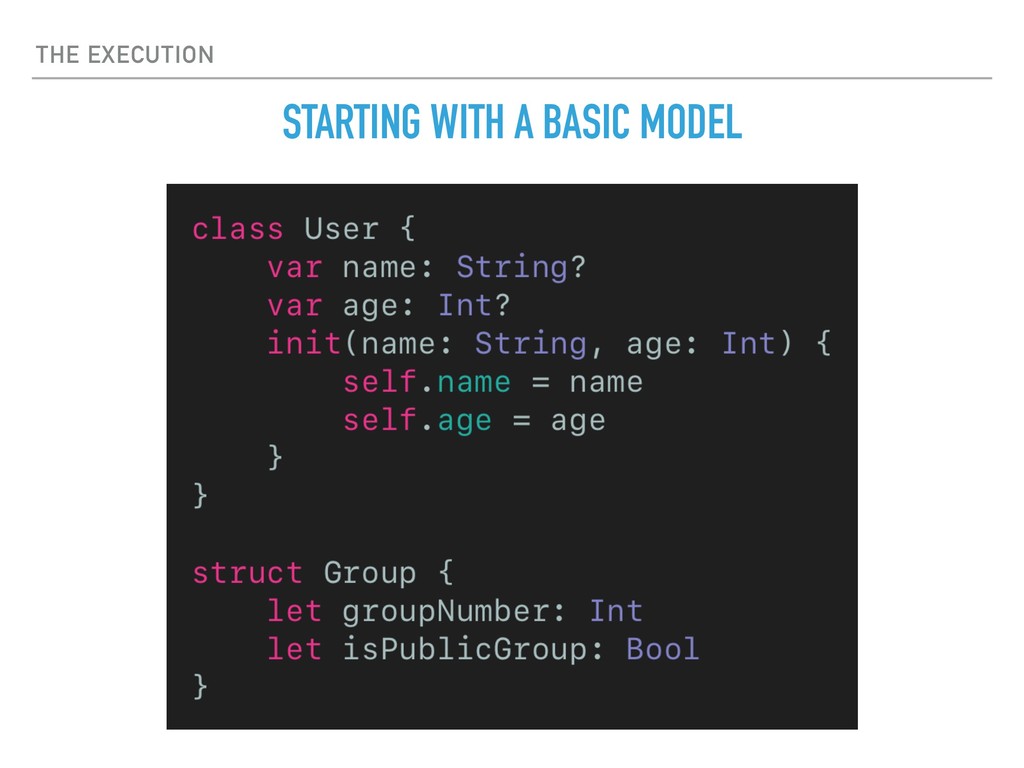

27. THE EXECUTION STARTING WITH A BASIC MODEL
28. THE EXECUTION PROTOCOL ORIENTED PROGRAMMING https://www.raywenderlich.com/814-introducing-protocol-oriented-programming-in-swift-3

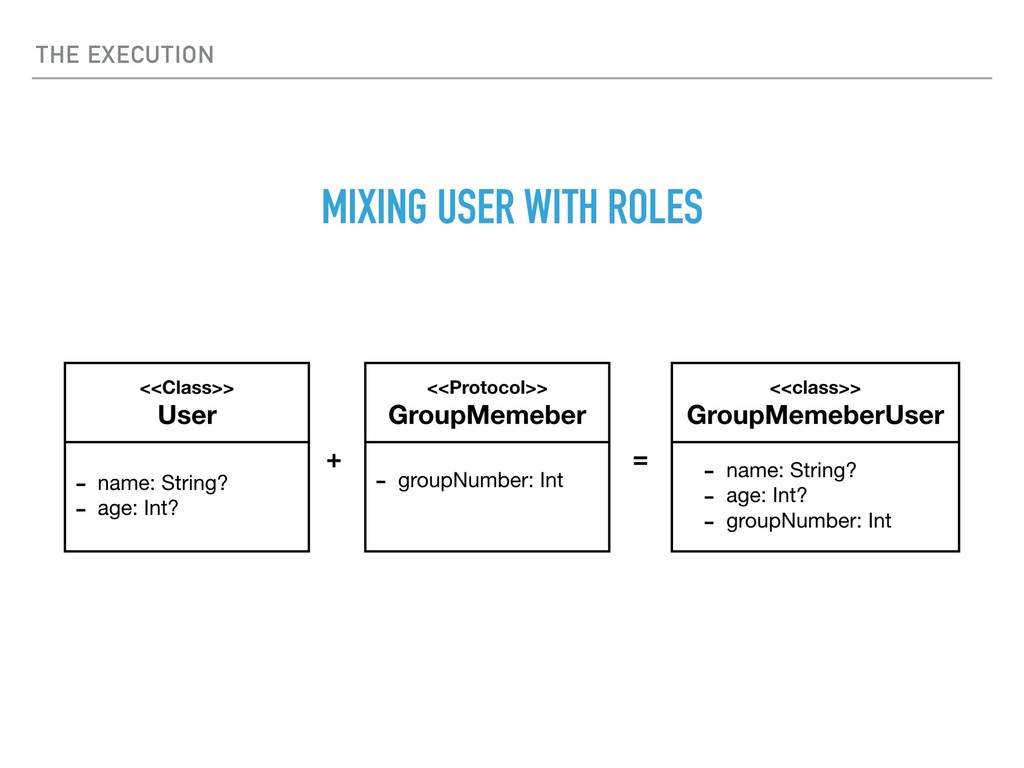

29. THE EXECUTION MIXING USER WITH ROLES

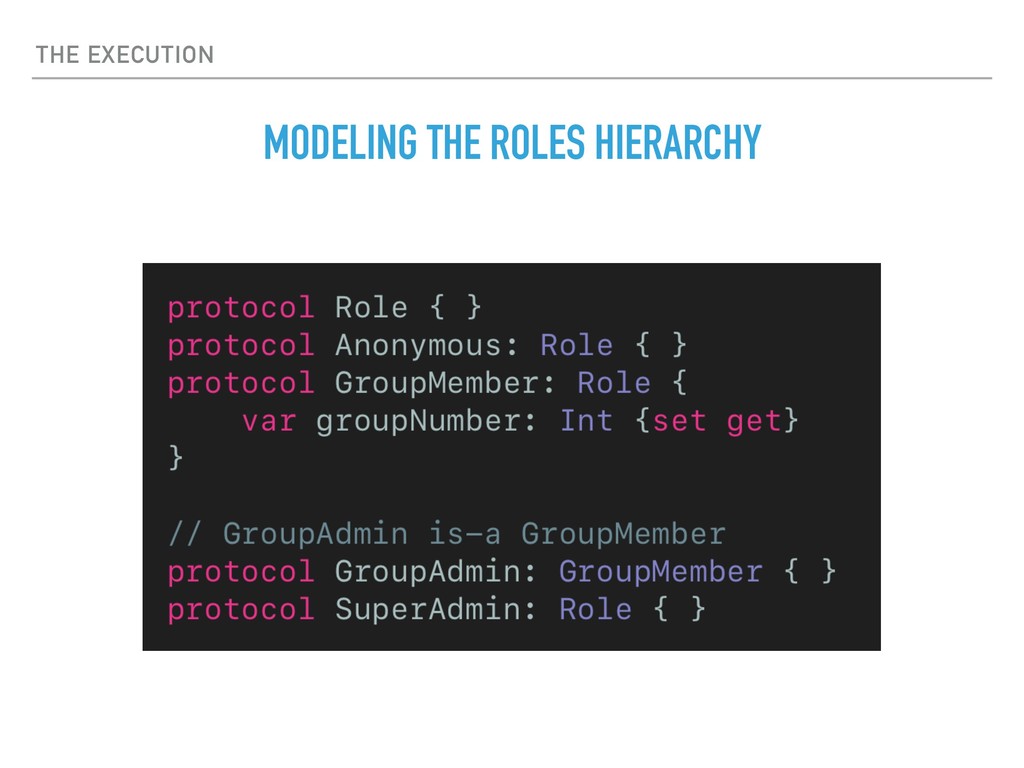

30. THE EXECUTION MODELING THE ROLES HIERARCHY

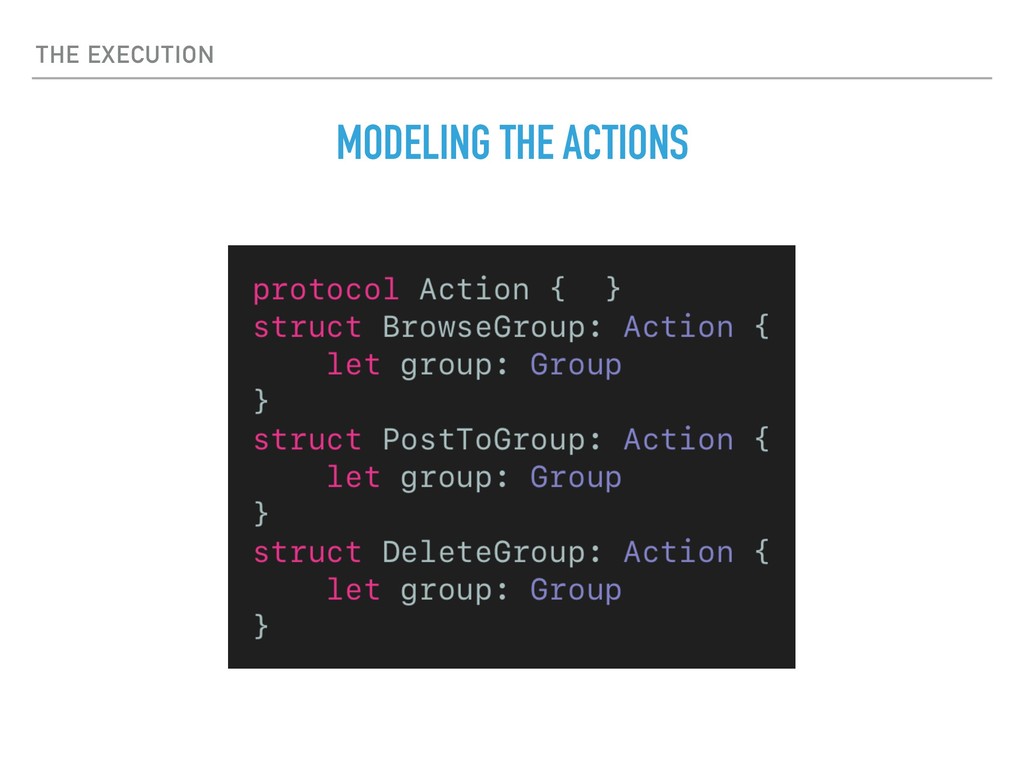

31. THE EXECUTION MODELING THE ACTIONS

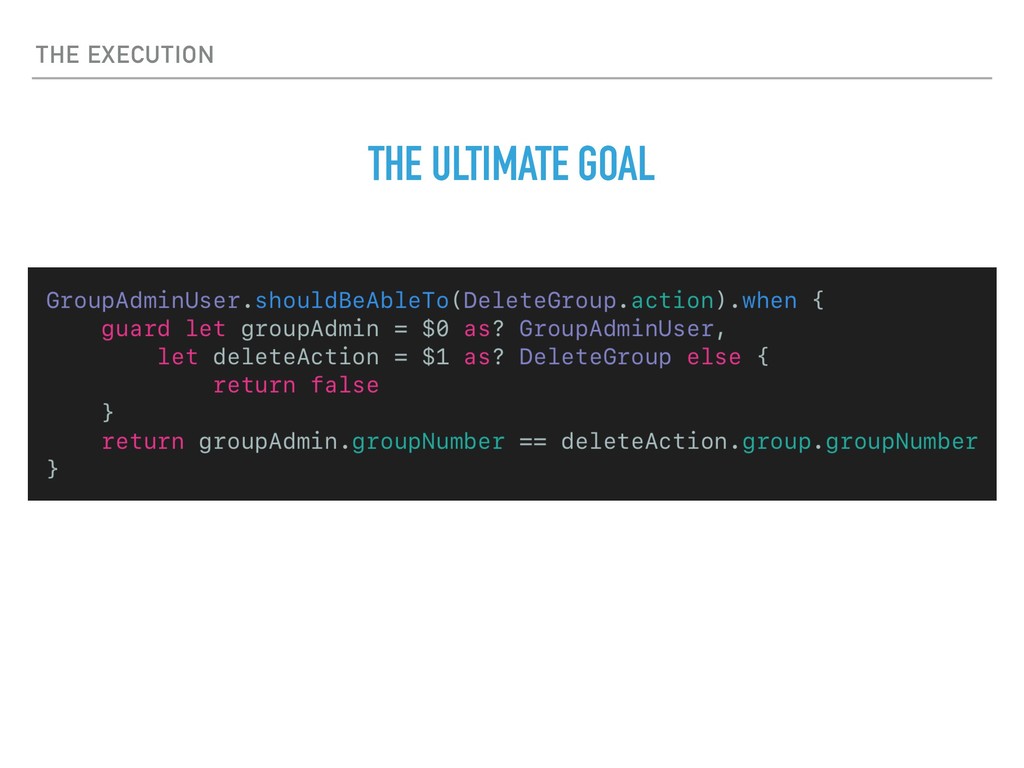

32. THE EXECUTION THE ULTIMATE GOAL

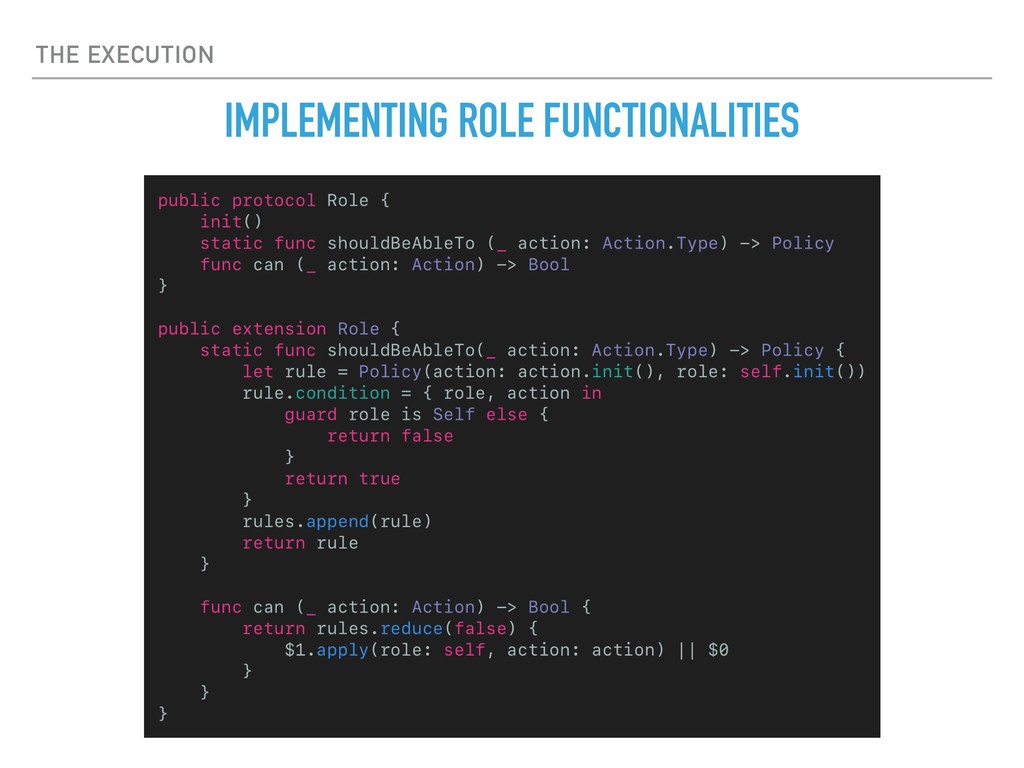

33. THE EXECUTION IMPLEMENTING ROLE FUNCTIONALITIES

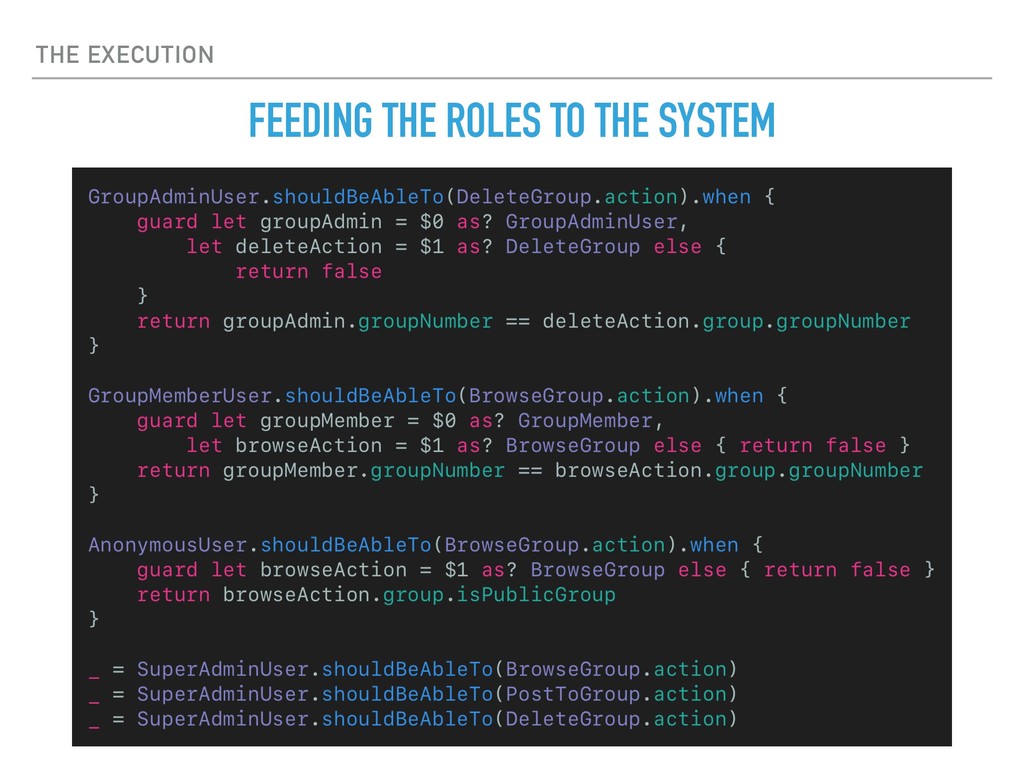

34. THE EXECUTION FEEDING THE ROLES TO THE SYSTEM

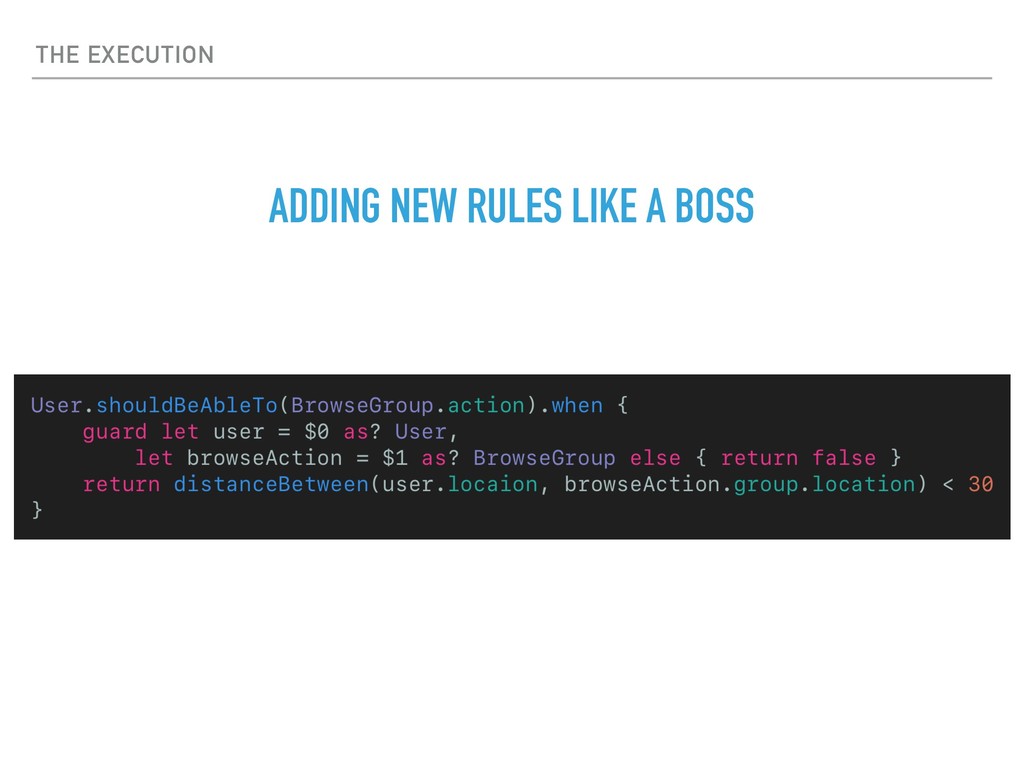

35. THE EXECUTION ADDING NEW RULES LIKE A BOSS
36. THANK YOU
