Running Batch Workload on K8s at Scale

We live in the age of data. We generate and consume more data than ever before. But the data is useless without context. We run ETL jobs to process the data. We do HPC to analyze and process the data. We build machine learning models to automate processes and make better decisions. Batch processing allows us to do all of this. Batch processing is the backbone of data science. But we need to rethink how we approach batch processing in order to take advantage of modern hardware, containers, and cloud infrastructure.

In Kubernetes we can run Job/Cronjobs quite easily. But that is not enough to run batch workloads at scale. We need to consider scalability, cost optimization and performance. We also need to think about day 2 operations of managing and upgrading the platform.

In this talk we will discuss how to run batch workloads on k8s at scale. We will cover what type of workloads are good candidates for running on k8s, how to design them to be easy to manage and scale, and common pitfalls to avoid.

Transcript

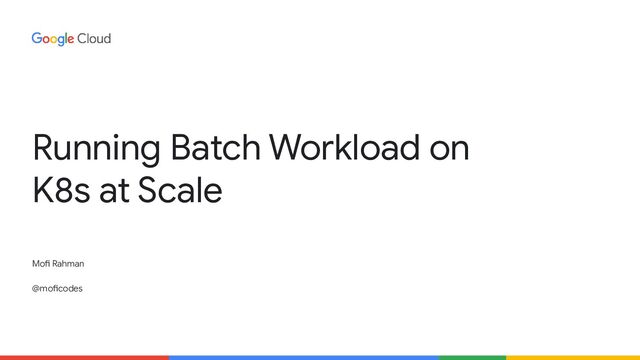

1. Running Batch Workload on K8s at Scale Mofi Rahman @moficodes
2. Mofi Rahman Developer Relations Engineer Google @moficodes
3. Batch Workload
4. Batch vs Real Time Streaming
5. Who Needs Batch
6. Who Needs Batch • Data intensive task ML Model Training ETL Pipeline
7. Who Needs Batch • Data intensive task • Scientific research Genomic Sequencing Fluid Simulation
8. Who Needs Batch • Data intensive task • Scientific research • Parallelizable workload ML Model Training Data Processing
9. Type of Batch Workloads
10. Types of Batch Workload • ETL Pipelines
11. Types of Batch Workload • ETL Pipelines • ML model training
12. Types of Batch Workload • ETL Pipelines • ML model training • HPC workload
13. Types of Batch Workload • ETL Pipelines • ML model training • HPC workload • Data Analytics
14. Why do we use Batch?
15. Why do we use Batch • Cost
16. Why do we use Batch • Cost • Speed
17. Why do we use Batch • Cost • Speed • Reliability
18. Why do we use Batch • Cost • Speed • Reliability • Repeatability
19. Designing Batch Workload
20. Components Job A Job is a workload that runs to completion
21. Scheduler Worker nodes Worker nodes Worker nodes Worker nodes Worker nodes Job Components
22. Scheduler Worker nodes Worker nodes Worker nodes Worker nodes Worker nodes Job Queue Job Components
23. Scheduler Monitoring System Worker nodes Worker nodes Worker nodes Worker nodes Worker nodes Job Queue Job Components
24. Scheduler Monitoring System Worker nodes Worker nodes Worker nodes Worker nodes Worker nodes Job Queue OUTput shared Storage Job INput shared Storage Components
25. Scheduler INput shared Storage Autoscaling Monitoring System Worker nodes Worker nodes Worker nodes Worker nodes Worker nodes Job Queue OUTput shared Storage Job Components
26. Why use Kubernetes
27. Why use Kubernetes • Resource Management
28. Why use Kubernetes • Resource Management • Scalability
29. Why use Kubernetes • Resource Management • Scalability • Fault Tolerance
30. Why use Kubernetes • Resource Management • Scalability • Fault Tolerance • Monitoring and Logging
31. Why use Kubernetes • Resource Management • Scalability • Fault Tolerance • Monitoring and Logging • Portability
32. Why use Kubernetes • Resource Management • Scalability • Fault Tolerance • Monitoring and Logging • Portability • Other workload is already on k8s and you are trying to normalize your platform to one thing.
33. Running Batch Workload on Kubernetes
34. Job
35. What is a Job?
36. What is a job? • Computations that run to completion
37. What is a job? • Computations that run to completion • A group of pods; run independently or collaboratively to process a task
38. What is a job? • Computations that run to completion • A group of pods; run independently or collaboratively to process a task • Often flexible on time, location and/or types of resources
39. Types of Job in Kubernetes • Job • CronJob
40. apiVersion: batch/v1 kind: Job metadata: name: pi spec: template: spec: containers: - name: pi image: perl:5.34.0 command: ["perl", "-Mbignum=bpi", "-wle", "print bpi(2000)"] restartPolicy: Never backoffLimit: 4 Job / Batch APIs Job A Job creates one or more Pods and will continue to retry execution of the Pods until a specified number of them successfully terminate.
41. apiVersion: batch/v1 kind: CronJob metadata: name: hello spec: schedule: "* * * * *" jobTemplate: spec: template: spec: containers: - name: hello image: busybox:1.28 imagePullPolicy: IfNotPresent command: - /bin/sh - -c - date; echo Hello from the Kubernetes cluster restartPolicy: OnFailure CronJob / Batch APIs CronJob A Cron Job creates one or more Pods and will continue to try execution of the Pods at a specified interval until the CronJob object was removed.
42. Cron Schedule ┌────────── minute (0 - 59) │ ┌───────── hour (0 - 23) │ │ ┌──────── day of the month (1 - 31) │ │ │ ┌─────── month (1 - 12) │ │ │ │ ┌────── day of the week (0 - 6) (Sunday to Saturday; │ │ │ │ │ 7 is also Sunday on some systems) │ │ │ │ │ OR sun, mon, tue, wed, thu, fri, sat │ │ │ │ │ * * * * *
43. Parallel Jobs with a fixed completion count: • .spec.completions is > 0 • the Job represents the overall task, and is complete when there are .spec.completions successful Pods Job / Batch APIs Non-parallel Jobs: • normally, only one Pod is started, unless the Pod fails. • the Job is complete as soon as its Pod terminates successfully. Pod Job
44. Parallel Jobs with a work queue: • do not specify .spec.completions, default to .spec.parallelism. • the Pods must coordinate amongst themselves or an external service to determine what each should work on. For example, a Pod might fetch a batch of up to N items from the work queue. • each Pod is independently capable of determining whether or not all its peers are done, and thus that the entire Job is done. • once at least one Pod has terminated with success and all Pods are terminated, then the Job is completed with success Job / Batch APIs Pod Job Pod Job Pod Job Pod Job Pod Job Pod Job Pod Job Pod Job Pod Job Pod Job Pod Job Pod Job Pod Job Pod Job Pod Job Pod Job Pod Job Pod Job
45. Now you know the building blocks of Kubernetes Batch
47. Quota and budgeting to control who can use what and up to what limit 1 batch/v1 missing features
48. Quota and budgeting to control who can use what and up to what limit 2 1 Fair sharing of resources between tenants batch/v1 missing features
49. Quota and budgeting to control who can use what and up to what limit 2 1 Fair sharing of resources between tenants 3 Flexible placement of jobs across different resource types based on availability batch/v1 missing features
50. Quota and budgeting to control who can use what and up to what limit 2 1 Fair sharing of resources between tenants 3 Flexible placement of jobs across different resource types based on availability batch/v1 missing features 4 Support for autoscaled environments where resources can be provisioned on demand
51. It is a job-level manager that decides when a job should be admitted to start (as in pods can be created) and when it should stop (as in active pods should be deleted). Kueue: Kubernetes-native Job Queueing Pod Job Pod Job Pod Job Pod Job Pod Job Pod Job Parallel Jobs with a work queue An easy way to fairly and efficiently share resources APIs Kueue Controller Kueue is a set of APIs and controller for job queueing.
52. • Quotas and policies for fair sharing among tenants. Kueue: Kubernetes-native Job Queueing An easy way to fairly and efficiently share resources apiVersion: kueue.x-k8s.io/v1alpha2 kind: ResourceFlavor metadata: name: default # This ResourceFlavor will be used for all the resources A ResourceFlavor is an object that represents the variations in the nodes available in your cluster by associating them with node labels and taints. For example, you can use ResourceFlavors to represent VMs with different provisioning guarantees (for example, spot versus on-demand), architectures (for example, x86 versus ARM CPUs), brands and models (for example, Nvidia A100 versus T4 GPUs). • Resource fungibility: if a resource flavor is fully utilized, Kueue can admit the job using a different flavor.
53. Kueue: Kubernetes-native Job Queueing Ref apiVersion: kueue.x-k8s.io/v1alpha2 kind: ClusterQueue metadata: name: cq spec: namespaceSelector: {} queueingStrategy: BestEffortFIFO # Default queueing strategy resources: - name: "cpu" flavors: - name: default quota: min: 10 - name: "memory" flavors: - name: default quota: min: 10Gi - name: "nvidia.com/gpu" flavors: - name: default quota: min: 10 - name: "ephemeral-storage" flavors: - name: default quota: min: 10Gi A ClusterQueue is a cluster-scoped object that manages a pool of resources such as CPU, memory, GPU. It manages the ResourceFlavors, and limits the usage and dictates the order in which workloads are admitted.
54. apiVersion: kueue.x-k8s.io/v1alpha2 kind: ClusterQueue metadata: name: cq spec: namespaceSelector: {} queueingStrategy: BestEffortFIFO resources: - name: "cpu" flavors: - name: default quota: min: 10 - name: "memory" flavors: - name: default quota: min: 10Gi - name: "nvidia.com/gpu" flavors: - name: default quota: min: 10 Kueue: Kubernetes-native Job Queueing Ref A ClusterQueue is a cluster-scoped object that manages a pool of resources such as CPU, memory, GPU. It manages the ResourceFlavors, and limits the usage and dictates the order in which workloads are admitted. BestEffortFIFO The default queueing strategy configuration. The workload admission follows the first in first out (FIFO) rule, but if there is not enough quota to admit the workload at the head of the queue, the next one in line is tried. StrictFIFO Guarantees FIFO semantics. Workload at the head of the queue can block queueing until the workload can be admitted.
55. apiVersion: kueue.x-k8s.io/v1alpha2 kind: LocalQueue metadata: namespace: team-a # LocalQueue under team-a namespace name: team-a-lq spec: clusterQueue: cq # Point to the ClusterQueue cq --- apiVersion: kueue.x-k8s.io/v1alpha2 kind: LocalQueue metadata: namespace: team-b # LocalQueue under team-b namespace name: team-b-lq spec: clusterQueue: cq # Point to the ClusterQueue cq Kueue: Kubernetes-native Job Queueing Ref Each team sends their workloads to the LocalQueue in their own namespace. Which are then allocated resources by the ClusterQueue.
56. Jobs are created under the namespace team-a. This Job points to the LocalQueue team-a-lq. To request GPU resources, nodeSelector is set to nvidia-tesla-t4. The Job is composed of three Pods that sleep for 10 seconds in parallel. Jobs are cleaned up after 60 seconds according to ttlSecondsAfterFinished. apiVersion: batch/v1 kind: Job metadata: namespace: team-a # Job under team-a namespace generateName: sample-job- annotations: kueue.x-k8s.io/queue-name: team-a-lq # Point to the LocalQueue spec: ttlSecondsAfterFinished: 60 # Job will be deleted after 60 seconds parallelism: 3 # This Job will have 3 replicas running at the same time completions: 3 # This Job requires 3 completions suspend: true # Set to true and allow Kueue to control the Job template: spec: nodeSelector: cloud.google.com/gke-accelerator: "nvidia-tesla-t4" # Specify the GPU hardware containers: - name: dummy-job image: gcr.io/k8s-staging-perf-tests/sleep:latest args: ["10s"] # Sleep for 10 seconds resources: requests: cpu: "500m" memory: "512Mi" ephemeral-storage: "512Mi" nvidia.com/gpu: "1" limits: cpu: "500m" memory: "512Mi" ephemeral-storage: "512Mi" nvidia.com/gpu: "1" restartPolicy: Never Kueue: Kubernetes-native Job Queueing
57. Batch Monitoring
58. Cluster health and usage What do we need to monitor? Queues and Jobs status
59. Prometheus is a popular monitoring tool backed by CNCF, widely considered to be the de-facto standard solution for Kubernetes workloads.
60. Prometheus Challenges for Batch • Prometheus is pull based • Batch Jobs can die/end any time. • Chance of missing important metrics
61. Prometheus architecture • PromQL is the query language for Prometheus deployments and is increasing in popularity • Grafana is a popular open source dashboard that is closely affiliated with Prometheus • Standardized metrics scraping (i.e. /metrics) in OpenMetrics format Short-lived jobs Short-lived jobs Short-lived jobs Push Gateway Retrieval HTTP server TSDB Prometheus Server Service discovery Kubernetes file_sd Jobs / exporters pull metrics Node HDD/SSD Prometheus UI Grafana API clients Data visualization
62. Batch Storage
63. Batch Storage • Can not do all computation in memory. • Write state as checkpoint for fault tolerance • Write intermediate state as a way to pass data • Write output for further use
64. Batch Storage • Local Storage (HDD, SSD) Quick access to storage. Not Shared. E.g. storage on the kubernetes node.
65. Batch Storage • Local Storage (HDD, SSD) • File Storage File storage stores data as a single piece of information in a folder to help organize it among other data. E.g. Google Filestore, Amazon EFS, Azure File System etc.
66. Batch Storage • Local Storage (HDD, SSD) • File Storage • Object Storage Object storage takes each piece of data and designates it as an object. Google Cloud Storage, Amazon S3 etc.
67. Batch Storage • Local Storage (HDD, SSD) • File Storage • Object Storage • Block Storage Block storage takes a file apart into singular blocks of data and then stores these blocks as separate pieces of data. E.g. Google Cloud Persistent Disk, Amazon Elastic Block Storage etc.
68. Scheduler INput shared Storage Autoscaling Monitoring System Worker nodes Worker nodes Worker nodes Worker nodes Worker nodes Job Queue OUTput shared Storage Job Components
69. Components K8s Scheduler K8s Autoscaling Prometheus Worker nodes Worker nodes Worker nodes Worker nodes Node pools Kueue GCS/Filestore/etc. Job GCS/Filestore/etc.
70. Batch Job Types
71. Batch Job Types • Ad Hoc runs ML Model Training Drug Discovery Genomics Data Analytics
72. Kubectl API Kubernetes Job
73. Batch Job Types • Ad Hoc runs • React to events File Processing User Email sending CI/CD Pipelines
74. Object Storage File Kubernetes Job Upload Event
75. Batch Job Types • Ad Hoc runs • React to events • Run on schedule Report Generation Analyze periodic data
76. Kubernetes Cronjob * * * * *
77. Batch Job Types • Ad Hoc runs • React to events • Run on schedule • Fan Out Fan In Work Pipeline
78. Job Kubernetes Job Job Job Job Job Job
79. Batch Job Types • Ad Hoc runs • React to events • Run on schedule • Fan Out Fan In • Message Passing Distributed Work Structural Simulation Weather Modeling Fluid Dynamics
80. Kubernetes Job Job Job Job Job Job Job Job Job Job Output Output Output Output Output
81. Let’s Design a Batch Workload
82. Sort a file of trillion numbers
83. Why do we need batch for this?
84. Sorting
85. Trillion number in Hexadecimal == ~15TB
86. Possible Solutions • Put all the numbers in a database and query sorted.
87. Possible Solutions • Put all the numbers in a database and query sorted. • Push the data through a message queue and put them in buckets on range. Sort individual ranges and concatenate the files.
88. Possible Solutions • Put all the numbers in a database and query sorted. • Push the data through a message queue and put them in buckets on range. Sort individual ranges and concatenate the files. • Use some sort of external sort.
89. Possible Solutions • Put all the numbers in a database and query sorted. • Push the data through a message queue and put them in buckets on range. Sort individual ranges and concatenate the files. • Use some sort of external sort. • Map-Reduce Sort
90. Database solution • If we have a Database that can handle such a big dataset, actual work is quite simple. • Overkill • Insertion would be slow and expensive • Getting the data out would be slow and expensive
91. Database Input
92. Database Database Input
93. Database Database Input Output
94. Database Database Input Output Expensive insert operation Expensive to run and maintain Slow read operation
95. Message Queue -> Bucket • Combining sorted file would be fairly quick • Pushing ~15 TB of data through a message queue would be challenging • We will surely overwhelm our network bandwidth. • It will be slow.
96. Message Queue Input
97. Message Queue Message Queue Input
98. Message Queue Message Queue Input Worker Worker Worker Worker Worker
99. Message Queue Message Queue Input Worker Worker Worker Worker Worker Output Output Output Output Output
100. Message Queue Message Queue Input Worker Worker Worker Worker Worker Output Output Output Output Output This is our bottleneck
101. External Sort • Room for parallelization • Need to synchronize work at some point which will be the bottleneck for peak performance.
102. External Sort Input
103. External Sort Split Input
104. External Sort Split Input Worker Worker Worker Worker Worker
105. External Sort Split Input Worker Worker Worker Worker Worker Merge
106. External Sort Split Input Worker Worker Worker Worker Worker Merge This is our bottleneck
107. Map Reduce • Works really well for parallelizable workload. • Map a bunch of data and send them to reducer. • Sort them and write to disk. • Conceptually similar to the message queue system.
108. Map Reduce Input
109. Map Reduce Input Mapper Mapper Mapper Mapper Mapper
110. Map Reduce Input Mapper Mapper Mapper Mapper Mapper Reducer Reducer Reducer Reducer Reducer
111. Map Reduce Input Mapper Mapper Mapper Mapper Mapper Reducer Reducer Reducer Reducer Reducer Output Output Output Output Output
112. Map Reduce Input Mapper Mapper Mapper Mapper Mapper Reducer Reducer Reducer Reducer Reducer Output Output Output Output Output This is our bottleneck
113. Running Batch Workload on K8s at Scale
114. Design
115. Design • Design loosely coupled workload if possible. • Network is not unlimited. • Parallelization is your friend. • Limited communication between workers scales best.
116. Optimize
117. Optimize • Optimization is money. • You only need resources when the work is running. • Try to run jobs in colocation for faster network throughput.
118. Scale K8s
119. Scale K8s • Scale down when not needed • Scale up to limit (5K OSS K8s, 15K GKE) • Use spot/preemptible vm for cost saving
120. Monitor
121. Monitor • Monitor cluster resource usage • Trying to collect too much metric might slow down the work, so only collect the most important data
122. Limits
123. Limits • Understand individual limits for you kubernetes cluster. • It’s a multidimensional envelope problem. ◦ #Pod ◦ #Service ◦ #Node ◦ #Secrets • etcd has a set limit on total storage and storage of a single type of object
124. Fault Tolerance
125. Fault Tolerance • Assume any and all job can fail. • Assume nodes will be preempted. • Create checkpoints so your job can restart without losing data.
126. GCP and GKE
127. GCP and GKE • Node limit to 15000 • Managed prometheus for zero hassle metrics collections backed by Google planet scale monarch time series database. • Compact Placement (Define compact placement for GKE nodes | Google Kubernetes Engine (GKE)) • Time Sharing GPU (Time-sharing GPUs on GKE | Google Kubernetes Engine (GKE)) • GKE Image Streaming (Use Image streaming to pull container images | Google Kubernetes Engine (GKE)) • GKE Cost Allocation (View detailed breakdown of cluster costs | Google Kubernetes Engine (GKE))
