Manage Kuberentes Deployment with Istio

The service mesh is an infrastructure component that helps manage services running within our clusters. Without any changes to service or application code, solutions like Istio and Linkerd provide features to manage container deployments at scale. With Istio we get traffic management, security, rate limiting, monitoring, and many more things out of the box. We will discuss these solutions and some of their features at a high level, then roll in some specific demonstrations of using a service mesh to route and shift service traffic, easily manage deployments and test our services with micro benchmarks and fault injection. We will also look at some of the error scenarios you may encounter and how to deal with some of them while keeping your sanity.

Transcript

1. Managing Kubernetes Deployment with Istio Mofizur Rahman Developer Advocate, IBM
2. Level Set • Microservices • Containers in Production • Kubernetes 2

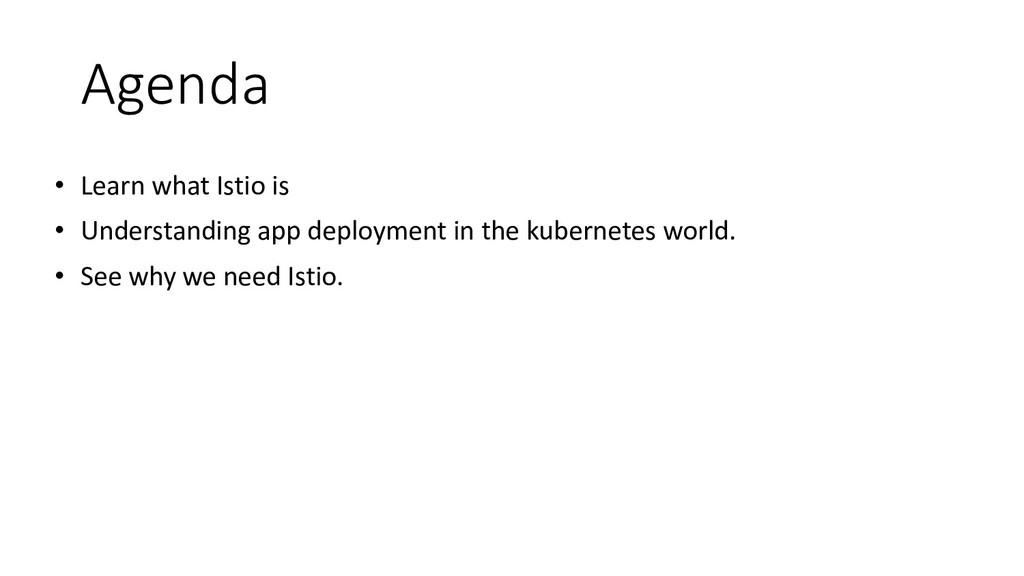

3. Agenda • Learn what Istio is • Understanding app deployment in the kubernetes world. • See why we need Istio.
4. Mofizur Rahman (Mofi) Developer Advocate @IBM Works On Container And Cloud Native Technologies Favorite Programming Language Is Golang. Collect Stickers @moficodes

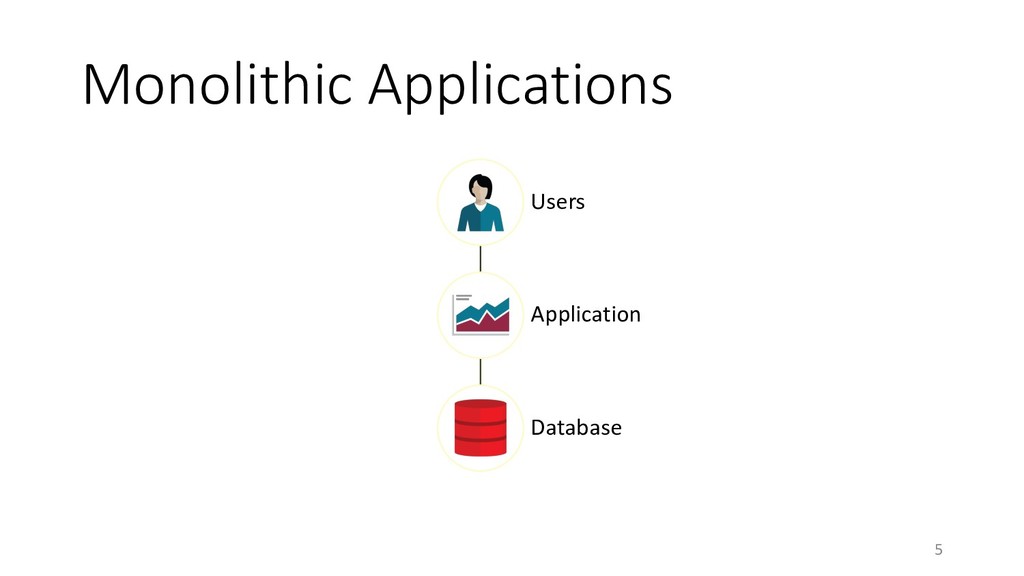

5. Monolithic Applications 5 Users Application Database

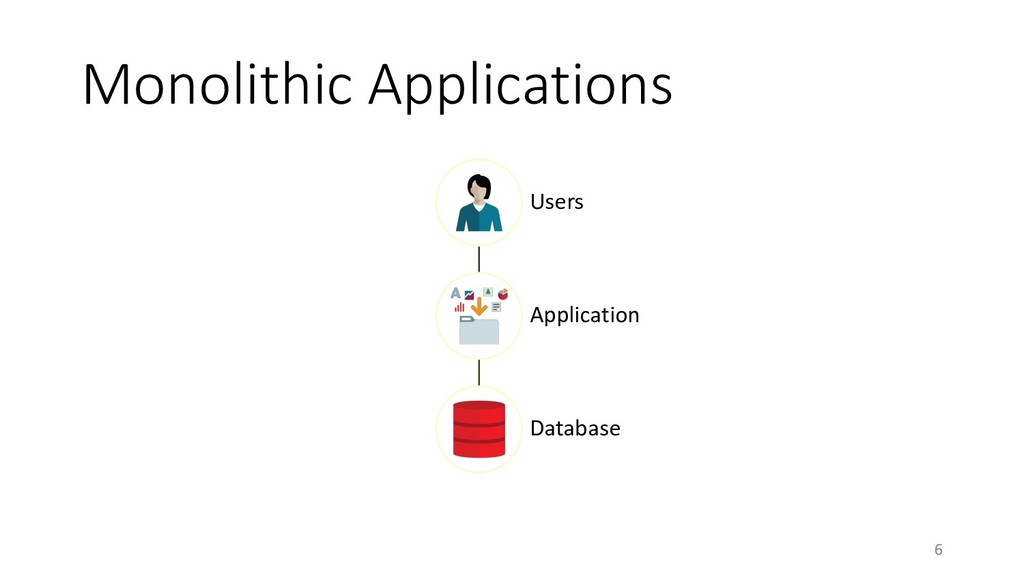

6. Monolithic Applications 6 Users Application Database
7. Microservices • Microservices are the de facto standard for cloud native software • Microservices allow development teams to deploy portable and scalable applications 7
8. Microservices 8 Users Cart Orders Database Cluster Reports
9. Microservices • Microservices can put a significant burden on Ops and DevOps teams 9

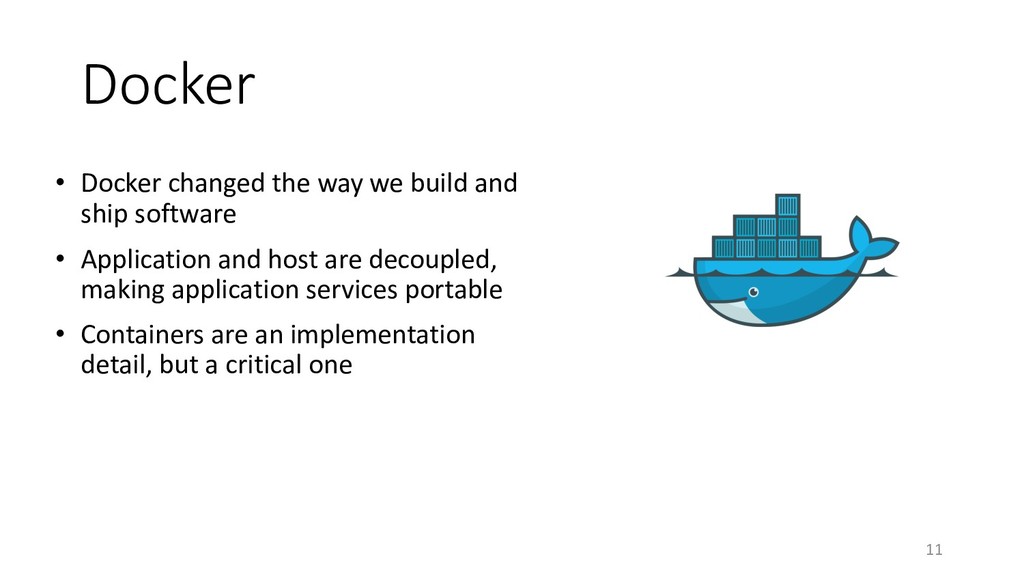

11. Docker • Docker changed the way we build and ship software • Application and host are decoupled, making application services portable • Containers are an implementation detail, but a critical one 11
12. Containerizing an APP 12

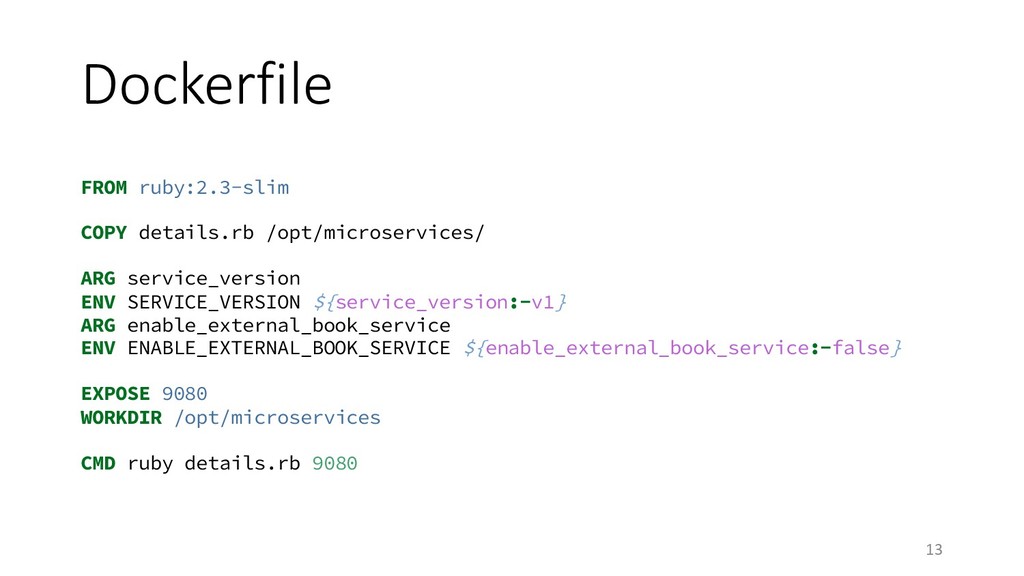

13. Dockerfile 13 FROM ruby:2.3-slim COPY details.rb /opt/microservices/ ARG service_version ENV SERVICE_VERSION ${service_version:-v1} ARG enable_external_book_service ENV ENABLE_EXTERNAL_BOOK_SERVICE ${enable_external_book_service:-false} EXPOSE 9080 WORKDIR /opt/microservices CMD ruby details.rb 9080
14. Docker Is a Start But, once we abstract the host away by using containers, we no longer have our hands on an organized platform. 14
15. Who you Gonna call? 15

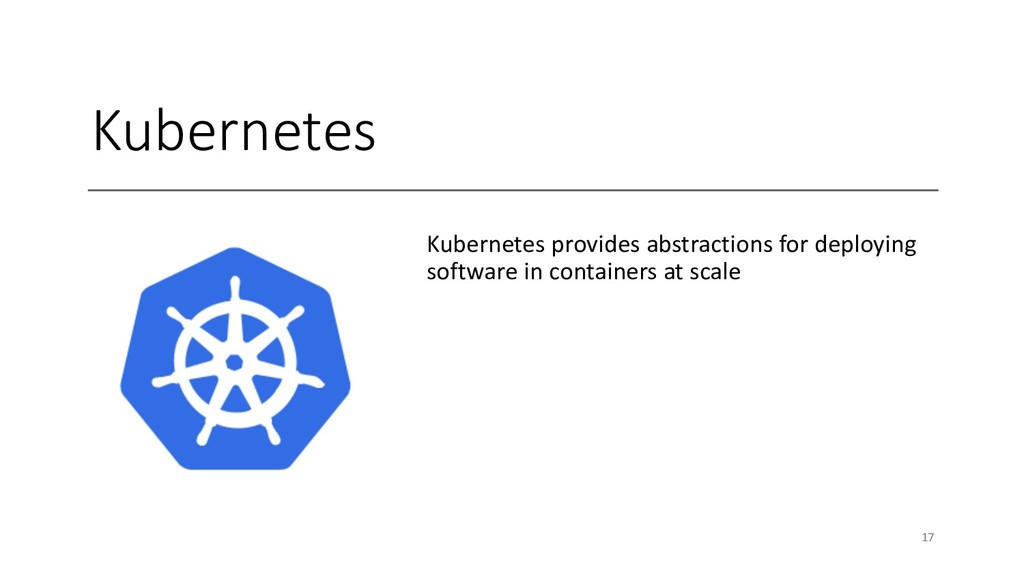

17. Kubernetes Kubernetes provides abstractions for deploying software in containers at scale 17
18. Kubernetes as a Platform • Infrastructure resource abstraction • Cluster architecture where one or more masters control worker nodes • Scheduler deploys work to the nodes • Work is deployed in groups of containers 18

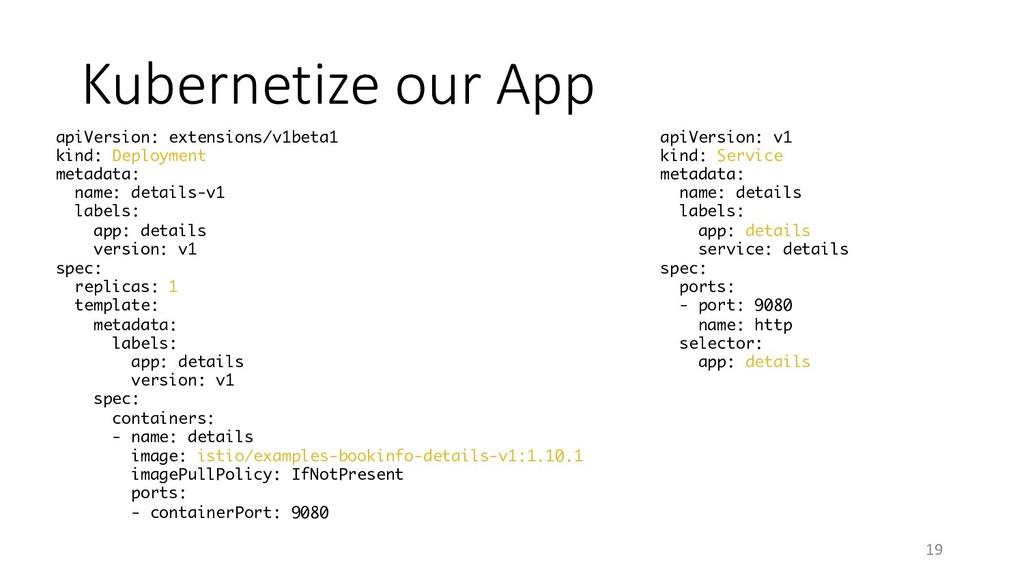

19. Kubernetize our App 19 apiVersion: v1 kind: Service metadata: name: details labels: app: details service: details spec: ports: - port: 9080 name: http selector: app: details apiVersion: extensions/v1beta1 kind: Deployment metadata: name: details-v1 labels: app: details version: v1 spec: replicas: 1 template: metadata: labels: app: details version: v1 spec: containers: - name: details image: istio/examples-bookinfo-details-v1:1.10.1 imagePullPolicy: IfNotPresent ports: - containerPort: 9080

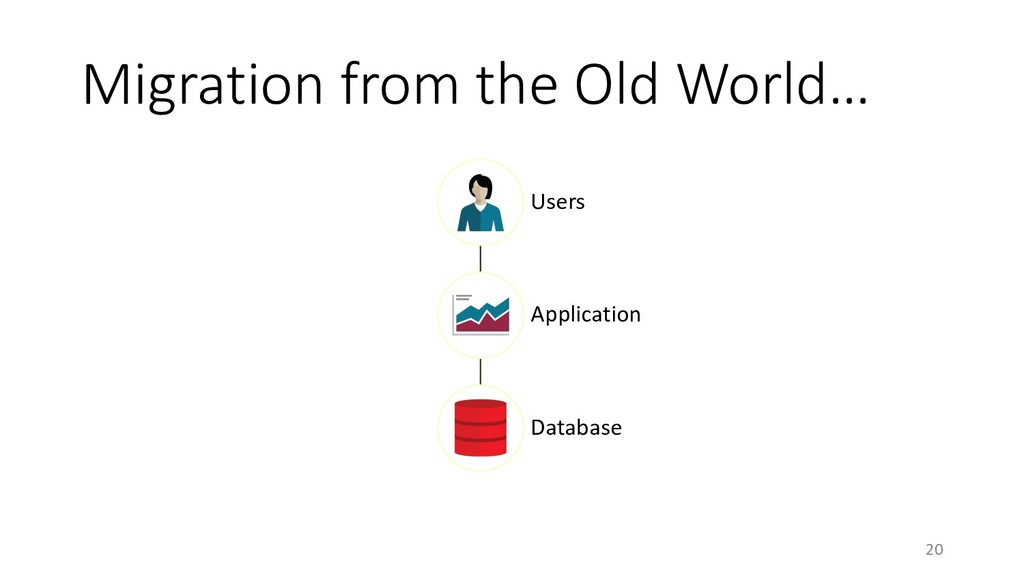

20. Migration from the Old World… 20 Users Application Database

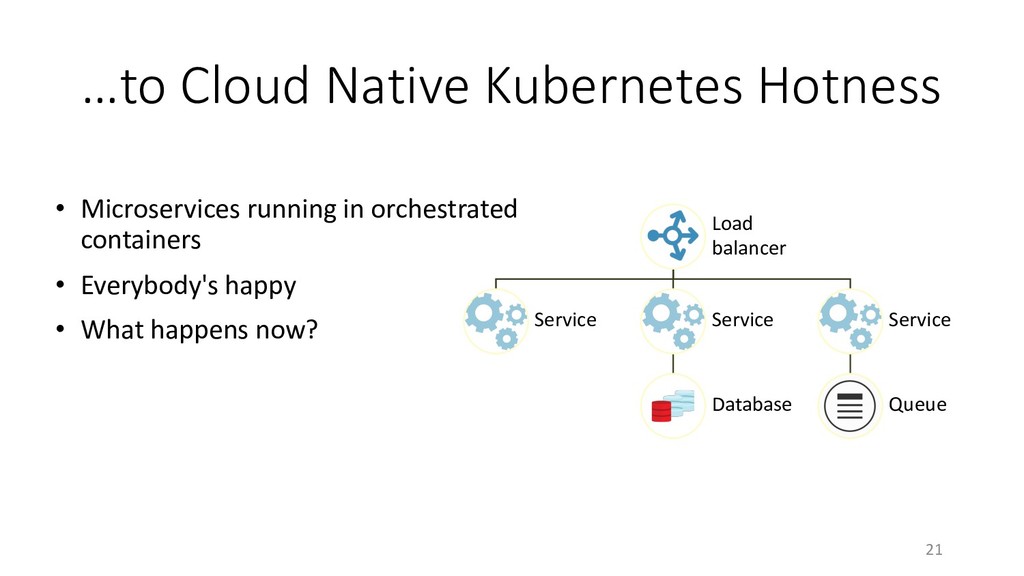

21. …to Cloud Native Kubernetes Hotness • Microservices running in orchestrated containers • Everybody's happy • What happens now? 21 Load balancer Service Service Database Service Queue

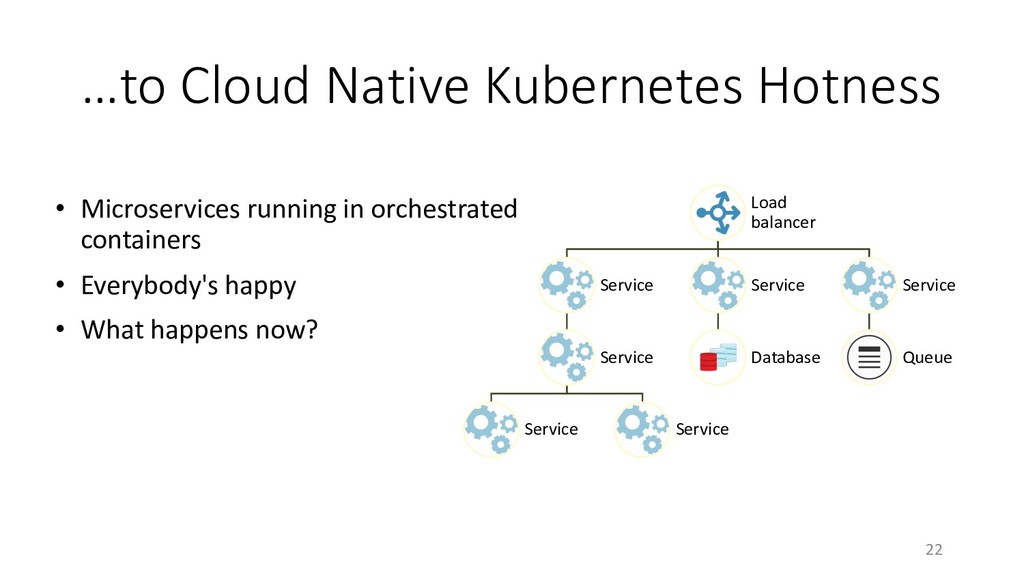

22. …to Cloud Native Kubernetes Hotness • Microservices running in orchestrated containers • Everybody's happy • What happens now? 22 Load balancer Service Service Service Service Service Database Service Queue

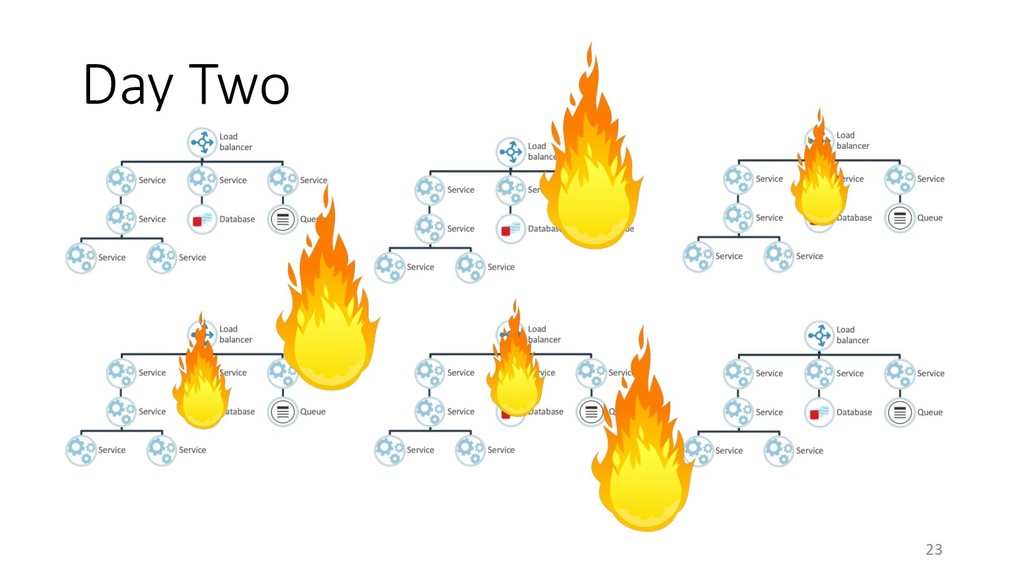

23. Day Two 23
26. Kubernetes Deployment Built in deployment primitive Rolling deployment Multiple deployment being targeted from single service
27. Advanced Deployment Blue/Green Deployment Canary Deployment A/B testing

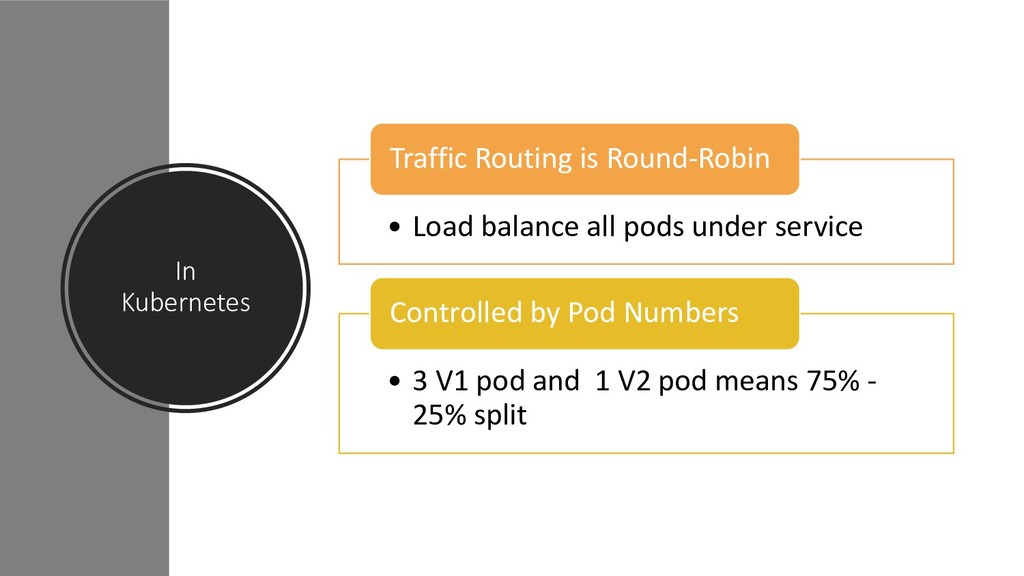

28. In Kubernetes • Load balance all pods under service Traffic Routing is Round-Robin • 3 V1 pod and 1 V2 pod means 75% - 25% split Controlled by Pod Numbers

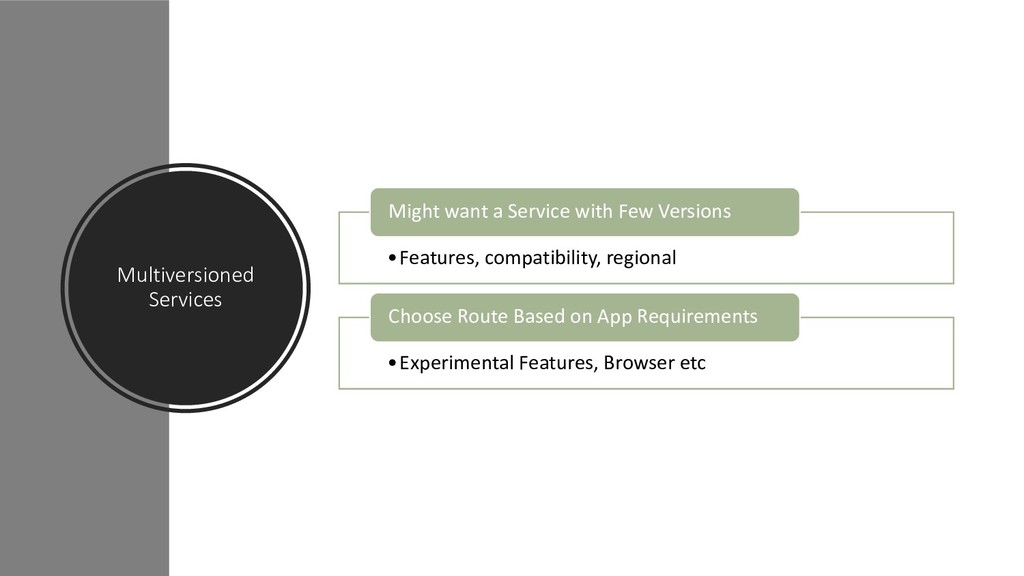

29. Multiversioned Services •Features, compatibility, regional Might want a Service with Few Versions •Experimental Features, Browser etc Choose Route Based on App Requirements

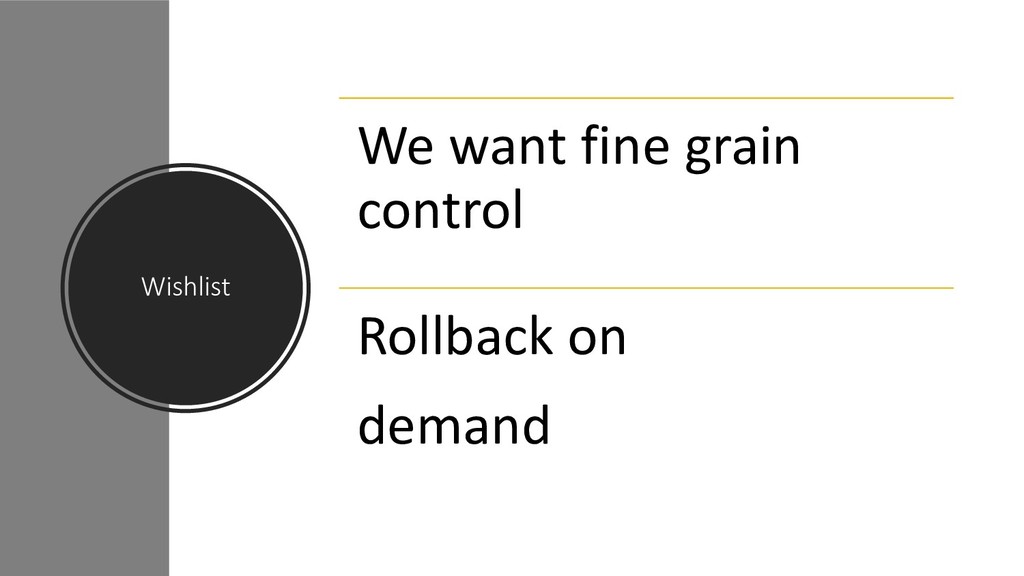

30. Wishlist We want fine grain control Rollback on demand

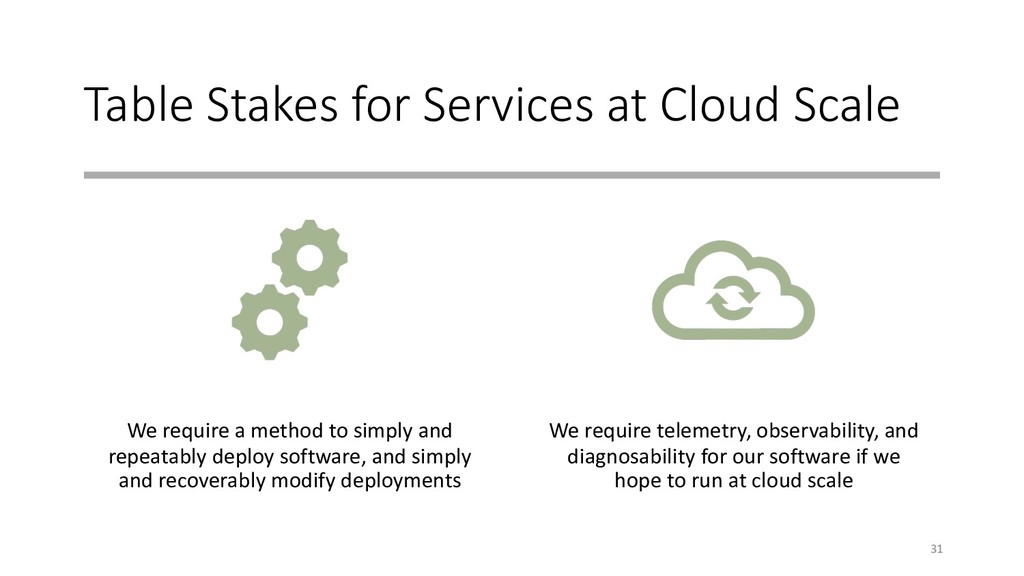

31. Table Stakes for Services at Cloud Scale 31 We require a method to simply and repeatably deploy software, and simply and recoverably modify deployments We require telemetry, observability, and diagnosability for our software if we hope to run at cloud scale

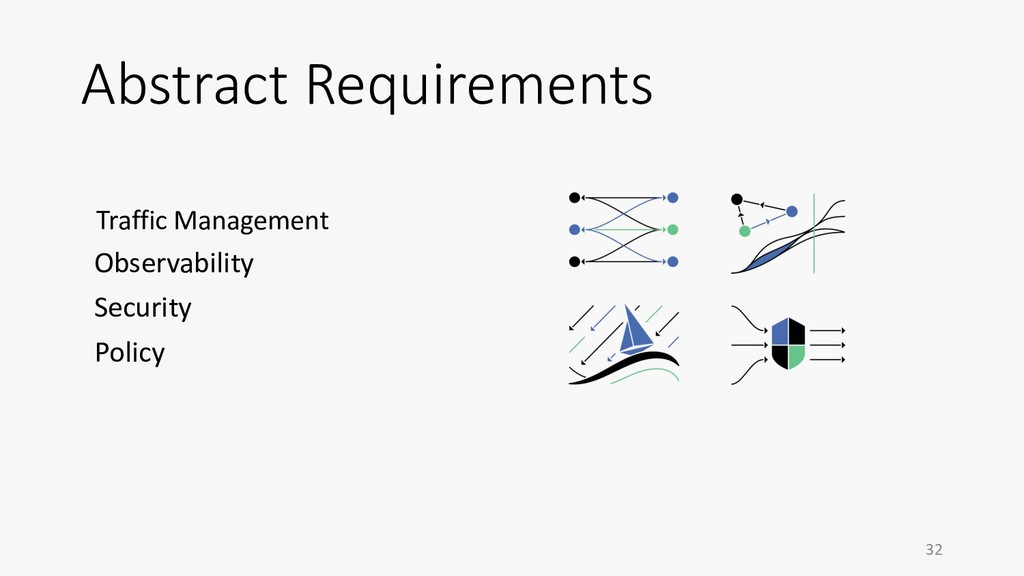

32. Abstract Requirements Traffic Management 32 Policy Security Observability
33. Hard Things are Hard 33

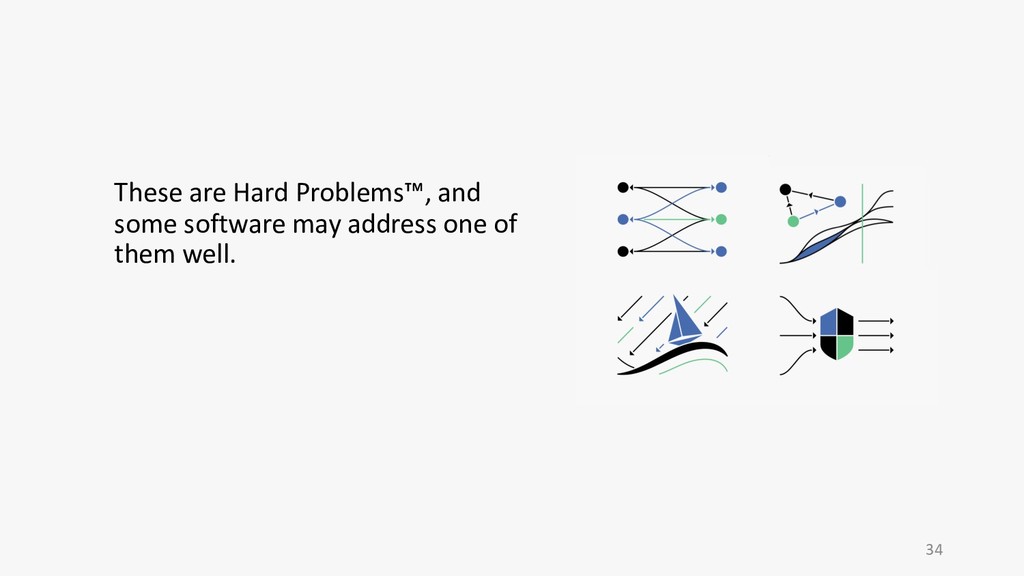

34. These are Hard Problems™, and some software may address one of them well. 34

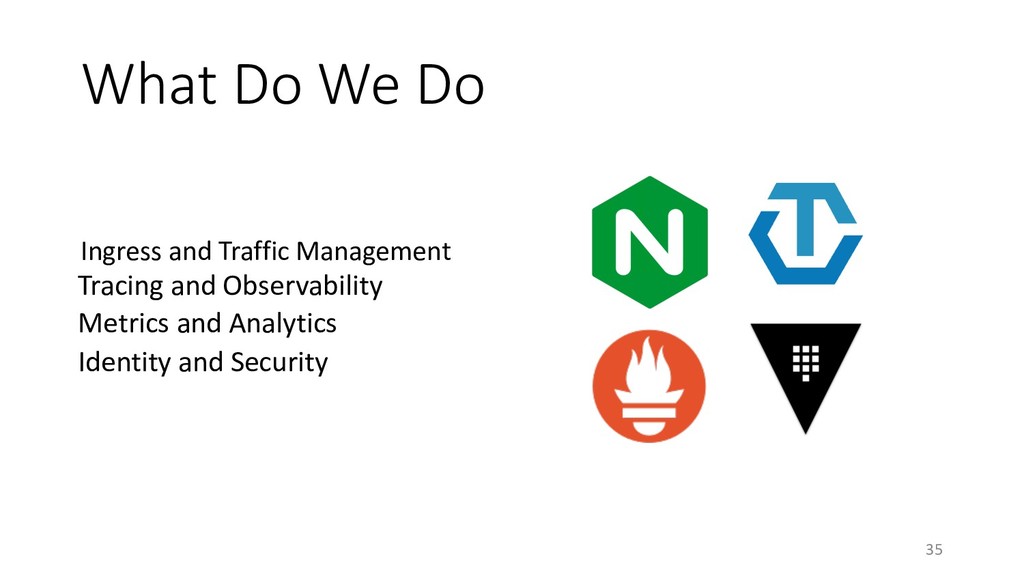

35. What Do We Do Ingress and Traffic Management 35 Metrics and Analytics Tracing and Observability Identity and Security
36. Service Mesh • This is not a new solution which solves all the world’s problems, but a different way to apply existing solutions • Enables integration of existing (as well as future) best-in-class solutions for All The Things 36

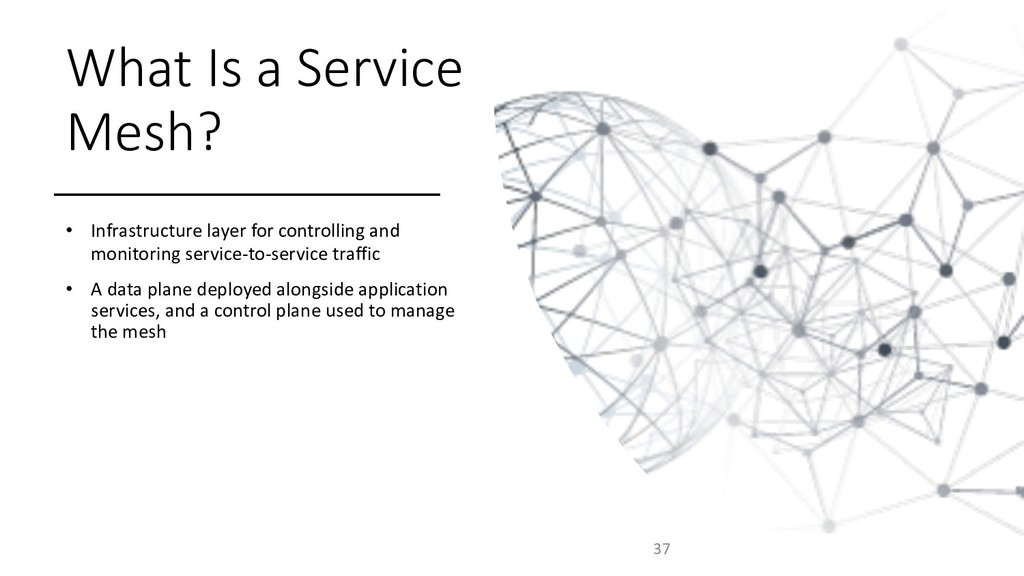

37. What Is a Service Mesh? • Infrastructure layer for controlling and monitoring service-to-service traffic • A data plane deployed alongside application services, and a control plane used to manage the mesh 37

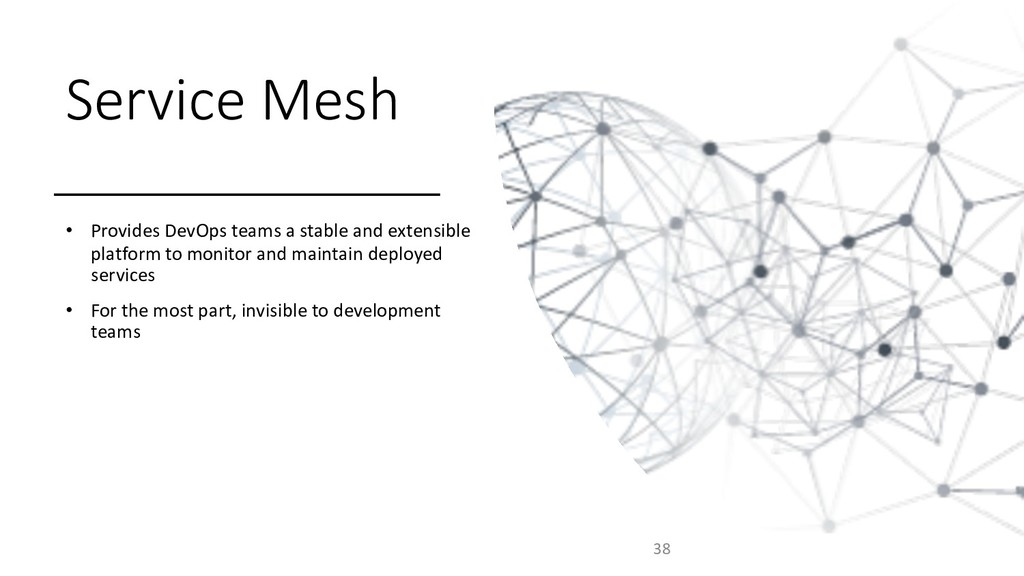

38. Service Mesh • Provides DevOps teams a stable and extensible platform to monitor and maintain deployed services • For the most part, invisible to development teams 38

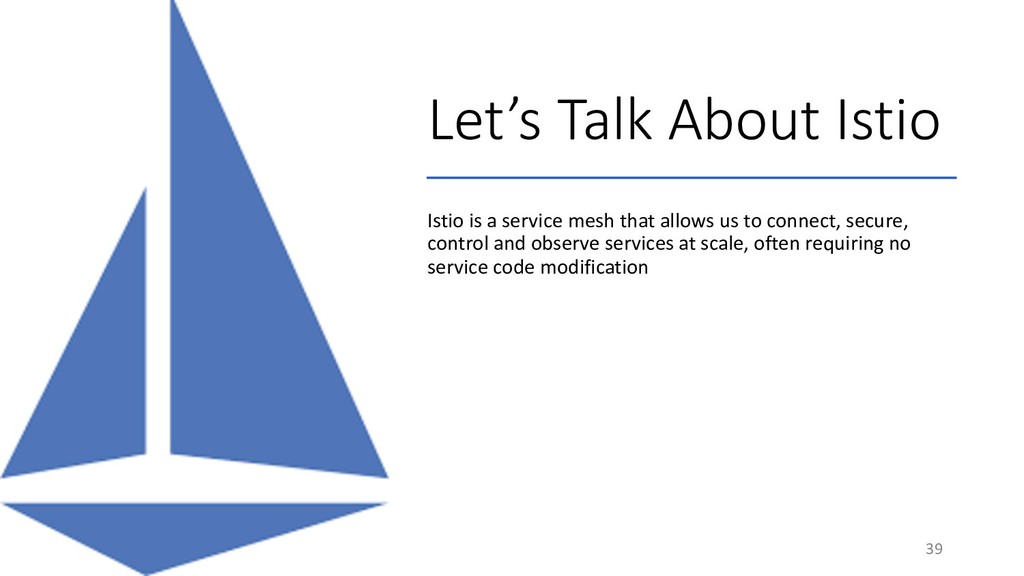

39. Let’s Talk About Istio Istio is a service mesh that allows us to connect, secure, control and observe services at scale, often requiring no service code modification 39

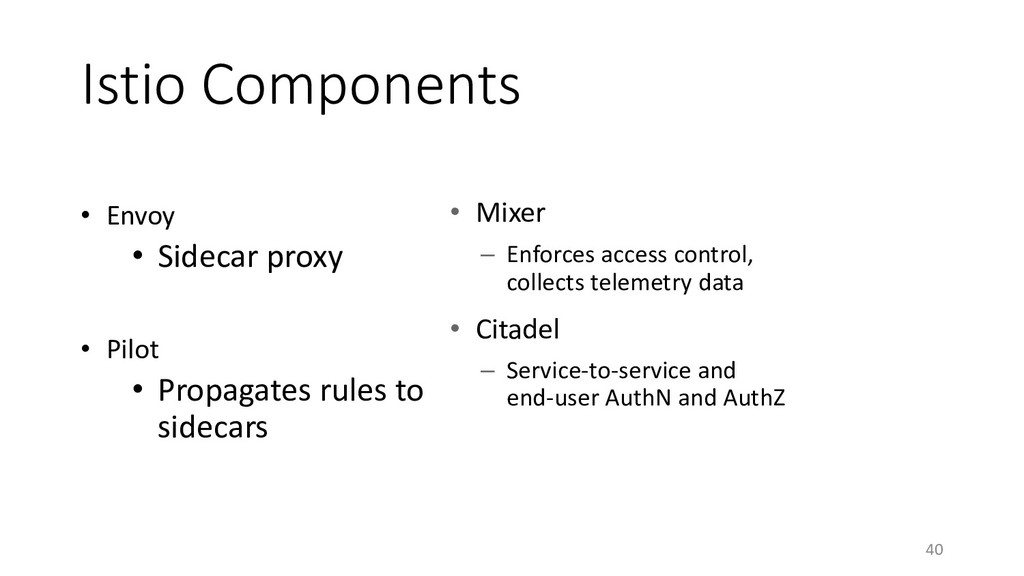

40. Istio Components • Envoy • Sidecar proxy • Pilot • Propagates rules to sidecars 40 • Mixer – Enforces access control, collects telemetry data • Citadel – Service-to-service and end-user AuthN and AuthZ

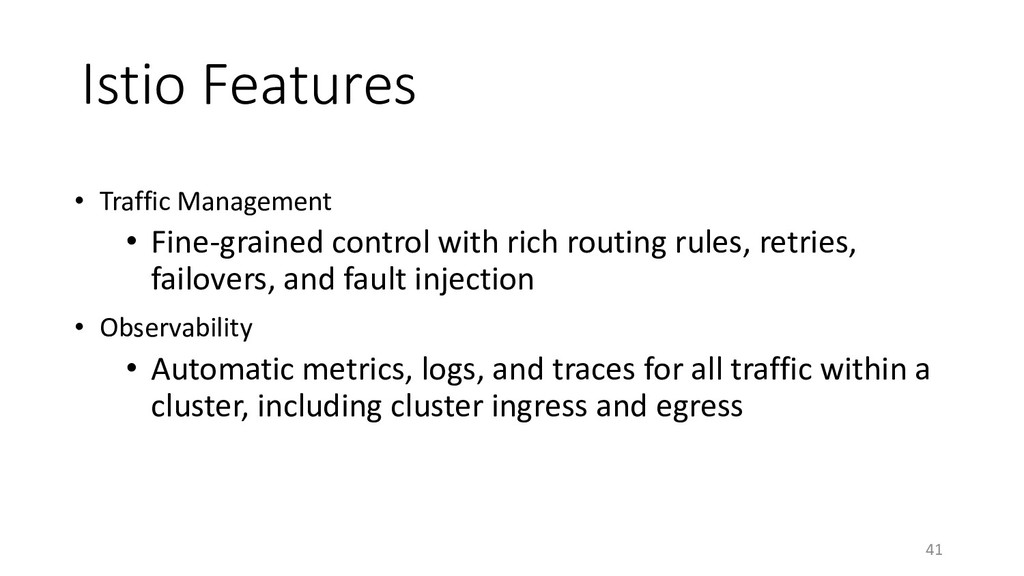

41. Istio Features • Traffic Management • Fine-grained control with rich routing rules, retries, failovers, and fault injection • Observability • Automatic metrics, logs, and traces for all traffic within a cluster, including cluster ingress and egress 41

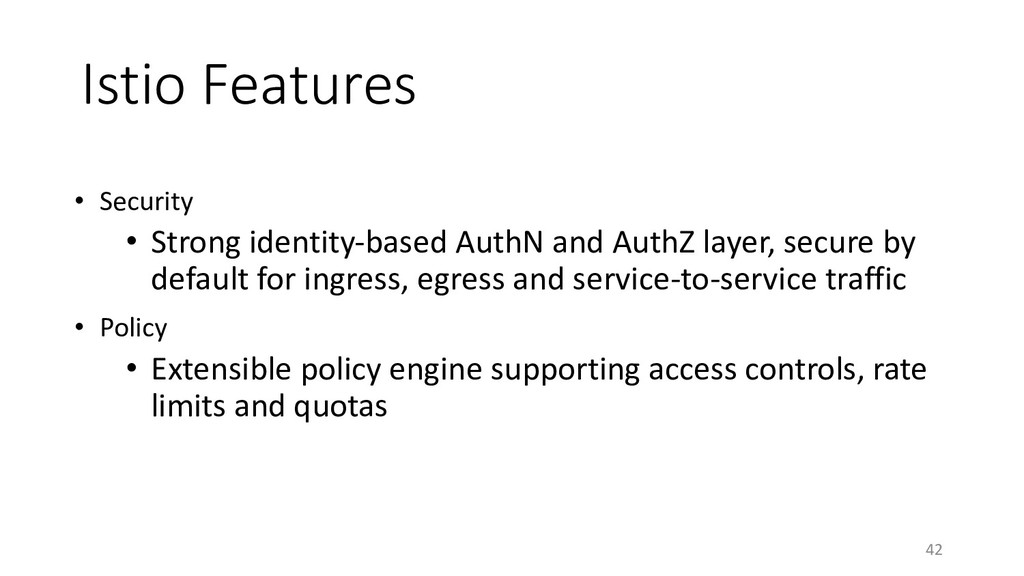

42. Istio Features • Security • Strong identity-based AuthN and AuthZ layer, secure by default for ingress, egress and service-to-service traffic • Policy • Extensible policy engine supporting access controls, rate limits and quotas 42

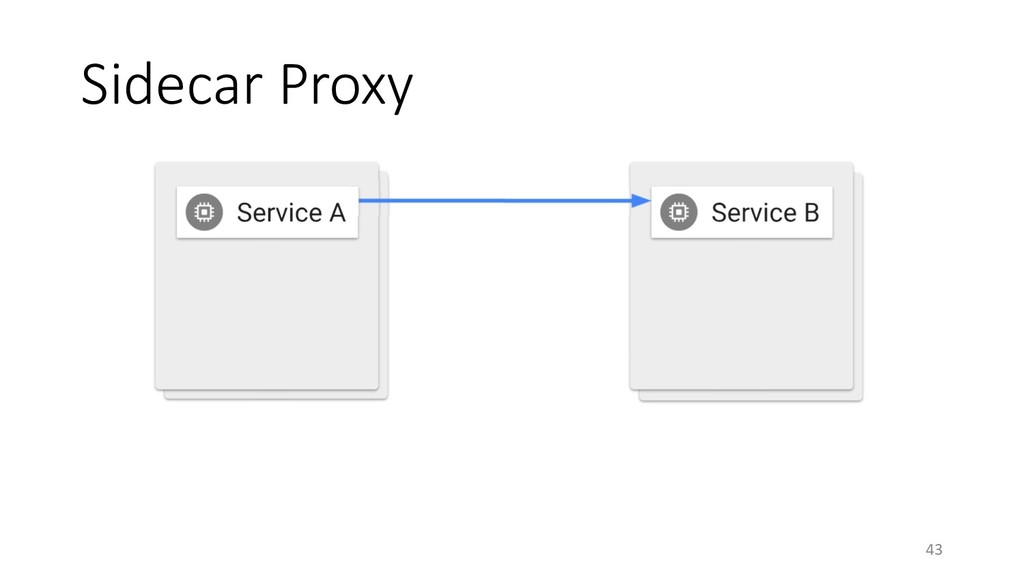

43. Sidecar Proxy 43

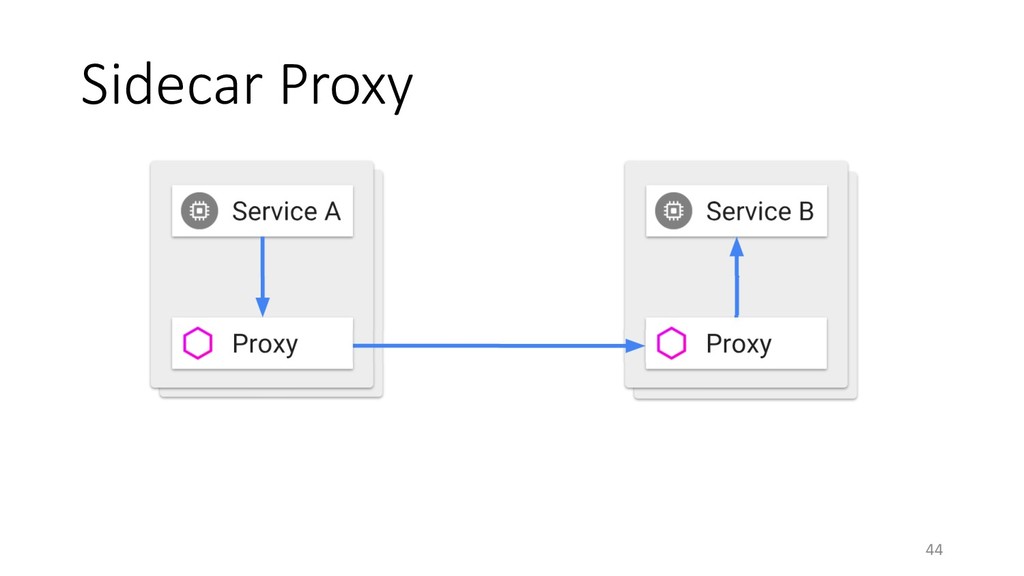

44. Sidecar Proxy 44

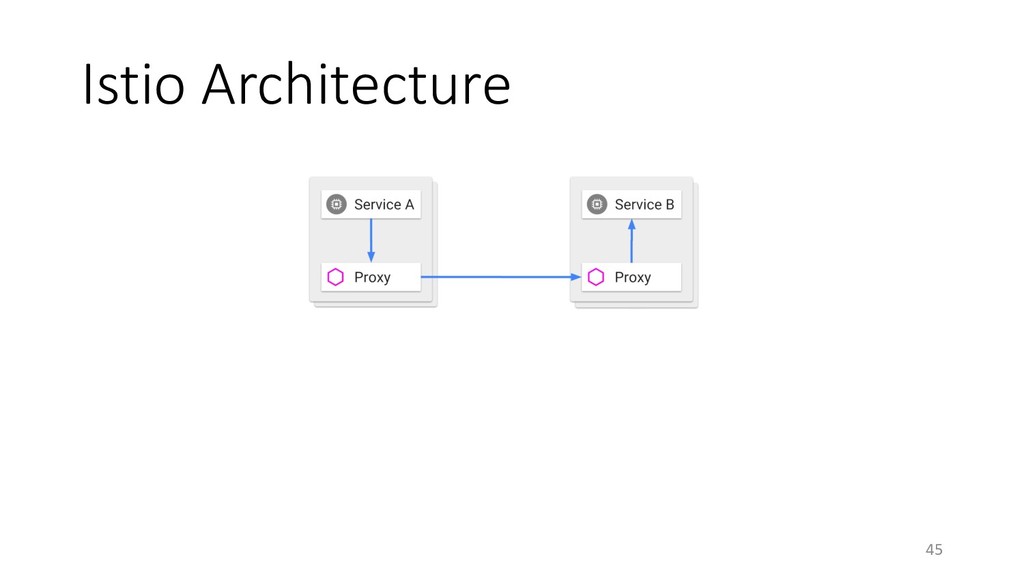

45. Istio Architecture 45

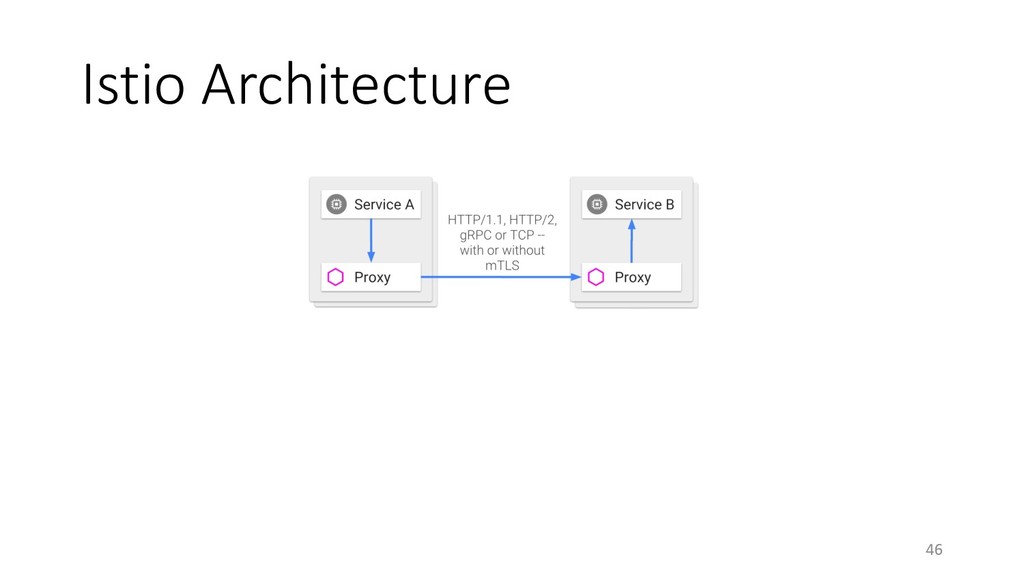

46. Istio Architecture 46

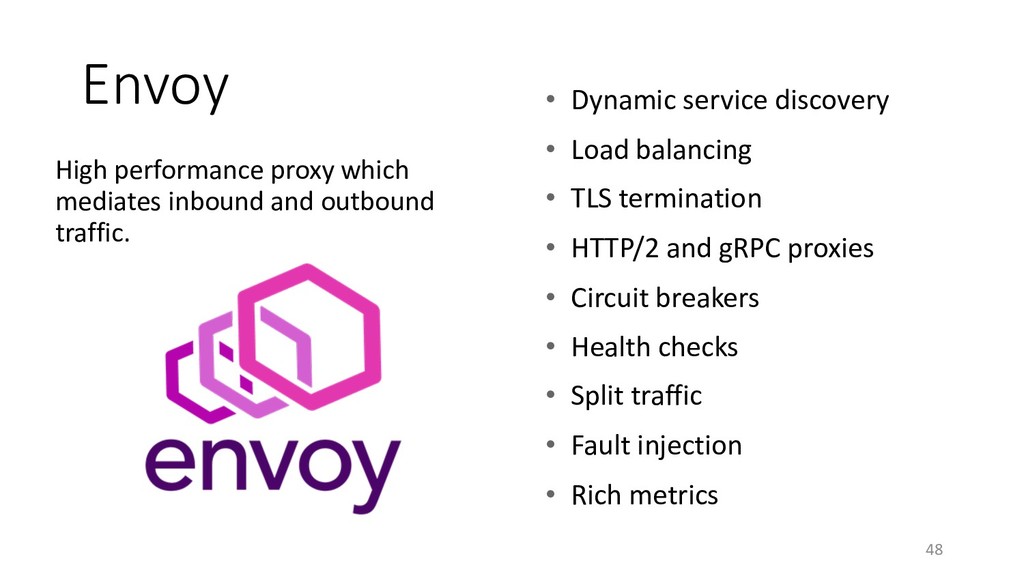

48. Envoy High performance proxy which mediates inbound and outbound traffic. 48 • Dynamic service discovery • Load balancing • TLS termination • HTTP/2 and gRPC proxies • Circuit breakers • Health checks • Split traffic • Fault injection • Rich metrics

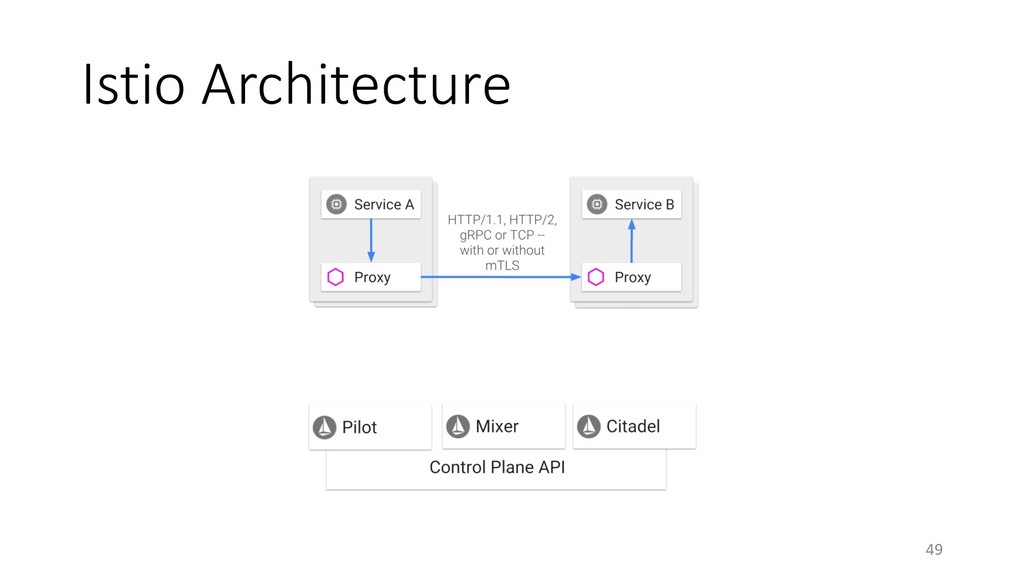

49. Istio Architecture 49

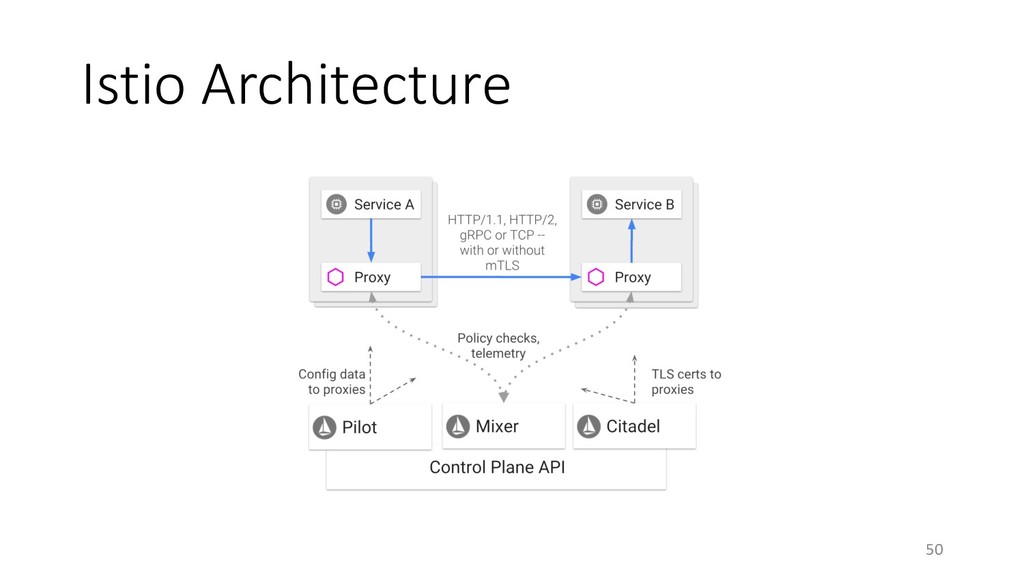

50. Istio Architecture 50

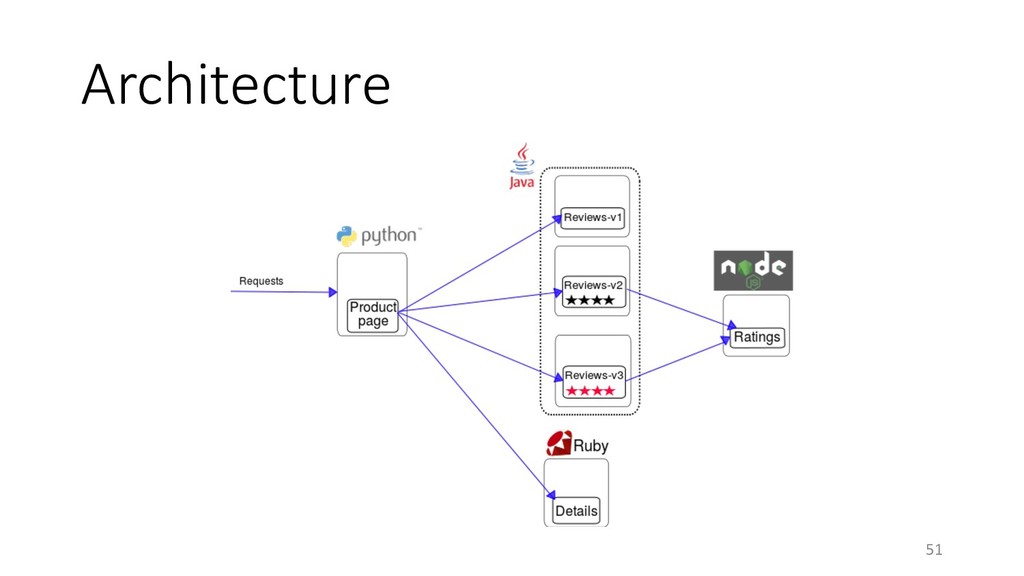

51. Architecture 51
52. DEMO

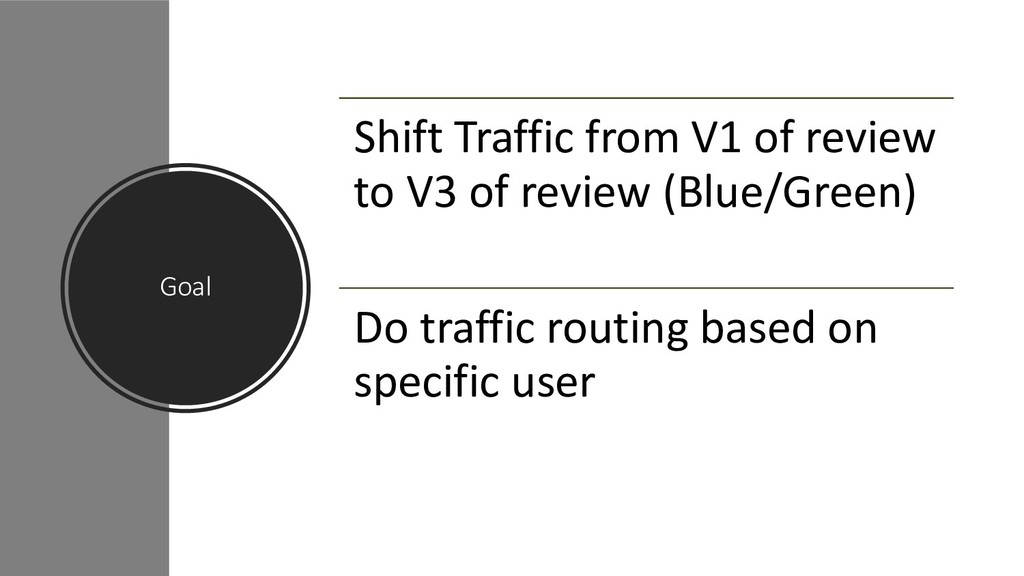

53. Goal Shift Traffic from V1 of review to V3 of review (Blue/Green) Do traffic routing based on specific user

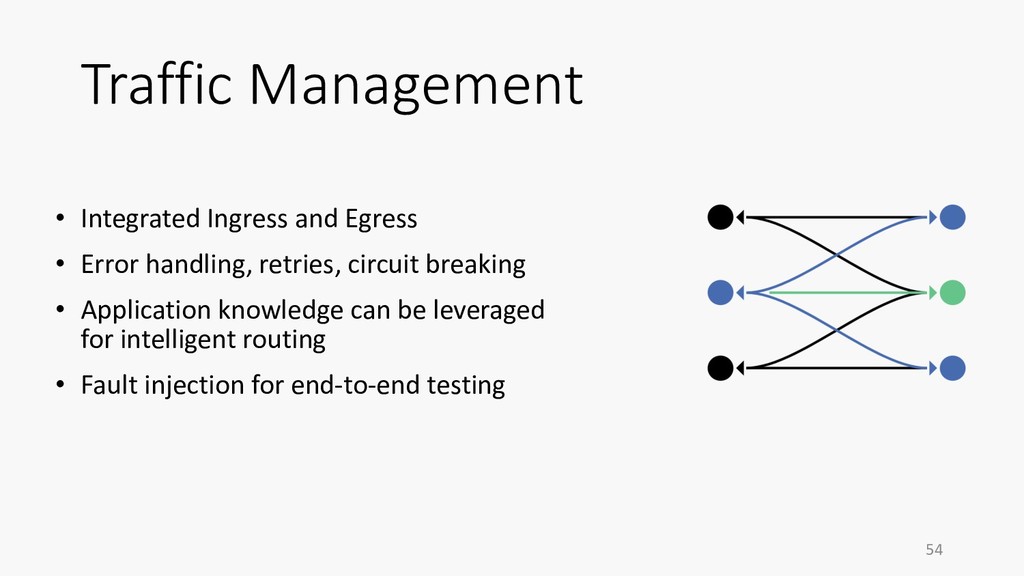

54. Traffic Management • Integrated Ingress and Egress • Error handling, retries, circuit breaking • Application knowledge can be leveraged for intelligent routing • Fault injection for end-to-end testing 54

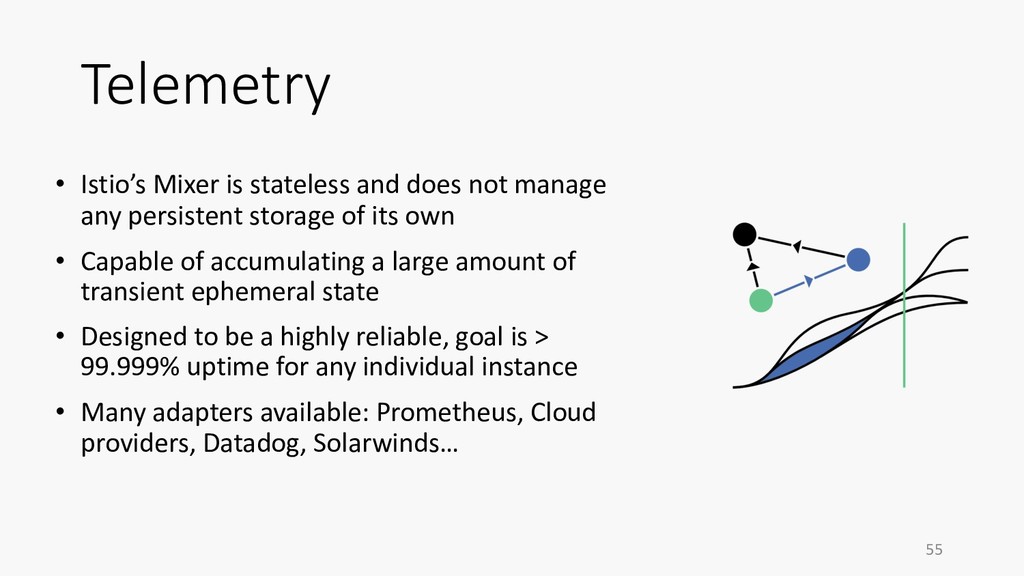

55. Telemetry • Istio’s Mixer is stateless and does not manage any persistent storage of its own • Capable of accumulating a large amount of transient ephemeral state • Designed to be a highly reliable, goal is > 99.999% uptime for any individual instance • Many adapters available: Prometheus, Cloud providers, Datadog, Solarwinds… 55

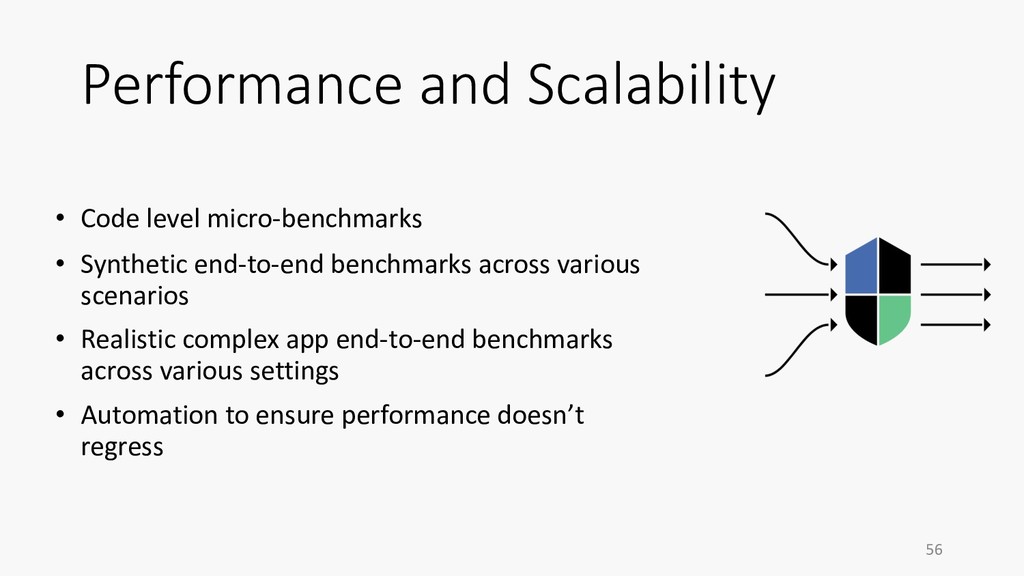

56. Performance and Scalability • Code level micro-benchmarks • Synthetic end-to-end benchmarks across various scenarios • Realistic complex app end-to-end benchmarks across various settings • Automation to ensure performance doesn’t regress 56

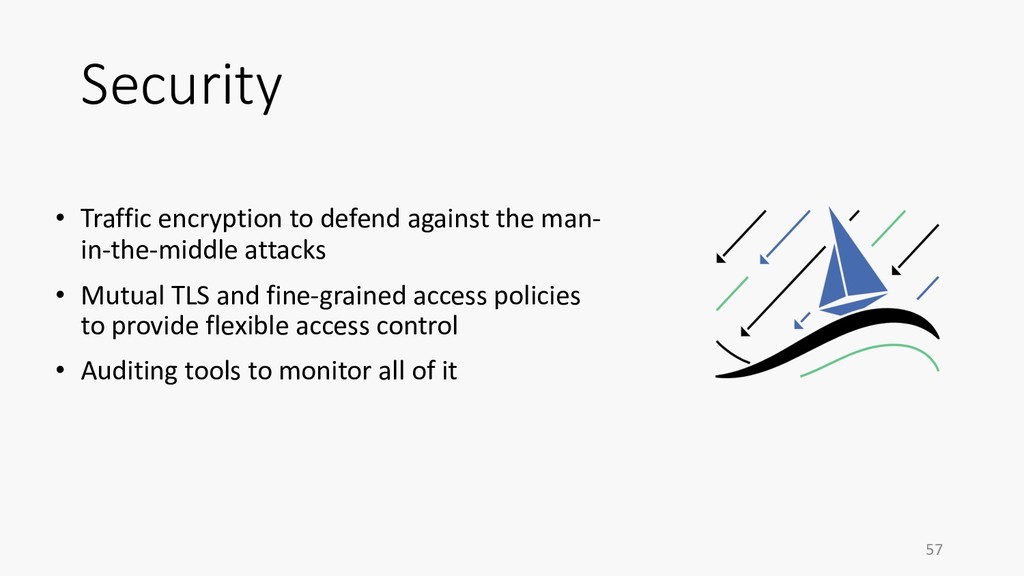

57. Security • Traffic encryption to defend against the man- in-the-middle attacks • Mutual TLS and fine-grained access policies to provide flexible access control • Auditing tools to monitor all of it 57

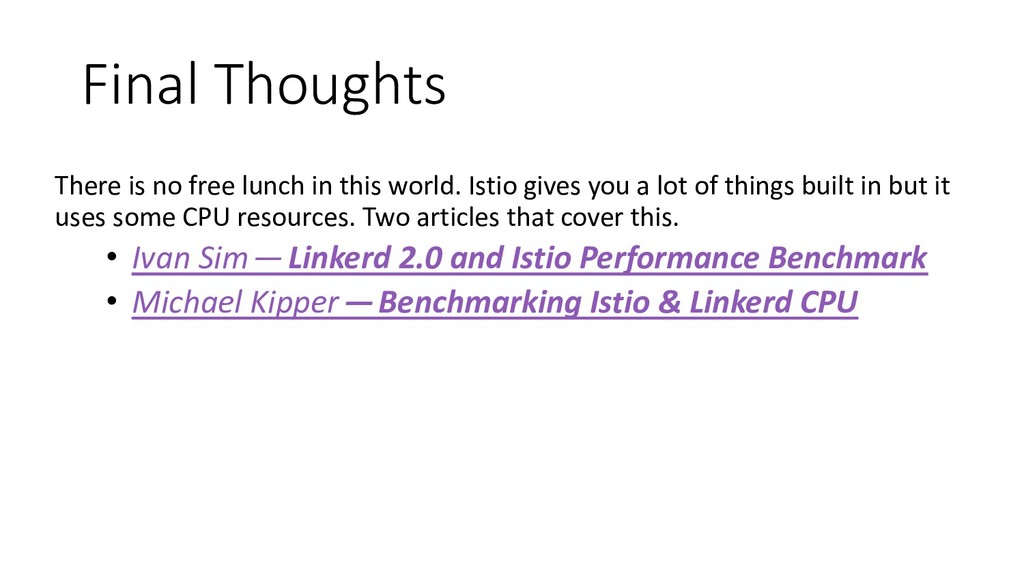

58. Final Thoughts There is no free lunch in this world. Istio gives you a lot of things built in but it uses some CPU resources. Two articles that cover this. • Ivan Sim —Linkerd 2.0 and Istio Performance Benchmark • Michael Kipper— Benchmarking Istio & Linkerd CPU

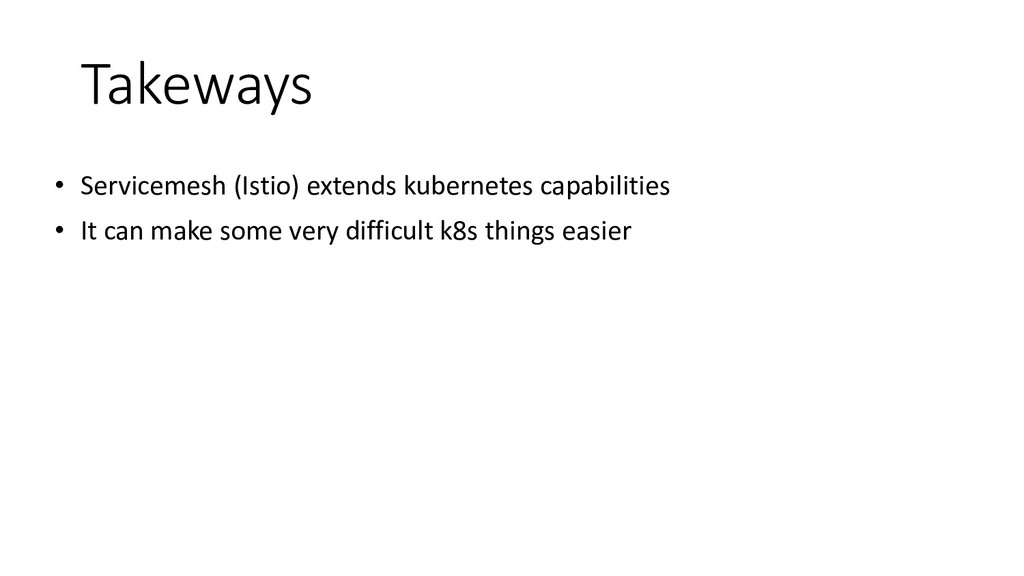

59. Takeways • Servicemesh (Istio) extends kubernetes capabilities • It can make some very difficult k8s things easier
60. Thank You! I would love to hear your question, comments, stories. @moficodes
