Transcript
Finagle
Hello!
Finagle Extensible RPC Implement a feature once => get the
feature in every service => get the feature in every protocol

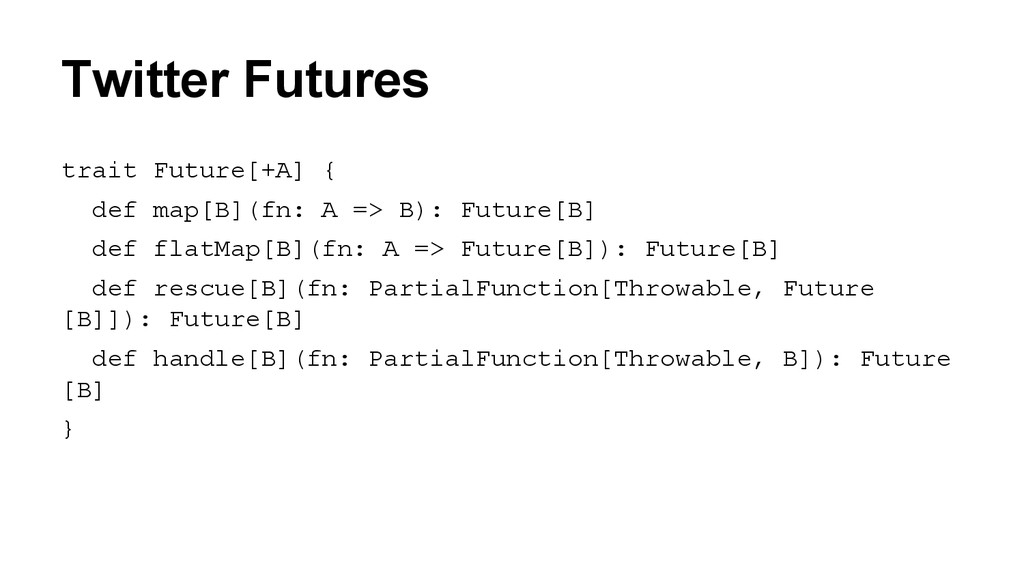

Twitter Futures trait Future[+A] { def map[B](fn: A => B):
Future[B] def flatMap[B](fn: A => Future[B]): Future[B] def rescue[B](fn: PartialFunction[Throwable, Future [B]]): Future[B] def handle[B](fn: PartialFunction[Throwable, B]): Future [B] }

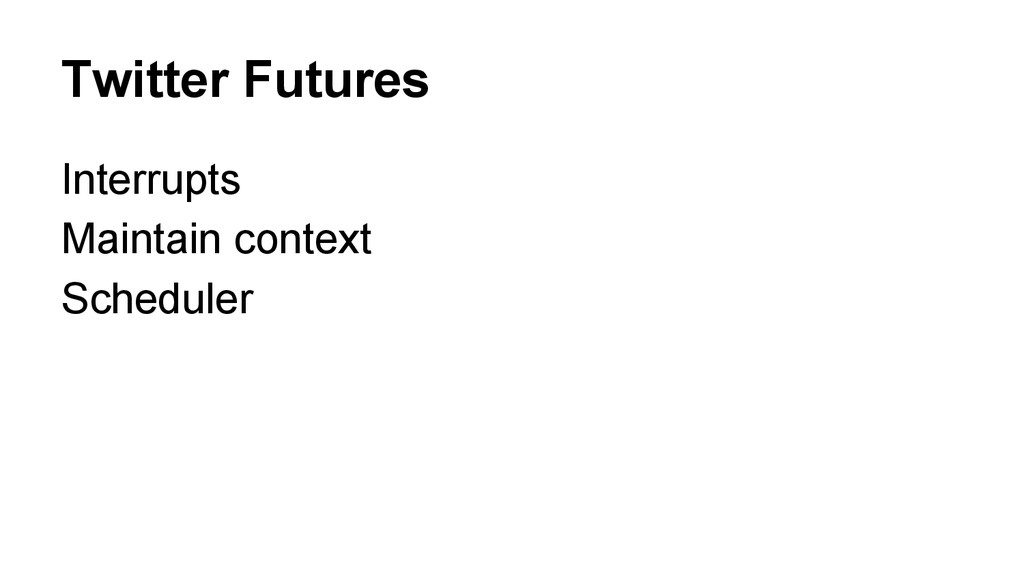

Twitter Futures Interrupts Maintain context Scheduler

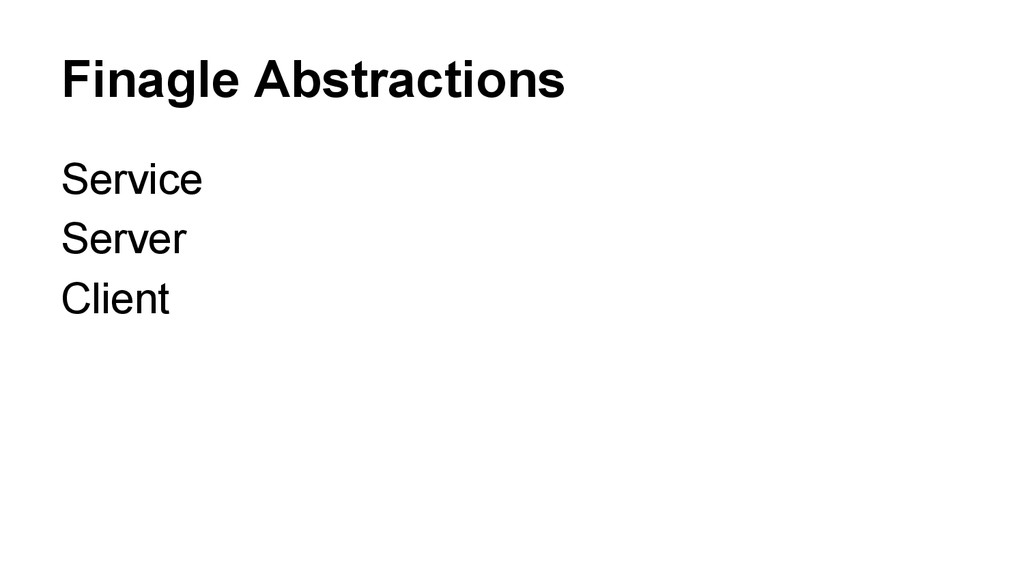

Finagle Abstractions Service Server Client
Service trait Service[-Req, +Rep] extends (Req => Future[Rep])

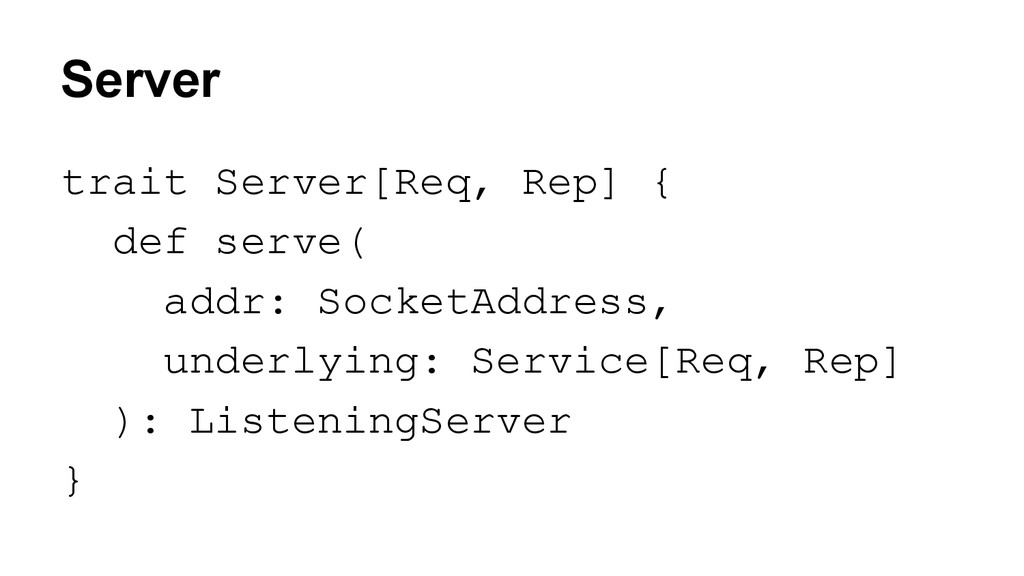

Server trait Server[Req, Rep] { def serve( addr: SocketAddress, underlying:
Service[Req, Rep] ): ListeningServer }

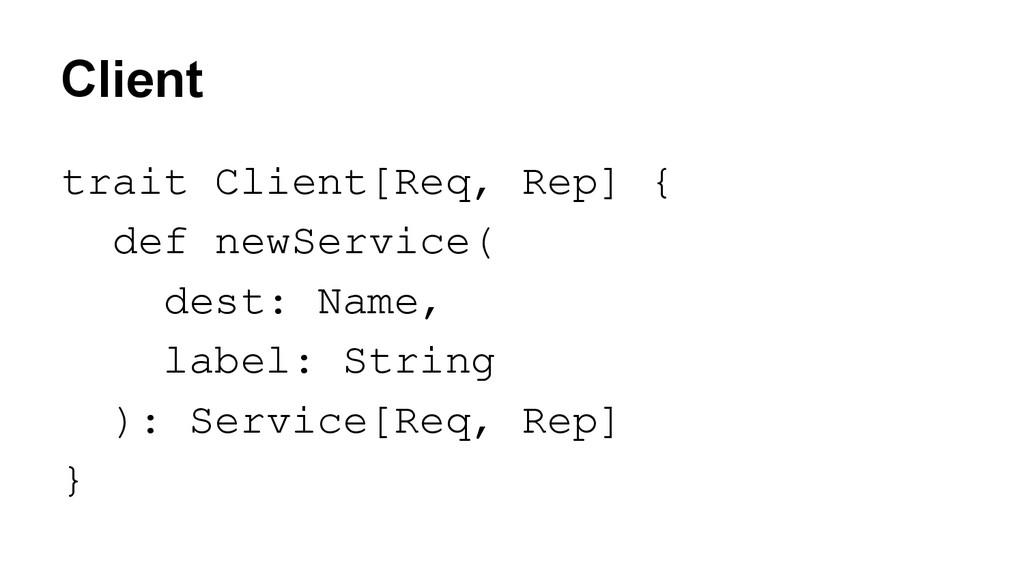

Client trait Client[Req, Rep] { def newService( dest: Name, label:
String ): Service[Req, Rep] }
None
Load Balancing Load balances to the least loaded Internally organized
as a heap Implicitly sends more requests to faster servers
Liveness
Failure Accrual After X failures in a row, backoff for
duration Y

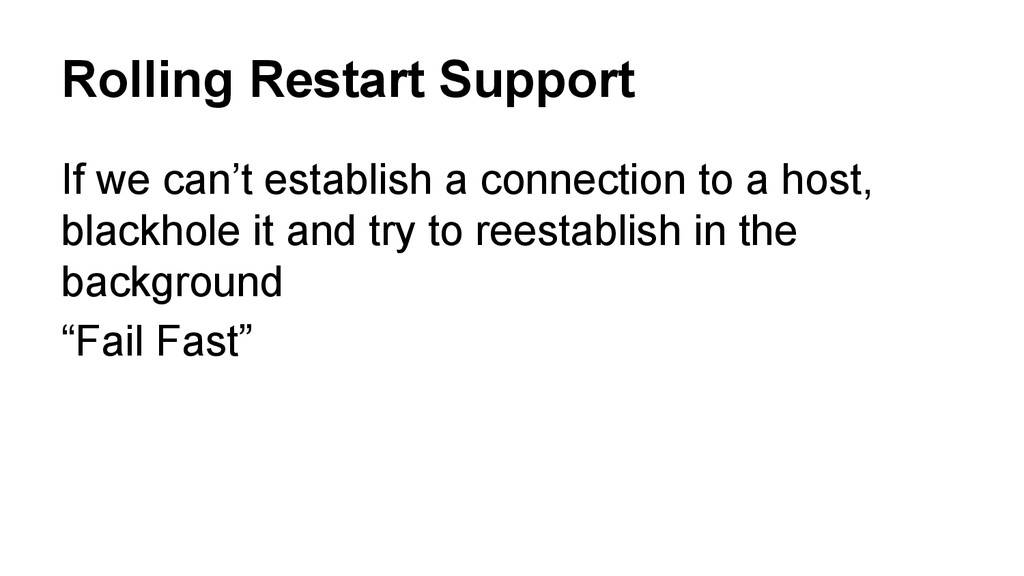

Rolling Restart Support If we can’t establish a connection to
a host, blackhole it and try to reestablish in the background “Fail Fast”

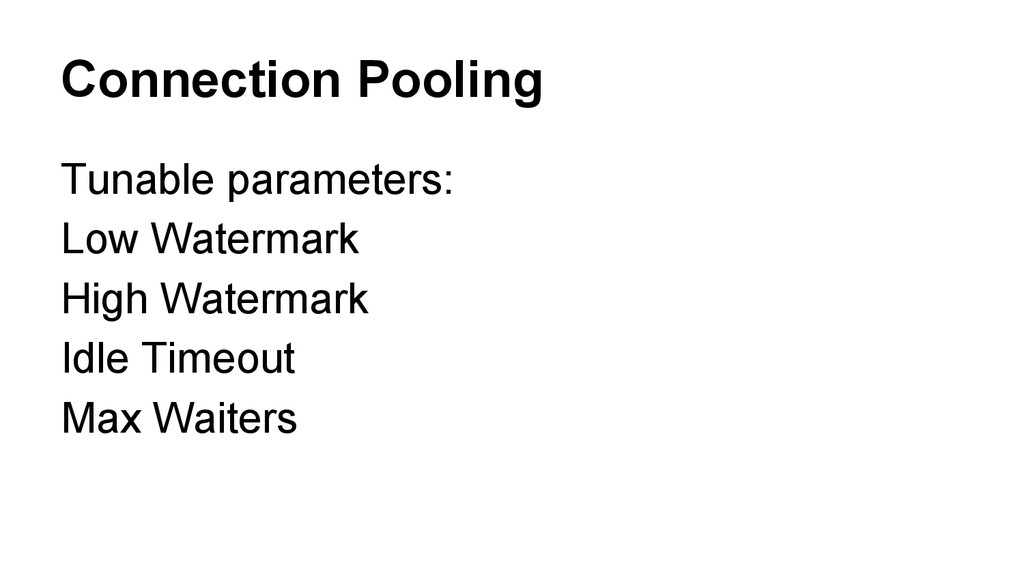

Connection Pooling Tunable parameters: Low Watermark High Watermark Idle Timeout
Max Waiters

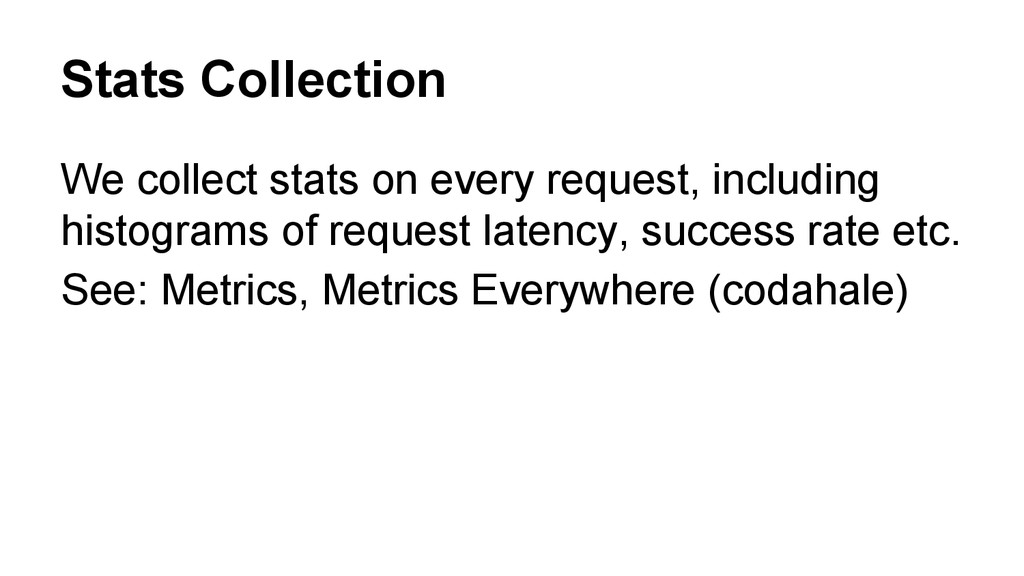

Stats Collection We collect stats on every request, including histograms
of request latency, success rate etc. See: Metrics, Metrics Everywhere (codahale)

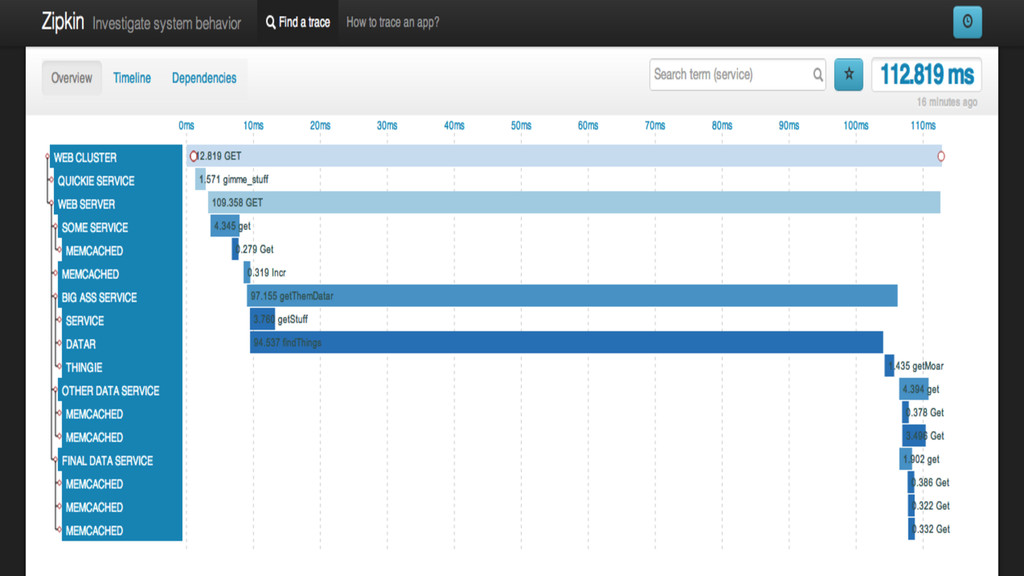

Distributed Tracing Hackweek project inspired by Dapper Sample a small
number of requests Lets you see which upstreams are pummeling your service during an incident Profiling is good for debugging average latency Tracing is good for debugging long tail latency
None

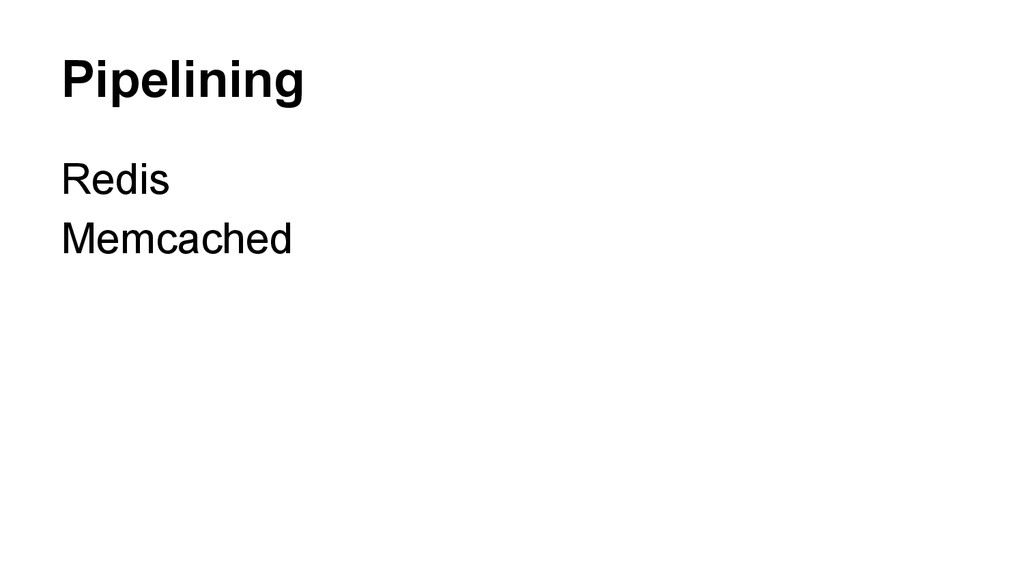

Pipelining Redis Memcached

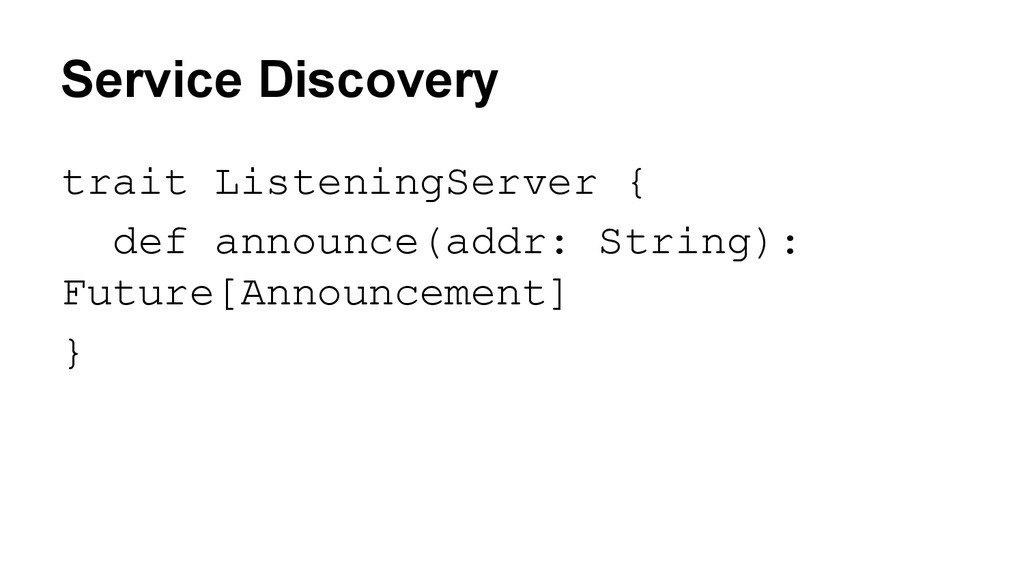

Service Discovery trait ListeningServer { def announce(addr: String): Future[Announcement] }

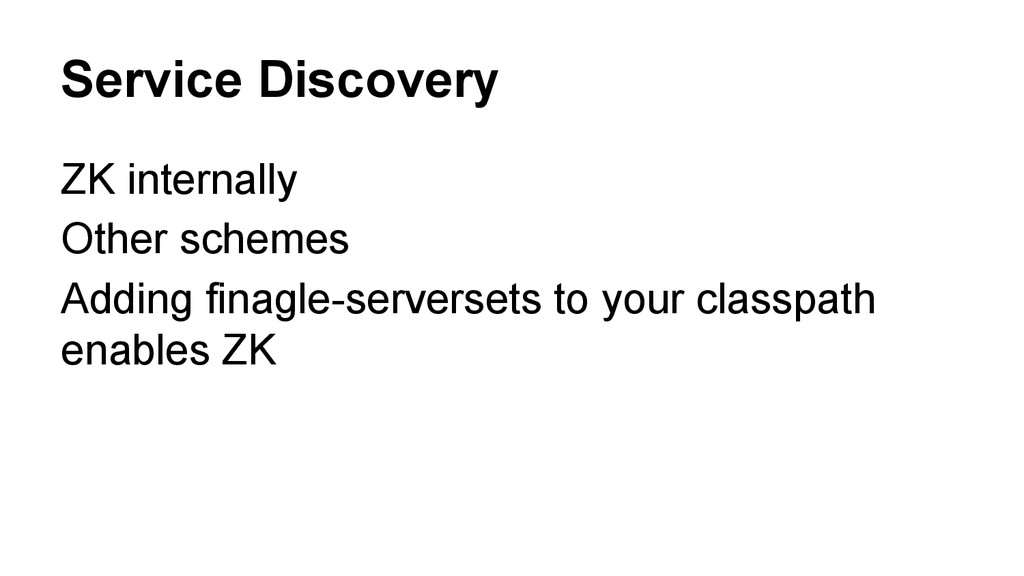

Service Discovery ZK internally Other schemes Adding finagle-serversets to your
classpath enables ZK
Next?!

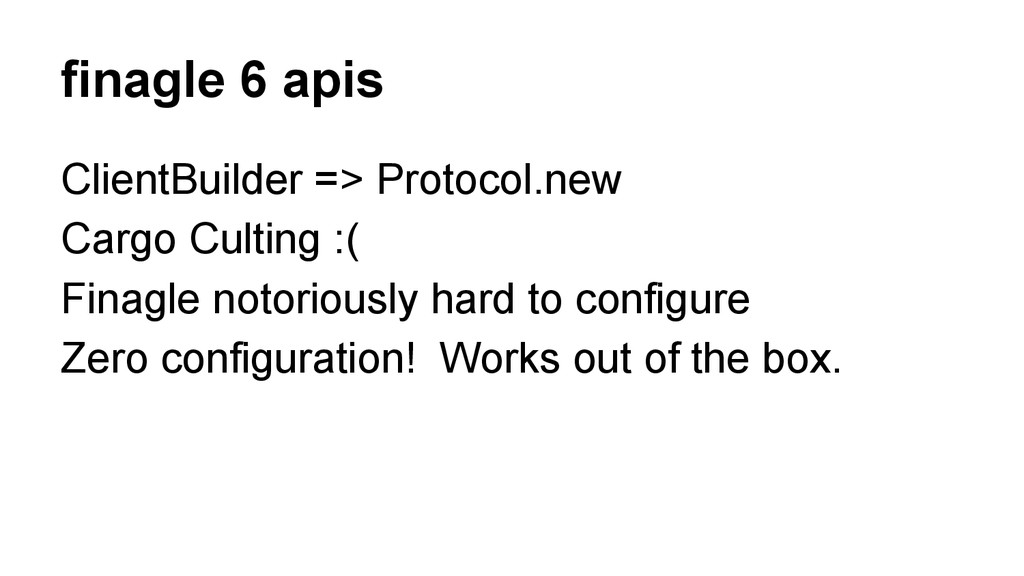

finagle 6 apis ClientBuilder => Protocol.new Cargo Culting :( Finagle
notoriously hard to configure Zero configuration! Works out of the box.
old style val client: Service[HttpRequest, HttpResponse] = ClientBuilder() .codec(Http()) .hosts(address)
.hostConnectionLimit(1) .tcpConnectTimeout(50.milliseconds) .failFast(true) .daemon(true) .retries(3) .trace(ZipkinTracer.mk(host, port) .build()

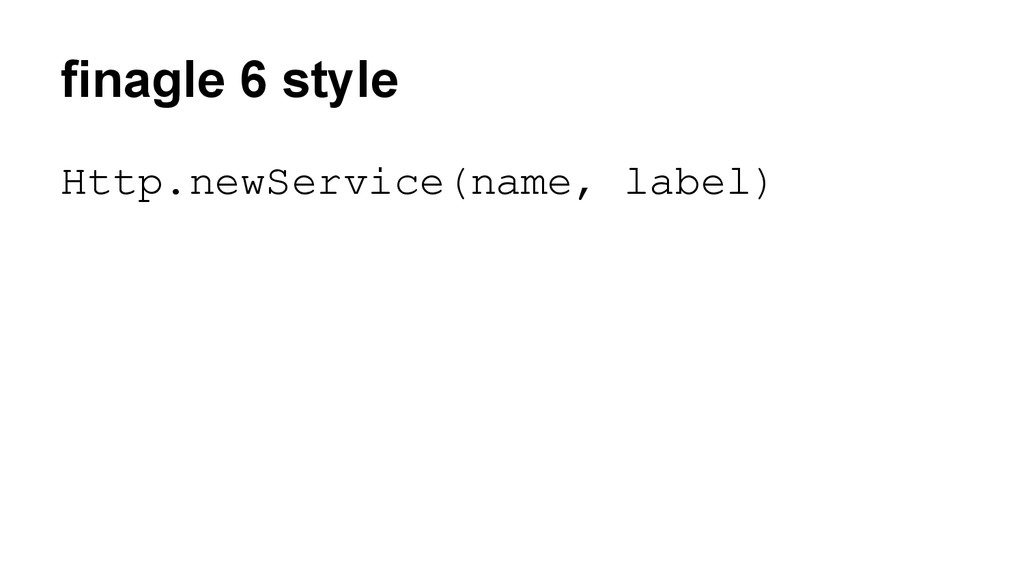

finagle 6 style Http.newService(name, label)
mux A new protocol, layered on other protocols cf. thrift-mux

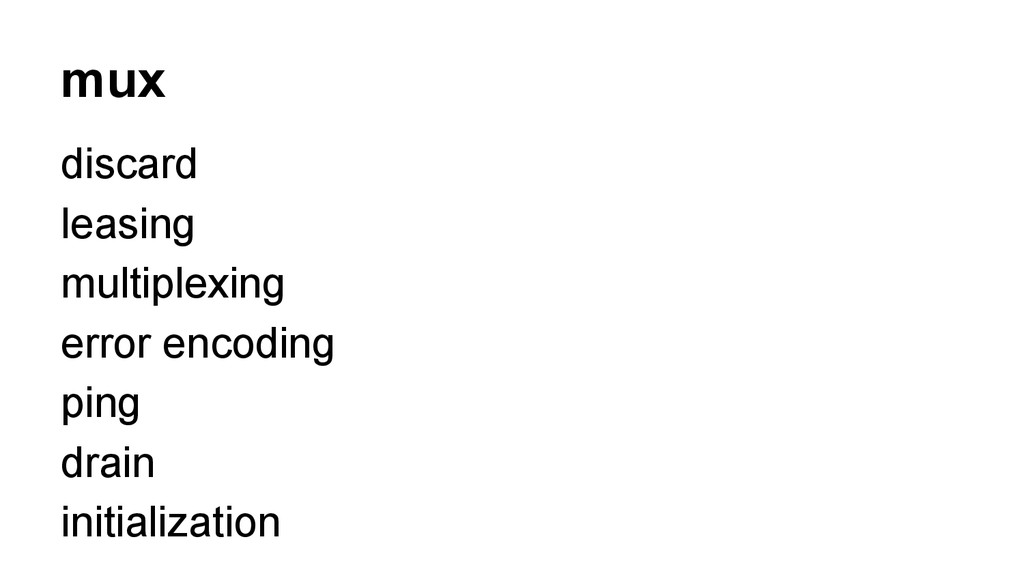

mux discard leasing multiplexing error encoding ping drain initialization

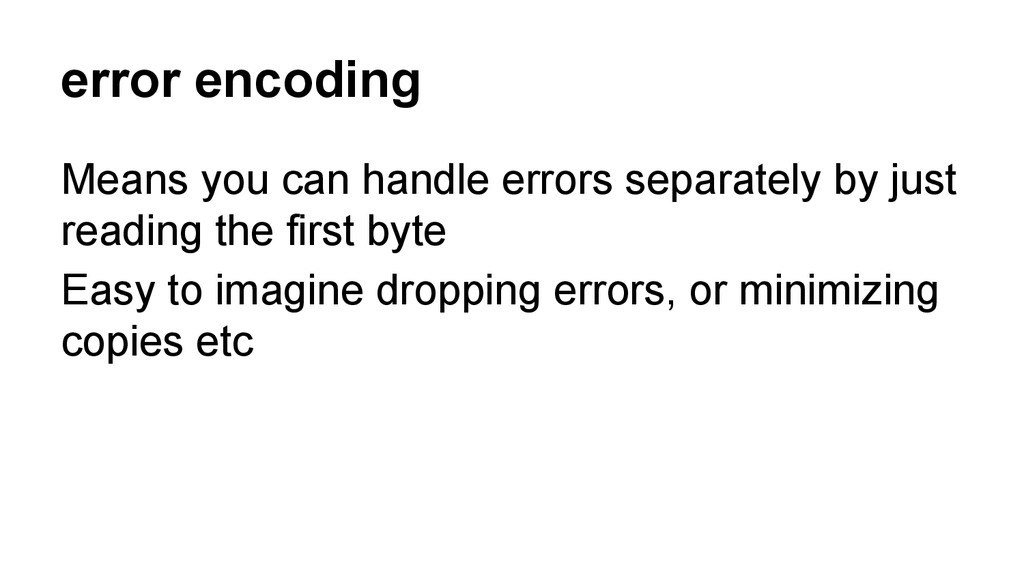

error encoding Means you can handle errors separately by just
reading the first byte Easy to imagine dropping errors, or minimizing copies etc
init + ping True liveness No more failfast or failure
accrual
draining Signals that a server will start draining Client knows
to stop sending new requests

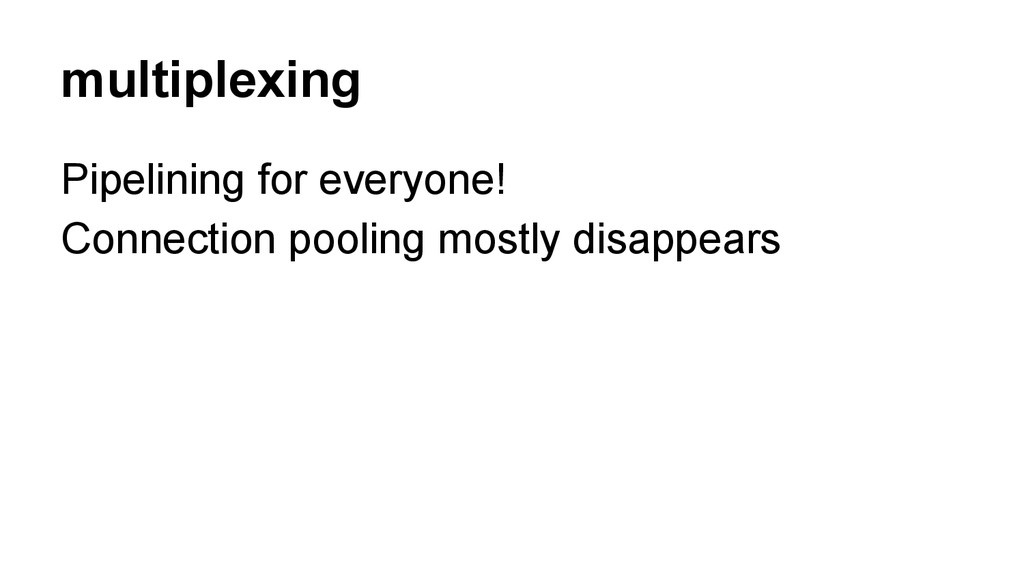

multiplexing Pipelining for everyone! Connection pooling mostly disappears

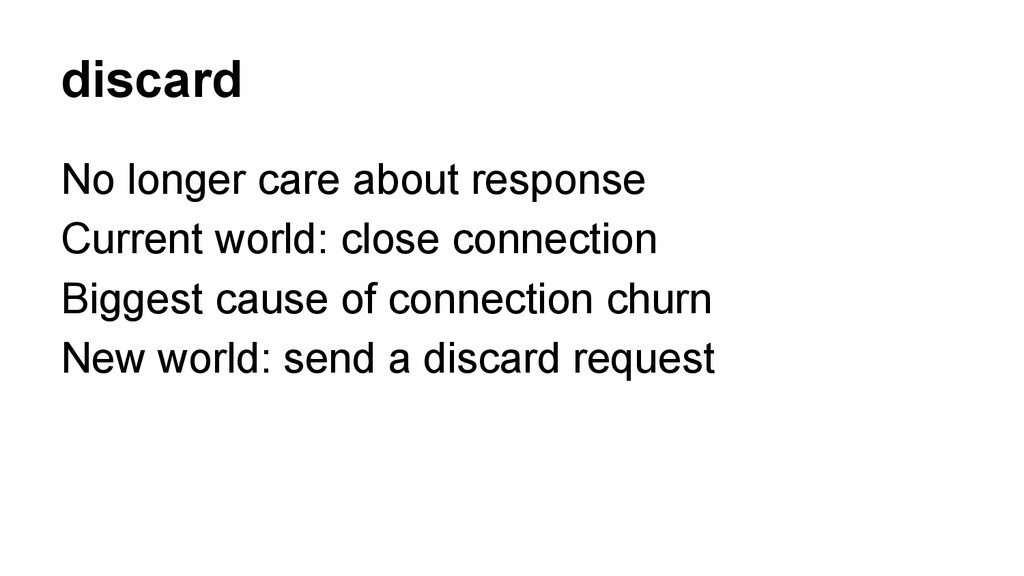

discard No longer care about response Current world: close connection
Biggest cause of connection churn New world: send a discard request
leasing First target: GC avoidance Useful elsewhere too

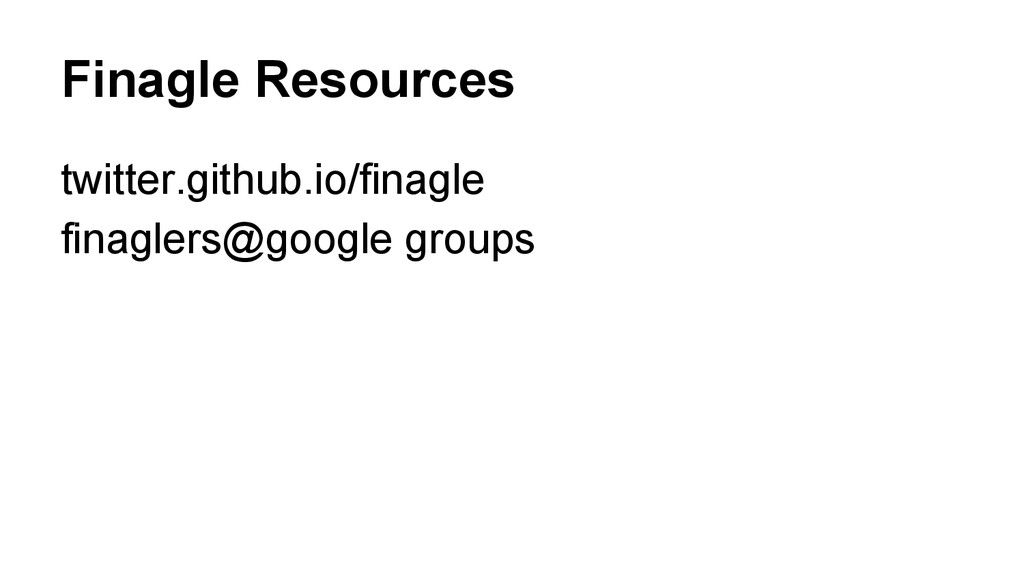

Finagle Resources twitter.github.io/finagle finaglers@google groups

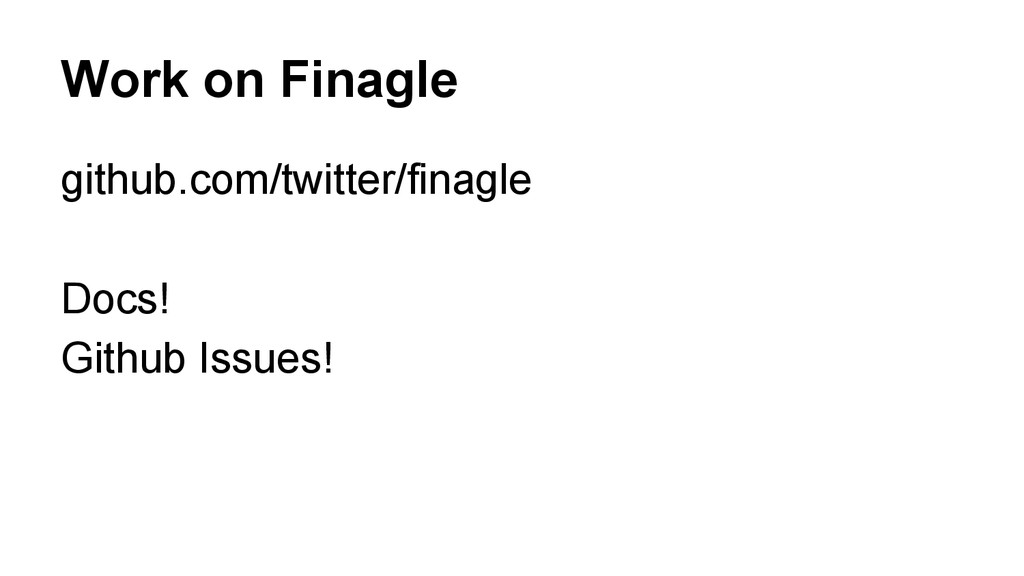

Work on Finagle github.com/twitter/finagle Docs! Github Issues!

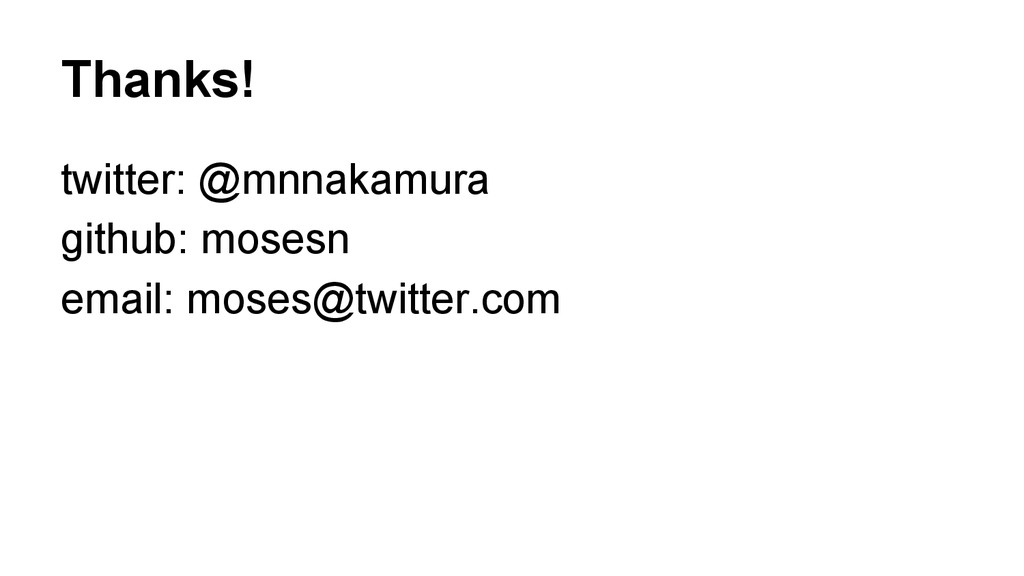

Thanks! twitter: @mnnakamura github: mosesn email:
[email protected]
Work for Twitter! https://twitter.com/jobs We’re hiring! t.co/nymeetup
Questions? https://twitter.com/jobs/engineering t.co/nymeetup email:
[email protected]
