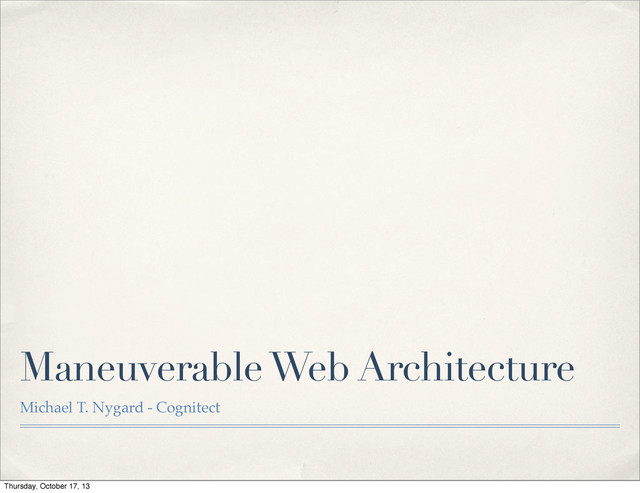

1. Maneuverable Web Architecture Michael T. Nygard - Cognitect Thursday, October 17, 13
2. Thesis Thursday, October 17, 13
3. Thesis ✤ Agile dev works at micro scale Thursday, October 17, 13
4. Thesis ✤ Agile dev works at micro scale ✤ Won’t create macro scale agility Thursday, October 17, 13
5. Maneuverability Thursday, October 17, 13
6. John Boyd ✤ Fighter pilot ✤ Air combat instructor ✤ Military theorist Thursday, October 17, 13
7. Thursday, October 17, 13
8. Kinetic to potential Thursday, October 17, 13
9. Kinetic to potential Potential to kinetic Thursday, October 17, 13
10. Energy-Manueverability (EM) Thursday, October 17, 13
11. Energy-Manueverability (EM) Kinetic ⟷ Potential Thursday, October 17, 13
12. Energy-Manueverability (EM) Kinetic ⟷ Potential Gain and Shed Momentum Thursday, October 17, 13
13. Energy-Manueverability (EM) Kinetic ⟷ Potential Gain and Shed Momentum Rapidly Change Maneuvers Thursday, October 17, 13
14. Thursday, October 17, 13
15. Thursday, October 17, 13
16. Maneuver Warfare Thursday, October 17, 13
17. Control tempo of engagement Maneuver Warfare Thursday, October 17, 13
18. Control tempo of engagement Take initiative Maneuver Warfare Thursday, October 17, 13
19. Control tempo of engagement Take initiative Send ambiguous signals Maneuver Warfare Thursday, October 17, 13
20. Note how orientation shapes observation, shapes decision, shapes action, and in turn is shaped by the feedback and other phenomena coming into our sensing or observing window. Also note how the entire
    loop (not just orientation) is an ongoing many-sided implicit cross-referencing process of projection, empathy, correlation, and rejection. From
    The Essence of Winning and Losing, John R. Boyd, January 1996. Feed Forward Observations Decision (Hypothesis) Action (Test) Cultural Traditions Genetic Heritage New Information Previous Experience Analyses & Synthesis Feed Forward Feed Forward Implicit Guidance & Control Implicit Guidance & Control Unfolding Interaction With Environment Unfolding Interaction With Environment Feedback Feedback Outside Information Unfolding Circumstances Observe Orient Decide Act Defense and the National Interest, http://www.d-n-i.net, 2006 Thursday, October 17, 13
21. Maneuverable Web Architecture Thursday, October 17, 13
22. Control tempo of engagement Take initiative Send ambiguous signals Thursday, October 17, 13
23. “From now on, I control the tempo.” Thursday, October 17, 13
24. Cross-cutting Themes ✤ Plurality ✤ Break monoliths ✤ Use URIs with abandon ✤ c.f. “Architecture Without an End State” ✤ Augment upstream ✤ Contextualize downstream Thursday, October 17, 13
25. Techniques, not patterns… yet Thursday, October 17, 13
26. Sufficiently Abstract UI Counterexample: 100+ countries. 6 services per country. UI knows which services to call UI has forms specific to each one. Thursday, October 17, 13
27. Sufficiently Abstract UI 2 Better: Generic UI + Semantic HTML + Unobtrusive JavaScript Best: Above, plus either SSR or CSR, with CMS & toolkit for adaptable components. Thursday, October 17, 13
28. Services & scripting URL μService μService script ✤ Dynamic deployment of script ✤ Script addressable by URL Thursday, October 17, 13
29. Immutable values, monotonic succession Ref Value at TN Thursday, October 17, 13
30. Ref Value at TN Value at TN+1 Immutable values, monotonic succession Thursday, October 17, 13
31. Value Semantics Ref Semantics Values do not change Change is atomic No observable intermediate states Equality is identity Equality based on referent Thursday, October 17, 13
32. Value Semantics Ref Semantics Values do not change Change is atomic No observable intermediate states Equality is identity Equality based on referent Thursday, October 17, 13
33. Value Semantics Ref Semantics Values do not change Change is atomic No observable intermediate states Equality is identity Equality based on referent Thursday, October 17, 13
34. Example: Perpetual string ✤ Perpetual string: store strings forever. ✤ URL is SHA-256 hash of string. ✤ Use for scripts, legal text. ✤ Edit the script, get a new URL Thursday, October 17, 13
35. Example: Shopping Cart as Value Add: function from Cart, Item, Qty to Cart Remove: function from Cart, Item to Cart Cart is a number Thursday, October 17, 13
36. Example: Shopping Cart as Value Cart0 User Cart «ref» Thursday, October 17, 13
37. Example: Shopping Cart as Value Cart0 User Cart «ref» Add Thursday, October 17, 13
38. Example: Shopping Cart as Value Cart0 User Cart «ref» Add Cart0 User Cart «ref» Cart1 Thursday, October 17, 13
39. Generalized minimalism Feature: Send email to customer ahead of credit card expiration. Complexity: Number of reminders and advance notice vary by tenant. Required: Record email sent, bounced. Thursday, October 17, 13
40. Complected solution Daily job wakes up, scans cards, creates warnings, sends email, checks bounces. User ID Sent on Warning ID Bounced? Token Expiration Card ID User ID User Email Thursday, October 17, 13
41. Minimal, generalized solution At: at datetime, call this URL. Template: accept body + params to format text Lead time: generate series of datetimes Mailer: send email to addr, track bounces Thursday, October 17, 13
42. Minimal, generalized solution Registration At 3. Several calls to "At". Provide URLs for script Script Engine 2. create new script, get URL Lead time 1. create reminder dates Reminder script Much later: invoke reminder script creates Perpetual string A. Get template Template Mailer B. Format message C. Send message Thursday, October 17, 13
43. Issue identifiers ✤ Every service issues identifiers ✤ No restrictions on use Catalog Create Add Query catalog ID Thursday, October 17, 13
44. Policy Proxy Client Query catalog ID client ID Catalog Policy Proxy F: client → catalog Thursday, October 17, 13
45. Faceted identities User Ledger Cart Dept. Address Book Wish List Concierge Company Thursday, October 17, 13
46. Faceted identities ✤ IDs all issued by services ✤ Relationships externalized Catalog Company Item SKU Microsite Prize Pool Thursday, October 17, 13
47. Explicit context Implicit Explicit Bare identifiers URLs State names State machines Assumed channel Reply-to queue Thursday, October 17, 13
48. Self-defense ✤ Required for use without permission ✤ Protect from overload ✤ Allow cut off of maluser ✤ Important for operational safety and authorization Client Query Catalog Policy Proxy F: client → catalog client ID catalog ID gateway trusted untrusted Thursday, October 17, 13
49. Self-defense 2 ✤ Also applies to outcalls Payment Processor gateway The Collector trusted untrusted Thursday, October 17, 13
50. Half-duplex testing Wrong 1. Set up mock 2. Set up call 3. Make call 4. Assertions about result 5. Verify mock was called Thursday, October 17, 13
51. Half-duplex testing Wrong 1. Set up mock 2. Set up call 3. Make call 4. Assertions about result 5. Verify mock was called Right - call side 1. Set up mock 2. Set up call 3. Make call 4. Verify mock was called correctly. Thursday, October 17, 13
52. Half-duplex testing Right - call side 1. Set up mock 2. Set up call 3. Make call 4. Verify mock was called correctly. Right - response side 1. Skip mock & call 2. Inject fake results 3. Verify results handled correctly. Thursday, October 17, 13
53. Other techniques I’m not 100% sure about ✤ Separate query from action ✤ Never deploy together ✤ Tell, don’t ask ✤ Unbundle parameters Thursday, October 17, 13
54. Maneuverability and tempo Thursday, October 17, 13
55. Thanks! Michael T. Nygard Cognitect mtnygard@cognitect.com @mtnygard Thursday, October 17, 13
