Towards Rapid Composition with Confidence in Robotics Software

ERA talk at Int Workshop on Robotics in Software Engineering at ICSE, 2018

Transcript

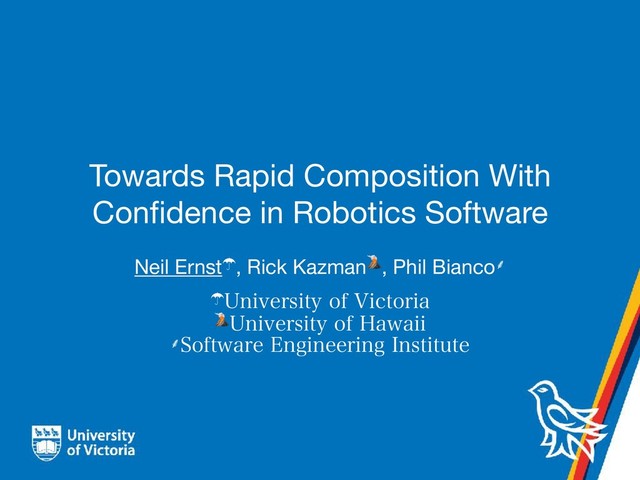

1. Towards Rapid Composition With
   Confidence in Robotics Software
   Neil Ernst’, Rick Kazman, Phil Bianco⸙
   ’6OJWFSTJUZPG7JDUPSJB
   6OJWFSTJUZPG)BXBJJ
   ⸙4PGUXBSF&OHJOFFSJOH*OTUJUVUF


   View Slide

2. Problem
   Modern software development is a world of rapid
   release and compositional development.
   This challenges developers to rapidly deploy trusted
   systems that include increasing numbers of untrusted
   components.
   Bad decisions are easy to make and have long reach.
   For example, decisions based on outdated
   documentation or decisions skewed to one criterion
   (e.g., performance).


   View Slide

3. AoA and Assurance
   Conformance
   Us
   Marketing material
   and vendor telecons
   Heuristic, off
   the cuff
   decisions
   Confidence
   Assessment Speed
   Project Goal


   View Slide

4. Context: ROS-M
   • ROS-M(ilitary) envisions a “component”
   approach to assembling DoD software for
   uncrewed vehicles.
   • Vision: special enclave with software tools,
   support services (e.g. docs and metadata), and a
   registry of available (approved) ROS
   components.
   Developer dilemma: Which components do I
   use? What information do I need to avoid a bad
   decision? How do I get reliable data?


   View Slide

5. Working Usage Scenario
   A developer is working on a UGV using ROS-M
   Sergey Demushkin, noun project


   View Slide

6. Approach
   1. Determine typical indicators, plus tools and data
   for each indicator.
   2. Score each component.
   3. Aggregate indicators: use expert input for
   weights (e.g., peak load, design hotspots,
   vulnerability collection).
   4. Validate on open source corpus and with
   stakeholders.


   View Slide

7. Sample
   Project
   Health
   Indicators


   View Slide

8. Quality
   Attributes


   View Slide

9. Sample Results


   View Slide

10. Evaluation Criteria
    Tool Correct
    • Internal tests against known component
    measures.
    • “Cross-fold”: pilot on 1 component, then test on
    new ROS components.
    Increased Confidence
    • Ask ROS experts for past problematic indicators
    and measures (e.g. use of O(n2) algorithm).
    • Inject these and measure detection rate.
    • Survey stakeholders in practice.


    View Slide

11. Evaluation Criteria (2)
    Reduced Decision Time
    • Baseline current approaches
    • Scorecard result (post-setup) achieved 1 SD
    faster than developer acting without our tool
    Operational Validity
    • Collaborator pilot of tool on their system with
    their sample components


    View Slide

12. Critiques and Open Questions
    • What indicators ought to be included?
    • We use existing architecture analyses
    • Iterative assessment clearly important
    • How to contextualize analysis for particular
    system?
    • Ignores mixed-criticality community, other open
    architecture standards (FACE)
    • More component selection than composition
    • Just pick the best component (it isn’t that hard?)


    View Slide

13. Neil Ernst

    nernst@uvic.ca

    Introduced ROS-M, with different focus for
    building ROS based robots
    Argued for scoreboard approach to rating ROS
    components
    Scoreboard combines indicators and potential
    components to rank candidates
    Rick Kazman

    kazman@hawaii.edu



    View Slide

14. Aggregation of Values
    Possible choices:
    • equal weighting: sum all indicators, normalize to 0..1
    • normalize to industry baselines and categorize as high,
    medium, low
    Approach:
    1. Each indicator gets a weight w based on our model of
    stakeholder priority
    2. The model is derived from interviews and short AHP
    prioritization exercises
    3. Normalize as necessary for different denominators such
    as SLOC, programming language
    4. We create customizable templates, based on
    stakeholder interviews.
    - E.g. (wM1
    * wM2
    ) + 2(wP1
    * log wP2
    ) + 3(wS
    1
    )
    (some more important)
    (some highly correlated)


    View Slide
