Whoops! Where did my architecture go?

Slides of the talk I held at 50th meeting of Java User Group Saxony. @springcentral

Transcript

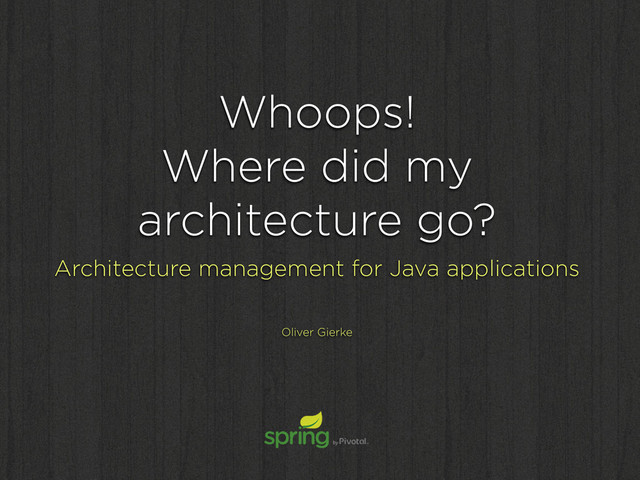

1. Whoops!
   Where did my
   architecture go?
   Architecture management for Java applications
   !
   Oliver Gierke


   View Slide

2. View Slide

3. View Slide

4. View Slide

5. Background
   5 years of consulting
   Lots of code reviews
   Eoin Woods‘ talk on InfoQ
   Lot of input from fellows


   View Slide

6. "If you think
   architecture is
   expensive, try no
   architecture.


   View Slide

7. Macro VS. Micro
   Architecture


   View Slide

8. Macro VS. Micro
   Architecture


   View Slide

9. View Slide

10. Orders
    Inventory
    Billing


    View Slide

11. Orders
    Inventory
    Billing


    View Slide

12. Orders
    Inventory
    Billing
    Macro-Architecture
    JMS
    REST
    AMQP


    View Slide

13. Orders
    Inventory
    Billing
    Macro-Architecture
    Micro-Architecture
    JMS
    REST
    AMQP


    View Slide

14. JRuby
    Java
    Scala
    Macro-Architecture
    Micro-Architecture
    AMQP
    JMS
    REST


    View Slide

15. Neo4j
    RDBMS
    MongoDB
    Macro-Architecture
    Micro-Architecture
    from Stefan Tilkov -

    Breaking the Monolith
    JMS
    REST
    AMQP


    View Slide

16. Roadmap
    Divide and conquer
    Of layers and slices
    A plain Java based approach


    View Slide

17. Architecture 101


    View Slide

18. Know your
    dependencies


    View Slide

19. Explicit / Visible
    dependencies


    View Slide

20. Granularity
    Modules
    Layers
    Vertical slices
    Subsystems


    View Slide

21. Granularity
    Java ARchive
    Package
    Class


    View Slide

22. Divide and
    conquer


    View Slide

23. Component


    View Slide

24. Component
    Single unit to understand


    View Slide

25. Component
    Single unit to change


    View Slide

26. Component
    Scope of risk of change


    View Slide

27. B
    Smaller unit to understand
    A


    View Slide

28. B
    Reduced risk of change
    A


    View Slide

29. B
    Cost of separation
    A


    View Slide

30. B
    Definition and maintenance
    of dependencies
    A


    View Slide

31. "Meanwhile, in my
    friend’s project…


    View Slide

32. How do I add a feature?


    View Slide

33. How do I add a feature?
    New

    Feature
    © Eberhard Wolff


    View Slide

34. Of layers
    and slices…


    View Slide

35. Presentation
    Service
    Data Access


    View Slide

36. Presentation
    Service
    Data Access
    Account Customer Core


    View Slide

37. Layers
    Well understood
    Known to developers
    Less important to business


    View Slide

38. Slices
    Hardly understood
    New to developers
    Key for business requirements


    View Slide

39. Presentation
    Service
    Data Access
    Account Customer Core


    View Slide

40. "How to implement
    an architecture
    inside a codebase?


    View Slide

41. Architecture
    VS.
    Codebase


    View Slide

42. "How to implement
    an architecture
    inside a codebase?


    View Slide

43. "How to implement
    an architecture
    inside a codebase?


    View Slide

44. "How to maintain
    an architecture
    inside a codebase?


    View Slide

45. Code analysis
    JDepend
    Sonar


    View Slide

46. Sonargraph
    Formerly known as SonarJ


    View Slide

47. Demo


    View Slide

48. jQAssistant
    http://github.com/buschmais/jqassistant


    View Slide

49. A plain Java
    based approach


    View Slide

50. "How far can we get
    with plain Java
    means only?


    View Slide

51. Presentation
    Service
    Data Access
    Account Customer Core


    View Slide

52. Packages


    View Slide

53. ….layer.slice
    ….slice.layer
    ….slice


    View Slide

54. ….web.core
    ….service.core
    ….repository.core


    View Slide

55. ….core.web
    ….core.service
    ….core.repository


    View Slide

56. ….core
    ….customer
    ….account


    View Slide

57. "Why the f#$k
    should I even care?


    View Slide

58. "Does it make
    a difference?


    View Slide

59. Dependency
    management


    View Slide

60. "You only need to
    manage, what you
    can refer to…


    View Slide

61. Layers first
    Leaks slice internals
    Lower layers visible to everyone


    View Slide

62. Slices first/only
    Start with package per slice
    Expose interfaces and domain types
    Keep implementations private


    View Slide

63. Slices first/only
    Encapsulates business module
    Internals understood anyway


    View Slide

64. "Start with less
    packages and the
    least visibility
    possible…


    View Slide

65. Presentation
    Service
    Data Access
    Account Customer Core


    View Slide

66. Presentation
    Service
    Data Access
    Account Customer Core


    View Slide

67. Demo


    View Slide

68. Take-aways
    Know your dependencies
    On every granularity
    Start as strict as possible
    Get lenient where necessary


    View Slide

69. Resources
    Spring Data JPA @ GitHub
    Sonargraph
    jQAssistant
    Blogpost


    View Slide

70. Sample Code
    http://github.com/olivergierke/

    whoops-architecture


    View Slide

71. Oliver Gierke
    Spring Data Project Lead
    !
    ogierke@pivotal.io
    olivergierke
    www.olivergierke.de


    View Slide

72. Thanks & Credits
    Eoin Woods - Talk @ InfoQ
    Stefan Tilkov - Talk @ InfoQ
    Eberhard Wolff - Slides @ Slideshare


    View Slide
