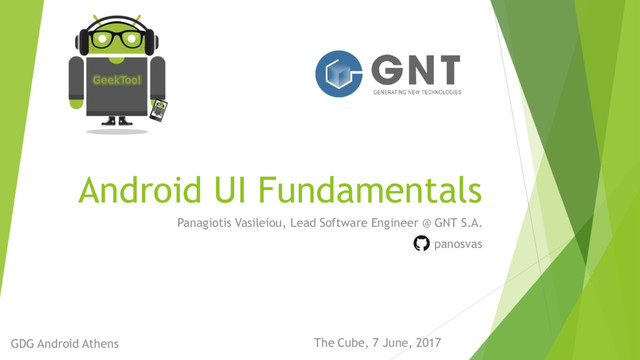

1. Android UI Fundamentals Panagiotis Vasileiou, Lead Software Engineer @ GNT S.A. panosvas GDG Android Athens The Cube, 7 June, 2017
2. Let's Start!  What is a UI?  Easy one... It is what you see! Hm... or maybe not?  Well, Android UI hides a lot of magic behind the scenes.  How to build a UI? 1. Declare UI elements in XML or 2. Programmatically construct layout elements at runtime  What to choose?  In general, prefer the XML declarations for predefined user interfaces  More scalable, testable, flexible (multiple screens, languages, …)
3. UI Overview using XML Layouts  What is this XML?  It is a quite human readable representation of the UI  Consists of ViewGroups and Views 1. View: Rectangular area in screen for drawing and event handling 2. ViewGroup: Layouts, also known as invisible containers for Views or other ViewGroups  Has only one root element  Builds a View hierarchy (like a tree) to consist the UI  It is compiled into a View Resource  It can be loaded from your application code: setContentView(R.my_awesome_layout);
4. XML Example ViewGroup View View <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="match_parent" android:layout_height="match_parent"> <TextView android:layout_width="match_parent" android:layout_height="wrap_content" android:gravity="center" android:textSize="21sp" android:textStyle="bold" android:text="Do not hardcode me here!"/> <Button android:layout_width="match_parent" android:layout_height="wrap_content" android:text="Neither me!"/> </LinearLayout>
5. XML XML XML XML XML XML XML XML  Do I have to manually generate all XML?  If you want, you can do it!  However, there is a drag n drop design tool in Android Studio  Oh, I remember (nightmares)…  Indeed, there are some issues with this tool  Pros  Easily find available UI components  Drag n drop, which automatically generates the XML staff  Cons  Difficult for components alignment
6. XML? Hm...  So, any alternative?  On May 2016, Google released the alpha-1 of ConstraintLayout  ConstraintLayout makes it feasible to build flat view hierarchy instead of nested Views  Similarities with RelativeLayout (relationships between views) but more powerful  Android Studio Layout Editor is built especially for ConstraintLayout, so, you can simply drag n drop to create the whole UI  Compatibility with Android 2.3 (API level 9) and higher  Bundled as separate library (due to continuous development and updates)
7. Now, Use it...  How to install it?  Go to SDK Manager  Go to SDK Tools  Under Support Repository  Mark ConstraintLayout and Solver  How to use it?  Under module build.gradle add the following dependency: compile 'com.android.support.constraint:constraint-layout:1.0.2'
8. ConstraintLayout  Any details?  The main concept is the Constraint  Each Constraint represents a connection or alignment to another view, parent layout, or invisible guideline  Constraint can define both vertical and horizontal axis position  Minimum one constraint for each axis  A view with no constraints is placed at the top-left corner [0,0]  Layout Editor warns us about missing constraints Horizontal Alignment Vertical Alignment Baseline Alignment
9. Design View Blueprint View Properties Toolbar
10. More Details  3 Possible Adjustments  Wrap Content  Match Constraints (0dp)  Fixed  Able to set:  Set Margins  Set Ratio (width : height)
11. More Hints  What else?  Relative Positioning  Horizontal: left, right, start, end  Vertical: bottom, up and baseline (align texts)  Margins  Visibility Behavior  GONE Views are taken into account in constraint calculations with zero dimensions, so, nothing is broken  Bias  Tweak the position to one side over the other V V No bias: opposite forces place the view at the middle Left bias 20%: app:layout_constraintHorizontal_bias="0.2"
12. More...  Chain Heads  Chain of widgets  Select all the desired widgets -> right click -> center horizontally or vertically  You can align top or bottom edges (left or right for vertical)  Left or top most widget is the head  Various styles of chain
13. Example  Horizontal Guideline  Position at 40% from top  Main ImageView  All edges "Match Constraint"  Star ImageView  One option is to have one alignment as "Match Constraint" and the other as "Wrap Content" in case of two connectors  CalendarView  All edges (Match Constraint)
14. <ImageView android:id="@+id/mainImage" android:layout_width="0dp" android:layout_height="0dp" android:layout_marginBottom="16dp" android:layout_marginTop="0dp" android:contentDescription="@string/main_image" android:scaleType="centerCrop" app:layout_constraintBottom_toTopOf="@+id/guideline" app:layout_constraintHorizontal_bias="0.0" app:layout_constraintLeft_toLeftOf="parent" app:layout_constraintRight_toRightOf="parent" app:layout_constraintTop_toTopOf="parent" app:layout_constraintVertical_bias="0.0" app:srcCompat="@drawable/bg1" /> <ImageView android:id="@+id/starImage" android:layout_width="0dp" android:layout_height="wrap_content" android:layout_marginBottom="2dp" android:layout_marginEnd="25dp" android:contentDescription="@string/favorite_img" app:layout_constraintBottom_toTopOf="@+id/guideline" app:layout_constraintRight_toRightOf="parent" app:srcCompat="@android:drawable/btn_star_big_on" /> <CalendarView android:id="@+id/calendarView" android:layout_width="0dp" android:layout_height="0dp" app:layout_constraintLeft_toLeftOf="parent" app:layout_constraintRight_toRightOf="parent" android:layout_marginTop="8dp" app:layout_constraintBottom_toBottomOf="parent" android:layout_marginBottom="8dp" app:layout_constraintVertical_bias="0.0" app:layout_constraintTop_toTopOf="@+id/guideline" /> <android.support.constraint.Guideline android:id="@+id/guideline" android:layout_width="wrap_content" android:layout_height="wrap_content" android:orientation="horizontal" app:layout_constraintGuide_percent="0.4" /> 3.7'' Nexus 1 5'' Pixel 7'' Nexus 7 10'' Nexus 10 320x290 – Watch (Round Chin)  Position does not break, however:  There is always room for improvement (check size of star)  Learn about Constraints measurement process (see refs)  You can always create new layouts variants  Enrich and Debug your layout e.g.:  Theme Editor  Hierarchy Viewer  GPU Overdraw tool  Layout Inspector
15. Let's Test it!  You are not kidding, right?  Nope! No worries, take an espresso!
16. Espresso UI Testing  Any details?  As developers we want to prevent situations of unexpected behaviors of the app  We need to be confident (at least in high percentage) that the UI is working properly  Espresso testing provides the tools to test the UI  It is provided by the Android Testing Support Library  Runs on Android 2.3.3 (API level 10) and greater  Automatically detects an idle UI thread, providing accurate results  Instrumentation-based API running with AndroidJUnitRunner
17. Espresso UI Testing  Setup  Inside the build.gradle, add the dependency: androidTestCompile('com.android.support.test.espresso:espresso-core:2.2.2', { exclude group: 'com.android.support', module: 'support-annotations' })  Setup the test runner under defaultConfig: testInstrumentationRunner "android.support.test.runner.AndroidJUnitRunner"  Disable device animations under the developer options:  Window Animation Scale  Animator Duration Scale  Simulate Secondary Displays
18. Espresso UI Basics  How is this working?  Espresso: the entry point  ViewMatchers: finding specific views  ViewActions: interact with the view  ViewAssertions: validate the desired properties of the view onView(withId(R.id.my_view)) // withId(R.id.my_view) is a ViewMatcher .perform(click()) // click() is a ViewAction .check(matches(isDisplayed())); // matches(isDisplayed()) is a ViewAssertion
19. Codeless UI Testing...  How much code do I have to write?  Hm... If you want, you can write no code  A stable version of Espresso Test Recorder added in Android Studio 2.3  Record a whole test scenario  Record interactions  Add assertions to View properties  Auto-generated Espresso UI test code  Automatically resolves project dependencies for Espresso UI testing
20. Espresso Test Recorder  Any Instructions?  Of course, after creating a UI go to:  Run > Record Espresso Test  Select the target device  Espresso test recorder will automatically build your project and install as well as run it on the target device  Do not force close the dialog saying waiting for the debugger (or attaching debugger) 1 2
21. Espresso Test Recorder  Make Interactions and Assertions  Interact with the App  When you are done click "Add Assertion"  Espresso Test Recorder is dumping the current UI  Add the assertions of the View's properties  Available assertions from Test recorder:  Text is  Exists  Does not Exists  Click "OK" and pickup a self explanatory name for your test case 3
22. Espresso Test Recorder Sample  What is the output? @Test public void mainActivityTestNameReplace() { ViewInteraction appCompatEditText = onView( allOf(withId(R.id.editText4), withText("Name"), isDisplayed())); appCompatEditText.perform(click()); ViewInteraction appCompatEditText2 = onView( allOf(withId(R.id.editText4), withText("Name"), isDisplayed())); appCompatEditText2.perform(replaceText("Nice")); ViewInteraction appCompatEditText3 = onView( allOf(withId(R.id.editText4), withText("Nice"), isDisplayed())); appCompatEditText3.perform(pressImeActionButton()); ViewInteraction editText = onView( allOf(withId(R.id.editText4), withText("Nice"), childAtPosition(childAtPosition( withId(android.R.id.content),0),0),isDisplayed())); editText.check(matches(withText("Nice"))); } 1 2 3 4 4 3 2 1
23. Android Studio Run Tests  How to run the tests?  Run each test explicitly or all together  Simply right click and run it!  Check the results in Android Studio console  Or export them in html, xml or custom xsl
24. Firebase Test Lab  How many devices do I need to test?  Good question! As many as you can...  For that reason the Firebase Test Lab is there for you  Test on real devices  Test even if you have no test cases, with Robo tests  Workflow Integration (CI)  Free 10 tests per day for virtual devices  Free 5 tests per day for real devices
25. Firebase Test Lab  How to integrate with Firebase Test Lab?  In Android Studio there is a Firebase assistant which guides you through all the firebase components  Go to Tools > Firebase and the choose the Test Lab  Many of the steps are performed automatically from the Android Studio (with your permission)  In manual configurations there are detailed information to guide you
26. Wow! Perfect! Or not?...  It is perfect!  No, it is not :P  First of all only a few assertions are available through the test recorder  Further assertions have to be implemented inside the Espresso test code  Code will be also required to deal with any kind of delays, such as async tasks
27. Perfection, not!  Anything else?  There are still some bugs in the recorder (e.g. different issues with real devices, device locale)  Moreover, there are some issues with the soft keyboard and the emulator  There will be times where we need to correct the code  It is possible that the recorder will generate for a keyboard "Done" command, one redundant command  In the following example the keyboard never closed (instead the done was pressed), so the press ime action button failed... appCompatEditText2.perform(replaceText("Nice"), closeSoftKeyboard()); ViewInteraction appCompatEditText3 = onView( allOf(withId(R.id.editText4), withText("Nice"), isDisplayed())); appCompatEditText3.perform(pressImeActionButton());
28. Nice Tools  Not perfect, but both ConstraintLayout and Espresso Test Recorder are cool, aren't they?  Of course they are!  ConstraintLayout allows you to easily build dynamic and flat views  Moreover, let's you easily extend the view for multiple variants (landscape, tablet, etc)  Espresso test recorder is a great way to build a simple test suite when you have nothing  Moreover, is a great chance to learn the Espresso UI API and build some awesome tests, to prevent difficult situations :)
29. Expand your Knowledge!  Any other Tools?  New features are coming day to day  It is crucial to have strong foundations  Stay up to date!  Any Guidelines?  Deep learn new things and foundations  Get some first class trainings  Prove your knowledge with certifications  Google gives a certification for Android Associate Developers
30. Get Certified!  What is about?  Google certifies that you have all the skills and competences to build a career as an entry-level Android developer  For a junior developer the certification demands some practice and study, as it examines many core Android functions  What it covers?  Testing and Debugging (write tests, use developer tools, debug, find crashes, layout errors, memory leaks)  Application User Interface (UI) and User Experience (UX) (create new or modify layouts both in XML and Java)  Fundamental Application Components (Activity, Service, Broadcast Receiver, Content Provider)  Persistent Data Storage (file, preferences, databases)  Enhanced System Integration (app notifications and widgets)
31. Android Associate Developer  What if I don't know all of them?  No worries! Google in partnership with Udacity, created a couple of Training programs for Android:  Android Junior Nanodegree  Associate Android Developer Fast Track (designed especially for the Certification)  Android Nanodegree (more advanced which includes a challenging capstone project)  What is the cost?  By the time of this presentation:  Google Certification costs $149  Associate Android Developer Fast Track program costs $750 (includes certification fees)
32. Android Associate Developer  What's the process?  Exam  You will get a starter project and 48 hours to solve some issues!  You will fix bugs, improve layouts, add features  The evaluation is Performance based  Exit Interview  If you pass the exam there is an exit interview  Explain how did you solve the problems  Proof of your identity  If I fail?  Don't worry, there is a 2nd attempt whenever you want for free  3rd attempt after 2 months for free  and in case of fail again, you should wait 6 months and then pay again
33. Resources  Sample Project: https://github.com/panosvas/UI-Fundamentals  ConstraintLayout  Overview: https://developer.android.com/training/constraint-layout/index.html  Details: https://developer.android.com/reference/android/support/constraint/ConstraintLayout.html  Constraints Measurement Process: http://wiresareobsolete.com/2016/07/constraintlayout-part-2/  Android Studio Editor: https://developer.android.com/studio/write/layout-editor.html  Espresso UI  Espresso UI basics: https://developer.android.com/training/testing/ui-testing/espresso-testing.html  Espresso Test Recorder: https://developer.android.com/studio/test/espresso-test-recorder.html  Android Associate Developer Certification  Official Google: https://developers.google.com/training/certification/  Udacity + Google: https://www.udacity.com/google-certifications  Udacity Fast Track: https://www.udacity.com/course/associate-android-developer-fast-track--nd818
34. THANK YOU! GDG Android Athens The Cube, 7 June, 2017 We are hiring! Join the team! Panagiotis Vasileiou Lead Software Engineer @panosvas Contact us: info@gnt.gr
