Petrichor 2018 @_Pheema_ 2018/09/01 - 2018/09/02 レイトレ合宿6
レンダリング結果 2018/09/01 - 2018/09/02 6 レイトレ合宿 2 - 暗めの室内シーン *
1080x1920(スマホの壁紙サイズ!) * 廃墟っぽい感じとか良いよね * 空間だけだと寂しいので、後から階段を付け足し
レンダラーの概要 - 今年取り組んだこと * Multiple importance sampling (MIS) のバグ修正 *
環境マップの重点サンプリング * SAH-based BVH * Normal map 3 2018/09/01 - 2018/09/02 レイトレ合宿6
BVH 年々レンダリング時間が短くなっているので、BVH構築は速く処理したい - 今年 * SAH-based Binned BVH • “On
fast Construction of SAH-based Bounding Volume Hierarchies” [Wald2007] * BVH構築、トラバース速度がましになった(以前が遅すぎた) - 昨年 * AABBの一番長い辺を2等分していた * でかいポリゴン(例:でかい床面)が1つでもあると、トラバースが遅くなって詰む * ソート処理が適当すぎて激重 4 2018/09/01 - 2018/09/02 レイトレ合宿6
環境マップの重点サンプリング 太陽が写っているような、輝度の差が激しい環境マップを使用したい - 今年 * 環境マップの重点サンプリング • 参考資料 • “Monte
Carlo Rendering with Natural Illumination” • “積分とサンプリングと検定” • 輝度が高いピクセルを重点的にサンプリングする - 昨年 * 環境マップ上の太陽が小さすぎて全然太陽の値を取れない * 分散がでかくなって死ぬ 5 2018/09/01 - 2018/09/02 レイトレ合宿6
環境マップの重点サンプリング 2018/09/01 - 2018/09/02 6 レイトレ合宿 6 “HDRI Haven” の環境マップを使用

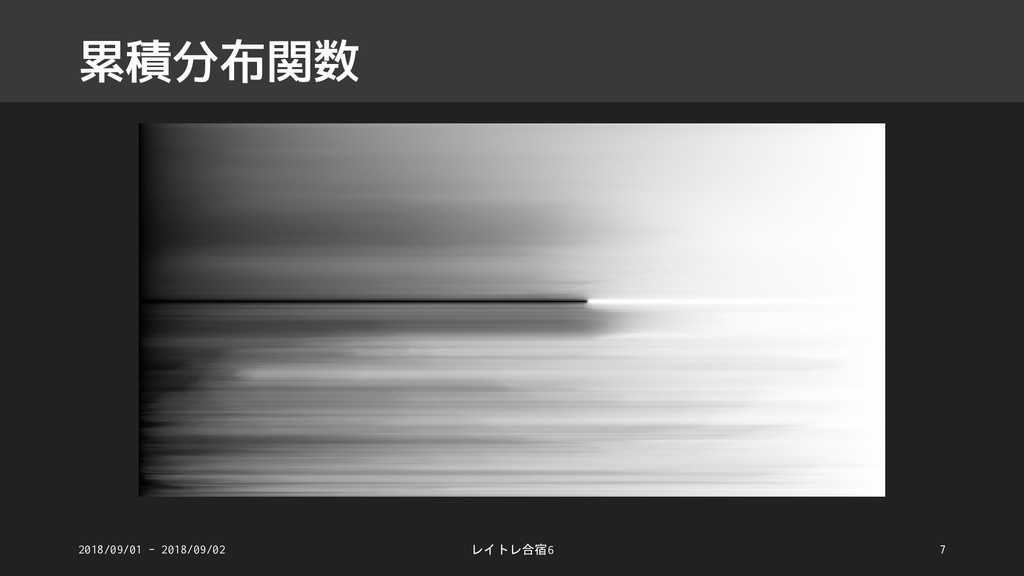

累積分布関数 2018/09/01 - 2018/09/02 6 レイトレ合宿 7
環境マップの重点サンプリング 2018/09/01 - 2018/09/02 6 レイトレ合宿 8 重点サンプリング:OFF 重点サンプリング:ON →環境マップ上の太陽を拾えるように
環境マップの重点サンプリング - 失敗点 * 室内に存在するほとんどの点からは太陽が見えない… • 太陽を直接サンプリングしたところで、壁に遮られる場合が多い • ライトポータル等を実装するべきだった? •
“Portal-Masked Environment Map Sampling” [BNJ15] 9 2018/09/01 - 2018/09/02 レイトレ合宿6
今後について - シーン * 目標となるシーンを決めて、アルゴリズムを選定する * 「シーンがさき アルゴリズムはあと」 * 提出直前に本番シーンに切り替えてハングする悲劇を避ける
- レンダリングの手法 * プログラムを直しつつ、PTで行けるところまでいってみたい * 余裕があったら他の手法にも取り組む(PSSMLTとか興味あり) 10 2018/09/01 - 2018/09/02 レイトレ合宿6
今後について - デバッグ用の可視化 * 文字でのデバッグ辛すぎ問題 • BVH等の構造が把握できなくて死 • 突然のNaN, Inf
* テクスチャとかの中身も見たい - CI * 定期的に特定のシーンをレンダリング • レンダリング画像差分の検知 * テストの実行 11 2018/09/01 - 2018/09/02 レイトレ合宿6
まとめ - 時間をかけた分だけ綺麗な絵がでて楽しい * レンダラー育成ゲーム 2018/09/01 - 2018/09/02 6 レイトレ合宿
12
Petrichor 2018 @_Pheema_ 2018/09/01 - 2018/09/02 レイトレ合宿6
