Linear Actuator Control System For Hospital Beds

A linear actuator control system in hospital beds uses electric motors to convert rotational motion into linear motion, allowing for precise and controlled adjustments of bed positions like height, backrest angle, and leg support

Transcript

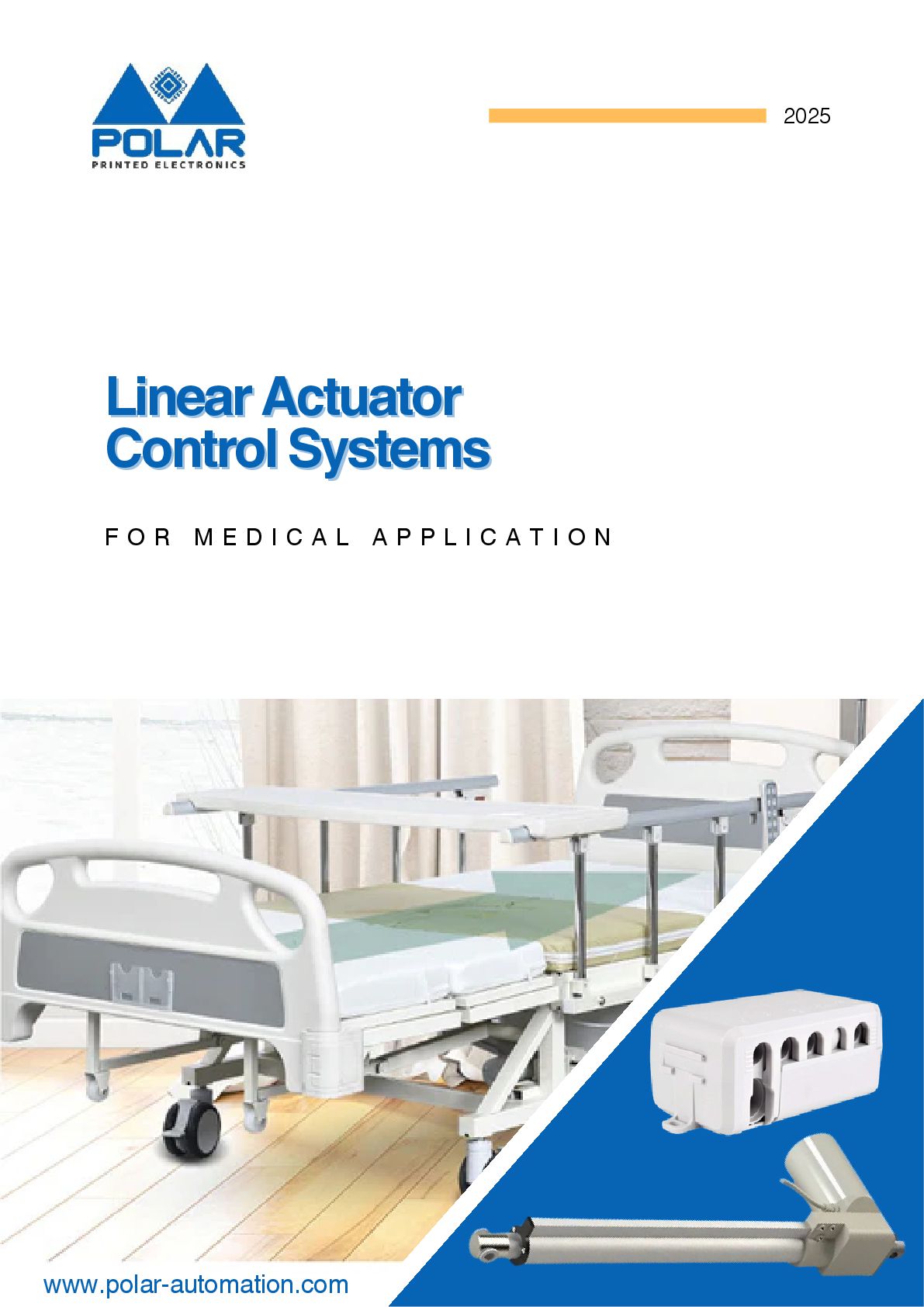

1. Linear Actuator Linear Actuator Control Systems Control Systems F O R M E D I C A L A P P L I C A T I O N 2025 www.polar-automation.com
2. POLAR AUTOMATION 01 Revolutionizing Motion Control in Medical Applications The Polar Linear Actuator Control System is a state-of-the-art solution designed to elevate the functionality and comfort of hospital beds, home care beds, and other medical equipment. Combining high-performance linear actuators with an advanced control unit, this system delivers precise, reliable, and smooth operation to meet the demanding needs of the healthcare industry. Wiring and Connections: Power Input: Operates on a 24V DC supply for efficient and reliable performance. Actuator Connections: Supports up to 4 actuators seamlessly connected to the control unit. Remote Control Interface: Equipped with Bluetooth and IR remote control options for versatility and ease of operation.

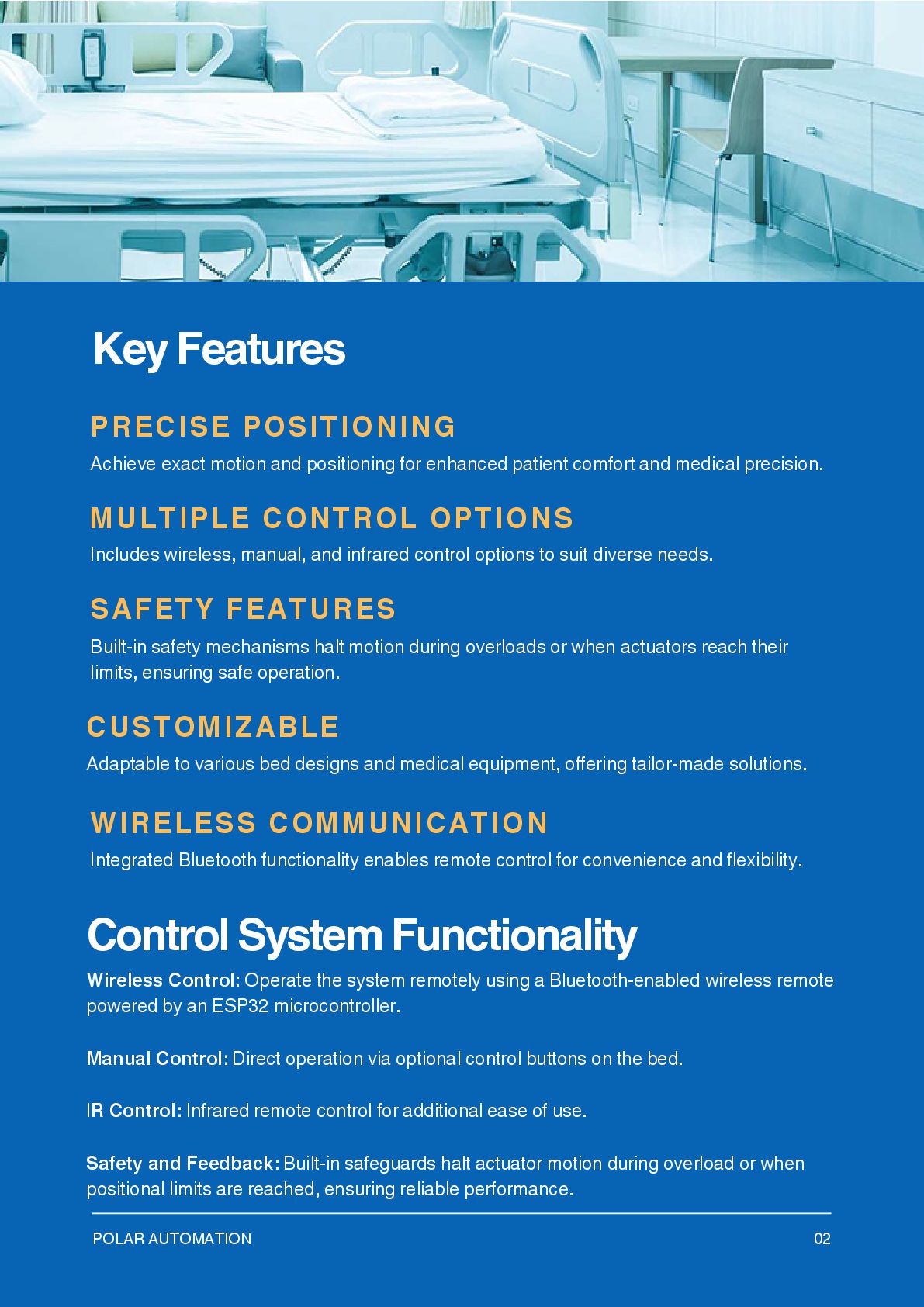

3. Key Features Achieve exact motion and positioning for enhanced patient comfort and medical precision. PRECISE POSITIONING Includes wireless, manual, and infrared control options to suit diverse needs. MULTIPLE CONTROL OPTIONS SAFETY FEATURES Built-in safety mechanisms halt motion during overloads or when actuators reach their limits, ensuring safe operation. CUSTOMIZABLE Adaptable to various bed designs and medical equipment, offering tailor-made solutions. WIRELESS COMMUNICATION Integrated Bluetooth functionality enables remote control for convenience and flexibility. POLAR AUTOMATION 02 Control System Functionality Wireless Control: Operate the system remotely using a Bluetooth-enabled wireless remote powered by an ESP32 microcontroller. Manual Control: Direct operation via optional control buttons on the bed. IR Control: Infrared remote control for additional ease of use. Safety and Feedback: Built-in safeguards halt actuator motion during overload or when positional limits are reached, ensuring reliable performance.

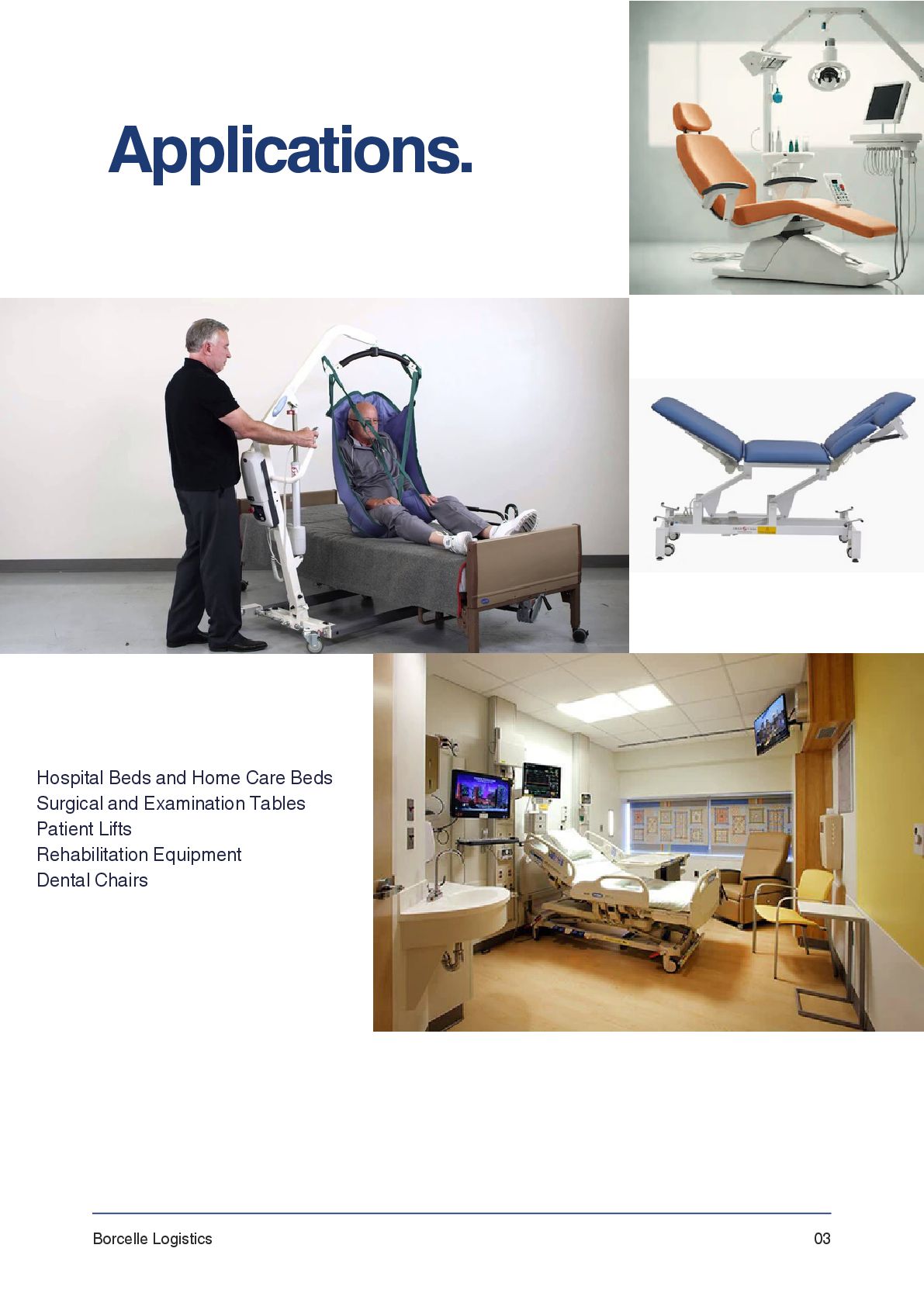

4. Hospital Beds and Home Care Beds Surgical and Examination Tables Patient Lifts Rehabilitation Equipment Dental Chairs Borcelle Logistics 03 Applications.

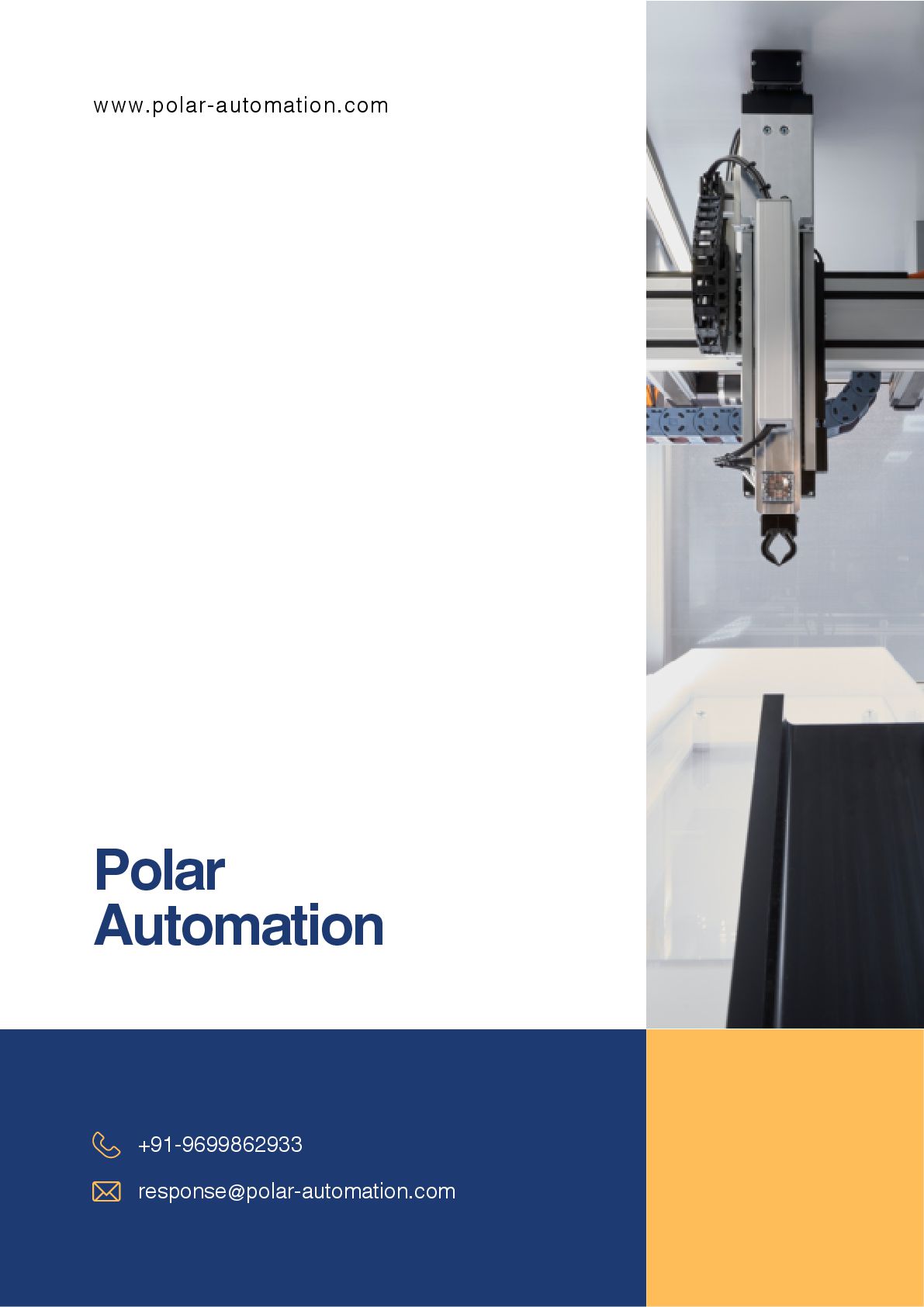

5. Polar Automation +91-9699862933 response@polar-automation.com www.polar-automation.com
