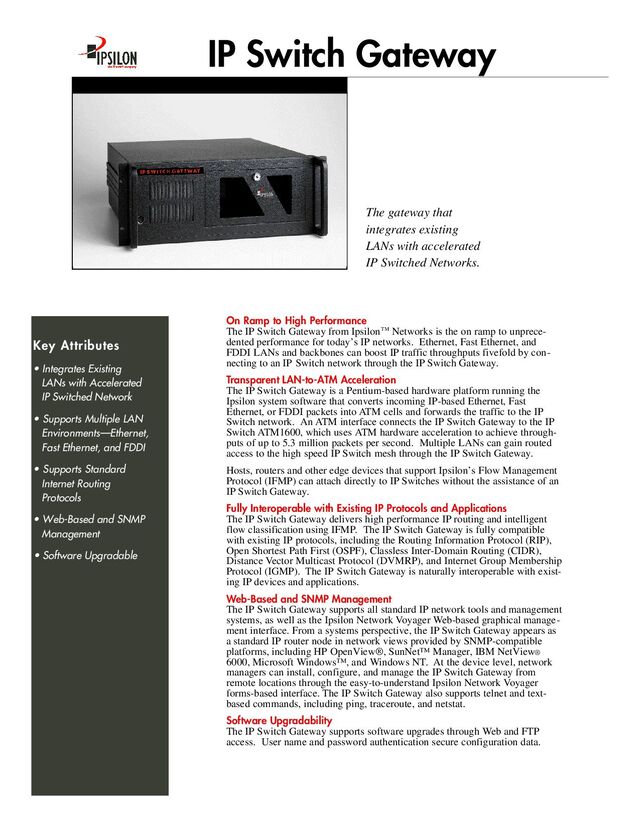

1. IP Switch Gateway On Ramp to High Performance The IP Switch Gateway from IpsilonTM Networks is the on ramp to unprece- dented performance for today’s IP networks. Ethernet, Fast Ethernet, and FDDI LANs and backbones can boost IP traffic throughputs fivefold by con- necting to an IP Switch network through the IP Switch Gateway. Transparent LAN-to-ATM Acceleration The IP Switch Gateway is a Pentium-based hardware platform running the Ipsilon system software that converts incoming IP-based Ethernet, Fast Ethernet, or FDDI packets into ATM cells and forwards the traffic to the IP Switch network. An ATM interface connects the IP Switch Gateway to the IP Switch ATM1600, which uses ATM hardware acceleration to achieve through- puts of up to 5.3 million packets per second. Multiple LANs can gain routed access to the high speed IP Switch mesh through the IP Switch Gateway. Hosts, routers and other edge devices that support Ipsilon’s Flow Management Protocol (IFMP) can attach directly to IP Switches without the assistance of an IP Switch Gateway. Fully Interoperable with Existing IP Protocols and Applications The IP Switch Gateway delivers high performance IP routing and intelligent flow classification using IFMP. The IP Switch Gateway is fully compatible with existing IP protocols, including the Routing Information Protocol (RIP), Open Shortest Path First (OSPF), Classless Inter-Domain Routing (CIDR), Distance Vector Multicast Protocol (DVMRP), and Internet Group Membership Protocol (IGMP). The IP Switch Gateway is naturally interoperable with exist- ing IP devices and applications. Web-Based and SNMP Management The IP Switch Gateway supports all standard IP network tools and management systems, as well as the Ipsilon Network Voyager Web-based graphical manage- ment interface. From a systems perspective, the IP Switch Gateway appears as a standard IP router node in network views provided by SNMP-compatible platforms, including HP OpenView®, SunNet™ Manager, IBM NetView® 6000, Microsoft Windows™, and Windows NT. At the device level, network managers can install, configure, and manage the IP Switch Gateway from remote locations through the easy-to-understand Ipsilon Network Voyager forms-based interface. The IP Switch Gateway also supports telnet and text- based commands, including ping, traceroute, and netstat. Software Upgradability The IP Switch Gateway supports software upgrades through Web and FTP access. User name and password authentication secure configuration data. Key Attributes • Integrates Existing LANs with Accelerated IP Switched Network • Supports Multiple LAN Environments—Ethernet, Fast Ethernet, and FDDI • Supports Standard Internet Routing Protocols • Web-Based and SNMP Management • Software Upgradable The gateway that integrates existing LANs with accelerated IP Switched Networks.
2. IP SWITCH GAT E WAY TECHNICAL SPECIFICAT I O N S Hardware Specifications Pentium 133MHz Processor 16MB RAM 1.2GB Storage Capacity Interfaces ATM (1 per unit) Interface Types 155 Mbps SONET STS3c Multimode Fiber 155 Mbps SONET STS3c UTP Category 5 Frame Structure ATM Forum UNI 3.1 Physical Layer Ethernet/Fast Ethernet (up to 3 per unit) Standards IEEE 802.3 Ethernet and Fast Ethernet ISO/IEC 8802-3 Ethernet Cable/Connectors 100BASE-TX: (UTP Category 5)/RJ45 10BASE-T: (UTP Categories 3, 4, 5)/RJ45 FDDI (up to 3 per unit) Standards FDDI-ANSI X3T9 specifications Cable/Connectors Dual Attach Station Multimode Fiber/SC Protocol Support IPv4 Forwarding Unicast and Multicast IPv4 Routing Protocols RIP, OSPF, DVMRP, CIDR IPv4 Router Functionality Router Discovery IGMP, ICMP, ARP Bootp Relay Agent IP Switching Protocols Ipsilon Flow Management Protocol (IFMP) Flow-Labeled IPv4 on ATM Data Links Network Management SNMP MIB2 HTTP via Ipsilon Network Voyager Ipsilon Network Voyager Device Management Client Browser (Required) Netscape Navigator 1.1 or later recommended Configuration Capabilities IP address and subnet masks Routing protocols per port Global routing parameters Static and aggregate routes DVMRP Tunnels Monitoring Physical view Port-by-port configuration and status Cell and packet counts—input, output, and discarded per port Security Password protection Physical and Environmental 19” Rack Mountable Dimensions H: 7 in. W: 19 in. D: 17.8 in. ( H: 17.7 cm W: 48.2 cm D: 45.2 cm) Weight 41.8 lbs. (19 kg) without interface cards Temperature and Humidity Operating Temp: 5 to 40 C up to 10,000 ft Operating Humidity: 10 to 90% RH non-condensing Storage Temp: 0 to +70 C up to 30,000 ft Storage Humidity: 5 to 95% RH non-condensing Power Supply Nominal 90 to 132, 180 to 264 VAC @ 60/50 Hz. Regulatory Compliance FCC A UL1950 CSA 22.2 E55022 (CISPR22) A EN60950 IEC950 © Ipsilon Networks 1996. Ipsilon is a trademark of Ipsilon Networks, Inc. 3/96 Ipsilon Networks Inc. 2191 East Bayshore Road, Suite 100 Palo Alto, California 94303 www.ipsilon.com tel_415.846.4600 fax_415.855.1414
