Clean "Architecutre" and Swift

There is no place for small apps in the stores anymore. Nowadays mobile apps development requires a great amount of time and dedication, and getting your product to market quickly with high quality is a key factor for success. So the way we build app, the way we code is changing as well and one of the deepest changes will be how we will architect our code. In this session we will review most common architectural patterns and we will try to demonstrate their benefits in practice with Swift.

https://github.com/rafaelbartolome/SupReAct

Links:
MVP: http://martinfowler.com/eaaDev/uiArchs.html#Model-view-presentermvp
MVVM: https://www.objc.io/issues/13-architecture/mvvm/
Clean: https://blog.8thlight.com/uncle-bob/2012/08/13/the-clean-architecture.html
Viper: http://mutualmobile.github.io/blog/2013/12/04/viper-introduction/
Flux: https://facebook.github.io/flux/

Transcript

1. Clean ∙ “Architecutre” and Swift . @RafaelBartolome
2. (Wikipedia) Is both the process and the product of planning, designing, and constructing buildings and other physical structures. Architecture (Latin architectura, from the Greek ἀρχιτέκτων arkhitekton, from ἀρχι- "chief" and τέκτων "builder")
3. Recommendations for “good” software craftsmanship KISS YAGNI DRY OOP/POP TESTING SOLID/CLEAN

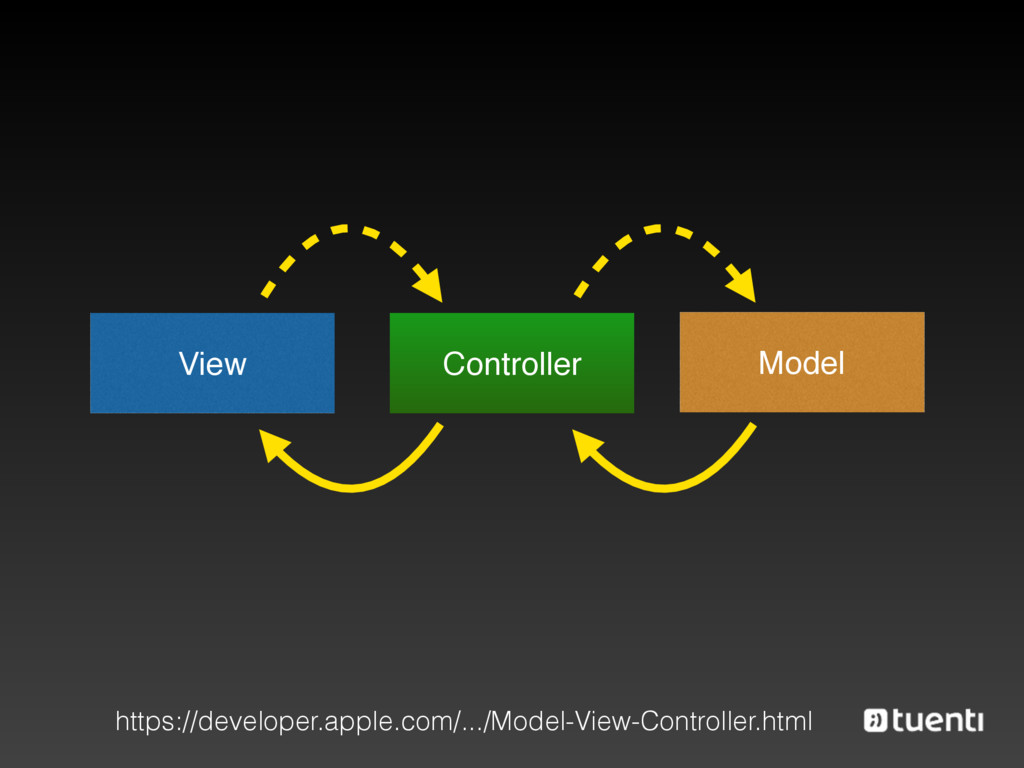

4. Controller View Model https://developer.apple.com/.../Model-View-Controller.html
5. UIViewCon er by @greg3z

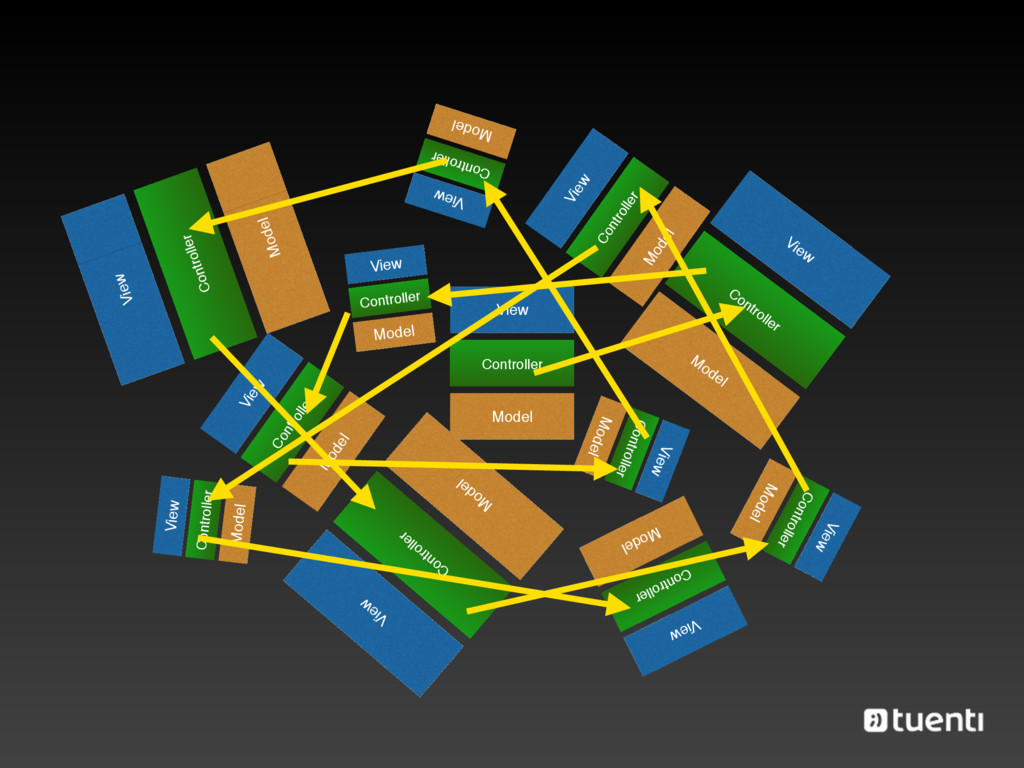

6. Controller View Model Controller View Model Controller View Model Controller View M odel Controller View Model Controller View Model Controller View Model Controller View Model Controller View Model Controller View Model Controller View Model Controller View Model
7. Alternatives?

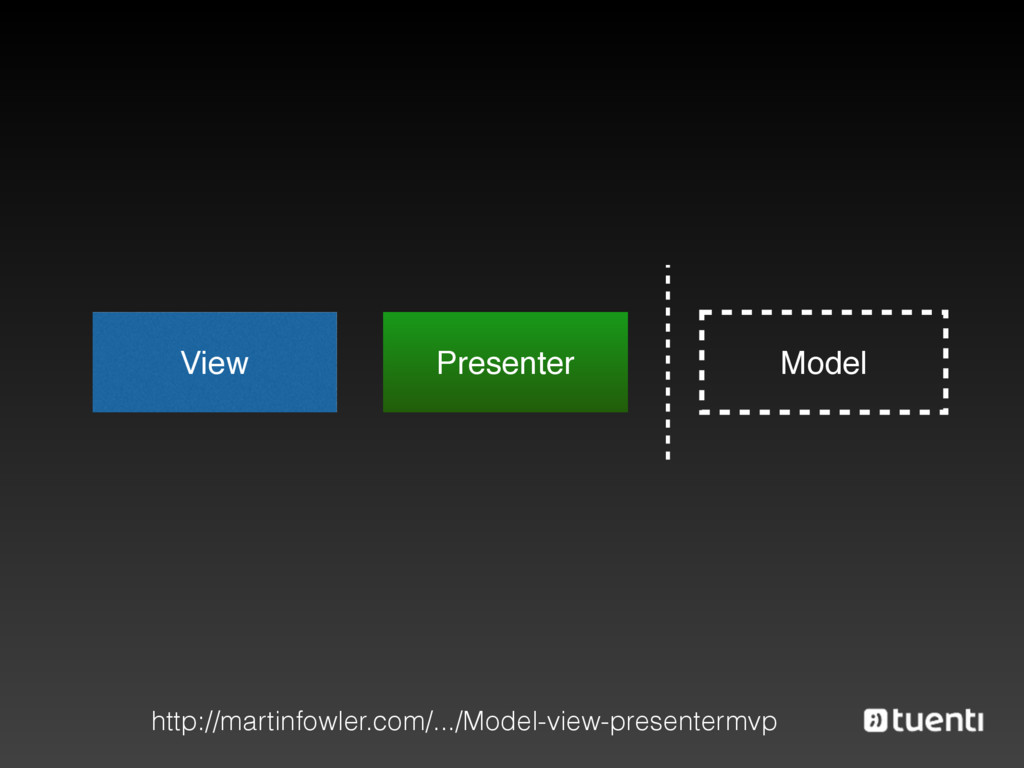

8. Presenter Model View http://martinfowler.com/.../Model-view-presentermvp

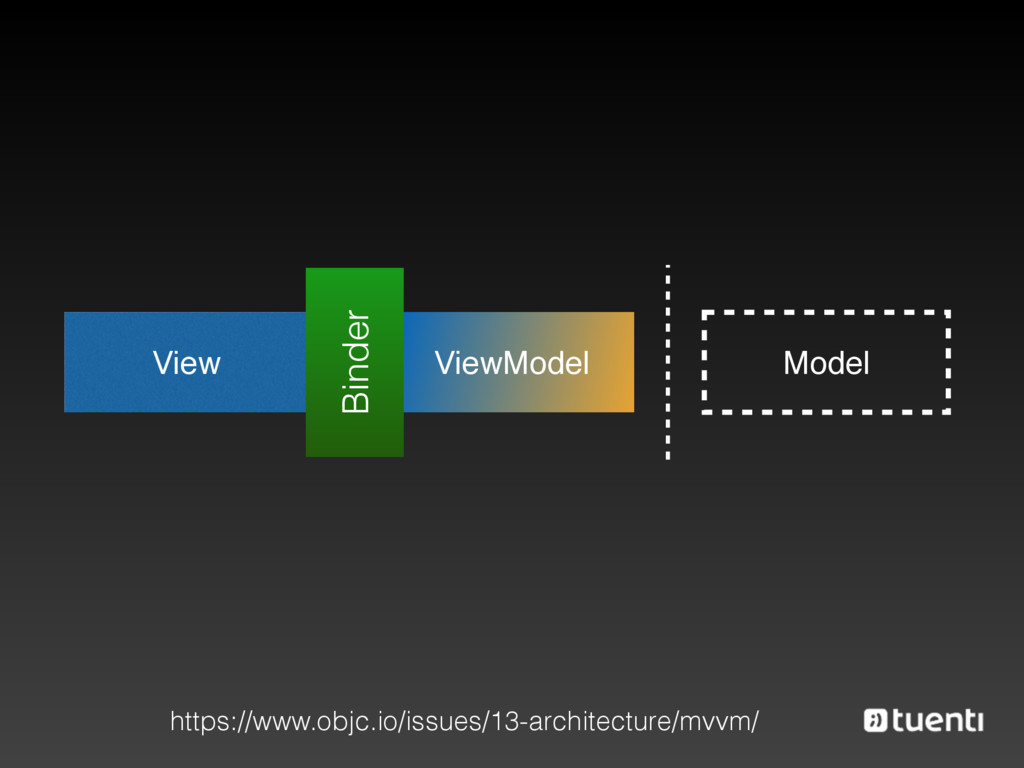

9. ViewModel Model View https://www.objc.io/issues/13-architecture/mvvm/ Binder

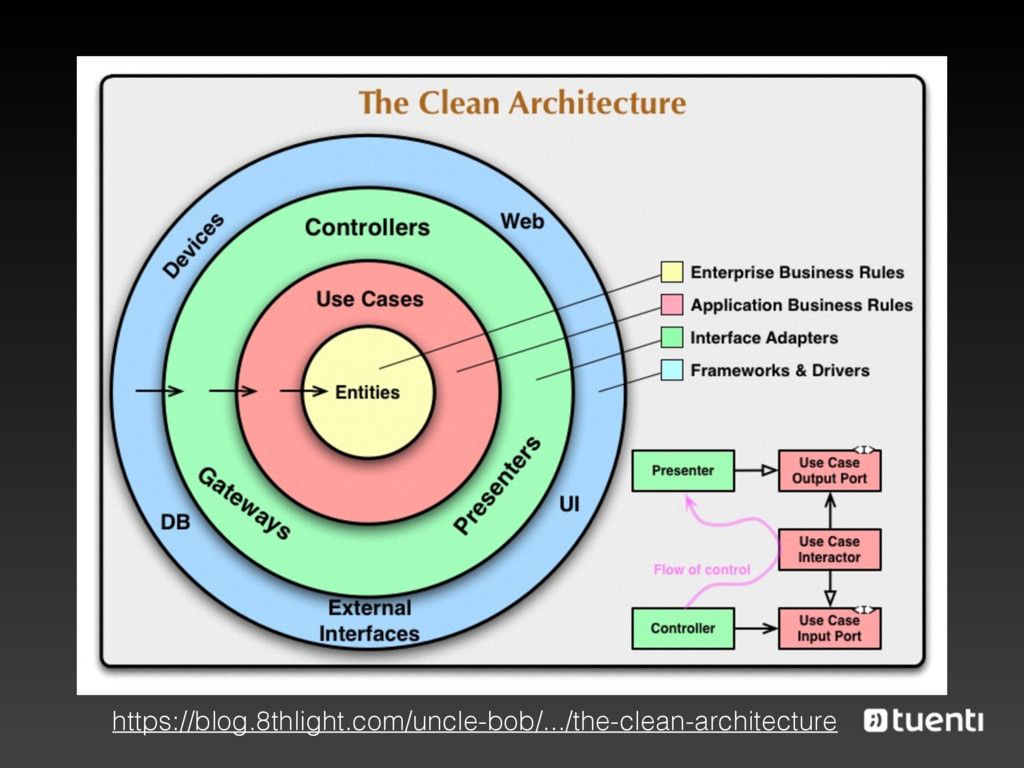

10. https://blog.8thlight.com/uncle-bob/.../the-clean-architecture
11. Presenter View Entity Interactor Wireframe DataStore Entity http://mutualmobile.github.io/blog/2013/12/04/viper-introduction/
12. https://facebook.github.io/flux/ Dispatcher View Store Action Action
13. Example
14. Real Name Code Name Picture Powers …
15. class HeroDetailsViewController: UIViewController { @IBOutlet var realNameLabel: UILabel! @IBOutlet var codeNameLabel: UILabel! @IBOutlet var pictureImageView: UIImageView! @IBOutlet var powersTextView: UITextView! ••• } MassiveVC solution Controller View Model
16. override func viewDidLoad() { super.viewDidLoad() let userDefaults = NSUserDefaults.standardUserDefaults() realNameLabel.text = userDefaults.objectForKey("HeroRealName") as? String codeNameLabel.text = userDefaults.objectForKey("HeroCodeName") as? String if let imageName = userDefaults.objectForKey("HeroPicture") as? String { pictureImageView.image = UIImage(named: imageName) } powersTextView.text = userDefaults.objectForKey("HeroPowersDescription") as? String } MassiveVC solution Controller View Model
17. protocol HeroDetailsView { func updateHero(name realName: String) func updateHero(alias codeName: String) func updateHero(picture imageName: String) func updateHero(powers powersDescription: String) } View Protocol Model Presenter View
18. class HeroDetailsViewController: UIViewController { @IBOutlet var realNameLabel: UILabel! @IBOutlet var codeNameLabel: UILabel! @IBOutlet var pictureImageView: UIImageView! @IBOutlet var powersTextView: UITextView! lazy var presenter = HeroDetailsPresenter() override func viewDidLoad() { super.viewDidLoad() presenter.activate(with: self) } } View Controller Model Presenter View
19. extension HeroDetailsViewController: HeroDetailsView { func updateHero(name realName: String) { realNameLabel.text = realName } func updateHero(alias codeName: String) { codeNameLabel.text = codeName } func updateHero(picture imageName: String) { pictureImageView.image = UIImage(named: imageName) } func updateHero(powers powersDescription: String) { powersTextView.text = powersDescription } } View Protocol Imp. Model Presenter View
20. final class HeroDetailsPresenter { func activate(with view: HeroDetailsView) { view.updateHero(name: getRealName()) view.updateHero(alias: getCodeName()) view.updateHero(picture: getImage()) view.updateHero(powers: getPowers()) } } Presenter Model Presenter View
21. final class HeroDetailsPresenter { //Dependencies lazy var realNameInteractor = GetRealName() func activate(with view: HeroDetailsView) { view.updateHero(name: getRealName()) ••• } } private extension HeroDetailsPresenter { func getRealName() -> String { return realNameInteractor.execute() } ••• } Presenter Data Provider Presenter View Entity Interactor
22. final class GetRealName { //Dependecies lazy var heroRepository: HeroRepository lazy var decriptService: DecriptService func execute() -> String { let hero = heroRepository.nextHero() return decriptService.decript( heroName: hero.encriptedName) } } Interactor Data Provider Presenter View Entity Interactor

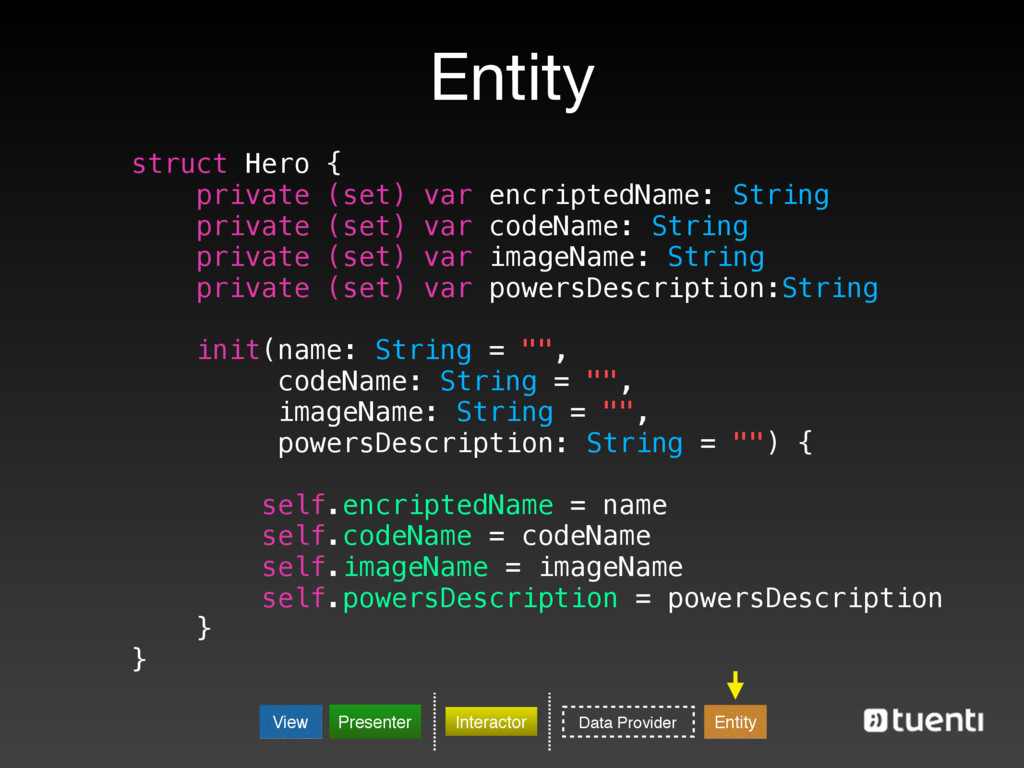

23. struct Hero { private (set) var encriptedName: String private (set) var codeName: String private (set) var imageName: String private (set) var powersDescription:String init(name: String = "", codeName: String = "", imageName: String = "", powersDescription: String = "") { self.encriptedName = name self.codeName = codeName self.imageName = imageName self.powersDescription = powersDescription } } Entity Data Provider Presenter View Entity Interactor
24. Repository Pattern Network Entity Interactor Local Storage Entity Repository Data Provider Entity Interactor API Service Mapper
25. final class HeroRepositoryImp: HeroRepository { //Dependencies lazy var heroStorage = HeroStorage() lazy var remoteAPIService = ShieldAPIService() lazy var heroMapper = HeroMapper() init() { remoteAPIService.getHeroes{ [weak self] heroDictionary in if let hero = self?.heroMapper .process(heroDictionary) { self?.heroStorage.add(hero) } } } func nextHero() -> Hero { return heroStorage.nextHero() } } Repository Presenter View Interactor Repository
26. Questions? https://github.com/rafaelbartolome/SupReAct
27. Thanks!!
