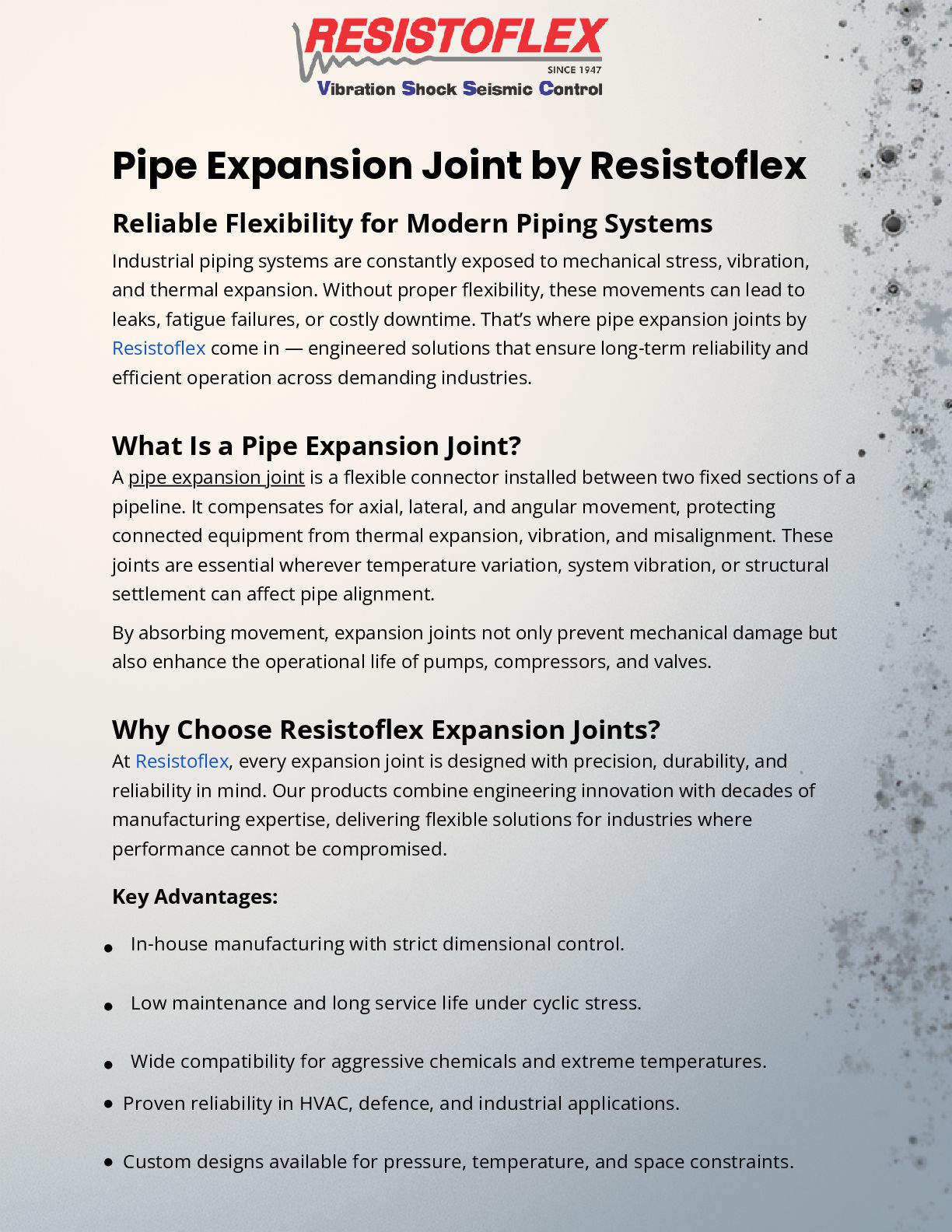

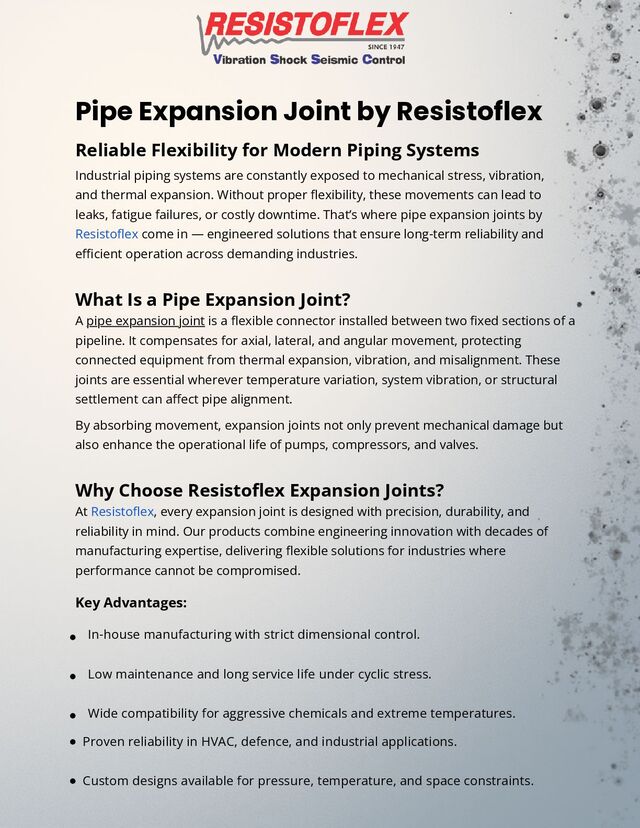

1. What Is a Pipe Expansion Joint? A pipe expansion joint is a flexible connector installed between two fixed sections of a pipeline. It compensates for axial, lateral, and angular movement, protecting connected equipment from thermal expansion, vibration, and misalignment. These joints are essential wherever temperature variation, system vibration, or structural settlement can affect pipe alignment. By absorbing movement, expansion joints not only prevent mechanical damage but also enhance the operational life of pumps, compressors, and valves. Pipe Expansion Joint by Resistoflex Reliable Flexibility for Modern Piping Systems Industrial piping systems are constantly exposed to mechanical stress, vibration, and thermal expansion. Without proper flexibility, these movements can lead to leaks, fatigue failures, or costly downtime. That’s where pipe expansion joints by Resistoflex come in — engineered solutions that ensure long-term reliability and efficient operation across demanding industries. Why Choose Resistoflex Expansion Joints? At Resistoflex, every expansion joint is designed with precision, durability, and reliability in mind. Our products combine engineering innovation with decades of manufacturing expertise, delivering flexible solutions for industries where performance cannot be compromised. Key Advantages: • • • In-house manufacturing with strict dimensional control. Low maintenance and long service life under cyclic stress. Wide compatibility for aggressive chemicals and extreme temperatures. • • Proven reliability in HVAC, defence, and industrial applications. Custom designs available for pressure, temperature, and space constraints.

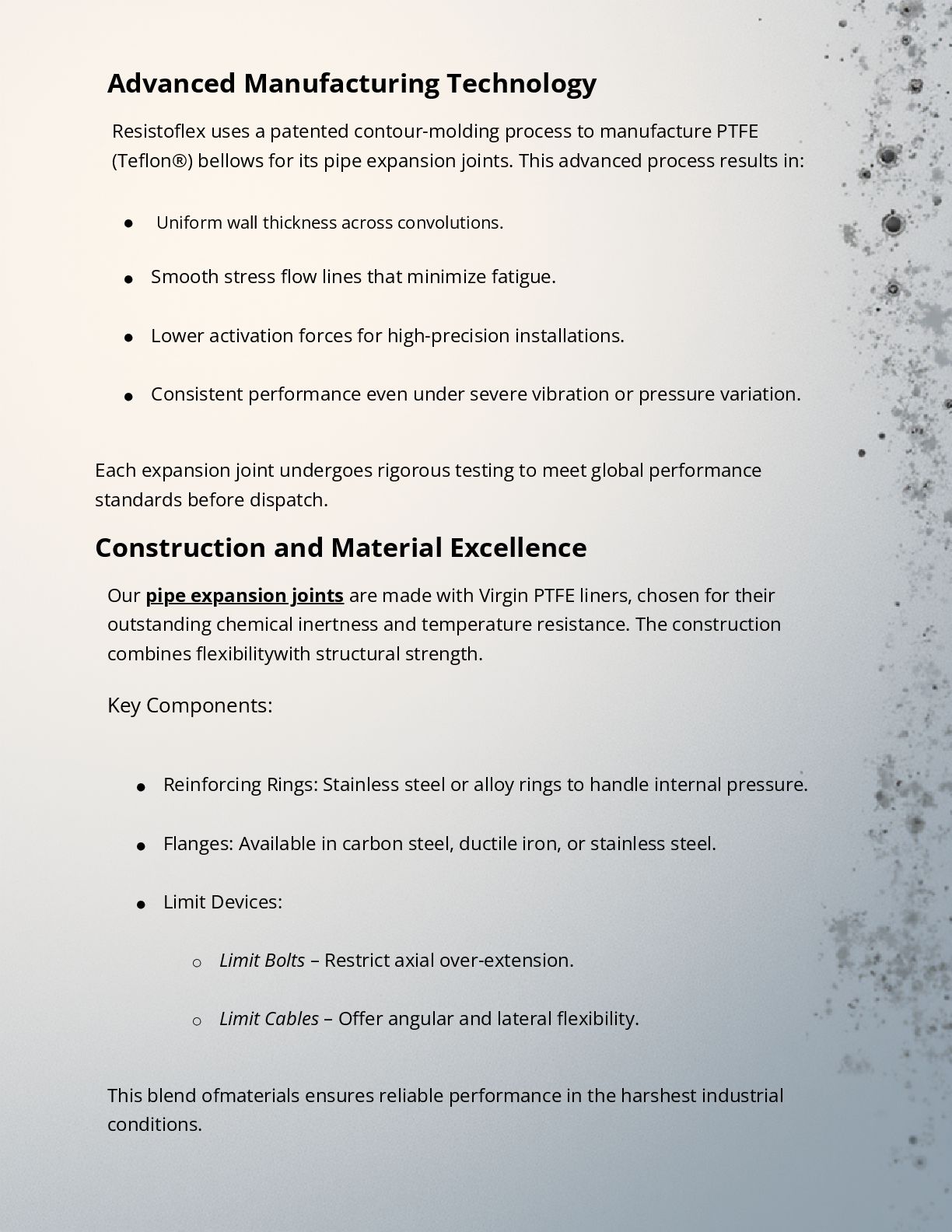

2. • • • Smooth stress flow lines that minimize fatigue. Lower activation forces for high-precision installations. Each expansion joint undergoes rigorous testing to meet global performance standards before dispatch. Resistoflex uses a patented contour-molding process to manufacture PTFE (Teflon®) bellows for its pipe expansion joints. This advanced process results in: Uniform wall thickness across convolutions. Consistent performance even under severe vibration or pressure variation. Advanced Manufacturing Technology Construction and Material Excellence Limit Devices: Limit Bolts – Restrict axial over-extension. Limit Cables – Offer angular and lateral flexibility. Flanges: Available in carbon steel, ductile iron, or stainless steel. Our pipe expansion joints are made with Virgin PTFE liners, chosen for their outstanding chemical inertness and temperature resistance. The construction combines flexibilitywith structural strength. This blend ofmaterials ensures reliable performance in the harshest industrial conditions. Reinforcing Rings: Stainless steel or alloy rings to handle internal pressure. Key Components: • • • ◦ ◦ •

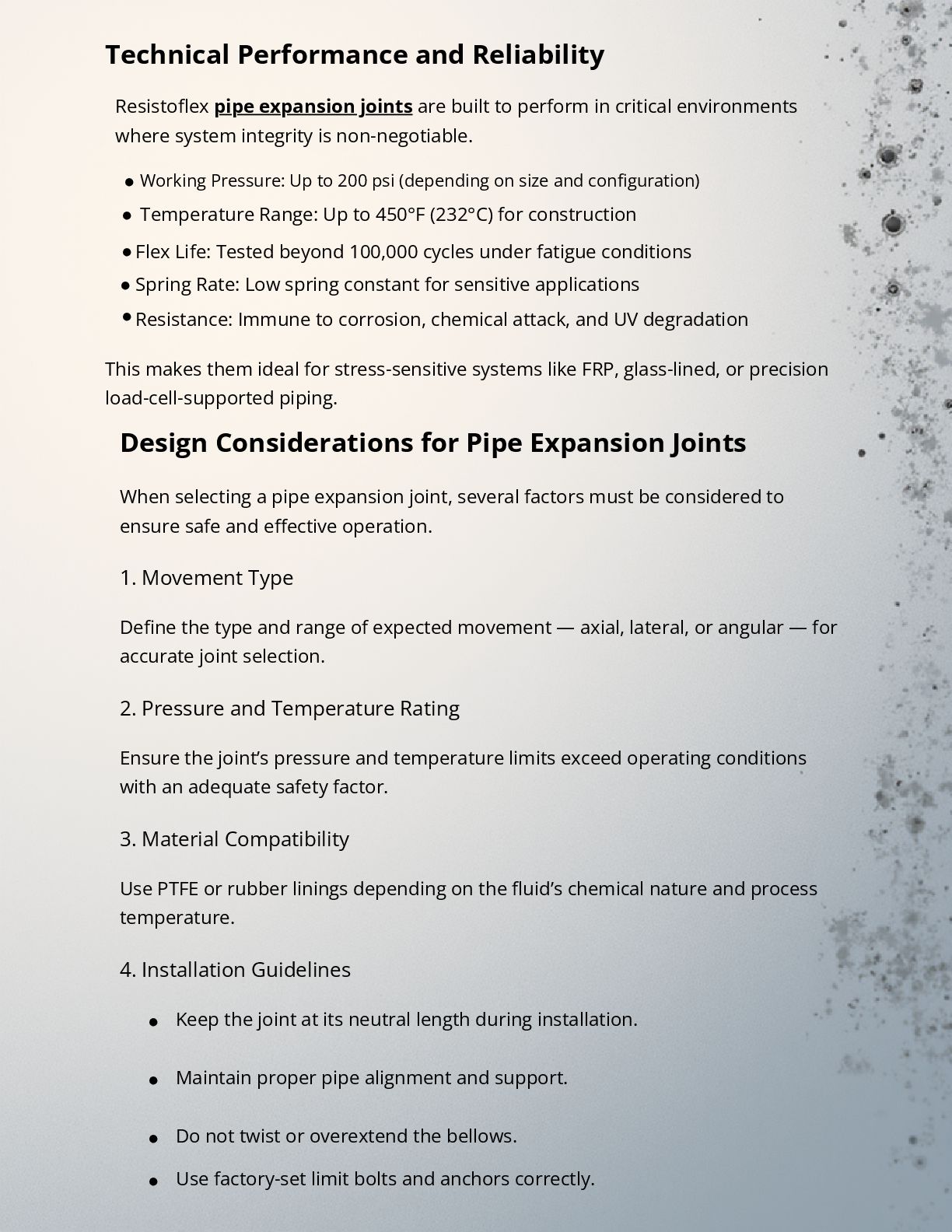

3. Temperature Range: Up to 450°F (232°C) for construction Spring Rate: Low spring constant for sensitive applications Flex Life: Tested beyond 100,000 cycles under fatigue conditions Resistoflex pipe expansion joints are built to perform in critical environments where system integrity is non-negotiable. Working Pressure: Up to 200 psi (depending on size and configuration) • • Technical Performance and Reliability Resistance: Immune to corrosion, chemical attack, and UV degradation This makes them ideal for stress-sensitive systems like FRP, glass-lined, or precision load-cell-supported piping. • • • Do not twist or overextend the bellows. Maintain proper pipe alignment and support. Keep the joint at its neutral length during installation. When selecting a pipe expansion joint, several factors must be considered to ensure safe and effective operation. Ensure the joint’s pressure and temperature limits exceed operating conditions with an adequate safety factor. Use PTFE or rubber linings depending on the fluid’s chemical nature and process temperature. Define the type and range of expected movement — axial, lateral, or angular — for accurate joint selection. Design Considerations for Pipe Expansion Joints 1. Movement Type 3. Material Compatibility 4. Installation Guidelines 2. Pressure and Temperature Rating • Use factory-set limit bolts and anchors correctly. • • •

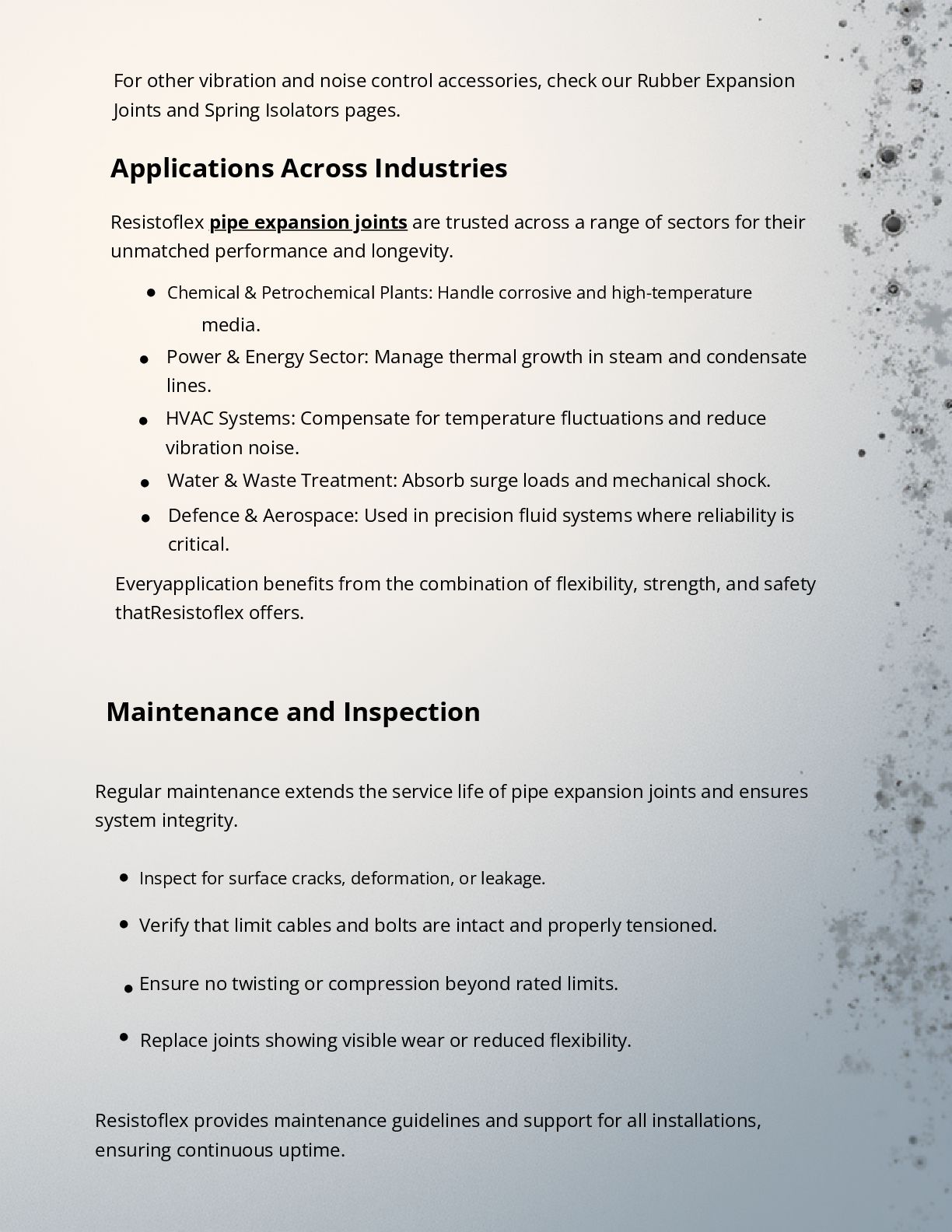

4. • • • • Water & Waste Treatment: Absorb surge loads and mechanical shock. HVAC Systems: Compensate for temperature fluctuations and reduce vibration noise. For other vibration and noise control accessories, check our Rubber Expansion Joints and Spring Isolators pages. Defence & Aerospace: Used in precision fluid systems where reliability is critical. Resistoflex pipe expansion joints are trusted across a range of sectors for their unmatched performance and longevity. Chemical & Petrochemical Plants: Handle corrosive and high-temperature media. Power & Energy Sector: Manage thermal growth in steam and condensate lines. Everyapplication benefits from the combination of flexibility, strength, and safety thatResistoflex offers. Maintenance and Inspection Applications Across Industries • Ensure no twisting or compression beyond rated limits. Replace joints showing visible wear or reduced flexibility. Verify that limit cables and bolts are intact and properly tensioned. Resistoflex provides maintenance guidelines and support for all installations, ensuring continuous uptime. Regular maintenance extends the service life of pipe expansion joints and ensures system integrity. Inspect for surface cracks, deformation, or leakage. • • • •

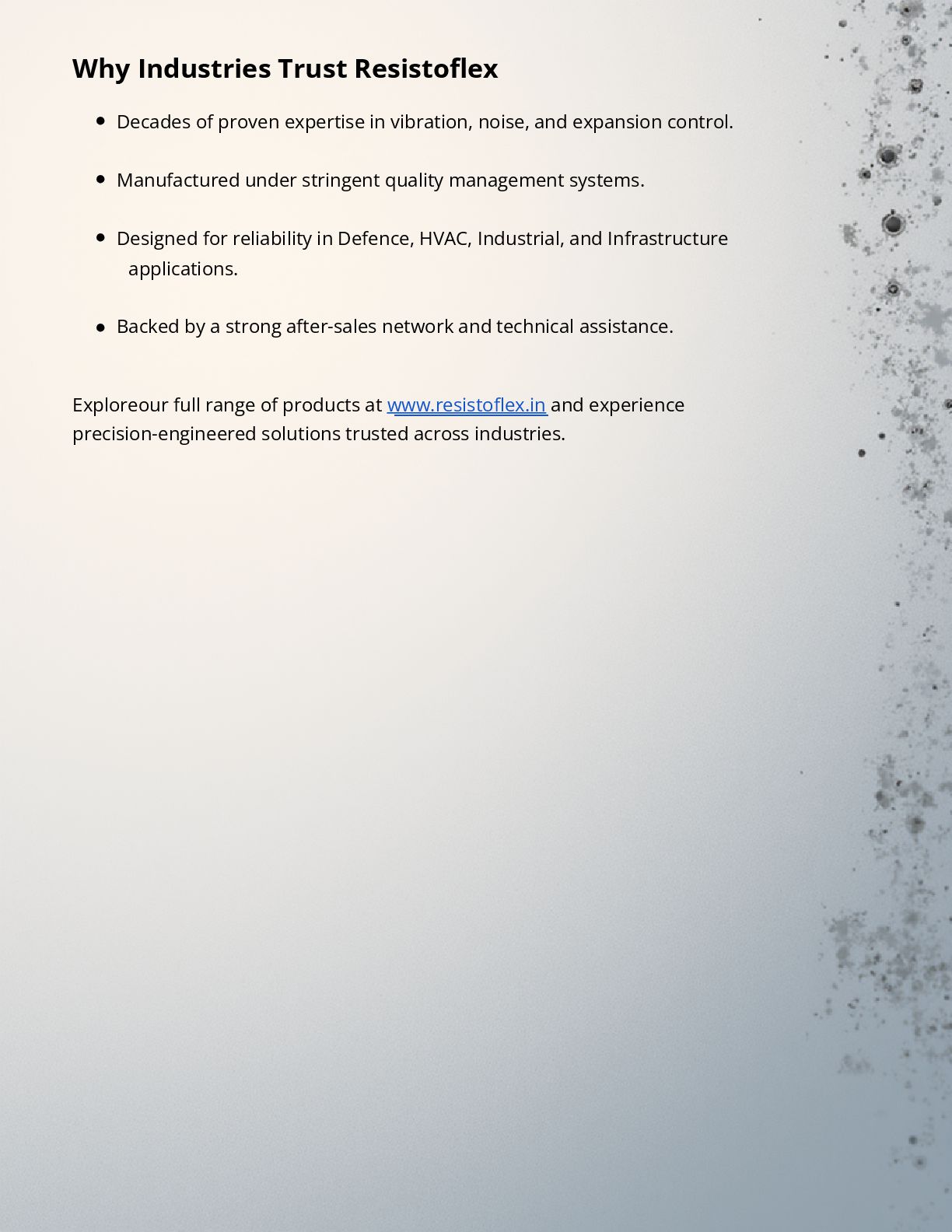

5. Manufactured under stringent quality management systems. Backed by a strong after-sales network and technical assistance. Exploreour full range of products at www.resistoflex.in and experience precision-engineered solutions trusted across industries. Designed for reliability in Defence, HVAC, Industrial, and Infrastructure applications. Decades of proven expertise in vibration, noise, and expansion control. • • • • Why Industries Trust Resistoflex

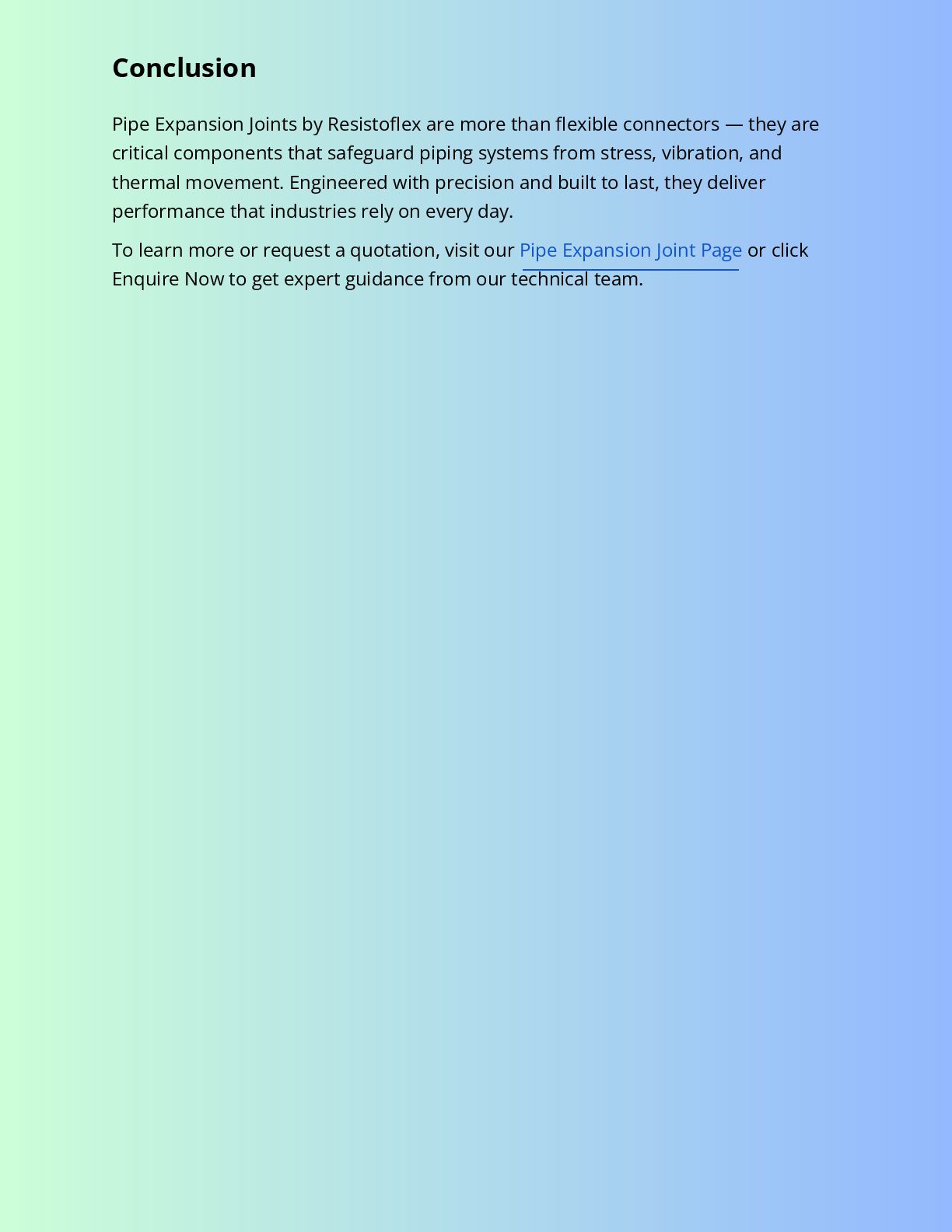

6. Pipe Expansion Joints by Resistoflex are more than flexible connectors — they are critical components that safeguard piping systems from stress, vibration, and thermal movement. Engineered with precision and built to last, they deliver performance that industries rely on every day. To learn more or request a quotation, visit our Pipe Expansion Joint Page or click Enquire Now to get expert guidance from our technical team. Conclusion
