Creating Solid APIs - DjangoCon AU 2018

Presented at DjangoCon AU 2018

Creating APIs that other developers love to use isn't trivial. I'll share some tips and best practices.

See also: https://rivolaks.com/posts/creating-solid-apis/

Transcript

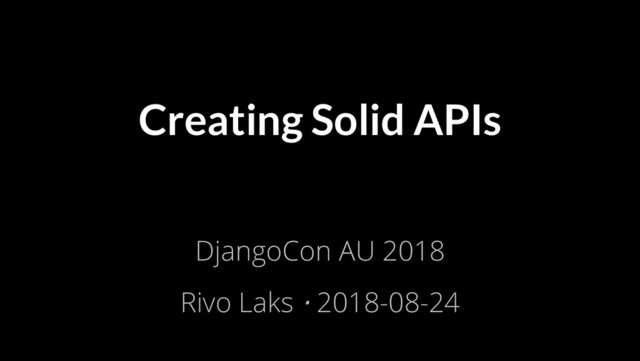

1. Creating Solid APIs
   DjangoCon AU 2018
   Rivo Laks ⋅ 2018-08-24


   View Slide

2. Background


   View Slide

3. What is an API?


   View Slide

4. What is an API?
   application programming interface


   View Slide

5. What is an API?
   application programming interface
   application programmer interface


   View Slide

6. What is an API?
   application programming interface
   application programmer interface
   API is user interface for developers


   View Slide

7. Goals


   View Slide

8. Goals


   View Slide

9. Goals
   Comprehensive API for 3rd-party devs


   View Slide

10. Goals
    Comprehensive API for 3rd-party devs
    Easy & automated onboarding


    View Slide

11. Goals
    Comprehensive API for 3rd-party devs
    Easy & automated onboarding
    Minimize pain (friction)


    View Slide

12. Versioning


    View Slide

13. Why Do We Need Versioning?


    View Slide

14. Why Do We Need Versioning?
    for breaking things
    in controlled fashion


    View Slide

15. How to Version?


    View Slide

16. How to Version?
    You need:
    Deprecation schedules


    View Slide

17. How to Version?
    You need:
    Deprecation schedules
    Changelogs / upgrade notes


    View Slide

18. Versioning Schemes


    View Slide

19. Versioning Schemes
    AcceptHeaderVersioning (DRF)
    GET /projects HTTP/1.0
    Accept: application/json; version=1


    View Slide

20. Versioning Schemes
    AcceptHeaderVersioning (DRF)
    GET /projects HTTP/1.0
    Accept: application/json; version=1
    URLPathVersioning (DRF)
    GET /v1/projects HTTP/1.0
    Accept: application/json


    View Slide

21. Versioning Schemes Cont.
    Integers ( v1 ) vs dates ( 2018-08-24 )?


    View Slide

22. Versioning Schemes Cont.
    Integers ( v1 ) vs dates ( 2018-08-24 )?
    Dates are less emotional


    View Slide

23. Versioning Schemes Cont.
    Integers ( v1 ) vs dates ( 2018-08-24 )?
    Dates are less emotional
    Easier internal / test versions


    View Slide

24. Version Transformers


    View Slide

25. Version Transformers
    » » Requests into newer version » »
    Core code is for latest version
    « « Responses into older version « «


    View Slide

26. Version Transformers
    » » Requests into newer version » »
    Core code is for latest version
    « « Responses into older version « «
    Won't work for big, breaking changes


    View Slide

27. Authentication &
    Authorization


    View Slide

28. Token Authentication
    Clients send HTTP header, ala
    Authorization: Token 9944b09199c62bcf9418


    View Slide

29. OAuth 2.0


    View Slide

30. OAuth 2.0
    For creating platforms


    View Slide

31. OAuth 2.0
    For creating platforms
    Complex, but solves many issues


    View Slide

32. OAuth 2.0
    For creating platforms
    Complex, but solves many issues
    Many packages, e.g. Django OAuth Toolkit,
    OAuthLib


    View Slide

33. Standardize!


    View Slide

34. Standardize!
    Standards help:
    bring familiarity


    View Slide

35. Standardize!
    Standards help:
    bring familiarity
    avoid common pitfalls


    View Slide

36. Standardize!
    Standards help:
    bring familiarity
    avoid common pitfalls
    historically, standardized approaches win


    View Slide

37. JSON API
    http://jsonapi.org/
    one potential standard to use


    View Slide

38. JSON API
    http://jsonapi.org/
    one potential standard to use
    GraphQL is another option


    View Slide

39. Standardize Structure


    View Slide

40. Standardize Structure
    Responses have predictable, familiar
    structure


    View Slide

41. GET https://example.com/api/v1/projects
    {
    "links": {
    "next": "https://example.com/api/v1/projects?cursor=cD0yMDE4L",
    "prev": null
    },
    "data": [...],
    "included": [...]
    }


    View Slide

42. "data": [
    {
    "type": "project",
    "id": "289",
    "links": {
    "self": "https://example.com/api/v1/projects/289"
    },
    "attributes": {
    "created": "2018-06-28T22:52:08.690486Z",
    "name": "Allison-Patterson",
    "description": "aggregate collaborative models"
    },
    "relationships": {...}
    },
    ...
    ],


    View Slide

43. "data": [{ ...
    "relationships": {
    "created_by": {
    "data": {
    "type": "user",
    "id": "199"
    }
    },
    "epics": {
    "data": [
    {
    "type": "epic",
    "id": "3101"
    }
    ],
    }
    } }, ...
    ],


    View Slide

44. "included": [
    {
    "type": "epic",
    "id": "3101",
    "attributes": {
    "created": "2018-06-28T22:50:45.885691Z",
    "name": "Ergonomic background extranet"
    },
    "links": {
    "self": "https://example.com/api/v1/epics/3101"
    }
    },
    {
    "type": "user",
    "id": "199",
    "attributes": {...}
    }
    ]


    View Slide

45. Impressions?


    View Slide

46. Flexibility
    Con gurable elds:
    GET https://example.com/api/v1/projects
    GET https://example.com/api/v1/projects \
    ?included=comments
    GET https://example.com/api/v1/projects \
    ?included=comments&fields[project]=name,comments


    View Slide

47. Pagination
    List responses have next / prev links
    {
    "links": {
    "next": "https://example.com/api/v1/projects?cursor=cD0yMDE4L",
    "prev": null
    },
    "data": [...],
    }


    View Slide

48. Pagination
    List responses have next / prev links
    {
    "links": {
    "next": "https://example.com/api/v1/projects?cursor=cD0yMDE4L",
    "prev": null
    },
    "data": [...],
    }
    Cursor-based pagination FTW (but YMMV).


    View Slide

49. Errors


    View Slide

50. Errors
    POST https://example.com/api/v1/projects
    {
    "errors": [
    {
    "title": "Invalid Attribute",
    "detail": "Name must contain at least three letters.",
    "source": { "pointer": "/data/attributes/name" },
    "code": "name_too_short",
    "status": "422"
    }
    ]
    }


    View Slide

51. Special Cases
    For when you have LOTS of data


    View Slide

52. Special Cases
    For when you have LOTS of data
    out-of-band approach


    View Slide

53. GET https://example.com/api/v1/datasets/123
    {
    "data": {
    "type": "dataset",
    "id": "123",
    "attributes": {
    "name": "CIFAR10 dataset",
    },
    "links": {
    "data_tgz": "https://www.cs.toronto.edu/~kriz/cifar-10-python.tar.gz",
    "self": "https://example.com/api/v1/datasets/123"
    }
    }
    }


    View Slide

54. Standardization Matters
    the speci c standard isn't that important
    GraphQL, etc are also good options


    View Slide

55. Documentation


    View Slide

56. Documentation
    Often overlooked


    View Slide

57. Documentation
    Often overlooked
    Gives the rst impression


    View Slide

58. Documentation
    Often overlooked
    Gives the rst impression
    The e ort is worth it!


    View Slide

59. Creating
    Awesome Docs


    View Slide

60. What Should Go In There?


    View Slide

61. What Should Go In There?
    How do I access it?


    View Slide

62. What Should Go In There?
    How do I access it?
    Do I need developer account?


    View Slide

63. What Should Go In There?
    How do I access it?
    Do I need developer account?
    Root URL, etc


    View Slide

64. What Should Go In There?
    How do I access it?
    Do I need developer account?
    Root URL, etc
    Authentication info


    View Slide

65. What Should Go In There?
    General encodings, formats, etc


    View Slide

66. What Should Go In There?
    General encodings, formats, etc
    Versioning, pagination, etc


    View Slide

67. What Should Go In There?
    General encodings, formats, etc
    Versioning, pagination, etc
    Common errors


    View Slide

68. What Should Go In There?
    General encodings, formats, etc
    Versioning, pagination, etc
    Common errors
    Code for getting started


    View Slide

69. The Endpoints


    View Slide

70. The Endpoints
    URL & operations


    View Slide

71. The Endpoints
    URL & operations
    Request/response data


    View Slide

72. The Endpoints
    URL & operations
    Request/response data
    Optional parameters


    View Slide

73. The Endpoints
    URL & operations
    Request/response data
    Optional parameters
    Permissions etc


    View Slide

74. Keep it Fresh!


    View Slide

75. Keep it Fresh!
    Obsolete docs are the worst


    View Slide

76. Keep it Fresh!
    Obsolete docs are the worst
    Always autogenerate!


    View Slide

77. Keep it Fresh!
    Obsolete docs are the worst
    Always autogenerate!
    Usually code » schema » docs


    View Slide

78. Schema & Autogeneration


    View Slide

79. Schema & Autogeneration
    OpenAPI, Swagger, etc


    View Slide

80. Schema & Autogeneration
    OpenAPI, Swagger, etc
    Use your tools


    View Slide

81. Schema & Autogeneration
    OpenAPI, Swagger, etc
    Use your tools
    Combine docs & code examples


    View Slide

82. Schema & Autogeneration
    OpenAPI, Swagger, etc
    Use your tools
    Combine docs & code examples
    Client libs autogeneration


    View Slide

83. In Summary
    Embrace standards (e.g. JSON API)
    Invest in documentation
    Use automation
    Reduce friction


    View Slide

84. Thanks!
    Rivo Laks ⋅ @rivolaks ⋅ rivolaks.com
    tinyurl.com/TODO
