Counting (Using Computer)

This talk is going to cover some techniques of counting using a computer. Counting problems come up very often in areas of databases, networking, and elsewhere. Counting is so simple that by itself it isn’t even worth talking about, but there are some techniques that have truly impressive gains.

Accompanying notes at: https://speakerdeck.com/roshmat/counting-notes

Transcript

1. Counting (Using Computer) 1

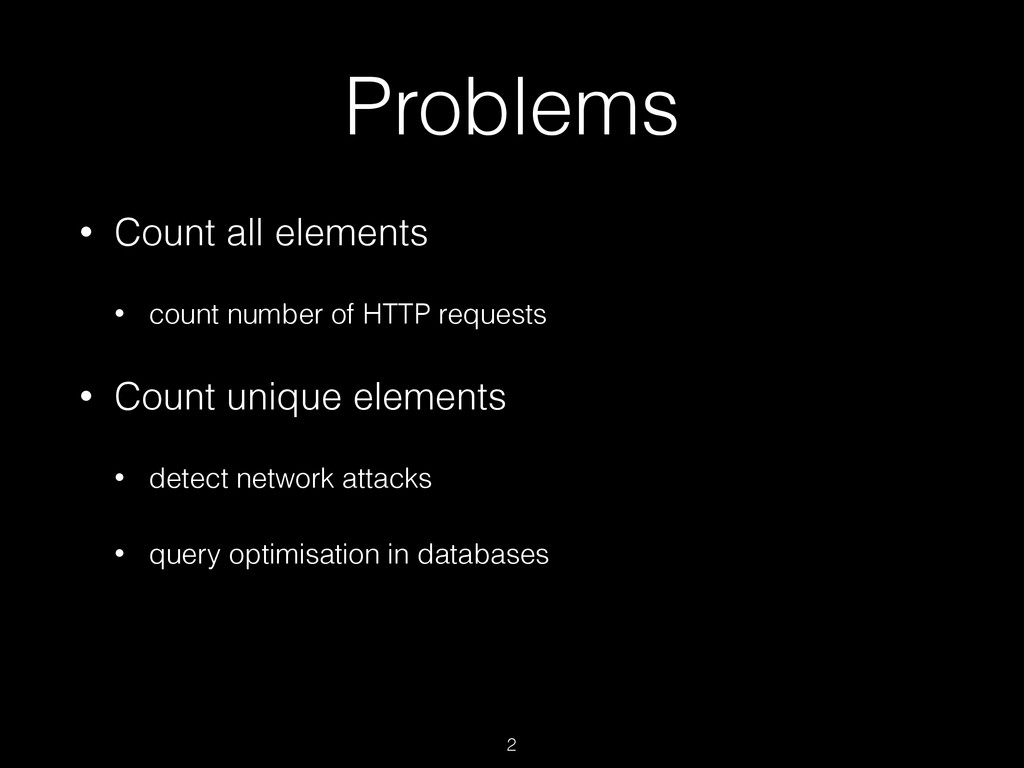

2. Problems • Count all elements • count number of HTTP requests • Count unique elements • detect network attacks • query optimisation in databases 2

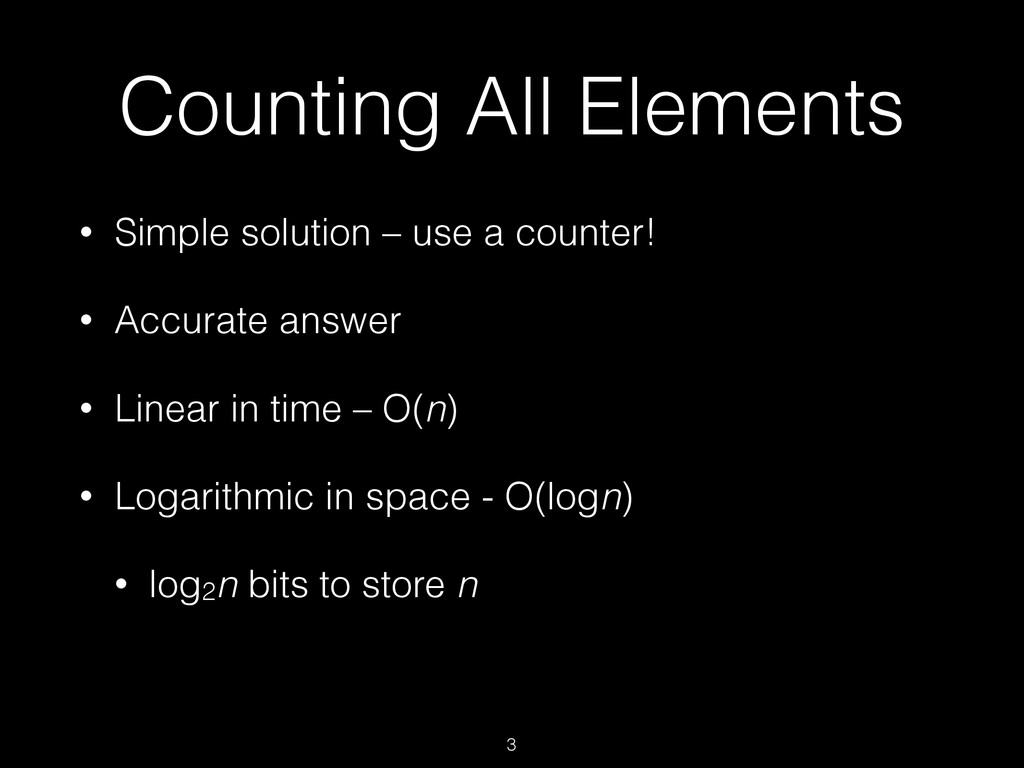

3. Counting All Elements • Simple solution – use a counter! • Accurate answer • Linear in time – O(n) • Logarithmic in space - O(logn) • log2n bits to store n 3

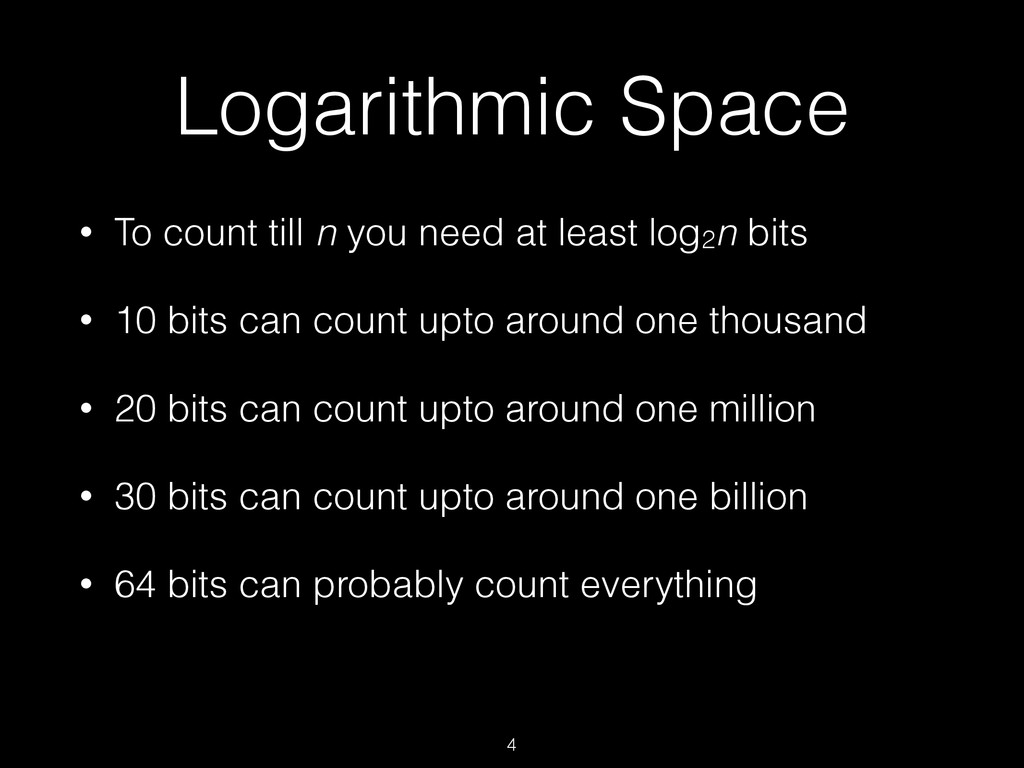

4. Logarithmic Space • To count till n you need at least log2n bits • 10 bits can count upto around one thousand • 20 bits can count upto around one million • 30 bits can count upto around one billion • 64 bits can probably count everything 4

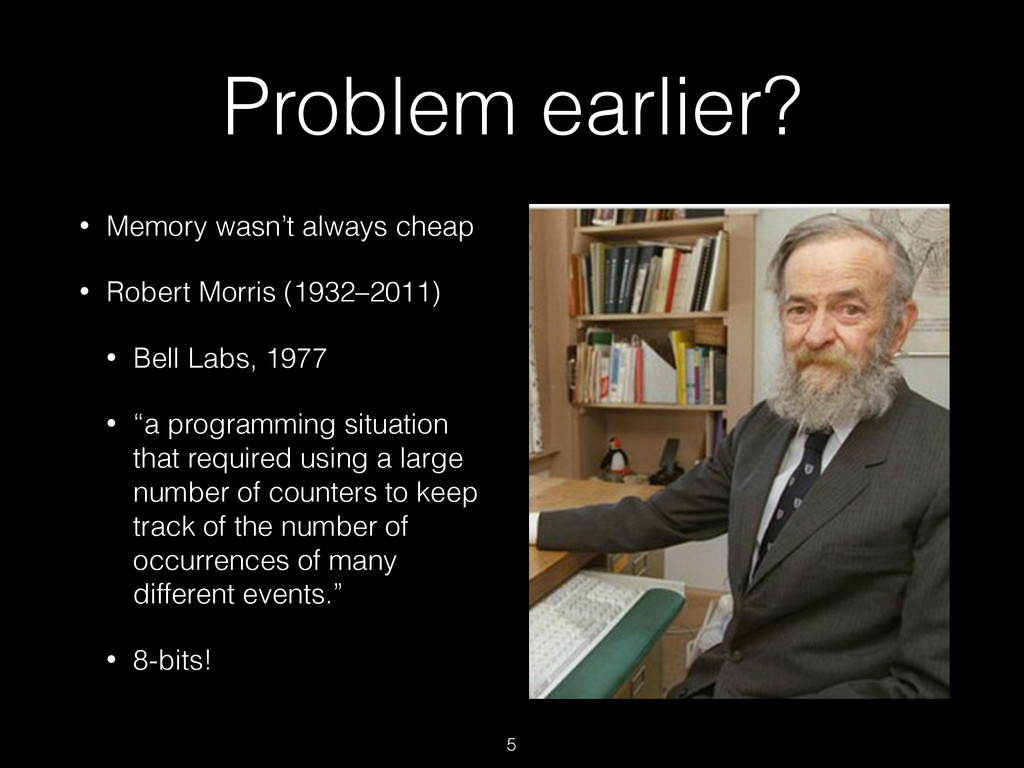

5. Problem earlier? • Memory wasn’t always cheap • Robert Morris (1932–2011) • Bell Labs, 1977 • “a programming situation that required using a large number of counters to keep track of the number of occurrences of many different events.” • 8-bits! 5

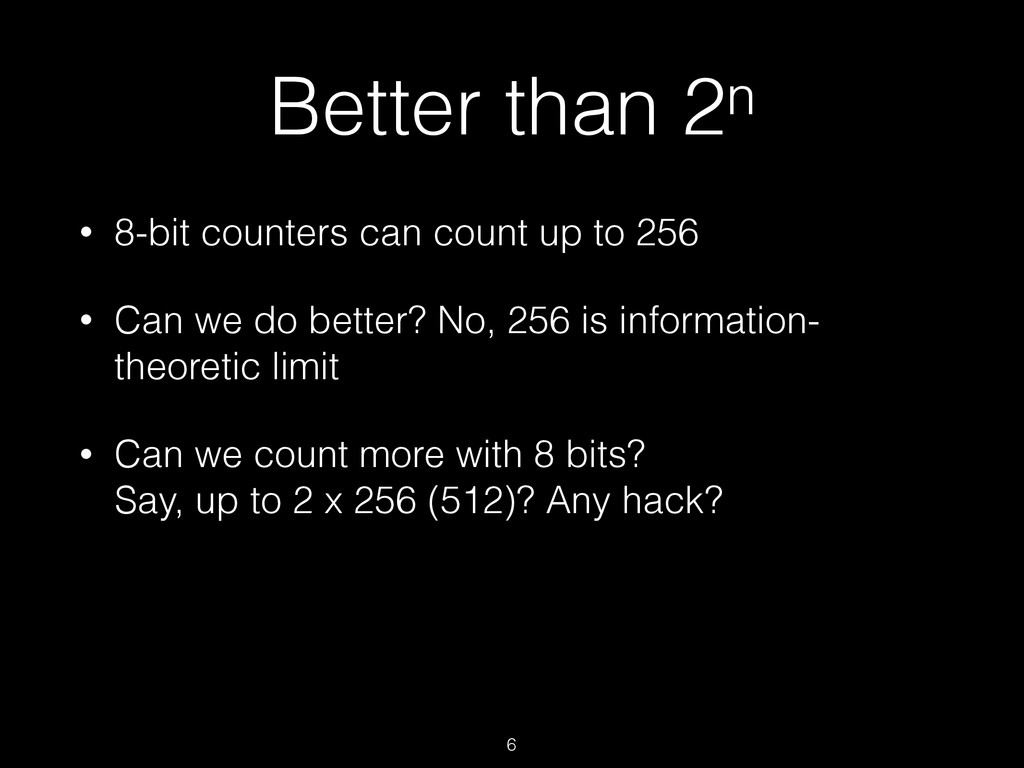

6. Better than 2n • 8-bit counters can count up to 256 • Can we do better? No, 256 is information- theoretic limit • Can we count more with 8 bits?
 Say, up to 2 x 256 (512)? Any hack? 6

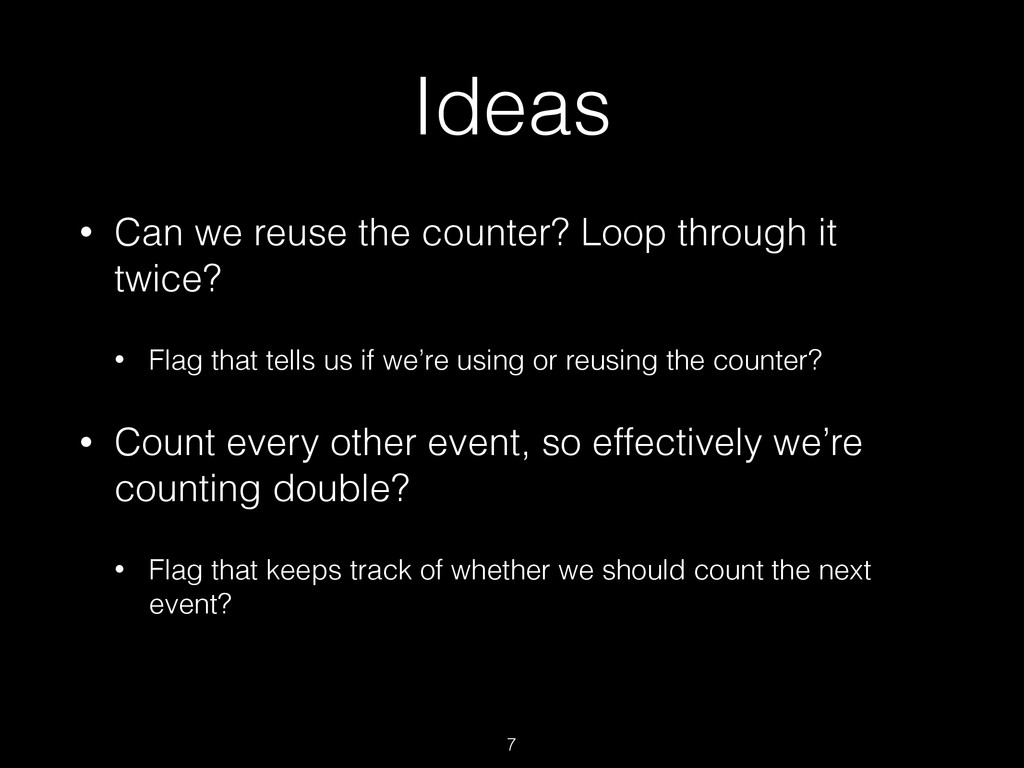

7. Ideas • Can we reuse the counter? Loop through it twice? • Flag that tells us if we’re using or reusing the counter? • Count every other event, so effectively we’re counting double? • Flag that keeps track of whether we should count the next event? 7

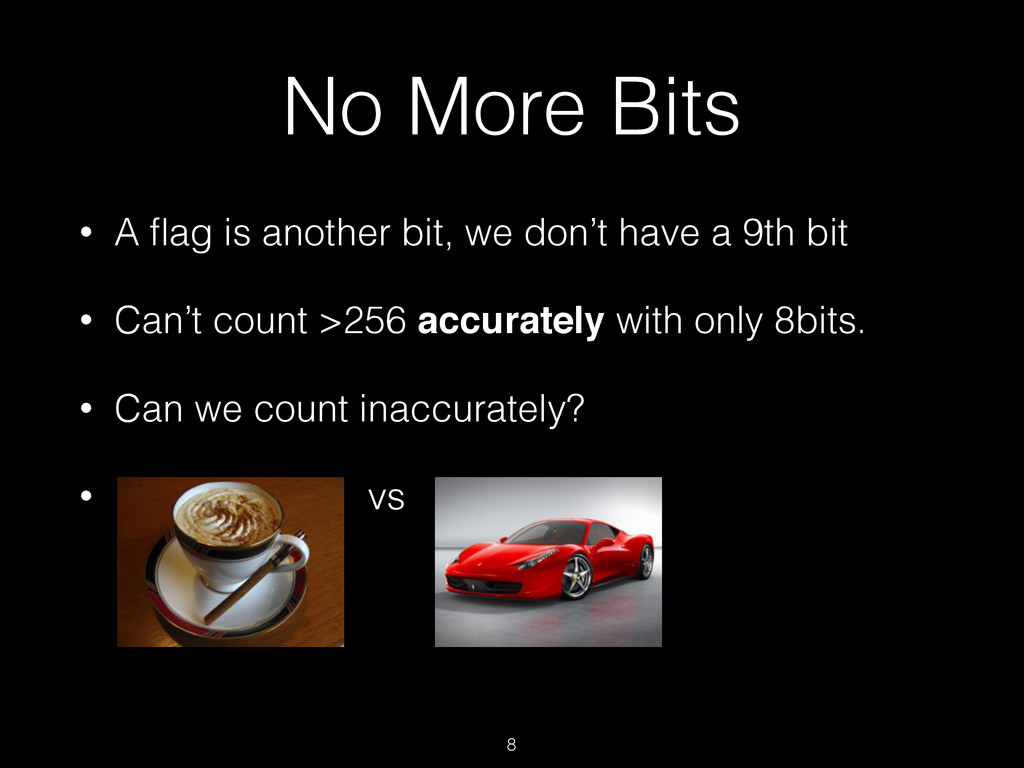

8. No More Bits • A flag is another bit, we don’t have a 9th bit • Can’t count >256 accurately with only 8bits. • Can we count inaccurately? • vs 8

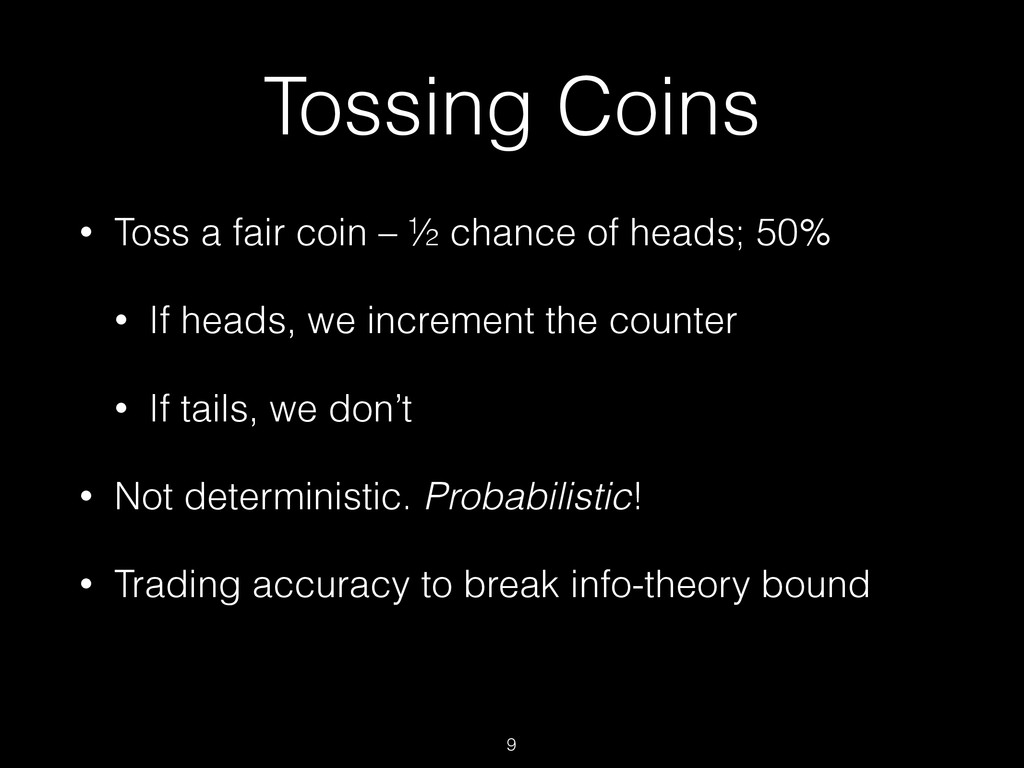

9. Tossing Coins • Toss a fair coin – ½ chance of heads; 50% • If heads, we increment the counter • If tails, we don’t • Not deterministic. Probabilistic! • Trading accuracy to break info-theory bound 9

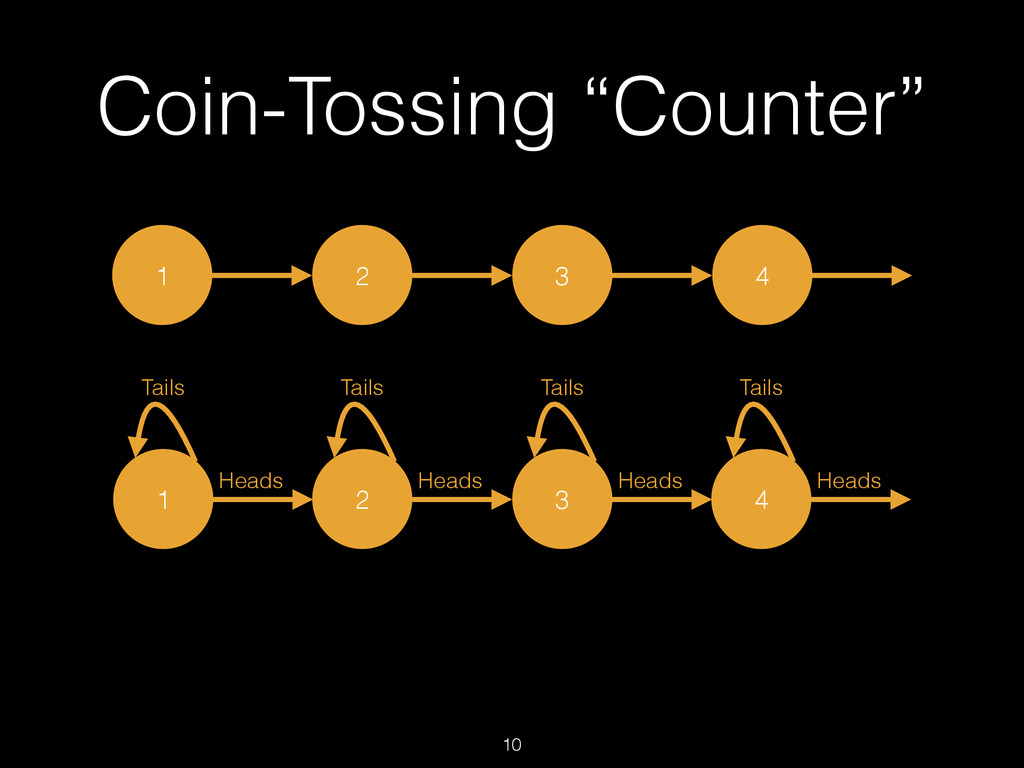

10. Coin-Tossing “Counter” 10 1 2 3 4 1 Heads Tails 2 Heads Tails 3 Heads Tails 4 Heads Tails

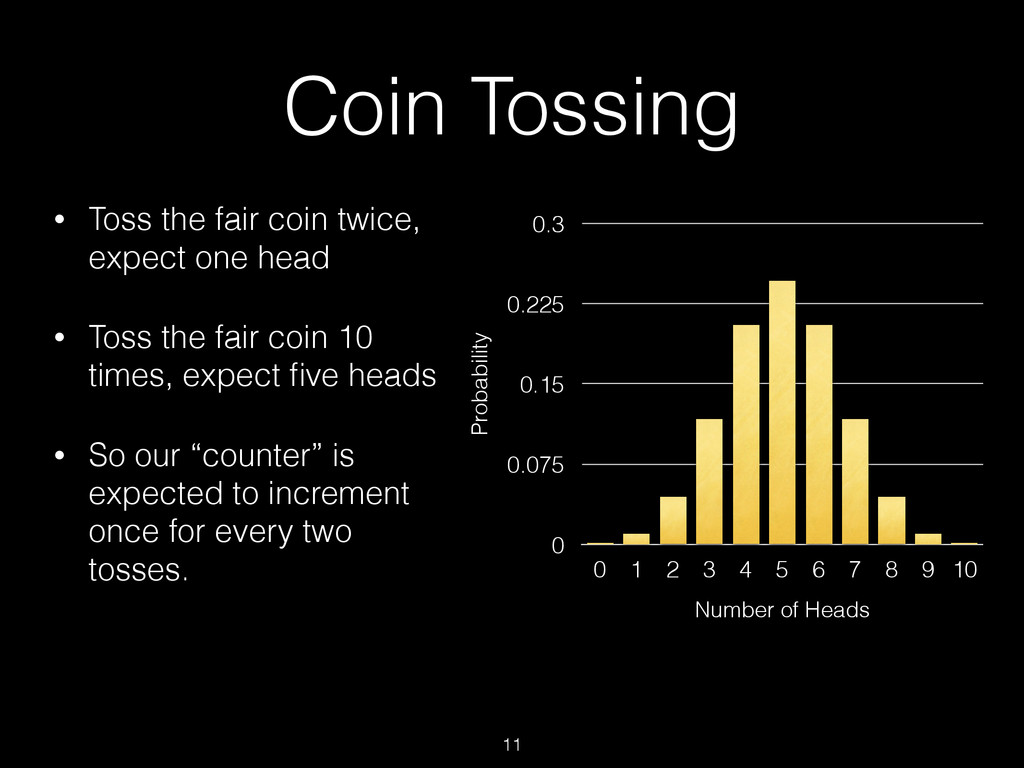

11. Coin Tossing • Toss the fair coin twice, expect one head • Toss the fair coin 10 times, expect five heads • So our “counter” is expected to increment once for every two tosses. 11 Probability 0 0.075 0.15 0.225 0.3 Number of Heads 0 1 2 3 4 5 6 7 8 9 10

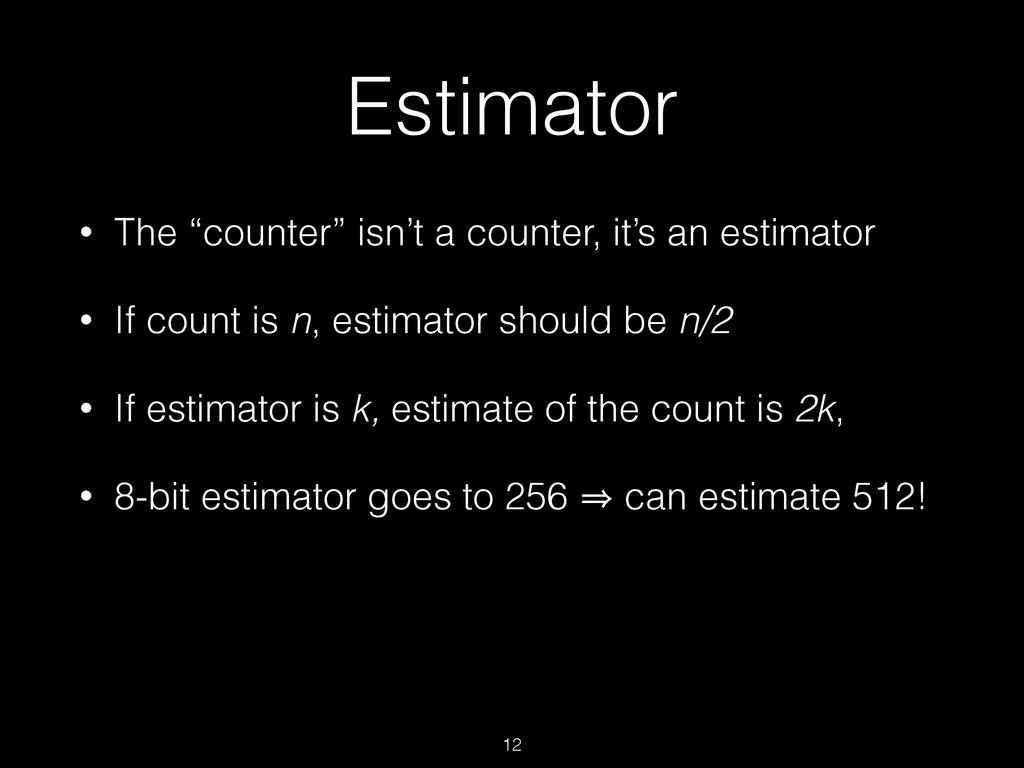

12. Estimator • The “counter” isn’t a counter, it’s an estimator • If count is n, estimator should be n/2 • If estimator is k, estimate of the count is 2k, • 8-bit estimator goes to 256 㱺 can estimate 512! 12

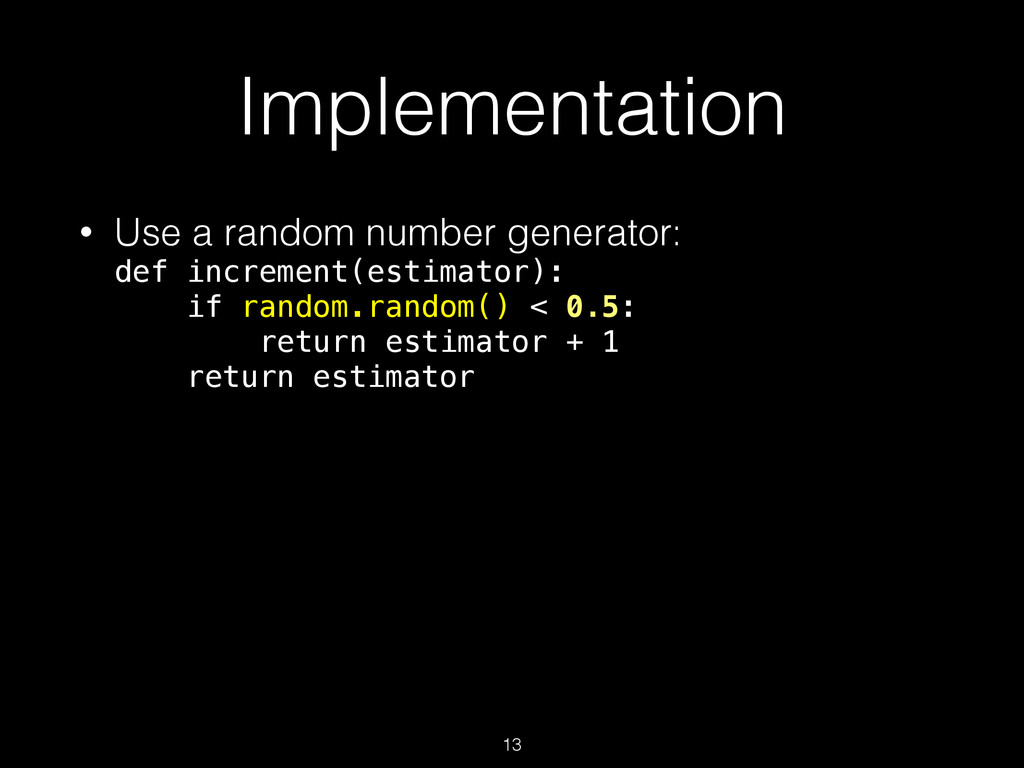

13. Implementation • Use a random number generator:
 def increment(estimator):
 if random.random() < 0.5:
 return estimator + 1
 return estimator 13

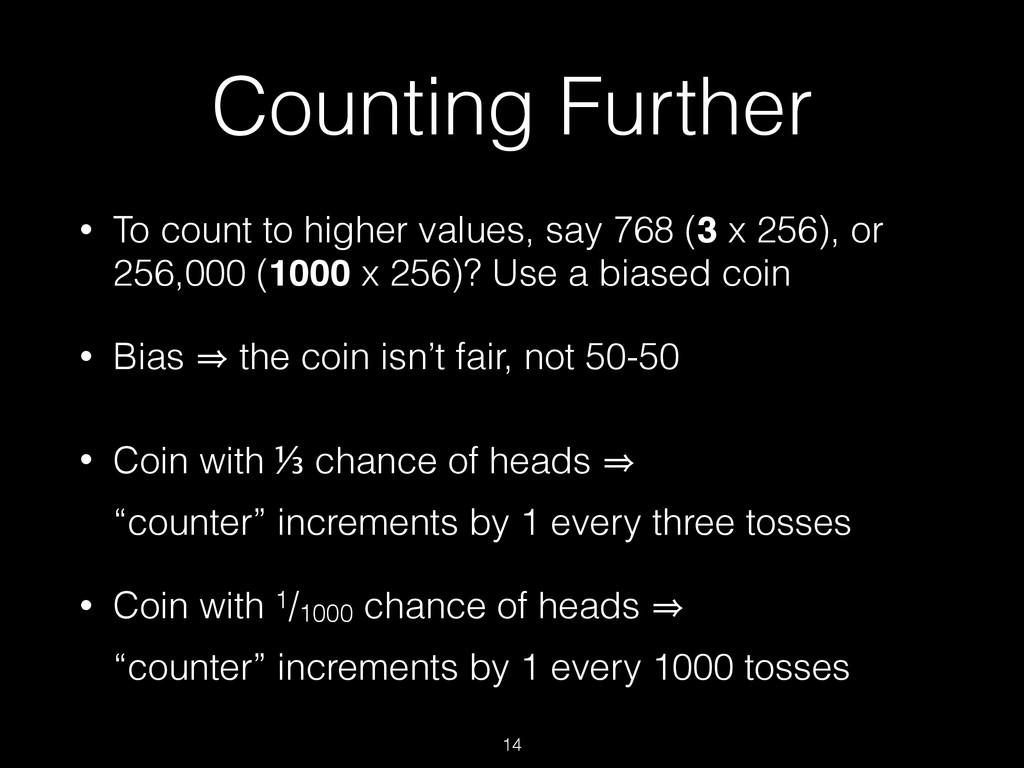

14. Counting Further • To count to higher values, say 768 (3 x 256), or 256,000 (1000 x 256)? Use a biased coin • Bias 㱺 the coin isn’t fair, not 50-50 • Coin with ⅓ chance of heads 㱺
 “counter” increments by 1 every three tosses • Coin with 1/1000 chance of heads 㱺
 “counter” increments by 1 every 1000 tosses 14

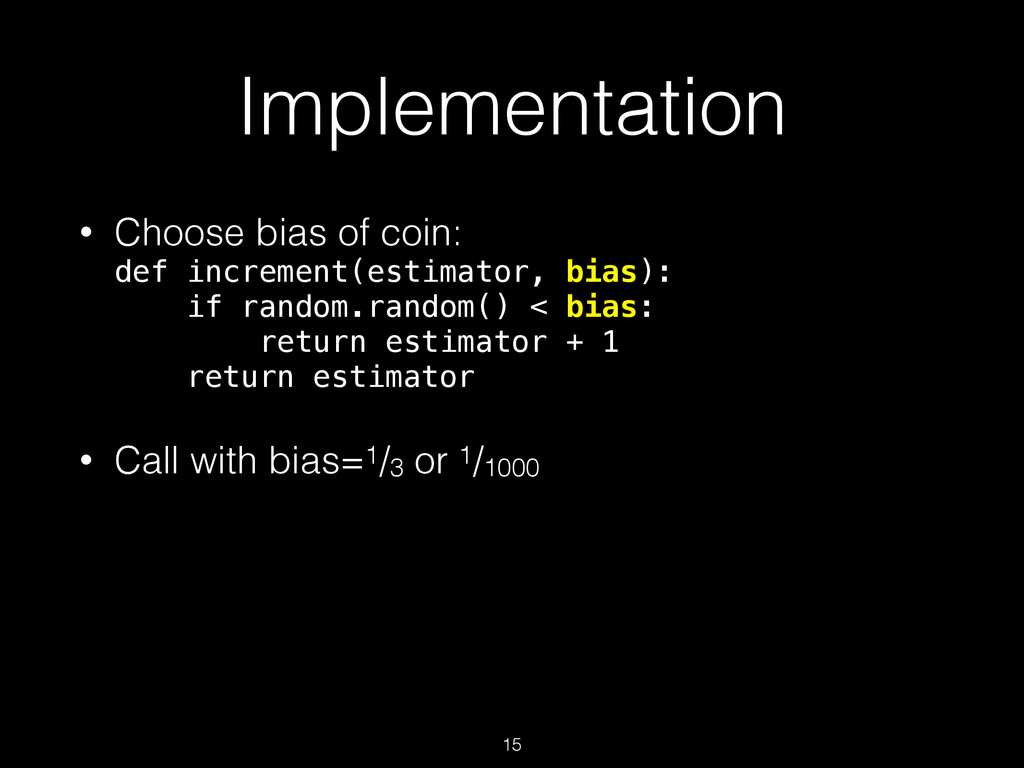

15. Implementation • Choose bias of coin:
 def increment(estimator, bias):
 if random.random() < bias:
 return estimator + 1
 return estimator • Call with bias=1/3 or 1/1000 15

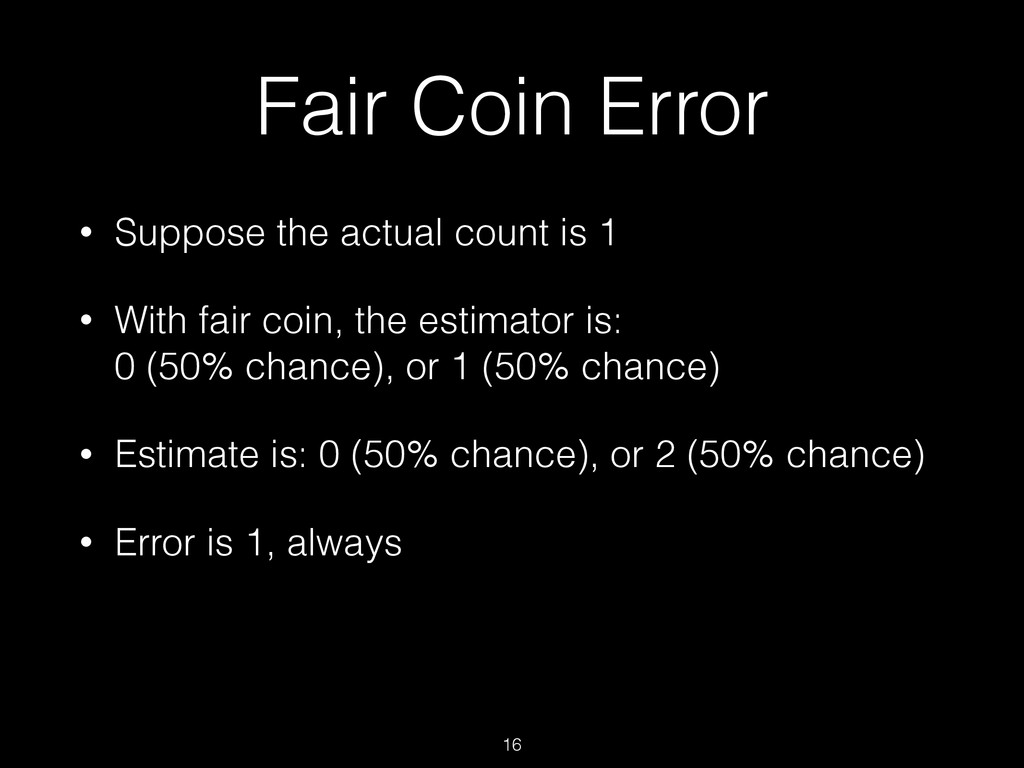

16. Fair Coin Error • Suppose the actual count is 1 • With fair coin, the estimator is:
 0 (50% chance), or 1 (50% chance) • Estimate is: 0 (50% chance), or 2 (50% chance) • Error is 1, always 16

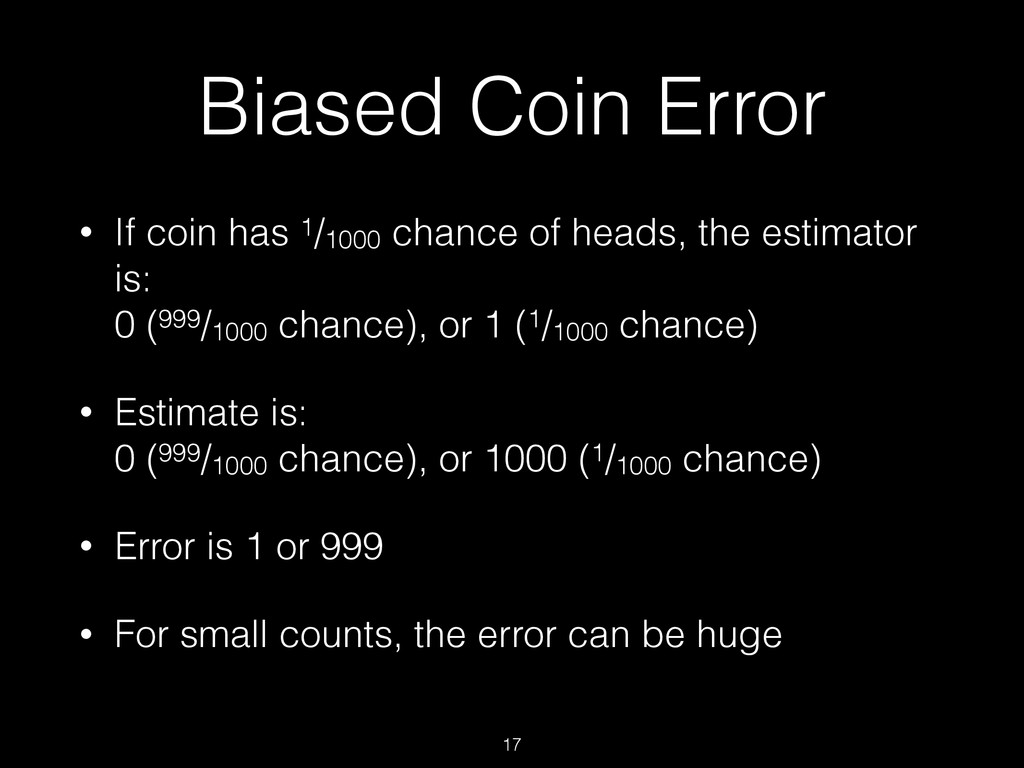

17. Biased Coin Error • If coin has 1/1000 chance of heads, the estimator is:
 0 (999/1000 chance), or 1 (1/1000 chance) • Estimate is:
 0 (999/1000 chance), or 1000 (1/1000 chance) • Error is 1 or 999 • For small counts, the error can be huge 17

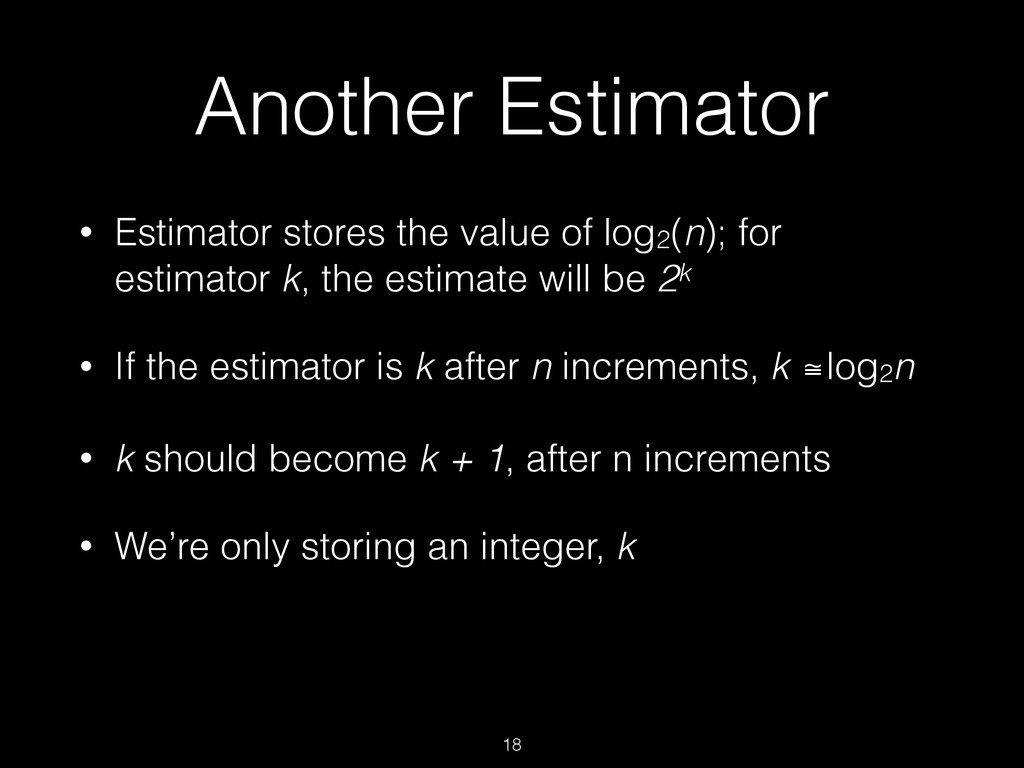

18. Another Estimator • Estimator stores the value of log2(n); for estimator k, the estimate will be 2k • If the estimator is k after n increments, k ≅log2n • k should become k + 1, after n increments • We’re only storing an integer, k 18

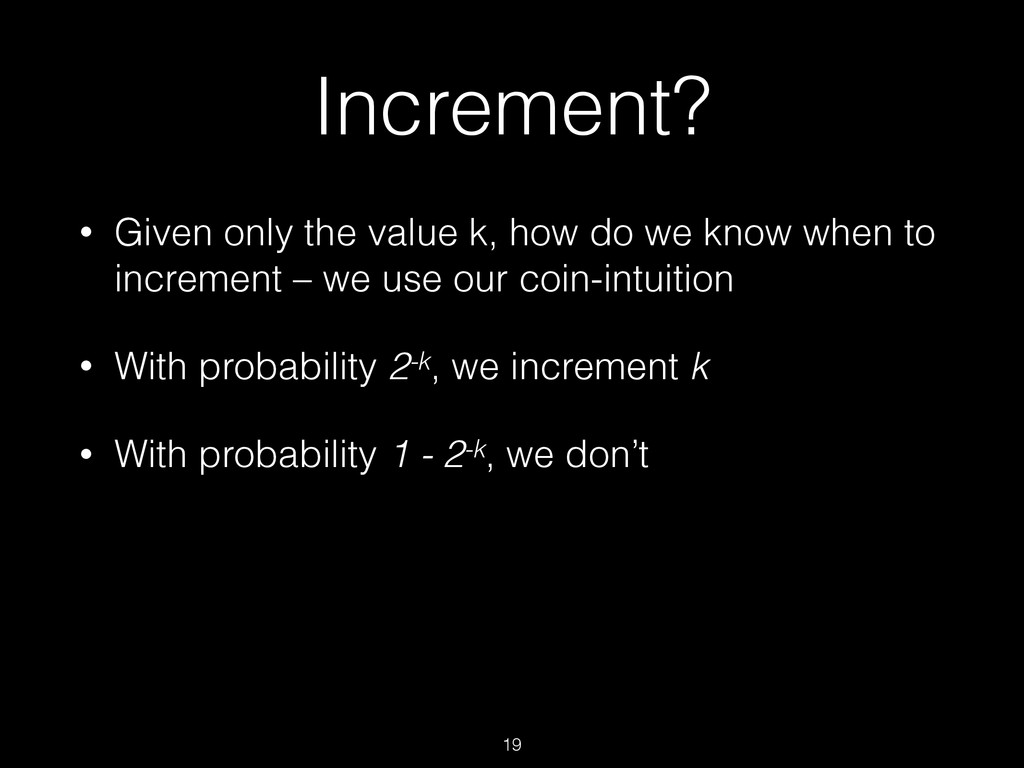

19. Increment? • Given only the value k, how do we know when to increment – we use our coin-intuition • With probability 2-k, we increment k • With probability 1 - 2-k, we don’t 19

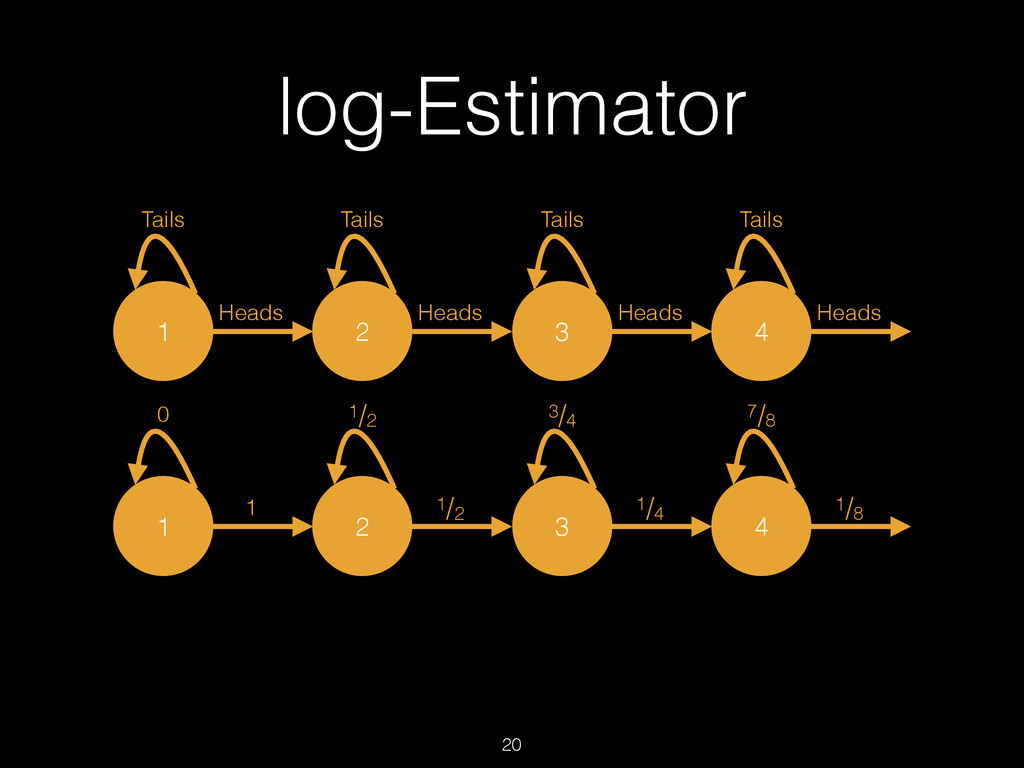

20. log-Estimator 20 1 Heads Tails 2 Heads Tails 3 Heads Tails 4 Heads Tails 1 1 0 2 1/2 1/2 3 1/4 3/4 4 1/8 7/8

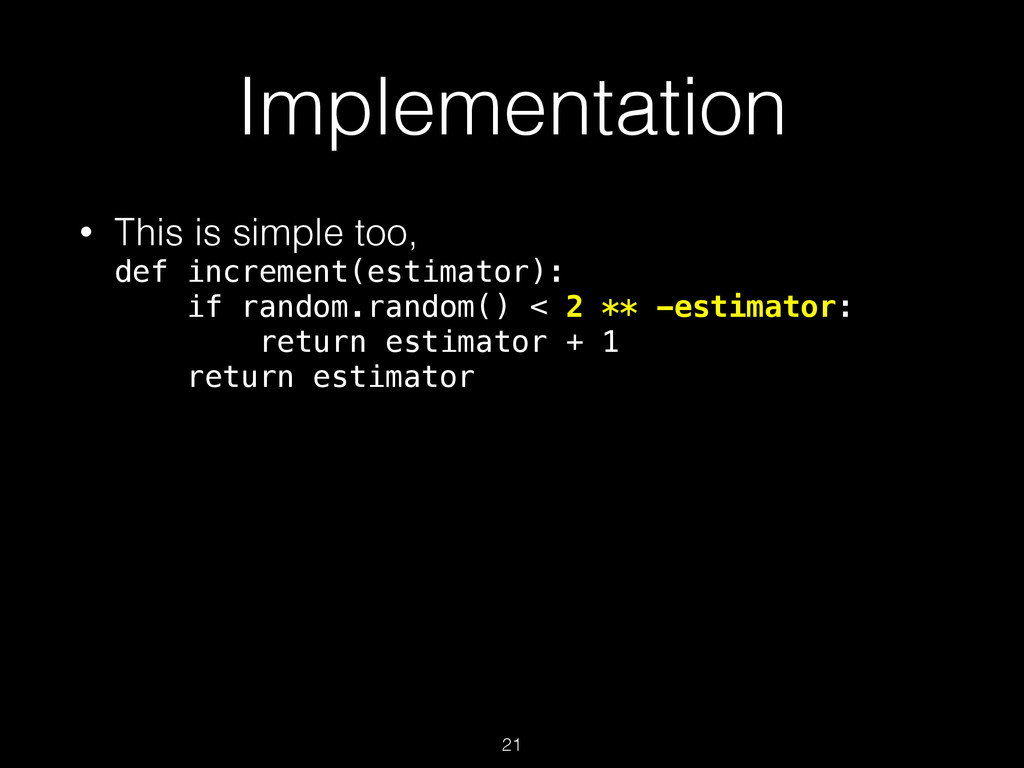

21. Implementation • This is simple too,
 def increment(estimator):
 if random.random() < 2 ** -estimator:
 return estimator + 1
 return estimator 21

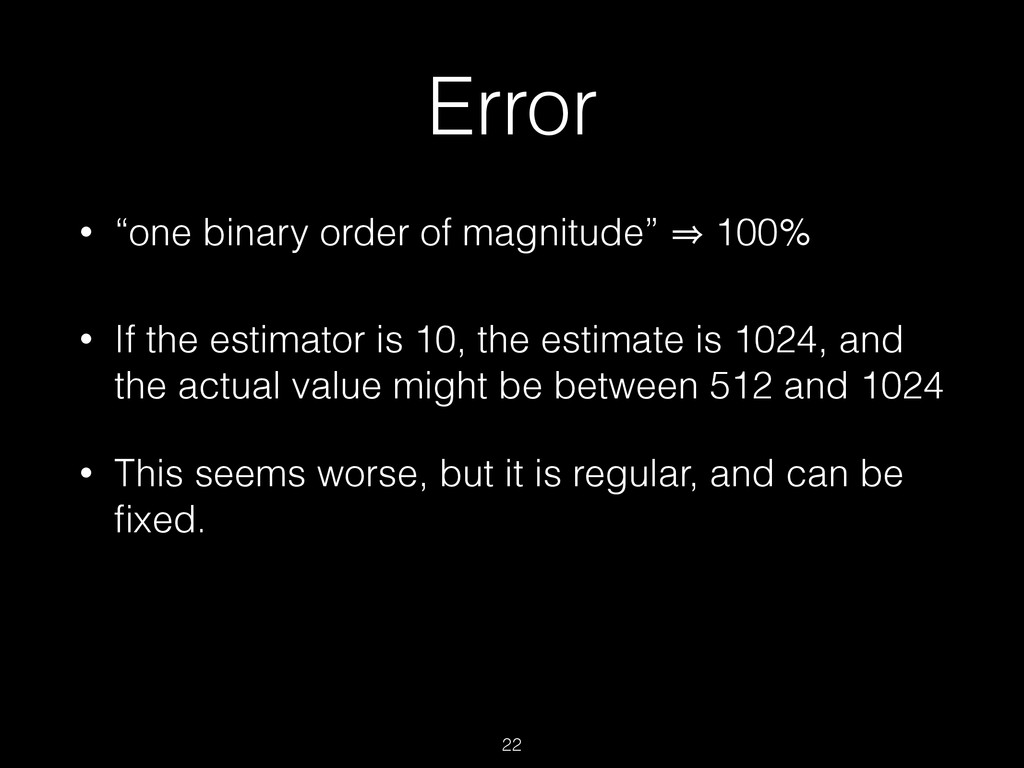

22. Error • “one binary order of magnitude” 㱺 100% • If the estimator is 10, the estimate is 1024, and the actual value might be between 512 and 1024 • This seems worse, but it is regular, and can be fixed. 22

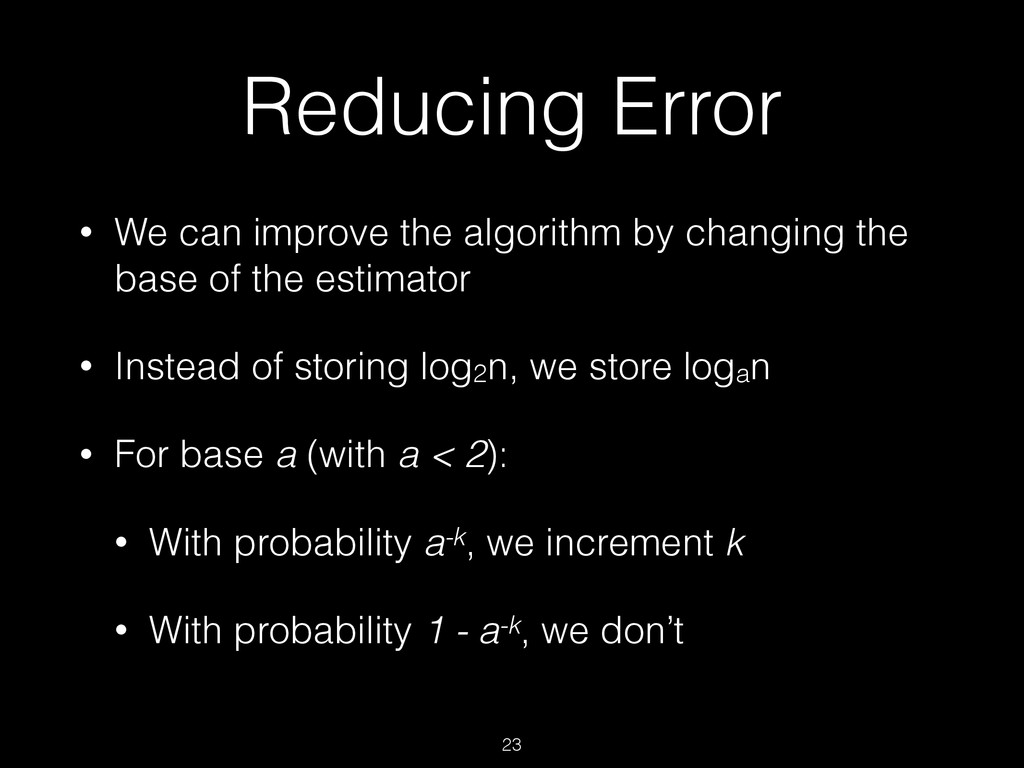

23. Reducing Error • We can improve the algorithm by changing the base of the estimator • Instead of storing log2n, we store logan • For base a (with a < 2): • With probability a-k, we increment k • With probability 1 - a-k, we don’t 23

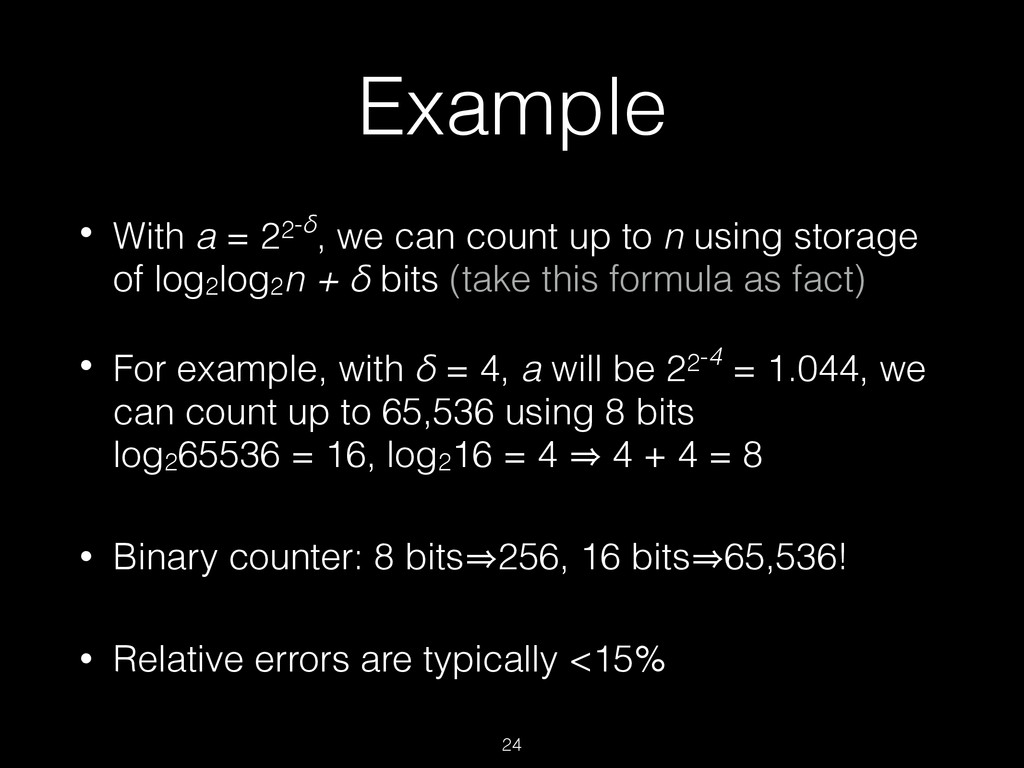

24. Example • With a = 22-δ, we can count up to n using storage of log2log2n + δ bits (take this formula as fact) • For example, with δ = 4, a will be 22-4 = 1.044, we can count up to 65,536 using 8 bits
 log265536 = 16, log216 = 4 㱺 4 + 4 = 8 • Binary counter: 8 bits㱺256, 16 bits㱺65,536! • Relative errors are typically <15% 24

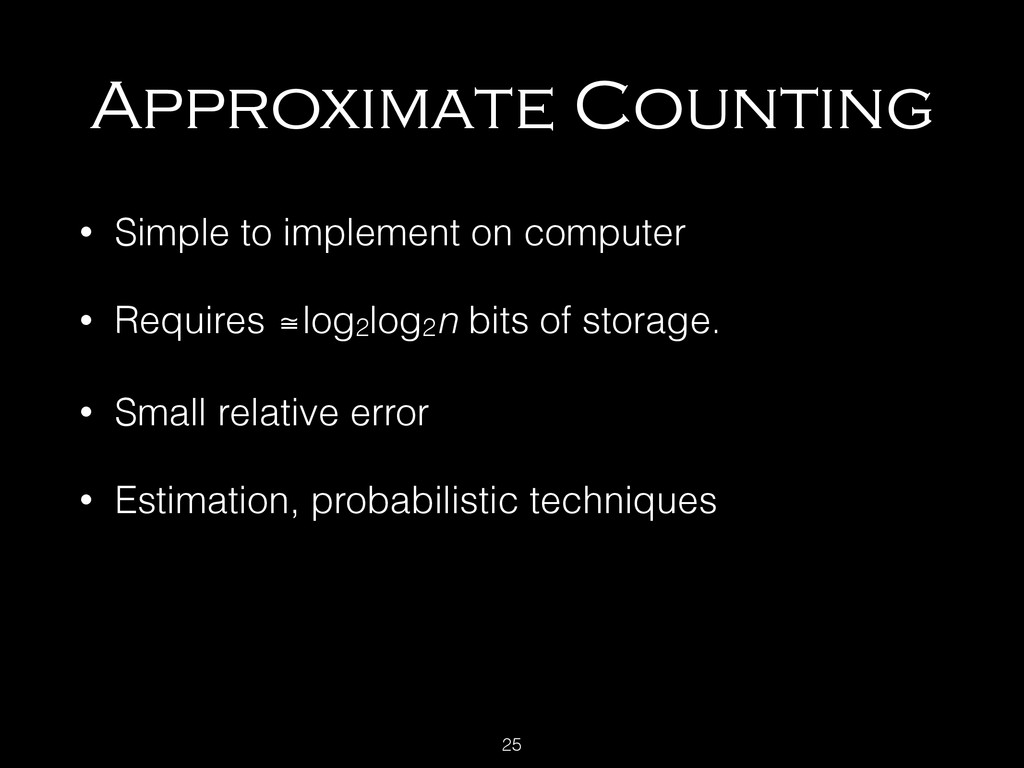

25. Approximate Counting • Simple to implement on computer • Requires ≅log2log2n bits of storage. • Small relative error • Estimation, probabilistic techniques 25

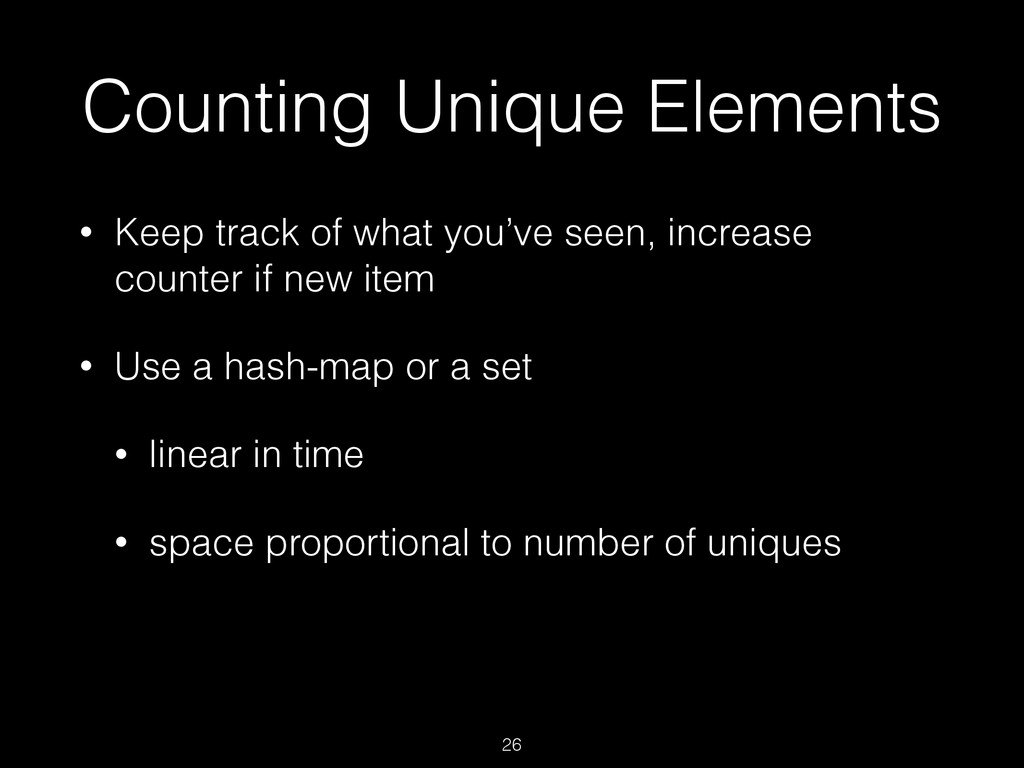

26. Counting Unique Elements • Keep track of what you’ve seen, increase counter if new item • Use a hash-map or a set • linear in time • space proportional to number of uniques 26

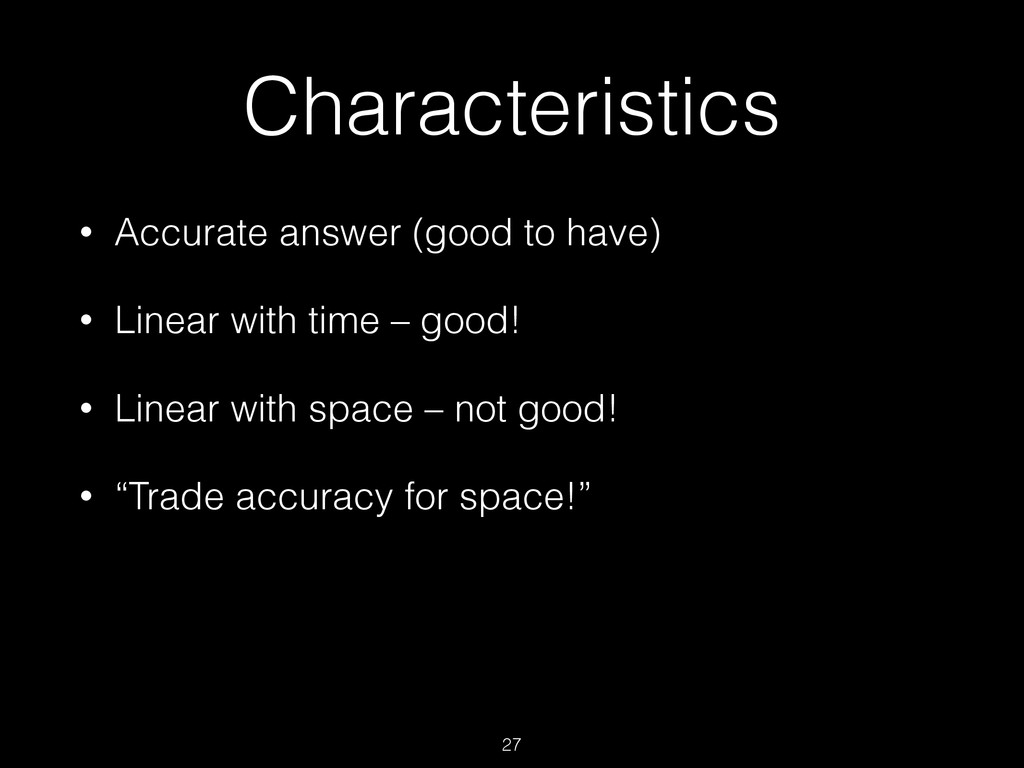

27. Characteristics • Accurate answer (good to have) • Linear with time – good! • Linear with space – not good! • “Trade accuracy for space!” 27

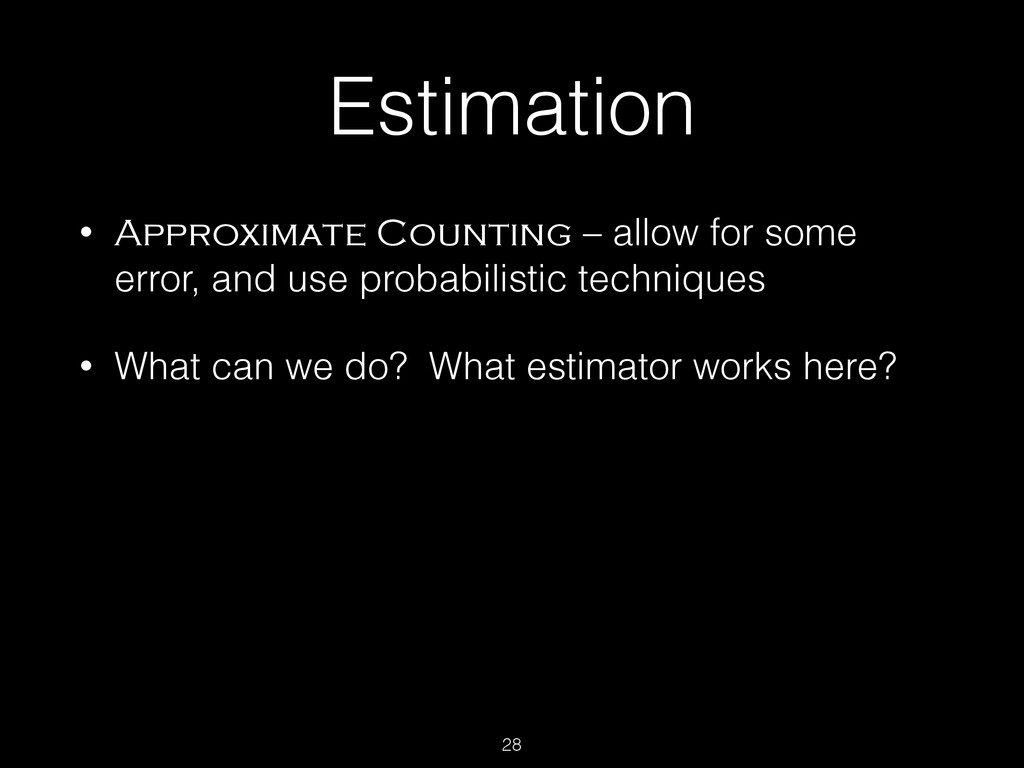

28. Estimation • Approximate Counting – allow for some error, and use probabilistic techniques • What can we do? What estimator works here? 28

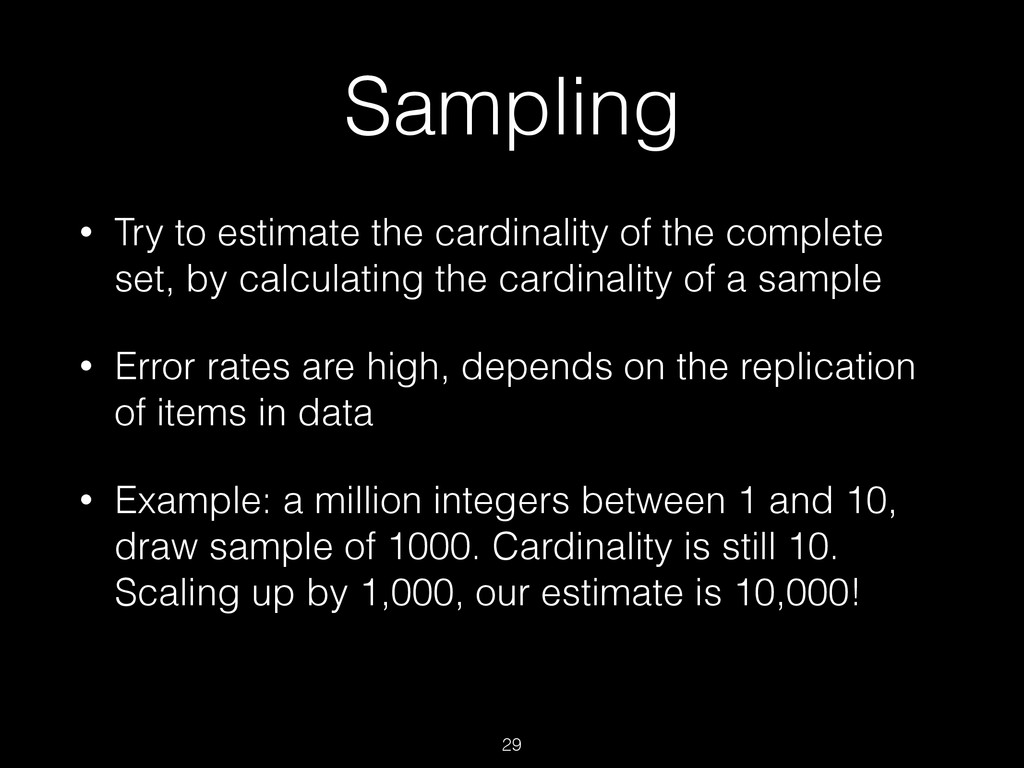

29. Sampling • Try to estimate the cardinality of the complete set, by calculating the cardinality of a sample • Error rates are high, depends on the replication of items in data • Example: a million integers between 1 and 10, draw sample of 1000. Cardinality is still 10.
 Scaling up by 1,000, our estimate is 10,000! 29

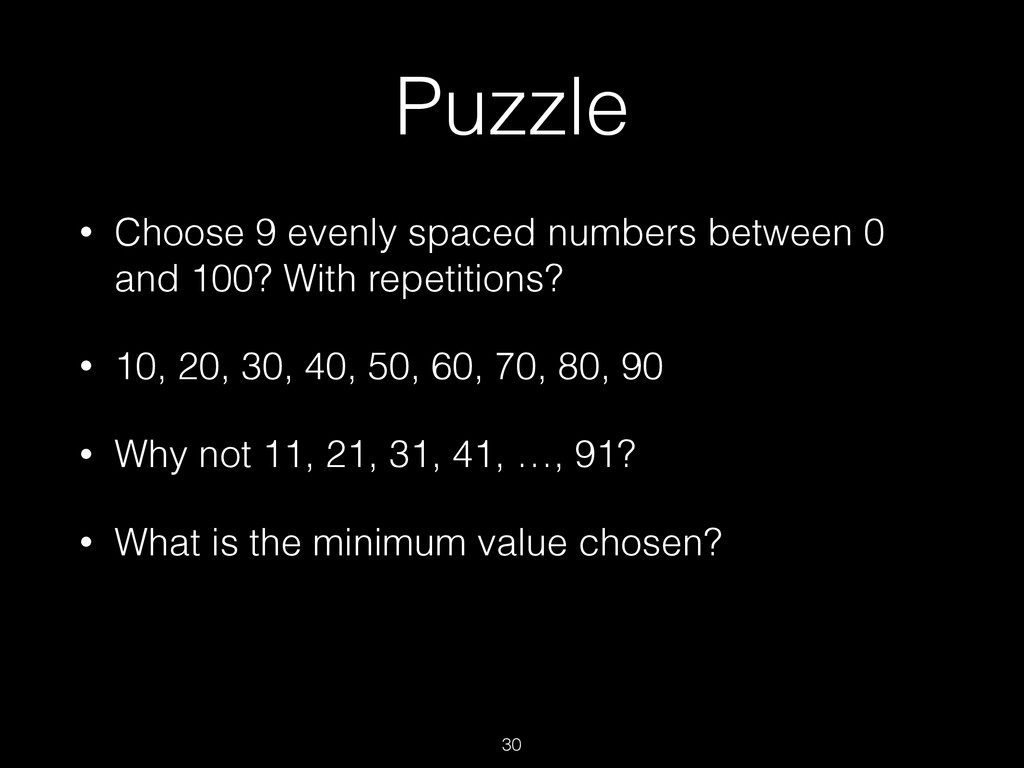

30. Puzzle • Choose 9 evenly spaced numbers between 0 and 100? With repetitions? • 10, 20, 30, 40, 50, 60, 70, 80, 90 • Why not 11, 21, 31, 41, …, 91? • What is the minimum value chosen? 30

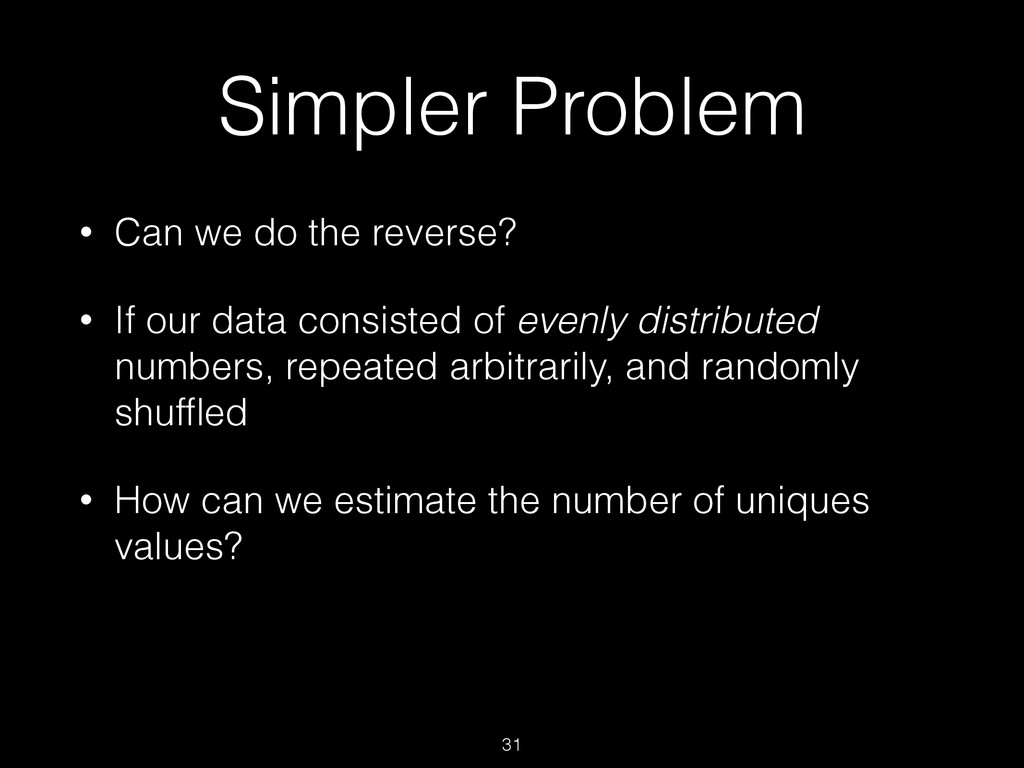

31. Simpler Problem • Can we do the reverse? • If our data consisted of evenly distributed numbers, repeated arbitrarily, and randomly shuffled • How can we estimate the number of uniques values? 31

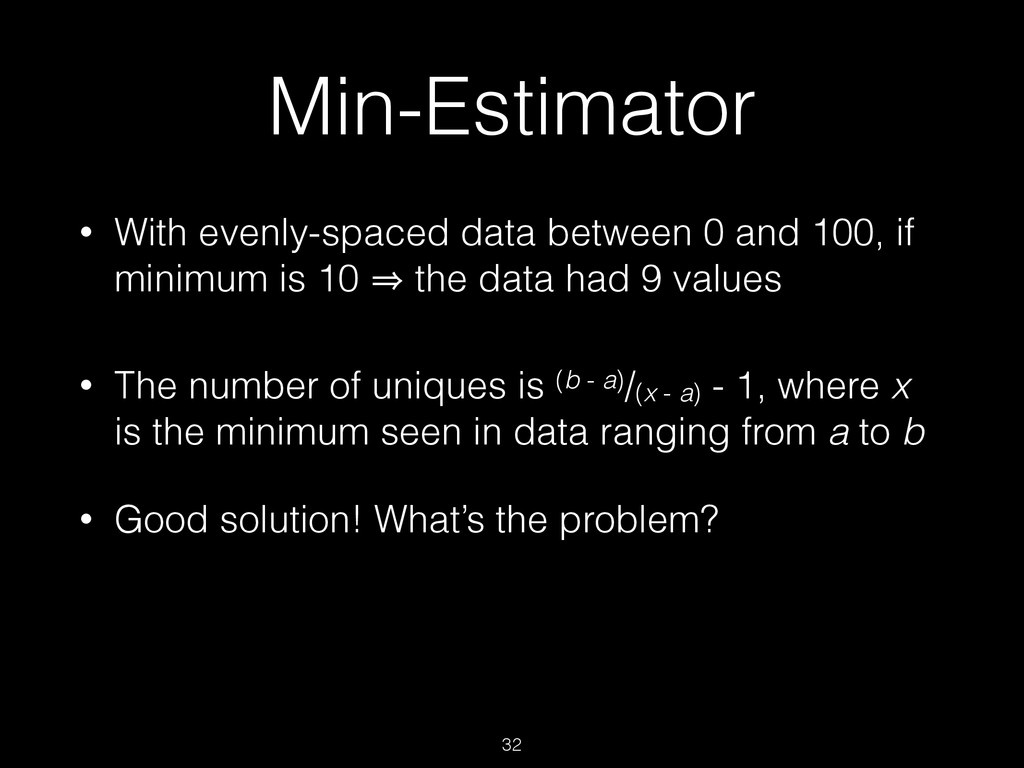

32. Min-Estimator • With evenly-spaced data between 0 and 100, if minimum is 10 㱺 the data had 9 values • The number of uniques is (b - a)/(x - a) - 1, where x is the minimum seen in data ranging from a to b • Good solution! What’s the problem? 32

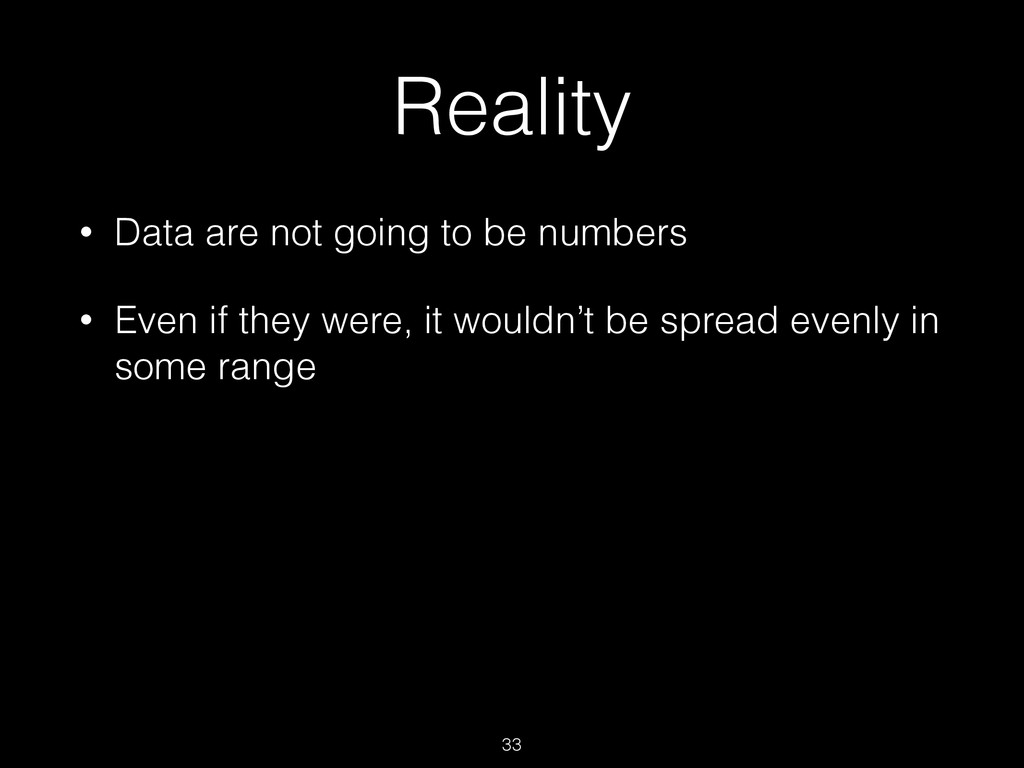

33. Reality • Data are not going to be numbers • Even if they were, it wouldn’t be spread evenly in some range 33

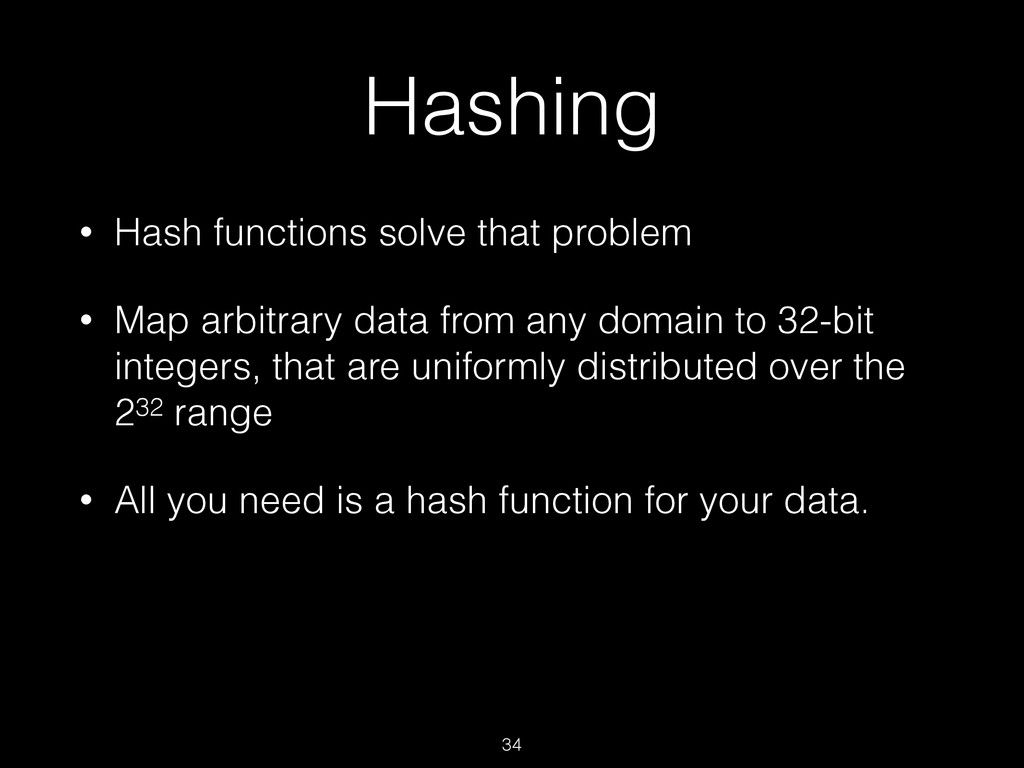

34. Hashing • Hash functions solve that problem • Map arbitrary data from any domain to 32-bit integers, that are uniformly distributed over the 232 range • All you need is a hash function for your data. 34

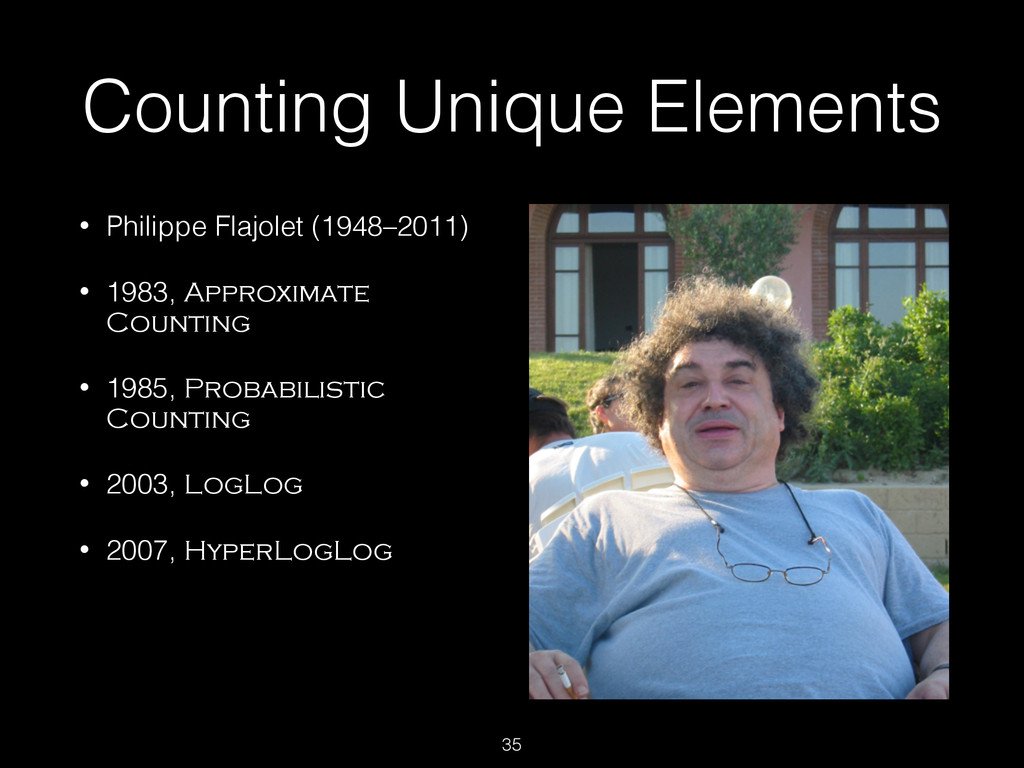

35. Counting Unique Elements • Philippe Flajolet (1948–2011) • 1983, Approximate Counting • 1985, Probabilistic Counting • 2003, LogLog • 2007, HyperLogLog 35

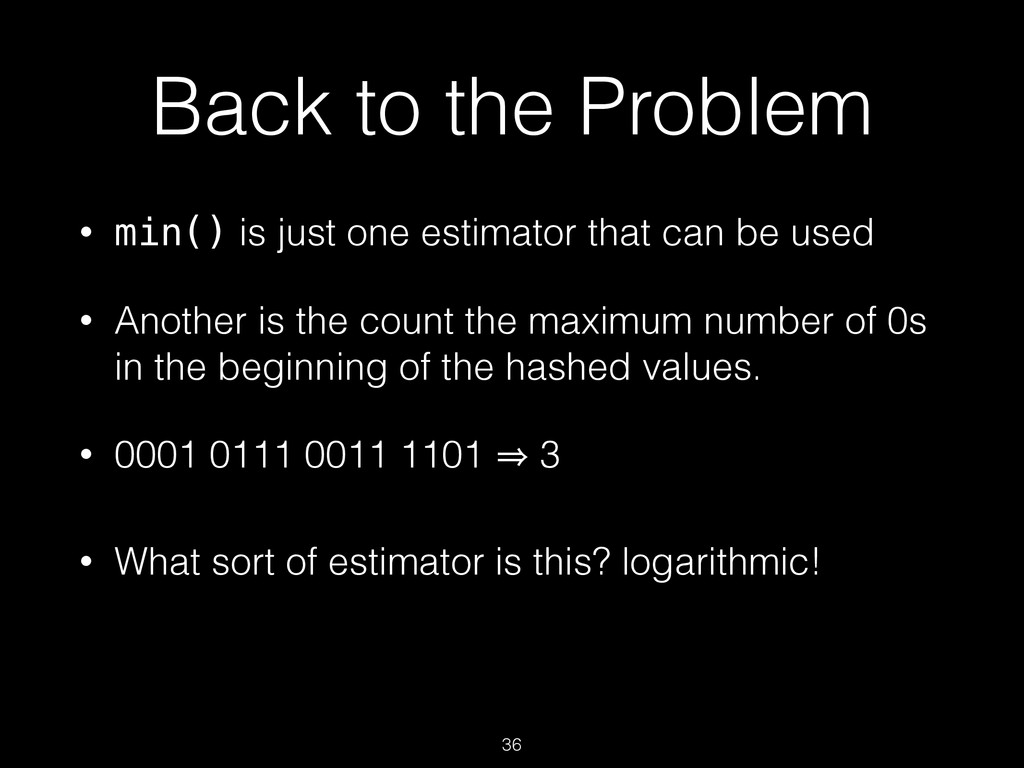

36. Back to the Problem • min() is just one estimator that can be used • Another is the count the maximum number of 0s in the beginning of the hashed values. • 0001 0111 0011 1101 㱺 3 • What sort of estimator is this? logarithmic! 36

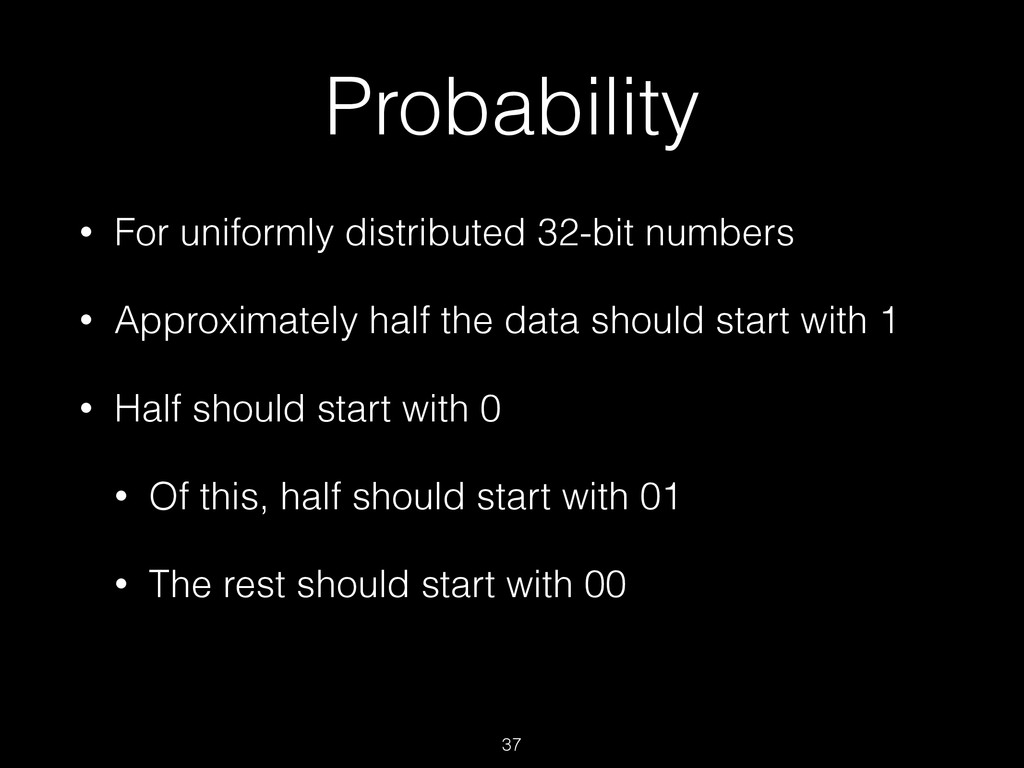

37. Probability • For uniformly distributed 32-bit numbers • Approximately half the data should start with 1 • Half should start with 0 • Of this, half should start with 01 • The rest should start with 00 37

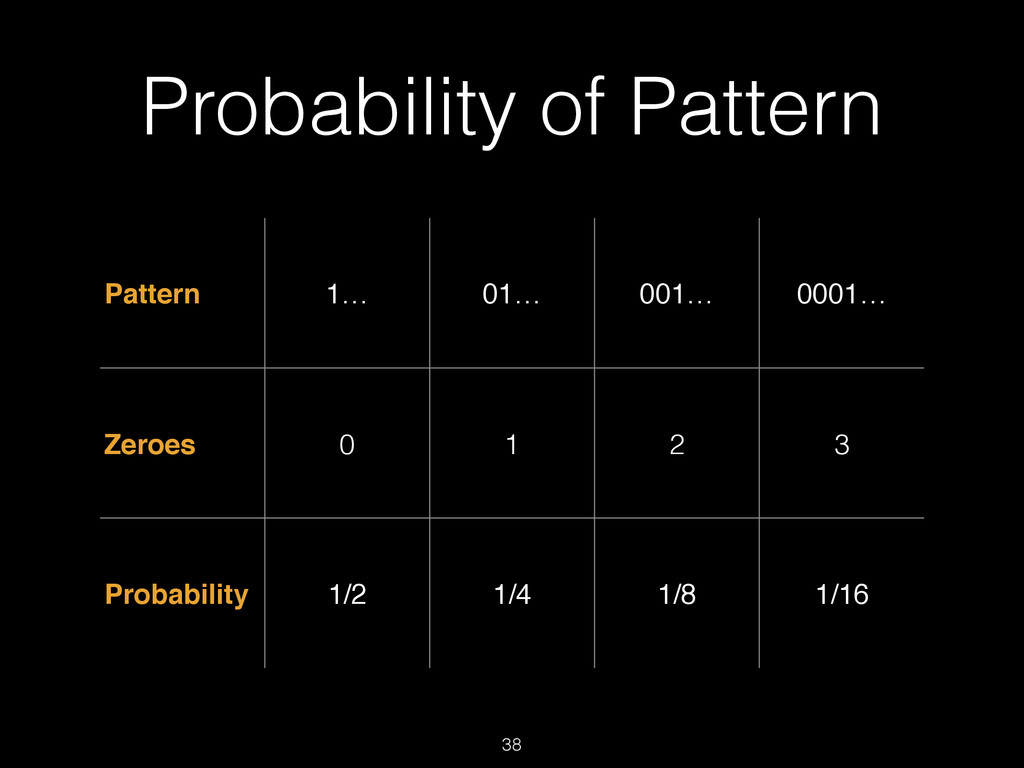

38. Probability of Pattern Pattern 1… 01… 001… 0001… Zeroes 0 1 2 3 Probability 1/2 1/4 1/8 1/16 38

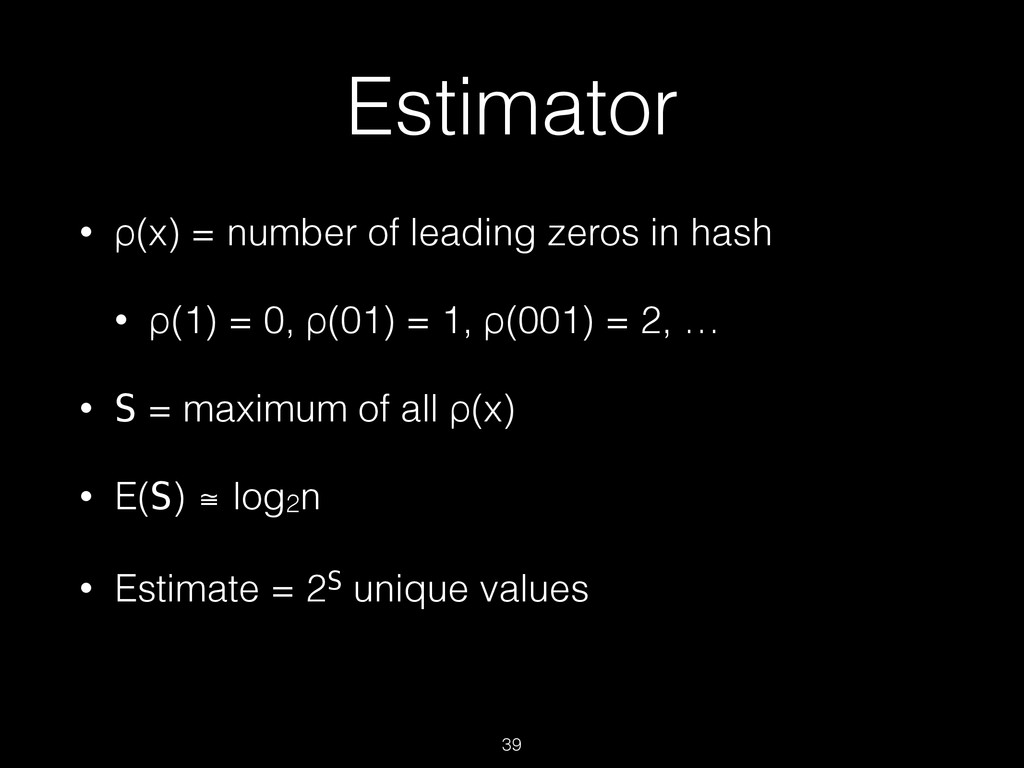

39. Estimator • ρ(x) = number of leading zeros in hash • ρ(1) = 0, ρ(01) = 1, ρ(001) = 2, … • S = maximum of all ρ(x) • E(S) ≅ log2n • Estimate = 2S unique values 39

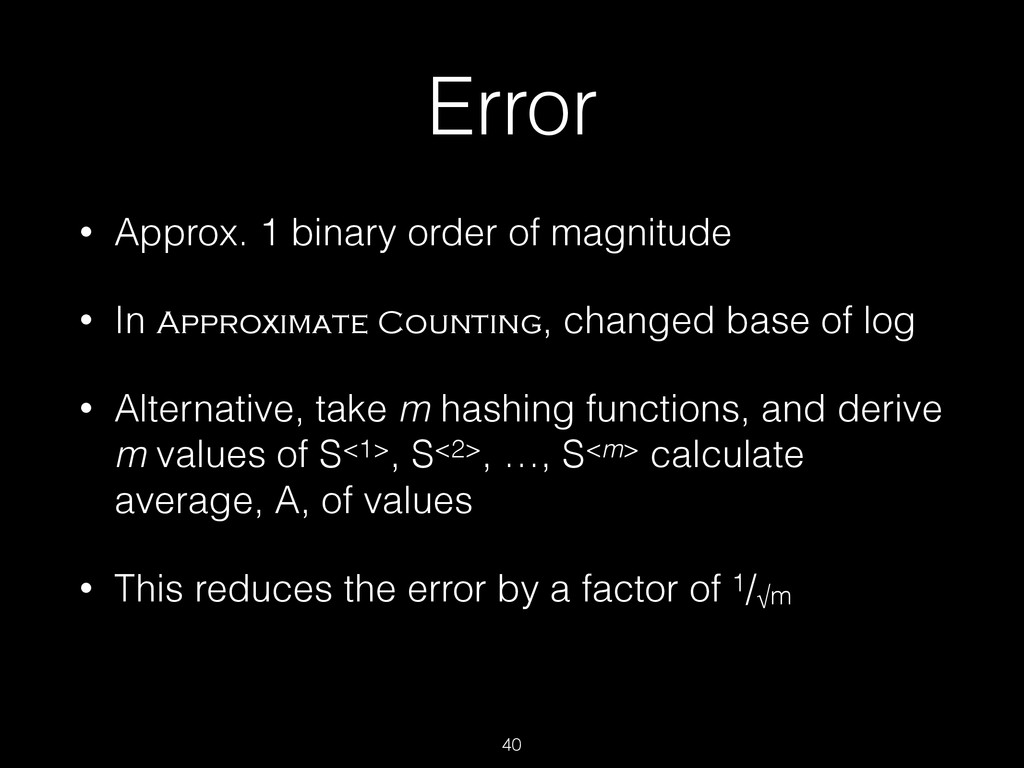

40. Error • Approx. 1 binary order of magnitude • In Approximate Counting, changed base of log • Alternative, take m hashing functions, and derive m values of S<1>, S<2>, …, S<m> calculate average, A, of values • This reduces the error by a factor of 1/√m 40

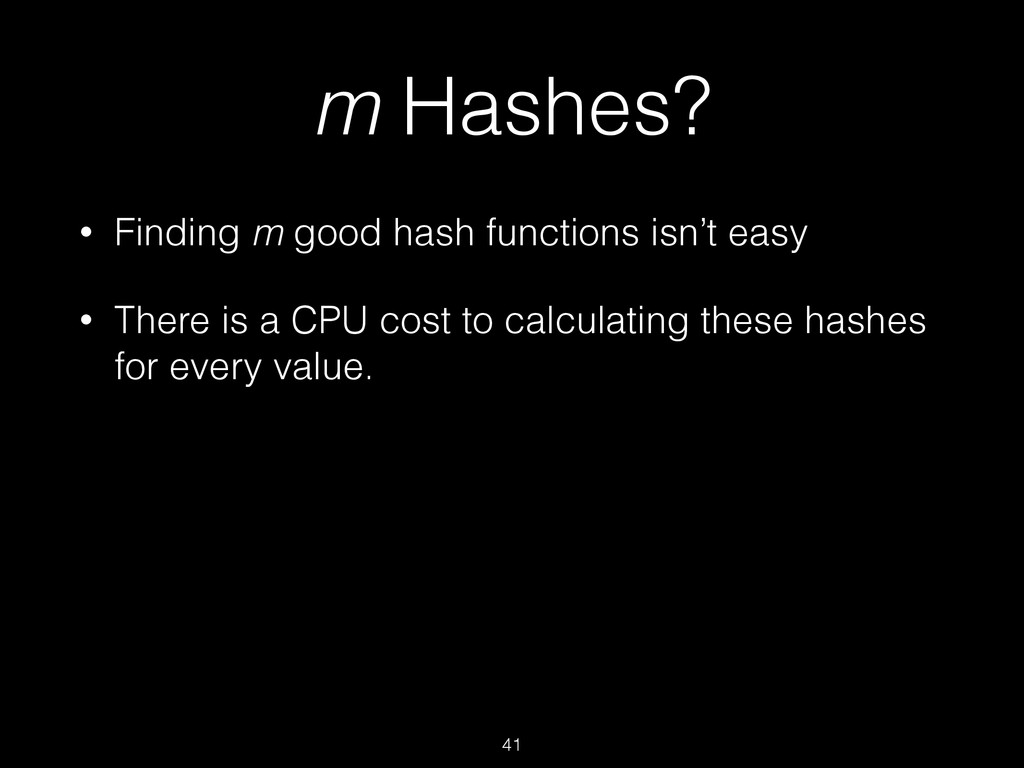

41. m Hashes? • Finding m good hash functions isn’t easy • There is a CPU cost to calculating these hashes for every value. 41

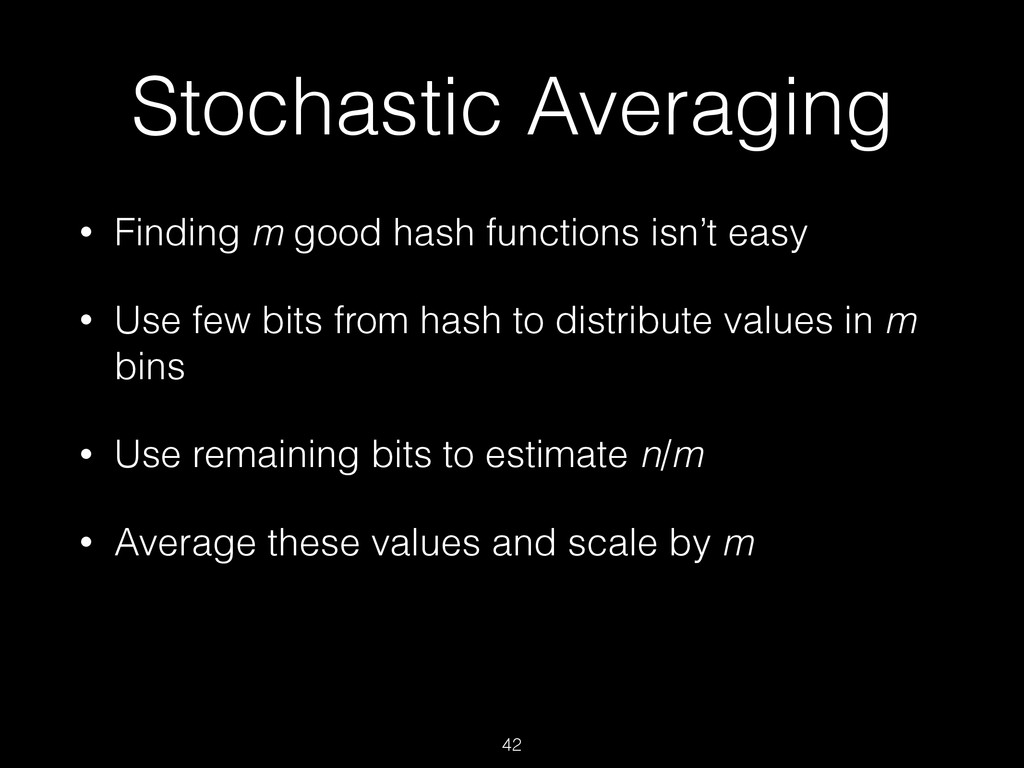

42. Stochastic Averaging • Finding m good hash functions isn’t easy • Use few bits from hash to distribute values in m bins • Use remaining bits to estimate n/m • Average these values and scale by m 42

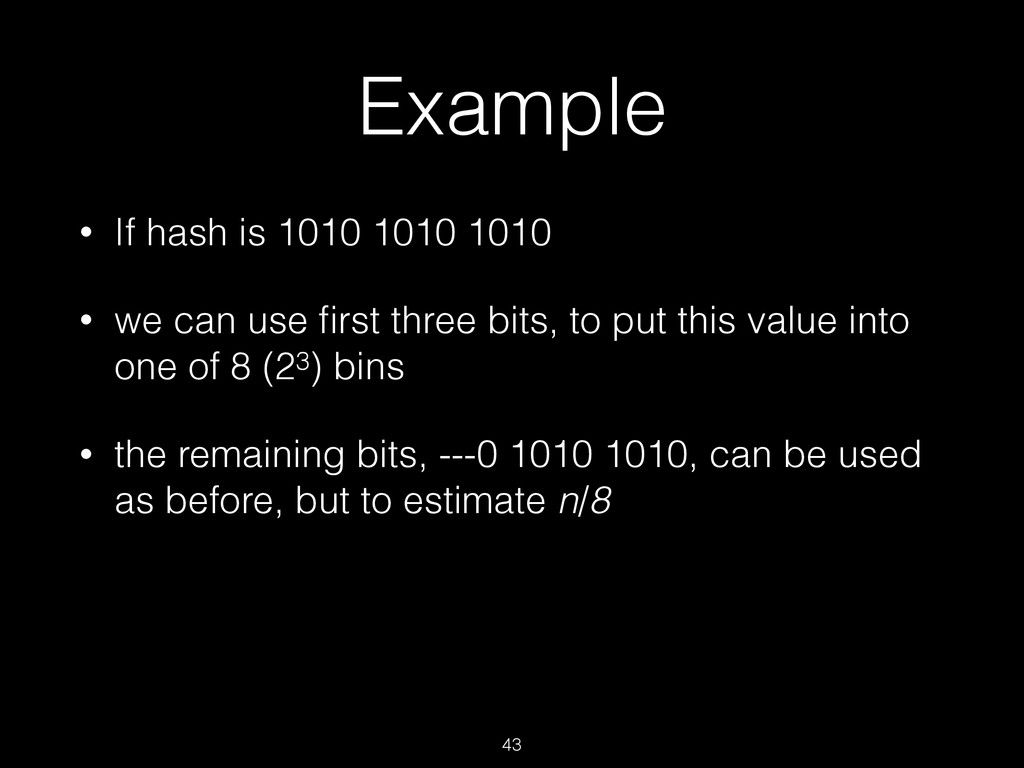

43. Example • If hash is 1010 1010 1010 • we can use first three bits, to put this value into one of 8 (23) bins • the remaining bits, ---0 1010 1010, can be used as before, but to estimate n/8 43

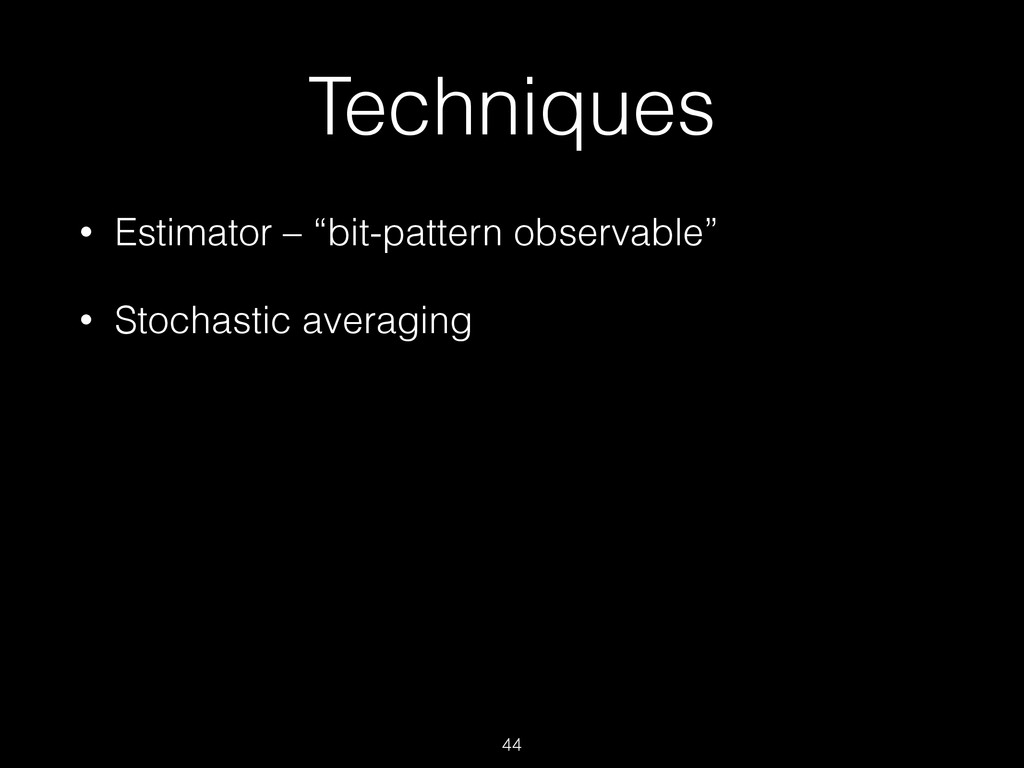

44. Techniques 44 • Estimator – “bit-pattern observable” • Stochastic averaging

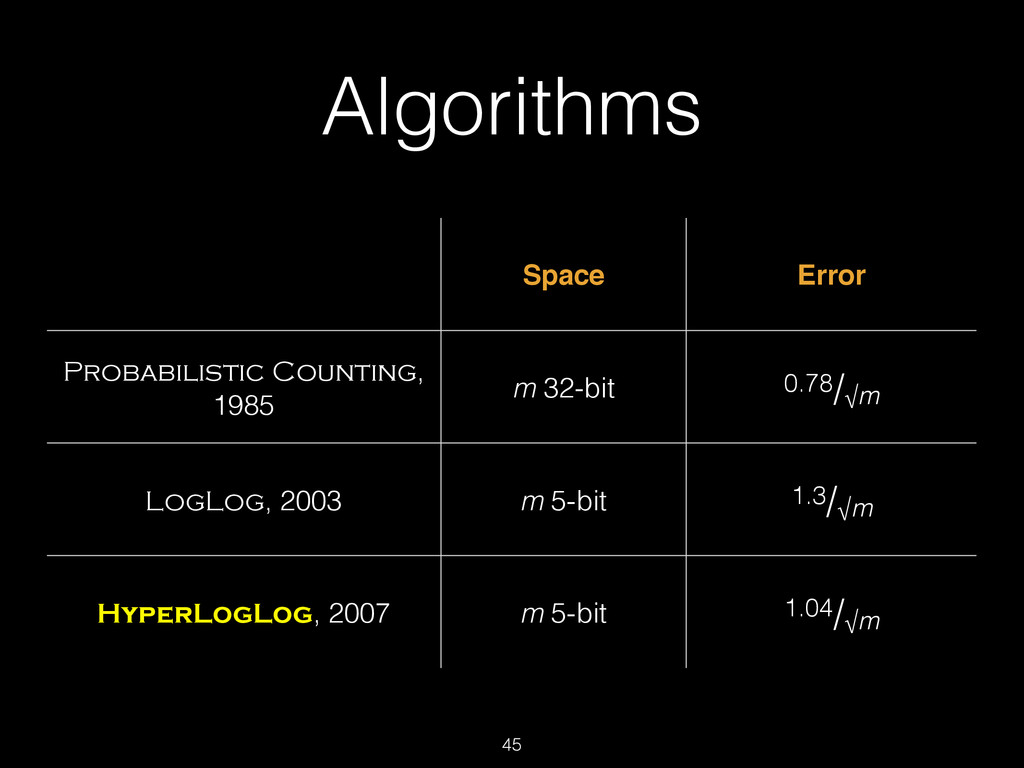

45. Algorithms 45 Space Error Probabilistic Counting, 1985 m 32-bit 0.78/√m LogLog, 2003 m 5-bit 1.3/√m HyperLogLog, 2007 m 5-bit 1.04/√m

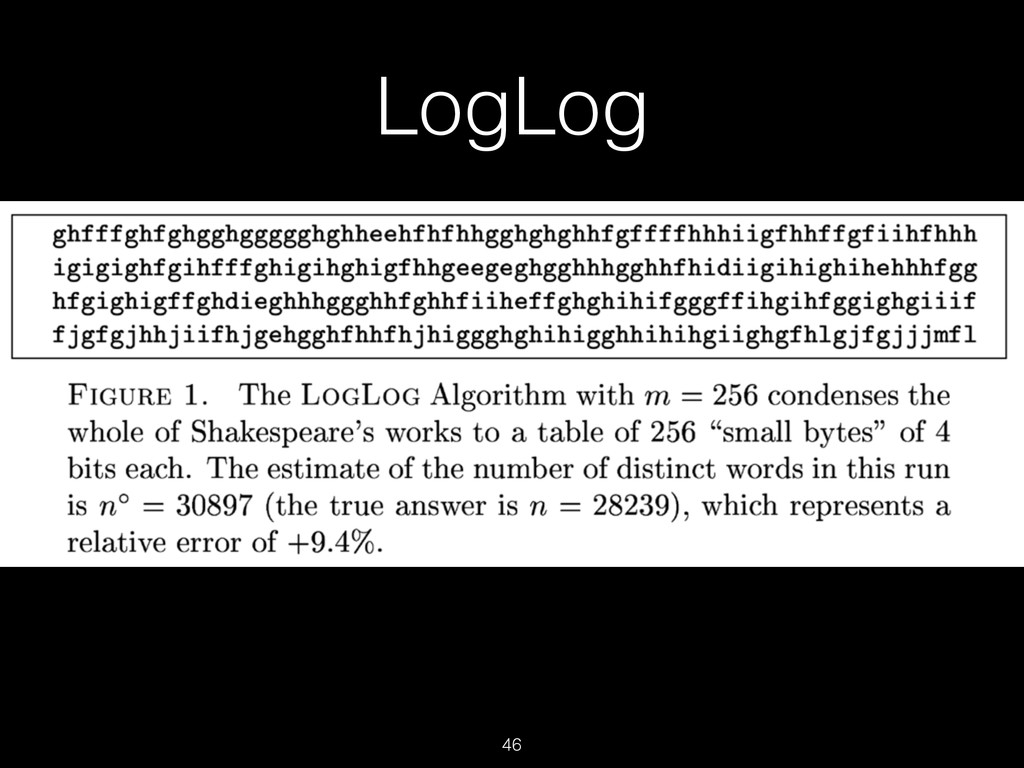

46. LogLog 46

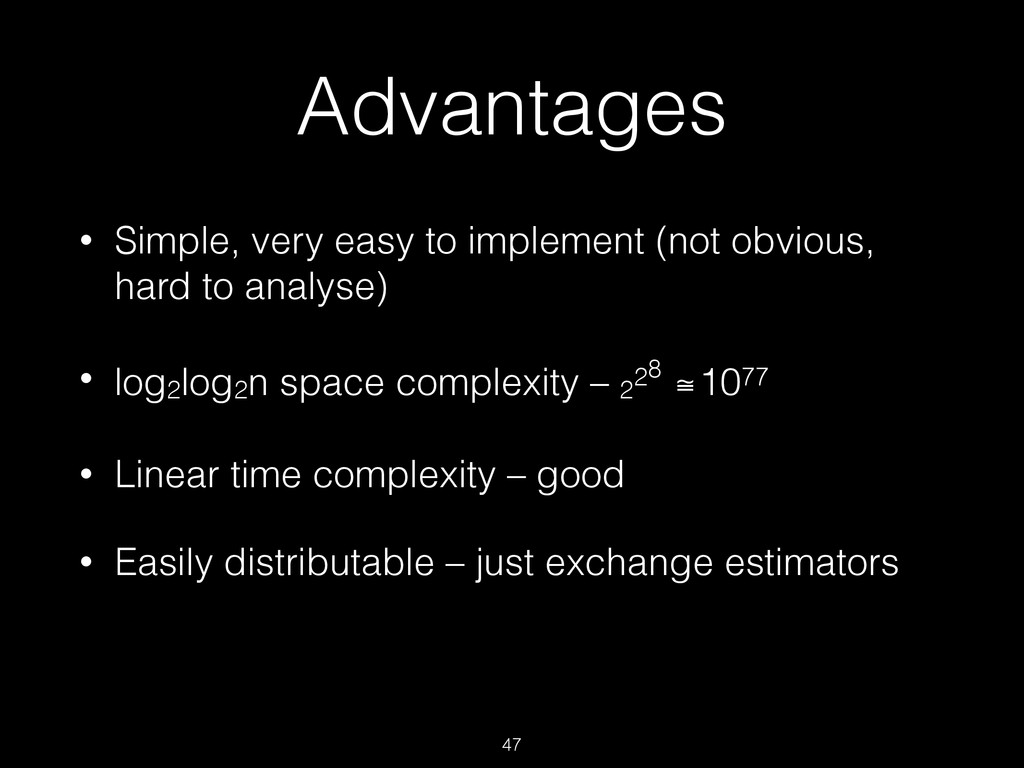

47. Advantages • Simple, very easy to implement (not obvious, hard to analyse) • log2log2n space complexity – 2 28 ≅1077 • Linear time complexity – good • Easily distributable – just exchange estimators 47

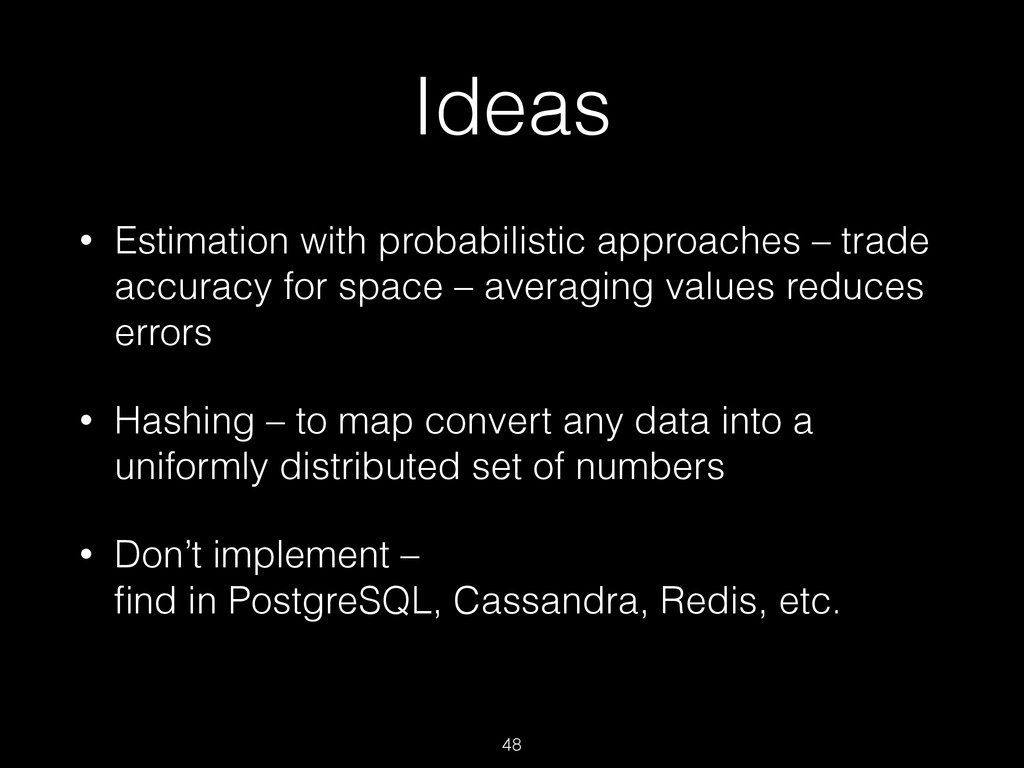

48. Ideas • Estimation with probabilistic approaches – trade accuracy for space – averaging values reduces errors • Hashing – to map convert any data into a uniformly distributed set of numbers • Don’t implement –
 find in PostgreSQL, Cassandra, Redis, etc. 48

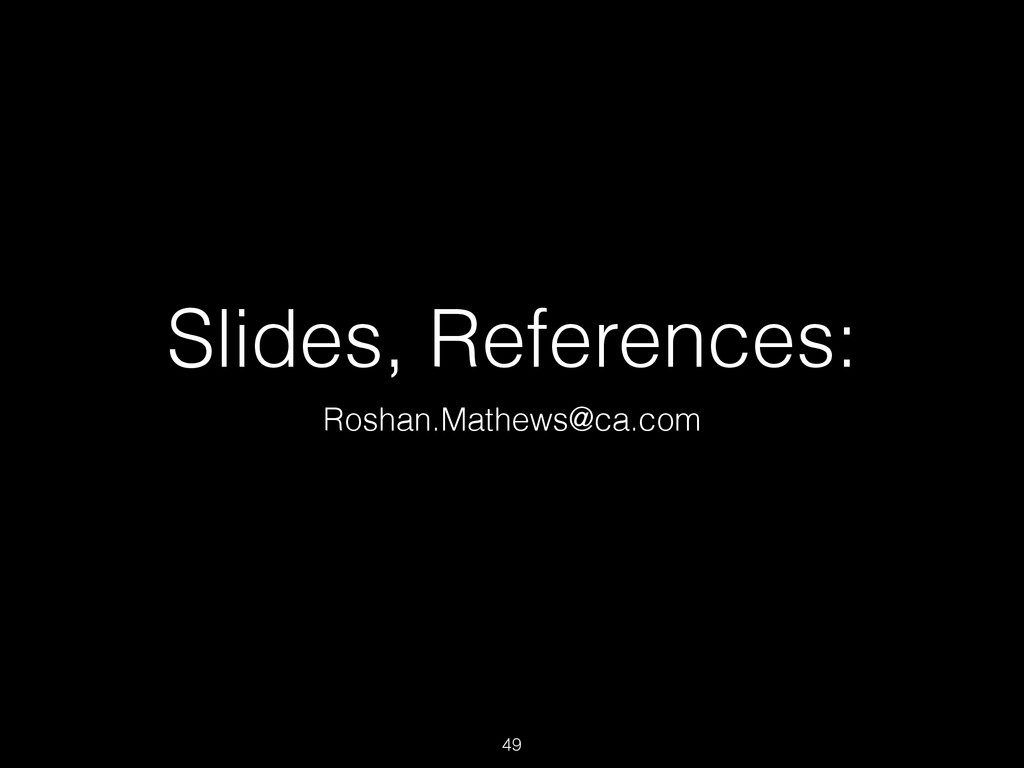

49. Slides, References: Roshan.Mathews@ca.com 49

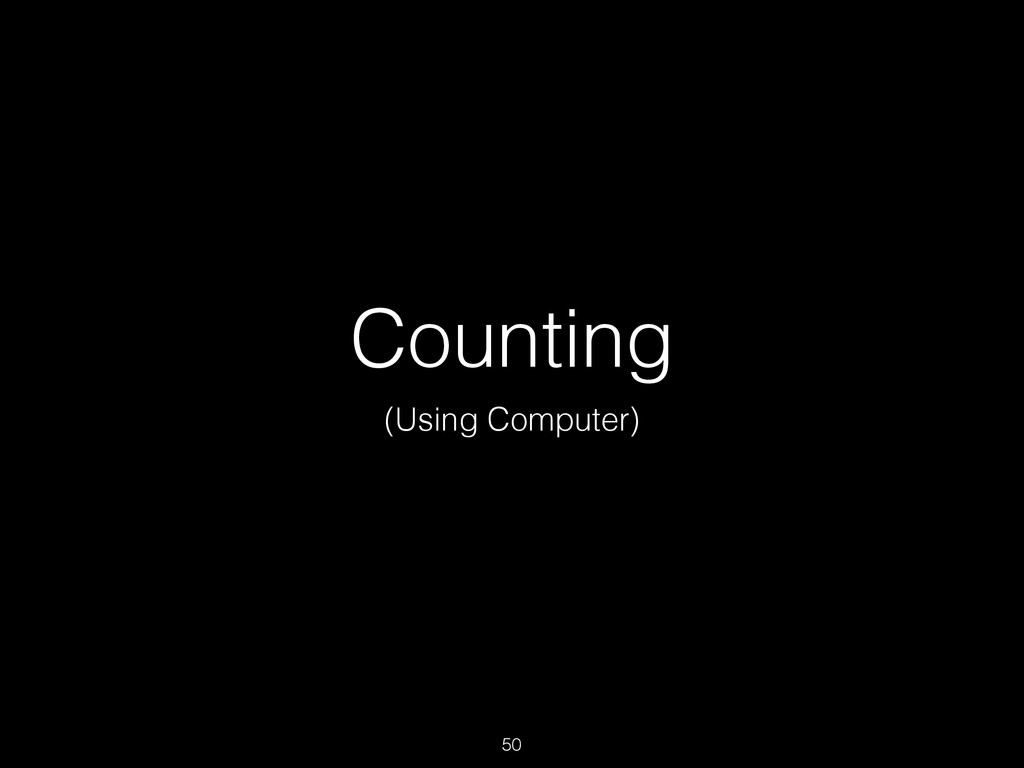

50. Counting (Using Computer) 50
