MVI - a reactive architecture for iOS

Presented on August'18 at Swifters-Bangalore Meetup.
https://www.meetup.com/Swifters-Bangalore/events/253776466/

Transcript

1. MVI in iOS /rugmangathan

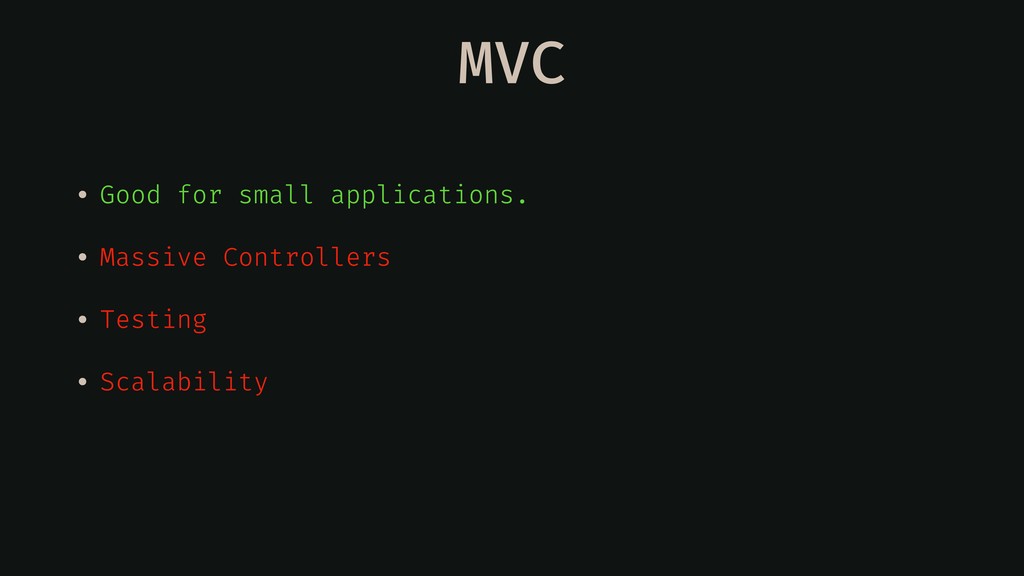

2. MVC • Good for small applications. • Massive Controllers • Testing • Scalability

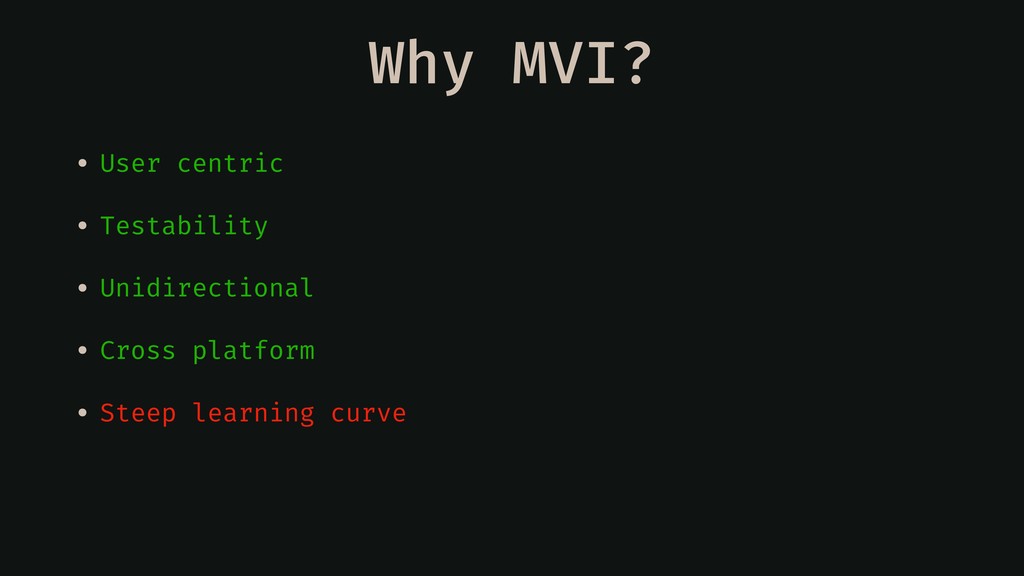

3. Why MVI? • User centric • Testability • Unidirectional • Cross platform • Steep learning curve

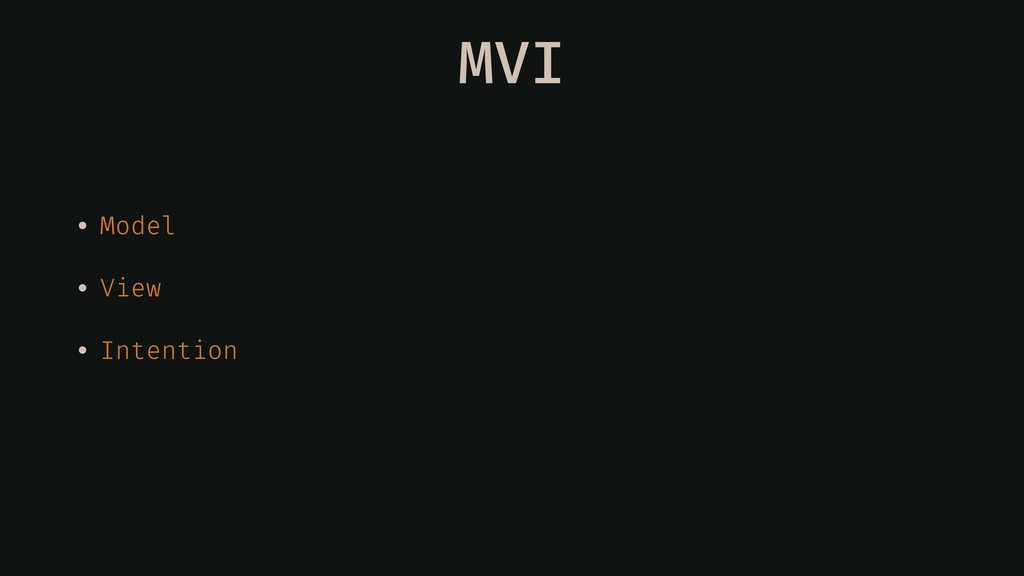

4. MVI • Model • View • Intention

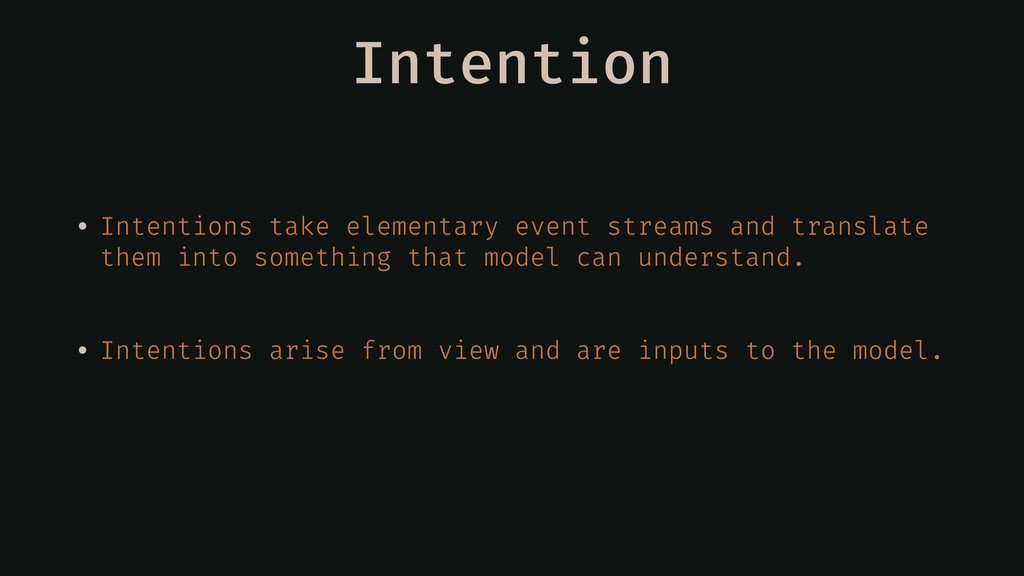

5. Intention • Intentions take elementary event streams and translate them into something that model can understand.
 • Intentions arise from view and are inputs to the model.

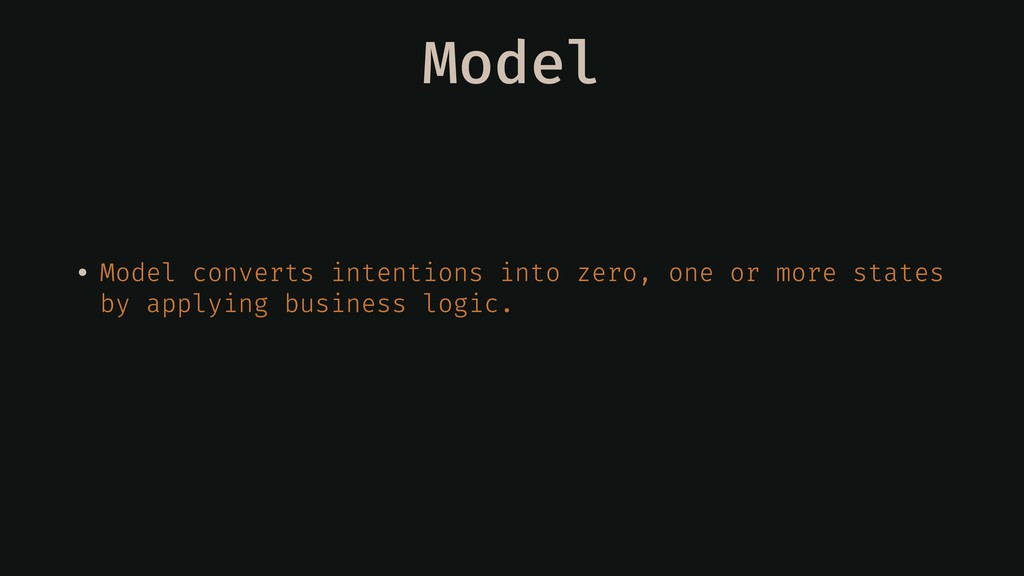

6. Model • Model converts intentions into zero, one or more states by applying business logic.

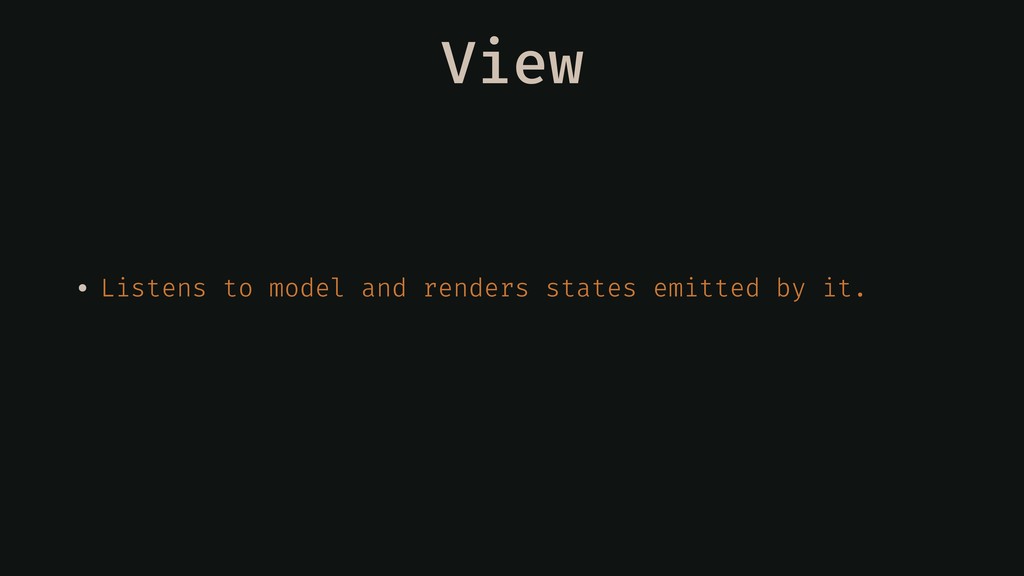

7. View • Listens to model and renders states emitted by it.

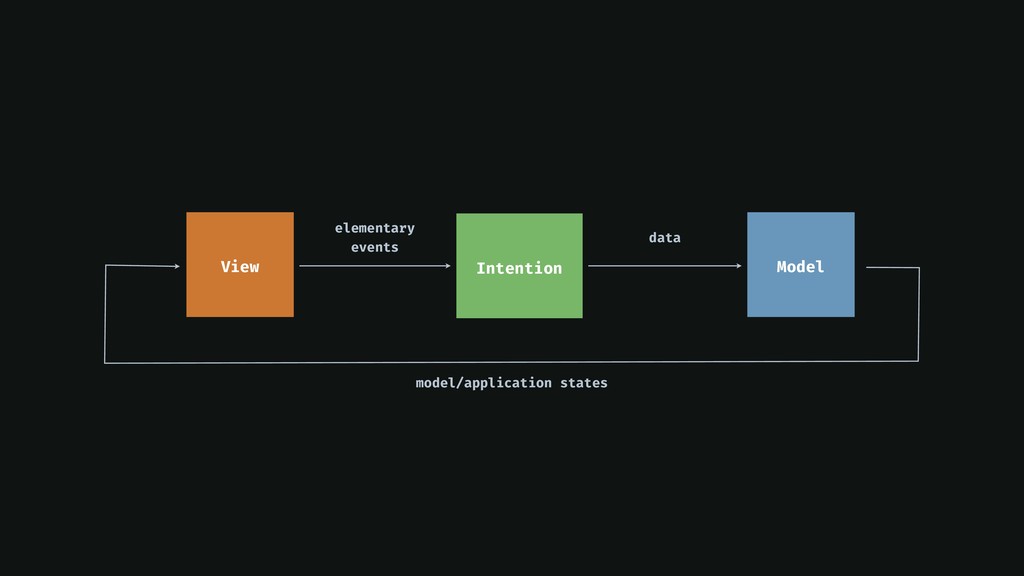

8. Model View Intention elementary
 events data model/application states
9. DEMO

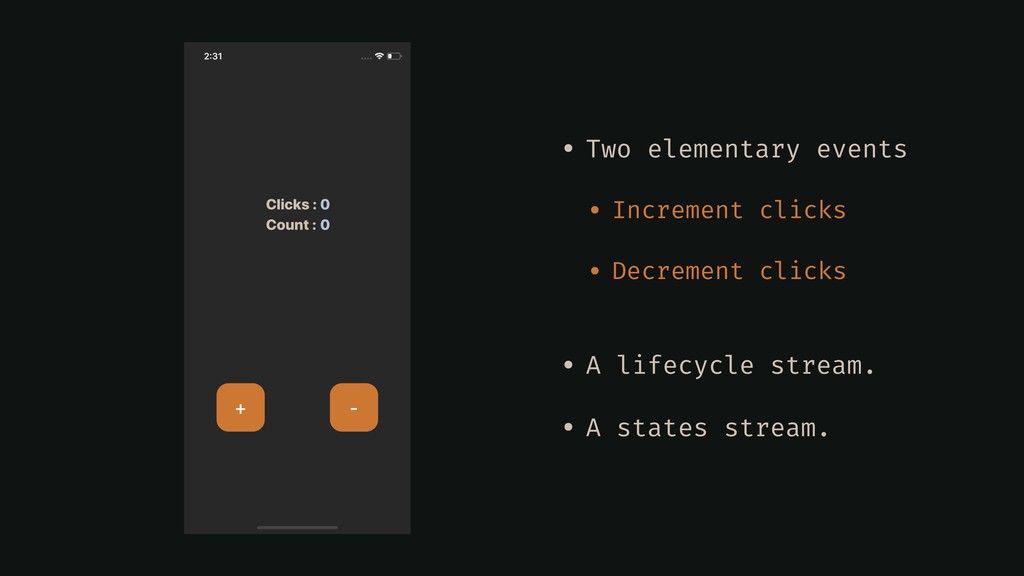

10. • Two elementary events • Increment clicks • Decrement clicks • A lifecycle stream. • A states stream.

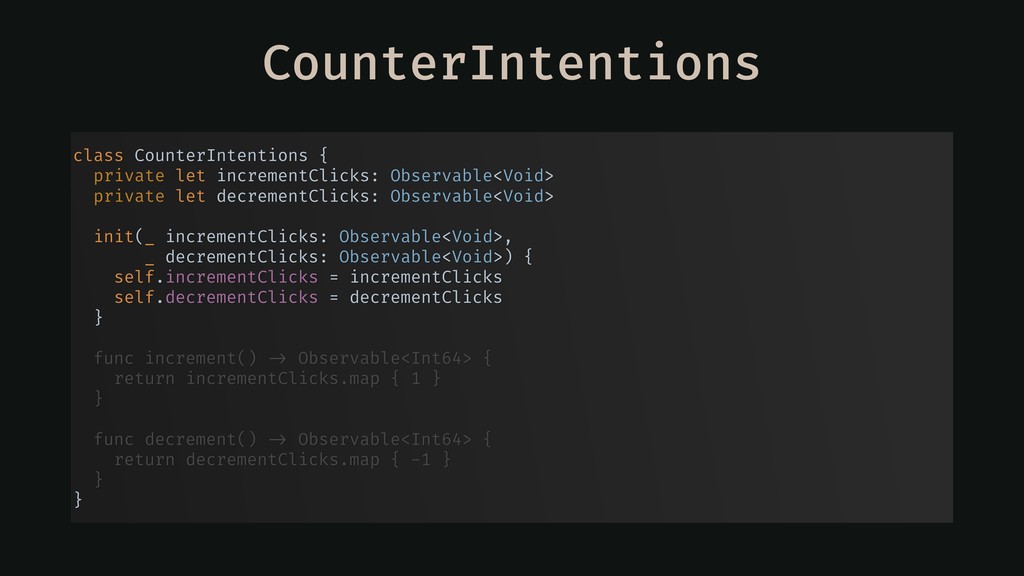

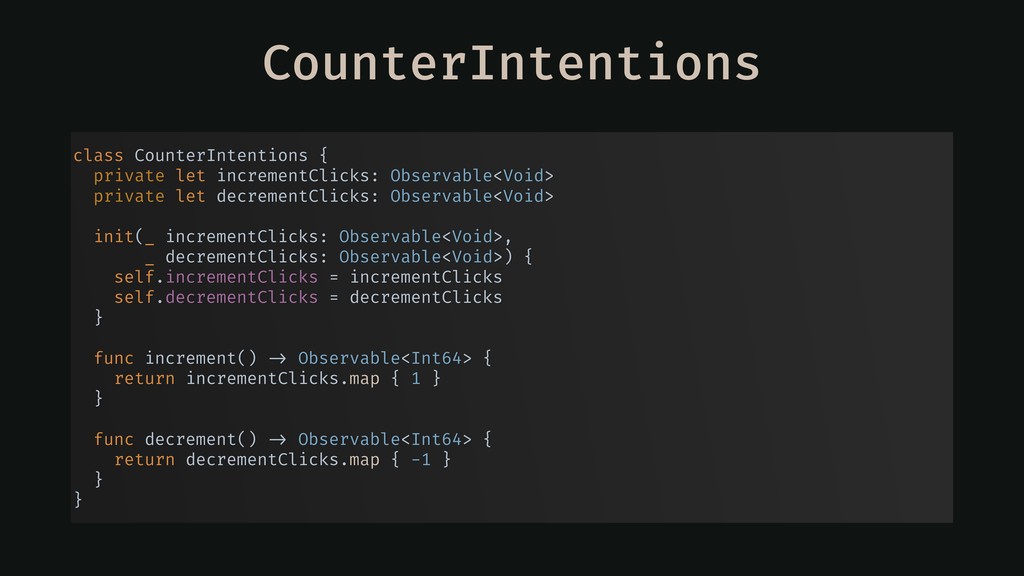

11. CounterIntentions class CounterIntentions { private let incrementClicks: Observable<Void> private let decrementClicks: Observable<Void> init(_ incrementClicks: Observable<Void>, _ decrementClicks: Observable<Void>) { self.incrementClicks = incrementClicks self.decrementClicks = decrementClicks } func increment() !-> Observable<Int64> { return incrementClicks.map { 1 } } func decrement() !-> Observable<Int64> { return decrementClicks.map { -1 } } }
12. CounterIntentions class CounterIntentions { private let incrementClicks: Observable<Void> private let decrementClicks: Observable<Void> init(_ incrementClicks: Observable<Void>, _ decrementClicks: Observable<Void>) { self.incrementClicks = incrementClicks self.decrementClicks = decrementClicks } func increment() !-> Observable<Int64> { return incrementClicks.map { 1 } } func decrement() !-> Observable<Int64> { return decrementClicks.map { -1 } } }

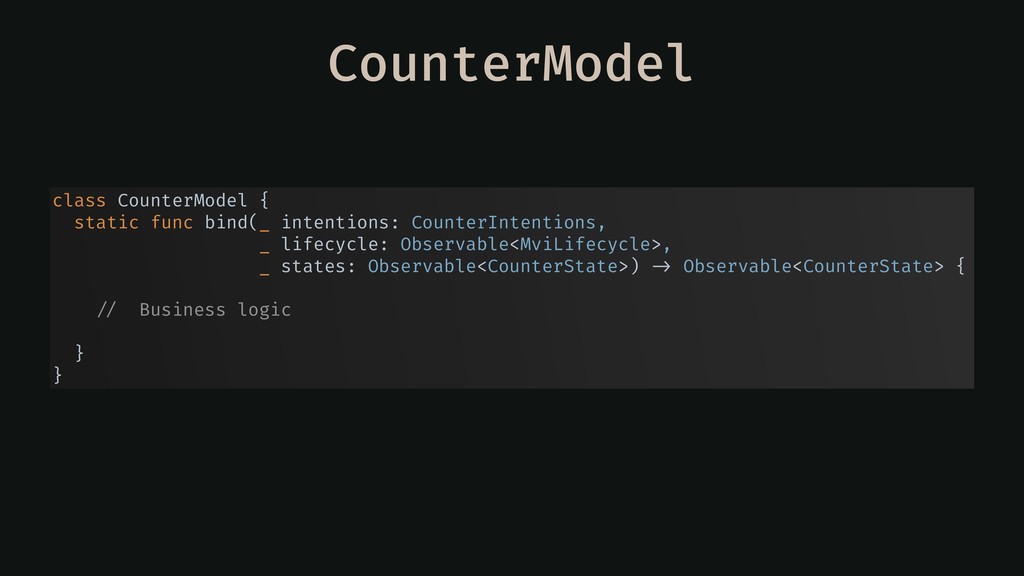

13. CounterModel class CounterModel { static func bind(_ intentions: CounterIntentions, _ lifecycle: Observable<MviLifecycle>,
 _ states: Observable<CounterState>) !-> Observable<CounterState> {
 !// Business logic } }

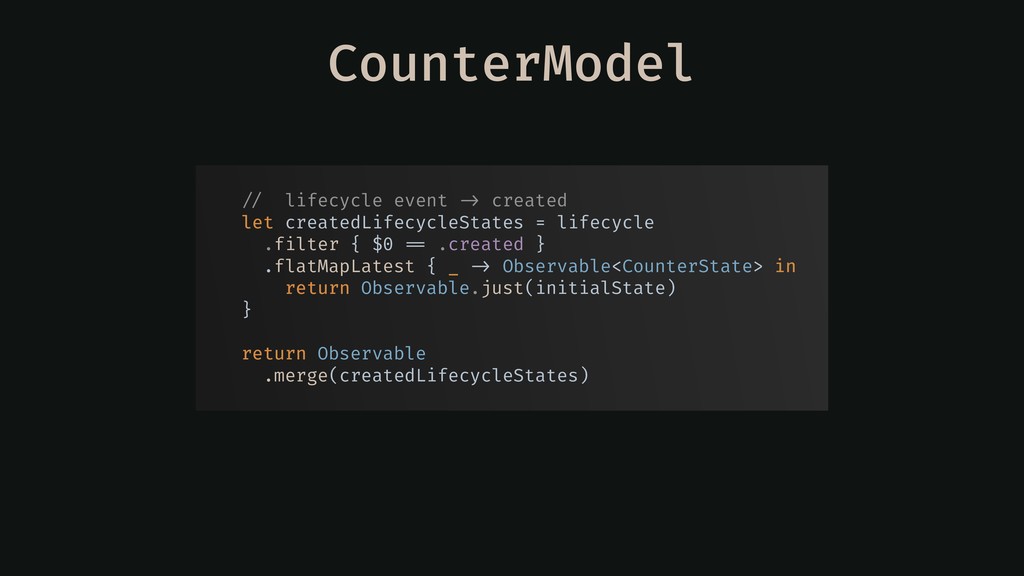

14. CounterModel
 !// lifecycle event !-> created
 let createdLifecycleStates = lifecycle
 .filter { $0 !== .created }
 .flatMapLatest { _ !-> Observable<CounterState> in
 return Observable.just(initialState) } return Observable .merge(createdLifecycleStates)

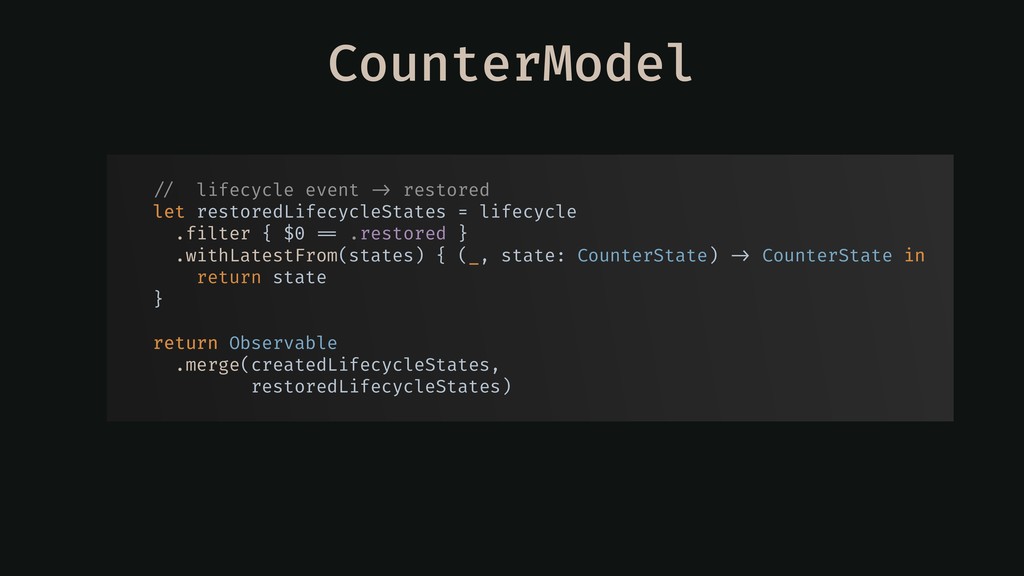

15. CounterModel
 !// lifecycle event !-> restored
 let restoredLifecycleStates = lifecycle
 .filter { $0 !== .restored }
 .withLatestFrom(states) { (_, state: CounterState) !-> CounterState in
 return state } return Observable .merge(createdLifecycleStates, restoredLifecycleStates)

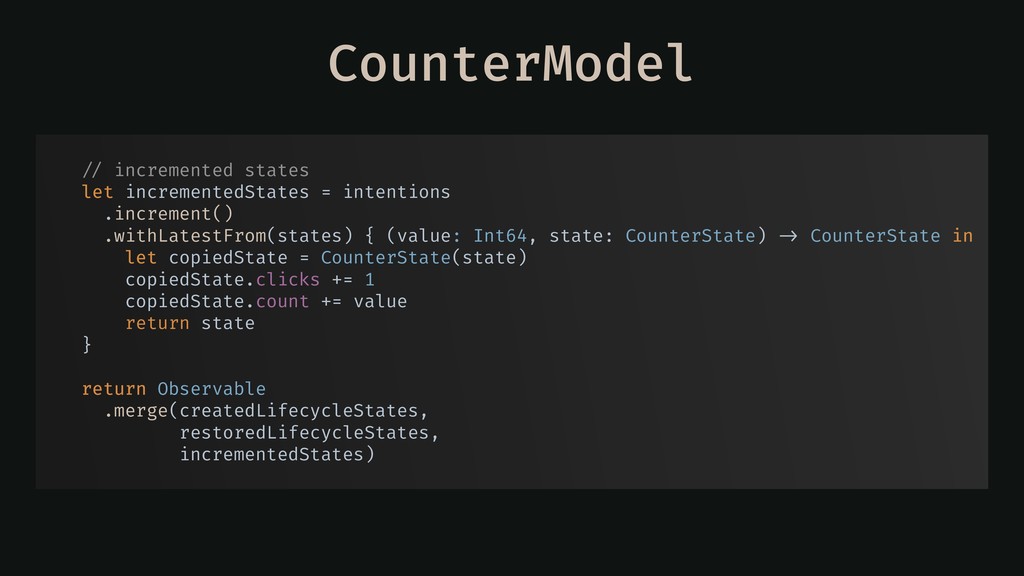

16. CounterModel !// incremented states
 let incrementedStates = intentions .increment()
 .withLatestFrom(states) { (value: Int64, state: CounterState) !-> CounterState in
 let copiedState = CounterState(state)
 copiedState.clicks += 1 copiedState.count += value
 return state } return Observable .merge(createdLifecycleStates, restoredLifecycleStates, incrementedStates)

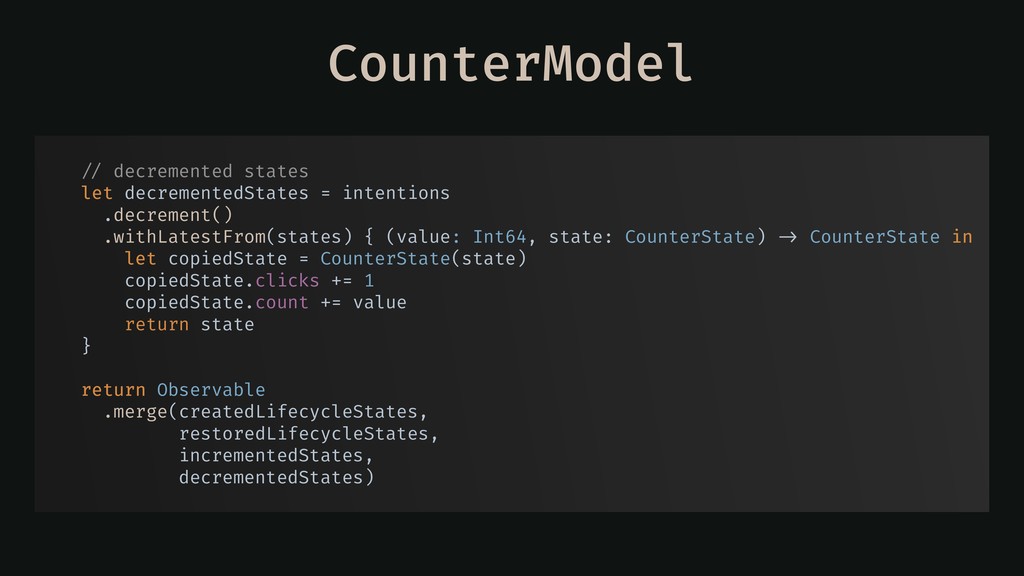

17. CounterModel !// decremented states
 let decrementedStates = intentions .decrement()
 .withLatestFrom(states) { (value: Int64, state: CounterState) !-> CounterState in
 let copiedState = CounterState(state)
 copiedState.clicks += 1 copiedState.count += value
 return state } return Observable .merge(createdLifecycleStates, restoredLifecycleStates, incrementedStates, decrementedStates)

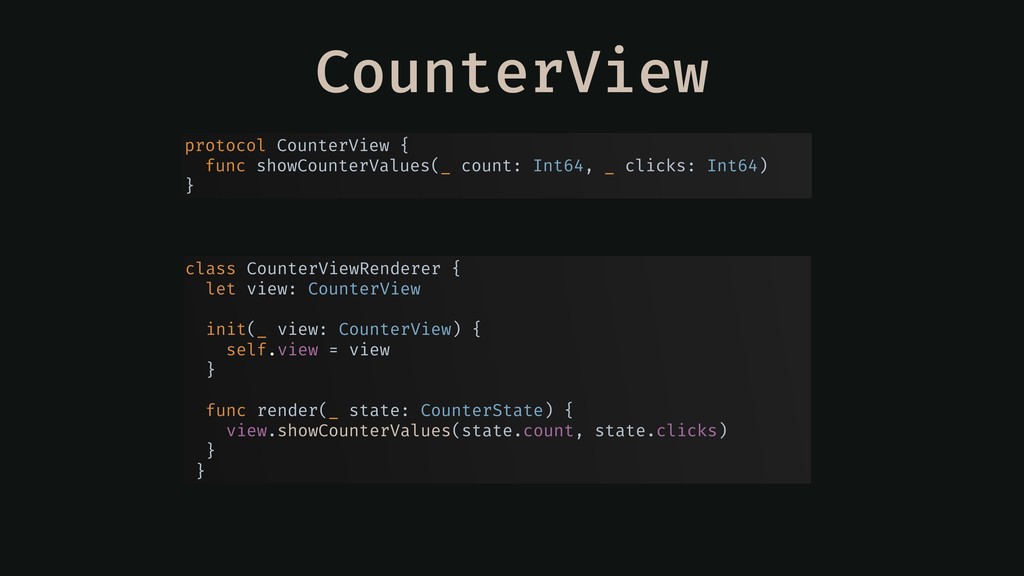

18. CounterView protocol CounterView { func showCounterValues(_ count: Int64, _ clicks: Int64) } class CounterViewRenderer { let view: CounterView init(_ view: CounterView) { self.view = view } func render(_ state: CounterState) { view.showCounterValues(state.count, state.clicks) } }

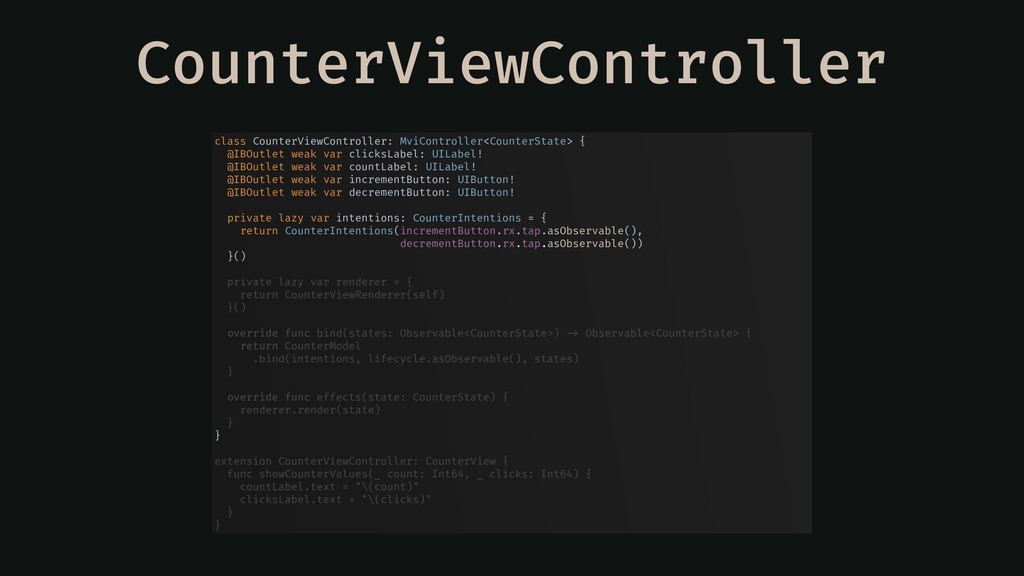

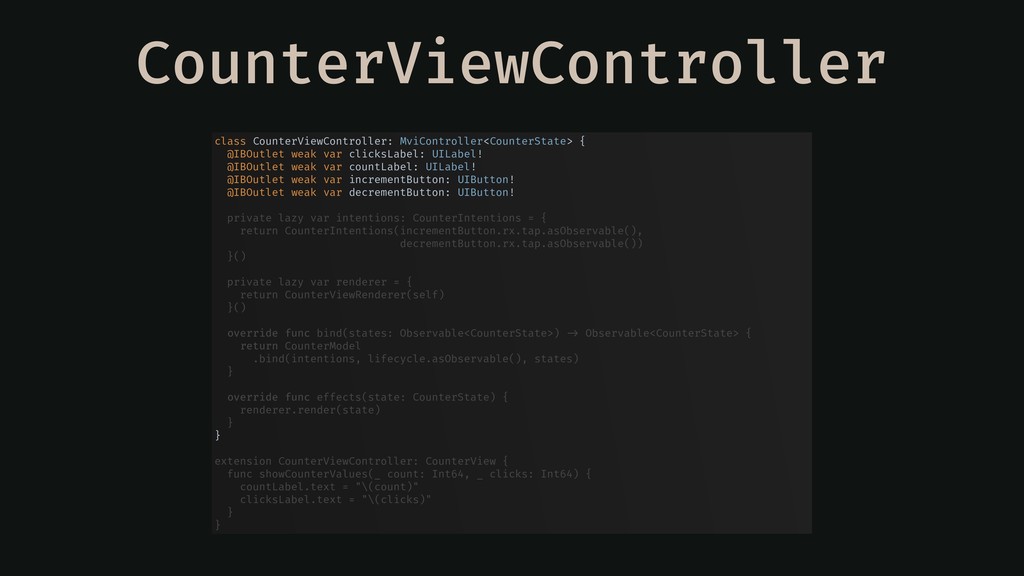

19. CounterViewController class CounterViewController: MviController<CounterState> { @IBOutlet weak var clicksLabel: UILabel! @IBOutlet weak var countLabel: UILabel! @IBOutlet weak var incrementButton: UIButton! @IBOutlet weak var decrementButton: UIButton! private lazy var intentions: CounterIntentions = { return CounterIntentions(incrementButton.rx.tap.asObservable(), decrementButton.rx.tap.asObservable()) }() private lazy var renderer = { return CounterViewRenderer(self) }() override func bind(states: Observable<CounterState>) !-> Observable<CounterState> { return CounterModel .bind(intentions, lifecycle.asObservable(), states) } override func effects(state: CounterState) { renderer.render(state) } } extension CounterViewController: CounterView { func showCounterValues(_ count: Int64, _ clicks: Int64) { countLabel.text = "\(count)" clicksLabel.text = "\(clicks)" } }
20. CounterViewController class CounterViewController: MviController<CounterState> { @IBOutlet weak var clicksLabel: UILabel! @IBOutlet weak var countLabel: UILabel! @IBOutlet weak var incrementButton: UIButton! @IBOutlet weak var decrementButton: UIButton! private lazy var intentions: CounterIntentions = { return CounterIntentions(incrementButton.rx.tap.asObservable(), decrementButton.rx.tap.asObservable()) }() private lazy var renderer = { return CounterViewRenderer(self) }() override func bind(states: Observable<CounterState>) !-> Observable<CounterState> { return CounterModel .bind(intentions, lifecycle.asObservable(), states) } override func effects(state: CounterState) { renderer.render(state) } } extension CounterViewController: CounterView { func showCounterValues(_ count: Int64, _ clicks: Int64) { countLabel.text = "\(count)" clicksLabel.text = "\(clicks)" } }

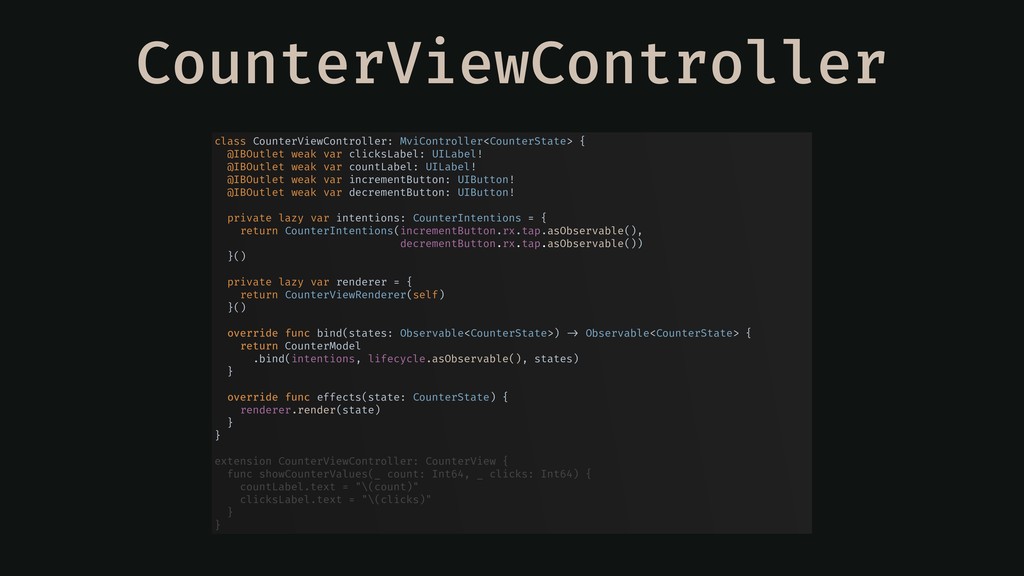

21. CounterViewController class CounterViewController: MviController<CounterState> { @IBOutlet weak var clicksLabel: UILabel! @IBOutlet weak var countLabel: UILabel! @IBOutlet weak var incrementButton: UIButton! @IBOutlet weak var decrementButton: UIButton! private lazy var intentions: CounterIntentions = { return CounterIntentions(incrementButton.rx.tap.asObservable(), decrementButton.rx.tap.asObservable()) }() private lazy var renderer = { return CounterViewRenderer(self) }() override func bind(states: Observable<CounterState>) !-> Observable<CounterState> { return CounterModel .bind(intentions, lifecycle.asObservable(), states) } override func effects(state: CounterState) { renderer.render(state) } } extension CounterViewController: CounterView { func showCounterValues(_ count: Int64, _ clicks: Int64) { countLabel.text = "\(count)" clicksLabel.text = "\(clicks)" } }

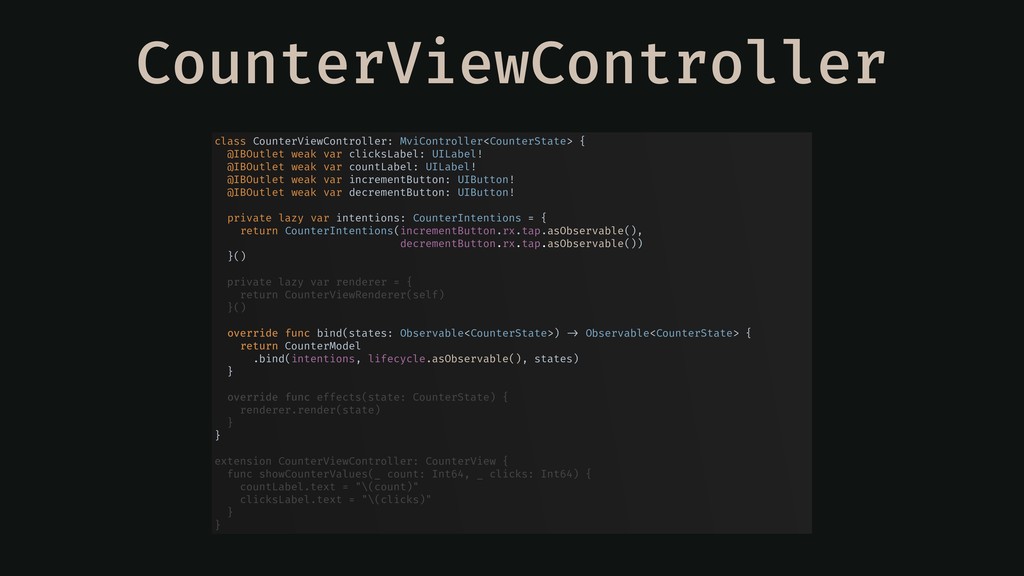

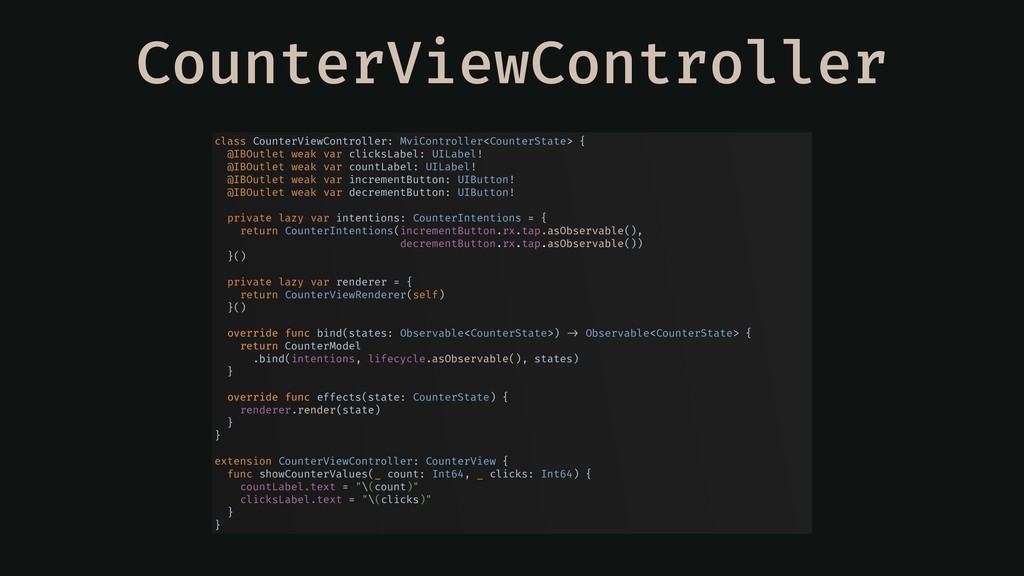

22. CounterViewController class CounterViewController: MviController<CounterState> { @IBOutlet weak var clicksLabel: UILabel! @IBOutlet weak var countLabel: UILabel! @IBOutlet weak var incrementButton: UIButton! @IBOutlet weak var decrementButton: UIButton! private lazy var intentions: CounterIntentions = { return CounterIntentions(incrementButton.rx.tap.asObservable(), decrementButton.rx.tap.asObservable()) }() private lazy var renderer = { return CounterViewRenderer(self) }() override func bind(states: Observable<CounterState>) !-> Observable<CounterState> { return CounterModel .bind(intentions, lifecycle.asObservable(), states) } override func effects(state: CounterState) { renderer.render(state) } } extension CounterViewController: CounterView { func showCounterValues(_ count: Int64, _ clicks: Int64) { countLabel.text = "\(count)" clicksLabel.text = "\(clicks)" } }
23. CounterViewController class CounterViewController: MviController<CounterState> { @IBOutlet weak var clicksLabel: UILabel! @IBOutlet weak var countLabel: UILabel! @IBOutlet weak var incrementButton: UIButton! @IBOutlet weak var decrementButton: UIButton! private lazy var intentions: CounterIntentions = { return CounterIntentions(incrementButton.rx.tap.asObservable(), decrementButton.rx.tap.asObservable()) }() private lazy var renderer = { return CounterViewRenderer(self) }() override func bind(states: Observable<CounterState>) !-> Observable<CounterState> { return CounterModel .bind(intentions, lifecycle.asObservable(), states) } override func effects(state: CounterState) { renderer.render(state) } } extension CounterViewController: CounterView { func showCounterValues(_ count: Int64, _ clicks: Int64) { countLabel.text = "\(count)" clicksLabel.text = "\(clicks)" } }

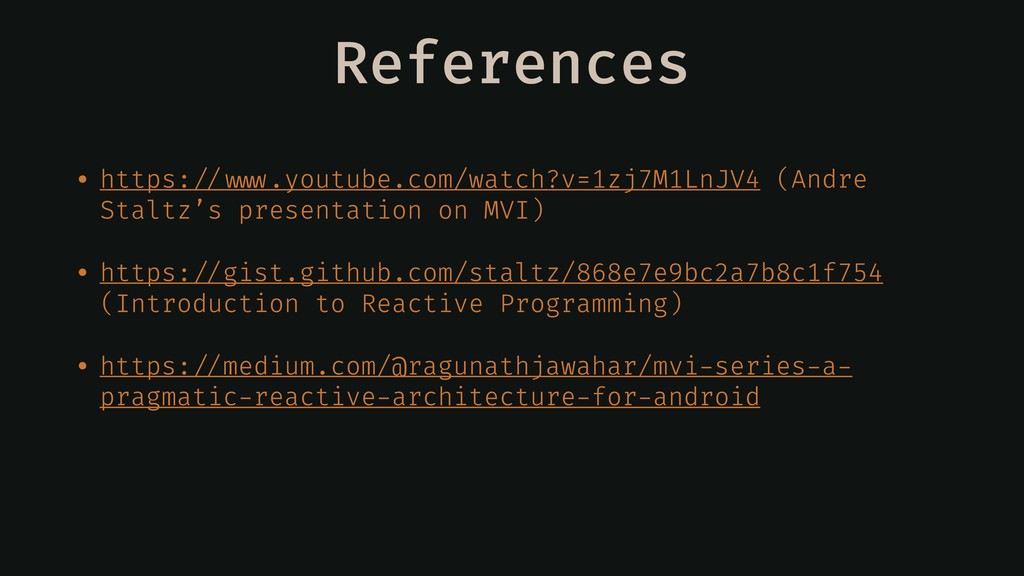

25. References • https:!//!!www.youtube.com/watch?v=1zj7M1LnJV4 (Andre Staltz’s presentation on MVI) • https:!//gist.github.com/staltz/868e7e9bc2a7b8c1f754 (Introduction to Reactive Programming) • https:!//medium.com/@ragunathjawahar/mvi-series-a- pragmatic-reactive-architecture-for-android
26. ? Questions /rugmangathan
