2021: Move Constructors by Miguel Young de la Sota

A "self-referential" type is one that holds a reference into itself; async Futures are the most common self-referential types in Rust today. However, they can't be moved without invalidating the reference, so they're pinned on the heap or stack. You can't return them or put them into collections (without Boxing, of course). C++ makes heavy use of safely-moveable self-referential types, via move constructors. Bridging move constructors into Rust is one of the great unsolved problems of C++ FFI. Was an unsolved problem. Using a novel interpretation of the Pin guarantees, we'll port all C++ constructors, not just move constructors, to Rust, without compromising Rust's move-after-use protections (something C++ lacks). Return-by-move and collectihttps://speakerdeck.com/rustconf/2021-move-constructors-by-miguel-young-de-la-sotaons are fully supported in today's stable Rust. Beyond zero-cost C++ FFI, Rust "constructors" can be applied to express novel data structures in pure Rust. No C++ knowledge required!

By Miguel Young de la Sota

Transcript

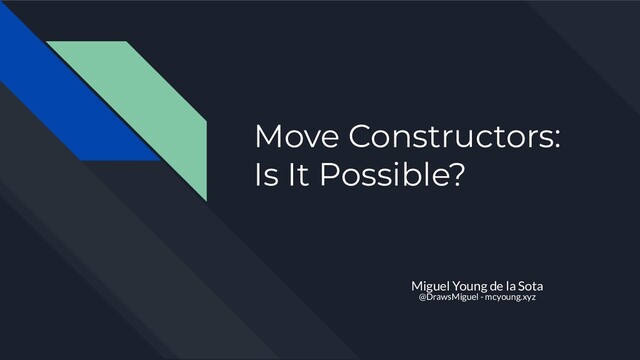

1. Move Constructors: Is It Possible? Miguel Young de la Sota @DrawsMiguel - mcyoung.xyz
2. Self-Referential Types
3. struct Cycle { x: i32, ptr_to_x: &mut i32, } impl Cycle { }
4. error[E0106]: missing lifetime specifier --> <source>:3:15 | 3 | ptr_to_x: &mut i32, | ^ expected named lifetime parameter | help: consider introducing a named lifetime parameter | 1 ~ struct Cycle<’a> { 2 | x: i32, 3 ~ ptr_to_x: &’a mut i32, |
5. error[E0106]: missing lifetime specifier --> <source>:3:15 | 3 | ptr_to_x: &mut i32, | ^ expected named lifetime parameter | help: consider introducing a named lifetime parameter | 1 ~ struct Cycle { 2 | x: i32, 3 ~ ptr_to_x: &’??? mut i32, |
6. struct Cycle { x: i32, ptr_to_x: *mut i32, } impl Cycle { }
7. struct Cycle { x: i32, ptr_to_x: *mut i32, } impl Cycle { } let mut cycle = Cycle { x: 42, ptr_to_x: null_mut(), }; x: 42 p: 0x00000000 cycle @ 0x00000000
8. x: 42 p: 0x00000000 cycle @ 0x00000000 struct Cycle { x: i32, ptr_to_x: *mut i32, } impl Cycle { } let mut cycle = Cycle { x: 42, ptr_to_x: null_mut(), }; cycle.ptr_to_x = &mut cycle.x; x: 42 p: 0x7fc55012 cycle @ 0x7fc55012
9. x: 42 p: 0x00000000 cycle @ 0x00000000 struct Cycle { x: i32, ptr_to_x: *mut i32, } impl Cycle { } let mut cycle = Cycle { x: 42, ptr_to_x: null_mut(), }; cycle.ptr_to_x = &mut cycle.x; x: 42 p: 0x7fc55012 cycle @ 0x7fc55012
10. struct Cycle { x: i32, ptr_to_x: *mut i32, } impl Cycle { fn get(&self) -> Option<i32> { if self.ptr_to_x.is_null() { return None; } unsafe { Some(*self.ptr_to_x) } } } let mut cycle = Cycle { x: 42, ptr_to_x: null_mut(), }; cycle.ptr_to_x = &mut cycle.x; let y = cycle.get(); x: 42 p: 0x7fc55012 cycle @ 0x7fc55012
11. x: 42 p: 0x7fc55012 cycle @ 0x7fc55012 INVARIANT! ptr_to_x is always either null or points to x in the same struct. x: 42 p: 0x00000000 cycle @ 0x7fc55012 OK!
12. x: 42 p: 0x7fc55012 cycle @ 0x7fc55012 INVARIANT! ptr_to_x is always either null or points to x in the same struct. x: 42 p: 0x00000000 cycle @ 0x7fc55012 x: 42 p: 0x7fc55012 cycle @ 0x7fc5501a OK! Not allowed!
13. struct Cycle { x: i32, ptr_to_x: *mut i32, } impl Cycle { fn new(x: i32) -> Self { let mut cyc = Cycle { x, ptr_to_x: null_mut(), }; cyc.ptr_to_x = &mut cyc.x; cyc } fn get(&self) -> Option<i32> { /* ... */ } } let mut cycle = Cycle { x: 42, ptr_to_x: null_mut(), }; cycle.ptr_to_x = &mut cycle.x; let cycle = Cycle::new(42); let y = cycle.get(); x: 42 p: 0x7fc55012 cycle @ 0x7fc55012
14. struct Cycle { x: i32, ptr_to_x: *mut i32, } impl Cycle { /* ... */ } let mut cycle = Cycle { x: 42, ptr_to_x: null_mut(), }; cycle.ptr_to_x = &mut cycle.x; let cycle = Cycle::new(42); let y = cycle.get(); x: 42 p: 0x7fc55012 cycle @ 0x7fc55000 x: 42 p: 0x7fc55012 cycle @ 0x7fc55012 Callee Stack Caller Stack
15. struct Cycle { x: i32, ptr_to_x: *mut i32, } impl Cycle { /* ... */ } let mut cycle = Cycle { x: 42, ptr_to_x: null_mut(), }; cycle.ptr_to_x = &mut cycle.x; let cycle = Cycle::new(42); let y = cycle.get(); // Memory error! x: 42 p: 0x7fc55012 cycle @ 0x7fc55000 x: 42 p: 0x7fc55012 cycle @ 0x7fc55012 Callee Stack Caller Stack
16. Rust moves are just bytewise copies. Self-referential types’ invariants break if they get moved.
17. Pin<P> it!
18. • A Pin<P> wraps a pointer type P (e.g., &mut T); unsafe code can assume its address is fixed forever, making it a “pinned pointer”.
19. • A Pin<P> wraps a pointer type P (e.g., &mut T); unsafe code can assume its address is fixed forever, making it a “pinned pointer”. • Pin<P> stops safe code from moving out of it.
20. • A Pin<P> wraps a pointer type P (e.g., &mut T); unsafe code can assume its address is fixed forever, making it a “pinned pointer”. • Pin<P> stops safe code from moving out of it. • Unpin types (i.e. most types) can be moved out of a Pin<P>; non-Unpin types cannot, because they are “address-sensitive”.
21. • A Pin<P> wraps a pointer type P (e.g., &mut T); unsafe code can assume its address is fixed forever, making it a “pinned pointer”. • Pin<P> stops safe code from moving out of it. • Unpin types (i.e. most types) can be moved out of a Pin<P>; non-Unpin types cannot, because they are “address-sensitive”. • Pin<P> is implemented as a library, unlike builtin types like &[T] and *mut i32.
22. struct Cycle { x: i32, ptr_to_x: *mut i32, } impl Cycle { fn new(x: i32) -> Self { let mut cyc = Cycle { x, ptr_to_x: null_mut(), }; cyc.ptr_to_x = &mut cyc.x; cyc } fn get(&self) -> Option<i32> { /* ... */ } } Danger!
23. struct Cycle { x: i32, ptr_to_x: *mut i32, } impl Cycle { fn new(x: i32) -> Pin<Box<Self>> { let mut cyc = Box::new(Cycle { x, ptr_to_x: null_mut(), }); cyc.ptr_to_x = &mut cyc.x; Box::into_pin(cyc) } fn get(&self) -> Option<i32> { /* ... */ } } Less Danger
24. struct Cycle { x: i32, ptr_to_x: *mut i32, _pin: PhantomPinned, } impl Cycle { fn new(x: i32) -> Pin<Box<Self>> { let mut cyc = Box::new(Cycle { x, ptr_to_x: null_mut(), _pin: PhantomPinned, }); cyc.ptr_to_x = &mut cyc.x; Box::into_pin(cyc) } fn get(&self) -> Option<i32> { /* ... */ } }
25. struct Cycle { x: i32, ptr_to_x: *mut i32, _pin: PhantomPinned, } impl Cycle { fn new(x: i32) -> Pin<Box<Self>> { let mut cyc = Box::new(Cycle { x, ptr_to_x: null_mut(), _pin: PhantomPinned, }); cyc.ptr_to_x = &mut cyc.x; Box::into_pin(cyc) } fn get(&self) -> Option<i32> { /* ... */ } } let cycle = Cycle::new(42); let y = cycle.get(); // Ok!
26. struct Cycle { x: i32, ptr_to_x: *mut i32, _pin: PhantomPinned, } impl Cycle { fn new(x: i32) -> Pin<Box<Self>> { let mut cyc = Box::new(Cycle { x, ptr_to_x: null_mut(), _pin: PhantomPinned, }); cyc.ptr_to_x = &mut cyc.x; Box::into_pin(cyc) } fn get(&self) -> Option<i32> { /* ... */ } } let cycle = Cycle::new(42); let y = cycle.get(); // Ok! // error: Can’t move out of Pin! // let bad = *cycle;
27. Pin<P> lets unsafe code assume values won’t ever move. Pin<P> stops safe code from accidentally moving them.
28. struct Cycle { x: i32, ptr_to_x: *mut i32, _pin: PhantomPinned, } impl Cycle { fn new(x: i32) -> Pin<Box<Self>> { let mut cyc = Box::new(Cycle { x, ptr_to_x: null_mut(), _pin: PhantomPinned, }); cyc.ptr_to_x = &mut cyc.x; Box::into_pin(cyc) } fn get(&self) -> Option<i32> { /* ... */ } } let cycle = Cycle::new(42); let y = cycle.get(); // Ok! // error: Can’t move out of Pin! // let bad = *cycle;
29. struct Cycle { x: i32, ptr_to_x: *mut i32, _pin: PhantomPinned, } impl Cycle { fn new(x: i32) -> Pin<Box<Self>> { let mut cyc = Box::new(Cycle { x, ptr_to_x: null_mut(), _pin: PhantomPinned, }); cyc.ptr_to_x = &mut cyc.x; Box::into_pin(cyc) } fn get(&self) -> Option<i32> { /* ... */ } } let cycle = Cycle::new(42); let y = cycle.get(); // Ok! // error: Can’t move out of Pin! // let bad = *cycle; Need a pointer to Pin in the first place!
30. • Can’t return a stack-pinned data, need to Box it. • Can’t directly pin data in collections like Vec and HashMap; need to Box them. “Address-sensitive” types feel like second-class citizens in Rust. They’re not zero cost.
31. C++
32. C++ (No, this isn’t a talk about C++.)
33. x: 42 p: 0x7fc55012 cycle @ 0x7fc55012 INVARIANT! ptr_to_x is always either null or points to x in the same struct. x: 42 p: 0x00000000 cycle @ 0x7fc55012 x: 42 p: 0x7fc55012 cycle @ 0x7fc5501a OK! Not allowed! Recall...
34. class Cycle { private: int x_; int* ptr_to_x_; };
35. class Cycle { public: Cycle(int x) { this->x_ = x; this->ptr_to_x_ = &this->x_; } private: int x_; int* ptr_to_x_; }; x: 42 p: 0xTBD *this @ 0xTBD
36. class Cycle { public: Cycle(int x) { this->x_ = x; this->ptr_to_x_ = &this->x_; } private: int x_; int* ptr_to_x_; }; auto cycle = Cycle(42); x: 42 p: 0x7fc55012 cycle @ 0x7fc55012 x: 42 p: 0xTBD *this @ 0xTBD Ctor
37. class Cycle { public: Cycle(int x) { this->x_ = x; this->ptr_to_x_ = &this->x_; } private: int x_; int* ptr_to_x_; }; char alloc[sizeof(Cycle)]; new (&alloc) Cycle(42); auto cycle = (Cycle*) &alloc; x: 42 p: 0x7fc55012 cycle @ 0x7fc55012 x: 42 p: 0xTBD *this @ 0xTBD Ctor “raw” constructor
38. Values in C++ are always constructed “in place”. Therefore, C++ values are always implicitly Pinned.
39. What would a “raw constructor” look like in Rust?
40. class Cycle { public: Cycle(int x) { this->x_ = x; this->ptr_to_x_ = &this->x_; } /* ... */ }; char alloc[sizeof(Cycle)]; new (&alloc) Cycle(42); auto cycle = (Cycle*) &alloc; struct Cycle { /* ... */ } let mut alloc = MaybeUninit::uninit(); ???.new(&mut alloc); let cycle = unsafe { &*alloc.as_ptr().cast::<Cycle>() }; C++ Rust
41. class Cycle { public: Cycle(int x) { this->x_ = x; this->ptr_to_x_ = &this->x_; } /* ... */ }; char alloc[sizeof(Cycle)]; new (&alloc) Cycle(42); auto cycle = (Cycle*) &alloc; struct Cycle { /* ... */ } unsafe trait New { type Output; fn new(self, this: &mut MaybeUninit<Self::Output>, ); } let mut alloc = MaybeUninit::uninit(); ???.new(&mut alloc); let cycle = unsafe { &*alloc.as_ptr().cast::<Cycle>() }; C++ Rust
42. class Cycle { public: Cycle(int x) { this->x_ = x; this->ptr_to_x_ = &this->x_; } /* ... */ }; char alloc[sizeof(Cycle)]; new (&alloc) Cycle(42); auto cycle = (Cycle*) &alloc; struct Cycle { /* ... */ } unsafe trait New { type Output; fn new(self, this: Pin<&mut MaybeUninit<Self::Output>>, ); } let mut alloc = MaybeUninit::uninit(); ???.new(&mut alloc); let cycle = unsafe { &*alloc.as_ptr().cast::<Cycle>() }; C++ Rust
43. class Cycle { public: Cycle(int x) { this->x_ = x; this->ptr_to_x_ = &this->x_; } /* ... */ }; char alloc[sizeof(Cycle)]; new (&alloc) Cycle(42); auto cycle = (Cycle*) &alloc; struct Cycle { /* ... */ } struct NewCycle(i32); unsafe impl New for NewCycle { type Output = Cycle; fn new(self, this: /* ... */) { this.x = self.0; this.ptr_to_x = &this.x; } } let mut alloc = MaybeUninit::uninit(); NewCycle(42).new(&mut alloc); let cycle = unsafe { &*alloc.as_ptr().cast::<Cycle>() }; C++ Rust
44. class Cycle { public: Cycle(int x) { this->x_ = x; this->ptr_to_x_ = &this->x_; } /* ... */ }; char alloc[sizeof(Cycle)]; new (&alloc) Cycle(42); auto cycle = (Cycle*) &alloc; struct Cycle { /* ... */ } struct NewCycle(i32); unsafe impl New for NewCycle { type Output = Cycle; fn new(self, this: /* ... */) { this.x = self.0; this.ptr_to_x = &this.x; } } let mut alloc = MaybeUninit::uninit(); NewCycle(42).new(&mut alloc); let cycle = unsafe { &*alloc.as_ptr().cast::<Cycle>() }; C++ Rust
45. Types which implement New represent construction operations. New::new() is Rust’s “raw constructor” operator.
46. • Still can’t return a stack-pinned data; need to Box it. • Still can’t directly pin data in collections like Vec and HashMap; need to Box them. “Address-sensitive” types feel like second-class citizens in Rust. Even with Rust constructors! And yet...
47. Return Slots
48. class Cycle { /* ... */ }; Cycle SquareCycle(int z) { return Cycle(z * z); } x: z * z p: 0xTBD <return> @ 0xTBD
49. class Cycle { /* ... */ }; Cycle SquareCycle(int z) { return Cycle(z * z); } auto cycle = SquareCycle(5); *cycle.ptr_to_x /= 5; // Ok! x: 42 p: 0x7fc55012 cycle @ 0x7fc55012 x: z * z p: 0xTBD <return> @ 0xTBD SC(5)
50. class Cycle { /* ... */ }; void SquareCycle(int z, Cycle* out) { new (out) Cycle(z * z); } auto cycle; SquareCycle(5, &cycle); *cycle.ptr_to_x /= 5; // Ok! x: 42 p: 0x7fc55012 cycle @ 0x7fc55012 x: z * z p: 0xTBD <return> @ 0xTBD SC(5)
51. class Cycle { /* ... */ }; void SquareCycle(int z, Cycle* out) { new (out) Cycle(z * z); } // NOTE: Rust has a hidden // return slot, too! auto cycle; SquareCycle(5, &cycle); *cycle.ptr_to_x /= 5; // Ok! x: 42 p: 0x7fc55012 cycle @ 0x7fc55012 x: z * z p: 0xTBD <return> @ 0xTBD SC(5)
52. What if we ignore Rust’s return slots and build our own?
53. struct Slot<’a, T> { data: &’a mut MaybeUninit<T>, } 0x7fc55012 Slot<T> @ 0x7fc5501a <uninit> [u8] @ 0xsomewhere
54. struct Slot<’a, T> { data: &’a mut MaybeUninit<T>, } impl<’a, T> Slot<’a, T> { fn emplace( self, n: impl New<Output = T>, ) -> Pin<&’a mut T>; } 0x7fc55012 Slot<T> @ 0x7fc5501a <uninit> [u8] @ 0x7fc55012
55. fn new_cycle<’a>( ret: Slot<’a, Cycle>, ) -> Pin<&’a mut Cycle>> { ret.emplace(NewCycle(42)) } struct Slot<’a, T> { data: &’a mut MaybeUninit<T>, } impl<’a, T> Slot<’a, T> { fn emplace( self, n: impl New<Output = T>, ) -> Pin<&’a mut T>; } 0x7fc55012 Slot<Cycle> @ 0x7fc5501a [42, 00, ..] [u8] @ 0x7fc55012 0x7fc55012 &mut Cycle @ 0x7fc55024 emplace(..)
56. • Still can’t return a stack-pinned data; need to Box it. • Still can’t directly pin data in collections like Vec and HashMap; need to Box them. “Address-sensitive” types feel like second-class citizens in Rust. Even with constructors and slots! Better...
57. class Cycle { public: Cycle(int x) { this->x_ = x; this->ptr_to_x_ = &this->x_; } private: int x_; int* ptr_to_x_; }; auto cycle = Cycle(42); x: 42 p: 0x7fc55012 cycle @ 0x7fc55012 x: 42 p: 0xTBD *this @ 0xTBD Ctor
58. class Cycle { public: Cycle(int x) { this->x_ = x; this->ptr_to_x_ = &this->x_; } private: int x_; int* ptr_to_x_; }; auto cycle = Cycle(42); auto copy = cycle; x: 42 p: 0x7fc55012 cycle @ 0x7fc55012 x: 42 p: 0xTBD *this @ 0xTBD Cycle(int) x: 42 p: 0x7fc55012 copy @ 0x7fc5501a Copy Copy Ctor
59. class Cycle { public: Cycle(int x) { this->x_ = x; this->ptr_to_x_ = &this->x_; } private: int x_; int* ptr_to_x_; }; auto cycle = Cycle(42); auto copy = cycle; *copy.ptr_to_x_ *= 2; // Modified `cycle`, not `copy`! x: 42 p: 0x7fc55012 cycle @ 0x7fc55012 x: 42 p: 0xTBD *this @ 0xTBD Cycle(int) x: 42 p: 0x7fc55012 copy @ 0x7fc5501a Copy Ctor INVARIANT VIOLATED!
60. class Cycle { public: Cycle(int x) { this->x_ = x; this->ptr_to_x_ = &this->x_; } Cycle(const Cycle& that) { this->x_ = that.x_; this->ptr_to_x_ = &this->x_; } /* ... */ }; auto cycle = Cycle(42); auto copy = cycle; *copy.ptr_to_x_ *= 2; x: 42 p: 0x7fc55012 cycle @ 0x7fc55012 x: 42 p: 0xTBD *this @ 0xTBD Cycle(int) x: 42 p: 0x7fc5501a copy @ 0x7fc5501a Copy Ctor INVARIANT VIOLATED!
61. C++ variables do not move; you always construct a new one! Objects are always notified of copy operations.
62. What would a “copy constructor” look like in Rust?
63. class Cycle { public: Cycle(const Cycle& that) { this->x_ = that.x; this->ptr_to_x_ = &this->x_; } /* ... */ }; auto cycle = Cycle(42); auto copy = cycle; struct Cycle { /* ... */ } let mut alloc1 = MaybeUninit::uninit(); NewCycle(42).new(&mut alloc1); let cycle = &*alloc1.cast<Cycle>(); let mut alloc2 = MaybeUninit::uninit(); /* copy? */.new(&mut alloc2); let copy = &*alloc2.cast<Cycle>(); C++ Rust
64. class Cycle { public: Cycle(const Cycle& that) { this->x_ = that.x; this->ptr_to_x_ = &this->x_; } /* ... */ }; auto cycle = Cycle(42); auto copy = cycle; struct Cycle { /* ... */ } let mut alloc1 = MaybeUninit::uninit(); NewCycle(42).new(&mut alloc1); let cycle = &*alloc1.cast<Cycle>(); let mut alloc2 = MaybeUninit::uninit(); CloneNew::clone(&cycle, &mut alloc2); let copy = &*alloc2.cast<Cycle>(); C++ Rust
65. class Cycle { public: Cycle(const Cycle& that) { this->x_ = that.x; this->ptr_to_x_ = &this->x_; } /* ... */ }; auto cycle = Cycle(42); auto copy = cycle; struct Cycle { /* ... */ } unsafe trait CloneNew { fn clone(that: &Self, this: Pin<&mut MaybeUninit<Self>>, ); } let mut alloc1 = MaybeUninit::uninit(); NewCycle(42).new(&mut alloc1); let cycle = &*alloc1.cast<Cycle>(); let mut alloc2 = MaybeUninit::uninit(); CloneNew::clone(&cycle, &mut alloc2); let copy = &*alloc2.cast<Cycle>(); C++ Rust
66. class Cycle { public: Cycle(const Cycle& that) { this->x_ = that.x; this->ptr_to_x_ = &this->x_; } /* ... */ }; auto cycle = Cycle(42); auto copy = cycle; struct Cycle { /* ... */ } unsafe impl CloneNew for Cycle { fn clone(that, this) { this.x = that.x; this.ptr_to_x = &this.x; } } let mut alloc1 = MaybeUninit::uninit(); NewCycle(42).new(&mut alloc1); let cycle = &*alloc1.cast<Cycle>(); let mut alloc2 = MaybeUninit::uninit(); CloneNew::clone(&cycle, &mut alloc2); let copy = &*alloc2.cast<Cycle>(); C++ Rust
67. CloneNew is like a fusion of Clone and New. But in Rust, we prefer to move, not copy!
68. fn new_cycle<’a>( ret: Slot<’a, Cycle>, ) -> Pin<&’a mut Cycle>> { ret.emplace(NewCycle(42)) } struct Slot<’a, T> { data: &’a mut MaybeUninit<T>, } impl<’a, T> Slot<’a, T> { fn emplace( self, n: impl New<Output = T>, ) -> Pin<&’a mut T>; } 0x7fc55012 Slot<Cycle> @ 0x7fc5501a [42, 00, ..] [u8] @ 0x7fc55012 0x7fc55012 &mut Cycle @ 0x7fc55024 emplace(..)
69. fn new_cycle<’a>( ret: Slot<’a, Cycle>, ) -> Pin<&’a mut Cycle>> { ret.emplace(NewCycle(42)) } struct MoveRef<’a, T>(&’a mut T); struct Slot<’a, T> { data: &’a mut MaybeUninit<T>, } impl<’a, T> Slot<’a, T> { fn emplace( self, n: impl New<Output = T>, ) -> Pin<&’a mut T>; } 0x7fc55012 Slot<Cycle> @ 0x7fc5501a [42, 00, ..] [u8] @ 0x7fc55012 0x7fc55012 &mut Cycle @ 0x7fc55024 emplace(..)
70. fn new_cycle<’a>( ret: Slot<’a, Cycle>, ) -> Pin<&’a mut Cycle>> { ret.emplace(NewCycle(42)) } struct MoveRef<’a, T>(&’a mut T); impl<T> Drop for MoveRef<’a, T> { fn drop(&mut self) { ptr::drop_in_place(self.0); } } struct Slot<’a, T> { data: &’a mut MaybeUninit<T>, } impl<’a, T> Slot<’a, T> { fn emplace( self, n: impl New<Output = T>, ) -> Pin<&’a mut T>; } 0x7fc55012 Slot<Cycle> @ 0x7fc5501a [42, 00, ..] [u8] @ 0x7fc55012 0x7fc55012 MoveRef<Cycle> @ 0x7fc55024 emplace(..)
71. fn new_cycle<’a>( ret: Slot<’a, Cycle>, ) -> Pin<MoveRef<’a, Cycle>> { ret.emplace(NewCycle(42)) } struct MoveRef<’a, T>(&’a mut T); struct Slot<’a, T> { data: &’a mut MaybeUninit<T>, } impl<’a, T> Slot<’a, T> { fn emplace( self, n: impl New<Output = T>, ) -> Pin<MoveRef<’a, T>>; } 0x7fc55012 Slot<Cycle> @ 0x7fc5501a [42, 00, ..] [u8] @ 0x7fc55012 0x7fc55012 MoveRef<Cycle> @ 0x7fc55024 emplace(..)
72. MoveRef is like Box: it owns its referent. MoveRef does not own its storage, like &mut T.
73. unsafe trait CloneNew { fn clone( that: &Self, this: Pin<&mut ...>, ); } unsafe impl CloneNew for Cycle { fn clone(that, this) { this.x = that.x; this.ptr_to_x = &this.x; } } Copies
74. unsafe trait MoveNew { fn mov( that: Pin<MoveRef<Self>>, this: Pin<&mut ...>, ); } unsafe trait CloneNew { fn clone( that: &Self, this: Pin<&mut ...>, ); } unsafe impl CloneNew for Cycle { fn clone(that, this) { this.x = that.x; this.ptr_to_x = &this.x; } } Copies Moves
75. unsafe trait MoveNew { fn mov( that: Pin<MoveRef<Self>>, this: Pin<&mut ...>, ); } unsafe impl MoveNew for Cycle { fn mov(that, this) { this.x = that.x; this.ptr_to_x = &this.x; } } unsafe trait CloneNew { fn clone( that: &Self, this: Pin<&mut ...>, ); } unsafe impl CloneNew for Cycle { fn clone(that, this) { this.x = that.x; this.ptr_to_x = &this.x; } } Copies Moves
76. unsafe trait MoveNew { fn mov( that: Pin<MoveRef<Self>>, this: Pin<&mut ...>, ); } unsafe impl<U> MoveNew for U where U: Unpin { fn mov(that, this) { *this = *that; } } unsafe trait CloneNew { fn clone( that: &Self, this: Pin<&mut ...>, ); } unsafe impl<U> CloneNew for U where U: Unpin { fn clone(that, this) { *this = that.clone(); } } Copies Moves
77. T: MoveNew means we can move from one pinned MoveRef into another! It’s generic, so we can build collections that leverage the trait.
78. • Still can’t return a stack-pinned data; need to Box it. • Still can’t directly pin data in collections like Vec and HashMap; need to Box them. New + Slot + MoveRef let us move “address-sensitive” types whenever we need to! Yes, it’s possible!
79. Ok, but the ergonomics are terrible!
80. let mut alloc = MaybeUninit::uninit(); NewCycle(42).new(&mut alloc); let cycle = unsafe { &*alloc.as_ptr().cast::<Cycle>() };
81. let mut alloc = MaybeUninit::uninit(); NewCycle(42).new(&mut alloc); let cycle = unsafe { &*alloc.as_ptr().cast::<Cycle>() }; slot!(alloc: Cycle);
82. let mut alloc = MaybeUninit::uninit(); NewCycle(42).new(&mut alloc); let cycle = unsafe { &*alloc.as_ptr().cast::<Cycle>() }; slot!(alloc: Cycle); let cycle = alloc.emplace(NewCycle(42));
83. let mut alloc = MaybeUninit::uninit(); NewCycle(42).new(&mut alloc); let cycle = unsafe { &*alloc.as_ptr().cast::<Cycle>() }; slot!(alloc: Cycle); let cycle = alloc.emplace(NewCycle(42)); slot!(alloc: Cycle); let copy = alloc.clone_from(&cycle); slot!(alloc: Cycle); let moved = alloc.move_from(cycle);
84. let mut alloc = MaybeUninit::uninit(); NewCycle(42).new(&mut alloc); let cycle = unsafe { &*alloc.as_ptr().cast::<Cycle>() }; emplace! { let cycle = NewCycle(42); let copy = Clone(&cycle); let moved = Move(cycle); } Possible macro syntax.
85. Although constructors are a pure-library feature, we can use macros to make them feel like part of the language.
86. What’s Next? • Implementing this in a crate… already done! Check out `moveit` on crates.io! • Building Ctor and MoveRef friendly analogues of Vec, HashMap, etc (WIP). • Flesh out concrete pure-Rust and mixed-C++ examples for `moveit`. • Revamp the Pin<P> docs to better express what a Rust “move” is. • QoL features from C++.
87. Acks
