1. OPNFV Primer: How to get into OPNFV? Feb 24, 2018 Tomofumi Hayashi Senior Software Engineer, Red Hat

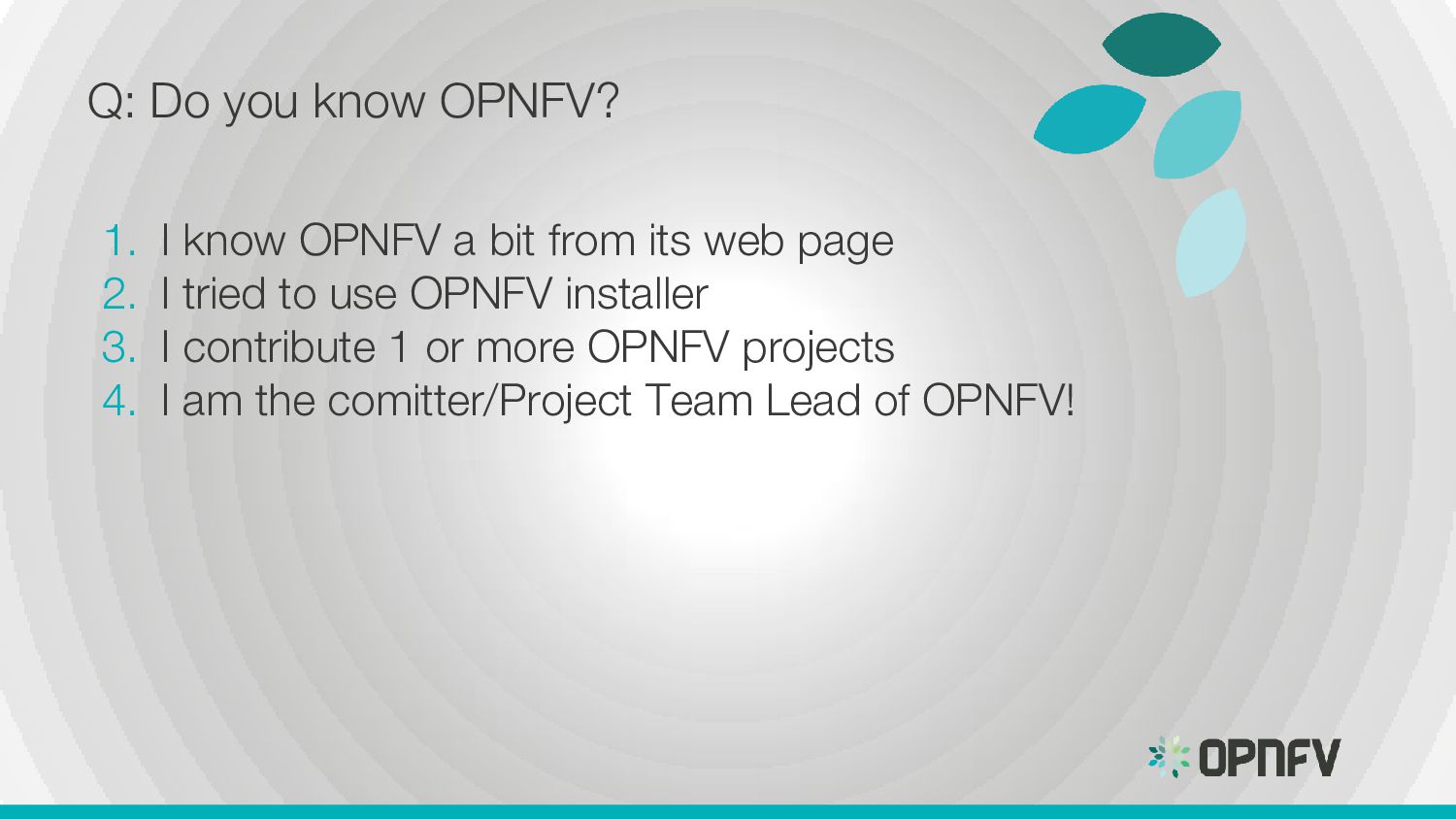

2. Q: Do you know OPNFV? 1. I know OPNFV a bit from its web page 2. I tried to use OPNFV installer 3. I contribute 1 or more OPNFV projects 4. I am the comitter/Project Team Lead of OPNFV!

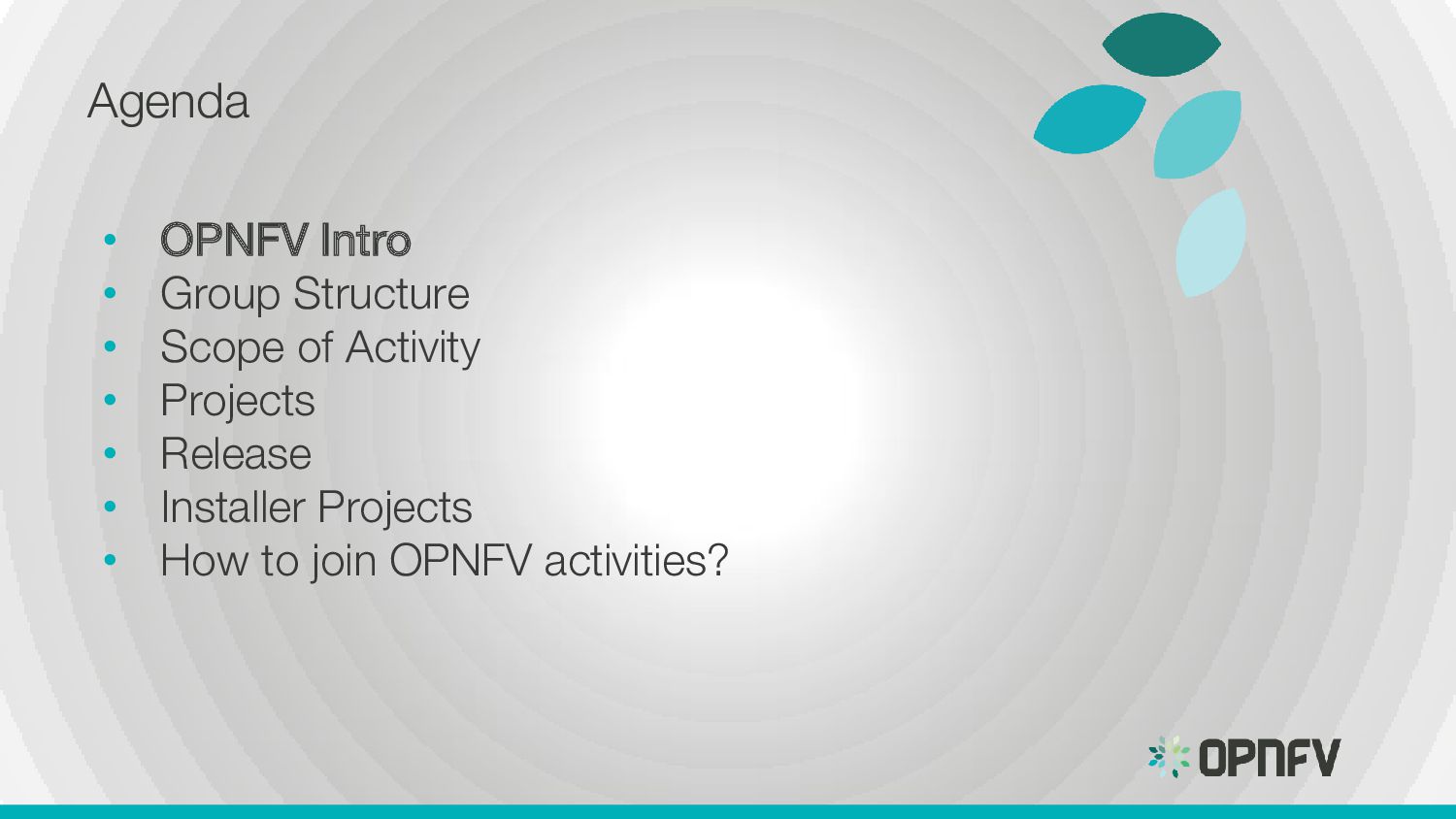

3. Agenda • OPNFV Intro • Group Structure • Scope of Activity • Projects • Release • Installer Projects • How to join OPNFV activities?
4. Agenda • OPNFV Intro • Group Structure • Scope of Activity • Projects • Release • Installer Projects • How to join OPNFV activities?

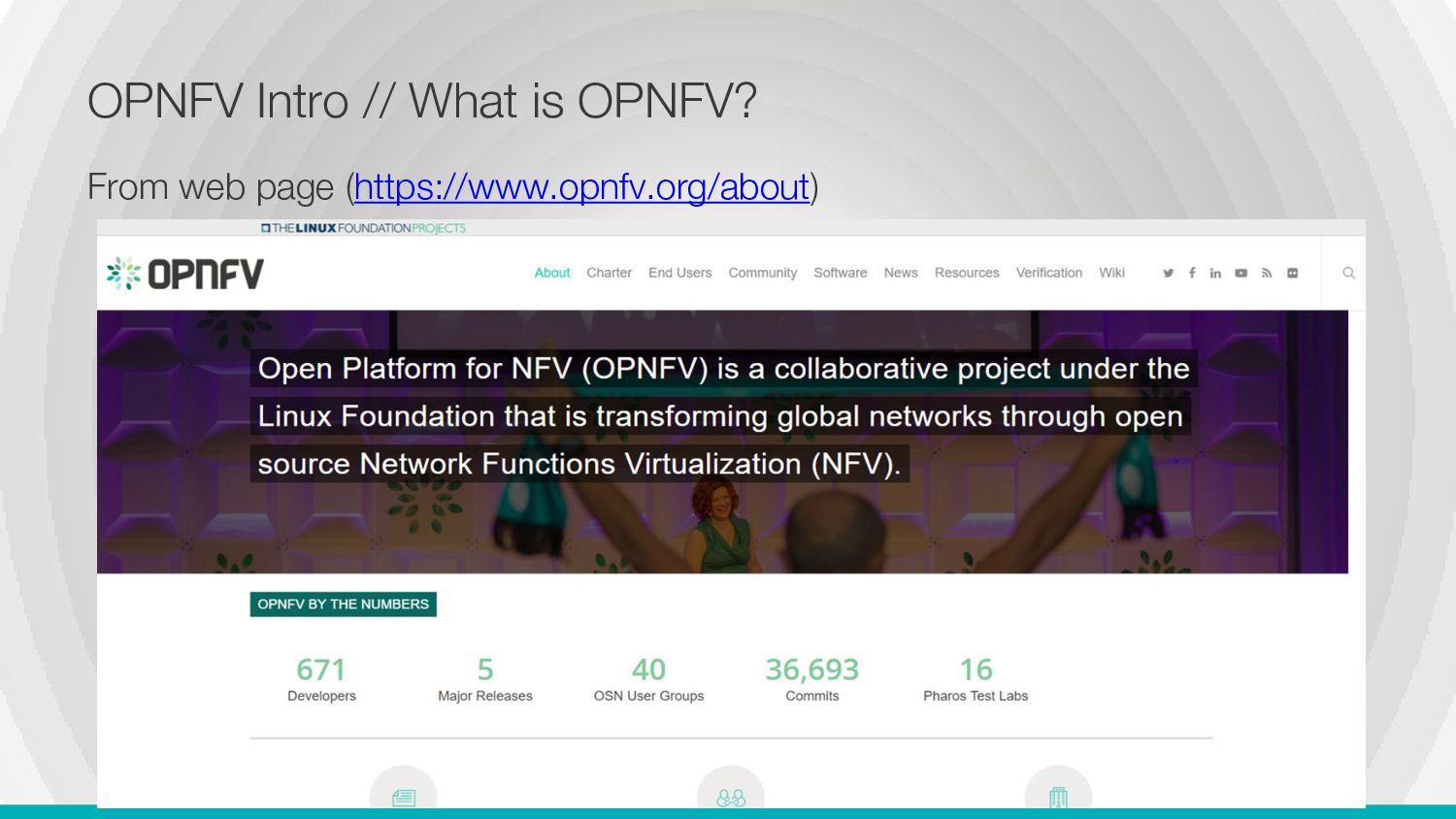

5. OPNFV Intro // What is OPNFV? From web page (https://www.opnfv.org/about)

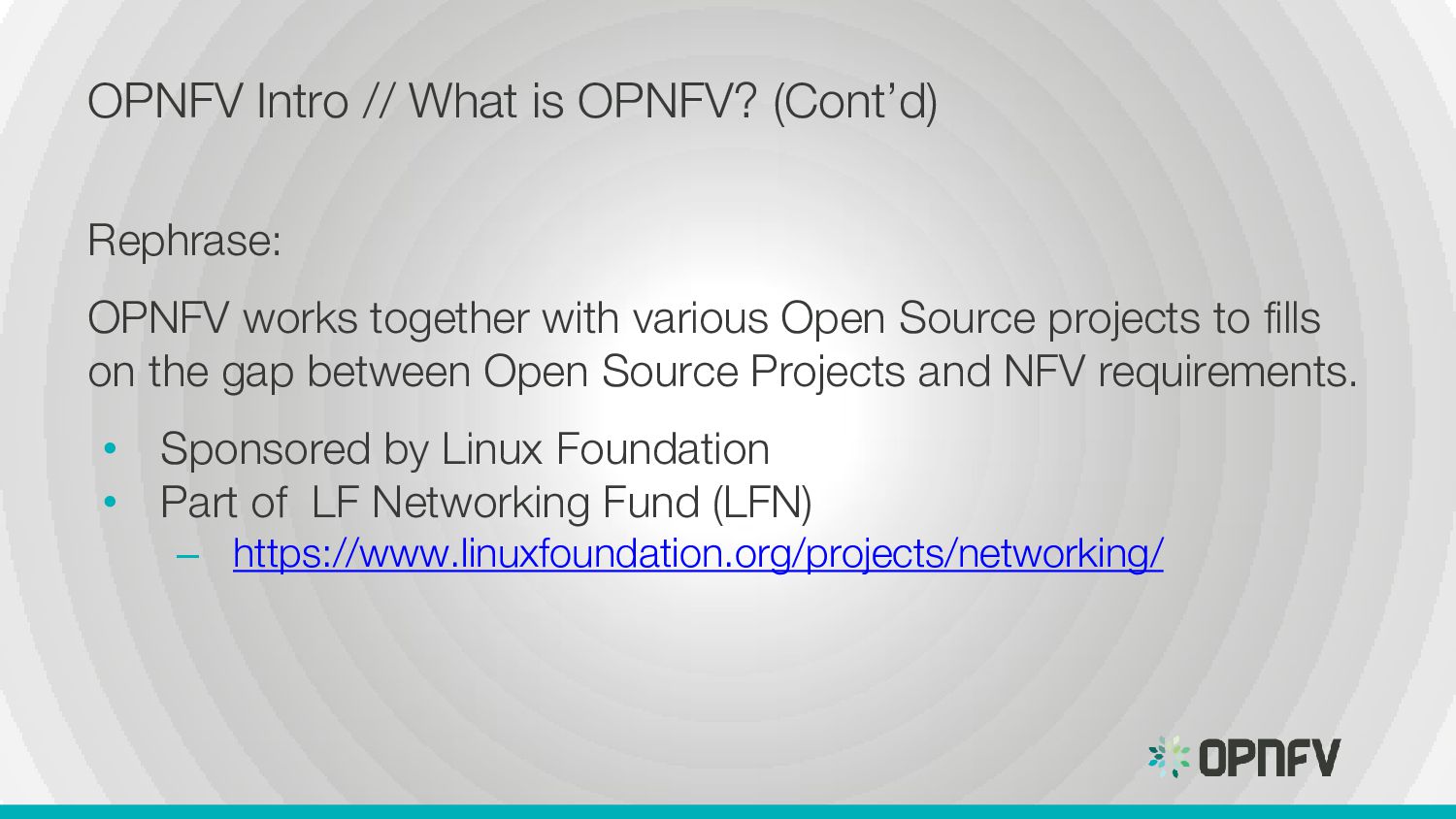

6. OPNFV Intro // What is OPNFV? (Cont’d) Rephrase: OPNFV works together with various Open Source projects to fills on the gap between Open Source Projects and NFV requirements. • Sponsored by Linux Foundation • Part of LF Networking Fund (LFN) – https://www.linuxfoundation.org/projects/networking/

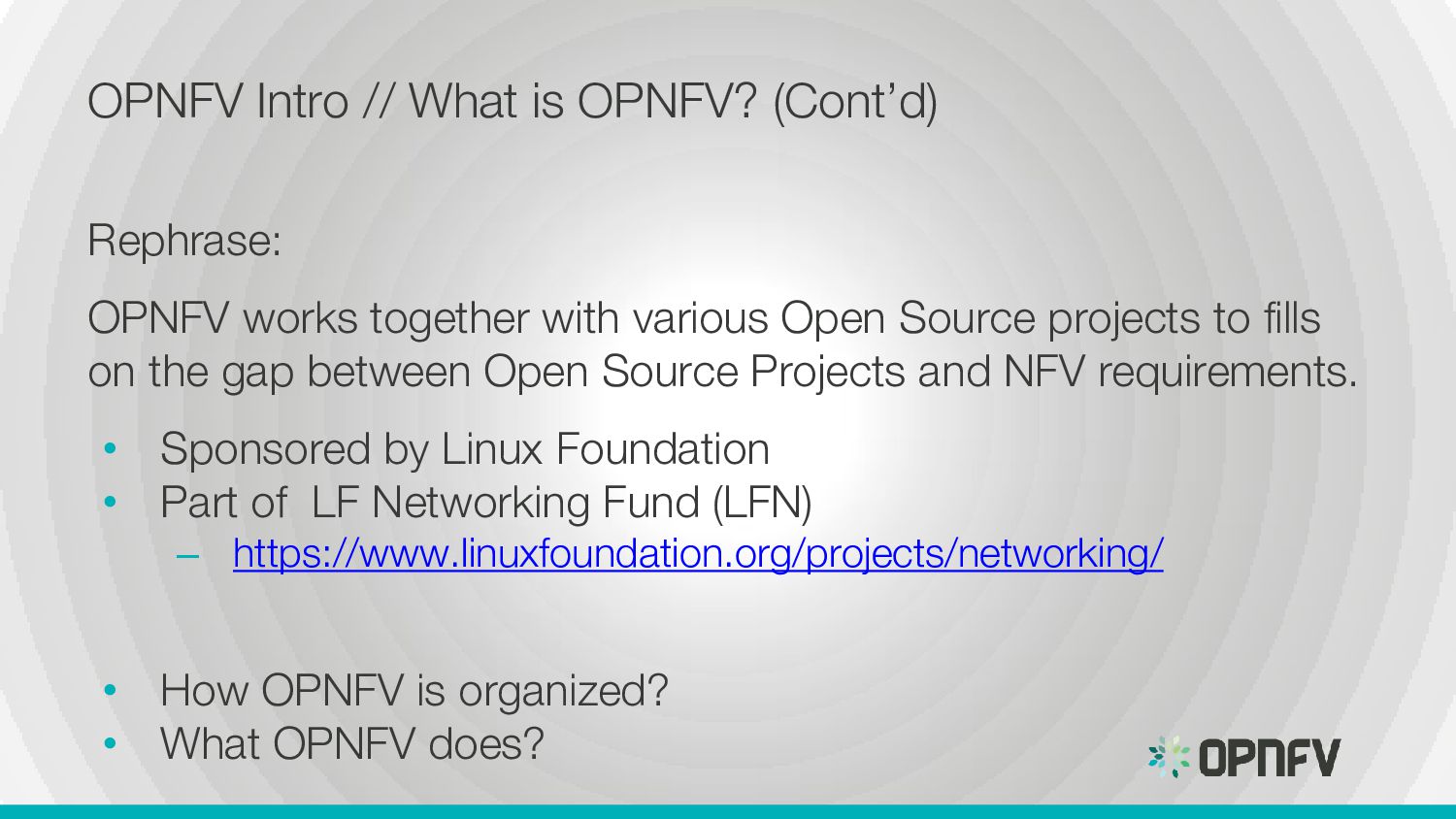

8. OPNFV Intro // What is OPNFV? (Cont’d) Rephrase: OPNFV works together with various Open Source projects to fills on the gap between Open Source Projects and NFV requirements. • Sponsored by Linux Foundation • Part of LF Networking Fund (LFN) – https://www.linuxfoundation.org/projects/networking/ • How OPNFV is organized? • What OPNFV does?

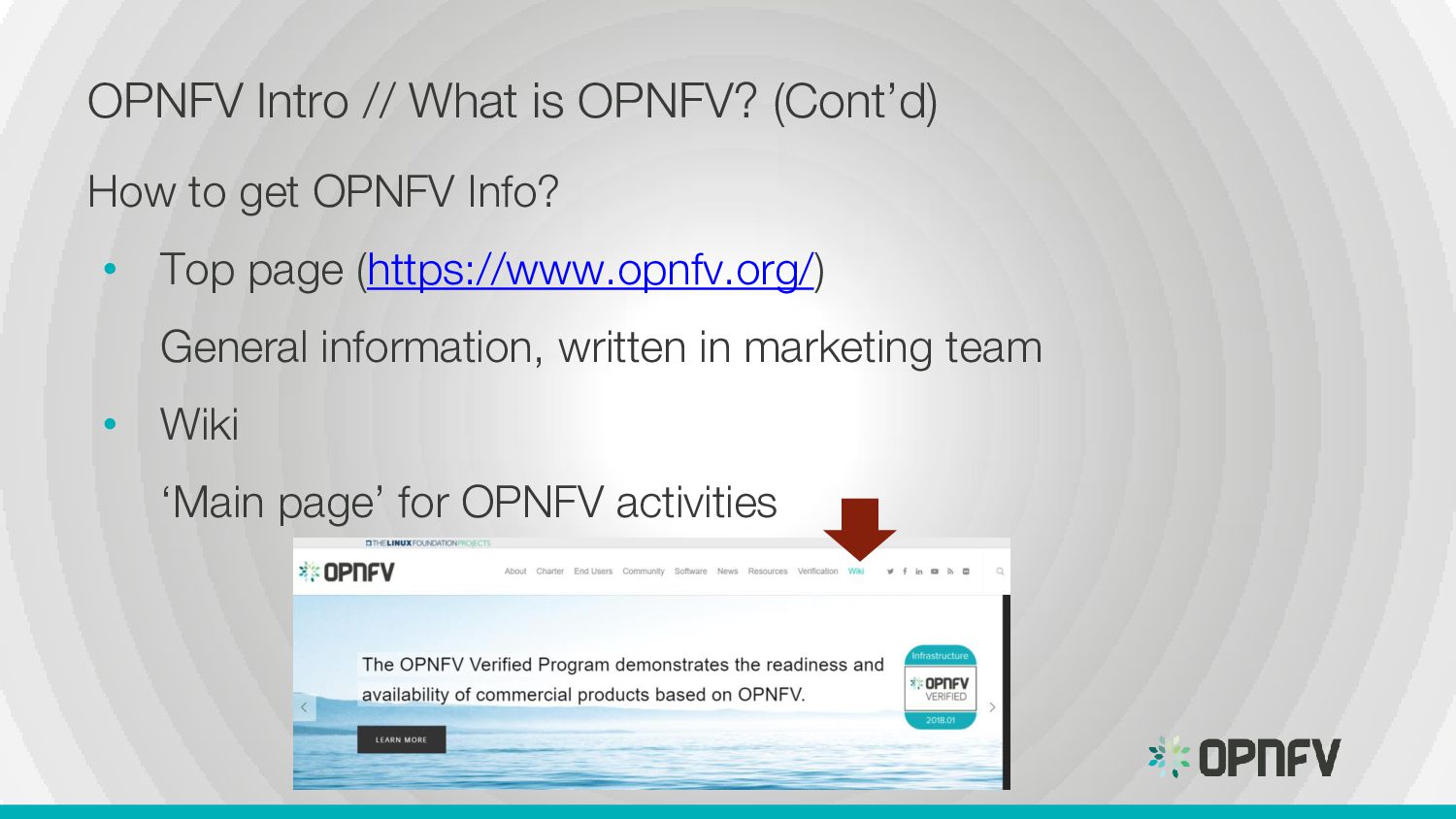

9. OPNFV Intro // What is OPNFV? (Cont’d) How to get OPNFV Info? • Top page (https://www.opnfv.org/) General information, written in marketing team • Wiki ‘Main page’ for OPNFV activities

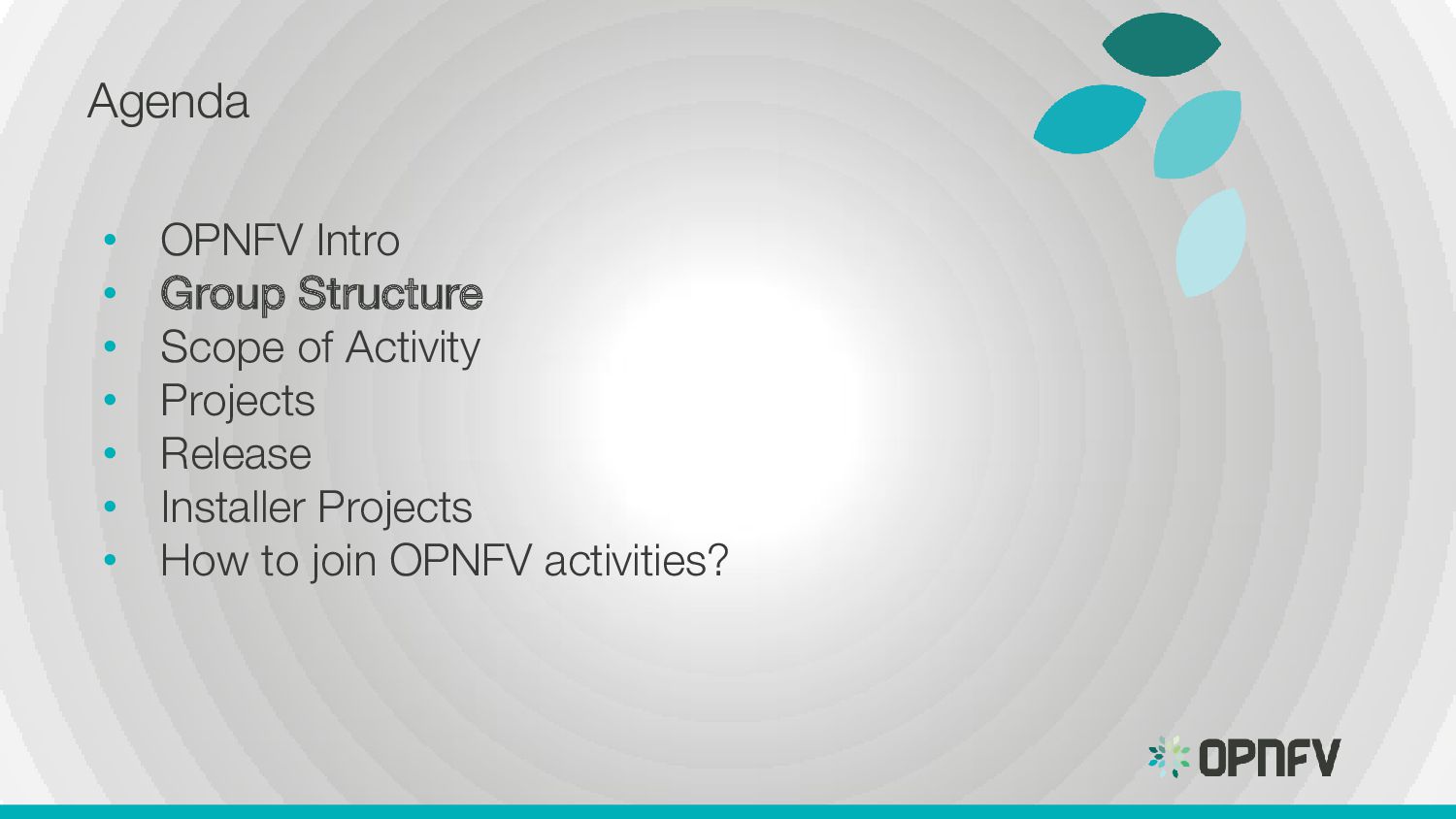

10. Agenda • OPNFV Intro • Group Structure • Scope of Activity • Projects • Release • Installer Projects • How to join OPNFV activities?

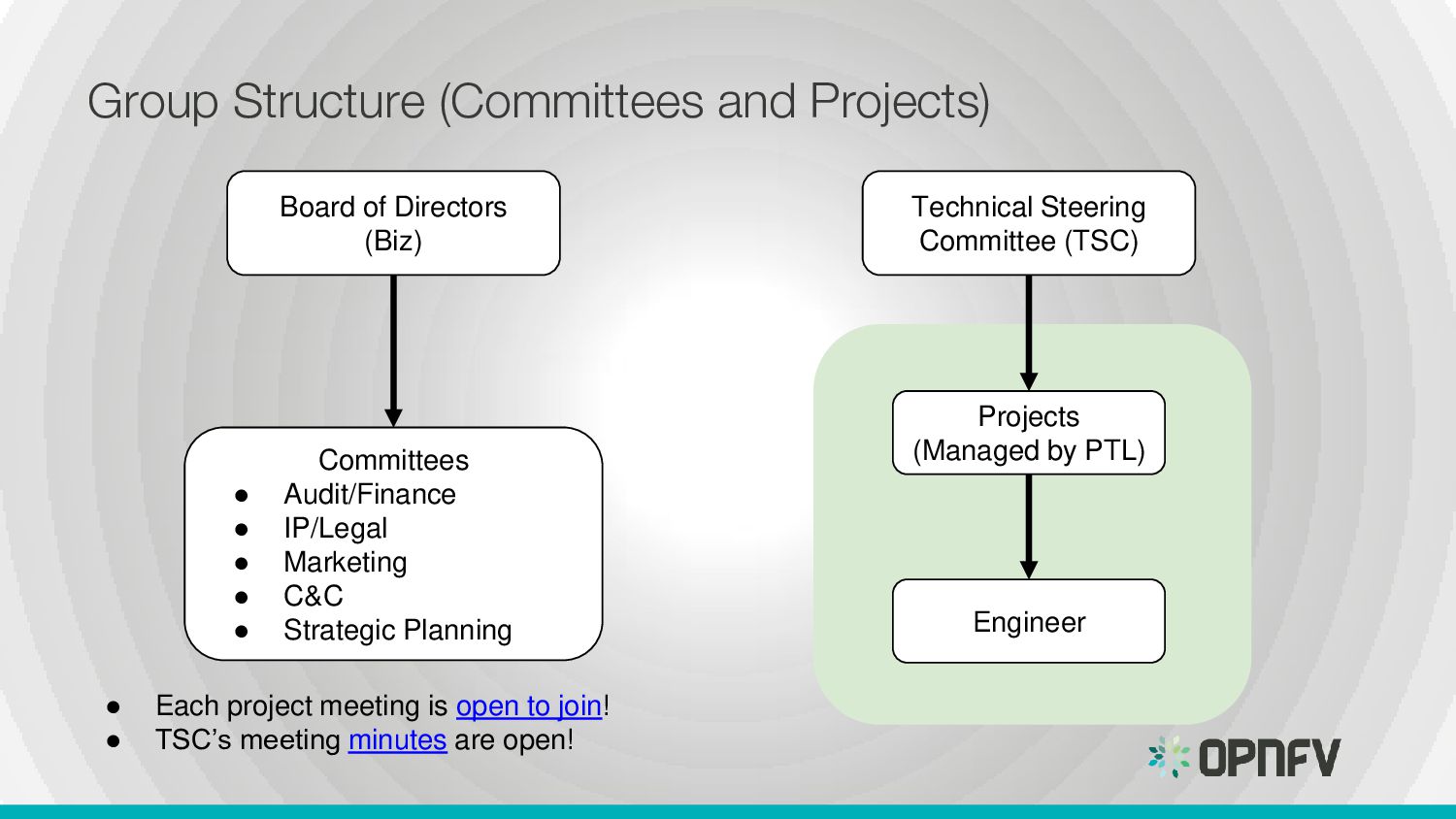

11. Group Structure (Committees and Projects) Board of Directors (Biz) Technical Steering Committee (TSC) Committees • Audit/Finance • IP/Legal • Marketing • C&C • Strategic Planning Projects (Managed by PTL) Engineer • Each project meeting is open to join! • TSC’s meeting minutes are open!

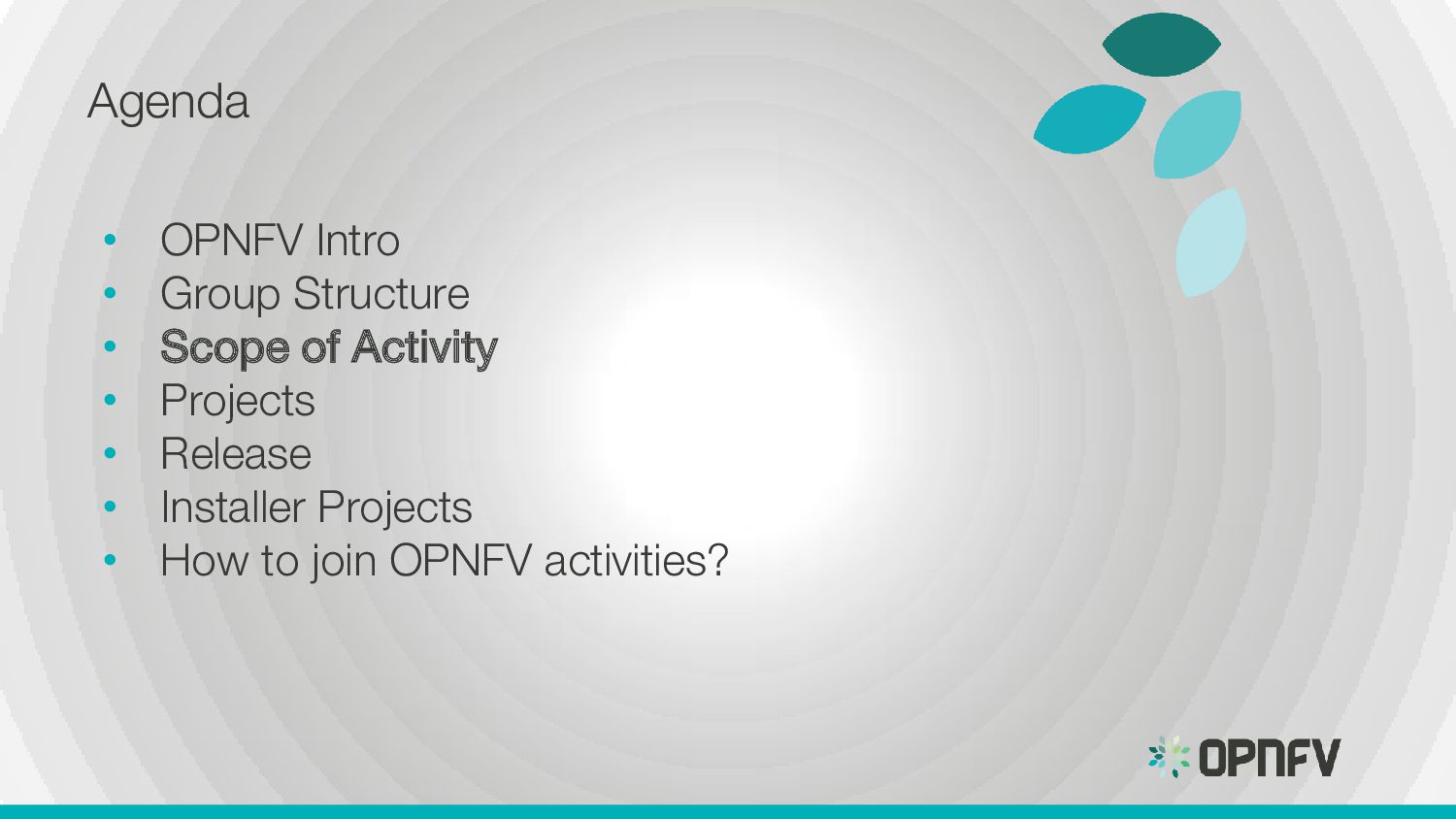

12. Agenda • OPNFV Intro • Group Structure • Scope of Activity • Projects • Release • Installer Projects • How to join OPNFV activities?

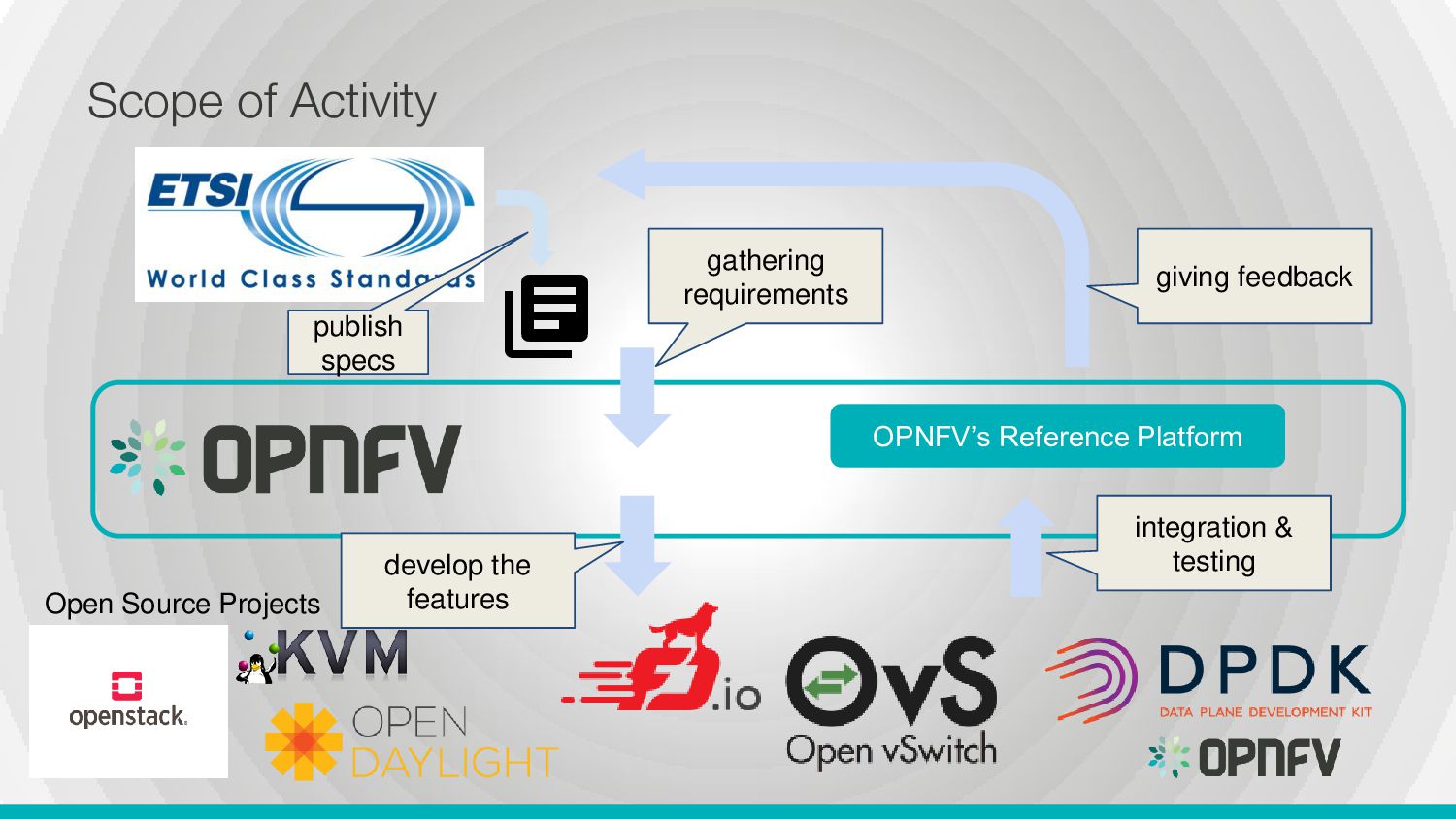

13. Scope of Activity OPNFV’s Reference Platform publish specs gathering requirements develop the features Open Source Projects integration & testing giving feedback

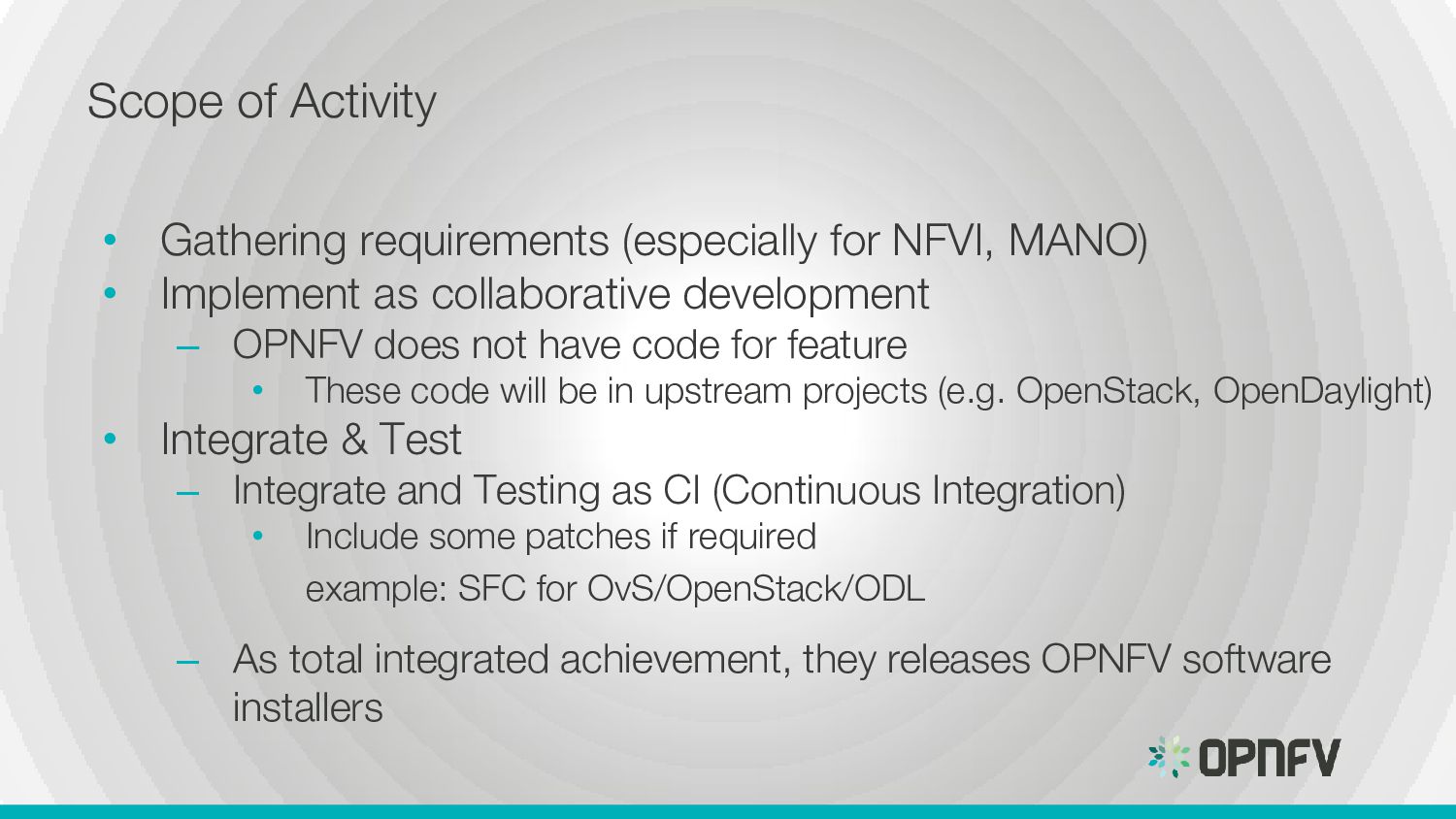

15. Scope of Activity • Gathering requirements (especially for NFVI, MANO) • Implement as collaborative development – OPNFV does not have code for feature • These code will be in upstream projects (e.g. OpenStack, OpenDaylight) • Integrate & Test – Integrate and Testing as CI (Continuous Integration) • Include some patches if required example: SFC for OvS/OpenStack/ODL – As total integrated achievement, they releases OPNFV software installers

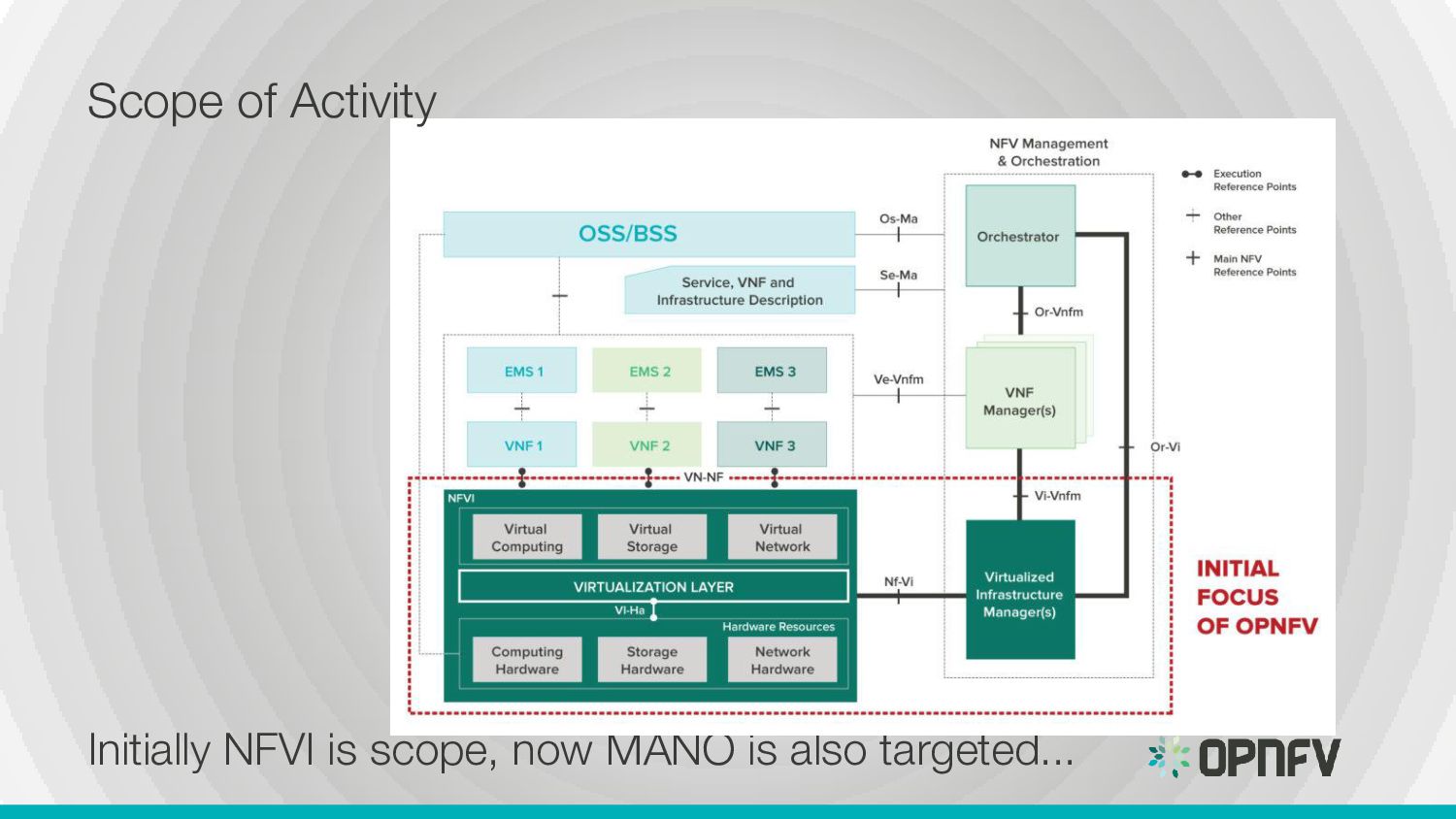

16. Initially NFVI is scope, now MANO is also targeted... Scope of Activity

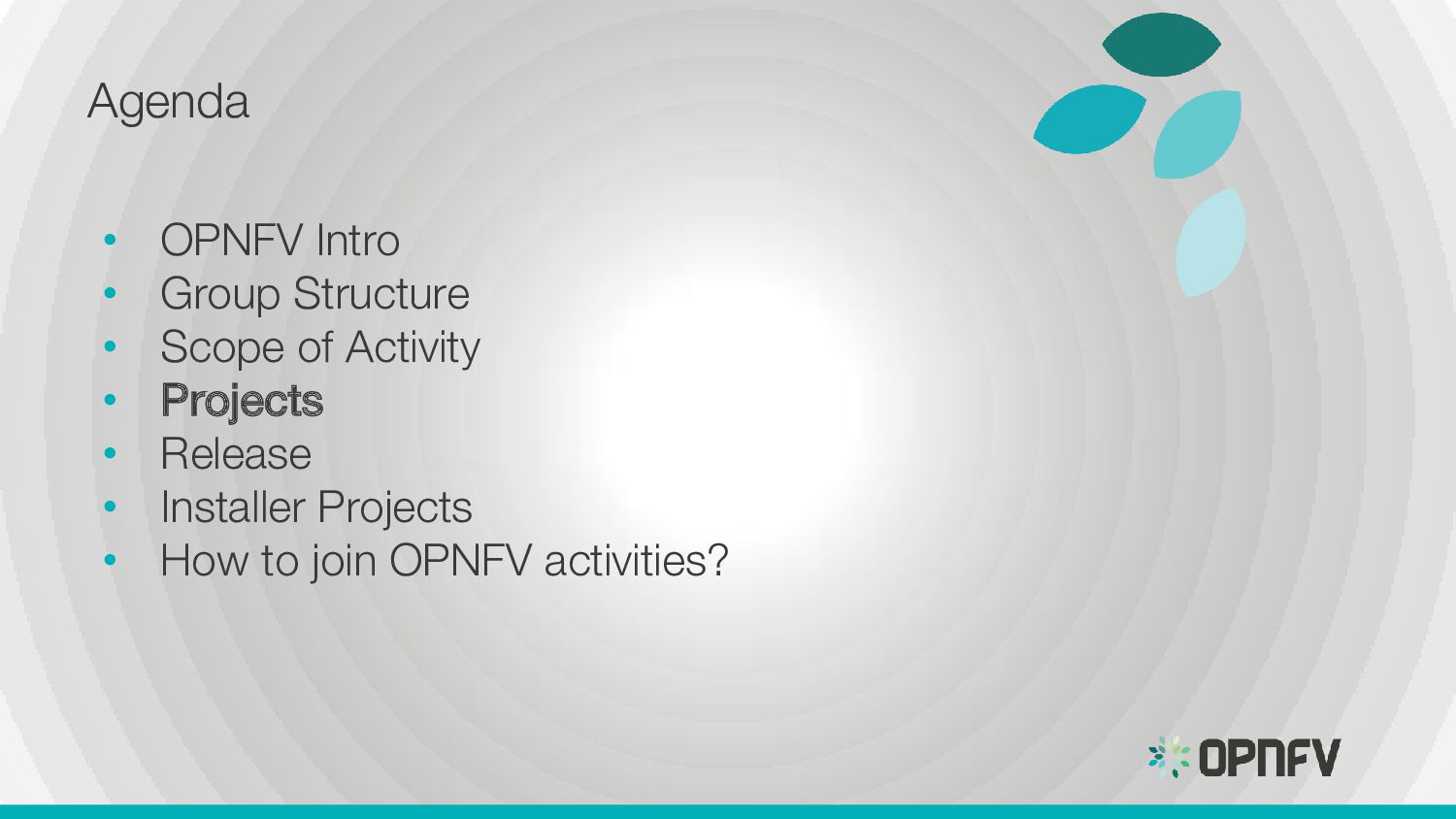

17. Agenda • OPNFV Intro • Group Structure • Scope of Activity • Projects • Release • Installer Projects • How to join OPNFV activities?

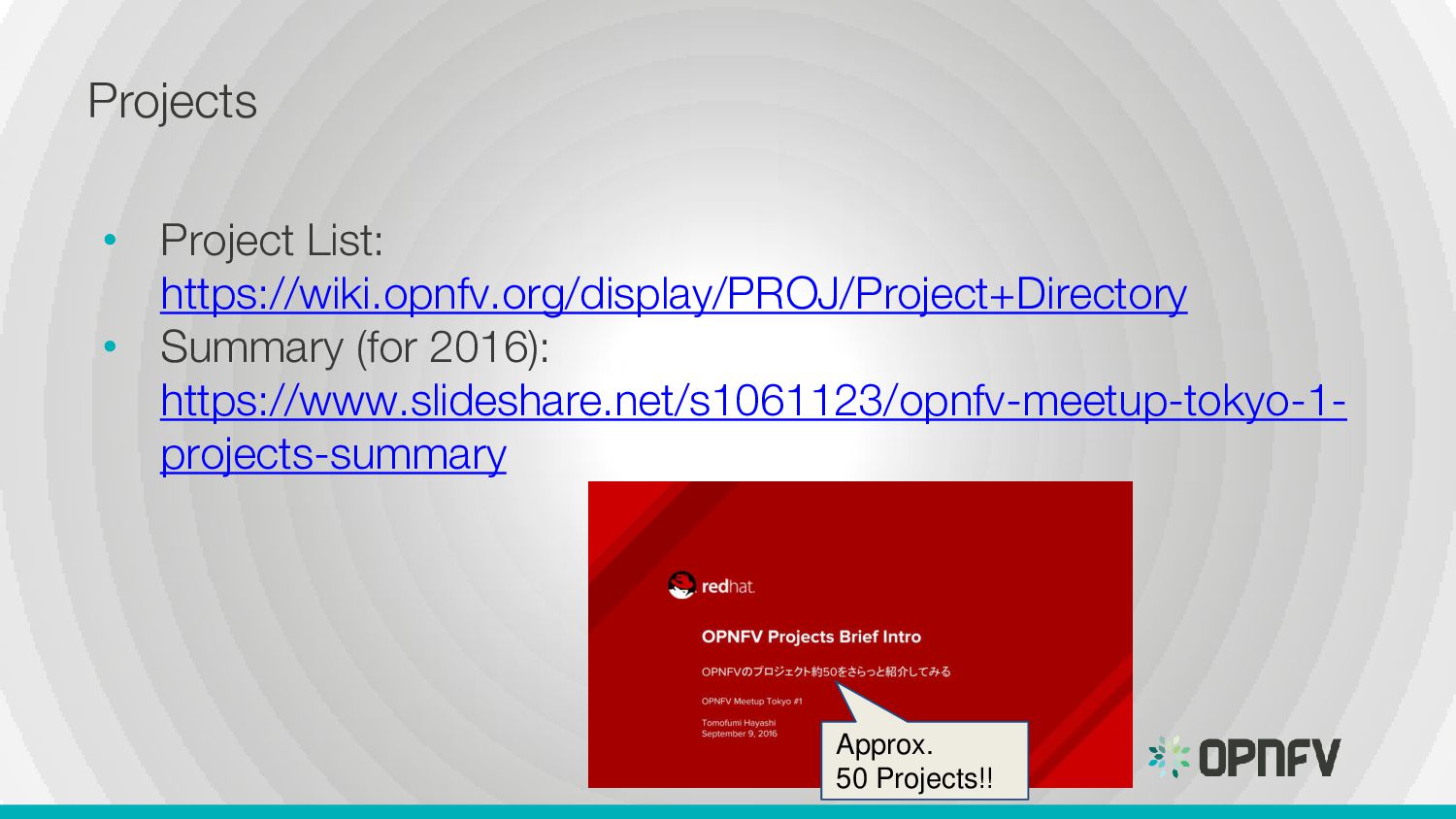

18. • Project List: https://wiki.opnfv.org/display/PROJ/Project+Directory • Summary (for 2016): https://www.slideshare.net/s1061123/opnfv-meetup-tokyo-1- projects-summary Projects Approx. 50 Projects!!

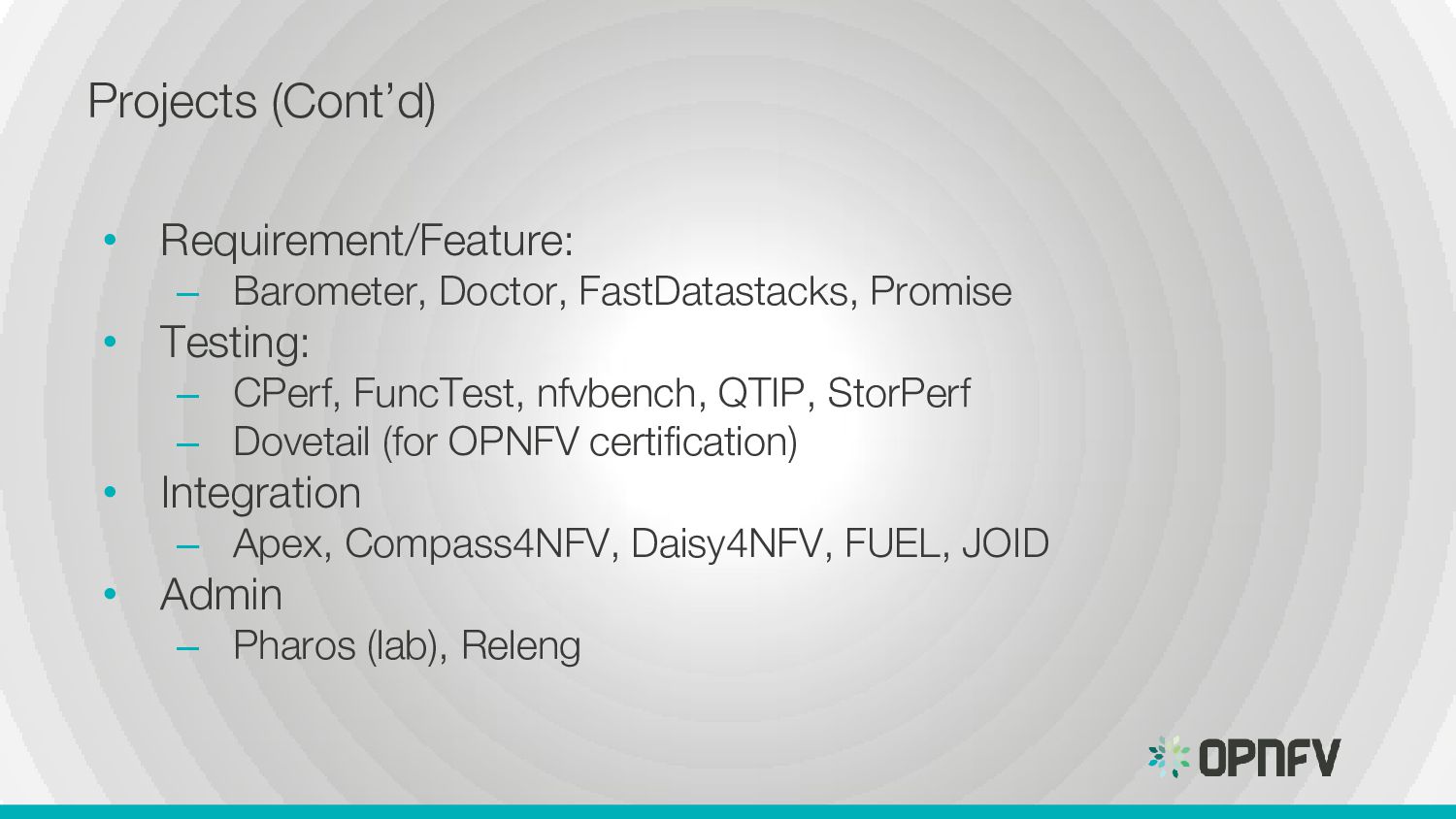

19. Projects (Cont’d) • Requirement/Feature: – Barometer, Doctor, FastDatastacks, Promise • Testing: – CPerf, FuncTest, nfvbench, QTIP, StorPerf – Dovetail (for OPNFV certification) • Integration – Apex, Compass4NFV, Daisy4NFV, FUEL, JOID • Admin – Pharos (lab), Releng
20. Projects (Cont’d) Projects move on following phases: https://www.opnfv.org/software/technical-project-governance/project-lifecycle

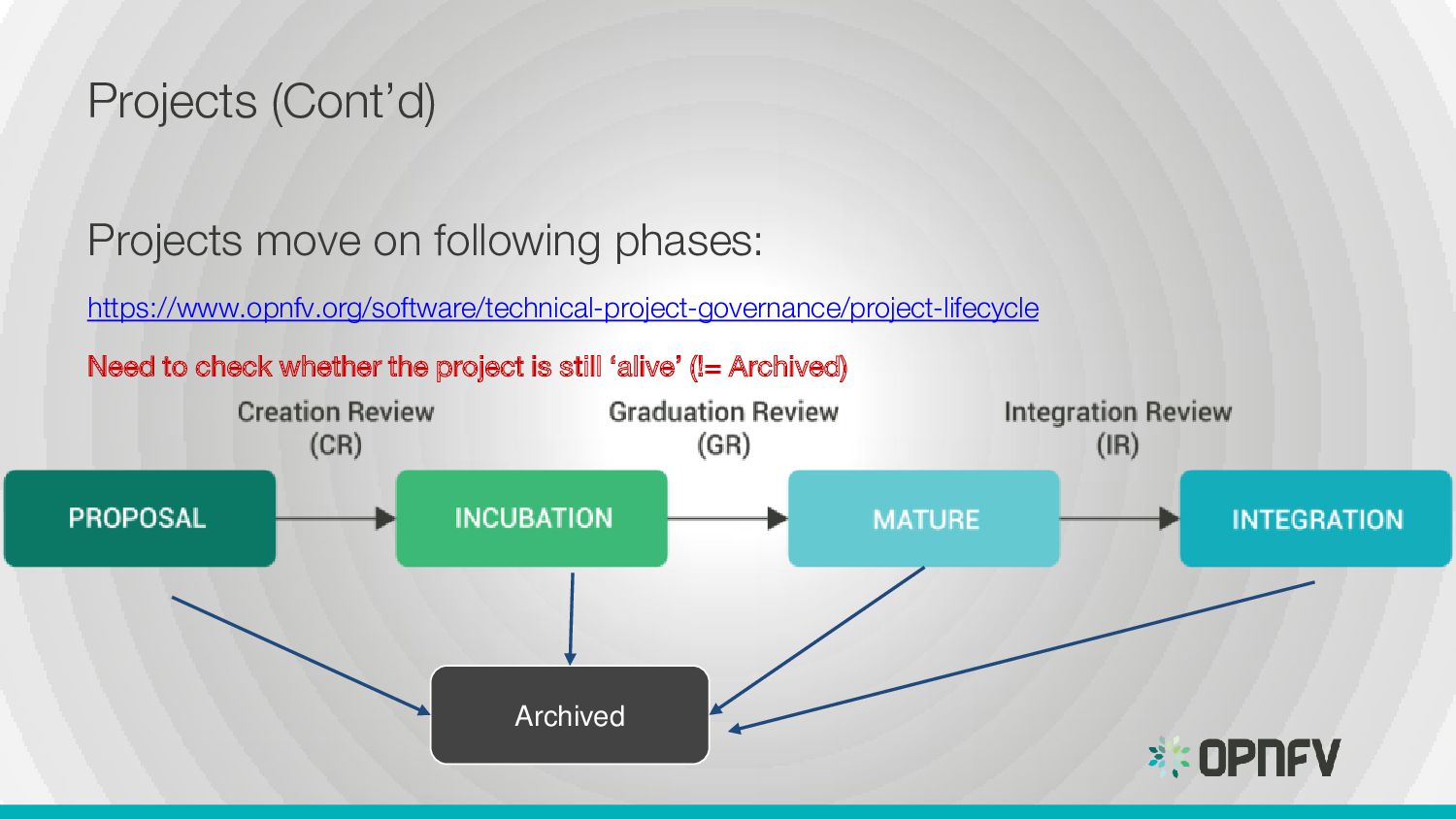

21. Projects (Cont’d) Projects move on following phases: https://www.opnfv.org/software/technical-project-governance/project-lifecycle Need to check whether the project is still ‘alive’ (!= Archived) Archived

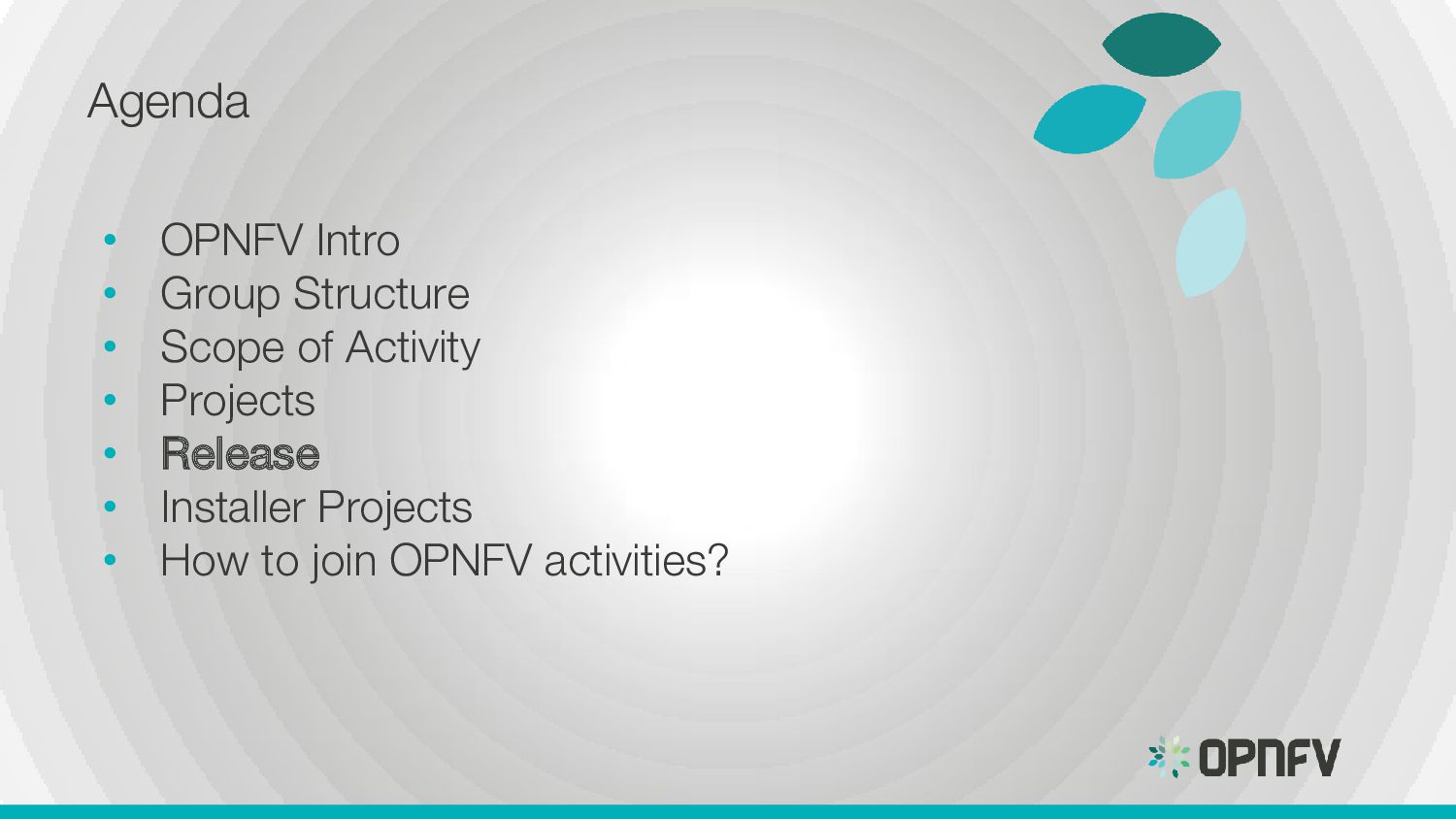

22. Agenda • OPNFV Intro • Group Structure • Scope of Activity • Projects • Release • Installer Projects • How to join OPNFV activities?

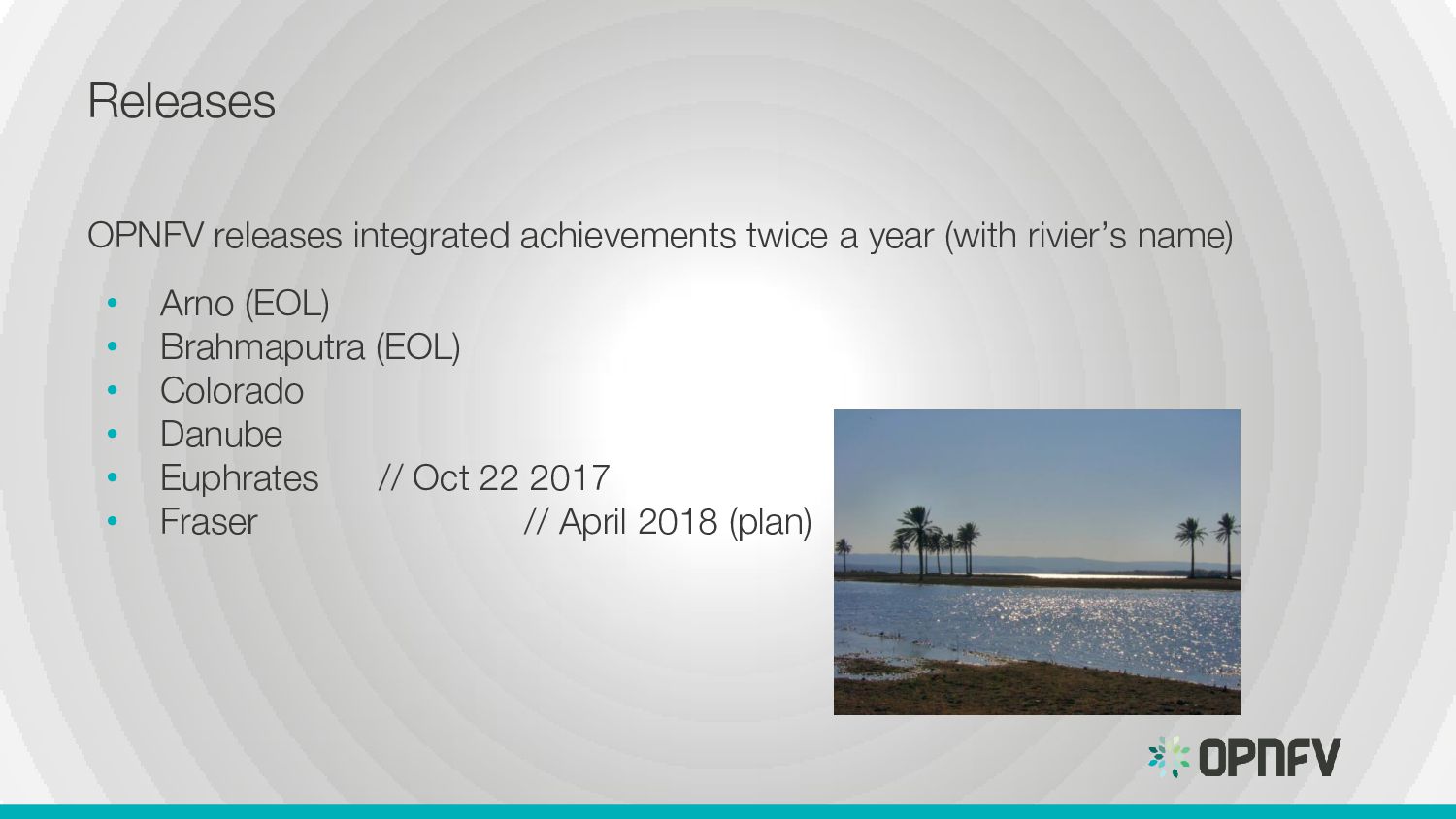

23. Releases OPNFV releases integrated achievements twice a year (with rivier’s name) • Arno (EOL) • Brahmaputra (EOL) • Colorado • Danube • Euphrates // Oct 22 2017 • Fraser // April 2018 (plan)

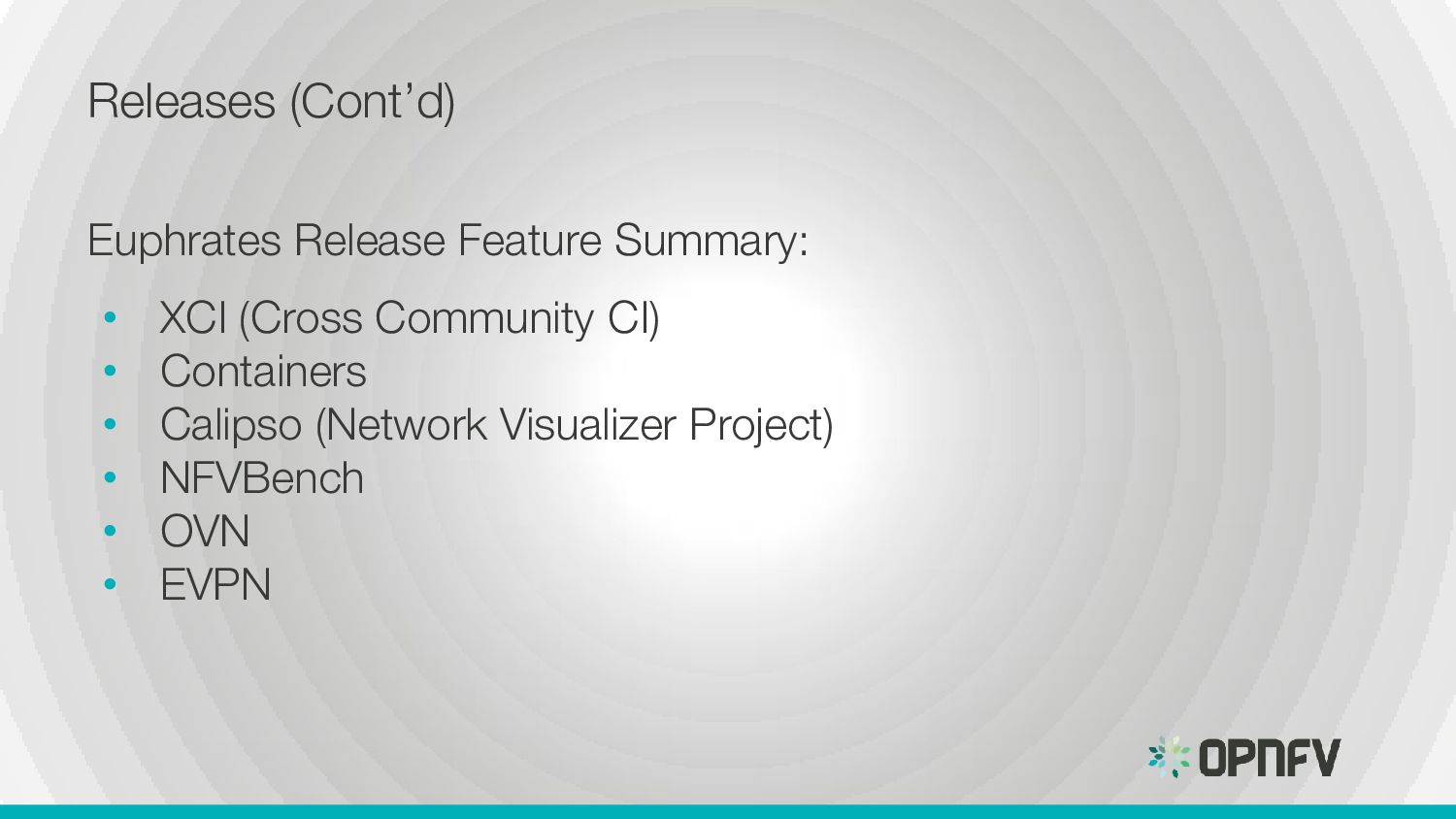

24. Releases (Cont’d) Euphrates Release Feature Summary: • XCI (Cross Community CI) • Containers • Calipso (Network Visualizer Project) • NFVBench • OVN • EVPN

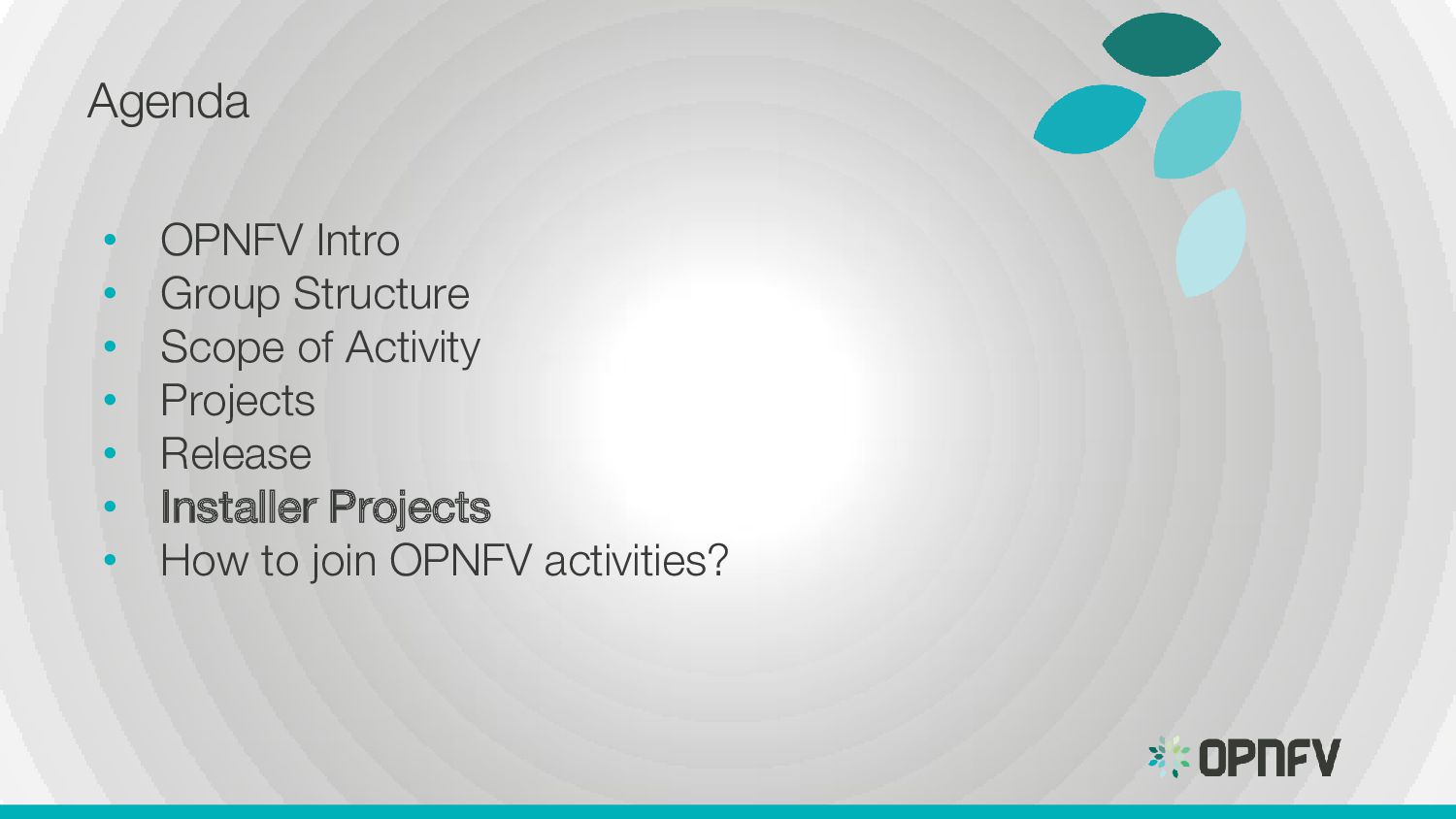

25. Agenda • OPNFV Intro • Group Structure • Scope of Activity • Projects • Release • Installer Projects • How to join OPNFV activities?

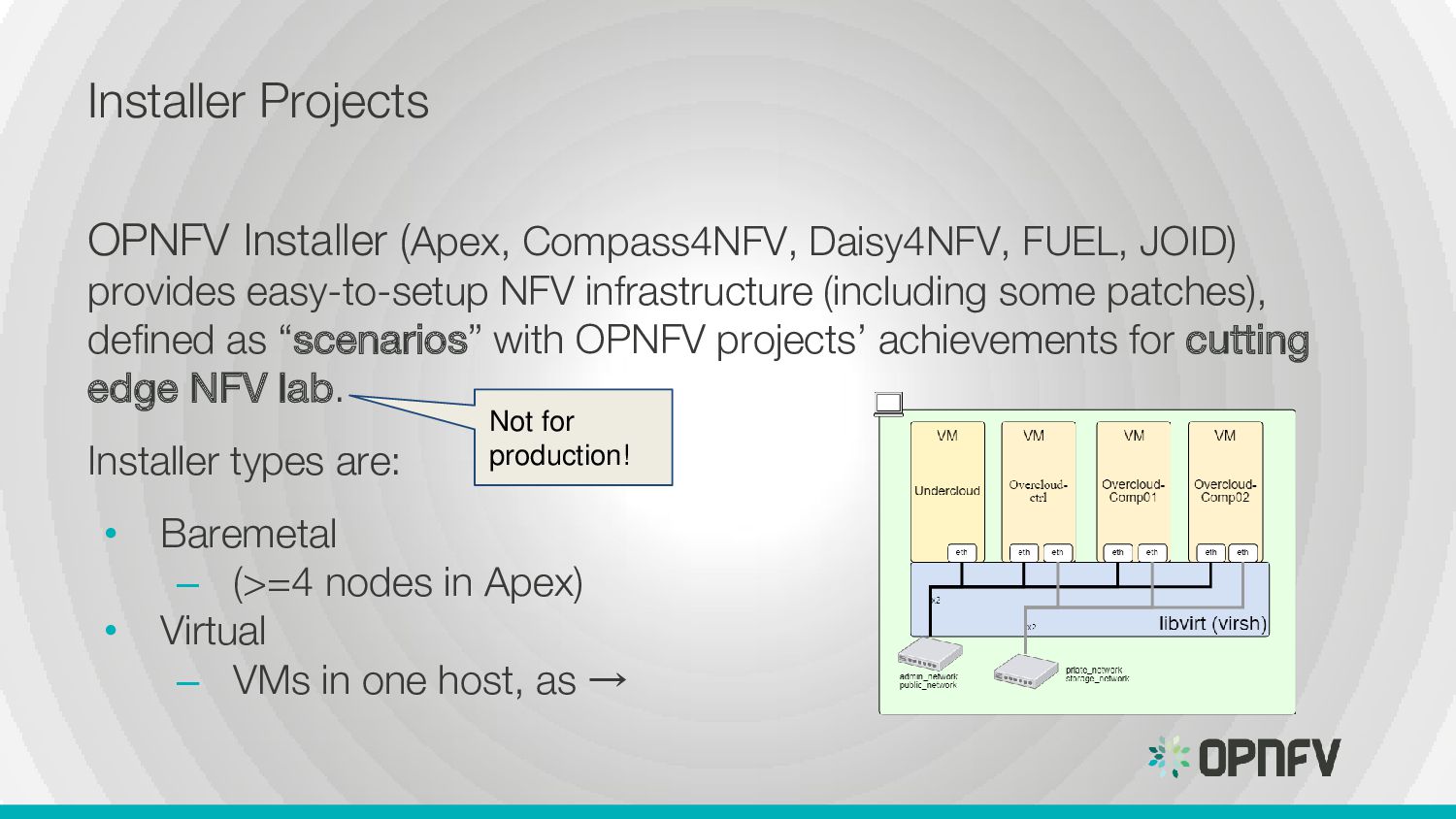

26. Installer Projects OPNFV Installer (Apex, Compass4NFV, Daisy4NFV, FUEL, JOID) provides easy-to-setup NFV infrastructure (including some patches), defined as “scenarios” with OPNFV projects’ achievements for cutting edge NFV lab. Installer types are: • Baremetal – (>=4 nodes in Apex) • Virtual – VMs in one host, as → Not for production!

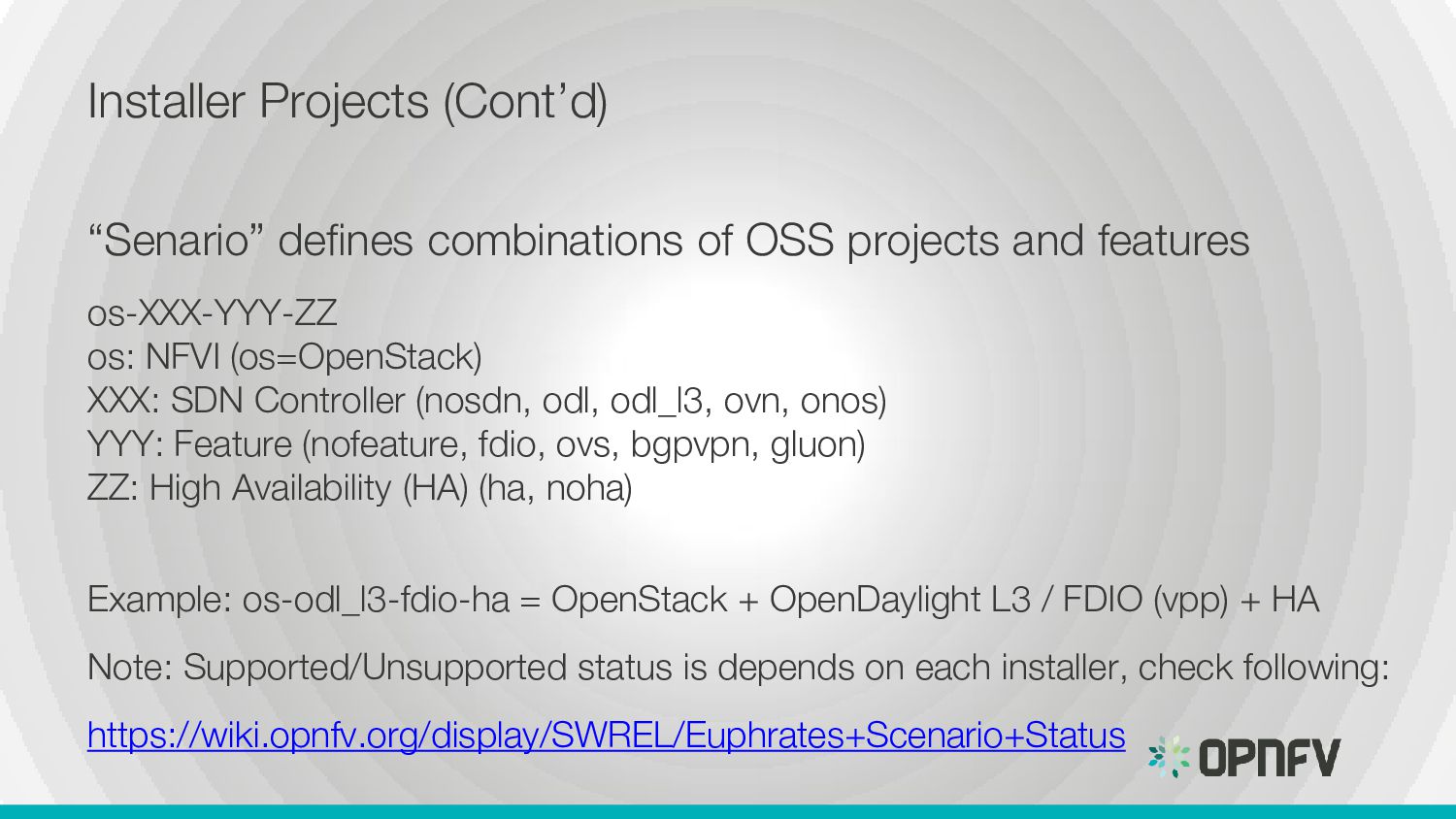

27. Installer Projects (Cont’d) “Senario” defines combinations of OSS projects and features os-XXX-YYY-ZZ os: NFVI (os=OpenStack) XXX: SDN Controller (nosdn, odl, odl_l3, ovn, onos) YYY: Feature (nofeature, fdio, ovs, bgpvpn, gluon) ZZ: High Availability (HA) (ha, noha) Example: os-odl_l3-fdio-ha = OpenStack + OpenDaylight L3 / FDIO (vpp) + HA Note: Supported/Unsupported status is depends on each installer, check following: https://wiki.opnfv.org/display/SWREL/Euphrates+Scenario+Status

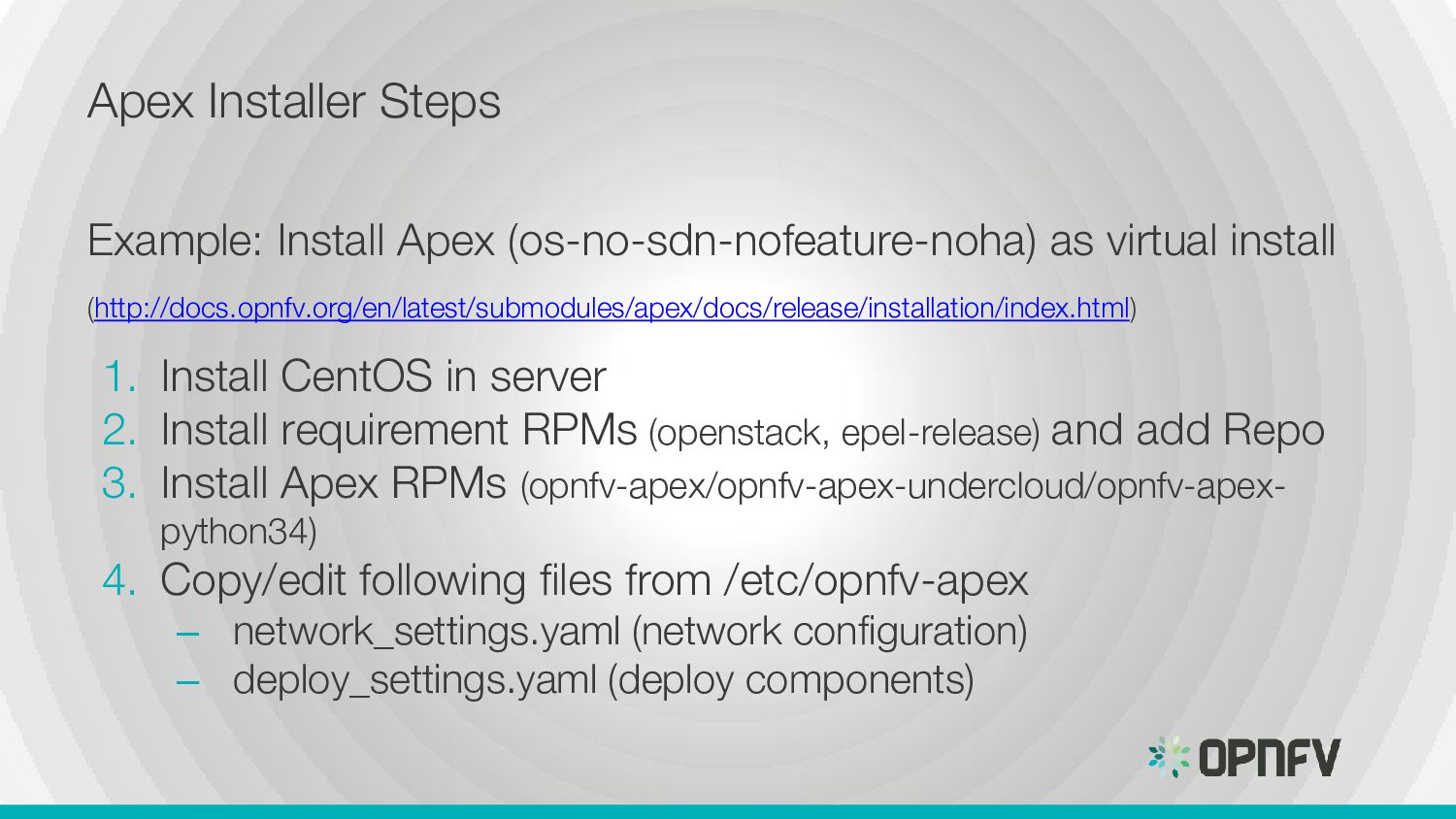

28. Apex Installer Steps Example: Install Apex (os-no-sdn-nofeature-noha) as virtual install (http://docs.opnfv.org/en/latest/submodules/apex/docs/release/installation/index.html) 1. Install CentOS in server 2. Install requirement RPMs (openstack, epel-release) and add Repo 3. Install Apex RPMs (opnfv-apex/opnfv-apex-undercloud/opnfv-apex- python34) 4. Copy/edit following files from /etc/opnfv-apex – network_settings.yaml (network configuration) – deploy_settings.yaml (deploy components)

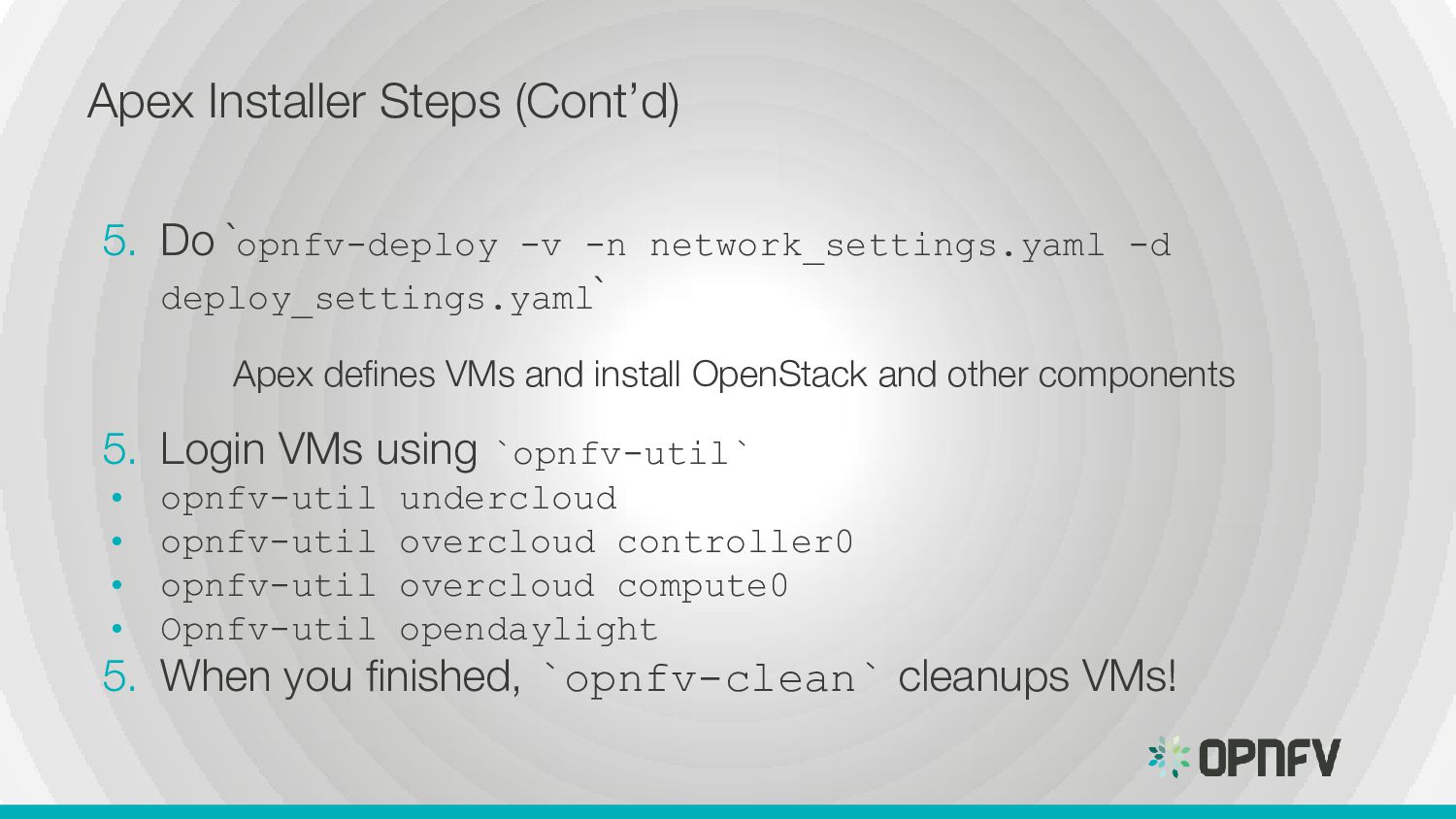

29. Apex Installer Steps (Cont’d) 5. Do `opnfv-deploy -v -n network_settings.yaml -d deploy_settings.yaml` Apex defines VMs and install OpenStack and other components 5. Login VMs using `opnfv-util` • opnfv-util undercloud • opnfv-util overcloud controller0 • opnfv-util overcloud compute0 • Opnfv-util opendaylight 5. When you finished, `opnfv-clean` cleanups VMs!

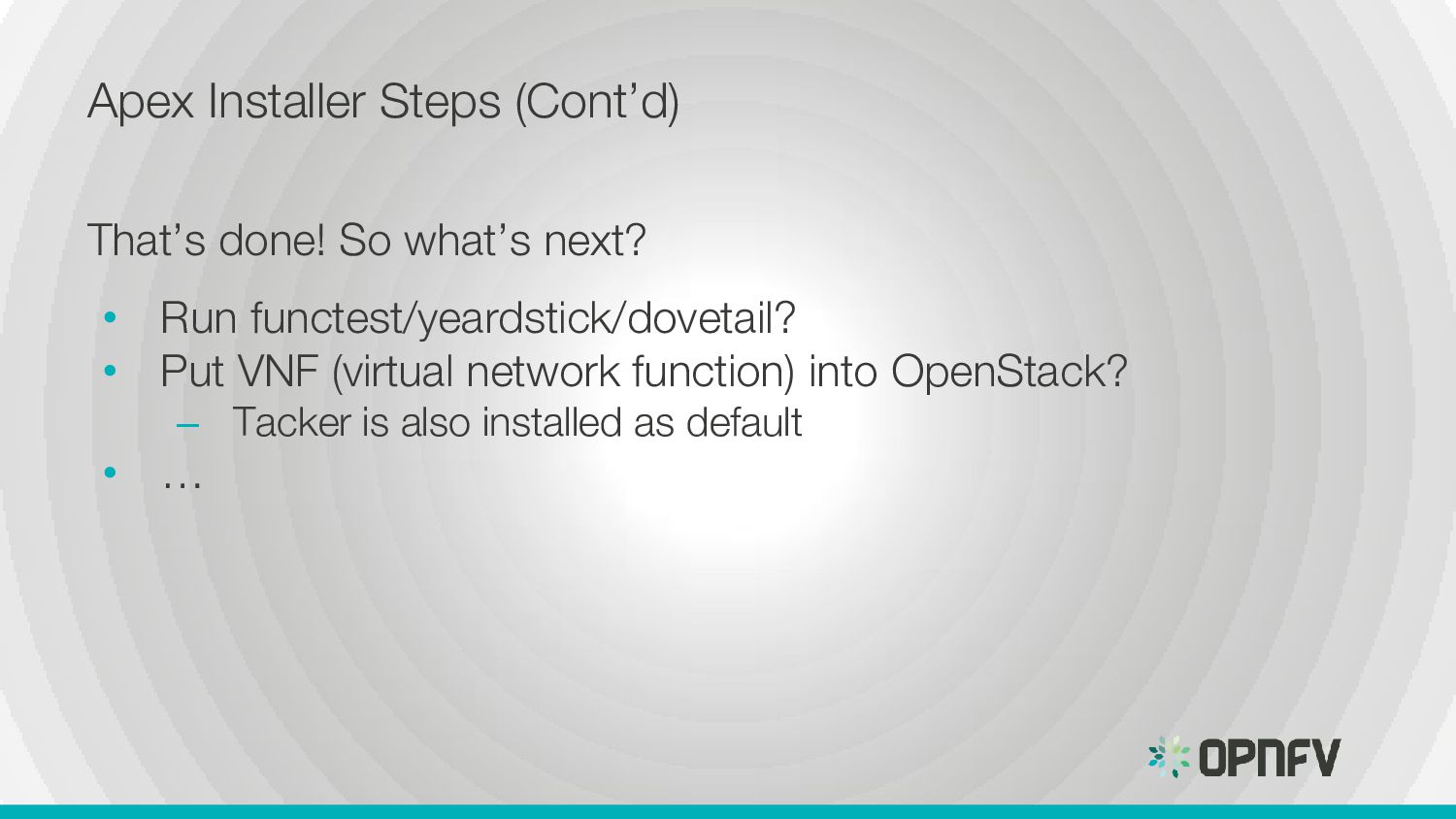

30. Apex Installer Steps (Cont’d) That’s done! So what’s next? • Run functest/yeardstick/dovetail? • Put VNF (virtual network function) into OpenStack? – Tacker is also installed as default • …

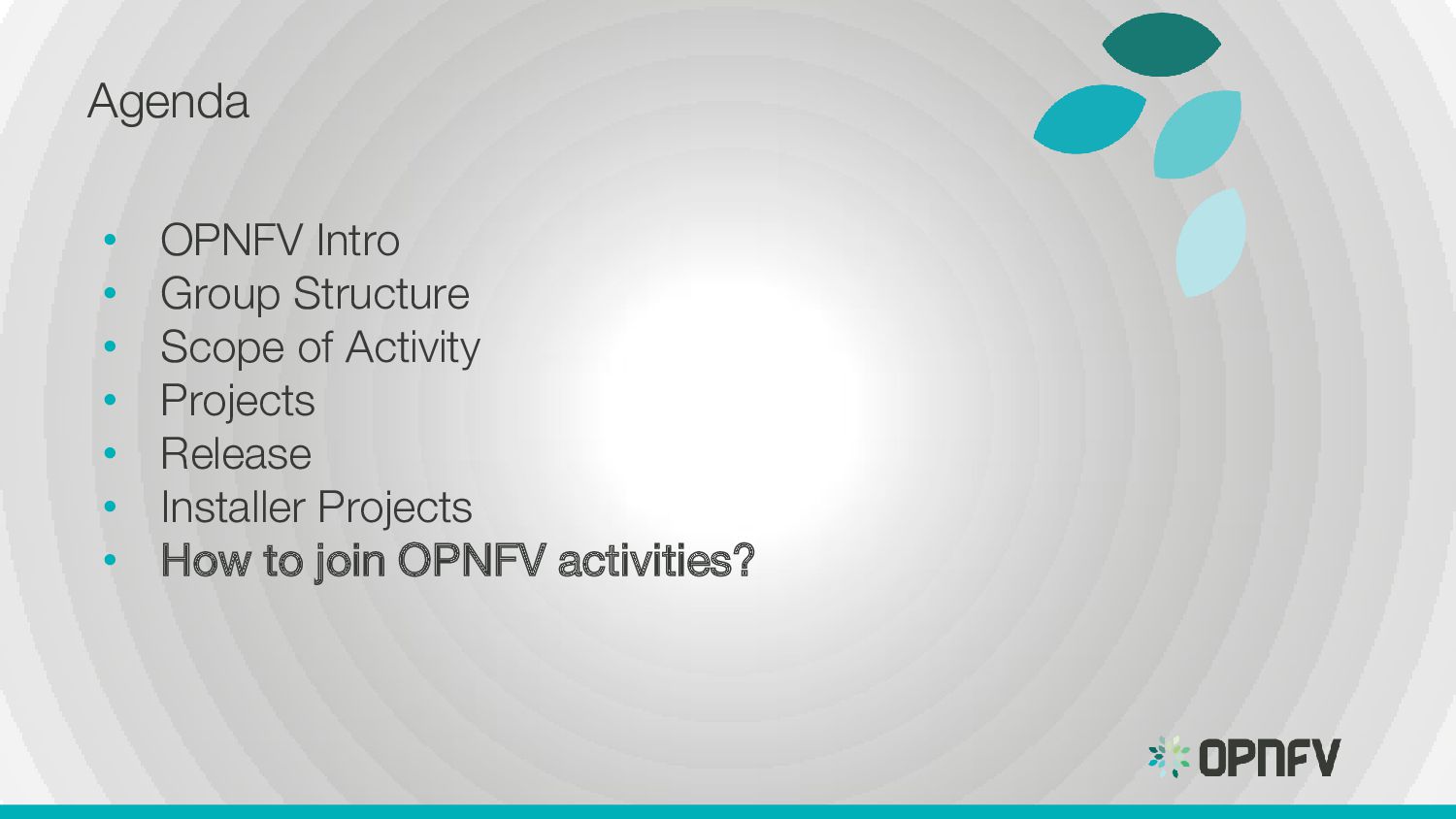

31. Agenda • OPNFV Intro • Group Structure • Scope of Activity • Projects • Release • Installer Projects • How to join OPNFV activities?

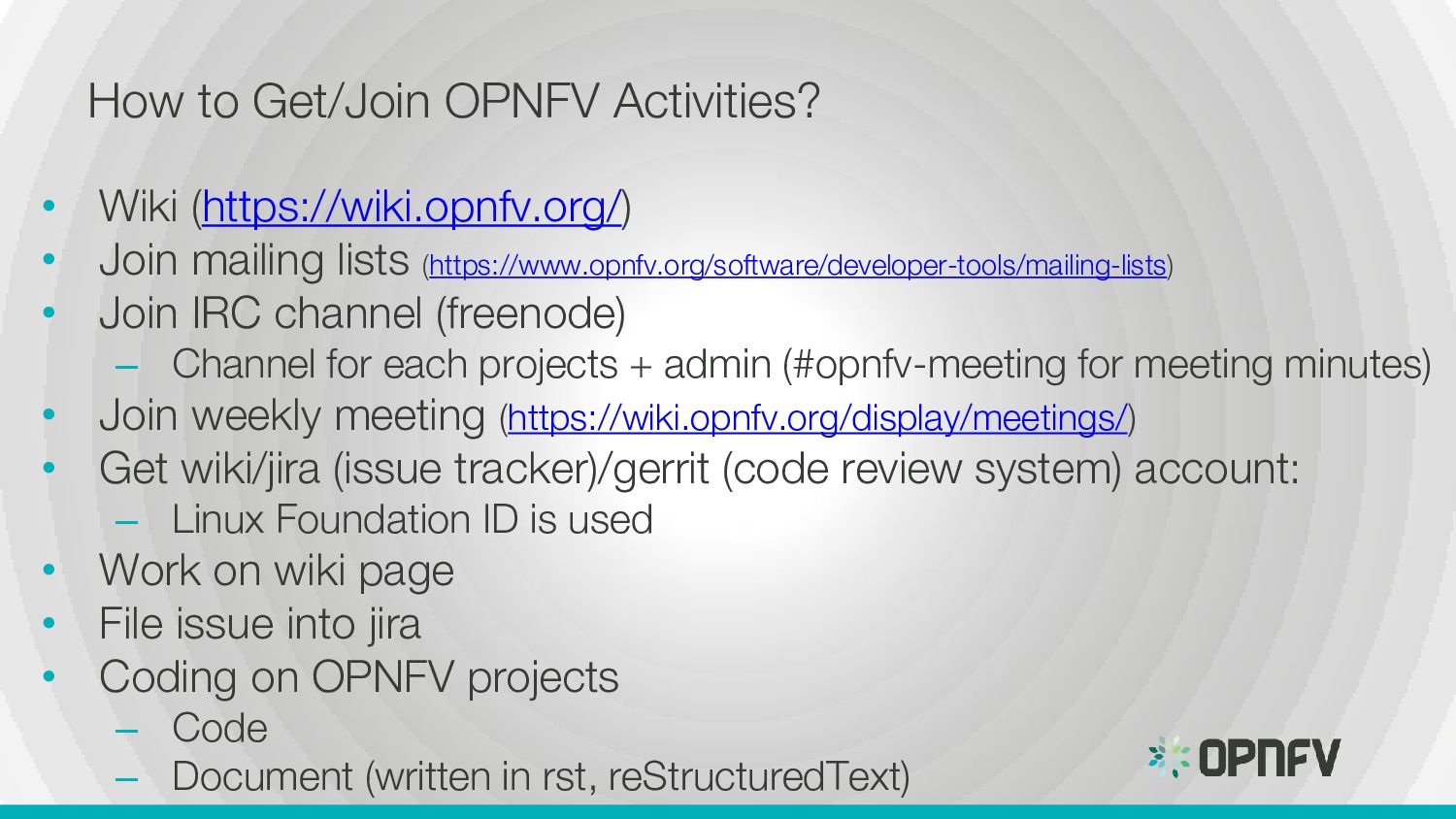

32. How to Get/Join OPNFV Activities? • Wiki (https://wiki.opnfv.org/) • Join mailing lists (https://www.opnfv.org/software/developer-tools/mailing-lists) • Join IRC channel (freenode) – Channel for each projects + admin (#opnfv-meeting for meeting minutes) • Join weekly meeting (https://wiki.opnfv.org/display/meetings/) • Get wiki/jira (issue tracker)/gerrit (code review system) account: – Linux Foundation ID is used • Work on wiki page • File issue into jira • Coding on OPNFV projects – Code – Document (written in rst, reStructuredText)
33. Agenda • OPNFV Intro • Group Structure • Scope of Activity • Projects • Release • Installer Projects • How to join OPNFV activities?
34. Thanks!!!
