Push du Machine Learning dans ton app … When TensorFlow
and ML Kit rule the world
None
None
Machine Learning
Machine learning ? Supervisé Arbre de décision Régression logistique Boosting
Réseau de Neurones … Non Supervisé Clustering K-moyenne ... Par renforcement Agent autonome capable d’apprendre de ses erreurs
Machine learning ? Supervisé Arbre de décision Régression logistique Boosting
Réseau de Neurones … Non Supervisé Clustering K-moyenne ... Par renforcement Agent autonome capable d’apprendre de ses erreurs
Un Neurone Opération Linéaire Fonction Filtre input 1 input n
output 1 output 1
Réseau neuronal convolutif R E S H A P E
None
TensorFlow Outils de calcul numérique haute performance Réseau de neurones
via Deep Learning Possède deux versions Mobile Open Source Made By Google Brain
None
Modèles Pré entraînés
Inception V3 MobileNet Smart Reply
Inception V3 MobileNet Smart Reply ImageNet trained with trained with
Accuracy ++ Poids - Accuracy + Poids ++
Inception V3 MobileNet Smart Reply ImageNet trained with trained with
Accuracy ++ Poids - Accuracy + Poids ++
→ Ré-entraîné MobileNet
Classer les images
python retrain.py \ --image_dir monkey \ --output_graph model/graph.pb \ --output_labels
model/label.txt \ --tfhub_module https://tfhub.dev/google/imagenet/mobilenet_v1_050_224/quantops/feature_vector/1 retrain.py https://www.tensorflow.org/tutorials/image_retraining
python retrain.py \ --image_dir monkey \ --output_graph model/graph.pb \ --output_labels
model/label.txt \ --tfhub_module https://tfhub.dev/google/imagenet/mobilenet_v1_050_224/quantops/feature_vector/1 retrain.py https://www.tensorflow.org/tutorials/image_retraining
python retrain.py \ --image_dir monkey \ --output_graph model/graph.pb \ --output_labels
model/label.txt \ --tfhub_module https://tfhub.dev/google/imagenet/mobilenet_v1_050_224/quantops/feature_vector/1 retrain.py https://www.tensorflow.org/tutorials/image_retraining
python retrain.py \ --image_dir monkey \ --output_graph model/graph.pb \ --output_labels
model/label.txt \ --tfhub_module https://tfhub.dev/google/imagenet/mobilenet_v1_050_224/quantops/feature_vector/1 retrain.py https://www.tensorflow.org/tutorials/image_retraining
Sauf que… Le modèle créé ne fonctionne pas Solution ?
Utiliser le retrain.py du codelab
python codeLab/tensorflow-for-poets-2/scripts/retrain.py \ --how_many_training_steps=500 \ --model_dir=model/ \ --summaries_dir=tf_files/training_summaries/mobilenet_0.50_224 \ --output_graph=model/graph.pb
\ --output_labels=model/label.txt \ --architecture=mobilenet_0.50_224 \ --image_dir=monkey retrain.py https://codelabs.developers.google.com/codelabs/tensorflow-for-poets/
TF model person label.txt
TensorFlow Mobile
TensorFlow Lite
Solution allégée Utilise des modèles en FlatBuffers Optimisé pour le
mobile Supporte une partie des opérations de TensorFlow Considéré encore comme une contribution à TensorFlow TensorFlow Lite ?
Optimisations : Quantization : FLOAT32 → BYTE8 Freeze : Couper
les branches inutiles pour la prédiction
T O C O TENSORFLOW LITE OPTIMIZING CONVERTER Saved Model
ou Frozen Graph → FlatBuffer
TOCO bazel run tensorflow/contrib/lite/toco:toco -- \ --input_file=model/graph.pb \ --input_format=TENSORFLOW_GRAPHDEF \
--output_format=TFLITE \ --output_file=model/graph.tflite \ --inference_type=FLOAT \ --input_shape=1,224,224,3 \ --input_array=input \ --output_array=final_result \ --input_data_type=FLOAT
TOCO bazel run tensorflow/contrib/lite/toco:toco -- \ --input_file=model/graph.pb \ --input_format=TENSORFLOW_GRAPHDEF \
--output_format=TFLITE \ --output_file=model/graph.tflite \ --inference_type=FLOAT \ --input_shape=1,224,224,3 \ --input_array=input \ --output_array=final_result \ --input_data_type=FLOAT
TOCO bazel run tensorflow/contrib/lite/toco:toco -- \ --input_file=model/graph.pb \ --input_format=TENSORFLOW_GRAPHDEF \
--output_format=TFLITE \ --output_file=model/graph.tflite \ --inference_type=FLOAT \ --input_shape=1,224,224,3 \ --input_array=input \ --output_array=final_result \ --input_data_type=FLOAT
TOCO bazel run tensorflow/contrib/lite/toco:toco -- \ --input_file=model/graph.pb \ --input_format=TENSORFLOW_GRAPHDEF \
--output_format=TFLITE \ --output_file=model/graph.tflite \ --inference_type=FLOAT \ --input_shape=1,224,224,3 \ --input_array=input \ --output_array=final_result \ --input_data_type=FLOAT
TOCO (Quantized Model) bazel run tensorflow/contrib/lite/toco:toco -- \ --input_file=model/graph.pb \
--input_format=TENSORFLOW_GRAPHDEF \ --output_format=TFLITE \ --output_file=model/graph.tflite \ --inference_type=QUANTIZED_UINT8 \ --input_shape=1,224,224,3 \ --input_array=Placeholder \ --output_array=final_result \ --default_ranges_min=0 \ --default_ranges_max=6
Intégration sur Android : FlatBuffer Model + labels.txt Android Assets
Image → ByteBuffer private fun fromBitmapToByteBuffer(bitmap: Bitmap): ByteBuffer { val
imgData = ByteBuffer.allocateDirect(4 * IMG_SIZE * IMG_SIZE * 3).apply { order(ByteOrder.nativeOrder()) rewind() } val pixels = IntArray(IMG_SIZE * IMG_SIZE) Bitmap.createScaledBitmap(bitmap, IMG_SIZE, IMG_SIZE, false).apply { getPixels(pixels, 0, width, 0, 0, width, height) } pixels.forEach { imgData.putFloat(((it shr 16 and 0xFF) - MEAN) / STD) imgData.putFloat(((it shr 8 and 0xFF) - MEAN) / STD) imgData.putFloat(((it and 0xFF) - MEAN) / STD) } return imgData }
Interpreter val fileInputStream = context.assets.openFd(MODEL_NAME).let { FileInputStream(it.fileDescriptor).channel.map( FileChannel.MapMode.READ_ONLY, it.startOffset, it.declaredLength
) } val interpreter = Interpreter(fileInputStream) val labels = context.assets.open("labels.txt").bufferedReader().readLines()
Run ! fun recognizeMonkey(bitmap: Bitmap) { val imgData = fromBitmapToByteBuffer(bitmap)
val outputs = Array(1, { FloatArray(labels.size) }) interpreter.run(imgData, outputs) val monkey = labels .mapIndexed { index, label -> Pair(label, outputs[0][index]) } .sortedByDescending { it.second } .first() view?.displayMonkey(monkey.first, monkey.second * 100) }
ML KIT
ML Kit: la boîte à outils Mobile Vision + Google
Cloud API + TensorFlow Lite
OCR Détection de Visages Lecture de code-barres Labelliser des images
Reconnaissance de points de repères Smart Reply
Exemple : Détection de Visages init { val options =
FirebaseVisionFaceDetectorOptions .Builder() .setClassificationType( FirebaseVisionFaceDetectorOptions .ALL_CLASSIFICATIONS ) .build() detector = FirebaseVision.getInstance().getVisionFaceDetector(options) }
fun recognizePicture(bitmap: Bitmap) { } Exemple : Détection de Visages
val firebaseVisionImage = FirebaseVisionImage.fromBitmap(bitmap) detector.detectInImage(firebaseVisionImage) .addOnSuccessListener { faces -> } .addOnFailureListener { view.displayFail() } try { if (faces.first().smilingProbability > 0.70) { view.displaySmile() } else { view.displaySad() } } catch (e: NoSuchElementException) { view.displayFail() }
CUSTOM MODEL with TensorFlow Lite
ML Kit Custom Android + iOS
ML Kit Custom Android + iOS
ML Kit Custom Android + iOS
ML Kit Custom Android + iOS
Modèle : - En local - A distance - Les
deux !
Initialisation val dataOptions = FirebaseModelInputOutputOptions .Builder() .setInputFormat(0, FirebaseModelDataType.FLOAT32, intArrayOf(1, IMG_SIZE,
IMG_SIZE, 3)) .setOutputFormat(0, FirebaseModelDataType.FLOAT32, intArrayOf(1, labels.size)) .build() val labels = context.assets.open("labels.txt").bufferedReader().readLines()
Initialisation val dataOptions = FirebaseModelInputOutputOptions .Builder() .setInputFormat(0, FirebaseModelDataType.FLOAT32, intArrayOf(1, IMG_SIZE,
IMG_SIZE, 3)) .setOutputFormat(0, FirebaseModelDataType.FLOAT32, intArrayOf(1, labels.size)) .build() val labels = context.assets.open("labels.txt").bufferedReader().readLines()
Initialisation Interpreter: Local Source val localSource = FirebaseLocalModelSource .Builder(ASSET) .setAssetFilePath("$MODEL_NAME.tflite")
.build()
Initialisation Interpreter: Cloud Source val conditions = FirebaseModelDownloadConditions .Builder() .requireWifi()
.build() val cloudSource = FirebaseCloudModelSource.Builder(MODEL_NAME) .enableModelUpdates(true) .setInitialDownloadConditions(conditions) .setUpdatesDownloadConditions(conditions) .build()
Initialisation Interpreter: Cloud Source val conditions = FirebaseModelDownloadConditions .Builder() .requireWifi()
.build() val cloudSource = FirebaseCloudModelSource.Builder(MODEL_NAME) .enableModelUpdates(true) .setInitialDownloadConditions(conditions) .setUpdatesDownloadConditions(conditions) .build()
Initialisation Interpreter: Cloud Source val conditions = FirebaseModelDownloadConditions .Builder() .requireWifi()
.build() val cloudSource = FirebaseCloudModelSource.Builder(MODEL_NAME) .enableModelUpdates(true) .setInitialDownloadConditions(conditions) .setUpdatesDownloadConditions(conditions) .build()

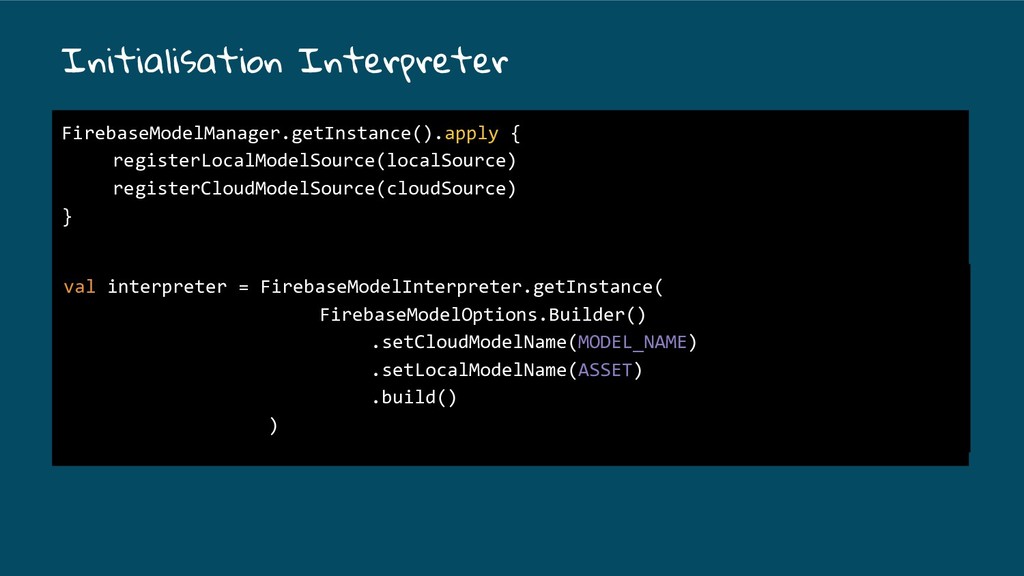

Initialisation Interpreter FirebaseModelManager.getInstance().apply { registerLocalModelSource(localSource) registerCloudModelSource(cloudSource) } val interpreter =
FirebaseModelInterpreter.getInstance( FirebaseModelOptions.Builder() .setCloudModelName(MODEL_NAME) .setLocalModelName(ASSET) .build() )
Run ! val inputs = FirebaseModelInputs.Builder() .add(fromBitmapToByteBuffer(bitmap)) .build() interpreter?.run(inputs, dataOptions)
?.addOnSuccessListener { val output = it.getOutput<Array<FloatArray>>(0) val label = labels.mapIndexed { index, label -> Pair(label, output[0][index]) }.sortedByDescending { it.second }.first() view?.displayMonkey(label.first, label.second*100) } ?.addOnFailureListener { view?.displayError() }
None
Mais : Téléchargement du modèle long et aléatoire Aucune indication
sur le % de téléchargement du modèle Quid des bugs de TensorFlow Lite ? TOCO, quantized model et autres incompréhensions Documentation légère Exemples peu compréhensibles (dont le code est assez sale) Côté API cher
Merci ! Références : https://firebase.google.com/docs/ml-kit/ https://codelabs.developers.google.com/codelabs/tensorflow-for-poets-2-tflite/ https://codelabs.developers.google.com/codelabs/mlkit-android/ Dataset : https://www.kaggle.com/slothkong/10-monkey-species/version/1
@SandraDdev @sandra.dupre
