Apache Tephra

This presentation gives an overview of the Apache Tephra project. It explains Tephra in terms of Pheonix, HBase and HDFS. It examines the project architecture and configuration.

Links for further information and connecting

http://www.amazon.com/Michael-Frampton/e/B00NIQDOOM/

https://nz.linkedin.com/pub/mike-frampton/20/630/385

https://open-source-systems.blogspot.com/

Transcript

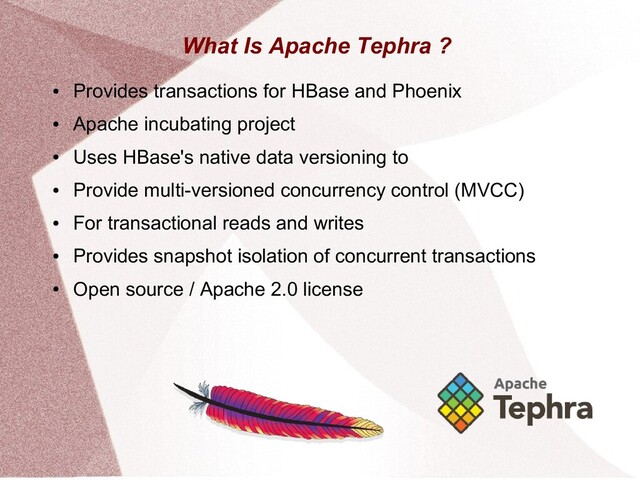

1. What Is Apache Tephra ? • Provides transactions for HBase and Phoenix • Apache incubating project • Uses HBase's native data versioning to • Provide multi-versioned concurrency control (MVCC) • For transactional reads and writes • Provides snapshot isolation of concurrent transactions • Open source / Apache 2.0 license
2. Tephra Architecture • Tephra has three main components • Transaction Server – Maintains global view of transaction state – Assigns new transaction IDs – Performs conflict detection • Transaction Client – Coordinates start, commit – And rollback of transactions
3. Tephra Architecture • Tephra has three main components • TransactionProcessor Coprocessor – Applies filtering to the data read • (based on a given transaction's state) – Cleans up any data from old • (no longer visible) transactions • Multiple transaction server instances can run concurrently – Allows for automatic failover – One server instance is actively serving requests – Configured by ZooKeeper
4. Tephra Phoenix • Tephra is an incubating Apache project • Phoenix uses Tephra for transaction support • So this functionality is in a beta stage • It gives cross row and cross table transaction support • And full ACID semantics • Remember that Phoenix uses Hbase as it's backing store • Next slides show configuration
5. Phoenix Architecture ( Reminder )
6. Tephra Phoenix Config • Add the following config • To your client side hbase-site.xml file • To enable transactions <property> <name>phoenix.transactions.enabled</name> <value>true</value> </property>
7. Tephra Phoenix Config • Add the following config • To your server side hbase-site.xml file • To configure the transaction manager <property> <name>data.tx.snapshot.dir</name> <value>/tmp/tephra/snapshots</value> </property>
8. Tephra Phoenix Config • Add the following config • To your server side hbase-site.xml file • To set the transaction timeout <property> <name>data.tx.timeout</name> <value>60</value> </property> • Then you can start Tephra on Phoenix ./bin/tephra
9. Tephra Requirements Component Java HDFS Hbase ZooKeeper Source Apache Hadoop CDH or HDP MapR Apache CDH or HDP MapR Apache CDH or HDP MapR Version 1.7.xx / 1.8.xx 2.0.2-alpha - 2.7.x (CDH) 5.0.0 - 5.12.0 /(HDP) 2.0 – 2.6 4.1 - 5.1 (with MapR-FS) 0.96.x, 0.98.x, 1.0.x, 1.1.x, 1.2.x, 1.3.x (except 1.1.5 and 1.2.2) and 2.0.x (CDH) 5.0.0 - 5.12.0 /(HDP) 2.0 – 2.6 4.1 - 5.1 (with Apache Hbase) Version 3.4.3 - 3.4.5 (CDH) 5.0.0 - 5.12.0 /(HDP) 2.0 – 2.6 4.1 - 5.1
10. Tephra Transaction Server Config • Add changes to hbase-site.xml data.tx.bind.port data.tx.bind.address data.tx.server.io.threads data.tx.server.threads data.tx.timeout data.tx.long.timeout data.tx.cleanup.interval data.tx.snapshot.dir data.tx.snapshot.interval data.tx.snapshot.retain data.tx.metrics.period 15165 0.0.0.0 2 20 30 86400 10 300 10 60 Port to bind to Server address to listen on Number of threads for socket IO Number of handler threads Timeout for a transaction to complete Timeout for a long run trans to complete Frequency to check for timed out trans HDFS directory used to store snapshots requency to write new snapshots No. old transaction snapshots to retain Frequency for metrics reporting
11. Tephra Transaction Client Config • Add changes to hbase-site.xml data.tx.client.timeout data.tx.client.provider data.tx.client.count data.tx.client.obtain.timeout data.tx.client.retry.strategy data.tx.client.retry.attempts data.tx.client.retry.backoff.initial data.tx.client.retry.backoff.factor data.tx.client.retry.backoff.limit 30000 Pool 50 3000 Backoff 2 100 4 30000 Client socket timeout (milliseconds) Client provider strategy: "pool" uses a pool of clients "thread-local" a client per thread Max number of clients for "pool" provider Pool provider clients get timeout (ms) Client retry strategy(Backoff/n-times) Number of times to retry (n-times) Initial sleep time (backoff) Multiplication factor for sleep time Exit when sleep time reaches this limit
12. Tephra HBase Coprocessor Configuration • Tephra requires an HBase coprocessor to be installed • On all tables where transactional reads and writes • Will be performed, Add this change • To hbase-site.xml <property> <name>hbase.coprocessor.region.classes</name> <value>org.apache.tephra.hbase.coprocessor.TransactionProcessor</value> </property> • Use Tephra binary to start once configured ./bin/tephra start
