Apache Airflow

This presentation gives an overview of the Apache Airflow project. It explains Apache Airflow in terms of it's pipelines, tasks, integration and UI.

Links for further information and connecting

http://www.amazon.com/Michael-Frampton/e/B00NIQDOOM/

https://nz.linkedin.com/pub/mike-frampton/20/630/385

https://open-source-systems.blogspot.com/

Transcript

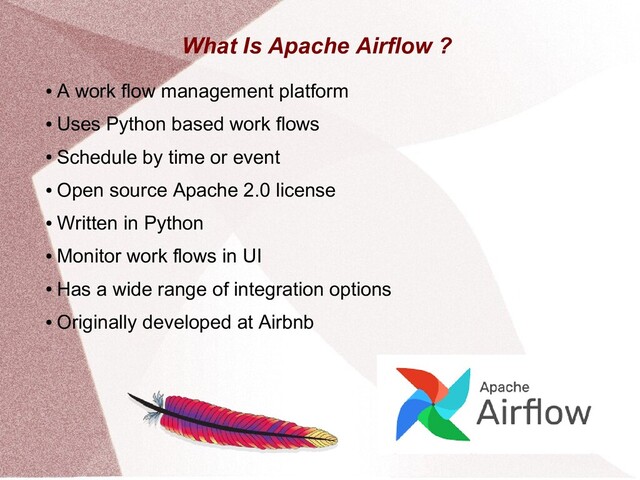

1. What Is Apache Airflow ? • A work flow management platform • Uses Python based work flows • Schedule by time or event • Open source Apache 2.0 license • Written in Python • Monitor work flows in UI • Has a wide range of integration options • Originally developed at Airbnb
