1. Elasticsearch 5.x You Know, for Search https://speakerdeck.com/shagaba/elasticsearch-5-dot-x-you-know-for-search Shai Gabai
7. What is Elasticsearch?

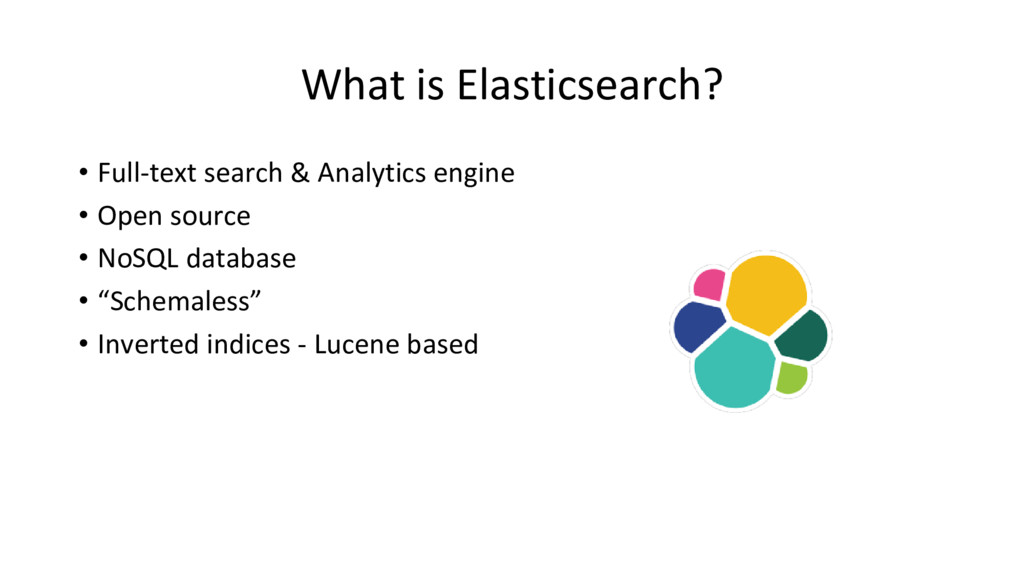

8. What is Elasticsearch? • Full-text search & Analytics engine • Open source • NoSQL database • “Schemaless” • Inverted indices - Lucene based

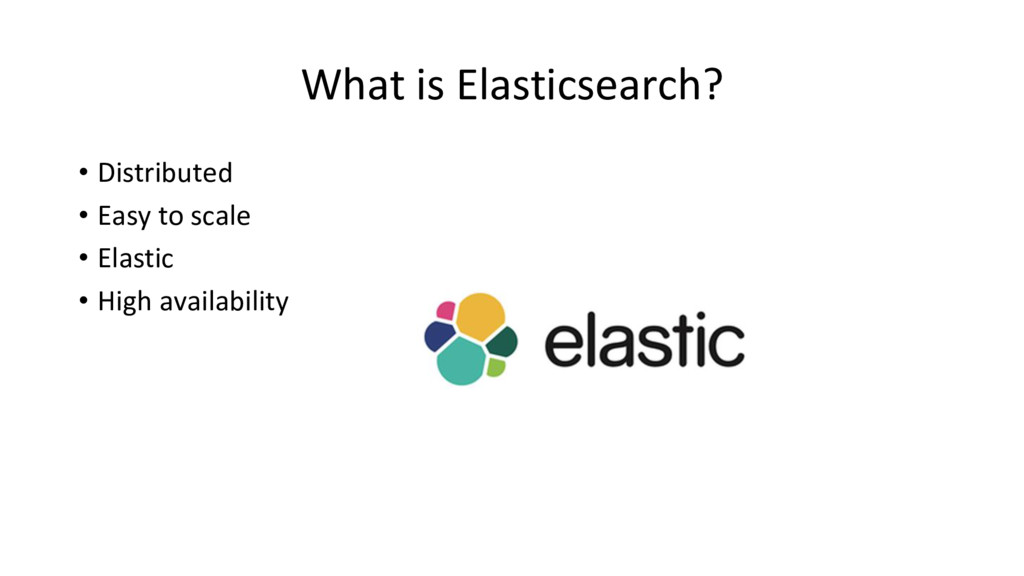

9. What is Elasticsearch? • Distributed • Easy to scale • Elastic • High availability
10. What is Elasticsearch? • RESTFul interface (HTTP/JSON) • Written in Java • ELK / Elastic stack

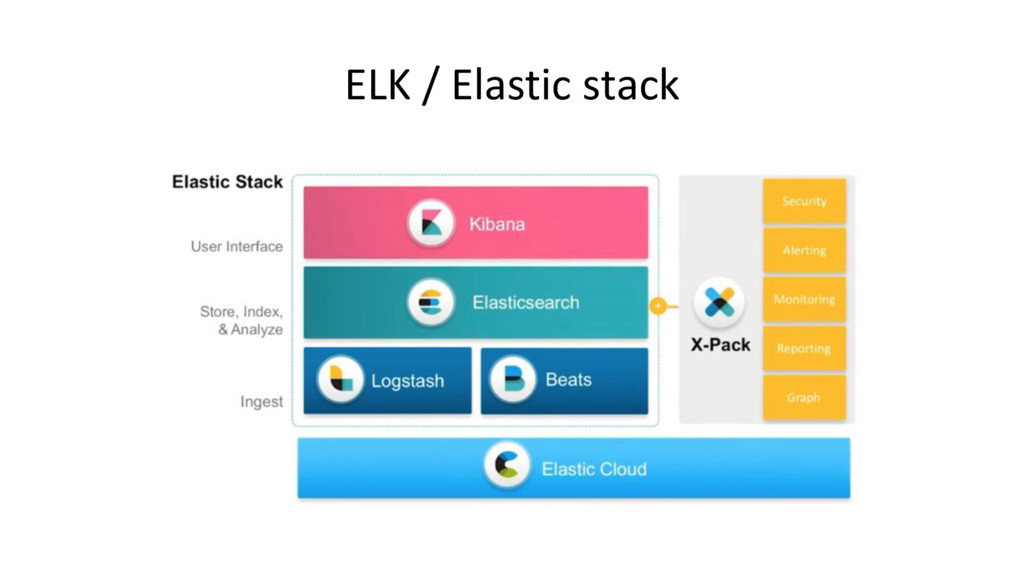

11. ELK / Elastic stack

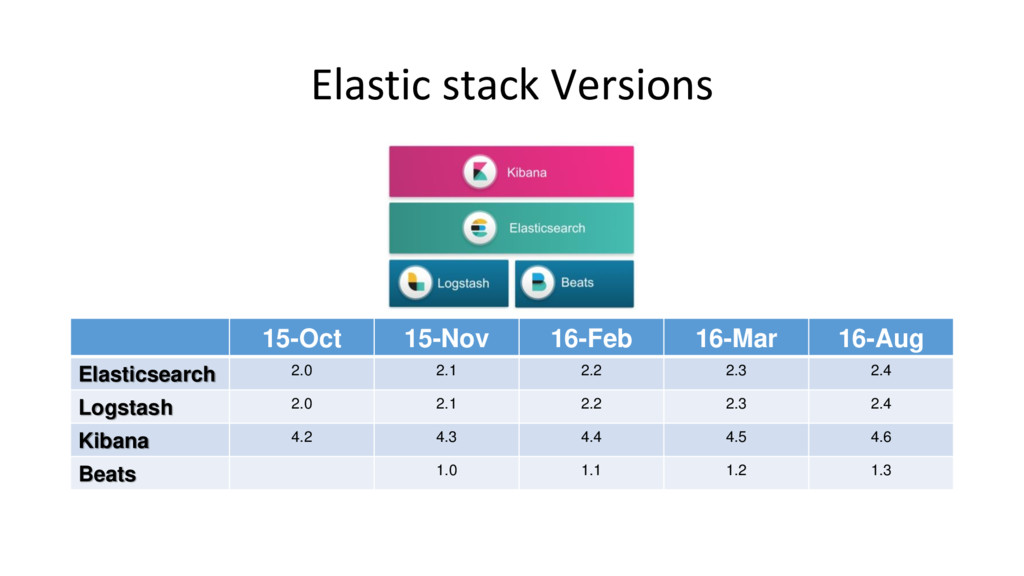

12. Elastic stack Versions 16-Aug 16-Mar 16-Feb 15-Nov 15-Oct 2.4 2.3 2.2 2.1 2.0 Elasticsearch 2.4 2.3 2.2 2.1 2.0 Logstash 4.6 4.5 4.4 4.3 4.2 Kibana 1.3 1.2 1.1 1.0 Beats
13. Elastic stack Versions

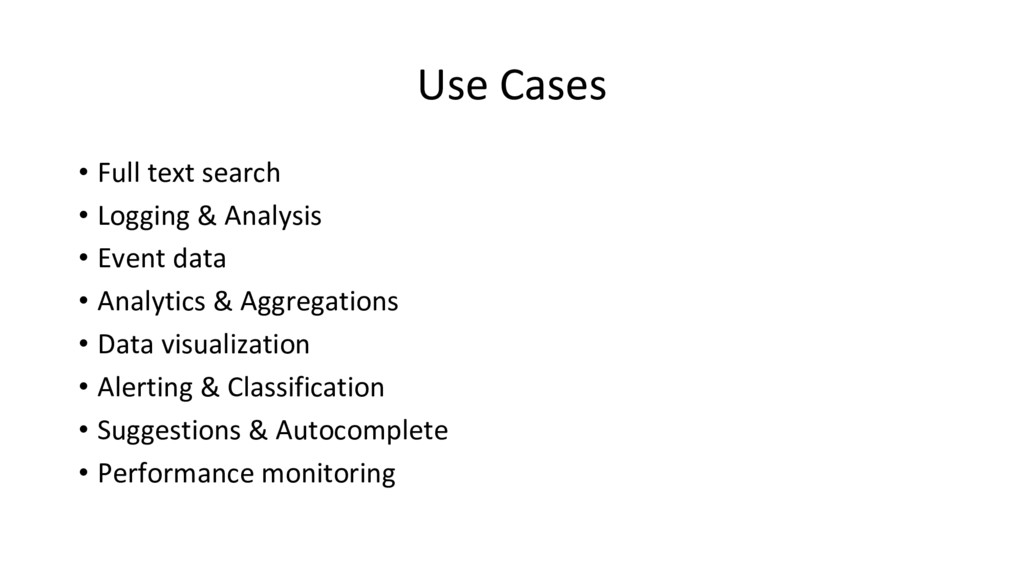

14. Use Cases • Full text search • Logging & Analysis • Event data • Analytics & Aggregations • Data visualization • Alerting & Classification • Suggestions & Autocomplete • Performance monitoring

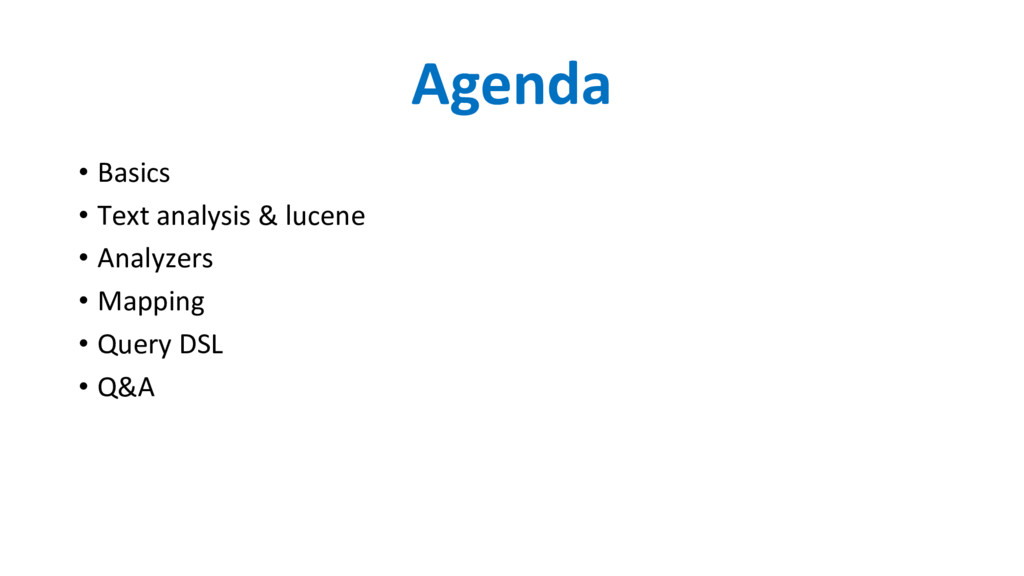

16. Agenda • Basics • Text analysis & lucene • Analyzers • Mapping • Query DSL • Q&A
17. Basics • Concepts • Getting started • Field datatypes • Document • Metadata • CRUD

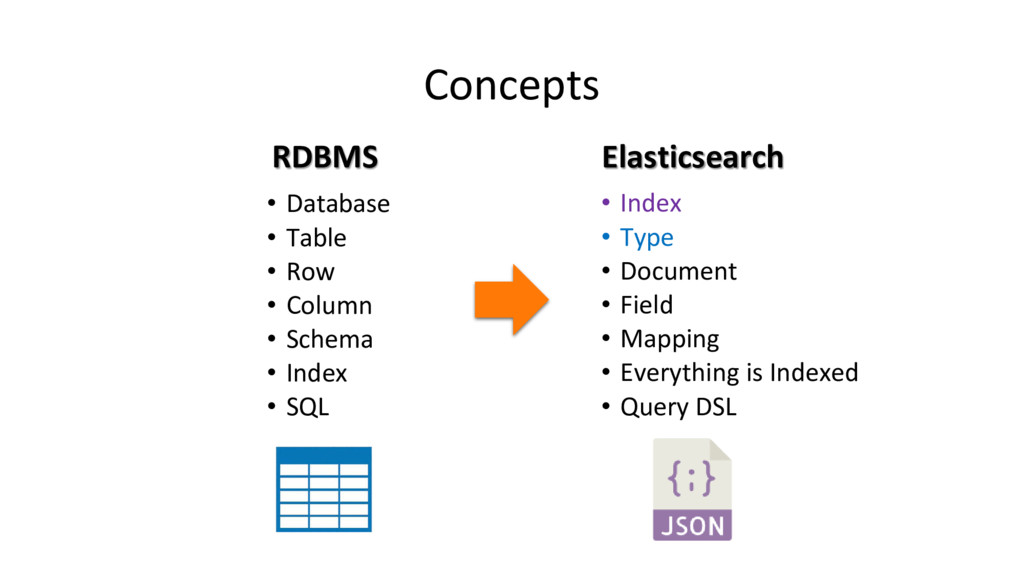

18. Concepts • Index • Type • Document • Field • Mapping • Everything is Indexed • Query DSL • Database • Table • Row • Column • Schema • Index • SQL RDBMS Elasticsearch
19. Idx-1-sh1 Idx-1-sh2 Idx-1-sh3 Node-1 Elasticsearch • Shard • Node Concepts Index-1

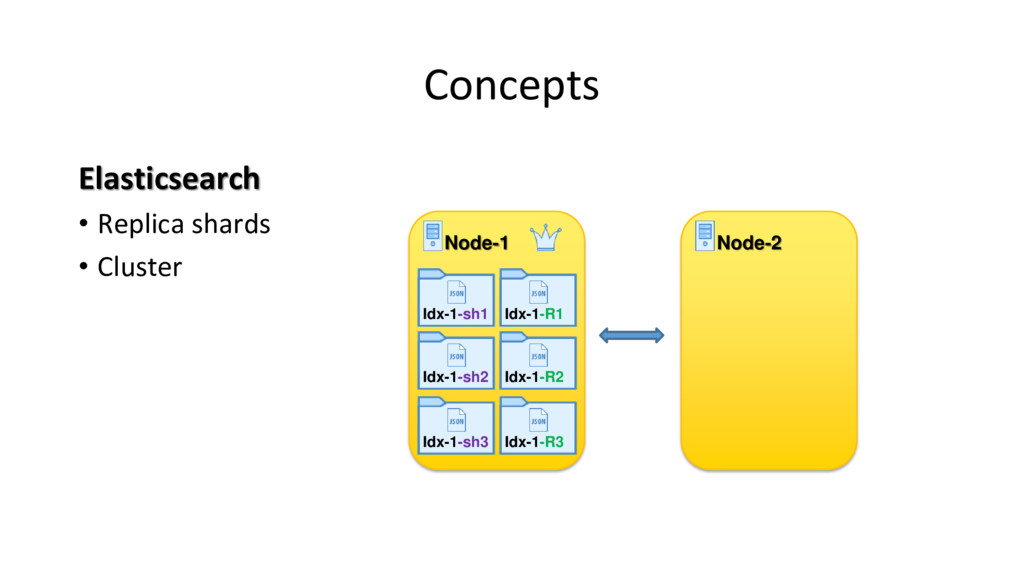

20. Elasticsearch • Replica shards • Cluster Concepts Idx-1-sh1 Idx-1-sh2 Idx-1-sh3 Node-1 Idx-1-R1 Idx-1-R2 Idx-1-R3 Node-2

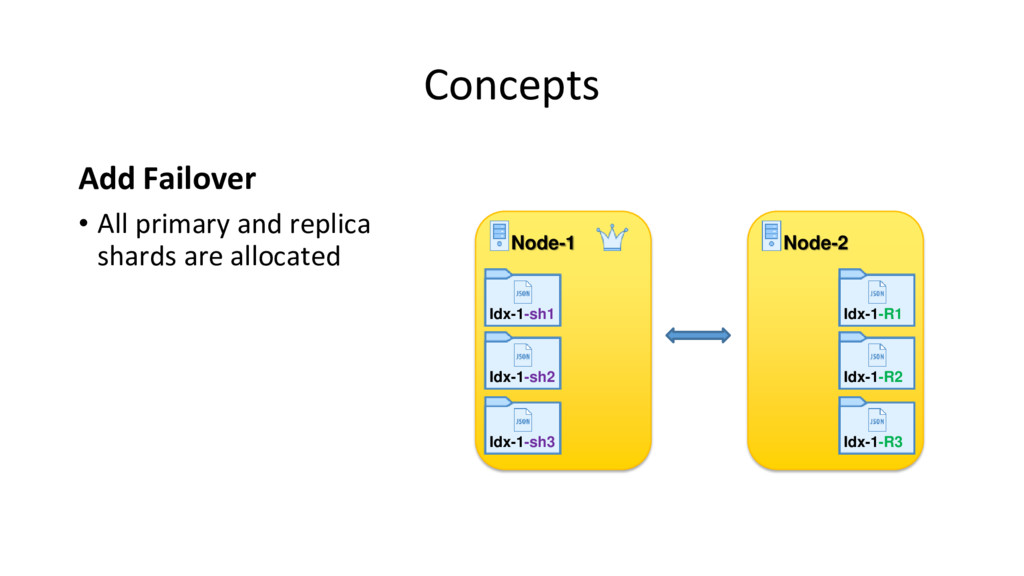

21. Add Failover • All primary and replica shards are allocated Concepts Idx-1-sh1 Idx-1-sh2 Idx-1-sh3 Node-1 Node-2 Idx-1-R1 Idx-1-R2 Idx-1-R3

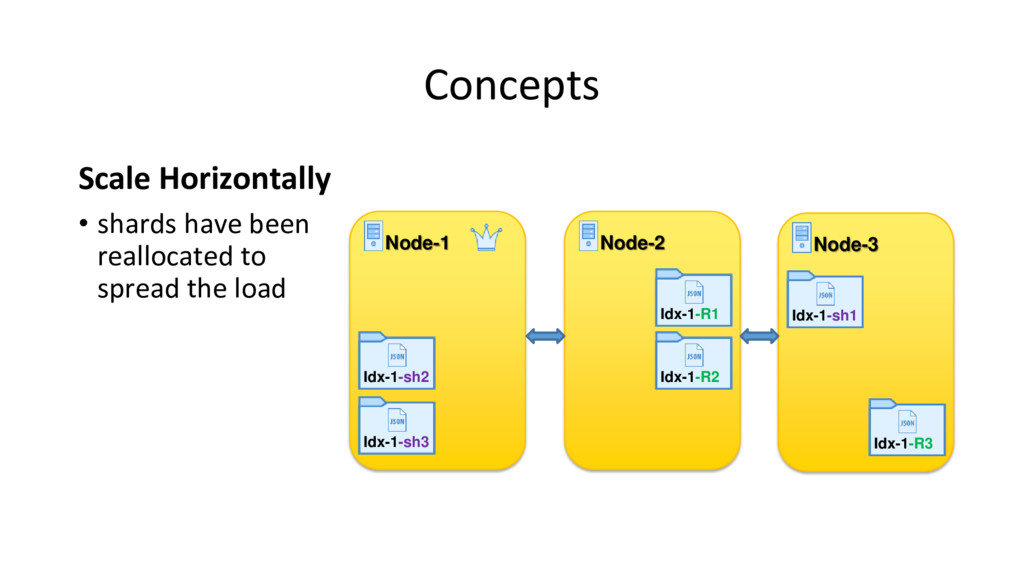

22. Scale Horizontally • shards have been reallocated to spread the load Concepts Idx-1-sh2 Idx-1-sh3 Node-1 Node-2 Idx-1-R1 Idx-1-R2 Idx-1-sh1 Node-3 Idx-1-R3

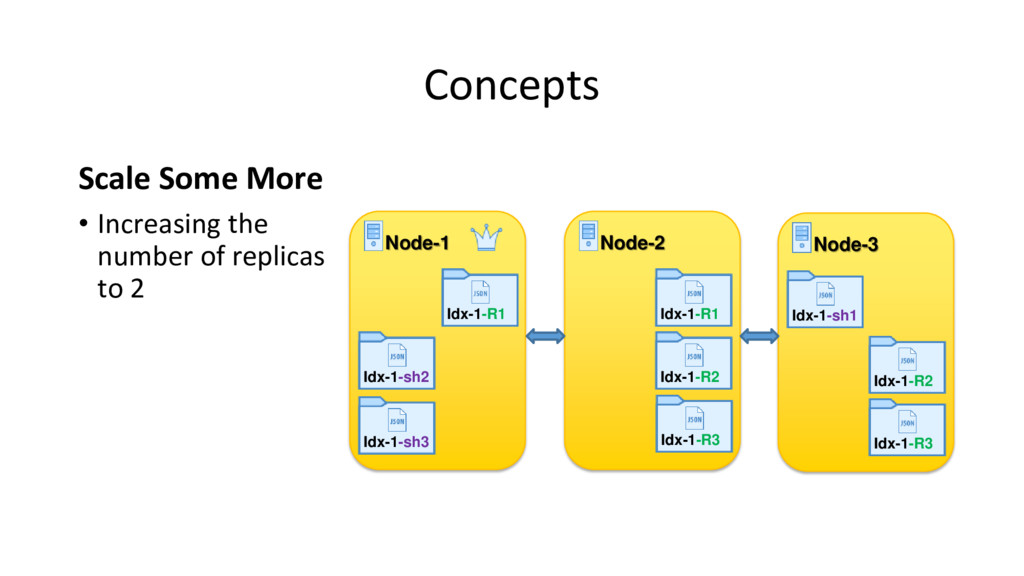

23. Scale Some More • Increasing the number of replicas to 2 Concepts Idx-1-sh2 Idx-1-sh3 Node-1 Node-2 Idx-1-R1 Idx-1-R2 Idx-1-sh1 Node-3 Idx-1-R3 Idx-1-R3 Idx-1-R2 Idx-1-R1

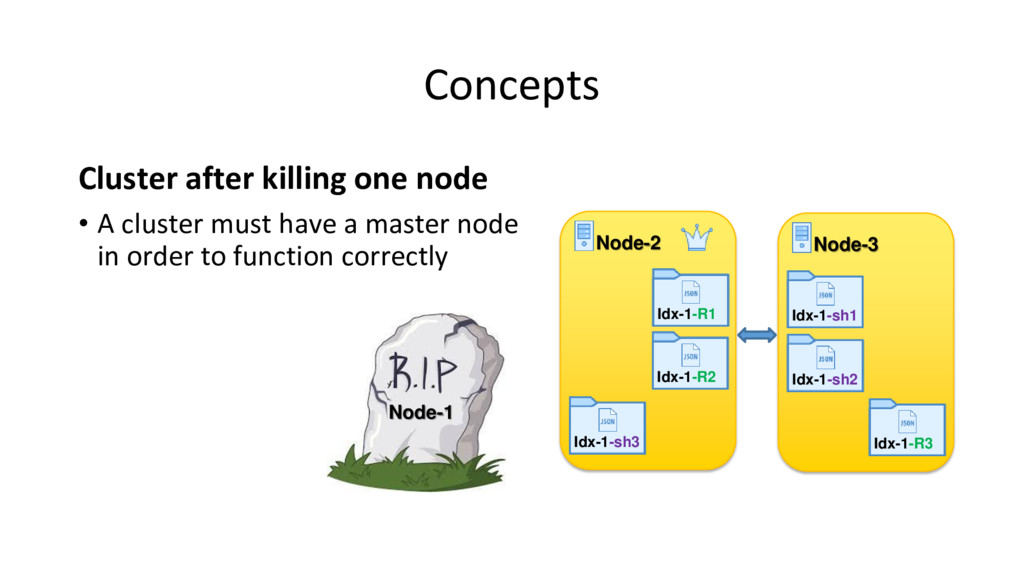

24. Cluster after killing one node • A cluster must have a master node in order to function correctly Concepts Idx-1-sh2 Idx-1-sh3 Node-2 Idx-1-sh1 Node-3 Idx-1-R3 Idx-1-R2 Idx-1-R1 Node-1

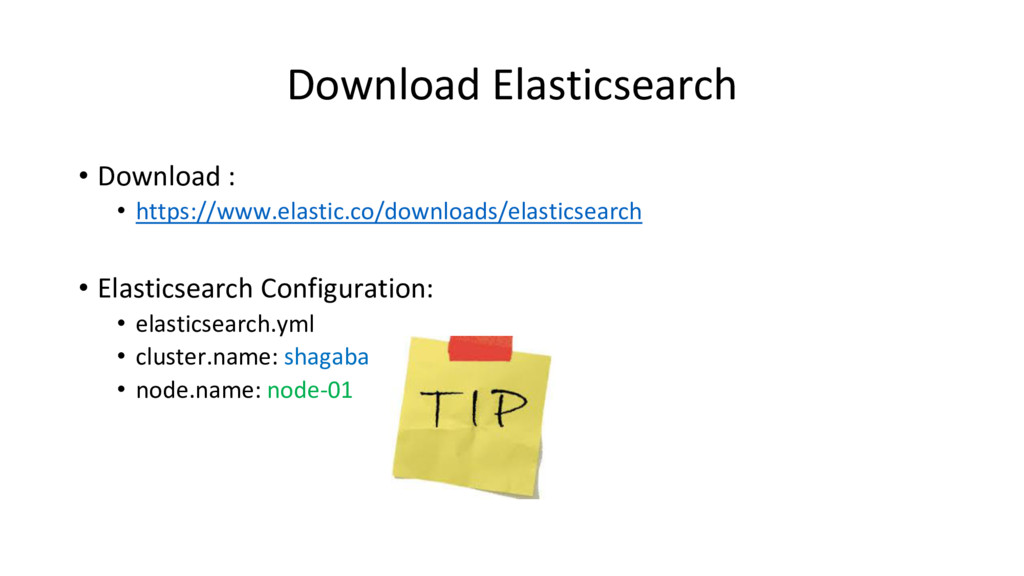

25. Download Elasticsearch • Download : • https://www.elastic.co/downloads/elasticsearch • Elasticsearch Configuration: • elasticsearch.yml • cluster.name: shagaba • node.name: node-01

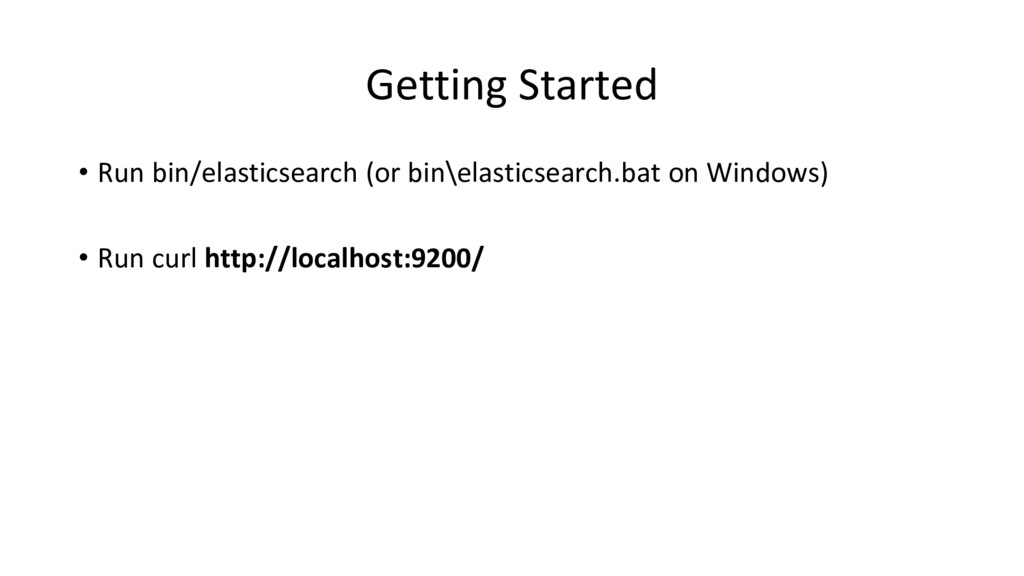

26. Getting Started • Run bin/elasticsearch (or bin\elasticsearch.bat on Windows) • Run curl http://localhost:9200/

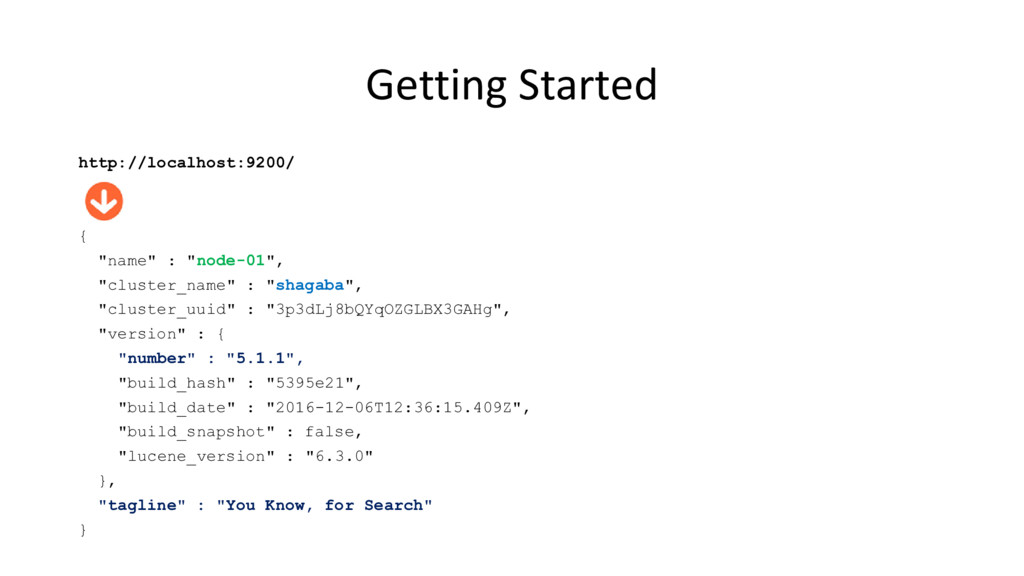

27. Getting Started http://localhost:9200/ { "name" : "node-01", "cluster_name" : "shagaba", "cluster_uuid" : "3p3dLj8bQYqOZGLBX3GAHg", "version" : { "number" : "5.1.1", "build_hash" : "5395e21", "build_date" : "2016-12-06T12:36:15.409Z", "build_snapshot" : false, "lucene_version" : "6.3.0" }, "tagline" : "You Know, for Search" }

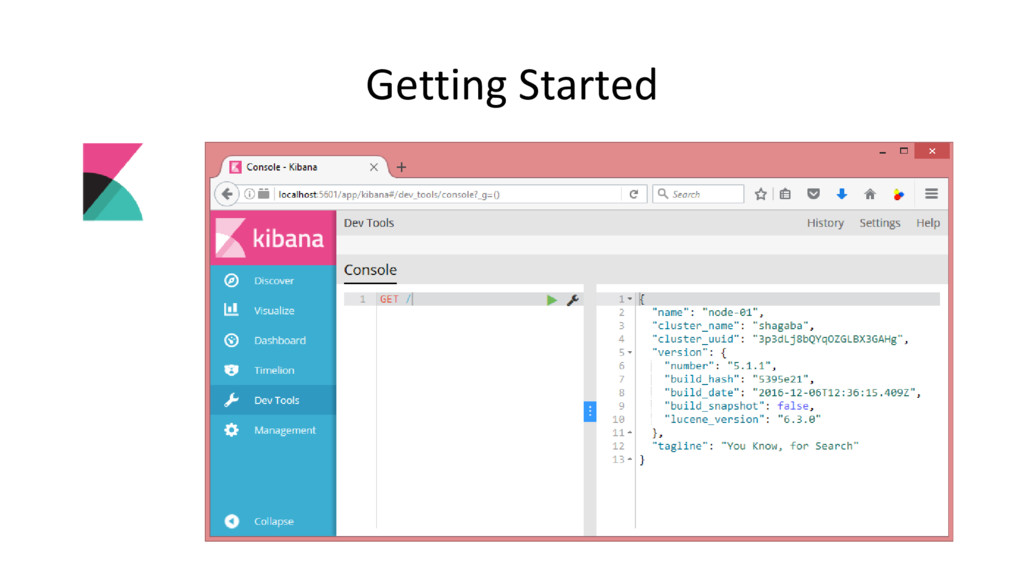

28. Getting Started

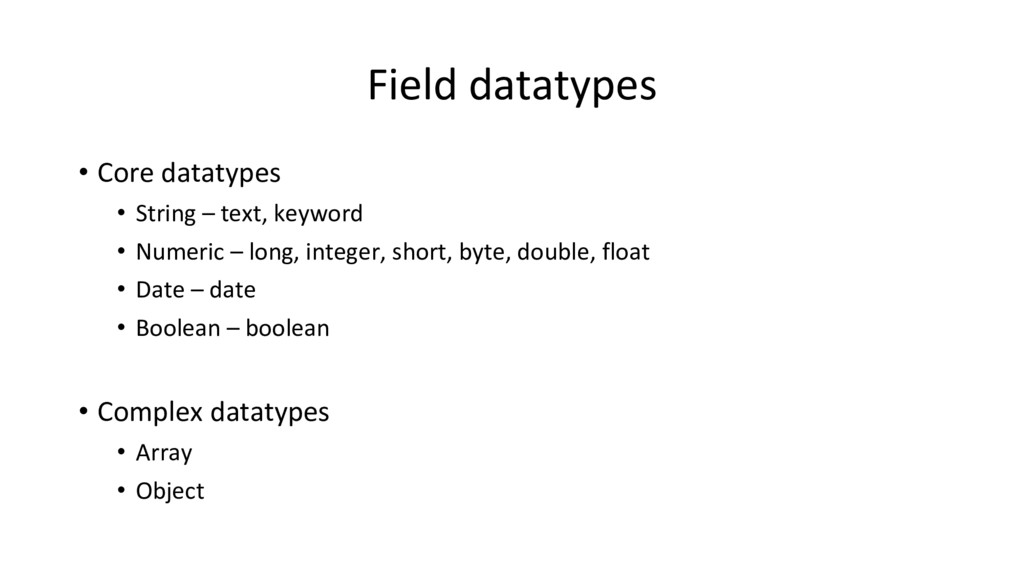

29. Field datatypes • Core datatypes • String – text, keyword • Numeric – long, integer, short, byte, double, float • Date – date • Boolean – boolean • Complex datatypes • Array • Object

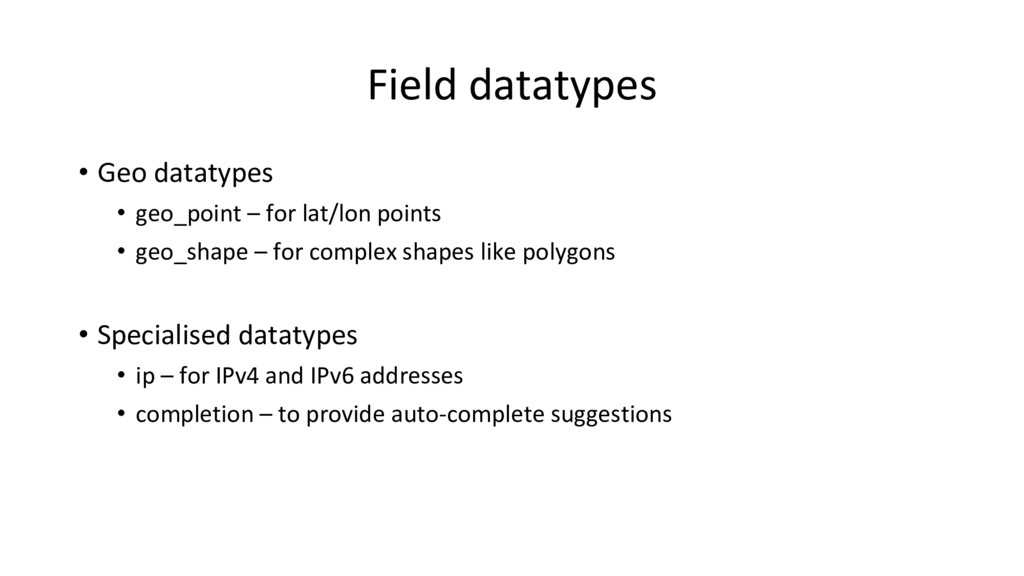

30. Field datatypes • Geo datatypes • geo_point – for lat/lon points • geo_shape – for complex shapes like polygons • Specialised datatypes • ip – for IPv4 and IPv6 addresses • completion – to provide auto-complete suggestions

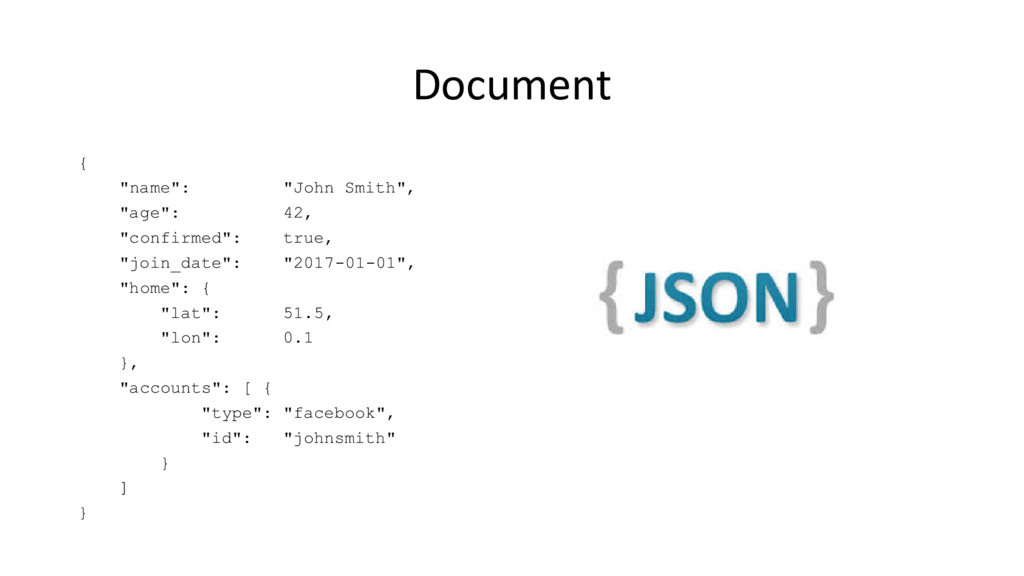

31. Document { "name": "John Smith", "age": 42, "confirmed": true, "join_date": "2017-01-01", "home": { "lat": 51.5, "lon": 0.1 }, "accounts": [ { "type": "facebook", "id": "johnsmith" } ] }

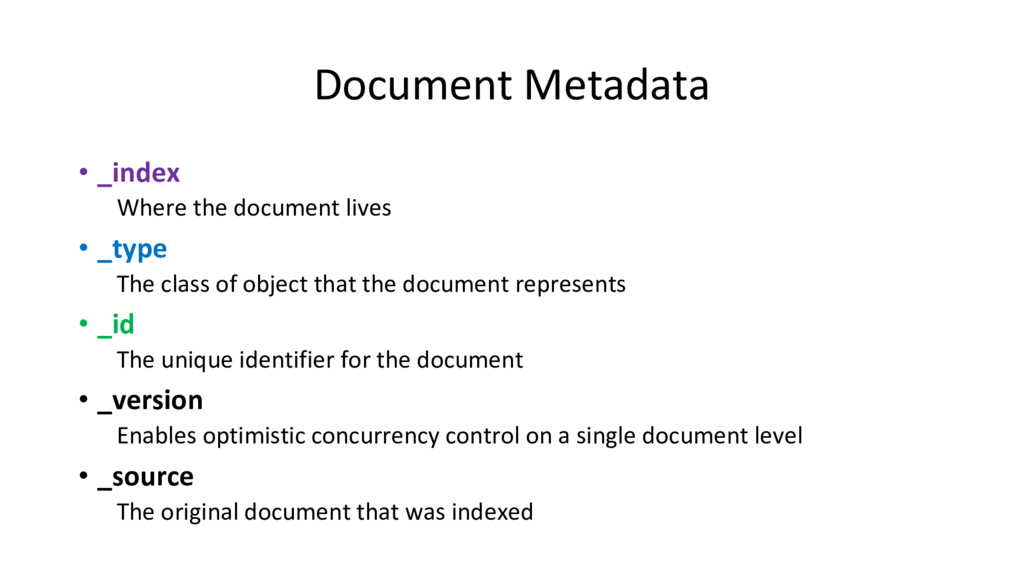

32. Document Metadata • _index Where the document lives • _type The class of object that the document represents • _id The unique identifier for the document • _version Enables optimistic concurrency control on a single document level • _source The original document that was indexed

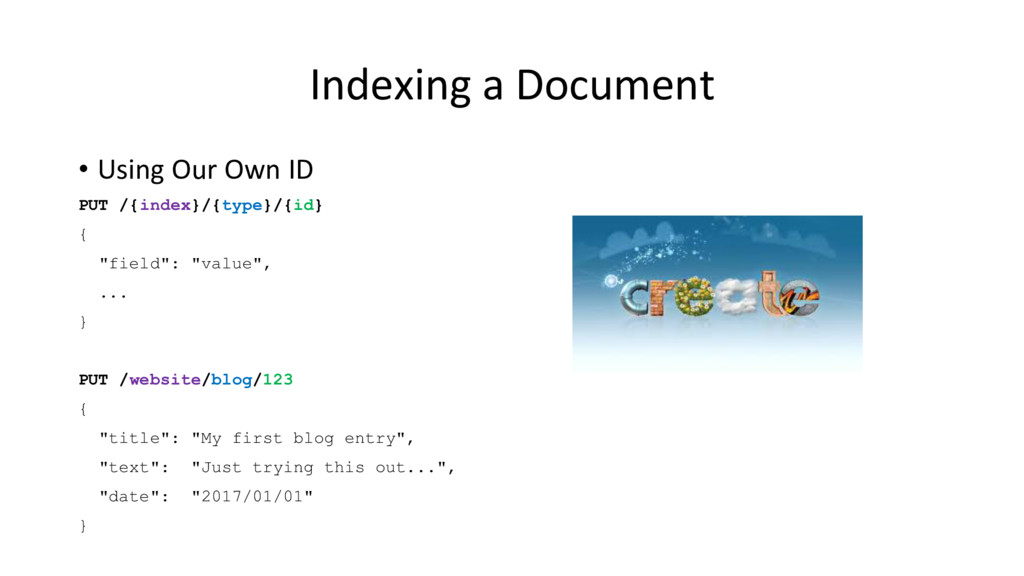

33. Indexing a Document • Using Our Own ID PUT /{index}/{type}/{id} { "field": "value", ... } PUT /website/blog/123 { "title": "My first blog entry", "text": "Just trying this out...", "date": "2017/01/01" }

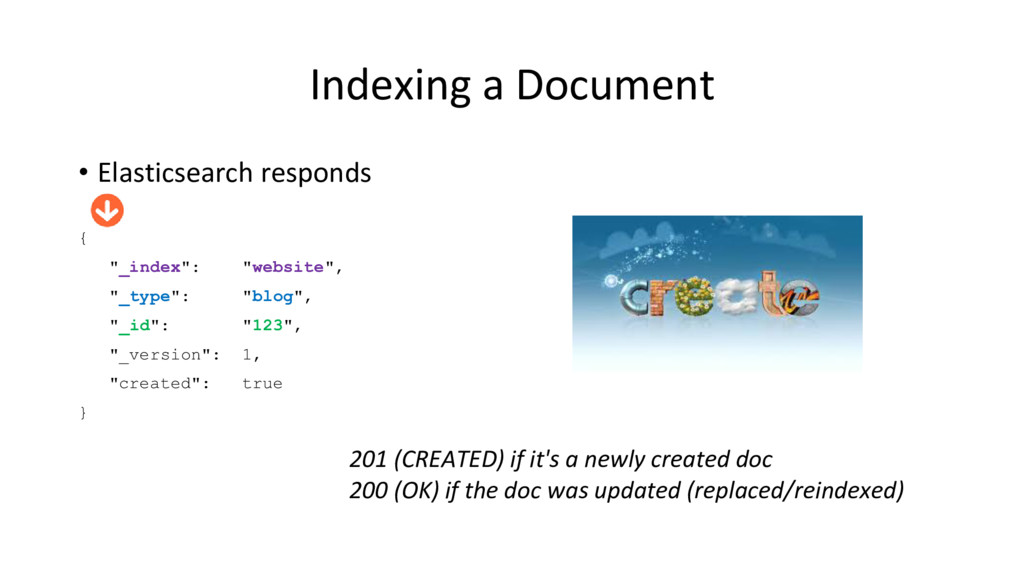

34. Indexing a Document • Elasticsearch responds { "_index": "website", "_type": "blog", "_id": "123", "_version": 1, "created": true } 201 (CREATED) if it's a newly created doc 200 (OK) if the doc was updated (replaced/reindexed)

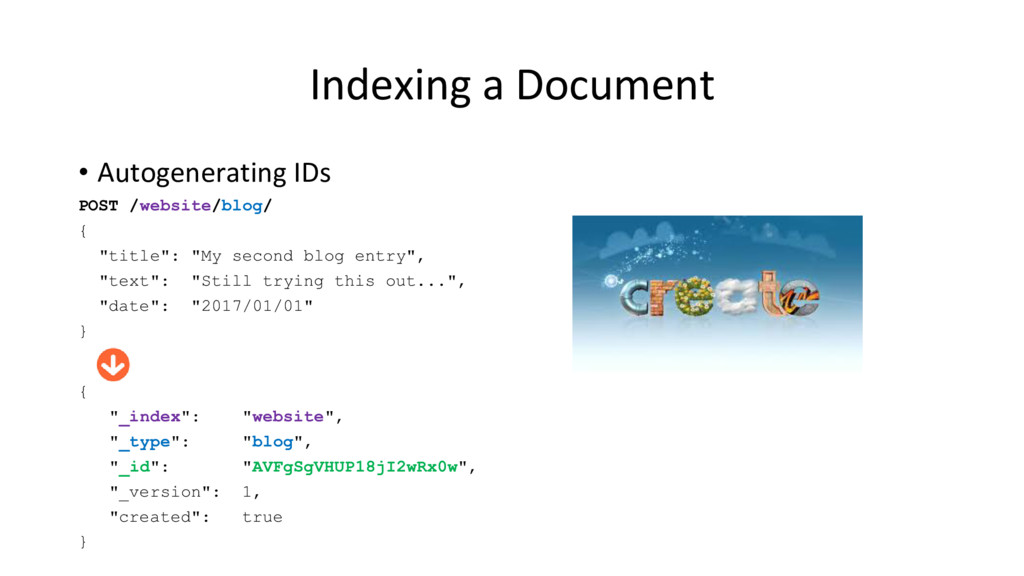

35. Indexing a Document • Autogenerating IDs POST /website/blog/ { "title": "My second blog entry", "text": "Still trying this out...", "date": "2017/01/01" } { "_index": "website", "_type": "blog", "_id": "AVFgSgVHUP18jI2wRx0w", "_version": 1, "created": true }
36. Retrieving a Document • Retrieving the whole Document GET /website/blog/123?pretty { "_index" : "website", "_type" : "blog", "_id" : "123", "_version" : 1, "found" : true, "_source" : { "title": "My first blog entry", "text": "Just trying this out...", "date": "2017/01/01" } } 200 (OK) if exists 404 (NOT FOUND) if doesn’t exist

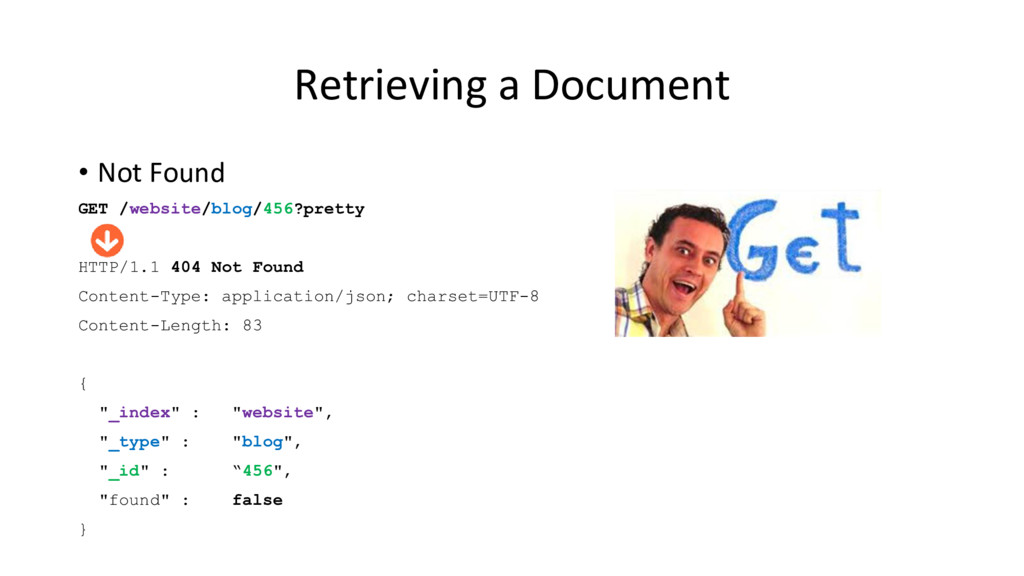

37. Retrieving a Document • Not Found GET /website/blog/456?pretty HTTP/1.1 404 Not Found Content-Type: application/json; charset=UTF-8 Content-Length: 83 { "_index" : "website", "_type" : "blog", "_id" : “456", "found" : false }

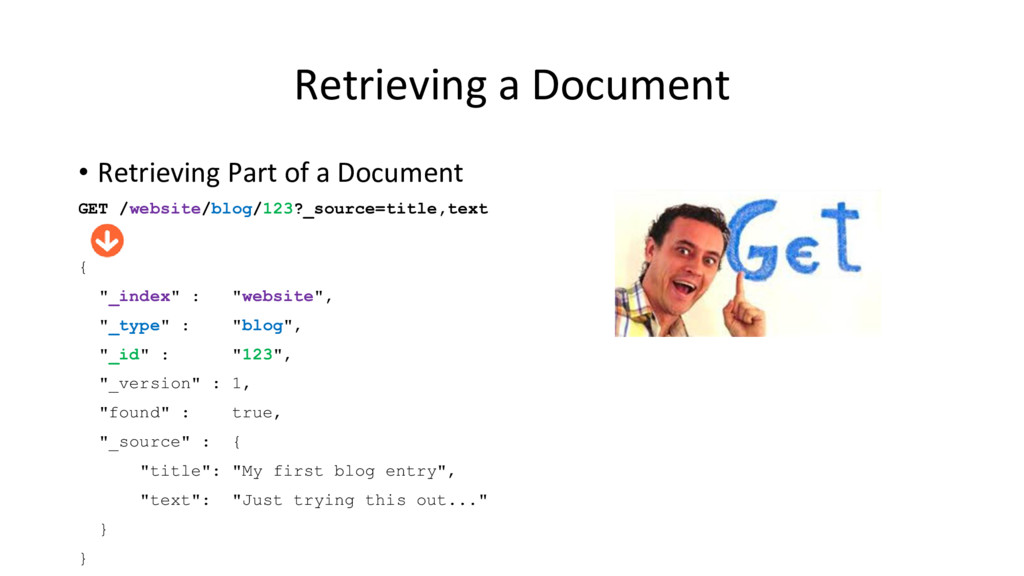

38. Retrieving a Document • Retrieving Part of a Document GET /website/blog/123?_source=title,text { "_index" : "website", "_type" : "blog", "_id" : "123", "_version" : 1, "found" : true, "_source" : { "title": "My first blog entry", "text": "Just trying this out..." } }

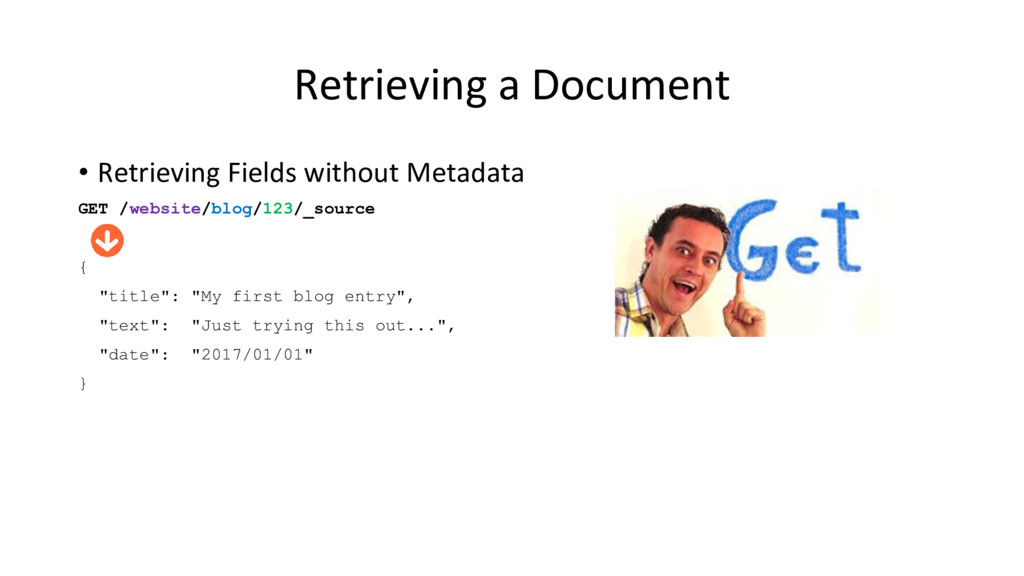

39. Retrieving a Document • Retrieving Fields without Metadata GET /website/blog/123/_source { "title": "My first blog entry", "text": "Just trying this out...", "date": "2017/01/01" }

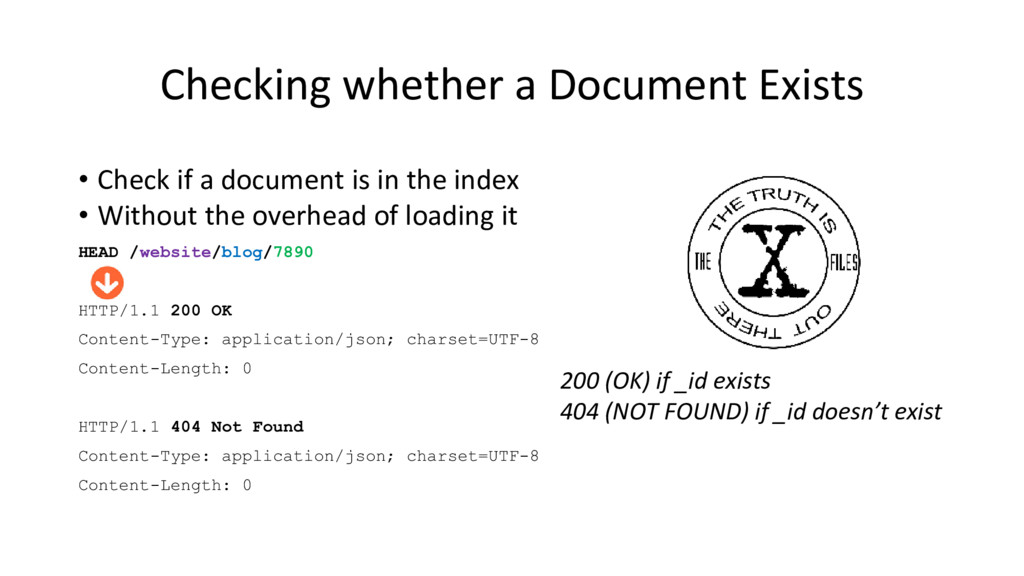

40. Checking whether a Document Exists • Check if a document is in the index • Without the overhead of loading it HEAD /website/blog/7890 HTTP/1.1 200 OK Content-Type: application/json; charset=UTF-8 Content-Length: 0 HTTP/1.1 404 Not Found Content-Type: application/json; charset=UTF-8 Content-Length: 0 200 (OK) if _id exists 404 (NOT FOUND) if _id doesn’t exist

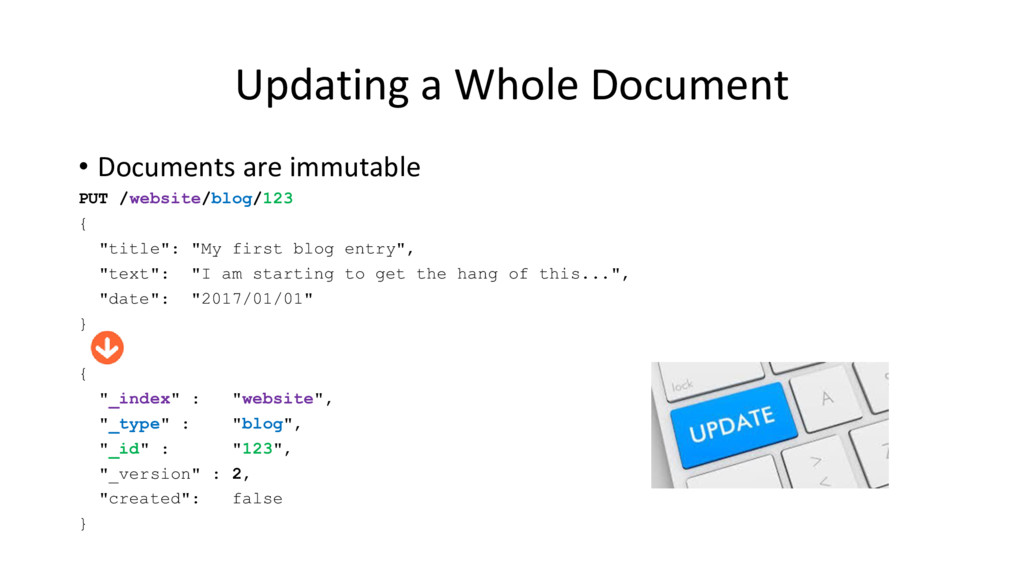

41. Updating a Whole Document • Documents are immutable PUT /website/blog/123 { "title": "My first blog entry", "text": "I am starting to get the hang of this...", "date": "2017/01/01" } { "_index" : "website", "_type" : "blog", "_id" : "123", "_version" : 2, "created": false }

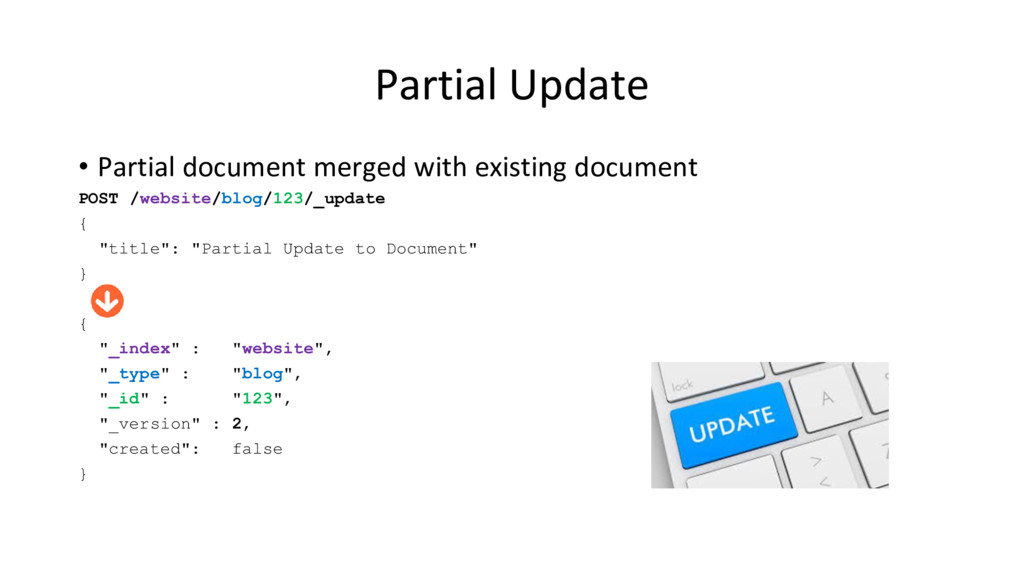

42. Partial Update • Partial document merged with existing document POST /website/blog/123/_update { "title": "Partial Update to Document" } { "_index" : "website", "_type" : "blog", "_id" : "123", "_version" : 2, "created": false }

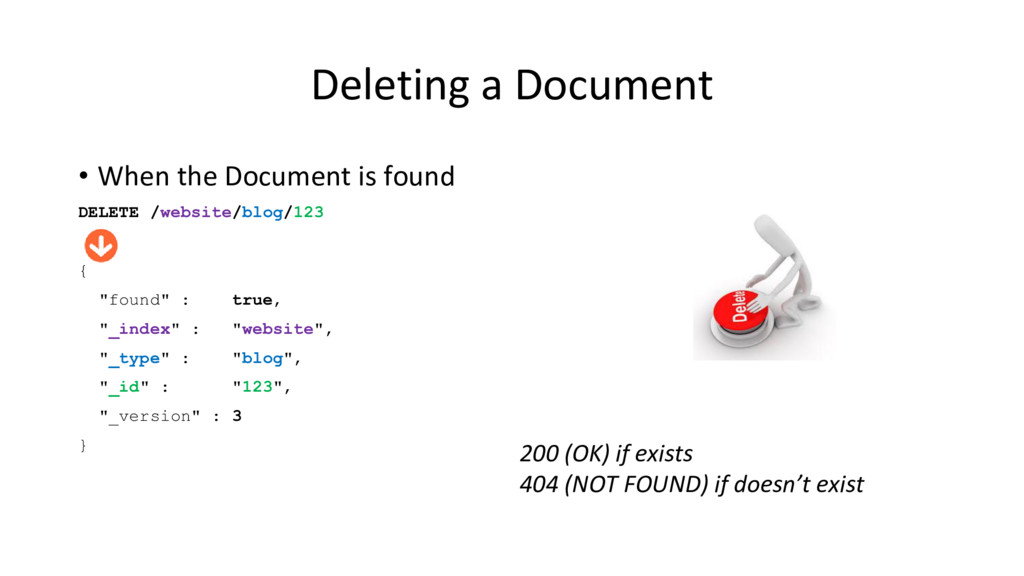

43. Deleting a Document • When the Document is found DELETE /website/blog/123 { "found" : true, "_index" : "website", "_type" : "blog", "_id" : "123", "_version" : 3 } 200 (OK) if exists 404 (NOT FOUND) if doesn’t exist

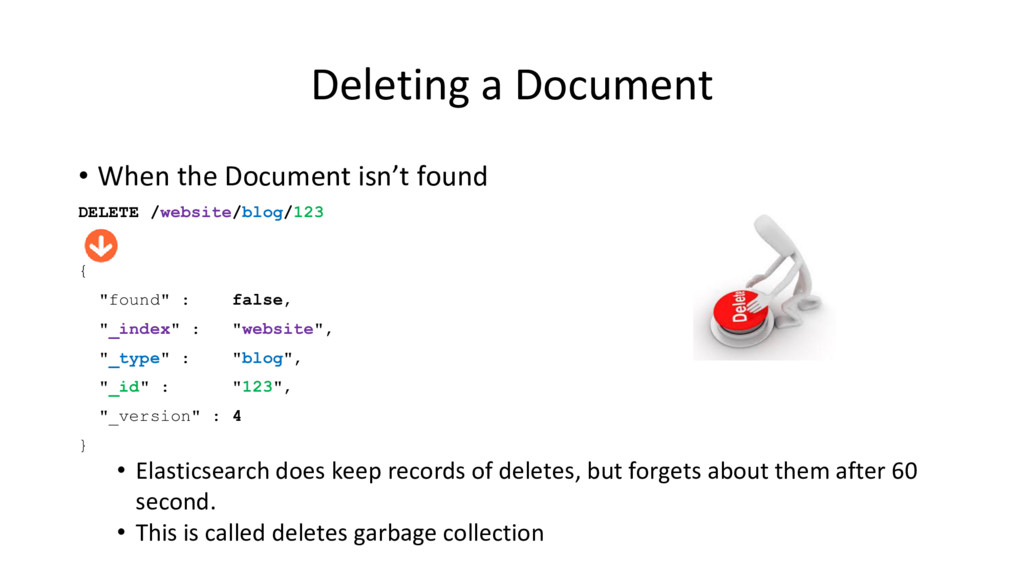

44. Deleting a Document • When the Document isn’t found DELETE /website/blog/123 { "found" : false, "_index" : "website", "_type" : "blog", "_id" : "123", "_version" : 4 } • Elasticsearch does keep records of deletes, but forgets about them after 60 second. • This is called deletes garbage collection

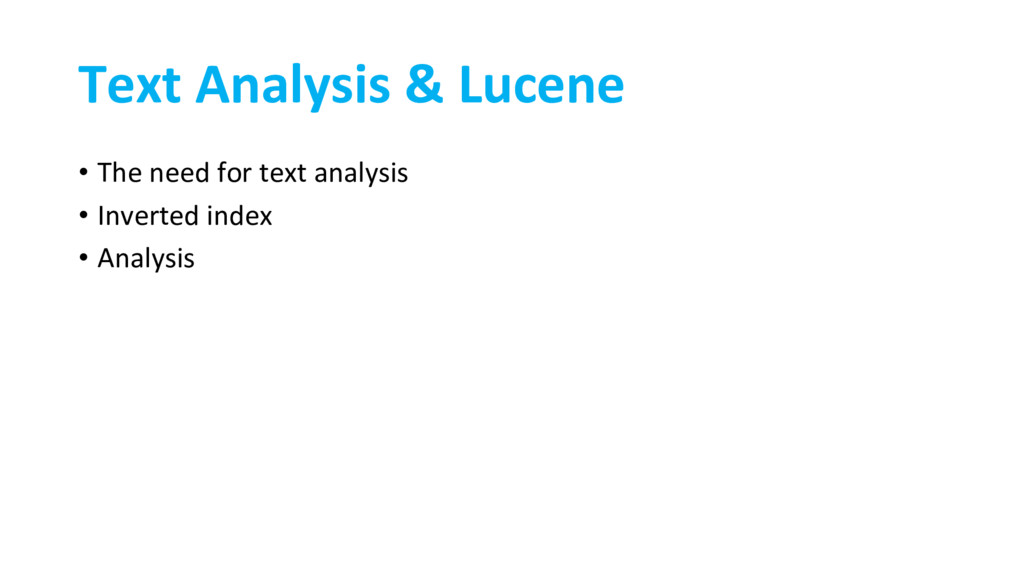

45. Text Analysis & Lucene • The need for text analysis • Inverted index • Analysis
46. The need for Text Analysis Exact values • 156 • 1.9 • 2017-01-01 • true / false • “Hello World” Full text “The quick brown fox jumped over the lazy dog”
47. The need for Text Analysis • Stopwords • "a", "and", "but", "how", "or", "what", "else", "etc", "the“… • Case sensitivity • "Hello World", "hello world", "HELLO WORLD"... • Grammar • "jumps", "jumping", "jumped“, "jump“ • Synonyms • "walk", "hike", "tour", "parade", "march“ • Relevance scoring
48. Inverted Index • Elasticsearch uses a structure called an inverted index, which is designed to allow very fast full-text searches. • An inverted index consists of a list of all the unique words that appear in any document, and for each word, a list of the documents in which it appears.

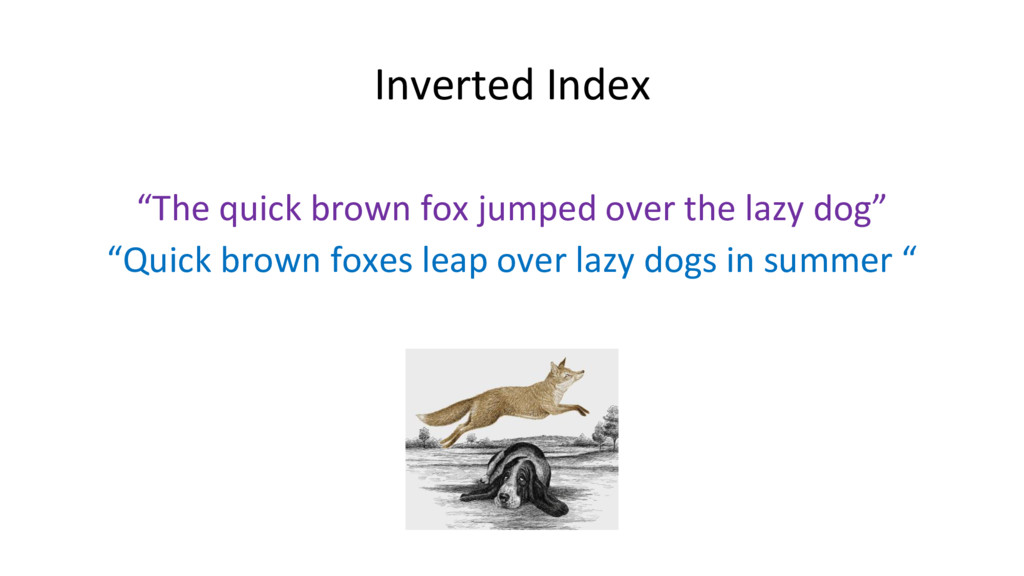

49. Inverted Index “The quick brown fox jumped over the lazy dog” “Quick brown foxes leap over lazy dogs in summer “
50. Inverted Index • Separate words / terms The,quick,brown,fox,jumped,over,the,lazy,dog Quick,brown,foxes,leap,over,lazy,dogs,in,summer

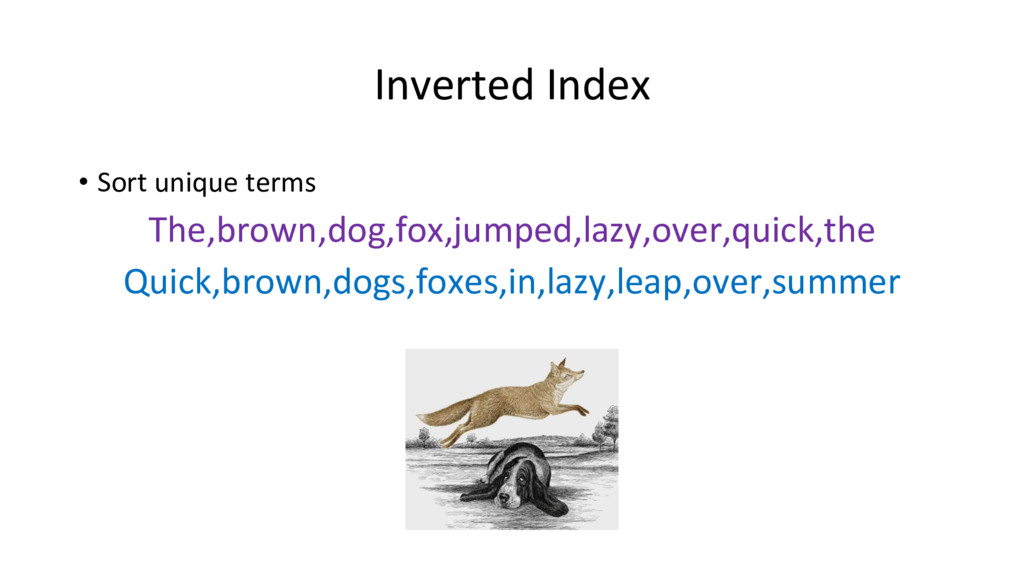

51. Inverted Index • Sort unique terms The,brown,dog,fox,jumped,lazy,over,quick,the Quick,brown,dogs,foxes,in,lazy,leap,over,summer

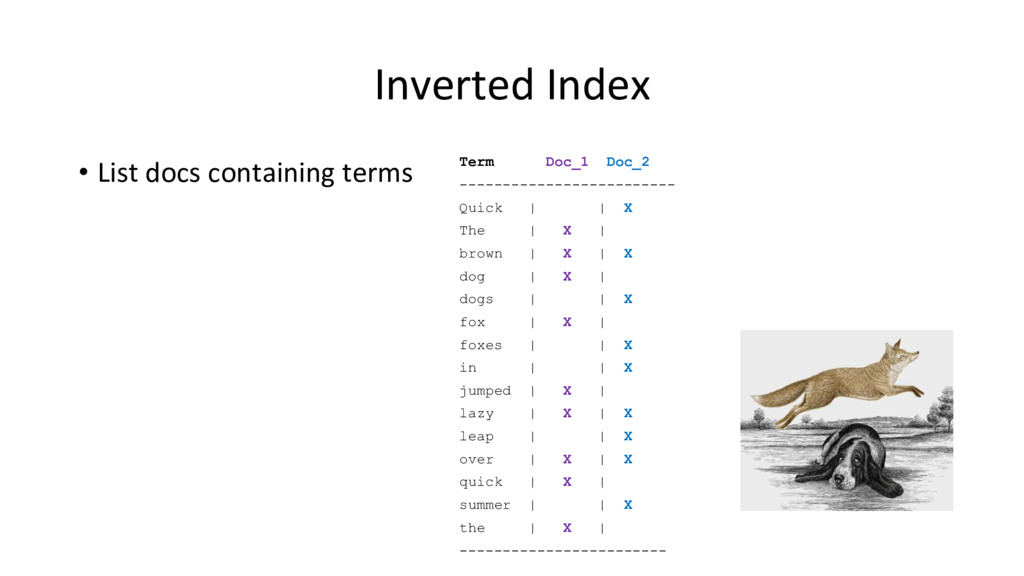

52. Inverted Index • List docs containing terms Term Doc_1 Doc_2 ------------------------- Quick | | X The | X | brown | X | X dog | X | dogs | | X fox | X | foxes | | X in | | X jumped | X | lazy | X | X leap | | X over | X | X quick | X | summer | | X the | X | ------------------------
53. Inverted Index • Search for “quick brown” Term Doc_1 Doc_2 ------------------------- brown | X | X quick | X | ------------------------ Total | 2 | 1 Both documents match, but the first document has more matches than the second

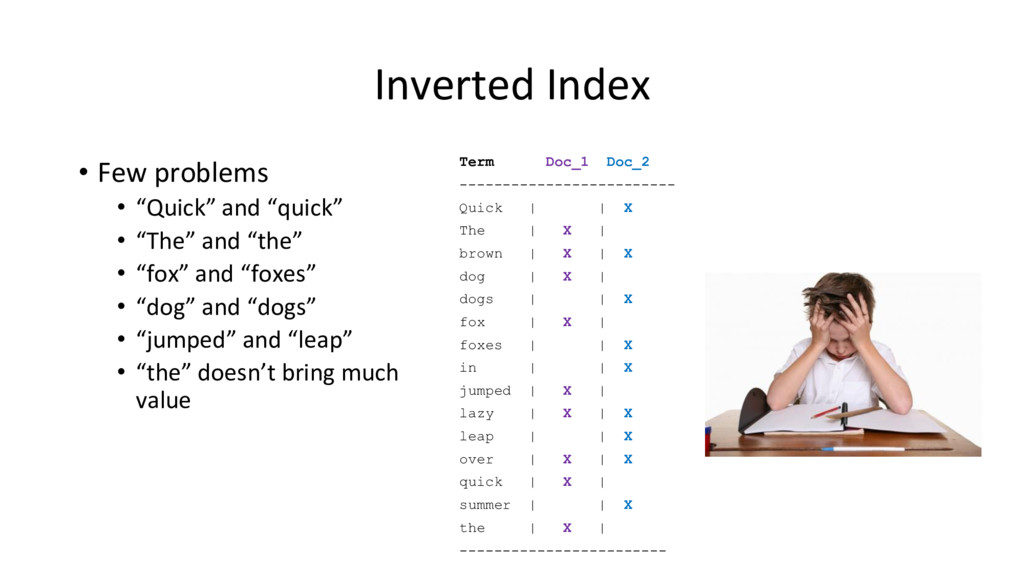

54. Inverted Index • Few problems • “Quick” and “quick” • “The” and “the” • “fox” and “foxes” • “dog” and “dogs” • “jumped” and “leap” • “the” doesn’t bring much value Term Doc_1 Doc_2 ------------------------- Quick | | X The | X | brown | X | X dog | X | dogs | | X fox | X | foxes | | X in | | X jumped | X | lazy | X | X leap | | X over | X | X quick | X | summer | | X the | X | ------------------------
55. Inverted Index • Normalize into a standard format • “Quick” can be lowercased to become “quick”. • “The” can be lowercased to become “the”. • “foxes” can be stemmed to its root form: “fox”. • “dogs” could be stemmed to “dog”. • “jumped” and “leap” are synonyms and can be indexed as just the single term “jump”. Term Doc_1 Doc_2 ------------------------- brown | X | X dog | X | X fox | X | X in | | X jump | X | X lazy | X | X over | X | X quick | X | X summer | | X ------------------------

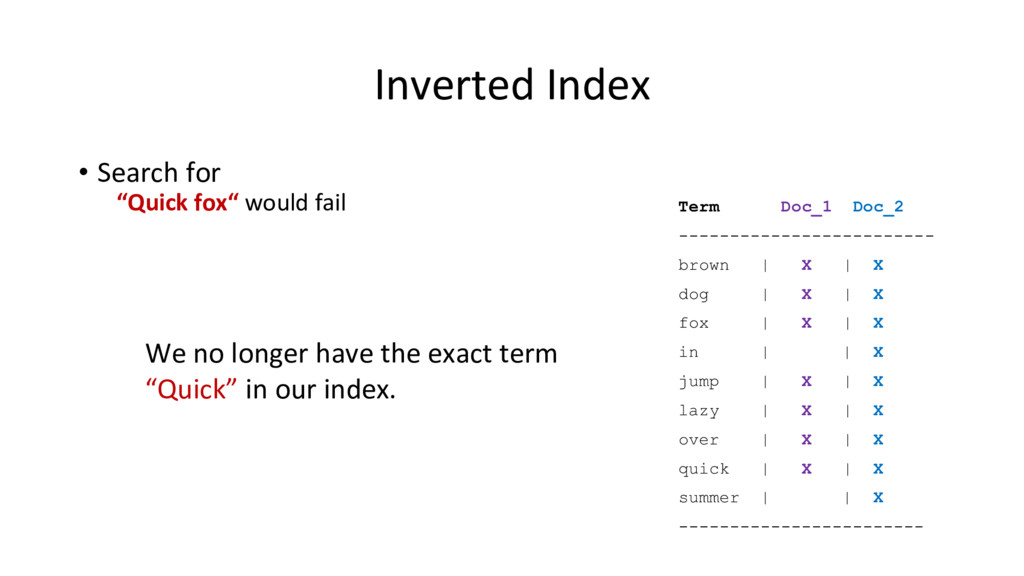

56. Inverted Index • Search for “Quick fox“ would fail Term Doc_1 Doc_2 ------------------------- brown | X | X dog | X | X fox | X | X in | | X jump | X | X lazy | X | X over | X | X quick | X | X summer | | X ------------------------ We no longer have the exact term “Quick” in our index.

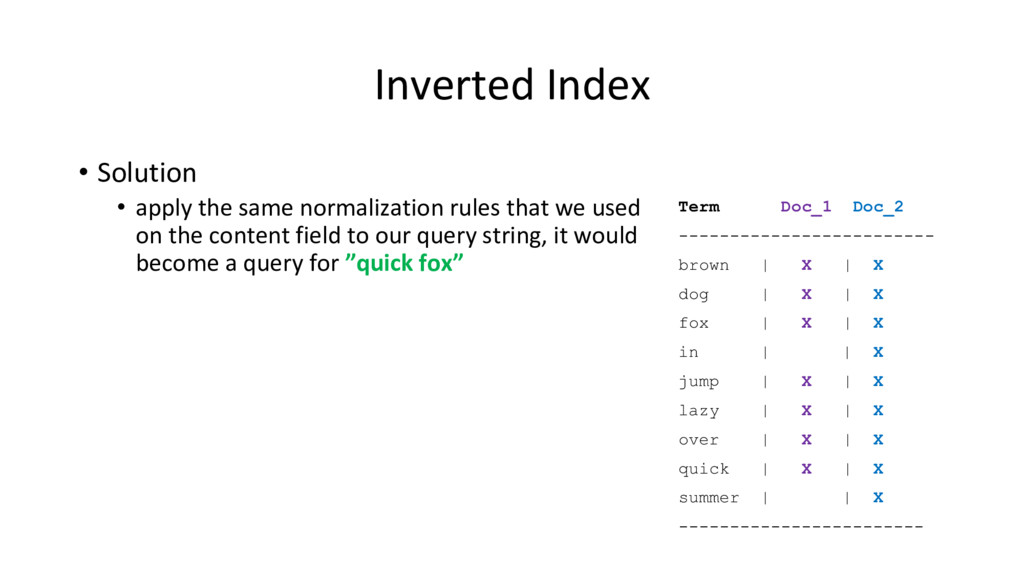

57. Inverted Index • Solution • apply the same normalization rules that we used on the content field to our query string, it would become a query for ”quick fox” Term Doc_1 Doc_2 ------------------------- brown | X | X dog | X | X fox | X | X in | | X jump | X | X lazy | X | X over | X | X quick | X | X summer | | X ------------------------

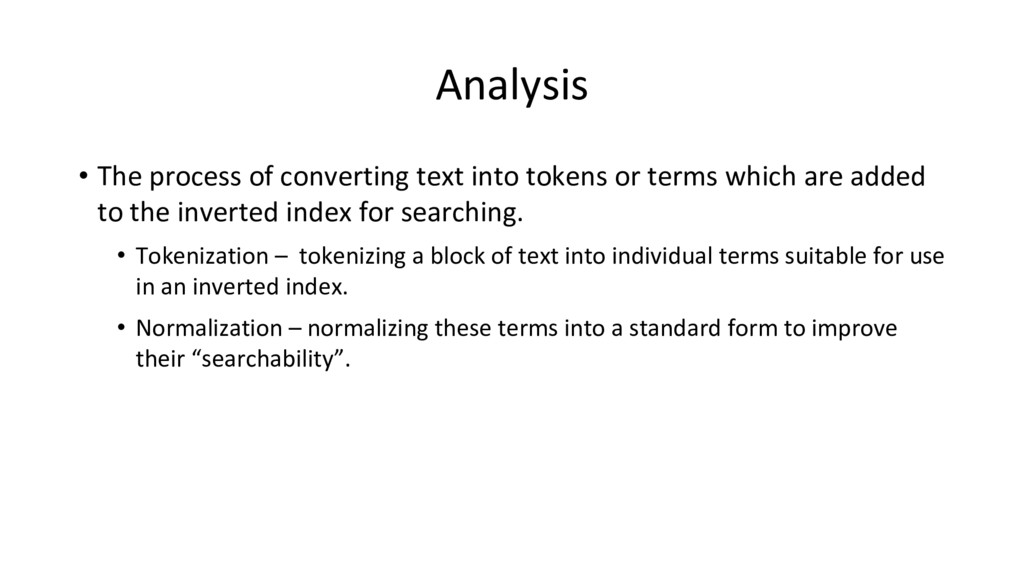

58. Analysis • The process of converting text into tokens or terms which are added to the inverted index for searching. • Tokenization – tokenizing a block of text into individual terms suitable for use in an inverted index. • Normalization – normalizing these terms into a standard form to improve their “searchability”.
59. Analyzers • Introduction • Build in analyzers • Testing analyzers • Custom analyzers

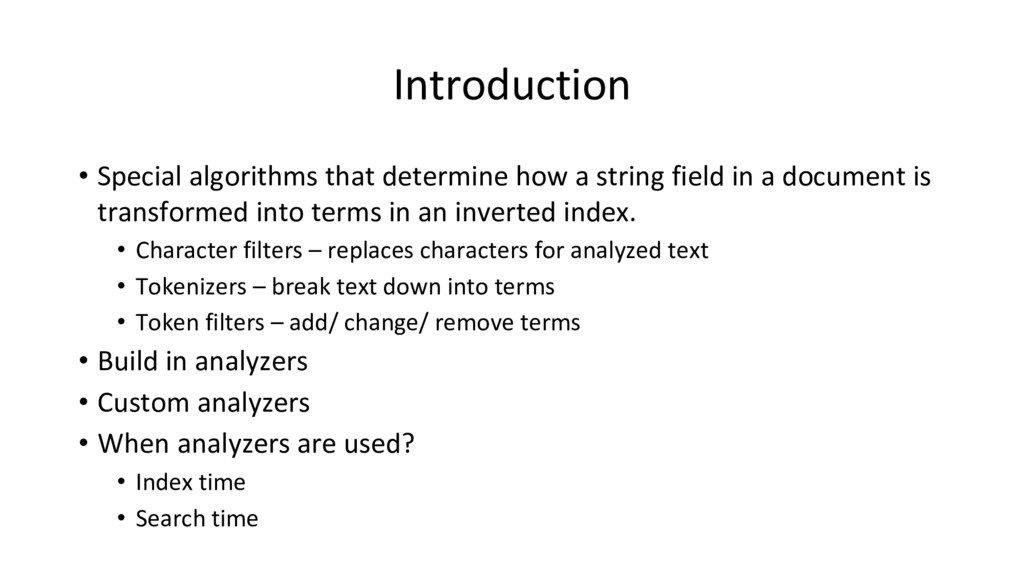

60. Introduction • Special algorithms that determine how a string field in a document is transformed into terms in an inverted index. • Character filters – replaces characters for analyzed text • Tokenizers – break text down into terms • Token filters – add/ change/ remove terms • Build in analyzers • Custom analyzers • When analyzers are used? • Index time • Search time

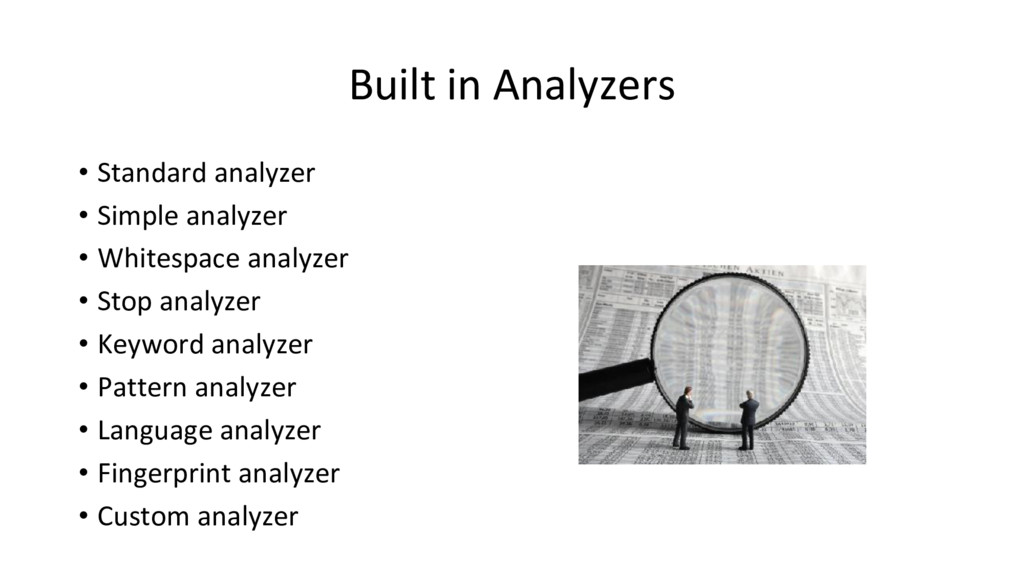

61. • Standard analyzer • Simple analyzer • Whitespace analyzer • Stop analyzer • Keyword analyzer • Pattern analyzer • Language analyzer • Fingerprint analyzer • Custom analyzer Built in Analyzers

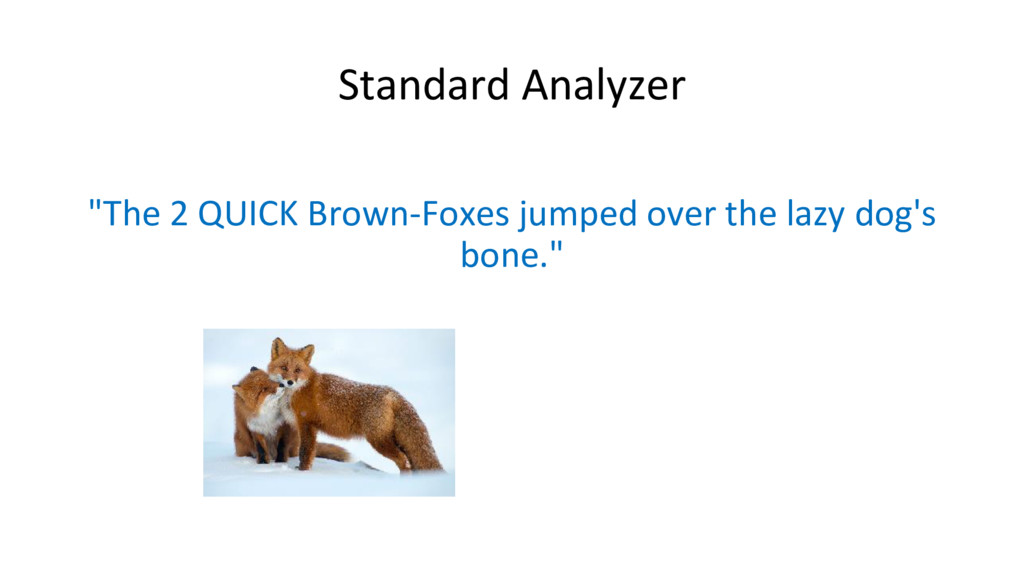

62. Standard Analyzer "The 2 QUICK Brown-Foxes jumped over the lazy dog's bone."

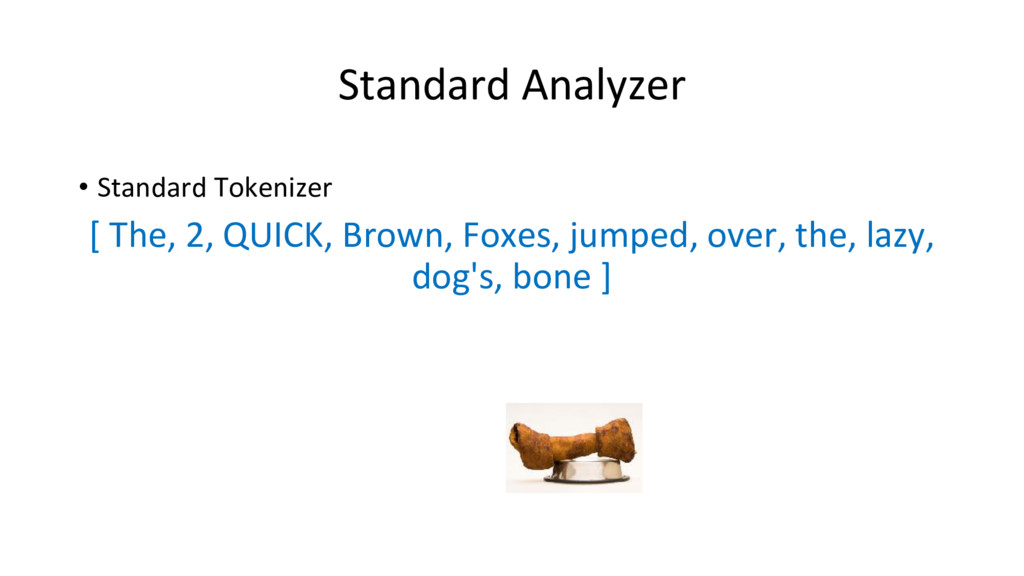

63. Standard Analyzer • Standard Tokenizer [ The, 2, QUICK, Brown, Foxes, jumped, over, the, lazy, dog's, bone ]

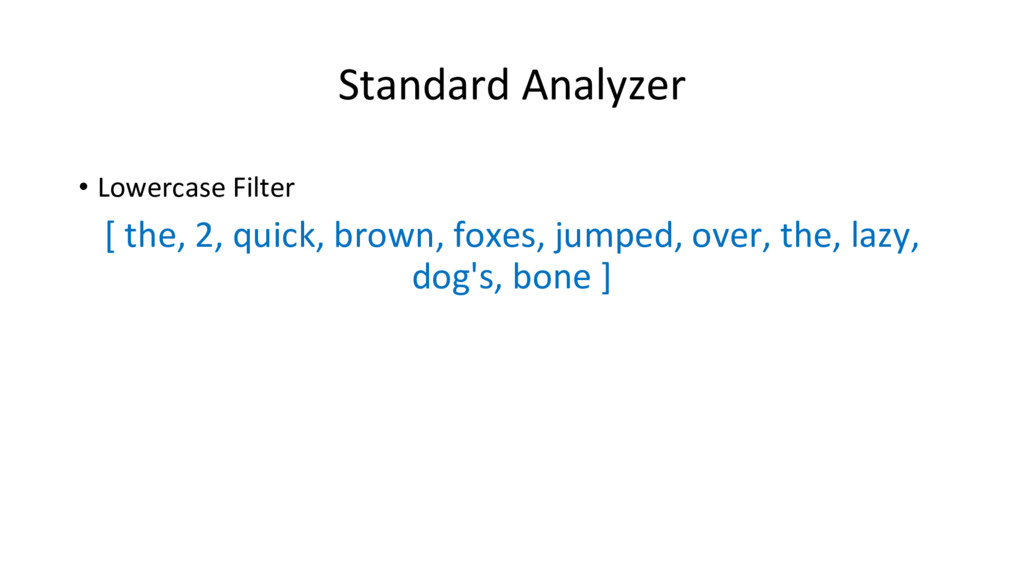

64. Standard Analyzer • Lowercase Filter [ the, 2, quick, brown, foxes, jumped, over, the, lazy, dog's, bone ]
65. Standard Analyzer • Stopwords Filter (disabled by default) [ 2, quick, brown, foxes, jumped, over, lazy, dog's, bone ]

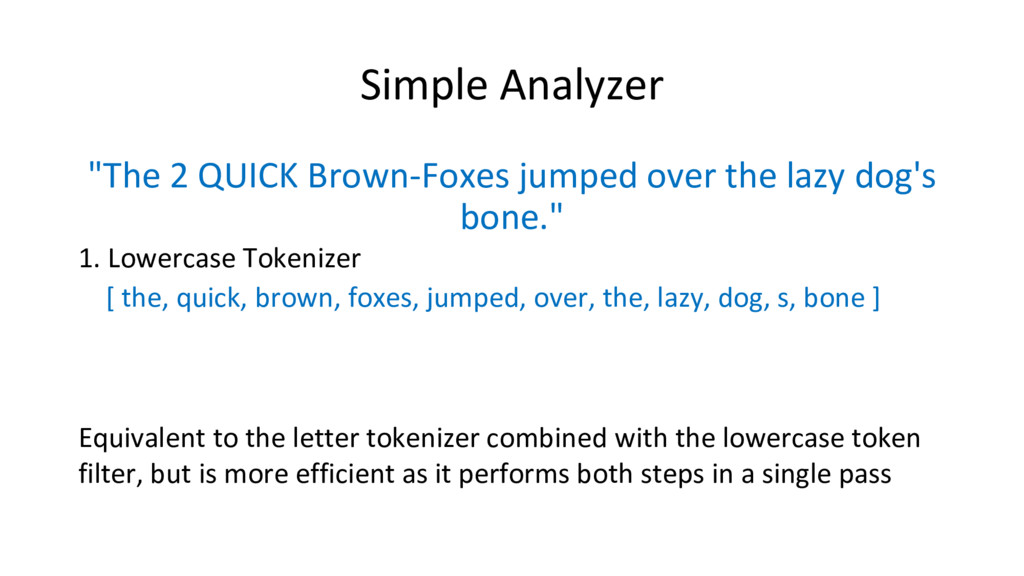

66. Simple Analyzer "The 2 QUICK Brown-Foxes jumped over the lazy dog's bone." 1. Lowercase Tokenizer [ the, quick, brown, foxes, jumped, over, the, lazy, dog, s, bone ] Equivalent to the letter tokenizer combined with the lowercase token filter, but is more efficient as it performs both steps in a single pass

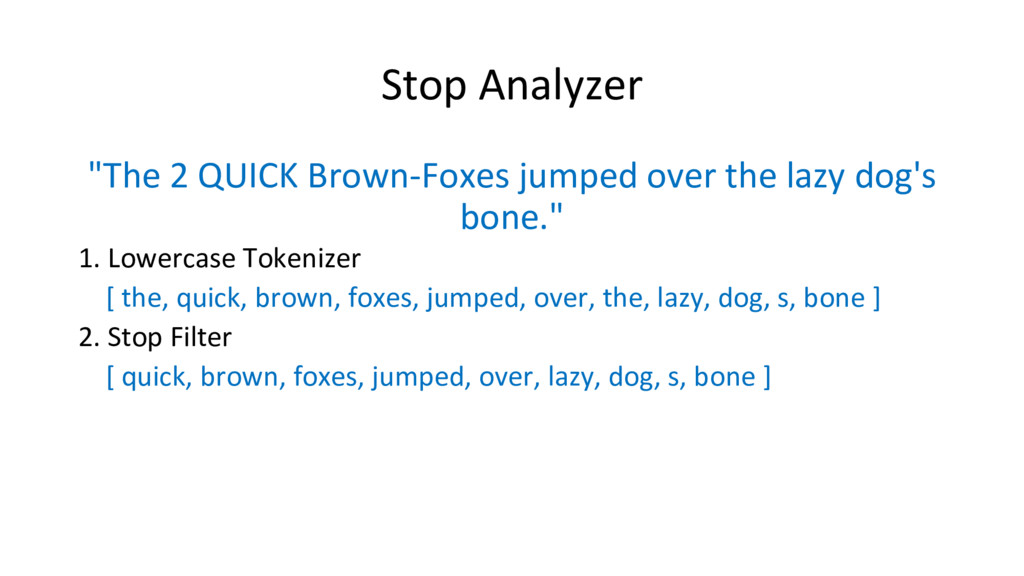

67. Stop Analyzer "The 2 QUICK Brown-Foxes jumped over the lazy dog's bone." 1. Lowercase Tokenizer [ the, quick, brown, foxes, jumped, over, the, lazy, dog, s, bone ] 2. Stop Filter [ quick, brown, foxes, jumped, over, lazy, dog, s, bone ]
68. Whitespace Analyzer "The 2 QUICK Brown-Foxes jumped over the lazy dog's bone." 1. Whitespace Tokenizer [ The, 2, QUICK, Brown-Foxes, jumped, over, the, lazy, dog's, bone. ]

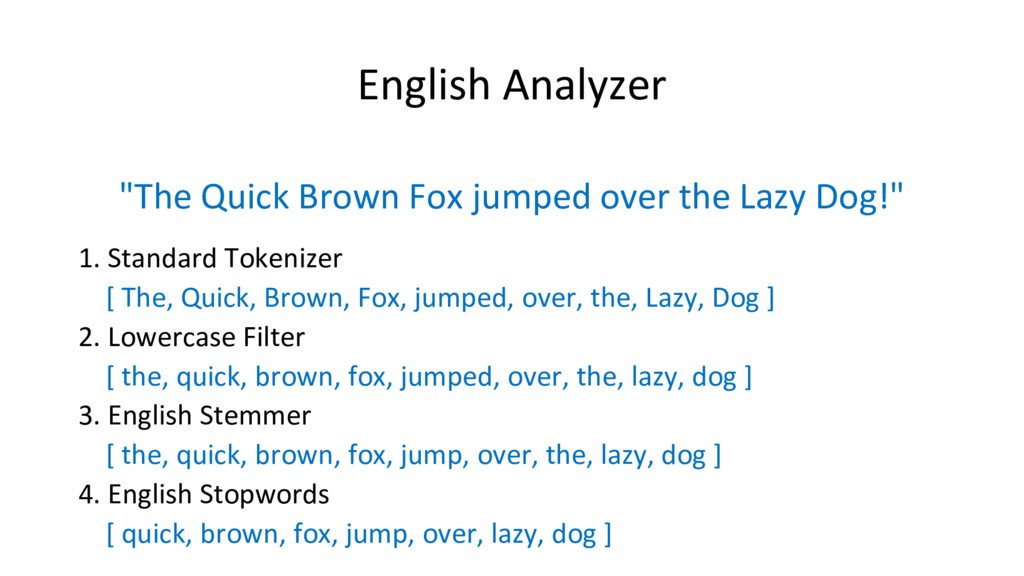

69. English Analyzer "The Quick Brown Fox jumped over the Lazy Dog!" 1. Standard Tokenizer [ The, Quick, Brown, Fox, jumped, over, the, Lazy, Dog ] 2. Lowercase Filter [ the, quick, brown, fox, jumped, over, the, lazy, dog ] 3. English Stemmer [ the, quick, brown, fox, jump, over, the, lazy, dog ] 4. English Stopwords [ quick, brown, fox, jump, over, lazy, dog ]

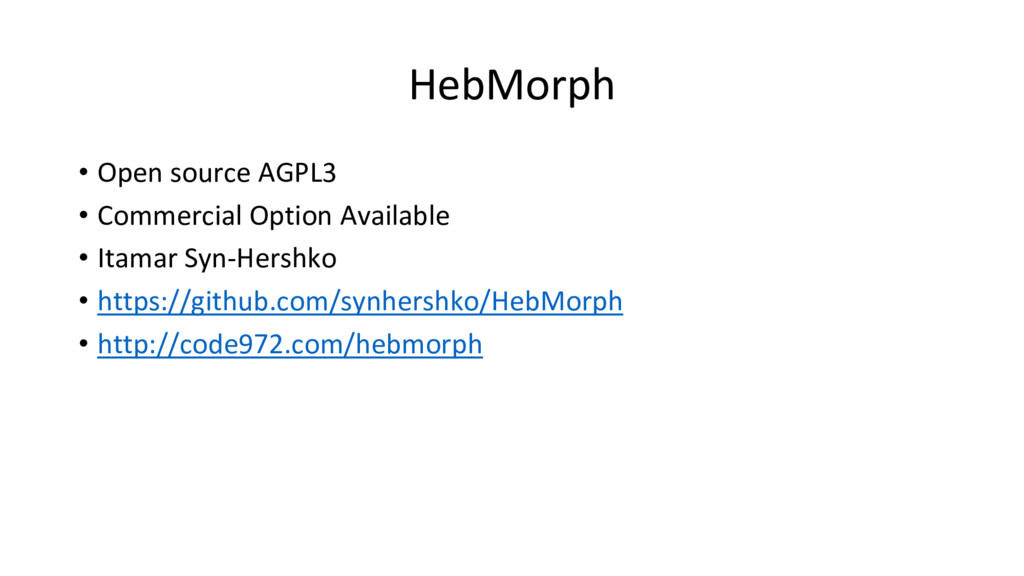

70. HebMorph • Open source AGPL3 • Commercial Option Available • Itamar Syn-Hershko • https://github.com/synhershko/HebMorph • http://code972.com/hebmorph

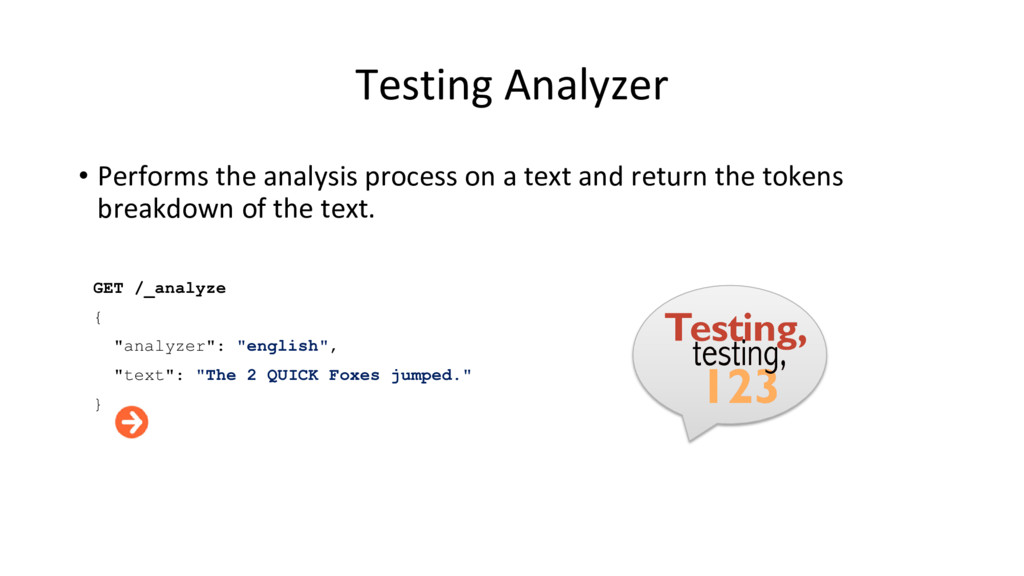

71. • Performs the analysis process on a text and return the tokens breakdown of the text. GET /_analyze { "analyzer": "english", "text": "The 2 QUICK Foxes jumped." } Testing Analyzer
72. { "token": "fox", "start_offset": 12, "end_offset": 17, "type": "<ALPHANUM>", "position": 3 }, { "token": "jump", "start_offset": 18, "end_offset": 25, "type": "<ALPHANUM>", "position": 4 } ] } { "tokens": [ { "token": "2", "start_offset": 4, "end_offset": 5, "type": "<NUM>", "position": 1 }, { "token": "quick", "start_offset": 6, "end_offset": 11, "type": "<ALPHANUM>", "position": 2 }, Testing Analyzer

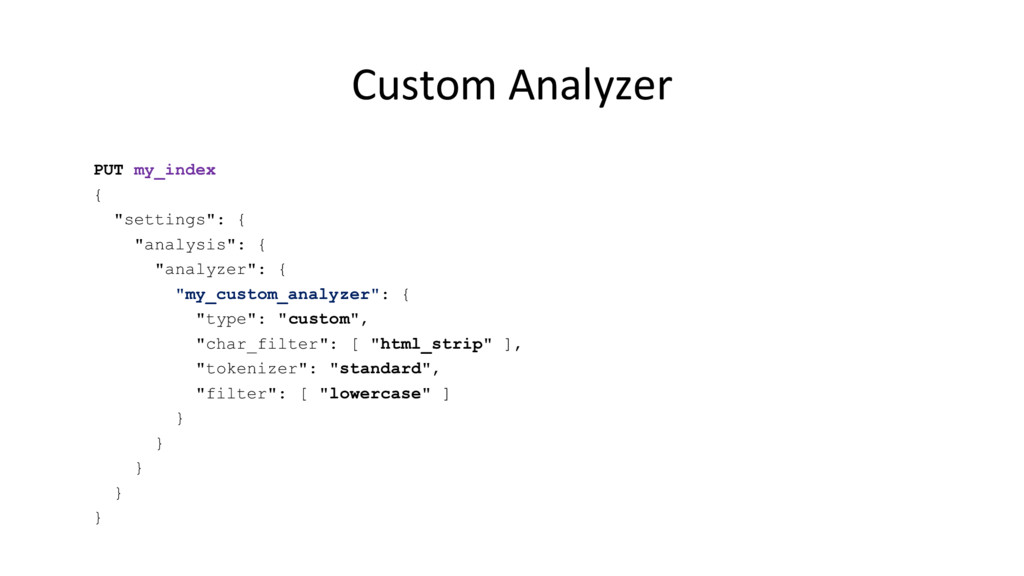

73. PUT my_index { "settings": { "analysis": { "analyzer": { "my_custom_analyzer": { "type": "custom", "char_filter": [ "html_strip" ], "tokenizer": "standard", "filter": [ "lowercase" ] } } } } } Custom Analyzer
74. • Specifying an index – performs the analysis process on a text. GET my_index/_analyze { "analyzer": "my_custom_analyzer", "text": "The 2 <b>QUICK Foxes</b>" } POST my_index/_analyze { "analyzer": "my_custom_analyzer", "text": "The 2 <b>QUICK Foxes</b>" } Custom Analyzer
75. { "token": "quick", "start_offset": 9, "end_offset": 14, "type": "<ALPHANUM>", "position": 2 }, { "token": "foxes", "start_offset": 15, "end_offset": 24, "type": "<ALPHANUM>", "position": 3 } ] } { "tokens": [ { "token": "the", "start_offset": 0, "end_offset": 3, "type": "<ALPHANUM>", "position": 0 }, { "token": "2", "start_offset": 4, "end_offset": 5, "type": "<NUM>", "position": 1 }, Custom Analyzer
76. Mapping • Dynamic field mapping • Put mappings • Get mappings • Mapping analyzer • Multilingual documents

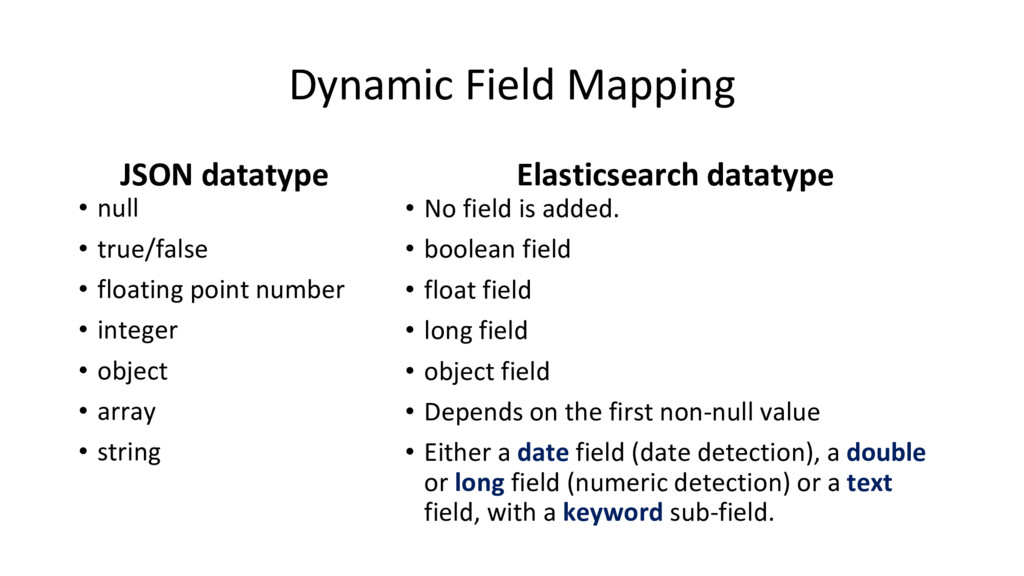

77. Dynamic Field Mapping JSON datatype • null • true/false • floating point number • integer • object • array • string Elasticsearch datatype • No field is added. • boolean field • float field • long field • object field • Depends on the first non-null value • Either a date field (date detection), a double or long field (numeric detection) or a text field, with a keyword sub-field.
78. • Creates an index called twitter with the message field in the tweet mapping type PUT twitter { "mappings": { "tweet": { "properties": { "message": { "type": "text" } } } } } Put Mapping

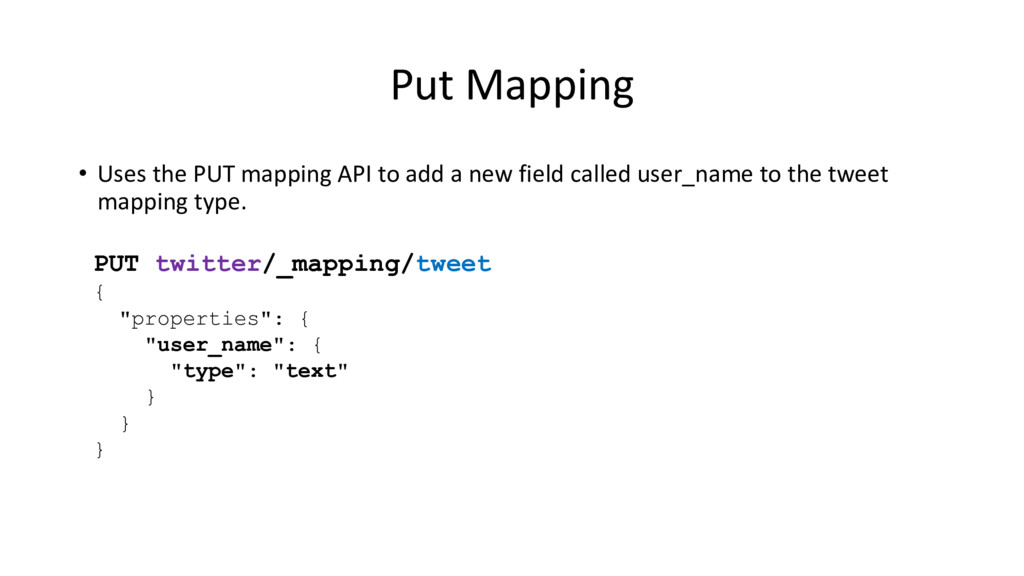

79. • Uses the PUT mapping API to add a new field called user_name to the tweet mapping type. PUT twitter/_mapping/tweet { "properties": { "user_name": { "type": "text" } } } Put Mapping

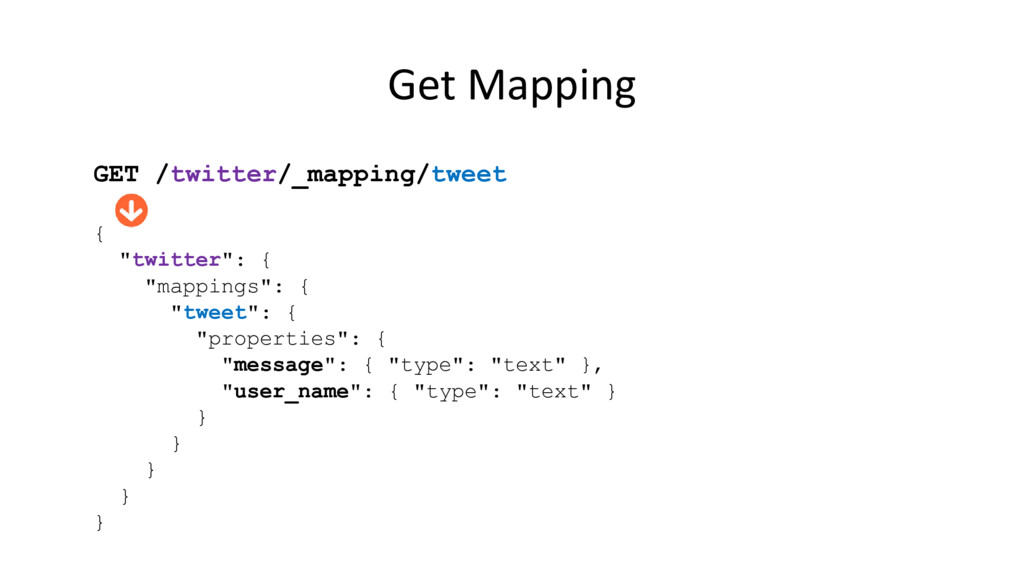

80. GET /twitter/_mapping/tweet { "twitter": { "mappings": { "tweet": { "properties": { "message": { "type": "text" }, "user_name": { "type": "text" } } } } } } Get Mapping

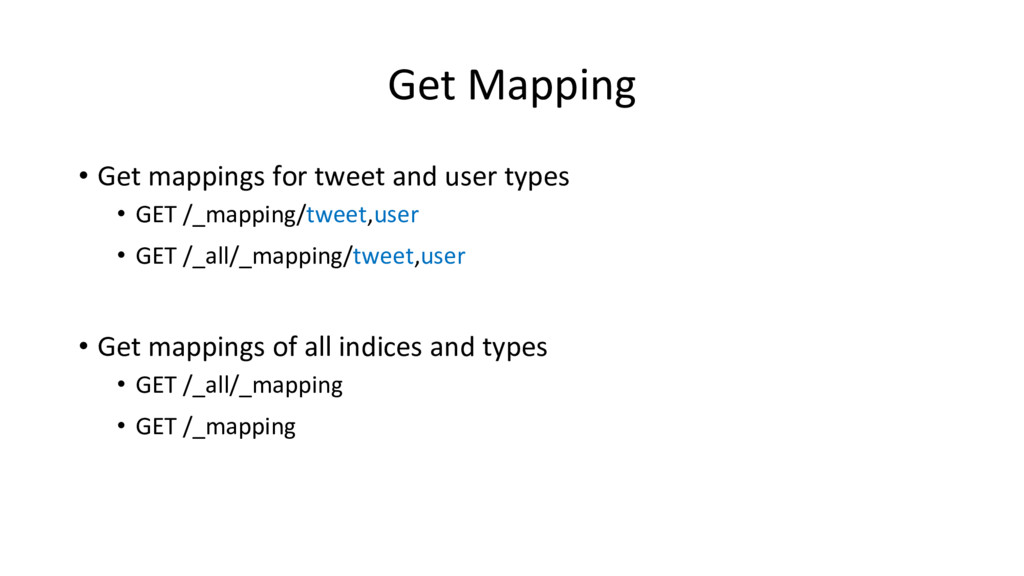

81. Get Mapping • Get mappings for tweet and user types • GET /_mapping/tweet,user • GET /_all/_mapping/tweet,user • Get mappings of all indices and types • GET /_all/_mapping • GET /_mapping

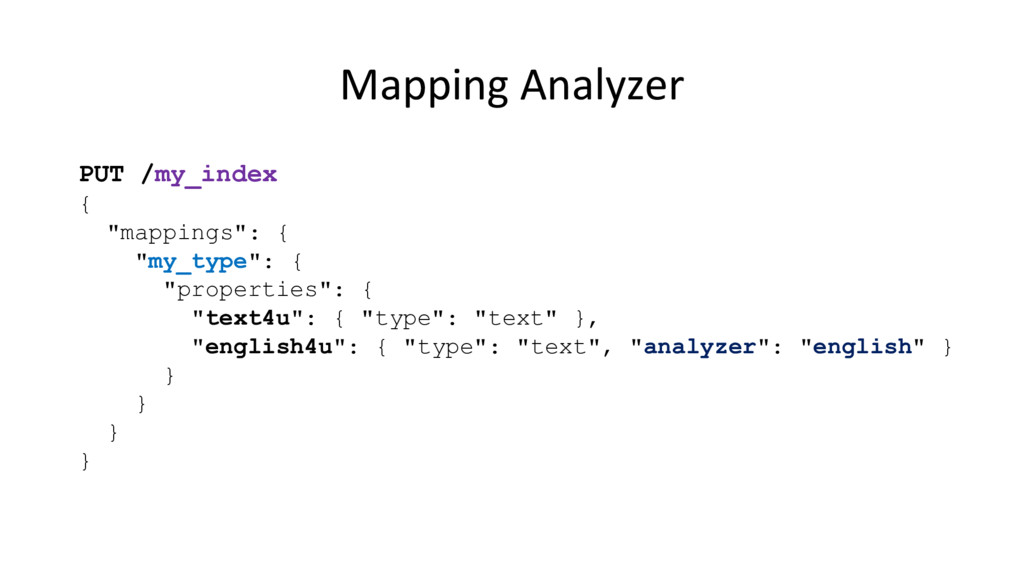

82. Mapping Analyzer PUT /my_index { "mappings": { "my_type": { "properties": { "text4u": { "type": "text" }, "english4u": { "type": "text", "analyzer": "english" } } } } }

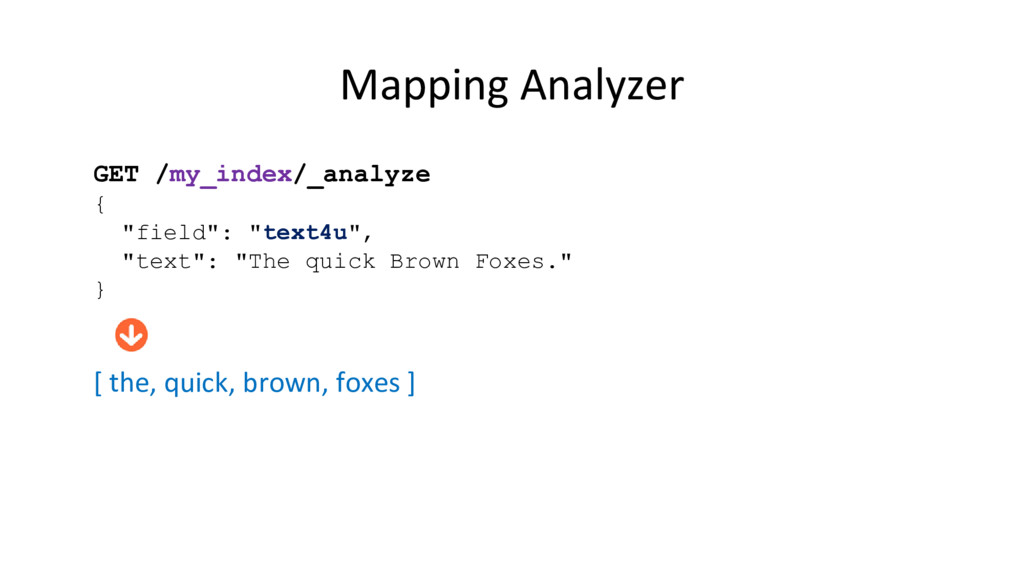

83. Mapping Analyzer GET /my_index/_analyze { "field": "text4u", "text": "The quick Brown Foxes." } [ the, quick, brown, foxes ]

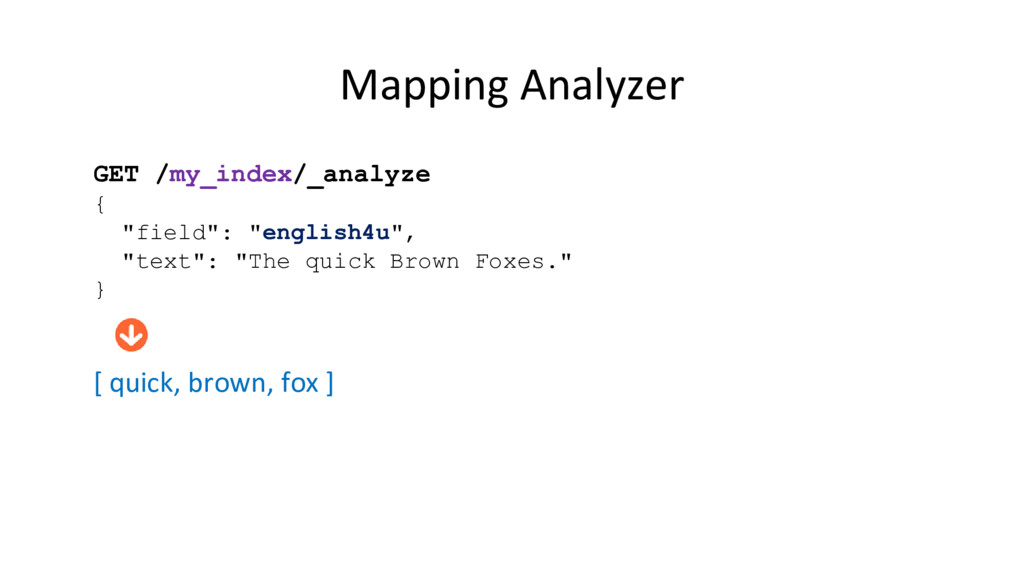

84. Mapping Analyzer GET /my_index/_analyze { "field": "english4u", "text": "The quick Brown Foxes." } [ quick, brown, fox ]

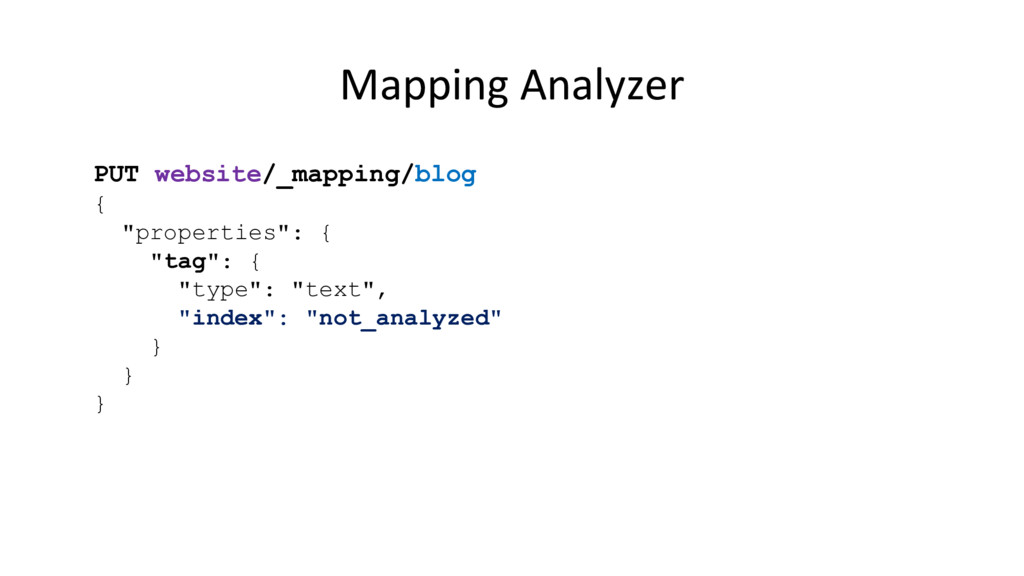

85. PUT website/_mapping/blog { "properties": { "tag": { "type": "text", "index": "not_analyzed" } } } Mapping Analyzer

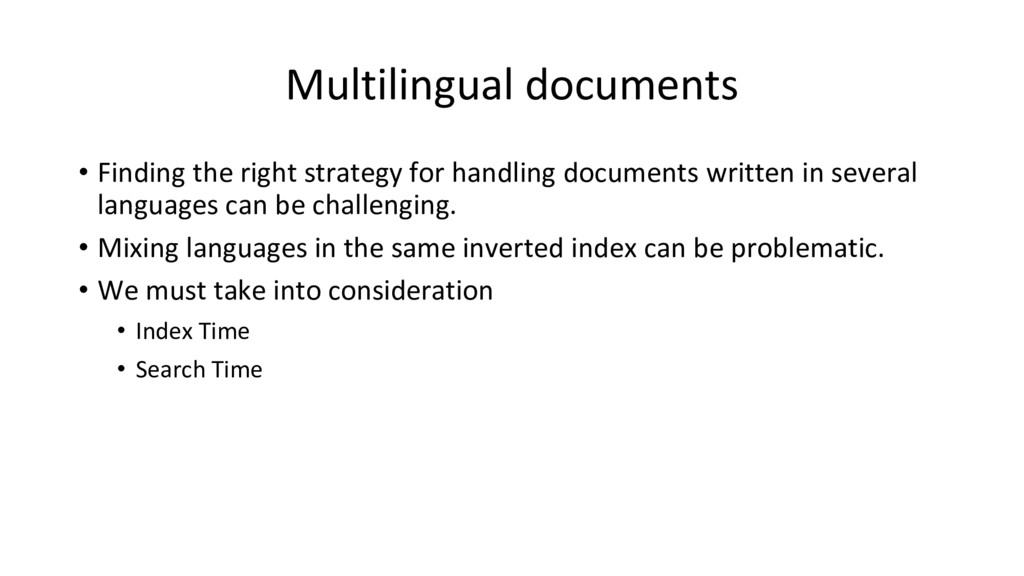

86. • Finding the right strategy for handling documents written in several languages can be challenging. • Mixing languages in the same inverted index can be problematic. • We must take into consideration • Index Time • Search Time Multilingual documents
87. At Index Time • Multilingual documents come in three main varieties: • One predominant language per document, which may contain snippets from other languages (One Language per Document) • One predominant language per field, which may contain snippets from other languages (One Language per Field) • A mixture of languages per field (Mixed-Language Fields.) Multilingual documents

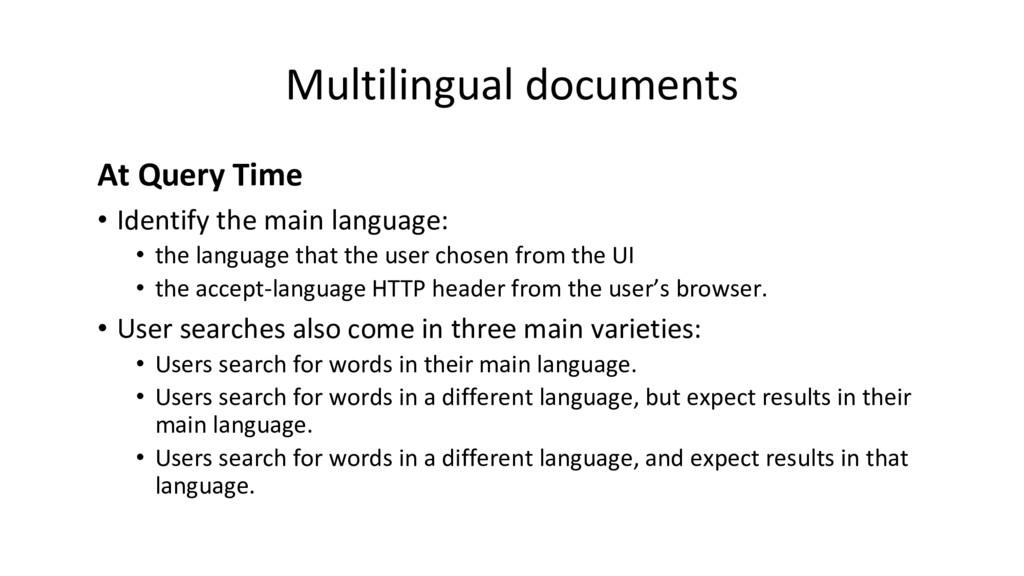

88. At Query Time • Identify the main language: • the language that the user chosen from the UI • the accept-language HTTP header from the user’s browser. • User searches also come in three main varieties: • Users search for words in their main language. • Users search for words in a different language, but expect results in their main language. • Users search for words in a different language, and expect results in that language. Multilingual documents
89. PUT /blogs-en { "mappings": { "post": { "properties": { "title": { "type": "string", "fields": { "stemmed": { "type": "string", "analyzer": "english" } }}}}}} One Language per Document
90. PUT /blogs-fr { "mappings": { "post": { "properties": { "title": { "type": "string", "fields": { "stemmed": { "type": "string", "analyzer": "french" } }}}}}} One Language per Document

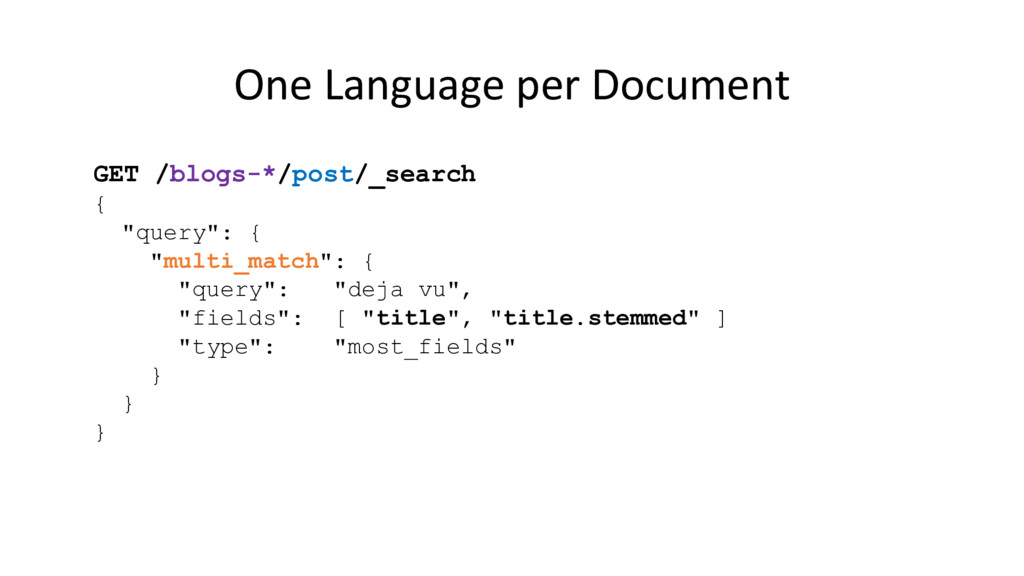

91. GET /blogs-*/post/_search { "query": { "multi_match": { "query": "deja vu", "fields": [ "title", "title.stemmed" ] "type": "most_fields" } } } One Language per Document
92. PUT /movies { "mappings": { "movie": { "properties": { "title": { "type": "string"}, "title_br": { "type": "string", "analyzer": "brazilian" }, "title_cz": { "type": "string", "analyzer": "czech" }, "title_en": { "type": "string", "analyzer": "english" }, "title_es": { "type": "string", "analyzer": "spanish" } } } } } One Language per Field

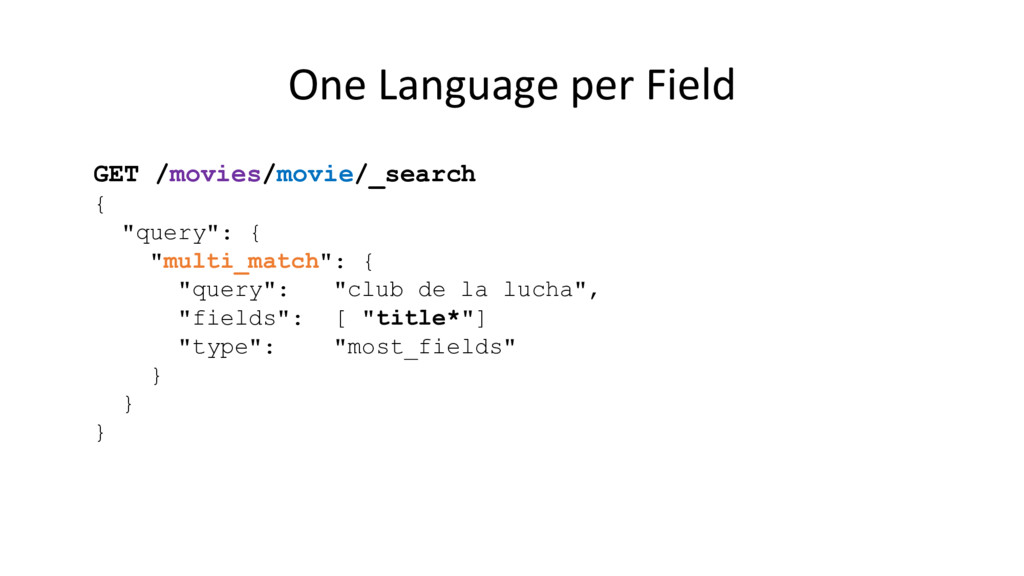

93. GET /movies/movie/_search { "query": { "multi_match": { "query": "club de la lucha", "fields": [ "title*"] "type": "most_fields" } } } One Language per Field
94. PUT /movies { "mappings": { "movie": { "properties": { "title": { "type": "string", "fields": { "de": { "type": "string", "analyzer": "german" }, "en": { "type": "string", "analyzer": "english" }, "fr": { "type": "string", "analyzer": "french" }, "es": { "type": "string", "analyzer": "spanish" } }}}}}} Mixed-Language Fields

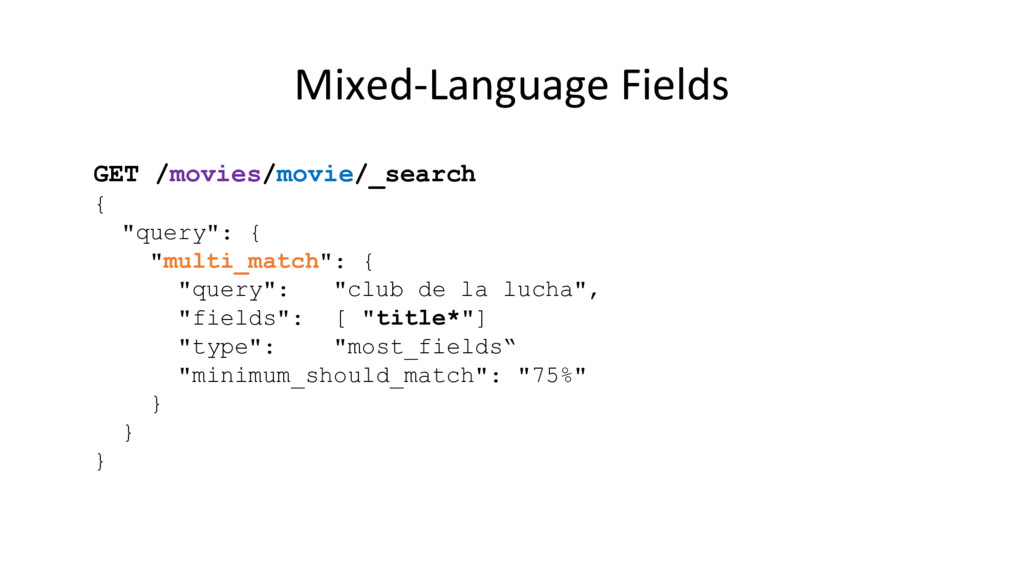

95. GET /movies/movie/_search { "query": { "multi_match": { "query": "club de la lucha", "fields": [ "title*"] "type": "most_fields“ "minimum_should_match": "75%" } } } Mixed-Language Fields
96. • Compact Language Detector (CLD) from Google • Open source – Apache License 2.0 • It is small, fast, and accurate, and can detect 160+ languages from as little as two sentences. • It can even detect multiple languages within a single block of text • https://github.com/CLD2Owners/cld2 Identifying Language

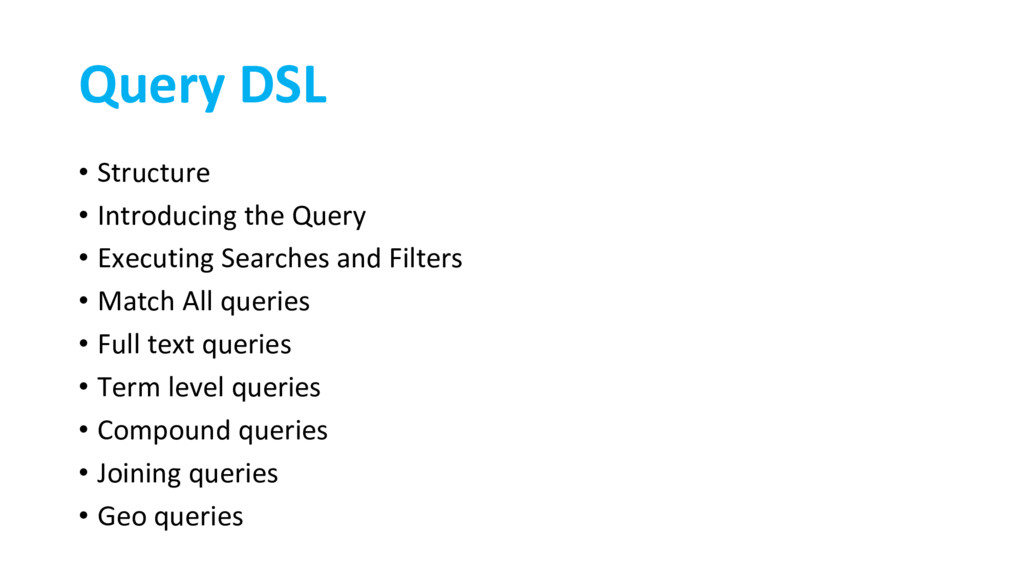

97. Query DSL • Structure • Introducing the Query • Executing Searches and Filters • Match All queries • Full text queries • Term level queries • Compound queries • Joining queries • Geo queries

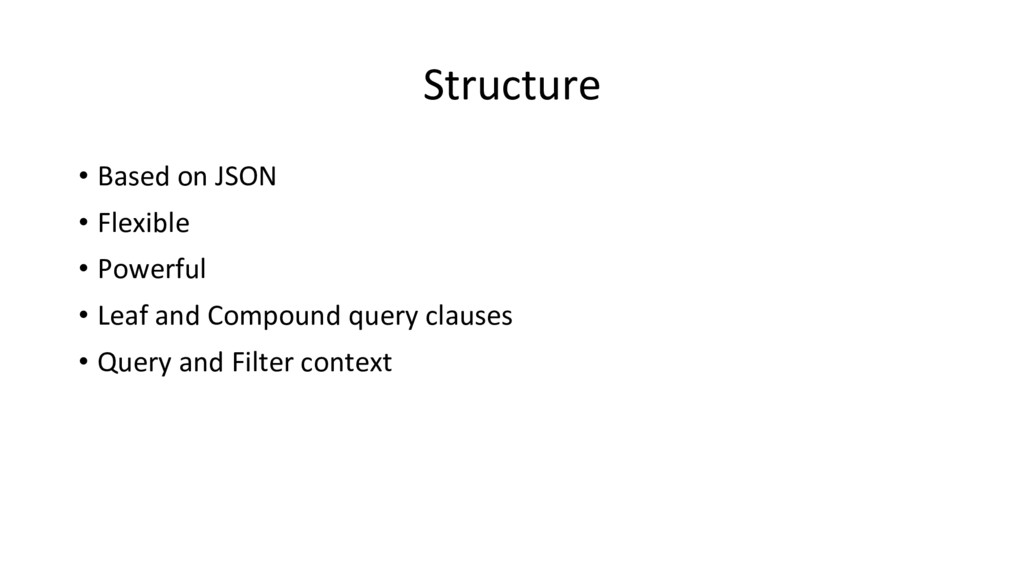

98. Structure • Based on JSON • Flexible • Powerful • Leaf and Compound query clauses • Query and Filter context

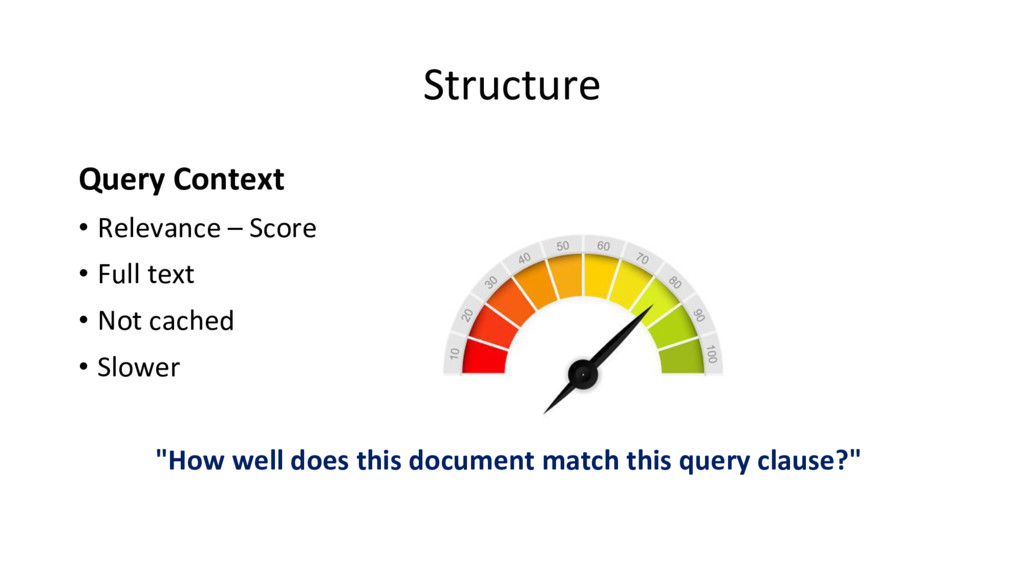

99. Query Context • Relevance – Score • Full text • Not cached • Slower "How well does this document match this query clause?" Structure
100. Filter Context • Boolean true/false • Exact values • Cached • Faster "Does this document match this query clause?" Structure
101. Filter first, then Query remaining docs Structure

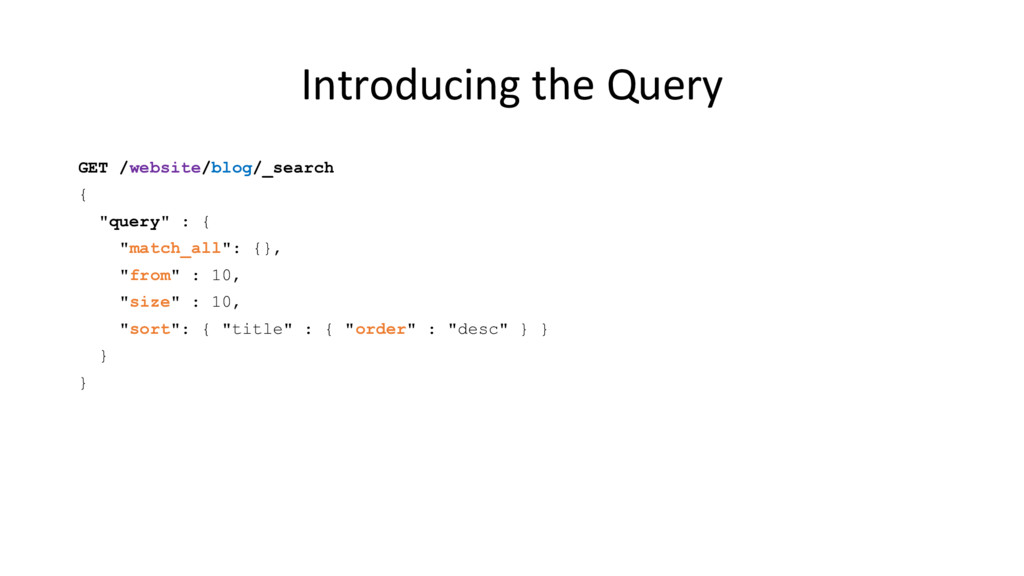

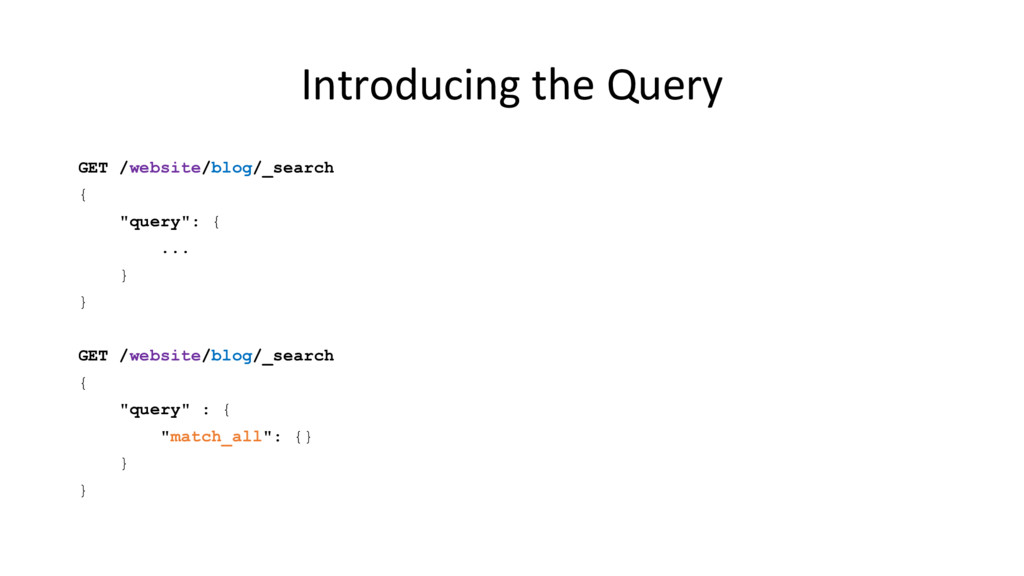

102. Introducing the Query GET /website/blog/_search { "query": { ... } } GET /website/blog/_search { "query" : { "match_all": {} } }
103. Introducing the Query GET /website/blog/_search { "query" : { "match_all": {}, "from" : 10, "size" : 10, "sort": { "title" : { "order" : "desc" } } } }

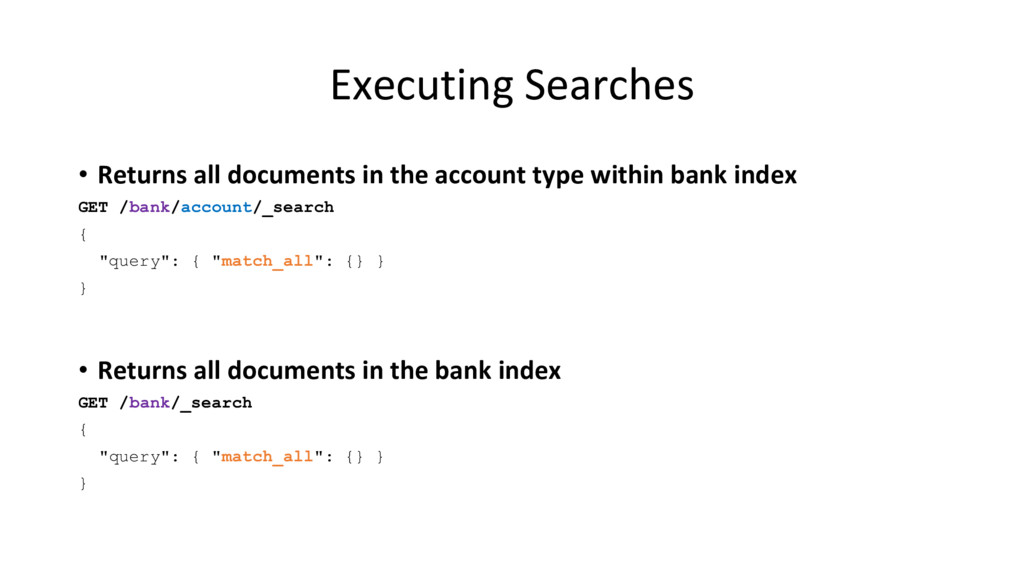

104. Executing Searches • Returns all documents in the account type within bank index GET /bank/account/_search { "query": { "match_all": {} } } • Returns all documents in the bank index GET /bank/_search { "query": { "match_all": {} } }

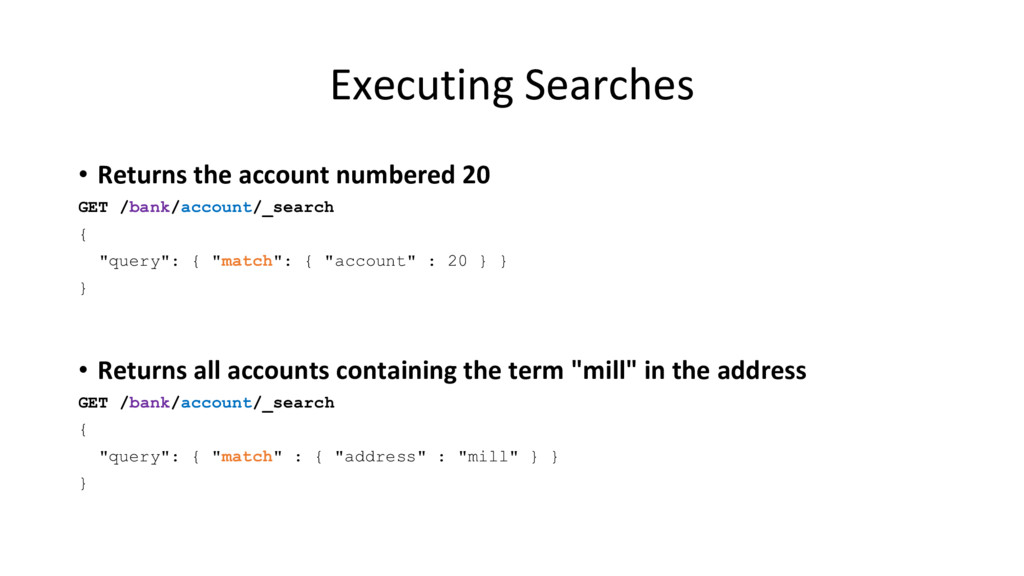

105. Executing Searches • Returns the account numbered 20 GET /bank/account/_search { "query": { "match": { "account" : 20 } } } • Returns all accounts containing the term "mill" in the address GET /bank/account/_search { "query": { "match" : { "address" : "mill" } } }
106. Executing Searches • Returns all accounts containing the term "mill" or "lane" in the address GET /bank/account/_search { "query": { "match": { "address": "mill lane" } } } • Returns all accounts containing the phrase "mill lane" in the address GET /bank/account/_search { "query": { "match_phrase": { "address": "mill lane" } } }

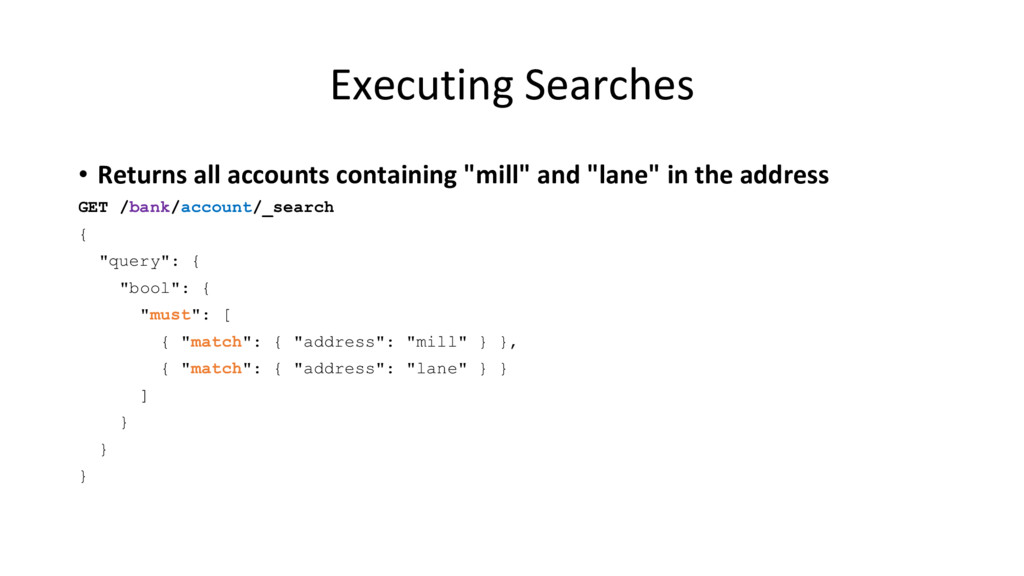

107. Executing Searches • Returns all accounts containing "mill" and "lane" in the address GET /bank/account/_search { "query": { "bool": { "must": [ { "match": { "address": "mill" } }, { "match": { "address": "lane" } } ] } } }

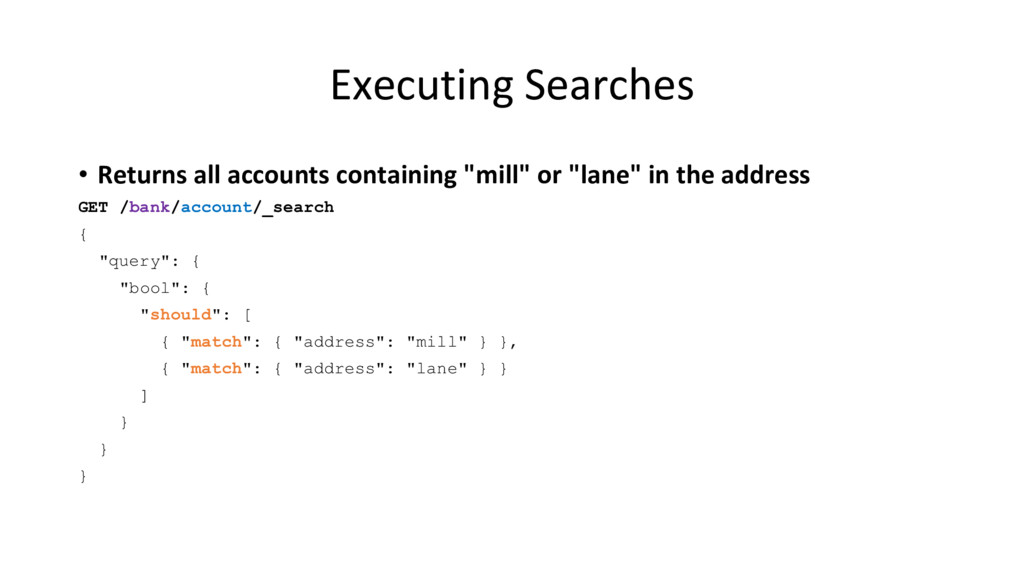

108. Executing Searches • Returns all accounts containing "mill" or "lane" in the address GET /bank/account/_search { "query": { "bool": { "should": [ { "match": { "address": "mill" } }, { "match": { "address": "lane" } } ] } } }

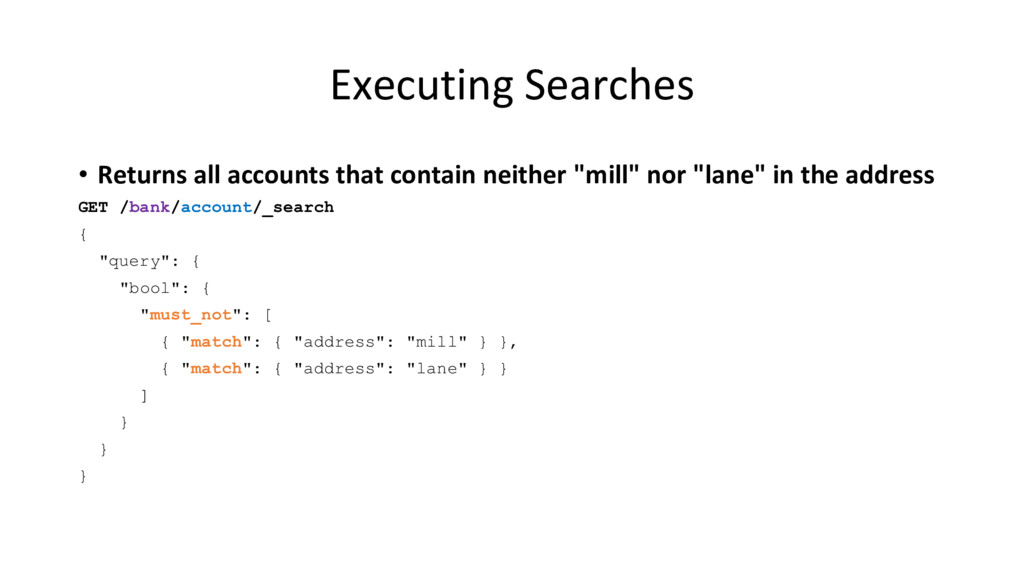

109. Executing Searches • Returns all accounts that contain neither "mill" nor "lane" in the address GET /bank/account/_search { "query": { "bool": { "must_not": [ { "match": { "address": "mill" } }, { "match": { "address": "lane" } } ] } } }

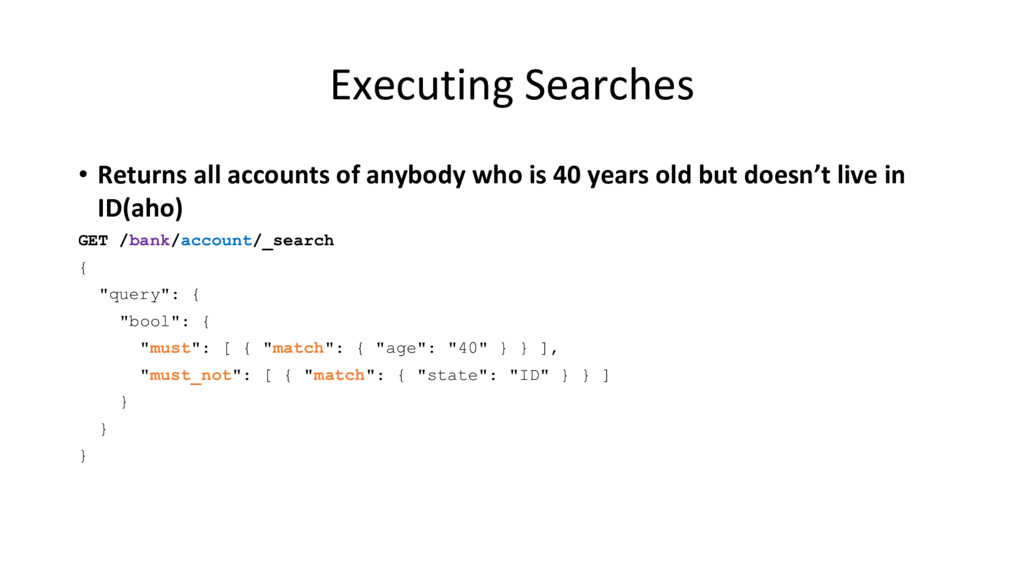

110. Executing Searches • Returns all accounts of anybody who is 40 years old but doesn’t live in ID(aho) GET /bank/account/_search { "query": { "bool": { "must": [ { "match": { "age": "40" } } ], "must_not": [ { "match": { "state": "ID" } } ] } } }

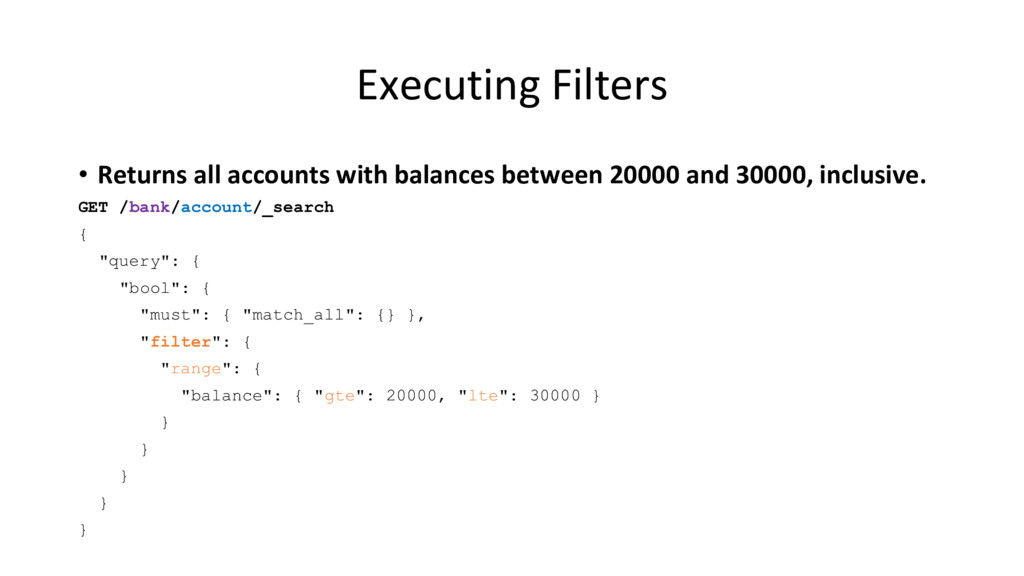

111. • Returns all accounts with balances between 20000 and 30000, inclusive. GET /bank/account/_search { "query": { "bool": { "must": { "match_all": {} }, "filter": { "range": { "balance": { "gte": 20000, "lte": 30000 } } } } } } Executing Filters

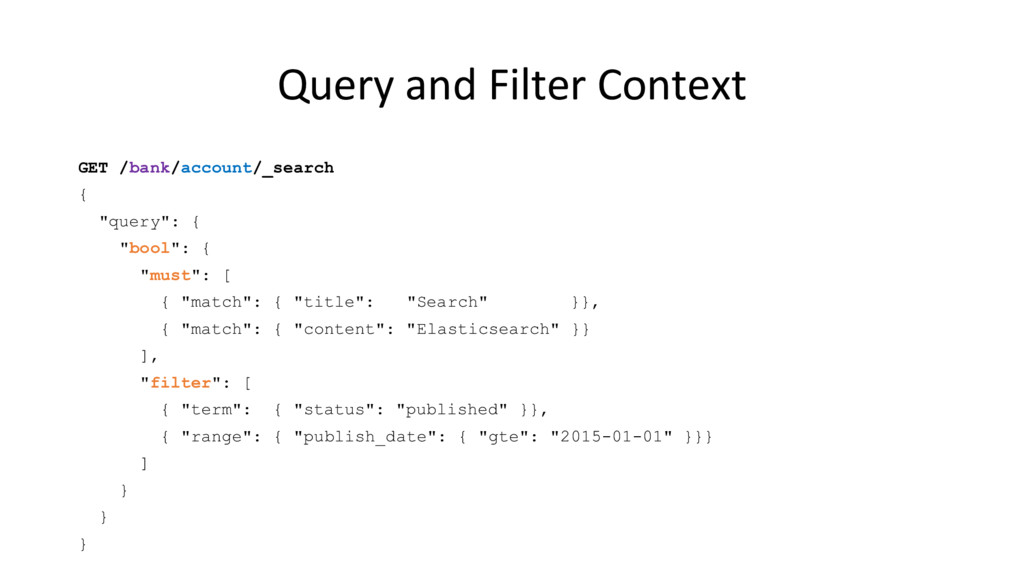

112. GET /bank/account/_search { "query": { "bool": { "must": [ { "match": { "title": "Search" }}, { "match": { "content": "Elasticsearch" }} ], "filter": [ { "term": { "status": "published" }}, { "range": { "publish_date": { "gte": "2015-01-01" }}} ] } } } Query and Filter Context

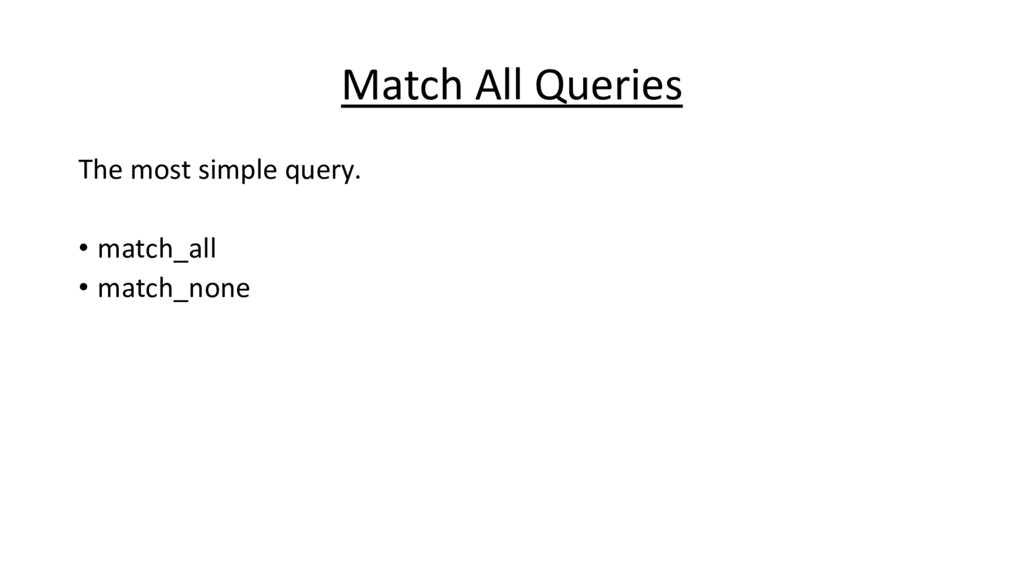

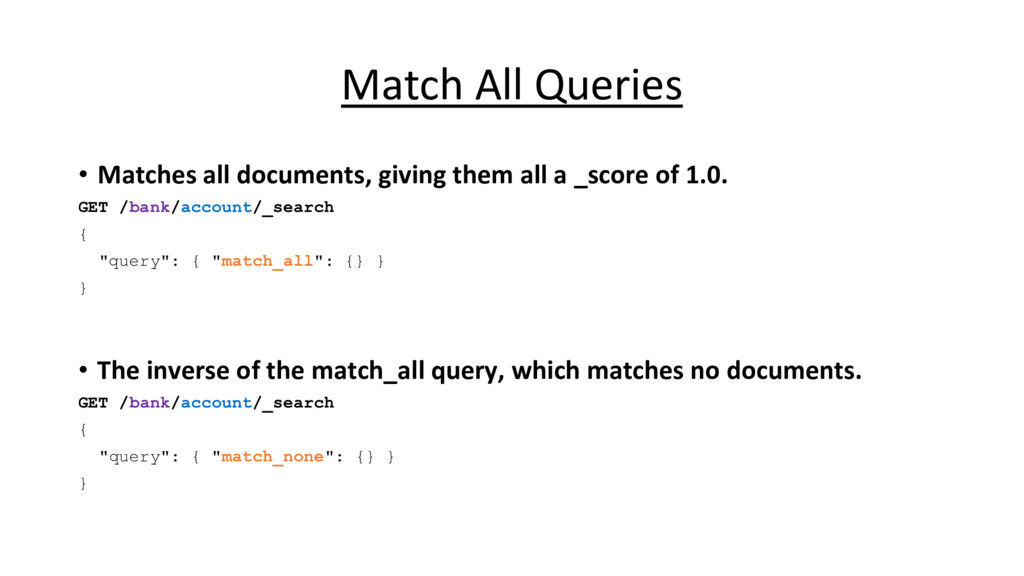

113. Match All Queries The most simple query. • match_all • match_none
114. • Matches all documents, giving them all a _score of 1.0. GET /bank/account/_search { "query": { "match_all": {} } } • The inverse of the match_all query, which matches no documents. GET /bank/account/_search { "query": { "match_none": {} } } Match All Queries

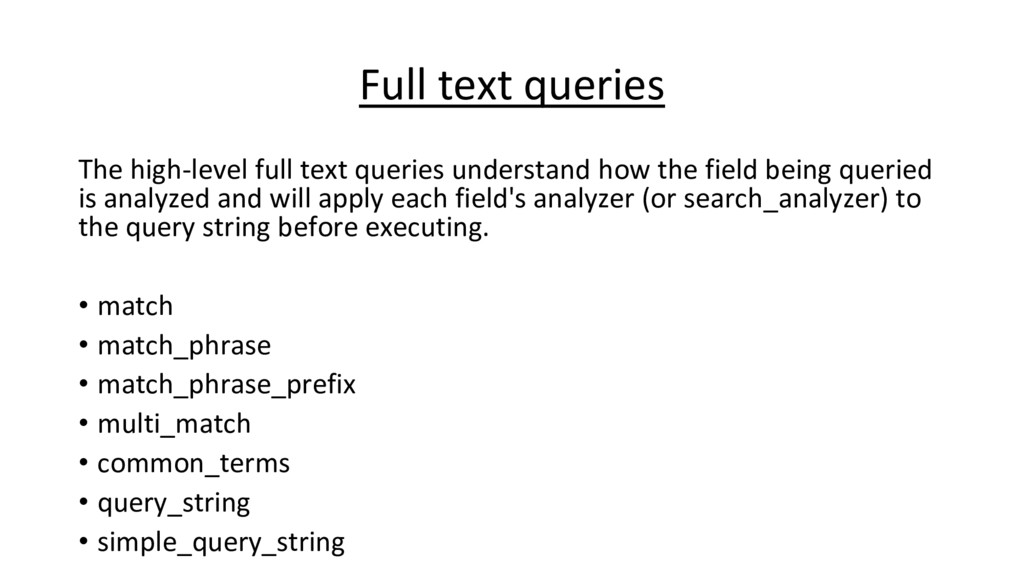

115. Full text queries The high-level full text queries understand how the field being queried is analyzed and will apply each field's analyzer (or search_analyzer) to the query string before executing. • match • match_phrase • match_phrase_prefix • multi_match • common_terms • query_string • simple_query_string

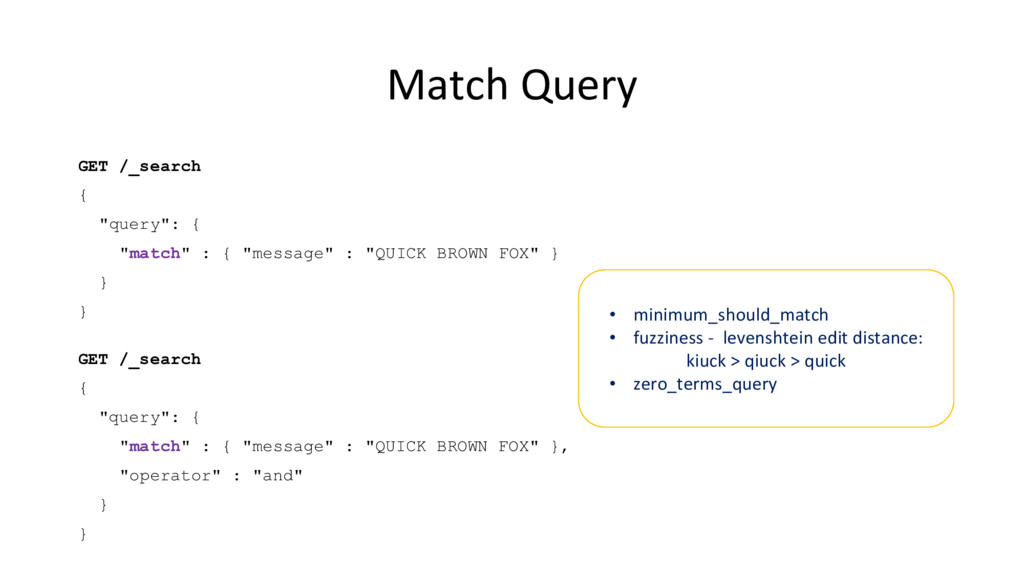

116. Match Query GET /_search { "query": { "match" : { "message" : "QUICK BROWN FOX" } } } GET /_search { "query": { "match" : { "message" : "QUICK BROWN FOX" }, "operator" : "and" } } • minimum_should_match • fuzziness - levenshtein edit distance: kiuck > qiuck > quick • zero_terms_query

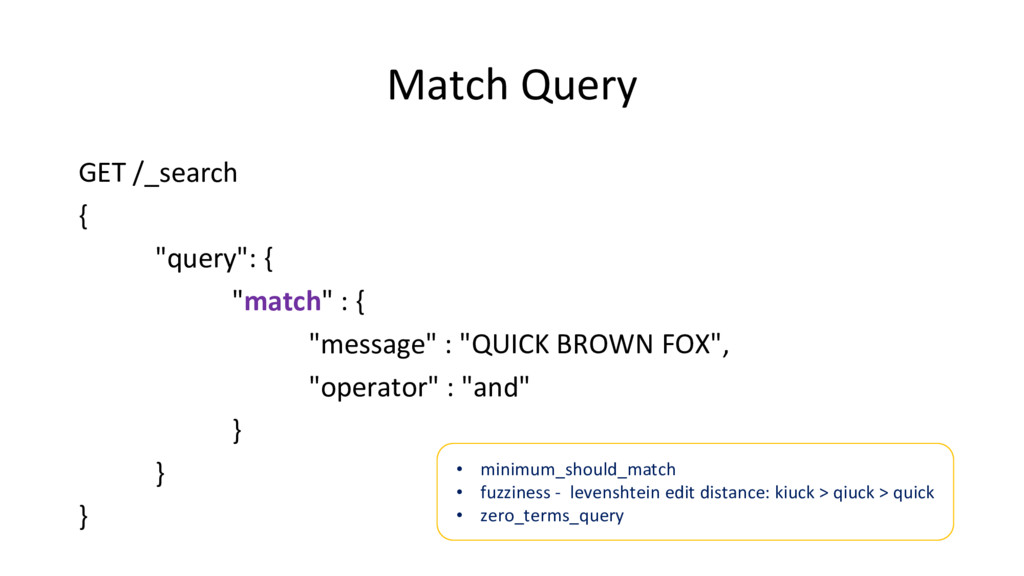

117. Match Query GET /_search { "query": { "match" : { "message" : "QUICK BROWN FOX", "operator" : "and" } } } • minimum_should_match • fuzziness - levenshtein edit distance: kiuck > qiuck > quick • zero_terms_query

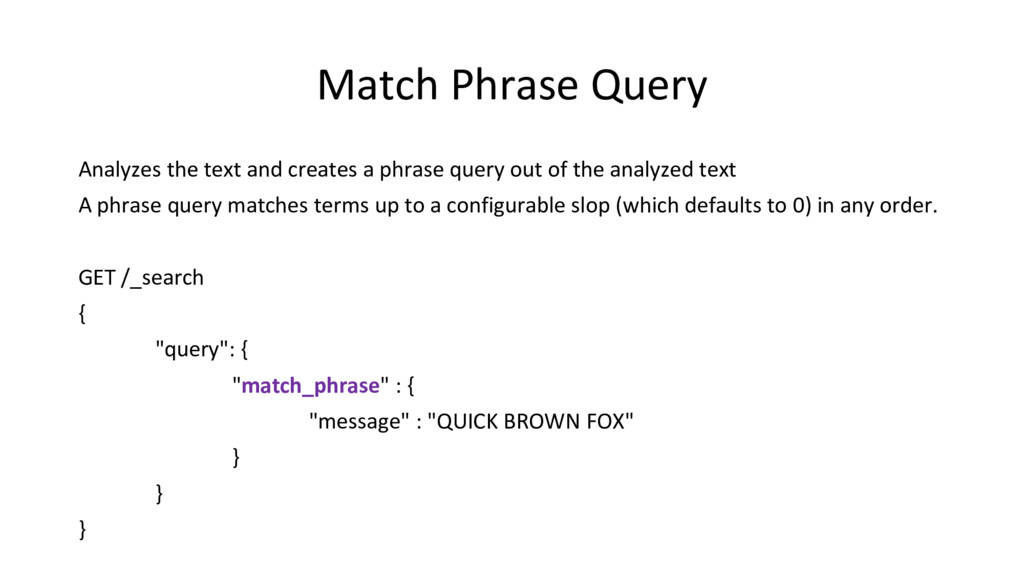

118. Match Phrase Query Analyzes the text and creates a phrase query out of the analyzed text A phrase query matches terms up to a configurable slop (which defaults to 0) in any order. GET /_search { "query": { "match_phrase" : { "message" : "QUICK BROWN FOX" } } }

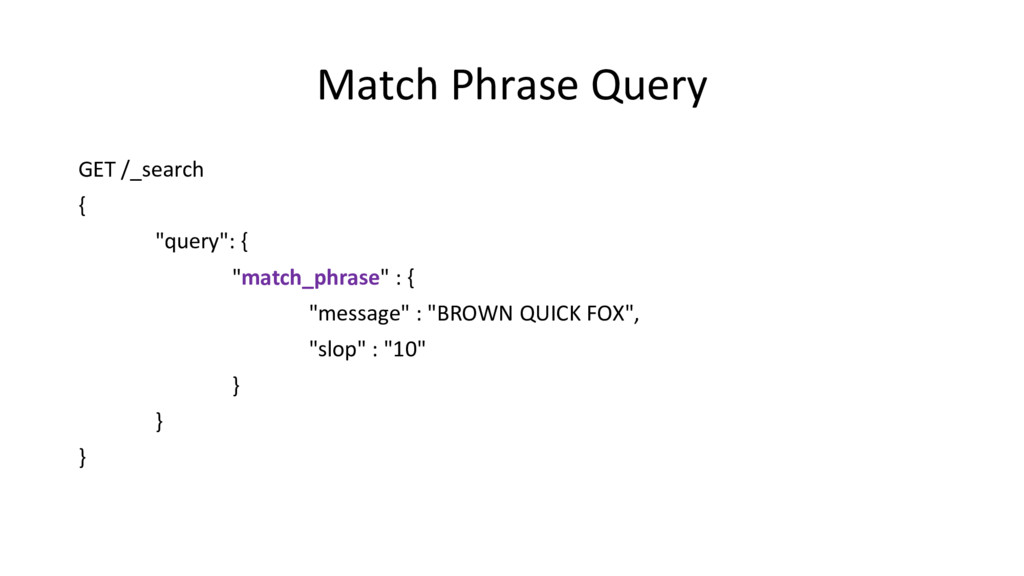

119. Match Phrase Query GET /_search { "query": { "match_phrase" : { "message" : "BROWN QUICK FOX", "slop" : "10" } } }

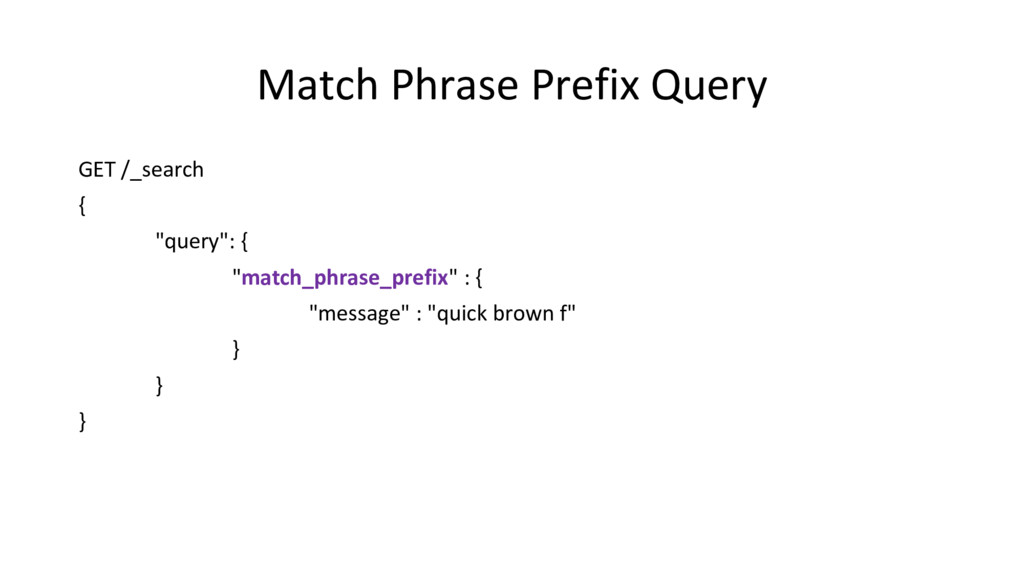

120. Match Phrase Prefix Query GET /_search { "query": { "match_phrase_prefix" : { "message" : "quick brown f" } } }

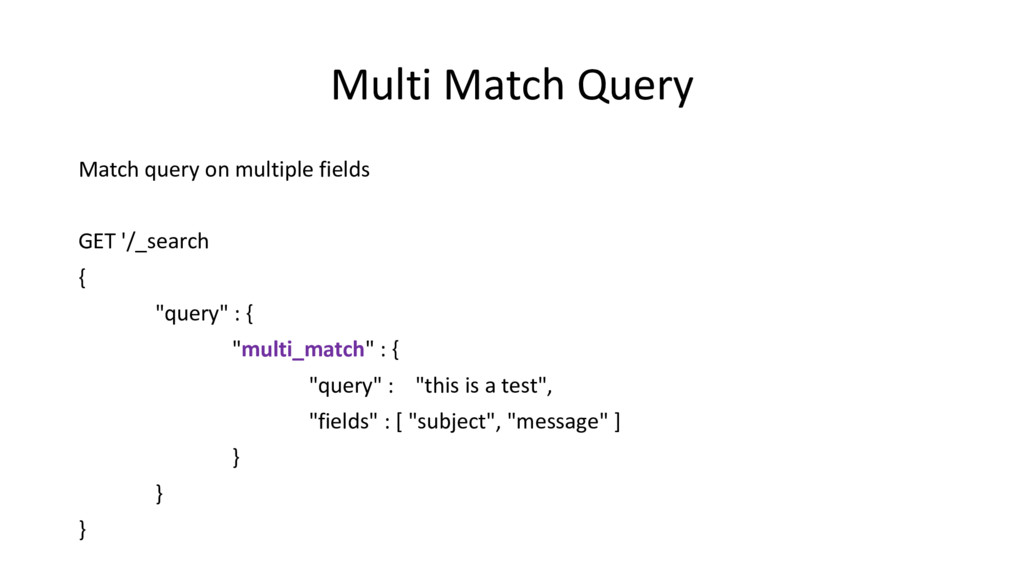

121. Multi Match Query Match query on multiple fields GET '/_search { "query" : { "multi_match" : { "query" : "this is a test", "fields" : [ "subject", "message" ] } } }

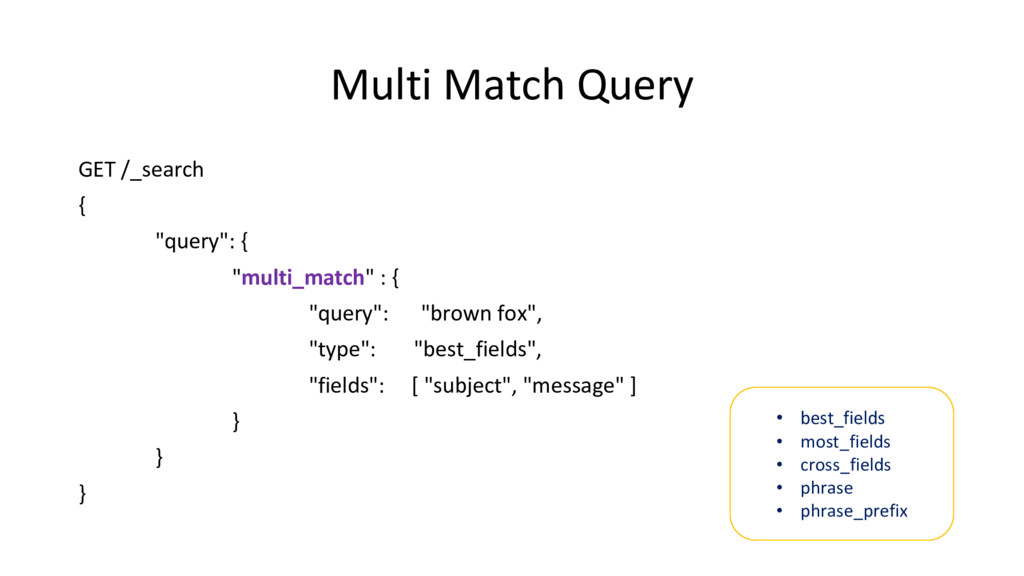

122. Multi Match Query GET /_search { "query": { "multi_match" : { "query": "brown fox", "type": "best_fields", "fields": [ "subject", "message" ] } } } • best_fields • most_fields • cross_fields • phrase • phrase_prefix

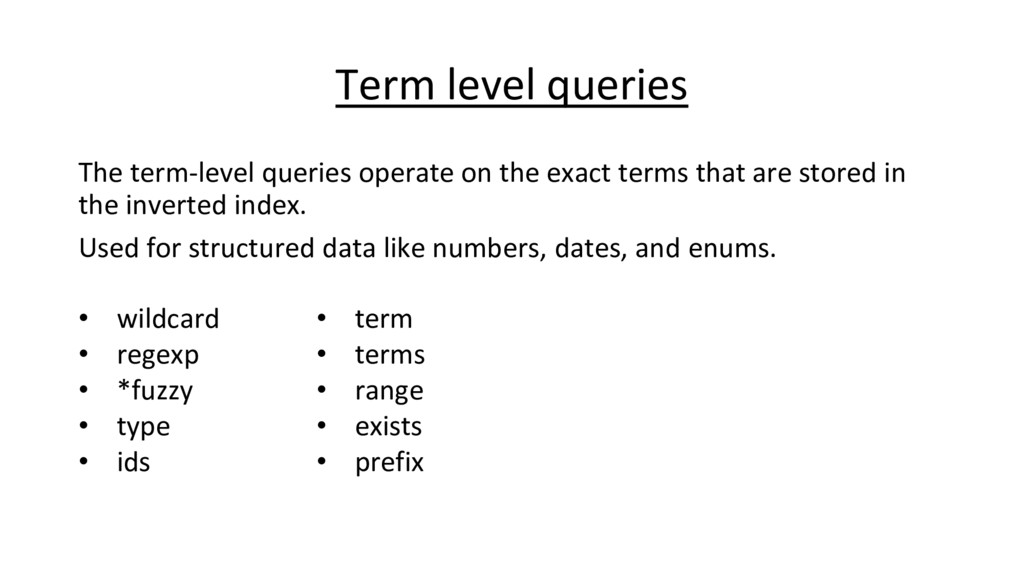

123. Term level queries The term-level queries operate on the exact terms that are stored in the inverted index. Used for structured data like numbers, dates, and enums. • wildcard • regexp • *fuzzy • type • ids • term • terms • range • exists • prefix

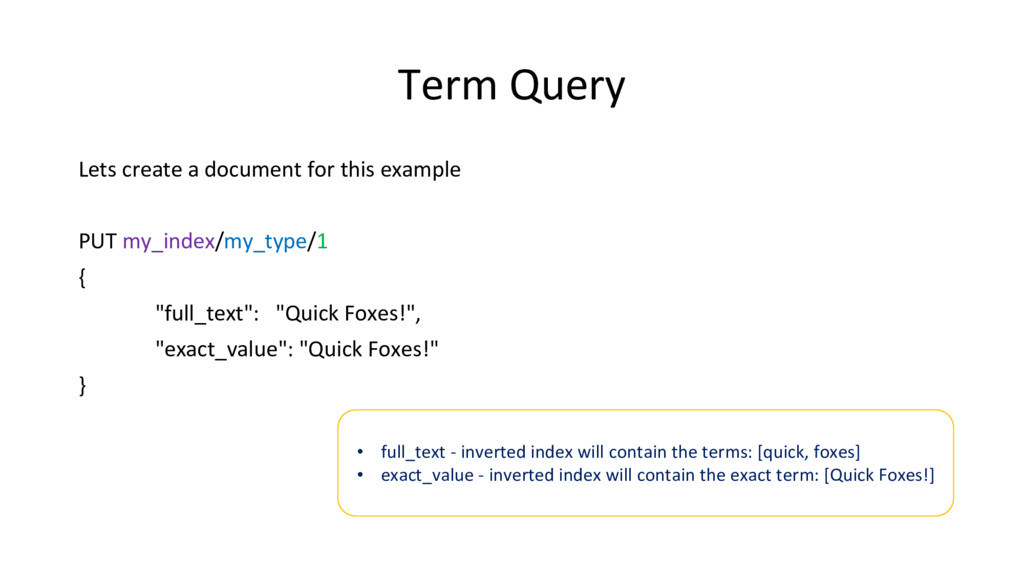

124. Term Query Lets create a document for this example PUT my_index/my_type/1 { "full_text": "Quick Foxes!", "exact_value": "Quick Foxes!" } • full_text - inverted index will contain the terms: [quick, foxes] • exact_value - inverted index will contain the exact term: [Quick Foxes!]

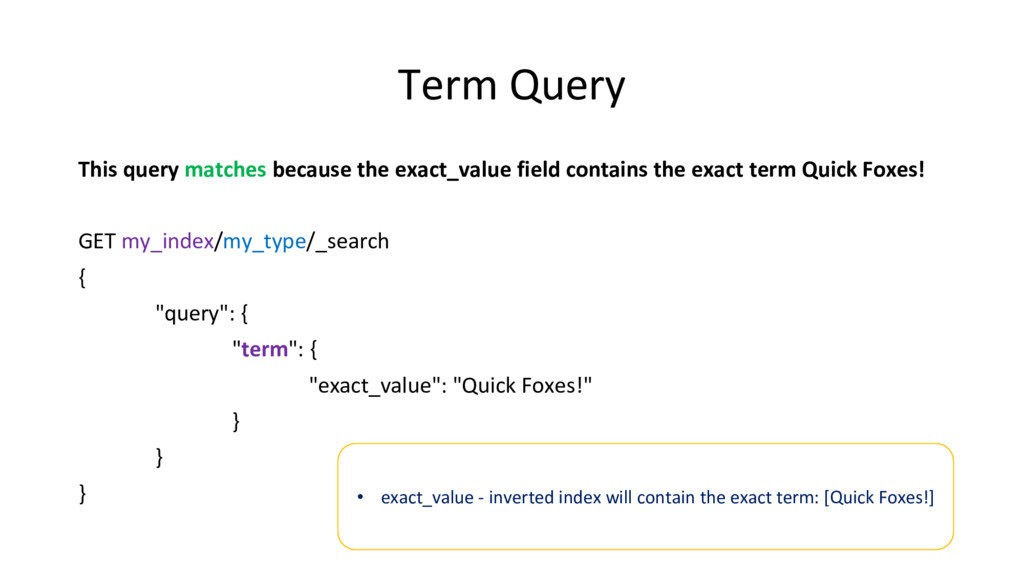

125. Term Query This query matches because the exact_value field contains the exact term Quick Foxes! GET my_index/my_type/_search { "query": { "term": { "exact_value": "Quick Foxes!" } } } • exact_value - inverted index will contain the exact term: [Quick Foxes!]

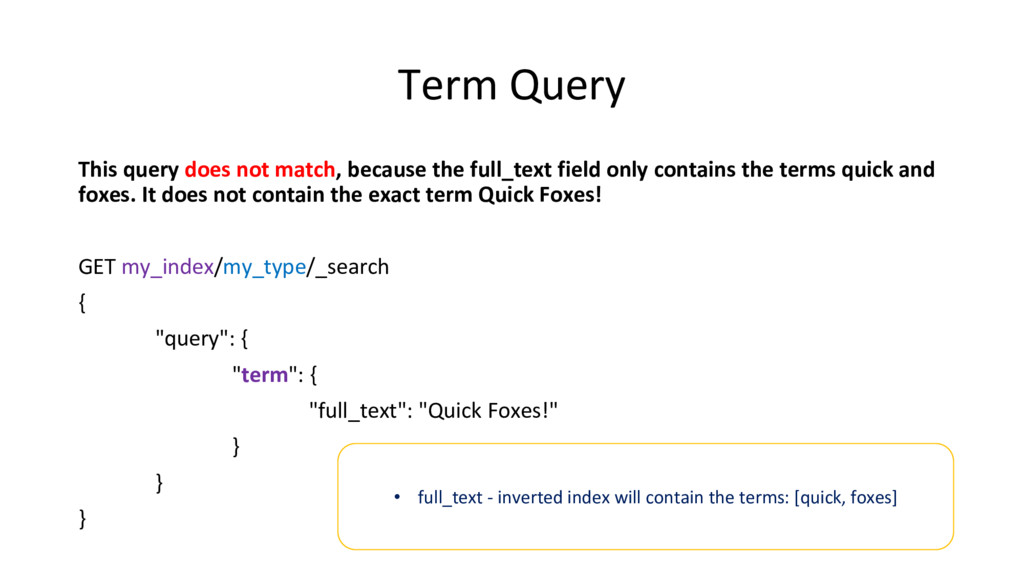

126. Term Query This query does not match, because the full_text field only contains the terms quick and foxes. It does not contain the exact term Quick Foxes! GET my_index/my_type/_search { "query": { "term": { "full_text": "Quick Foxes!" } } } • full_text - inverted index will contain the terms: [quick, foxes]

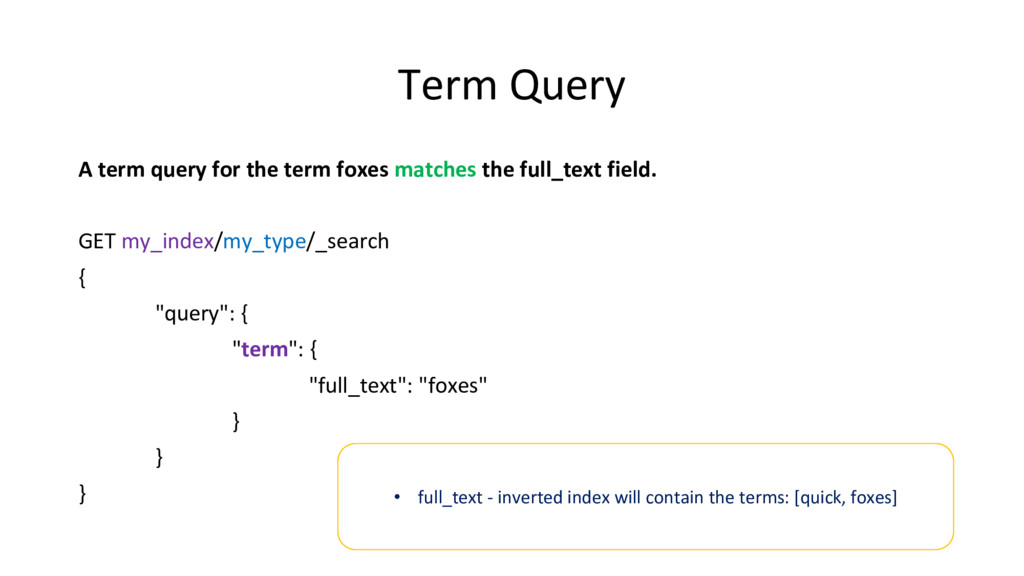

127. Term Query A term query for the term foxes matches the full_text field. GET my_index/my_type/_search { "query": { "term": { "full_text": "foxes" } } } • full_text - inverted index will contain the terms: [quick, foxes]

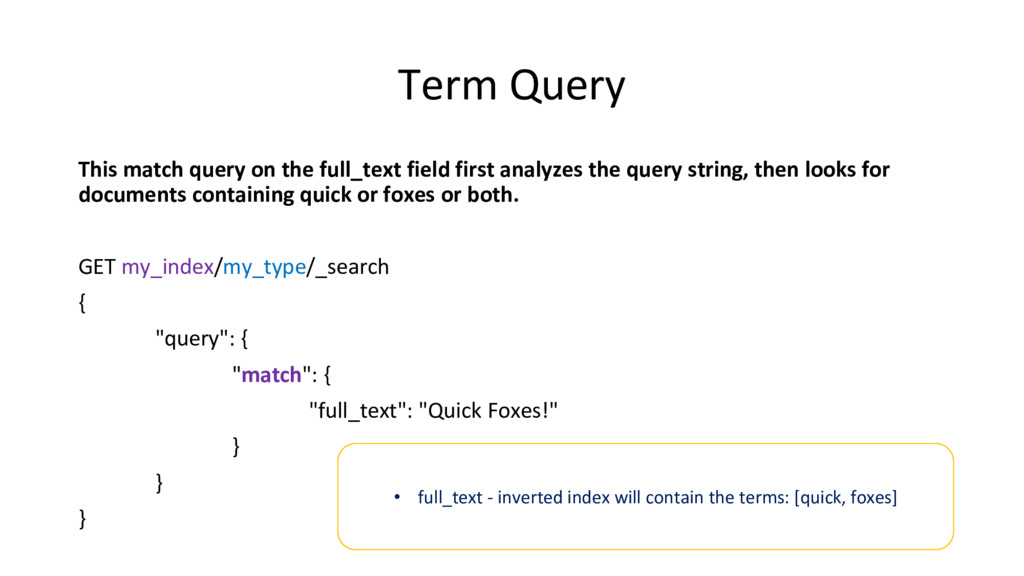

128. Term Query This match query on the full_text field first analyzes the query string, then looks for documents containing quick or foxes or both. GET my_index/my_type/_search { "query": { "match": { "full_text": "Quick Foxes!" } } } • full_text - inverted index will contain the terms: [quick, foxes]

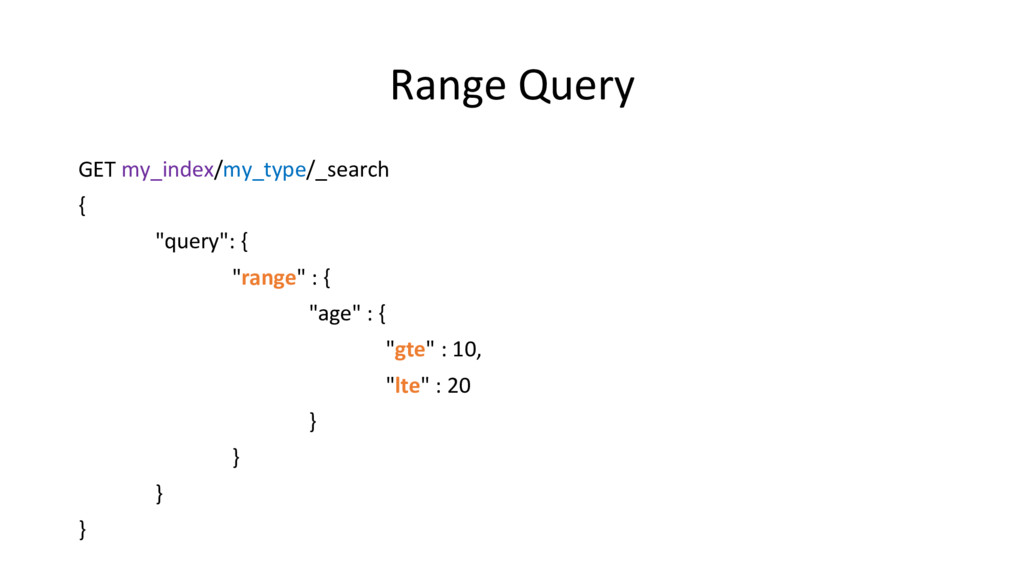

129. Range Query GET my_index/my_type/_search { "query": { "range" : { "age" : { "gte" : 10, "lte" : 20 } } } }

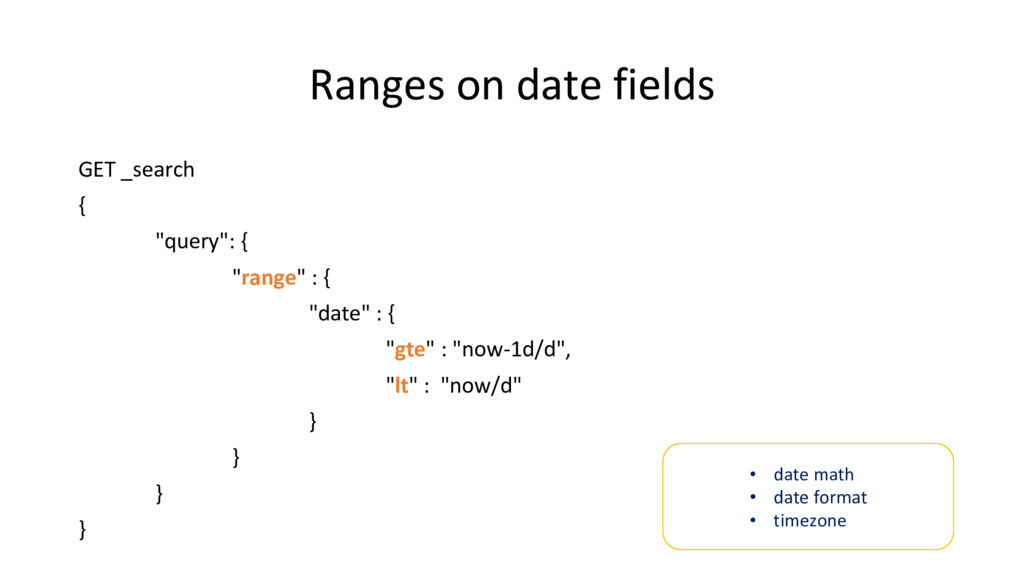

130. Ranges on date fields GET _search { "query": { "range" : { "date" : { "gte" : "now-1d/d", "lt" : "now/d" } } } } • date math • date format • timezone
131. Exists Query Returns documents that have at least one non-null value in the original field GET /_search { "query": { "exists" : { "field" : "user" } } } These documents would all match the query { "user": "jane" } { "user": "" } { "user": "-" } { "user": ["jane"] } { "user": ["jane", null ] } These documents would not match the query: { "user": null } { "user": [] } { "user": [null] }
132. Compound queries Compound queries wrap other compound or queries, either to combine their results and scores, to change their behaviour, or to switch from query to filter context. • constant_score • bool • dis_max • function_score • boosting • indices

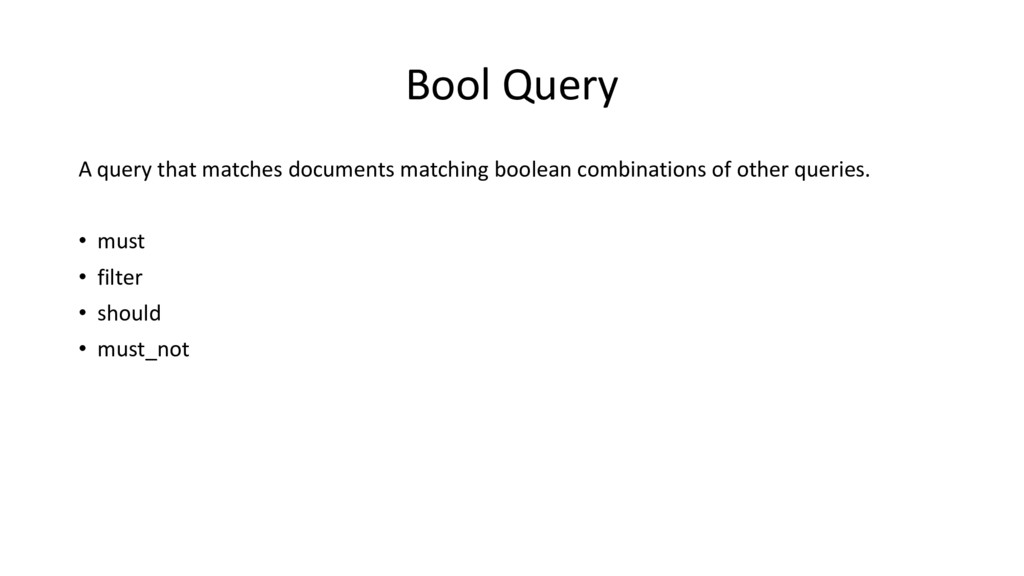

133. Bool Query A query that matches documents matching boolean combinations of other queries. • must • filter • should • must_not

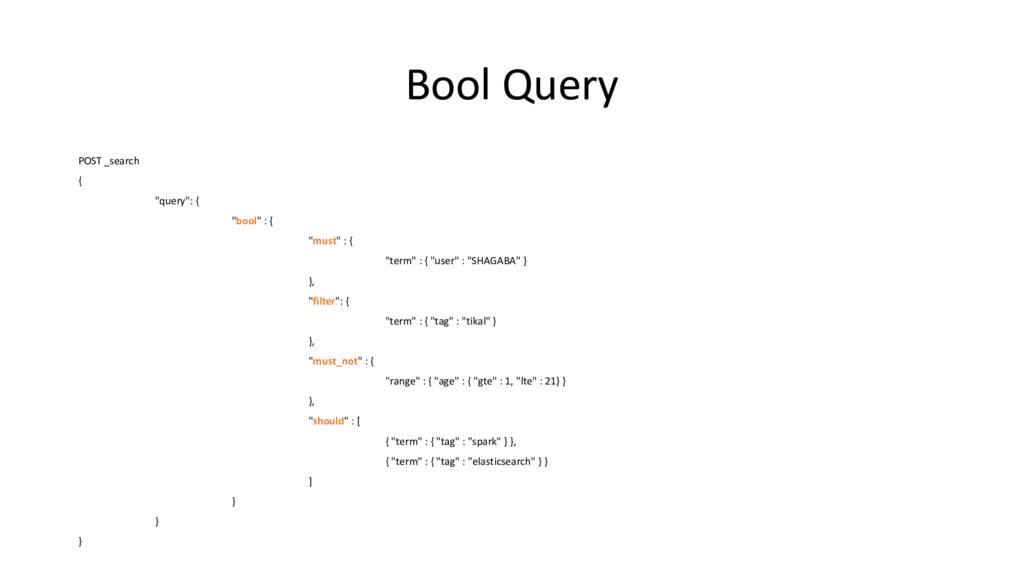

134. Bool Query POST _search { "query": { "bool" : { "must" : { "term" : { "user" : "SHAGABA" } }, "filter": { "term" : { "tag" : "tikal" } }, "must_not" : { "range" : { "age" : { "gte" : 1, "lte" : 21} } }, "should" : [ { "term" : { "tag" : "spark" } }, { "term" : { "tag" : "elasticsearch" } } ] } } }

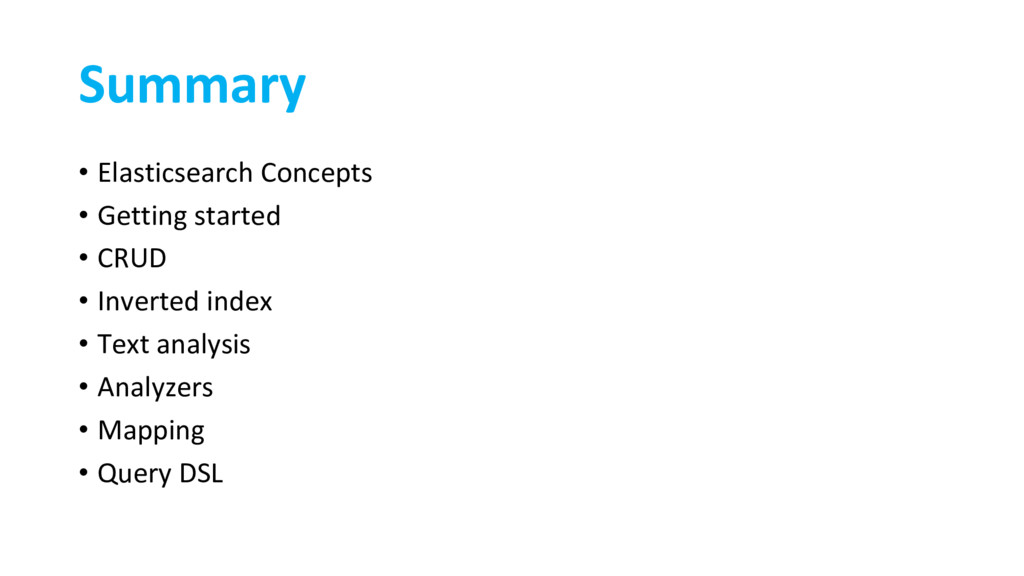

135. Summary • Elasticsearch Concepts • Getting started • CRUD • Inverted index • Text analysis • Analyzers • Mapping • Query DSL
136. Q & A

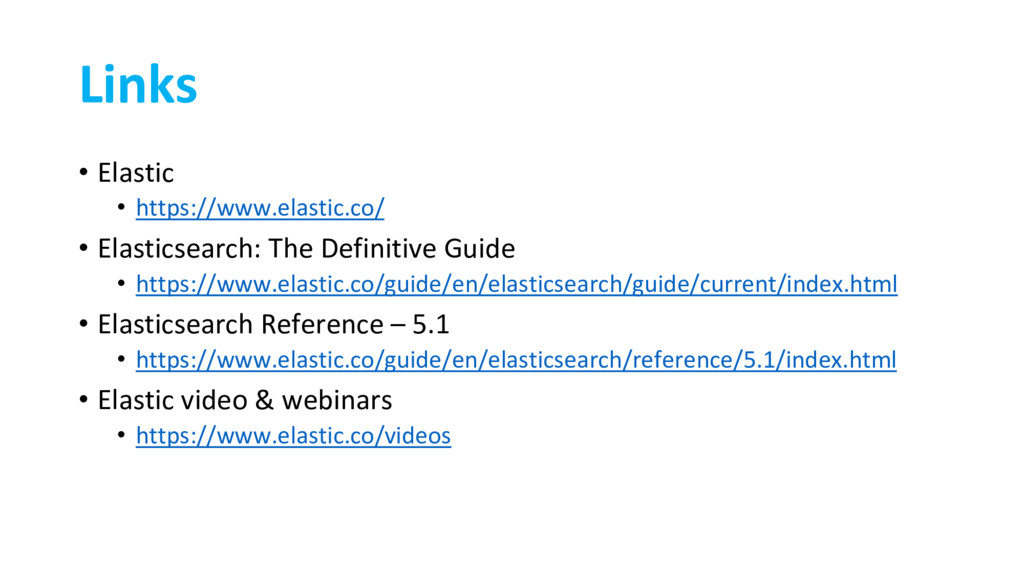

137. Links • Elastic • https://www.elastic.co/ • Elasticsearch: The Definitive Guide • https://www.elastic.co/guide/en/elasticsearch/guide/current/index.html • Elasticsearch Reference – 5.1 • https://www.elastic.co/guide/en/elasticsearch/reference/5.1/index.html • Elastic video & webinars • https://www.elastic.co/videos
138. Thanks Hope you’re inspired Shai Gabai
