1. OpenFlow v1.3.1 Interoperability @INTEROP Tokyo • June 2013 • HP/IXIA/NEC/NICT/Toyo Technica • ShowNet NOC team
2. Test Bed Topology • Cntrol-Plane • Data-Plane XM2 RISE-Controller HP5900 PF5240 PF5248 TestCenter XM2 HP5900 PF5240 PF5248 TestCenter PF6800
3. Test Case 1. OF protocol version negotiation message exchange 2. Feature Request message 3. Multipart message Request capability 4. Barrier Request message 5. Overlap flow_mod 6. Multiple controller connection 7. Flow Setup/Perform discovery 8. Metering objects and rate limitting 9. IP forwarding/spoofing/NAT
4. Multipart message • IXIA-HP5900 – error • 4. Vender/Experimenter Stat • 5. Vender/Experimenter Message • 8. Queue Config • IXIA-PF5240(exp-id:76) – error • 4. Vender/Experimenter Stat (not implement yet) • 5. Vender/Experimenter Message (not implement yet)

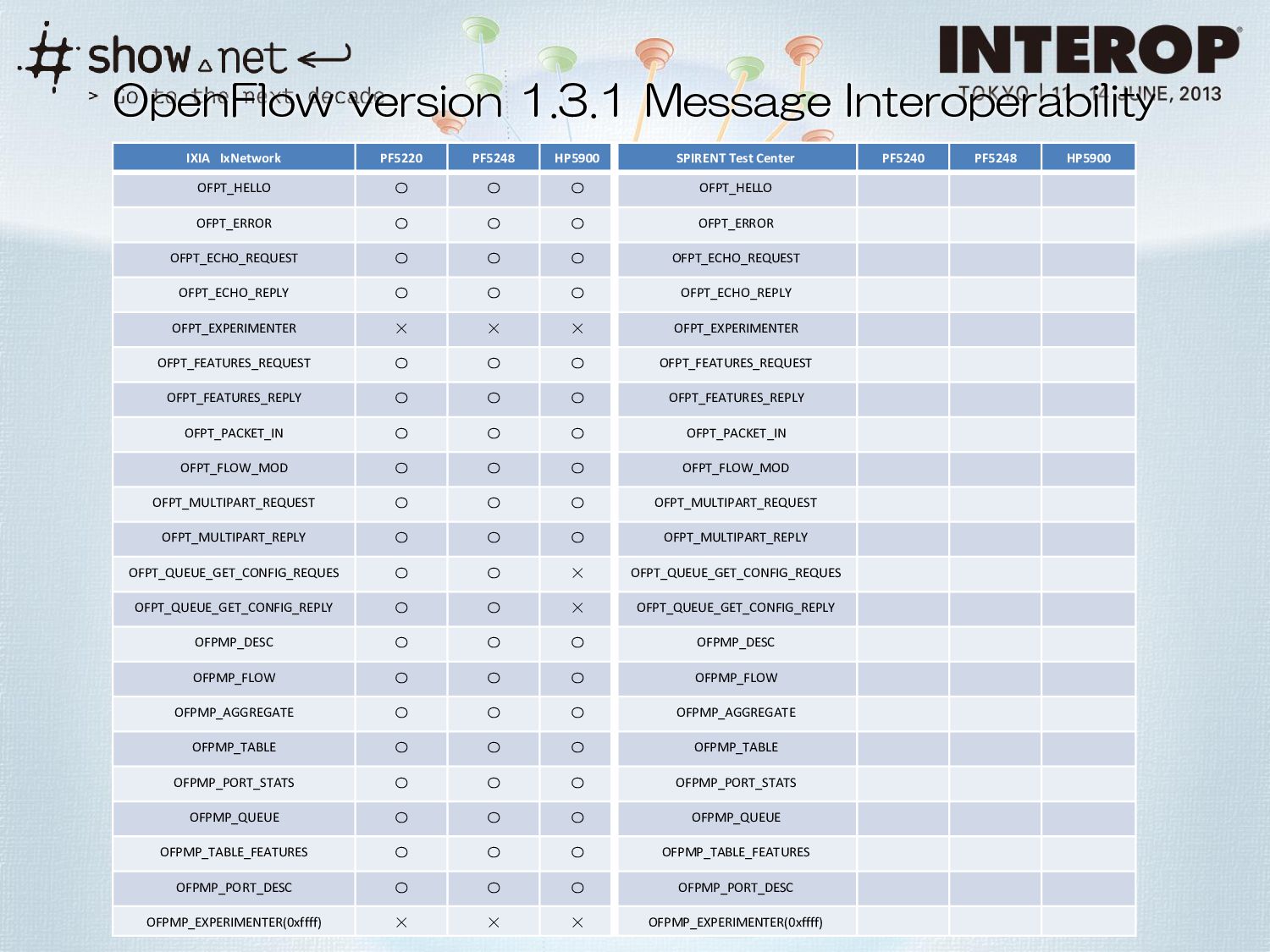

5. OpenFlow version 1.3.1 Message Interoperability IXIA IxNetwork PF5220 PF5248 HP5900 SPIRENT Test Center PF5240 PF5248 HP5900 OFPT_HELLO 〇 〇 〇 OFPT_HELLO OFPT_ERROR 〇 〇 〇 OFPT_ERROR OFPT_ECHO_REQUEST 〇 〇 〇 OFPT_ECHO_REQUEST OFPT_ECHO_REPLY 〇 〇 〇 OFPT_ECHO_REPLY OFPT_EXPERIMENTER × × × OFPT_EXPERIMENTER OFPT_FEATURES_REQUEST 〇 〇 〇 OFPT_FEATURES_REQUEST OFPT_FEATURES_REPLY 〇 〇 〇 OFPT_FEATURES_REPLY OFPT_PACKET_IN 〇 〇 〇 OFPT_PACKET_IN OFPT_FLOW_MOD 〇 〇 〇 OFPT_FLOW_MOD OFPT_MULTIPART_REQUEST 〇 〇 〇 OFPT_MULTIPART_REQUEST OFPT_MULTIPART_REPLY 〇 〇 〇 OFPT_MULTIPART_REPLY OFPT_QUEUE_GET_CONFIG_REQUES 〇 〇 × OFPT_QUEUE_GET_CONFIG_REQUES OFPT_QUEUE_GET_CONFIG_REPLY 〇 〇 × OFPT_QUEUE_GET_CONFIG_REPLY OFPMP_DESC 〇 〇 〇 OFPMP_DESC OFPMP_FLOW 〇 〇 〇 OFPMP_FLOW OFPMP_AGGREGATE 〇 〇 〇 OFPMP_AGGREGATE OFPMP_TABLE 〇 〇 〇 OFPMP_TABLE OFPMP_PORT_STATS 〇 〇 〇 OFPMP_PORT_STATS OFPMP_QUEUE 〇 〇 〇 OFPMP_QUEUE OFPMP_TABLE_FEATURES 〇 〇 〇 OFPMP_TABLE_FEATURES OFPMP_PORT_DESC 〇 〇 〇 OFPMP_PORT_DESC OFPMP_EXPERIMENTER(0xffff) × × × OFPMP_EXPERIMENTER(0xffff)

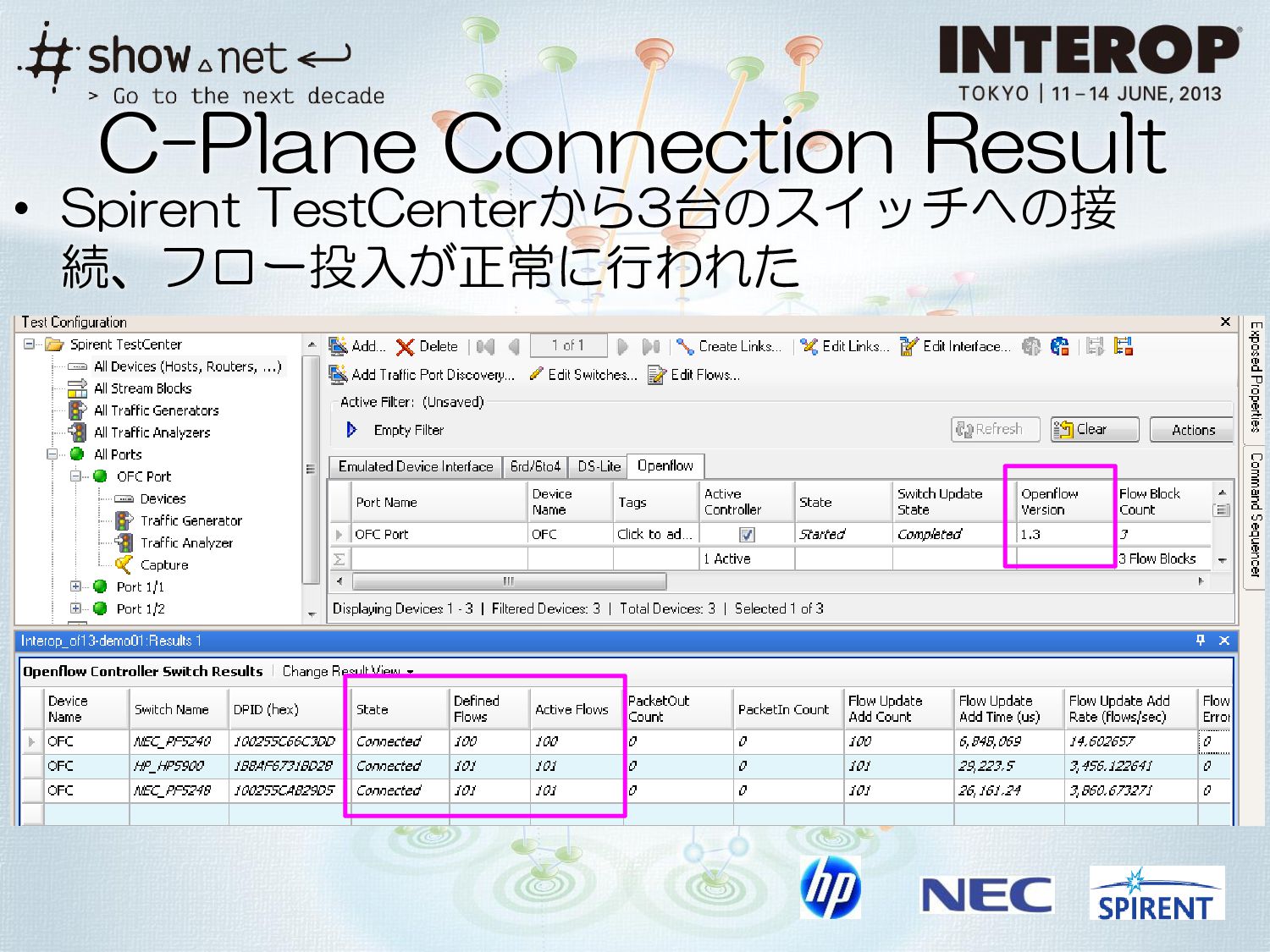

6. C-Plane Connection Result • Spirent TestCenterから3台のスイッチへの接 続、フロー投入が正常に行われた
7. D-Plane Connection PF5248 PF5240 hp5900 Generator Spirent TestCenter 1/0/1 1/0/2 0/50 0/49 0/1 0/2 1/0/4 0/9 Port 1/1 Port 1/2 MAC 00:10:94:10:00:01 ~ 00:10:94:20:00:64 MAC 00:10:94:20:00:01 ~ 00:10:94:20:00:64
8. Spirent トラフィック＆Flow設定 • トラフィック設定 – MACアドレス100の組み合わせを持つL2トラフィック • OpenFlow設定
9. Flow設定詳細 • Stream 1：dl_src, dl_dst, – 100Flowエントリ • Stream 2：In_port, – 1Flowエントリ PF5248 PF5240 hp5900 Generator Spirent TestCenter 1/0/1 1/0/2 0/50 0/49 0/1 0/2 1/0/4 0/9 Port 1/1 Port 1/2 Stream 1 Stream 2
10. OpenFlow v1.3.1 test scene OpenFlow version Flow Entry Traffic Statistics
11. OpenFlow version Flow Entry Rx Rate OpenFlow v1.3.1 test scene

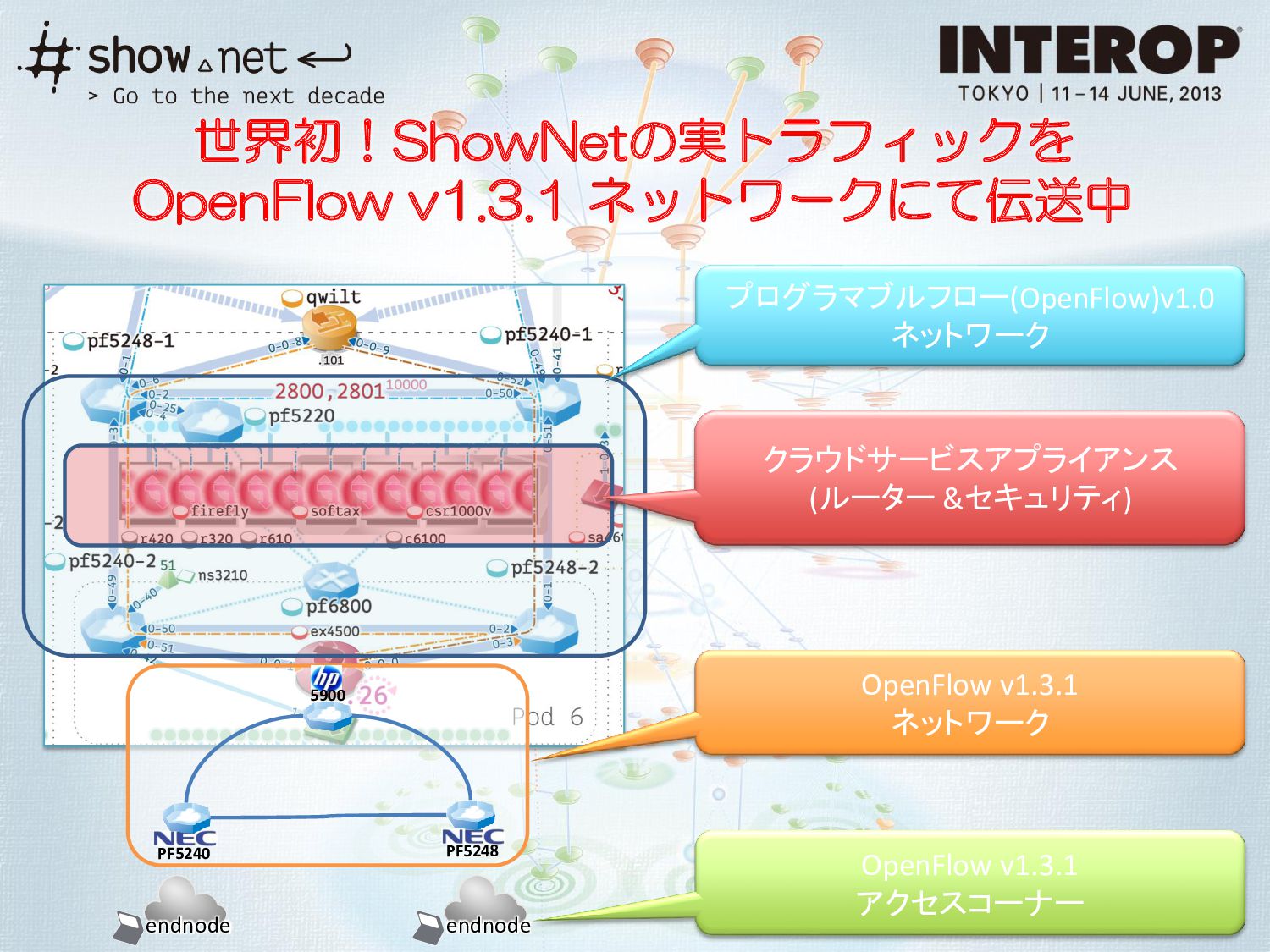

12. 世界初！ShowNetの実トラフィックを OpenFlow v1.3.1 ネットワークにて伝送中 プログラマブルフロー(OpenFlow)v1.0 ネットワーク クラウドサービスアプライアンス (ルーター &セキュリティ) 5900 PF5240 PF5248 endnode endnode OpenFlow v1.3.1 ネットワーク OpenFlow v1.3.1 アクセスコーナー
