Docker Introduction Tech Talk

Docker Tech Talk for a customer

Transcript

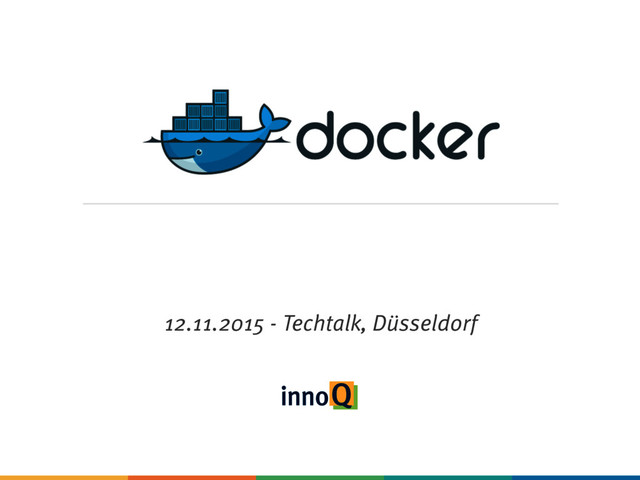

1. 12.11.2015 - Techtalk, Düsseldorf
2. DevOps and Docker? > DevOps (some parts) > “Automate everything” > “Take responsibility” > Technical Problems > Complex services/apps and dependencies > Limited amount of hardware
3. Virtualization > Solves part of the problem:
 limited hardware > simplified 2 main concepts:
4. VM VM VM VM Virtualization Hardware Host OS/Kernel Virtual Hardware OS / Kernel App Hardware Host OS/Kernel Hypervisor VM App Mapped HV Hardware (OS / Kernel)
5. Still… > Setting up whole virtual machines for applications is a lot of overhead > Applications have complex requirements, even with one technology stack > Running a distributed system locally can be an unpleasant experience
6. Container > Docker is “Operating system-level virtualization” or a modern “chroot” ;-) Docker Linux Kernel Virtualization Features
 (cgroups, namespaces, etc.) libcontainer Container Container Container

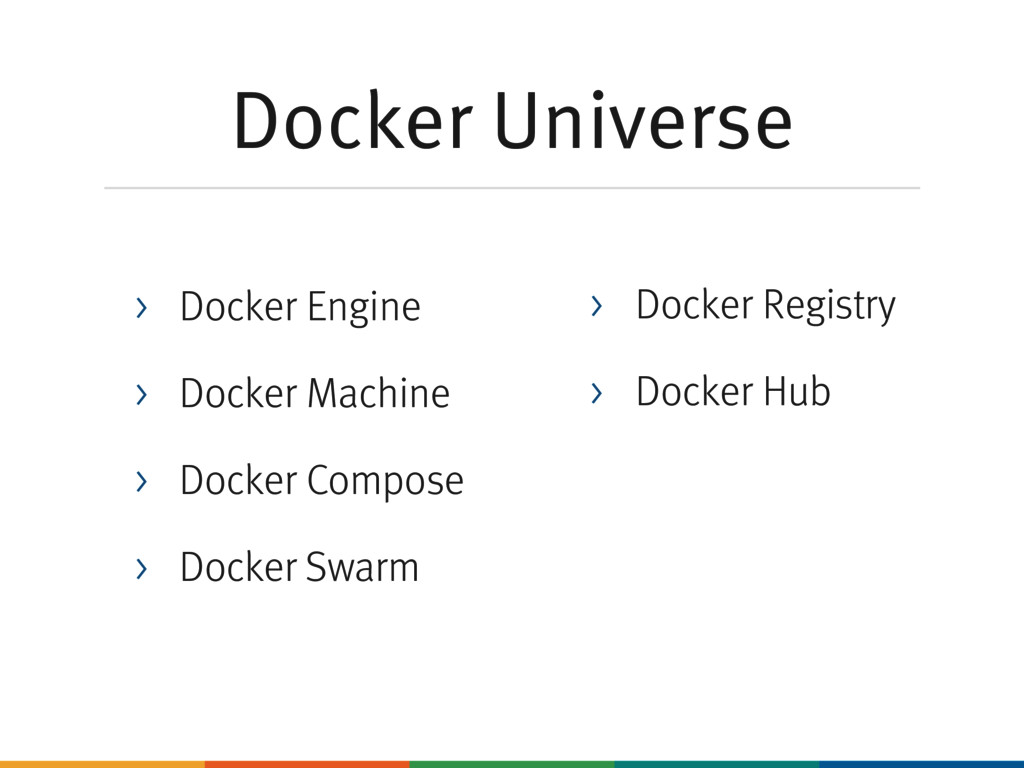

7. Docker Universe > Docker Engine > Docker Machine > Docker Compose > Docker Swarm > Docker Registry > Docker Hub
8. Docker Universe Machine VirtualBox AWS Azure … 11 more Docker Daemon $ docker Compose Swarm
9. Persistence > Data is not persisted by default > Container can define Volumes > Volumes can be mounted > Volumes can be shared > Volumes can have permissions
10. Logging > Filesystem (Volume) > STDOUT > Logging Drivers > default: json-file > syslog, journald, gelf, fluentd, awslogs, …
11. Networking > Containers are isolated via a bridge- interface > Configuration is done via docker > Host Stack can be used directly > Complex overlay networks are possible
12. Creating Images FROM centos:centos6 RUN yum install -y epel-release RUN yum install -y nodejs npm COPY . /src RUN cd /src; npm install EXPOSE 8080 CMD ["node", "/src/index.js"] build/ :.. Dockerfile : src/
 :.. app $ docker build .
13. Docker FS Layering FROM .. RUN .. RUN .. COPY .. RUN .. … 12ca0ae6c50d40589f280004 59015122974cd04812d5719 8e4ec5c3e63c9c50a1bdb0b9 62bd84c070ab552f1554acfc7 ae2007787fbfbffe206be67062
14. so far… > Lightweight Containers > image creation via docker build > image distribution via registry > container creation via docker run > networking and logging configuration > manage persistence via volumes
15. Container “Patterns” > Sidekick Container Sidekick ServiceRegistry Container
16. Container “Patterns” > Sidekick > Ambassador Container Ambassador Service
17. Best Practices > Use small images with few fs layers > Don’t mix applications inside containers > Configure your container > Use explicit versions and manage them > Maintain your ecosystem
18. Scaling Docker > Swarm > CoreOS > Kubernetes > Mesosphere > …
19. CoreOS Example Core OS Core OS Core OS Core OS Core OS Core OS Docker etcd fleet skydns Sidekicks
20. Docker @ your Company > Adds great benefits but, … > simplifies stuff by adding complexity [!sic] > needs some security considerations > is actively developed > Does not immediately fix your project deadlines, replace your ops department or repair the coffee machine
21. Alternatives / Outlook > App Container Spec > rkt > Open Container Initiative > ???
22. Simon Kölsch | @simkoelsch simon.koelsch@innoq.com innoQ Deutschland GmbH Krischerstr. 100 40789 Monheim am Rhein Germany Phone: +49 2173 3366-0 innoQ Schweiz GmbH Gewerbestr. 11 CH-6330 Cham Switzerland Phone: +41 41 743 0116 www.innoq.com Ohlauer Straße 43 10999 Berlin Germany Phone: +49 2173 3366-0 Robert-Bosch-Straße 7 64293 Darmstadt Germany Phone: +49 2173 3366-0 Radlkoferstraße 2 D-81373 München Germany Telefon +49 (0) 89 741185-270 Thank you! Questions?
