Easy pay with 🍏 Pay

A speech about Apple Pay. It covers following topics:
- what is Apple Pay
- how to use Apple Pay
- why we should spend time on Apple Pay integration

Video: https://youtu.be/dl0Zj41bomw

Transcript

1. EASY PAY WITH 🍏 PAY Volodymyr Hryhoriev

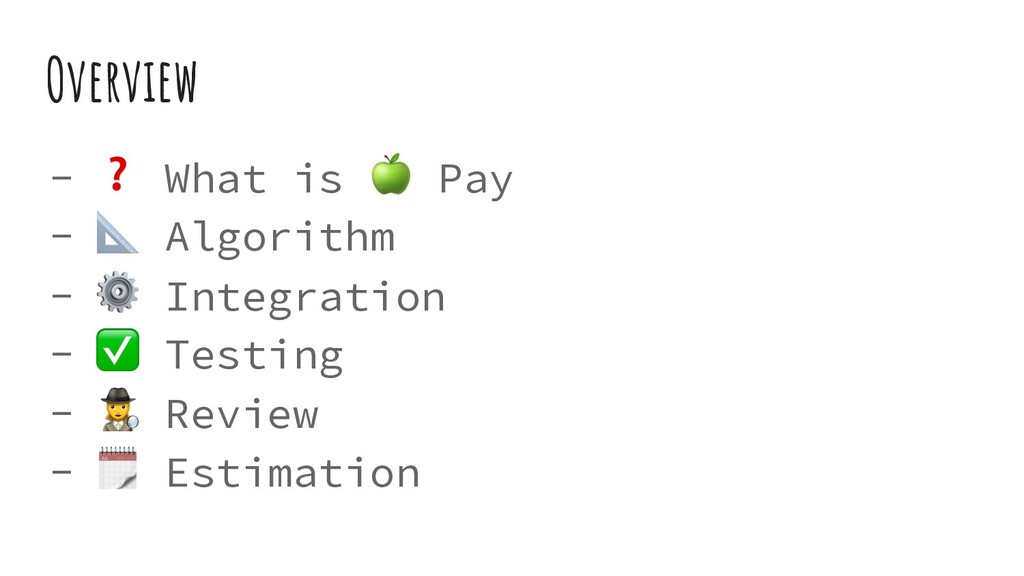

2. - ❓ What is 🍏 Pay - 📐 Algorithm - ⚙ Integration - ✅ Testing - & Review - 🗓 Estimation Overview

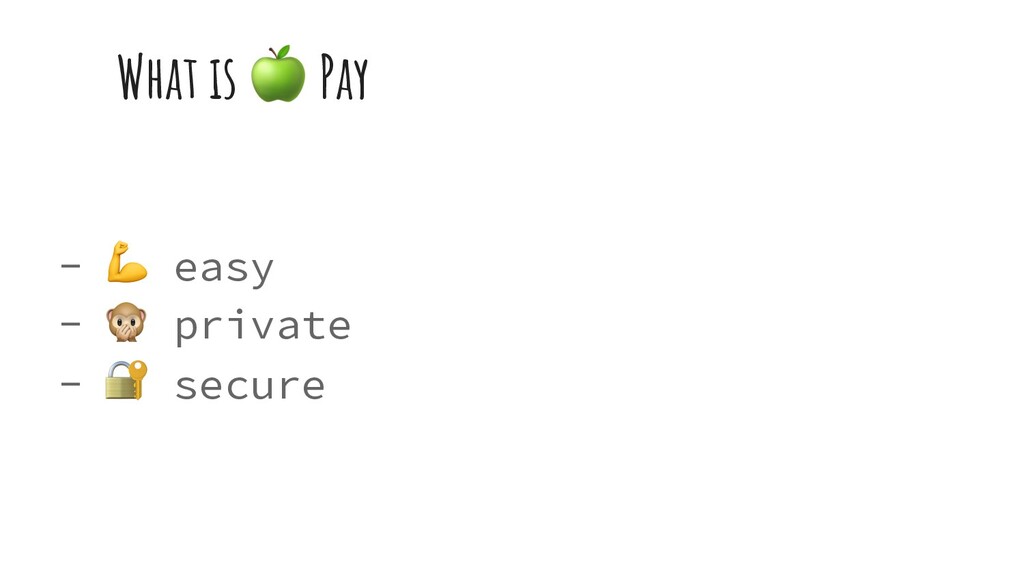

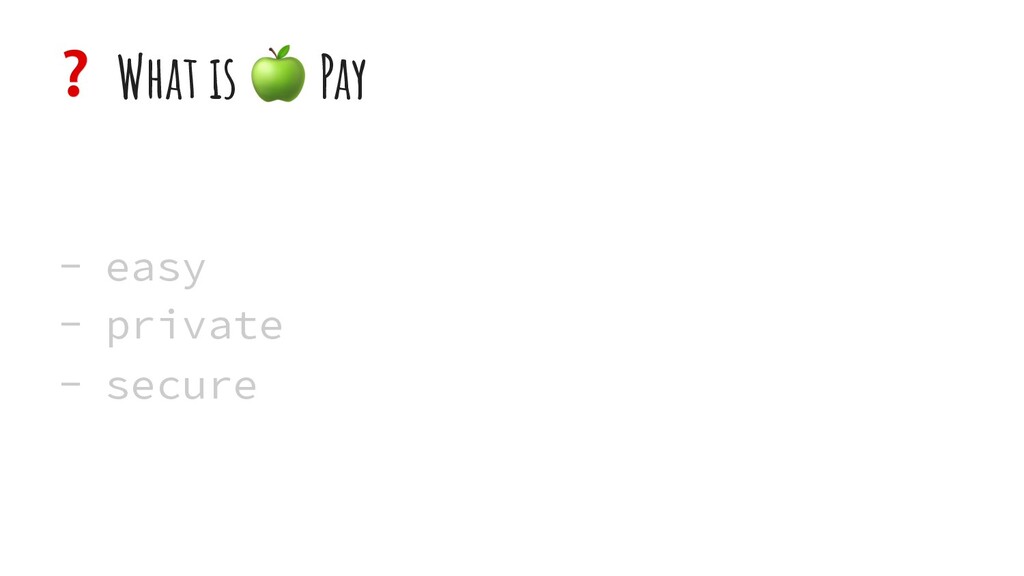

3. ❓ What is 🍏 Pay - easy - private - secure
4. What is 🍏 Pay - 💪 easy - 🙊 private - 🔐 secure

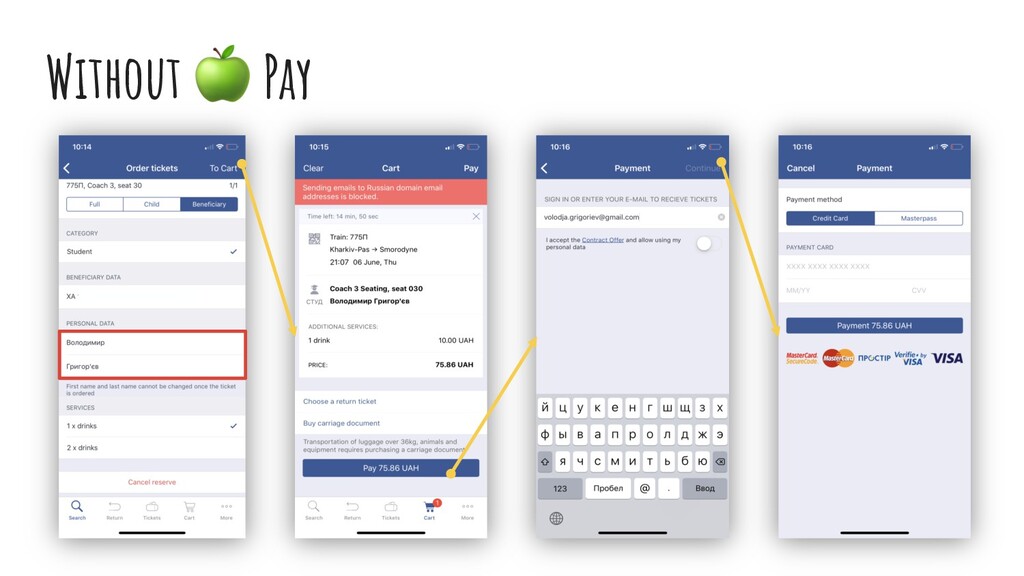

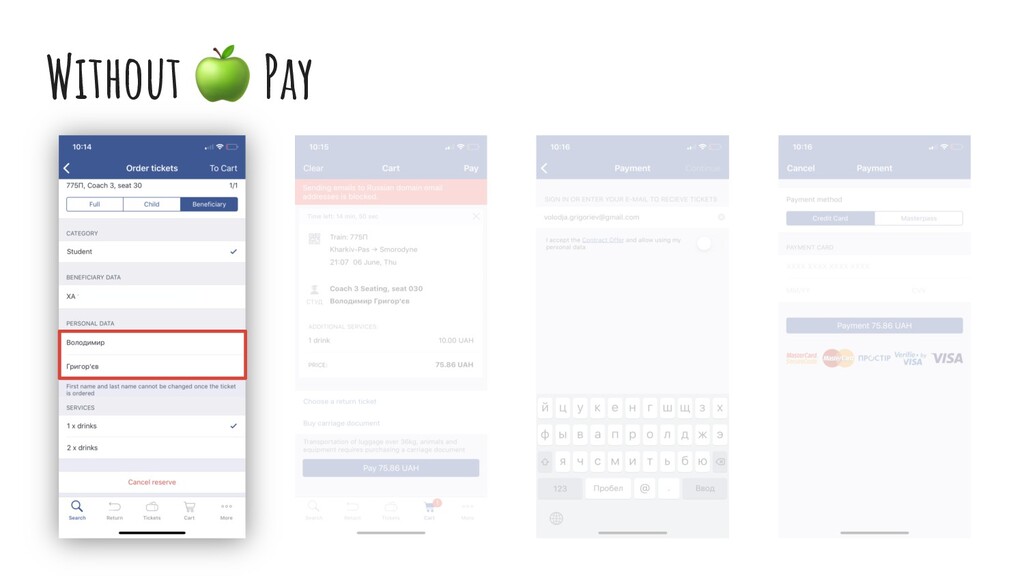

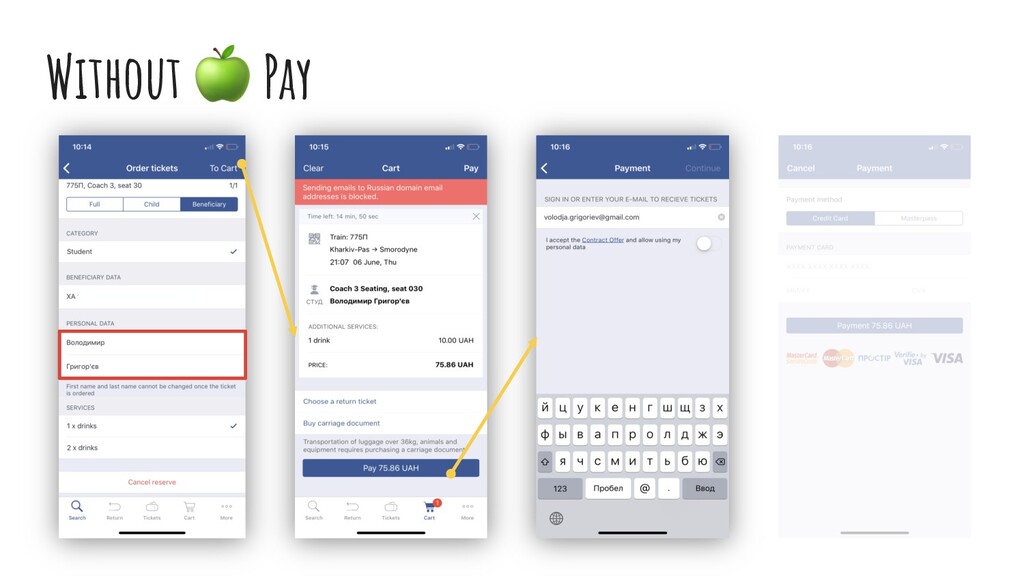

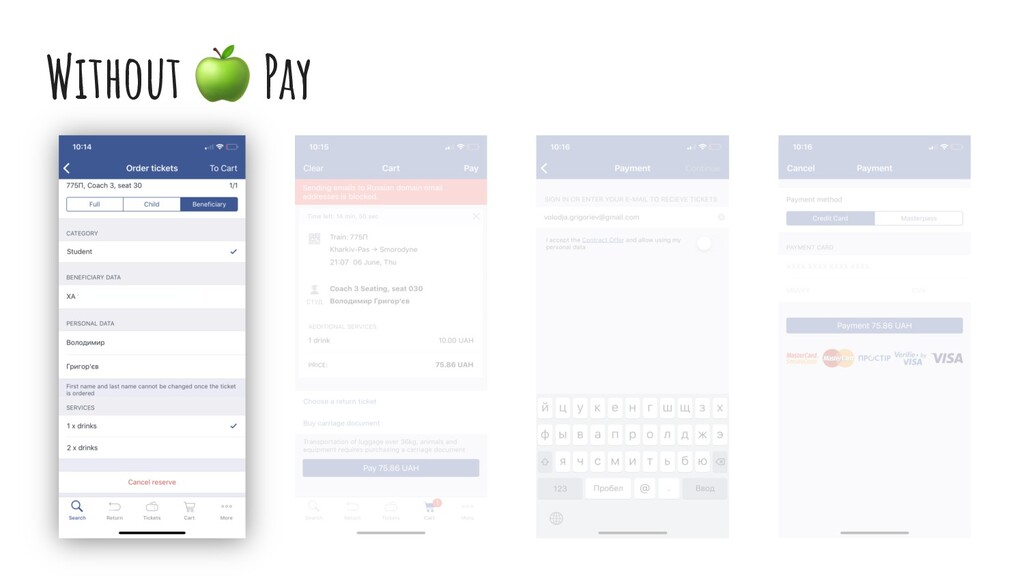

5. Without 🍏 Pay

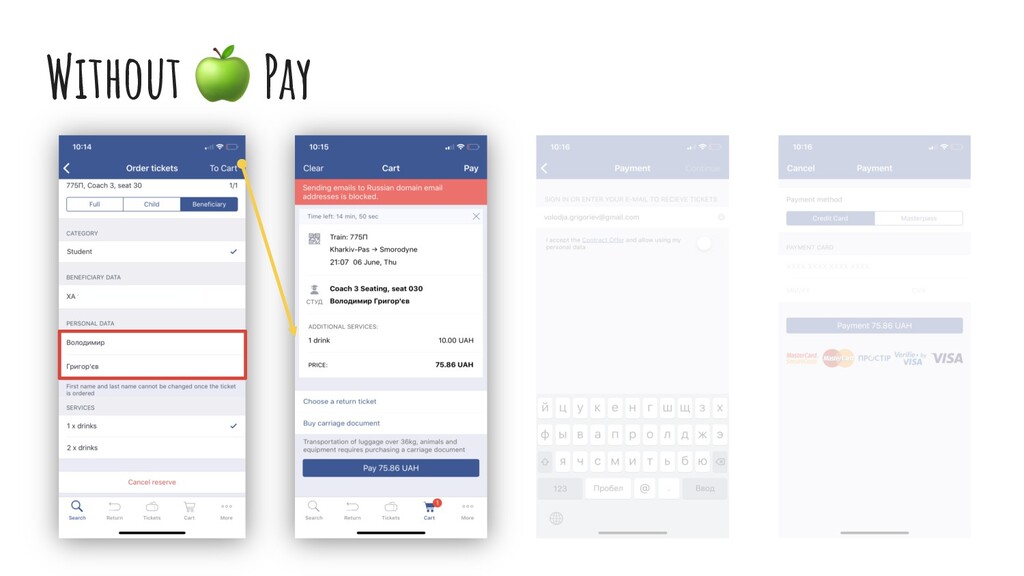

6. Without 🍏 Pay
7. Without 🍏 Pay
8. Without 🍏 Pay

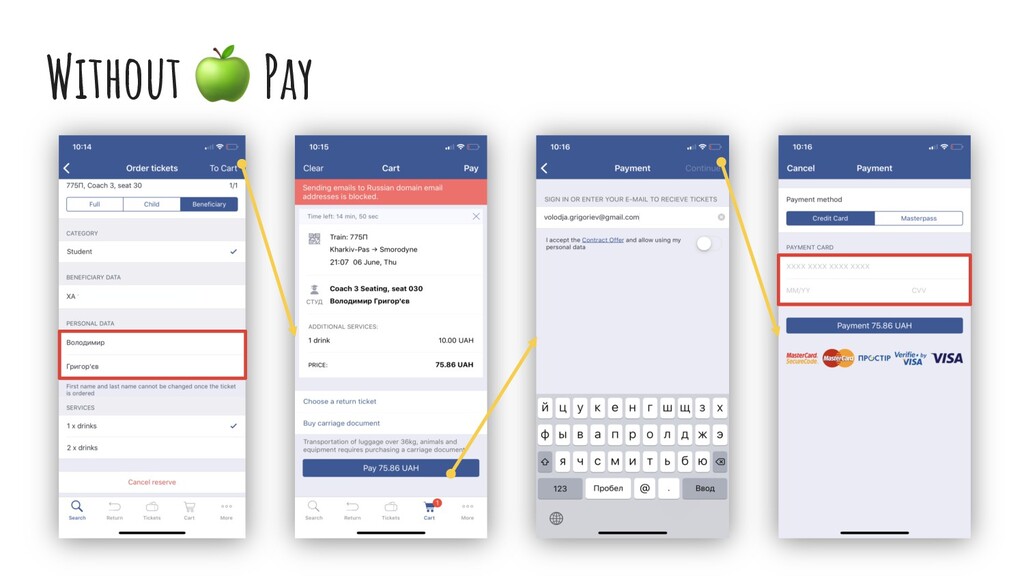

9. Without 🍏 Pay
10. Without 🍏 Pay

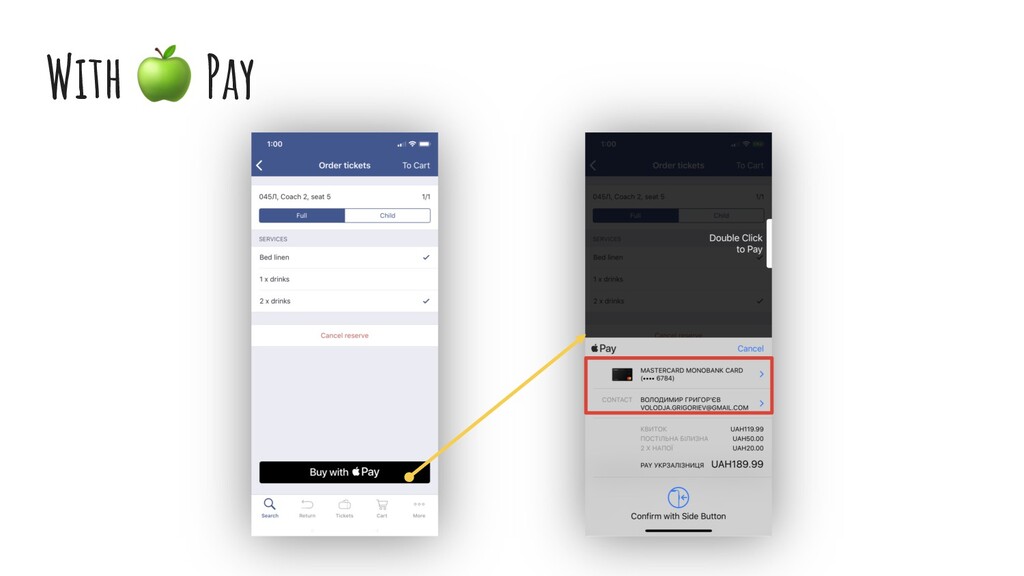

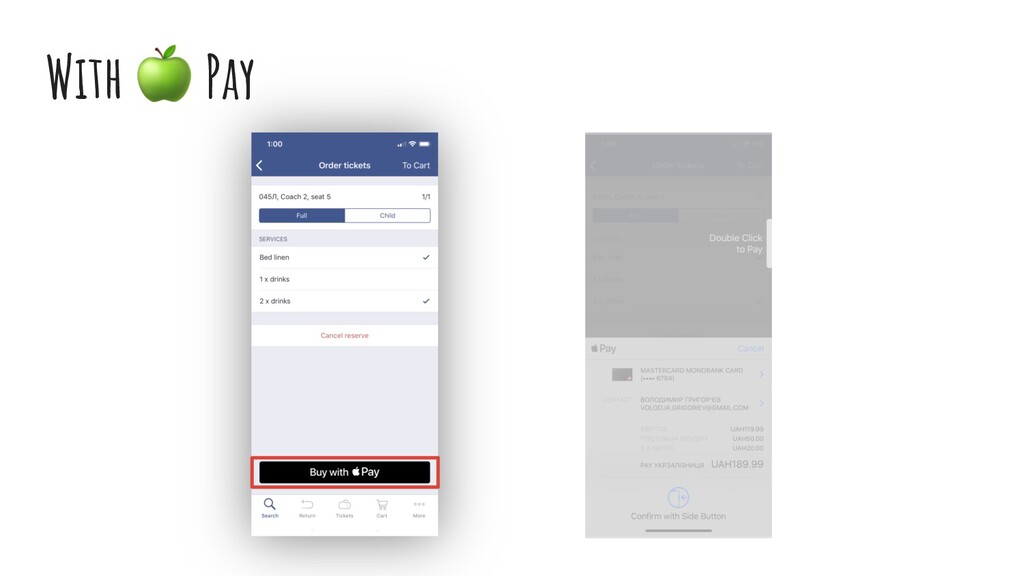

11. With 🍏 Pay

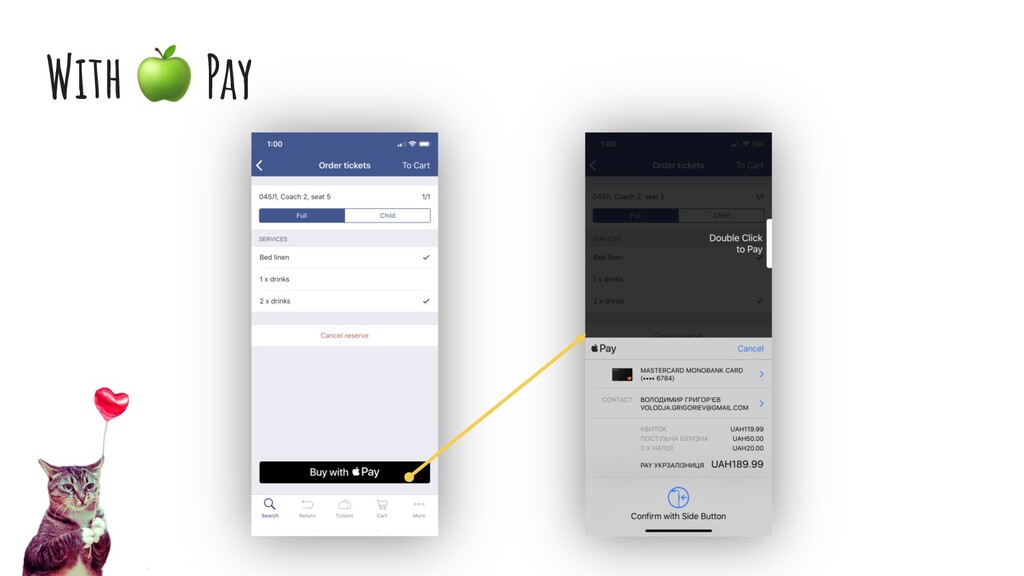

12. With 🍏 Pay
13. With 🍏 Pay

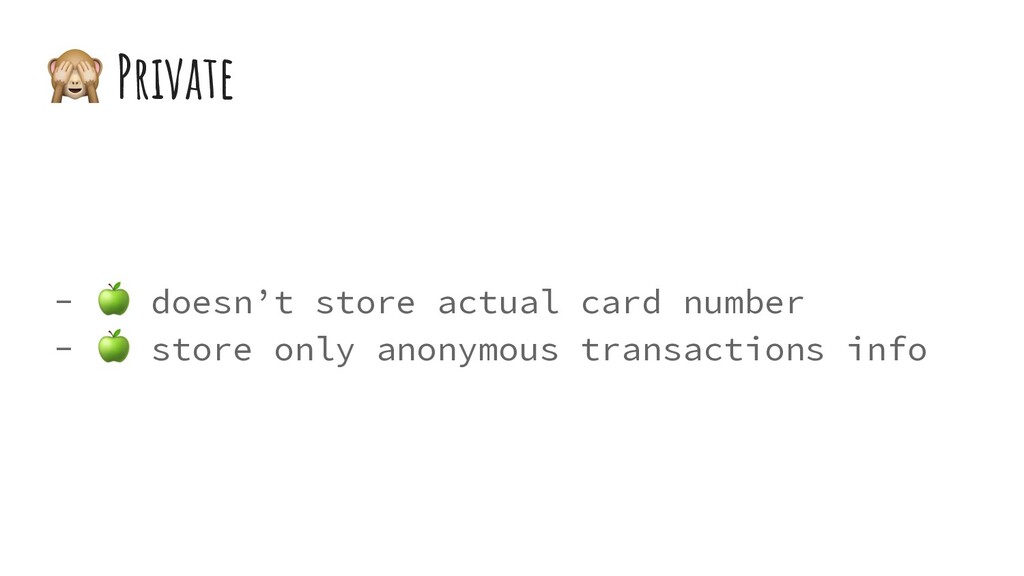

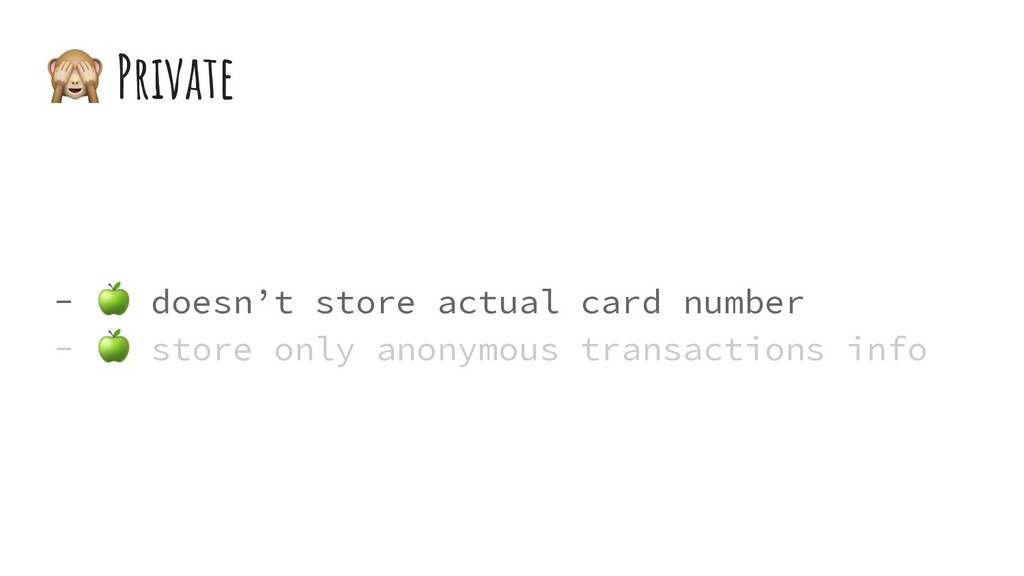

14. 🙈 Private - 🍏 doesn’t store actual card number - 🍏 store only anonymous transactions info
15. 🙈 Private - 🍏 doesn’t store actual card number - 🍏 store only anonymous transactions info

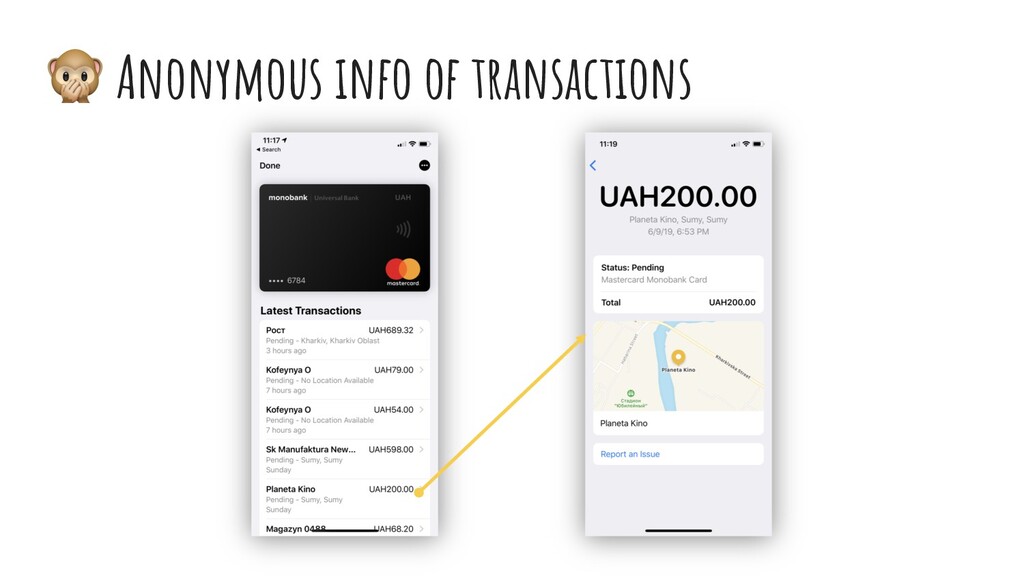

16. 🙉 Anonymous info of transactions
17. 🙊 Anonymous info of transactions

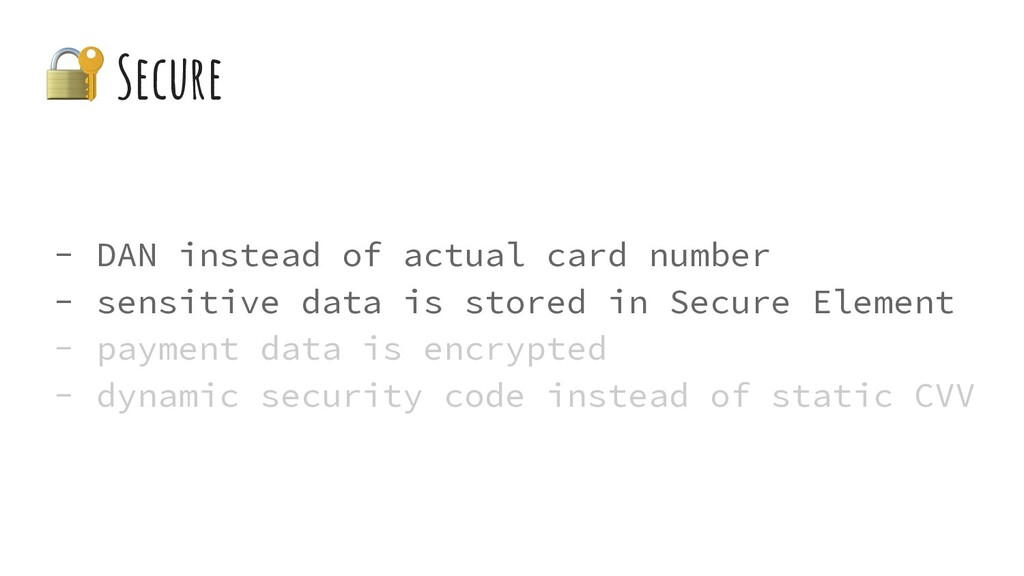

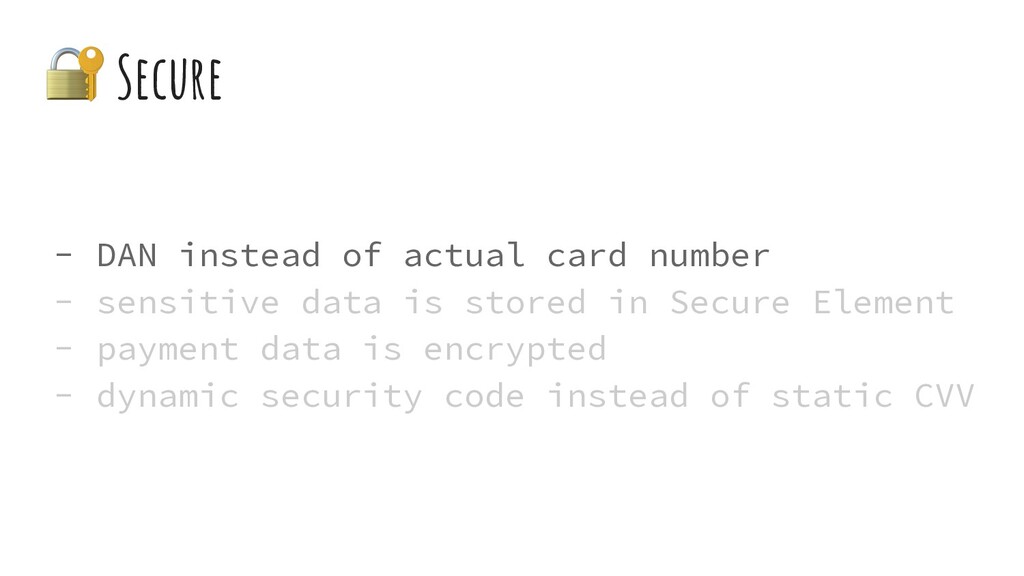

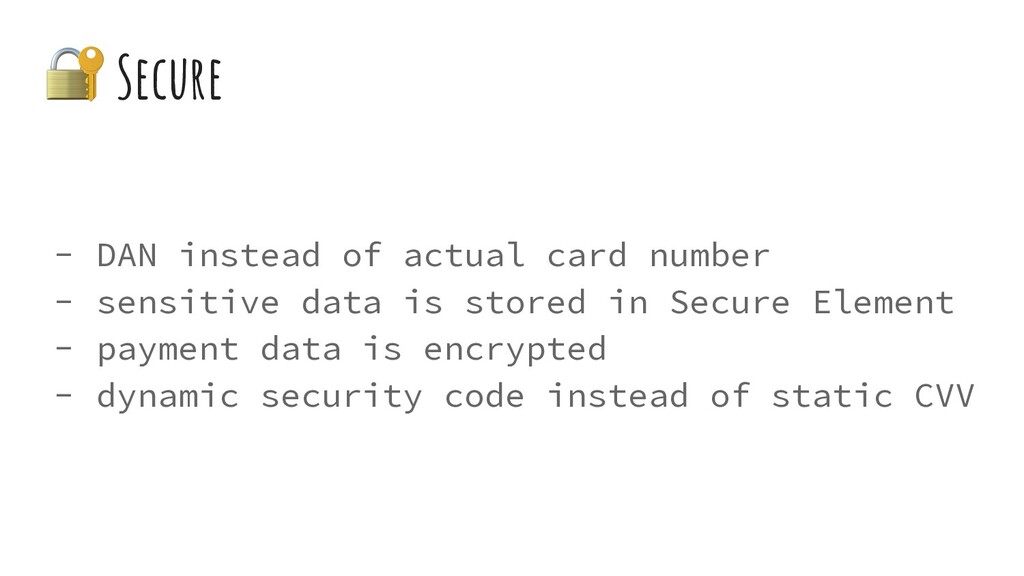

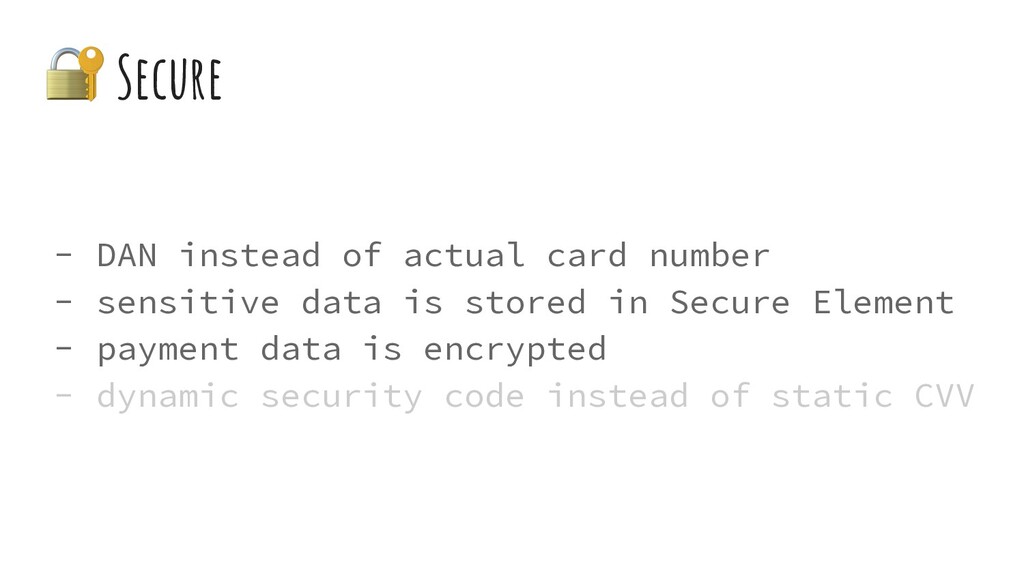

18. 🔐 Secure - DAN instead of actual card number - sensitive data is stored in Secure Element - payment data is encrypted - dynamic security code instead of static CVV
19. 🔐 Secure - DAN instead of actual card number - sensitive data is stored in Secure Element - payment data is encrypted - dynamic security code instead of static CVV
20. 🔐 Secure - DAN instead of actual card number - sensitive data is stored in Secure Element - payment data is encrypted - dynamic security code instead of static CVV
21. 🔐 Secure - DAN instead of actual card number - sensitive data is stored in Secure Element - payment data is encrypted - dynamic security code instead of static CVV

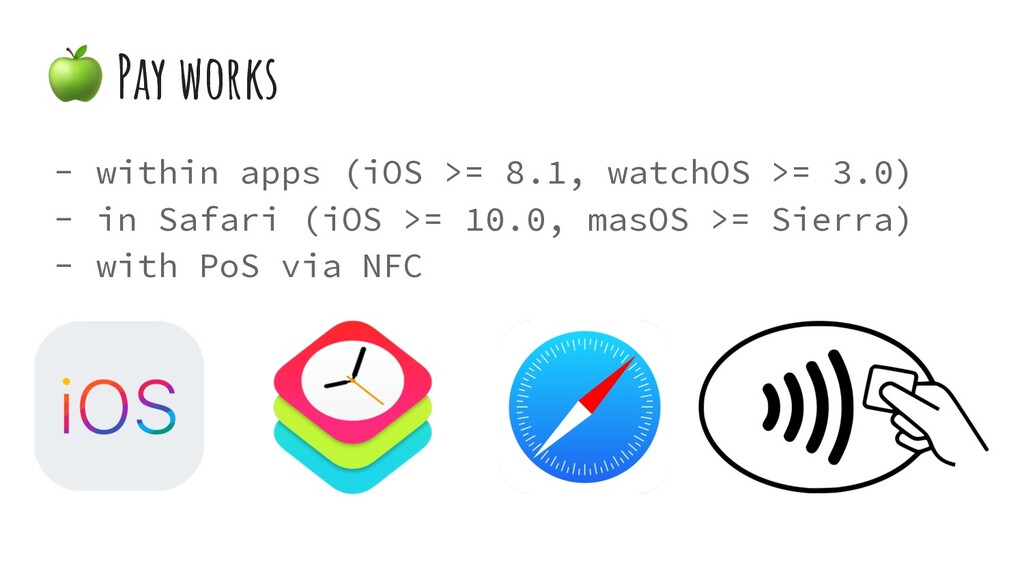

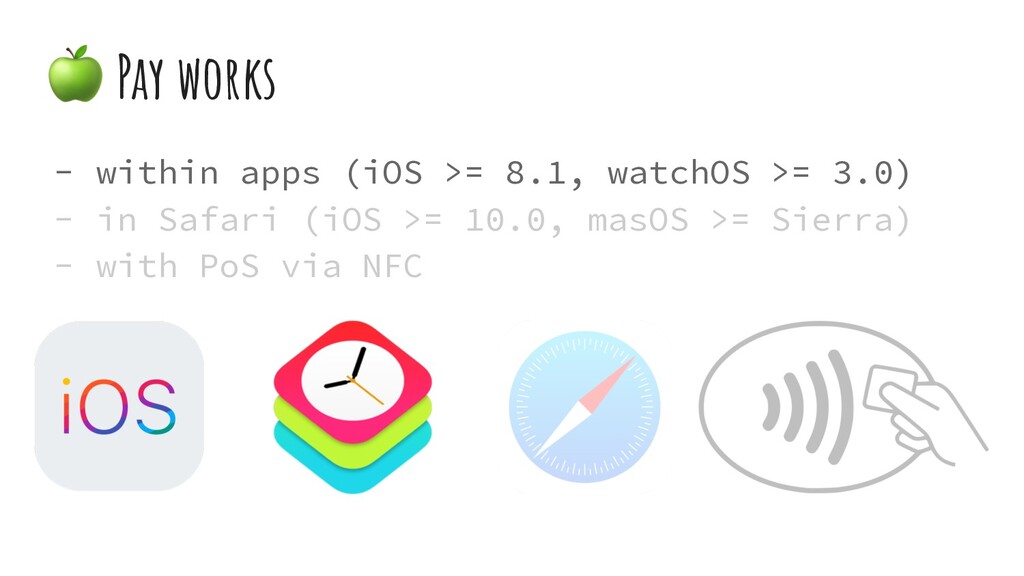

22. 🍏 Pay works - within apps (iOS >= 8.1, watchOS >= 3.0) - in Safari (iOS >= 10.0, masOS >= Sierra) - with PoS via NFC
23. 🍏 Pay works - within apps (iOS >= 8.1, watchOS >= 3.0) - in Safari (iOS >= 10.0, masOS >= Sierra) - with PoS via NFC
24. 🍏 Pay works - within apps (iOS >= 8.1, watchOS >= 3.0) - in Safari (iOS >= 10.0, masOS >= Sierra) - with PoS via NFC

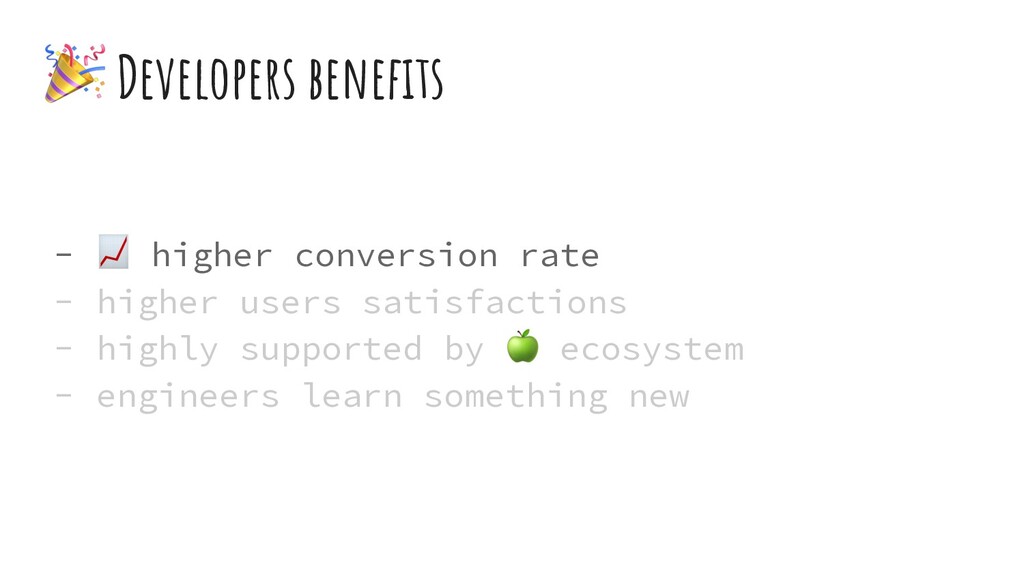

25. 🎉 Developers benefits - 📈 higher conversion rate - higher users satisfactions - highly supported by 🍏 ecosystem - engineers learn something new

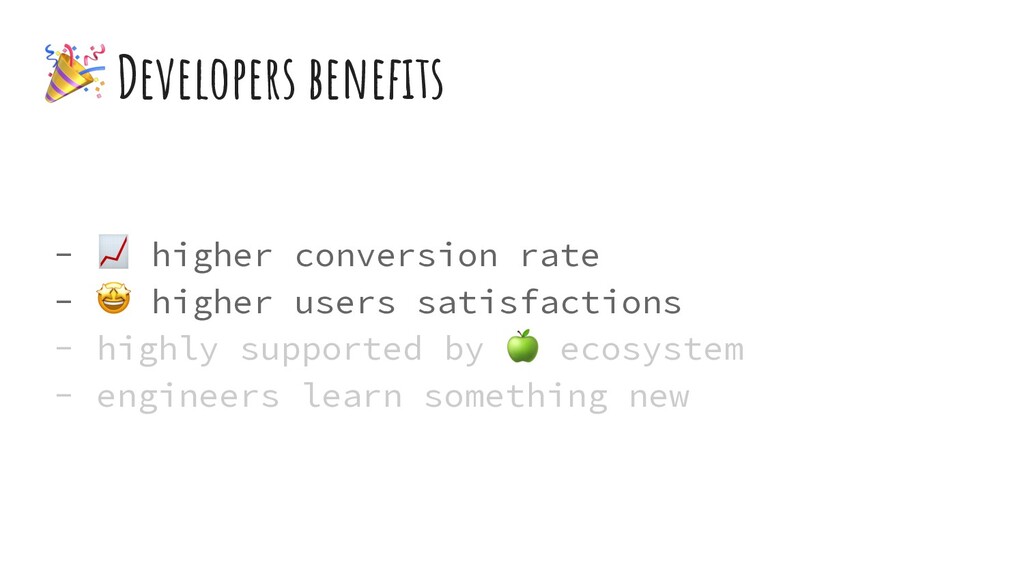

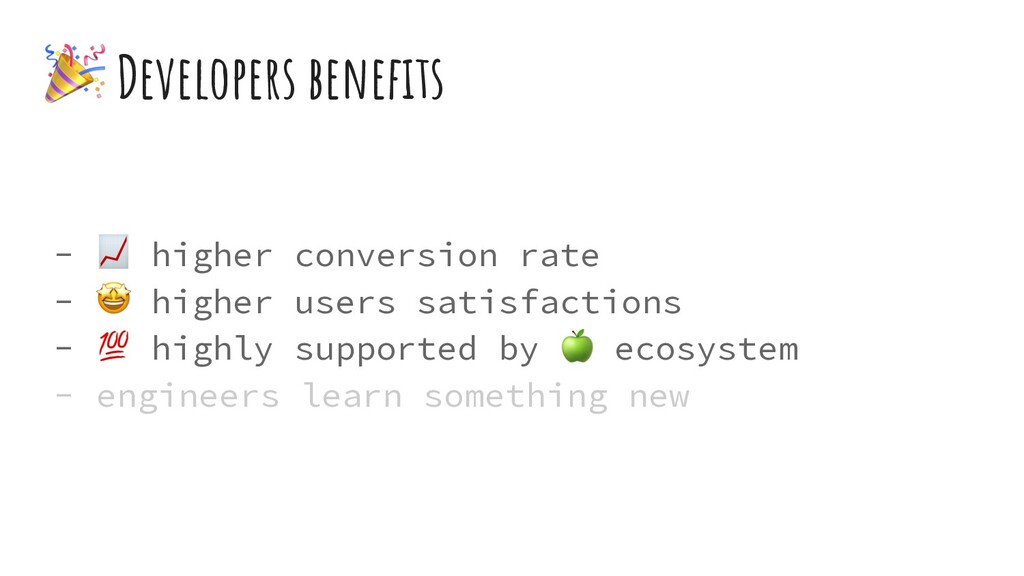

26. 🎉 Developers benefits - 📈 higher conversion rate - 🤩 higher users satisfactions - highly supported by 🍏 ecosystem - engineers learn something new

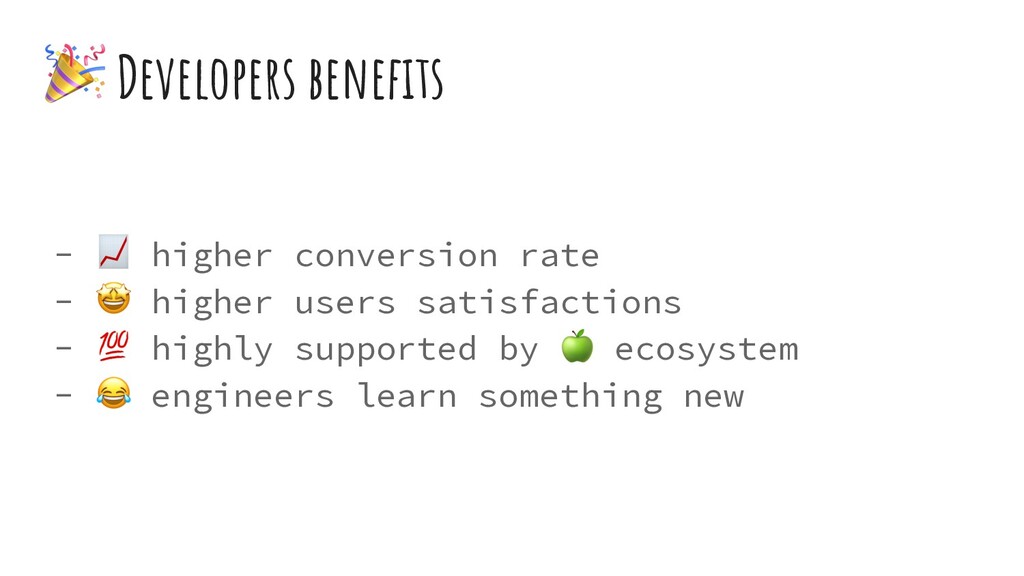

27. 🎉 Developers benefits - 📈 higher conversion rate - 🤩 higher users satisfactions - 💯 highly supported by 🍏 ecosystem - engineers learn something new
28. 🎉 Developers benefits - 📈 higher conversion rate - 🤩 higher users satisfactions - 💯 highly supported by 🍏 ecosystem - 😂 engineers learn something new

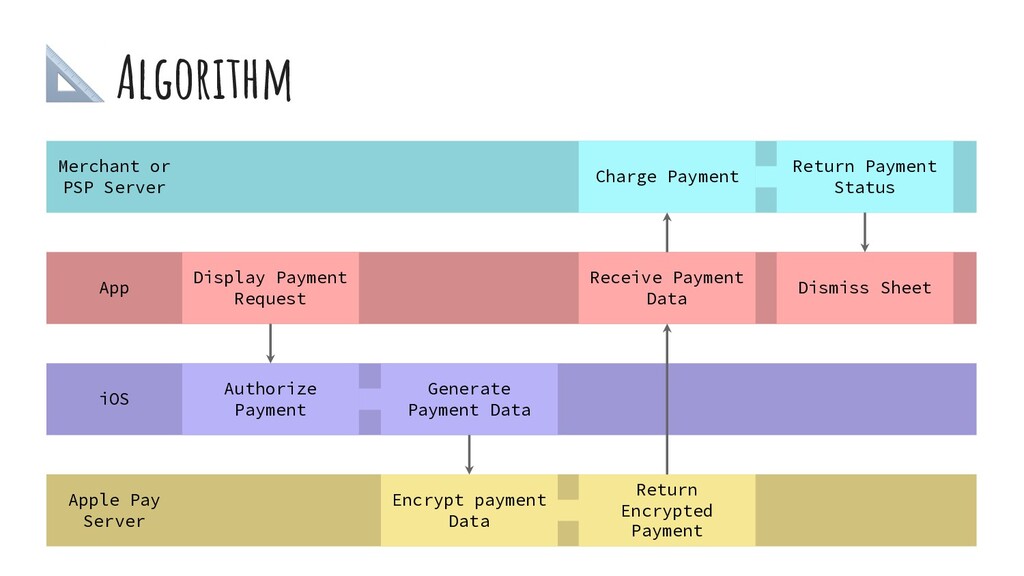

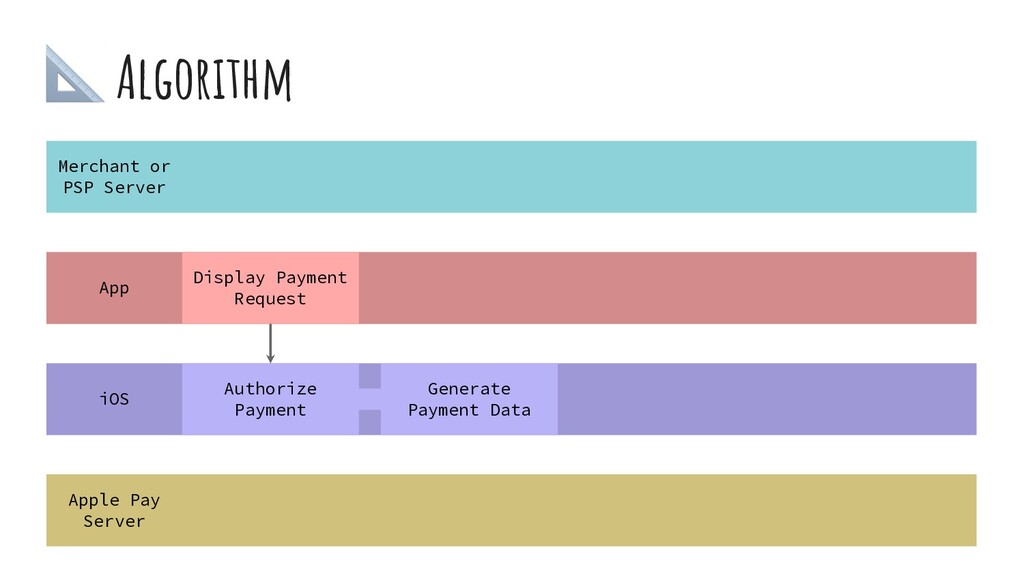

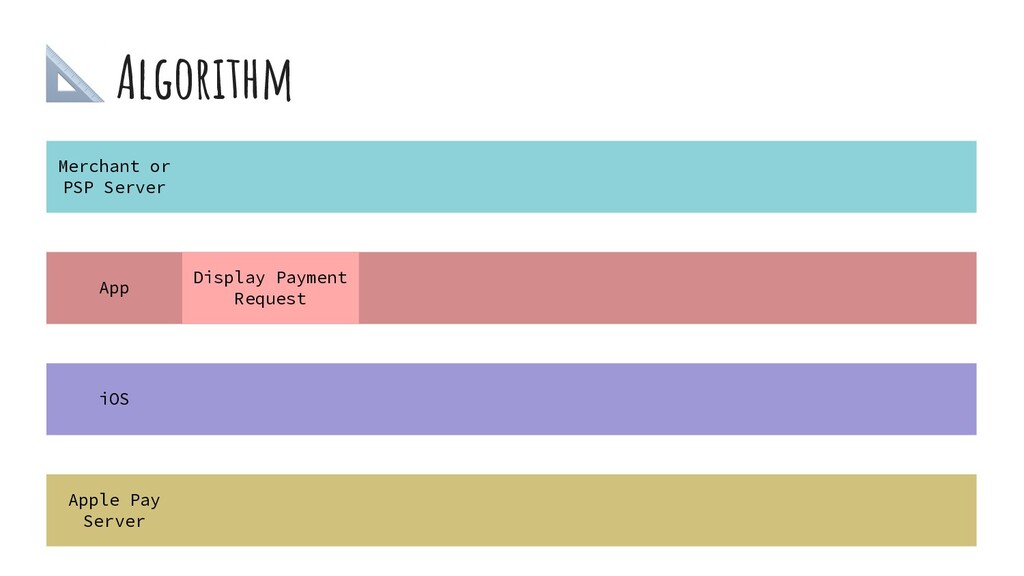

29. Display Payment Request 📐 Algorithm Merchant or PSP Server App iOS Apple Pay Server

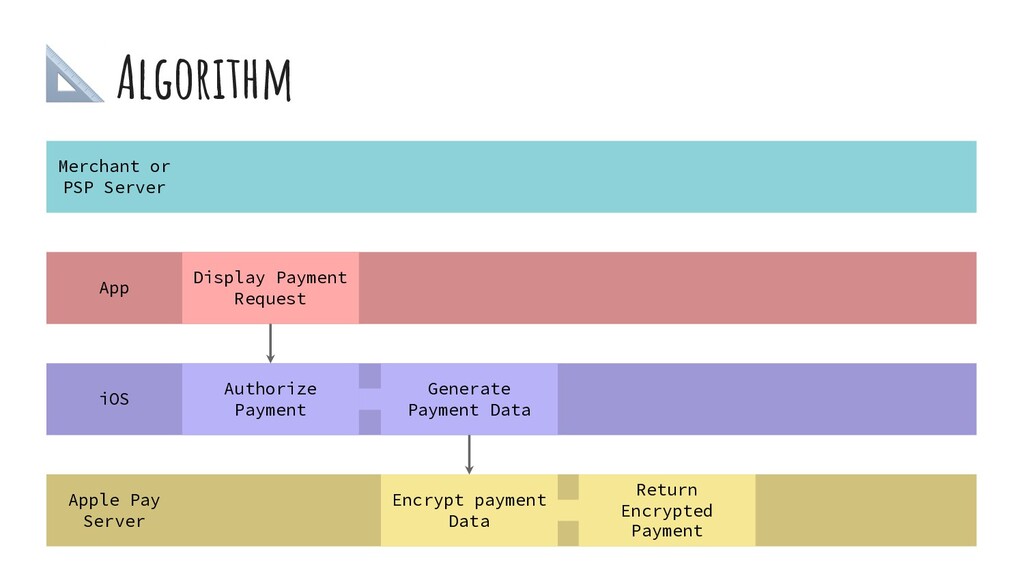

30. Display Payment Request 📐 Algorithm Merchant or PSP Server App iOS Apple Pay Server Authorize Payment Generate Payment Data

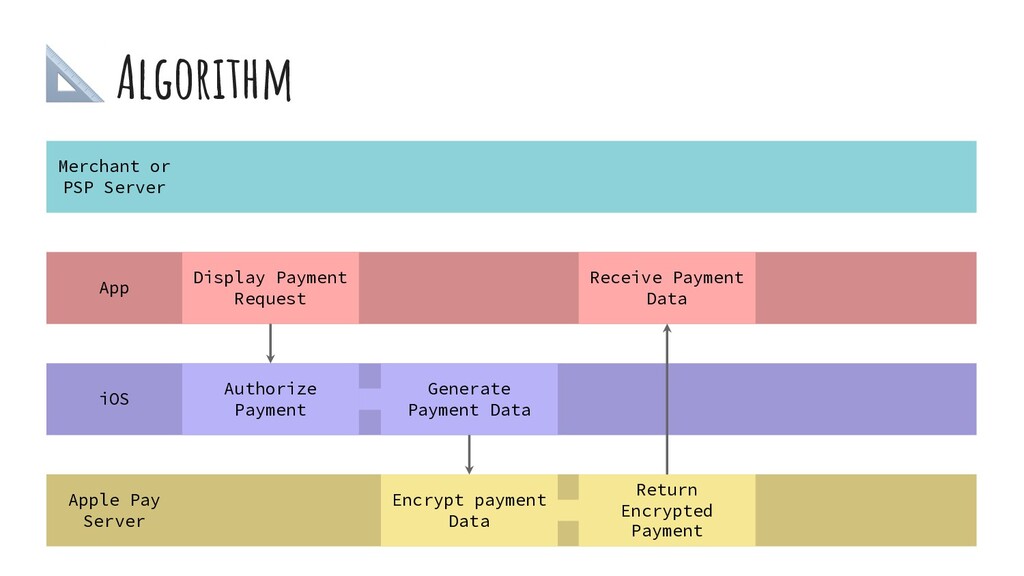

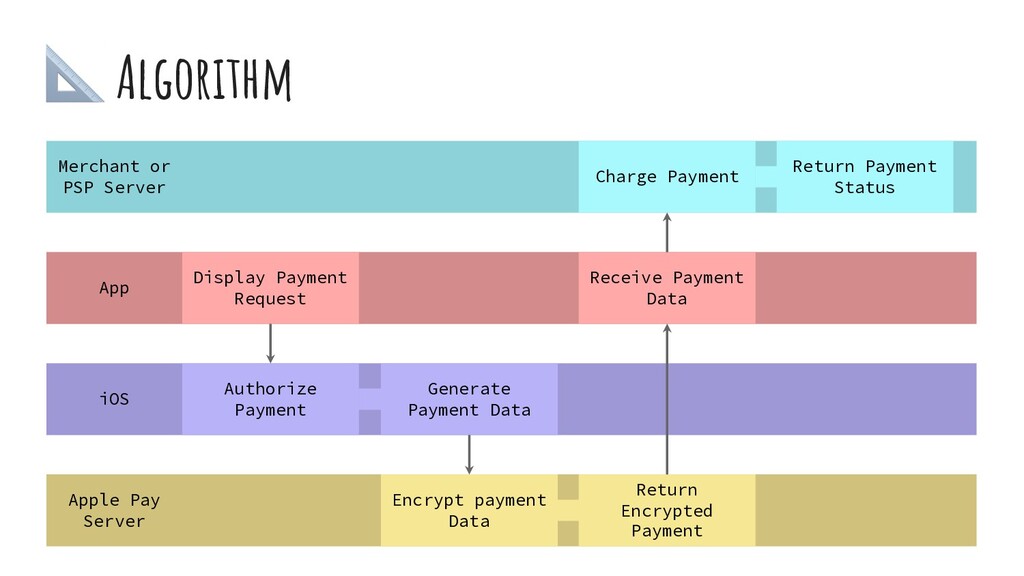

31. Display Payment Request 📐 Algorithm Merchant or PSP Server App iOS Apple Pay Server Authorize Payment Generate Payment Data Encrypt payment Data Return Encrypted Payment
32. Display Payment Request 📐 Algorithm Merchant or PSP Server App iOS Apple Pay Server Authorize Payment Generate Payment Data Encrypt payment Data Return Encrypted Payment Receive Payment Data
33. Display Payment Request 📐 Algorithm Merchant or PSP Server App iOS Apple Pay Server Authorize Payment Generate Payment Data Encrypt payment Data Return Encrypted Payment Receive Payment Data Charge Payment Return Payment Status
34. Display Payment Request 📐 Algorithm Merchant or PSP Server App iOS Apple Pay Server Authorize Payment Generate Payment Data Encrypt payment Data Return Encrypted Payment Receive Payment Data Charge Payment Return Payment Status Dismiss Sheet

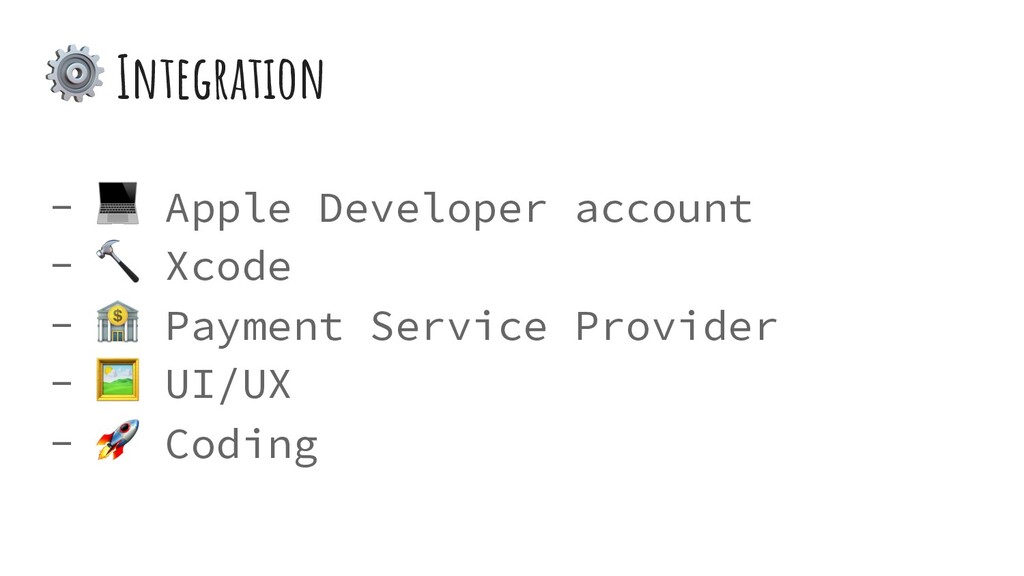

35. ⚙ Integration - 💻 Apple Developer account - 🔨 Xcode - 🏦 Payment Service Provider - 🖼 UI/UX - 🚀 Coding

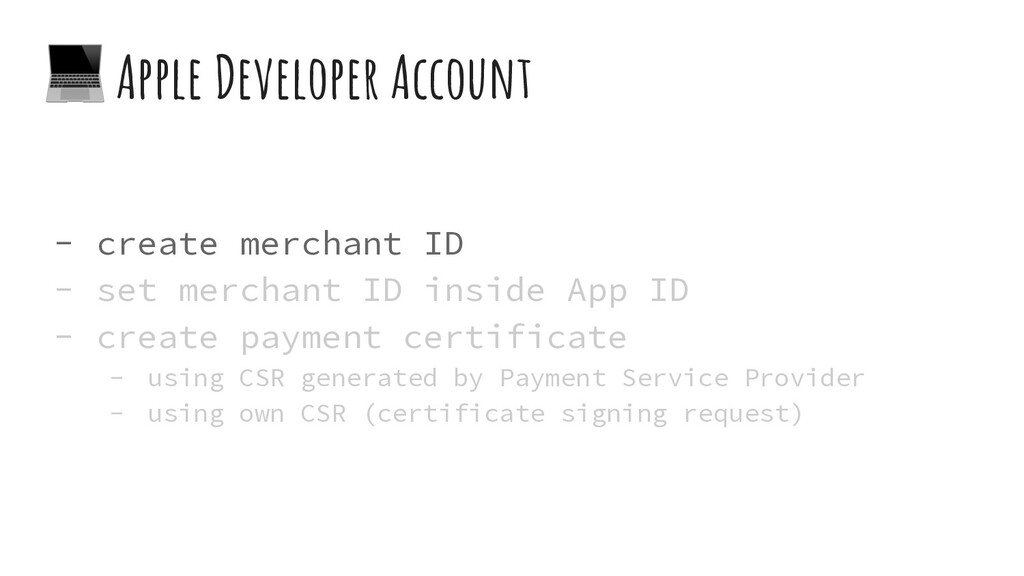

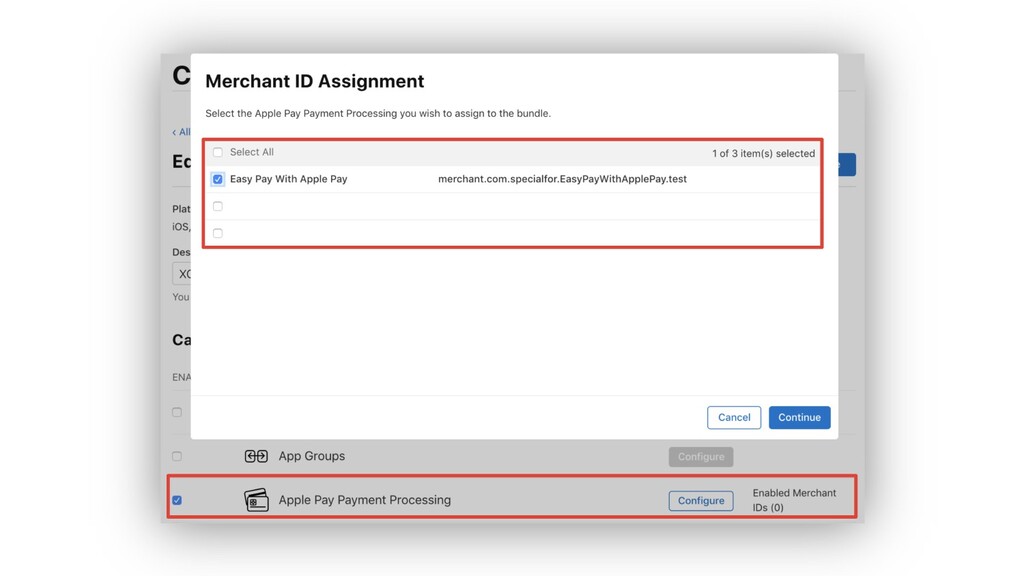

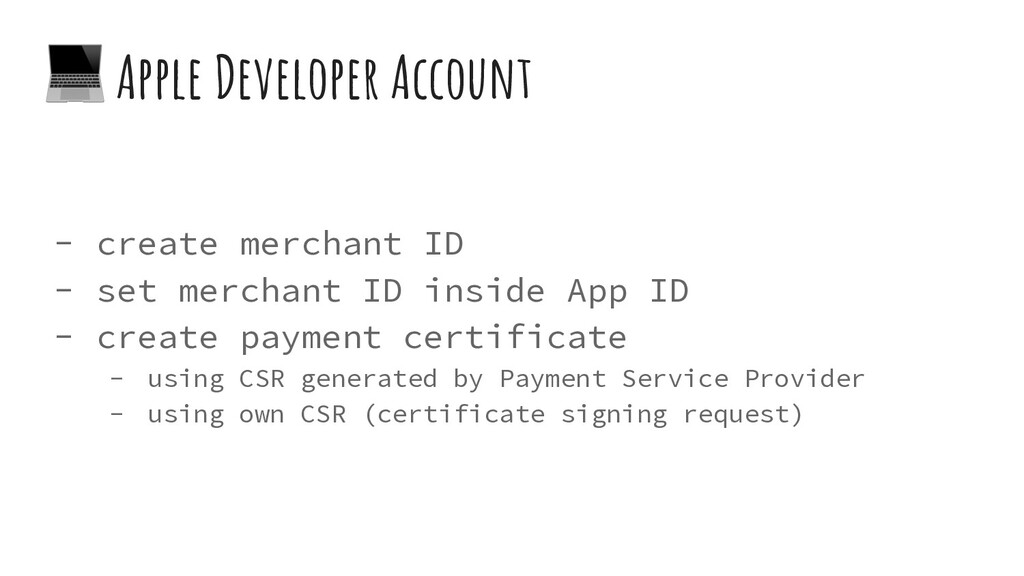

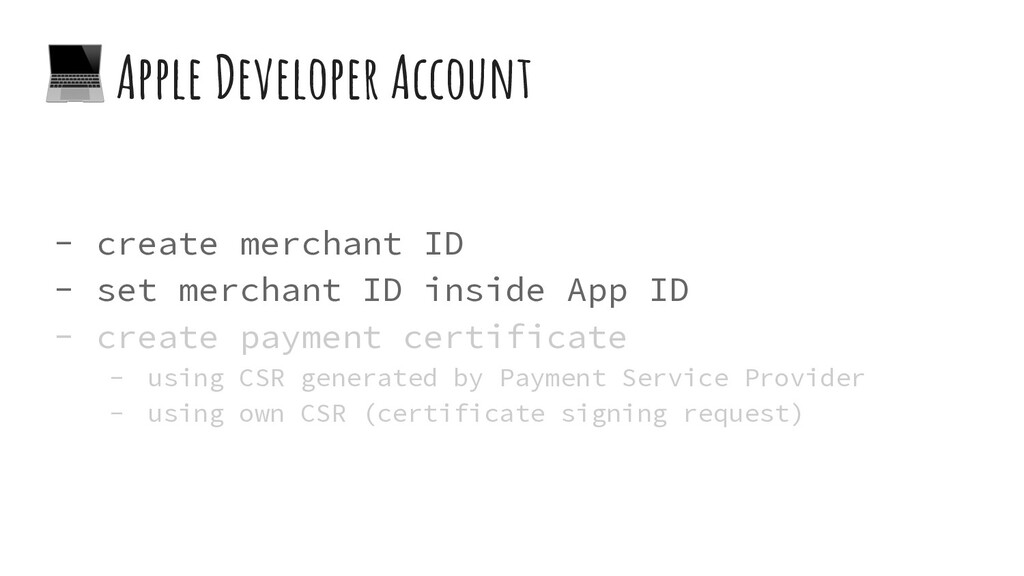

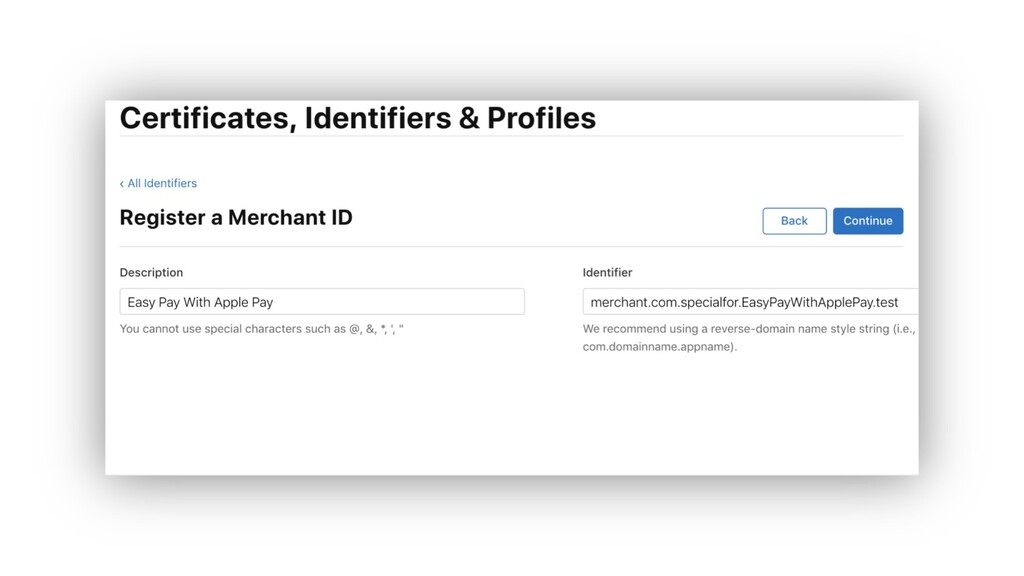

36. 💻 Apple Developer Account - create merchant ID - set merchant ID inside App ID - create payment certificate - using CSR generated by Payment Service Provider - using own CSR (certificate signing request)
38. 💻 Apple Developer Account - create merchant ID - set merchant ID inside App ID - create payment certificate - using CSR generated by Payment Service Provider - using own CSR (certificate signing request)

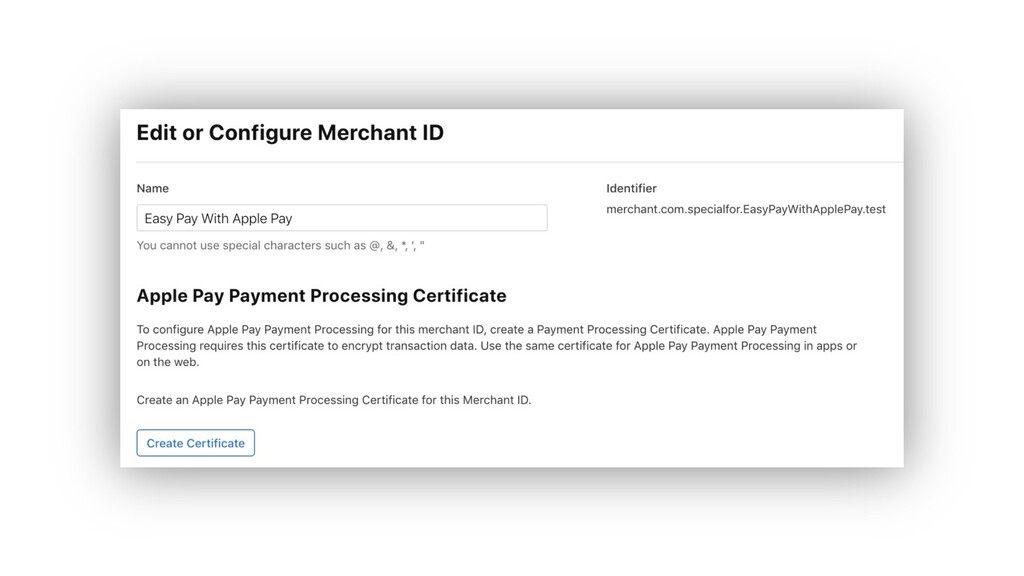

40. 💻 Apple Developer Account - create merchant ID - set merchant ID inside App ID - create payment certificate - using CSR generated by Payment Service Provider - using own CSR (certificate signing request)

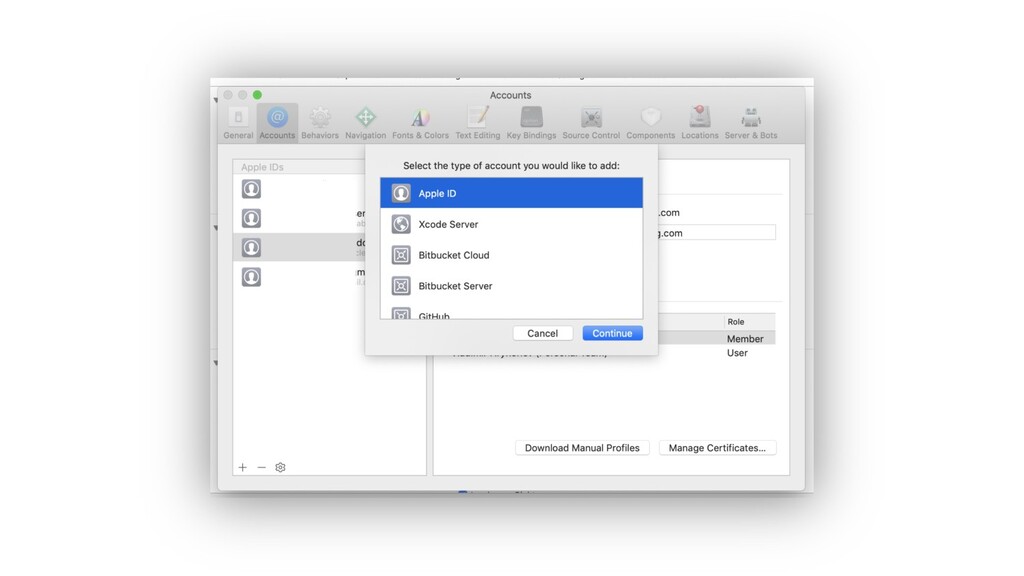

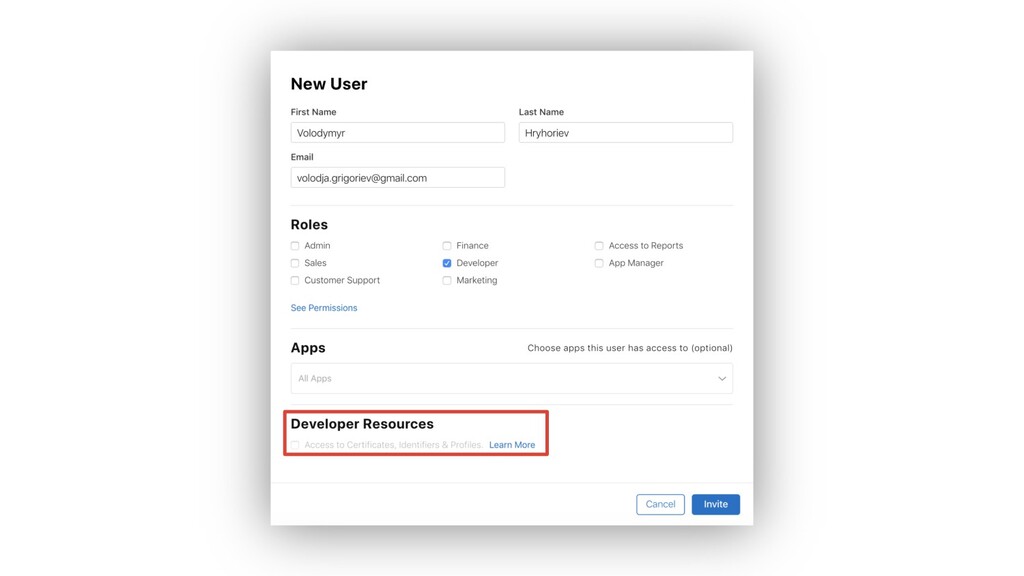

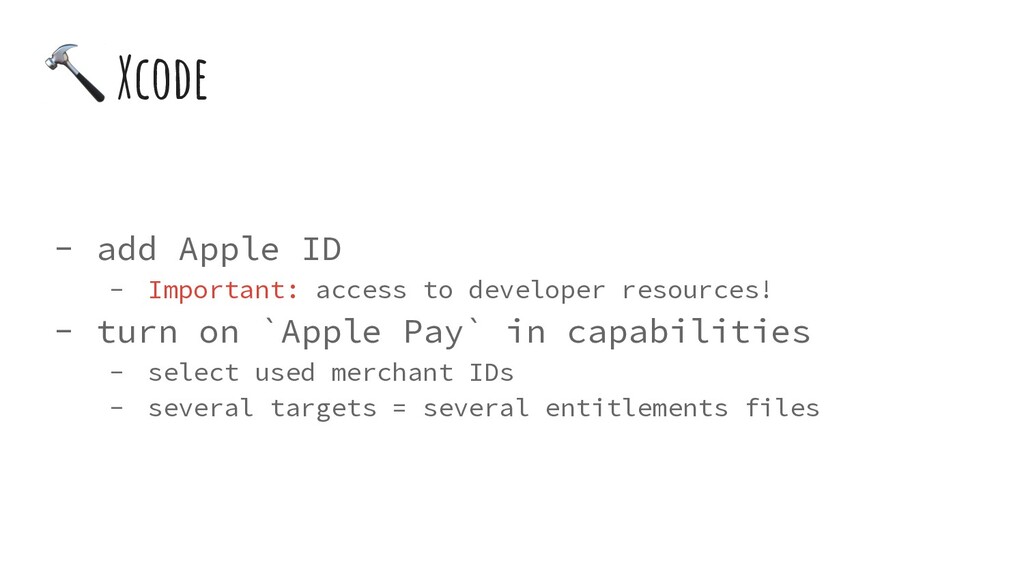

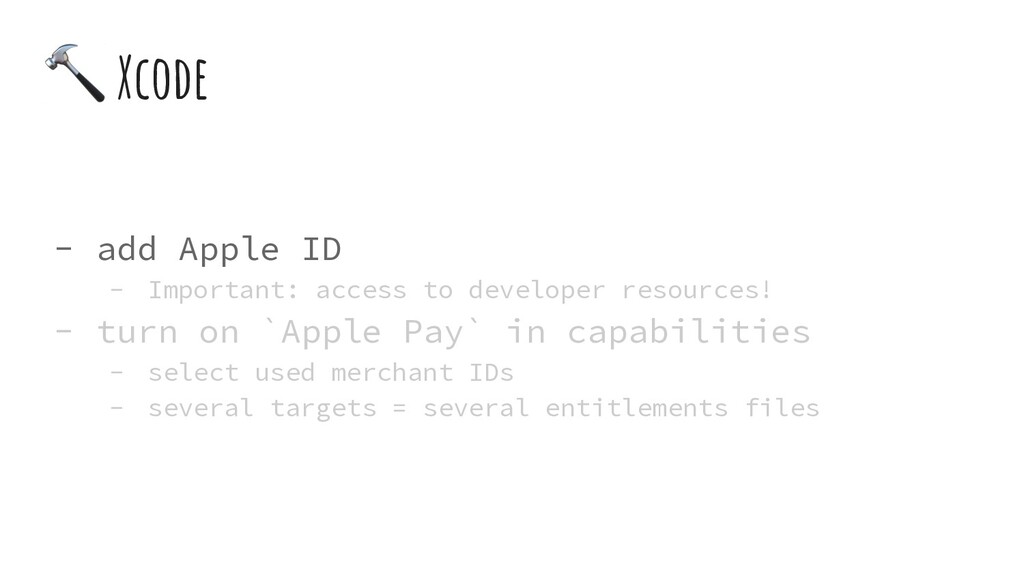

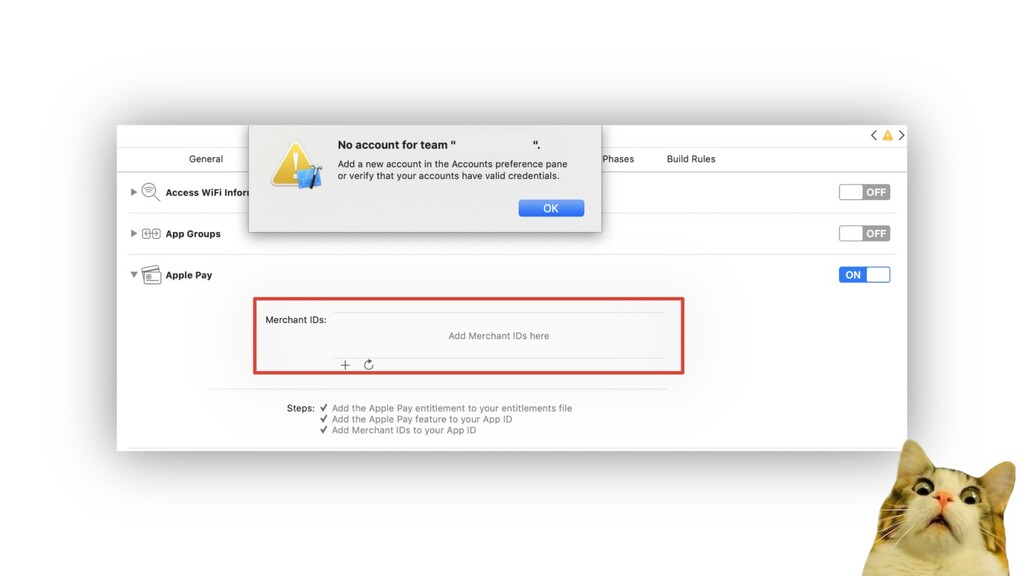

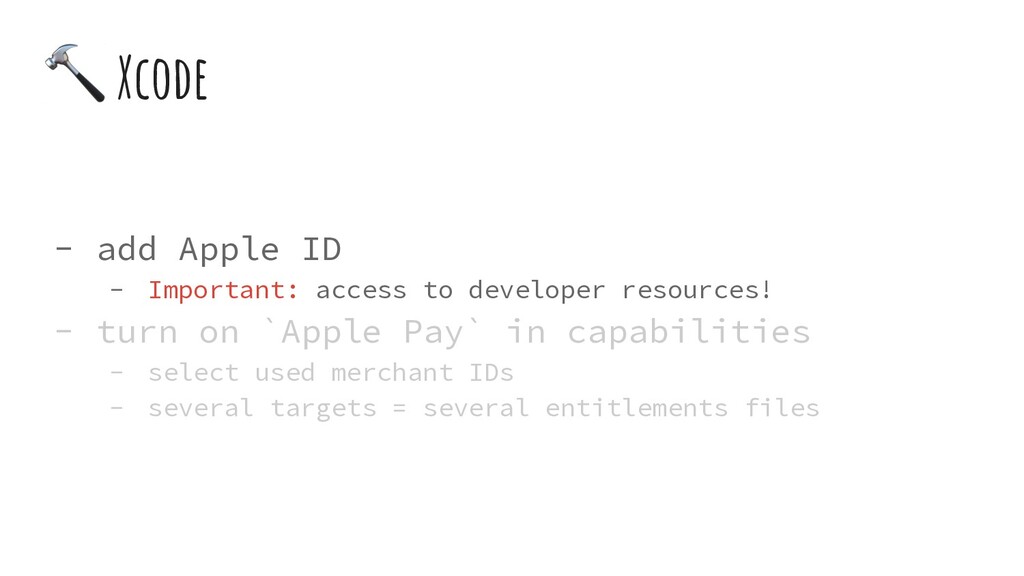

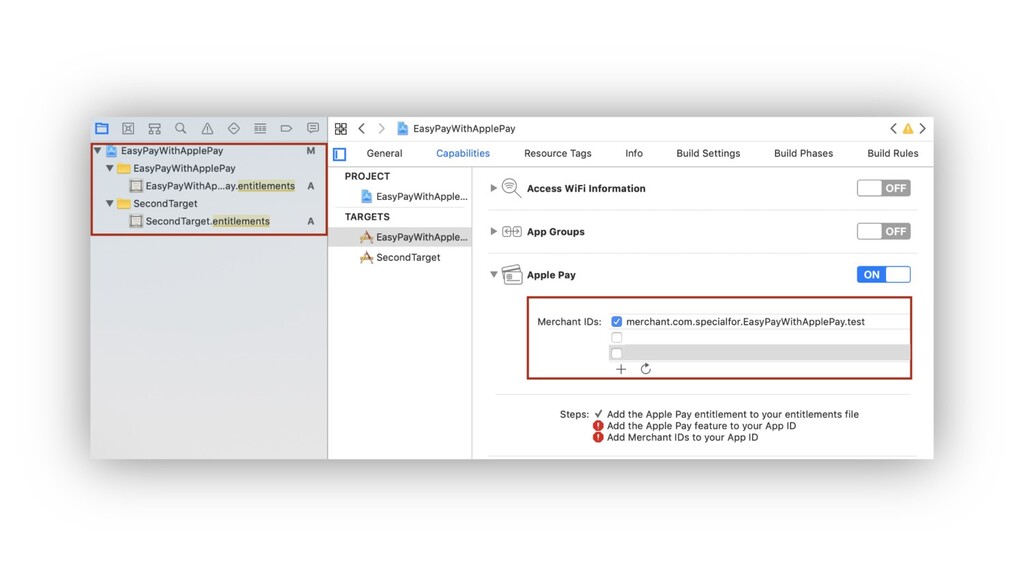

43. 🔨 Xcode - add Apple ID - Important: access to developer resources! - turn on `Apple Pay` in capabilities - select used merchant IDs - several targets = several entitlements files
45. 🔨 Xcode - add Apple ID - Important: access to developer resources! - turn on `Apple Pay` in capabilities - select used merchant IDs - several targets = several entitlements files
47. 🔨 Xcode - add Apple ID - Important: access to developer resources! - turn on `Apple Pay` in capabilities - select used merchant IDs - several targets = several entitlements files

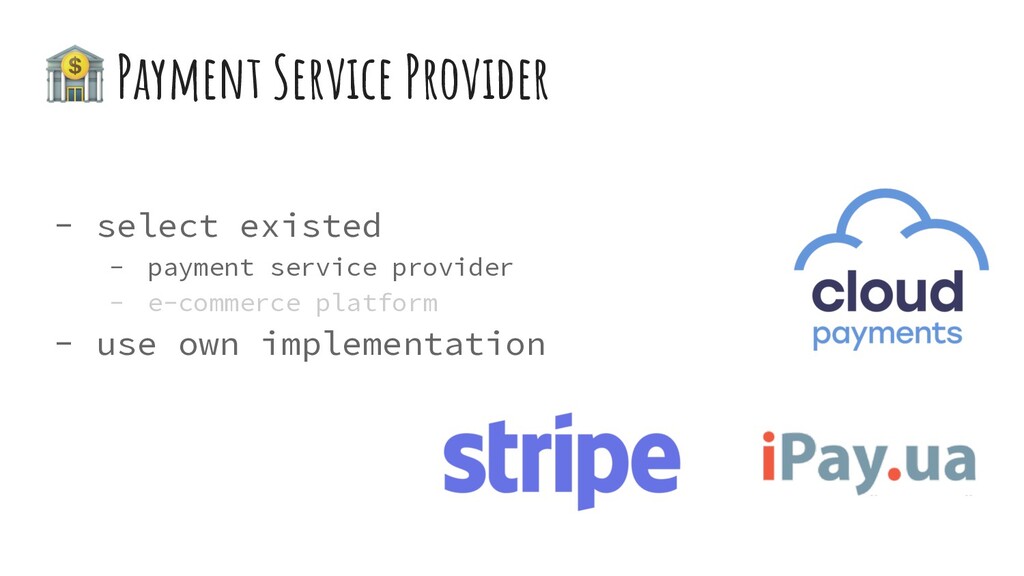

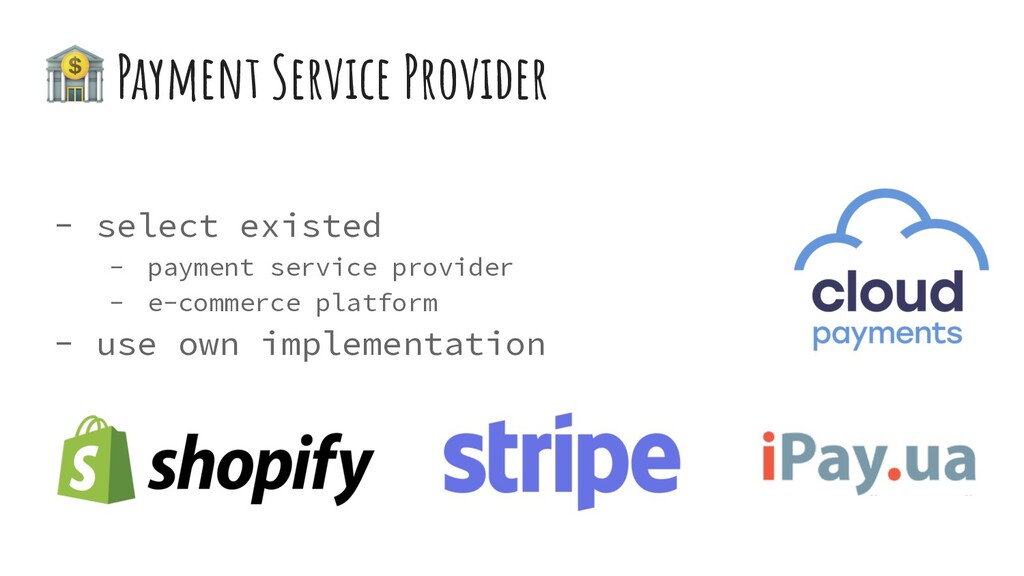

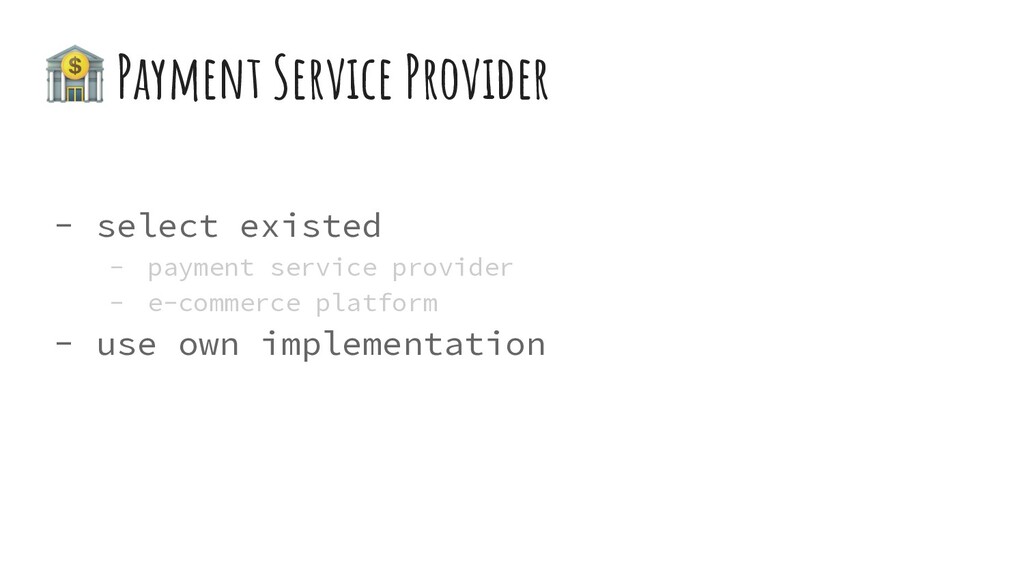

51. 🏦 Payment Service Provider - select existed - payment service provider - e-commerce platform - use own implementation
52. 🏦 Payment Service Provider - select existed - payment service provider - e-commerce platform - use own implementation
53. 🏦 Payment Service Provider - select existed - payment service provider - e-commerce platform - use own implementation

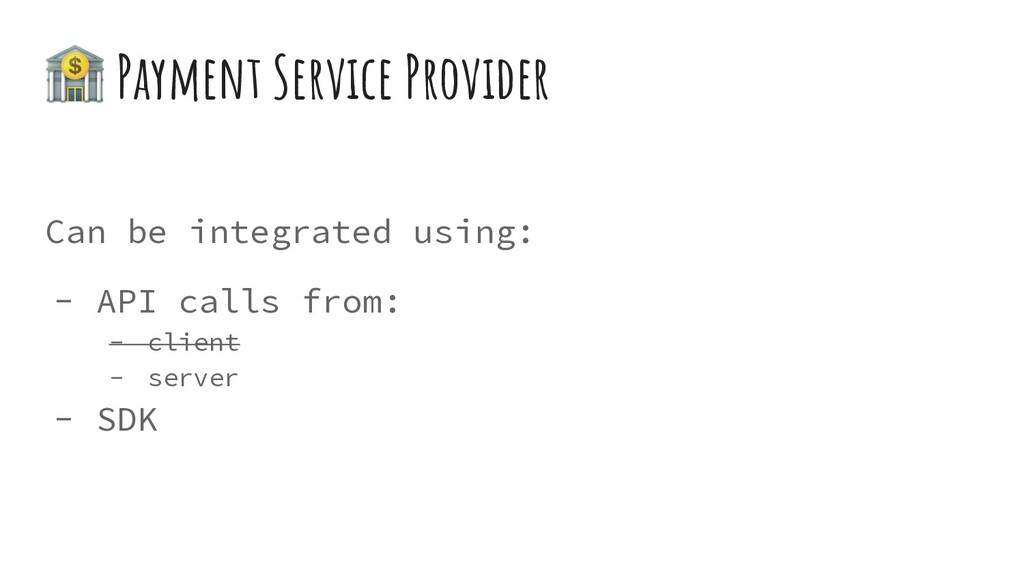

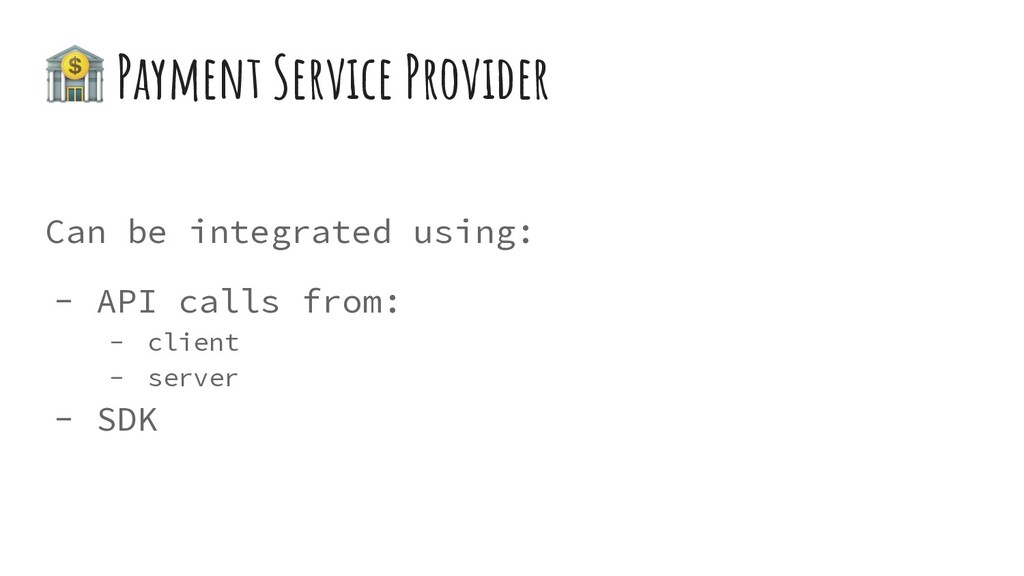

54. 🏦 Payment Service Provider Can be integrated using: - API calls from: - client - server - SDK
55. 🏦 Payment Service Provider Can be integrated using: - API calls from: - client - server - SDK

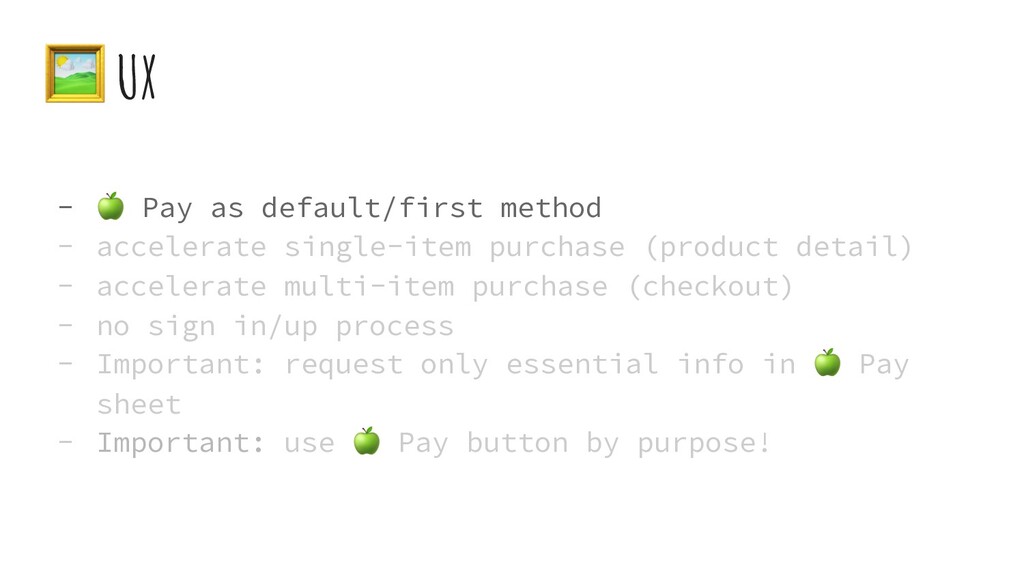

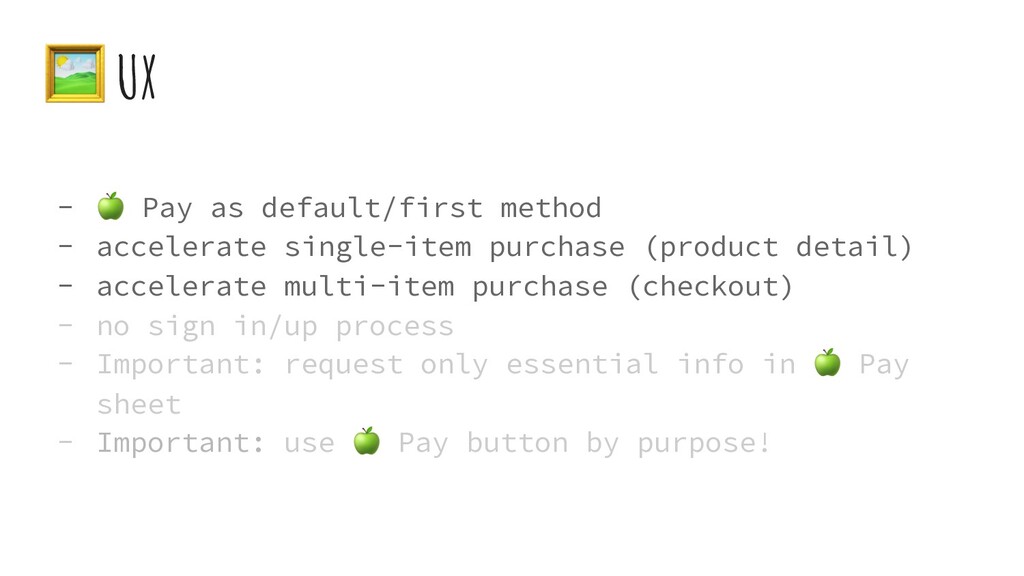

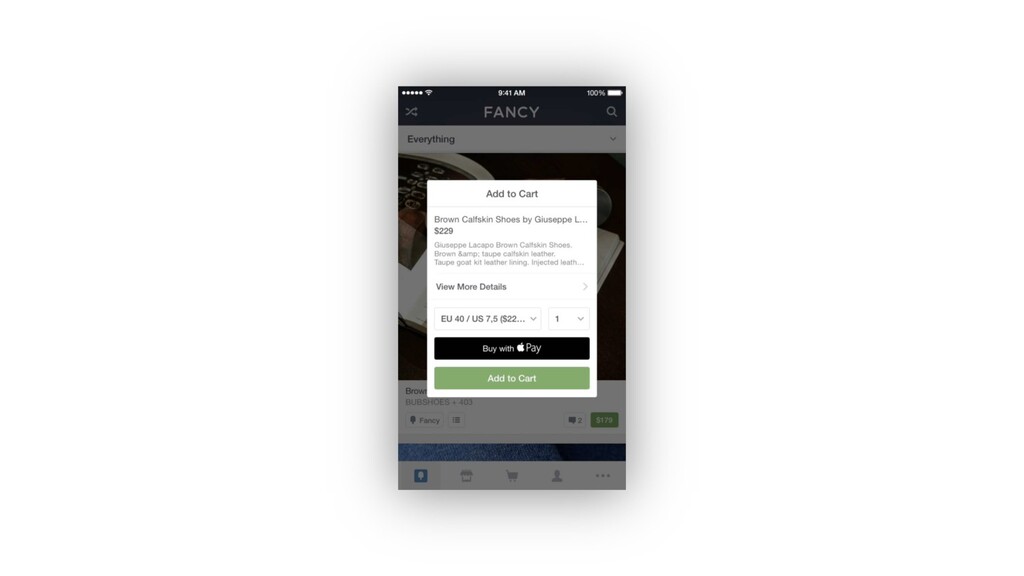

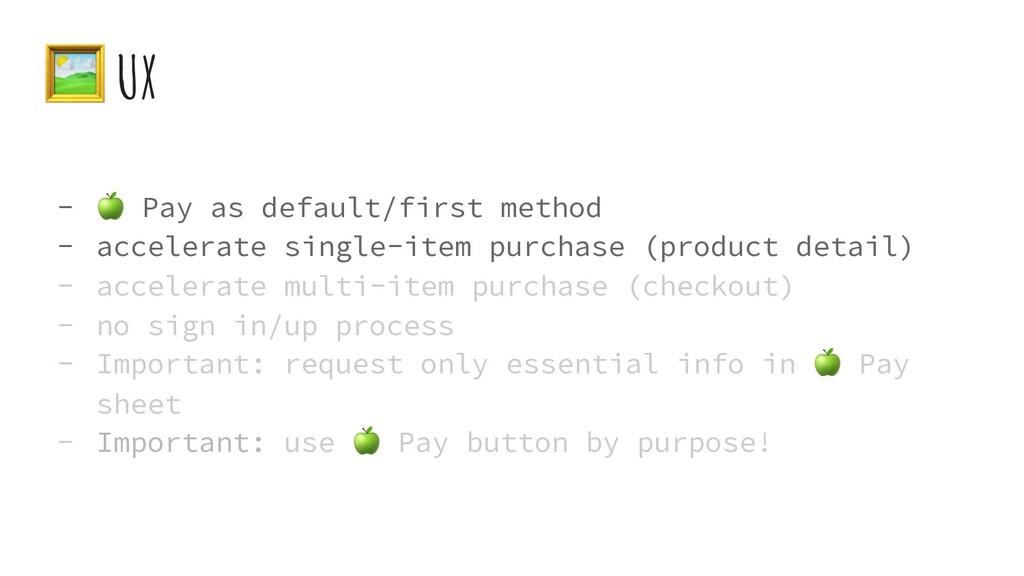

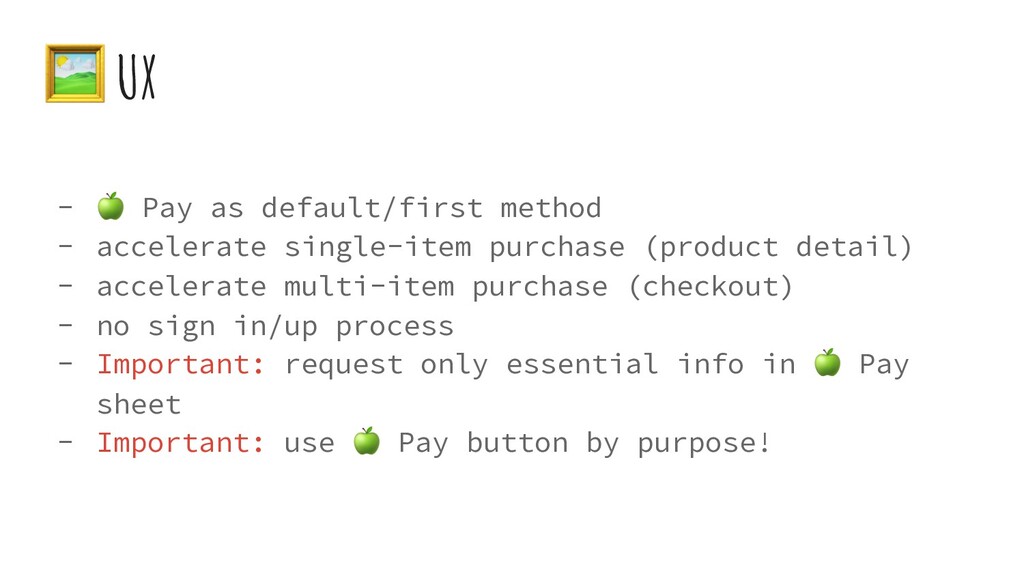

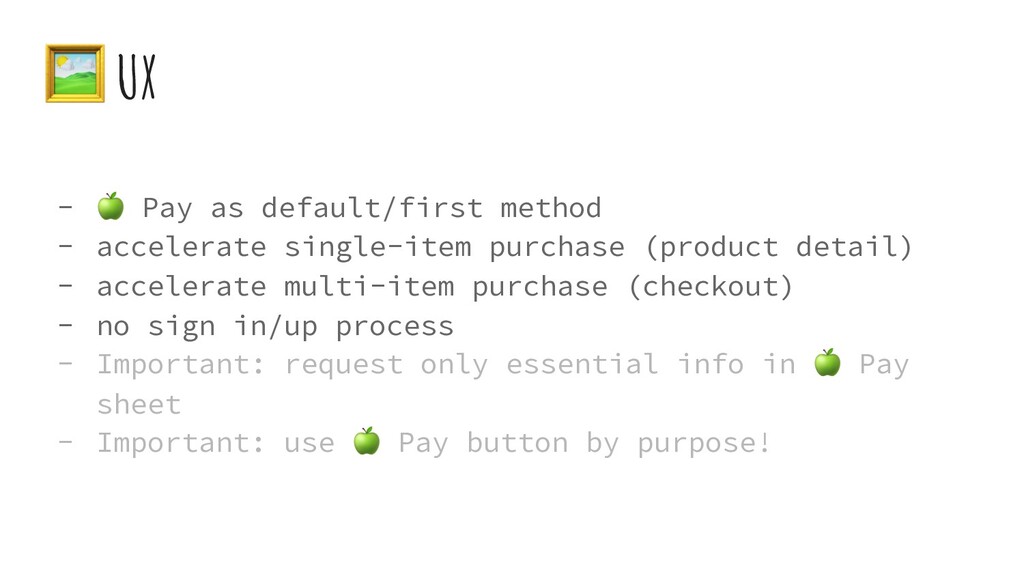

56. 🖼 UX - 🍏 Pay as default/first method - accelerate single-item purchase (product detail) - accelerate multi-item purchase (checkout) - no sign in/up process - Important: request only essential info in 🍏 Pay sheet - Important: use 🍏 Pay button by purpose!

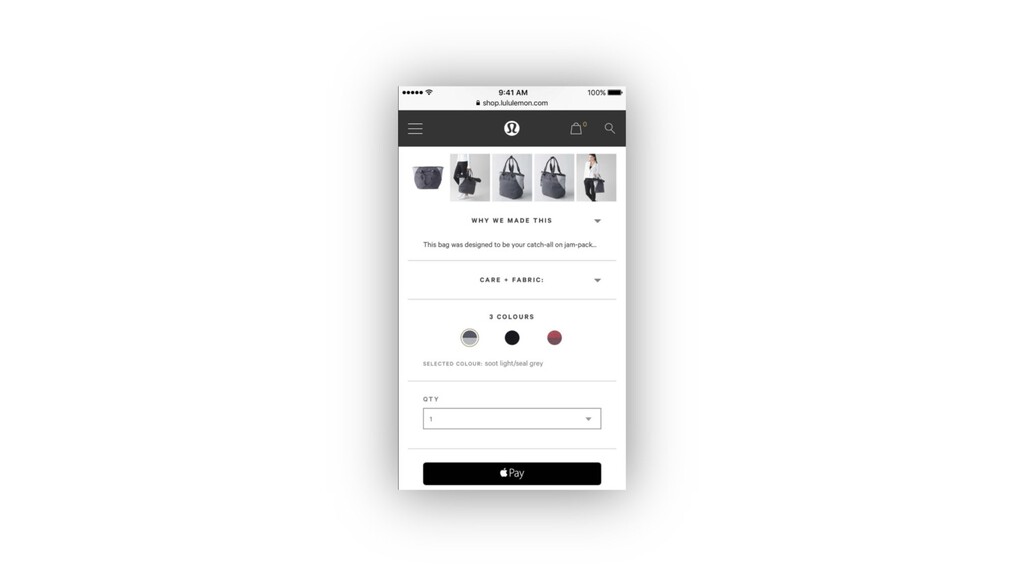

58. 🖼 UX - 🍏 Pay as default/first method - accelerate single-item purchase (product detail) - accelerate multi-item purchase (checkout) - no sign in/up process - Important: request only essential info in 🍏 Pay sheet - Important: use 🍏 Pay button by purpose!

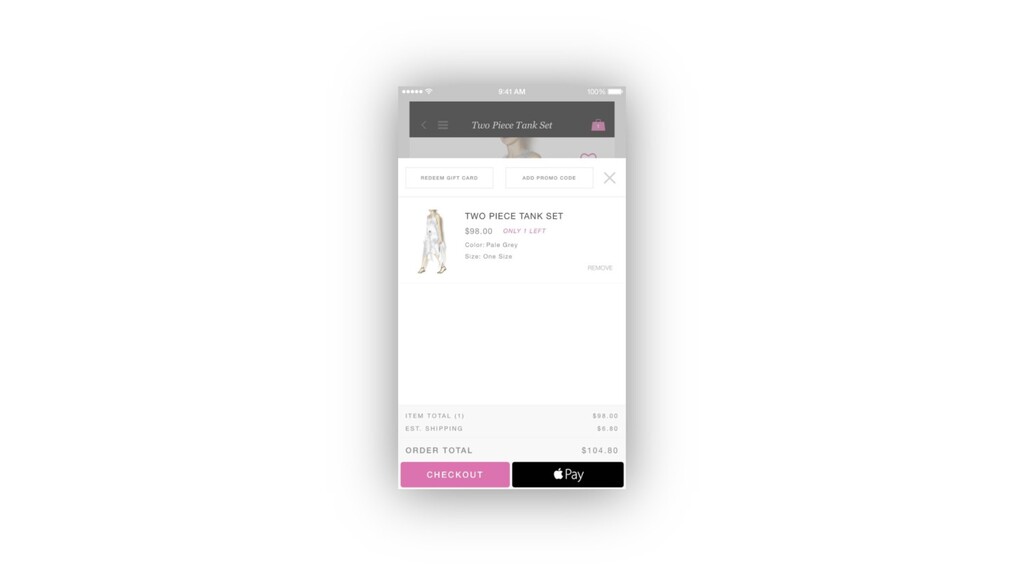

60. 🖼 UX - 🍏 Pay as default/first method - accelerate single-item purchase (product detail) - accelerate multi-item purchase (checkout) - no sign in/up process - Important: request only essential info in 🍏 Pay sheet - Important: use 🍏 Pay button by purpose!

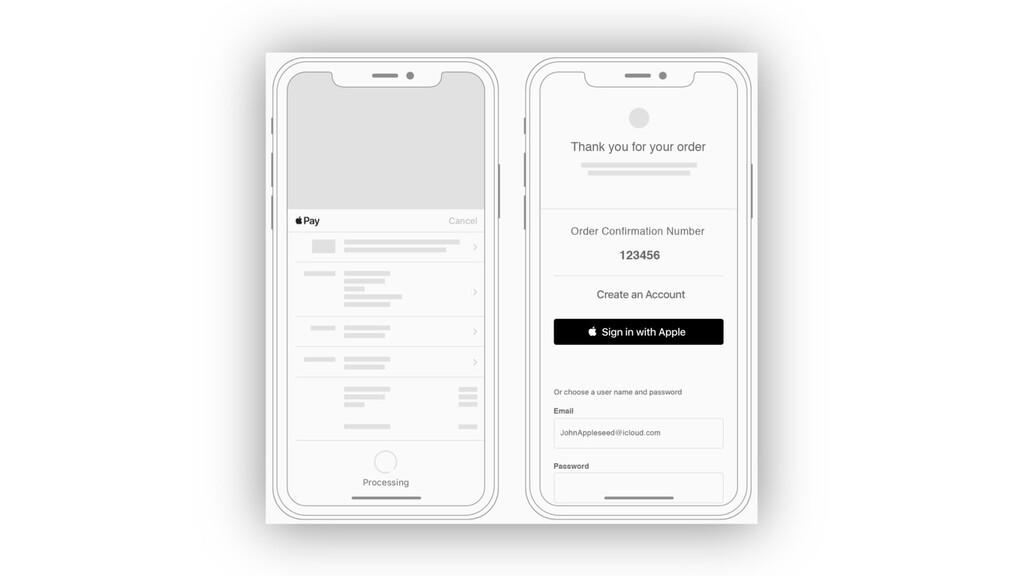

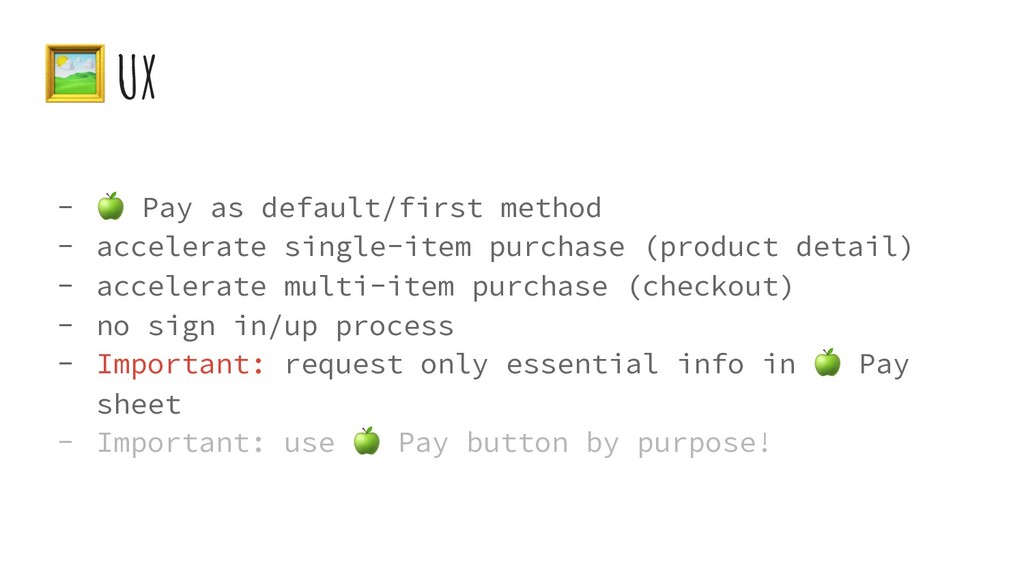

62. 🖼 UX - 🍏 Pay as default/first method - accelerate single-item purchase (product detail) - accelerate multi-item purchase (checkout) - no sign in/up process - Important: request only essential info in 🍏 Pay sheet - Important: use 🍏 Pay button by purpose!
64. 🖼 UX - 🍏 Pay as default/first method - accelerate single-item purchase (product detail) - accelerate multi-item purchase (checkout) - no sign in/up process - Important: request only essential info in 🍏 Pay sheet - Important: use 🍏 Pay button by purpose!
65. ✅
66. 🖼 UX - 🍏 Pay as default/first method - accelerate single-item purchase (product detail) - accelerate multi-item purchase (checkout) - no sign in/up process - Important: request only essential info in 🍏 Pay sheet - Important: use 🍏 Pay button by purpose!

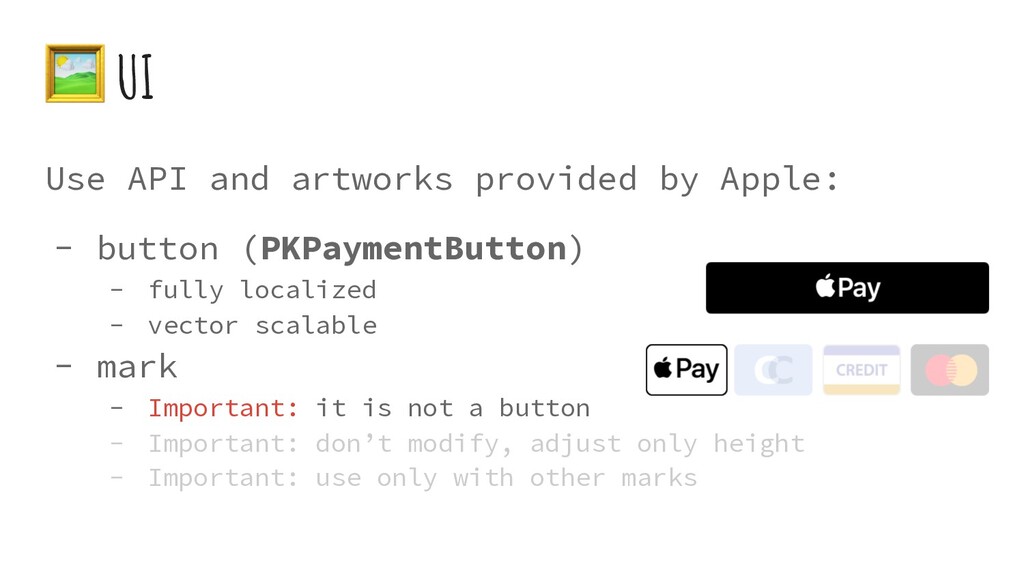

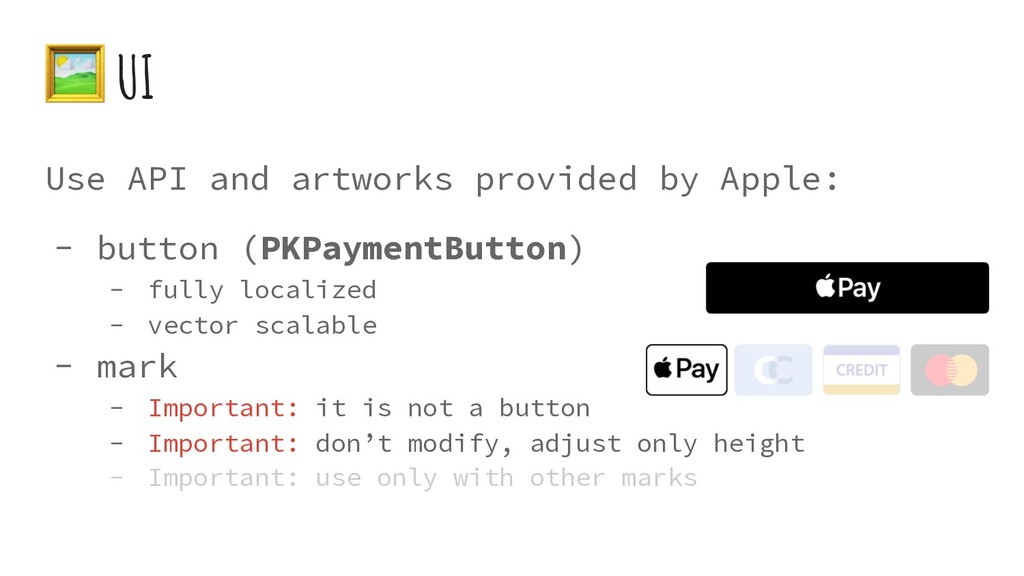

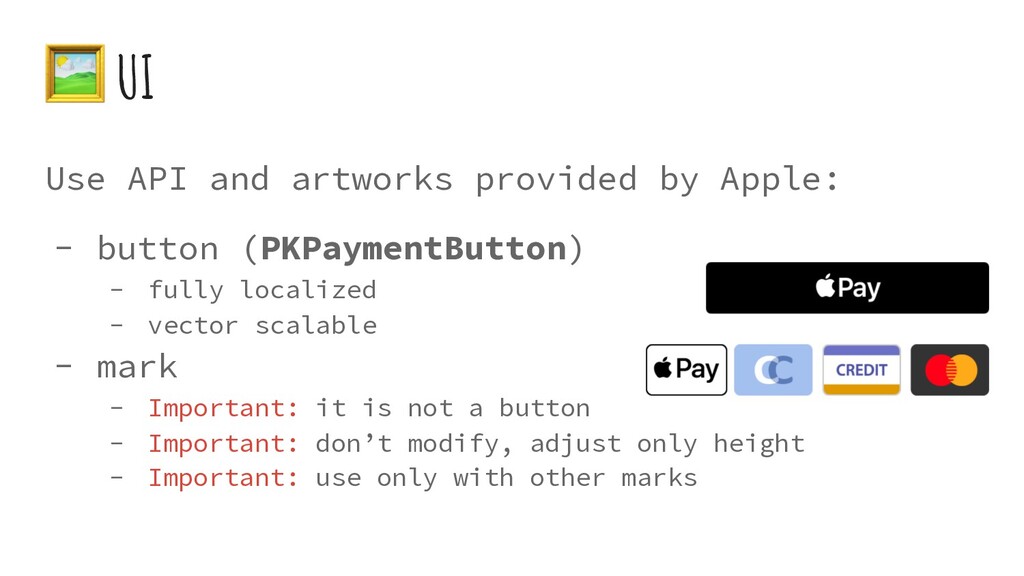

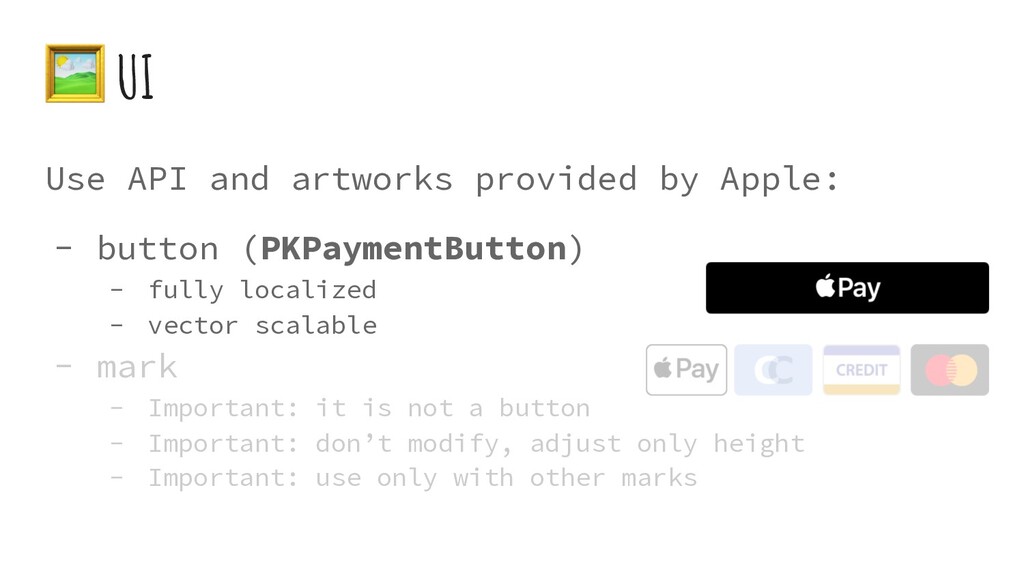

67. 🖼 UI Use API and artworks provided by Apple: - button (PKPaymentButton) - fully localized - vector scalable - mark - Important: it is not a button - Important: don’t modify, adjust only height - Important: use only with other marks
68. 🖼 UI Use API and artworks provided by Apple: - button (PKPaymentButton) - fully localized - vector scalable - mark - Important: it is not a button - Important: don’t modify, adjust only height - Important: use only with other marks
69. 🖼 UI Use API and artworks provided by Apple: - button (PKPaymentButton) - fully localized - vector scalable - mark - Important: it is not a button - Important: don’t modify, adjust only height - Important: use only with other marks
70. 🖼 UI Use API and artworks provided by Apple: - button (PKPaymentButton) - fully localized - vector scalable - mark - Important: it is not a button - Important: don’t modify, adjust only height - Important: use only with other marks

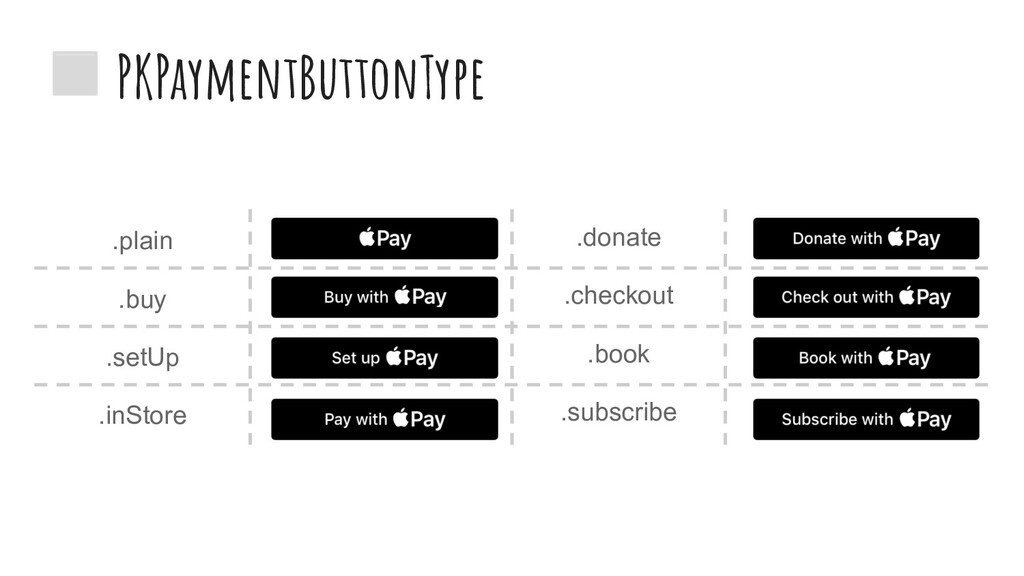

71. .plain .donate .buy .checkout .setUp .book .inStore .subscribe ◻ PKPaymentButtonType

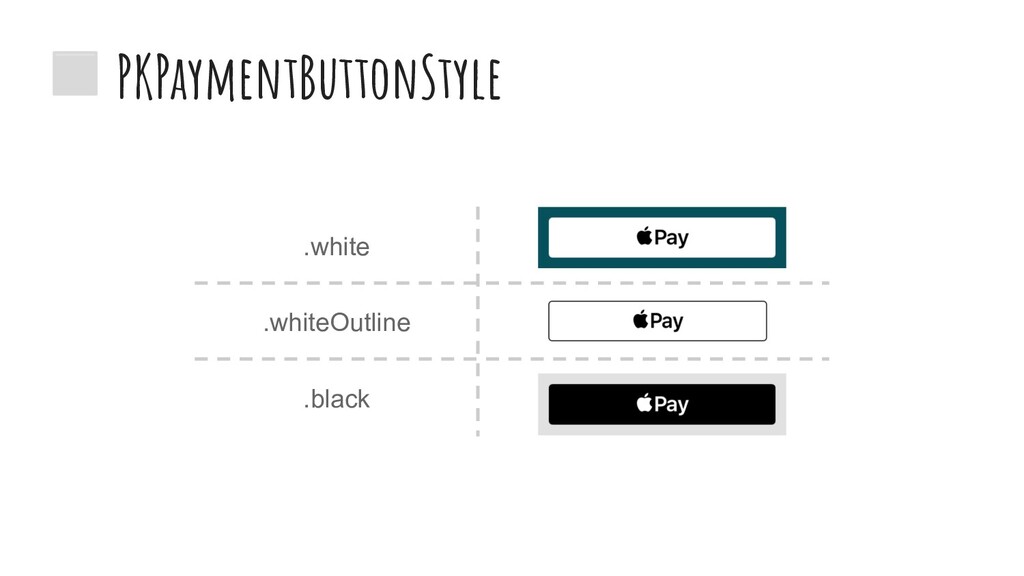

72. .white .whiteOutline .black ◻ PKPaymentButtonStyle

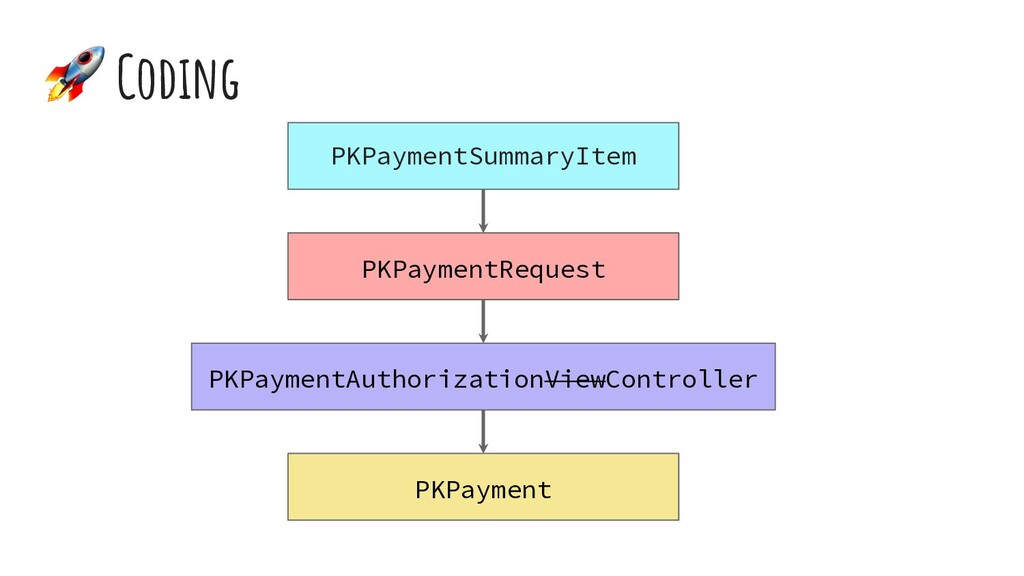

73. 🚀 Coding PKPaymentSummaryItem PKPaymentRequest PKPayment PKPaymentAuthorizationViewController

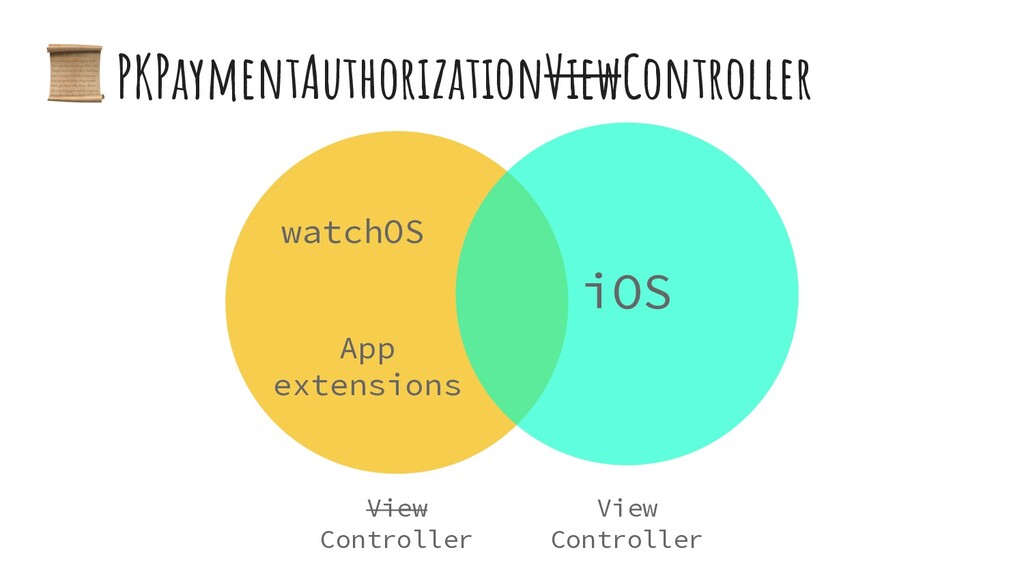

74. 📜 PKPaymentAuthorizationViewController watchOS App extensions View Controller View Controller iOS

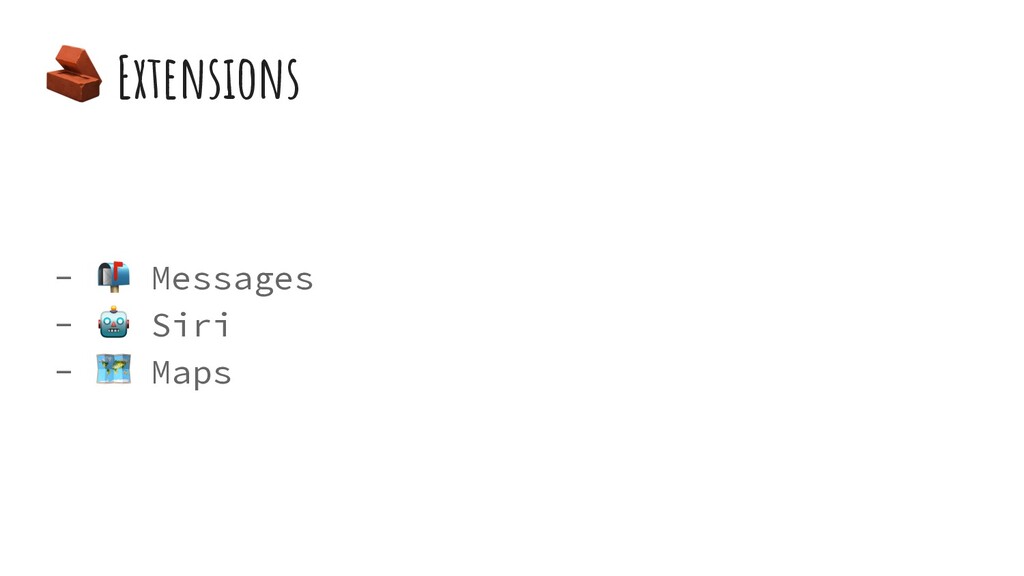

75. 🧱 Extensions - 📬 Messages - 🤖 Siri - 🗺 Maps

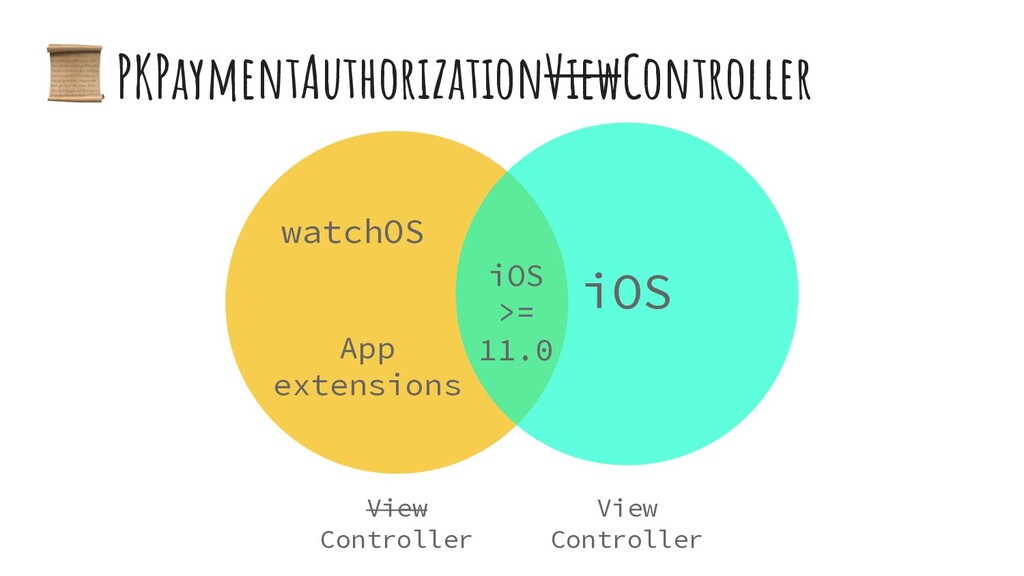

76. 📜 PKPaymentAuthorizationViewController iOS >= 11.0 watchOS App extensions View Controller View Controller iOS

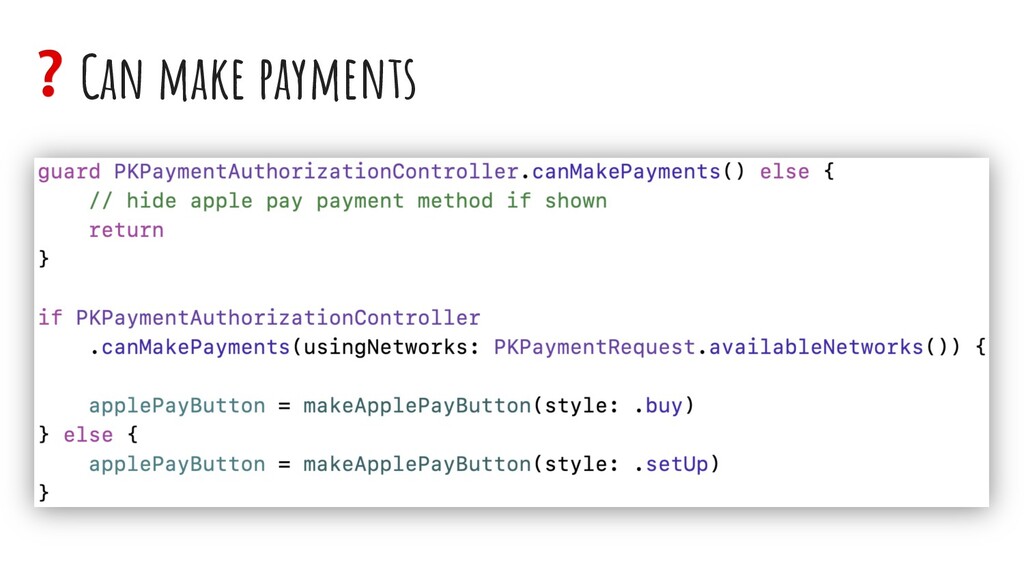

77. ❓Can make payments
78. ❌

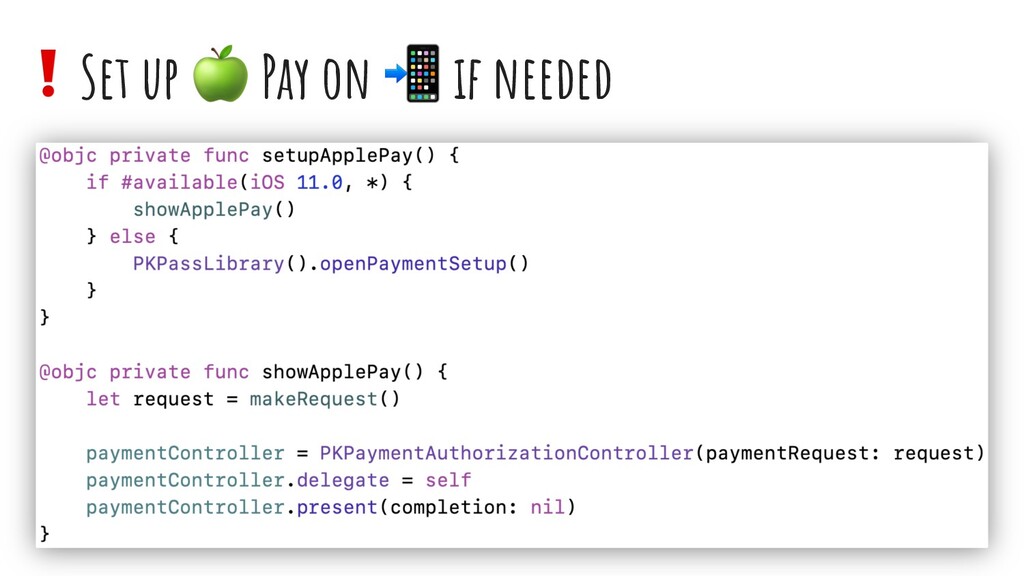

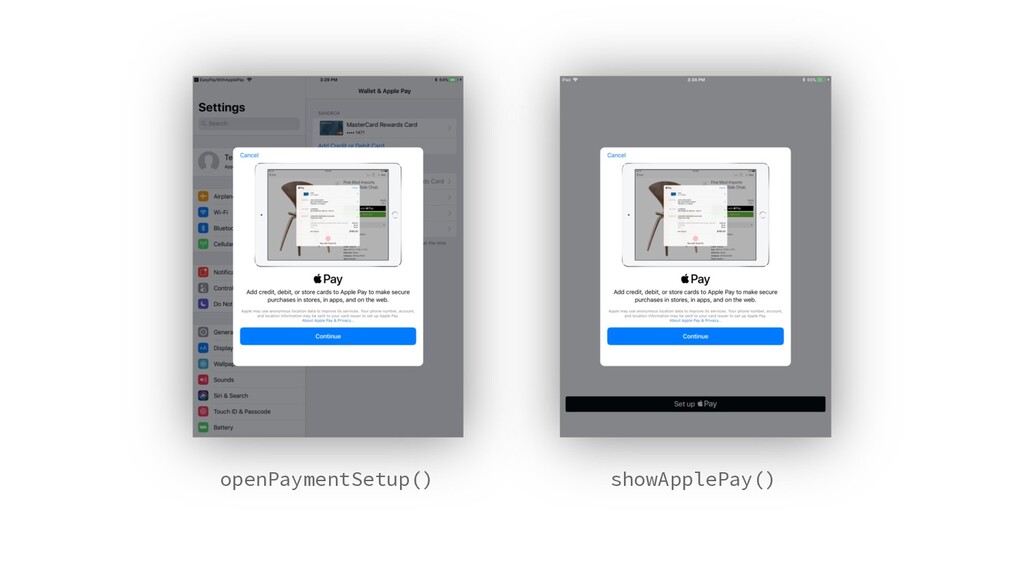

79. ❗Set up 🍏 Pay on 📲 if needed

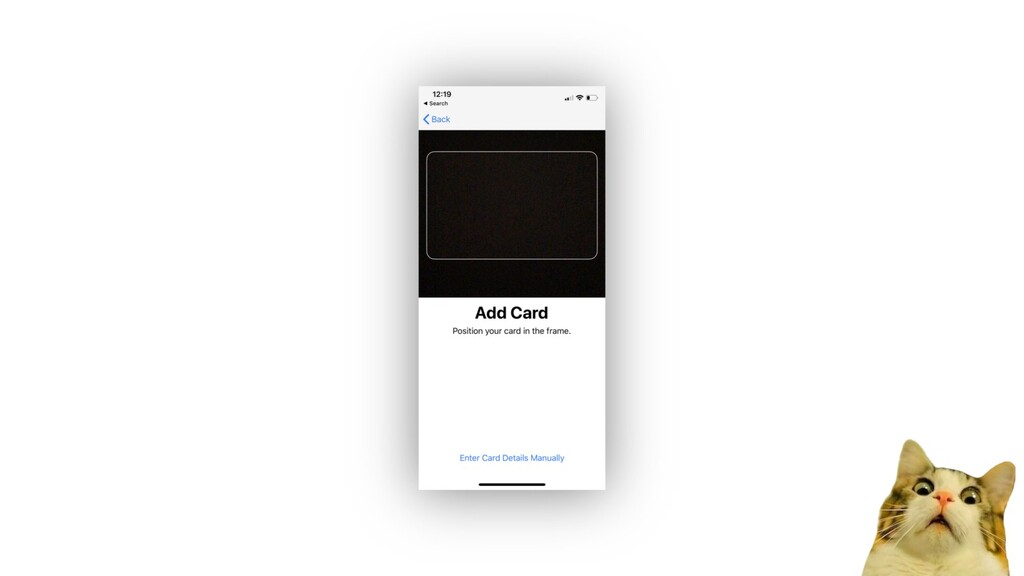

80. openPaymentSetup() showApplePay()

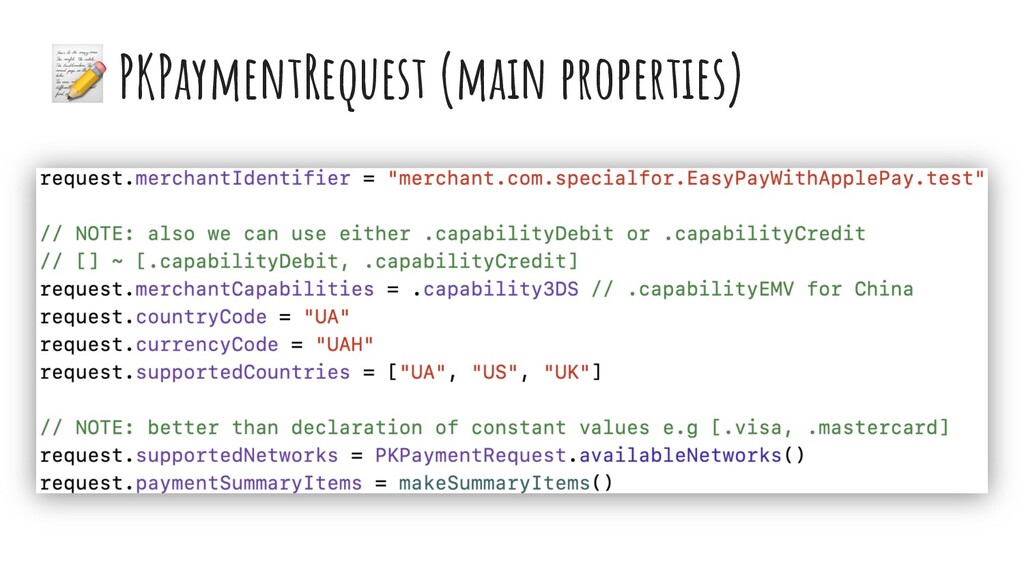

82. 📝 PKPaymentRequest (main properties)

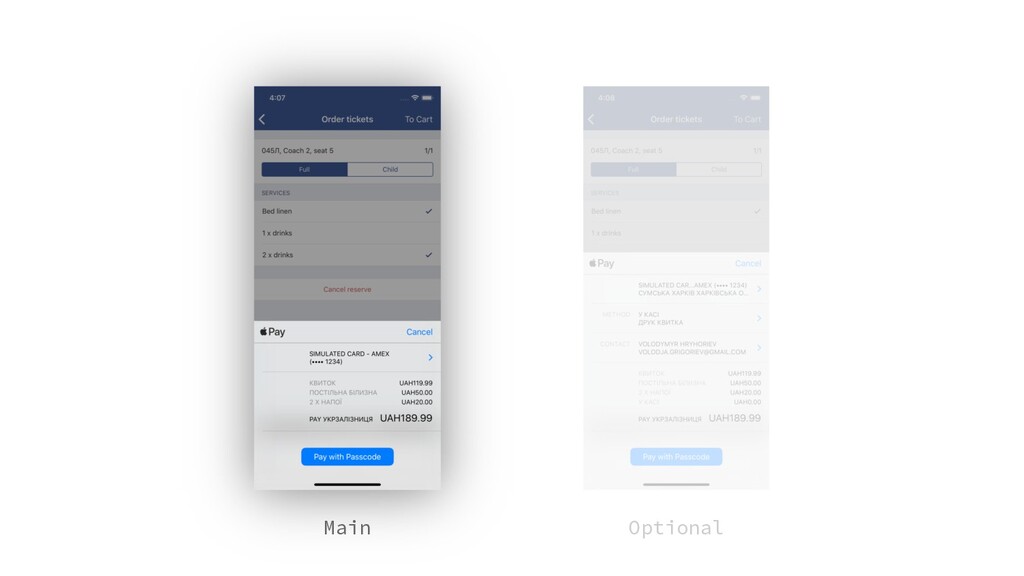

84. 📝 PKPaymentRequest (main properties)
85. Main Optional

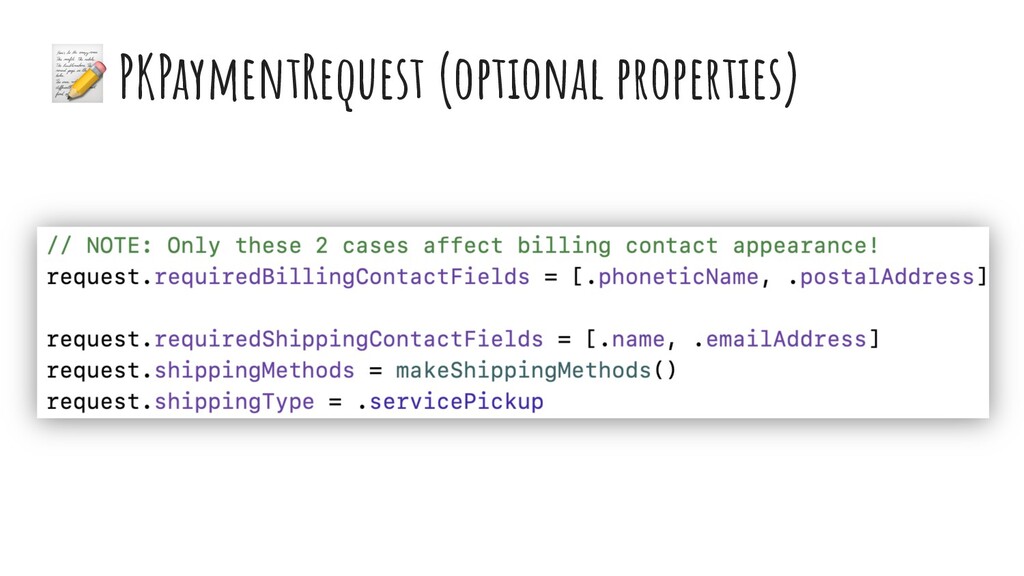

86. 📝 PKPaymentRequest (optional properties)

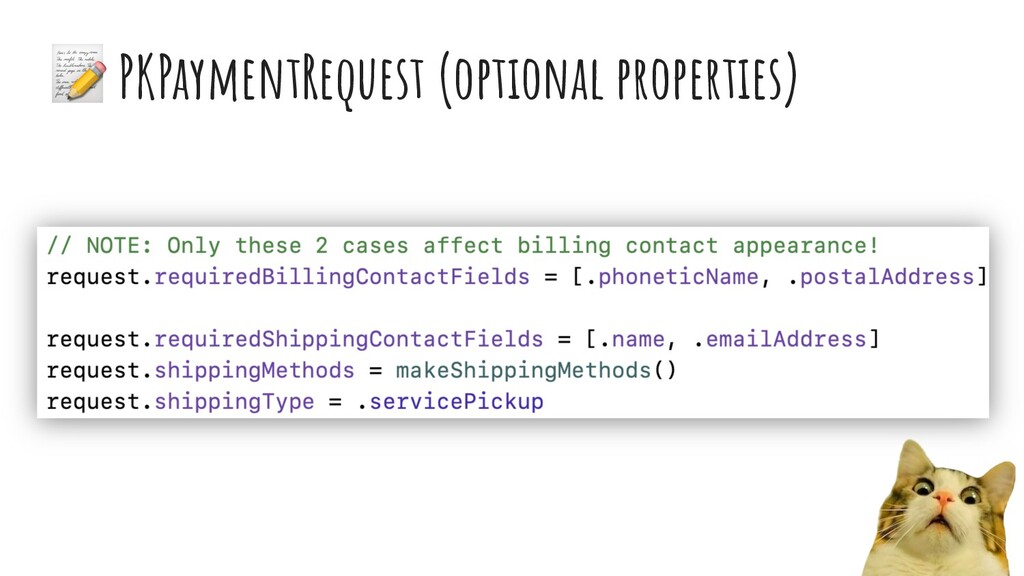

87. 📝 PKPaymentRequest (optional properties)

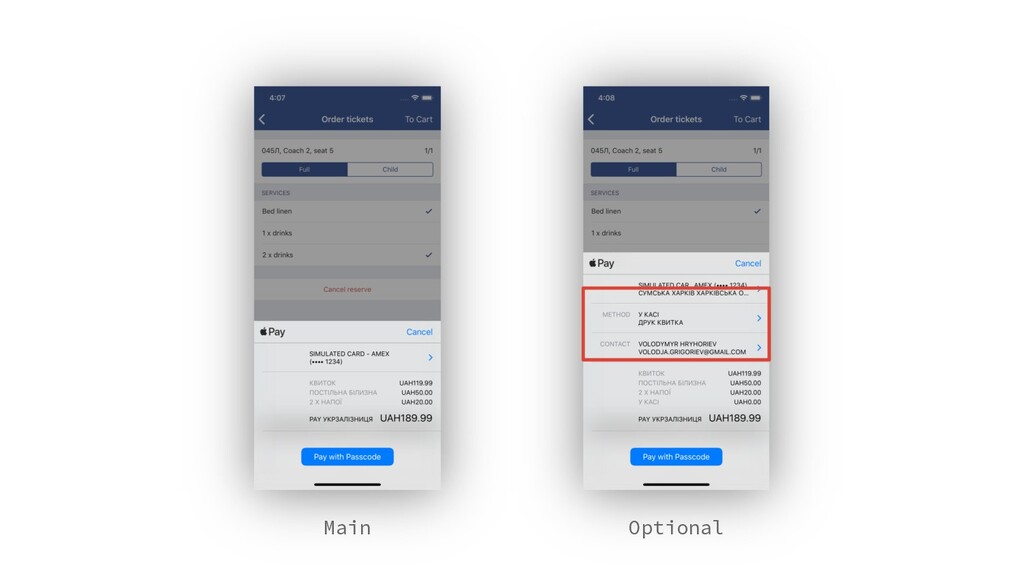

88. Main Optional

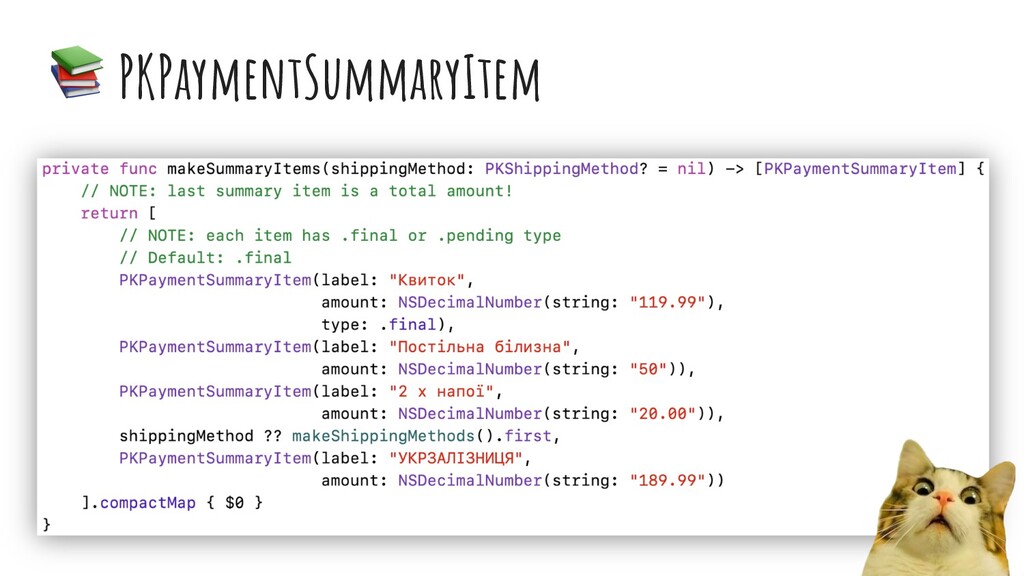

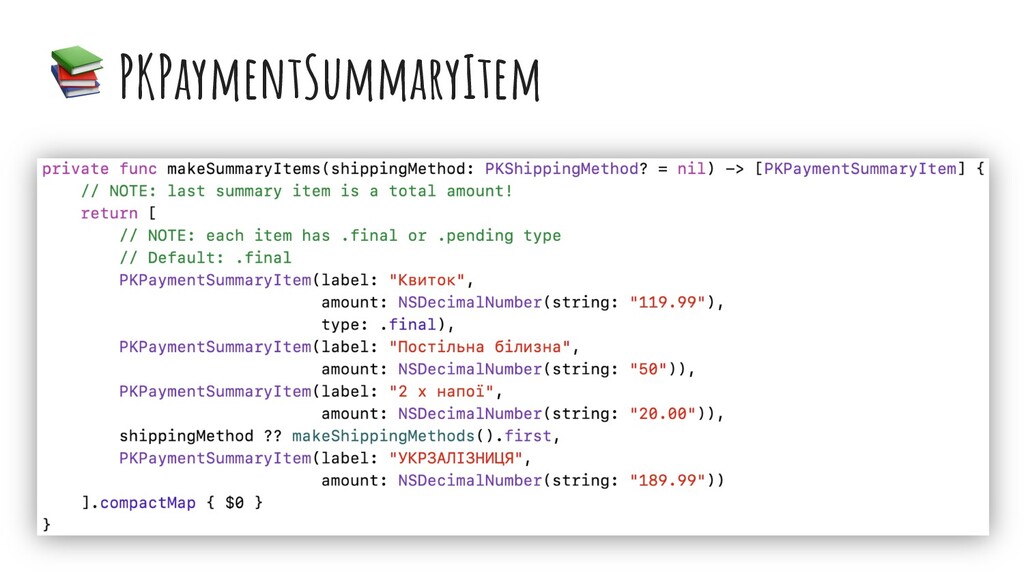

89. 📚 PKPaymentSummaryItem
90. 📚 PKPaymentSummaryItem

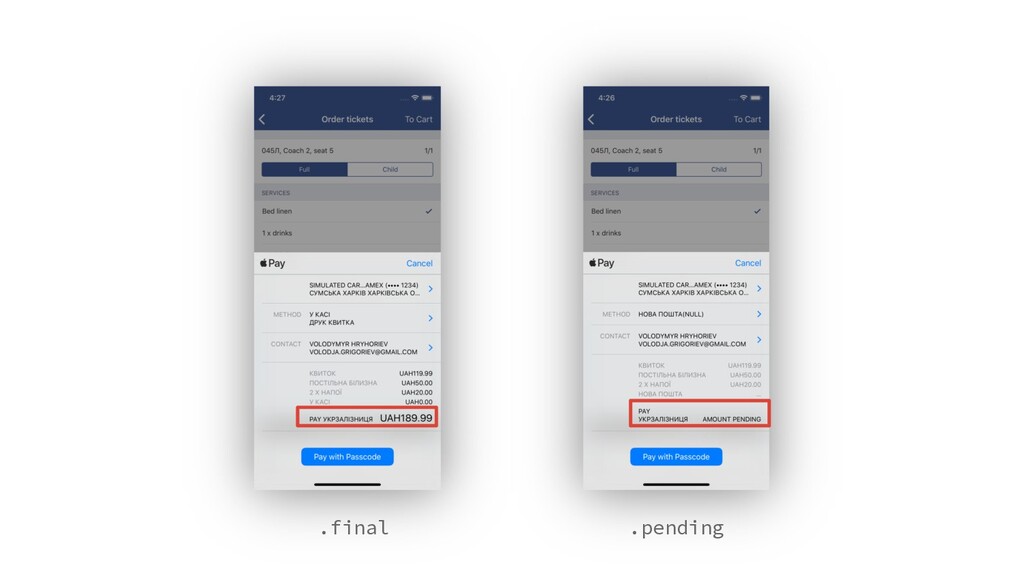

91. .final .pending

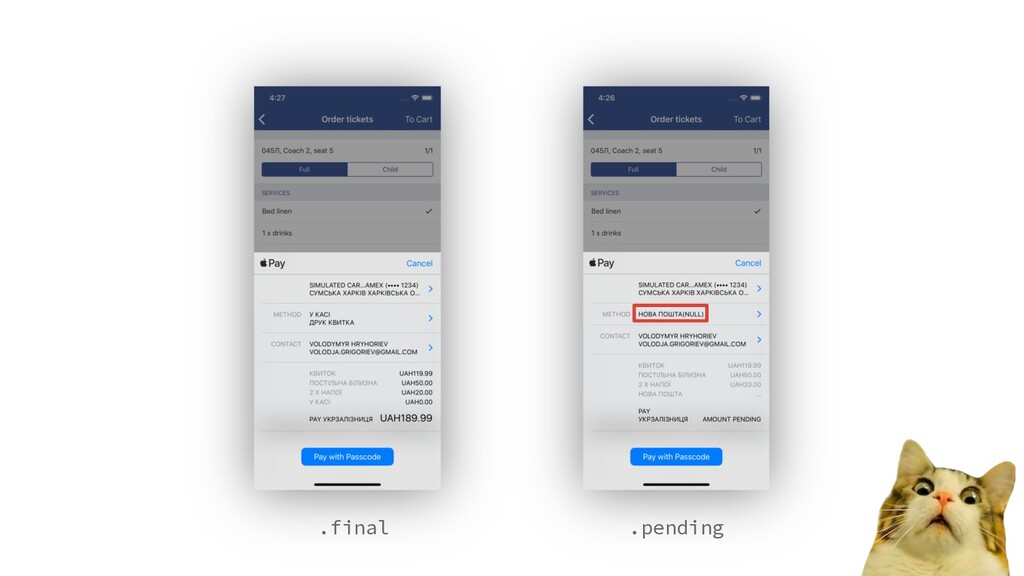

92. .final .pending

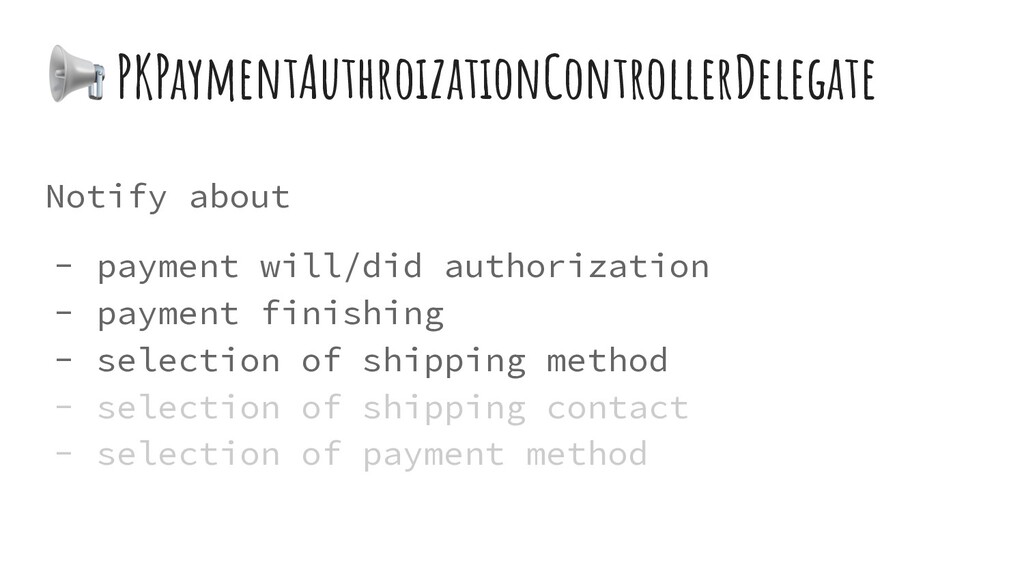

93. 📢 PKPaymentAuthroizationControllerDelegate Notify about - payment will/did authorization - payment finishing - selection of shipping method - selection of shipping contact - selection of payment method

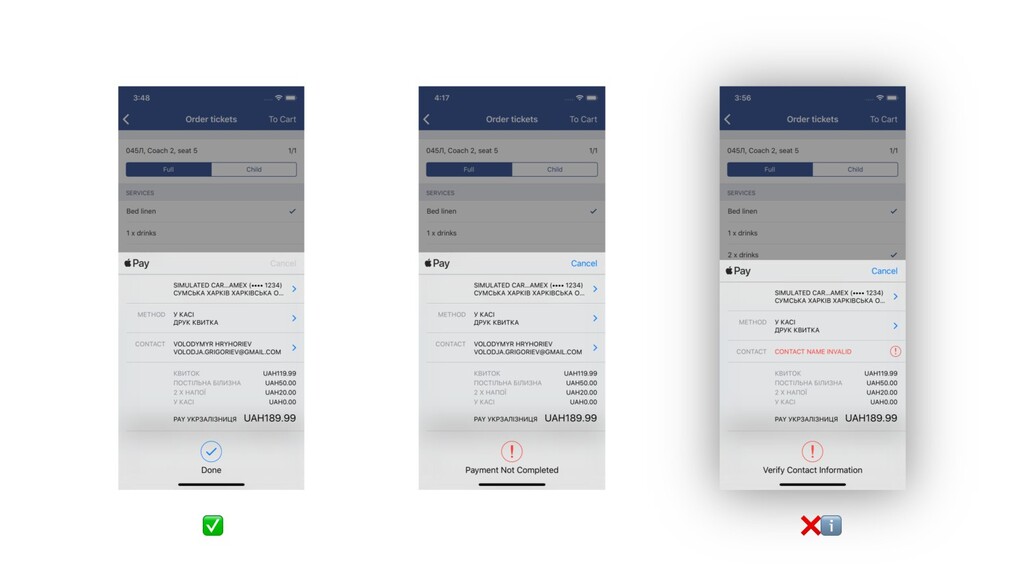

94. 🖊 Authorization

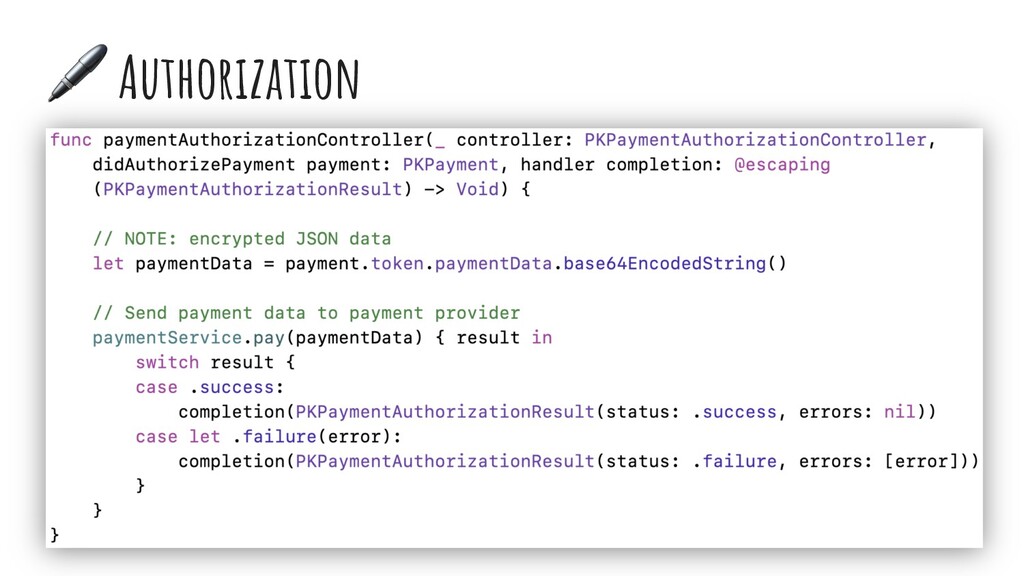

97. 🖊 Authorization
98. ✅ ❌ℹ

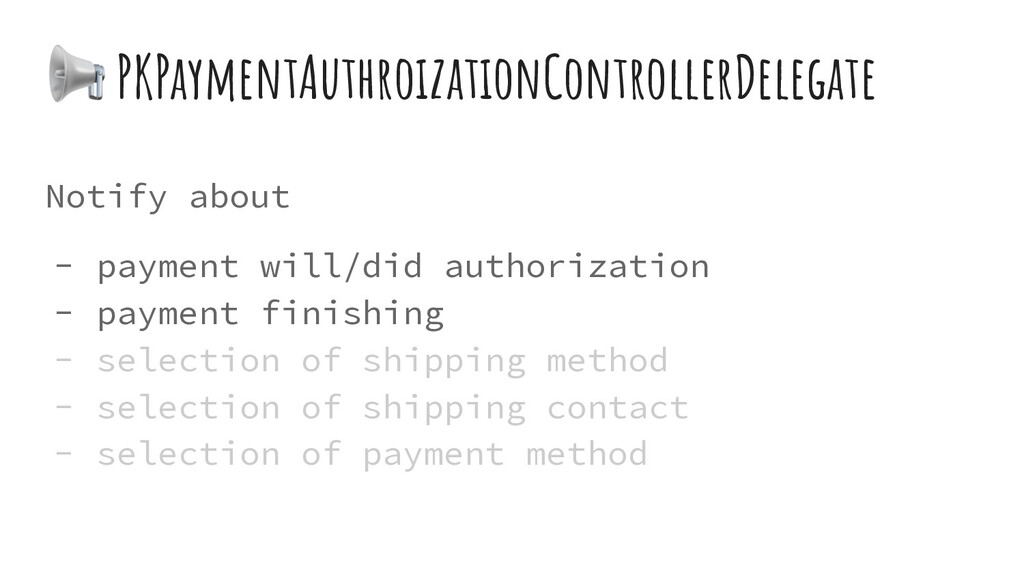

99. 📢 PKPaymentAuthroizationControllerDelegate Notify about - payment will/did authorization - payment finishing - selection of shipping method - selection of shipping contact - selection of payment method
100. 📢 PKPaymentAuthroizationControllerDelegate Notify about - payment will/did authorization - payment finishing - selection of shipping method - selection of shipping contact - selection of payment method

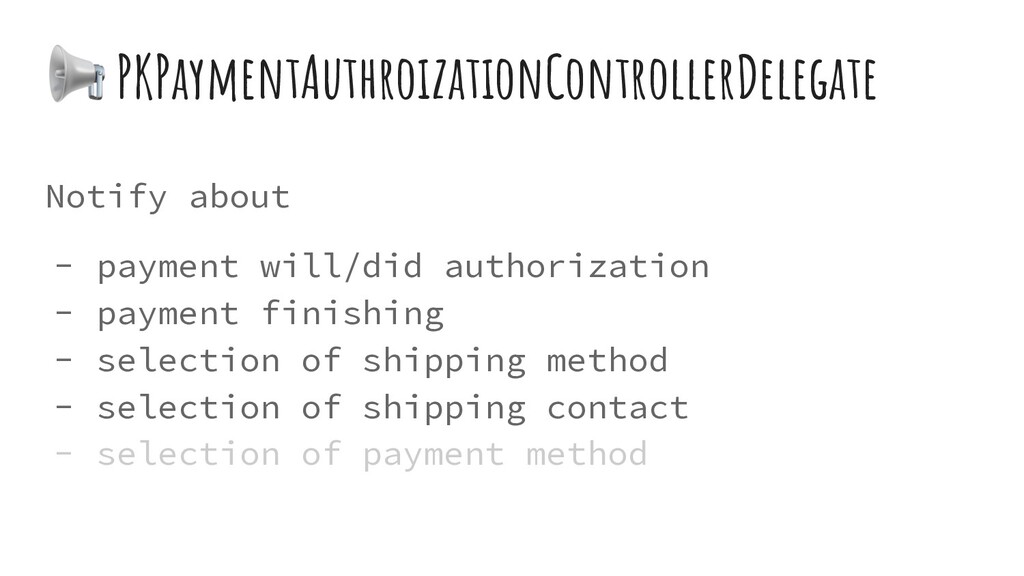

101. 📢 PKPaymentAuthroizationControllerDelegate Notify about - payment will/did authorization - payment finishing - selection of shipping method - selection of shipping contact - selection of payment method

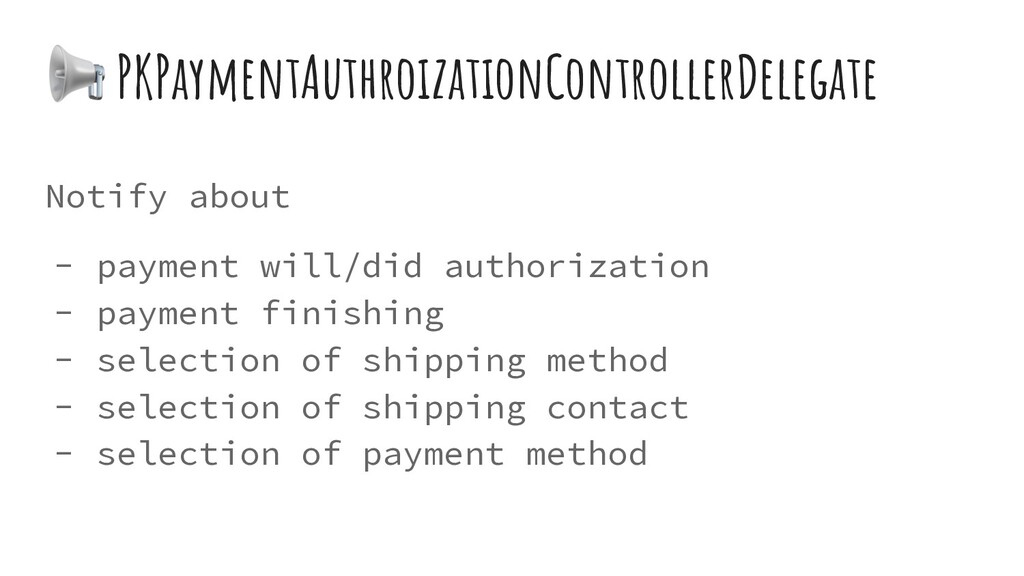

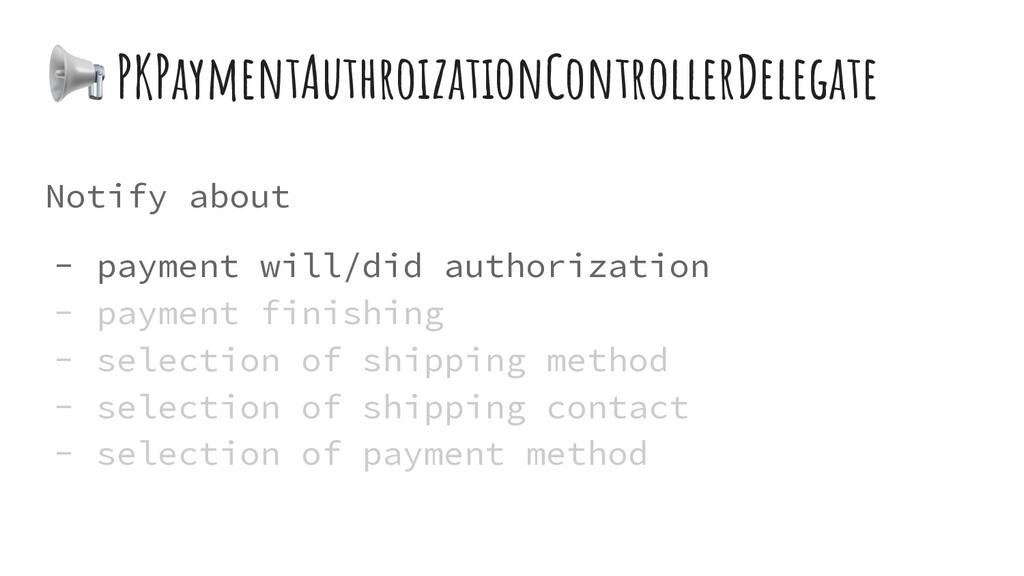

102. 📢 PKPaymentAuthroizationControllerDelegate Notify about - payment will/did authorization - payment finishing - selection of shipping method - selection of shipping contact - selection of payment method

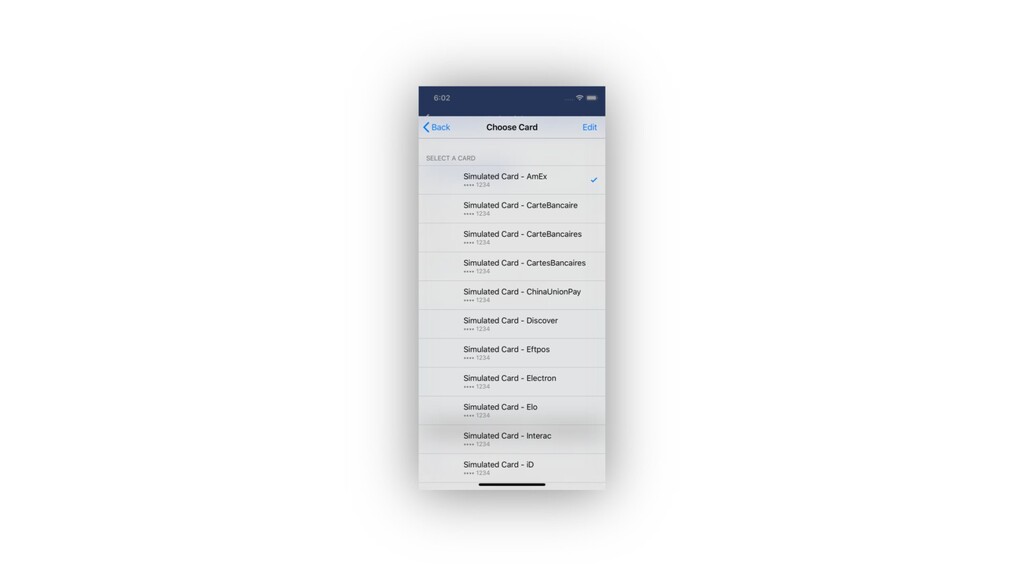

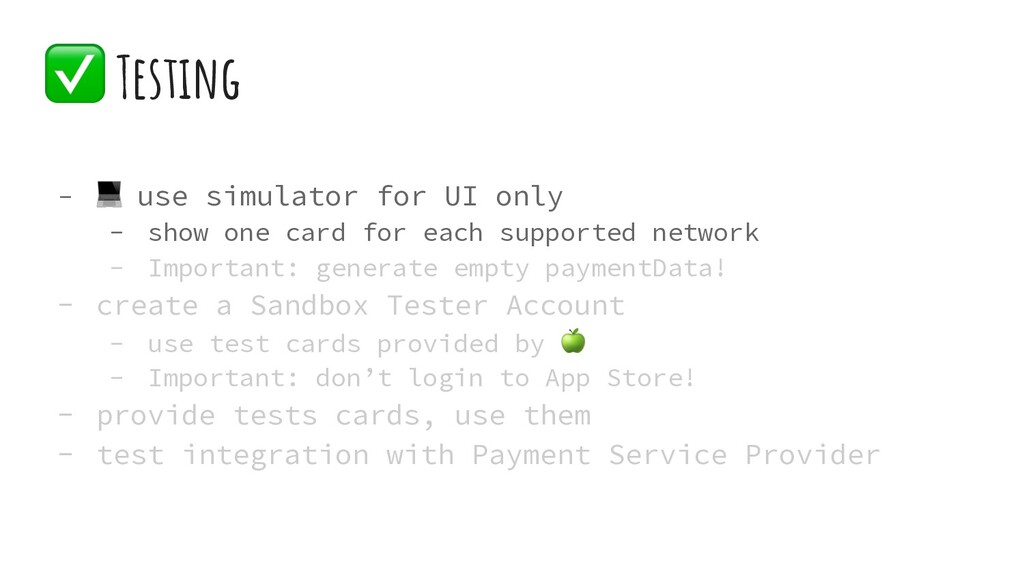

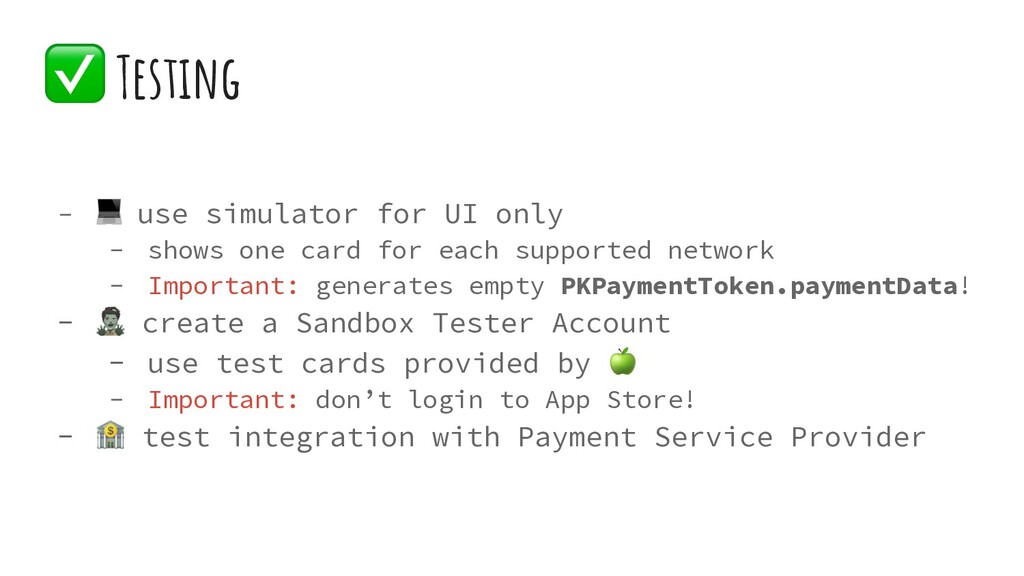

103. ✅ Testing - 💻 use simulator for UI only - show one card for each supported network - Important: generate empty paymentData! - create a Sandbox Tester Account - use test cards provided by 🍏 - Important: don’t login to App Store! - provide tests cards, use them - test integration with Payment Service Provider

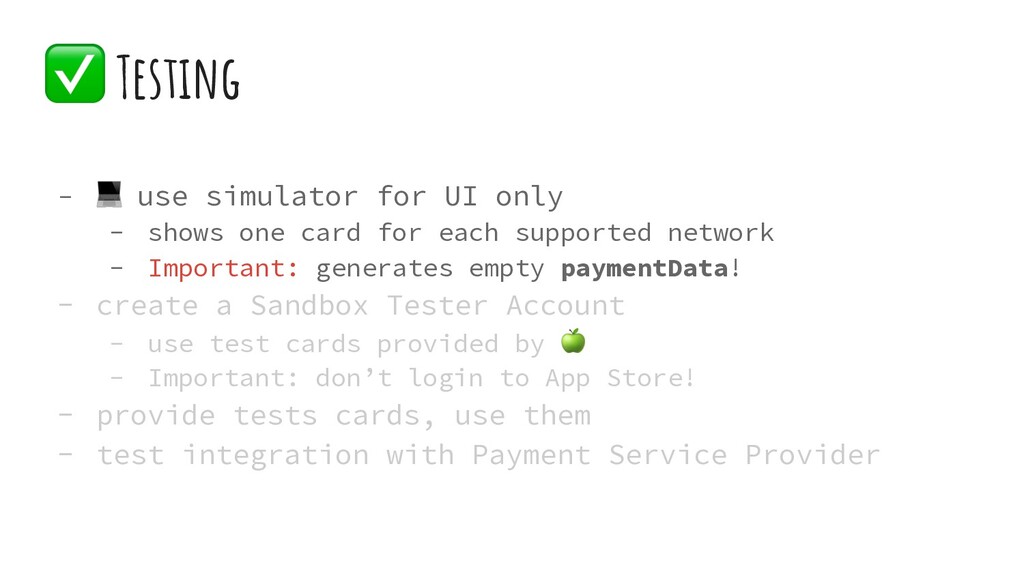

105. ✅ Testing - 💻 use simulator for UI only - shows one card for each supported network - Important: generates empty paymentData! - create a Sandbox Tester Account - use test cards provided by 🍏 - Important: don’t login to App Store! - provide tests cards, use them - test integration with Payment Service Provider

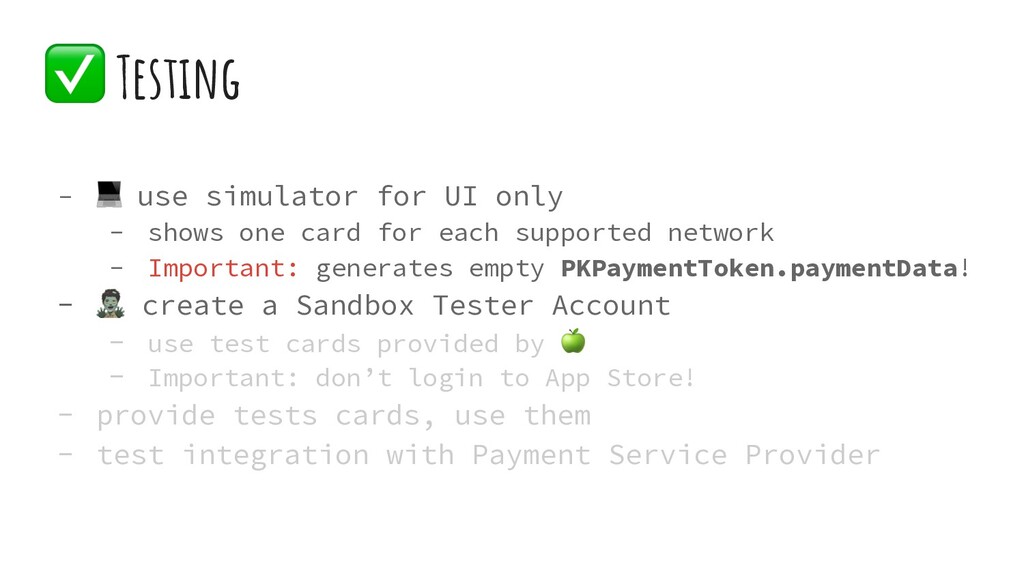

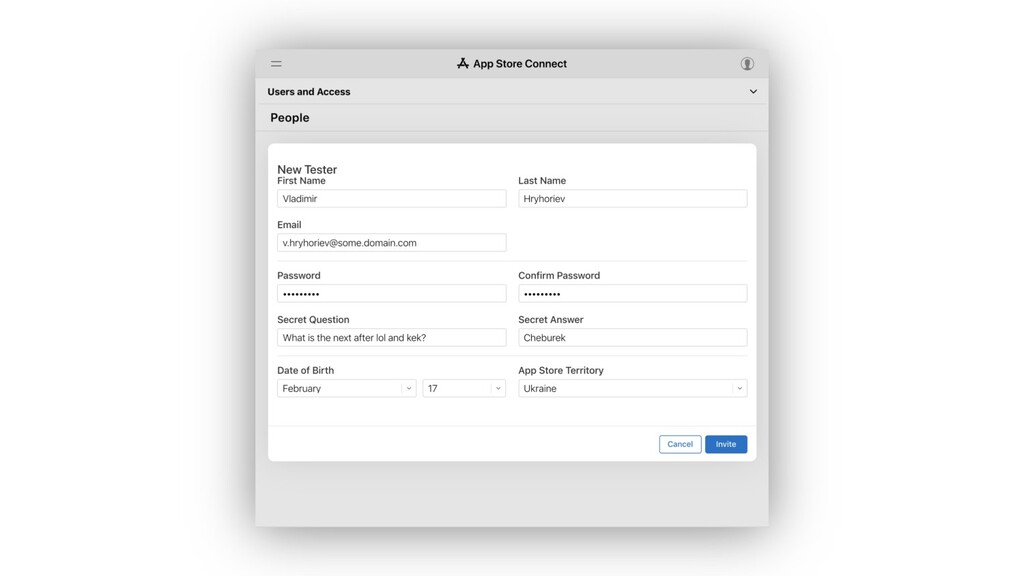

106. - 💻 use simulator for UI only - shows one card for each supported network - Important: generates empty PKPaymentToken.paymentData! - 🧟 create a Sandbox Tester Account - use test cards provided by 🍏 - Important: don’t login to App Store! - provide tests cards, use them - test integration with Payment Service Provider ✅ Testing

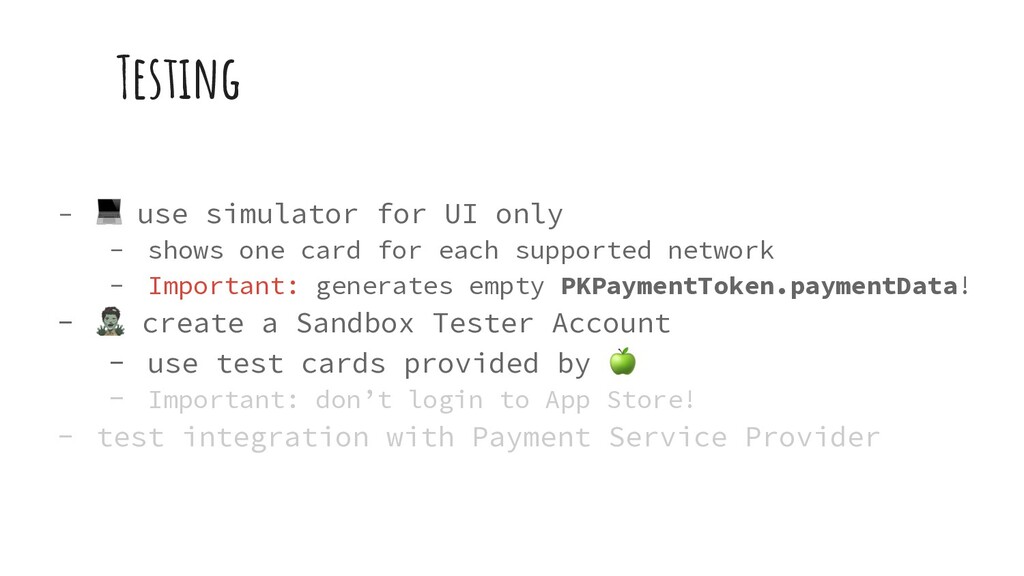

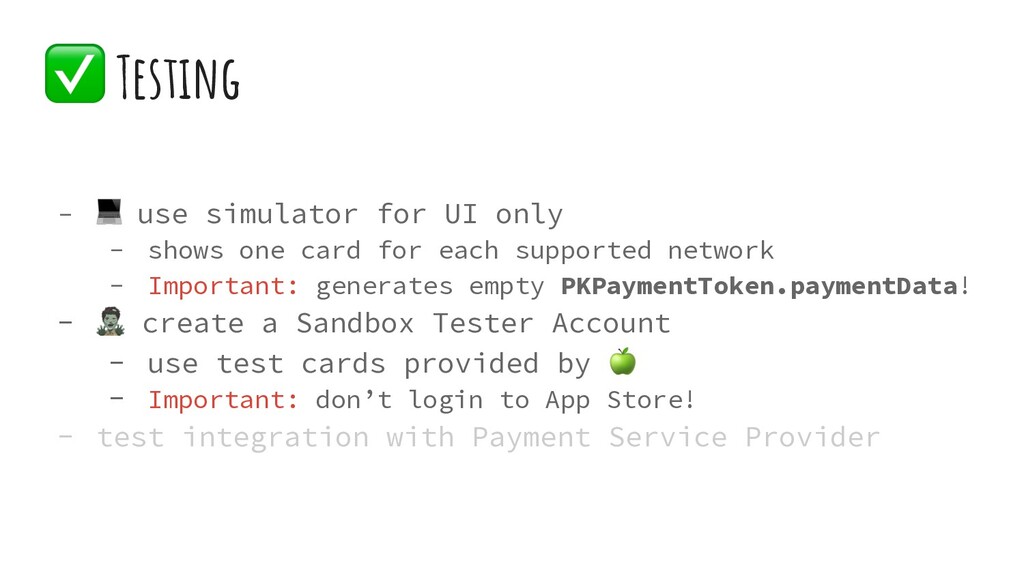

108. Testing - 💻 use simulator for UI only - shows one card for each supported network - Important: generates empty PKPaymentToken.paymentData! - 🧟 create a Sandbox Tester Account - use test cards provided by 🍏 - Important: don’t login to App Store! - test integration with Payment Service Provider
109. ✅ Testing - 💻 use simulator for UI only - shows one card for each supported network - Important: generates empty PKPaymentToken.paymentData! - 🧟 create a Sandbox Tester Account - use test cards provided by 🍏 - Important: don’t login to App Store! - test integration with Payment Service Provider
110. ✅ Testing - 💻 use simulator for UI only - shows one card for each supported network - Important: generates empty PKPaymentToken.paymentData! - 🧟 create a Sandbox Tester Account - use test cards provided by 🍏 - Important: don’t login to App Store! - 🏦 test integration with Payment Service Provider

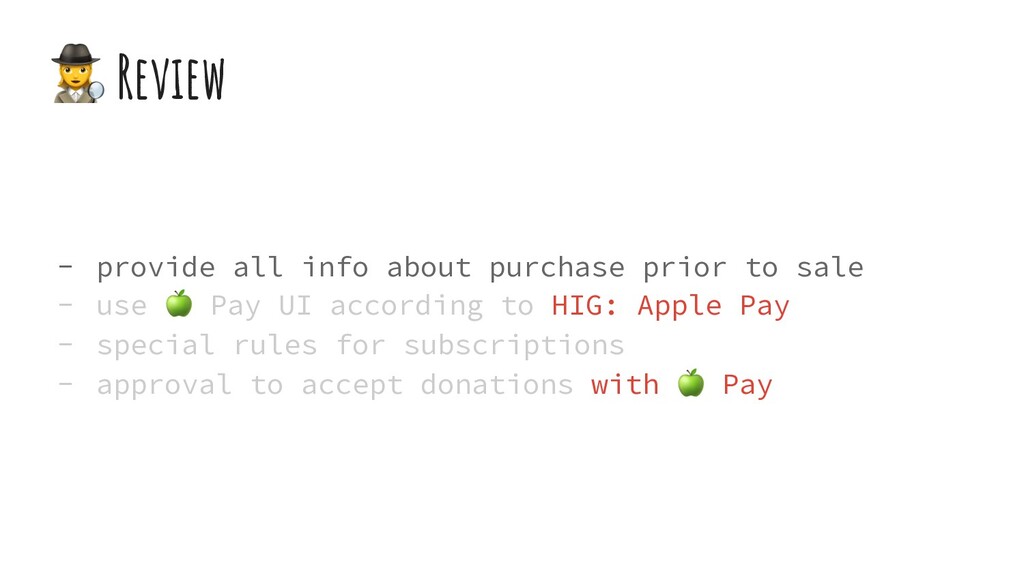

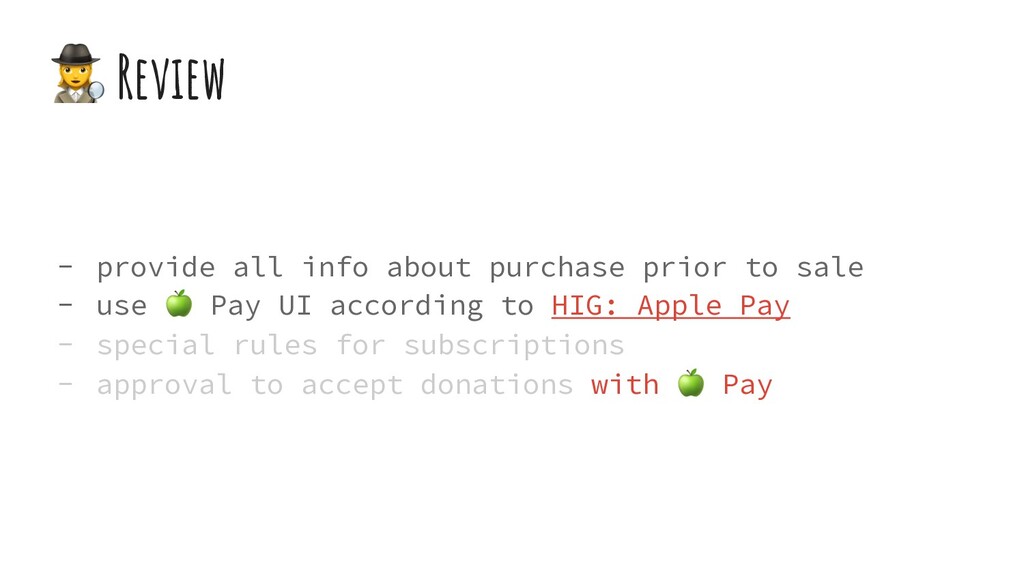

111. & Review - provide all info about purchase prior to sale - use 🍏 Pay UI according to HIG: Apple Pay - special rules for subscriptions - approval to accept donations with 🍏 Pay

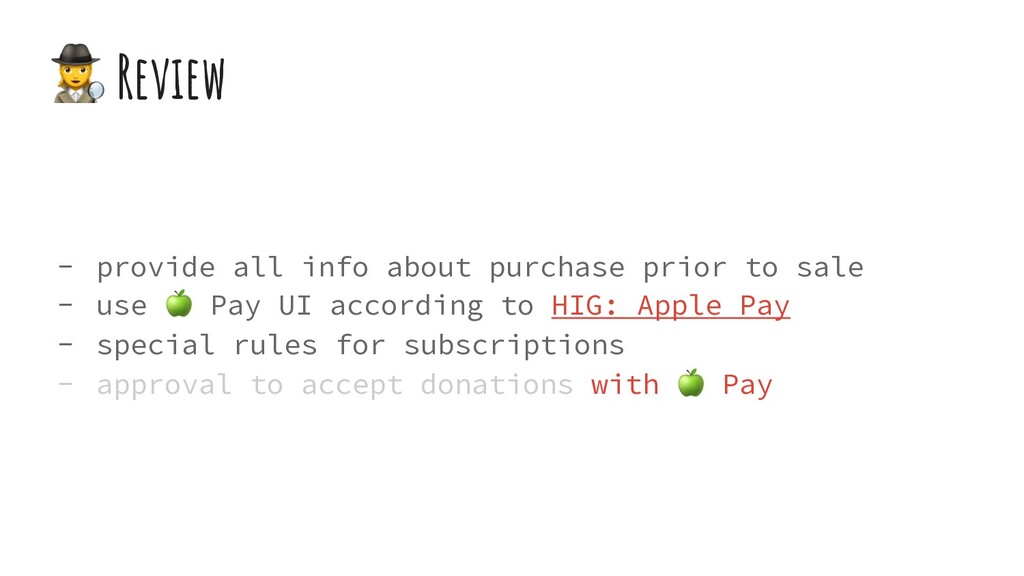

112. & Review - provide all info about purchase prior to sale - use 🍏 Pay UI according to HIG: Apple Pay - special rules for subscriptions - approval to accept donations with 🍏 Pay
113. & Review - provide all info about purchase prior to sale - use 🍏 Pay UI according to HIG: Apple Pay - special rules for subscriptions - approval to accept donations with 🍏 Pay
114. & Review - provide all info about purchase prior to sale - use 🍏 Pay UI according to HIG: Apple Pay - special rules for subscriptions - approval to accept donations with 🍏 Pay

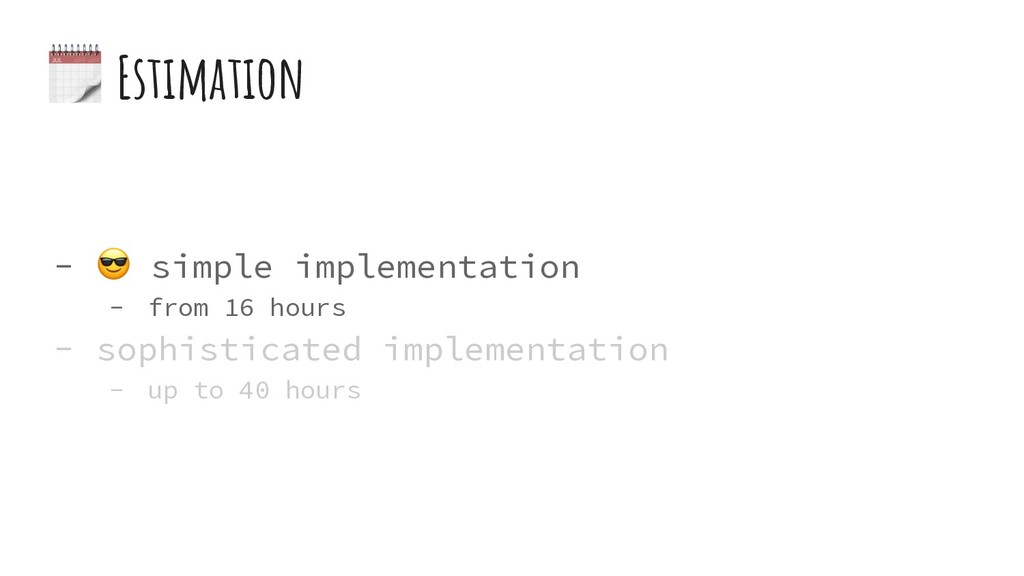

115. 🗓 Estimation - 😎 simple implementation - from 16 hours - sophisticated implementation - up to 40 hours

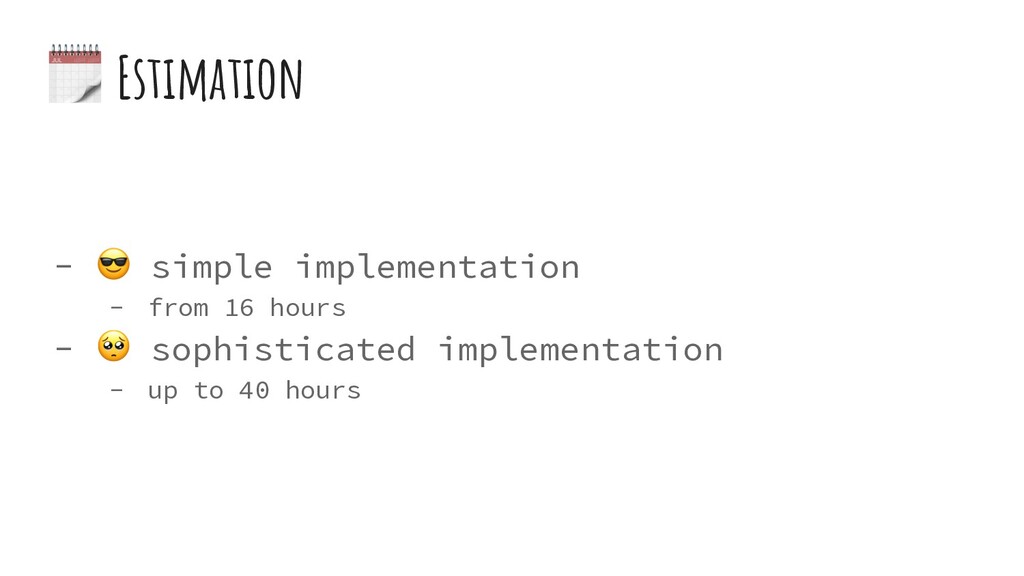

116. 🗓 Estimation - 😎 simple implementation - from 16 hours - 🥺 sophisticated implementation - up to 40 hours

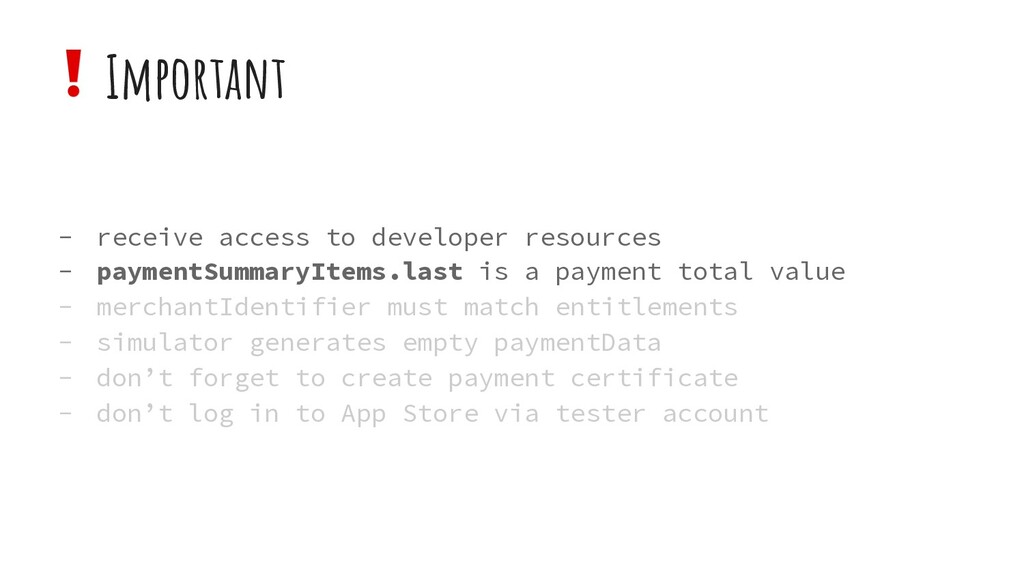

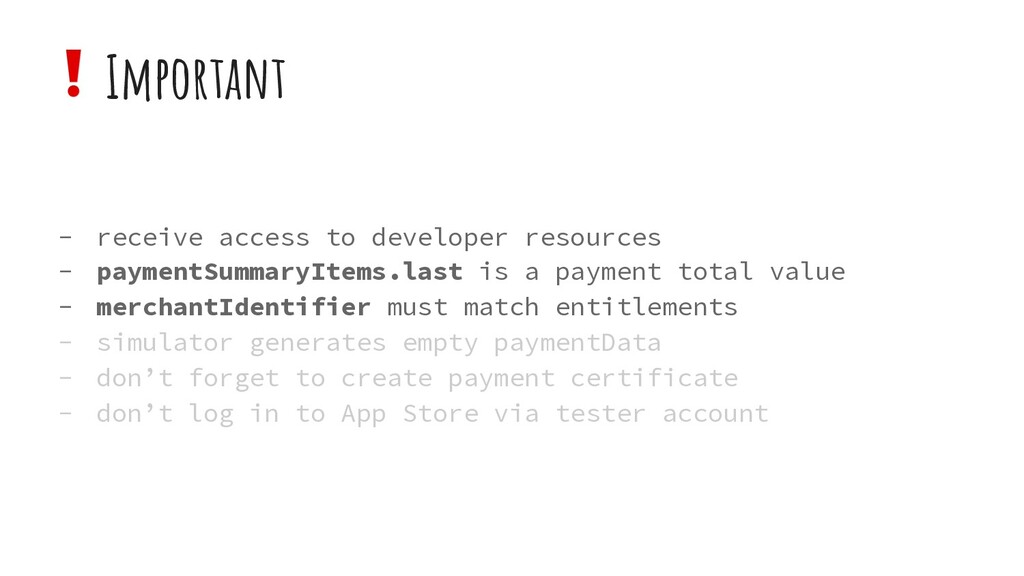

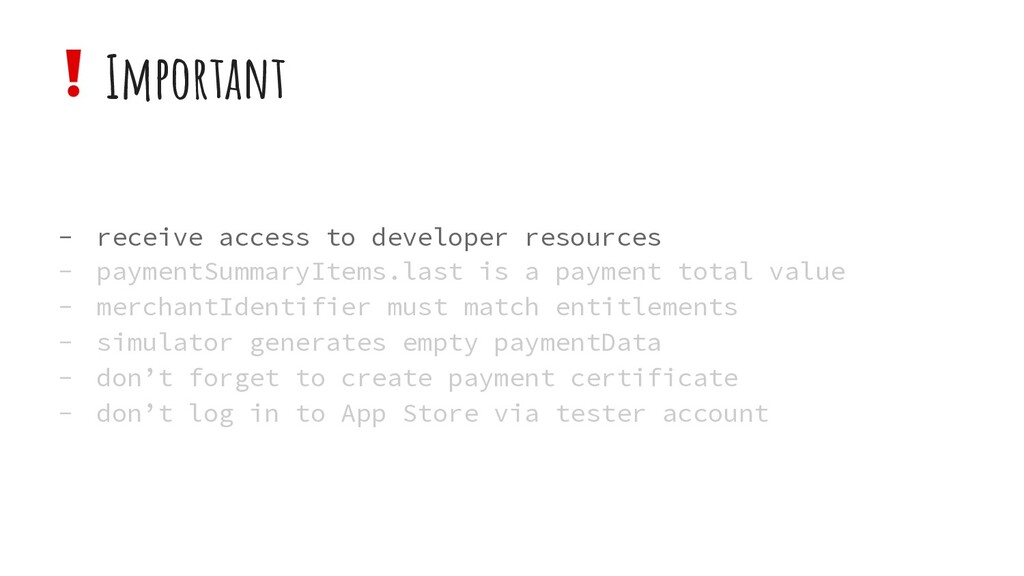

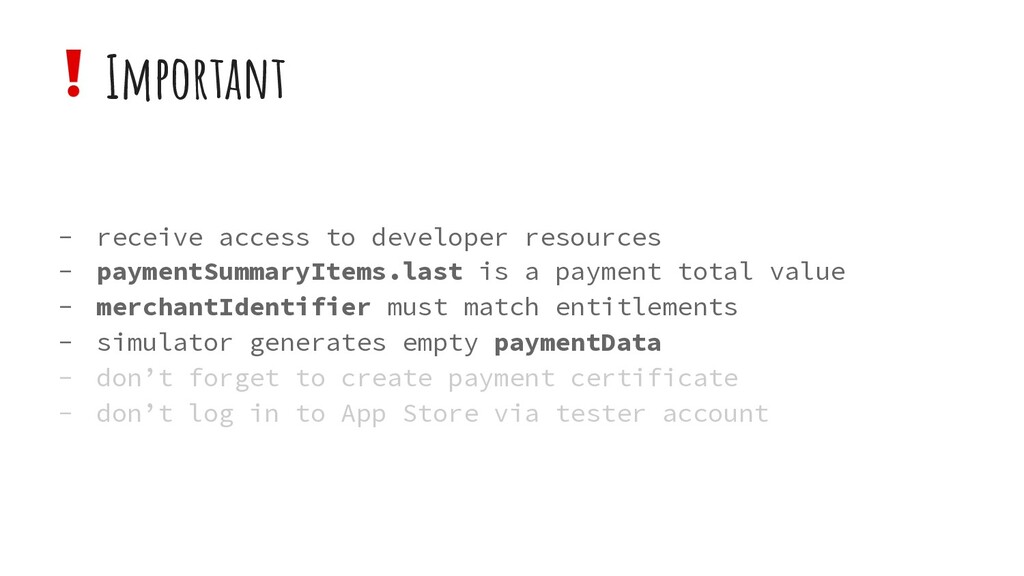

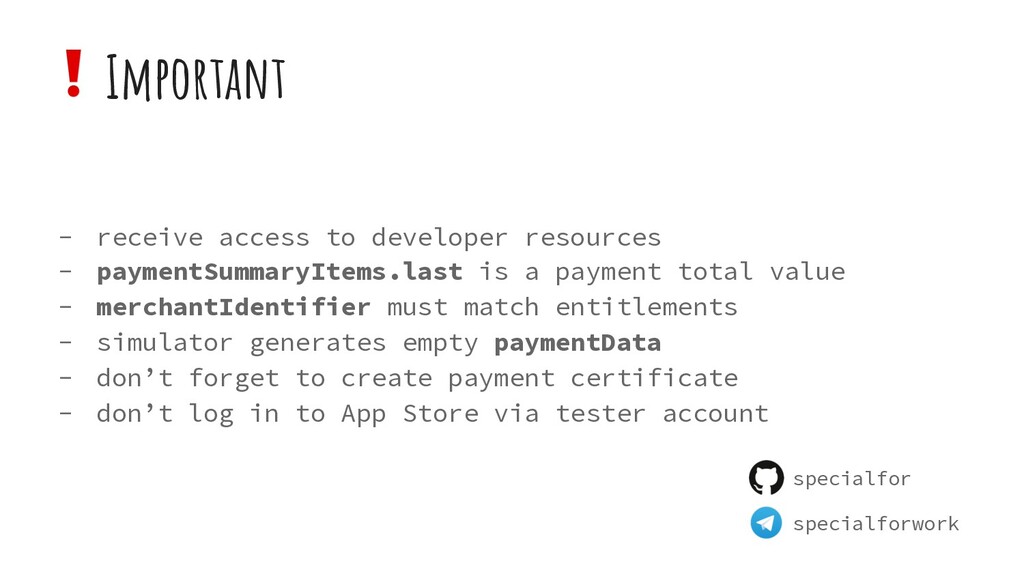

117. - receive access to developer resources - paymentSummaryItems.last is a payment total value - merchantIdentifier must match entitlements - simulator generates empty paymentData - don’t forget to create payment certificate - don’t log in to App Store via tester account ❗Important
118. - receive access to developer resources - paymentSummaryItems.last is a payment total value - merchantIdentifier must match entitlements - simulator generates empty paymentData - don’t forget to create payment certificate - don’t log in to App Store via tester account ❗Important
119. - receive access to developer resources - paymentSummaryItems.last is a payment total value - merchantIdentifier must match entitlements - simulator generates empty paymentData - don’t forget to create payment certificate - don’t log in to App Store via tester account ❗Important
120. - receive access to developer resources - paymentSummaryItems.last is a payment total value - merchantIdentifier must match entitlements - simulator generates empty paymentData - don’t forget to create payment certificate - don’t log in to App Store via tester account ❗Important

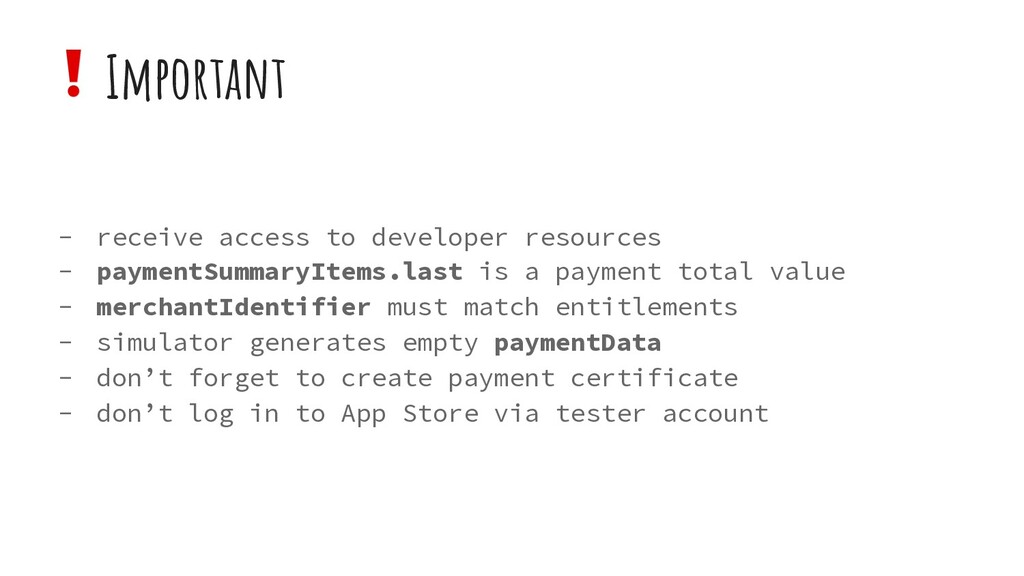

121. - receive access to developer resources - paymentSummaryItems.last is a payment total value - merchantIdentifier must match entitlements - simulator generates empty paymentData - don’t forget to create payment certificate - don’t log in to App Store via tester account ❗Important
122. - receive access to developer resources - paymentSummaryItems.last is a payment total value - merchantIdentifier must match entitlements - simulator generates empty paymentData - don’t forget to create payment certificate - don’t log in to App Store via tester account ❗Important
123. - receive access to developer resources - paymentSummaryItems.last is a payment total value - merchantIdentifier must match entitlements - simulator generates empty paymentData - don’t forget to create payment certificate - don’t log in to App Store via tester account specialfor ❗Important specialforwork

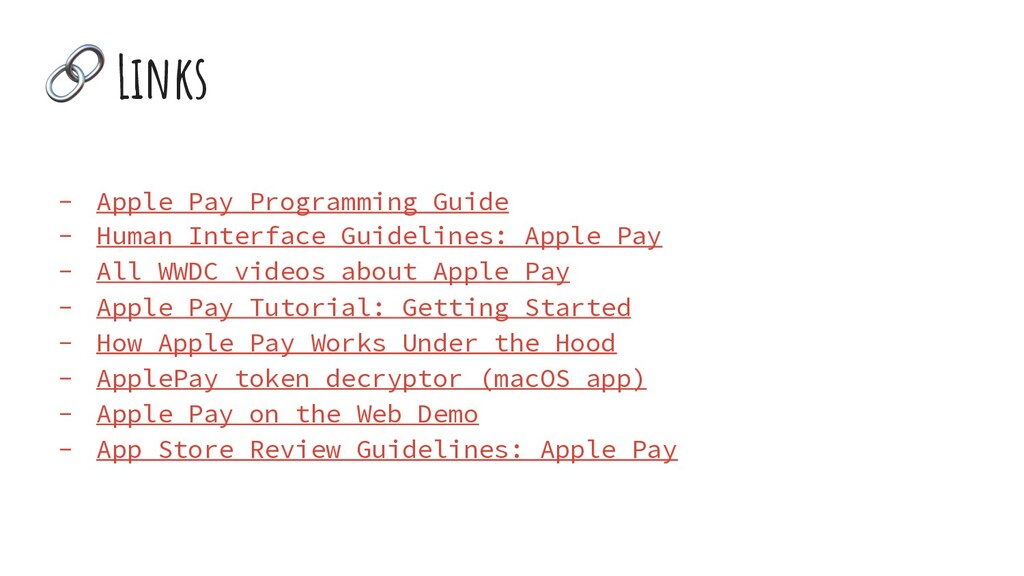

124. 🔗 Links - Apple Pay Programming Guide - Human Interface Guidelines: Apple Pay - All WWDC videos about Apple Pay - Apple Pay Tutorial: Getting Started - How Apple Pay Works Under the Hood - ApplePay token decryptor (macOS app) - Apple Pay on the Web Demo - App Store Review Guidelines: Apple Pay
