webinar 03 - deepstream security concepts and features

This slidedeck was presented for the third webinar by deepstream. It talks about the main security aspects within deepstream.

Transcript

1. deepstream security concepts and features @Srushtika | info@deepstreamhub.com srushtika.neelakantam@deepstreamhub.com
3. encryption
4. encryption authentication

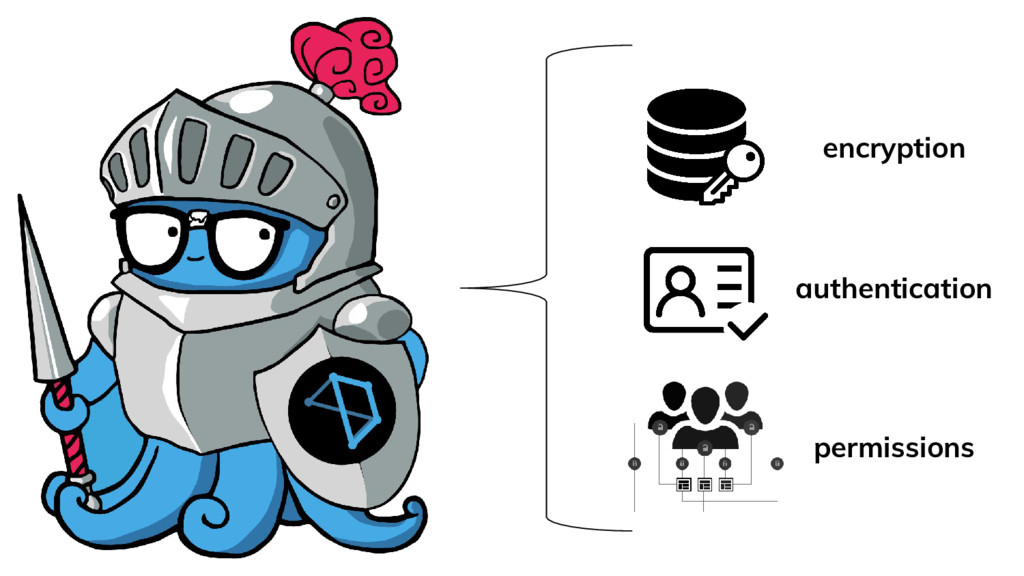

5. encryption authentication permissions

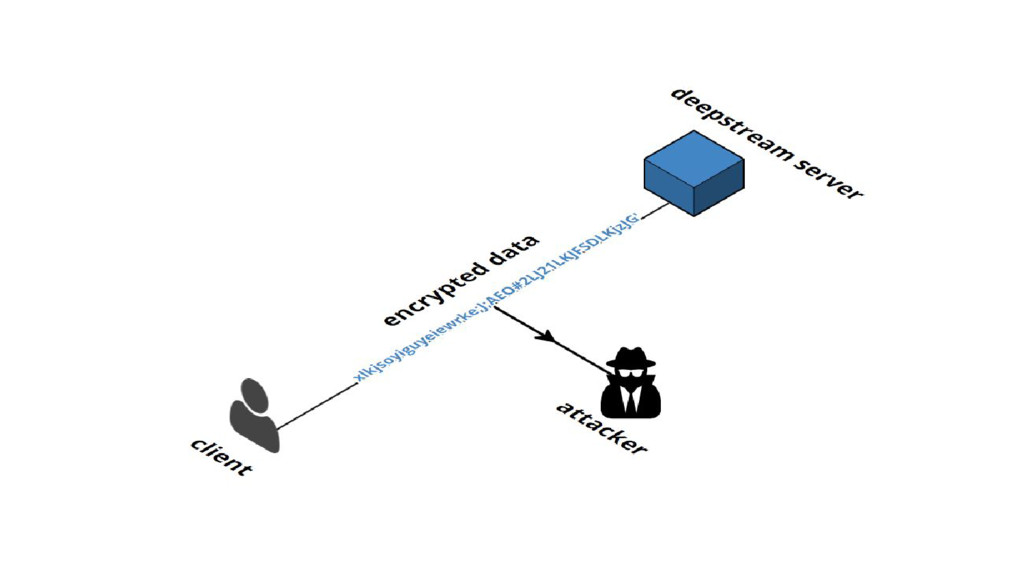

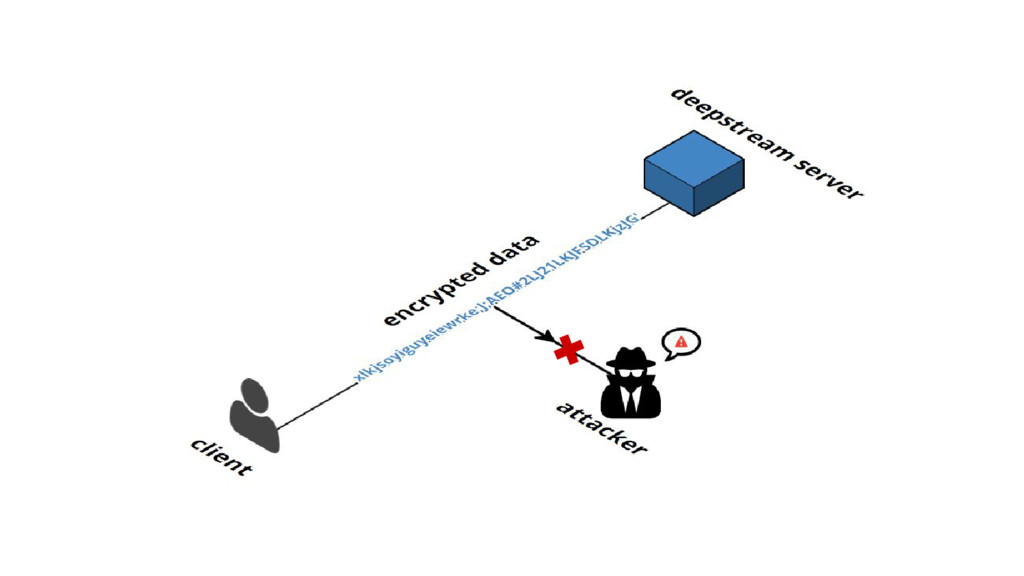

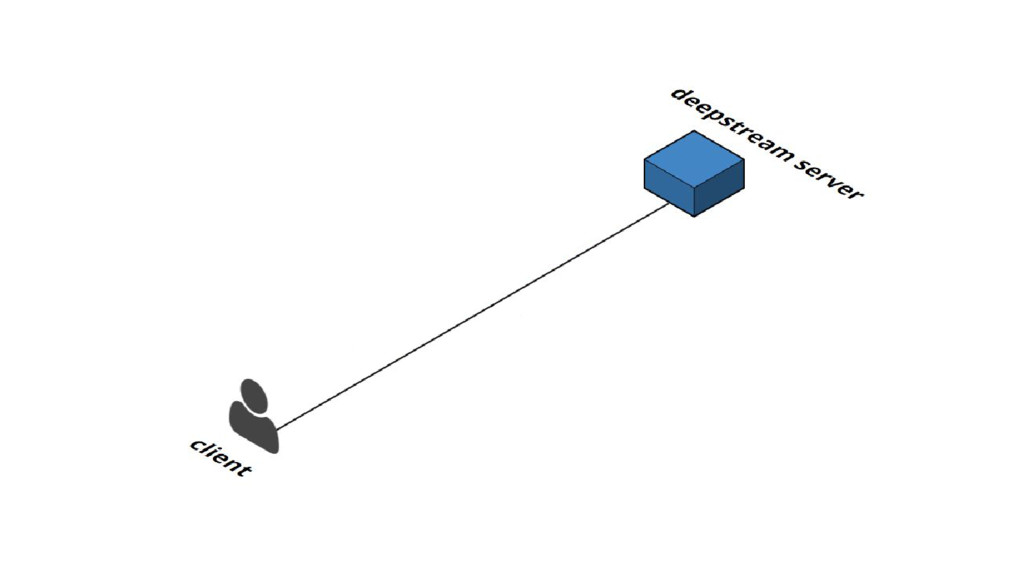

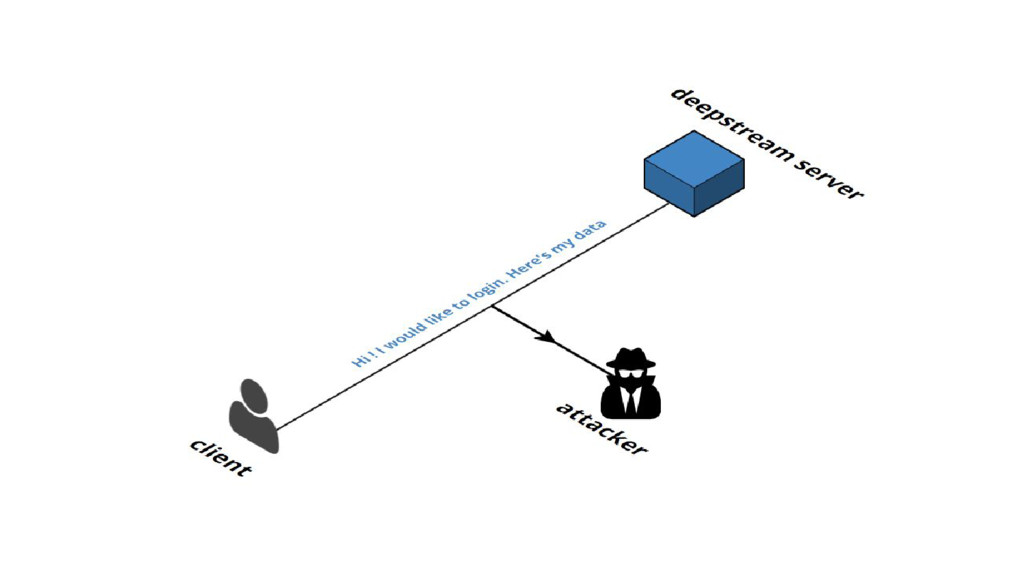

6. #1 encryption

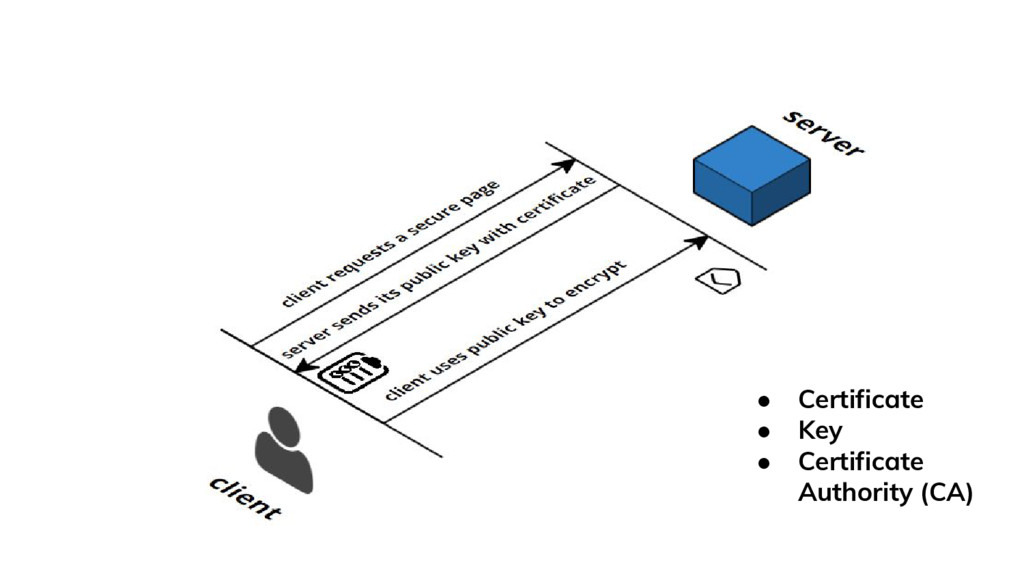

13. • Certificate • Key • Certificate Authority (CA)
14. encryption in deepstream

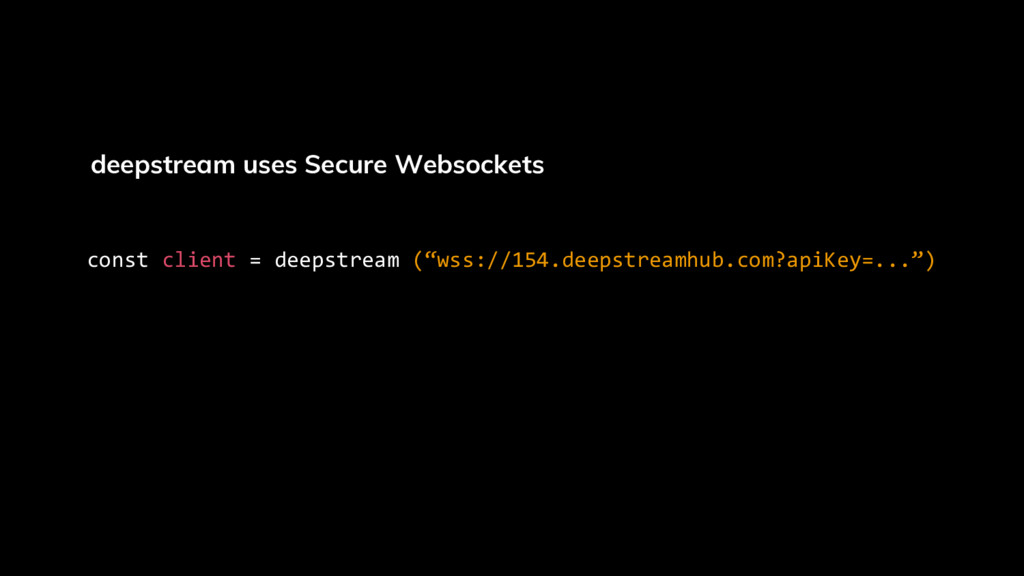

15. const client = deepstream (“wss://154.deepstreamhub.com?apiKey=...”) deepstream uses Secure Websockets

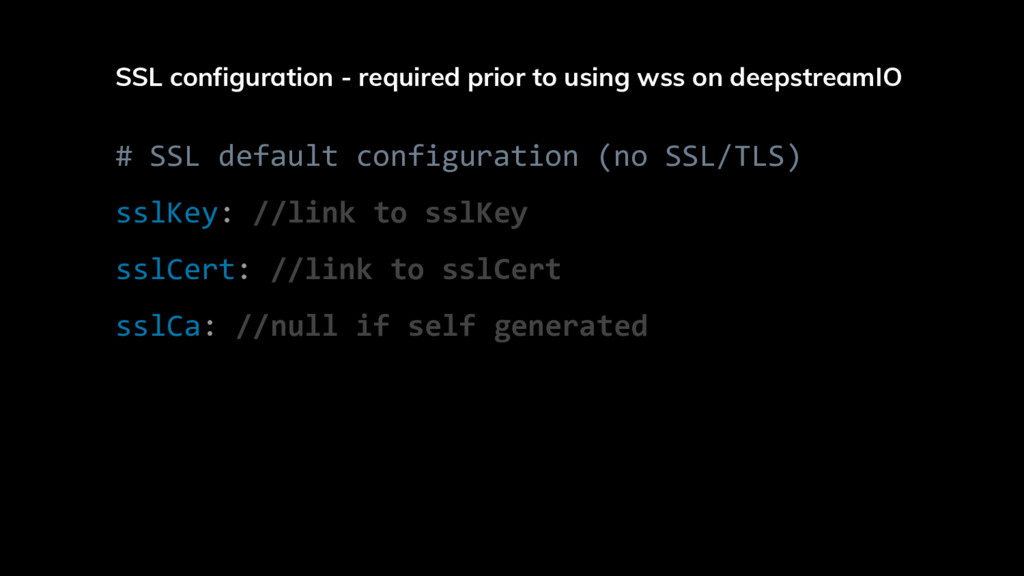

16. # SSL default configuration (no SSL/TLS) sslKey: //link to sslKey sslCert: //link to sslCert sslCa: //null if self generated SSL configuration - required prior to using wss on deepstreamIO

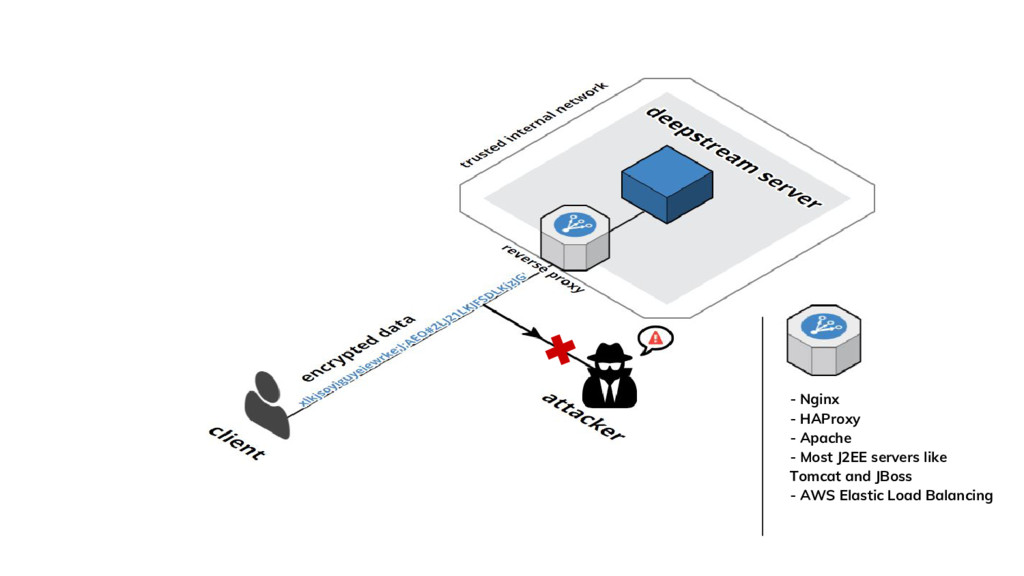

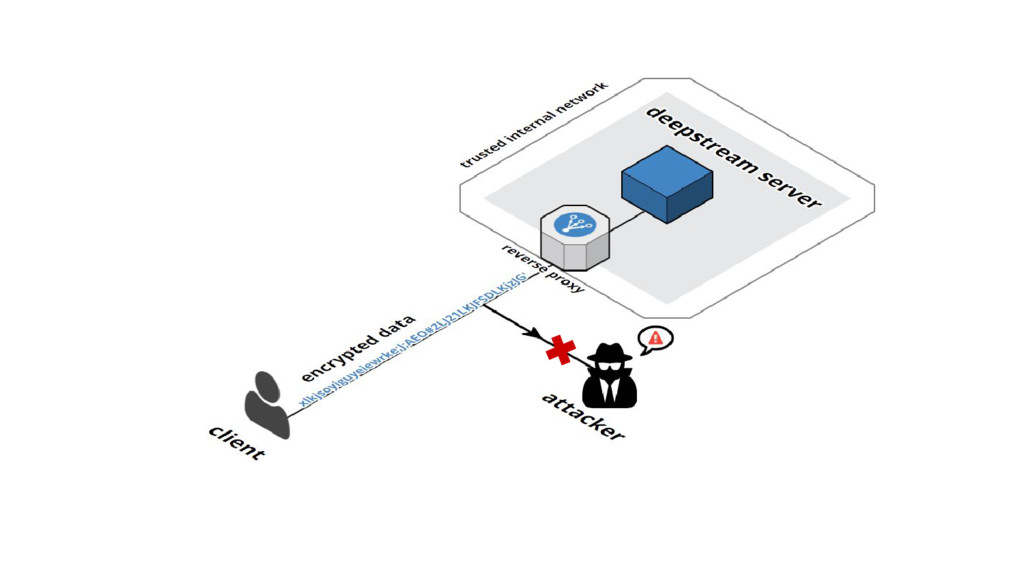

19. - Nginx - HAProxy - Apache - Most J2EE servers like Tomcat and JBoss - AWS Elastic Load Balancing
20. #2 authentication

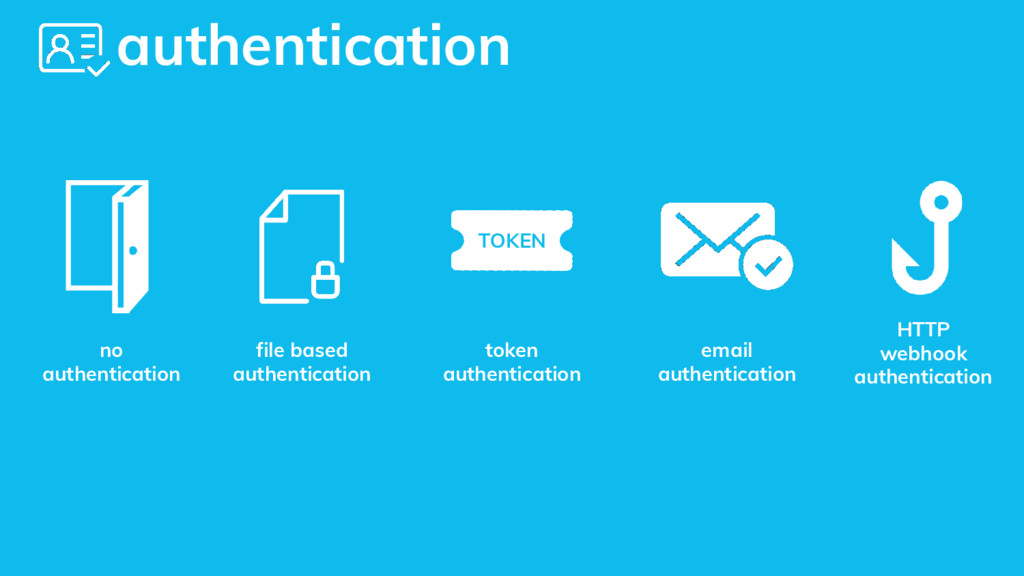

21. authentication no authentication file based authentication HTTP webhook authentication email authentication token authentication TOKEN

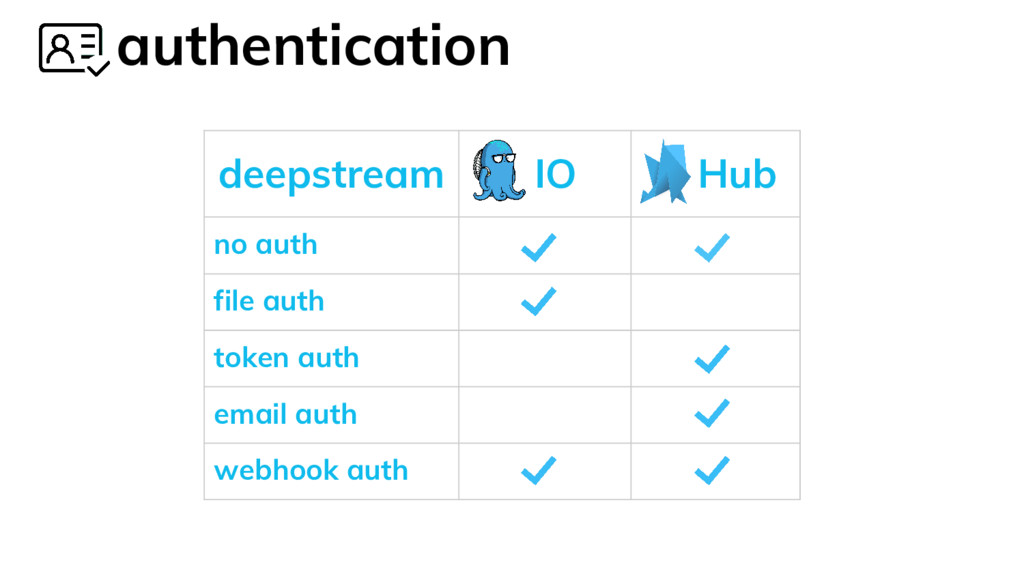

22. authentication deepstream IO Hub no auth file auth token auth email auth webhook auth
23. no authentication

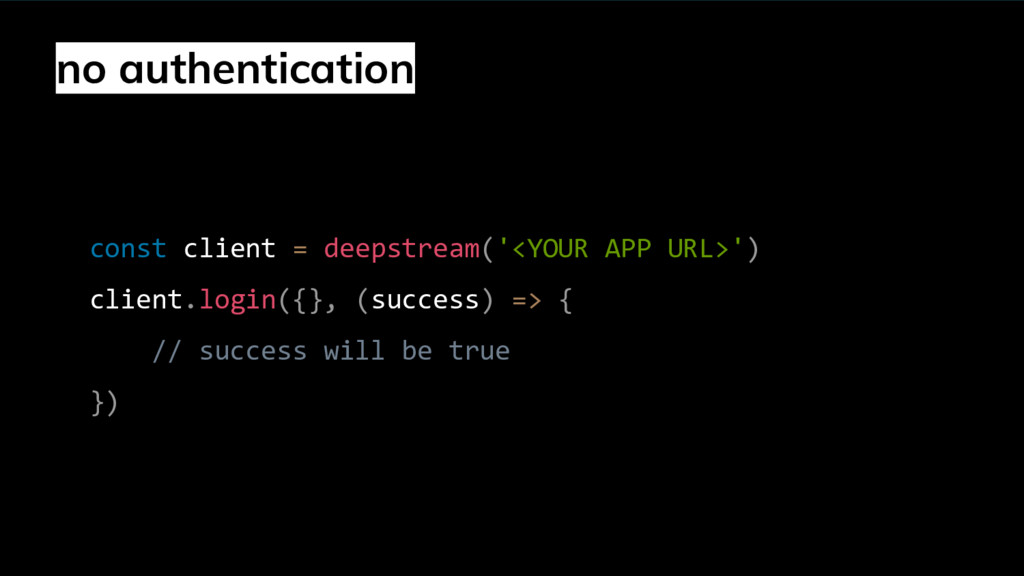

24. no authentication const client = deepstream('<YOUR APP URL>') client.login({}, (success) => { // success will be true })
25. file based authentication

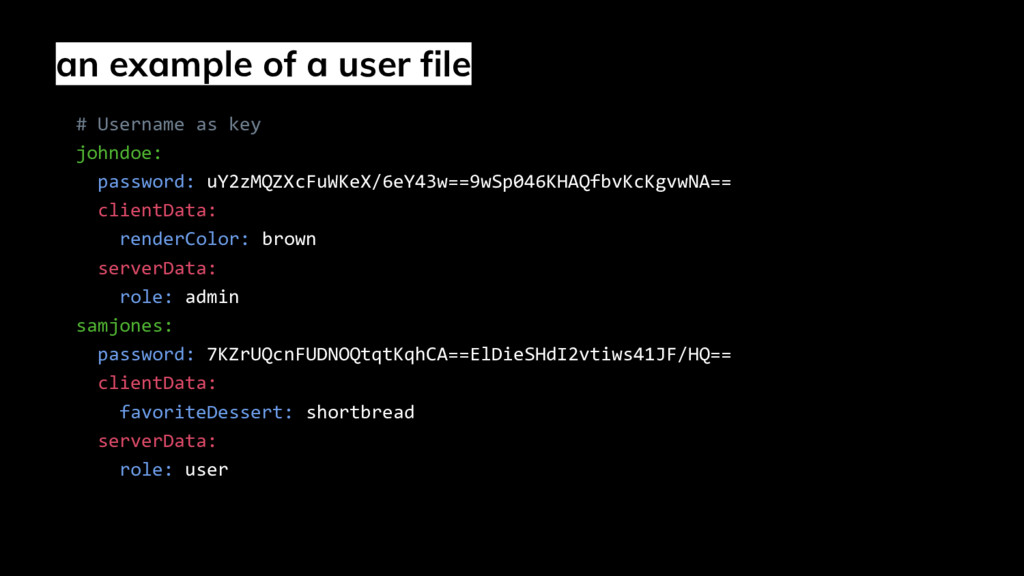

26. # Username as key johndoe: password: uY2zMQZXcFuWKeX/6eY43w==9wSp046KHAQfbvKcKgvwNA== clientData: renderColor: brown serverData: role: admin samjones: password: 7KZrUQcnFUDNOQtqtKqhCA==ElDieSHdI2vtiws41JF/HQ== clientData: favoriteDessert: shortbread serverData: role: user an example of a user file
27. file based authentication auth: type: file options: # Path to the user file. Can be json, js or yml path: ./users.yml # the name of a HMAC digest algorithm hash: 'md5' # the number of times the algorithm should be applied iterations: 100 # the length of the resulting key keyLength: 32

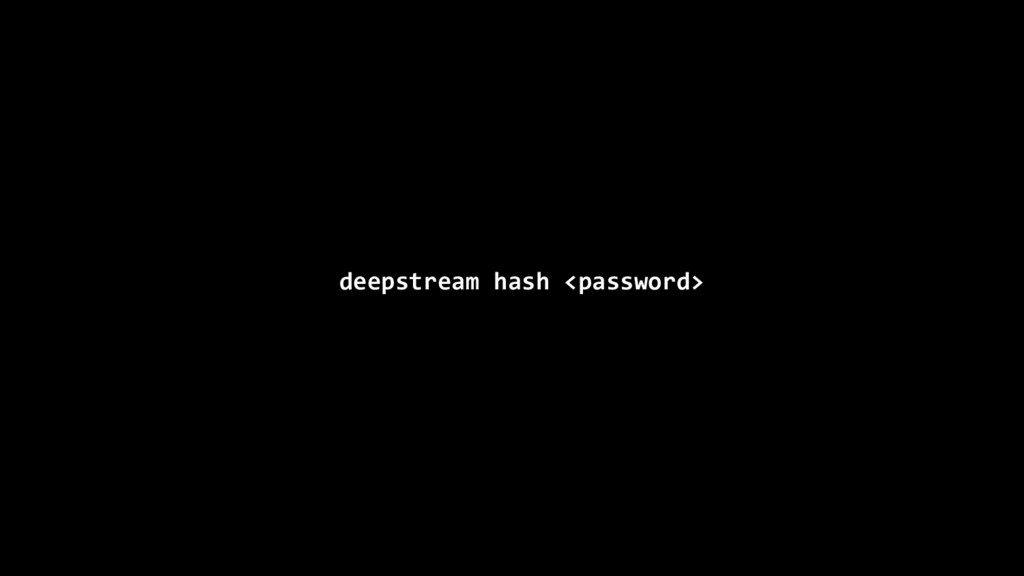

28. deepstream hash <password> deepstream’s CLI tool for hashing passwords
29. file based authentication client.login({ username: ‘johndoe’, password:'uY2zMQZXcFuWKeX/6eY43w==9wSp046KHAQfbvKcKgvwNA==' }, (success, data) => { // App logic })
30. token authentication TOKEN

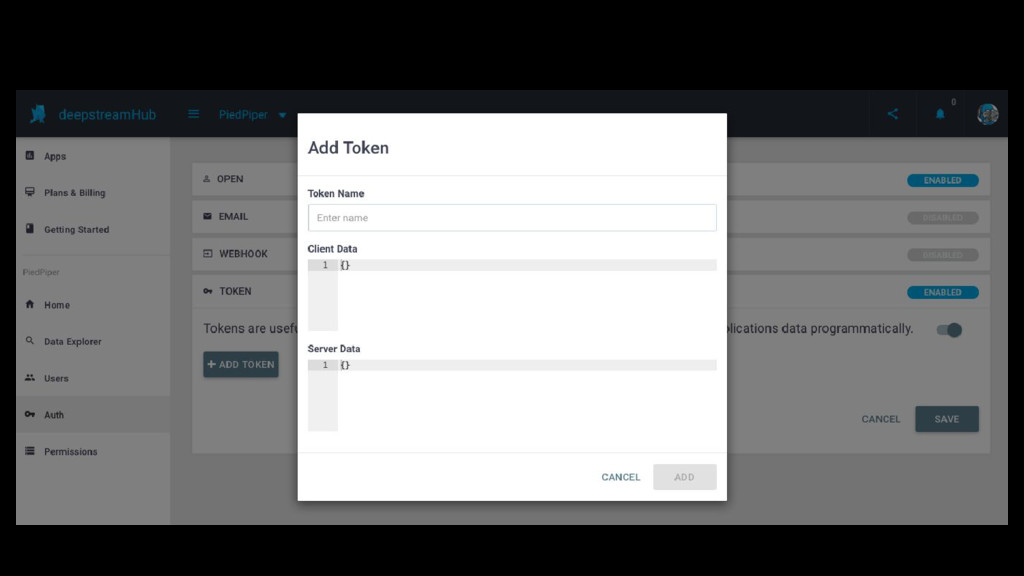

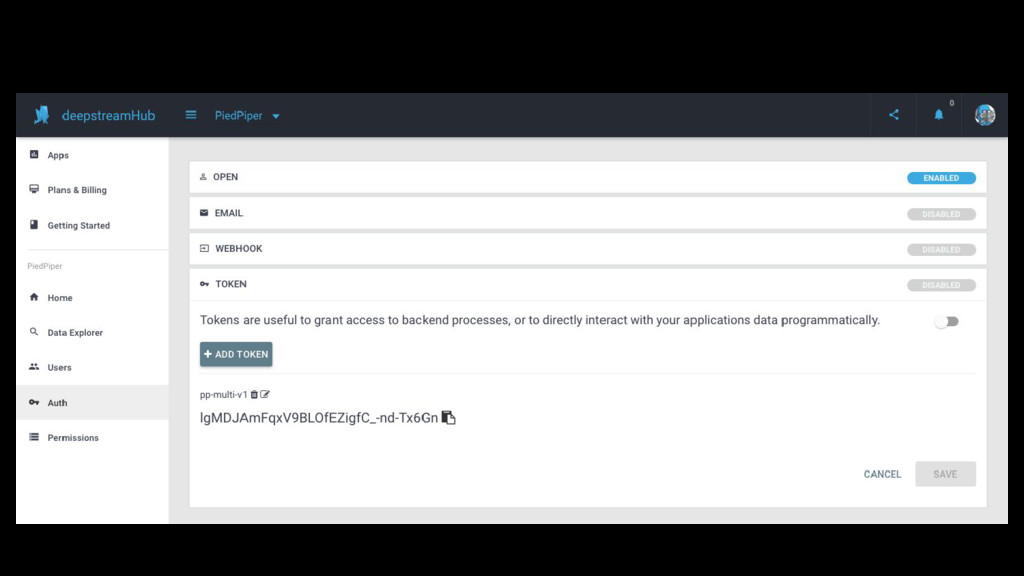

31. on your application dashboard
32. on your application dashboard
33. token authentication client.login({ token: “aI2wYSh1FS_2WODD14bYZe1TfIyhAukl” },(success, data) => { //application logic } })
34. email authentication

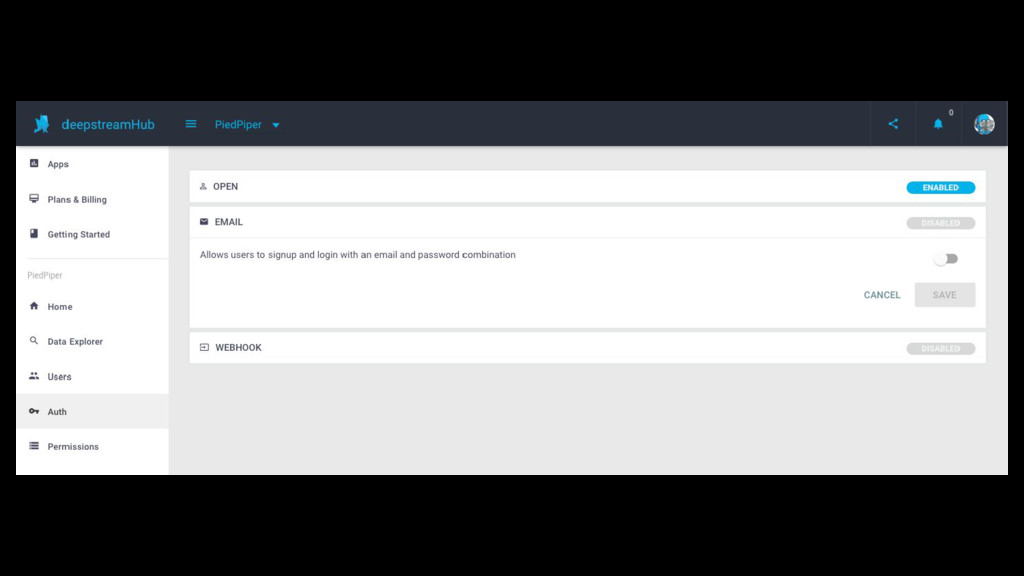

35. on your application dashboard
36. email authentication client.login({ email: 'srushtika@test.com', password: '.......' }, (success, data) => { console.log(success, data.token, clientData) // "success": true, // "token": "aI2wYSh1FS_2WODD14bYZe1TfIyhAukl", // "clientData": { // "renderColor": "brown", // "id": "s64907sdkjdsif" // } })

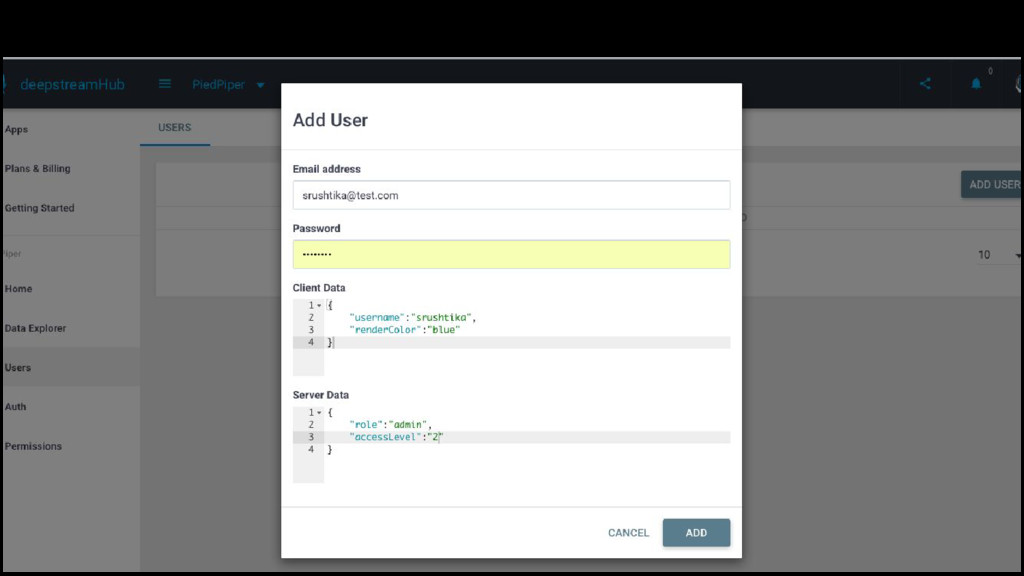

37. using dashboard

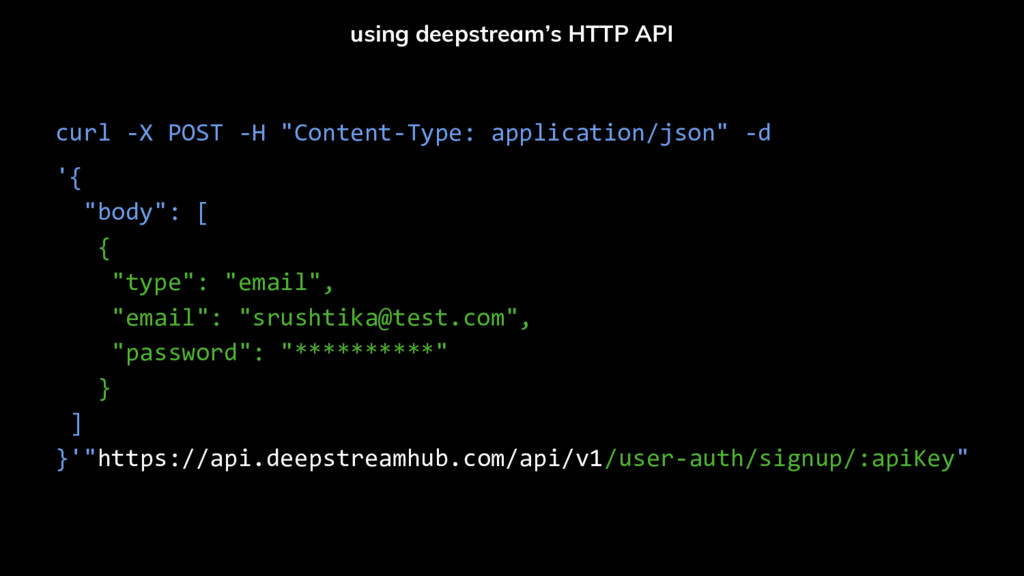

38. using deepstream’s HTTP API curl -X POST -H "Content-Type: application/json" -d '{ "body": [ { "type": "email", "email": "srushtika@test.com", "password": "**********" } ] }'"https://api.deepstreamhub.com/api/v1/user-auth/signup/:apiKey"

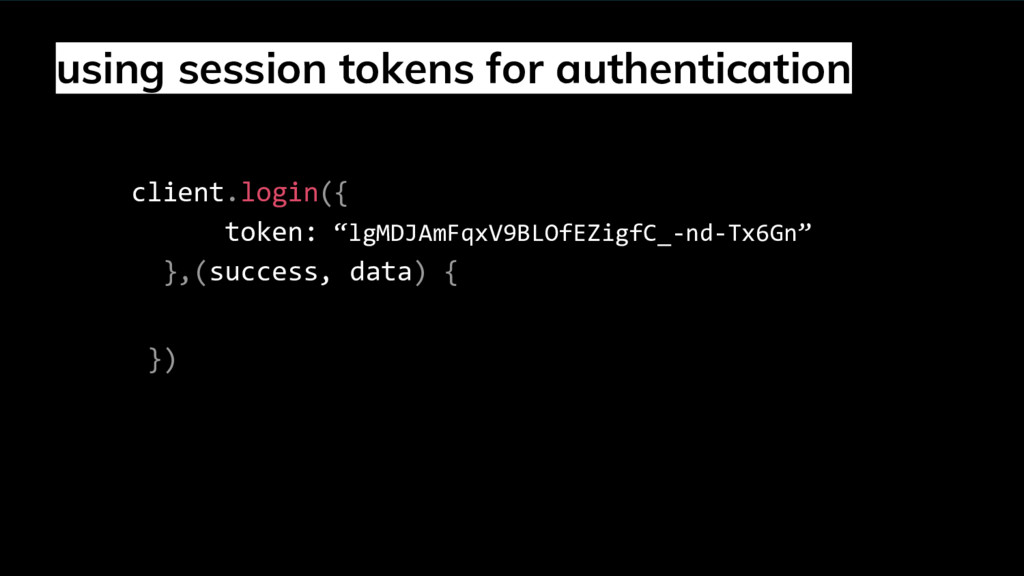

39. using session tokens for authentication client.login({ token: “lgMDJAmFqxV9BLOfEZigfC_-nd-Tx6Gn” },(success, data) { })

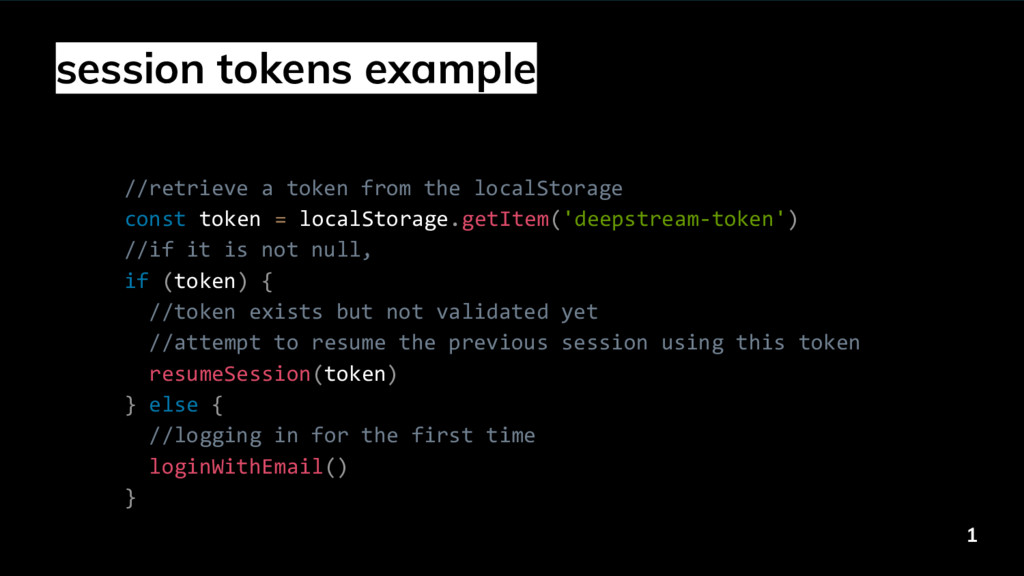

40. session tokens example //retrieve a token from the localStorage const token = localStorage.getItem('deepstream-token') //if it is not null, if (token) { //token exists but not validated yet //attempt to resume the previous session using this token resumeSession(token) } else { //logging in for the first time loginWithEmail() } 1

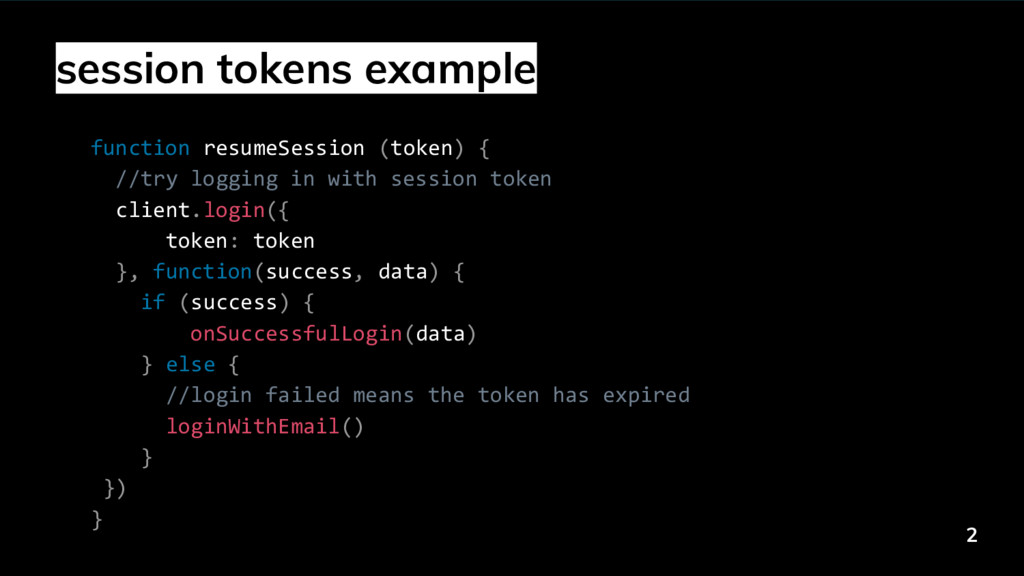

41. session tokens example function resumeSession (token) { //try logging in with session token client.login({ token: token }, function(success, data) { if (success) { onSuccessfulLogin(data) } else { //login failed means the token has expired loginWithEmail() } }) } 2
42. session tokens example function loginWithEmail () { var myEmail = prompt("Enter email", ""); var myPass = prompt("Enter your password", ""); client.login({ email: myEmail, password: myPass }, function(success, data) { if (success) { //replace the token in localStorage with new one localStorage.setItem('deepstream-token', data.token) onSuccessfulLogin(data) } else { // user login failed } }) } 3

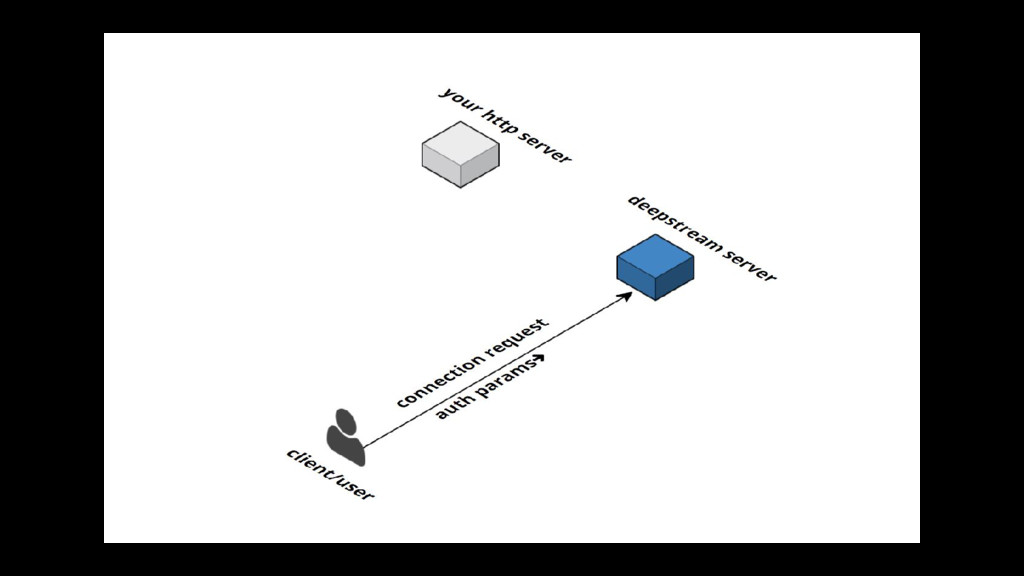

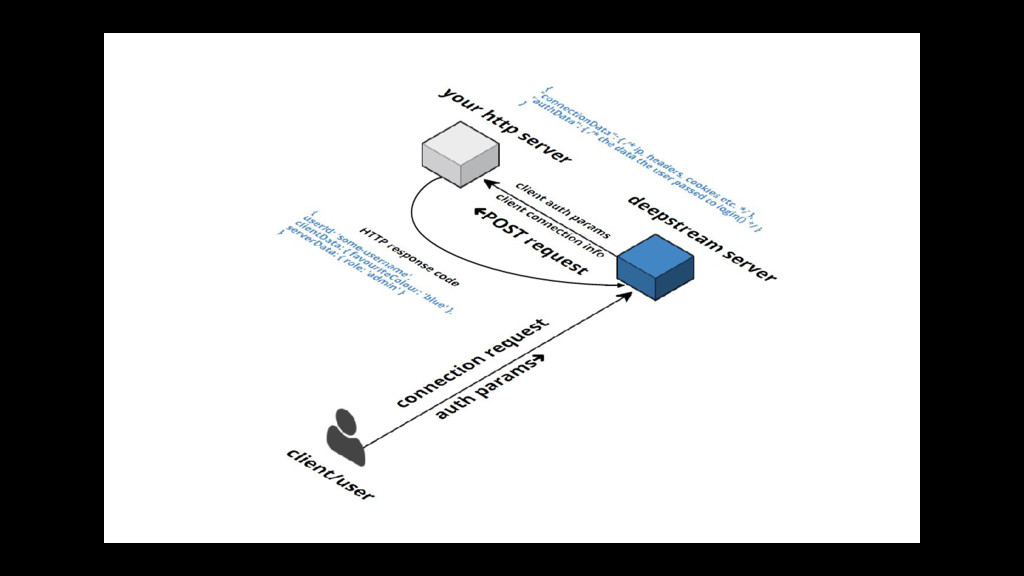

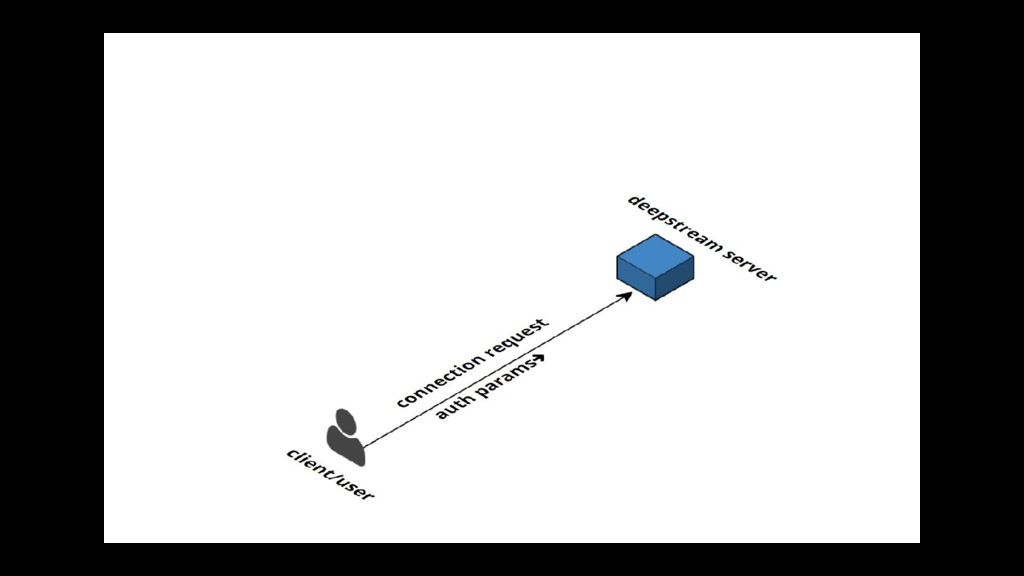

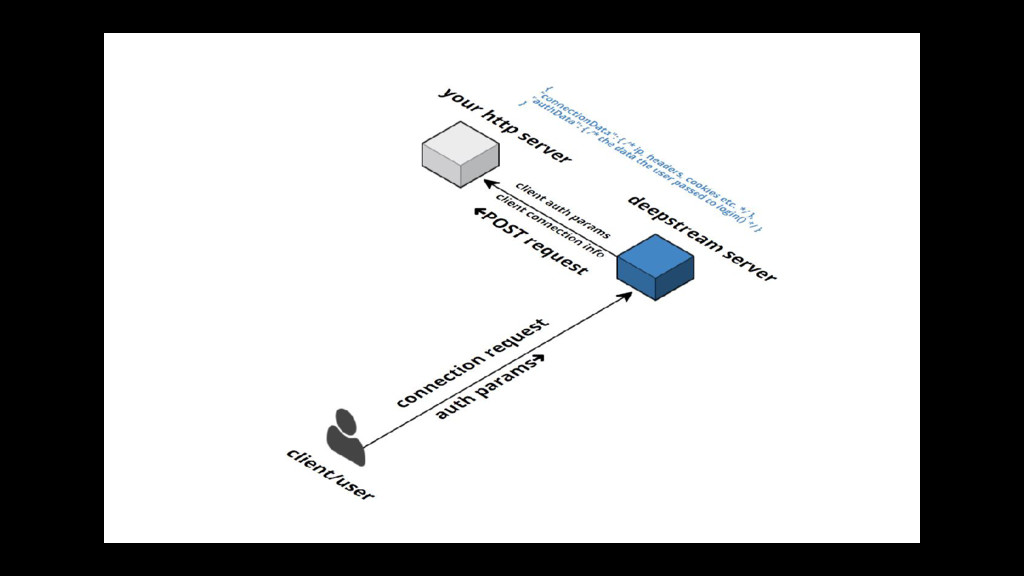

43. Webhook authentication
49. client.login({ type: 'webhook', //other custom auth params }, (success, data) => { console.log(success, data) { //application logic } }) webhook authentication

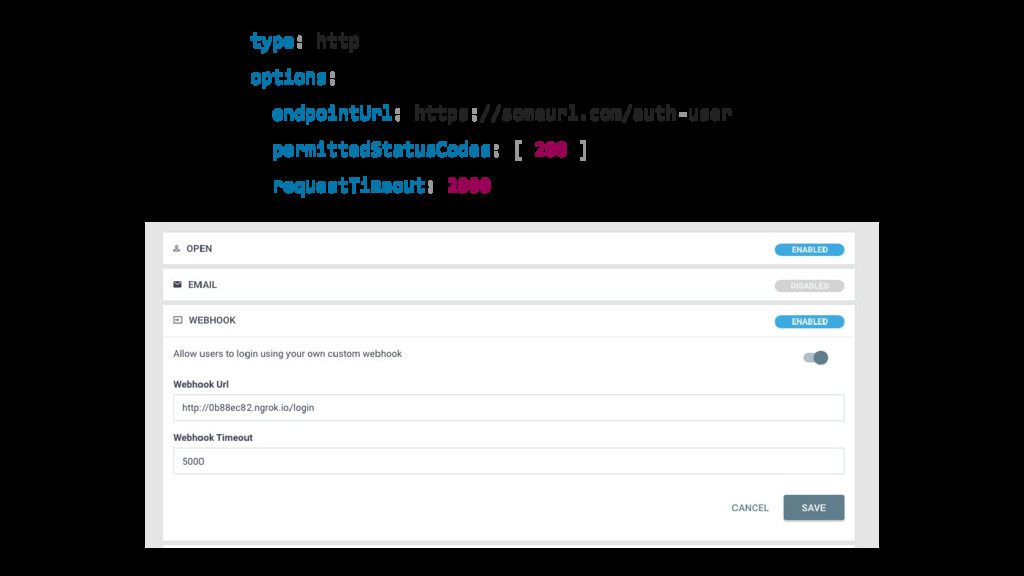

50. type: http options: endpointUrl: https://someurl.com/auth-user permittedStatusCodes: [ 200 ] requestTimeout: 2000 io hub
51. //initialize express server app.post('/login', (req, res) => { if (req.body.authData.email === 'webhook@user.com' && req.body.authData.password === 'password') { res.json({ userId: '838dc811-75a1-4d71-ba8c-6f8742c6301e', clientData: { renderColor: 'blue' }, serverData: { role: 'admin' } }) } else { res.status(403).end() } }) //set default port a simple express server
52. what else?

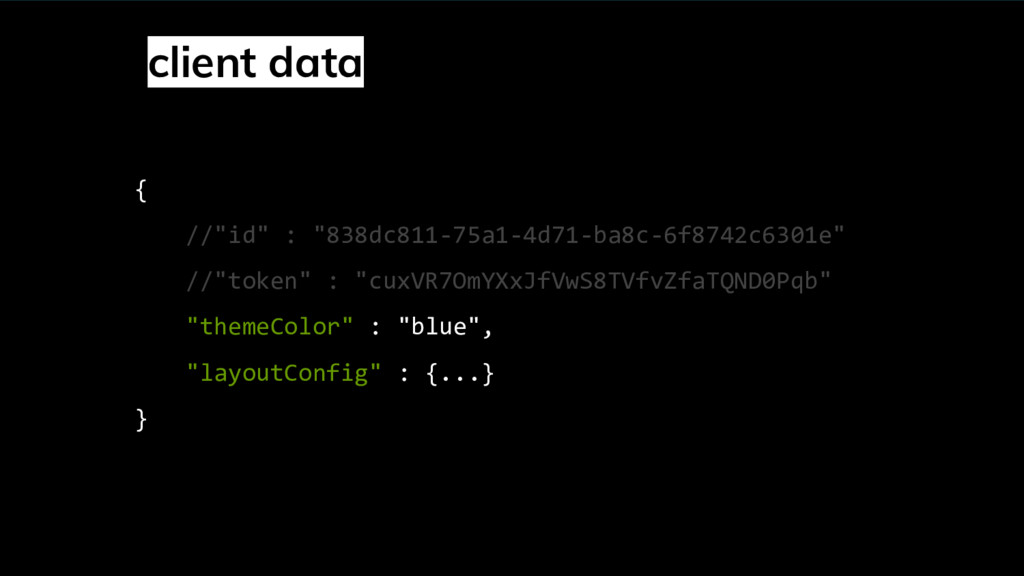

53. client data { //"id" : "838dc811-75a1-4d71-ba8c-6f8742c6301e" //"token" : "cuxVR7OmYXxJfVwS8TVfvZfaTQND0Pqb" "themeColor" : "blue", "layoutConfig" : {...} }
54. #3 permissions

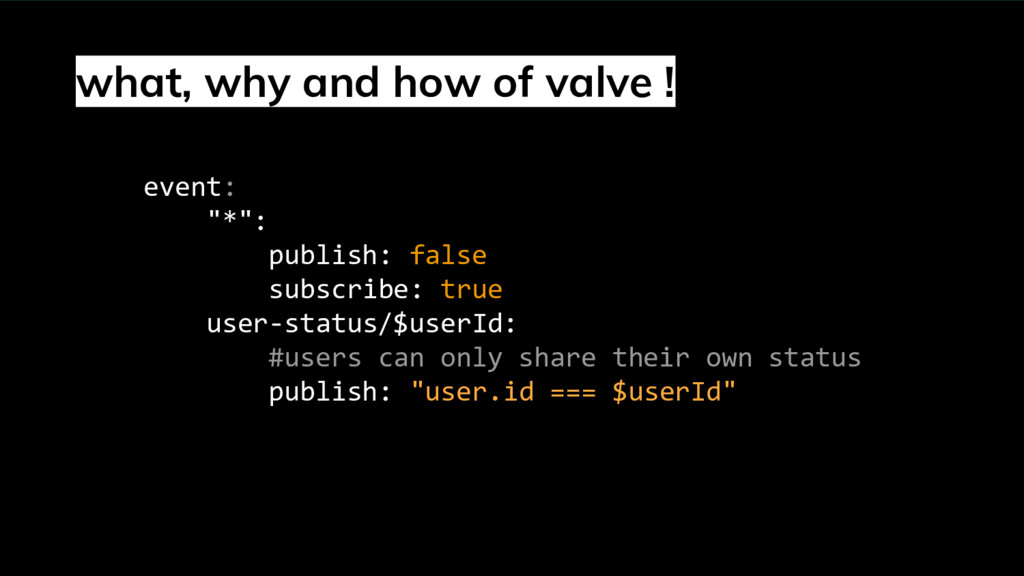

55. event: "*": publish: false subscribe: true user-status/$userId: #users can only share their own status publish: "user.id === $userId" what, why and how of valve !

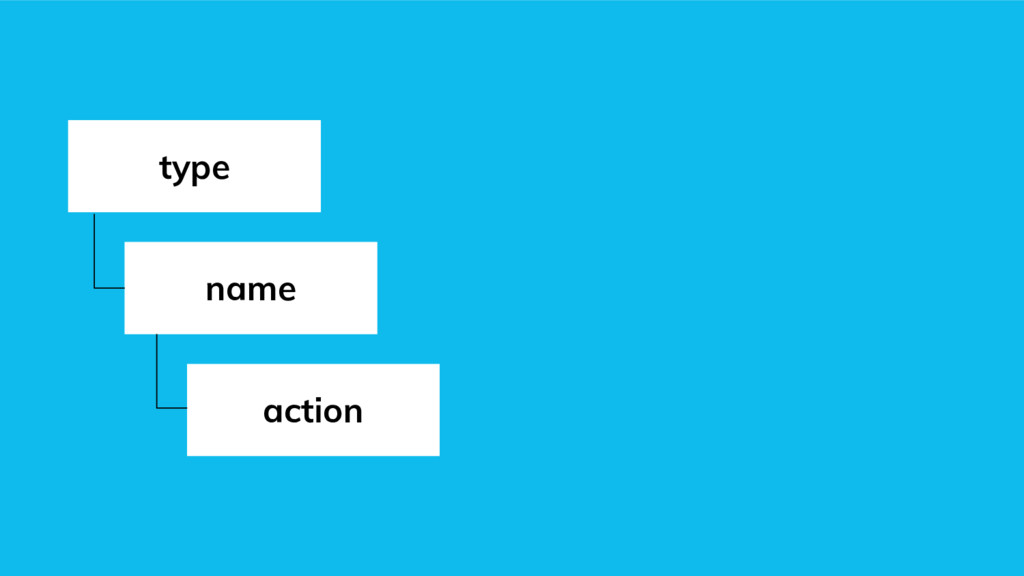

56. type name action

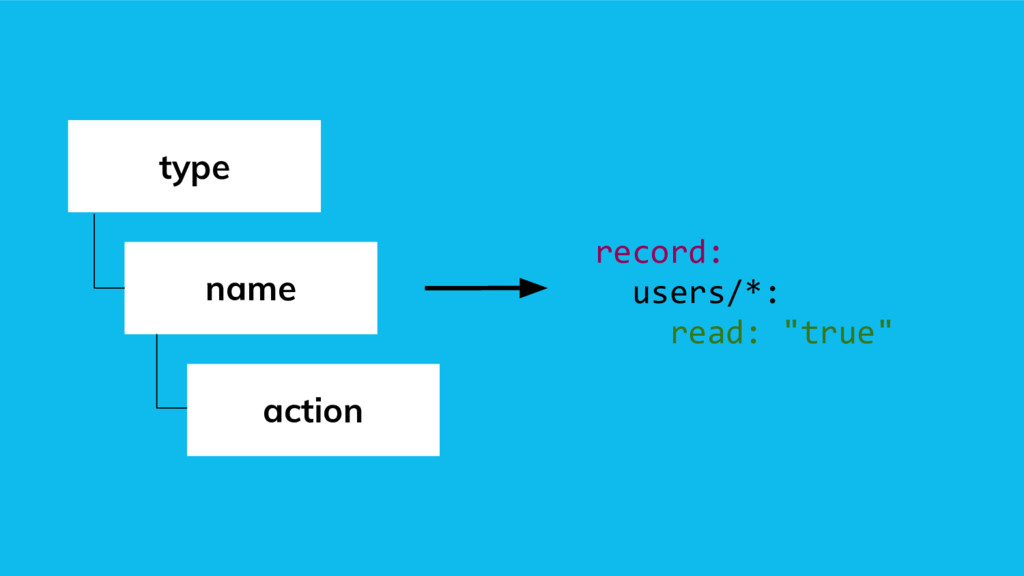

57. type name action record: users/*: read: "true"

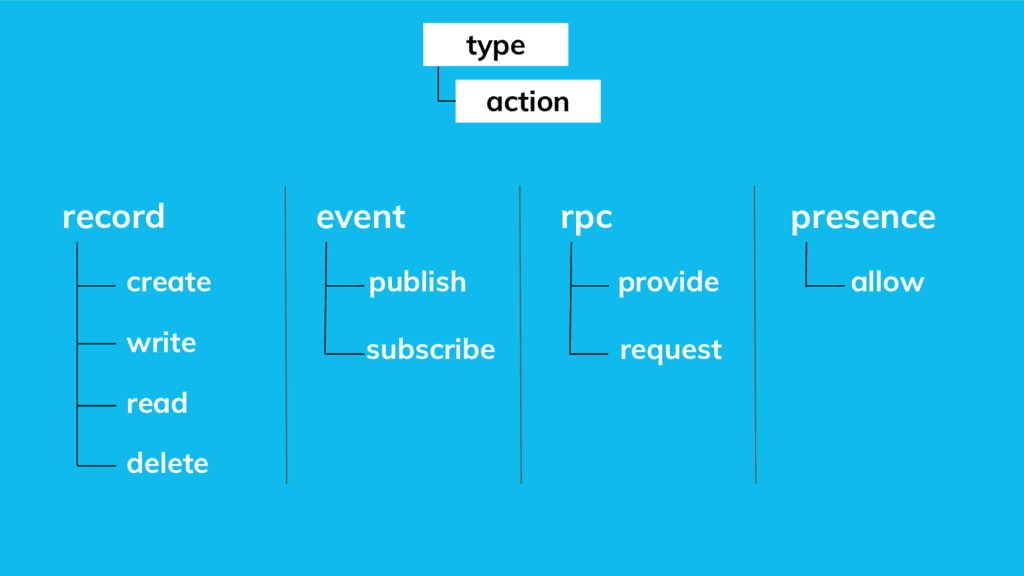

58. type action record event rpc presence create write read delete publish subscribe provide request allow

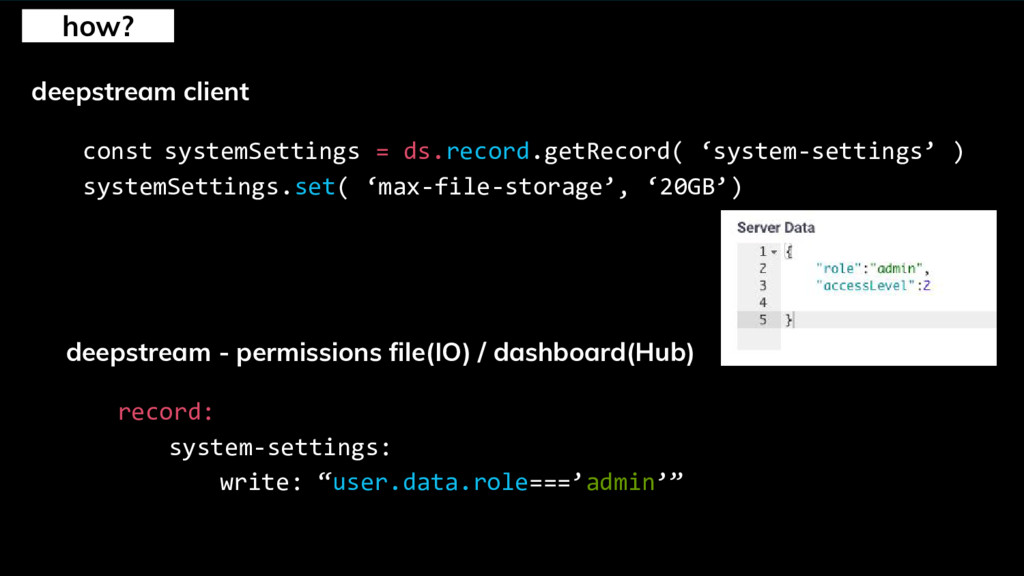

59. how? deepstream client const systemSettings = ds.record.getRecord( ‘system-settings’ ) systemSettings.set( ‘max-file-storage’, ‘20GB’) deepstream - permissions file(IO) / dashboard(Hub) record: system-settings: write: “user.data.role===’admin’”

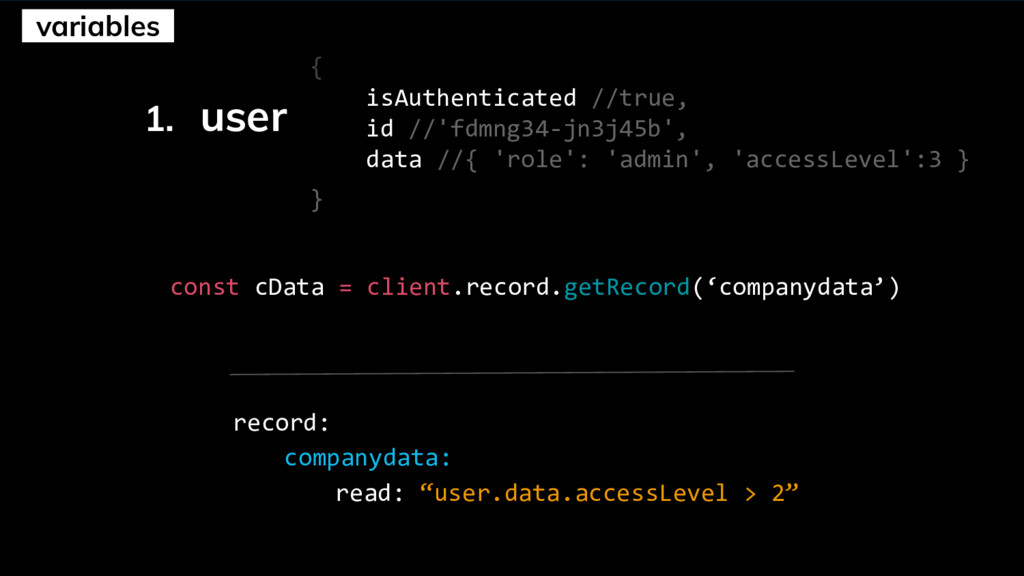

60. variables 1. user { isAuthenticated //true, id //'fdmng34-jn3j45b', data //{ 'role': 'admin', 'accessLevel':3 } } record: companydata: read: “user.data.accessLevel > 2” const cData = client.record.getRecord(‘companydata’)

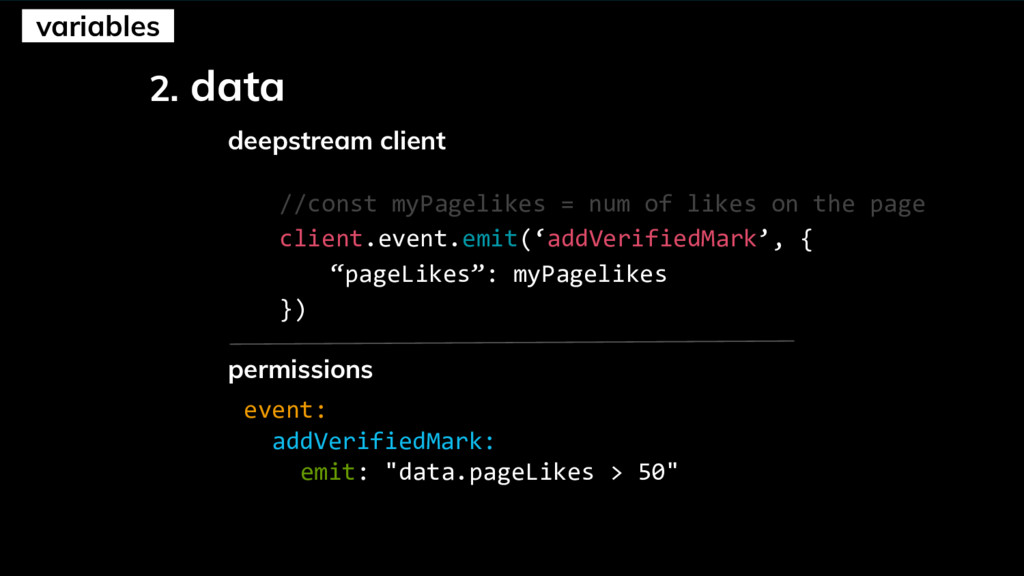

61. variables 2. data permissions event: addVerifiedMark: emit: "data.pageLikes > 50" deepstream client //const myPagelikes = num of likes on the page client.event.emit(‘addVerifiedMark’, { “pageLikes”: myPagelikes })

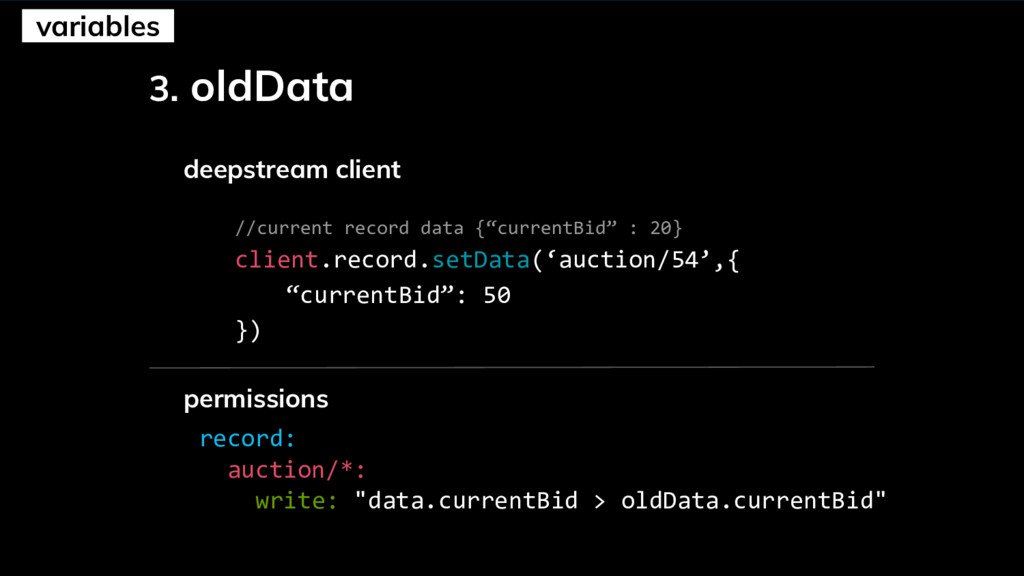

62. variables 3. oldData permissions record: auction/*: write: "data.currentBid > oldData.currentBid" deepstream client //current record data {“currentBid” : 20} client.record.setData(‘auction/54’,{ “currentBid”: 50 })
63. variables 4. now deepstream client //const time =desired time in ms client.record.setData(‘dhl/berlin’,{ ‘deliveryTime’: time }) permissions record: dhl/berlin: write: "data.deliveryTime > now"

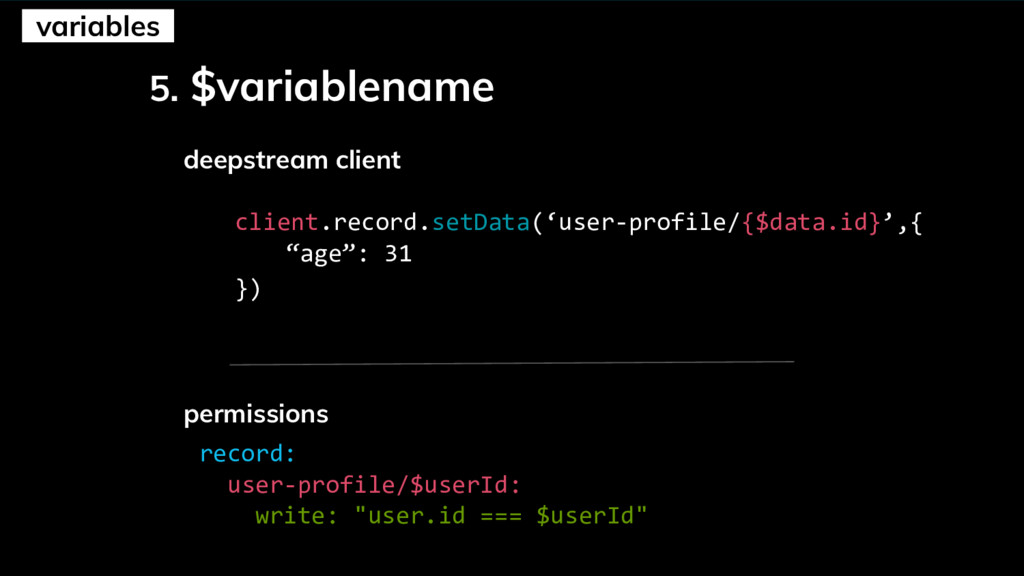

64. variables 5. $variablename deepstream client client.record.setData(‘user-profile/{$data.id}’,{ “age”: 31 }) permissions record: user-profile/$userId: write: "user.id === $userId"

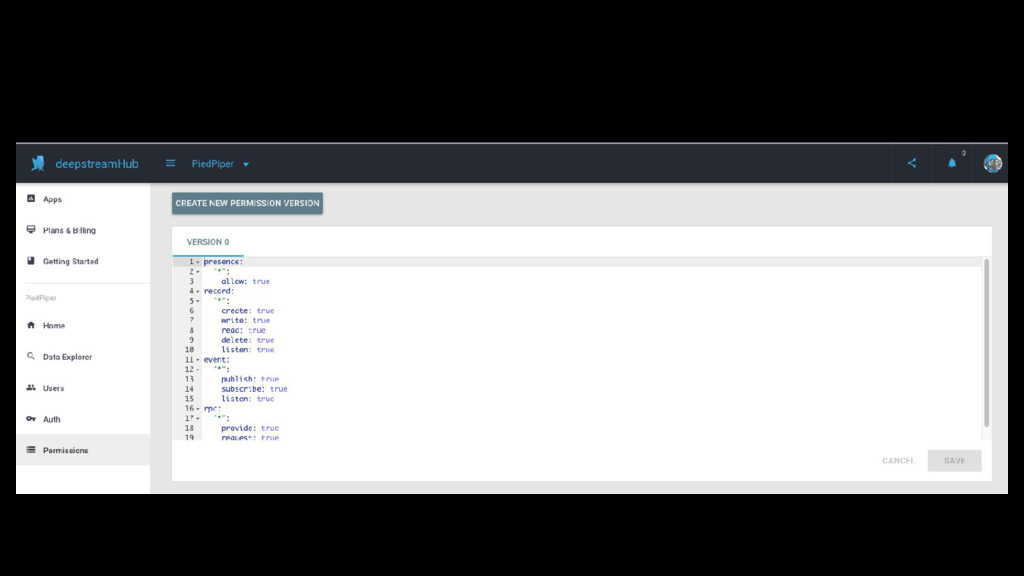

65. on your dashboard

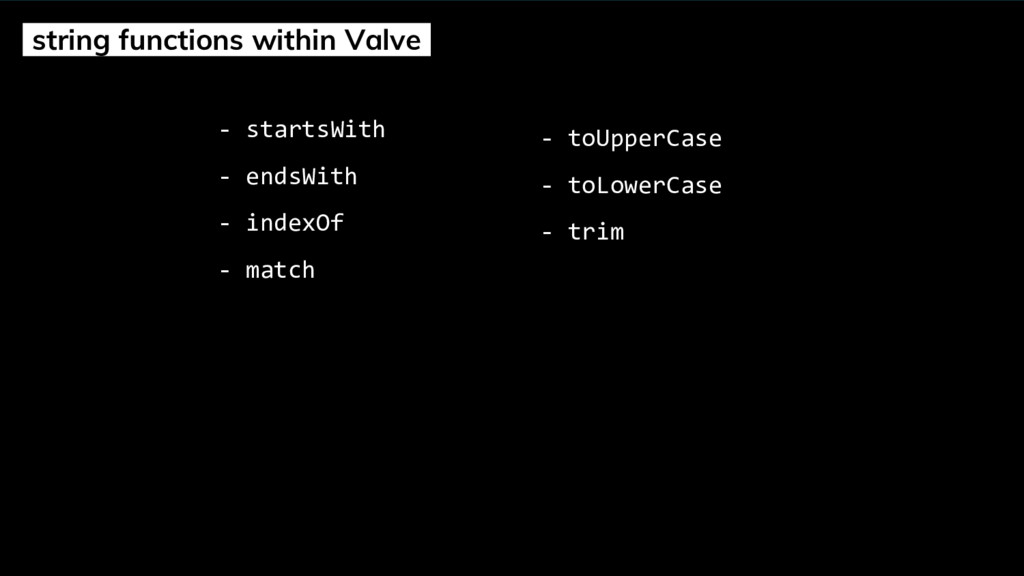

66. string functions within Valve - startsWith - endsWith - indexOf - match - toUpperCase - toLowerCase - trim

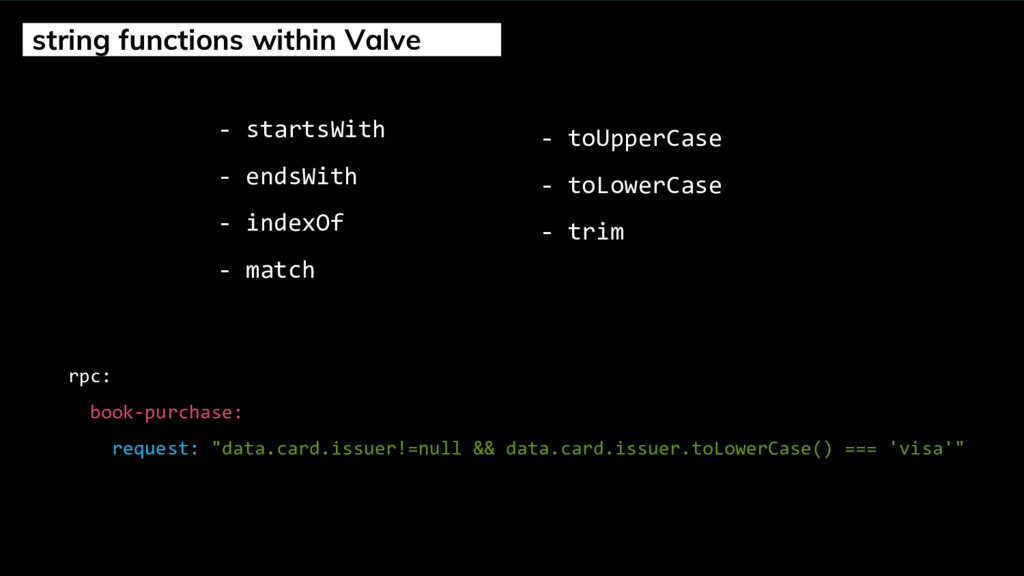

67. string functions within Valve rpc: book-purchase: request: "data.card.issuer!=null && data.card.issuer.toLowerCase() === 'visa'" - startsWith - endsWith - indexOf - match - toUpperCase - toLowerCase - trim
68. what’s even more interesting?
69. what’s even more interesting? _( ) cross-referencing

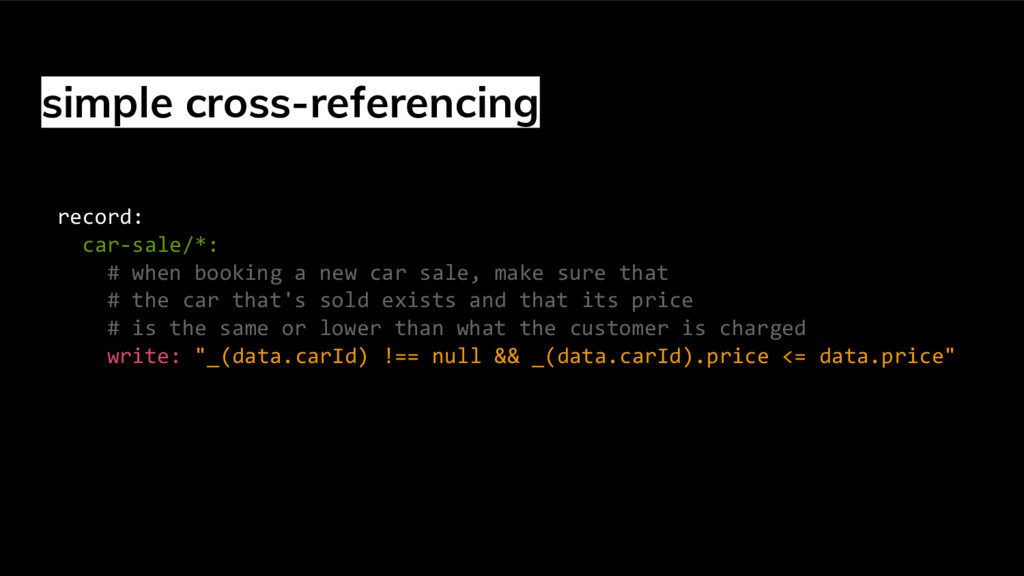

70. record: car-sale/*: # when booking a new car sale, make sure that # the car that's sold exists and that its price # is the same or lower than what the customer is charged write: "_(data.carId) !== null && _(data.carId).price <= data.price" simple cross-referencing

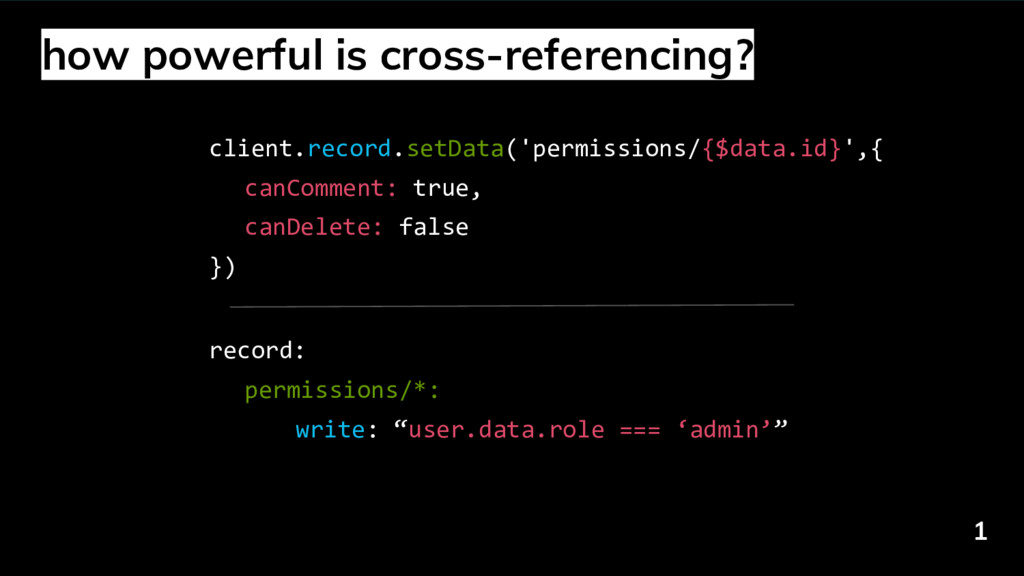

71. client.record.setData('permissions/{$data.id}',{ canComment: true, canDelete: false }) how powerful is cross-referencing? record: permissions/*: write: “user.data.role === ‘admin’” 1

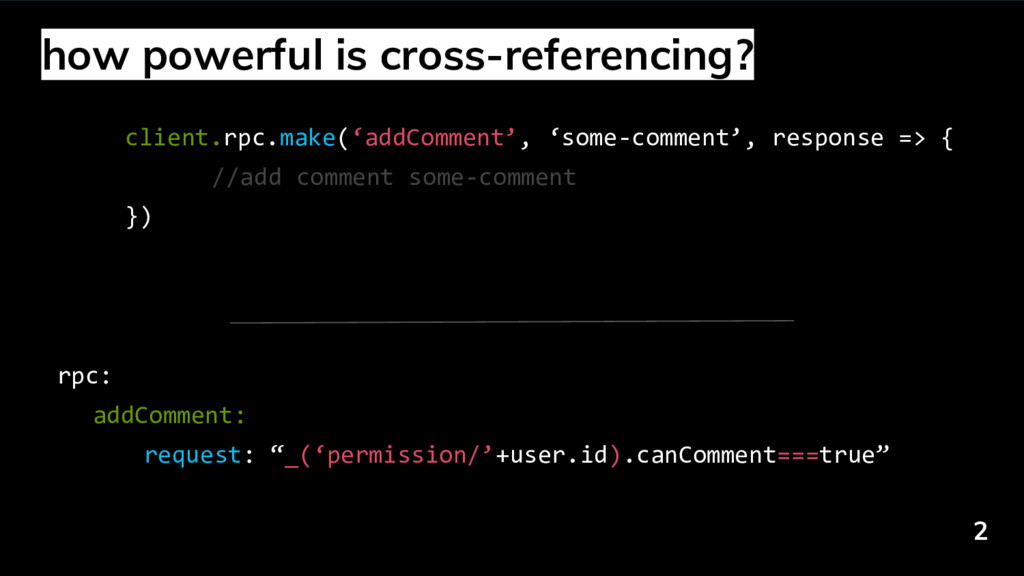

72. client.rpc.make(‘addComment’, ‘some-comment’, response => { //add comment some-comment }) how powerful is cross-referencing? rpc: addComment: request: “_(‘permission/’+user.id).canComment===true” 2
73. ...aaand we are all secured now !
74. That’s all folks ! questions? @Srushtika | info@deepstreamhub.com srushtika.neelakantam@deepstreamhub.com
75. other authentication mechanisms

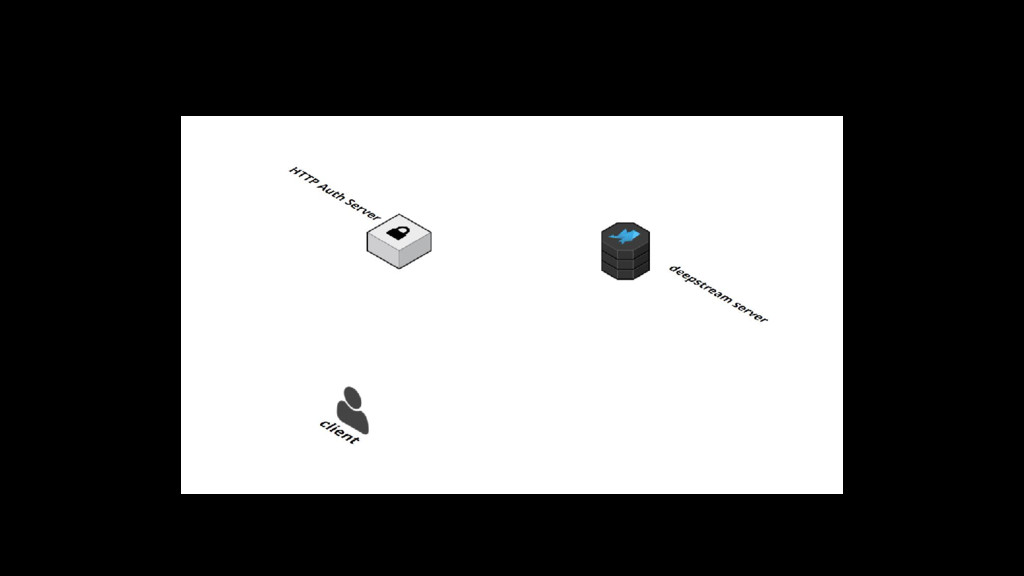

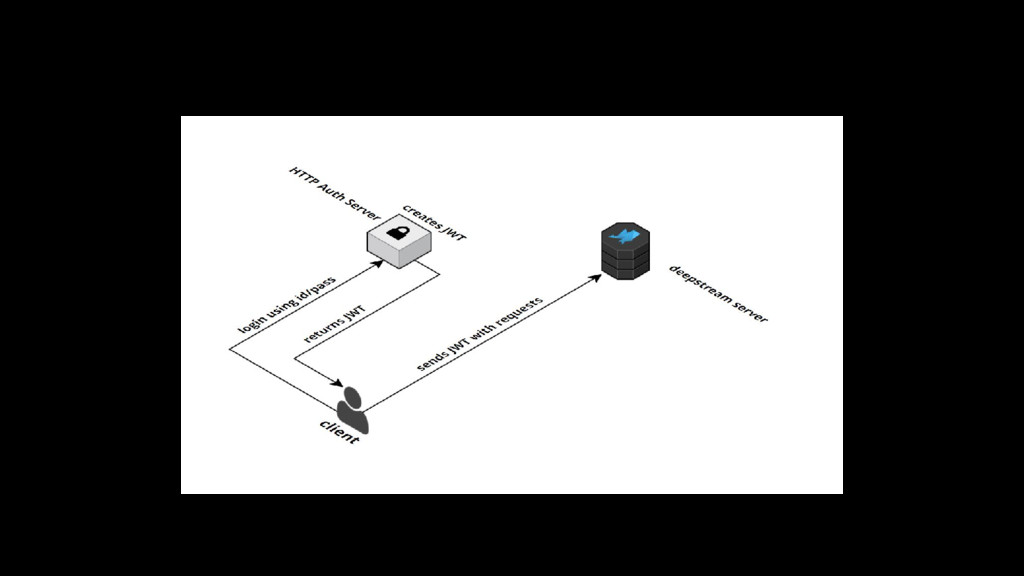

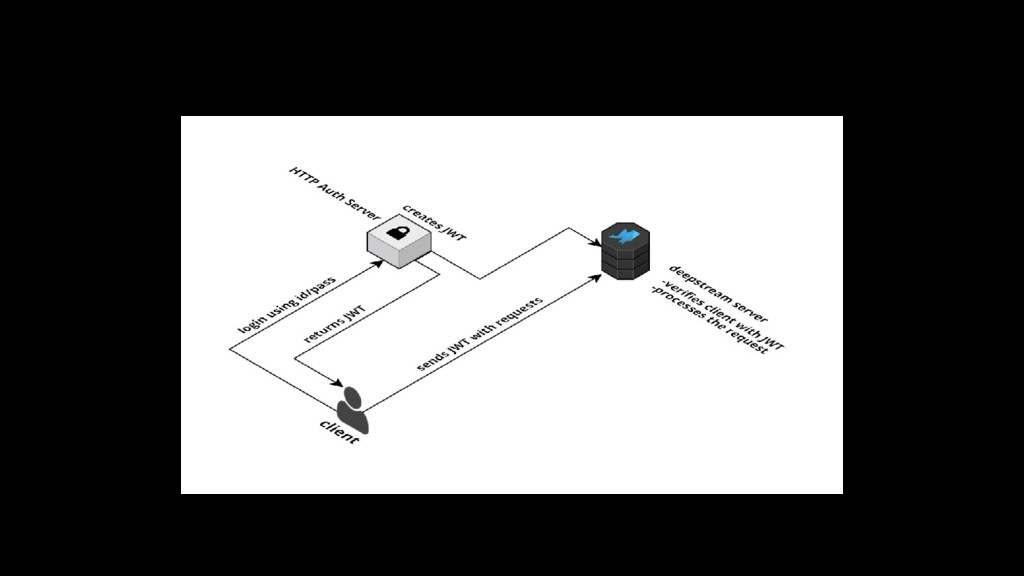

76. using JSON Web Token (JWT) auth

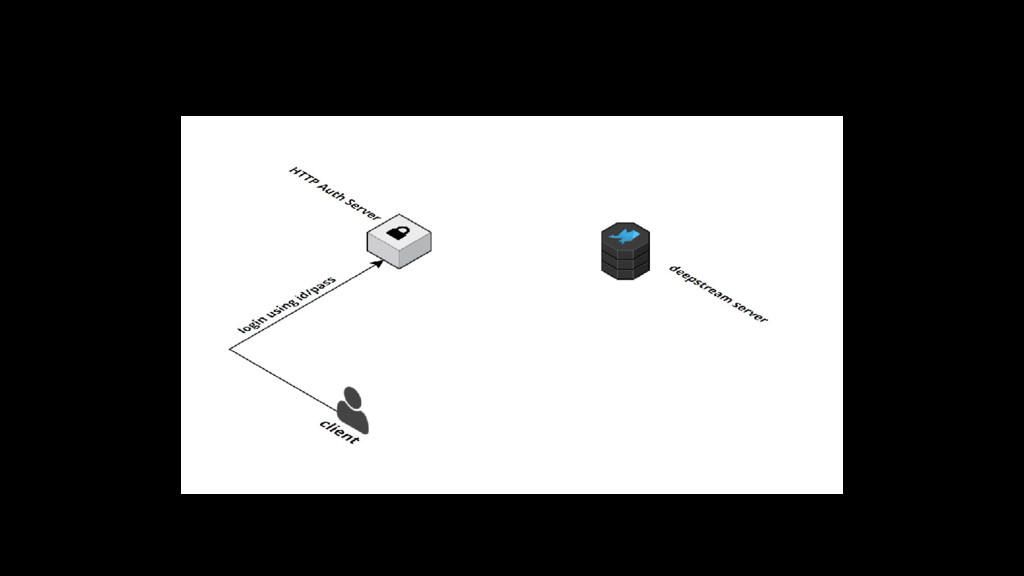

77. using JSON Web Token (JWT) auth

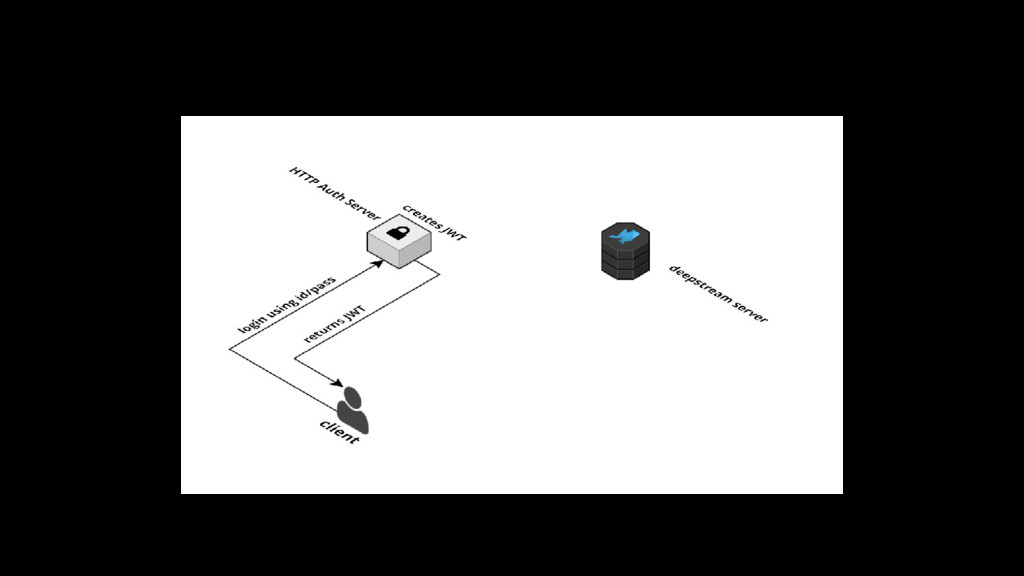

78. using JSON Web Token (JWT) auth
79. using JSON Web Token (JWT) auth
80. using JSON Web Token (JWT) auth
81. using JSON Web Token (JWT) auth
82. using 2FA authentication

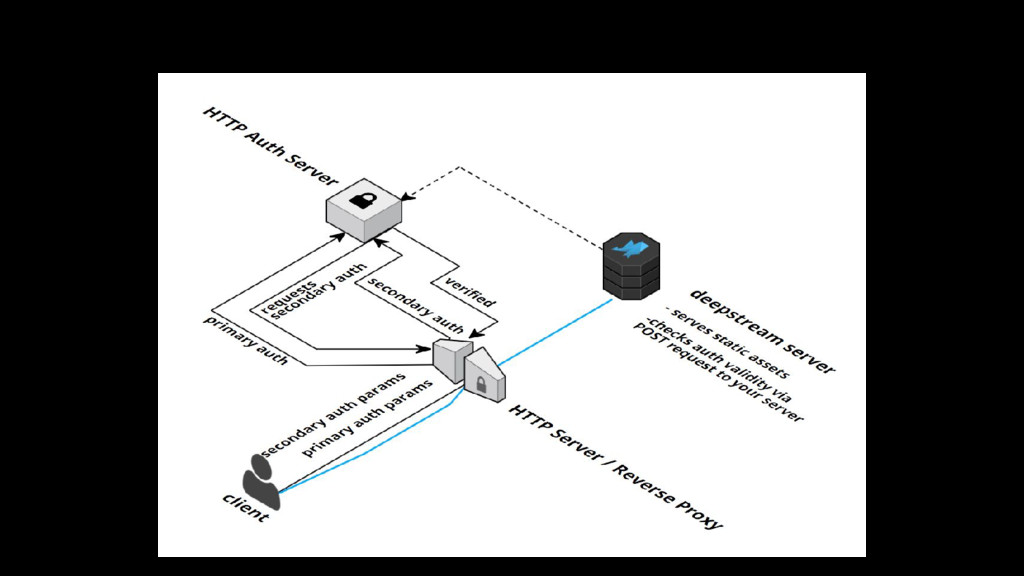

83. using 2FA authentication
84. using HTTP cookies

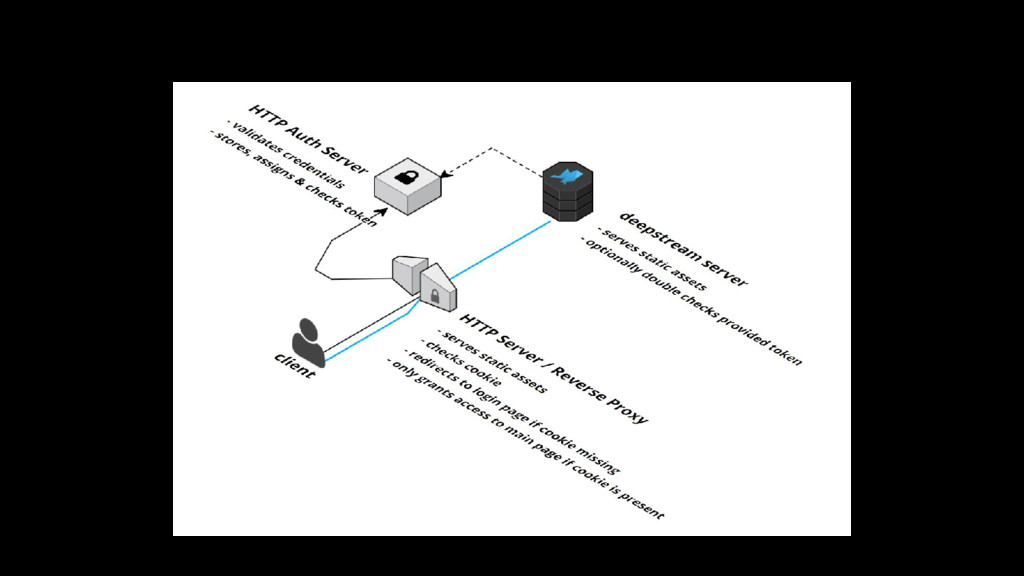

85. using HTTP cookie

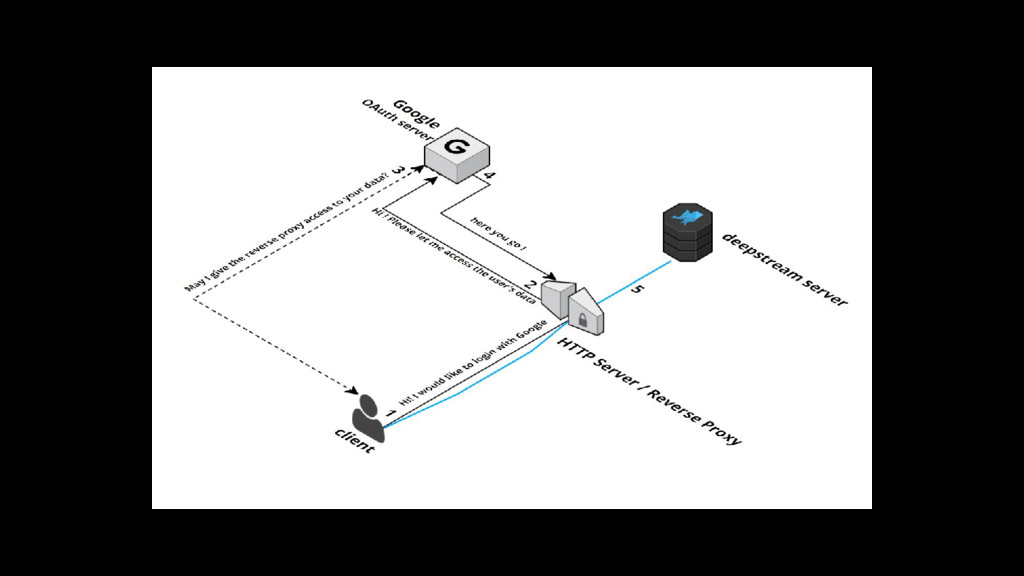

86. using OAuth
87. using OAuth
