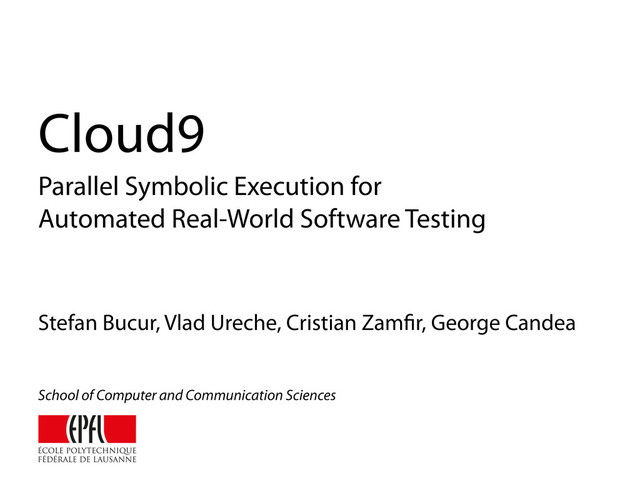

1. Parallel Symbolic Execution for
   Automated Real-World Software Testing
   Stefan Bucur, Vlad Ureche, Cristian Zam r, George Candea
   Cloud9
   School of Computer and Communication Sciences


   View Slide

2. Automated
   Techniques
   Automated Software Testing
   2
   λ
   Symbolic Execution
   Model Checking
   Industrial
   SW Testing
   Manual Testing
   Static Analysis
   Fuzzing
   Scalability
   Applicability
   Usability


   View Slide

3. Cloud9 - The Big Picture
   • Parallel symbolic execution
   • Linear scalability on commodity clusters
   • Full symbolic POSIX support
   • Applicable on real-world systems
   • Platform for writing test cases
   • Easy-to-use platform API
   3


   View Slide

4. Automated Systems Testing
   4
   [*] C. Cadar, D. Dunbar, D. Engler, “KLEE: Unassisted and automatic generation
   of high-coverage tests for complex systems programs”, OSDI 2008
   • Promising for systems testing:
   KLEE [*]
   • High-coverage test cases
   • Found new bugs
   • ... But applied only on small
   programs
   λ
   Symbolic Execution


   View Slide

5. 5
   Memcached GNU Coreutils
   Apache


   View Slide

6. void proc_pkt(packet_t* pkt) {
   if (pkt->magic != 0xC9) {
   err(pkt);
   return;
   }
   if (pkt->cmd == GET) {
   ...
   } else if ...
   ...
   }
   Symbolic Execution in a Nutshell
   [C9 A0 ... ]
   6


   View Slide

7. void proc_pkt(packet_t* pkt) {
   if (pkt->magic != 0xC9) {
   err(pkt);
   return;
   }
   if (pkt->cmd == GET) {
   ...
   } else if ...
   ...
   }
   Symbolic Execution in a Nutshell
   [C9 A0 ... ]
   6


   View Slide

8. pkt->magic != 0xC9
   void proc_pkt(packet_t* pkt) {
   if (pkt->magic != 0xC9) {
   err(pkt);
   return;
   }
   if (pkt->cmd == GET) {
   ...
   } else if ...
   ...
   }
   Symbolic Execution in a Nutshell
   [C9 A0 ... ]
   6


   View Slide

9. pkt->cmd == GET
   pkt->magic != 0xC9
   void proc_pkt(packet_t* pkt) {
   if (pkt->magic != 0xC9) {
   err(pkt);
   return;
   }
   if (pkt->cmd == GET) {
   ...
   } else if ...
   ...
   }
   Symbolic Execution in a Nutshell
   [C9 A0 ... ]
   6


   View Slide

10. pkt->cmd == GET
    pkt->magic != 0xC9
    void proc_pkt(packet_t* pkt) {
    if (pkt->magic != 0xC9) {
    err(pkt);
    return;
    }
    if (pkt->cmd == GET) {
    ...
    } else if ...
    ...
    }
    Symbolic Execution in a Nutshell
    [C9 A0 ... ]
    6


    View Slide

11. void proc_pkt(packet_t* pkt) {
    if (pkt->magic != 0xC9) {
    err(pkt);
    return;
    }
    if (pkt->cmd == GET) {
    ...
    } else if ...
    ...
    }
    Symbolic Execution in a Nutshell
    7
    λ


    View Slide

12. λ.magic == 0xC9 λ.magic != 0xC9
    void proc_pkt(packet_t* pkt) {
    if (pkt->magic != 0xC9) {
    err(pkt);
    return;
    }
    if (pkt->cmd == GET) {
    ...
    } else if ...
    ...
    }
    Symbolic Execution in a Nutshell
    7
    λ


    View Slide

13. λ.cmd == GET λ.cmd != GET
    λ.magic == 0xC9 λ.magic != 0xC9
    void proc_pkt(packet_t* pkt) {
    if (pkt->magic != 0xC9) {
    err(pkt);
    return;
    }
    if (pkt->cmd == GET) {
    ...
    } else if ...
    ...
    }
    Symbolic Execution in a Nutshell
    7
    λ


    View Slide

14. λ.cmd == GET λ.cmd != GET
    λ.magic == 0xC9 λ.magic != 0xC9
    void proc_pkt(packet_t* pkt) {
    if (pkt->magic != 0xC9) {
    err(pkt);
    return;
    }
    if (pkt->cmd == GET) {
    ...
    } else if ...
    ...
    }
    Symbolic Execution in a Nutshell
    7
    ∼2 paths
    λ
    program
    size


    View Slide

15. 8
    CPU Bottleneck
    Memory Exhaustion


    View Slide

16. W1 W2 W3
    Parallel Tree Exploration
    8


    View Slide

17. W1
    W2 W3
    Parallel Tree Exploration
    8
    Key research problem:
    Scalable parallel exploration


    View Slide

18. Linear Solution to Exponential
    Problem
    9
    Program Size
    Time to Test


    View Slide

19. Linear Solution to Exponential
    Problem
    9
    Program Size
    Time to Test
    Testing
    target
    1 worker


    View Slide

20. Linear Solution to Exponential
    Problem
    9
    Program Size
    Time to Test
    Testing
    target
    Bring testing time down to practical values
    1 worker
    2 workers
    4 workers
    8 workers


    View Slide

21. Throw Hardware at the Problem
    10


    View Slide

22. Scalability Challenges
    Tree structure not known a priori
    ?
    ?
    ?
    ?
    ?
    ? ?
    ?
    ? ?
    11


    View Slide

23. Scalability Challenges
    Static Allocation
    12


    View Slide

24. Scalability Challenges
    12


    View Slide

25. Scalability Challenges
    Anticipate Allocation
    13


    View Slide

26. Scalability Challenges
    13


    View Slide

27. Outline
    • Scalable Parallel Symbolic Execution
    • POSIX Environment Model
    • Evaluation
    14


    View Slide

28. Cloud9 Architecture
    15
    Global
    Symbolic Tree


    View Slide

29. Cloud9 Architecture
    15
    W1’s Local Tree W2’s Local Tree W3’s Local Tree
    Each worker runs a local
    sequential symbolic execution engine (KLEE)


    View Slide

30. Cloud9 Architecture
    16
    Candidate
    nodes
    Fence
    nodes
    • Candidate nodes are selected for
    exploration
    • Fence nodes bound the local tree


    View Slide

31. Load Balancing
    LB
    W1 W2 W3
    17
    Hybrid distributed system:
    centralized reports, P2P work transfer


    View Slide

32. Load Balancing
    LB
    W1 W2 W3
    17
    Hybrid distributed system:
    centralized reports, P2P work transfer


    View Slide

33. Load Balancing
    LB
    W1 W2 W3
    17
    Hybrid distributed system:
    centralized reports, P2P work transfer


    View Slide

34. Work Transfer
    W1
    18
    Candidate
    Fence


    View Slide

35. Work Transfer
    W1 W2
    18
    Candidate
    Fence


    View Slide

36. Work Transfer
    W1 W2
    Virtual
    18
    Candidate
    Fence


    View Slide

37. Work Transfer
    W1 W2
    Virtual
    18
    Candidate
    Fence


    View Slide

38. Work Transfer
    W1 W2
    Materialized
    18
    Candidate
    Fence


    View Slide

39. Work Transfer
    W1 W2
    18
    Exploration disjointness + completeness
    Candidate
    Fence


    View Slide

40. 1
    1
    1
    1
    1
    0
    0
    0
    0
    0
    0
    0
    0
    Path-based Encoding
    19
    • Nodes are encoded as paths in tree
    • Compact binary representation
    • Two paths can share common pre x
    • Small encoding size
    • For a tree of 2100 leaves, a path ts in
    <128 bits (16 bytes)


    View Slide

41. Load Balancing in Practice
    20
    LB stops after 1 min
    LB stops after 4 min
    Continuous load balancing
    Work done
    [% of total instructions]
    Time [minutes]
    0
    10
    20
    30
    40
    50
    60
    70
    80
    90
    100
    0 2 4 6 8 10
    Load balancing necessary to ensure scalability


    View Slide

42. Outline
    • Scalable Parallel Symbolic Execution
    • POSIX Environment Model
    • Evaluation
    21


    View Slide

43. Calls into the Environment
    22
    if (fork() == 0) {
    ...
    if ((res = recv(sock, buff, size, 0)) > 0) {
    pthread_mutex_lock(&mutex);
    memcpy(gBuff, buff, res);
    pthread_mutex_unlock(&mutex);
    }
    ...
    } else {
    ...
    pid_t pid = wait(&stat);
    ...
    }


    View Slide

44. fork()
    Program Under Test
    Environment
    (C Library / OS)
    Environment Model
    23
    Cannot directly execute symbolically


    View Slide

45. fork()
    Program Under Test
    Environment
    (C Library / OS)
    Environment Model
    23
    Model Code
    Symbolic Execution Engine
    Equivalent functionality
    Executable symbolically


    View Slide

46. Starting Point
    24
    Symbolic Execution Engine
    Network
    Stubs
    Files
    POSIX
    Single-threaded
    isolated
    nodes
    Single-threaded
    utilities


    View Slide

47. POSIX Environment Model
    25
    Symbolic Execution Engine
    Network
    TCP/UDP/UNIX
    Files Pipes
    Threads
    pthread_*
    Processes
    POSIX
    M
    essage
    passing
    Servers and
    clients
    M
    ulti-threaded
    program
    s
    Distributed
    system
    s
    Signals
    Asynchronous events,
    IPC
    Single-threaded
    utilities


    View Slide

48. Key Changes in Symbolic Execution
    Multithreading and Scheduling
    • Deterministic or symbolic scheduling
    • Non-preemptive execution model
    Address Space Isolation
    • Copy on Write (CoW) between processes
    • CoW domains for memory sharing
    26


    View Slide

49. Symbolic Engine System Calls
    • Symbolic engine support
    needed for threads/processes
    1. Thread/process lifecycle
    2. Synchronization
    3. Shared memory
    27
    Symbolic Engine
    System Calls
    thread_create
    thread_terminate
    process_fork
    process_terminate
    get_context
    thread_preempt
    thread_sleep
    thread_notify
    get_wait_list
    make_shared
    1
    2
    3


    View Slide

50. Outline
    • Scalable Parallel Symbolic Execution
    • POSIX Environment Model
    • Evaluation
    28


    View Slide

51. Testing Real-World Software
    29
    Memcached GNU Coreutils
    Apache


    View Slide

52. Time to Reach Target Coverage
    30
    printf
    Faster time-to-cover, higher coverage values
    60% coverage
    70% coverage
    80% coverage
    90% coverage
    0
    10
    20
    30
    40
    50
    60
    1 4 8 24 48
    Time to achieve target
    coverage [minutes]
    Number of workers


    View Slide

53. Increase in Code Coverage
    0
    10
    20
    30
    40
    50
    0 10 20 30 40 50 60 70 80 90
    Additional code covered
    [ % of program LOC ]
    Index of tested Coreutil (sorted by additional coverage)
    31
    Coreutils suite (12 workers, 10 min.)
    Consistent code coverage increase


    View Slide

54. Exhaustive Exploration
    32
    0
    1
    2
    3
    4
    5
    6
    2 4 6 12 24 48
    Time to complete
    exhaustive test [hours]
    Number of workers
    Scalability of exhaustive path exploration
    memcached (7.4×104 paths)


    View Slide

55. Instruction Throughput
    33
    0.0e+00
    2.0e+09
    4.0e+09
    6.0e+09
    8.0e+09
    1.0e+10
    1.2e+10
    1.4e+10
    1.6e+10
    1.8e+10
    1 4 6 12 24 48
    Useful work done
    [ # of instructions ]
    Number of workers
    4 minutes
    6 minutes
    8 minutes
    10 minutes
    memcached
    Linear scalability with number of workers


    View Slide

56. Execute the “whole world” symbolically
    Symbolic State
    Experimental Setup
    34
    Client
    Process
    memcached/
    Apache/
    lighttpd
    TCP Stream
    Symbolic cmd.
    Srv. response


    View Slide

57. Symbolic Test Cases
    • Easy-to-use API for developers to write
    symbolic test cases
    • Basic symbolic memory support
    • POSIX extensions for environment control
    • Network conditions, fault injection, symbolic
    scheduler
    35


    View Slide

58. Symbolic Test Cases
    36
    Testing HTTP header extension
    make_symbolic(hdrData);
    // Append symbolic header to request
    strcat(req, “X-NewExtension: “);
    strcat(req, hdrData);
    // Enable fault injection on socket
    ioctl(ssock, SIO_FAULT_INJ, RD | WR);
    // Symbolic stream fragmentation
    ioctl(ssock, SIO_PKT_FRAGMENT, RD);


    View Slide

59. Conclusions
    • Parallel symbolic execution
    • Linear scalability on commodity clusters
    • Full POSIX environment model
    • Real-world systems testing
    • Use cases
    • Increasing coverage
    • Exhaustive path exploration
    • Bug patch veri cation
    37


    View Slide
