Migrate from RoboGuice 4 to Toothpick

Internal workshop at groupon

Transcript

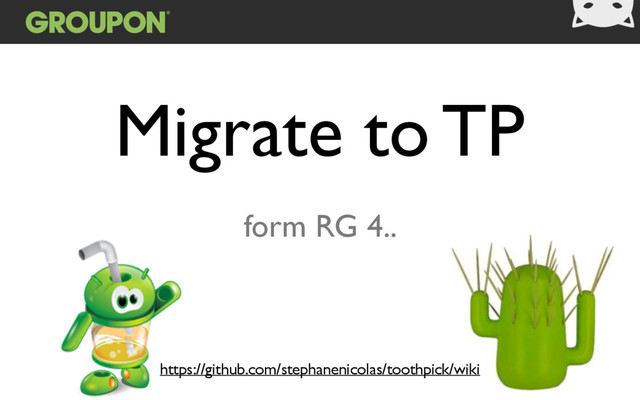

1. Migrate to TP
   form RG 4..
   https://github.com/stephanenicolas/toothpick/wiki


   View Slide

2. Toothpick is a scope tree based Dependency
   Injection (DI) library for Java.
   It is a full-featured, runtime based,

   but reflection free, implementation of JSR 330.
   Toothpick is faster than Dagger 1 or Dagger 2

   for a relatively small number of injections (<1K)
   2


   View Slide

3. Presentation plan
   1. TP  scopes
   2. Injec/ng  all  dependencies  into  an  object
   3. Ge9ng  an  instance/lazy/provider  of  a  class
   4. Named  injec/ons
   5. Lazies
   6. ContextSingleton  and  why  you  should  not  use  it
   7. Tes/ng  &  Mock
   Migrate to TP


   View Slide

4. TP scopes
   In  Toothpick,  scopes  are:
   • a  place  to  define  bindings  (via  modules)
   • a  place  to  recycle  injected  instances
   Scopes  are  used  to:
   • inject  dependencies  into  instances
   • getInstance  of  classes
   Migrate to TP


   View Slide

5. TP scope tree
   It’s a common practice to define a scope by context. In advanced uses
   cases, more scopes can be created. Scopes form a tree.
   Migrate to TP


   View Slide

6. Before: RG.getInjector
   TP scopes are similar to injector in RG.

   In MGA, this is managed by the foundations classes.
   Migrate to TP


   View Slide

7. openScope(s) methods need “the name” of the scope as a parameter.

   If multiple scopes are open together, they form a hierarchy

   and the leaf is returned.
   Opening and closing scopes in TP
   Migrate to TP


   View Slide

8. Opening and closing scopes in TP
   Migrate to TP


   View Slide

9. Installing modules in TP
   Modules are very similar in RG and TP.

   The main difference is that TP doesn’t need a configure method, you
   can declare bindings directly in the constructor of the modules.
   Migrate to TP


   View Slide

10. Injecting dependencies: RG 4
    Migrate to TP


    View Slide

11. Injecting dependencies: TP
    Migrate to TP


    View Slide

12. Getting instance of classes: RG 4
    This was equivalent to declare a field

    @Inject ImageCacheWarmup imageCacheWarmup.
    RG would return a new instance or recycle a previous instance in the
    scope of the injector, depending on annotations of
    ImageCacheWarmup.
    Migrate to TP


    View Slide

13. Getting instance of classes: TP
    Still equivalent to declare a field

    @Inject ImageCacheWarmup imageCacheWarmup.
    TP will also return a new instance or recycle a previous instance in
    the scope of the injector, depending on annotations of
    ImageCacheWarmup.
    Migrate to TP


    View Slide

14. Getting lazies/providers of classes: TP
    TP API also allows to easily get a provider or a lazy on a dependency.
    This is also equivalent to declaring a lazy / provider field.
    Migrate to TP


    View Slide

15. Named injections
    Migrate to TP
    Named injections are simpler with TP. You don’t need to use Named.
    Before with RG
    After with TP


    View Slide

16. Lazies: RG
    Migrate to TP
    You had to declared AND initialize Lazies with RG.

    But it was pure boiler plate code.


    View Slide

17. Lazies: TP
    Migrate to TP
    !!! TP makes Lazies simpler, just declare Lazies.
    Don’t forget to @Inject them !!!


    View Slide

18. Avoid ContextSingleton
    Migrate to TP
    ContextSingleton is just NOT clear.

    You can create a singleton at the app level or at the activity level, depending on
    where the injection first happens. This easily creates leaks !


    View Slide

19. Use Singleton or ActivitySingleton
    Migrate to TP
    Try your best to either use a real app singleton (and only use the
    application there)

    OR an ActivitySingleton (and use the activity as a context)


    View Slide

20. Testing and mocking: RG
    Migrate to TP
    You can inject test dependencies or mock the dependencies needed
    under test…


    View Slide

21. Testing and mocking: TP
    Migrate to TP
    Nothing changed (for now).
    But you don’t need to reset the mocks anymore (weird cases are solved).


    View Slide

22. Conclusion
    Migrate to TP
    TP  is  just:  beVer,  easier,  faster  than  RG.
    Dig into the TP wiki to get more insight on TP.
    TP   has   more   to   offer   than   RG:   scopes   spanning   mul/ple   ac/vi/es,   state
    preserva/on  across  rota/ons,  etc.  We  will  slowly  use  these  features  in  the  app
    over  next  releases…



    View Slide

23. Questions ?
    Migrate to TP
    Comments ?
