106js

Highlighting the features of 106.js, a browser-based emulation of the Roland Juno 106 analog synth.

http://github.com/stevengoldberg/juno106

Transcript

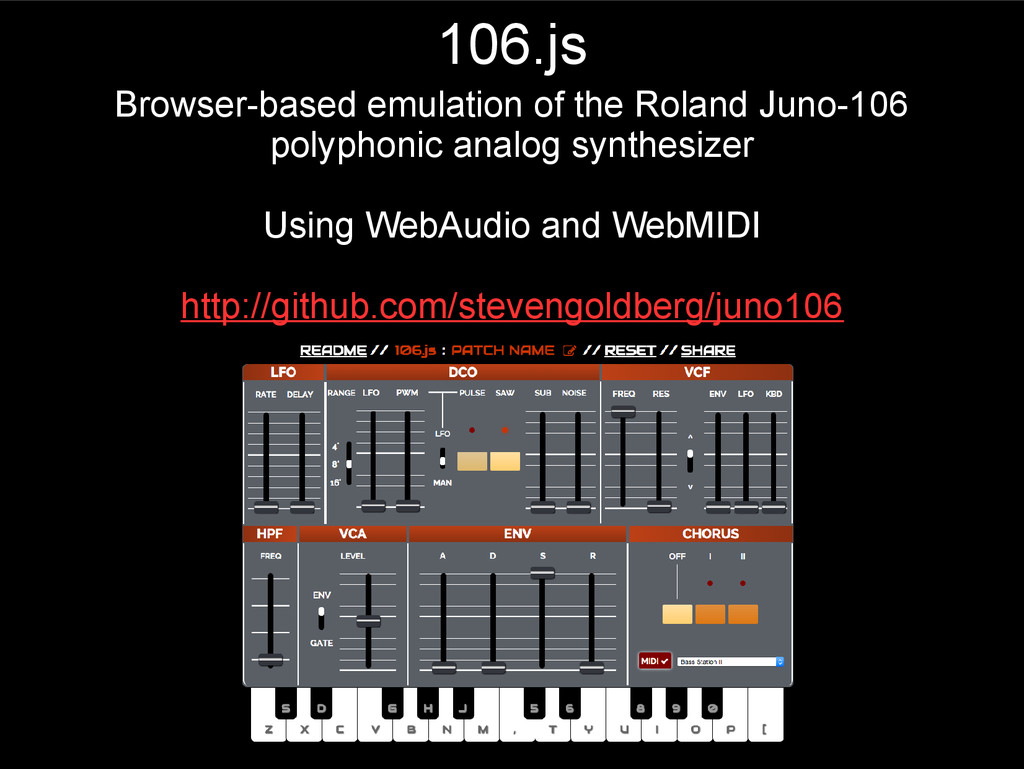

1. 106.js Browser-based emulation of the Roland Juno-106 polyphonic analog synthesizer Using WebAudio and WebMIDI http://github.com/stevengoldberg/juno106
2. Juno 106 • Produced 1984–1988 by Roland • Successor to Juno 6 and Juno 60, first with MIDI • 6-note polyphony • 1 DCO ft. pulse, saw, square sub, and noise, LFO, ADSR envelope, and 24 dB/oct resonant LPF per voice • HPF and chorus effect

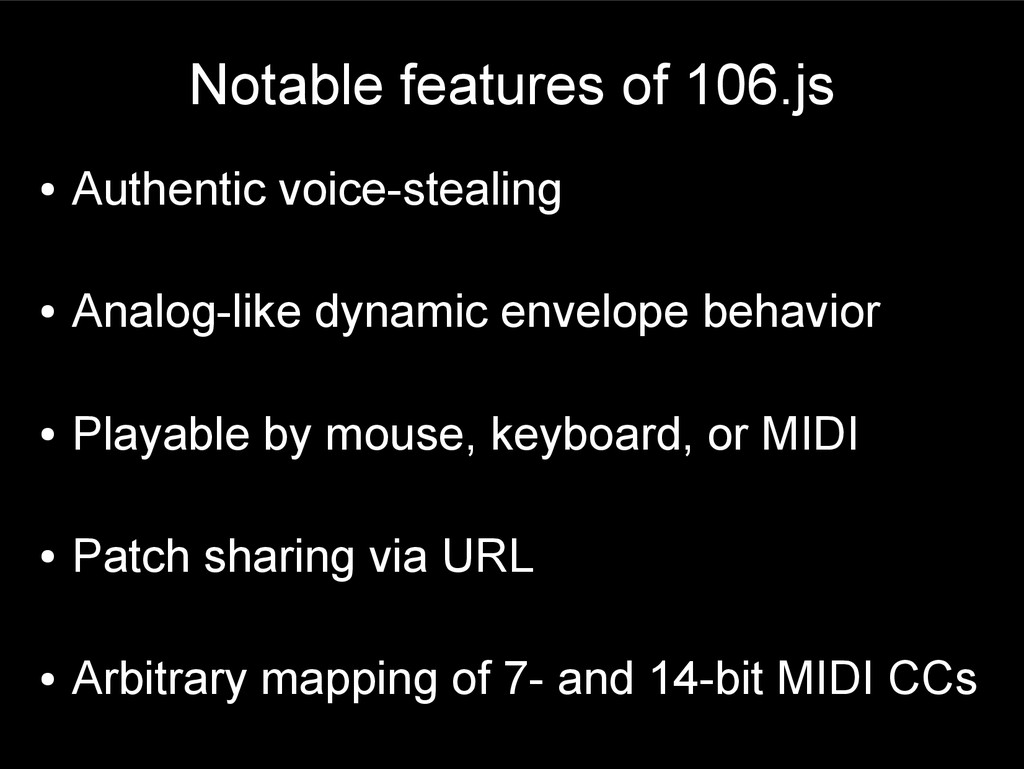

3. Notable features of 106.js • Authentic voice-stealing • Analog-like dynamic envelope behavior • Playable by mouse, keyboard, or MIDI • Patch sharing via URL • Arbitrary mapping of 7- and 14-bit MIDI CCs
5. Voice stealing • Analog synths have limited polyphony • Digital synths are limited only by CPU power • Voice stealing can be musical • Track an array of active voices • Remove a note if the same pitch is triggered • Remove the oldest note when MAX_POLYPHONY is reached • Manage oscillator lifespan with OscillatorNode.onended
6. Voice Stealing cont'd On a noteOff event, we trigger the voice's noteOff() method and listen for the voice to be killed, at which point we remove it from the activeVoices array.
7. Voice Stealing cont'd The voice's noteOff() method propagates itself down to the ENV and DCO, which it keeps synced. The voice triggers an event after all the oscillatorNodes have been stopped.
8. Voice Stealing cont'd The oscillator.onended callback sends an event when the oscillators are stopped. The DCO's noteOff() method takes an optional releaseLength param, so it can kill a note immediately (for stealing), or after a delay (for an envelope release).
9. Realistic envelopes • Analog synth envelopes respond to changes in real-time • Most websynths don't – changes only heard on next note • We can keep track of envelope stage by caching currentTime on note events:
10. Determining envelope stage and handling updates to envelope settings =>
11. Working with MIDI • The WebMIDI API is super simple • Read the spec, it's short and straightforward: www.w3.org/TR/webmidi/ • Use requestMIDIAccess to build an array of MIDI inputs
12. Requesting MIDI access
13. Handling MIDI messages • Define an onMIDIMessage callback to fire whenever a message is received • Now you just need to understand the anatomy of a MIDI message to deal with it appropriately • MIDI manufacturer's assoc. summary: midi.org/techspecs/midimessages.php • Another good resource: indiana.edu/~emusic/etext/MIDI/chapter3_MIDI4.shtml
14. Notes on MIDI messages • MIDI messages are contained in the MIDIMessageEvent.data array and consist of 3 bytes • Status byte, data byte 1, data byte 2 • Status byte tells us which channel and what kind of message • MIDI channels are a way of namespacing MIDI events – 106.js ignores MIDI channel, a.k.a. “Omni mode” • MIDI message types include Note On, Note Off, Control Change (CC), Pitch Bend, Aftertouch, Program Change, Sysex
15. MIDI Messages cont'd • Sometimes it's easier to deal with MIDI message data as binary, sometimes as decimal • A “Note on” message with velocity 0 should be interpreted as a “Note Off” message • 106.js ignores velocity because the Juno 106 wasn't velocity-sensitive
16. MIDI-mum Maximum • Note messages are easy to deal with: First 4 bits of the status byte = Note On or Note off, Data Byte 1 = Note Number, Data Byte 2 = Velocity
17. L'après-MIDI d'un faune • CCs are a little more complex • Some MIDI CCs are defined in the spec, but with modern devices they're essentially arbitrary • A single MIDI message uses 7-bits to represent 0 – 127, but 2 messages can be combined for increased resolution (14-bit MIDI) • Many modern controllers transmit 14-bit MIDI from their knobs or faders • 14-bit MIDI consists of an MSB and an LSB, offset by 32 • To handle 14-bit CCs, we fill a buffer with 2 consecutive messages to determine if it's 7- or 14-bit
18. C.C. DeVille
19. Cut out the MIDI-man • “length” data-param is defined on UI elements with discrete positions (switches, buttons) so that CCs can properly translate
20. LocalStorage? More like YokelStorage • 106.js stores lastUsedMidiDevice to localStorage and selects it on load
21. Everything I need to know about MIDI I learned in Kindergarten • When we create a new MIDI assignment, clear the old assignment for that CC, then update localStorage
22. Patch sharing • To share a patch, we create a URL from the serialized synth model

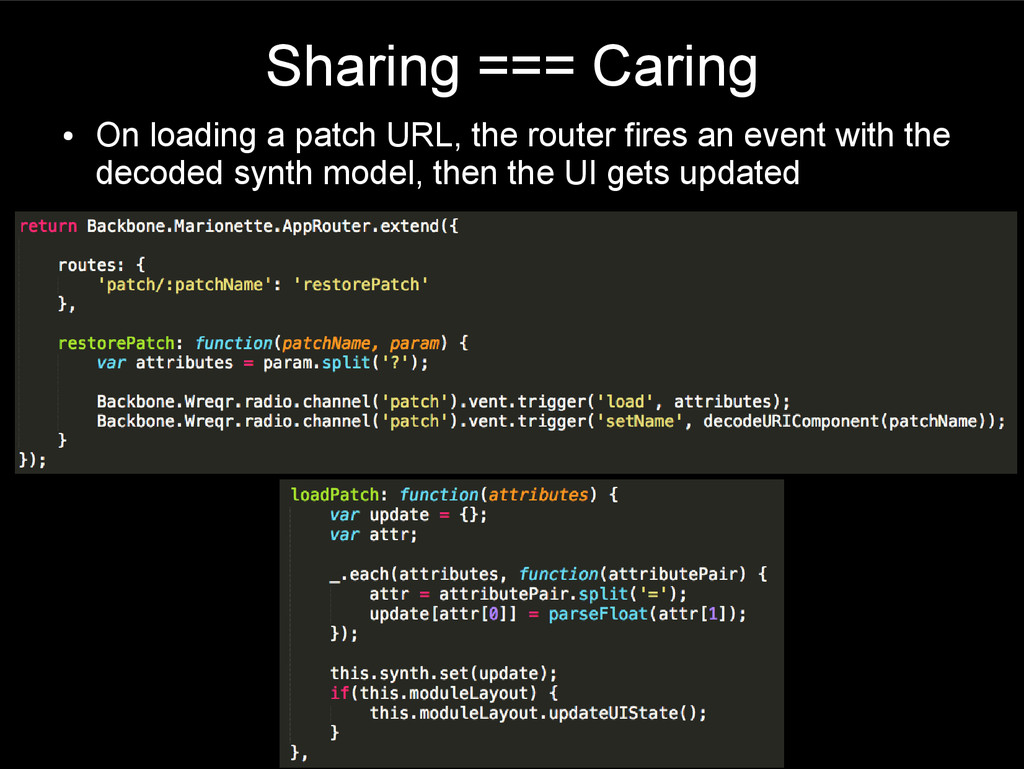

23. Sharing === Caring • On loading a patch URL, the router fires an event with the decoded synth model, then the UI gets updated
24. Fin @resistorsings soundcloud.com/resistorsings github.com/stevengoldberg May all your synths be forgiven
