1. Serializability and Snapshot Isolation Designing Data-intensive Applications Chapter7-2~ Wataru Hirota

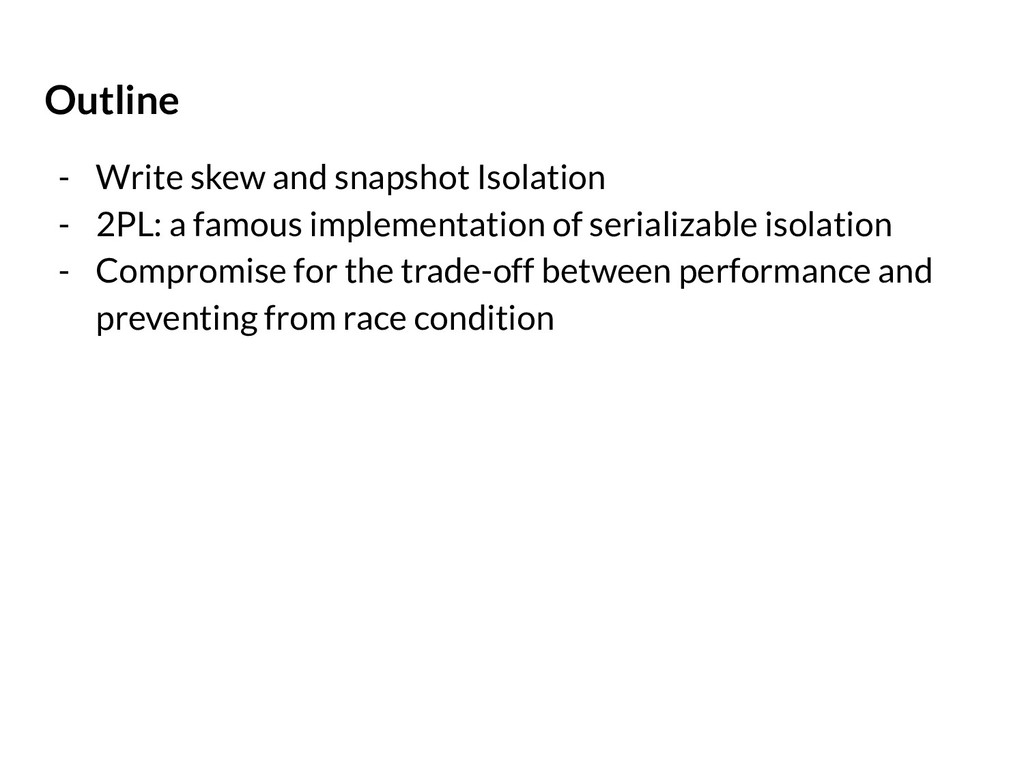

2. Outline - Write skew and snapshot Isolation - 2PL: a famous implementation of serializable isolation - Compromise for the trade-off between performance and preventing from race condition

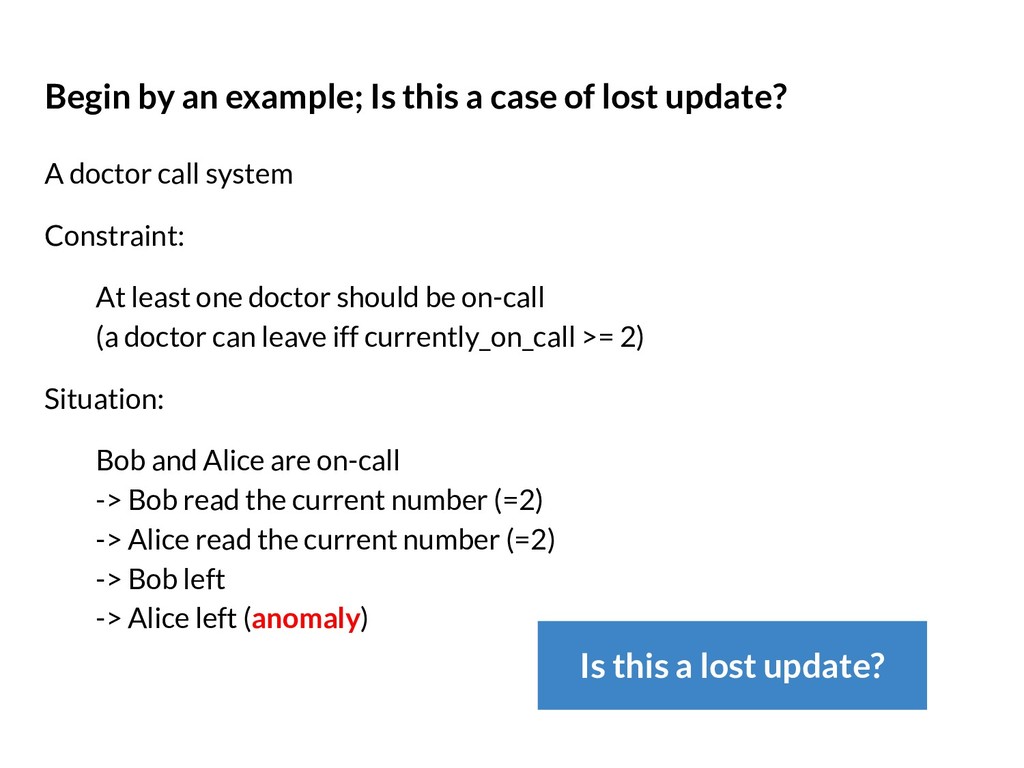

3. Begin by an example; Is this a case of lost update? A doctor call system Constraint: At least one doctor should be on-call (a doctor can leave iff currently_on_call >= 2) Situation: Bob and Alice are on-call -> Bob read the current number (=2) -> Alice read the current number (=2) -> Bob left -> Alice left (anomaly) Is this a lost update?
4. Write skew: multiple objects are involved Lost update One transaction overwrites the other’s write without incorporating its changes (so data is lost). Write skew Update not lost, but constraints fail due to concurrent commits.

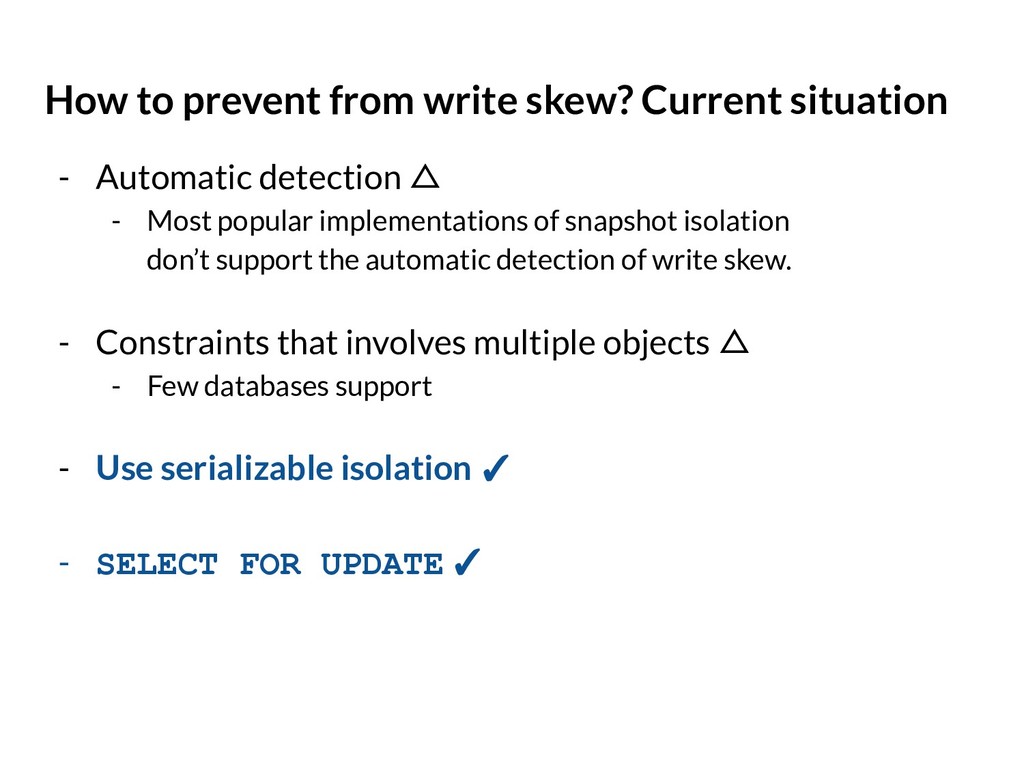

5. How to prevent from write skew? Current situation - Automatic detection △ - Most popular implementations of snapshot isolation don’t support the automatic detection of write skew. - Constraints that involves multiple objects △ - Few databases support - Use serializable isolation ✓ - SELECT FOR UPDATE ✓

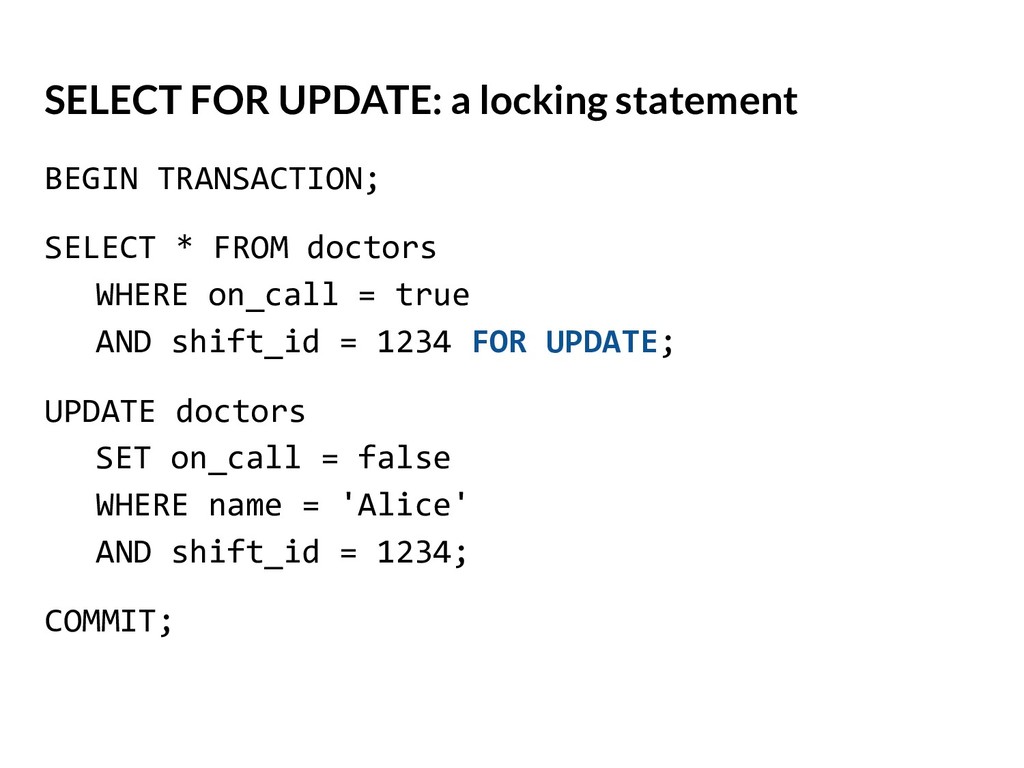

6. SELECT FOR UPDATE: a locking statement BEGIN TRANSACTION; SELECT * FROM doctors WHERE on_call = true AND shift_id = 1234 FOR UPDATE; UPDATE doctors SET on_call = false WHERE name = 'Alice' AND shift_id = 1234; COMMIT;

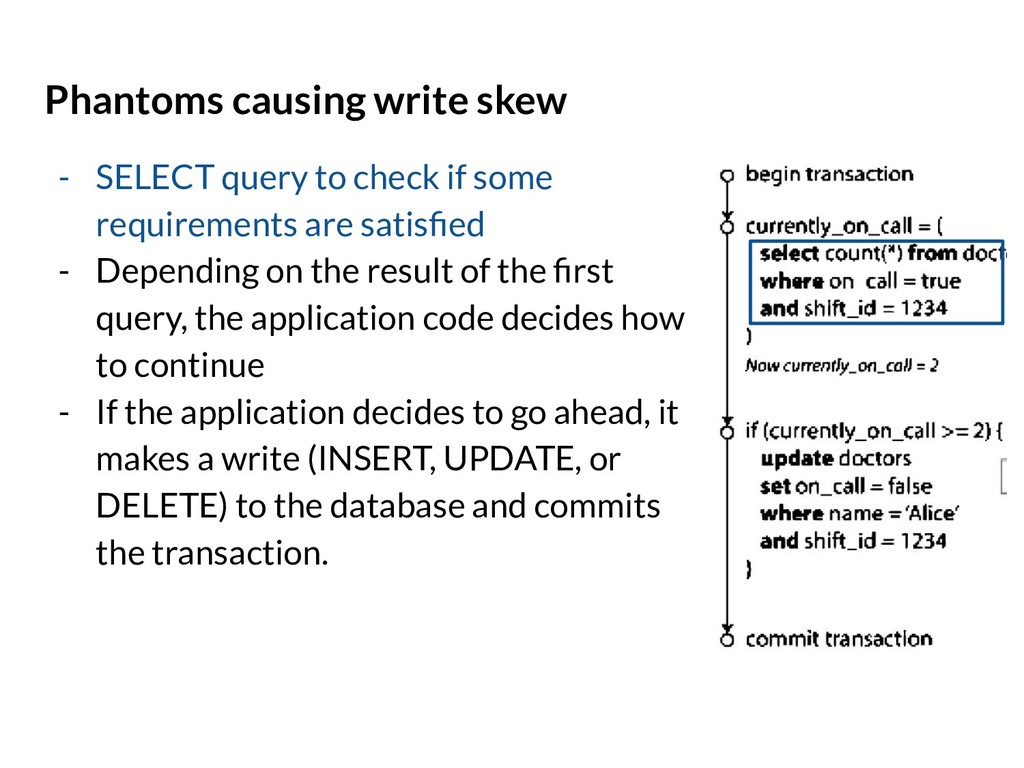

7. Phantoms causing write skew - SELECT query to check if some requirements are satisfied - Depending on the result of the first query, the application code decides how to continue - If the application decides to go ahead, it makes a write (INSERT, UPDATE, or DELETE) to the database and commits the transaction.
8. Phantoms causing write skew - SELECT query to check if some requirements are satisfied - Depending on the result of the first query, the application code decides how to continue - If the application decides to go ahead, it makes a write (INSERT, UPDATE, or DELETE) to the database and commits the transaction.

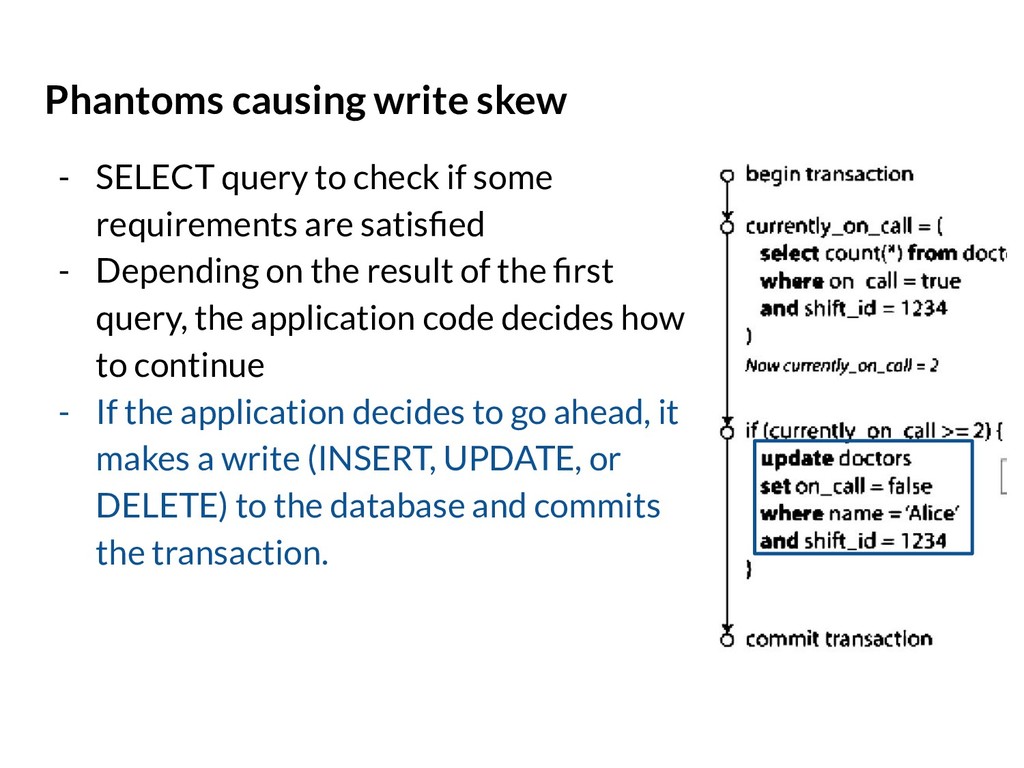

9. Phantoms causing write skew - SELECT query to check if some requirements are satisfied - Depending on the result of the first query, the application code decides how to continue - If the application decides to go ahead, it makes a write (INSERT, UPDATE, or DELETE) to the database and commits the transaction.

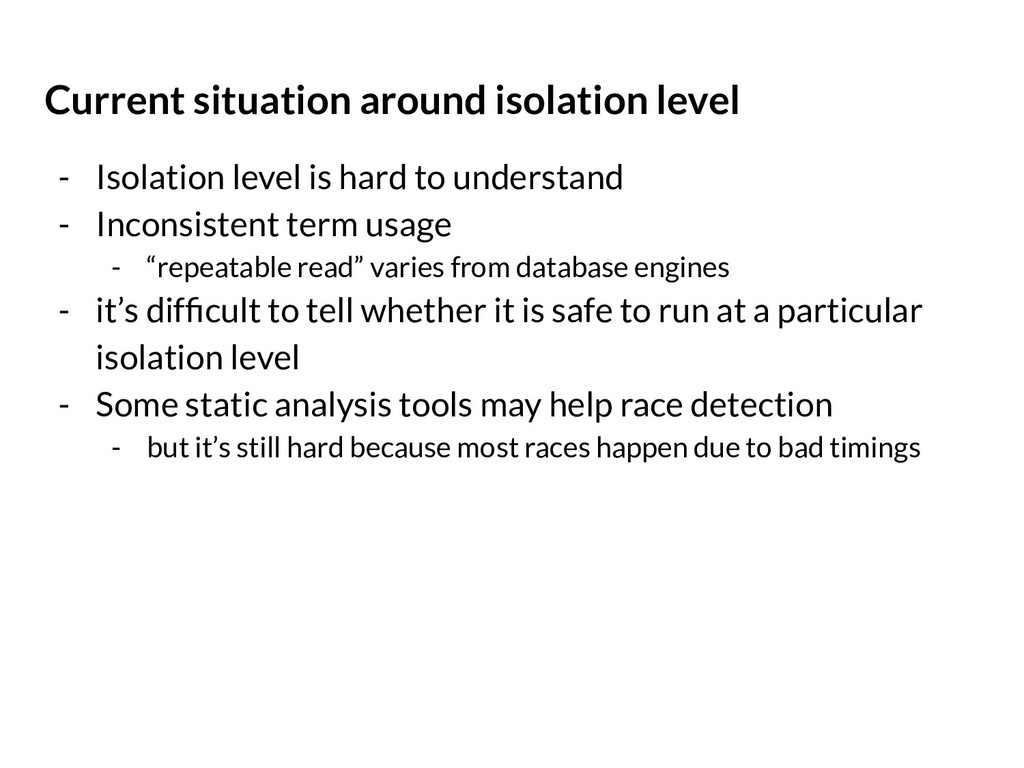

10. Current situation around isolation level - Isolation level is hard to understand - Inconsistent term usage - “repeatable read” varies from database engines - it’s difficult to tell whether it is safe to run at a particular isolation level - Some static analysis tools may help race detection - but it’s still hard because most races happen due to bad timings

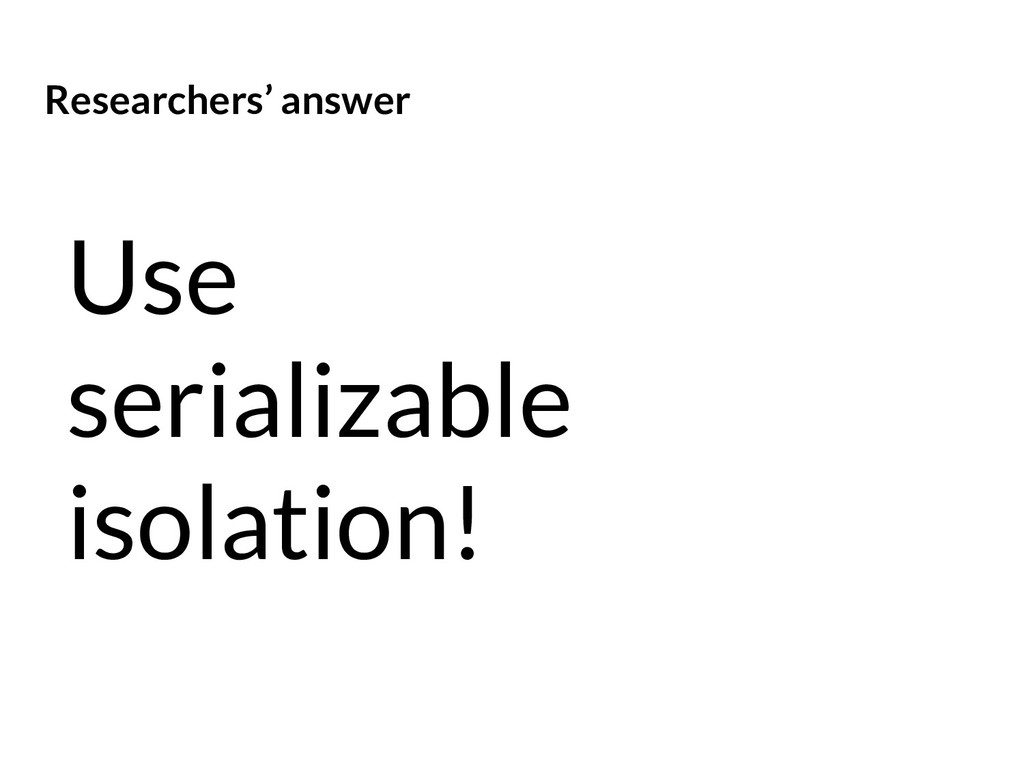

11. Researchers’ answer Use serializable isolation!

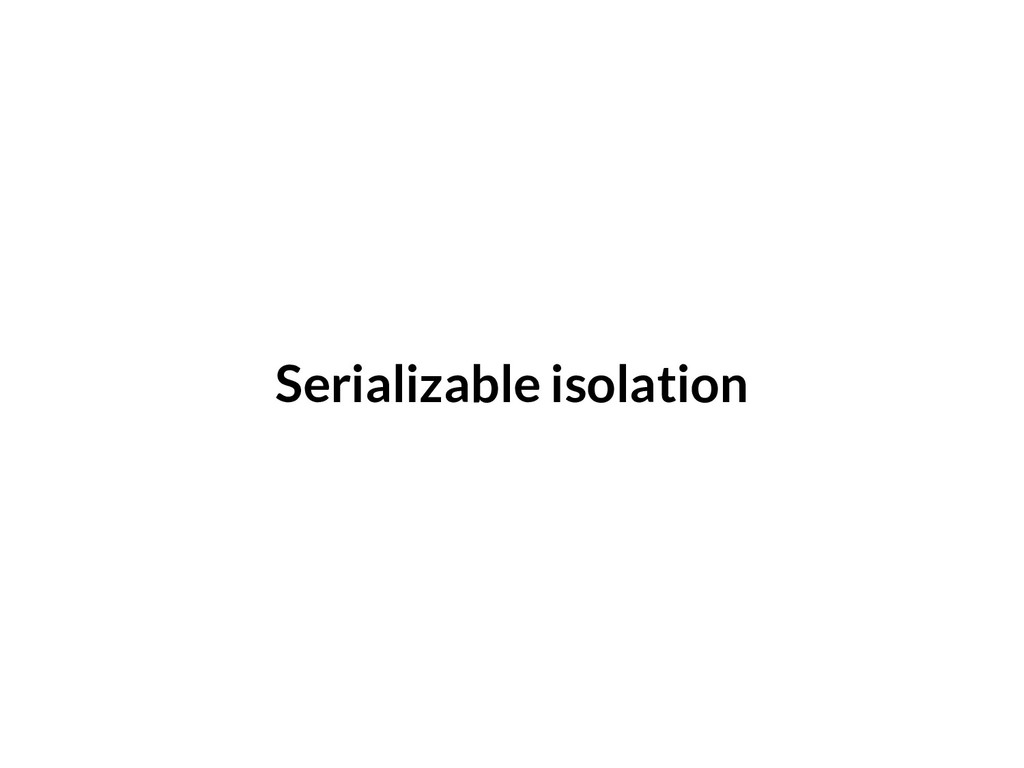

12. Serializable isolation

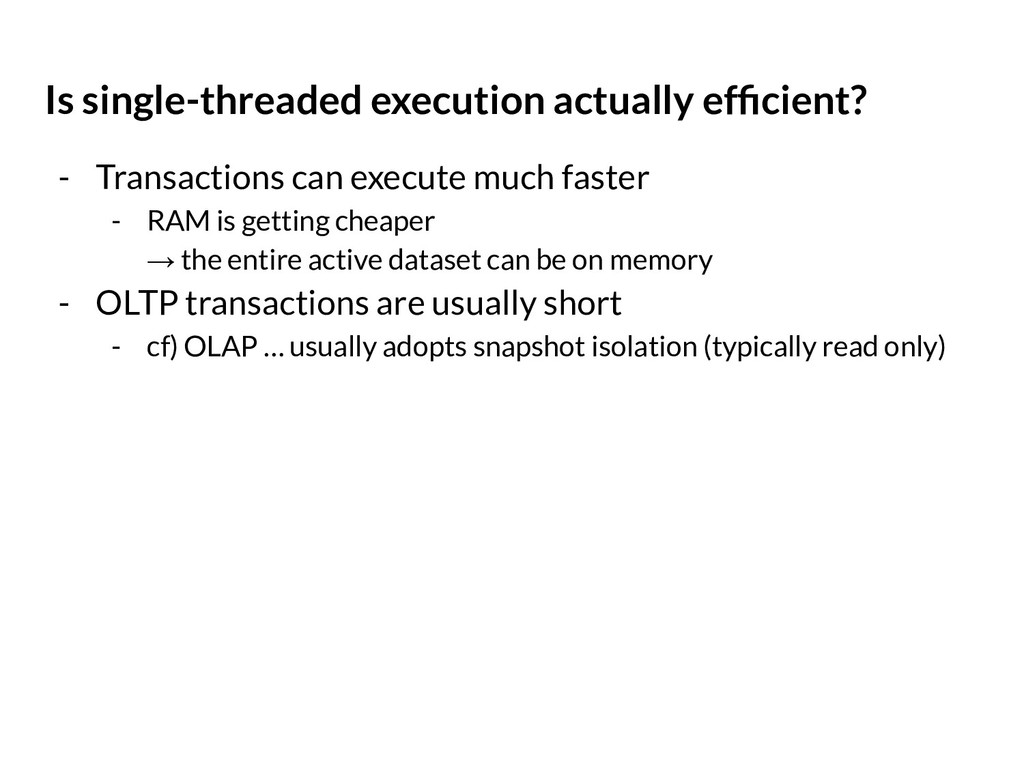

13. Is single-threaded execution actually efficient? - Transactions can execute much faster - RAM is getting cheaper → the entire active dataset can be on memory - OLTP transactions are usually short - cf) OLAP … usually adopts snapshot isolation (typically read only)
14. Stored procedures: large unit transactions To reduce network communication, stored procedure is effective merge transactions

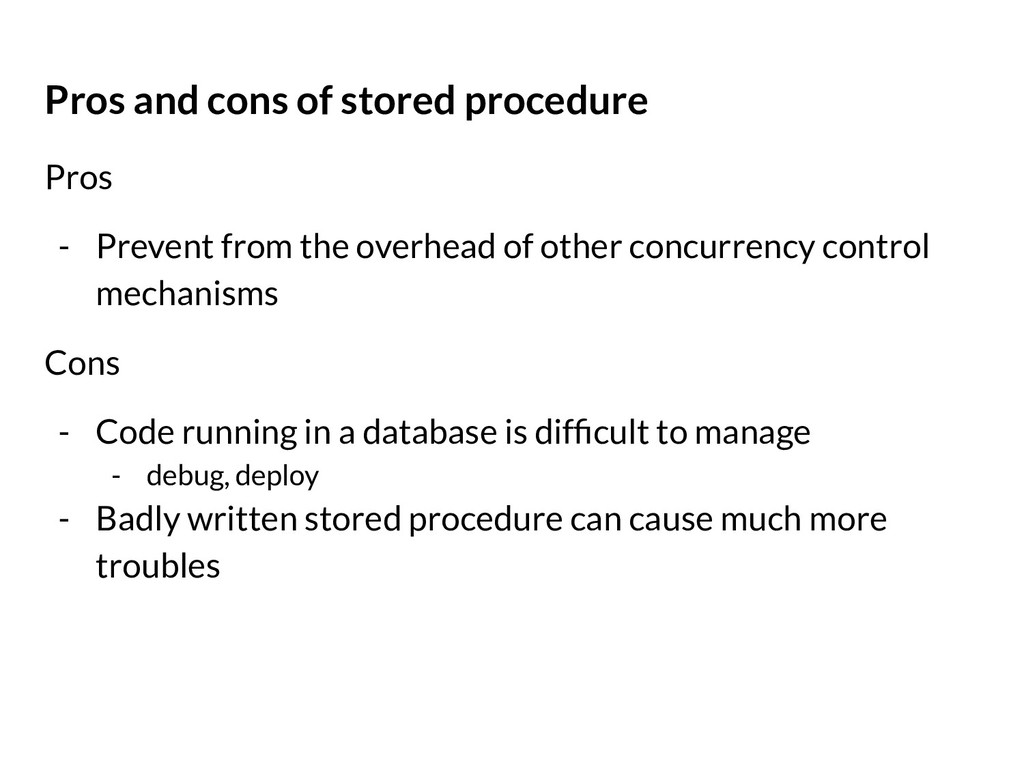

15. Pros and cons of stored procedure Pros - Prevent from the overhead of other concurrency control mechanisms Cons - Code running in a database is difficult to manage - debug, deploy - Badly written stored procedure can cause much more troubles
16. Partitioning is effective If each transaction reads and writes only a single partition → across multiple partitions → (additional overhead)
17. 2 Phase Locking (2PL) - Widely used algorithm for serializability - So it prevents from write skew - Writers don’t just block other writers; they also block readers and vice versa - (cf) Snapshot Isolation … readers never block writers and writers never block readers Acquire a lock Release the lock
18. Read and write in 2PL Read - shared mode lock - some transactions are allowed simultaneously - if the object has an exclusive lock, the read should wait for it Write - Exclusive mode lock - No transactions can have a lock on the object at the same time
19. Performance of 2PL - Throughput: 2PL << weak isolation - 2PL heavily reduces concurrency - No limit on how long it may have to wait - frequent dead-lock
20. Predicate lock 2PL disabled lots of concurrency - One of the problem is a too large locking range → How about narrowing down the range of locking lock objects which meet the condition

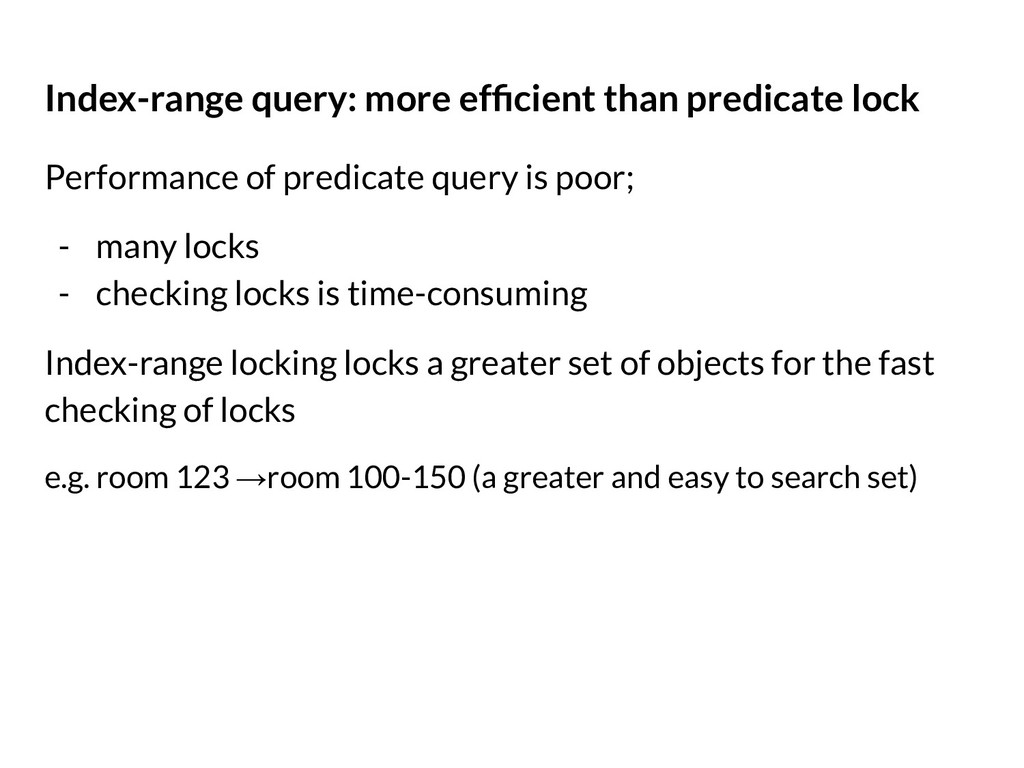

21. Index-range query: more efficient than predicate lock Performance of predicate query is poor; - many locks - checking locks is time-consuming Index-range locking locks a greater set of objects for the fast checking of locks e.g. room 123 →room 100-150 (a greater and easy to search set)

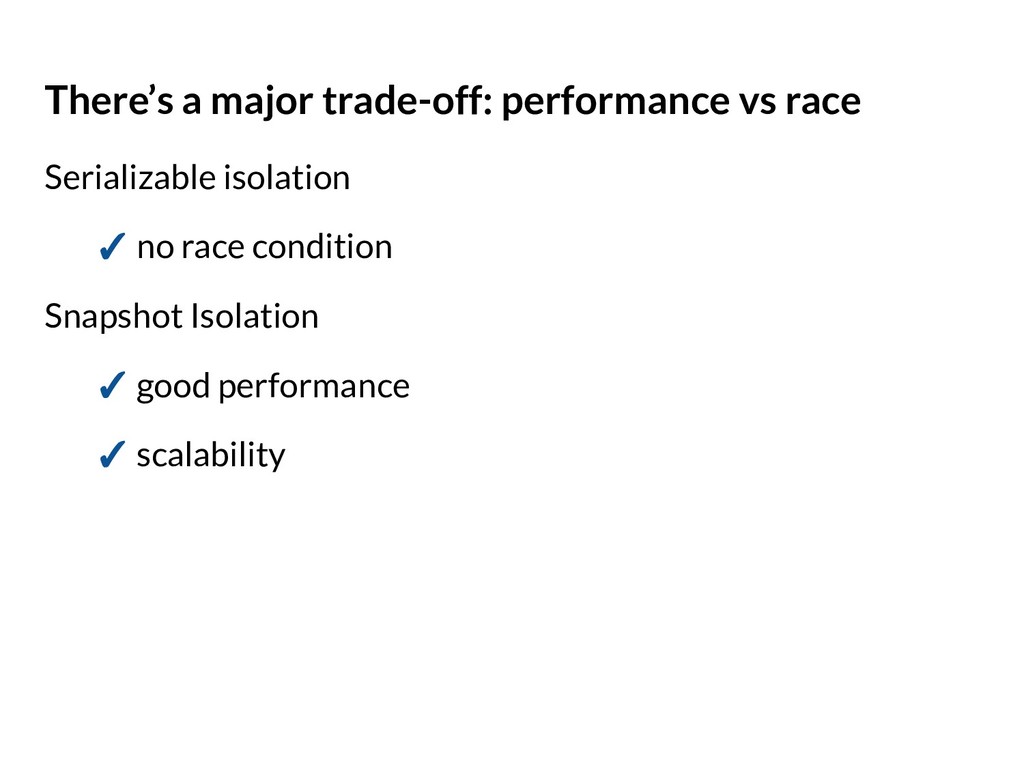

22. There’s a major trade-off: performance vs race Serializable isolation ✓ no race condition Snapshot Isolation ✓ good performance ✓ scalability

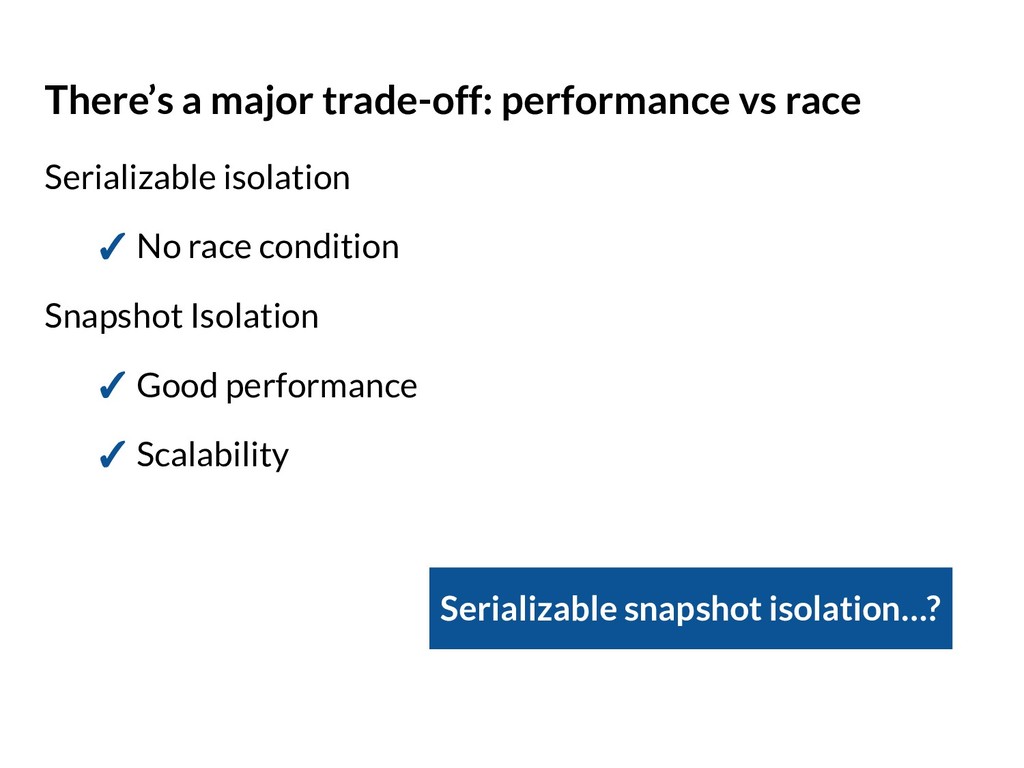

23. There’s a major trade-off: performance vs race Serializable isolation ✓ No race condition Snapshot Isolation ✓ Good performance ✓ Scalability Serializable snapshot isolation…?

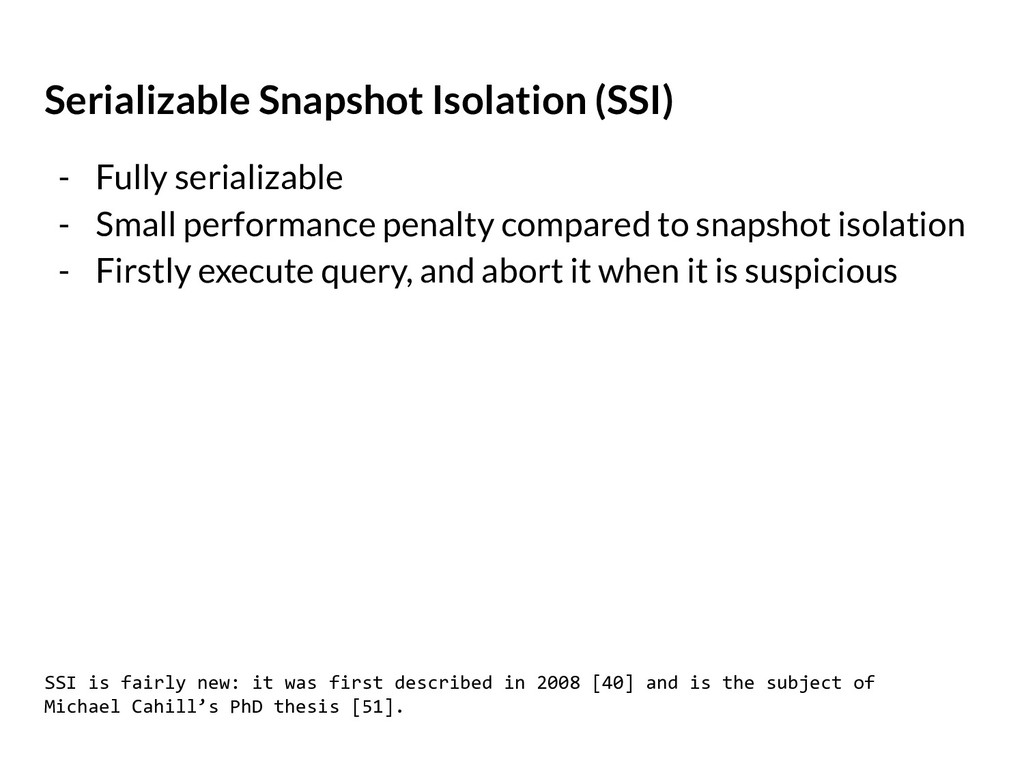

24. Serializable Snapshot Isolation (SSI) - Fully serializable - Small performance penalty compared to snapshot isolation - Firstly execute query, and abort it when it is suspicious SSI is fairly new: it was first described in 2008 [40] and is the subject of Michael Cahill’s PhD thesis [51].

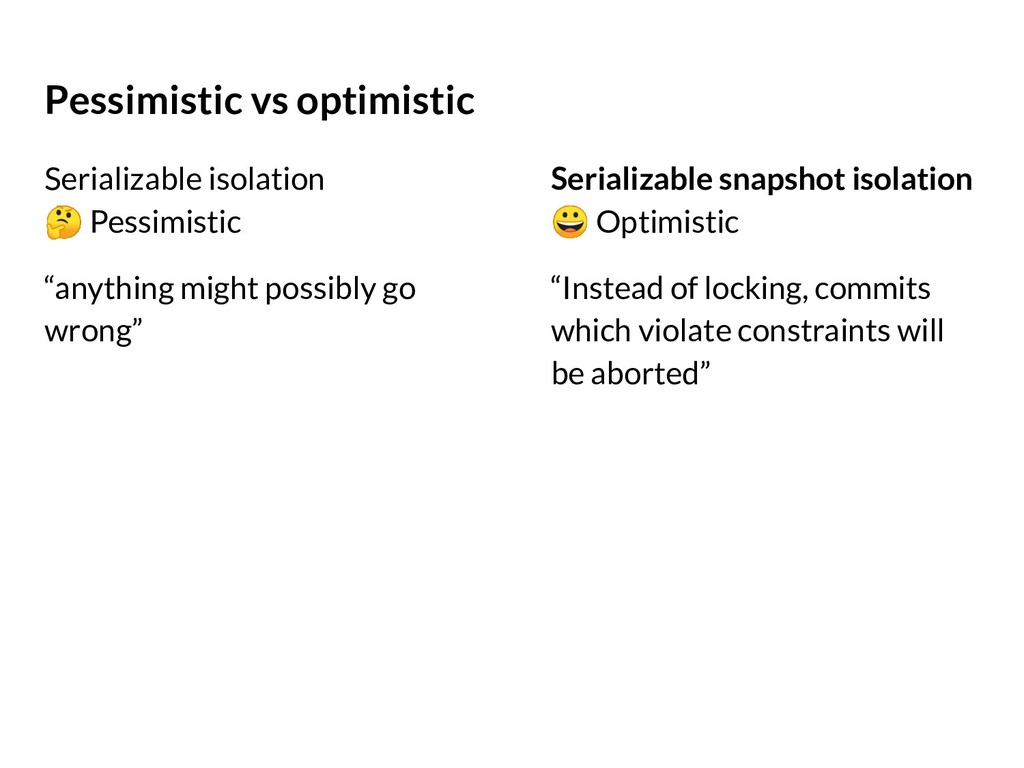

25. Pessimistic vs optimistic Serializable isolation Pessimistic “anything might possibly go wrong” Serializable snapshot isolation Optimistic “Instead of locking, commits which violate constraints will be aborted”

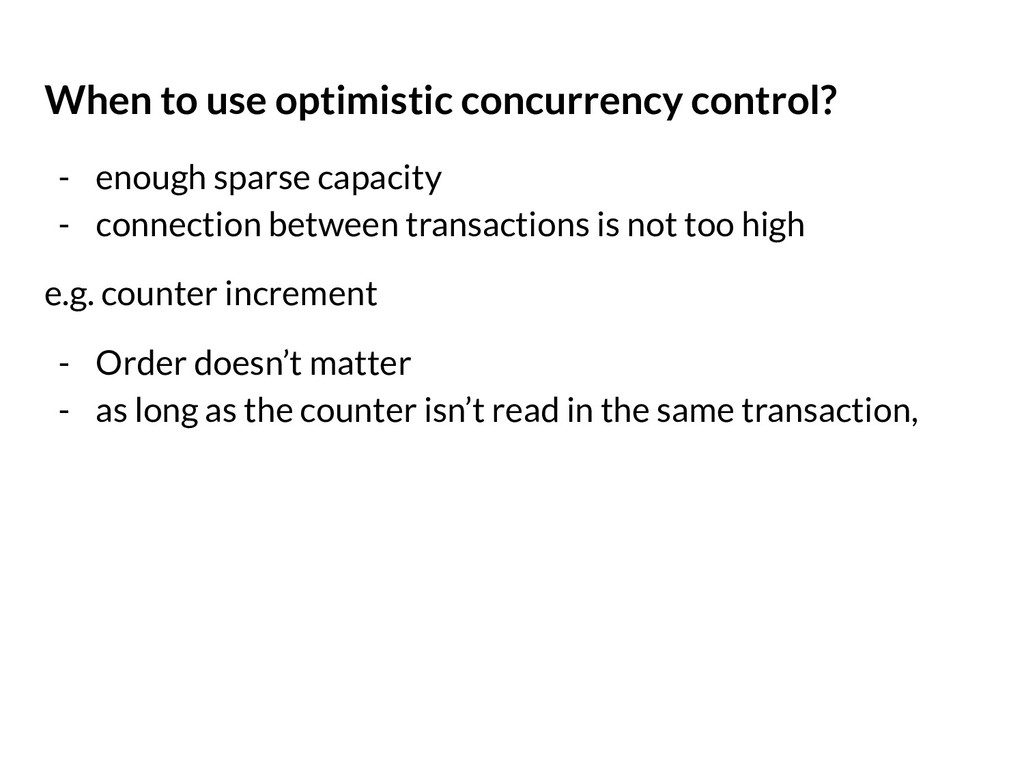

26. When to use optimistic concurrency control? - enough sparse capacity - connection between transactions is not too high e.g. counter increment - Order doesn’t matter - as long as the counter isn’t read in the same transaction,
27. How the database know if a query result might have changed? We need to consider - Detecting reads of a old MVCC object version - Detecting writes that affect prior reads
28. Detect stale MVCC reads MVCC: Multi Version Concurrency Control Check all premises are up-to-date Not checked here
29. Detecting writes that affect prior reads Tell that previous read is invalid Not checked here

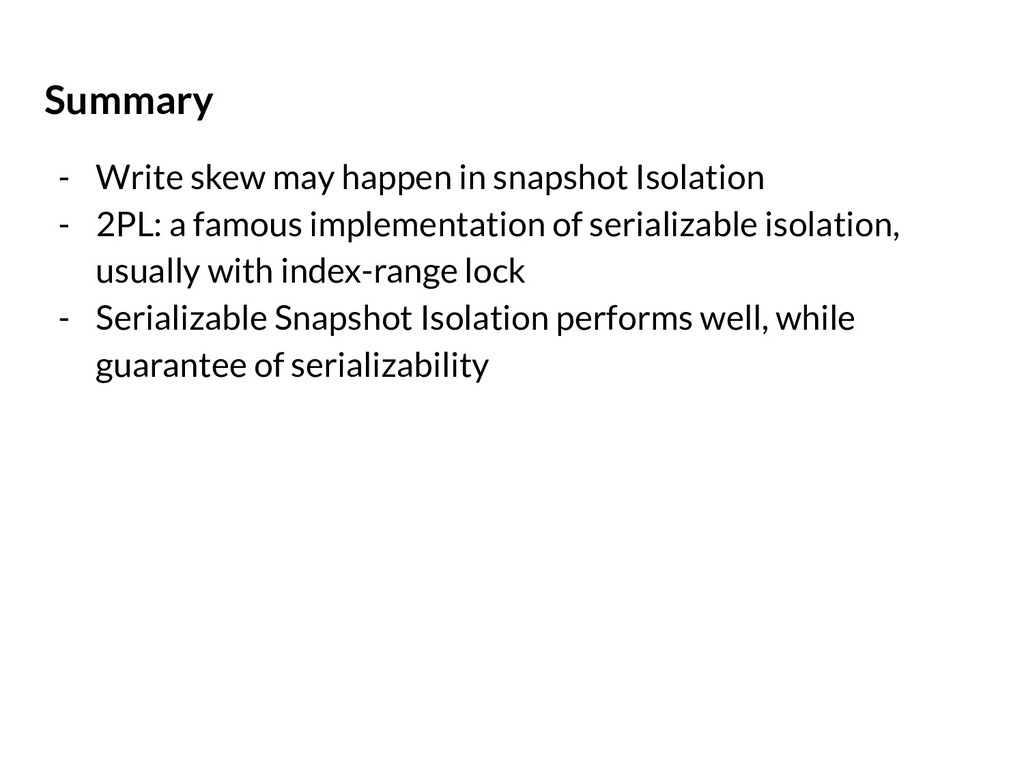

30. Summary - Write skew may happen in snapshot Isolation - 2PL: a famous implementation of serializable isolation, usually with index-range lock - Serializable Snapshot Isolation performs well, while guarantee of serializability
