Android Custom Touch Handling

Want to make the ScrollView not scrollable?
Want to have 2 (or more) views receiving a click at the same time?
Come to this Android Saigon Meetup, where we share about these techiques to help you learn how Android deals with user's gestures.

Transcript

1. Android Touch Handling Tin Tran Siclo-mobile

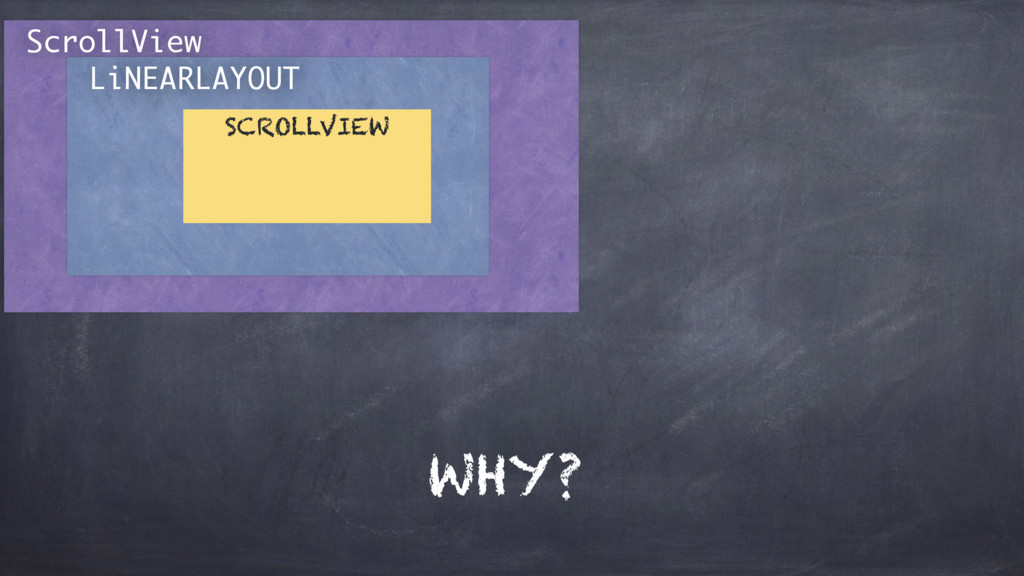

2. WHY? ScrollView LiNEARLAYOUT SCROLLVIEW
3. Built-in Touch FrameWork

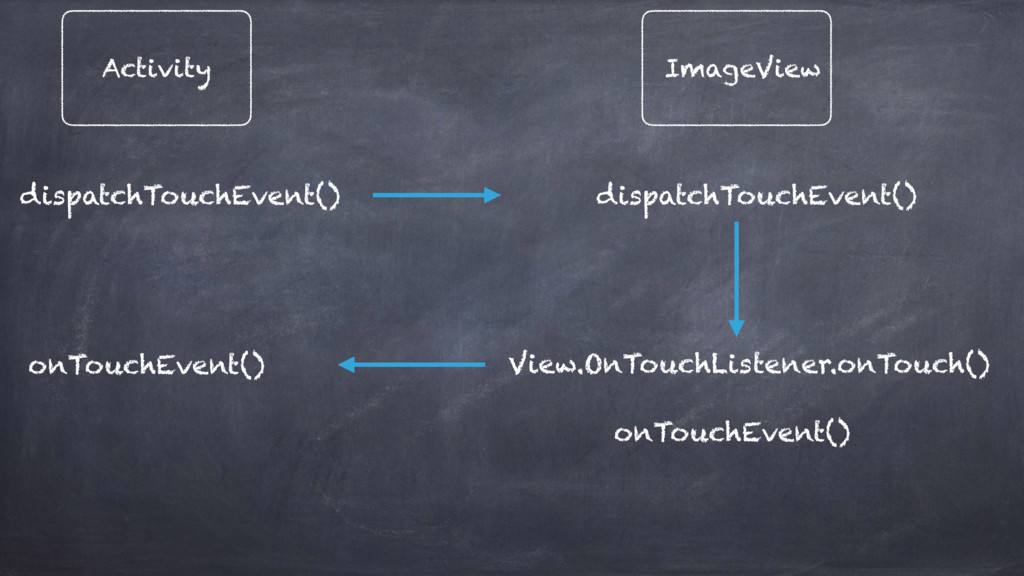

4. Activity ImageView dispatchTouchEvent() dispatchTouchEvent() onTouchEvent() View.OnTouchListener.onTouch() onTouchEvent()
5. Activity delivers touch events to the view root;

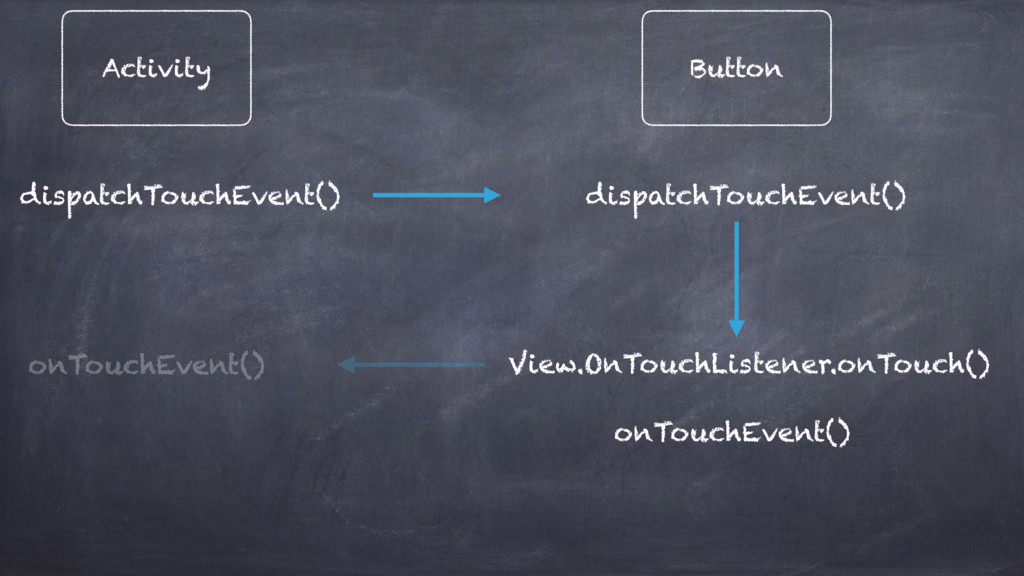

6. Activity Button dispatchTouchEvent() dispatchTouchEvent() onTouchEvent() View.OnTouchListener.onTouch() onTouchEvent()

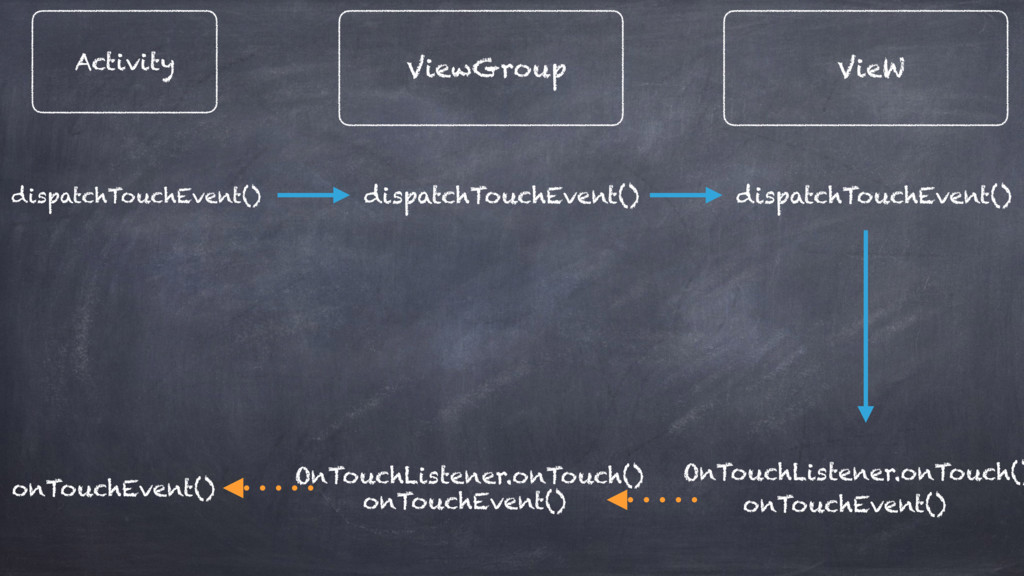

7. Activity ViewGroup dispatchTouchEvent() dispatchTouchEvent() onTouchEvent() VieW dispatchTouchEvent() onTouchEvent() OnTouchListener.onTouch() OnTouchListener.onTouch() onTouchEvent()
8. ViewGroup delivers TouchEvents to child views;

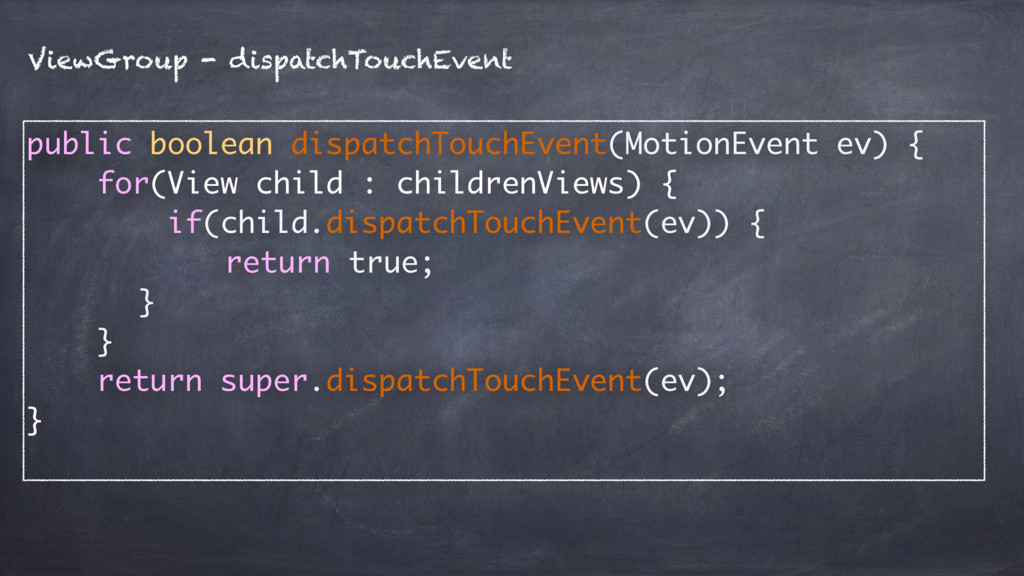

9. public boolean dispatchTouchEvent(MotionEvent ev) { for(View child : childrenViews) { if(child.dispatchTouchEvent(ev)) { return true; } } return super.dispatchTouchEvent(ev); } ViewGroup - dispatchTouchEvent

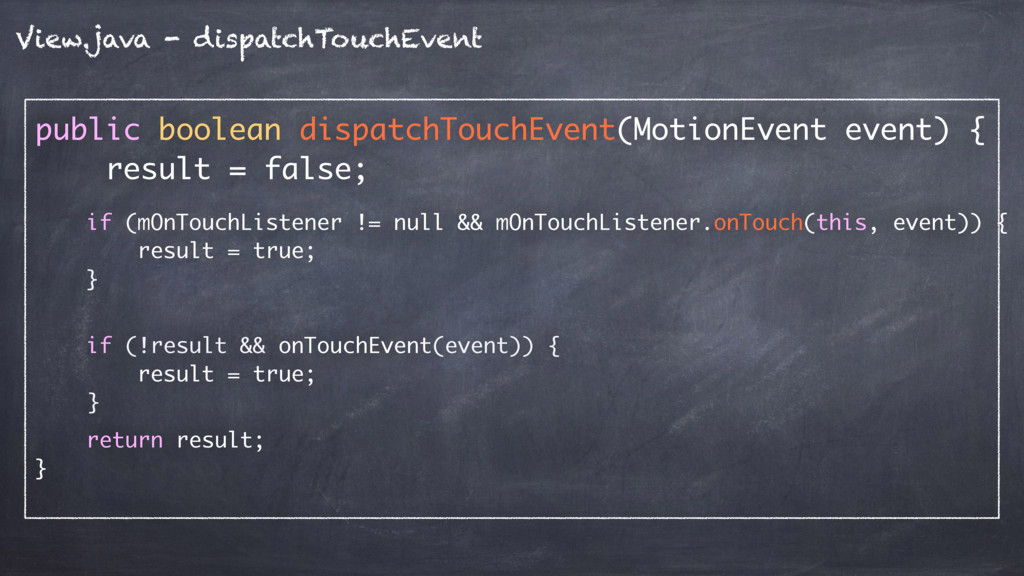

10. View.java - dispatchTouchEvent if (!result && onTouchEvent(event)) { result = true; } if (mOnTouchListener != null && mOnTouchListener.onTouch(this, event)) { result = true; } public boolean dispatchTouchEvent(MotionEvent event) { result = false; return result; }

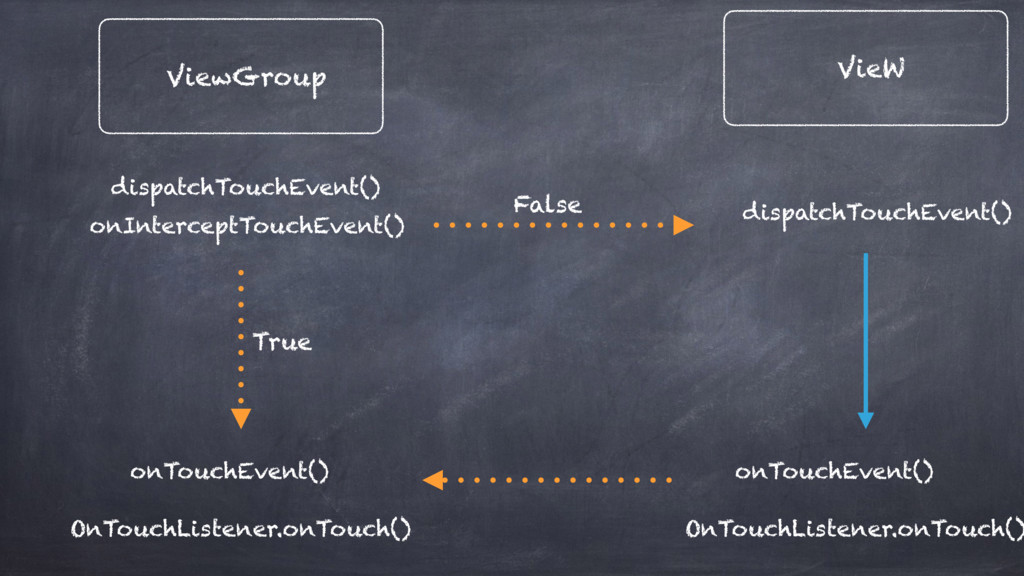

11. ViewGroup dispatchTouchEvent() OnTouchListener.onTouch() VieW onTouchEvent() dispatchTouchEvent() OnTouchListener.onTouch() onTouchEvent() onInterceptTouchEvent() False True

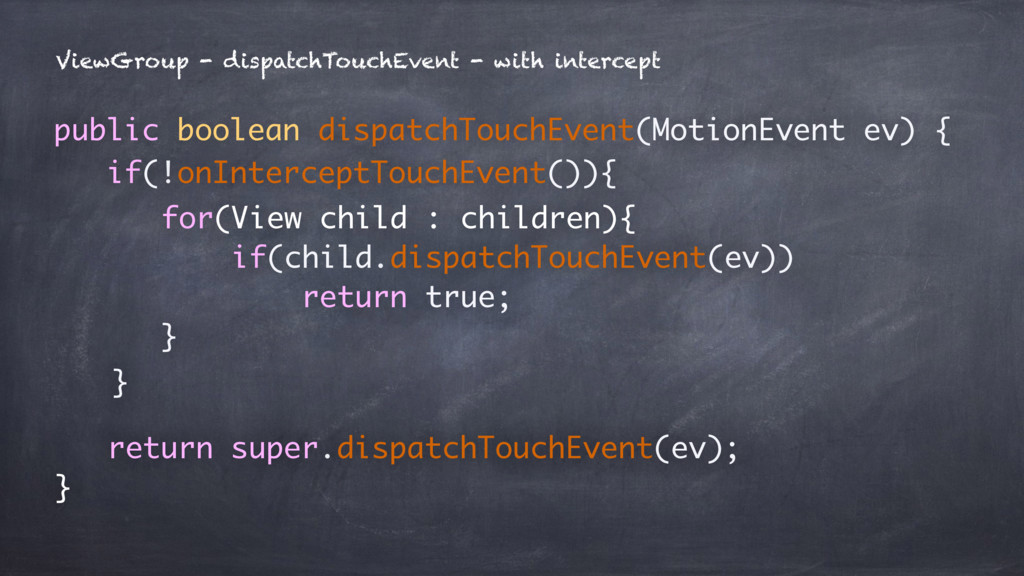

12. return super.dispatchTouchEvent(ev); } ViewGroup - dispatchTouchEvent - with intercept public boolean dispatchTouchEvent(MotionEvent ev) { for(View child : children){
 if(child.dispatchTouchEvent(ev)) return true; } if(!onInterceptTouchEvent()){ }

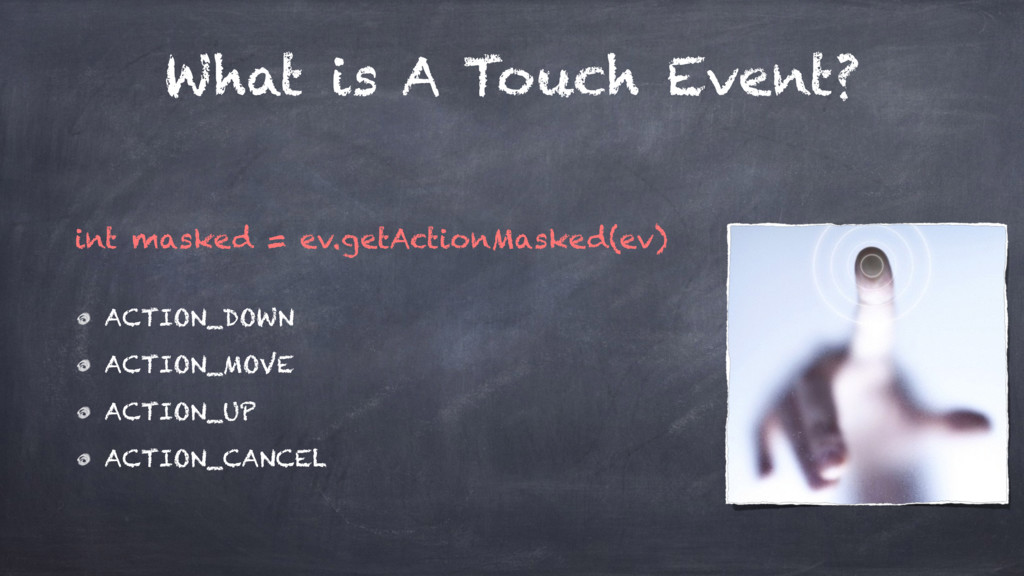

13. What is A Touch Event? ACTION_DOWN ACTION_MOVE ACTION_UP ACTION_CANCEL int masked = ev.getActionMasked(ev)
14. What is A Touch Event? motionEvent.getX() motionEvent.getY() motionEvent.getRawX() motionEvent.getRawY() motionEvent.getHistoricalX() motionEvent.getHistoricalY()

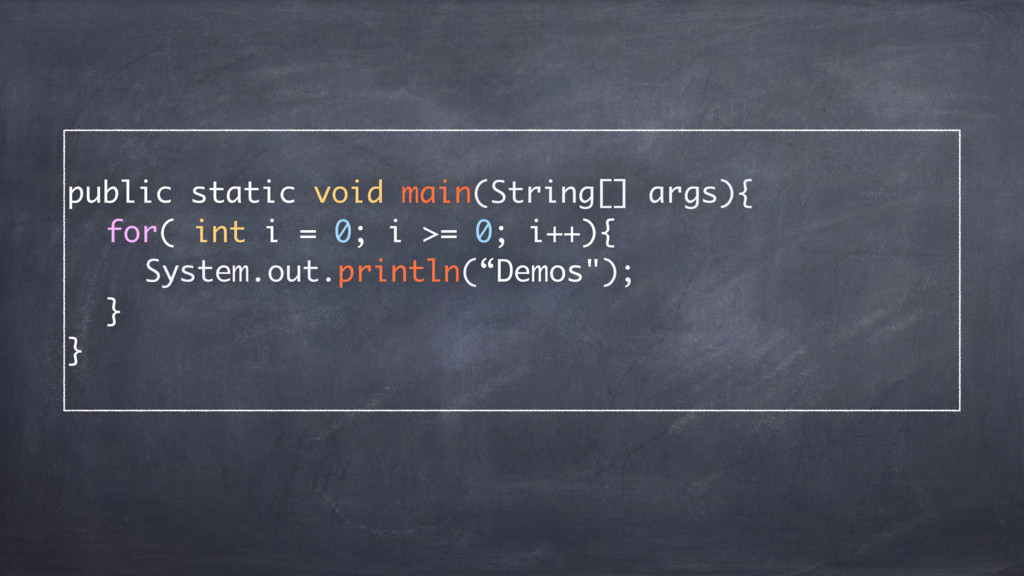

15. public static void main(String[] args){ for( int i = 0; i >= 0; i++){ System.out.println(“Demos"); } }
