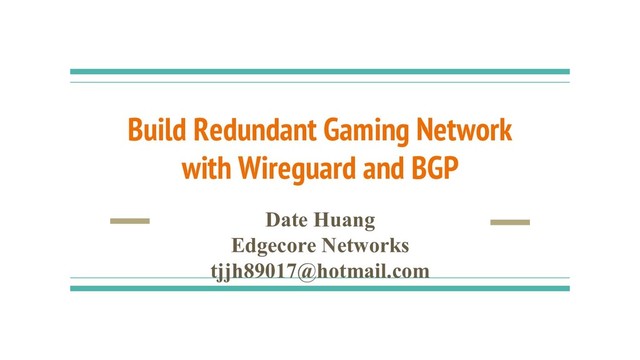

  1. Build Redundant Gaming Network with Wireguard and BGP Date Huang

    Edgecore Networks tjjh89017@hotmail.com
  2. About me: Date Huang • Engineer, Edgecore Networks ◦ 2019

    OpenInfra Day Taiwan Speaker ▪ Massive Bare-Metal Operating System Provisioning Improvement ◦ 2019 Hong Kong Open Source Conference Speaker ▪ De-centralized Bare-Metal Operating System Provisioning ◦ 2018 ISC High Performance Project Poster Demo ▪ The Design and Implementation of Bare Metal Cluster Deployment Using BitTorrent ◦ 2017 Open Source Summit North America co-Speaker ▪ Building Cloud Infra using cost-effective ARM Boards ◦ 2017 OpenStack Day Taiwan Speaker ▪ Combine Continuous Integration (CI) with OpenStack ◦ 2016 OpenStack Day Taiwan Invited Speaker ▪ OpenStack on ARM64
  3. Outline • Facebook Leaf-Spine Fabric • Dynamic Routing Protocol -

    BGP • Wireguard VPN • Multi-player P2P gaming • NAT Firewall with PlayStation4 • Concept: Wireguard + BGP build redundant P2P gaming network
  4. Traditional Network Topology http://ciscorouterswitch.over-blog.com/2018/04/cisco-s-data-center-architecture.html

  5. IP Fabric (Leaf Spine Fabric) https://engineering.fb.com/production-engineering/introducing-data-center-fabric-the-next-generation-facebook-data-center-network/

  6. https://engineering.fb.com/production-engineering/introducing-data-center-fabric-the-next-generation-facebook-data-center-network/

  7. Spanning Tree? • One Route Active, Others Standby

  8. BGP • BGP: Border Gateway Protocol • Dynamic Routing Protocol

    • Usually used in Internet routing path select http://ciscorouterswitch.over-blog.com/article-bgp-protocol-is-essential-in-your-ip-network-115059468.html
  9. https://www.mushroomnetworks.com/blog/bgp-load-balancing-good-idea-unless-att/

  10. Routing on Host (L2-less) • Treat Server as a Router

    Node in BGP Network • Server use BGP to know other routing • Redundancy and merge bandwidth via BGP ECMP • No L2 Broadcast, Multicast • E.g:LINE Japan L2-less Network, Project Calico https://www.slideshare.net/linecorp/ss-116867631
  11. https://cumulusnetworks.com/customers/switch/

  12. Wireguard • GPLv2 Open Source Tunneling Protocol • Based on

    Linux Kernel, Support Windows and macOS • IPv4-in-IPv6 and IPv6-in-IPv4 encapsulation • Usually used in Site-to-Site Tunneling • Better Performance than IPsec, No need hardware acceleration • More Flexibility, Less Configuration, compare with GRE and IPsec • No need setup Firewall to allow additional protocol(e.g. Allow GRE, AH, ESP) • New Tech, No Mature, No Stable https://www.wireguard.com/
  13. None
  14. Multi-player Gaming • Central Server ◦ Connect to central server

    directly ◦ High Success rate ◦ Large Scale Multi-player gaming • P2P Connection ◦ Players connect to each others ◦ Low Success rate, according to players’ network quality ◦ Small Scale Multi-player gaming
  15. Firewall and NAT Type using PlayStation • Type 1: System

    connects to Internet directly • Type 2: System connects to Internet via Router with NAT • Type 3: System connects to Internet via Router with NAT. External system cannot connect to internal system directly. https://portforward.com/nat-types/
  16. Firewall and NAT Type using PlayStation • Type 1: System

    connects to Internet directly • Able to connect to Type 1, 2, 3. • No Limitaion https://portforward.com/nat-types/
  17. Firewall and NAT Type using PlayStation • Type 2: System

    connects to Internet via Router with NAT • Able to connect to Type 1, 2 • Usually need DMZ, UPnP, Port Forwarding or UDP Hole Punching to allow external system to connect to internal https://portforward.com/nat-types/
  18. Firewall and NAT Type using PlayStation • Type 3: System

    connects to Internet via Router with NAT. External system cannot connect to internal system directly. • Only able to connect with Type 1 https://portforward.com/nat-types/
  19. UDP Hole Punching • UDP Hole Punching • Let two

    clients exchange connection info and try to connect to each other via 3rd party server • STUN: Session Traversal Utilities for NAT • STUN is common implement for UDP Hole Punching (RFC 5389) https://bford.info/pub/net/p2pnat/
  20. https://bford.info/pub/net/p2pnat/

  21. UDP Hole Punching FAIL! • If Hole Punching FAIL, need

    use other method to connect each other • Forward two clients info to each other via TURN Server or other nodes in P2P networks • For example: PS4 Party Chat. If it’s not able to connect, 1 of players will forward the network traffic or voice to others https://forum.gamer.com.tw/C.php?bsn=5786&snA=135419
  22. TURN? or not • In design of TURN server, only

    create 1 forwarding connection. If TURN server is offline, forwarding connection will be disable, need to re-create forwarding connection to other TURN server • No Redundancy, No Fast Recovery
  23. Wireguard + BGP • Use Wireguard to connect with each

    others • Let Wireguard connections be Full Mesh Topology via STUN as much as possible • If no Full Mesh, connect to server, server will help to forward connection • BGP will create dynamic routing, and choose the nearest routing • Create Redundancy Gaming Network via BGP https://www.talari.com/glossary_faq/sd-wan-full-mesh/
  24. Tunneling + Dynamic Routing Protocol • Tunneling ◦ GRE ◦

    VxLAN ◦ IPsec ◦ OpenVPN • Dynamic Routing Protocol ◦ RIP ◦ OSPF
  25. Demo • R1, • R2, •

    R3, • R4, • While R2 reboot, R1 still can connect to R4 via R3 R1 R2 R3 R4
