Pacific Roller & Die Internal Sand Blaster and Paint Sprayer
Version 1 Presentation for Pipeline Project in Russia
tomb1955
February 08, 2013
Transcript
32 slides
PRD Internal Orbital Sand Blasting & Painting Proposal Prepared for
Yuri Prokopchik
Sand Blaster operates with Electric motor drive Air operated Drive
motor for Paint Spray Liner to prevent ignition of coating Air operated Controller for Spray Operation Paint Sprayer Controller
Orbital Painter Control Stand
SECTION 1 - PRD SAND BLASTER Testimony indicates about 1400
sq. ft. per hour to achieve SP 5
Optional Dustless Operation using a industrial vacuum pickup and customized
adapter This facilitates recovery of blast media and dramatic dust reduction.
Not exactly as pictured
None
This is the standard third party connector used to hook
up universal sand blasting hoses.
This is the highest wear item and is meant to
sacrifice to protect other parts from wear. Wear Tubes (ROT-B_006) change out about 40 – 100 hours of service @ $140.00/each. One additional wear tube comes with the unit.
http://sandblaster- parts.com/?gclid=COrvwe_bprUCFZCDQg oduxIABA http://www.handsontools.com/Sandblasti ng-Nozzles_c_132.html http://www.forecastsalesinc.com/PartsSe arch.aspx Sand Blaster Directional
head to which sand blasting tips are chosen from others – see links
Previous Sand Blast Controller Design Packaged for shipment New Fully
Sealed Controller for sand blasting cycle
Emergency Switch to be disengage to start Step 1 Step
3 Start Button Step 2 Power On Switch
The speed rate is adjusted using this dial and will
regulated the “SP” level of prep called for by the coatings manufacturer. Forward and reverse switch
None
Electric Motor Driven Sand Blaster Note: Be sure to ask
for a wash down motor and not the one shown in these photos which are not. Sand Blast Hose Connection
None
None
SECTION 2: PRD ORBITAL SPRAY UNIT Compressed air operated to
eliminate explosion issues
None
Air Operated Controller for Paint Sprayer on a stand without
the panel. Main Air Regulator Air Pressure Gauge Forward and reverse lever
Air Regulator Fine Adjustment to the air flow

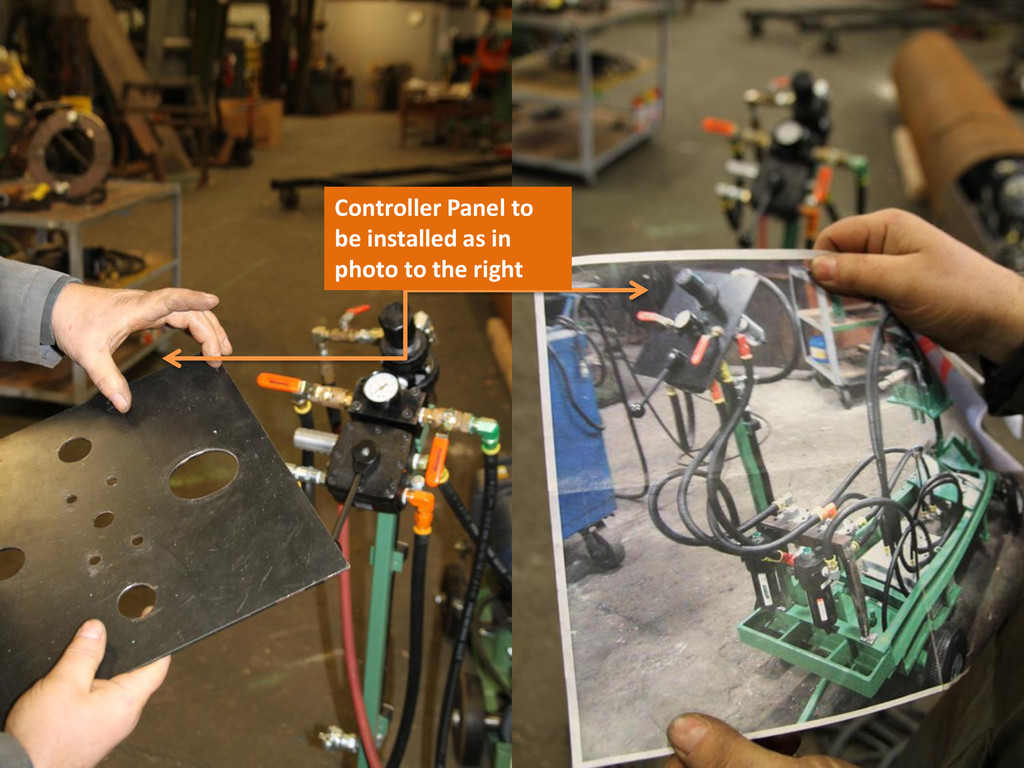

Controller Panel to be installed as in photo to the
right
Speed Adjustment knobs for the travel and orbiting speed of
the unit Orbital Sprayer in the background with the Controller in the foreground
Spin Speed Air Control
Maintenance item of two lubricators requiring monitoring on air operated
paint sprayer
Lubricant Reserves see engineers hand on the reserve lubricant container
Oil reserve on the top of the air operated pump
for the orbital sprayer Belts are maintenance items
None
Custom Filed Modified Spray head with protective cowling to reduce
cleaning of the orbital sprayer
Graco Fitting for connection to the Spray Equipment Fitting to
terminate the PRD orbital sprayer at the delivery point of the coating to which has to be adapted for third party nozzzels.

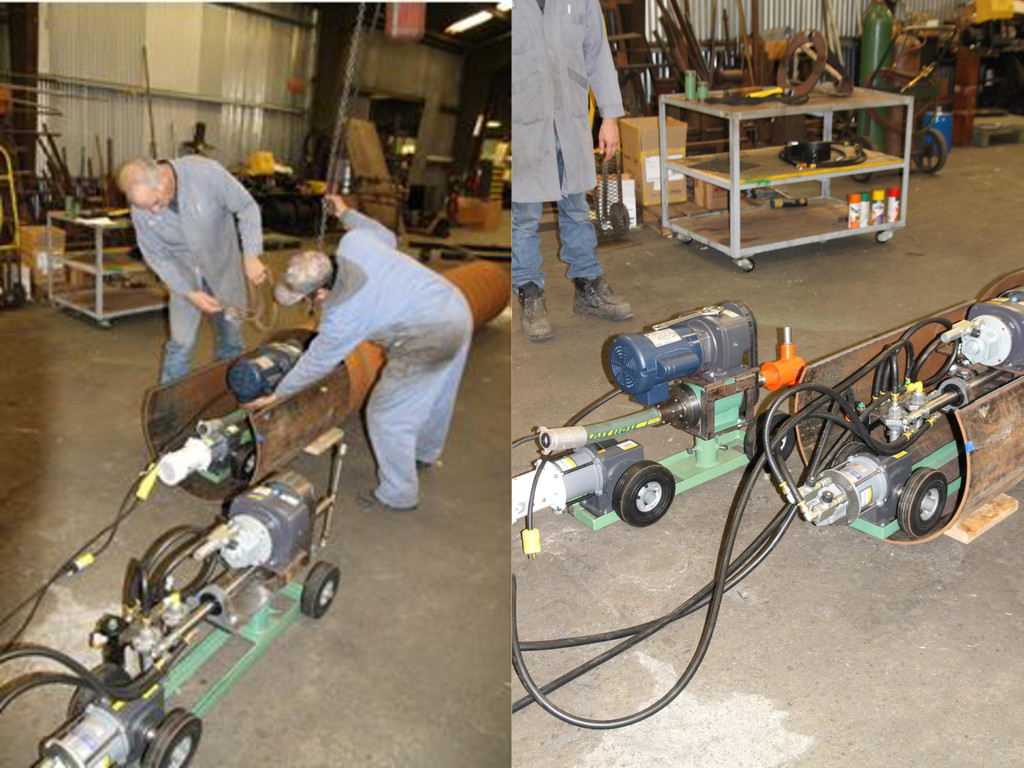

Orbiting Sand Blaster Orbiting Paint Sprayer
Pacific Roller and Die (PRD) one of two shop buildings
and End of Presentation
