DHBins: hexmaps for NZ

The DHBins package lets you show statistics for New Zealand Regional Councils and District Health Boards on a hexagonal map, making comparisons easy by size or colour. For categorical data, you can split each hex into six triangles. This was my first ever set of ggplot geoms!

Transcript

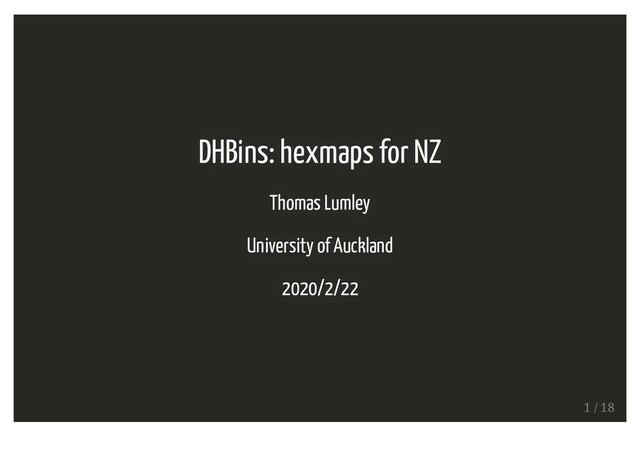

1. DHBins: hexmaps for NZ Thomas Lumley University of Auckland 2020/2/22 1 / 18
2. Maps are hard (One Sheep, One Vote) 2 / 18
3. NZ District Health Boards 3 / 18
4. NZ Regional Council Areas 4 / 18
5. Statebins Originally from Washington Post graphics desk 5 / 18
6. District Health Boards 6 / 18
7. Regional Councils 7 / 18
8. library(DHBins) data(immune) immune$vax_pct<-cut(immune$Pcttotal,c(0,.80,.85,.90,.95,1)) ggplot(immune)+ geom_dhb(aes(fill=vax_pct,map_id=dhb_fixname(DHB)))+ scale_fill_viridis_d(drop=FALSE)+ geom_label_dhb(short=TRUE,colour="white") 8 / 18
9. 9 / 18
10. Regional councils (and triangles) data(region_ethnicity) tri_eth<-tri_alloc(as.matrix(region_ethnicity[,-1]), classes=c("Asian","Euro","Maori","MELAA","Pacific"), names=region_ethnicity$Area) tri_data<-data.frame(Region=rep(rownames(tri_eth),6), ethnicity=as.vector(tri_eth), tri_id=rep(1:6,each=nrow(tri_eth))) ggplot(tri_data)+ geom_regiontri(aes(map_id=Region,class_id=tri_id, fill=ethnicity))+ geom_label_region(colour="Black", short=TRUE,cex=4) 10 / 18
11. 11 / 18
12. No, it isn't a pie chart (what is wrong wrong with you people?) 12 / 18
13. Real ggplot geoms (they will layer and facet) ggplot(immune)+ geom_dhb(aes(map_id=dhb_fixname(DHB)),fill="white", colour="grey",coord=FALSE)+ geom_dhb(aes(fill=vax_pct,map_id=dhb_fixname(DHB), radius=sqrt(Ntotal)),alpha=0.5)+ scale_fill_viridis_d(drop=FALSE) data(immune_long) ggplot(immune_long) + geom_dhb(aes(map_id=dhb_fixname(DHB),fill=pct_vax), alpha=0.5,colour="lightgrey") + scale_fill_viridis_d(drop=FALSE)+ geom_label_dhb(short=TRUE,colour="black",cex=3)+ facet_wrap(~ethnicity) 13 / 18
14. Layer 14 / 18
15. Facet 15 / 18
16. How to write a geom geom_dhb, geom_region based on geom_map also needs coord_fixed, expand_limits, axis themes returns a list of ggplot objects needs new GeomDHBMap based on GeomMap so hex size can depend on data, can't just call geom_map geom_label_dhb, geom_label_region just calls geom_text 16 / 18
17. How to triangle Sainte-Laguë algorithm, as in MMP elections number of triangles is round(6*n/N) where n is count in that class and N is chosen to get exactly 6 hexes allocated 17 / 18
18. Where to get it github/tslumley/DHBins CRAN: DHBins arxiv.org: 1912.04435 https://notstatschat.rbind.io/2019/11/07/hexmaps-for-nz-district-health-boards/ (mostly about the base graphics functions) 18 / 18
