1. DOING AWS ZOO AUDIT Denis Rybin @_ttffdd_
2. WHY? 2
3. Why? • AWS has small coverage in the Russian IS community • The most frequent question is, “I knock the metadata API, but can’t understand anything there.” • False confidence in AWS being vulnerable to nothing but public S3 and SSRF to metadata API. • Curiosity 3
4. What? • 30-45 min. of mish-mash • Level: “introduction and selected aspects” The talk DOES cover: • AWS for 5 minutes or so • AWS for a bughunter • AWS for an auditor • Helpful tips and tricks
5. What? • 30-45 min. of mish-mash • Level: “introduction and selected aspects” The talk DOESN’T cover: • AWS EKS • Google Compute Engine • Microsoft Azure • Anything interesting

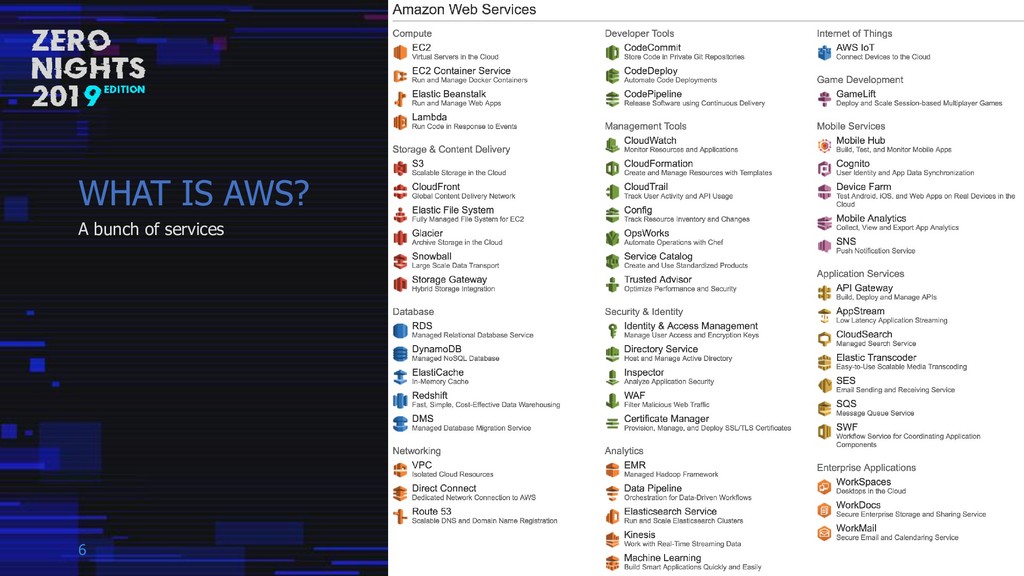

6. WHAT IS AWS? A bunch of services 6
7. Simple and intuitive EC2, you’ve surely heard about it: • A ready virtual server • Equipped with virtual metadata API • May be furnished with a user data script • A part of the AWS ecosystem. • Connected to VPC
8. Two words about VPC VPC is a key AWS network unit: • Subnetworks/IP • Subnetworks and gateways • Security Group AWS VPC
9. Simple and intuitive Metadata API: [ec2-user ~]$ curl http://169.254.169.254/ 1.0 2012-01-12 2014-02-25 2014-11-05 2015-10-20 2016-04-19 2016-06-30 2016-09-02 latest
10. Simple and intuitive User data and metadata sensitive part: • http://169.254.169.254/latest/user- data • http://169.254.169.254/latest/meta- data/iam/security-credentials/[ROLE NAME]
11. Fun fact about metadata API Google Cloud • Header "Metadata-Flavor: Google" Required Azure • Header "Metadata: true" Required AWS • No Header Required
12. Dirty fix https://github.com/stefansundin/ec2-metadata-filter The program blocks any request with a User- Agent that does not start with one of the following prefixes: aws-chalice/ aws-cli/ aws-sdk- Boto3/ Botocore/ Cloud-Init/
13. Dirty fix https://github.com/stefansundin/ec2-metadata-filter In addition to whitelisting User-Agent prefixes, the program also allows requests that send the header Metadata-Flavor: Amazon.
14. Dirty fix https://github.com/stefansundin/ec2-metadata-filter Like GCE, the program blocks requests containing an X-Forwarded-For header.
15. COOOOOL STORY TIME A story by @ninjazeroone about functionshield AWS Lambda
16. COOOOOL STORY TIME
17. COOOOOL STORY TIME Context: There is a python sandbox with code execution. The code in it is executed for data processing, big data, etc. We post python code in a website form → the code is parsed and ran on AWS Lambda. AWS Lambda
18. COOOOOL STORY TIME This is where the library jumps into action. It serves 4 major tasks: 1. To block all tcp connections (udp aren’t blocked) 2. Restrict all child processes 3. Forbids read/write to tmp 4. Forbids reading a handler script that contains the biggest amount of code AWS Lambda
19. COOOOOL STORY TIME AWS Lambda
20. COOOOOL STORY TIME So everything, but read/write to tmp, wasn’t allowed for us. AWS Lambda
21. COOOOOL STORY TIME Было запрещено всё, кроме читать/писать в tmp. AWS Lambda
22. COOOOOL STORY TIME Было запрещено всё, кроме читать/писать в tmp. AWS Lambda
23. COOOOOL STORY TIME AWS Lambda
24. COOOOOL STORY TIME The more the merrier: • The mechanism of blocking tmp on a syscall blacklist • Let’s look for something out of the blacklist AWS Lambda
25. COOOOOL STORY TIME And we managed to find it: • Read and write are forbidden • Rename is NOT AWS Lambda
26. WIN-WIN-WIN BACK TO AWS… 26
27. Simple and intuitive Quite often, user data is a script executed when an instance is ran. For example: #!/bin/bash yum update -y amazon-linux-extras install -y lamp-mariadb10.2-php7.2 php7.2 yum install -y httpd mariadb-server systemctl start httpd systemctl enable httpd usermod -a -G apache ec2-user chown -R ec2-user:apache /var/www chmod 2775 /var/www find /var/www -type d -exec chmod 2775 {} \; find /var/www -type f -exec chmod 0664 {} \; echo "<?php phpinfo(); ?>" > /var/www/html/phpinfo.php
28. Pretty important AWS Security Credentials Access keys consist of two parts: • an access key ID (for example, AKIAIOSFODNN7EXAMPLE) • a secret access key (for example, wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPL EKEY). AWS IAM
29. Pretty important The key to what? There are 2 options to find out: • Ask AWS directly and get screwed • Bruteforce AWS IAM
30. Pretty important The key to what? There are 2 options to find out: • https://github.com/elitest/RedDolphin/blob/ master/checkAWSKey.py • https://github.com/andresriancho/enumerat e-iam AWS IAM

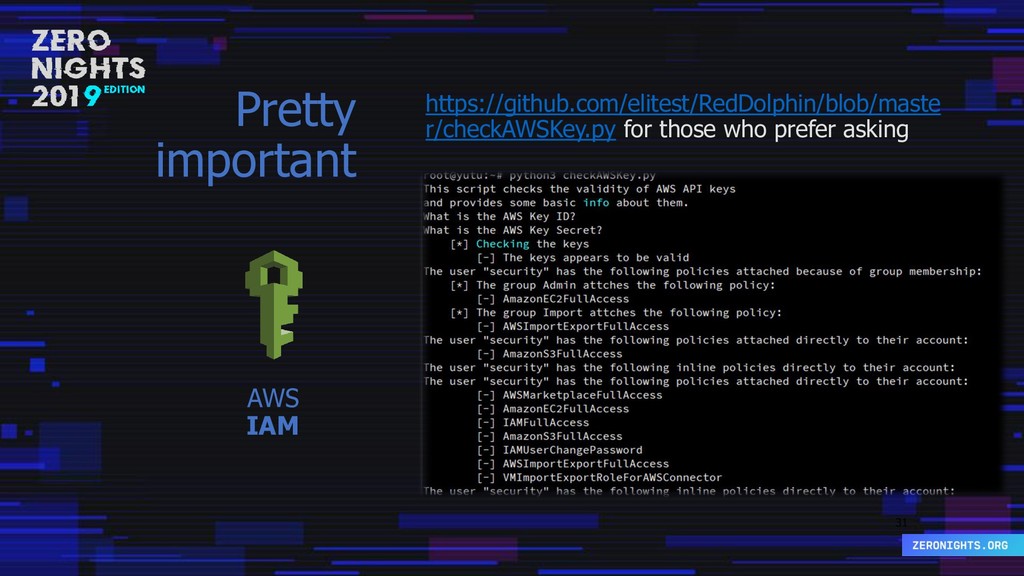

31. Pretty important https://github.com/elitest/RedDolphin/blob/maste r/checkAWSKey.py for those who prefer asking AWS IAM
32. Pretty important https://github.com/andresriancho/enumerate- iam time-consuming AWS IAM
33. Pretty important https://github.com/andresriancho/enumerate- iam time-consuming AWS IAM
34. AWS 101 ARN default format: • arn:partition:service:region:account-id:resource-id • arn:partition:service:region:account-id:resource- type/resource-id • arn:partition:service:region:account-id:resource- type:resource-id Example: • arn:aws:iam::123456789012:user/Development/prod uct_1234/* AWS core
35. AWS 101 Try guessing what the config does? Get the prize! AWS core
36. AWS 101 Try guessing what the config does? Get the prize! AWS core
37. AWS 101 Dungeon and dragons Users and policies AWS core

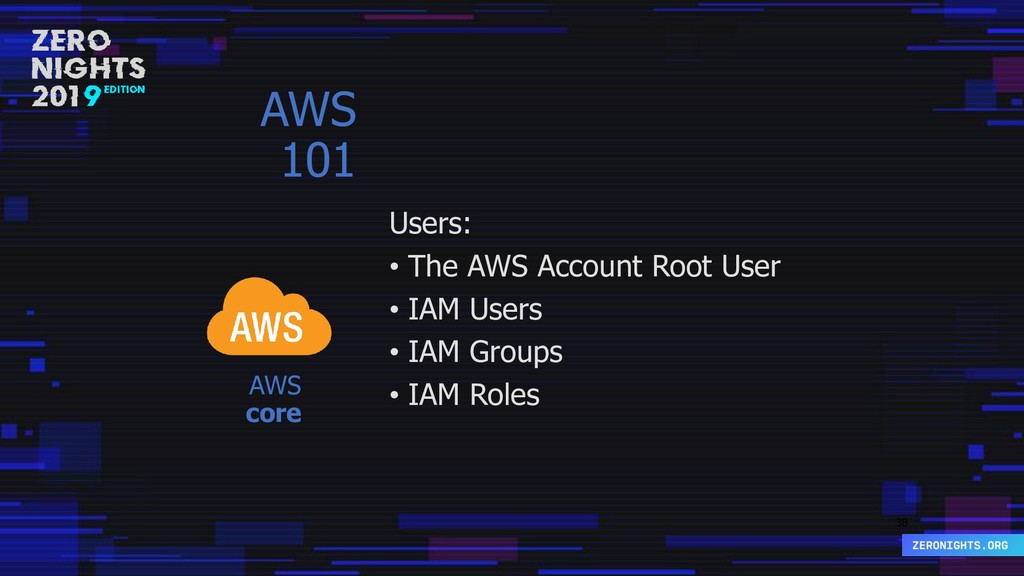

38. AWS 101 Users: • The AWS Account Root User • IAM Users • IAM Groups • IAM Roles AWS core
39. AWS 101 Policies: • Identity-based policies • Managed policies • Inline policies • Resource-based policies AWS core
40. Escalation case Escalation case from CloudGoat Here is a simple case - iam_privesc_by_rollback CloudGoat
41. Route Walkthrough - IAM User "Raynor" 1. Starting as the IAM user "Raynor," the attacker has only a few limited - seemingly harmless - privileges available to them. CloudGoat Escalation case
42. Route Walkthrough - IAM User "Raynor" 2. The attacker analyzes Raynor's privileges and notices the SetDefaultPolicyVersion permission - allowing access to 4 other versions of the policy via setting an old version as the default. CloudGoat Escalation case
43. Route Walkthrough - IAM User "Raynor" 3. After reviewing the old policy versions, the attacker finds that one version in particular offers a full set of admin rights. CloudGoat Escalation case
44. Route Walkthrough - IAM User "Raynor" 4. Attacker restores the full-admin policy version, gaining full admin privileges and the ability to carry out any malicious actions they wish. CloudGoat Escalation case
45. Route Walkthrough - IAM User "Raynor" 5. As a final step, the attacker may choose to revert Raynor's policy version back to the original one, thereby concealing their actions and the true capabilities of the IAM user. CloudGoat Escalation case
46. Route Walkthrough - IAM User "Raynor" 1. Starting as the IAM user "Raynor," the attacker has only a few limited - seemingly harmless - privileges available to them. 2. The attacker analyzes Raynor's privileges and notices the SetDefaultPolicyVersion permission - allowing access to 4 other versions of the policy via setting an old version as the default. 3. After reviewing the old policy versions, the attacker finds that one version in particular offers a full set of admin rights. 4. Attacker restores the full-admin policy version, gaining full admin privileges and the ability to carry out any malicious actions they wish. 5. As a final step, the attacker may choose to revert Raynor's policy version back to the original one, thereby concealing their actions and the true capabilities of the IAM user. CloudGoat Escalation case
47. AWS-CLI Walkthrough - IAM User «Raynor» 1. aws configure --profile raynor 2. aws iam list-attached-user-policies --user-name raynor --profile Raynor 3. aws iam list-policy-versions --policy-arn <generatedARN>/cg-raynor-policy --profile Raynor 4. aws iam get-policy-version --policy-arn <generatedARN>/cg-raynor-policy --version-id <versionID> --profile Raynor 5. aws iam set-default-policy-version --policy-arn <generatedARN>/cg-raynor-policy --version-id <versionID> --profile Raynor CloudGoat AWS-CLI In action
48. Pretty important Escalation will be addressed later But here is a couple of helpful links! • https://github.com/RhinoSecurityLabs/AWS- IAM-Privilege-Escalation - 28 (!!!) techniques • https://github.com/RhinoSecurityLabs/pacu - метасплоит мира AWS AWS IAM
49. Best first step Scout Suite
50. Details Scout Suite
51. MORE Details Scout Suite
52. What you need for audit? Scout Suite Permissions The following AWS Managed Policies can be attached to the principal used to run Scout in order to grant the necessary permissions: • ReadOnlyAccess • SecurityAudit You will also find a custom policy to run Scout with minimal privileges here.
53. AWS Bloodhound Cartography is a Python tool that consolidates infrastructure assets and the relationships between them in an intuitive graph view powered by a Neo4j database. Lyft cartography
54. AWS Bloodhound Lyft cartography
55. OK, LAST PART TWO GREAT CASES 55
56. COGNITO case The service allows for assigning limited rights to users in your AWS account. The purpose of the service: • Obtain identity ID • Pass AWS Credentials The service is used by mobile apps and websites AWS cognito
57. COGNITO case Q: Could obtained rights be unsafe? A: Sure) AWS cognito
58. COGNITO case Original research: internet-scale-analysis-of-aws-cognito- security AWS cognito
59. EBS case AWS EBS Amazon Elastic Block Store (EBS) – is a simple-to-use, highly performant cloud storage service designed to be used in combination with Amazon Elastic Compute Cloud (EC2).

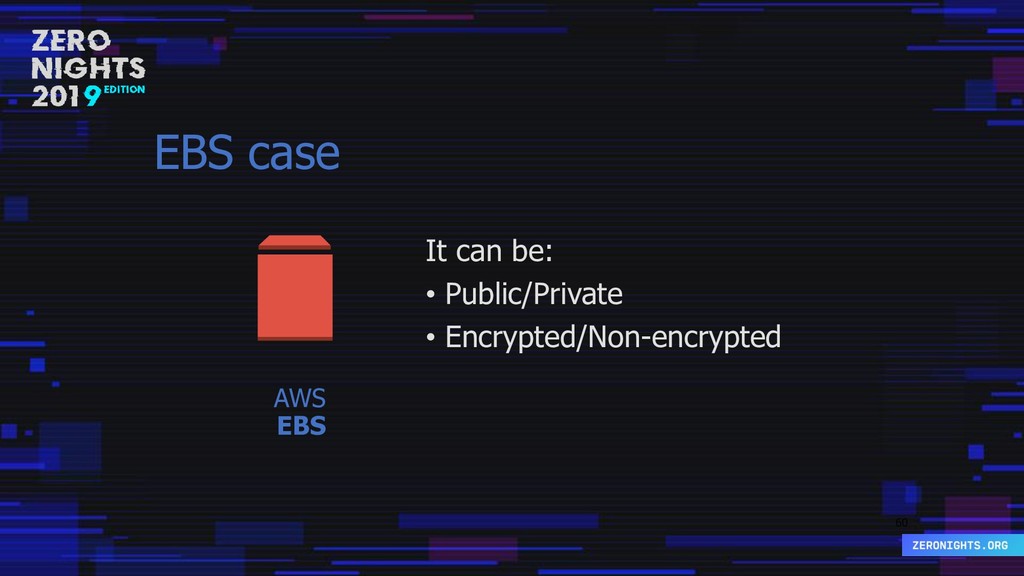

60. EBS case AWS EBS It can be: • Public/Private • Encrypted/Non-encrypted
61. EBS case AWS EBS Q: Can public non-encrypted disks contain secrets? A: Sure they can)
62. EBS case AWS EBS Original research: Finding Secrets In Publicly Exposed EBS Volumes - Ben Morris
63. nehochy( Oh, come on: • http://flaws.cloud/ • https://github.com/EdOverflow/can-i- take-over-xyz • Hundreds of BB cases, thousands of articles on the same top AWS S3

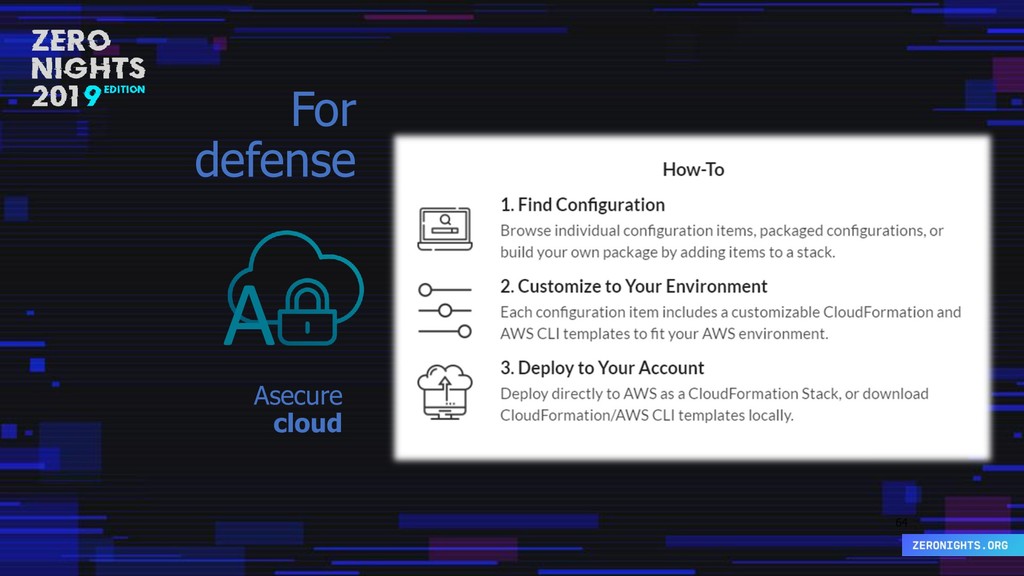

64. For defense Asecure cloud A
65. RESOURCES • AWS EC2 Security Strategy Guide https://asecure.cloud/g/strategy_ec2_security/ • API Keys Now WhatTaking the Pen Test Into the Amazon Cloud Jim Shave https://www.youtube.com/watch?v=vV7xN2JQNOU • Finding Secrets In Publicly Exposed EBS Volumes - Ben Morris https://www.youtube.com/watch?v=-LGR63yCTts • CloudGoat https://github.com/RhinoSecurityLabs/cloudgoat • Blog RhinoSecurity https://rhinosecuritylabs.com/blog/ • Blog Andres Riancho https://andresriancho.com/blog

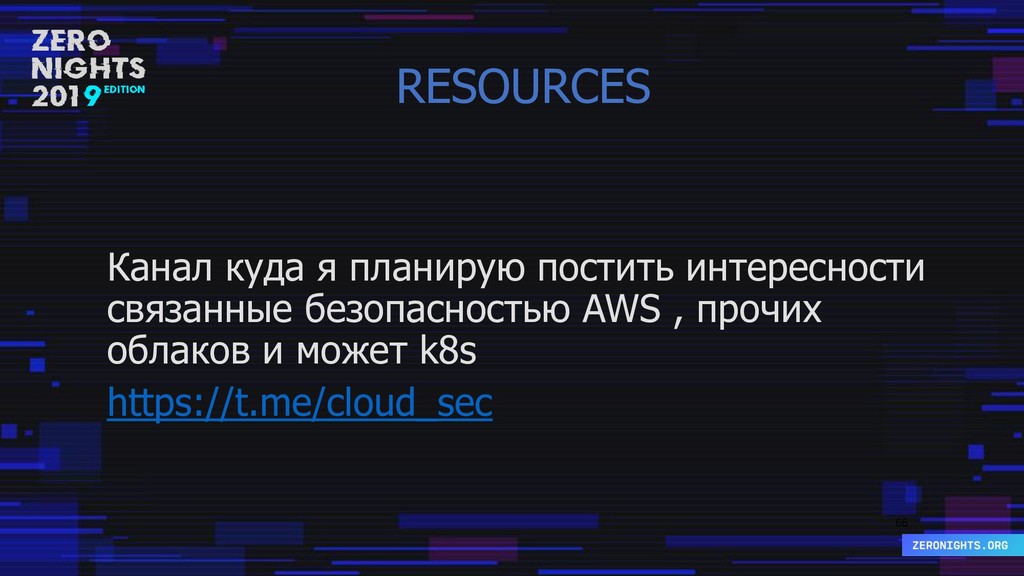

66. RESOURCES Канал куда я планирую постить интересности связанные безопасностью AWS , прочих облаков и может k8s https://t.me/cloud_sec
67. @author THANKS FOR ATTENTION @_TTFFDD_
