Ragabot-Music Encoded

In this talk we will attempt to encode some of the common structures in Hindustani Classical music and make a ragabot: a code/bot that creates music. This is a fun exploration with some interesting experiments without a claim that we can really play god! May be just a little bit :)

Transcript

1. Ragabot Music Encoded Harsh Vinjamoor Vikrant Patil

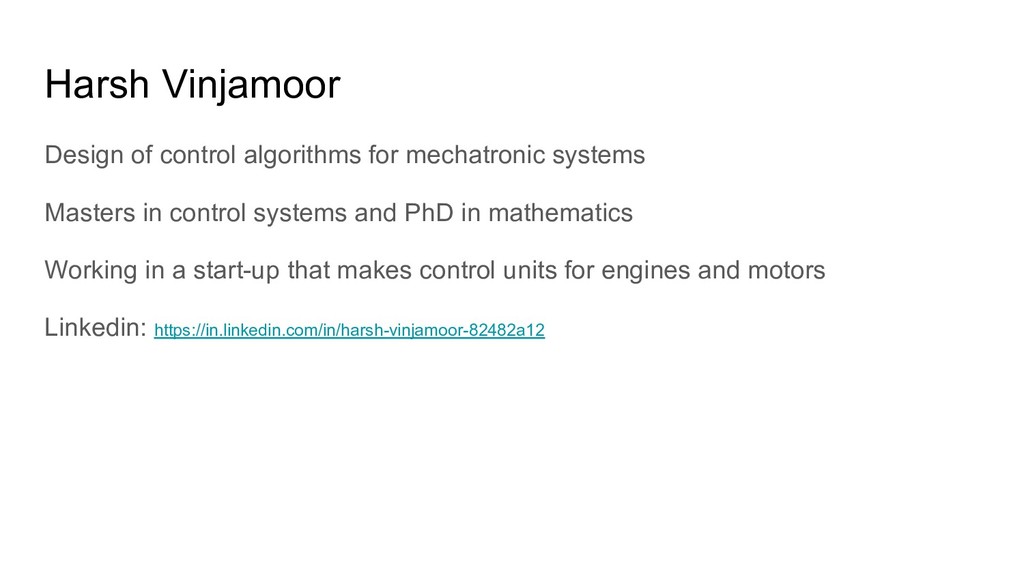

2. Harsh Vinjamoor Design of control algorithms for mechatronic systems Masters in control systems and PhD in mathematics Working in a start-up that makes control units for engines and motors Linkedin: https://in.linkedin.com/in/harsh-vinjamoor-82482a12
3. Vikrant Patil @vikipedia Software Consultant, Trainer. A curious Amature in musical instruments. Advanced Programming Courses At Pipal Academy. Worked at DRDO and Strand Life Sciences.
4. How do humans learn music?
5. Apply Rules or Memorize Audio Patterns?
6. Ma$,Pa$$,Ni,SA,Ni,SA$$$ SA,RE,Ni_$,Dha,Pa$$,Pa,Dha,Ma$,Ga,Re$$$ Re,Re,Ma,Ma,Ga,Re,Ga,Sa$$$ Sa$,Re,Ma,Pa,Ma,Pa$$$
8. Structures in a raga: a brief Sa Re Ga Ma Pa Dha Ni SA SA Dha Pa Ga Re Sa Re Ga$ Ga Re dha$ Sa Missing notes and important notes Trajectories ‘Typical’ sequences
9. Structures in a raga: a simple example Bhoop: relatively straight forward ▪ Aaroha: Sa, Re, Ga, Pa, Dha, SA ▪ Avaroha: SA, Dha, Pa, Ga, Re, Sa ▪ Pakad: Ga, Re, dha, Sa--; Ga, Re, Pa, Ga; dha, dha, Sa Sa Re Ga Ma Pa Dha Ni
10. Structures in a raga: a complicated example Tilak kamod: a very vakra raga! ▪ Aaroha: pa, ni, Sa, Re, Ga, Sa---Re, Ma, Pa, Ni,SA ▪ Avaroha: SA, Pa, Dha, Ma, Ga--Sa, Re, Ga, Sa, ni ▪ Pakad: pa, ni, Sa, Re, Ga, Sa---Re, Pa, Ma, Ga, Sa Sa Re Ga Ma Pa Dha Ni
11. Structures in a raga: encode with Markov chains Sa Ga Pa Re Dha Sa Ga Pa Re Dha Sa Ga Pa Re Dha Sa Ga Pa Re Dha Sa dha dha dha dha Ga Pa Re Dha Sa dha • Missing notes have zero probability • Important notes have higher probability • Trajectories governed by probabilities • Characteristic phrases are more probable Sa Re Ga Pa Dha SA Sa 0.2 0.2 0.1 Re 0.4 0.1 0.3 Ga 0.3 0.4 0.3 Pa 0.1 0.3 0.2 Dha 0.0 0.0 0.1 SA 0.0 0.0 0.0 Transition matrix
12. Learning and playing raga Learning a raga • Feed known compositions as input • Using these compute the transition matrix Playing a raga Predict using last note Play predicted note Initial note
13. Learning : Frequencies of following notes
14. Playing a raga: an aside 0.2 0.3 0.5 Re Pa Ni probability pdf → cdf Stack up these sticks Ga!
15. Playing a raga: implementation
16. Playing a raga: Demo!
17. Does that sound good?
18. Open questions What really makes up a raga? Does the learnt transition matrix capture everything? What are the structures that are hidden? How does one encode rhythm? How does one learn directly from music (and not notation!)? Not bad!
19. Links Ragabot code repository - http://bit.ly/repo-ragabot Slides - http://bit.ly/ragabot
20. Similar Works • Probabilistic Model: https://link.medium.com/hKWxA7dix0 • Genetic Algorithm : An interactive neo-Darwinian algorithm for musical creativity by Dr. Milind Watve
