Boston NodeJS 7: Dependecy Graphing

Boston NodeJS #7 - Dependency Graphing

Slides - There's a live coding segment - check it at:
https://github.com/WakeskaterX/dependency_graphs

Transcript

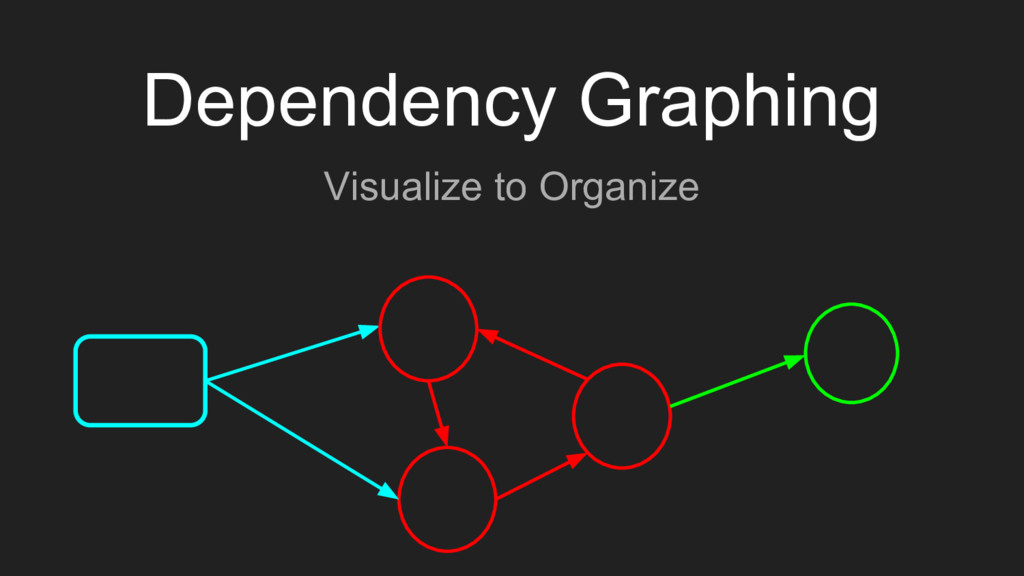

1. Dependency Graphing Visualize to Organize

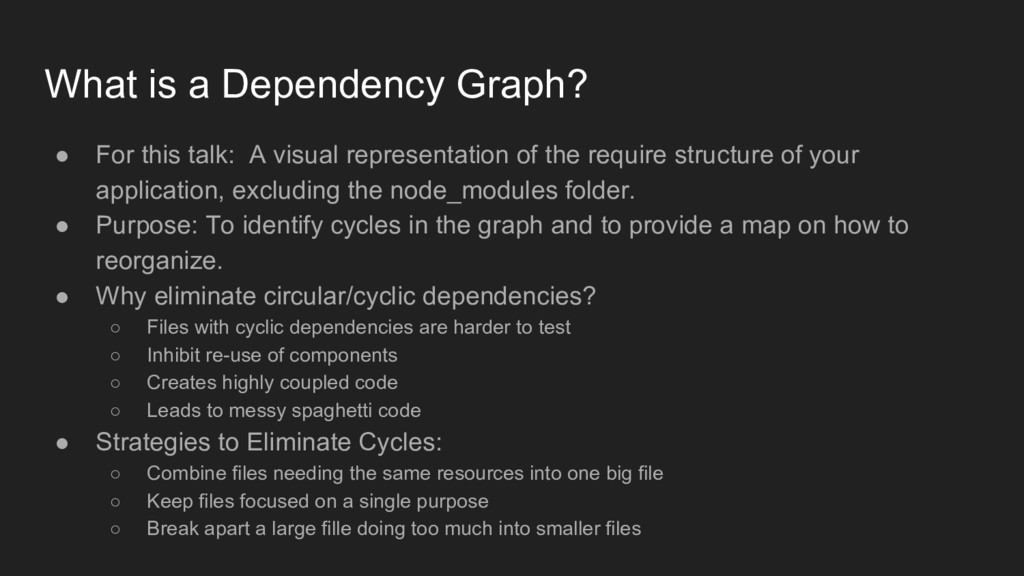

2. What is a Dependency Graph? • For this talk: A visual representation of the require structure of your application, excluding the node_modules folder. • Purpose: To identify cycles in the graph and to provide a map on how to reorganize. • Why eliminate circular/cyclic dependencies? ◦ Files with cyclic dependencies are harder to test ◦ Inhibit re-use of components ◦ Creates highly coupled code ◦ Leads to messy spaghetti code • Strategies to Eliminate Cycles: ◦ Combine files needing the same resources into one big file ◦ Keep files focused on a single purpose ◦ Break apart a large fille doing too much into smaller files

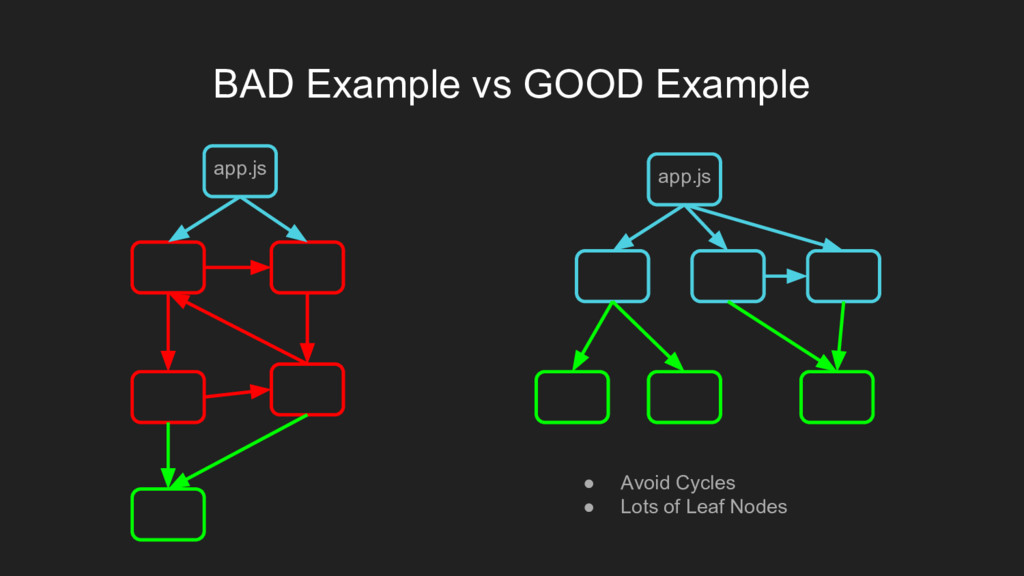

3. BAD Example vs GOOD Example app.js app.js • Avoid Cycles • Lots of Leaf Nodes
4. Introduce: Madge & Graphvis Github: https://github.com/pahen/madge npm i -g madge brew install graphvis madge --image /path/to/img.svg ./app.js Madge and graphvis make it very easy to create visual graphs of your service/application.
5. Coding Time!
6. Q&A https://twitter.com/WakeStudio https://github.com/WakeskaterX/dependency_graphs Jason Carter Software Engineer at SimpliSafe (We are hiring!)
