GraphQL Schema Design @ Scale

GraphQL Schema Design and Tooling @ GitHub

Transcript

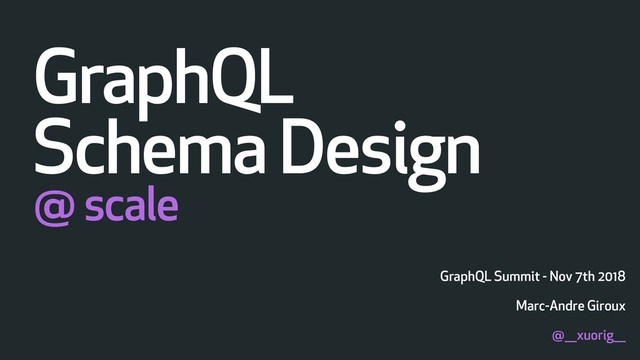

1. Marc-Andre Giroux
   @___xuorig___
   GraphQL Summit - Nov 7th 2018
   GraphQL
   Schema Design
   @ scale


   View Slide

2. about { xuorig }
   • Montreal, Canada ☃
   • My 3rd GraphQL Summit
   • I work at GitHub!
   2


   View Slide

3. View Slide

4. GraphQL @ GitHub
   • 200+ engineers working on GraphQL schema
   • Teams have to move quickly
   • Public and Internal Schema + Enterprise.
   4


   View Slide

5. GraphQL @ GitHub: Challenges
   • Keeping a high quality public API across many teams and use
   cases.
   • Small API team
   • Best practices are still emerging, lots and lots of PR reviews
   to go through, and many new use cases appearing every
   week.
   5


   View Slide

6. Why GraphQL?
   6


   View Slide

7. A type system to
   express possibilities
   7


   View Slide

8. Declarative: Clients select what
   they need and nothing more
   8


   View Slide

9. Why do we design?
   9


   View Slide

10. Why we design
    • Build APIs that are easier to evolve: Best way to mitigate
    breaking changes we don't know about yet
    • Build APIs that are easier to reason about
    10


    View Slide

11. GraphQL Schema Design
    11


    View Slide

12. Misconceptions
    12


    View Slide

13. In a complex application GraphQL is
    rarely an interface to your database
    13


    View Slide

14. Your GraphQL Schema does not need to match your
    existing REST resources
    14


    View Slide

15. It also does not have to be a 1:1
    mapping to your UI
    15


    View Slide

16. The real power of GraphQL
    16


    View Slide

17. GraphQL lets us model an interface to our
    core domain
    17


    View Slide

18. For a lot of us, it is often an opportunity to
    design from scratch (and maybe get it right this time? )
    18


    View Slide

19. To let go of our coupling to our database
    schema, our REST resources or our UI
    19


    View Slide

20. Major to a well designed GraphQL API
    20


    View Slide

21. View Slide

22. • Be an expert at your domain, understand the ins and out
    21


    View Slide

23. • Be an expert at your domain, understand the ins and out
    • Be an expert at GraphQL specific design
    21


    View Slide

24. But there's one problem...
    22


    View Slide

25. View Slide

26. Rarely the same people!
    24


    View Slide

27. API First
    25


    View Slide

28. Built by the product team
    26


    View Slide

29. Helped by the API team! ❤
    27


    View Slide

30. Design Tips
    28


    View Slide

31. Design Tips
    29


    View Slide

32. Guiding Principles
    30


    View Slide

33. Guiding Principles
    31
    (and some cool tools)


    View Slide

34. Design for behaviors or use cases over data
    32


    View Slide

35. Anemic GraphQL ™
    33


    View Slide

36. View Slide

37. View Slide

38. View Slide

39. View Slide

40. View Slide

41. View Slide

42. View Slide

43. Atomicity vs Granularity
    41


    View Slide

44. View Slide

45. Let's go back a few years...
    43


    View Slide

46. Problem: Multiple clients with very different needs
    44


    View Slide

47. 45
    Backend For Frontend Pattern
    http://philcalcado.com/2015/09/18/the_back_end_for_front_end_pattern_bff.html


    View Slide

48. 46
    Netflix: Client Optimized API Adapters
    https://medium.com/netflix-techblog/embracing-the-differences-inside-the-netflix-api-redesign


    View Slide

49. View Slide

50. In a way... GraphQL is our BFF / Client Adapter
    48


    View Slide

51. Declarative & Client Centric
    49


    View Slide

52. Select *
    50


    View Slide

53. Select *
    51


    View Slide

54. type User {
    billingInfo: BillingInfo!
    email: String!
    login: String!
    fullName: String!
    recentIssues: [Issue!]!
    repositories: [Repository!]!
    reviewRequests: [ReviewRequest!]!
    isOwner(repositoryID: ID!): Boolean!
    starredRepositories: [Repository!]!
    }
    52


    View Slide

55. type User {
    billingInfo: BillingInfo!
    email: String!
    login: String!
    fullName: String!
    recentIssues: [Issue!]!
    repositories: [Repository!]!
    reviewRequests: [ReviewRequest!]!
    isOwner(repositoryID: ID!): Boolean!
    starredRepositories: [Repository!]!
    }
    53


    View Slide

56. type User {
    billingInfo: BillingInfo!
    email: String!
    login: String!
    fullName: String!
    recentIssues: [Issue!]!
    repositories: [Repository!]!
    reviewRequests: [ReviewRequest!]!
    isOwner(repositoryID: ID!): Boolean!
    starredRepositories: [Repository!]!
    }
    54


    View Slide

57. type User {
    billingInfo: BillingInfo!
    email: String!
    login: String!
    fullName: String!
    recentIssues: [Issue!]!
    repositories: [Repository!]!
    reviewRequests: [ReviewRequest!]!
    isOwner(repositoryID: ID!): Boolean!
    starredRepositories: [Repository!]!
    }
    55


    View Slide

58. type User {
    billingInfo: BillingInfo!
    email: String!
    login: String!
    fullName: String!
    recentIssues: [Issue!]!
    repositories: [Repository!]!
    reviewRequests: [ReviewRequest!]!
    isOwner(repositoryID: ID!): Boolean!
    starredRepositories: [Repository!]!
    }
    56


    View Slide

59. type User {
    billingInfo: BillingInfo!
    email: String!
    login: String!
    fullName: String!
    recentIssues: [Issue!]!
    repositories: [Repository!]!
    reviewRequests: [ReviewRequest!]!
    isOwner(repositoryID: ID!): Boolean!
    starredRepositories: [Repository!]!
    }
    57


    View Slide

60. type User {
    billingInfo: BillingInfo!
    email: String!
    login: String!
    fullName: String!
    recentIssues: [Issue!]!
    repositories: [Repository!]!
    reviewRequests: [ReviewRequest!]!
    isOwner(repositoryID: ID!): Boolean!
    starredRepositories: [Repository!]!
    }
    58


    View Slide

61. type User {
    billingInfo: BillingInfo!
    email: String!
    login: String!
    fullName: String!
    recentIssues: [Issue!]!
    repositories: [Repository!]!
    reviewRequests: [ReviewRequest!]!
    isOwner(repositoryID: ID!): Boolean!
    starredRepositories: [Repository!]!
    }
    59


    View Slide

62. type User {
    billingInfo: BillingInfo!
    email: String!
    login: String!
    fullName: String!
    recentIssues: [Issue!]!
    repositories: [Repository!]!
    reviewRequests: [ReviewRequest!]!
    isOwner(repositoryID: ID!): Boolean!
    starredRepositories: [Repository!]!
    }
    60


    View Slide

63. type User {
    billingInfo: BillingInfo!
    email: String!
    login: String!
    fullName: String!
    recentIssues: [Issue!]!
    repositories: [Repository!]!
    reviewRequests: [ReviewRequest!]!
    isOwner(repositoryID: ID!): Boolean!
    starredRepositories: [Repository!]!
    }
    61


    View Slide

64. type User {
    billingInfo: BillingInfo!
    email: String!
    login: String!
    fullName: String!
    recentIssues: [Issue!]!
    repositories: [Repository!]!
    reviewRequests: [ReviewRequest!]!
    isOwner(repositoryID: ID!): Boolean!
    starredRepositories: [Repository!]!
    }
    62


    View Slide

65. type User {
    billingInfo: BillingInfo!
    email: String!
    login: String!
    fullName: String!
    recentIssues: [Issue!]!
    repositories: [Repository!]!
    reviewRequests: [ReviewRequest!]!
    isOwner(repositoryID: ID!): Boolean!
    starredRepositories: [Repository!]!
    }
    63


    View Slide

66. type User {
    billingInfo: BillingInfo!
    email: String!
    login: String!
    fullName: String!
    recentIssues: [Issue!]!
    repositories: [Repository!]!
    reviewRequests: [ReviewRequest!]!
    isOwner(repositoryID: ID!): Boolean!
    starredRepositories: [Repository!]!
    }
    64


    View Slide

67. We shouldn't be afraid of adding use cases or client
    specific fields if it fits a domain use case
    65


    View Slide

68. Stay away from trying to build a "One Size Fits All" API
    66


    View Slide

69. and embrace the different use cases and clients
    67


    View Slide

70. Prefer highly optimized fields over generic/smart fields
    68


    View Slide

71. View Slide

72. View Slide

73. Design @ Scale: GitHub's Tooling
    71


    View Slide

74. 72
    Checked-in SDL


    View Slide

75. 73
    Checked-in SDL


    View Slide

76. View Slide

77. View Slide

78. View Slide

79. View Slide

80. 78
    )
    GraphQL Doctor


    View Slide

81. View Slide

82. View Slide

83. View Slide

84. Sometimes we make mistakes
    82


    View Slide

85. View Slide

86. View Slide

87. View Slide

88. View Slide

89. View Slide

90. View Slide

91. 89
    Fake it 'till you make it!


    View Slide

92. View Slide

93. Making the change
    91


    View Slide

94. Who is using the field?
    92


    View Slide

95. How much is it being used?
    93


    View Slide

96. No Select *: We know exactly how our schema is used!
    94


    View Slide

97. 95
    query {
    viewer {
    login
    email
    }
    }


    View Slide

98. 95
    query {
    viewer {
    login
    email
    }
    }
    GitHub API


    View Slide

99. 96
    query {
    viewer {
    login
    email
    }
    }
    GitHub API


    View Slide

100. 96
     query {
     viewer {
     login
     email
     }
     }
     GitHub API
     GraphQL Query
     Analytics


     View Slide

101. 97
     query {
     viewer {
     login
     email
     }
     }
     GraphQL Query
     Analytics
     Type: Query
     Field: viewer
     App: xxx
     Type: User
     Field: login
     App: xxx
     ...


     View Slide

102. 98
     Type: Query
     Field: viewer
     App: xxx
     Type: User
     Field: login
     App: xxx
     ...


     View Slide

103. 99
     Type: Query
     Field: viewer
     App: xxx
     Type: User
     Field: login
     App: xxx
     ...


     View Slide

104. View Slide

105. View Slide

106. GraphQL Schema Design @ Scale
     102


     View Slide

107. Talk to, (or become) domain experts
     103


     View Slide

108. Think Domain over Data
     104


     View Slide

109. Sometimes it's not about "One Size Fits All"
     105


     View Slide

110. Use the schema to build (or use) great tools!
     106


     View Slide

111. Marc-Andre Giroux
     @___xuorig___
     GraphQL Summit - Nov 7th 2018
     Thank You!
