1. From PHP and REST To gRPC and Go Winnipeg, January 29 2020 Yuriy Tuz Bold Commerce @yuriytuz
2. #GoTurns10
3. whoami
4. Agenda • Personal experience • Past life • Microservices intro • Why gRPC • gRPC in GO ◦ Simple implementation

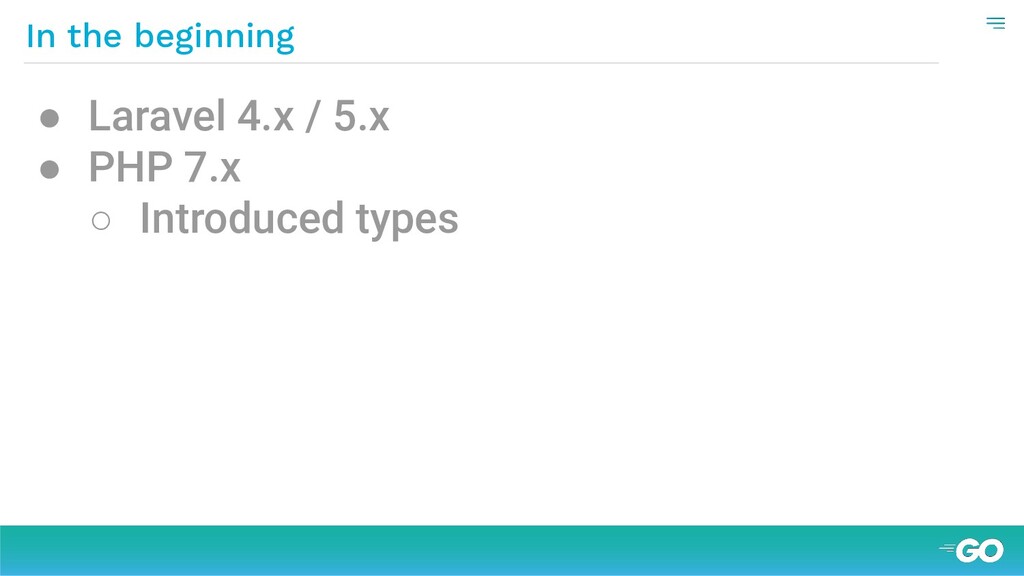

5. In the beginning • Laravel 4.x / 5.x • PHP 7.x ◦ Introduced types

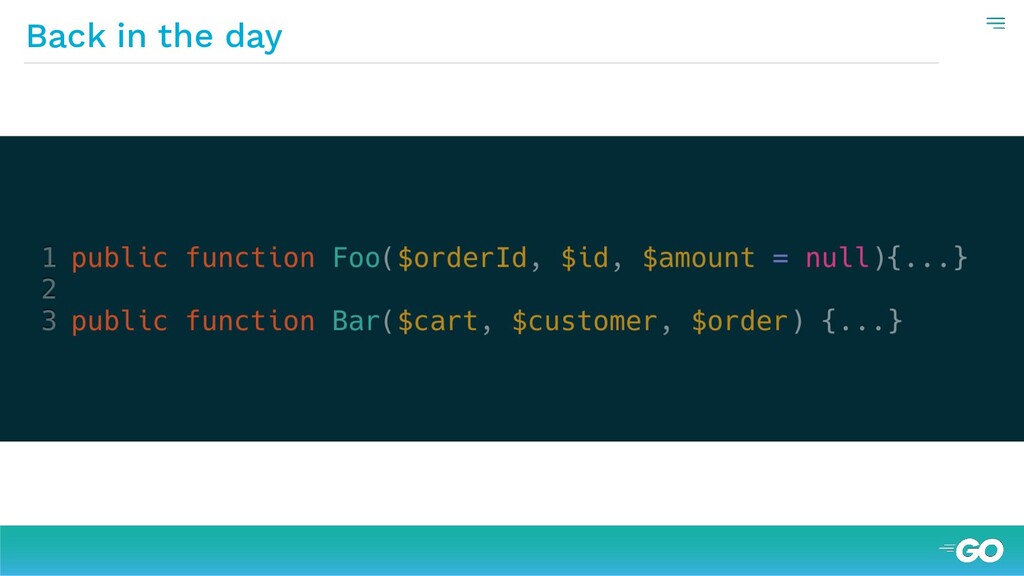

6. Back in the day

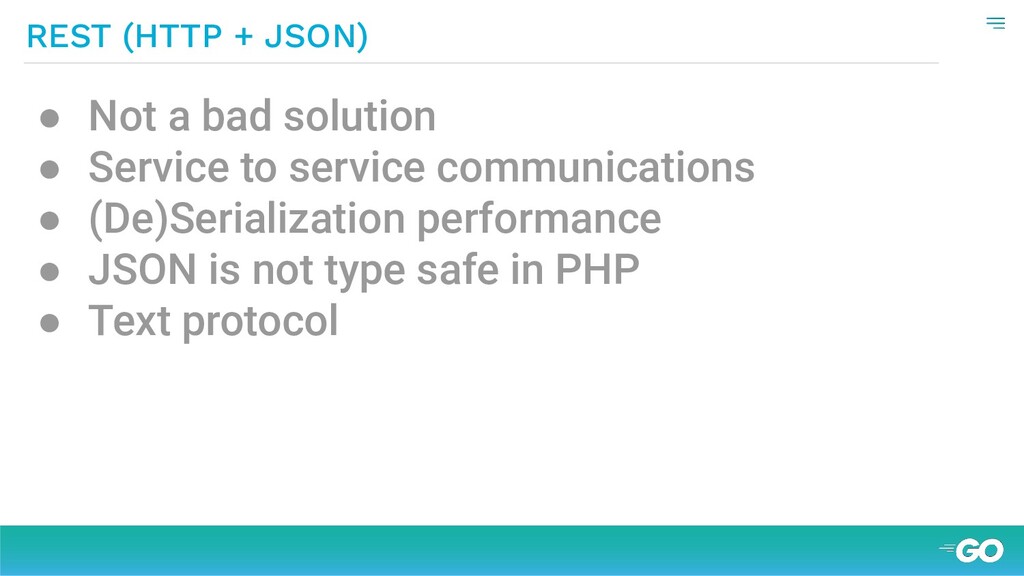

7. REST (HTTP + JSON) • Not a bad solution • Service to service communications • (De)Serialization performance • JSON is not type safe in PHP • Text protocol
8. Thank you Questions?
9. REST in Laravel • api.php • Magic • response()->json([“customers”=>$c, ...]) • Docs accuracy
10. Problem • Technology is driving demand • Languages and platforms ◦ Different dev experience • Software architecture is evolving ◦ Microservices and containers ◦ CI/CD
11. An Idea

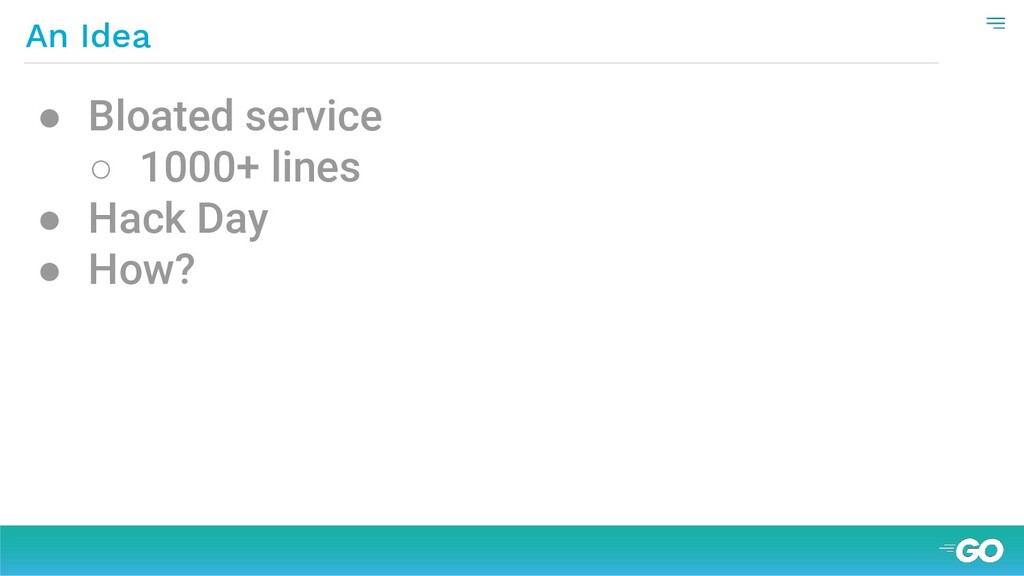

12. An Idea • Bloated service ◦ 1000+ lines • Hack Day • How?
13. No Idea
14. How/why? • Why split? • Why Go? • OG mayhem to the rescue • Why not REST (HTTP+JSON)? ◦ No formal contract ◦ Hard to implement correctly
15. Possible Solution

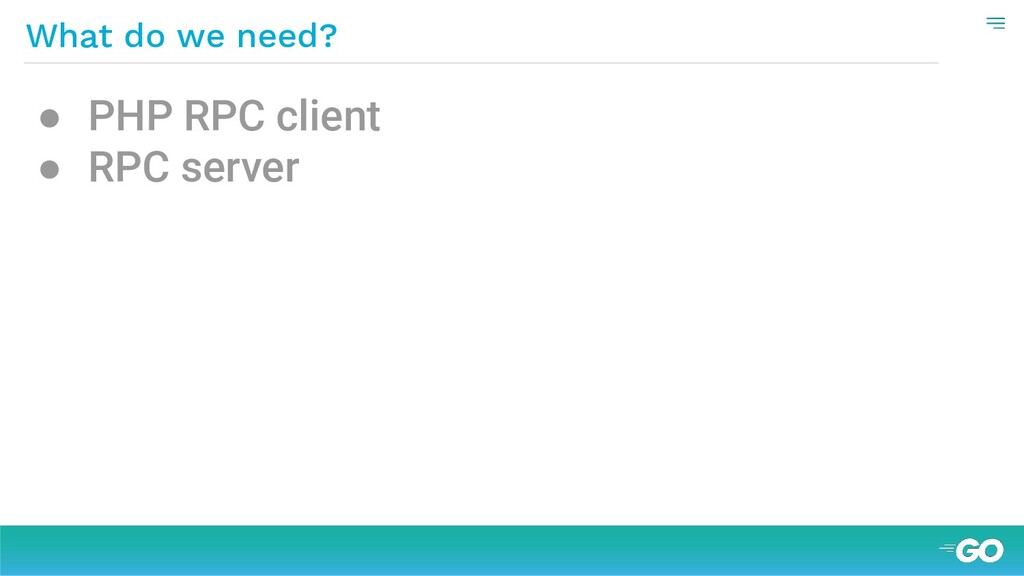

16. What do we need? • PHP RPC client • RPC server
17. Implementation/Findings • PHP client not fun ◦ Working POC • First experience with Go • Refactoring • Benchmarks ◦ ~100x faster
18. time.Now()

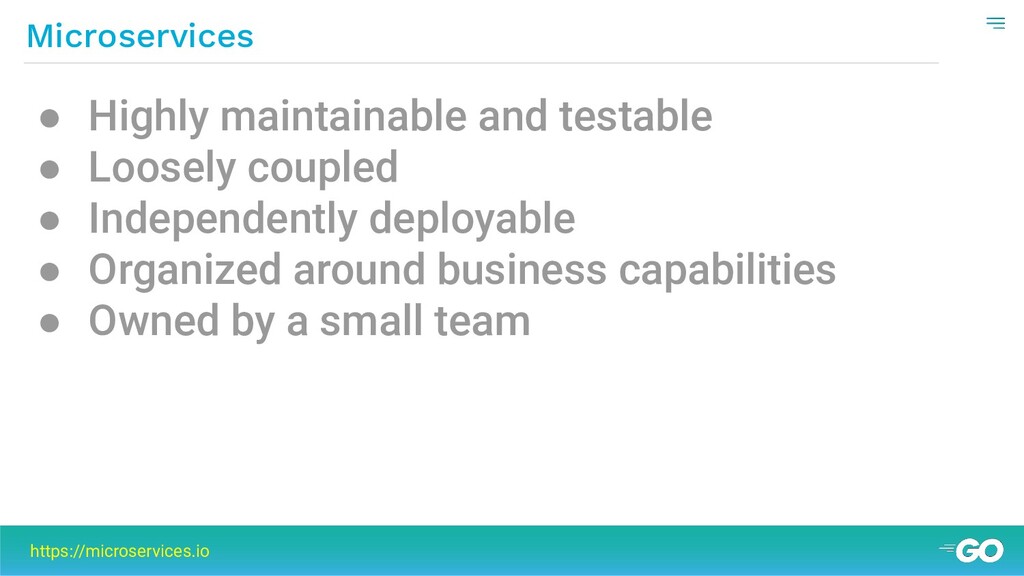

19. Microservices https://microservices.io • Highly maintainable and testable • Loosely coupled • Independently deployable • Organized around business capabilities • Owned by a small team
20. Organizations which design systems … are constrained to produce designs which are copies of the communication structures of these organizations” Conway, Melvin E. (1968)

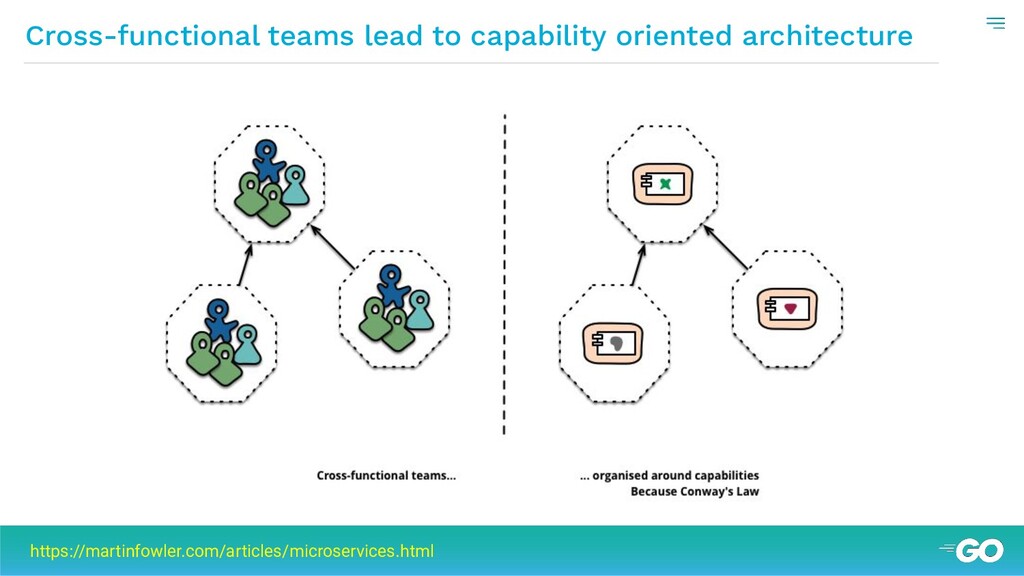

21. https://martinfowler.com/articles/microservices.html Cross-functional teams lead to capability oriented architecture
22. until code is in production, no value is actually being generated
23. Mayhem (simplified)
24. Stack • Protocol buffers + gRPC ◦ Thanks Google • Tim Burks ◦ API’s at Google ◦ “Stop writing interface code for your APIs by hand”
25. Protocol buffers are a language-neutral, platform-neutral extensible mechanism for serializing structured data. Protocol Buffers

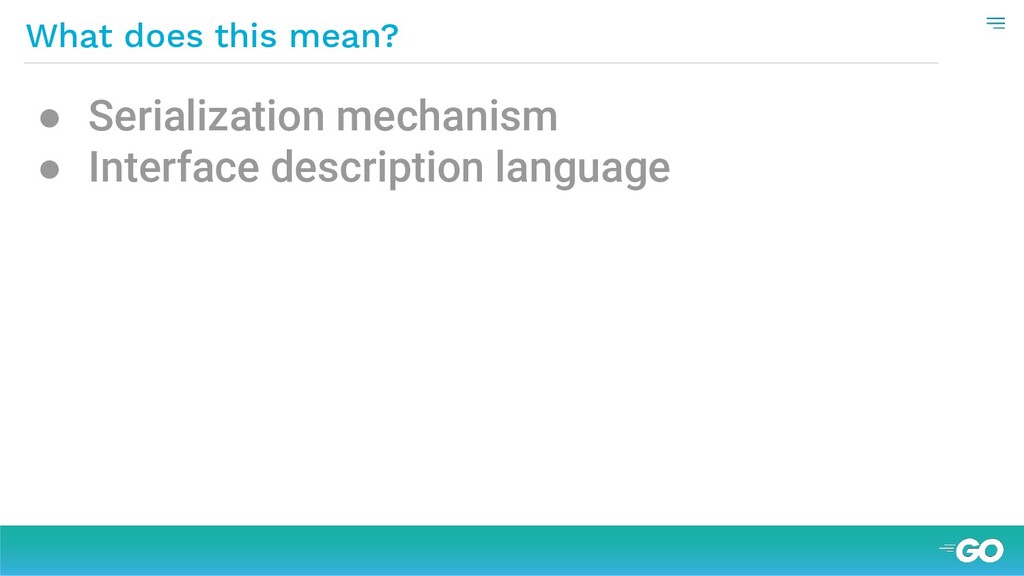

26. What does this mean? • Serialization mechanism • Interface description language

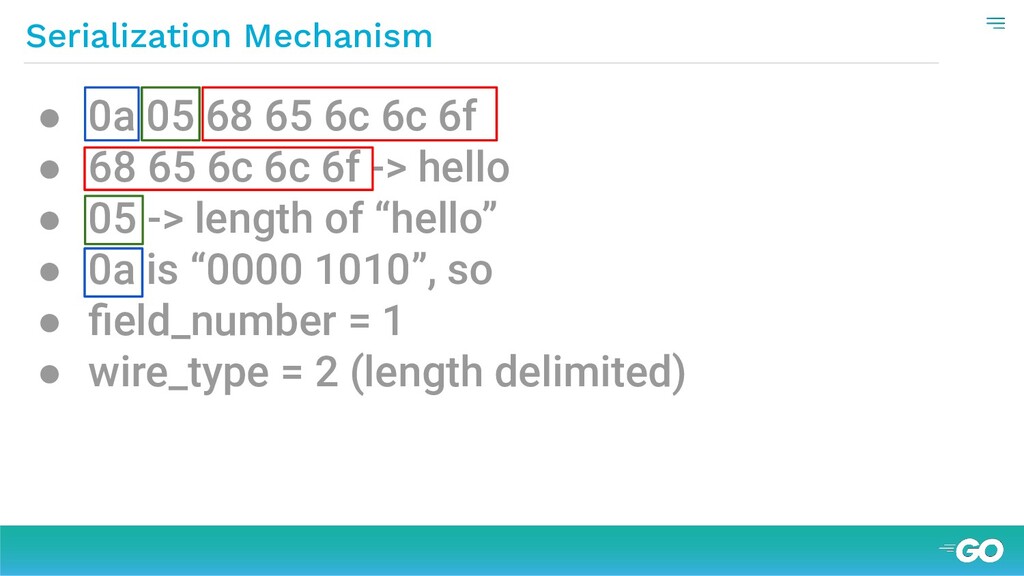

27. Serialization Mechanism • 0a 05 68 65 6c 6c 6f • 68 65 6c 6c 6f -> hello • 05 -> length of “hello” • 0a is “0000 1010”, so • field_number = 1 • wire_type = 2 (length delimited)

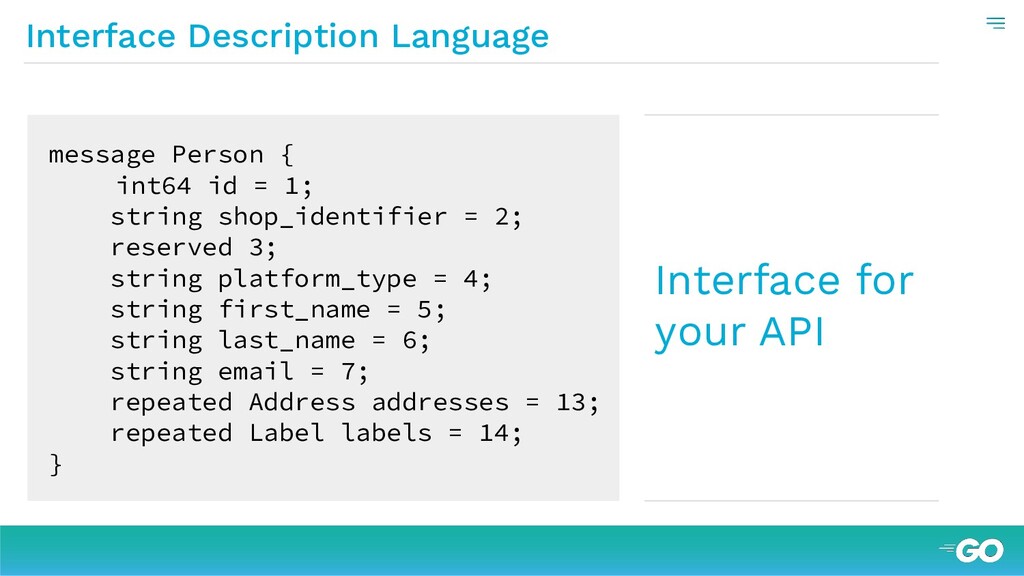

28. Interface Description Language message Person { int64 id = 1; string shop_identifier = 2; reserved 3; string platform_type = 4; string first_name = 5; string last_name = 6; string email = 7; repeated Address addresses = 13; repeated Label labels = 14; } Interface for your API

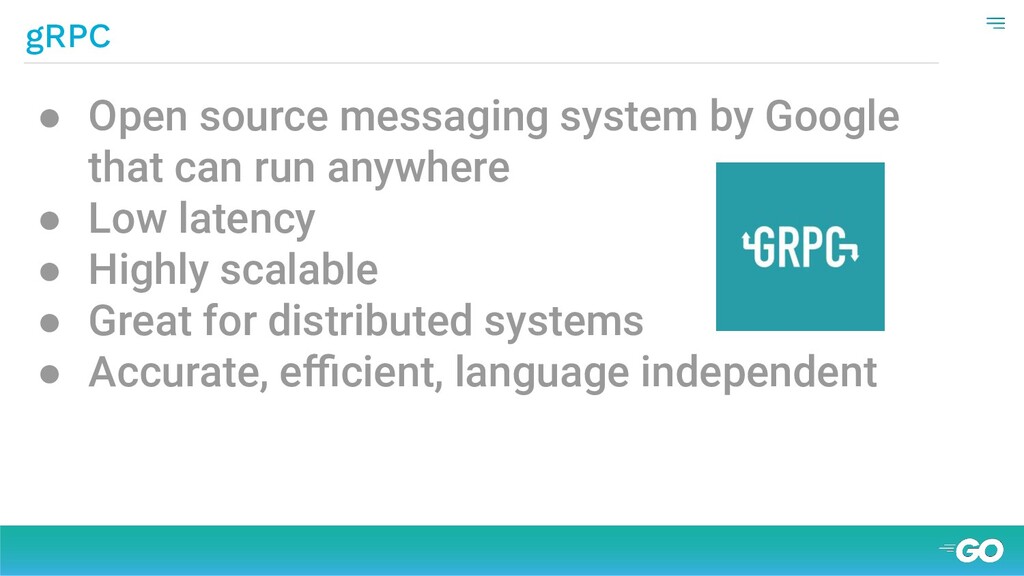

29. gRPC • Open source messaging system by Google that can run anywhere • Low latency • Highly scalable • Great for distributed systems • Accurate, efficient, language independent
30. Adopted by many (and more)
31. Let’s do it Implementation
32. echo.proto

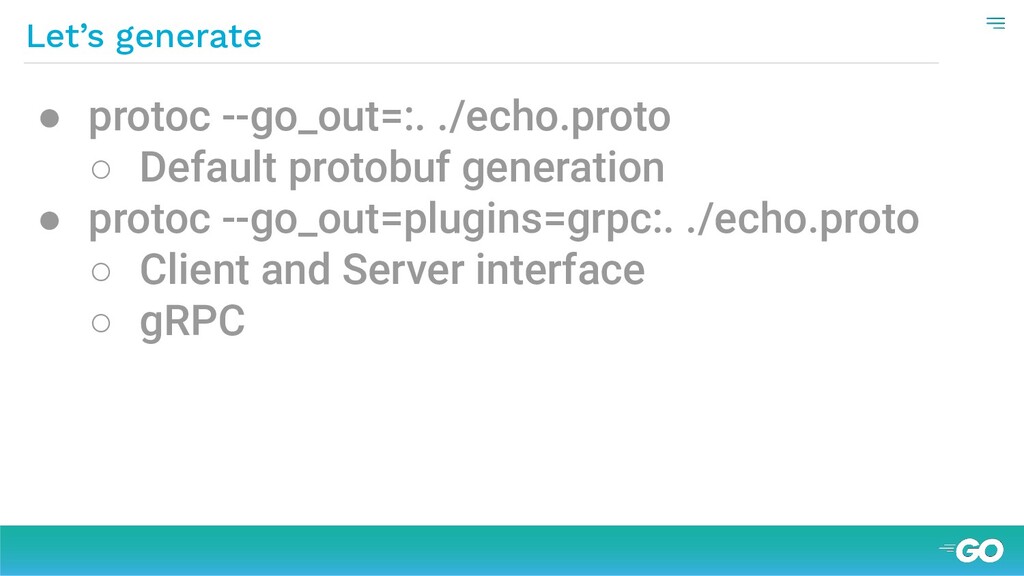

33. Let’s generate • protoc --go_out=:. ./echo.proto ◦ Default protobuf generation • protoc --go_out=plugins=grpc:. ./echo.proto ◦ Client and Server interface ◦ gRPC
34. Success!
35. Server
36. Generated Interface

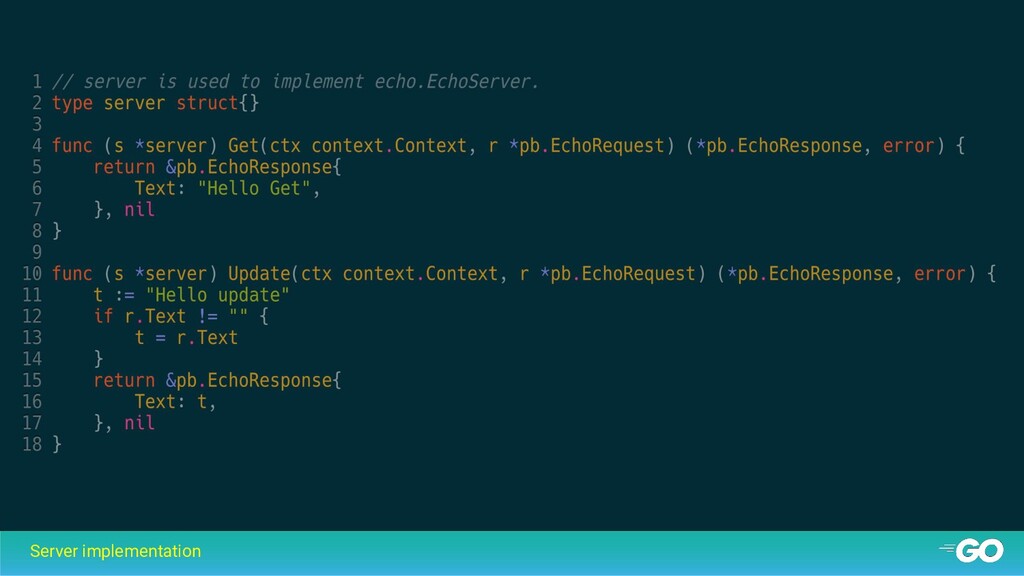

37. Server implementation

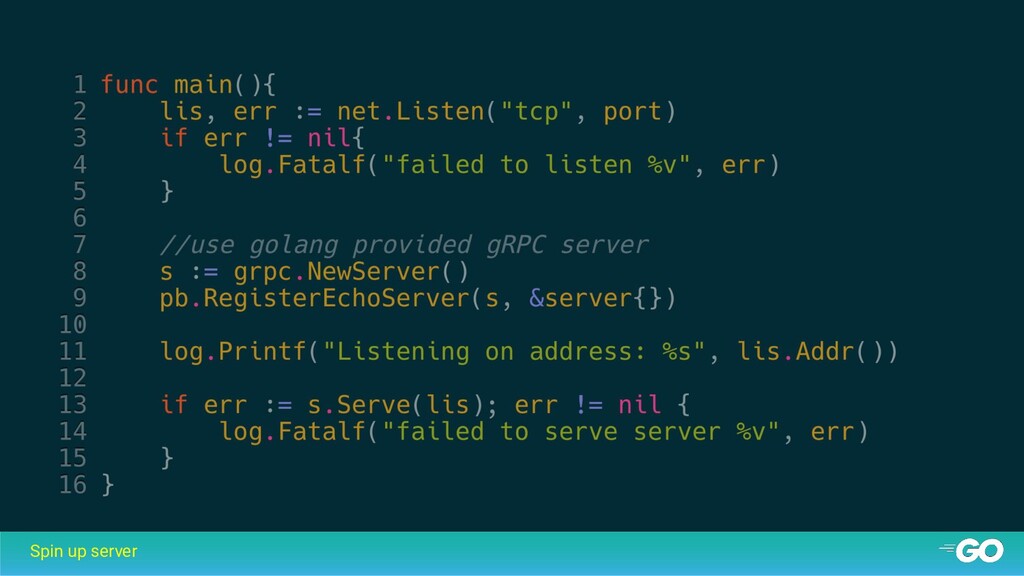

38. Server Spin up server
39. Client
40. Client interface
41. Client
42. So far • Server • Client
43. New Requirement Logging

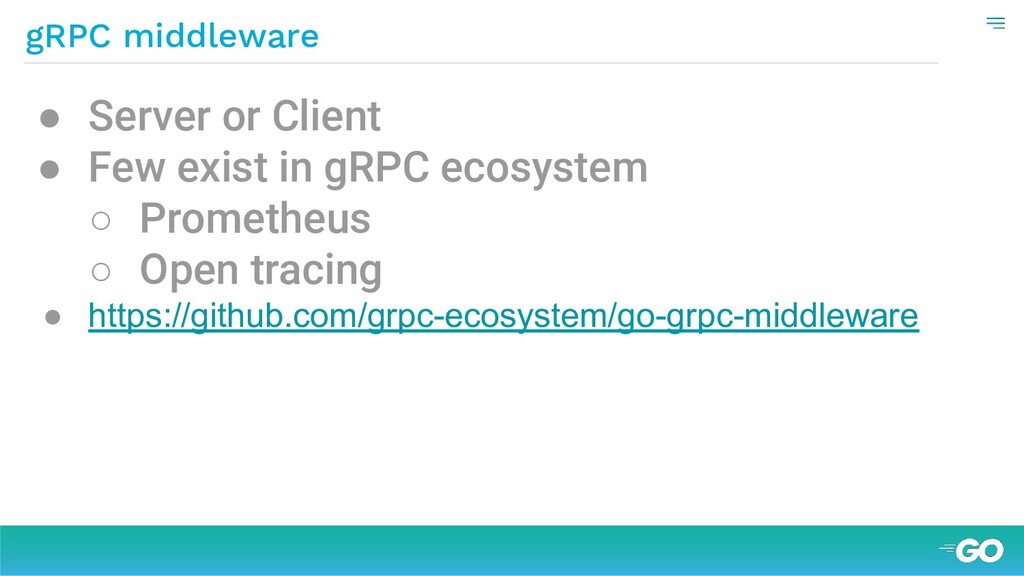

44. gRPC middleware • Server or Client • Few exist in gRPC ecosystem ◦ Prometheus ◦ Open tracing • https://github.com/grpc-ecosystem/go-grpc-middleware
45. How?
46. gRPC middleware
47. >1 interceptor?
48. Directory structure • Client & server implementation • echo.pb.go ◦ gRPC generated • echo.proto ◦ API definition
49. Helpful tools
50. grpcurl • “curl” for gRPC • Requires server reflection
52. Examples

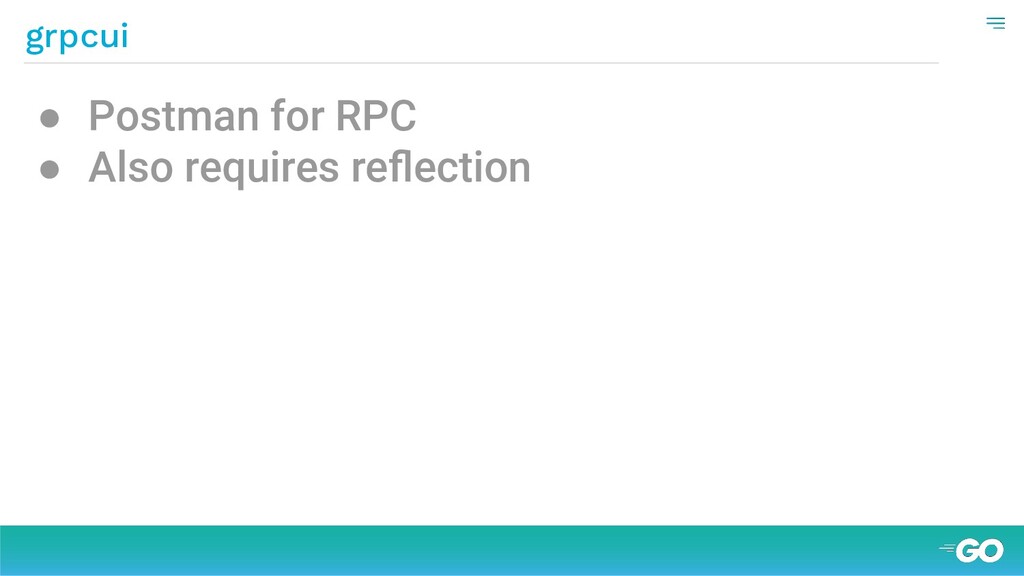

53. grpcui • Postman for RPC • Also requires reflection
56. Remember this?
57. gRPC gateway • Have .proto file? ◦ Get free REST API (in few simple steps) ◦ Make sure you go get plugin ◦ protoc --go_out=plugins=grpc:. --grpc-gateway_out=logtostderr=true,grpc_api_configuration=./router.yaml :. ./echo.proto
58. gRPC Gateway

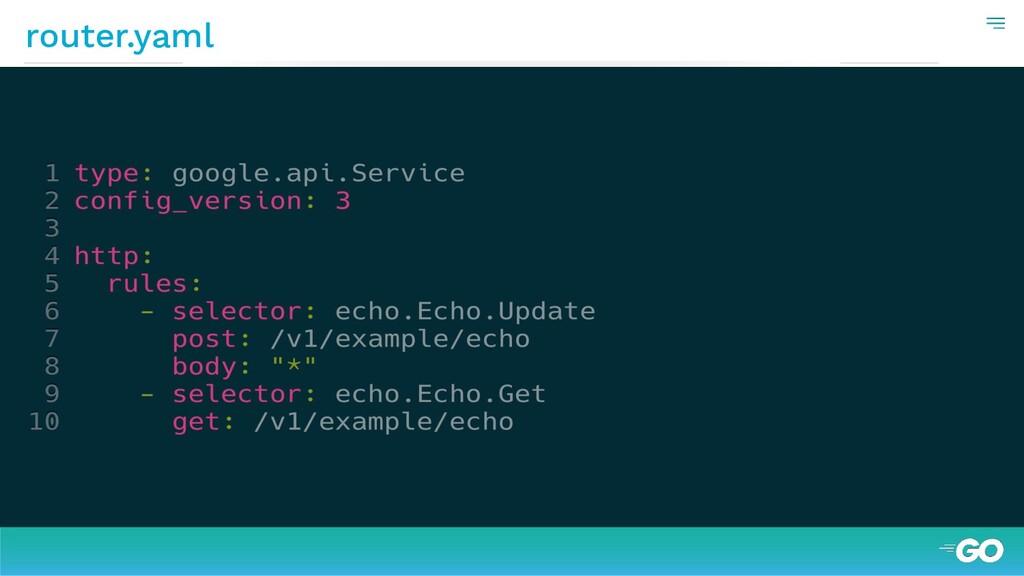

59. router.yaml

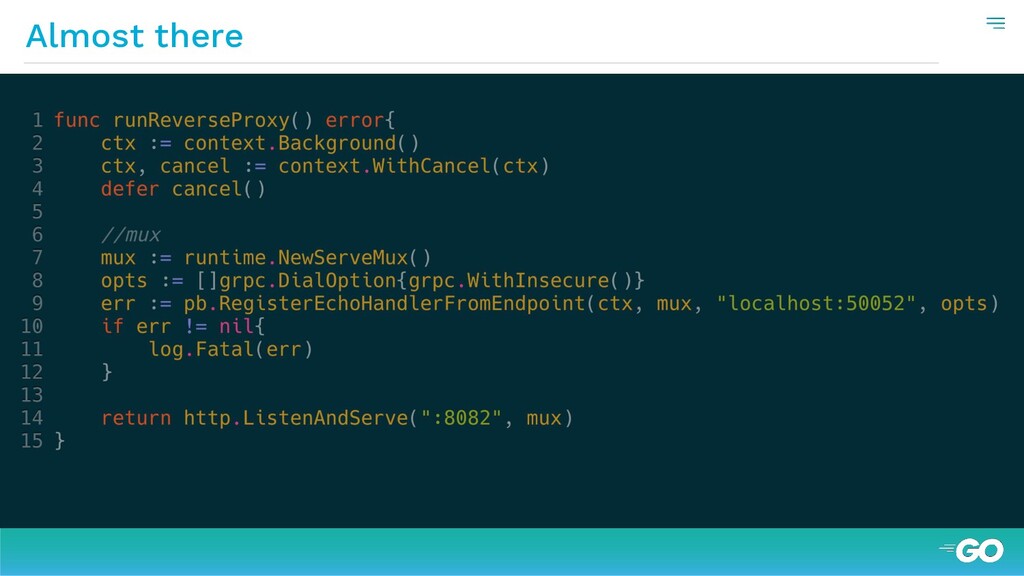

60. Almost there
61. New directory structure • *.pb.gw.go ◦ Reverse proxy
62. Final thoughts The good • Code generation ◦ Less error prone • API spec ◦ OpenAPI • gRPC ◦ HTTP2 + language support • Type safety • Plugins • Dev ramp up speed The bad • Code generation • Model conversions ◦ Nested messages • Hard/scary to get started ◦ Documentation • API versioning • gRPC Gateway silent failure
63. TL;DR • Use gRPC + Go ◦ Microservices • Generate code • Implement stubs • Profit

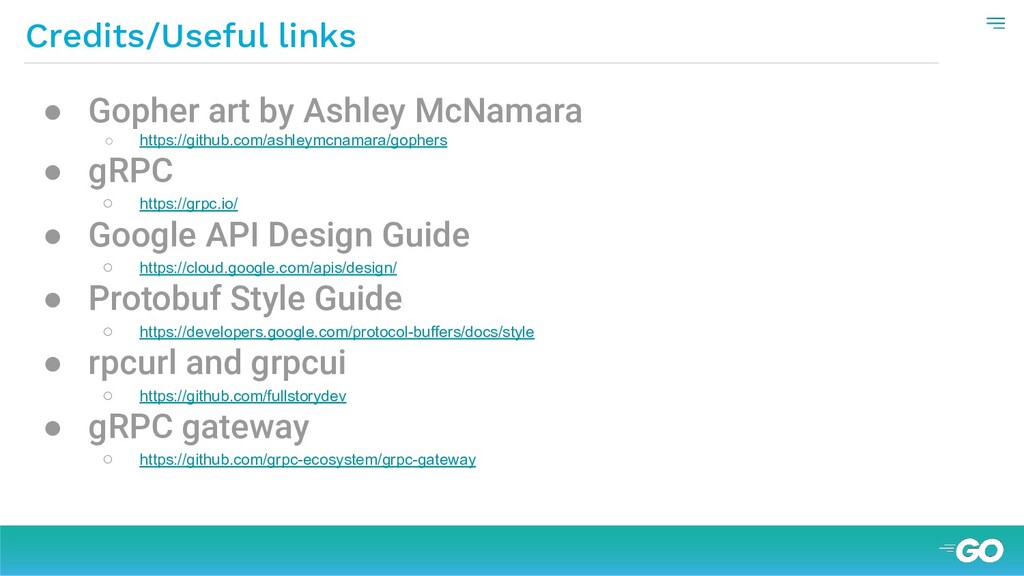

64. Credits/Useful links • Gopher art by Ashley McNamara ◦ https://github.com/ashleymcnamara/gophers • gRPC ◦ https://grpc.io/ • Google API Design Guide ◦ https://cloud.google.com/apis/design/ • Protobuf Style Guide ◦ https://developers.google.com/protocol-buffers/docs/style • rpcurl and grpcui ◦ https://github.com/fullstorydev • gRPC gateway ◦ https://github.com/grpc-ecosystem/grpc-gateway
65. Questions? @yuriytuz
